Intel HD Graphics 520

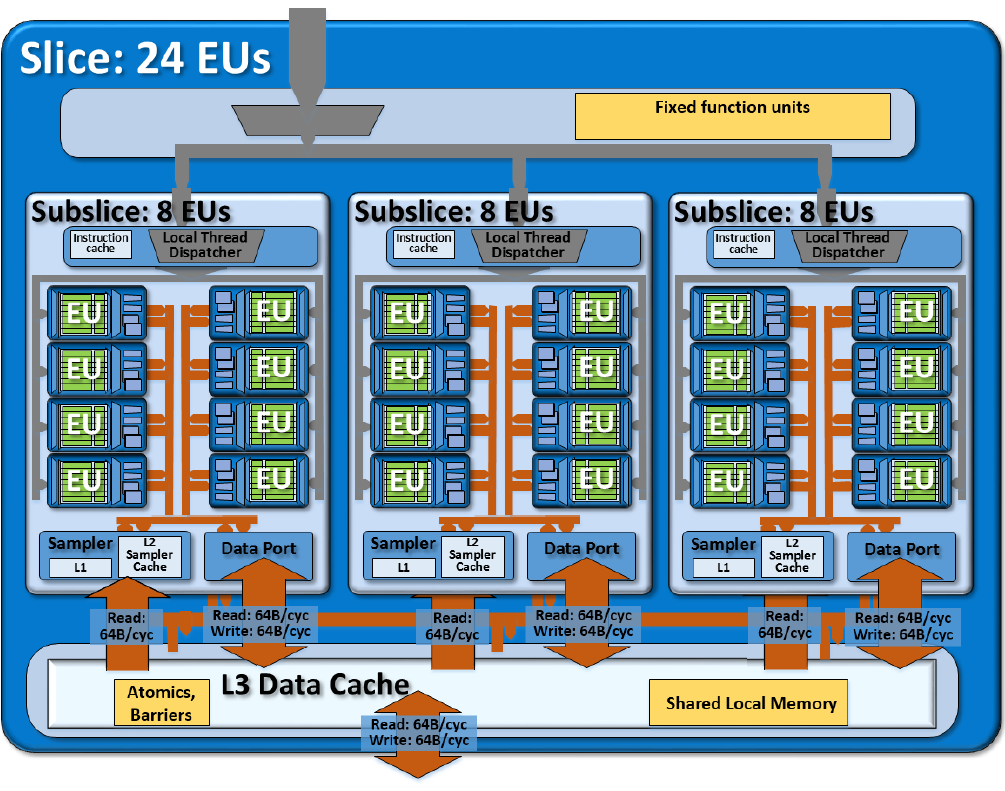

De Intel HD Graphics 520 (GT2) is een geïntegreerde grafische kaart die aangetroffen wordt in uiteenlopende ULV (Ultra-Low-Voltage) processors van de Skylake-generatie. De 'GT2'-versie van de Skylake-GPU biedt 24 Execution Units (EU's) geklokt aan maximaal 1050 MHz (afhankelijk van het CPU-model). De HD 520 mist dedicated grafisch geheugen of een eDRAM-cache, waardoor de GPU in plaats gebruik maakt van het hoofdgeheugen (2x 64-Bit DDR3L-1600/DDR4-2133).
De precieze performance van de Iris Graphics 520 hangt af van uiteenlopende factoren zoals de grootte van het L3-cache, het geheugen (DDR3/DDR4) en de maximumkloksnelheid van het specifieke model. De snelste versies (Core i7-6600U) zouden gelijkaardig moeten zijn aan een dedicated GeForce 820M en moderne games (2015) aankunnen in lage of gemiddelde instellingen.
De herziene video-engine kan nu H.265/HEVC volledig in hardware decoderen wat veel efficiënter is dan voordien. Schermen kunnen aangesloten worden via DP 1.2/eDP 1.3 (max. 3840 x 2160 @ 60 Hz), terwijl HDMI beperkt is tot de oudere versie 1.4a (max. 3840 x 2160 @ 30 Hz). HDMI 2.0 kan toegevoegd worden via een DisplayPort-converter. De GPU is in staat om maximaal drie schermen tegelijk aan te sturen.
De Iris Graphics 520 kan aangetroffen worden in laptops-processors met een TDP van 15 Watt en is daarom geschikt voor compacte laptops en ultrabooks.
Gen. 9 Serie Iris Pro Graphics P580 72 @ 0.35 - 1.1 GHz eDRAM + 64/128 bit Iris Pro Graphics 580 72 @ 0.35 - 1.05 GHz eDRAM + 64/128 bit Iris Graphics 550 48 @ 0.3 - 1.1 GHz eDRAM + 64/128 bit Iris Graphics 540 48 @ 0.3 - 1.05 GHz eDRAM + 64/128 bit HD Graphics 530 24 @ 0.35 - 1.15 GHz 64/128 bit HD Graphics 520 24 @ 0.3 - 1.05 GHz 64/128 bit HD Graphics 515 24 @ 0.3 - 1 GHz 64/128 bit UHD Graphics 610 12 @ 0.3 - 0.95 GHz 64/128 bit HD Graphics 610 12 @ 0.3 - 0.95 GHz 64/128 bit HD Graphics 510 12 @ 0.3 - 0.95 GHz 64/128 bit UHD Graphics 605 18 @ 0.3 - 0.75 GHz 64/128 bit HD Graphics 505 18 @ 0.3 - 0.75 GHz 64/128 bit UHD Graphics 600 12 @ 0.3 - 0.7 GHz 64/128 bit HD Graphics 500 12 @ 0.3 - 0.7 GHz 64/128 bit
Codenaam Skylake GT2 Architectuur Gen. 9 Skylake Pipelines 24 - verenigd Core-snelheid 300 - 1050 (Boost) MHz Geheugenbusbreedte 64/128 bit Geheugentype DDR3/DDR4 Gedeeld geheugen ja API DirectX 12_1, OpenGL 4.4 technologie 14 nm Faciliteiten QuickSync Aangekondigde datum 01.09.2015
Benchmarks Performance Rating - 3DMark 11 + Fire Strike + Time Spy
3.8 pt (4%)
...
AMD Radeon R5 (Carrizo) -4%
Qualcomm Adreno 690 -3%
AMD Radeon R7 M260 -2%
AMD Radeon R7 M340 -1%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 1%
NVIDIA Quadro K620M 4%
AMD Radeon R7 M460 4%
...
3DMark - 3DMark Time Spy Score
297 Points (1%)
Intel UHD Graphics 605 -57%
...
Intel UHD Graphics 610 -25%
Intel HD Graphics 610 -25%
AMD Radeon R4 (Stoney Ridge) -23%
Intel UHD Graphics 615 -7%
AMD Radeon R6 (Carrizo) 1%
Intel UHD Graphics 617 14%
Intel UHD Graphics (Jasper Lake 24 EU) 20%
...
3DMark - 3DMark Time Spy Graphics
263 Points (1%)
Intel UHD Graphics 605 -57%
...
Intel UHD Graphics 610 -26%
Intel HD Graphics 610 -26%
AMD Radeon R4 (Stoney Ridge) -22%
Intel UHD Graphics 615 -7%
AMD Radeon R6 (Carrizo) 4%
Intel UHD Graphics 617 14%
Intel UHD Graphics (Jasper Lake 24 EU) 19%
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 50874 gem: 70431 mediaan: 73656 (9%) max: 88058 Points
...
Intel UHD Graphics 615 -13%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -6%
AMD Radeon R8 M365DX -4%
AMD Radeon R7 M340 -2%
AMD Radeon R5 M335 0%
NVIDIA Quadro T2000 Max-Q 7%
Intel UHD Graphics 617 10%
...
3DMark - 3DMark Ice Storm Extreme Graphics
min: 27001 gem: 38067 mediaan: 39969 (5%) max: 49514 Points
...
NVIDIA Quadro P2000 Max-Q -5%
AMD Radeon R5 (Bristol Ridge) -3%
AMD Radeon R7 M460 2%
NVIDIA GeForce GTX 1050 Ti Max-Q 4%
AMD Radeon R6 M340DX 6%
AMD Radeon R7 (Carrizo) 8%
...
NVIDIA GeForce RTX 3080 Laptop GPU 991%
3DMark - 3DMark Cloud Gate Score
min: 3915 gem: 5379 mediaan: 5357.5 (6%) max: 6737 Points
...
AMD Radeon R5 (Bristol Ridge) -7%
AMD Radeon R7 M340 -1%
AMD Radeon R8 M365DX -1%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 8%
...
3DMark - 3DMark Cloud Gate Graphics
min: 4724 gem: 6747 mediaan: 6700.5 (3%) max: 8842 Points
...
AMD Radeon R7 (Carrizo) -4%
NVIDIA GeForce 910M -2%
AMD Radeon R7 M340 5%
AMD Radeon R6 M255DX 6%
Intel UHD Graphics 617 7%
...
3DMark - 3DMark Fire Strike Standard Score
min: 536 gem: 748 mediaan: 752 (2%) max: 961 Points
...
Intel UHD Graphics 615 -2%
AMD Radeon R5 M335 10%
...
3DMark - 3DMark Fire Strike Standard Graphics
min: 564 gem: 800 mediaan: 803.5 (1%) max: 1056 Points
...
Intel UHD Graphics 615 3%
...
3DMark - 3DMark Ice Storm Graphics
min: 633 gem: 56112 mediaan: 56183 (7%) max: 82961 Points
...
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -3%
AMD Radeon R8 M365DX -3%
AMD Radeon RX 550X (Laptop) -2%
...
3DMark 11 - 3DM11 Performance Score
min: 1135 gem: 1433 mediaan: 1435.5 (3%) max: 1700 Points
...
AMD Radeon HD 6720G2 -2%
NVIDIA GeForce 910M 0%
AMD Radeon HD 6755G2 6%
AMD Radeon R6 (Carrizo) 10%
...
3DMark 11 - 3DM11 Performance GPU
min: 1060 gem: 1296 mediaan: 1293.5 (2%) max: 1520 Points
...
...
3DMark Vantage + 3DMark Vantage - 3DM Vant. Perf. total
min: 4381 gem: 5299 mediaan: 5722 (2%) max: 5884 Points
...
AMD Radeon R7 M460 0%
AMD Radeon HD 6750M 1%
AMD Radeon R7 M260 2%
AMD Radeon R7 M340 2%
AMD Radeon R7 M360 5%
...
3DM Vant. Perf. GPU no PhysX + 3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 3680 gem: 4547 mediaan: 4966 (3%) max: 5052 Points
...
AMD Radeon R6 (Carrizo) -3%
AMD Radeon R7 (Carrizo) -3%
AMD Radeon HD 6750M 0%
AMD Radeon R7 M340 1%
AMD Radeon R7 M460 2%
AMD Radeon R5 M240 5%
AMD Radeon R7 M260 5%
...
3DMark 2001SE - 3DMark 2001 - Standard
min: 20229 gem: 23729 mediaan: 23728.5 (25%) max: 27228 Points
...
NVIDIA Quadro NVS 5100M 4%
...
NVIDIA GeForce GTX 1080 Max-Q 192%
3DMark 03 - 3DMark 03 - Standard
min: 14683 gem: 17873 mediaan: 18240 (10%) max: 20522 Points
VIA S3 Graphics ProSavage8 -100%
...
NVIDIA GeForce GT 525M -1%
...
3DMark 05 - 3DMark 05 - Standard
min: 9082 gem: 11565 mediaan: 10910 (12%) max: 15357 Points
...
Intel HD Graphics 610 -1%
Intel UHD Graphics 610 4%
...
NVIDIA GeForce RTX 3060 Laptop GPU 322%
3DMark 06 3DMark 06 - Standard 1280x1024 +
min: 5463 gem: 8344 mediaan: 8656 (13%) max: 9977 Points
...
AMD Radeon R7 M360 -1%
AMD Radeon R7 M460 3%
Intel UHD Graphics 617 4%
...
3DMark 06 - Standard 1280x720 +
6847 Points (10%)
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 65%
Intel UHD Graphics G1 (Ice Lake 32 EU) 81%
SPECviewperf 11 + SPECviewperf 11 - specvp11 snx-01
min: 2.06 gem: 2.3 mediaan: 2.3 (2%) max: 2.58 fps
...
NVIDIA GeForce GTX 485M SLI -6%
NVIDIA GeForce GT 525M 0%
NVIDIA GeForce GTX 765M 3%
NVIDIA NVS 4200M 7%
...
NVIDIA Quadro M4000M 4752%
specvp11 tcvis-02 + SPECviewperf 11 - specvp11 tcvis-02
min: 2.32 gem: 2.9 mediaan: 2.9 (5%) max: 3.45 fps
...
AMD Radeon HD 6755G2 -2%
NVIDIA GeForce GTX 1050 Ti Mobile 0%
AMD Radeon R5 M330 4%
...
NVIDIA Quadro M4000M 1929%
specvp11 sw-02 + SPECviewperf 11 - specvp11 sw-02
min: 13.26 gem: 15.9 mediaan: 15.7 (19%) max: 18.81 fps
...
...
AMD FirePro W7170M 366%
specvp11 proe-05 + SPECviewperf 11 - specvp11 proe-05
min: 1.99 gem: 2.4 mediaan: 2.4 (10%) max: 2.81 fps
...
AMD Radeon HD 6730M -5%
...
specvp11 maya-03 + SPECviewperf 11 - specvp11 maya-03
min: 10.4 gem: 17.4 mediaan: 17.1 (13%) max: 23.97 fps
...
AMD FirePro W5130M 4%
NVIDIA GeForce GTX 1070 Max-Q 7%
NVIDIA GeForce GTX 1050 Ti Mobile 16%
...
NVIDIA Quadro M4000M 527%
specvp11 lightwave-01 + SPECviewperf 11 - specvp11 lightwave-01
min: 15.49 gem: 19.4 mediaan: 19.8 (21%) max: 23.36 fps
...
AMD Radeon R7 M340 -1%
NVIDIA GeForce GTX 765M 0%
...
AMD FirePro W7170M 332%
specvp11 ensight-04 + SPECviewperf 11 - specvp11 ensight-04
min: 2.39 gem: 2.9 mediaan: 2.9 (1%) max: 3.3 fps
...
Intel HD Graphics 630 28%
...
NVIDIA GeForce GTX 1070 Max-Q 5501%
SPECviewperf 12 + SPECviewperf 12 - specvp12 sw-03
22.6 fps (10%)
...
AMD Radeon RX Vega 10 5%
...
NVIDIA Quadro P5200 809%
specvp12 snx-02 + SPECviewperf 12 - specvp12 snx-02
3 fps (1%)
...
...
NVIDIA Quadro P5200 7215%
specvp12 showcase-01 + SPECviewperf 12 - specvp12 showcase-01
6.1 fps (2%)
...
AMD Radeon R7 M260X -21%
AMD Radeon Pro WX 3100 3%
NVIDIA Quadro K620M 4%
...
specvp12 mediacal-01 + SPECviewperf 12 - specvp12 mediacal-01
1.7 fps (1%)
...
...
specvp12 maya-04 + SPECviewperf 12 - specvp12 maya-04
10.9 fps (3%)
...
AMD Radeon RX Vega 10 -45%
AMD Radeon R7 M260X -23%
AMD Radeon Pro WX 3100 -4%
NVIDIA Quadro K620M 10%
...
specvp12 energy-01 + SPECviewperf 12 - specvp12 energy-01
0.1 fps (0%)
...
AMD Radeon R7 M260X 0%
AMD Radeon Pro 455 217%
...
specvp12 creo-01 + SPECviewperf 12 - specvp12 creo-01
10.2 fps (5%)
...
...
NVIDIA Quadro P5200 1437%
specvp12 catia-04 + SPECviewperf 12 - specvp12 catia-04
11.6 fps (4%)
...
AMD Radeon RX Vega 10 -4%
...
NVIDIA Quadro P5200 1557%
Cinebench R10 Cinebench R10 Shading (32bit) + Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4559 gem: 7464 mediaan: 7578 (5%) max: 9184 punten
...
AMD Radeon 540X 1%
AMD Radeon RX Vega 10 3%
AMD Radeon R7 M445 4%
...
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit + Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 7.25 gem: 29.5 mediaan: 30.1 (11%) max: 41.82 fps
...
Intel UHD Graphics Xe 750 32EUs (Rocket Lake) -5%
Intel UHD Graphics Xe G4 48EUs -2%
...
Cinebench R15 + Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 23.59 gem: 36.7 mediaan: 37 (10%) max: 45.76 fps
