Kort testrapport Lenovo ThinkPad X1 Carbon 20FB-005XUS Notebook

Carbon-voetafdruk. We vergelijken onze tweede, meer betaalbare versie met Core i5 FHD met de duurdere variant (Core i7 WQHD) om te achterhalen of de lagere prijs de vermindering in het aantal pixels en prestaties waard is.
Lenovo ThinkPad X1 Carbon 20FB-005XUS (ThinkPad X1 Serie)
Processor

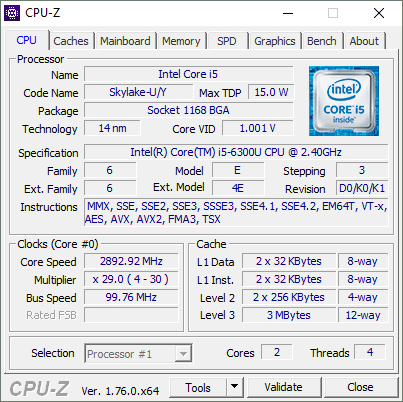

Intel Core i5-6300U 2 x 2.4 - 3 GHz, Skylake
Grafische kaart
Intel HD Graphics 520, Core: 300 MHz, Geheugen: 933 MHz, 20.19.15.4380

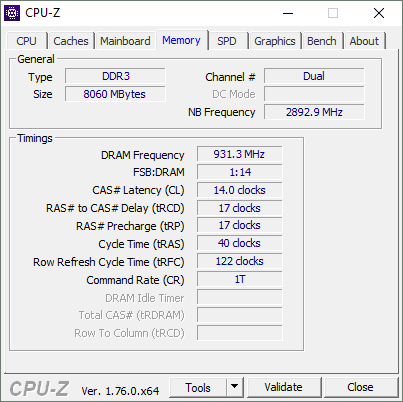

Geheugen
8192 MB
, LPDDR3, dual-channel, 10-10-10-28, 1066.7 MHz maximum
Beeldscherm
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, IPS, Name: Lenovo B140HAN01.7, ID: LEN40A9, glimmend: nee

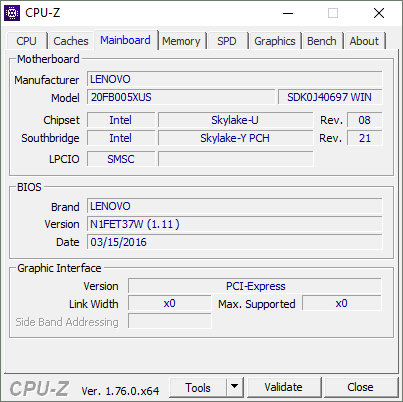

Moederbord
Intel Skylake-U Premium PCH
Opslag
Samsung SM951 MZVPV256 m.2, 256 GB
Geluidskaart
Intel Skylake-U/Y PCH - High Definition Audio
Verbindingen
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm hoofdtelefoon, Card Reader: MicroSD, 1 Vingerafdruklezer, Brightness Sensor
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 16.5 x 333 x 229
Batterij
52 Wh Lithium-Polymer, geïntegreerd
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p fix-focus
Bijkomende functionaliteiten
Luidsprekers: Stereo (2x 1W), Toetsenbord: Chiclet, Toetsenbordverlichting: ja, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo PC Experience, Lenovo Companion, 12 Maanden Garantie
Gewicht
1.189 kg, Voeding: 346 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

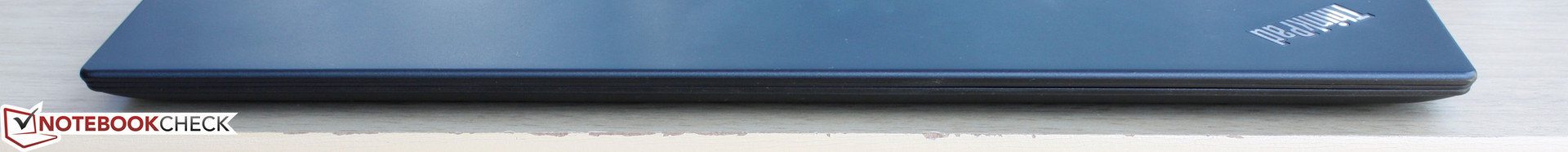

Front: no interfaces
Front: no interfaces

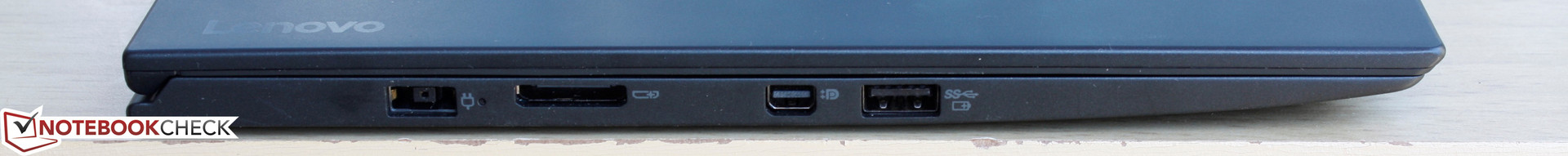

Left: power adapter, OneLink+, Mini DisplayPort 1.2, USB 3.0
Left: power adapter, OneLink+, Mini DisplayPort 1.2, USB 3.0

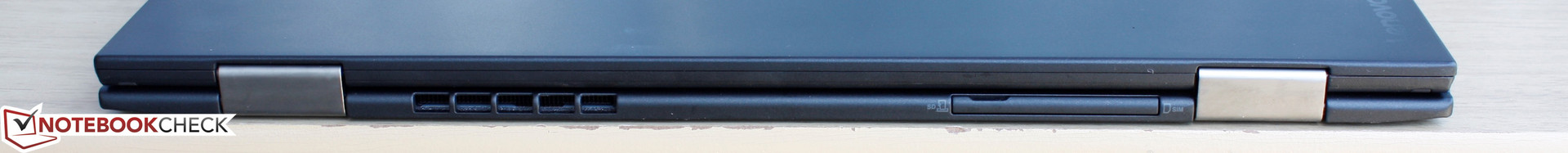

Rear: MicroSD slot, SIM slot
Rear: MicroSD slot, SIM slot

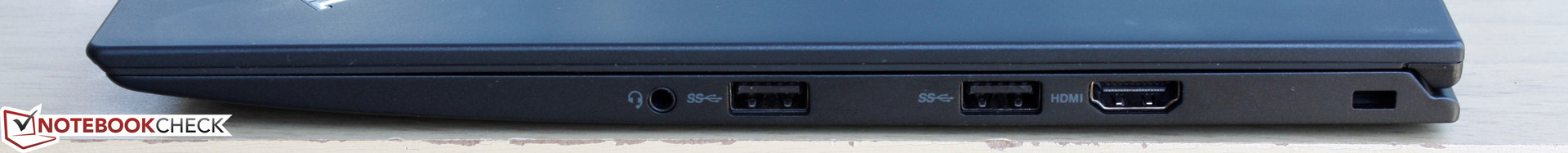

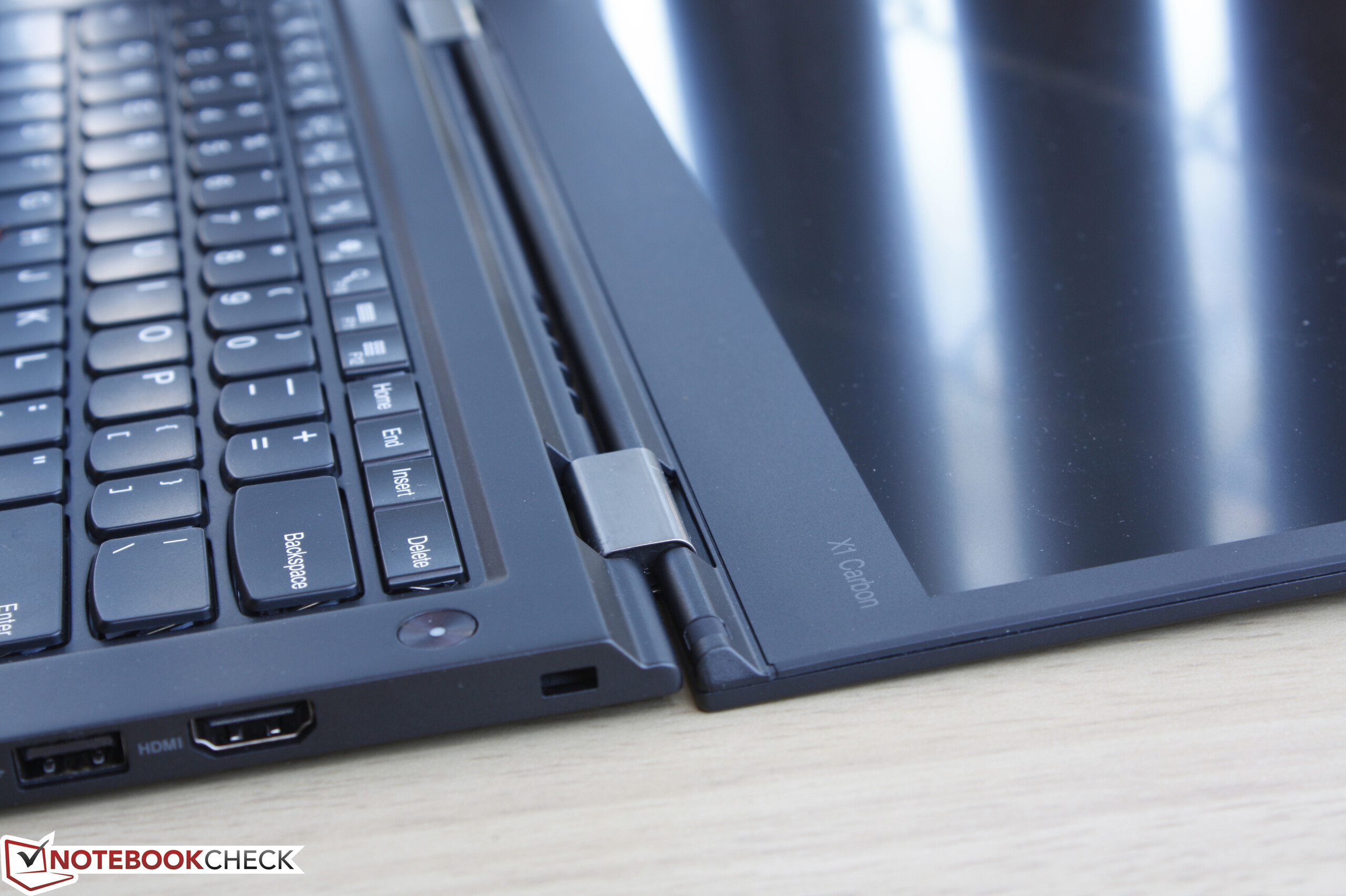

Right: 3.5 mm audio, 2x USB 3.0, HDMI 1.4, Kensington Lock
Right: 3.5 mm audio, 2x USB 3.0, HDMI 1.4, Kensington Lock
288.7
cd/m²
306.5
cd/m²
297.7
cd/m²
295.4
cd/m²
321.7
cd/m²
287.9
cd/m²
297.4
cd/m²
310.4
cd/m²
299.7
cd/m²
Helderheidsverdeling
X-Rite i1Pro Basic 2
Maximum: 321.7 cd/m² Gemiddelde: 300.6 cd/m² Minimum: 2.379 cd/m²
Helderheidsverdeling: 89 %
Helderheid in Batterij-modus: 321.7 cd/m²
Contrast: 1094:1 (Zwart: 0.294 cd/m²)
ΔE Color 3.96 | 0.6-29.43 Ø5.7
ΔE Greyscale 3.15 | 0.64-98 Ø5.9
82.7% sRGB (Argyll 3D) 53.8% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.34
Lenovo ThinkPad X1 Carbon 20FB-005XUS
14.00, 1920x1080
Lenovo ThinkPad X1 Carbon 20FB003RGE
14.00, 2560x1440
Lenovo ThinkPad T460s-20FA003GGE
14.00, 2560x1440
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
14.00, 2560x1440
HP ProBook 440 G3
14.00, 1920x1080
Response Times
10%
10%
5%
2%
Response Time Grey 50% / Grey 80% *
47.2 (18.8, 28.4)
44 (17, 27)
7%
35.6 (17.2, 18.4)
25%
38 (15.2, 22.8)
19%
46 (24, 22)
3%
Response Time Black / White *
27.6 (4.4, 23.2)
24 (5.2, 18.8)
13%
29.2 (14.4, 14.8)
-6%
30.4 (6, 24.4)
-10%
27.6 (11.2, 16.4)
-0%
PWM Frequency
220 (90)
220 (90)
219 (99)
Screen
2%
-15%
-27%
-62%
Brightness middle
321.7
272
-15%
257
-20%
284.7
-12%
246
-24%
Brightness
301
268
-11%
248
-18%
272
-10%
215
-29%
Brightness Distribution
89
95
7%
94
6%
89
0%
84
-6%
Black Level *
0.294
0.32
-9%
0.26
12%
0.383
-30%
0.5
-70%
Contrast
1094
850
-22%
988
-10%
743
-32%
492
-55%
Colorchecker DeltaE2000 *
3.96
2.61
34%
4.59
-16%
5.24
-32%
8.6
-117%
Colorchecker DeltaE2000 max. *
6.69
6.43
4%
9.72
-45%
11.22
-68%
Greyscale DeltaE2000 *
3.15
3.31
-5%
6.38
-103%
7.32
-132%
9.36
-197%
Gamma
2.34 94%
2.35 94%
2.51 88%
2.22 99%
2.39 92%
CCT
7082 92%
6360 102%
6238 104%
6277 104%
11226 58%
Color Space (Percent of AdobeRGB 1998)
53.8
63
17%
65
21%
70.17
30%
37.8
-30%
Color Space (Percent of sRGB)
82.7
95
15%
98
19%
94.68
14%
59.1
-29%
Totaal Gemiddelde (Programma / Instellingen)
6% / 3%
-3% / -11%
-11% / -22%
-30% / -50%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

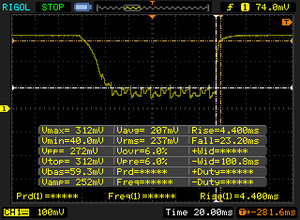

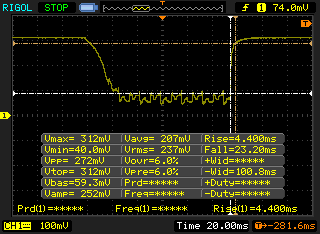

       Responstijd Zwart naar Wit
27.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 4.4 ms stijging
↘ 23.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 58 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.4 ms) van alle geteste toestellen.

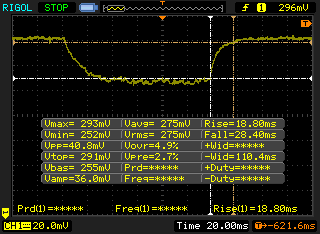

       Responstijd 50% Grijs naar 80% Grijs
47.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18.8 ms stijging
↘ 28.4 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 75 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.7 ms) van alle geteste toestellen.

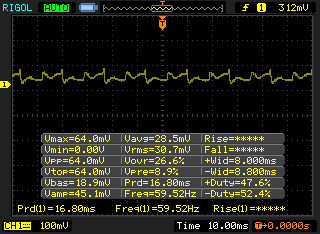

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9725 (minimum: 5 - maximum: 142900) Hz waargenomen.


Cinebench R15
CPU Single 64Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
91 Points ∼33%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
128 Points ∼47% +41%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
150 Points ∼55% +65%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
118 Points ∼43% +30%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
99 Points ∼36% +9%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
91 Points ∼33% 0%
CPU Multi 64Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
301 Points ∼7%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
310 Points ∼7% +3%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
684 Points ∼15% +127%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
292 Points ∼7% -3%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
223 Points ∼5% -26%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
257 Points ∼6% -15%
Cinebench R11.5
CPU Single 64Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
1.1 Points ∼35%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1.47 Points ∼47% +34%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
1.7 Points ∼54% +55%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
1.32 Points ∼42% +20%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
1.14 Points ∼36% +4%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
1.03 Points ∼33% -6%
CPU Multi 64Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
3.38 Points ∼7%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3.46 Points ∼7% +2%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
7.52 Points ∼15% +122%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
3.23 Points ∼7% -4%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
2.49 Points ∼5% -26%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2.83 Points ∼6% -16%
Cinebench R10
Rendering Multiple CPUs 32Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
7812 Points ∼12%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
10958 Points ∼17% +40%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
20383 Points ∼31% +161%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
10020 Points ∼15% +28%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
7580 Points ∼12% -3%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
6550 Points ∼10% -16%
Rendering Single 32Bit (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
4573 Points ∼41%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4882 Points ∼44% +7%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
5529 Points ∼49% +21%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
4399 Points ∼39% -4%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
3725 Points ∼33% -19%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
4168 Points ∼37% -9%
wPrime 2.10 - 1024m (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
504.835 s * ∼6%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
330.303 s * ∼4% +35%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
566.013 s * ∼7% -12%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
790 s * ∼9% -56%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
567.765 s * ∼7% -12%
Super Pi Mod 1.5 XS 32M - 32M (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
753.883 s * ∼3%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
642.835 s * ∼3% +15%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
544.856 s * ∼2% +28%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
712.173 s * ∼3% +6%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
849 s * ∼4% -13%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
818.369 s * ∼4% -9%
3DMark 11 - 1280x720 Performance Physics (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
4173 Points ∼17%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4243 Points ∼17% +2%
Asus GL552VW-DK725T
GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4
8861 Points ∼36% +112%
HP ProBook 430 G3 P4N86EA
HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB
3055 Points ∼13% -27%
Lenovo IdeaPad Z40-59422614
GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
3204 Points ∼13% -23%
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
3300 Points ∼14% -21%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
7976
Cinebench R10 Rendering Multiple CPUs 32Bit
7812
Cinebench R10 Rendering Single 32Bit
4573
Cinebench R11.5 OpenGL 64Bit
33.1 fps
Cinebench R11.5 CPU Multi 64Bit
3.38 Points
Cinebench R11.5 CPU Single 64Bit
1.1 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
39.03 fps
Cinebench R15 CPU Multi 64Bit
301 Points
Cinebench R15 CPU Single 64Bit
91 Points
Help
PCMark 8
Work Score Accelerated v2 (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
3944 Points ∼58%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4342 Points ∼64% +10%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points ∼63% +8%
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points ∼67% +15%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points ∼65% +13%
Creative Score Accelerated v2 (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
3989 Points ∼34%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4150 Points ∼36% +4%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4338 Points ∼37% +9%
Home Score Accelerated v2 (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
3237 Points ∼52%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3385 Points ∼55% +5%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points ∼52% 0%
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points ∼54% +3%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points ∼57% +9%
PCMark 8 Home Score Accelerated v2
3237 punten
PCMark 8 Creative Score Accelerated v2
3989 punten
PCMark 8 Work Score Accelerated v2
3944 punten
Help
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
HP EliteBook 840 G3 T8X41EA
HD Graphics 520, 6600U, Samsung SSD 850 EVO 500GB
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
AS SSD
-31%
20%
-45%
-57%
Copy Game MB/s
597.8
791.43
32%
236.38
-60%
Copy Program MB/s
354.91
421.86
19%
196.5
-45%
Copy ISO MB/s
708.94
1135.44
60%
258.42
-64%
Score Total
1976
1125
-43%
2439
23%
1068
-46%
913
-54%
Score Write
552
436
-21%
621
13%
382
-31%
283
-49%
Score Read
960
447
-53%
1218
27%
449
-53%
417
-57%
Access Time Write *
0.036
0.034
6%
0.033
8%
0.046
-28%
0.04
-11%
Access Time Read *
0.043
0.053
-23%
0.041
5%
0.058
-35%
0.113
-163%
4K-64 Write
338.29
290.83
-14%
366.01
8%
261.92
-23%
170
-50%
4K-64 Read
731.49
355.85
-51%
968.26
32%
369.15
-50%
336.08
-54%
4K Write
103.66
98.64
-5%
114.4
10%
75.65
-27%
85.05
-18%
4K Read
43.72
41.29
-6%
45.41
4%
30.35
-31%
30.91
-29%
Seq Write
1098.63
464
-58%
1407.23
28%
447.47
-59%
283.73
-74%
Seq Read
1850.69
498.62
-73%
2039.37
10%
490.13
-74%
495.53
-73%

* ... kleiner is beter

Samsung SM951 MZVPV256 m.2
Sequential Read: 1720 MB/s
Sequential Write: 1263 MB/s
512K Read: 1223 MB/s
512K Write: 1249 MB/s
4K Read: 49.65 MB/s
4K Write: 123 MB/s
4K QD32 Read: 464.6 MB/s
4K QD32 Write: 354.7 MB/s
3DMark 11
1280x720 Performance GPU (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
1227 Points ∼2%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1386 Points ∼2% +13%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
1748 Points ∼3% +42%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
1186 Points ∼2% -3%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
831 Points ∼1% -32%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
764 Points ∼1% -38%
1280x720 Performance (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
1396 Points ∼4%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1553 Points ∼4% +11%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
1823 Points ∼5% +31%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
1277 Points ∼3% -9%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
945 Points ∼2% -32%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
829 Points ∼2% -41%
3DMark
1920x1080 Fire Strike Graphics (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
826 Points ∼2%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
959 Points ∼2% +16%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
1162 Points ∼2% +41%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
735 Points ∼1% -11%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
716 Points ∼1% -13%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
539 Points ∼1% -35%
1920x1080 Fire Strike Score (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
772 Points ∼2%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
892 Points ∼2% +16%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
1045 Points ∼3% +35%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
682 Points ∼2% -12%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
641 Points ∼2% -17%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
510 Points ∼1% -34%
1280x720 Cloud Gate Standard Graphics (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
7031 Points ∼3%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
7516 Points ∼4% +7%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
7095 Points ∼3% +1%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
6078 Points ∼3% -14%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
5861 Points ∼3% -17%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
3317 Points ∼2% -53%
1280x720 Cloud Gate Standard Score (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
5659 Points ∼8%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5978 Points ∼8% +6%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
4926 Points ∼7% -13%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
4446 Points ∼6% -21%
Toshiba Tecra Z50 A-12K
HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT
4787 Points ∼6% -15%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
2071 Points ∼3% -63%
1920x1080 Ice Storm Extreme Graphics (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
43466 Points ∼6%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
38151 Points ∼5% -12%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
35690 Points ∼5% -18%
1920x1080 Ice Storm Extreme Score (sorteer op waarde)
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
41809 Points ∼16%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
38666 Points ∼15% -8%
Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1
32719 Points ∼13% -22%
3DMark 11 Performance
1396 punten
3DMark Ice Storm Standard Score
57713 punten
3DMark Cloud Gate Standard Score
5659 punten
3DMark Fire Strike Score
772 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 47.6 27.1 24.8 6.6 fps
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Noise
-2%
-9%
-1%
0%
-2%
off / environment *
28.8
29.1
-1%
31.2
-8%
29.2
-1%
28.8
-0%
31.2
-8%
Idle Minimum *
28.8
29.1
-1%
31.2
-8%
29.2
-1%
28.8
-0%
31.2
-8%
Idle Average *
28.9
29.1
-1%
32.1
-11%
29.2
-1%
28.8
-0%
31.2
-8%
Idle Maximum *
28.9
29.1
-1%
33.1
-15%
29.2
-1%
28.8
-0%
31.2
-8%
Load Average *
35
35.6
-2%
36.2
-3%
33.7
4%
35.2
-1%
31.9
9%
Load Maximum *
35.8
38.1
-6%
37.8
-6%
38.5
-8%
35.2
2%
31.9
11%

* ... kleiner is beter

Geluidsniveau

Onbelast
28.8 / 28.9 / 28.9 dB (A)
Belasting
35 / 35.8 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   BK Precision 732A (15 cm afstand)   environment noise: 28.8 dB(A)
Max. Belasting
 33.4 °C40 °C29.2 °C
 26.2 °C32.6 °C26.8 °C
 23.8 °C23.6 °C24.6 °C
Maximum: 40 °C
Gemiddelde: 28.9 °C
30.2 °C42.8 °C34 °C
26.2 °C29.4 °C27.4 °C
24.4 °C26 °C25.8 °C
Maximum: 42.8 °C
Gemiddelde: 29.6 °C
Stroomadapter (max.)  36 °C | Kamertemperatuur 20 °C | Fluke 62 Mini IR Thermometer
(+) The average temperature for the upper side under maximal load is 28.9 °C / 84 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.8 °C / 109 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.6 °C / 76.3 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+3.4 °C / 6.1 F).
Lenovo ThinkPad X1 Carbon 20FB-005XUS
HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Power Consumption
4%
15%
-2%
-19%
-2%
Idle Minimum *
7.6
3.8
50%
3.8
50%
3.8
50%
6.82
10%
5.1
33%
Idle Average *
9
7.1
21%
6.3
30%
7.1
21%
8.21
9%
8.5
6%
Idle Maximum *
9.6
7.7
20%
6.8
29%
7.8
19%
17.55
-83%
10.1
-5%
Load Average *
24.5
30.2
-23%
34.4
-40%
36.3
-48%
28.81
-18%
35.2
-44%
Load Maximum *
30.3
44.7
-48%
28.3
7%
46
-52%
34.07
-12%
31
-2%

* ... kleiner is beter

Stroomgebruik
Uit / Standbydarklight 0.2 / 0.22 Watt
Inactiefdarkmidlight 7.6 / 9 / 9.6 Watt
Belasting midlight 24.5 / 30.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X1 Carbon 20FB-005XUS
52 Wh
Lenovo ThinkPad X1 Carbon 20FB003RGE
52 Wh
HP EliteBook 840 G3 T9X59ET#ABD
46 Wh
Lenovo ThinkPad T460s-20FA003GGE
49 Wh
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
52 Wh
Batterijduur
6%
20%
-20%
1%
Reader / Idle
776
942
21%
1020
31%
833
7%
922
19%
WiFi v1.3
411
429
4%
453
10%
340
-17%
356
-13%
Load
123
115
-7%
146
19%
62
-50%
120
-2%
Batterijduur
Inactief (zonder WLAN, minimale helderheid)
12h 56min
NBC WiFi Websurfing Battery Test 1.3
6h 51min
Belast (maximale helderheid)
2h 03min

Pro

+ geen CPU- of GPU-throttling in batterij-modus

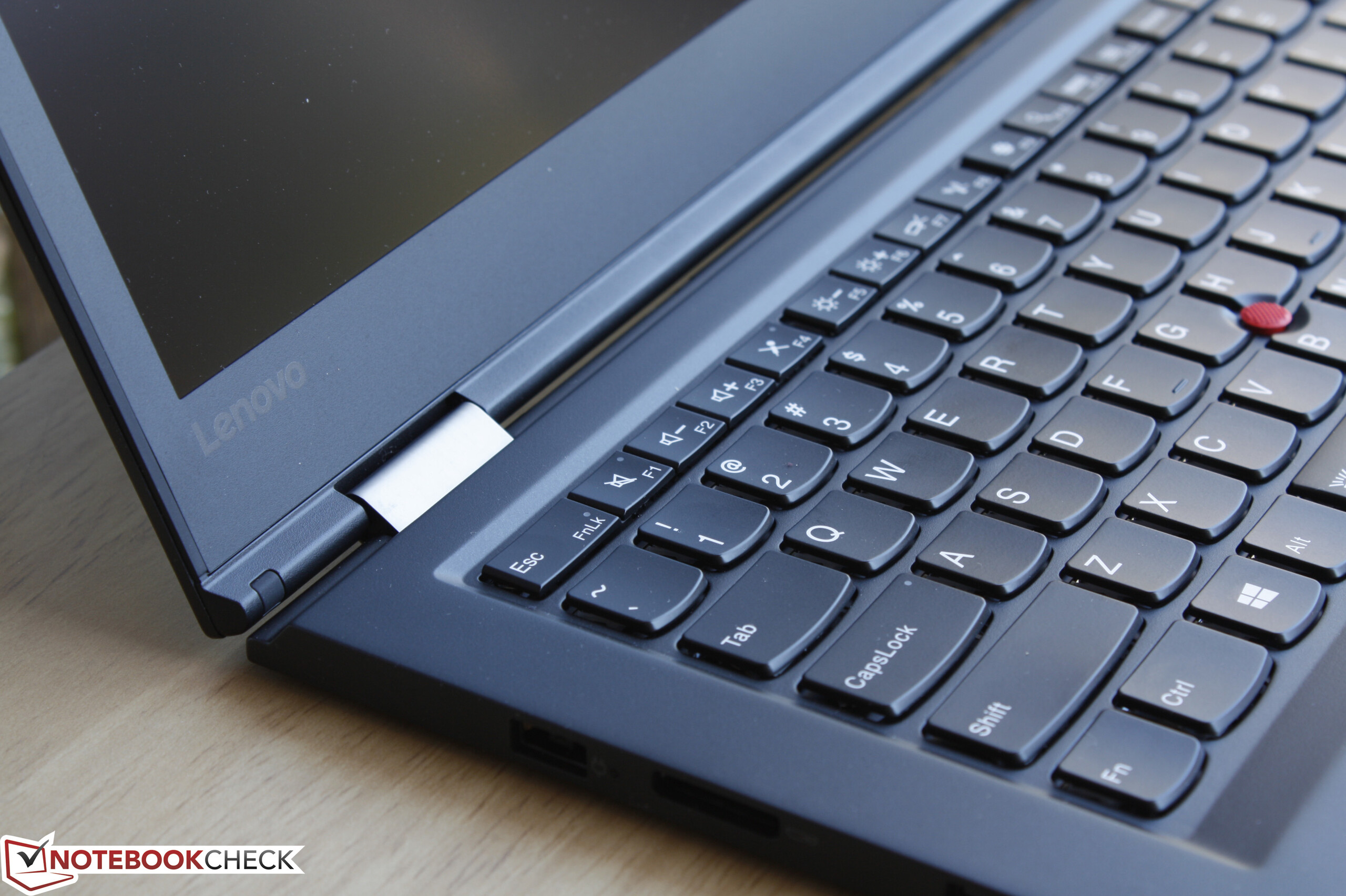

+ uitstekend toetsenbord en touchpad
+ slank design; stevige behuizing
+ degelijke batterijduur
+ eenvoudig in onderhoud
+ helderder scherm
+ WWAN-ondersteuning
+ stille ventilatoren
+ geen PWM

Contra

- kan maximum Turbo Boost niet aanhouden
- beperktere kleurruimte dan de WQHD-versie
- scharnieren zouden stabieler mogen
- gevoelig voor vingerafdrukken
- geen USB Type-C
- traag opladen
- vastgesoldeerd RAM
- duur
In review: Lenovo ThinkPad X1 Carbon 20FB-005XUS. Test model courtesy of Lenovo US.
In review: Lenovo ThinkPad X1 Carbon 20FB-005XUS. Test model courtesy of Lenovo US.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Met sterke alternatieven als de MacBook Air of XPS 13 op de markt ligt er heel wat druk op Lenovo om de ThinkPad X1 Carbon te laten presteren. Het snelste model voelt beter aan dan ooit, zoals ons vorige gedetailleerde testrapport van het model liet blijken en zijn WWAN-opties zullen zonder twijfel op heel wat interesse kunnen rekenen.

Resulteert de configuratie met Core i5 FHD in langere batterijduur en lagere temperaturen dan de versie met Core i7 WQHD? Batterijduur verschilt niet aanzienlijk vergeleken met de duurdere variant terwijl oppervlaktetemperaturen wat lager zijn, al scheelt dit op zijn best maar een aantal graden. Deze kleine verschillen tussen de twee versies betekenen dat de gebruiker voor het duurdere model kan kiezen voor zijn snellere prestaties, nauwkeurigere kleuren en scherper scherm, zonder veel op te offeren op het vlak van prestaties.

De prestaties van de Core i5 zijn lager dan verwacht, zeker wat single-core-bewerkingen betreft. Het grootste merkbare verschil is misschien wel dat deze FHD-configuratie geen gebruikt maakt van PWM om de helderheid te controleren. Gebruikers die gevoelig zijn aan flikkeringen van het scherm kunnen misschien het FHD-model verkiezen en de snellere processor dan laten voor wat hij is.

Lenovo ThinkPad X1 Carbon 20FB-005XUS - 13-05-2016 v5.1(old)
Allen Ngo

Behuizing
86 / 98 → 87%
Toetsenbord
92%
Aanwijsapparaat
91%
Aansluitmogelijkheden
67 / 80 → 84%
Gewicht
73 / 20-67 → 100%
Batterij
89%
Beeldscherm
90%
Gaming-performance
56 / 68 → 82%
Applicatie-performance
79 / 92 → 86%
Temperatuur
93%
Luidheid
94%
Audio
63%
Camera
53 / 85 → 62%
Gemiddelde
79%
90%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad X1 Carbon 20FB-005XUS Notebook
Allen Ngo, 2016-05-14 (Update: 2020-06- 8)
Allen Ngo
Editor of the original article: Allen Ngo - US Editor in Chief
