AMD Radeon RX Vega 3

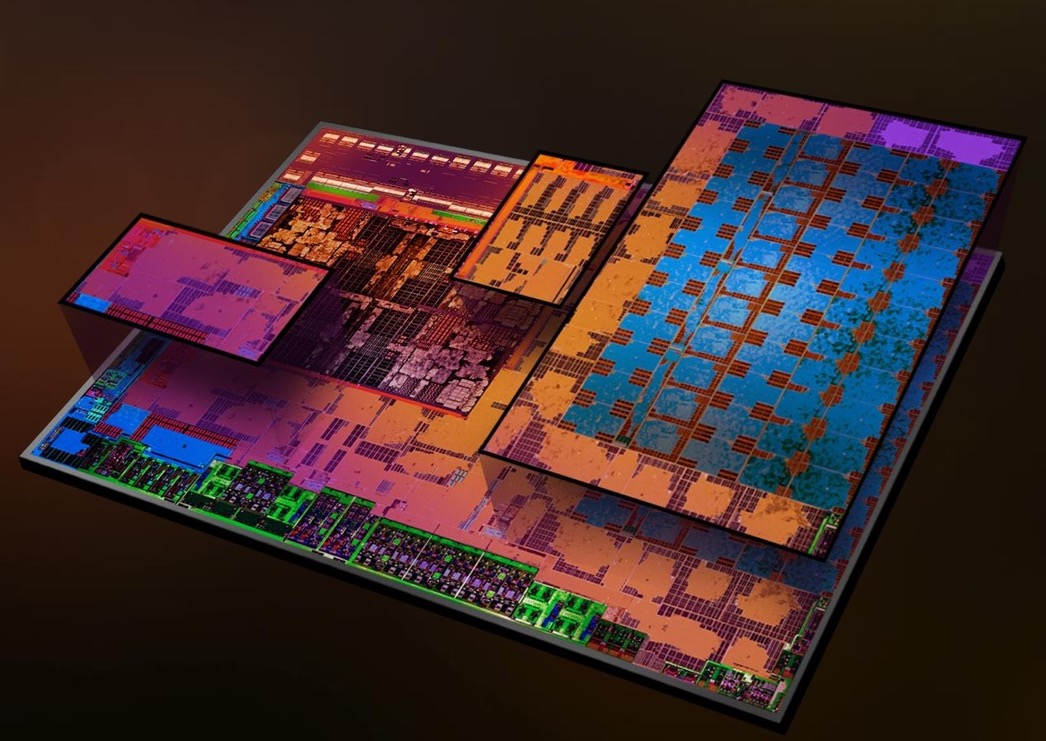

De AMD Radeon RX Vega 3 is een geïntegreerde GPU voor laptops. De chip wordt gebruikt voor de instap Ryzen 3-APU's, die gelanceerd werden in het begin van 2018. De GPU is gebaseerd op de Vega-architectuur (5de generatie GCN) en heeft 3 CU's (= 192 van de 704 shaders) geklokt aan max. 1100 MHz. De prestaties hangen af van het ingestelde TDP (12-25 Watt), de kloksnelheden, de koeling en de geheugenconfiguratie. De GPU zou baat moeten hebben bij snel dual-channel DDR4-2400-RAM (ten opzichte van DDR4-2133-RAM in single-channel, wat ook mogelijk is).
De Vega-architectuur biedt een aantal verbeteringen ten opzichte van de Polaris-generatie en ondersteunt nu DirectX 12 Feature Level 12_1. Meer informatie is beschikbaar in ons aparte artikel over de Raven Ridge-architectuur.
We schatten dat de prestaties in de buurt van een GeForce 910M liggen. Daarom zullen veeleisende games hoogstwaarschijnlijk niet vlot speelbaar zijn.
Dankzij het 14nm-proces en slimme energiebesparingsfeatures is het energieverbruik betrekkelijk laag (volgens AMD), waardoor de grafische kaart ook toegepast kan worden in dunne en lichte notebooks.
RX Vega 2000/3000 Serie Vega 10 640 @ 1.3 GHz Vega 9 576 @ 1.3 GHz Vega 8 512 @ 1.2 GHz Vega 6 384 @ 1.1 GHz Vega 3 192 @ 0.6 - 1.2 GHz Vega 2 128 @ 1.1 GHz
Codenaam Vega Raven Ridge Architectuur Vega Pipelines 192 - verenigd Core-snelheid 600 - 1200 (Boost) MHz Gedeeld geheugen nee API DirectX 12_1 Stroomverbruik 15 Watt Aantal Transistoren 4.5 Billion technologie 14 nm Faciliteiten Tiled Rasterization, Shared Memory (up to Dual-Channel DDR4-2400) Aangekondigde datum 07.01.2018
CPU in Vega 3 GPU Base Speed GPU Boost / Turbo AMD Ryzen 3 3250U 2 x 2600 MHz, 15 W ? MHz 1200 MHz AMD Ryzen Embedded R1606G 2 x 2600 MHz, 15 W ? MHz 1200 MHz AMD Ryzen 3 3200U 2 x 2600 MHz, 15 W ? MHz 1200 MHz » show 11 more AMD Ryzen 3 2200U 2 x 2500 MHz, 15 W ? MHz 1000 MHz AMD Ryzen 3 PRO 2200U 2 x 2500 MHz, 15 W ? MHz 1000 MHz AMD Ryzen 3 5125C 2 x 3000 MHz, 15 W ? MHz 1200 MHz AMD Athlon Gold 3150U 2 x 2600 MHz, 15 W ? MHz 1000 MHz AMD Ryzen Embedded R1505G 2 x 2400 MHz, 10 W ? MHz ? MHz AMD Athlon PRO 300U 2 x 2400 MHz, 15 W ? MHz 1000 MHz AMD Athlon 300U 2 x 2400 MHz, 15 W ? MHz 1000 MHz AMD Athlon Silver 3050e 2 x 1400 MHz, 6 W ? MHz 1000 MHz AMD 3020e 2 x 1200 MHz, 6 W ? MHz 1000 MHz AMD 3015e 2 x 1200 MHz, 6 W ? MHz 600 MHz AMD 3015Ce 2 x 1200 MHz, 6 W ? MHz 600 MHz min. - max. ? MHz 600 - 1200 MHz
Benchmarks Performance Rating - 3DMark 11 + Fire Strike + Time Spy
4.9 pt (5%)
...
AMD Radeon R6 M340DX -3%
Intel UHD Graphics G1 (Ice Lake 32 EU) 2%
...
3DMark - 3DMark Time Spy Score
min: 223 gem: 407.4 mediaan: 438 (2%) max: 504 Points
Intel UHD Graphics 605 -68%
...
Intel UHD Graphics 617 -17%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -5%
Intel HD Graphics 630 4%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 6%
AMD Radeon R7 M360 14%
...
3DMark - 3DMark Time Spy Graphics
min: 196 gem: 361.9 mediaan: 389 (2%) max: 450 Points
Intel UHD Graphics 605 -69%
...
AMD Radeon R6 (Carrizo) -24%
Intel UHD Graphics 617 -17%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -4%
Intel HD Graphics 630 2%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 3%
AMD Radeon R7 M360 13%
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 41927 gem: 77485 mediaan: 80755 (11%) max: 95999 Points
...
AMD Radeon R5 M335 -9%
NVIDIA Quadro T2000 Max-Q -3%
Intel UHD Graphics 617 0%
AMD Radeon R7 M360 7%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 7%
...
3DMark - 3DMark Ice Storm Extreme Graphics
min: 25789 gem: 41032 mediaan: 42318 (6%) max: 54893 Points
...
AMD Radeon R7 M460 -6%
NVIDIA GeForce GTX 1050 Ti Max-Q -3%
AMD Radeon R6 M340DX -2%
AMD Radeon R7 (Carrizo) 0%
AMD Radeon R7 M360 3%
Intel UHD Graphics G1 (Ice Lake 32 EU) 4%
...
NVIDIA GeForce RTX 3080 Laptop GPU 912%
3DMark - 3DMark Cloud Gate Score
min: 3848 gem: 5991 mediaan: 5815 (7%) max: 7686 Points
...
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -3%
AMD Radeon R9 M375 -1%
...
3DMark - 3DMark Cloud Gate Graphics
min: 5005 gem: 8449 mediaan: 8536 (3%) max: 12278 Points
...
AMD Radeon R5 (Bristol Ridge) -2%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 0%
AMD Radeon R9 M375 0%
AMD Radeon R6 M340DX 6%
...
3DMark - 3DMark Fire Strike Standard Score
min: 662 gem: 1030 mediaan: 1052.5 (3%) max: 1385 Points
...
AMD Radeon R7 M260 -7%
AMD Radeon R7 (Carrizo) -3%
AMD Radeon R7 M360 -1%
AMD Radeon R5 (Bristol Ridge) 2%
AMD Radeon R7 M460 2%
...
3DMark - 3DMark Fire Strike Standard Graphics
min: 726 gem: 1142 mediaan: 1162 (2%) max: 1522 Points
...
AMD Radeon R7 M260 -6%
AMD Radeon R7 (Carrizo) -3%
AMD Radeon R6 M255DX -2%
AMD Radeon R7 M360 0%
AMD Radeon R7 M460 3%
...
3DMark - 3DMark Ice Storm Graphics
min: 41388 gem: 66040 mediaan: 68288 (9%) max: 85209 Points
...
NVIDIA GeForce RTX 2070 Super Max-Q 1%
...
3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited
2086 Points (18%)
Intel HD Graphics (Cherry Trail) -42%
Intel UHD Graphics 605 -22%
Intel UHD Graphics Xe G4 48EUs 359%
Apple M1 8-Core GPU 360%
...
Intel UHD Graphics Xe G4 48EUs 359%
3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited Graphics
1996 Points (8%)
Intel HD Graphics (Cherry Trail) -37%
Intel UHD Graphics 605 -27%
Intel UHD Graphics Xe G4 48EUs 509%
Apple M1 8-Core GPU 1188%
3DMark - 3DMark Wild Life Extreme Unlimited
min: 665 gem: 768 mediaan: 758 (2%) max: 880 Points
Intel UHD Graphics 605 -63%
Intel UHD Graphics G1 (Ice Lake 32 EU) 18%
AMD Radeon RX Vega 7 131%
Intel UHD Graphics Xe G4 48EUs 132%
Intel UHD Graphics 770 (Alder Lake) 146%
...
3DMark - 3DMark Night Raid
min: 1615 gem: 3731 mediaan: 4131.5 (5%) max: 5081 Points
Intel UHD Graphics 600 -52%
...
Intel UHD Graphics 610 -30%
Intel HD Graphics 610 -29%
Intel UHD Graphics 615 -21%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -2%
Intel UHD Graphics 617 -1%
Intel UHD Graphics G1 (Ice Lake 32 EU) 56%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 66%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 105%
Intel UHD Graphics Xe G4 48EUs 106%
AMD Radeon RX Vega 10 117%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 119%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 120%
...
NVIDIA GeForce RTX 3070 Laptop GPU 1294%
3DMark - 3DMark Night Raid Graphics Score
min: 1774 gem: 4463 mediaan: 4873.5 (3%) max: 6369 Points
Intel UHD Graphics 600 -57%
Intel UHD Graphics 605 -54%
Intel UHD Graphics 610 -36%
Intel HD Graphics 610 -35%
Intel UHD Graphics 615 -24%
Intel UHD Graphics 617 1%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 8%
Intel UHD Graphics G1 (Ice Lake 32 EU) 42%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 72%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 101%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 106%
...
3DMark 11 - 3DM11 Performance Score
min: 1190 gem: 2038 mediaan: 1947 (4%) max: 5190 Points
...
AMD Radeon R7 (Carrizo) -3%
AMD Radeon R6 M255DX -3%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -3%
AMD Radeon R7 M360 2%
AMD Radeon R7 M260X 4%
...
3DMark 11 - 3DM11 Performance GPU
min: 1108 gem: 1645 mediaan: 1723.5 (2%) max: 2046 Points
...
AMD Radeon R5 M240 -3%
NVIDIA GeForce GTX 460M -1%
AMD Radeon R5 M320 0%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 2%
AMD Radeon R5 M330 2%
Intel HD Graphics 630 3%
...
3DMark Vantage + 3DMark Vantage - 3DM Vant. Perf. total
min: 5035 gem: 5441 mediaan: 5440.5 (2%) max: 5846 Points
...
AMD Radeon R7 M460 -3%
AMD Radeon HD 6750M -2%
AMD Radeon R7 M260 0%
AMD Radeon R7 M340 0%
AMD Radeon R7 M360 2%
...
3DM Vant. Perf. GPU no PhysX + 3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 4303 gem: 4739 mediaan: 4738.5 (4%) max: 5174 Points
...
AMD Radeon HD 6750M -4%
AMD Radeon R7 M340 -3%
AMD Radeon R7 M460 -2%
AMD Radeon R5 M240 0%
AMD Radeon R7 M260 1%
...
3DMark 03 - 3DMark 03 - Standard
27308 Points (14%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 27308
VIA S3 Graphics ProSavage8 -100%
...
AMD Radeon R7 M445 -5%
...
3DMark 05 - 3DMark 05 - Standard
15885 Points (22%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 15885
...
AMD Radeon HD 6730M -2%
AMD Radeon R7 M340 -2%
AMD Radeon RX Vega 10 4%
...
3DMark 06 3DMark 06 - Standard 1280x1024 +
min: 8642 gem: 10327 mediaan: 11103 (17%) max: 11493 Points
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 5%
...
Unigine Valley 1.0 - Unigine Valley 1.0 DX
4.4 fps (2%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 4.4
Intel HD Graphics (Cherry Trail) -73%
...
AMD Radeon R2 (Stoney Ridge) -36%
AMD Radeon R4 (Stoney Ridge) -33%
Intel HD Graphics 610 -25%
Intel UHD Graphics 610 -24%
Intel HD Graphics 630 20%
AMD Radeon R7 M445 50%
...
NVIDIA GeForce RTX 3070 Laptop GPU 2891%
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
13.9 fps (5%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 13.9
...
Intel HD Graphics 610 -15%
AMD Radeon R7 M260 2%
NVIDIA GeForce 910M 4%
AMD Radeon R7 M360 11%
...
Unigine Heaven 3.0 - Unigine Heaven 3.0 OpenGL
9 fps (4%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 9
...
Intel UHD Graphics 605 -20%
AMD Radeon R4 (Stoney Ridge) -14%
AMD Radeon R7 M260 26%
...
Unigine Heaven 2.1 - Heaven 2.1 high
21.2 fps (4%)
Model CPU GPU RAM waarde Acer Aspire 3 A315-41-R7BM R3 2200U Vega 3 1100 MHz 1 GB 8 GB 21.2
...
AMD Radeon HD 6755G2 -11%
AMD Radeon R7 M340 -7%
...
Cinebench R10 Cinebench R10 Shading (32bit) + Cinebench R10 - Cinebench R10 Shading (32bit)
min: 5716 gem: 7120 mediaan: 7401 (31%) max: 7719 punten
...
NVIDIA Quadro M620 -4%
AMD Radeon RX Vega 9 -2%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 0%
AMD Radeon HD 6730M 2%
...
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit + Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 15.46 gem: 31.1 mediaan: 38 (14%) max: 39.47 fps
...
...
Cinebench R15 + Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 17.08 gem: 29 mediaan: 28.2 (8%) max: 39.11 fps
...
Intel HD Graphics 610 -9%
AMD Radeon R5 M240 -7%
AMD Radeon R5 M330 -4%
AMD Radeon R7 (Carrizo) -2%
Intel UHD Graphics 610 -2%
AMD Radeon R5 (Bristol Ridge) 3%
AMD Radeon R5 M335 7%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake) 7%
...
Cinebench R15 OpenGL Ref. Match 64 Bit + Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
98 % (98%)
...
Intel UHD Graphics 615 0%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 0%
Intel Iris Pro Graphics 580 0%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 0%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 0%
Intel UHD Graphics 617 1%
...
GFXBench (DX / GLBenchmark) 2.7 + GFXBench (DX / GLBenchmark) 2.7 - GFXBench 2.7 T-Rex HD Onscreen C24Z16
min: 39 gem: 62.5 mediaan: 62.5 (2%) max: 86 fps
...
NVIDIA Quadro M620 -4%
Apple M2 8-Core GPU -4%
Apple M1 7-Core GPU -4%
NVIDIA Quadro RTX 4000 (Laptop) -4%
NVIDIA Quadro P520 -4%
AMD Radeon R4 (Stoney Ridge) 5%
Intel UHD Graphics 610 14%
Apple M1 8-Core GPU 34%
...
GFXBench T-Rex HD Offscreen C24Z16 + GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 40 gem: 64.5 mediaan: 64.5 (1%) max: 89 fps
...
Intel HD Graphics (Broadwell) -27%
AMD Radeon R4 (Stoney Ridge) -11%
Intel UHD Graphics 615 4%
Intel UHD Graphics 610 11%
Intel HD Graphics 610 12%
AMD Radeon R6 M340DX 13%
...
GFXBench 3.0 - GFXBench 3.0 Manhattan
min: 19 gem: 22.3 mediaan: 22.3 (6%) max: 25.5 fps
...
AMD Radeon R5 M335 -21%
AMD Radeon R6 M340DX -20%
Intel UHD Graphics 600 -17%
AMD Radeon R2 (Stoney Ridge) -7%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -2%
AMD Radeon R4 (Stoney Ridge) 1%
AMD Radeon R4 (Kaveri) 9%
Qualcomm Adreno 685 11%
Intel UHD Graphics 605 14%
...
NVIDIA GeForce GTX 1070 Max-Q 1540%
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 20 gem: 23 mediaan: 23 (2%) max: 26 fps
...
Intel UHD Graphics 600 -16%
AMD Radeon R6 M340DX -13%
AMD Radeon R5 M335 -7%
Intel HD Graphics (Broadwell) -6%
AMD Radeon R6 M255DX -6%
AMD Radeon R5 M240 2%
Intel UHD Graphics 605 4%
AMD Radeon R7 (Carrizo) 6%
...
Apple M1 Max 32-Core GPU 5235%
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Onscreen
12 fps (6%)
...
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -16%
Intel UHD Graphics 600 2%
Intel UHD Graphics 610 23%
Intel UHD Graphics 615 33%
Intel UHD Graphics 770 (Alder Lake) 39%
AMD Radeon R4 (Stoney Ridge) 43%
Intel UHD Graphics 605 60%
...
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Offscreen
11 fps (1%)
Intel UHD Graphics 600 -10%
Intel UHD Graphics 605 16%
Intel UHD Graphics 610 39%
Intel UHD Graphics 615 45%
AMD Radeon R4 (Stoney Ridge) 63%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 114%
...
Apple M1 Max 32-Core GPU 6582%
GFXBench - GFXBench Car Chase Onscreen
min: 11 gem: 16.2 mediaan: 16.2 (0%) max: 21.3 fps
Intel HD Graphics (Cherry Trail) -63%
...
NVIDIA Quadro M520 -28%
Intel UHD Graphics 770 (Alder Lake) -21%
Intel UHD Graphics 605 -9%
AMD Radeon R2 (Stoney Ridge) -8%
Intel UHD Graphics 610 -5%
Intel UHD Graphics 615 9%
AMD Radeon R4 (Stoney Ridge) 13%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 49%
...
NVIDIA GeForce RTX 3070 Laptop GPU 21844%
GFXBench - GFXBench Car Chase Offscreen
min: 10 gem: 15.8 mediaan: 15.8 (0%) max: 21.5 fps
AMD Radeon R2 (Stoney Ridge) -34%
Intel UHD Graphics 605 -30%
AMD Radeon R4 (Stoney Ridge) -14%
Intel HD Graphics 610 -2%
Intel UHD Graphics 615 2%
Intel UHD Graphics 610 6%
NVIDIA GeForce 910M 42%
...
NVIDIA GeForce RTX 3070 Laptop GPU 153271%
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official Medium Offscreen 1080
43 fps (1%)
Model CPU GPU RAM waarde Lenovo V155-15API 81V5000SGE R3 3200U Vega 3 bc76 GB 43
Intel UHD Graphics 600 -63%
Intel UHD Graphics 605 -46%
Intel UHD Graphics 610 -41%
Intel UHD Graphics Xe G4 48EUs 26%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 92%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 137%
AMD Radeon RX Vega 7 144%
AMD Radeon R9 M280X 179%
...
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official High Offscreen 2160
3.6 fps (1%)
Model CPU GPU RAM waarde Lenovo V155-15API 81V5000SGE R3 3200U Vega 3 bc76 GB 3.64
Intel UHD Graphics 600 -64%
Intel UHD Graphics 605 -46%
AMD Radeon R9 M280X 219%
AMD Radeon Pro 560X 376%
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
min: 154 gem: 179.5 mediaan: 179.5 (1%) max: 205 Samples/s
...
AMD Radeon R7 M260 -7%
AMD Radeon R7 M360 -4%
AMD Radeon R5 (Bristol Ridge) -3%
AMD Radeon R7 M460 2%
...
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
min: 292 gem: 346 mediaan: 346 (1%) max: 400 Samples/s
...
AMD Radeon R7 M360 -10%
AMD Radeon R7 M460 -8%
AMD Radeon R5 (Bristol Ridge) -4%
...
ComputeMark v2.1 - ComputeMark v2.1 Result
min: 933 gem: 1008 mediaan: 1008 (2%) max: 1083 punten
...
NVIDIA GeForce 910M -8%
Intel HD Graphics 630 -6%
AMD Radeon Pro WX Vega M GL -4%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 7%
AMD Radeon R5 (Bristol Ridge) 12%
...
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 14.7 gem: 26.2 mediaan: 28.8 (4%) max: 32.6 Watt
...
Intel UHD Graphics 615 -20%
Intel UHD Graphics G1 (Ice Lake 32 EU) -20%
Intel UHD Graphics 610 -12%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -11%
Intel UHD Graphics Xe G4 48EUs 4%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 5%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 8%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 9%
AMD Radeon RX Vega 10 15%
...
0 5 10 15 20 25 30 35 Tooltip Medion Akoya E14307 : Ø14.7 (13.5-15.8)
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 10.1 gem: 18.3 mediaan: 21.3 (3%) max: 23.6 Watt
Apple M2 8-Core GPU 33%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 50%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 65%
...
0 5 10 15 20 Tooltip Medion Akoya E14307 : Ø10.1 (9.57-10.5)
Power Consumption - Witcher 3 Power Consumption *
min: 25.4 gem: 28.6 mediaan: 28.5 (6%) max: 32 Watt
Intel UHD Graphics 605 -59%
Intel UHD Graphics 610 -10%
Intel UHD Graphics G1 (Ice Lake 32 EU) -6%
Apple M2 8-Core GPU -4%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) -2%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 7%
Intel UHD Graphics Xe G4 48EUs 10%
AMD Radeon RX Vega 10 25%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 27%
...
Power Consumption - Witcher 3 ultra Power Efficiency
min: 0.1394 gem: 0.2 mediaan: 0.2 (0%) max: 0.1929 Points per Watt
Intel UHD Graphics 605 -39%
AMD FirePro W4190M -23%
AMD Radeon Pro WX 3100 -14%
Intel UHD Graphics G1 (Ice Lake 32 EU) -10%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -2%
NVIDIA Quadro M620 2%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 3%
AMD Radeon RX Vega 9 8%
AMD Radeon RX 580 (Laptop) 13%
NVIDIA Quadro P500 13%
...
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
min: 0.1695 gem: 0.2 mediaan: 0.2 (0%) max: 0.23 Points per Watt
NVIDIA Quadro M600M -22%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -9%
AMD Radeon RX Vega 9 1%
NVIDIA Quadro M620 3%
NVIDIA Quadro M2200 12%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 15%
AMD Radeon RX Vega 10 23%
NVIDIA Quadro P520 25%
...
Clock Speed - GPU Clock Speed Furmark
688 MHz (27%)
Intel UHD Graphics 605 -25%
Intel UHD Graphics 600 -25%
Intel Iris Plus Graphics 650 23%
AMD Radeon Pro 555 24%
...
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -19%
Intel UHD Graphics G1 (Ice Lake 32 EU) -19%
Intel UHD Graphics Xe G4 48EUs 19%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 31%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 69%
AMD Radeon RX 550 (Laptop) 69%
AMD Radeon RX Vega 10 75%
AMD Radeon 540X 88%
AMD Radeon RX Vega 7 119%
...
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 50%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 50%
AMD Radeon RX 550 (Laptop) 63%
AMD Radeon RX Vega 10 75%
AMD Radeon 540X 88%
AMD Radeon RX Vega 7 100%
...
NVIDIA GeForce RTX 3080 Laptop GPU 1731%
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Preset 1920x1080
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -41%
Intel UHD Graphics G1 (Ice Lake 32 EU) -21%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 2%
Intel UHD Graphics Xe G4 48EUs 4%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 54%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 60%
AMD Radeon RX Vega 10 69%
AMD Radeon RX Vega 7 81%
AMD Radeon 540X 95%
...
NVIDIA GeForce RTX 3060 Laptop GPU 813%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -13%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -4%
Intel UHD Graphics G1 (Ice Lake 32 EU) 6%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 47%
Intel UHD Graphics Xe G4 48EUs 53%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 69%
AMD Radeon RX 550 (Laptop) 85%
AMD Radeon 540X 107%
AMD Radeon RX Vega 10 113%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Preset (DX12) 1920x1080
AMD Radeon RX 550 (Laptop) -80%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 6%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 41%
AMD Radeon RX Vega 10 41%
AMD Radeon RX Vega 7 70%
Intel UHD Graphics 770 (Alder Lake) 83%
...
AMD Radeon RX Vega 10 140%
Intel UHD Graphics 770 (Alder Lake) 176%
AMD Radeon RX Vega 7 200%
AMD Radeon RX 560X (Laptop) 560%
NVIDIA GeForce GTX 1050 Ti Mobile 620%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Graphics Quality 1920x1080
AMD Radeon RX 550 (Laptop) -61%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -8%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 1%
Intel UHD Graphics G1 (Ice Lake 32 EU) 3%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 51%
Intel UHD Graphics Xe G4 48EUs 62%
AMD Radeon RX Vega 10 64%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 80%
AMD Radeon RX Vega 7 92%
...
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 10%
Intel UHD Graphics G1 (Ice Lake 32 EU) 37%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 79%
AMD Radeon RX Vega 10 99%
Intel UHD Graphics Xe G4 48EUs 113%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 132%
AMD Radeon RX Vega 7 150%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Preset 1920x1080
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 9%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 88%
AMD Radeon RX Vega 10 93%
AMD Radeon 540X 179%
AMD Radeon RX Vega 7 229%
...
NVIDIA GeForce RTX 3070 Laptop GPU 1268%
AMD Radeon RX Vega 10 65%
AMD Radeon 540X 122%
AMD Radeon RX Vega 7 170%
AMD Radeon RX 560X (Laptop) 460%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Video Quality 1920x1080
Intel UHD Graphics 610 -40%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -3%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 8%
Intel UHD Graphics G1 (Ice Lake 32 EU) 12%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 31%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 47%
Intel UHD Graphics Xe G4 48EUs 56%
AMD Radeon 540X 73%
AMD Radeon RX 550 (Laptop) 74%
...
Intel UHD Graphics 610 -50%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -9%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -7%
AMD Radeon RX Vega 10 8%
Intel UHD Graphics G1 (Ice Lake 32 EU) 9%
AMD Radeon RX 550 (Laptop) 19%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 19%
Intel UHD Graphics Xe G4 48EUs 22%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 24%
AMD Radeon 540X 61%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 69%
...
Intel UHD Graphics 610 -43%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 8%
Intel UHD Graphics G1 (Ice Lake 32 EU) 24%
AMD Radeon RX Vega 10 32%
AMD Radeon RX 550 (Laptop) 32%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 44%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 44%
AMD Radeon 540X 78%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 5%
AMD Radeon RX Vega 10 8%
Intel UHD Graphics Xe G4 48EUs 15%
Intel UHD Graphics G1 (Ice Lake 32 EU) 21%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 27%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 31%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 32%
AMD Radeon 540X 38%
...
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 1%
AMD Radeon RX Vega 10 7%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 16%
Intel UHD Graphics Xe G4 48EUs 20%
Intel UHD Graphics G1 (Ice Lake 32 EU) 28%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 30%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 38%
AMD Radeon 540X 52%
...
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -1%
AMD Radeon RX Vega 10 6%
Intel UHD Graphics Xe G4 48EUs 12%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 15%
Intel UHD Graphics G1 (Ice Lake 32 EU) 27%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 31%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 43%
AMD Radeon 540X 60%
...
NVIDIA GeForce RTX 3080 Laptop GPU 691%
» Met alle geteste laptops speelbaar met lage instellingen.
Additional Benchmarks
Low Preset 1920x1080
Deutsch
English
Español
Français
Italiano
Polski
Português
Русский
Türkçe
Svenska
Chinese
Magyar
- Gemiddelde benchmarkresultaten voor deze videokaart
