Intel Iris Xe MAX Graphics

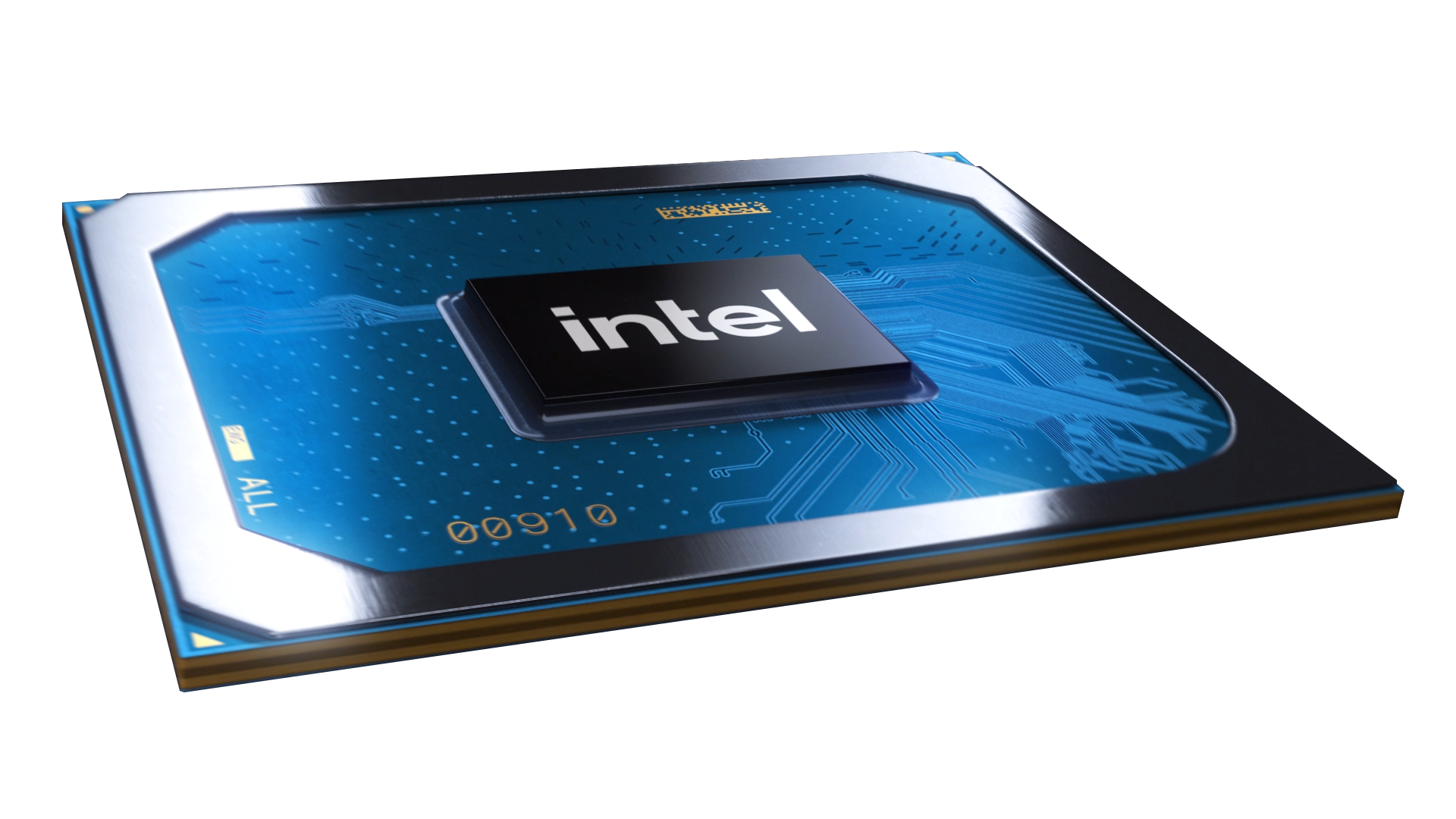

De Intel Iris Xe MAX (DG1 Low Power - LP of iDG1LPDEV) is een speciale PCIe 4.0 mobiele entry-level grafische kaart met 96 uitvoeringseenheden (EU's) gebaseerd op de Gen 12 architectuur. Vergeleken met de geïntegreerde Intel Iris Xe in de Tiger Lake CPU's biedt de Xe MAX 4 GB dedicated LPDDR4x grafisch geheugen (68 GB/s versus 56 GB/s voor de MX350) en hogere kloksnelheden van 1,65 GHz (vs. 1,35 GHz). Beide ondersteunen DP4A DLBoost-instructies voor het versnellen van AI-taken en twee media-engines (inclusief AV1-decodering in de hardware). Momenteel is de GPU alleen beschikbaar voor laptops die op Tiger Lake zijn gebaseerd en biedt het enkele mogelijkheden om de iGPU en dGPU samen te gebruiken (met behulp van het Deep Link software raamwerk). De GPU maakt gebruik van hybride graphics om de Xe MAX uit te schakelen wanneer deze niet wordt gebruikt (displaypoorten worden via de iGPU gerouteerd, maar de Xe MAX heeft vier speciale displaypoorten in vergelijking met de Nvidia GeForce MX350).
Verder ondersteunt Intel het verschuiven van TDP tussen de twee chips voor betere CPU-prestaties of het balanceren van de grafische werklast.
De spelprestaties zijn gemiddeld genomen iets beter dan een snelle Intel Iris Xe iGPU met veel TDP en koeling. Er zijn zelfs enkele games waarbij de iGPU sneller is dankzij Deep Link en het delen van vermogen en koeling. Intel richt zich op 1080p gaming met lage tot gemiddelde instellingen met de GPU en geeft voorbeelden waarbij de MAX op gelijke hoogte of beter is dan een speciale Nvidia GeForce MX350.
Volgens Intel is de GPU vooral gericht op contentmakers die gebruik kunnen maken van de extra rekeneenheden, AI (DP4a) versnelling of media encoders.
Als Iris Xe Graphics ondersteunt de Xe MAX Variable Rate Shading, Adaptive Sync, Async Compute, DirectX 12.1, OpenGL 4.6 en OpenCL 2.
Als de Tiger Lake CPU's wordt de Iris Xe MAX dGPU vervaardigd in het moderne 10nm SuperFin proces bij Intel. Intel richt de Max-GPU op laptops met een gecombineerd vermogensbudget van 35 Watt en meer. Het stroomverbruik van de GPU alleen al wordt gespecificeerd vergelijkbaar met de 25W van de GeForce MX350 (we denken inclusief het grafische geheugen).
Codenaam iDG1LPDEV Architectuur Gen. 12 Xe Pipelines 96 - verenigd Core-snelheid 1650 (Boost) MHz Geheugensnelheid 4266 MHz Geheugenbusbreedte 128 bit Geheugentype LPDDR4x Max. hoeveelheid geheugen 4 GB Gedeeld geheugen nee API DirectX 12.1, OpenGL 4.6 Stroomverbruik 25 Watt technologie 10 nm Aangekondigde datum 31.10.2020
Benchmarks Performance Rating - 3DMark 11 + Fire Strike + Time Spy
13.5 pt (15%)
...
NVIDIA Quadro P620 -13%
AMD Radeon Pro WX Vega M GL -11%
NVIDIA Quadro M3000M -10%
Intel Iris Xe MAX Graphics
AMD FirePro W7170M 14%
NVIDIA GeForce GTX 1050 Ti Mobile 15%
...
3DMark - 3DMark Time Spy Score
min: 1825 gem: 1879 mediaan: 1876 (10%) max: 1939 Points
GPU TDP ? TDP 10 W 100% 98%
Intel UHD Graphics 605 -93%
...
AMD Radeon RX 550 (Laptop) -25%
AMD Radeon Pro 560 -19%
NVIDIA Quadro P1000 -17%
NVIDIA Quadro P620 -16%
NVIDIA GeForce GTX 1050 Max-Q -7%
AMD Radeon Pro 560X -6%
Intel Iris Xe MAX Graphics
NVIDIA Quadro M2200 1%
AMD Radeon RX 560X (Laptop) 2%
NVIDIA T500 Laptop GPU 4%
NVIDIA Quadro P2000 Max-Q 17%
AMD Radeon Pro WX Vega M GL 18%
NVIDIA Quadro P2000 20%
...
3DMark - 3DMark Time Spy Graphics
min: 1697 gem: 1735 mediaan: 1743 (8%) max: 1766 Points
GPU TDP ? TDP 10 W 100% 97%
Intel UHD Graphics 605 -93%
...
AMD Radeon Pro 560 -21%
NVIDIA Quadro P620 -20%
NVIDIA Quadro P1000 -20%
AMD Radeon Pro 560X -7%
NVIDIA GeForce GTX 1050 Max-Q -7%
NVIDIA Quadro M2200 -1%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 3%
NVIDIA T500 Laptop GPU 5%
NVIDIA Quadro P2000 18%
NVIDIA Quadro P2000 Max-Q 18%
AMD Radeon Pro WX Vega M GL 19%
AMD Radeon Pro Vega 16 27%
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 82964 gem: 177443 mediaan: 177442 (24%) max: 271921 Points
GPU TDP ? TDP 10 W 100% 31%
...
Intel Iris Plus Graphics 650 -9%
NVIDIA Quadro M520 -6%
AMD Radeon Pro WX 3100 -1%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 0%
AMD Radeon RX Vega 7 2%
AMD Radeon RX 550X (Laptop) 4%
Intel Iris Pro Graphics 580 4%
AMD Radeon RX 560X (Laptop) 7%
...
3DMark - 3DMark Ice Storm Extreme Graphics
64040 Points (9%)
...
NVIDIA Quadro P520 -3%
AMD Radeon Pro WX 3200 -3%
Intel Iris Xe MAX Graphics
AMD FirePro W5130M 0%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 3%
NVIDIA Quadro M600M 4%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 5%
AMD Radeon RX Vega 9 10%
...
NVIDIA GeForce RTX 3080 Laptop GPU 549%
3DMark - 3DMark Cloud Gate Score
min: 19254 gem: 20527 mediaan: 20526.5 (25%) max: 21799 Points
GPU TDP ? TDP 10 W 100% 88%
...
NVIDIA Quadro P600 -7%
NVIDIA Quadro P1000 -5%
AMD Radeon Pro WX Vega M GL -4%
Intel Iris Xe MAX Graphics
NVIDIA Quadro M2200 2%
NVIDIA Quadro M3000M 4%
AMD FirePro W7170M 5%
...
3DMark - 3DMark Cloud Gate Graphics
min: 34947 gem: 37147 mediaan: 36993 (15%) max: 39502 Points
GPU TDP ? TDP 10 W 100% 91%
...
NVIDIA GeForce GTX 1050 Max-Q -10%
NVIDIA Quadro RTX 4000 Max-Q -5%
AMD Radeon RX 560X (Laptop) -4%
AMD Radeon RX 560 (Laptop) -2%
Intel Iris Xe MAX Graphics
NVIDIA Quadro M2200 1%
AMD Radeon Pro WX Vega M GL 5%
NVIDIA Quadro T2000 Max-Q 11%
...
3DMark - 3DMark Fire Strike Standard Score
min: 5412 gem: 5835 mediaan: 5658 (14%) max: 6610 Points
GPU TDP ? TDP 10 W 100% 91%
...
AMD Radeon RX 560 (Laptop) -16%
AMD Radeon Pro 560X -15%
NVIDIA GeForce GTX 1050 Max-Q -11%
NVIDIA Quadro M2200 -10%
AMD Radeon RX 560X (Laptop) -6%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P2000 Max-Q 2%
NVIDIA Quadro M3000M 2%
NVIDIA Quadro P2000 6%
AMD FirePro W7170M 6%
AMD Radeon Pro WX Vega M GL 7%
...
3DMark - 3DMark Fire Strike Standard Graphics
min: 6111 gem: 6297 mediaan: 6333 (12%) max: 6447 Points
GPU TDP ? TDP 10 W 100% 96%
...
NVIDIA GeForce GTX 1050 Max-Q -10%
AMD Radeon Pro 560X -9%
NVIDIA Quadro M2200 -7%
AMD Radeon RX 560 (Laptop) -6%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 0%
NVIDIA Quadro M3000M 4%
NVIDIA Quadro P2000 Max-Q 7%
NVIDIA Quadro P2000 9%
AMD Radeon 680M 9%
AMD FirePro W7170M 10%
...
3DMark - 3DMark Ice Storm Graphics
115123 Points (15%)
...
NVIDIA GeForce GTX 765M -4%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 7 8%
NVIDIA Quadro P620 8%
NVIDIA Quadro P3000 10%
...
3DMark - 3DMark Night Raid
min: 16047 gem: 16486 mediaan: 16486 (20%) max: 16925 Points
Intel UHD Graphics 600 -89%
...
Intel UHD Graphics Xe G4 48EUs -41%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -34%
AMD Radeon RX Vega 7 -25%
Intel Iris Xe MAX Graphics
NVIDIA GeForce RTX 3080 Laptop GPU 141%
...
NVIDIA GeForce RTX 3070 Laptop GPU 216%
3DMark - 3DMark Night Raid Graphics Score
min: 20539 gem: 20650 mediaan: 20649.5 (11%) max: 20760 Points
Intel UHD Graphics 600 -91%
...
Intel UHD Graphics Xe G4 48EUs -42%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -42%
AMD Radeon RX Vega 7 -35%
Intel Iris Xe MAX Graphics
NVIDIA GeForce RTX 3080 Laptop GPU 258%
...
3DMark 11 - 3DM11 Performance Score
min: 7720 gem: 8113 mediaan: 8024 (16%) max: 8594 Points
GPU TDP ? TDP 10 W 100% 93%
...
NVIDIA GeForce GTX 1050 Max-Q -9%
AMD Radeon RX 560X (Laptop) -7%
NVIDIA Quadro M2200 -7%
NVIDIA T500 Laptop GPU -5%
AMD Radeon Pro 560X -3%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P2000 Max-Q 3%
NVIDIA Quadro M3000M 5%
NVIDIA Quadro P2000 7%
...
3DMark 11 - 3DM11 Performance GPU
min: 7804 gem: 8133 mediaan: 8214 (12%) max: 8380 Points
GPU TDP ? TDP 10 W 100% 94%
...
NVIDIA Quadro M2200 -9%
AMD Radeon Pro 560X -7%
NVIDIA T500 Laptop GPU -4%
AMD Radeon RX 560X (Laptop) -2%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P2000 Max-Q 0%
NVIDIA Quadro M3000M 2%
AMD Radeon RX 560 (Laptop) 2%
NVIDIA Quadro P2000 3%
NVIDIA GeForce GTX 1050 Ti Max-Q 8%
...
3DMark 06 3DMark 06 - Standard 1280x1024 +
22466 Points (34%)
...
AMD Radeon RX 550X (Laptop) -5%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P600 2%
...
Unigine Valley 1.0 - Unigine Valley 1.0 DX
18.8 fps (8%)
Intel HD Graphics (Cherry Trail) -94%
...
AMD Radeon Pro 455 -13%
NVIDIA Quadro M620 -12%
AMD Radeon Pro 560 -3%
AMD Radeon Pro 460 -3%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P600 27%
NVIDIA Quadro P1000 38%
NVIDIA Quadro M2200 40%
...
NVIDIA GeForce RTX 3070 Laptop GPU 600%
SPECviewperf 12 + SPECviewperf 12 - specvp12 sw-03
23.1 fps (10%)
...
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 10 3%
...
NVIDIA Quadro P5200 790%
specvp12 snx-02 + SPECviewperf 12 - specvp12 snx-02
1 fps (0%)
Intel Iris Xe MAX Graphics
...
NVIDIA Quadro P5200 21920%
specvp12 showcase-01 + SPECviewperf 12 - specvp12 showcase-01
22.3 fps (8%)
...
AMD Radeon Pro 555 -11%
NVIDIA Quadro P600 -10%
AMD Radeon Pro 455 -9%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P620 16%
NVIDIA Quadro P1000 23%
...
specvp12 mediacal-01 + SPECviewperf 12 - specvp12 mediacal-01
11.8 fps (7%)
...
AMD Radeon Pro 455 -8%
NVIDIA Quadro M620 -7%
NVIDIA Quadro P520 -2%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 10 3%
NVIDIA Quadro P600 7%
NVIDIA Quadro P620 23%
NVIDIA Quadro P1000 28%
...
specvp12 maya-04 + SPECviewperf 12 - specvp12 maya-04
39.6 fps (14%)
...
NVIDIA Quadro P600 -6%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P1000 2%
NVIDIA Quadro P620 3%
AMD Radeon Pro WX Vega M GL 8%
NVIDIA Quadro M3000M 13%
...
specvp12 energy-01 + SPECviewperf 12 - specvp12 energy-01
0.5 fps (1%)
...
NVIDIA Quadro M600M -7%
NVIDIA Quadro M520 -2%
NVIDIA Quadro M620 -1%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P520 26%
AMD Radeon RX Vega 10 48%
AMD Radeon Pro WX 3200 190%
...
specvp12 creo-01 + SPECviewperf 12 - specvp12 creo-01
10.3 fps (5%)
...
Intel Iris Xe MAX Graphics
...
NVIDIA Quadro P5200 1419%
specvp12 catia-04 + SPECviewperf 12 - specvp12 catia-04
43.4 fps (15%)
...
NVIDIA Quadro P600 -8%
Intel Iris Xe MAX Graphics
...
NVIDIA Quadro P5200 344%
SPECviewperf 13 specvp13 sw-04 + SPECviewperf 13 - specvp13 sw-04
31.3 fps (14%)
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -78%
AMD Radeon RX Vega 10 -46%
Intel Iris Xe MAX Graphics
AMD Radeon Pro WX 3200 39%
...
specvp13 snx-03 + SPECviewperf 13 - specvp13 snx-03
1.8 fps (0%)
Intel Iris Xe MAX Graphics
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 61%
...
NVIDIA Quadro P5200 22144%
specvp13 showcase-02 + SPECviewperf 13 - specvp13 showcase-02
22.4 fps (8%)
...
NVIDIA Quadro M620 -28%
AMD Radeon Pro WX 3200 -20%
NVIDIA T500 Laptop GPU -16%
NVIDIA Quadro P600 -14%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P620 16%
NVIDIA Quadro P1000 22%
NVIDIA Quadro P2000 Max-Q 33%
NVIDIA Quadro P2000 35%
NVIDIA Quadro T2000 Max-Q 78%
AMD Radeon Pro Vega 16 89%
...
specvp13 medical-02 + SPECviewperf 13 - specvp13 medical-02
15.3 fps (8%)
...
NVIDIA Quadro P600 -30%
AMD Radeon Pro WX 3200 -25%
NVIDIA Quadro P1000 -17%
AMD Radeon Pro Vega 16 -4%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P520 1%
AMD Radeon RX Vega 7 3%
NVIDIA Quadro P2000 Max-Q 6%
NVIDIA Quadro P2000 21%
NVIDIA Quadro P620 25%
...
specvp13 maya-05 + SPECviewperf 13 - specvp13 maya-05
46 fps (8%)
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -56%
AMD Radeon RX Vega 10 -48%
AMD Radeon Pro WX 3200 -19%
NVIDIA Quadro P520 -15%
NVIDIA Quadro M620 -14%
AMD Radeon RX Vega 7 -2%
Intel Iris Xe MAX Graphics
NVIDIA T500 Laptop GPU 16%
NVIDIA Quadro P600 23%
NVIDIA Quadro P620 50%
NVIDIA Quadro P1000 56%
...
specvp13 energy-02 + SPECviewperf 13 - specvp13 energy-02
6.4 fps (5%)
...
NVIDIA Quadro P1000 -50%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -45%
AMD Radeon Pro Vega 16 -36%
NVIDIA Quadro P600 -36%
NVIDIA Quadro P2000 Max-Q -22%
NVIDIA Quadro P2000 -18%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P620 20%
NVIDIA T500 Laptop GPU 50%
NVIDIA Quadro P3200 97%
NVIDIA Quadro T2000 Max-Q 138%
...
specvp13 creo-02 + SPECviewperf 13 - specvp13 creo-02
11.9 fps (3%)
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) -86%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 10 87%
NVIDIA Quadro M620 200%
...
NVIDIA Quadro P5200 1963%
specvp13 catia-05 + SPECviewperf 13 - specvp13 catia-05
66.4 fps (14%)
...
NVIDIA Quadro M620 -39%
NVIDIA Quadro P520 -33%
AMD Radeon RX Vega 7 -27%
NVIDIA Quadro P600 -16%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P620 17%
NVIDIA Quadro P1000 19%
NVIDIA T500 Laptop GPU 33%
NVIDIA Quadro P2000 Max-Q 45%
AMD Radeon RX 5300M 47%
...
NVIDIA Quadro P5200 347%
specvp13 3dsmax-06 + SPECviewperf 13 - specvp13 3dsmax-06
42.6 fps (11%)
...
AMD Radeon RX Vega 10 -42%
NVIDIA Quadro P520 -36%
AMD Radeon Pro WX 3200 -21%
AMD Radeon RX Vega 7 -11%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P600 4%
NVIDIA T500 Laptop GPU 20%
NVIDIA Quadro P1000 22%
NVIDIA Quadro P620 32%
AMD Radeon RX 5300M 38%
NVIDIA Quadro P2000 Max-Q 50%
AMD Radeon Pro Vega 16 51%
...
Cinebench R10 Cinebench R10 Shading (32bit) + Cinebench R10 - Cinebench R10 Shading (32bit)
11787 punten (50%)
...
AMD Radeon RX 580 (Laptop) -10%
Intel Iris Pro Graphics 580 -4%
NVIDIA GeForce RTX 3050 Laptop GPU -2%
Intel Iris Xe MAX Graphics
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 2%
NVIDIA Quadro P4000 Max-Q 6%
Intel UHD Graphics Xe G4 48EUs 8%
AMD Radeon Pro 455 8%
AMD Radeon RX Vega M GH 10%
...
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit + Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
64.3 fps (23%)
...
AMD FirePro W5130M -3%
Intel Iris Pro Graphics 580 -2%
Intel Iris Xe MAX Graphics
...
Cinebench R15 + Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 92.1 gem: 103 mediaan: 105 (28%) max: 112 fps
GPU TDP ? TDP 10 W 100% 85%
...
AMD Radeon Pro 455 -3%
NVIDIA GeForce GTX 1050 Max-Q -2%
AMD FirePro W7170M 0%
Intel Iris Xe MAX Graphics
NVIDIA GeForce GTX 1070 Max-Q 2%
NVIDIA Quadro P4000 Max-Q 2%
NVIDIA GeForce GTX 1050 Ti Max-Q 2%
NVIDIA Quadro P4000 4%
NVIDIA Quadro M2200 4%
AMD Radeon RX 580 (Laptop) 5%
...
Cinebench R15 OpenGL Ref. Match 64 Bit + Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
97.8 % (98%)
GPU TDP ? TDP 10 W 100% 100%
...
Intel Iris Xe MAX Graphics
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) 0%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 0%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 0%
Intel UHD Graphics 610 0%
Intel HD Graphics 610 0%
Intel UHD Graphics Xe G4 48EUs 0%
...
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
1161 Samples/s (5%)
...
AMD Radeon RX 560X (Laptop) -21%
NVIDIA GeForce GTX 1050 Max-Q -17%
NVIDIA Quadro P2000 -7%
NVIDIA Quadro P620 -5%
Intel Iris Xe MAX Graphics
NVIDIA GeForce GTX 1050 Ti Max-Q 3%
NVIDIA Quadro M3000M 10%
NVIDIA Quadro M2200 10%
NVIDIA Quadro P2000 Max-Q 10%
NVIDIA GeForce GTX 1050 Ti Mobile 20%
...
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
3073 Samples/s (5%)
...
NVIDIA GeForce GTX 1050 Ti Mobile -12%
NVIDIA Quadro P2000 -12%
AMD Radeon RX Vega M GH -7%
NVIDIA Quadro T2000 Max-Q -1%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P3000 9%
AMD Radeon RX 5300M 10%
NVIDIA Quadro P4000 16%
NVIDIA GeForce GTX 1070 Mobile 29%
NVIDIA Quadro P3200 31%
...
ComputeMark v2.1 - ComputeMark v2.1 Result
3898 punten (7%)
...
AMD Radeon RX 560X (Laptop) -11%
NVIDIA Quadro P620 -10%
NVIDIA Quadro P1000 -9%
AMD Radeon R9 M385X -9%
AMD Radeon Pro 560 -4%
AMD Radeon Pro 460 -1%
Intel Iris Xe MAX Graphics
NVIDIA Quadro M2200 11%
NVIDIA GeForce GTX 1050 Max-Q 11%
NVIDIA GeForce GTX 1050 Ti Mobile 13%
...
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 42.9 gem: 46.2 mediaan: 46.2 (7%) max: 49.4 Watt
GPU TDP ? TDP 10 W 100% 101%
...
AMD Radeon RX Vega 9 -9%
NVIDIA Quadro M620 -2%
Intel Iris Xe MAX Graphics
NVIDIA T500 Laptop GPU 2%
Intel Iris Plus Graphics 650 11%
...
0 5 10 15 20 25 30 35 40 45 50 Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 46.3 gem: 49.6 mediaan: 49.6 (7%) max: 52.8 Watt
GPU TDP ? TDP 10 W 100% 101%
...
AMD Radeon Pro 455 -3%
NVIDIA Quadro M600M -2%
NVIDIA Quadro M620 -2%
Intel Iris Xe MAX Graphics
Intel Iris Plus Graphics 650 4%
AMD Radeon Pro 555 5%
Apple M1 Max 24-Core GPU 21%
...
0 5 10 15 20 25 30 35 40 45 50 55 60 Tooltip
Power Consumption - Witcher 3 Power Consumption *
min: 45.9 gem: 50.7 mediaan: 52.2 (11%) max: 54.1 Watt
GPU TDP ? TDP 10 W 101% 100%
Intel UHD Graphics 605 -77%
...
AMD Radeon RX Vega 9 -11%
AMD FirePro W4190M -8%
AMD Radeon Pro WX 3100 -7%
AMD Radeon RX 550X (Laptop) -3%
NVIDIA T500 Laptop GPU -2%
Intel Iris Xe MAX Graphics
AMD Radeon Pro WX 3200 0%
NVIDIA Quadro P520 5%
AMD Radeon R7 M340 5%
...
0 5 10 15 20 25 30 35 40 45 50 55 60 65 Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
min: 0.3391 gem: 0.4 mediaan: 0.3 (0%) max: 0.3747 Points per Watt
GPU TDP ? TDP 10 W 100% 95%
...
NVIDIA Quadro P2000 Max-Q -9%
AMD Radeon RX Vega 7 -8%
NVIDIA Quadro P3000 -5%
NVIDIA GeForce GTX 1070 Mobile -5%
NVIDIA Quadro P2000 -3%
Intel Iris Xe MAX Graphics
NVIDIA Quadro P5000 2%
NVIDIA Quadro RTX 4000 Max-Q 6%
NVIDIA GeForce GTX 1070 Max-Q 7%
NVIDIA GeForce RTX 2080 Super Mobile 8%
...
Intel UHD Graphics 605 2401%
Clock Speed - GPU Clock Speed Furmark
1200 MHz (48%)
...
NVIDIA GeForce RTX 2070 Super Mobile -4%
AMD Radeon RX 560X (Laptop) -3%
NVIDIA GeForce RTX 3080 Laptop GPU -1%
AMD Radeon RX Vega M GH -1%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 7 4%
NVIDIA GeForce GTX 1070 Mobile 5%
NVIDIA Quadro P500 6%
NVIDIA GeForce RTX 3070 Laptop GPU 6%
...
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
...
Intel UHD Graphics G1 (Ice Lake 32 EU) -17%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -12%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -9%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -9%
Intel UHD Graphics Xe G4 48EUs -9%
AMD Radeon 540X -5%
AMD Radeon RX 550 (Laptop) -4%
Intel Iris Xe MAX Graphics
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 27%
AMD Radeon RX 560X (Laptop) 64%
...
Intel UHD Graphics Xe G4 48EUs -51%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -48%
AMD Radeon 540X -43%
AMD Radeon RX 550 (Laptop) -39%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -29%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 11%
NVIDIA GeForce RTX 3050 Laptop GPU 65%
...
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -66%
...
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -55%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -50%
AMD Radeon 540X -45%
AMD Radeon RX 550 (Laptop) -40%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -33%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 5%
NVIDIA GeForce RTX 3050 Laptop GPU 74%
...
NVIDIA GeForce RTX 3080 Laptop GPU 174%
» Met alle geteste laptops speelbaar met hoge instellingen.
...
AMD Radeon 540X -34%
AMD Radeon RX Vega 7 -30%
AMD Radeon RX 550 (Laptop) -24%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 17%
AMD Radeon 680M 65%
NVIDIA GeForce RTX 3070 Laptop GPU 96%
NVIDIA GeForce RTX 3080 Laptop GPU 113%
NVIDIA GeForce RTX 3060 Laptop GPU 119%
...
AMD Radeon RX Vega 10 -70%
...
AMD Radeon RX Vega 7 -8%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 19%
AMD Radeon 680M 35%
NVIDIA GeForce RTX 3050 Laptop GPU 73%
...
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -72%
...
AMD Radeon RX Vega 7 -23%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 1%
AMD Radeon 680M 8%
NVIDIA GeForce RTX 3050 Laptop GPU 77%
...
AMD Radeon RX 550 (Laptop) -64%
...
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -41%
AMD Radeon RX Vega 7 -31%
AMD Radeon RX 560X (Laptop) -2%
Intel Iris Xe MAX Graphics
AMD Radeon 680M 12%
NVIDIA GeForce RTX 3050 Laptop GPU 81%
NVIDIA GeForce GTX 1080 Max-Q 131%
...
» Met alle geteste laptops speelbaar met lage instellingen.
...
AMD Radeon RX Vega 10 -44%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -44%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -42%
AMD Radeon 540X -38%
AMD Radeon RX Vega 7 -27%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 29%
NVIDIA GeForce GTX 1050 Ti Mobile 29%
AMD Radeon 680M 79%
...
...
AMD Radeon RX Vega 10 -52%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -51%
Intel UHD Graphics Xe G4 48EUs -50%
AMD Radeon 540X -48%
AMD Radeon RX Vega 7 -36%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 20%
NVIDIA GeForce GTX 1050 Ti Mobile 47%
AMD Radeon 680M 72%
...
AMD Radeon RX 550 (Laptop) -64%
...
AMD Radeon RX Vega 10 -51%
AMD Radeon 540X -50%
Intel UHD Graphics Xe G4 48EUs -46%
AMD Radeon RX Vega 7 -35%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 22%
NVIDIA GeForce GTX 1050 Ti Mobile 38%
AMD Radeon 680M 71%
...
AMD Radeon RX 550 (Laptop) -64%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -56%
AMD Radeon RX Vega 7 -40%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 25%
NVIDIA GeForce GTX 1050 Ti Mobile 35%
AMD Radeon 680M 69%
...
» Met alle geteste laptops speelbaar met lage instellingen.
Additional Benchmarks
Minimum Settings 1920x1080
...
Intel UHD Graphics Xe G4 48EUs -41%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -35%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -31%
AMD Radeon 540X -17%
AMD Radeon RX Vega 7 -10%
Intel Iris Xe MAX Graphics
NVIDIA T500 Laptop GPU 27%
AMD Radeon RX 560X (Laptop) 45%
NVIDIA GeForce GTX 1050 Ti Mobile 76%
...
AMD Radeon RX Vega 10 -62%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -40%
AMD Radeon RX Vega 7 -26%
Intel Iris Xe MAX Graphics
NVIDIA T500 Laptop GPU 25%
AMD Radeon RX 560X (Laptop) 34%
NVIDIA GeForce GTX 1050 Ti Mobile 57%
...
Intel Iris Xe MAX Graphics
NVIDIA T500 Laptop GPU 18%
AMD Radeon RX 560X (Laptop) 31%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
Additional Benchmarks
Low Preset 1920x1080
Intel UHD Graphics Xe 16EUs (Tiger Lake-H) -41%
Intel UHD Graphics G1 (Ice Lake 32 EU) -41%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) -18%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -18%
Intel UHD Graphics Xe G4 48EUs -9%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 2%
AMD Radeon RX Vega 10 14%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 23%
AMD Radeon 540X 36%
AMD Radeon RX Vega 7 68%
...
Intel UHD Graphics G1 (Ice Lake 32 EU) -12%
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 13%
Intel UHD Graphics Xe G4 48EUs 50%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) 50%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) 63%
AMD Radeon RX Vega 10 63%
AMD Radeon 540X 63%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) 88%
...
» De benchmarkresultaten tonen aan dat de game niet speelbaar is met de geteste instellingen.
...
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -48%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -41%
AMD Radeon 540X -30%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -27%
AMD Radeon RX 550 (Laptop) -24%
AMD Radeon RX Vega 7 -11%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 4%
NVIDIA GeForce GTX 1050 Ti Mobile 66%
AMD Radeon 680M 79%
...
NVIDIA GeForce RTX 2070 Super Mobile 213%
...
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -56%
AMD Radeon 540X -56%
AMD Radeon RX 550 (Laptop) -50%
AMD Radeon RX Vega 7 -43%
AMD Radeon RX 560X (Laptop) -1%
Intel Iris Xe MAX Graphics
AMD Radeon 680M 33%
NVIDIA GeForce GTX 1050 Ti Mobile 43%
...
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -60%
AMD Radeon RX 550 (Laptop) -50%
AMD Radeon RX Vega 7 -42%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 0%
AMD Radeon 680M 30%
NVIDIA GeForce GTX 1050 Ti Mobile 44%
...
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 1%
AMD Radeon 680M 31%
NVIDIA GeForce GTX 1050 Ti Mobile 46%
...
» Met alle geteste laptops speelbaar met lage instellingen.
Intel UHD Graphics G1 (Ice Lake 32 EU) -66%
...
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -37%
Intel UHD Graphics Xe G4 48EUs -34%
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -28%
AMD Radeon RX Vega 6 (Ryzen 4000/5000) -28%
AMD Radeon RX Vega 10 -25%
AMD Radeon 540X -16%
Intel Iris Xe MAX Graphics
NVIDIA GeForce GTX 1050 Ti Mobile 3%
AMD Radeon RX Vega 7 16%
AMD Radeon RX 560X (Laptop) 81%
AMD Radeon 680M 131%
...
...
AMD Radeon RX Vega 8 (Ryzen 2000/3000) -47%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H) -42%
Intel UHD Graphics Xe G4 48EUs -37%
AMD Radeon 540X -37%
AMD Radeon RX Vega 10 -37%
AMD Radeon RX Vega 7 -3%
Intel Iris Xe MAX Graphics
AMD Radeon RX 560X (Laptop) 58%
AMD Radeon 680M 100%
...
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 17%
AMD Radeon RX 550 (Laptop) 33%
AMD Radeon RX Vega 10 33%
Deutsch
English
Español
Français
Italiano
Polski
Português
Русский
Türkçe
Svenska
Chinese
Magyar
- Gemiddelde benchmarkresultaten voor deze videokaart
