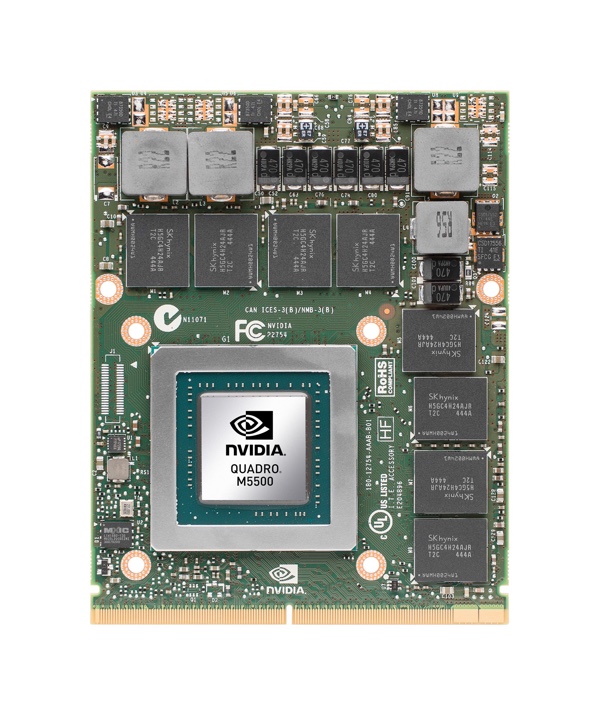

NVIDIA Quadro M5500

NVIDIA Quadro M5500

De Nvidia Quadro M5000 is een high-end, DirectX 12 (FL_12_1) en OpenGL 4.5-compatibele grafische kaart voor mobile workstations. De GPU is gebaseerd op de GM204-chip van de Maxwell-generatie met alle 2048 shader cores geactiveeerd en gefabriceerd in 28nm bij TSMC. De kaart is dus vergelijkbaar met de Nvidia GeForce GTX 980 (notebook) voor consumenten. In vergelijking met de tragere en zuinigere Quadro M5000M biedt de M5500 512 meer shaders, wat volgens Nvidia zou resulteren in 30-40% meer performance.

De Quadro-serie biedt gecertificeerde drivers die geoptimaliseerd zijn voor stabiliteit en prestaties in professionele applicaties als CAD en DCC. Performance in OpenGL zou bijvoorbeeld veel beter moeten zijn dan bij GeForce-GPU's met vergelijkbare specificaties.

Dankzij CUDA (Compute Capability 5.2) of OpenCL 1.2 kunnen de cores van de Quadro M5000M gebruikt worden voor algemene berekeningen.

Energieverbruik

Het energieverbruik van de Quadro M5000M is afgestemd op hetzelfde TDP van 150 Watt. De kaart is dus geschikt voor erg grote notebooks van het 17-inch-formaat of groter. De eerste laptop uitgerust met de M5500 is de MSI WT72 Workstation.

FabrikantNVIDIA
Quadro M Serie
Quadro M5500 2048 @ 1.14 - 1.14 GHz256 bit @ 6606 MHz
Quadro M5000M 1536 @ 0.96 - 1.05 GHz256 bit @ 5000 MHz
Quadro M4000M 1280 @ 0.98 - 1.01 GHz256 bit @ 5012 MHz
Quadro M3000M 1024 @ 1.05 GHz256 bit @ 5000 MHz
Quadro M2200 1024 @ 0.69 - 1.04 GHz128 bit @ 5508 MHz
Quadro M1200 640 @ 0.99 - 1.15 GHz128 bit @ 5000 MHz
Quadro M2000M 640 @ 1.04 - 1.2 GHz128 bit @ 5000 MHz
Quadro M1000M 512 @ 0.99 - 1.07 GHz128 bit @ 5000 MHz
Quadro M620 512 @ 1.02 GHz128 bit @ 5012 MHz
Quadro 5010M 384 @ 0.45 GHz256 bit @ 1300 MHz
Quadro 4000M 336 @ 0.48 GHz256 bit @ 1200 MHz
Quadro M520 384 @ 0.76 - 1.02 GHz64 bit
Quadro M600M 384 @ 0.84 - 0.88 GHz128 bit @ 5012 MHz
Quadro M500M 384 @ 1.03 - 1.12 GHz64 bit @ 4004 MHz
Quadro 5000M 320 @ 0.41 GHz256 bit @ 1200 MHz
Quadro 3000M 240 @ 0.45 GHz256 bit @ 625 MHz
Quadro 2000M 192 @ 0.55 GHz128 bit @ 900 MHz
Quadro 1000M 96 @ 0.7 GHz128 bit @ 900 MHz
ArchitectuurMaxwell
Pipelines2048 - verenigd
Core-snelheid1139 - 1140 (Boost) MHz
Geheugensnelheid6606 MHz
Geheugenbusbreedte256 bit
GeheugentypeGDDR5
Max. hoeveelheid geheugen8192 MB
Gedeeld geheugennee
DirectXDirectX 12_1
Aantal Transistoren5200 miljoen
technologie28 nm
FaciliteitenCUDA, 3D Vision, PhysX, GeForce Experience, Surround, GameStream, GPU Boost 2.0, Adaptive Vertical Sync, G-SYNC, SLI
Laptop Groottegroot
Aangekondigde datum04.04.2016

Benchmarks

3DMark 11 - 3DM11 Performance Score
14413 Points (34%)
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
144 fps (63%)
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
120 fps (34%)
specvp12 showcase-01 +
SPECviewperf 12 - specvp12 showcase-01
60.3 fps (24%)
specvp12 mediacal-01 +
SPECviewperf 12 - specvp12 mediacal-01
53.8 fps (33%)
specvp12 maya-04 +
SPECviewperf 12 - specvp12 maya-04
95 fps (41%)
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
12.2 fps (31%)
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
110 fps (59%)
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
137 fps (47%)
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
107 fps (29%)
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Smaller numbers mean a higher performance

Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
