AMD Radeon RX 6600M

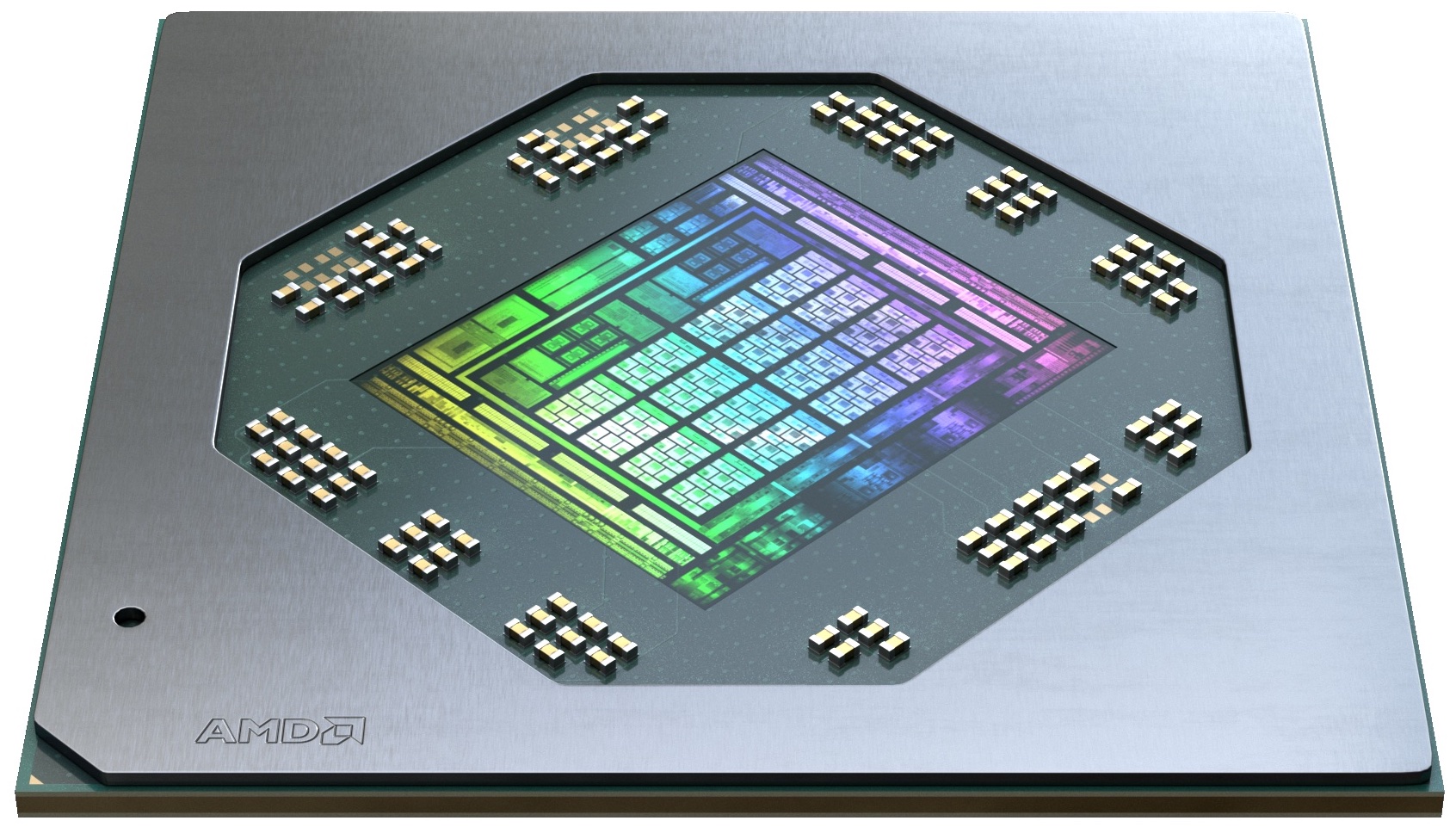

De AMD Radeon RX 6600M is een mobiele mid-range grafische kaart gebaseerd op de Navi 23 chip (RDNA 2 architectuur) vervaardigd in het moderne 7nm proces. De kaart beschikt over 1.792 kernen (28 CU's - rekeneenheden) en 8 GB snel GDDR6 grafisch geheugen, verbonden met een 128 Bit geheugenbus. De chip bevat ook 32 MB Infinity Cache. De kloksnelheid van de cores zal volgens AMD afhangen van de laptop. Het stroomverbruik (TDP instellingen) varieert van 50 - 100 Watt met verschillende kloksnelheden (vergelijkbaar met Nvidia).
Bij 100 Watt bereikt de gameklok 2177 MHz en zouden de prestaties vergelijkbaar moeten zijn met een RTX 3060 voor laptops. Wanneer Raytracing-effecten worden geactiveerd, blijft hij achter bij de GeForce GPU's.
De Navi 21 chip wordt gefabriceerd bij TSMC in het moderne 7nm proces. Vergeleken met de Nvidia 12nm chips, zou de RX 6600M een goede energie-efficiëntie moeten bieden.
Radeon RX 6000M Serie
| ||||||||||||||||||||||||||||||||||||||||||||||
| Codenaam | R21M-E65-70 | |||||||||||||||||||||||||||||||||||||||||||||
| Architectuur | RDNA 2 | |||||||||||||||||||||||||||||||||||||||||||||
| Pipelines | 1792 - verenigd | |||||||||||||||||||||||||||||||||||||||||||||
| TMUs | 112 | |||||||||||||||||||||||||||||||||||||||||||||
| ROPs | 64 | |||||||||||||||||||||||||||||||||||||||||||||
| Raytracing Cores | 28 | |||||||||||||||||||||||||||||||||||||||||||||
| Core-snelheid | 2068 - 2177 (Boost) MHz | |||||||||||||||||||||||||||||||||||||||||||||
| Theoretical Performance | 17.32 TFLOPS FP16, 8.66 TFLOPS FP32, 0.54 TFLOPS FP64 | |||||||||||||||||||||||||||||||||||||||||||||
| Cache | L2: 2 MB, L3: 32 MB | |||||||||||||||||||||||||||||||||||||||||||||
| Geheugensnelheid | 14000 effective = 1750 MHz | |||||||||||||||||||||||||||||||||||||||||||||
| Geheugenbusbreedte | 128 bit | |||||||||||||||||||||||||||||||||||||||||||||
| Geheugentype | GDDR6 | |||||||||||||||||||||||||||||||||||||||||||||
| Max. hoeveelheid geheugen | 8 GB | |||||||||||||||||||||||||||||||||||||||||||||
| Gedeeld geheugen | nee | |||||||||||||||||||||||||||||||||||||||||||||
| Memory Bandwidth | 224 GB/s | |||||||||||||||||||||||||||||||||||||||||||||
| API | DirectX 12, Shader 6.4, OpenGL 4.6, OpenCL 2.1, Vulkan 1.3 | |||||||||||||||||||||||||||||||||||||||||||||
| Stroomverbruik | 100 Watt (50 - 100 Watt TGP) | |||||||||||||||||||||||||||||||||||||||||||||
| Aantal Transistoren | 11.1 Billion | |||||||||||||||||||||||||||||||||||||||||||||
| Matrijsgrootte | 237 mm² | |||||||||||||||||||||||||||||||||||||||||||||
| technologie | 7 nm | |||||||||||||||||||||||||||||||||||||||||||||
| PCIe | 4.0 | |||||||||||||||||||||||||||||||||||||||||||||
| Displays | HDMI 2.0b, DisplayPort 1.4 | |||||||||||||||||||||||||||||||||||||||||||||
| Faciliteiten | DisplayPort 1.4 w/DFSC, HDMI 2.0b, Radeon Media Engine (H.264 4K150 decode, 4K90 encode / H.265 4K90 decode, 4K60 encode / VP9 4K90 decode), Resizable BAR, Ray Tracing | |||||||||||||||||||||||||||||||||||||||||||||
| Laptop Grootte | gemiddeld formaat | |||||||||||||||||||||||||||||||||||||||||||||
| Aangekondigde datum | 01.09.2020 | |||||||||||||||||||||||||||||||||||||||||||||
| Link naar fabrikant | www.amd.com | |||||||||||||||||||||||||||||||||||||||||||||
| Predecessor | Radeon RX 5600M | |||||||||||||||||||||||||||||||||||||||||||||
Benchmarks
3DM Vant. Perf. total +
specvp12 sw-03 +
Cinebench R15 OpenGL 64 Bit +
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

Alan Wake 2
2023
Lords of the Fallen
2023
Total War Pharaoh
2023
Cyberpunk 2077
2023
Baldur's Gate 3
2023
Lies of P
2023
Starfield
2023
Armored Core 6
2023
Immortals of Aveum
2023
Atlas Fallen
2023
F1 23
2023
Diablo 4
2023
Dead Island 2
2023
The Last of Us
2023
Company of Heroes 3
2023
Sons of the Forest
2023
Atomic Heart
2023
Returnal
2023
Hogwarts Legacy
2023
Dead Space Remake
2023
The Witcher 3 v4
2023
High On Life
2023
FIFA 23
2022
The Quarry
2022
F1 22
2022
Vampire Bloodhunt
2022
Ghostwire Tokyo
2022
Cyberpunk 2077 1.6
2022
Elex 2
2022
GRID Legends
2022
Elden Ring
2022
Dying Light 2
2022
God of War
2022
Halo Infinite
2021
Farming Simulator 22
2021
Forza Horizon 5
2021
Riders Republic
2021
Back 4 Blood
2021
Far Cry 6
2021
Alan Wake Remastered
2021
New World
2021
Deathloop
2021
F1 2021
2021
Days Gone
2021
Outriders
2021
Hitman 3
2021
Cyberpunk 2077 1.0
2020
Dirt 5
2020
Watch Dogs Legion
2020
Horizon Zero Dawn
2020
Death Stranding
2020
F1 2020
2020
Doom Eternal
2020
Borderlands 3
2019
Control
2019
Anno 1800
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Forza Horizon 4
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015
BioShock Infinite
2013| lage | gem. | hoge | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| Alan Wake 2 | 52.4 | 44.1 | 40.6 | 25.2 | 12.6 | |
| Lords of the Fallen | 66.4 | 56 | 38.7 | 26.5 | 17 | 7.64 |
| Total War Pharaoh | 286.2 | 186.4 | 112.6 | 91.4 | 59.2 | 27.4 |
| Assassin's Creed Mirage | 103 | 91 | 84 | 64 | 48 | 25 |
| Cyberpunk 2077 | 105.6 | 80.7 | 66.1 | 60.8 | 36.2 | 16 |
| Baldur's Gate 3 | 114.4 | 91.8 | 74.8 | 72.9 | 48.6 | 23.7 |
| Lies of P | 134.2 | 126 | 106.3 | 95.5 | 59.6 | 28.7 |
| Starfield | 58 | 50 | 40 | 36 | 28 | 17 |
| Armored Core 6 | 74.9 | 72.6 | 69 | 68.9 | 52.3 | 31.2 |
| Immortals of Aveum | 61.1 | 49.8 | 36.6 | 23.8 | 11.5 | |
| Atlas Fallen | 104.4 | 102.5 | 93.2 | 69.1 | 48.6 | 23.1 |
| Ratchet & Clank Rift Apart | 62.8 | 59 | 47 | 39.4 | 34.9 | 30 |
| F1 23 | 264 | 240 | 168.7 | 31.3 | 19.1 | 8.43 |
| Diablo 4 | 206 | 179.2 | 159.4 | 120.6 | 75 | 39 |
| Star Wars Jedi Survivor | 66 | 58 | 54 | 51 | 30 | 15 |
| Dead Island 2 | 196 | 171 | 129 | 107 | 70 | 34 |
| The Last of Us | 80 | 66 | 57 | 44 | 27 | 11 |
| Resident Evil 4 Remake | 114 | 90 | 79 | 51 | 38 | 17 |
| Company of Heroes 3 | 127 | 113 | 85 | 84 | 60 | 34 |
| Sons of the Forest | 78 | 74 | 71 | 69 | 50 | 27 |
| Atomic Heart | 161 | 113 | 67 | 52 | 39 | 23 |
| Returnal | 88 | 85 | 76 | 62 | 44 | 23 |
| Hogwarts Legacy | 100.3 | 86 | 68 | 52 | 36 | 19 |
| Dead Space Remake | 66 | 62 | 52 | 50 | 31 | 11 |
| The Witcher 3 v4 | 149.3 | 115 | 101 | 83 | 55 | 29 |
| High On Life | 181 | 136 | 104 | 82 | 47 | 20 |
| The Callisto Protocol | 129 | 92 | 69 | 57 | 41 | 24 |
| Need for Speed Unbound | 127 | 103 | 82 | 72 | 50 | 28 |
| Spider-Man Miles Morales | 94 | 81 | 77 | 68 | 48 | 26 |
| Call of Duty Modern Warfare 2 2022 | 113 | 115 | 84 | 77 | 54 | 29 |
| Uncharted Legacy of Thieves Collection | 79 | 74 | 68 | 65 | 41 | 18 |
| A Plague Tale Requiem | 88 | 62 | 49 | 40 | 29 | 17 |
| FIFA 23 | 170.4 | 137 | 134 | 133 | 107 | 57 |
| The Quarry | 118 | 92 | 74 | 52 | 34 | 13 |
| F1 22 | 243 | 225 | 177 | 41 | 25 | 12 |
| Vampire Bloodhunt | 169.1 | 158.7 | 157.7 | |||
| Ghostwire Tokyo | 115.1 | 113.2 | 112 | |||
| Tiny Tina's Wonderlands | 186 | 143 | 91 | 70 | 49 | 21 |
| Cyberpunk 2077 1.6 | 98 | 82 | 67 | 59 | 39 | 19 |
| Elex 2 | 71 | 71 | 67 | 64 | 58 | |
| GRID Legends | 190 | 171 | 141 | 116 | 94 | 56 |
| Elden Ring | 60 | 60 | 60 | |||
| Dying Light 2 | 105 | 78 | 62 | |||
| Rainbow Six Extraction | 141 | 126 | 120 | 94 | ||
| God of War | 90 | 84 | 74 | 55 | 44 | 26 |
| Halo Infinite | 60.7 | 55.6 | 53.9 | |||
| Farming Simulator 22 | 182 | 134 | 118 | 112 | 110.9 | 65.4 |
| Forza Horizon 5 | 181 | 126 | 117 | 70 | 54 | 33 |
| Riders Republic | 89 | 83 | 77 | 76 | ||
| Guardians of the Galaxy | 104 | 102 | 101 | 101 | 100 | 58 |
| Back 4 Blood | 189 | 172 | 124 | |||
| Far Cry 6 | 115 | 97 | 88 | 76 | 65 | 9 |
| Alan Wake Remastered | 124 | 121 | ||||
| New World | 113.7 | 85 | 78 | 70 | 52.4 | 31.3 |
| Deathloop | 98 | 80.9 | 58.8 | |||
| F1 2021 | 318 | 243 | 198 | 92 | 65 | 33 |
| Days Gone | 103.1 | 97.9 | 76.7 | |||
| Resident Evil Village | 170.7 | 168.7 | 146 | |||
| Outriders | 92.9 | 90.2 | 88.7 | |||
| Hitman 3 | 154 | 147 | 140 | |||
| Cyberpunk 2077 1.0 | 125 | 68.6 | 56.1 | 46.4 | ||
| Assassin´s Creed Valhalla | 155 | 95 | 79 | 69 | 52 | 27 |
| Dirt 5 | 160 | 101 | 77 | 63 | 55 | 40 |
| Watch Dogs Legion | 120.6 | 119.7 | 107.4 | 59 | 41.6 | 21.4 |
| Mafia Definitive Edition | 107 | 88 | 81 | 57.7 | 27.3 | |
| Horizon Zero Dawn | 171 | 124 | 106 | 89 | 66 | 34 |
| Death Stranding | 134 | 122 | 115 | 111 | ||
| F1 2020 | 304 | 229 | 194 | 133 | 98 | 54 |
| Doom Eternal | 309 | 160 | 148 | 144 | ||
| Borderlands 3 | 116 | 101 | 85 | 65 | 45 | 24 |
| Control | 215 | 99 | 70 | 45 | 22 | |
| Anno 1800 | 109.6 | 96.7 | 79.6 | 47 | 37.3 | 20.3 |
| Far Cry New Dawn | 104 | 92 | 88 | 84 | 84 | 48 |
| Metro Exodus | 192 | 103 | 76 | 60 | 47 | 28 |
| Assassin´s Creed Odyssey | 120 | 108 | 106 | 79 | 51 | 29 |
| Forza Horizon 4 | 227 | 202 | 199 | 168 | 128 | 74 |
| Shadow of the Tomb Raider | 152 | 126 | 119 | 105 | 68 | 32 |
| Strange Brigade | 373 | 208 | 173 | 152 | 100 | 52 |
| Far Cry 5 | 128 | 112 | 107 | 100 | 88 | 44 |
| X-Plane 11.11 | 70 | 55 | 46 | 29 | ||
| Final Fantasy XV Benchmark | 180 | 107 | 79 | 56 | 30 | |
| Assassin´s Creed Origins | 109 | 107 | 107 | 85 | 68 | 37 |
| Rise of the Tomb Raider | 236 | 179 | 120 | 97 | 42 | |
| Dota 2 Reborn | 146 | 125 | 118 | 101 | 81 | |
| The Witcher 3 | 322 | 238 | 141 | 84 | 61.6 | 44 |
| GTA V | 172 | 161 | 144 | 79 | 59 | 58 |
| BioShock Infinite | 379.8 | 316.8 | 291 | 162.9 | ||
| lage | gem. | hoge | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 34 40 | 6 49 30 | 12 54 21 | 1 21 47 11 | 8 40 17 2 | 42 23 3 |
Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List
