AMD Radeon R9 M390
De AMD Radeon R9 M390 is een grafische kaart van 2015 voor laptops die zich positioneert als snelle mid-range GPU. Hij zou gebaseerd zijn op de oude Pitcairn-chip (bv. in 2012 gebruikt in de 7870 desktop-GPU) en beschikt over 1024 shader cores geklokt aan 958 MHz. Daarnaast biedt de kaart 2 GB GDDR5 grafisch geheugen dat verbonden is via een 256-Bit-geheugenbus. De grafische kaart wordt gebruikt in de Apple iMac 27-inch van 2015 (mid-range model).
De prestaties van de Radeon R9 M390 liggen iets boven die van een Nvidia GeForce GTX 960M of 870M, maar nog altijd een stuk boven een Radeon R7 370 voor desktops. Daarom kunnen veeleisende games van 2015 misschien alleen vloeiend speelbaar zijn met gemiddelde instellingen in FullHD-resolutie. De standaard 5K-resolutie van de iMac of zelfs de perfect verschaalde 2560x1600 is bijna zeker te zwaar.

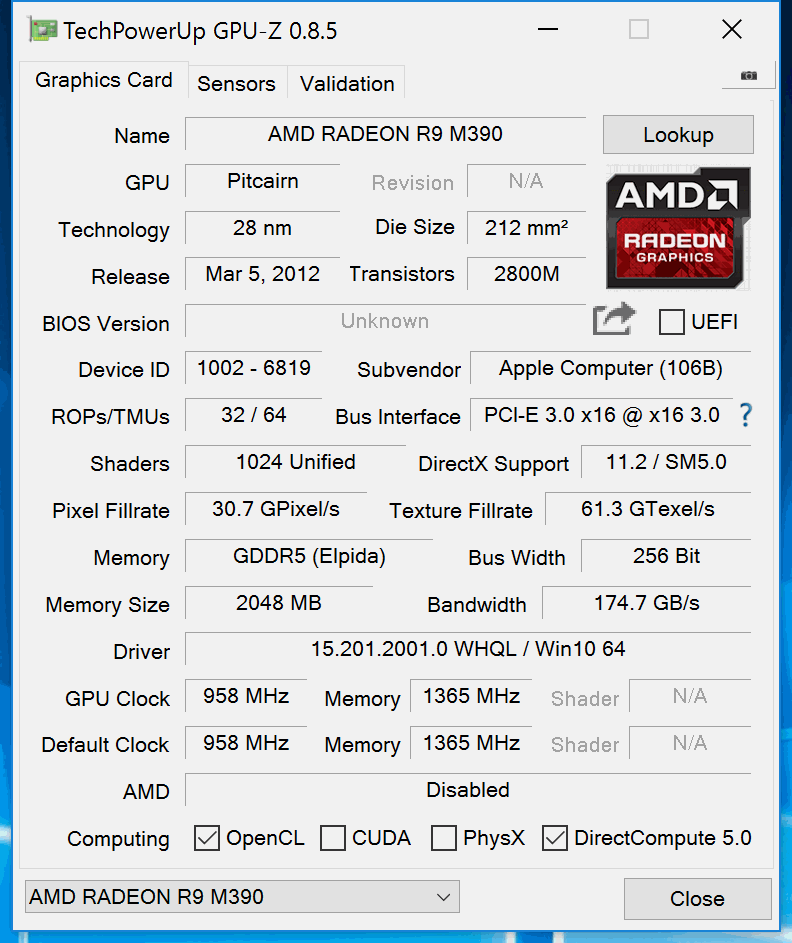

| Fabrikant | AMD |
| Radeon R9 M300 Serie | | Radeon R9 M395X | 2048 @ 909 (Boost) MHz | 256 bit @ 5460 MHz | | Radeon R9 M390X | 2048 @ 723 (Boost) MHz | 256 bit @ 5000 MHz | | Radeon R9 M395 | 1792 @ 834 MHz | 256 bit @ 5460 MHz | | Radeon R9 M390 | 1024 @ 958 (Boost) MHz | 256 bit @ 5460 MHz | | Radeon R9 M385X | 896 @ 1100 MHz | 128 bit @ 6000 MHz | | Radeon R9 M385 | | 128 bit @ 6000 MHz | | Radeon R9 M380 | 768 @ 1000 MHz | 128 bit @ 6000 MHz | | Radeon R9 M370X | 640 @ 800 MHz | 128 bit @ 4500 MHz | | Radeon R9 M365X | 640 @ 900 - 925 (Boost) MHz | 128 bit @ 4500 MHz | | Radeon R9 M375 | 640 @ 1015 MHz | 128 bit @ 2200 MHz |
|
| Codenaam | Pitcairn |
| Architectuur | GCN |
| Pipelines | 1024 - verenigd |
| Core-snelheid | 958 (Boost) MHz |
| Geheugensnelheid | 5460 MHz |
| Geheugenbusbreedte | 256 bit |
| Geheugentype | GDDR5 |
| Max. hoeveelheid geheugen | 2048 MB |
| Gedeeld geheugen | nee |
| DirectX | DirectX 12 (FL 11_2), Shader 5.0 |
| Aantal Transistoren | 5000 miljoen |
| technologie | 28 nm |
| Faciliteiten | DirectX 12, OpenCL, DirectCompute 5.0 |
| Laptop Grootte | groot |
| Aangekondigde datum | 09.06.2015 |
Benchmarks
3DMark 11 - Performance 1280x720
6838 points (22%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 6838 |
AMD Radeon HD 6250 -97%
...
NVIDIA GeForce GTX 580 -11%
NVIDIA GeForce GTX 775M -11%
AMD Radeon HD 7870 -9%
NVIDIA Quadro P1000 -6%
AMD Radeon R9 M390
AMD Radeon Pro 460 2%
AMD Radeon RX 560 (Laptop) 4%
AMD Radeon RX 480 (Laptop) 5%
NVIDIA GeForce GTX 1050 Max-Q 6%
...
NVIDIA Titan RTX 328%
3DMark 11 - Performance GPU 1280x720
6819 points (13%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 6819 |
...
NVIDIA GeForce GTX 775M -11%
AMD Radeon HD 7870 -9%
AMD Radeon Pro 460 -1%
AMD Radeon R9 M390
NVIDIA GeForce GTX 1050 Max-Q 4%
NVIDIA Quadro M2200 8%
AMD Radeon Pro 560X 11%
...
NVIDIA Titan RTX 537%
3DMark 06 Standard 1280x1024 +25800 Points (55%)
| Standard 1280x1024 |
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 25800 |
...
NVIDIA GeForce GTX 590 -3%
AMD Radeon R9 M390
AMD Radeon Pro 455 0%
AMD Radeon Pro 555 2%
...
NVIDIA GeForce RTX 2070 (Desktop) 81%
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +SPECviewperf 12 - Solidworks (sw-03) 1900x1060
52.3 fps (25%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 52.3 |
...
NVIDIA Quadro M520 -12%
AMD Radeon Pro 455 -9%
NVIDIA GeForce GTX 1070 (Laptop) -9%
NVIDIA GeForce GTX 1070 Max-Q -9%
AMD Radeon Pro 555 -7%
NVIDIA GeForce GTX 1080 Max-Q -6%
AMD Radeon R9 M390
NVIDIA Quadro M600M 0%
AMD Radeon RX 580 (Laptop) 6%
NVIDIA GeForce RTX 2060 (Desktop) 10%
NVIDIA Quadro M620 10%
...
NVIDIA Quadro P5200 305%
Siemens NX (snx-02) 1900x1060 +SPECviewperf 12 - Siemens NX (snx-02) 1900x1060
15 fps (6%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 15 |
...
NVIDIA GeForce RTX 2070 (Desktop) -43%
NVIDIA GeForce RTX 2080 (Desktop) -22%
AMD Radeon Pro 455 -7%
AMD Radeon Pro 555 -5%
AMD Radeon R9 M390
AMD Radeon Pro WX 3100 Mobile 10%
AMD Radeon RX 580 (Laptop) 11%
NVIDIA Quadro K620M 14%
AMD FirePro W2100 17%
AMD FirePro W4190M 33%
AMD Radeon VII 37%
...
NVIDIA Titan RTX 1609%
Showcase (showcase-01) 1900x1060 +SPECviewperf 12 - Showcase (showcase-01) 1900x1060
32.8 fps (17%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 32.8 |
...
NVIDIA Quadro P1000 -16%
NVIDIA Quadro P2000 Max-Q -9%
NVIDIA Quadro P2000 -7%
NVIDIA Quadro M2200 -2%
NVIDIA GeForce GTX 1050 Ti (Laptop) 6%
AMD FirePro W7170M 13%
AMD Radeon Pro WX Vega M GL 17%
...
NVIDIA Titan RTX 484%
Medical (medical-01) 1900x1060 +SPECviewperf 12 - Medical (medical-01) 1900x1060
6.7 fps (8%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 6.7 |
...
AMD FirePro W4100 -26%
AMD FirePro W4190M -21%
NVIDIA GeForce 930MX -14%
AMD FirePro W4170M -13%
AMD FirePro W5130M -12%
NVIDIA Quadro K620M 5%
NVIDIA Quadro M600M 12%
NVIDIA Quadro M520 24%
...
NVIDIA Titan RTX 1199%
Maya (maya-04) 1900x1060 +SPECviewperf 12 - Maya (maya-04) 1900x1060
31.1 fps (16%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 31.1 |
...
NVIDIA Quadro M620 -20%
AMD Radeon Pro 455 -3%
AMD Radeon Pro 555 -2%
NVIDIA GeForce GT 1030 (Desktop) 9%
NVIDIA Quadro P600 20%
...
Energy (energy-01) 1900x1060 +SPECviewperf 12 - Energy (energy-01) 1900x1060
0.3 fps (1%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 0.27 |
...
AMD Radeon Pro 455 -30%
Intel HD Graphics 620 -19%
AMD FirePro W2100 -7%
AMD Radeon R9 M390
AMD Radeon Pro WX 3100 Mobile 7%
NVIDIA GeForce 930MX 11%
AMD Radeon Pro 555 19%
AMD FirePro W4100 30%
...
NVIDIA Titan RTX 10315%
Creo (creo-01) 1900x1060 +SPECviewperf 12 - Creo (creo-01) 1900x1060
33.1 fps (21%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 33.1 |
...
NVIDIA Quadro P500 -21%
NVIDIA Quadro M520 -15%
NVIDIA Quadro M600M -4%
AMD Radeon Pro 455 -1%
NVIDIA GeForce GTX 1070 SLI (Desktop) 1%
AMD Radeon Pro 555 1%
NVIDIA Quadro M620 4%
NVIDIA GeForce GTX 1060 (Desktop) 7%
...
NVIDIA Quadro P5200 383%
Catia (catia-04) 1900x1060 +SPECviewperf 12 - Catia (catia-04) 1900x1060
49.8 fps (25%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | 12.0 | 49.8 |
...
NVIDIA Quadro P600 -20%
NVIDIA GeForce GTX 1060 (Desktop) 3%
NVIDIA Quadro P1000 9%
AMD FirePro W7170M 16%
NVIDIA GeForce GTX 1070 SLI (Desktop) 23%
NVIDIA GeForce GTX 1070 Max-Q 27%
...
NVIDIA Quadro P5200 295%
Cinebench R10 Shading 32Bit +Cinebench R10 - Shading 32Bit
12092 Points (61%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 12092 |
...
AMD Radeon RX 580 (Laptop) -12%
AMD Radeon HD 6790 -11%
AMD Radeon HD 6870 -10%
AMD Radeon HD 7870 -8%
Intel Iris Pro Graphics 580 -6%
AMD Radeon R9 M390
NVIDIA Quadro P4000 Max-Q 3%
AMD Radeon Pro 455 5%
AMD Radeon RX Vega M GH 8%
NVIDIA Quadro P600 9%
AMD Radeon Pro 460 12%
NVIDIA GeForce RTX 2070 (Laptop) 21%
AMD Radeon RX Vega 64 26%
...
NVIDIA GeForce RTX 2070 (Laptop) 21%
Cinebench R11.5 OpenGL 64Bit +Cinebench R11.5 - OpenGL 64Bit
93.6 Points (55%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 93.6 |
...
AMD FirePro W7170M -8%
AMD Radeon RX 580 (Laptop) -7%
NVIDIA GeForce RTX 2080 (Laptop) -6%
NVIDIA Quadro M2200 -5%
NVIDIA Quadro M4000M -5%
NVIDIA Quadro P4000 Max-Q -4%
AMD Radeon R9 M390
NVIDIA Quadro P2000 Max-Q 7%
NVIDIA Quadro P3000 8%
AMD Radeon Pro 460 10%
...
NVIDIA Quadro P5200 82%
Cinebench R15
OpenGL 64Bit +Cinebench R15 - OpenGL 64Bit
min: 91.2 gem: 101.6 mediaan: 101.6 (41%) max: 112 Points
...
NVIDIA GeForce GTX 1050 Max-Q -4%
AMD Radeon Pro 560X -3%
AMD Radeon RX 560 (Laptop) -3%
NVIDIA GeForce GTX 1050 Ti (Laptop) -2%
AMD Radeon Pro 455 -2%
AMD FirePro W7170M 1%
NVIDIA GeForce GTX 1070 Max-Q 3%
NVIDIA Quadro P4000 Max-Q 3%
NVIDIA GeForce RTX 2070 Max-Q 4%
NVIDIA Quadro P4000 6%
NVIDIA Quadro M2200 6%
...
NVIDIA Quadro P5200 146%
Ref. Match 64Bit +Cinebench R15 - Ref. Match 64Bit
min: 98 gem: 98.8 mediaan: 98.8 (99%) max: 99.5 Points
...
AMD FirePro W7170M -1%
Intel HD Graphics (Cherry Trail) -1%
Intel Iris Plus Graphics 640 -1%
Intel Iris Plus Graphics 650 1%
Intel UHD Graphics 617 1%
AMD Radeon Pro 560X 1%
AMD Radeon Pro 450 1%
AMD Radeon Pro 555 1%
AMD Radeon Pro 560 1%
...
LuxMark v2.0 64Bit - Room GPUs-only
711 Samples/s (13%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 711 |
...
AMD Radeon Pro 460 -13%
NVIDIA Quadro P600 -11%
NVIDIA Quadro M620 -7%
AMD Radeon Pro 560 -4%
AMD Radeon R9 M390
AMD Radeon R9 M280X 3%
NVIDIA Quadro P1000 3%
AMD Radeon R9 M385X 3%
AMD Radeon RX 550 (Laptop) 5%
AMD FirePro W7170M 10%
...
LuxMark v2.0 64Bit - Sala GPUs-only
1287 Samples/s (12%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 1287 |
...
NVIDIA Quadro M620 -16%
NVIDIA Quadro P600 -11%
AMD Radeon Pro 460 -7%
AMD Radeon R9 M390
NVIDIA Quadro P1000 1%
AMD Radeon R9 M280X 3%
AMD Radeon Pro 560 3%
AMD Radeon R9 M385X 3%
AMD FirePro W7170M 10%
...
NVIDIA Titan RTX 739%
ComputeMark v2.1 - Normal, Score 1024x600
4417 Points (16%)
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | 6500 | 8192 MB | | | 4417 |
AMD Radeon HD 6250 -96%
...
AMD Radeon RX 560X (Laptop) -22%
NVIDIA Quadro P1000 -20%
AMD Radeon R9 M385X -19%
AMD Radeon Pro 560 -15%
AMD Radeon Pro 460 -13%
NVIDIA Quadro M2200 -2%
NVIDIA GeForce GTX 1050 Ti (Laptop) 0%
AMD Radeon R9 M390
NVIDIA GeForce GTX 1050 Max-Q 1%
NVIDIA Quadro M3000M 7%
NVIDIA Quadro P2000 10%
NVIDIA GeForce GTX 1050 Ti Max-Q 10%
...
NVIDIA Titan RTX 532%
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Smaller numbers mean a higher performance
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.
...
NVIDIA Quadro M620 -31%
NVIDIA Quadro P4000 -24%
NVIDIA Quadro M2200 -8%
AMD Radeon R9 M390
NVIDIA Titan X Pascal 5%
NVIDIA Quadro P3000 12%
...
Intel HD Graphics (Cherry Trail) -96%
...
NVIDIA Quadro M620 -40%
NVIDIA Quadro P4000 9%
NVIDIA Quadro M2200 11%
NVIDIA Quadro M3000M 16%
...
NVIDIA GeForce GTX 1080 (Desktop) 87%
...
NVIDIA Quadro M520 -59%
NVIDIA Quadro M620 -46%
AMD Radeon R9 M390
NVIDIA Quadro M2200 4%
NVIDIA Quadro M3000M 10%
...
NVIDIA GeForce 910M -91%
...
AMD Radeon R9 M280X -57%
NVIDIA Quadro M620 -46%
NVIDIA Quadro M2200 6%
NVIDIA Quadro M3000M 12%
...
...
NVIDIA Quadro M3000M 19%
...
» Met alle geteste laptops speelbaar met ultra instellingen.
AMD Radeon RX 580 (Laptop) -4%
...
NVIDIA Titan X Pascal 142%
...
NVIDIA GeForce 920MX -61%
AMD Radeon RX 580 (Laptop) 20%
...
NVIDIA Titan X Pascal 204%
...
...
NVIDIA Titan X Pascal 335%
» Met alle geteste laptops speelbaar met gem. instellingen.
AMD Radeon R9 M385X -39%
AMD Radeon Pro 450 -37%
AMD Radeon Pro 455 -28%
AMD Radeon R9 M390
AMD Radeon HD 7870 16%
AMD Radeon Pro WX Vega M GL 29%
...
AMD Radeon R5 M330 -86%
...
AMD Radeon R9 M280X -48%
AMD Radeon R9 M385X -36%
AMD Radeon Pro WX Vega M GL 17%
AMD Radeon HD 7870 18%
...
...
NVIDIA Quadro P2000 -6%
AMD Radeon Pro WX Vega M GL 7%
NVIDIA GeForce GTX 1050 Ti (Laptop) 34%
...
» Met alle geteste laptops speelbaar met hoge instellingen.
...
AMD Radeon R9 M390
NVIDIA Quadro P4000 Max-Q 18%
...
NVIDIA GeForce GTX 1060 (Desktop) 54%
...
AMD Radeon R9 M280X -57%
AMD Radeon R9 M385X -53%
...
NVIDIA GeForce GTX 1060 (Desktop) 113%
...
AMD Radeon R9 M385X -48%
AMD Radeon R9 M280X -43%
...
AMD Radeon R5 M335 -79%
...
AMD Radeon R9 M280X -31%
...
...
...
» Met alle geteste laptops speelbaar met hoge instellingen.
Intel HD Graphics (Cherry Trail) -92%
...
AMD Radeon Pro 455 -17%
AMD Radeon Pro 450 -16%
AMD Radeon RX 580 (Laptop) -4%
NVIDIA Titan X Pascal 9%
AMD Radeon Pro 460 17%
...
...
AMD Radeon R9 M385X -23%
AMD Radeon Pro 460 -18%
AMD FirePro W7170M 37%
...
NVIDIA GeForce GTX 1080 (Desktop) 379%
...
NVIDIA Quadro M520 -38%
AMD Radeon Pro 455 -36%
AMD Radeon Pro 460 -27%
AMD Radeon R9 M385X -17%
...
NVIDIA Titan X Pascal 533%
AMD FirePro W2100 -83%
...
AMD FirePro W2100 -83%
AMD FirePro W4100 -75%
...
NVIDIA Titan X Pascal 634%
» Met alle geteste laptops speelbaar met lage instellingen.
AMD Radeon R9 M390
...
NVIDIA GeForce GTX 1060 (Desktop) 68%
Intel HD Graphics 400 (Braswell) -93%
...
AMD Radeon R9 M280X -64%
AMD Radeon R9 M390
...
NVIDIA GeForce GTX 1060 (Desktop) 79%
Intel HD Graphics 400 (Braswell) -92%
...
AMD Radeon R9 M280X -52%
AMD Radeon R9 M385X -47%
AMD Radeon R9 M390
...
...
AMD Radeon R9 M280X -64%
...
NVIDIA Titan X Pascal 402%
» Met alle geteste laptops speelbaar met ultra instellingen.
AMD Radeon HD 6450 GDDR5 -89%
...
NVIDIA Quadro M520 -50%
AMD Radeon Pro 450 -40%
AMD Radeon Pro 455 -28%
AMD Radeon Pro 560X -9%
AMD Radeon RX 580 (Laptop) 30%
...
...
NVIDIA Quadro M520 -54%
AMD Radeon RX Vega 8 -45%
AMD Radeon R9 M280X -32%
AMD Radeon Pro 560X -9%
NVIDIA GeForce GTX 1050 Ti Max-Q 43%
...
» Met alle geteste laptops speelbaar met ultra instellingen.
...
AMD Radeon RX Vega 8 0%
Intel Iris Pro Graphics 580 0%
...
...
...
...
NVIDIA GeForce GTX 1070 (Laptop) 0%
...
AMD Radeon R7 M340 -85%
...
AMD Radeon RX Vega 8 -55%
AMD Radeon R9 M280X -46%
AMD Radeon R9 M385X -36%
AMD Radeon Pro WX Vega M GL 26%
AMD Radeon RX Vega M GH 49%
...
...
NVIDIA Quadro P2000 16%
AMD Radeon Pro WX Vega M GL 16%
NVIDIA Quadro P2000 Max-Q 30%
...
» Met alle geteste laptops speelbaar met ultra instellingen.
...
AMD Radeon R9 M385X -57%
AMD Radeon R9 M280X -55%
...
NVIDIA GeForce GTX 1080 (Desktop) 195%
...
AMD Radeon RX Vega 8 -60%
AMD Radeon R9 M280X -50%
AMD Radeon R9 M385X -44%
NVIDIA GeForce GTX 1050 Ti (Laptop) 57%
...
...
AMD Radeon R9 M280X -49%
AMD Radeon R9 M385X -40%
...
...
