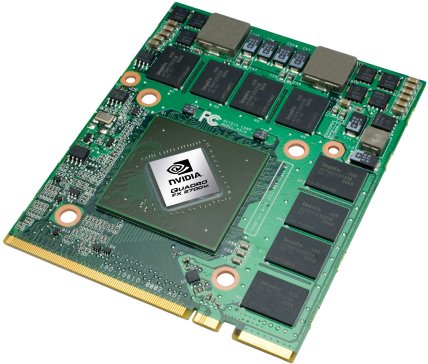

NVIDIA Quadro FX 2700M

Professionele videokaart voor workstations met gecertificeerde drivers. Gebaseerd op de GeForce 9700M GTS. De nVidia Quadro FX 2700M is een professionele videokaart voor laptops. Hij heeft gecertificeerde drivers die voor CAD, (AutoCad, Inventor, Solidstation, Solid Edge,..), DCC (Maya, 3DS Max, Lightwave 3D,..) toepassingen en visualizatie applicaties geoptimaliseerd zijn. De FX 2700M is gebaseerd op de G94 core en is daarmee vergelijkbaar met de GeForce 9700 GTS.

Fabrikant

NVIDIA

Quadro FX Serie

Quadro FX 3800M	128 @ 675 MHz	256 bit @ 1000 MHz
Quadro FX 3700M	128 @ 550 MHz	256 bit @ 800 MHz
Quadro FX 2800M	96 @ 600 MHz	256 bit @ 1000 MHz
Quadro FX 3600M	96 @ 500 MHz	256 bit @ 800 MHz
Quadro FX 1800M	72 @ 560 MHz	128 bit @ 1100 MHz
Quadro FX 2700M	48 @ 530 MHz	256 bit @ 800 MHz
Quadro FX 880M	48 @ 550 MHz	128 bit @ 790 MHz
Quadro FX 3500M	24/8 cores @ 575 MHz	256 bit @ 700 MHz
Quadro FX 2500M	24/8 cores @ 500 MHz	256 bit @ 600 MHz
Quadro FX 1700M	32 @ 625 MHz	128 bit @ 800 MHz
Quadro FX 1600M	32 @ 625 MHz	128 bit @ 800 MHz
Quadro FX 1500M	20/7 cores @ 375 MHz	256 bit @ 500 MHz
Quadro FX 770M	32 @ 500 MHz	128 bit @ 800 MHz
Quadro FX 570M	32 @ 475 MHz	128 bit @ 700 MHz
Quadro FX 380M	16 @ 625 MHz	64 bit @ 800 MHz
Quadro FX 370M	8 @ 580 MHz	64 bit @ 700 MHz
Quadro FX 360M	16 @ 400 MHz	64 bit @ 600 MHz
Quadro FX 350M	4/3 cores @ 450 MHz	64 bit @ 350 MHz

Codenaam

NB9E-GLM2

Architectuur

G9x

Pipelines

48 - verenigd

Core-snelheid

530 MHz

Shader-snelheid

1325 MHz

Geheugensnelheid

800 MHz

Geheugenbusbreedte

256 bit

Geheugentype

GDDR3

Max. hoeveelheid geheugen

1024 MB

Gedeeld geheugen

nee

DirectX

DirectX 10, Shader 4.0

Aantal Transistoren

504 miljoen

technologie

65 nm

Faciliteiten

OpenGL 2.1, PowerMizer 8.0, PureVideo HD

Laptop Grootte

groot

Aangekondigde datum

14.08.2008

Link naar fabrikant

http://www.nvidia.com/object/product_qua...

Benchmarks

3DMark Vantage
P Result 1280x1024 +

P GPU no PhysX 1280x1024 +

3DMark 2001SE - Standard 1024x768

36280 Points (38%)

+ 1 Meer details + Toon vergelijkingstabel

3DMark 03 - Standard 1024x768

min: 23330 gem: 23842 mediaan: 23841.5 (12%) max: 24353 Points

+ 2 Meer details + Toon vergelijkingstabel

3DMark 05 - Standard 1024x768

min: 13450 gem: 14224 mediaan: 14224 (27%) max: 14998 Points

+ 2 Meer details + Toon vergelijkingstabel

3DMark 06 +

Cinebench R10 Shading 32Bit +

- Benchmarkresultaten voor deze videokaart

- Gemiddelde benchmarkresultaten voor deze videokaart
* Smaller numbers mean a higher performance
