Intel Iris Pro Graphics 6200

Intel Iris Pro Graphics 6200

De Intel Iris Pro Graphics 6200 (GT3e) is een geïntegreerde grafische kaart en de snelste GPU van de Broadwell-generatie. De GPU is ingebouwd in verschillende high-end CPU's met een TDP van 47 Watt. De zogenaamde GT3e GPU beschikt over een snel eDRAM-cache en 48 EU's (Execution Units) en biedt daarom iets meer shader-rekenkracht dan de vorige Iris Pro Graphics 5200. De kloksnelheid hangt af van het model waarin de GPU is geïntegreerd (tot en met 1150 MHz met Turbo Boost).

Architectuur & Features

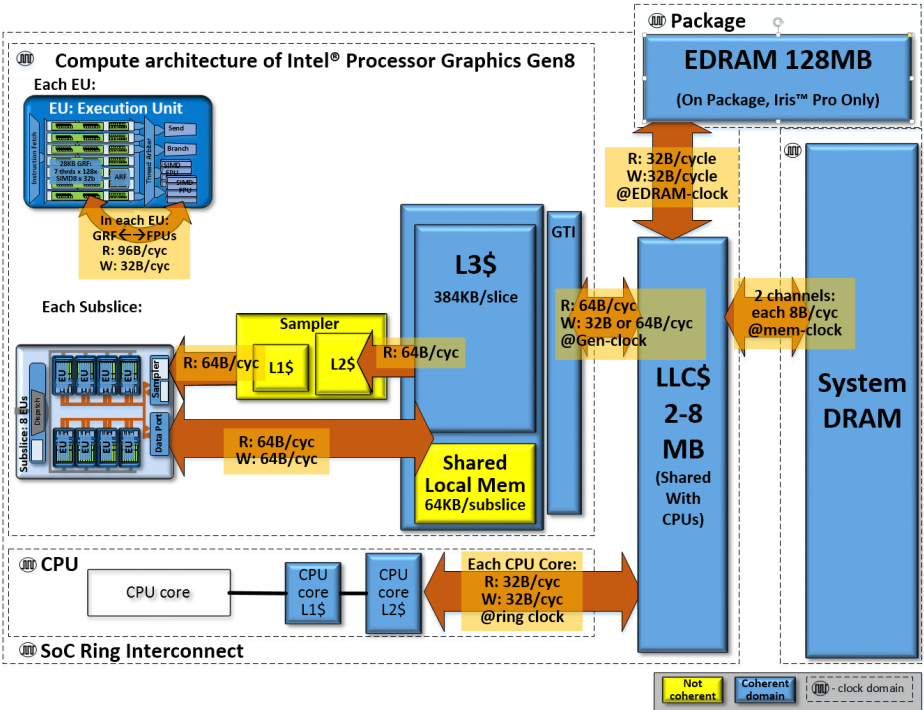

Broadwell komt met een GPU gebaseerd op de Intel Gen8-architectuur, die op verschillende vlakken werd geoptimaliseerd ten opzichte van de vorige Gen7.5 (Haswell). Zo werden de shader arrays, 'subslice' genaamd, geherorganiseerd en bieden ze nu elk 8 Execution Units (EU's). Drie subslices vormen een "slice" voor een totaal van 24 EU's. In combinatie met andere verbeteringen, waaronder een groter L1-cache en een geoptimaliseerd frontend, is de geïntegreerde GPU sneller en efficiënter geworden dan zijn voorganger.

De Iris Pro Graphics 6200 vertegenwoordigt de high-end GT3e-versie van de Broadwell-familie van GPU's en bestaat uit twee slices met 48 EU's in totaal. Daarnaast is er ook een snel eDRAM-cache (128 MB), dat alleen bij de Iris Pro wordt aangetroffen.

Alle Broadwell-GPU's ondersteunen OpenCL 2.0 en DirectX 12 (FL 11_1). De video-engine kan nu H.265 decoderen met zowel fixed-function hardware als beschikbare GPU-shaders. Maximaal drie schermen kunnen aangesloten worden via DP 1.2/eDP 1.3 (max. 3840 x 2160 @ 60 Hz) of HDMI 1.4a (max. 3840 x 2160 @ 24 Hz). HDMI 2.0 wordt echter niet ondersteund.

Prestaties

Afhankelijk van de benchmark zijn de prestaties van de Iris Pro Graphics ongeveer van hetzelfde niveau als een dedicated GeForce GT 750M of GeForce 940M. Veel games van 2014/2015 zijn vloeiend speelbaar in WXGA-resolutie (1366 x 768) en gemiddelde detailinstellingen. Erg veeleisende games als The Witcher 3 zullen echter lagere resoluties en/of details noodzakelijk maken.

Stroomverbruik

De Iris Pro Graphics 6200, die gebruik maakt van een nieuw 14nm-FinFET-proces, is afgestemd op een TDP van 47 Watt (gehele chip, inclusief CPU, GPU en geheugencontroller) en is daarom geschikt voor notebooks met een gemiddeld formaat. Het TDP is flexibel en kan verder verlaagd worden (37 Watt), wat de prestaties aanzienlijk beïnvloedt.

Iris Serie
Iris Pro Graphics 6200 48 @ 0.3 - 1.15 GHzeDRAM + 64/128 bit
Iris Pro Graphics 5200 40 @ 0.2 - 1.3 GHzeDRAM + 64/128 bit
Iris Graphics 6100 48 @ 0.3 - 1.1 GHz64/128 bit
Iris Graphics 5100 40 @ 0.2 - 1.2 GHz64/128 bit
CodenaamBroadwell GT3e
ArchitectuurGen. 8 Broadwell
Pipelines48 - verenigd
Core-snelheid300 - 1150 (Boost) MHz
GeheugenbusbreedteeDRAM + 64/128 bit
Gedeeld geheugenja
APIDirectX 12 (FL 11_1), OpenGL 4.3
technologie14 nm
FaciliteitenQuickSync
Laptop Groottegemiddeld formaat
Aangekondigde datum02.06.2015
CPU in Iris Pro Graphics 6200GPU Base SpeedGPU Boost / Turbo
Intel Core i7-5775C4 x 3300 MHz, 65 W300 MHz1150 MHz
Intel Core i7-5950HQ4 x 2900 MHz, 47 W300 MHz1150 MHz
Intel Core i7-5850HQ4 x 2700 MHz, 47 W300 MHz1100 MHz
min. - max.300 MHz1050 - 1150 MHz

Benchmarks

3DMark - 3DMark Ice Storm Extreme Graphics
100535 Points (14%)
3DMark - 3DMark Cloud Gate Score
min: 12893     gem: 13059     mediaan: 13058.5 (16%)     max: 13224 Points
3DMark - 3DMark Cloud Gate Graphics
min: 15361     gem: 15388     mediaan: 15387.5 (6%)     max: 15414 Points
3DMark - 3DMark Fire Strike Standard Score
min: 1662     gem: 1685     mediaan: 1685 (4%)     max: 1708 Points
3DMark - 3DMark Fire Strike Standard Graphics
min: 1704     gem: 1737     mediaan: 1736.5 (3%)     max: 1769 Points
3DMark 11 - 3DM11 Performance Score
3094 Points (6%)
3DMark 11 - 3DM11 Performance GPU
2766 Points (4%)
AMD Radeon HD 6250 -94%
...
NVIDIA Quadro M520 -4%
AMD Radeon R6 M340DX -3%
Intel Iris Plus Graphics 650 0%
Intel Iris Pro Graphics 6200
AMD Radeon R8 M365DX 2%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake) 2%
NVIDIA Quadro M600M 5%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU) 7%
...
0%
100%
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
