AMD A10-5745M

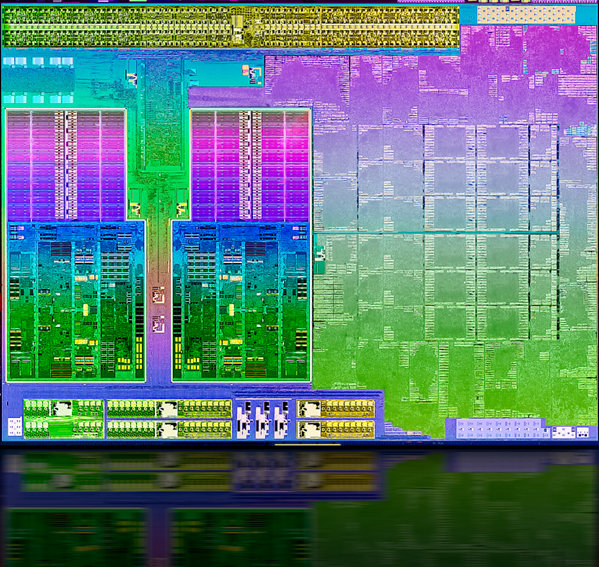

De AMD A10-5745M is een mobile low-voltage quad-core processor gebaseerd op de Richland Architectuur. De APU integreert twee modules met een kloksnelheid van 2.1 tot 2.9 GHz, een Radeon HD 8610G grafische kaart en een DDR3(L)-1333 geheugen-controller. Vergeleken met Trinity, verschilt Richland maar op weinig vlakken. Er zijn bijvoorbeeld geen veranderingen in de feature set of de performance in verhouding tot de kloksnelheid. Het ontwerp van de chip is nog steeds gebaseerd op de Bulldozer architectuur, die uit zogenaamde modules bestaat. Elk van de twee modules integreert 2 integer units, maar slechts één FPU. Net als Trinity ondersteunt Richland bijna alle huidige technologieën als AVX (inclusief FMA), AES of Turbo Core. De prestaties van de A10-5745M CPU zouden gelijkaardig moeten zijn aan die van een Core i3-2310M. De APU is dus krachtig genoeg voor de meeste moderne applicaties en games. De geïntegreerde GPU, Radeon HD 8610G genaamd, biedt alle 384 shader units (VLIW4) en is iets sneller dan de HD 7660G. De core is geklokt aan 533-626 MHz (turbo). Het stroomverbruik van de hele APU is afgestemd op 25W, wat iets minder is dan de doorsnee middle-class CPU. Daarom is de APU geschikt voor slanke notebooks van het 13 inch-fomaat of groter.
Serie AMD A-Series Codenaam Richland Serie: A-Series Richland Kloksnelheid 2100 - 2900 MHz Level 2 Cache 4 MB Aantal Cores / Threads 4 / 4 Stroomverbruik (TDP = Thermal Design Power) 25 Watt Productietechnologie 32 nm Features SSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, FMA, DDR3-1333 Controller GPU AMD Radeon HD 8610G (533 - 626 MHz)64-Bit 64-Bit-ondersteuning Architecture x86 Aankondigingsdatum 23-05-2013
Benchmarks Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 176 gem: 177 mediaan: 177 (4%) max: 178 Points
...
Intel Celeron 2970M -7%
AMD A8-7410 -3%
AMD Pro A8-8600B 2%
Intel Core i5-4302Y 5%
Intel Core m5-6Y57 7%
Intel Pentium 3825U 7%
...
AMD Ryzen Threadripper 2970WX 2372%
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 63 gem: 63.5 mediaan: 63.5 (23%) max: 64 Points
...
Intel Core i3-4012Y -6%
Intel Core 2 Duo (Desktop) E6600 -2%
AMD Phenom II X4 905e 1%
Intel Core i5-4302Y 2%
Intel Core M-5Y10c 4%
...
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 1.91 gem: 1.9 mediaan: 1.9 (4%) max: 1.93 Points
...
Intel Celeron 2970M -2%
Intel Pentium N3540 -1%
Intel Core i7-2657M -1%
Intel Core i3-370M 1%
AMD A6-3420M 1%
AMD A4-7210 2%
AMD Phenom II X3 N870 2%
Intel Core i5-4302Y 3%
Intel Core m5-6Y57 3%
AMD A6-7310 4%
...
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
min: 0.66 gem: 0.7 mediaan: 0.7 (22%) max: 0.72 Points
...
AMD E2-9010 -7%
Intel Core i3-4012Y -4%
Intel Pentium 3558U 7%
...
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 2059 gem: 2065 mediaan: 2065 (18%) max: 2071 punten
...
Intel Core 2 Duo T7300 -1%
Intel Core 2 Duo T7250 0%
Intel Celeron M 585 0%
Intel Celeron 2957U 1%
Intel Celeron J4005 1%
Intel Celeron J4115 1%
...
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 5429 gem: 5480 mediaan: 5480 (9%) max: 5531 punten
...
AMD Phenom II X4 P960 -2%
AMD A6-3420M -2%
Intel Celeron 3865U -1%
AMD Phenom II X2 X640 BE -1%
AMD A6-3410MX 0%
...
wPrime 2.10 - wPrime 2.0 1024m *
940 s (11%)
AMD Ryzen Threadripper 2970WX -96%
...
Intel Core i3-350M -2%
Intel Celeron N3150 1%
Intel Atom x7-E3950 1%
AMD Pro A10-8700B 1%
Intel Core m5-6Y54 3%
Intel Core i5-2537M 4%
Intel Core M-5Y51 4%
...
VIA C3-M C3-M-1200 800%
wPrime 2.10 - wPrime 2.0 32m *
35 s (7%)
Intel Core i9-9980XE -92%
...
Intel Pentium P6100 -2%
Intel Atom x5-E8000 -1%
AMD Turion II M500 -1%
AMD Athlon II P340 -1%
AMD A6-9220e 1%
Intel Atom Z3735F 2%
...
Transmeta Crusoe TM-5800 1320%
1585 punten (10%)
AMD Athlon Neo MV-40 -79%
...
AMD A10-9600P -4%
Intel Pentium G4500T -1%
Intel Atom Z3736F 2%
Intel Atom Z3735F 3%
Intel Atom Z3735D 5%
...
AMD Ryzen 7 5800X 884%
X264 HD Benchmark 4.0 - x264 Pass 2
12.7 fps (6%)
Intel Pentium 4 2.4 GHz -85%
...
Intel Core i3-5005U 2%
Intel Core i5-7Y54 2%
AMD PRO A8-9600B 5%
Intel Celeron N4100 5%
Intel Core i3-5015U 6%
...
X264 HD Benchmark 4.0 - x264 Pass 1
62.1 fps (18%)
...
AMD A6-3420M -4%
Intel Pentium 3825U 1%
Intel Celeron 2970M 1%
Intel Core m5-6Y54 1%
Intel Celeron N4100 4%
AMD Pro A8-8600B 9%
...
AMD Ryzen 7 5800X 446%
TrueCrypt - TrueCrypt Serpent
0.1 GB/s (5%)
...
Intel Pentium N3700 -2%
Intel Atom x7-E3950 -2%
Intel Core i5-5250U 0%
Intel Pentium G4500T 2%
AMD A9-9420 2%
Intel Atom x7-Z8750 3%
AMD A4-7210 5%
...
TrueCrypt - TrueCrypt Twofish
0.2 GB/s (6%)
...
Intel Pentium N3530 -4%
AMD A4-7210 -3%
Intel Pentium G4500T -1%
AMD A8-7410 0%
Intel Pentium N3540 0%
AMD A9-9425 1%
Intel Celeron N4100 1%
...
AMD Ryzen 9 3950X 1479%
TrueCrypt - TrueCrypt AES
1.1 GB/s (4%)
...
AMD A6-7310 -9%
AMD A4-6210 -9%
AMD E2-7110 0%
Intel Core M-5Y51 0%
AMD A9-9420 0%
...
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2744 gem: 2753 mediaan: 2745 (15%) max: 2770 Points
...
Intel Core i3-5005U -1%
AMD Pro A10-8700B 2%
...
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
34.4 s (7%)
...
AMD A6-3410MX -2%
Intel Pentium Dual Core T2390 -2%
Intel Core 2 Duo T5450 -2%
Intel Celeron M 900 -1%
Intel Core Solo T1350 -1%
Qualcomm Snapdragon 850 -1%
Intel Core 2 Duo SU7300 -1%
AMD Athlon II P360 2%
Intel Pentium M 725 2%
AMD Phenom II X3 N850 2%
AMD Phenom II X4 N970 2%
Intel Core Duo T2300 2%
...
VIA C3-M C3-M-1200 1246%
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
79 s (3%)
...
AMD A6-3410MX -1%
Intel Core 2 Duo SU7300 -1%
Intel Core 2 Duo SU9400 -1%
Intel Atom Z3735F 0%
AMD A4-7210 1%
Intel Core 2 Duo SP7500 1%
AMD Athlon II P360 1%
Intel Atom x7-Z8750 2%
...
Intel Celeron Dual-Core T1400 2862%
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
2040 s (9%)
...
Intel Core 2 Duo SU9300 -2%
AMD Pro A10-8700B -2%
Intel Celeron M 900 -2%
Intel Celeron M 520 -1%
Intel Core Duo T2300 0%
AMD A4 Micro-6400T 1%
Intel Pentium Dual Core T2080 3%
Intel Celeron M 430 3%
...
VIA C3-M C3-M-1200 1004%
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
6082 Points (7%)
...
AMD Phenom II X4 P960 -2%
AMD A8-7410 7%
...
AMD Ryzen 7 5800X 1315%
3DMark 11 - 3DM11 Performance Physics
min: 2103 gem: 2190 mediaan: 2155 (9%) max: 2311 Points
...
AMD PRO A8-9600B -5%
AMD A6-3400M -4%
Intel Core M-5Y51 -3%
AMD Pro A10-8700B -3%
AMD A8-3500M 1%
Intel Celeron 2970M 4%
AMD A8-3520M 5%
...
3DMark - 3DMark Ice Storm Physics
min: 20181 gem: 21592 mediaan: 21774 (14%) max: 22821 Points
Samsung Hummingbird S5PC110 / Exynos 3110 -98%
...
AMD E2-7110 -6%
Intel Celeron N4100 -3%
AMD Pro A10-8700B -2%
AMD PRO A8-9600B -1%
Intel Core i5-8279U -1%
AMD A4-7210 0%
AMD A6-7310 0%
AMD A10-9620P 4%
...
Intel Core i5-4300Y 620%
3DMark - 3DMark Cloud Gate Physics
min: 1807 gem: 1843 mediaan: 1831 (5%) max: 1892 Points
...
Intel Pentium N3540 -3%
AMD Pro A10-8700B 1%
AMD A4-7210 4%
...
AMD Ryzen 7 5800X 1148%
3DMark - 3DMark Fire Strike Standard Physics
min: 2576 gem: 2615 mediaan: 2619 (7%) max: 2651 Points
...
AMD E2-7110 -5%
Intel Pentium N3530 1%
Intel Core m5-6Y57 7%
...
Geekbench 2 - 32 Bit - Geekbench Stream
3012 Points (24%)
Qualcomm Snapdragon S1 MSM7227 -98%
...
AMD A4-6210 -11%
AMD E2-7110 -6%
AMD E2-9010 3%
AMD PRO A12-9800B 9%
...
Intel Core i7-7740X 312%
Geekbench 2 - 32 Bit - Geekbench Memory
2483 Points (23%)
Qualcomm Snapdragon S1 MSM7227 -87%
...
Intel Pentium N3540 -4%
Mediatek MT8135 -3%
AMD E2-9010 8%
...
Intel Core i7-7740X 344%
Geekbench 2 - 32 Bit - Geekbench Floating Point
5572 Points (11%)
Qualcomm Snapdragon S1 MSM7227 -99%
...
Intel Core m5-6Y54 -5%
Qualcomm Snapdragon 801 MSM8974AC 0%
AMD Pro A8-8600B 1%
Mediatek Helio G25 1%
AMD PRO A8-9600B 4%
...
Geekbench 2 - 32 Bit - Geekbench Integer
4319 Points (9%)
Qualcomm Snapdragon S1 MSM7227 -98%
...
Intel Core i3-5005U -3%
Intel Pentium N3540 -2%
Intel Core i5-4300Y -1%
Samsung Exynos 7420 Octa 1%
Intel Core i3-5010U 2%
Qualcomm Snapdragon 460 4%
...
Geekbench 2 - 32 Bit - Geekbench Total Score
4259 Points (11%)
Qualcomm Snapdragon S1 MSM7227 -97%
...
Intel Pentium 3825U -6%
Intel Core i3-5005U 2%
Mediatek Helio P25 2%
...
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
min: 3647 gem: 3724 mediaan: 3724 (7%) max: 3801 punten
Samsung Hummingbird S5PC110 / Exynos 3110 -94%
...
AMD A4-7210 -5%
Intel Pentium 3825U -5%
AMD A8-7410 -1%
Mediatek MT6752 1%
Intel Core M-5Y31 3%
...
Geekbench 3 - Geekbench 3 32 Bit Single-Core
min: 1460 gem: 1476 mediaan: 1476 (30%) max: 1492 punten
Samsung Hummingbird S5PC110 / Exynos 3110 -84%
...
AMD E2-9010 -4%
Intel Pentium 3558U -1%
Intel Core i3-4012Y 4%
Intel Pentium 3825U 9%
Apple A8 9%
Intel Celeron N4100 10%
...
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 4634.3 gem: 5294 mediaan: 5294 (9%) max: 5953.6 ms
HP Pavilion 15-p151ng Radeon R7 M260 12288 MB 300-980 / MHz 2048MB IE 11 4634.3
HP Pavilion 17-f130ng Radeon R7 M260 8192 MB 600-980 / MHz 2048MB IE 11 5953.6
...
Intel Celeron N2840 -8%
Qualcomm Snapdragon 632 -7%
Intel Celeron N2830 -7%
Samsung Exynos 5430 Octa -4%
AMD E2-7110 -4%
Intel Celeron N3050 2%
HiSilicon Kirin 920 3%
Qualcomm Snapdragon 808 MSM8992 3%
...
Sunspider - Sunspider 1.0 Total Score *
min: 226.8 gem: 243 mediaan: 243.3 (3%) max: 259.8 ms
HP Pavilion 15-p151ng Radeon R7 M260 12288 MB 300-980 / MHz 2048MB IE 11 226.8
HP Pavilion 17-f130ng Radeon R7 M260 8192 MB 600-980 / MHz 2048MB IE 11 259.8
...
Apple A9 -8%
Intel Celeron N4100 -4%
AMD E2-9010 -3%
AMD A6 Pro-7050B 0%
AMD A4-7210 9%
Intel Core i5-7Y57 10%
AMD A6-7310 11%
...
Octane V2 - Octane V2 Total Score
min: 5708 gem: 6638 mediaan: 6638 (11%) max: 7568 Points
HP Pavilion 17-f130ng Radeon R7 M260 8192 MB 600-980 / MHz 2048MB 5708
HP Pavilion 15-p151ng Radeon R7 M260 12288 MB 300-980 / MHz 2048MB IE 11 7568
...
Intel Pentium N3540 -11%
Qualcomm Snapdragon 460 -10%
Mediatek Helio X25 MTK6797T -8%
AMD A6 Pro-7050B -7%
HiSilicon Kirin 920 -4%
Intel Atom x5-Z8300 -4%
Intel Celeron N2840 1%
Intel Celeron N3050 1%
Intel Celeron N2830 1%
HiSilicon Kirin 960s 2%
Samsung Exynos 5433 Octa 5%
Samsung Exynos 7884B 8%
...
Apple M1 837%
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Smaller numbers mean a higher performance
v1.16
log 16. 18:08:42
#0 no ids found in url (should be separated by "_") +0s ... 0s
#1 not redirecting to Ajax server +0s ... 0s
#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 12 Jan 2021 12:44:09 +0100 +0.001s ... 0.001s
#3 no comparison url found in template nbc.compare_page_2 needed +0.005s ... 0.005s
#4 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.005s
#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#8 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#9 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#10 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#11 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#12 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s
#13 composed specs +0s ... 0.006s
#14 did output specs +0s ... 0.006s
#15 getting avg benchmarks for device 4158 +0.001s ... 0.007s
#16 got single benchmarks 4158 +0.011s ... 0.018s
#17 got avg benchmarks for devices +0s ... 0.018s
#18 min, max, avg, median took s +0.266s ... 0.284s
#19 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.284s
#20 return log +0s ... 0.284s
Testrapporten voor de AMD A-Series A10-5745M processor
HP Pavilion 15-058ng (AMD Radeon R7 M260, 15.60")
» HP Pavilion 15-058ng - Extern testrapport
HP Pavilion 15-n029sr (AMD Radeon HD 8670M, 15.60")
» HP Pavilion 15-n029sr - Extern testrapport
HP Pavilion 15-p011nr (AMD Radeon R7 M260, 15.60")
» HP Pavilion 15-p011nr - Extern testrapport
Toshiba Satellite S50D-A-10G (AMD Radeon HD 8550M, 15.60")
» Toshiba Satellite S50D-A-10G - Extern testrapport
Andere CPU's van de serie A-Series » AMD A8-7410 4x 2.2 GHz - 2.5 GHz
» AMD A8-3550MX 4x 2 GHz - 2.7 GHz
» AMD A6-7310 4x 2 GHz - 2.4 GHz
» AMD A8-3530MX 4x 1.9 GHz - 2.6 GHz
» AMD A8-3510MX 4x 1.8 GHz - 2.5 GHz
» AMD A4-7210 4x 1.8 GHz - 2.2 GHz
» AMD A6-3430MX 4x 1.7 GHz - 2.4 GHz
» AMD A8-3520M 4x 1.6 GHz - 2.5 GHz
» AMD A6-3410MX 4x 1.6 GHz - 2.3 GHz
» AMD A8-3500M 4x 1.5 GHz - 2.4 GHz
» AMD A6-3420M 4x 1.5 GHz - 2.4 GHz
» AMD A6-3400M 4x 1.4 GHz - 2.3 GHz
» AMD A4-3330MX 2x 2.2 GHz - 2.6 GHz
» AMD A4-6210 4x 1.8 GHz
» AMD A4-5050 4x 1.55 GHz
» AMD A4-3310MX 2x 2.1 GHz - 2.5 GHz
» AMD A4-3320M 2x 2 GHz - 2.6 GHz
» AMD A4 Micro-6400T 4x 1 GHz - 1.6 GHz
Omringende CPU's + Intel Core i3-2310M 2x 2.1 GHz
+ Intel Core i3-2308M 2x 2.1 GHz
- AMD Athlon Silver 3050e 2x - 2.8 GHz
- Intel Core M-5Y51 2x 1.1 GHz - 2.6 GHz
Please share our article, every link counts!
Klaus Hinum (Update: 2014-01-23)
