Intel Core i7-640M

Intel 640M

De Intel Core i6-640M is een high-end dual core CPU voor laptops en klokt (dankzij de Turbo Mode) van 2,8 naar 3,46 GHz. Elke core is gebaseerd op de Nehalem (Westmere) micro-architectuur. HyperThreading maakt het mogelijk om 4 threads gelijktijdig te verwerken (voor beter gebruik van de pipeline). De i7-640M is dus eerder vergelijkbaar met andere i5 en i3 dual core CPU's en niet met andere quad-core i7 CPU's.

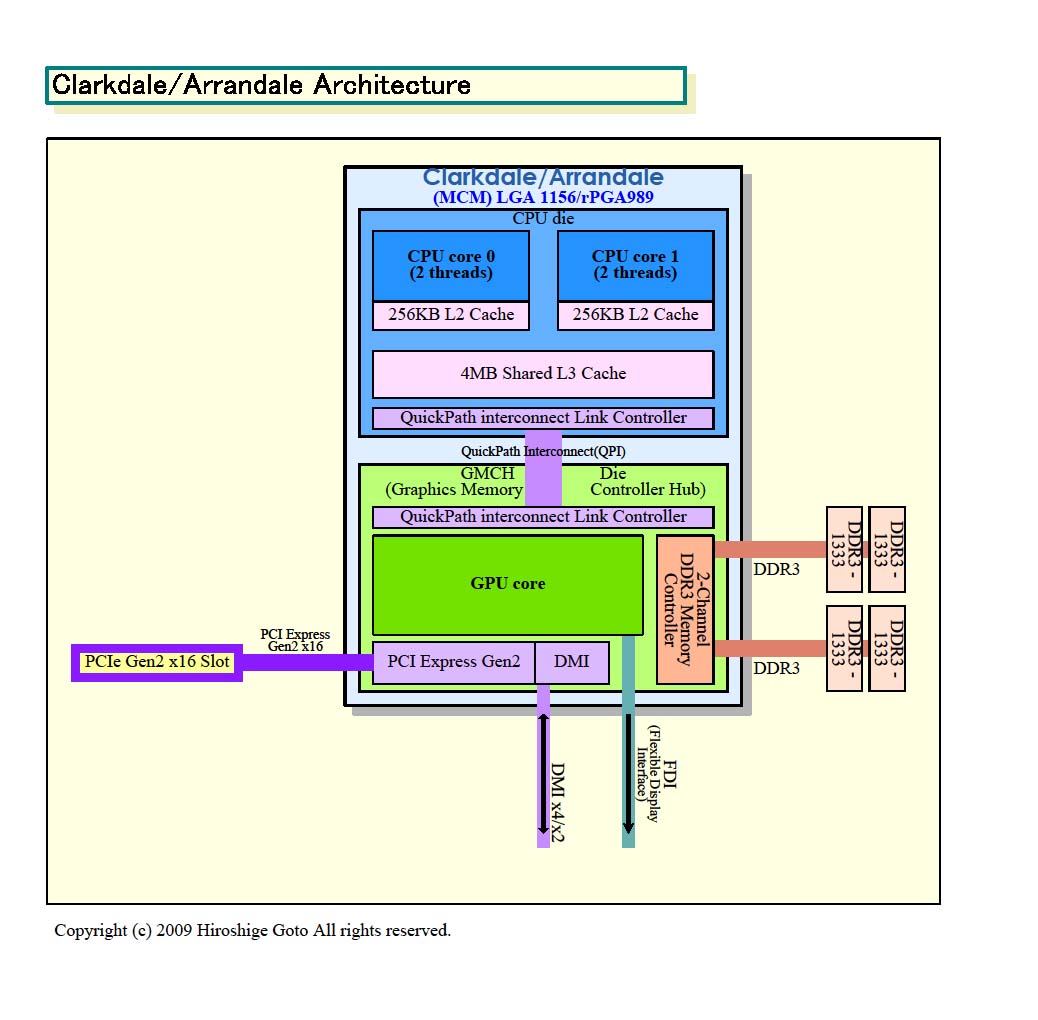

Iets nieuws aan de Core i7-640M is de geïntegreerde videokaart genaamd Intel HD Graphics (GMA HD) en een geïntegreerde geheugen controller. Beide zitten op een ander deel op 45nm geproduceerd dan de CPU die al op het nieuwe 32nm procedé gemaakt is.

De 32nm CPU cores van de Westmere generatie kunnen ook enkele nieuwe instructies verwerken om AES encrypties te versnellen. Vergeleken met de tragere i5 versie zonder AES functionaliteiten, toonde 3DMark Vantage Communication Score hierin een duidelijke verbetering bij CPU's met ondersteuning voor AES encrypties.

De geïntegreerde Intel Graphics Media Accelerator HD (GMA HD) videokaart is geklokt op 500-733 MHz en levert duidelijk betere prestaties dan de oude GMA 4500MHD. Een GeForce 9400M (ION) is echter nog iets sneller (zeker omdat Nvidia en ATI kaarten betere driver ondersteuning hebben dan Intel tot nu toe).

Het stroomverbruik van 35 Watt TDP (maximum) telt voor alles samen (CPU, GPU en geheugen controller) en is dus duidelijk beter dan de 35 Watt TDP uit de Core 2 Duo T-reeksen (waar enkel de CPU in meegerekend wordt).

De Core i7-640 mag niet foutief vergeleken worden met de vergelijkbaar genoemde maar tragere Core i7-620UM (1,2-2,26 GHz, 18W).

SerieIntel Core i7
CodenaamArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M « 2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Kloksnelheid2800 - 3460 MHz
Front Side Bus2500
Level 2 Cache512 KB
Level 3 Cache4 MB
Aantal Cores / Threads2 / 4
Stroomverbruik (TDP = Thermal Design Power)35 Watt
Aantal Transistoren382+177 miljoen
Productietechnologie32 nm
Chipgrootte81+114 mm2
Max. Temperatuur105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 500-733MHz, Dual Channel DDR3 memory controller
64-Bit64-Bit-ondersteuning
Architecturex86
Startprijs$346 U.S.
Aankondigingsdatum20-09-2010
Productlink (extern)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 2.4     gem: 2.5     mediaan: 2.5 (3%)     max: 2.63 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.1 Points (26%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 3597     gem: 3711     mediaan: 3707.5 (22%)     max: 3792 punten
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 7765     gem: 7987     mediaan: 7906 (6%)     max: 8349 punten
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 9096     gem: 9533     mediaan: 9430 (7%)     max: 10027 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 4455     gem: 4563     mediaan: 4573 (6%)     max: 4606 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 523     gem: 709     mediaan: 569 (7%)     max: 1173 s
wPrime 2.10 - wPrime 2.0 32m *
min: 16.6     gem: 22.1     mediaan: 17.6 (4%)     max: 36.61 s
WinRAR - WinRAR 4.0
1763 punten (3%)
TrueCrypt - TrueCrypt Serpent
0.1 GB/s (0%)
TrueCrypt - TrueCrypt Twofish
0.2 GB/s (4%)
TrueCrypt - TrueCrypt AES
1.3 GB/s (3%)
3DMark 06 - CPU - 3DMark 06 - CPU
min: 3094     gem: 3285     mediaan: 3307 (7%)     max: 3442 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 12     gem: 13.1     mediaan: 12.3 (3%)     max: 18 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 30     gem: 32.8     mediaan: 31 (1%)     max: 44 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 735     gem: 758     mediaan: 754 (3%)     max: 815 s
PCMark 05 - PCMark 05 - Standard
min: 10087     gem: 10706     mediaan: 10706 (22%)     max: 11325 Points
Windows 7 Experience Index - Win7 CPU
min: 6.8     gem: 6.9     mediaan: 6.9 (88%)     max: 7 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 8589     gem: 8882     mediaan: 8861 (8%)     max: 9216 Points
3DMark 11 - 3DM11 Performance Physics
3356 Points (9%)
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
