Intel Core i7-660LM

Intel 660LM

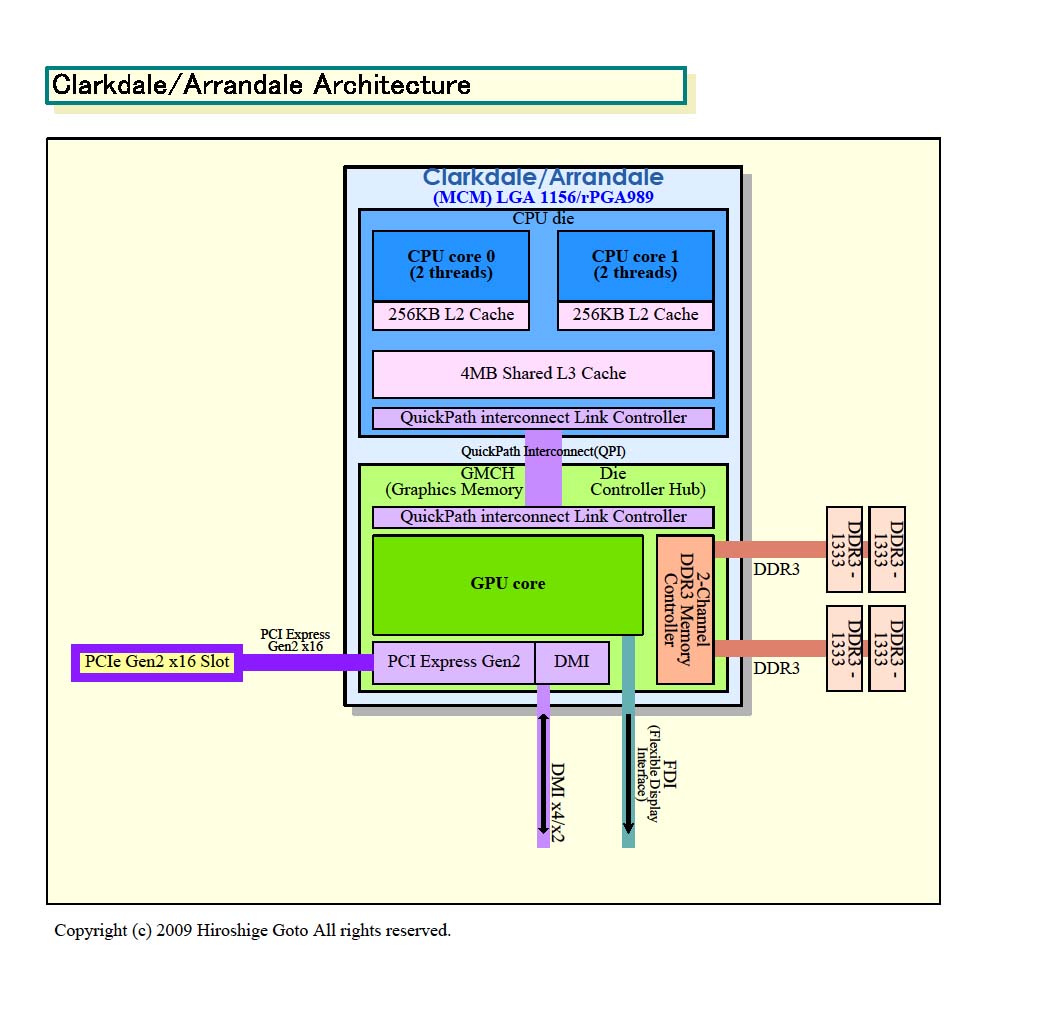

De Intel Core i7-660LM is een snelle middenklasse low-voltage dual core CPU voor laptops die dankzij Turbo Mode tussen de 2,27 en de 3,07 GHz draait. Elke core is gebaseerd op de Nehalem (Westemere) mirco-architectuur. Hyperthreading zorgt er voor dat deze Dual Core CPU tot 4 threads gelijktijdig kan verwerken (een efficiënter gebruik van de pipeline). Alle functionaliteiten (zoals Virtualization VT-x en VT-d, Trusted Execution) van de Arrandale Core zijn geactiveerd in de 660LM. Vergeleken met de Core i7-620M is de 660LM trager maar energie-efficiënter.

Een functie van de nieuwe Core i7-660LM is de geïntegreerde videokaart (genaamd Intel HD Graphics) en een geheugen controller. Beide zitten op een afzonderlijke chip die nog op het 45nm procedé gemaakt is, terwijl de CPU al met het nieuwe 32nm procedé gemaakt wordt.

Door de geïntegreerde geheugen controller, HyperThreading en Turbo Boost, is de Core i5-660LM sneller dan een vergelijkbaar geklokte Core 2 Duo in alle (door ons gekende) toepassingen en benchmarks. De prestaties zouden ietwat gelijk moeten lopen met de Core i3-380M en i5-450M. Hou er rekening mee dat niet elke laptop de Turbo Boost modus heeft door kleinere koelingen (of dat de TurboBoost mode hierdoor gewoon niet vaak inschakeld) en de prestaties daardoor alsnog lager zouden kunnen liggen.

De 32nm cpu cores van de Westmere generatie kunnen ook nieuwe instructies verwerken om AES encrypties te versnellen. Moderne applicaties die AES encoding ondersteuning kunnen hier groot voordeel uit halen (de Communications Suite test in de PCMark Vantage boost tot 70%, hiervan gebruik makend van de AES in de snellere i5-520M).

De geïntegreerde Intel Graphics Media Accelerator HD (GMA HD) videokaart is tussen de 266-566MHz (Turbo Boost) geklokt en daarmee is de standaard kloksnelheid duidelijk lager dan de niet-low voltage versies. De prestaties blijven echter een stuk hoger liggen dan die van de oude GMA 4500MHD.

Het stroomverbruik van 25 Watt TDP (max) telt voor het geheel en is daarmee duidelijk beter dan de 25 Watt TDP van de Core 2 Duo P-reeks (enkel CPU).

SerieIntel Core i7
CodenaamArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM « 2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM1.06 - 2.13 GHz2 / 4 cores4 MB L3
Kloksnelheid2267 - 3067 MHz
Front Side Bus2500
Level 2 Cache512 KB
Level 3 Cache4 MB
Aantal Cores / Threads2 / 4
Stroomverbruik (TDP = Thermal Design Power)25 Watt
Aantal Transistoren382+177 miljoen
Productietechnologie32 nm
Chipgrootte81+177 mm2
Max. Temperatuur105 °C
SocketBGA1288
FeaturesTurbo Boost (2.93 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 266-566MHz, Dual-Channel DDR3-800/1066 Memory Controller
64-Bit64-Bit-ondersteuning
Architecturex86
Startprijs$346 U.S.
Aankondigingsdatum26-09-2010
Productlink (extern)ark.intel.com

Benchmarks

- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
