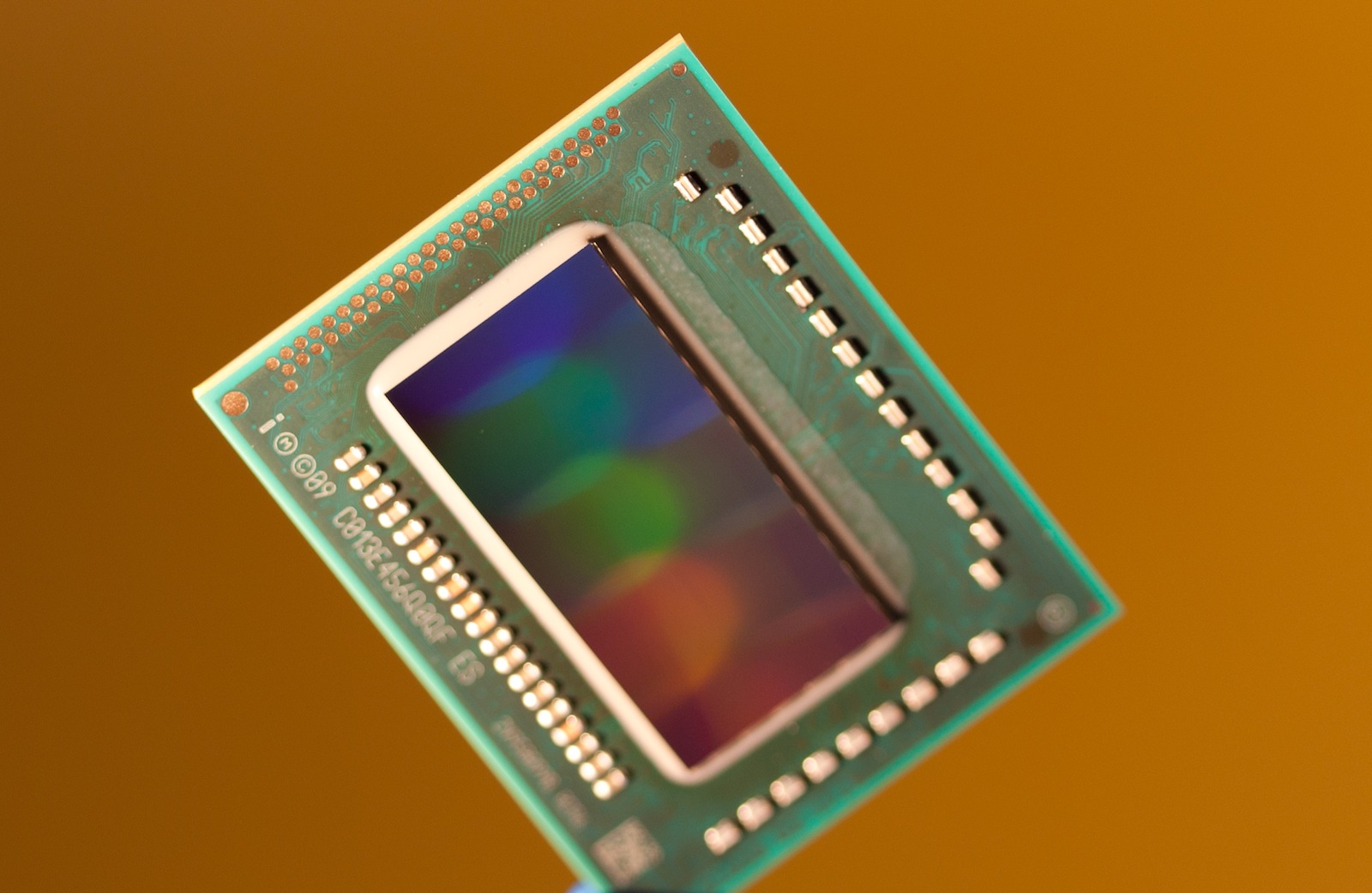

Intel Core i7-3740QM

Intel 3740QM

De Intel Core i7-3740XM is een snelle quad-core processor voor laptops gebaseerd op de Ivy Bridge architectuur en de opvolger van de i7-3720QM. Dankzij Hyperthreading kunnen de vier cores tot acht threads parallel draaien wat tot beter gebruik van de CPU leidt. Elke core heeft een basissnelheid van 2.7 GHz maar kan met Turbo Boost dynamisch overgeklokt worden naar 3.5 GHz (bij 4 actieve cores), 3.6 GHz (bij 2 actieve cores) of 3.7 GHz (bij 1 actieve core).

Ivy Bridge is een verbeterde versie van de Sandy Bridge architectuur met betere prestaties van zowel de GPU als de CPU. De CPU's worden gemaakt op 22nm (vergeleken met de 32nm van de Sandy Bridge CPU's) en zijn de eerste die 3D transistors gebruiken voor een efficiënter verbruik vergeleken met de Sandy Bridge processors. Andere nieuwe features zijn de geïntegreerde PCI Express 3.0 en DDR3(L)-1600 ondersteuning.

De prestaties van de Core i7-3740QM zouden iets beter moeten zijn dan die van een vergelijkbaar geklokte Sandy Bridge processor door de kleine architectonische verbeteringen. Over het algemeen zouden de prestaties beter moeten zijn dan die van de Core i7-2960XM.

De geïntegreerde Intel HD Graphics 4000 heeft 16 Execution Units (EU's) met kloksnelheden van 650 MHz tot 1350 MHz met Turbo Boost wat het een van de snellere varianten maakt.

Net als de meeste quad-core Ivy Bridge modellen heeft de Core i7-3740QM een TDP van 45 watt, inclusief grafische kaart en geheugencontroller. Hierdoor is de CPU geschikt voor laptops vanaf 15 inch.

SerieIntel Core i7
CodenaamIvy Bridge

Serie: Core i7 Ivy Bridge

Intel Core i7-3940XM3 - 3.9 GHz4 / 8 cores8 MB L3
Intel Core i7-3920XM2.9 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3840QM2.8 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3820QM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-3740QM « 2.7 - 3.7 GHz4 / 8 cores6 MB L3
Intel Core i7-3720QM2.6 - 3.6 GHz4 / 8 cores6 MB L3
Intel Core i7-3635QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3630QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3615QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3610QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3632QM2.2 - 3.2 GHz4 / 8 cores6 MB L3
Intel Core i7-3612QM2.1 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-3540M3 - 3.7 GHz2 / 4 cores4 MB L3
Intel Core i7-3520M2.9 - 3.6 GHz2 / 4 cores4 MB L3
Intel Core i7-3687U2.1 - 3.3 GHz2 / 4 cores4 MB L3
Intel Core i7-3667U2 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-3537U2 - 3.1 GHz2 / 4 cores4 MB L3
Intel Core i7-3517U1.9 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-3689Y1.5 - 2.6 GHz2 / 4 cores4 MB L3
Kloksnelheid2700 - 3700 MHz
Level 1 Cache256 KB
Level 2 Cache1 MB
Level 3 Cache6 MB
Aantal Cores / Threads4 / 8
Stroomverbruik (TDP = Thermal Design Power)45 Watt
Aantal Transistoren1400 miljoen
Productietechnologie22 nm
Chipgrootte160 mm2
Max. Temperatuur105 °C
SocketFCBGA1224, FCPGA988
FeaturesHD Graphics 4000, DDR3(L)-1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 4000 (650 - 1300 MHz)
64-Bit64-Bit-ondersteuning
Architecturex86
Startprijs$378 U.S.
Aankondigingsdatum30-09-2012

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 6.93     gem: 7     mediaan: 7 (9%)     max: 6.98 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.5 Points (38%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
4951 punten (30%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
19798 punten (14%)
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 24138     gem: 24219     mediaan: 24218.5 (17%)     max: 24299 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 6281     gem: 6324     mediaan: 6323.5 (8%)     max: 6366 Points
wPrime 2.10 - wPrime 2.0 1024m *
247 s (3%)
wPrime 2.10 - wPrime 2.0 32m *
7.6 s (2%)
WinRAR - WinRAR 4.0
4680 punten (7%)
X264 HD Benchmark 4.0 - x264 Pass 2
38.6 fps (13%)
X264 HD Benchmark 4.0 - x264 Pass 1
153.8 fps (35%)
TrueCrypt - TrueCrypt Serpent
0.4 GB/s (0%)
TrueCrypt - TrueCrypt Twofish
0.6 GB/s (10%)
TrueCrypt - TrueCrypt AES
3.5 GB/s (9%)
3DMark 06 - CPU - 3DMark 06 - CPU
min: 6825     gem: 6837     mediaan: 6837 (15%)     max: 6849 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
10.2 s (2%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
23.4 s (1%)
Windows 7 Experience Index - Win7 CPU
7.7 Points (99%)
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 23645     gem: 23789     mediaan: 23789 (21%)     max: 23933 Points
3DMark 11 - 3DM11 Performance Physics
min: 7048     gem: 7783     mediaan: 7782.5 (21%)     max: 8517 Points
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
