Intel Core i7-3820QM

Intel 3820QM

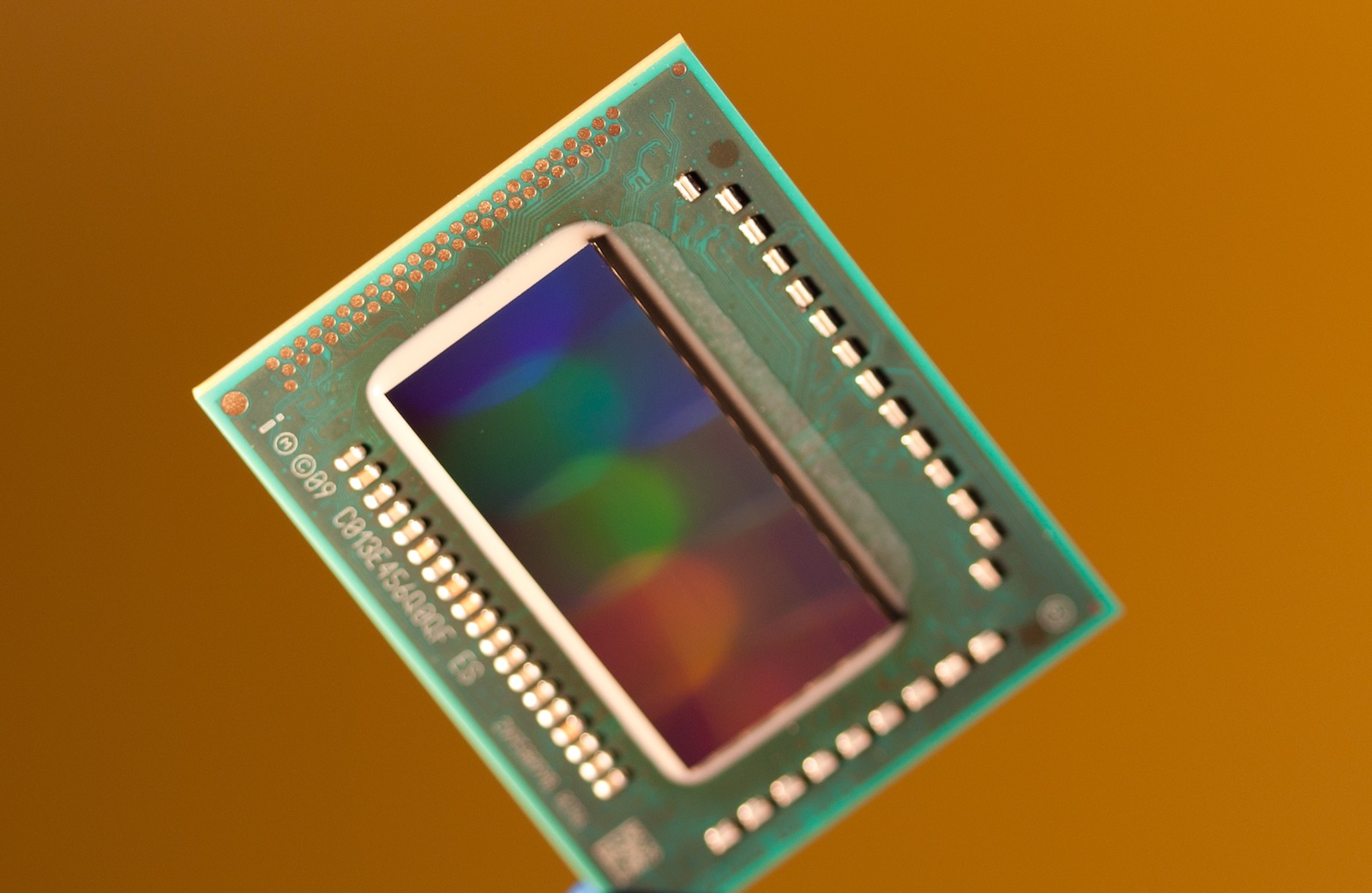

De Intel Core i7-3820QM is een snelle quad-core processor voor laptops gebaseerd op de Ivy Bridge architectuur. Vanwege de Hyperthreading technologie kunnen die vier cores samen tot acht threads
parallel uitvoeren wat tot een beter gebruik van de CPU leidt. Elke core heeft een basiskloksnelheid van 2.7 GHz maar kan dynamisch overgeklokt worden door de Turbo Boost tot 3.5 GHz (bij 4 actieve 7 cores, 3.6 GHz (bij 2 actieve cores) en 3.7 GHz (bij 1 actieve core). Verder beschikt de CPU over 8MB Last Level 3 Cache.

Ivy Bridge is een verbeterde versie van de Sandy Bridge architectuur op een kleinere 'die' met verbeterede CPU én GPU prestaties. De CPU's worden geproduceerd op 22nm (tegenover de 32nm van de
Sandy Bridge) en zijn de eerste die 3D transistors gebruiken voor efficiënter verbruik vergeleken met de vergelijkbaar geklokte Sandy Bridge processors. Andere nieuwe features zijn de geïntegreerde  PCI Express 3.0 en DDR3(L)-1600 ondersteuning.

De prestaties van de Core i7-3820QM zijn iets beter dan de gelijk geklokte Sandy Bridge processor door kleine architectonische verbeteringen. Als resultaat zou de algehele prestaties duidelijk beter moeten zijn dan het voorgaande snelste model, de Core i1-2920XM.

De geïntegreerde Intel HD Graphics 4000 biedt 16 Execution Units (EU's) geklokt op 350 MHz met een Turbo Boost die tot 1050 MHz kan en levert prestaties die vergelijkbaar zijn aan die van een AMD Radeon HD 6620G.

Net als bij de meeste quad-core Ivy Bridge modellen is de Core i7-3820QM gespecificeerd met een TDP van 45 Watt inclusief grafische kaart en memory controller. De CPU is hierdoor geschikt voor laptops vanaf 15 inch.

SerieIntel Core i7
CodenaamIvy Bridge

Serie: Core i7 Ivy Bridge

Intel Core i7-3940XM3 - 3.9 GHz4 / 8 cores8 MB L3
Intel Core i7-3920XM2.9 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3840QM2.8 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3820QM « 2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-3740QM2.7 - 3.7 GHz4 / 8 cores6 MB L3
Intel Core i7-3720QM2.6 - 3.6 GHz4 / 8 cores6 MB L3
Intel Core i7-3635QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3630QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3615QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3610QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3632QM2.2 - 3.2 GHz4 / 8 cores6 MB L3
Intel Core i7-3612QM2.1 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-3540M3 - 3.7 GHz2 / 4 cores4 MB L3
Intel Core i7-3520M2.9 - 3.6 GHz2 / 4 cores4 MB L3
Intel Core i7-3687U2.1 - 3.3 GHz2 / 4 cores4 MB L3
Intel Core i7-3667U2 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-3537U2 - 3.1 GHz2 / 4 cores4 MB L3
Intel Core i7-3517U1.9 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-3689Y1.5 - 2.6 GHz2 / 4 cores4 MB L3
Kloksnelheid2700 - 3700 MHz
Level 1 Cache256 KB
Level 2 Cache1 MB
Level 3 Cache8 MB
Aantal Cores / Threads4 / 8
Stroomverbruik (TDP = Thermal Design Power)45 Watt
Aantal Transistoren1400 miljoen
Productietechnologie22 nm
Chipgrootte160 mm2
Max. Temperatuur105 °C
FeaturesHD Graphics 4000, DDR3(L)-1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 4000 (650 - 1250 MHz)
64-Bit64-Bit-ondersteuning
Architecturex86
Aankondigingsdatum23-04-2012
Productlink (extern)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 6.68     gem: 6.8     mediaan: 6.8 (9%)     max: 6.94 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.5 Points (38%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4910     gem: 4986     mediaan: 5008 (30%)     max: 5039 punten
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 19326     gem: 19491     mediaan: 19364 (14%)     max: 19782 punten
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 23605     gem: 24083     mediaan: 24069 (17%)     max: 24448 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 6187     gem: 6245     mediaan: 6214 (8%)     max: 6398 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 223.9     gem: 236.3     mediaan: 236.3 (3%)     max: 248.6 s
wPrime 2.10 - wPrime 2.0 32m *
min: 7.314     gem: 7.5     mediaan: 7.5 (2%)     max: 7.612 s
WinRAR - WinRAR 4.0
min: 4530     gem: 4575     mediaan: 4575 (7%)     max: 4620 punten
X264 HD Benchmark 4.0 - x264 Pass 2
min: 37.1     gem: 37.2     mediaan: 37.2 (13%)     max: 37.24 fps
X264 HD Benchmark 4.0 - x264 Pass 1
min: 147.9     gem: 150.4     mediaan: 150.4 (35%)     max: 152.9 fps
TrueCrypt - TrueCrypt Serpent
0.4 GB/s (0%)
TrueCrypt - TrueCrypt Twofish
0.6 GB/s (11%)
TrueCrypt - TrueCrypt AES
3.5 GB/s (9%)
3DMark 06 - CPU - 3DMark 06 - CPU
min: 6720     gem: 6832     mediaan: 6849 (15%)     max: 6910 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 10     gem: 10.1     mediaan: 10 (2%)     max: 10.39 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 22     gem: 22.6     mediaan: 22 (1%)     max: 23.7 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 550     gem: 555     mediaan: 554.5 (2%)     max: 559 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 134350     gem: 136990     mediaan: 136990 (65%)     max: 139630 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 84860     gem: 85585     mediaan: 85585 (66%)     max: 86310 MFLOPS
Windows 7 Experience Index - Win7 CPU
min: 7.5     gem: 7.6     mediaan: 7.6 (97%)     max: 7.7 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 23042     gem: 23979     mediaan: 24158 (21%)     max: 24792 Points
3DMark 11 - 3DM11 Performance Physics
min: 8825     gem: 9006     mediaan: 9040 (24%)     max: 9118 Points
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
