Intel Pentium P6200

Intel P6200

De Intel Pentium P6200 is een instap niveau CPU voor laptops. Hij is geklokt op 2,13 GHz zonder TurboBoost. AES instructies en hyperthreading zijn uitgeschakeld. De CPU ondersteund wel Enhanced Speedstep maar andere functionaliteiten om stroom te besparen zijn uitgeschakeld (zoals de Penryn - Pentium reeks had).

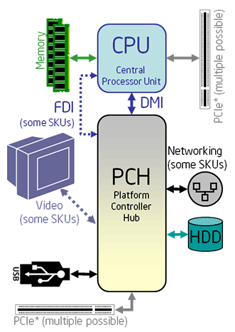

De P6200 is gebaseerd op de Arrandale CPU's en heeft daardoor ook een geïntegreerde geheugencontroller en een Intel HD Graphics videokaart aan boord (beide op 45nm procedé, de CPU op 32nm). De zogenaamde GMA HD graphics in de CPU is geklokt op 500MHz en kan met TurboBoost tot 667 MHz worden overgeklokt (enkel GPU!).

De prestaties van de CPU zijn ietwat beperkt door de lage kloksnelheid en de ontbrekende Turbo Boost en Hyperthreading. De prestaties per GHz zijn echter nog iets beter dan een vergelijkbaar geklokte Core 2 Duo, door de geïntegreerde geheugen controller en kleine verbeteringen in de core.

SerieIntel Pentium
CodenaamArrandale

Serie: Pentium Arrandale

Intel Pentium P63002.27 GHz2 / 23 MB
» Intel Pentium P62002.13 GHz2 / 23 MB
Intel Pentium P61002 GHz2 / 23 MB
Intel Pentium P61002 GHz2 / 23 MB
Intel Pentium P60001.86 GHz2 / 23 MB
Intel Pentium U56001.33 GHz2 / 23 MB
Intel Pentium U54001.2 GHz2 / 23 MB
Kloksnelheid2133 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Aantal Cores / Threads2 / 2
Stroomverbruik (TDP = Thermal Design Power)35 Watt
Aantal Transistoren382+177 miljoen
Productietechnologie32 nm
Chipgrootte81+114 mm2
Max. Temperatuur90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64-Bit64-Bit-ondersteuning
Architecturex86
Aankondigingsdatum26-09-2010
Productlink (extern)Intel Pentium P6200

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 1.28     gem: 1.4     mediaan: 1.4 (2%)     max: 1.4 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
0.7 Points (2%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 2389     gem: 2404     mediaan: 2394 (20%)     max: 2428 punten
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 4594     gem: 4619     mediaan: 4620 (5%)     max: 4643 punten
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 5763     gem: 5773     mediaan: 5773 (4%)     max: 5783 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 2987     gem: 2997     mediaan: 2996.5 (16%)     max: 3006 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 987     gem: 1031     mediaan: 1031 (12%)     max: 1075 s
wPrime 2.10 - wPrime 2.0 32m *
min: 31.1     gem: 32.5     mediaan: 32.5 (7%)     max: 33.84 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 1396     gem: 1812     mediaan: 1949 (4%)     max: 1954 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 20.4     gem: 20.6     mediaan: 20.6 (4%)     max: 20.75 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 46.88     gem: 47.5     mediaan: 47.5 (2%)     max: 48.17 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
19570 MIPS (9%)
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
13850 MFLOPS (11%)
Windows 7 Experience Index - Win7 CPU
5.8 Points (74%)
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
