Intel Pentium P6300

Intel P6300

De Intel Pentium P6300 is een instap niveau CPU voor laptops. Hij is geklokt op 2,26 GHz zonder TurboBoost. AES instructies en hyperthreading zijn uitgeschakeld. De CPU ondersteund wel Enhanced Speedstep maar andere functionaliteiten om stroom te besparen zijn uitgeschakeld (zoals de Penryn - Pentium reeks had).

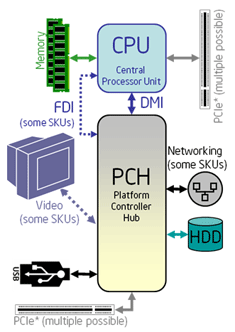

De P6300 is gebaseerd op de Arrandale CPU's en heeft daardoor ook een geïntegreerde geheugencontroller en een Intel HD Graphics videokaart aan boord (beide op 45nm procedé, de CPU op 32nm). De zogenaamde GMA HD graphics in de CPU is geklokt op 500MHz en kan met TurboBoost tot 667 MHz worden overgeklokt (enkel GPU!).

De prestaties van de CPU zijn ietwat beperkt door de lage kloksnelheid en de ontbrekende Turbo Boost en Hyperthreading. De prestaties per GHz zijn echter nog iets beter dan een vergelijkbaar geklokte Core 2 Duo, door de geïntegreerde geheugen controller en kleine verbeteringen in de core.

SerieIntel Pentium
CodenaamArrandale

Serie: Pentium Arrandale

Intel Pentium P6300 « 2.27 GHz2 / 2 cores3 MB L3
Intel Pentium P62002.13 GHz2 / 2 cores3 MB L3
Intel Pentium P61002 GHz2 / 2 cores3 MB L3
Intel Pentium P60001.86 GHz2 / 2 cores3 MB L3
Intel Pentium U56001.33 GHz2 / 2 cores3 MB L3
Intel Pentium U54001.2 GHz2 / 2 cores3 MB L3
Kloksnelheid2266 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Aantal Cores / Threads2 / 2
Stroomverbruik (TDP = Thermal Design Power)35 Watt
Aantal Transistoren382+177 miljoen
Productietechnologie32 nm
Chipgrootte81+114 mm2
Max. Temperatuur90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64-Bit64-Bit-ondersteuning
Architecturex86
Aankondigingsdatum06-01-2011
Productlink (extern)ark.intel.com

Benchmarks

- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
