Intel Core Ultra 7 255HX

Intel Ultra 7 255HX

De Intel Core Ultra 7 255HX is een mobiele high-end CPU voor gaming notebooks gebaseerd op de Arrow Lake architectuur. Hij biedt 20 cores, bestaande uit 8 snelle performance cores met een kloksnelheid tot 5,2 GHz en 12 van de 16 kleinere efficiency cores met een kloksnelheid tot 4,5 GHz. De CPU heeft toegang tot 30 MB L2 cache en 36 MB L3 cache en heeft een TDP van 55 watt.

De SoC integreert een kleine speciale NPU genaamd AI Boost met 13 TOPS (Int8) en ondersteunt optioneel vPro Essentials. De geïntegreerde geheugencontroller ondersteunt tot 192 GB DDR5-6400 (dubbelkanaals, ECC optioneel). De geïntegreerde GPU (iGPU) is een kleine Intel Graphics grafische kaart met vier Xe-kernen die draaien op 300 - 1850 MHz.

Prestaties - High End

Dankzij de verbeterde IPC van de kernen (vooral de efficiëntiekernen), zou de CPU net achter of op het niveau van de Raptor Lake Core i9-14700HX (8 + 12 cores, max. 5,5 / 3,9 GHz). Dit maakt de CPU ideaal voor veeleisende taken zoals high-end gaming en het maken van content.

Productie - TSMC en Foveros

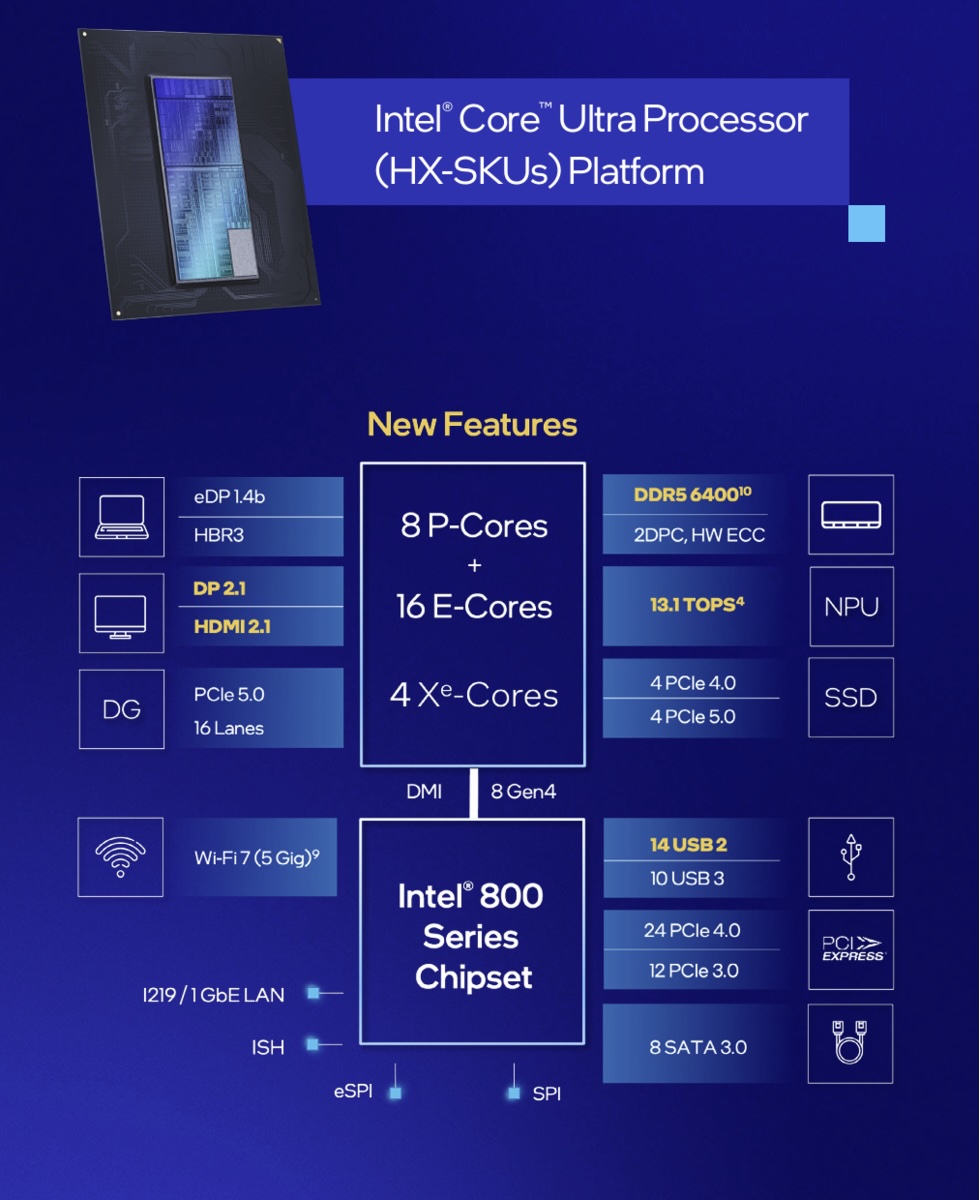

De Arrow Lake-HX chips zijn gebaseerd op de desktop Arrow Lake-S chips en bestaan uit verschillende chiplets. Het CPU-gedeelte wordt geproduceerd bij TSMC in het moderne N3B (3nm) proces, de GPU komt ook van TSMC in het N5P proces. De SoC en I/O-tegel worden vervaardigd in het TSMC N6-proces. De basistegel wordt door Intel gemaakt in het 22nm-proces en draagt de individuele chiplets dankzij Fovero's 3D-verpakking.

CodenaamArrow Lake-HX
SerieIntel Arrow Lake

Serie: Arrow Lake Arrow Lake-HX

Intel Core Ultra 9 285HX2.1 - 5.5 GHz24 / 24 cores36 MB L3
Intel Core Ultra 9 275HX2.1 - 5.4 GHz24 / 24 cores36 MB L3
Intel Core Ultra 7 265HX2.3 - 5.3 GHz20 / 20 cores36 MB L3
Intel Core Ultra 7 255HX « 2.3 - 5.2 GHz20 / 20 cores36 MB L3
Intel Core Ultra 5 245HX2.6 - 5.1 GHz14 / 14 cores26 MB L3
Intel Core Ultra 5 235HX2.6 - 5.1 GHz14 / 14 cores26 MB L3
Kloksnelheid2300 - 5200 MHz
Level 2 Cache30 MB
Level 3 Cache36 MB
Aantal Cores / Threads20 / 20
8 x 5.2 GHz Intel Lion Cove P-core
12 x 4.5 GHz Intel Skymont E-core
Stroomverbruik (TDP = Thermal Design Power)55 Watt
TDP Turbo PL2160 Watt
Productietechnologie3 nm
GPUIntel Graphics 4-Core iGPU (Arc) (300 - 1850 MHz)
NPU / AI13 TOPS INT8
64-Bit64-Bit-ondersteuning
Architecturex86
Aankondigingsdatum06-01-2025
Productlink (extern)www.intel.com

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
46.7 pt (78%)
Restrict / Search: Model: Max. age: years
Cinebench 2024 - Cinebench 2024 CPU Single Core
min: 124     gem: 128.2     mediaan: 129 (65%)     max: 131.6 Points
Cinebench 2024 - Cinebench 2024 CPU Multi Core
min: 1500     gem: 1634     mediaan: 1685 (31%)     max: 1716 Points
Cinebench R23 - Cinebench R23 Multi Core
min: 27129     gem: 31386     mediaan: 32205 (30%)     max: 34005 Points
202 -99%
...
25265 -20%
26876 -14%
27595 -12%
28275 -10%
28872 -8%
29352 -6%
29400 -6%
29833 -5%
30428 -3%
Intel Core Ultra 7 255HX
31386
32782 4%
33078 5%
34856 11%
35061 12%
36028 15%
37641 20%
AMD Ryzen 9 9955HX
38155 22%
AMD Ryzen 9 9955HX3D
39065 24%
max:
107681 243%
0%
100%
Restrict / Search: Model: Max. age: years
Cinebench R23 - Cinebench R23 Single Core
min: 2111     gem: 2150     mediaan: 2161.5 (88%)     max: 2167 Points
74.4 -97%
...
2044 -5%
2045 -5%
2046 -5%
2067 -4%
2076 -3%
2081 -3%
2118 -1%
2121 -1%
AMD Ryzen 9 9955HX
2128 -1%
Intel Core Ultra 7 255HX
2150
AMD Ryzen 9 9955HX3D
2172 1%
2184 2%
2202 2%
2209 3%
2213 3%
2270 6%
max:
Apple M5 (10 Cores)
2459 14%
0%
100%
Restrict / Search: Model: Max. age: years
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 822     gem: 830     mediaan: 831.5 (91%)     max: 835 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 10626     gem: 12209     mediaan: 12577.5 (31%)     max: 13056 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 4114     gem: 4754     mediaan: 4856 (31%)     max: 5190 Points
Restrict / Search: Model: Max. age: years
02605207801040130015601820208023402600286031203380364039004160442046804940Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 322     gem: 326     mediaan: 327 (91%)     max: 328 Points
19 -94%
...
305.2 -6%
305.2 -6%
306 -6%
307 -6%
308.5 -5%
310.7 -5%
311 -5%
315.5 -3%
316.4 -3%
Intel Core Ultra 7 255HX
326
AMD Ryzen 9 9955HX3D
327 0%
330.7 1%
AMD Ryzen 9 9955HX
334.1 2%
...
326 0%
max:
Intel Core Ultra 9 285K
357.8 10%
0%
100%
Restrict / Search: Model: Max. age: years
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
50.3 Points (65%)
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
4 Points (94%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
11779 punten (71%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
81019 punten (59%)
WinRAR - WinRAR 4.0
10319 punten (16%)
7-Zip 18.03 - 7-Zip 18.03 Multi Thread 4 runs
min: 87806     gem: 97069     mediaan: 98207 (56%)     max: 104055 MIPS
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
min: 6407     gem: 6484     mediaan: 6477 (76%)     max: 6576 MIPS
X264 HD Benchmark 4.0 - x264 Pass 2
215.6 fps (5%)
X264 HD Benchmark 4.0 - x264 Pass 1
385.3 fps (10%)
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
min: 30.4     gem: 34     mediaan: 34.3 (60%)     max: 36.9 fps
051015202530354045Tooltip
TrueCrypt - TrueCrypt Serpent
1.8 GB/s (53%)
TrueCrypt - TrueCrypt Twofish
3.6 GB/s (62%)
TrueCrypt - TrueCrypt AES
10.8 GB/s (28%)
Blender - Blender 3.3 Classroom CPU *
min: 171     gem: 180.3     mediaan: 176 (2%)     max: 198 Seconds
Blender - Blender 2.79 BMW27 CPU *
min: 104     gem: 110.5     mediaan: 108 (1%)     max: 122 Seconds
R Benchmark 2.5 - R Benchmark 2.5 *
min: 0.421     gem: 0.4     mediaan: 0.4 (9%)     max: 0.4287 sec
3DMark 06 - CPU - 3DMark 06 - CPU
17993 Points (38%)
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
7.3 s (2%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
16 s (1%)
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
375 s (2%)
3DMark 11 - 3DM11 Performance Physics
min: 22207     gem: 24786     mediaan: 25192.5 (62%)     max: 26551 Points
3DMark - 3DMark Cloud Gate Physics
min: 21049     gem: 24189     mediaan: 25249 (64%)     max: 26269 Points
3DMark - 3DMark Fire Strike Standard Physics
min: 36734     gem: 42903     mediaan: 44210.5 (79%)     max: 46455 Points
3DMark - 3DMark Time Spy CPU
min: 14763     gem: 15837     mediaan: 16032.5 (68%)     max: 16520 Points
Geekbench 6.5 - Geekbench 6.5 Single-Core
min: 2917     gem: 2958     mediaan: 2935 (68%)     max: 3028 punten
Geekbench 6.5 - Geekbench 6.5 Multi-Core
min: 16396     gem: 17794     mediaan: 17431 (68%)     max: 19623 punten
AMD A4-9120C
533 -97%
...
16679 -6%
16782 -6%
16828 -5%
16957 -5%
17242 -3%
17401 -2%
17557 -1%
17564 -1%
17576 -1%
Intel Core Ultra 7 255HX
17794
AMD Ryzen 9 9850HX
18113 2%
AMD Ryzen 9 9955HX
18689 5%
19000 7%
19387 9%
AMD Ryzen 9 9955HX3D
20200 14%
20487 15%
21254 19%
21367 20%
22527 27%
...
25760 45%
0%
100%
Restrict / Search: Model: Max. age: years
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
min: 2112     gem: 2173     mediaan: 2183.5 (73%)     max: 2211 punten
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
min: 18263     gem: 19727     mediaan: 19815.5 (36%)     max: 21014 punten
Geekbench 4.0 - Geekbench 4.0 64 Bit Single-Core
9053 punten (100%)
Geekbench 4.0 - Geekbench 4.0 64 Bit Multi-Core
69317 punten (91%)
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 425     gem: 428.8     mediaan: 427 (0%)     max: 436 ms
WebXPRT 4 - WebXPRT 4 Score
min: 305     gem: 313.5     mediaan: 311.5 (81%)     max: 326 Points
WebXPRT 3 - WebXPRT 3 Score
min: 319     gem: 330.8     mediaan: 330 (59%)     max: 344 Points
CrossMark - CrossMark Overall
min: 1944     gem: 2039     mediaan: 2057.5 (77%)     max: 2097 Points
Power Consumption - Prime95 Power Consumption - external Monitor *
min: 156.1     gem: 186.2     mediaan: 181.3 (31%)     max: 226 Watt
0153045607590105120135150165180195210225240Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
min: 174.2     gem: 198.6     mediaan: 198.6 (36%)     max: 223 Watt
0153045607590105120135150165180195210225Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
min: 9.33     gem: 24.4     mediaan: 28 (19%)     max: 32.4 Watt
051015202530Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
min: 10.1     gem: 14.9     mediaan: 14.4 (17%)     max: 20.7 Watt
0510152025Tooltip
Power Consumption - Power Efficiency - Cinebench R15 Multi external Monitor
23.3 Points per Watt (17%)
- Benchmarkresultaten voor deze videokaart
red legend - Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
