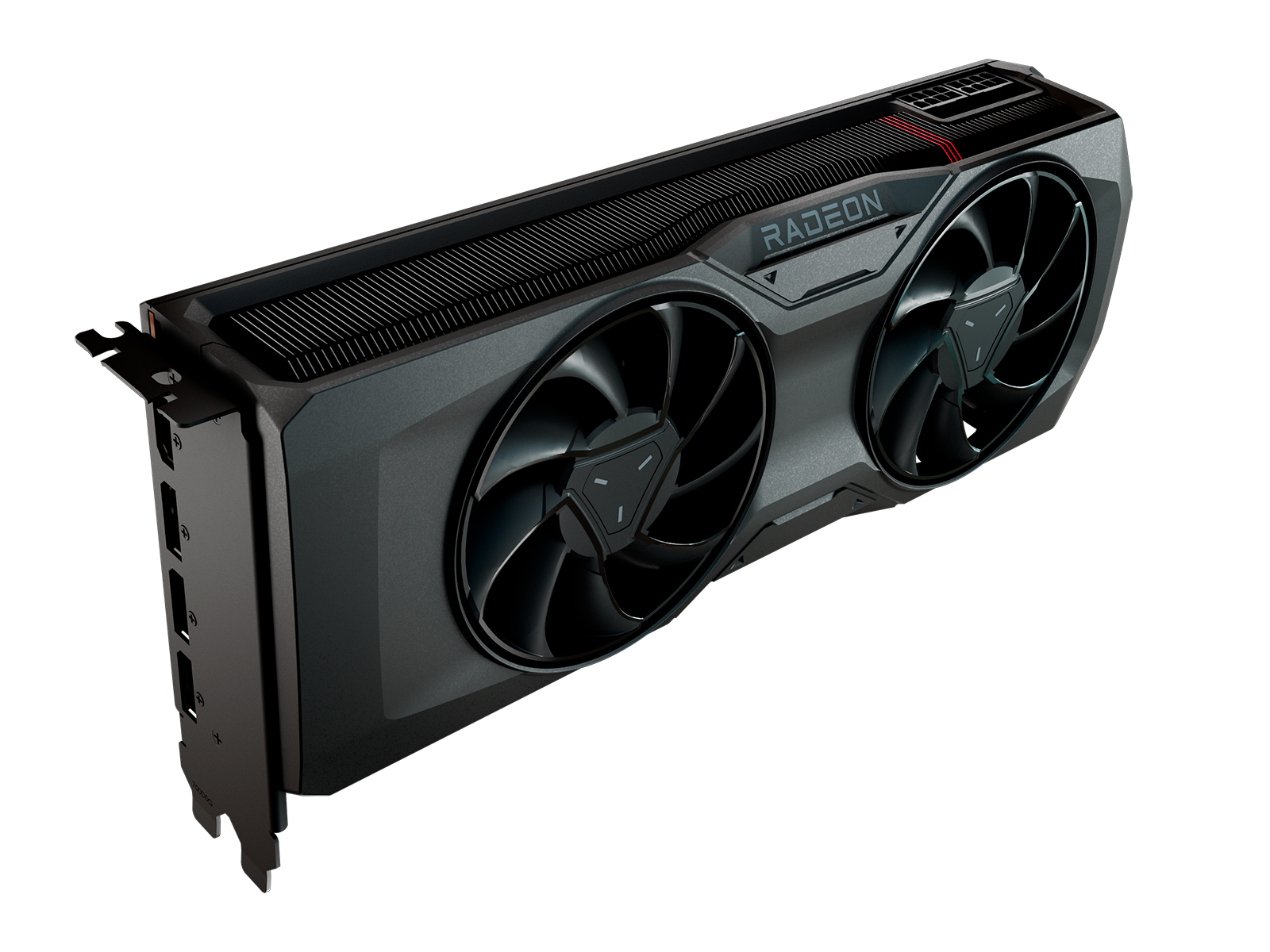

AMD Radeon RX 7800 XT

De AMD Radeon RX 7800 XT is een mid-range desktop GPU en is voornamelijk ontworpen voor gaming in 1440p. Dit maakt de AMD Radeon RX 7800 XT het op drie na snelste model van de huidige Radeon-generatie en plaatst hem direct achter de AMD Radeon RX 7900 GRE. De grafische chip wordt gefabriceerd met behulp van het 5 nm proces bij TSMC. Het chipletontwerp wordt ook gebruikt in de AMD Radeon RX 7800 XT, hoewel er hier slechts vier MCD's zijn. Desondanks heeft de AMD Radeon RX 7800 XT 16 GB VRAM en verslaat daarmee de Nvidia GeForce RTX 4070 op het gebied van technische gegevens.
Kenmerken
RDNA 3 blijft als basis dienen voor de Navi 32 grafische chip. De reeds gevestigde functies zoals SAM (Smart Access Memory) en de Infinity Cache zijn ook beschikbaar in het nieuwe middensegment model aka Radeon RX 7800 XT. Vergeleken met de AMD Radeon RX 6800 XT is het ray tracing-gedeelte herzien en is AI-ondersteuning aan de hardwarekant geïmplementeerd. De media-engine is bijgewerkt en video's kunnen gedecodeerd/geëncodeerd worden met een resolutie tot 8K. De moderne DisplayPort-aansluiting is ook beschikbaar op de AMD Radeon RX 7800 XT, aangezien versie 2.1 momenteel alleen verkrijgbaar is bij AMD. AMD's antwoord op DLSS is FSR 2.0 en biedt een aanzienlijke prestatieverhoging in games met de upscaling-optie. Met FSR 3 komt er in de nabije toekomst nog een functie die, net als DLSS 3.0, nog betere framerates belooft dankzij framegeneratie.
Prestaties
De prestaties van de AMD Radeon RX 7800 XT in games zonder ray tracing liggen ver voor op die van een Nvidia GeForce RTX 4070. De Nvidia GeForce RTX 4070 Ti is buiten bereik van de AMD Radeon RX 7800 XT. In het interne duel kunnen de prestaties van de AMD Radeon RX 7800 XT worden vergeleken met een AMD Radeon RX 6900 XT vergeleken worden.
Stroomverbruik
Het stroomverbruik van de AMD Radeon RX 7800 XT wordt door de fabrikant geschat op 263 watt (TBP) en is daarmee aanzienlijk efficiënter dan een AMD Radeon RX 6900 XT (300 watt). Vergeleken met de Nvidia GeForce RTX 4070 heeft de AMD Radeon RX 7800 XT 63 watt meer nodig. Ook een AMD Radeon RX 7900 GRE is ook zuiniger met 260 watt.
Radeon RX 7000 Serie
| ||||||||||||||||
| Codenaam | Navi 32 | |||||||||||||||
| Architectuur | RDNA 3 | |||||||||||||||
| Pipelines | 3840 - verenigd | |||||||||||||||
| TMUs | 240 | |||||||||||||||
| ROPs | 96 | |||||||||||||||
| Raytracing Cores | 60 | |||||||||||||||
| Tensor / AI Cores | 120 | |||||||||||||||
| Core-snelheid | 2430 (Boost) MHz | |||||||||||||||
| Theoretical Performance | 74.65 TFLOPS FP16, 37.32 TFLOPS FP32 | |||||||||||||||
| Cache | L2: 4 MB, L3: 64 MB | |||||||||||||||
| Geheugensnelheid | 19500 effective = 2425 MHz | |||||||||||||||
| Geheugenbusbreedte | 256 bit | |||||||||||||||
| Geheugentype | GDDR6 | |||||||||||||||
| Max. hoeveelheid geheugen | 16 GB | |||||||||||||||
| Gedeeld geheugen | nee | |||||||||||||||
| Memory Bandwidth | 620.8 GB/s | |||||||||||||||
| API | DirectX 12 Ultimate (12_2), Shader 6.7, OpenGL 4.6, OpenCL 2.2, Vulkan 1.3 | |||||||||||||||
| Stroomverbruik | 263 Watt | |||||||||||||||
| Matrijsgrootte | 346 mm² | |||||||||||||||
| technologie | 5 nm | |||||||||||||||
| PCIe | 4.0 x16 | |||||||||||||||
| Displays | 4 Displays (max.), HDMI 2.1a, DisplayPort 2.1 UHBR13.5 | |||||||||||||||
| Aangekondigde datum | 25.08.2023 | |||||||||||||||
| Link naar fabrikant | www.amd.com | |||||||||||||||
| Predecessor | Radeon RX 6800 XT | |||||||||||||||
Benchmarks
3DM Vant. Perf. total +
specvp12 sw-03 +
* Kleinere getallen betekenen een hogere prestatie
Game Benchmarks
De volgende benchmarks zijn afgeleid van onze laptop-testrapporten. De prestaties variëren afhankelijk van het gebruikte grafische geheugen, kloksnelheid, processor, systeeminstellingen, drivers en besturingssysteem. De resultaten zijn daarom niet noodzakelijk representatief voor alle laptops met deze GPU. Voor meer gedetailleerde informatie over de benchmarkresultaten, klik op het fps-aantal.

F1 24
2024
Ghost of Tsushima
2024
Alone in the Dark
2024
Dragon's Dogma 2
2024
Last Epoch
2024
Skull & Bones
2024
Helldivers 2
2024
Enshrouded
2024
Palworld
2024
Ready or Not
2023
The Finals
2023
EA Sports WRC
2023
Alan Wake 2
2023
Lords of the Fallen
2023
Total War Pharaoh
2023
Counter-Strike 2
2023
Cyberpunk 2077
2023
Baldur's Gate 3
2023
Lies of P
2023
Starfield
2023
Armored Core 6
2023
Immortals of Aveum
2023
Atlas Fallen
2023
F1 23
2023
Diablo 4
2023
Dead Island 2
2023
The Last of Us
2023
Company of Heroes 3
2023
Sons of the Forest
2023
Atomic Heart
2023
Returnal
2023
Hogwarts Legacy
2023
Dead Space Remake
2023
The Witcher 3 v4
2023
High On Life
2023
The Quarry
2022
F1 22
2022
Ghostwire Tokyo
2022
Cyberpunk 2077 1.6
2022
GRID Legends
2022
Dying Light 2
2022
God of War
2022
Farming Simulator 22
2021
Forza Horizon 5
2021
Far Cry 6
2021
F1 2021
2021
Dirt 5
2020
Watch Dogs Legion
2020
Horizon Zero Dawn
2020
Death Stranding
2020
F1 2020
2020
Borderlands 3
2019
Control
2019
Anno 1800
2019
The Division 2
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Forza Horizon 4
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015| lage | gem. | hoge | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| F1 24 | 484 | 422 | 317 | 88.3 | 57.3 | 28.7 |
| Senua's Saga Hellblade 2 | 114.3 | 96.3 | 70 | 51.7 | 28.4 | |
| Ghost of Tsushima | 185.1 | 158.1 | 147.6 | 113.9 | 92 | 58 |
| Horizon Forbidden West | 180.3 | 164.7 | 111 | 109.8 | 85.3 | 54.7 |
| Alone in the Dark | 310 | 298 | 280 | 166.1 | 102.5 | 46.5 |
| Dragon's Dogma 2 | 113.7 | 109.2 | 90.6 | 55 | ||
| Last Epoch | 295 | 292 | 291 | 232 | 142.7 | 64.9 |
| Skull & Bones | 209 | 197 | 157 | 103 | 91 | 55 |
| Helldivers 2 | 213 | 193.2 | 172.3 | 164.9 | 123.7 | 68.5 |
| Enshrouded | 133 | 123.2 | 105.3 | 89.6 | 69.2 | 41 |
| Palworld | 228 | 197.1 | 140.2 | 138.9 | 118.5 | 63.4 |
| Prince of Persia The Lost Crown | 359 | 359 | 359 | 359 | 344 | |
| Ready or Not | 422 | 364 | 343 | 246 | 146.9 | 64.4 |
| The Finals | 429 | 351 | 311 | 241 | 154.8 | 73.4 |
| Avatar Frontiers of Pandora | 133 | 121 | 102 | 80 | 55 | 29 |
| EA Sports WRC | 287 | 182.9 | 163.2 | 143 | 109.4 | 63.3 |
| Alan Wake 2 | 147 | 132.2 | 123.6 | 79.1 | 39.5 | |
| Lords of the Fallen | 162.7 | 147.4 | 121.1 | 93.5 | 66 | 34.8 |
| Total War Pharaoh | 604.4 | 410.6 | 269.9 | 213.5 | 150.5 | 75.5 |
| Assassin's Creed Mirage | 225 | 203 | 187 | 146 | 115 | 70 |
| Counter-Strike 2 | 351 | 355 | 320 | 245 | 175.1 | 83.1 |
| Cyberpunk 2077 | 241 | 199.9 | 163.2 | 148.6 | 97 | 41.3 |
| Baldur's Gate 3 | 246 | 196 | 166 | 162 | 114 | 61 |
| Lies of P | 312 | 275 | 232 | 207 | 147.8 | 79.1 |
| Starfield | 160.7 | 158.5 | 122.8 | 102.1 | 83.9 | 58.1 |
| Armored Core 6 | 120 | 120 | 120 | 120 | 114 | 70 |
| Immortals of Aveum | 142 | 120 | 102 | 72 | 38 | |
| Atlas Fallen | 193 | 191 | 186 | 182 | 141 | 77 |
| Ratchet & Clank Rift Apart | 172 | 149 | 124 | 109 | 89 | 57 |
| F1 23 | 533 | 513 | 376 | 90 | 58 | 28 |
| Diablo 4 | 393 | 377 | 340 | 294 | 198 | 97 |
| Star Wars Jedi Survivor | 156 | 140 | 130 | 121 | 77 | 37 |
| Dead Island 2 | 377 | 367 | 291 | 203 | 147 | 79 |
| The Last of Us | 171 | 152 | 140 | 127 | 88 | 43 |
| Resident Evil 4 Remake | 272 | 215 | 187 | 131 | 102 | 62 |
| Company of Heroes 3 | 338 | 290 | 229 | 225 | 170 | 97 |
| Sons of the Forest | 132 | 127 | 123 | 122 | 113 | 70 |
| Atomic Heart | 324 | 243 | 145 | 112 | 90 | 55 |
| Returnal | 198 | 188 | 168 | 138 | 106 | 62 |
| Hogwarts Legacy | 218 | 188 | 144 | 108 | 78 | 46 |
| Dead Space Remake | 174 | 164 | 144 | 143 | 98 | 49 |
| The Witcher 3 v4 | 342 | 298 | 268 | 230 | 163 | 78 |
| High On Life | 393 | 309 | 228 | 178 | 108 | 45 |
| The Callisto Protocol | 270 | 224 | 205 | 128 | 103 | 68 |
| Need for Speed Unbound | 168 | 230 | 197.3 | 167 | 124.9 | 69.2 |
| Spider-Man Miles Morales | 194 | 197 | 180 | 165 | 128 | 76 |
| Uncharted Legacy of Thieves Collection | 141 | 130 | 120 | 113 | 91 | 56 |
| A Plague Tale Requiem | 199 | 152 | 115 | 88 | 67 | 38 |
| The Quarry | 260 | 194 | 157 | 122 | 87 | 47 |
| F1 22 | 479 | 471 | 382 | 109 | 72 | 36 |
| Ghostwire Tokyo | 295 | 277 | 282 | 278 | 182 | 82 |
| Tiny Tina's Wonderlands | 421 | 326 | 201 | 157 | 110 | 58 |
| Cyberpunk 2077 1.6 | 248 | 196 | 163 | 150 | 99 | 45 |
| GRID Legends | 274 | 243 | 218 | 199 | 183 | 134 |
| Dying Light 2 | 184.6 | 156.9 | 113.5 | 80.2 | 39.4 | |
| God of War | 225 | 227 | 186 | 124 | 103 | 68 |
| Farming Simulator 22 | 419 | 343 | 302 | 282 | 261 | 167 |
| Forza Horizon 5 | 345 | 276 | 256 | 151 | 132 | 97 |
| Guardians of the Galaxy | 230 | 224 | 221 | 210 | 167 | 93 |
| Far Cry 6 | 249 | 220 | 200 | 188 | 150 | 87 |
| F1 2021 | 716 | 636 | 483 | 211 | 159 | 92 |
| Assassin´s Creed Valhalla | 250 | 222 | 181 | 158 | 124 | 72 |
| Dirt 5 | 203.2 | 157.8 | 119.9 | 102.2 | 104.1 | 99.3 |
| Watch Dogs Legion | 201 | 196 | 176 | 145 | 115 | 67 |
| Horizon Zero Dawn | 252 | 229 | 210 | 189 | 159 | 84 |
| Death Stranding | 240 | 239 | 238 | 236 | 193 | 110 |
| F1 2020 | 601 | 474 | 413 | 274 | 217 | 131 |
| Borderlands 3 | 244 | 214 | 177 | 144 | 108 | 59 |
| Control | 240 | 239 | 194 | 122 | 59 | |
| Total War: Three Kingdoms | 571.7 | 355.3 | 250.7 | 171 | 103.4 | 47.8 |
| Anno 1800 | 167.2 | 165.4 | 140.3 | 78.4 | 78.1 | 73.6 |
| The Division 2 | 259 | 247 | 205 | 186 | 135 | 72 |
| Far Cry New Dawn | 195 | 171 | 162 | 147 | 148 | 112 |
| Metro Exodus | 281 | 209 | 174 | 133 | 106 | 63 |
| Assassin´s Creed Odyssey | 196 | 178 | 162 | 130 | 119 | 89 |
| Forza Horizon 4 | 380 | 278 | 261 | 222 | 202 | 164 |
| Shadow of the Tomb Raider | 344 | 269 | 253 | 227 | 161 | 84 |
| Strange Brigade | 737 | 488 | 398 | 340 | 243 | 130 |
| Far Cry 5 | 232 | 204 | 196 | 182 | 176 | 104 |
| X-Plane 11.11 | 181 | 148 | 113 | 84 | ||
| Final Fantasy XV Benchmark | 235 | 228 | 165 | 126 | 72 | |
| Assassin´s Creed Origins | 184 | 165 | 157 | 131 | 108 | 71 |
| Rise of the Tomb Raider | 394 | 300 | 211 | 180.3 | 94 | |
| Dota 2 Reborn | 292 | 249 | 228 | 208 | 155 | |
| The Witcher 3 | 756 | 566 | 366 | 200 | 147 | 118 |
| GTA V | 188 | 188 | 187 | 169 | 140 | 152 |
| lage | gem. | hoge | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 83 | 1 83 | 9 77 | 18 61 | 4 43 36 | 4 28 46 8 |
