Trigkey S3 mini PC review: Core i3-achtige prestaties voor de prijs van een Celeron of Atom

Ryzen 5 3550H in 2023. De Trigkey is goedkoop met iets minder dan US$300, maar gaat gelukkig de verschrikkelijk trage Celeron of Atom oplossingen uit de weg voor een oudere maar snellere AMD Zen+ processor. Zelfs lichte HTPC multi-tasking kan profiteren van de AMD processor.

Trigkey is gespecialiseerd in goedkope mini-pc's die draaien op oudere processoren om de prijzen laag te houden. De S3 is zo'n model dat draait op de drie jaar oude Ryzen 5 3550H met een verkoopprijs van ongeveer 280 USD

Concurrenten in deze ruimte zijn andere goedkope mini-pc's zoals de BMax B5 Pro, Beelink U59of de Chuwi LarkBox.

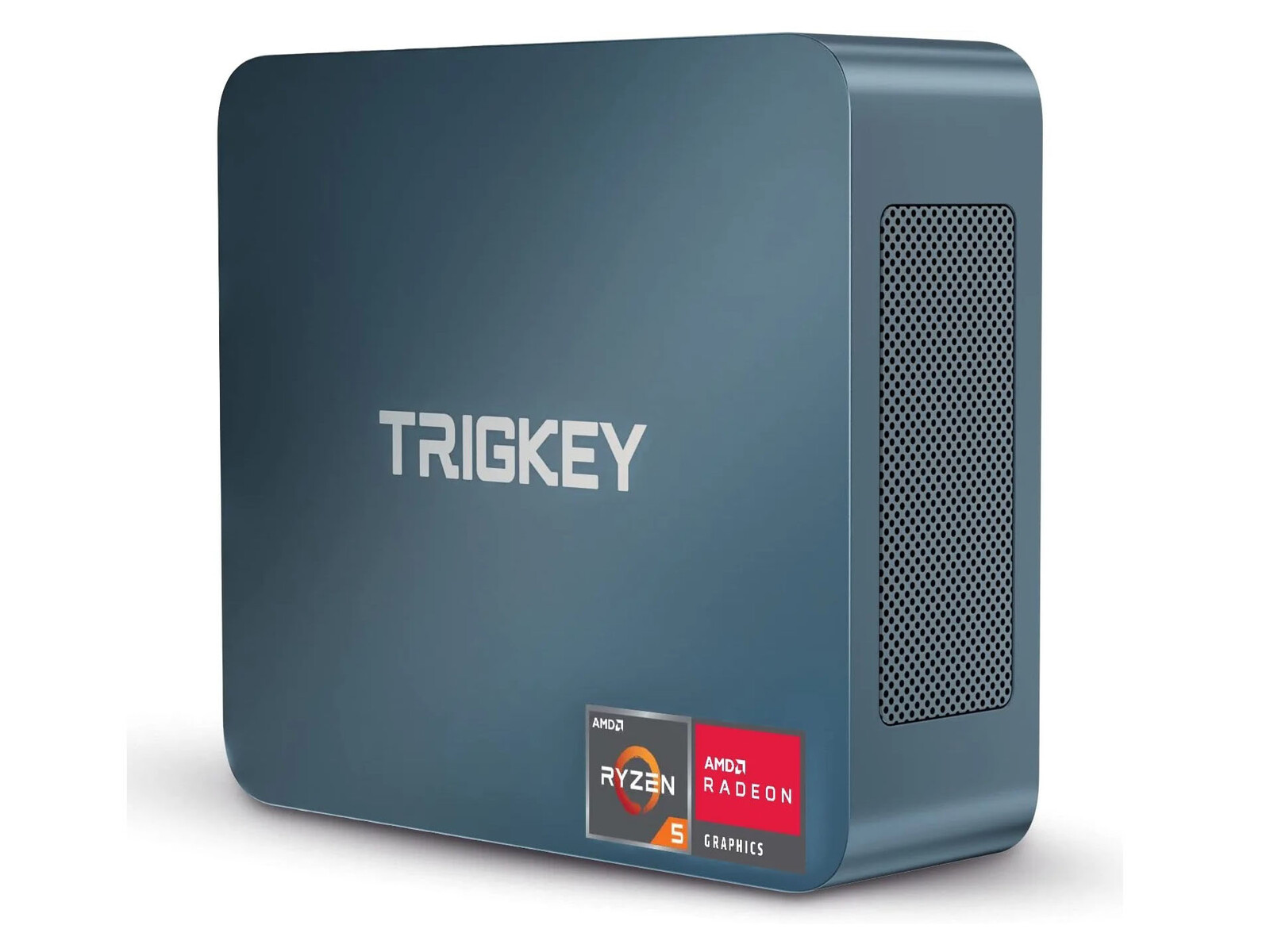

Trigkey S3
Processor
AMD Ryzen 5 3550H 4 x 2.1 - 3.7 GHz, 13 W PL2 / Short Burst, 11 W PL1 / Sustained, Picasso-U (Zen+)
Grafische kaart
AMD Radeon RX Vega 8 (Ryzen 2000/3000) - 2048 MB VRAM, Geheugen: 1200 MHz, DDR4, 22.20.27.07
Geheugen
16 GB

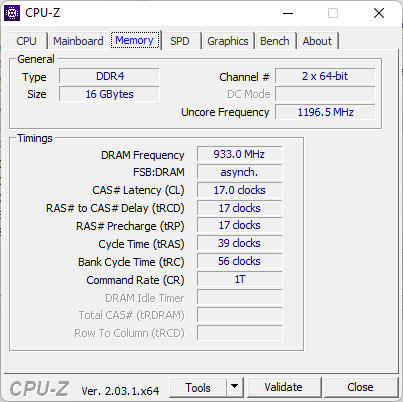

, Crucial DDR4-3200, 17-17-17-39, Dual-Channel, 2x SODIMM
Moederbord
AMD Promontory/Bixby FCH
Opslag

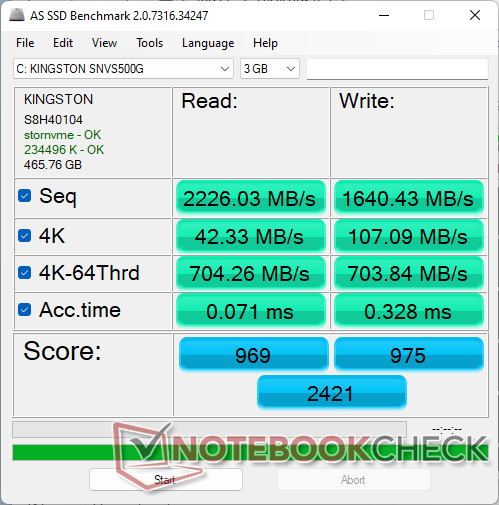

Kingston NV1 SNVS/500GCN, 500 GB
Geluidskaart
AMD Zen - Audio Processor - HD Audio Controller
Verbindingen
5 USB 3.0, 1 HDMI, Audio Verbindingen: 3.5 mm headset
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 40.7 x 126 x 112.7
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten
12 Maanden Garantie
Gewicht
419 g, Voeding: 218 g
Prijs
280 USD
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Potentiële concurrenten in vergelijking

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Beste prijs
01-2023
Trigkey S3
R5 3550H, Vega 8
419 g40.7 mmx
11-2022
Intel NUC Pro Chassis_i7_1265U
i7-1265U, Iris Xe G7 96EUs
35 mmx
04-2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
12-2022
Beelink SEi12 Core i5-1235U
i5-1235U, Iris Xe G7 80EUs
465 g42 mmx
09-2022
Beelink SEi11 Pro
i5-11320H, Iris Xe G7 96EUs
440 g40 mmx
10-2022
Beelink SER Pro Ryzen 5 5600H
R5 5600H, Vega 7
498 g42 mmx

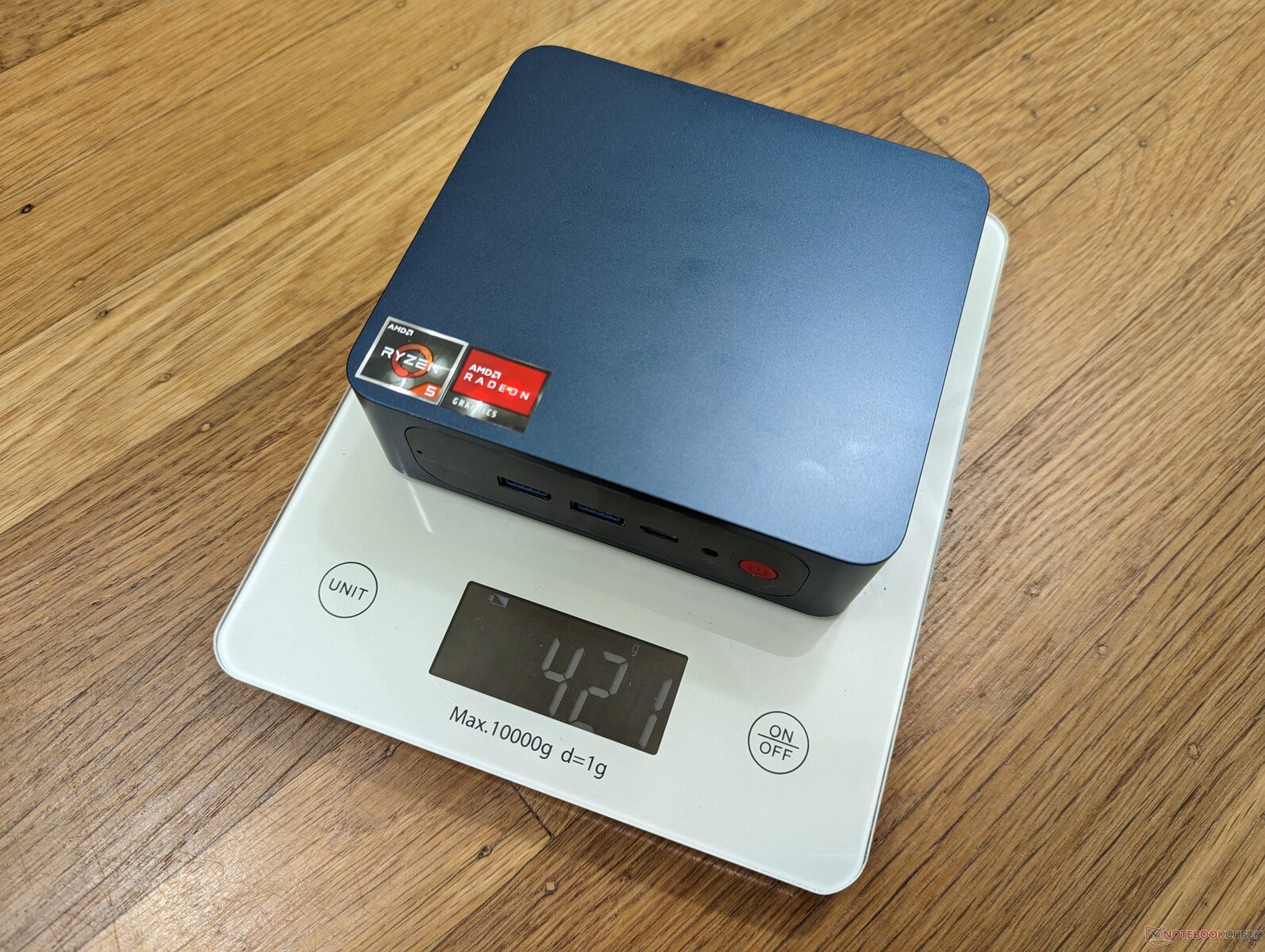

Met 421 g met RAM en SSD is de Trigkey S3 lichter dan veel andere mini-pc's
Met 421 g met RAM en SSD is de Trigkey S3 lichter dan veel andere mini-pc's

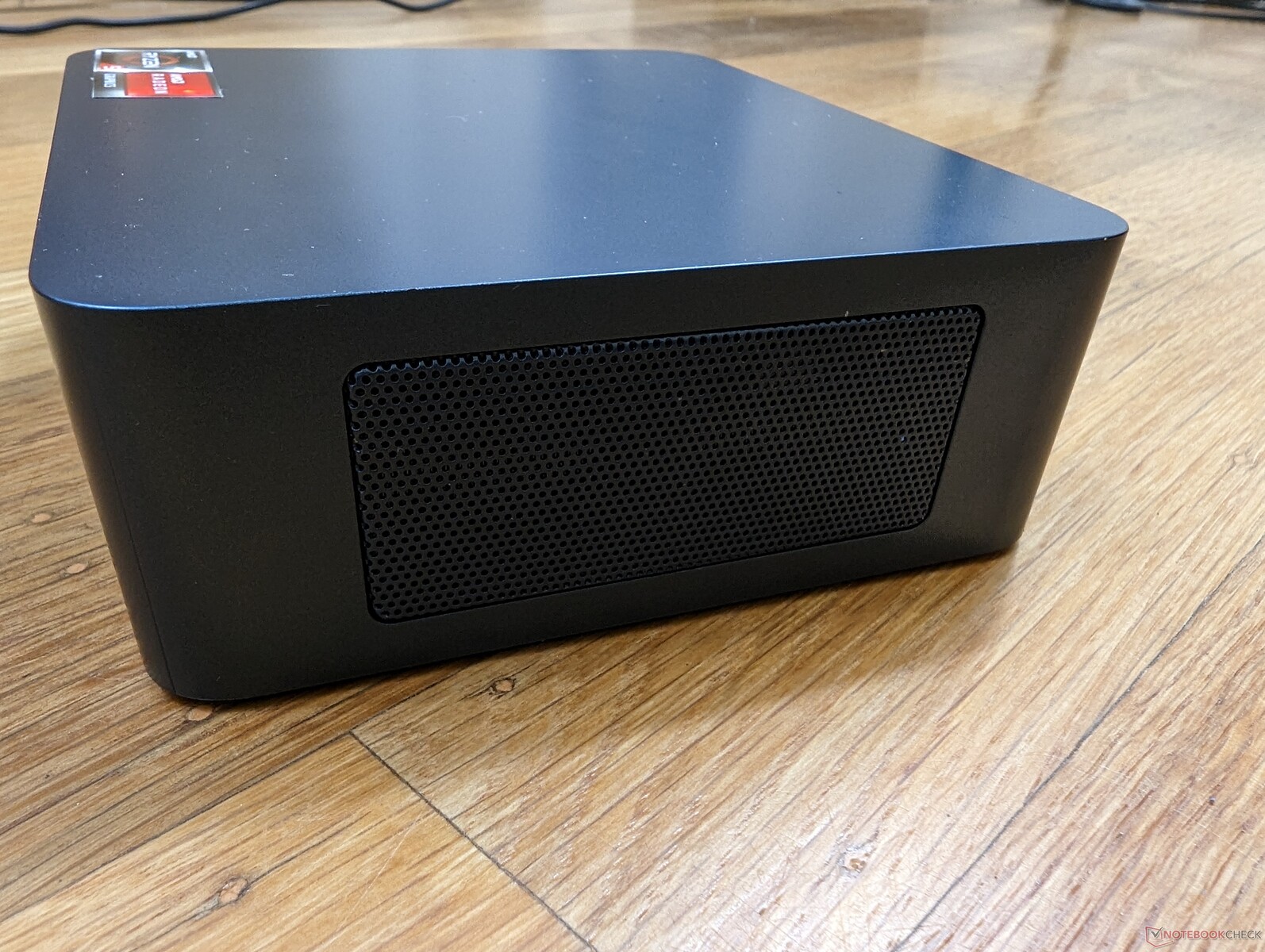

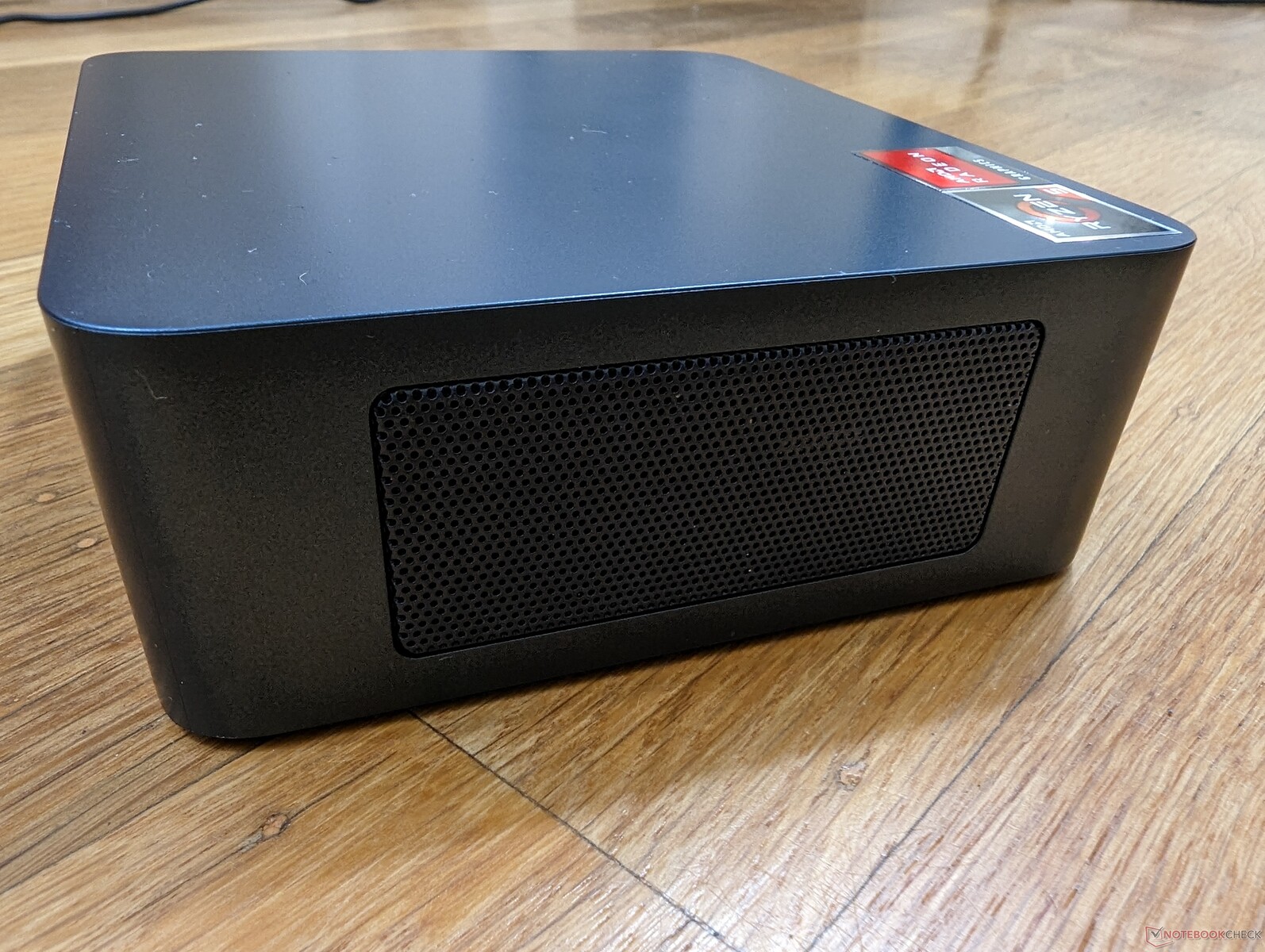

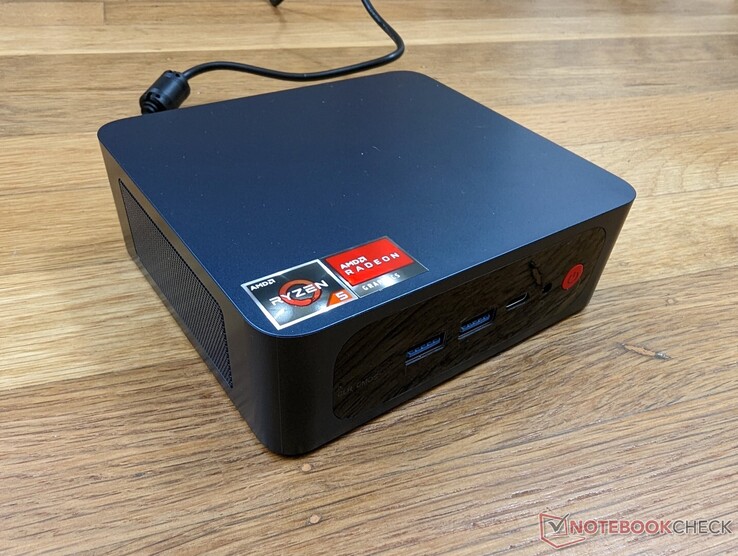

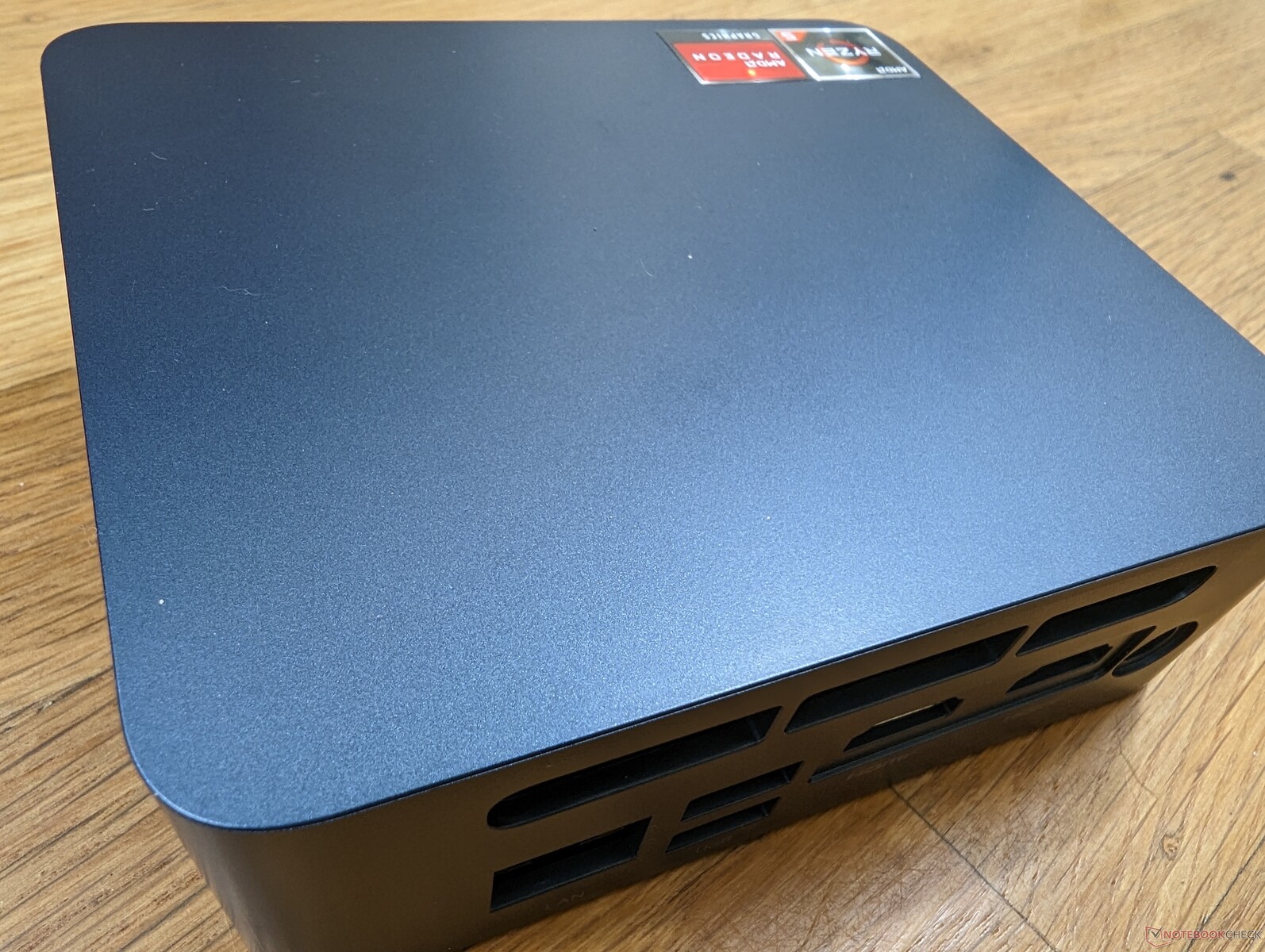

Gladde matte plastic bovenkant en zijkanten, terwijl de ventilatieroosters van metaal zijn
Gladde matte plastic bovenkant en zijkanten, terwijl de ventilatieroosters van metaal zijn

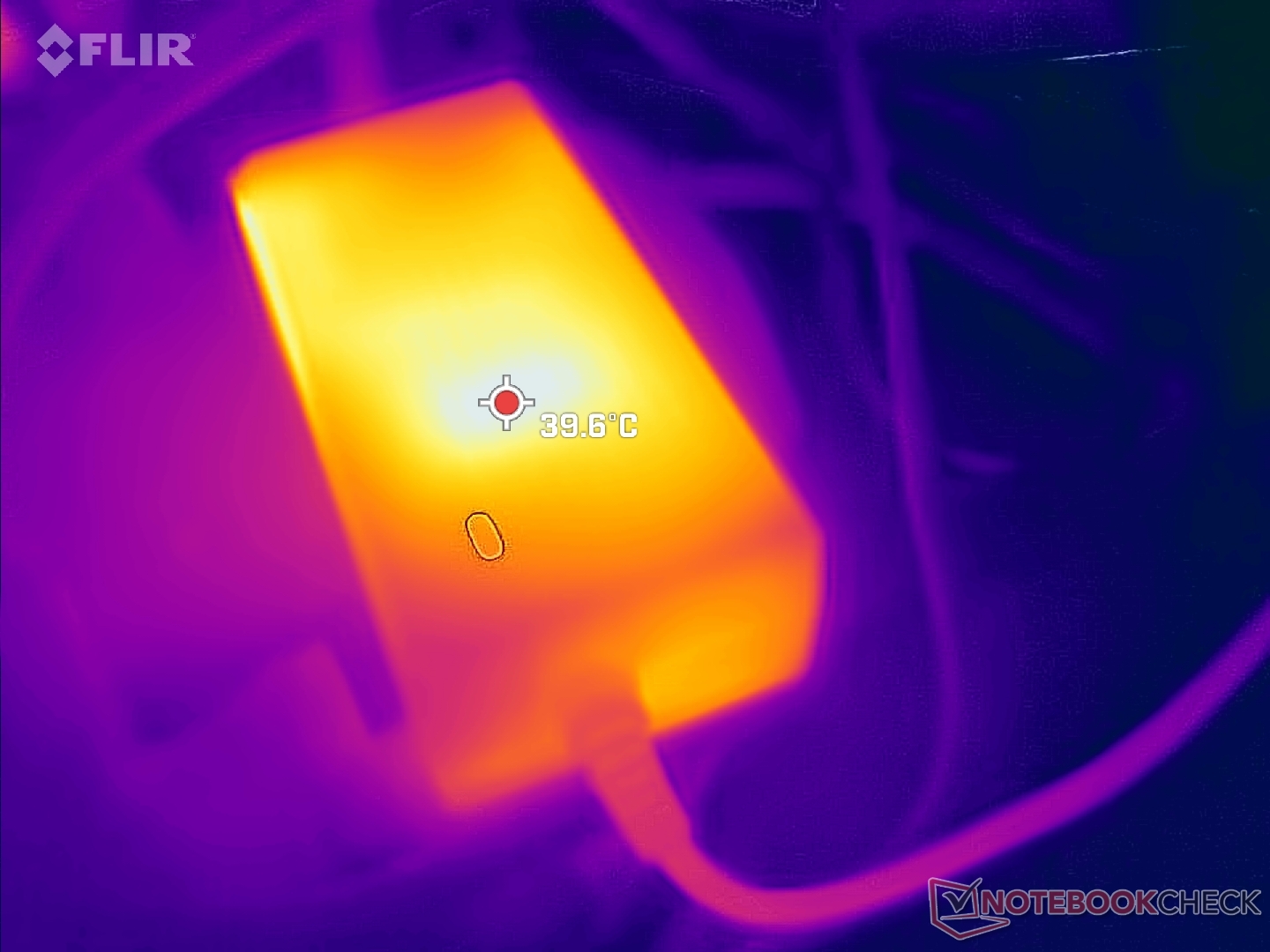

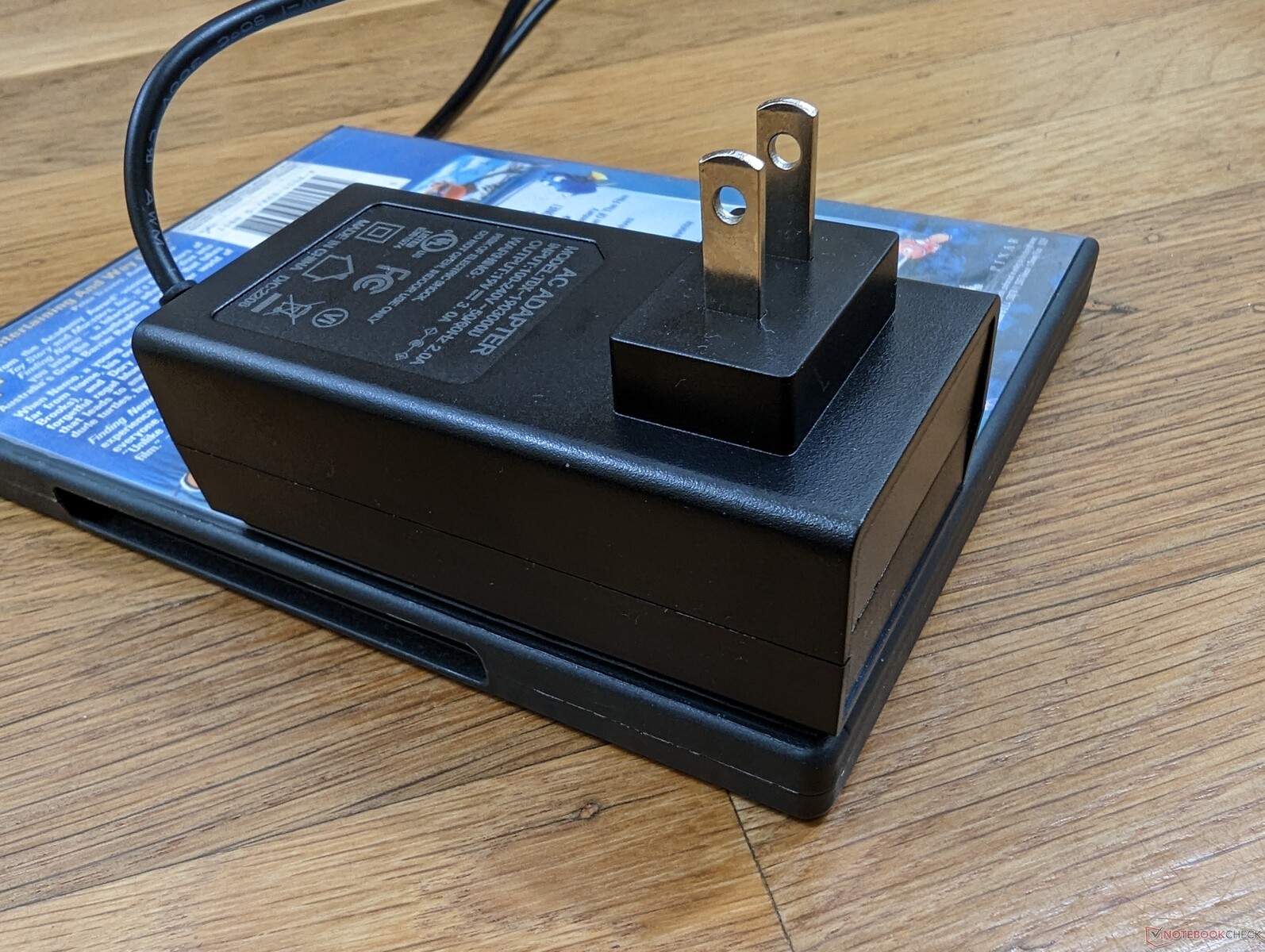

Wart 57 W AC adapter
Wart 57 W AC adapter

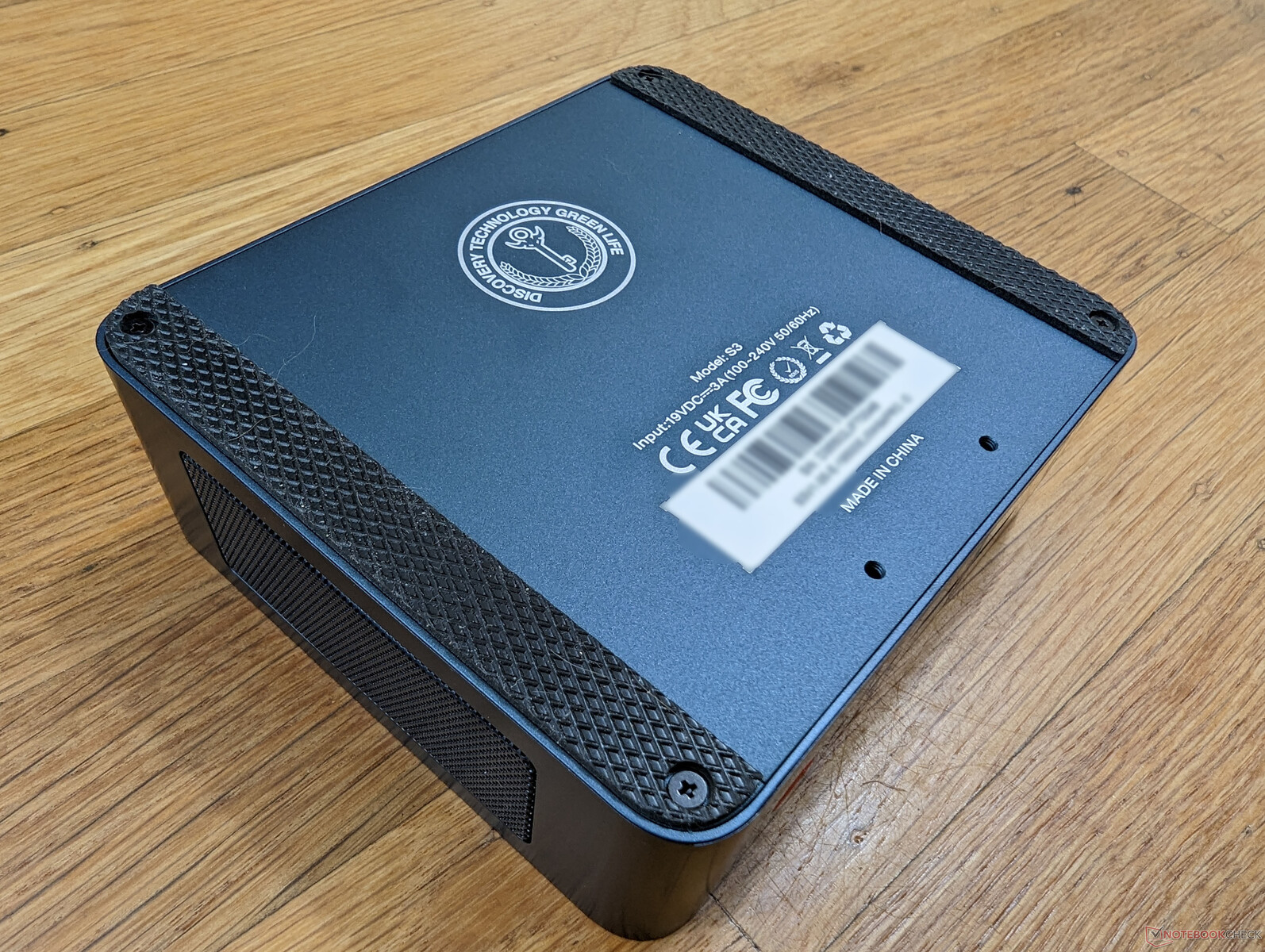

Rubberen voetjes aan de onderkant met schroefbussen voor verwijderbare VESA-bevestiging
Rubberen voetjes aan de onderkant met schroefbussen voor verwijderbare VESA-bevestiging

Vergelijking grootte

126 mm 113 mm 42 mm 465 g126 mm 113 mm 42 mm 498 g126 mm 112.7 mm 40.7 mm 419 g126 mm 113 mm 40 mm 440 g117 mm 112 mm 37 mm 511 g117 mm 112 mm 37 mm 504 g210 mm 148 mm 1 mm 2.9 g

Connectiviteit

Poortopties zijn er genoeg, maar de enkele USB-C poort lijkt alleen voor data of voor het opladen van externe apparaten. Onze externe USB-C monitor zou niet werken met de Trigkey.

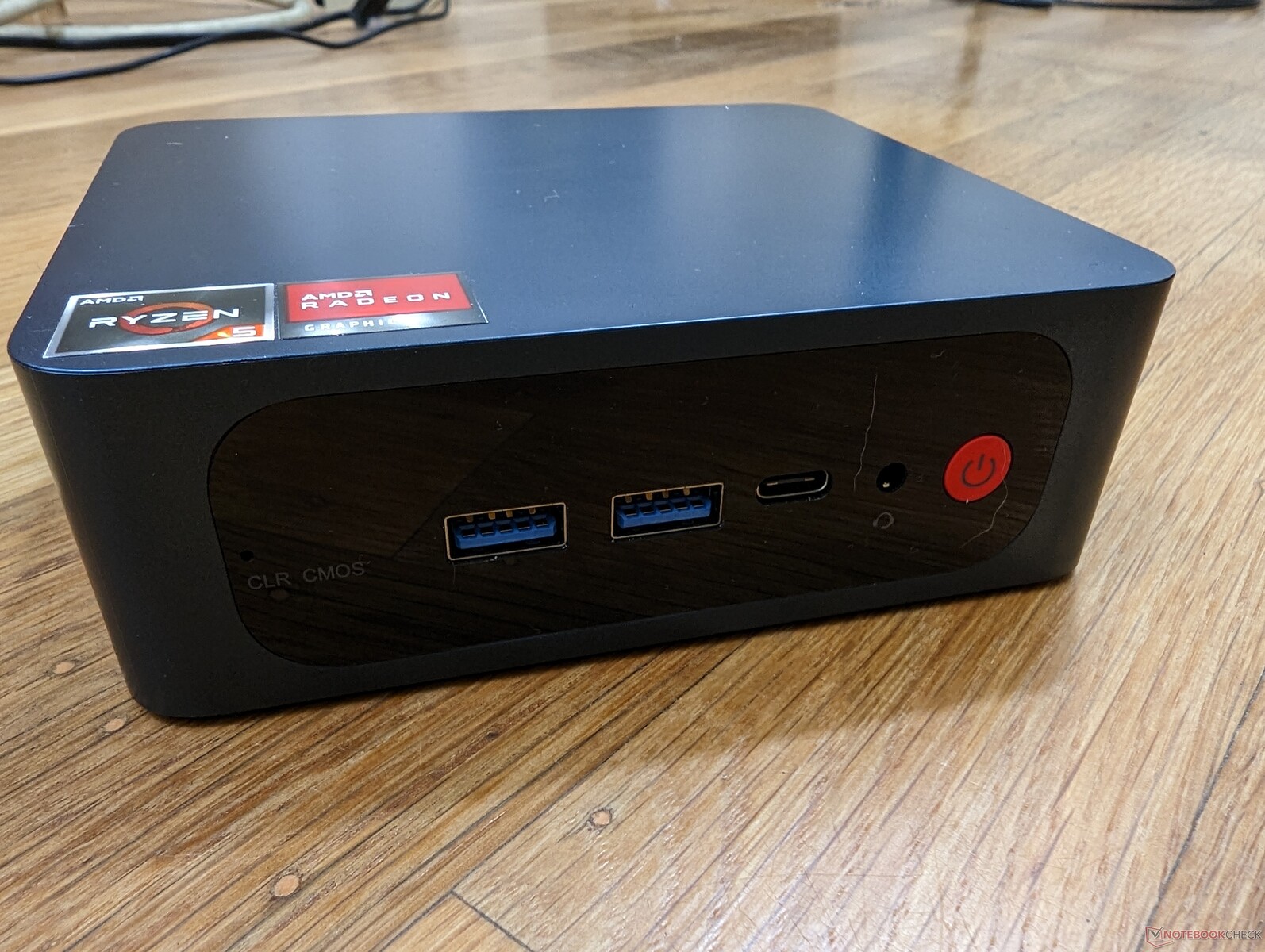

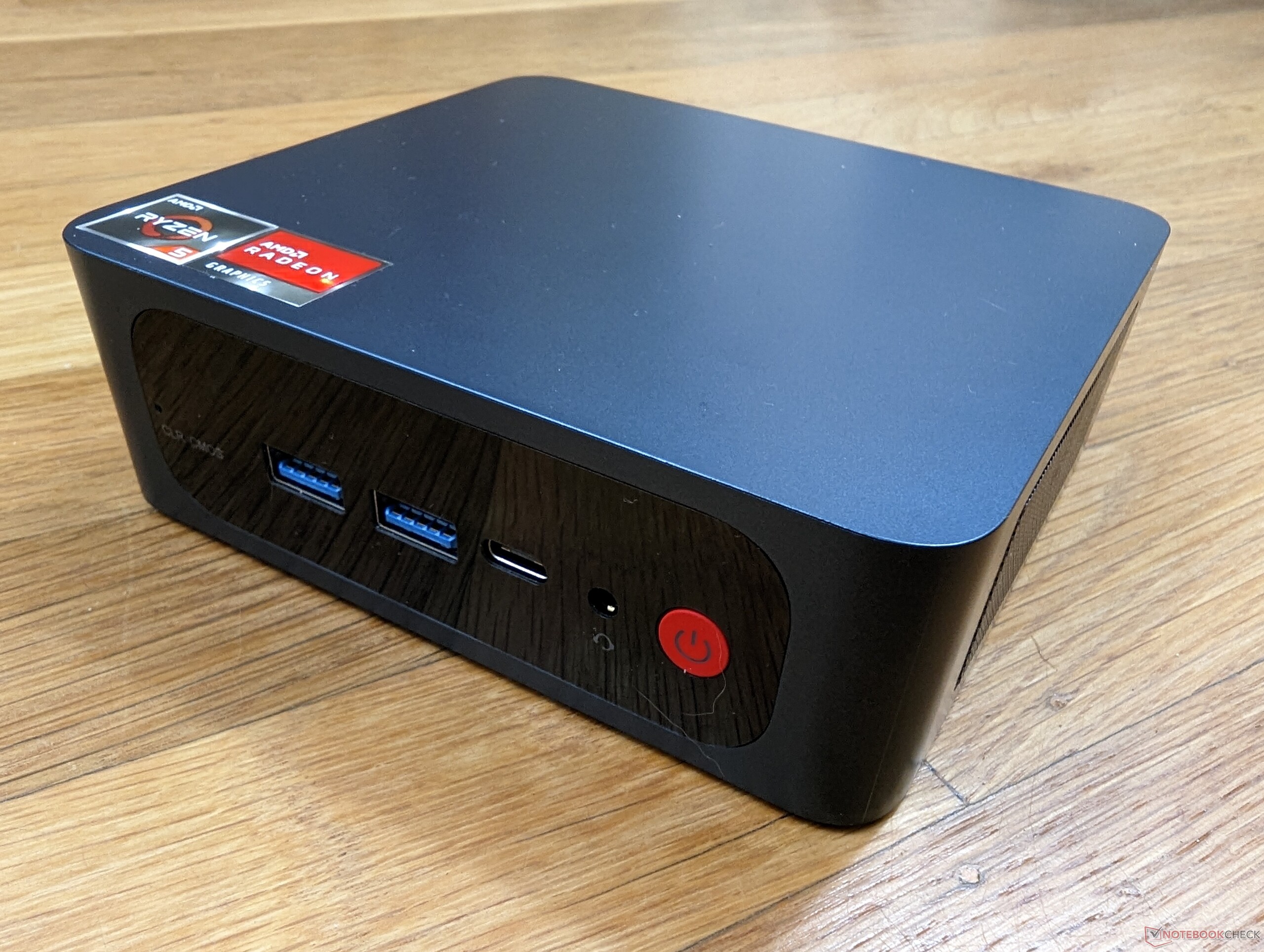

Voorkant: CMOS-knop wissen, 2x USB-A 3.0, USB-C, 3,5 mm headset, aan/uit-knop
Voorkant: CMOS-knop wissen, 2x USB-A 3.0, USB-C, 3,5 mm headset, aan/uit-knop

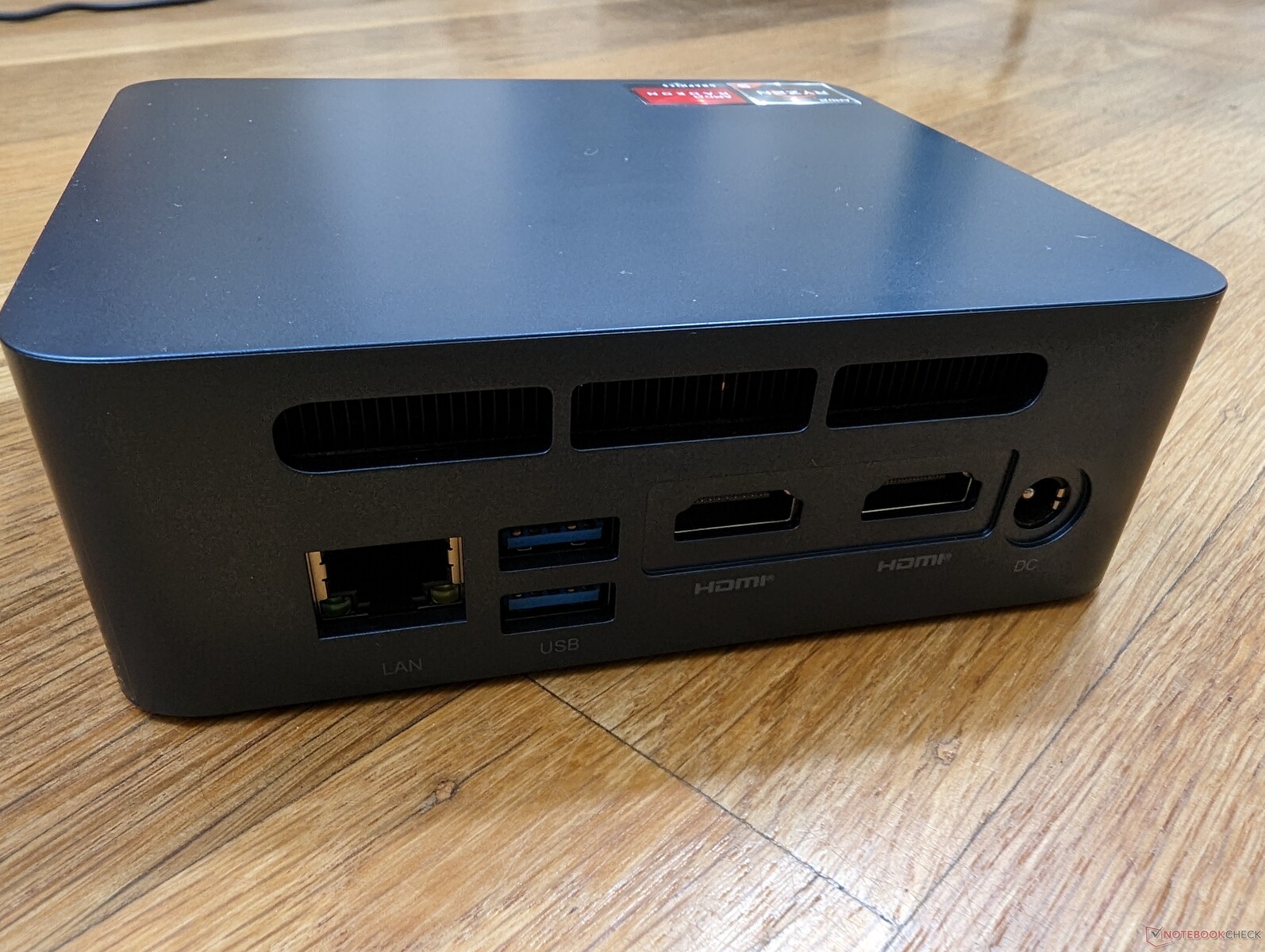

Achterkant: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), AC-adapter
Achterkant: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), AC-adapter
Juist: Geen poorten
Juist: Geen poorten
Links: geen poorten
Links: geen poorten

Communicatie

Het systeem wordt geleverd met de oudere 1x1 Intel Dual Band Wireless-AC 3165 voor overdrachtssnelheden die slechts een fractie zijn van wat moderne Wi-Fi 6 en 6E modules kunnen. Niettemin zijn de prestaties stabiel en voldoende voor 1080p streaming en browsen.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U
Intel Wi-Fi 6E AX211
1713 (1694min - 1728max) MBit/s
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
850 (802min - 876max) MBit/s
Beelink SEi11 Pro
MediaTek RZ608
743 (453min - 793max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1384 (1200min - 1495max) MBit/s +333%
Trigkey S3
Intel Dual Band Wireless-AC 3165
320 (269min - 345max) MBit/s
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U
Intel Wi-Fi 6 AX201
1491 (1413min - 1572max) MBit/s +469%
Trigkey S3
Intel Dual Band Wireless-AC 3165
262 (233min - 292max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U
Intel Wi-Fi 6E AX211
1093 (570min - 1168max) MBit/s
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
750 (374min - 799max) MBit/s
Beelink SEi11 Pro
MediaTek RZ608
722 (447min - 789max) MBit/s
050100150200250300Tooltip
Trigkey S3; iperf3 receive AXE11000; iperf 3.1.3: Ø319 (269-345)
Trigkey S3; iperf3 transmit AXE11000; iperf 3.1.3: Ø262 (233-292)

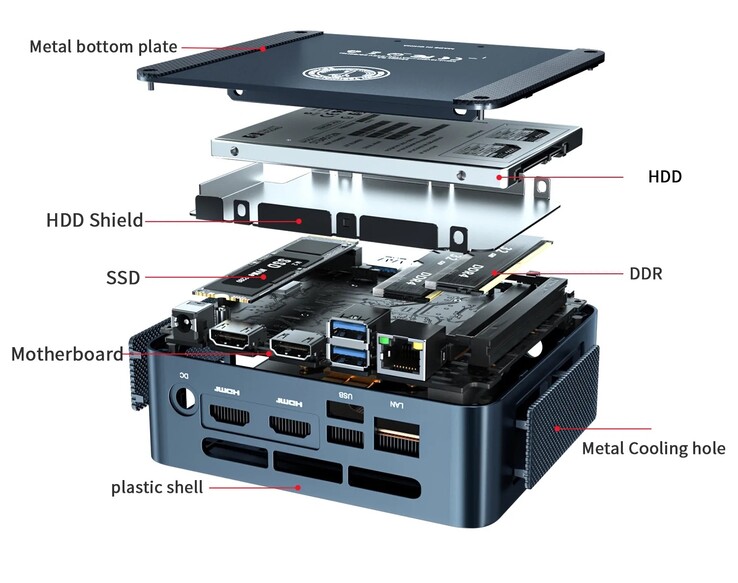

Onderhoud

Het bodempaneel hoort er gemakkelijk af te komen, maar de schroeven zijn zacht en kunnen gemakkelijker loskomen dan bij de meeste andere mini-pc's. Dit gebeurde helaas op onze eenheid en dus raden we eigenaren aan zeer voorzichtig te zijn bij het onderhoud van de eenheid. Ter vergelijking, de Intel NUC heeft duimschroeven voor sneller onderhoud zonder gereedschap.

(Beeldbron: Trigkey)
(Beeldbron: Trigkey)

Accessoires en garantie

De verpakking bevat een muurbeugel, AC-adapter, handleiding en twee HDMI-kabels. De gebruikelijke beperkte fabrieksgarantie van een jaar is van toepassing.

Prestaties




Testomstandigheden

We hebben Windows in de prestatiemodus gezet voordat we onderstaande benchmarks uitvoerden. Het systeem wordt niet geleverd met vooraf geïnstalleerde "control center"-achtige toepassingen voor het aanpassen van energieprofielen.

Processor

De algemene CPU-prestaties zijn veel trager dan die van een 11e of 12e generatie Intel Core i5 of i7 U-serie CPU's, maar nog steeds merkbaar sneller dan die van een Celeron of Atom-oplossing die momenteel op de markt is. De Ryzen 5 3550H in onze Trigkey is meer vergelijkbaar met een Intel Core i3-gebaseerde PC of de veel oudere Core i5-8260U. Het is jammer dat de fabrikant niet gekozen heeft voor de Ryzen 7 4800U aangezien de Zen 2 CPU een enorme upgrade is ten opzichte van de Zen+ H-serie.

Cinebench R15 Multi Loop

075150225300375450525600675750825900975105011251200127513501425Tooltip
Trigkey S3 AMD Ryzen 5 3550H: Ø637 (633.41-642.56)
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)
Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)
CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Beelink GTR6
AMD Ryzen 9 6900HX
91.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
90.8 pt
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
78.7 pt
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
75.9 pt
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
72.2 pt
Beelink SEi11 Pro
Intel Core i5-11320H
63.8 pt
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
63.2 pt
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
61.8 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
50.3 pt
Beelink SER3 -2!
AMD Ryzen 7 3750H
44.2 pt
Gemiddeld AMD Ryzen 5 3550H

43.5 pt
Trigkey S3
AMD Ryzen 5 3550H
42.8 pt
MSI Cubi 5 10M -8!
Intel Core i3-10110U
37.5 pt
Beelink SEi8
Intel Core i3-8109U
35.4 pt
BMAX B5 Pro G7H8
Intel Core i5-8260U
35.3 pt
Beelink U59 N5105
Intel Celeron N5105
27.6 pt
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
27.4 pt
Chuwi LapBook Plus -6!
Intel Atom x7-E3950
10 pt
Chuwi Hi10 Air -12!
Intel Atom x5-Z8350
8.2 pt
Cinebench R20 / CPU (Multi Core)
Beelink GTR6
AMD Ryzen 9 6900HX
4619 Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
4578 Points +222%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
3234 Points +128%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
3111 Points +119%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
3074 Points +116%
Beelink SEi11 Pro
Intel Core i5-11320H
2208 Points +55%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
2051 Points +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
2027 Points +43%
Gemiddeld AMD Ryzen 5 3550H
  (1421 - 1728, n=8)
1596 Points +12%
Beelink SER3
AMD Ryzen 7 3750H
1514 Points +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1498 Points +5%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1494 Points +5%
Trigkey S3
AMD Ryzen 5 3550H
1421 Points
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
828 Points -42%
Beelink U59 N5105
Intel Celeron N5105
826 Points -42%
Beelink SEi8
Intel Core i3-8109U
772 Points -46%
MSI Cubi 5 10M
Intel Core i3-10110U
743 Points -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points -81%
Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
698 Points +96%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
654 Points +83%
Beelink GTR6
AMD Ryzen 9 6900HX
631 Points +77%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
620 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
568 Points +59%
Beelink SEi11 Pro
Intel Core i5-11320H
561 Points +57%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
558 Points +56%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
531 Points +49%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
415 Points +16%
MSI Cubi 5 10M
Intel Core i3-10110U
401 Points +12%
BMAX B5 Pro G7H8
Intel Core i5-8260U
400 Points +12%
Beelink SER3
AMD Ryzen 7 3750H
377 Points +6%
Trigkey S3
AMD Ryzen 5 3550H
357 Points
Gemiddeld AMD Ryzen 5 3550H
  (331 - 370, n=8)
354 Points -1%
Beelink SEi8
Intel Core i3-8109U
351 Points -2%
Beelink U59 N5105
Intel Celeron N5105
235 Points -34%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
234 Points -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points -74%
Cinebench R23 / Multi Core
Beelink GTR6
AMD Ryzen 9 6900HX
11862 (11361.7min - 11862.4max) Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
11815 Points +224%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8342 Points +129%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
8128 (7685.59min - 8128.32max) Points +123%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
7945 (7877.51min - 7944.53max) Points +118%
Beelink SEi11 Pro
Intel Core i5-11320H
5720 (5681.08min - 5720.38max) Points +57%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5240 Points +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5222 Points +43%
Gemiddeld AMD Ryzen 5 3550H
  (3646 - 4213, n=2)
3930 Points +8%
Beelink SER3
AMD Ryzen 7 3750H
3897 (3854.8min - 3897.37max) Points +7%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3867 Points +6%
Trigkey S3
AMD Ryzen 5 3550H
3646 (3617.23min - 3645.96max) Points
BMAX B5 Pro G7H8
Intel Core i5-8260U
3028 (1303.58min - 3027.81max) Points -17%
Beelink U59 N5105
Intel Celeron N5105
2175 (2157.23min - 2174.57max) Points -40%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2164 Points -41%
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points -45%
MSI Cubi 5 10M
Intel Core i3-10110U
1910 Points -48%
Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1812 Points +97%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1713 Points +86%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1610 Points +75%
Beelink GTR6
AMD Ryzen 9 6900HX
1608 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1487 Points +61%
Beelink SEi11 Pro
Intel Core i5-11320H
1467 Points +59%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
1451 Points +57%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1367 Points +48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1082 Points +17%
MSI Cubi 5 10M
Intel Core i3-10110U
1031 Points +12%
Beelink SER3
AMD Ryzen 7 3750H
971 Points +5%
Trigkey S3
AMD Ryzen 5 3550H
922 Points
Beelink SEi8
Intel Core i3-8109U
906 Points -2%
Gemiddeld AMD Ryzen 5 3550H
  (850 - 922, n=2)
886 Points -4%
BMAX B5 Pro G7H8
Intel Core i5-8260U
629 Points -32%
Beelink U59 N5105
Intel Celeron N5105
618 Points -33%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
611 Points -34%
Cinebench R15 / CPU Multi 64Bit
Beelink GTR6
AMD Ryzen 9 6900HX
1969 (1894.3min - 1968.5max) Points +206%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1879 Points +192%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1409 (1203.04min - 1409.15max) Points +119%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1320 Points +105%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1319 (1286.46min - 1319.48max) Points +105%
Beelink SEi11 Pro
Intel Core i5-11320H
857 (845.25min - 856.84max) Points +33%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
832 Points +29%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
791 Points +23%
Gemiddeld AMD Ryzen 5 3550H
  (635 - 769, n=11)
717 Points +12%
Beelink SER3
AMD Ryzen 7 3750H
680 (670.93min - 679.66max) Points +6%
Trigkey S3
AMD Ryzen 5 3550H
643 (633.41min - 642.56max) Points
BMAX B5 Pro G7H8
Intel Core i5-8260U
627 (557.08min - 626.69max) Points -2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
623 Points -3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
369 Points -43%
Beelink U59 N5105
Intel Celeron N5105
368 (359.79min - 368.43max) Points -43%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points -50%
MSI Cubi 5 10M
Intel Core i3-10110U
316 Points -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points -81%
Chuwi Hi10 Air
Intel Atom x5-Z8350
97 Points -85%
Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
260 Points +83%
Beelink GTR6
AMD Ryzen 9 6900HX
260 Points +83%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
245 Points +73%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
231 Points +63%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
221 Points +56%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
221 Points +56%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
215 Points +52%
Beelink SEi11 Pro
Intel Core i5-11320H
214 Points +51%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
170 Points +20%
MSI Cubi 5 10M
Intel Core i3-10110U
162 Points +14%
BMAX B5 Pro G7H8
Intel Core i5-8260U
156.9 Points +11%
Beelink SER3
AMD Ryzen 7 3750H
146 Points +3%
Trigkey S3
AMD Ryzen 5 3550H
141.8 Points
Gemiddeld AMD Ryzen 5 3550H
  (77 - 146, n=11)
137.9 Points -3%
Beelink SEi8
Intel Core i3-8109U
124.3 Points -12%
Beelink U59 N5105
Intel Celeron N5105
108.1 Points -24%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
106 Points -25%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points -71%
Chuwi Hi10 Air
Intel Atom x5-Z8350
30 Points -79%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * -530%
Beelink U59 N5105
Intel Celeron N5105
1573 Seconds * -117%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
1550 Seconds * -114%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * -83%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
759 Seconds * -5%
BMAX B5 Pro G7H8
Intel Core i5-8260U
726 Seconds * -0%
Trigkey S3
AMD Ryzen 5 3550H
724 Seconds *
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
694 Seconds * +4%
Gemiddeld AMD Ryzen 5 3550H
  (612 - 759, n=6)
675 Seconds * +7%
Beelink SER3
AMD Ryzen 7 3750H
672 Seconds * +7%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
590 Seconds * +19%
Beelink SEi11 Pro
Intel Core i5-11320H
541 Seconds * +25%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
390 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
384 Seconds * +47%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
380 Seconds * +48%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
280 Seconds * +61%
Beelink GTR6
AMD Ryzen 9 6900HX
257 Seconds * +65%
7-Zip 18.03 / 7z b 4
Beelink GTR6
AMD Ryzen 9 6900HX
57261 MIPS +230%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
47064 MIPS +171%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
39897 MIPS +130%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
36343 MIPS +109%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
35580 MIPS +105%
Beelink SEi11 Pro
Intel Core i5-11320H
24798 MIPS +43%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
24006 MIPS +38%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
23471 MIPS +35%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
20163 MIPS +16%
BMAX B5 Pro G7H8
Intel Core i5-8260U
18874 MIPS +9%
Gemiddeld AMD Ryzen 5 3550H
  (16683 - 19409, n=6)
17967 MIPS +3%
Trigkey S3
AMD Ryzen 5 3550H
17375 MIPS
Beelink SER3
AMD Ryzen 7 3750H
17077 MIPS -2%
Beelink U59 N5105
Intel Celeron N5105
11153 MIPS -36%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
10994 MIPS -37%
Beelink SEi8
Intel Core i3-8109U
9489 MIPS -45%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS -74%
7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6
AMD Ryzen 9 6900HX
6005 MIPS +64%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
5738 MIPS +57%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
5400 MIPS +48%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
5353 MIPS +47%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
5255 MIPS +44%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5235 MIPS +43%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
5192 MIPS +42%
Beelink SEi11 Pro
Intel Core i5-11320H
5105 MIPS +40%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4638 MIPS +27%
BMAX B5 Pro G7H8
Intel Core i5-8260U
4056 MIPS +11%
Beelink SER3
AMD Ryzen 7 3750H
3752 MIPS +3%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS +3%
Trigkey S3
AMD Ryzen 5 3550H
3652 MIPS
Gemiddeld AMD Ryzen 5 3550H
  (3472 - 3652, n=6)
3554 MIPS -3%
Beelink U59 N5105
Intel Celeron N5105
3108 MIPS -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
3098 MIPS -15%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS -60%
Geekbench 5.5 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
9935 Points +203%
Beelink GTR6
AMD Ryzen 9 6900HX
9350 Points +185%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8772 Points +167%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
7804 Points +138%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
6103 Points +86%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
5813 Points +77%
Beelink SEi11 Pro
Intel Core i5-11320H
4959 Points +51%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4851 Points +48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3934 Points +20%
Gemiddeld AMD Ryzen 5 3550H
  (3162 - 3486, n=5)
3316 Points +1%
Trigkey S3
AMD Ryzen 5 3550H
3281 Points
Beelink U59 N5105
Intel Celeron N5105
2080 Points -37%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2020 Points -38%
Beelink SEi8
Intel Core i3-8109U
1880 Points -43%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1817 Points -45%
Geekbench 5.5 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
1715 Points +89%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1714 Points +89%
Beelink GTR6
AMD Ryzen 9 6900HX
1652 Points +82%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
1633 Points +80%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
1543 Points +70%
Beelink SEi11 Pro
Intel Core i5-11320H
1518 Points +67%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
1506 Points +66%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1436 Points +58%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1219 Points +34%
Trigkey S3
AMD Ryzen 5 3550H
907 Points
Gemiddeld AMD Ryzen 5 3550H
  (880 - 907, n=5)
896 Points -1%
Beelink SEi8
Intel Core i3-8109U
888 Points -2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
657 Points -28%
Beelink U59 N5105
Intel Celeron N5105
653 Points -28%
BMAX B5 Pro G7H8
Intel Core i5-8260U
639 Points -30%
HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR6
AMD Ryzen 9 6900HX
15.4 fps +281%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
13.2 fps +227%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
10.5 fps +160%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
9.7 fps +140%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
9.43 fps +133%
Beelink SEi11 Pro
Intel Core i5-11320H
7.28 fps +80%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
6.55 fps +62%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.2 fps +29%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
4.74 fps +17%
Beelink SER3
AMD Ryzen 7 3750H
4.14 fps +2%
Gemiddeld AMD Ryzen 5 3550H
  (3.7 - 4.43, n=5)
4.05 fps 0%
Trigkey S3
AMD Ryzen 5 3550H
4.04 fps
Beelink SEi8
Intel Core i3-8109U
2.85 fps -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
2.02 fps -50%
Beelink U59 N5105
Intel Celeron N5105
2.01 fps -50%
BMAX B5 Pro G7H8
Intel Core i5-8260U
1.8 fps -55%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps -76%
LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8
Intel Core i5-8260U
107.9 s * -23%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
103.2 s * -18%
Beelink U59 N5105
Intel Celeron N5105
101 s * -15%
Trigkey S3
AMD Ryzen 5 3550H
87.8 s *
Beelink SER3
AMD Ryzen 7 3750H
86.5 s * +1%
Gemiddeld AMD Ryzen 5 3550H
  (73.3 - 92.7, n=4)
82.2 s * +6%
Beelink SEi8
Intel Core i3-8109U
79 s * +10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
68.2 s * +22%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
52.2 s * +41%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
51.8 s * +41%
Beelink SEi11 Pro
Intel Core i5-11320H
49.1 s * +44%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
48.9 s * +44%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
48.7 s * +45%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
46.1 s * +47%
Beelink GTR6
AMD Ryzen 9 6900HX
46 s * +48%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
45 s * +49%
R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8
Intel Core i5-8260U
1.257 sec * -72%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095
1.166 sec * -59%
Beelink U59 N5105
Intel Celeron N5105
1.162 sec * -59%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * -18%
Gemiddeld AMD Ryzen 5 3550H
  (0.732 - 0.752, n=4)
0.739 sec * -1%
Trigkey S3
AMD Ryzen 5 3550H
0.732 sec *
Beelink SER3
AMD Ryzen 7 3750H
0.723 sec * +1%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.7 sec * +4%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Core i7-1165G7
0.609 sec * +17%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7
0.599 sec * +18%
Beelink SEi11 Pro
Intel Core i5-11320H
0.581 sec * +21%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
0.53 sec * +28%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U
0.512 sec * +30%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
0.4856 sec * +34%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P
0.4787 sec * +35%
Beelink GTR6
AMD Ryzen 9 6900HX
0.4627 sec * +37%
CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... kleiner is beter

Blender
v3.3 Classroom HIP/AMD
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
926 Seconds *
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

926 Seconds * -0%
v3.3 Classroom CPU
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
1297 Seconds *
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

1297 Seconds * -0%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
995 Seconds * +23%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
707 Seconds * +45%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
697 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
666 Seconds * +49%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit
643 Points
Cinebench R15 OpenGL 64Bit
60.7 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
141.8 Points
Help
Performance Rating
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
92.6 pt
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
76.7 pt
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
74.9 pt
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
69.6 pt
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
64.6 pt
Gemiddeld AMD Ryzen 5 3550H

44.2 pt
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
41.1 pt
AIDA64 / FP32 Ray-Trace
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
9181 KRay/s +206%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
7047 KRay/s +135%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
6915 KRay/s +131%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
6784 KRay/s +126%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s +124%
Gemiddeld AMD Ryzen 5 3550H
  (2996 - 3607, n=5)
3309 KRay/s +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
2996 KRay/s
AIDA64 / FPU Julia
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
58039 Points +255%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
37275 Points +128%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
34444 Points +111%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
29972 Points +84%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points +71%
Gemiddeld AMD Ryzen 5 3550H
  (16278 - 18781, n=5)
17574 Points +8%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
16331 Points
AIDA64 / CPU SHA3
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
2006 MB/s +137%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
1992 MB/s +135%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
1911 MB/s +126%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
1884 MB/s +122%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s +119%
Gemiddeld AMD Ryzen 5 3550H
  (847 - 983, n=4)
933 MB/s +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
847 MB/s
AIDA64 / CPU Queen
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
66699 Points +57%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
65340 Points +54%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
59756 Points +41%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
48212 Points +14%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points +10%
Gemiddeld AMD Ryzen 5 3550H
  (42017 - 48622, n=5)
45217 Points +6%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
42470 Points
AIDA64 / FPU SinJulia
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
8340 Points +55%
Gemiddeld AMD Ryzen 5 3550H
  (5386 - 6316, n=5)
5909 Points +10%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
5386 Points
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
4779 Points -11%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
4771 Points -11%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
4644 Points -14%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points -17%
AIDA64 / FPU Mandel
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
31962 Points +276%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
17999 Points +111%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
17987 Points +111%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points +99%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
16394 Points +93%
Gemiddeld AMD Ryzen 5 3550H
  (8460 - 9767, n=5)
9148 Points +7%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
8511 Points
AIDA64 / CPU AES
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
79183 MB/s +185%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
68683 MB/s +147%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
67140 MB/s +142%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s +140%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
38221 MB/s +38%
Gemiddeld AMD Ryzen 5 3550H
  (27486 - 32316, n=5)
29977 MB/s +8%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
27755 MB/s
AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
633 MB/s +110%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
577 MB/s +91%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
507 MB/s +68%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s +24%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
368 MB/s +22%
Gemiddeld AMD Ryzen 5 3550H
  (299 - 352, n=5)
323 MB/s +7%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
302 MB/s
AIDA64 / FP64 Ray-Trace
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
4811 KRay/s +204%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
3926 KRay/s +148%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
3811 KRay/s +141%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s +129%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
3532 KRay/s +123%
Gemiddeld AMD Ryzen 5 3550H
  (1584 - 1914, n=5)
1753 KRay/s +11%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
1584 KRay/s
AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
44210 MPixel/s +164%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
29523 MPixel/s +76%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
25964 MPixel/s +55%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
20237 MPixel/s +21%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s +1%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
16736 MPixel/s
Gemiddeld AMD Ryzen 5 3550H
  (14325 - 17838, n=5)
16132 MPixel/s -4%

Systeemprestaties

Zoals verwacht liggen de resultaten van PCMark tussen tragere mini PC's met Celeron of Atom CPU's en snellere mini PC's met modernere 11e of 12e generatie Intel CPU's.

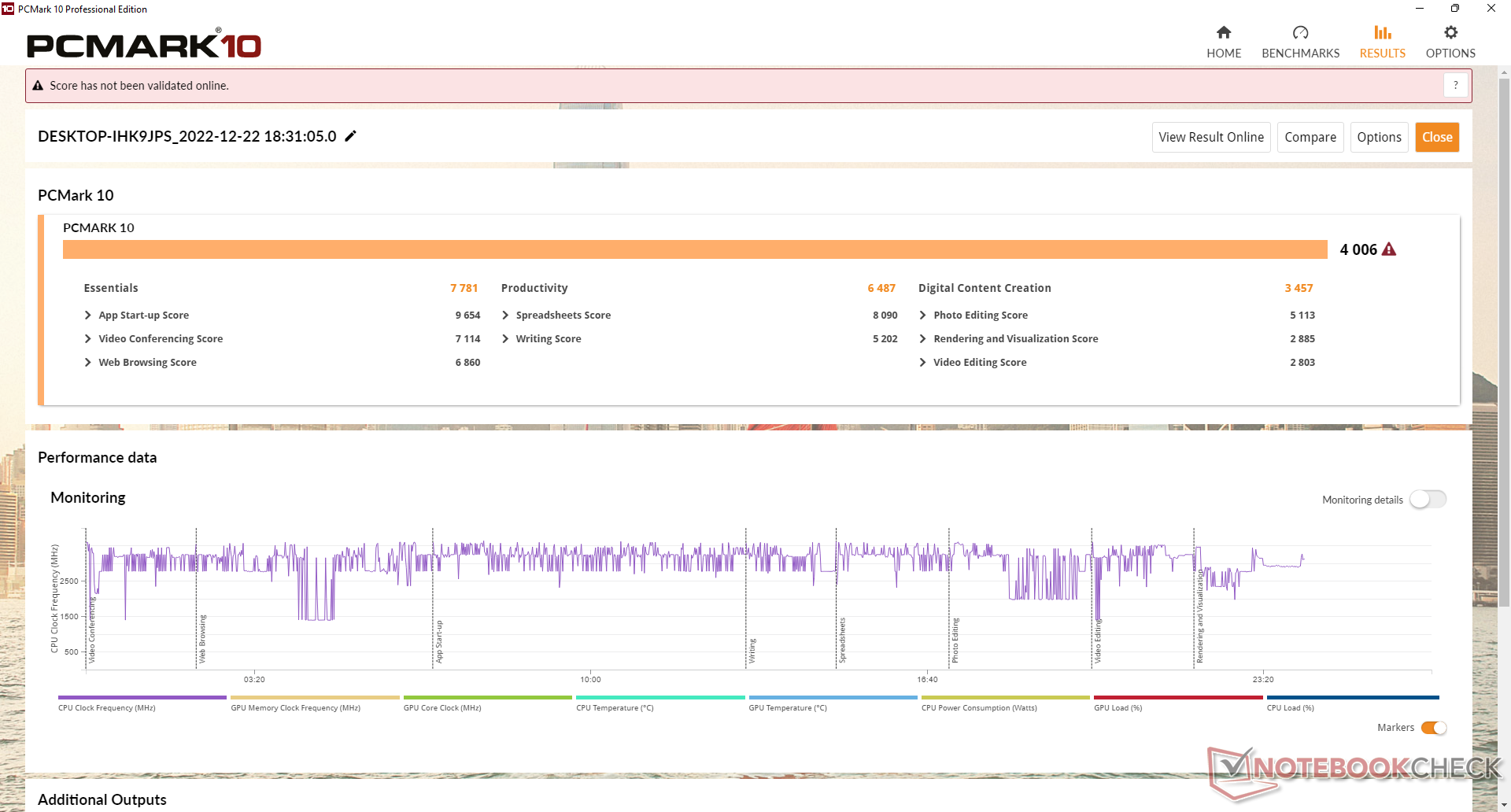

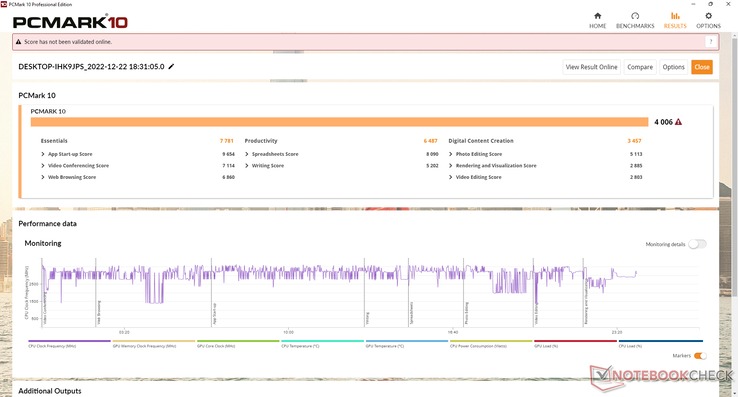

PCMark 10 / Score
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5902 Points +47%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5543 Points +38%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
5510 Points +38%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5095 Points +27%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points +13%
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (4006 - 4307, n=4)
4153 Points +4%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
4006 Points
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2670 Points -33%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1144 Points -71%
PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
10845 Points +39%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
10351 Points +33%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
10281 Points +32%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
10186 Points +31%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points +16%
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (7781 - 8579, n=4)
8202 Points +5%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
7781 Points
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
6340 Points -19%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
2891 Points -63%
PCMark 10 / Productivity
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
9293 Points +43%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
7354 Points +13%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
7041 Points +9%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
6915 Points +7%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
6487 Points
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (5995 - 6487, n=4)
6327 Points -2%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points -5%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
3758 Points -42%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1407 Points -78%
PCMark 10 / Digital Content Creation
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
6330 Points +83%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5801 Points +68%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
5798 Points +68%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5048 Points +46%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points +29%
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (3457 - 3947, n=4)
3751 Points +9%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
3457 Points
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2170 Points -37%
Chuwi LapBook Plus
HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3
1001 Points -71%
CrossMark / Overall
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1644 Points +98%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1559 Points +87%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1335 Points +60%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1311 Points +58%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
832 Points
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

832 Points 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
531 Points -36%
CrossMark / Productivity
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1676 Points +88%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1528 Points +72%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1419 Points +59%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1355 Points +52%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
890 Points
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

890 Points 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
590 Points -34%
CrossMark / Creativity
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1679 Points +116%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1546 Points +99%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1315 Points +69%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1256 Points +62%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
777 Points
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

777 Points 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
471 Points -39%
CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
1867 Points +123%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1336 Points +60%
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1327 Points +59%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1177 Points +41%
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
836 Points
Gemiddeld AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)

836 Points 0%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
554 Points -34%
PCMark 10 Score
4006 punten
Help
AIDA64 / Memory Copy
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
69882 MB/s +117%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
43215 MB/s +34%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42001 MB/s +30%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
41106 MB/s +28%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
32188 MB/s
Gemiddeld AMD Ryzen 5 3550H
  (28887 - 32188, n=5)
30294 MB/s -6%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s -29%
AIDA64 / Memory Read
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
65177 MB/s +85%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
47363 MB/s +35%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46616 MB/s +33%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46516 MB/s +32%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
35172 MB/s
Gemiddeld AMD Ryzen 5 3550H
  (31862 - 35172, n=5)
33574 MB/s -5%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s -29%
AIDA64 / Memory Write
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
63385 MB/s +77%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46760 MB/s +30%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
46475 MB/s +30%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42347 MB/s +18%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
35845 MB/s
Gemiddeld AMD Ryzen 5 3550H
  (32493 - 35847, n=5)
34148 MB/s -5%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s -35%
AIDA64 / Memory Latency
Gemiddeld AMD Ryzen 5 3550H
  (95 - 120, n=5)
113.8 ns * -20%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Iris Xe G7 96EUs
100 ns * -5%
Trigkey S3
AMD Ryzen 5 3550H, Vega 8
95 ns *
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Iris Xe G7 80EUs
91.6 ns * +4%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * +8%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
81 ns * +15%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
80.3 ns * +15%

* ... kleiner is beter

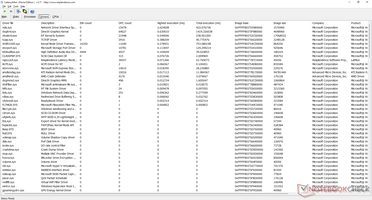

DPC latentie

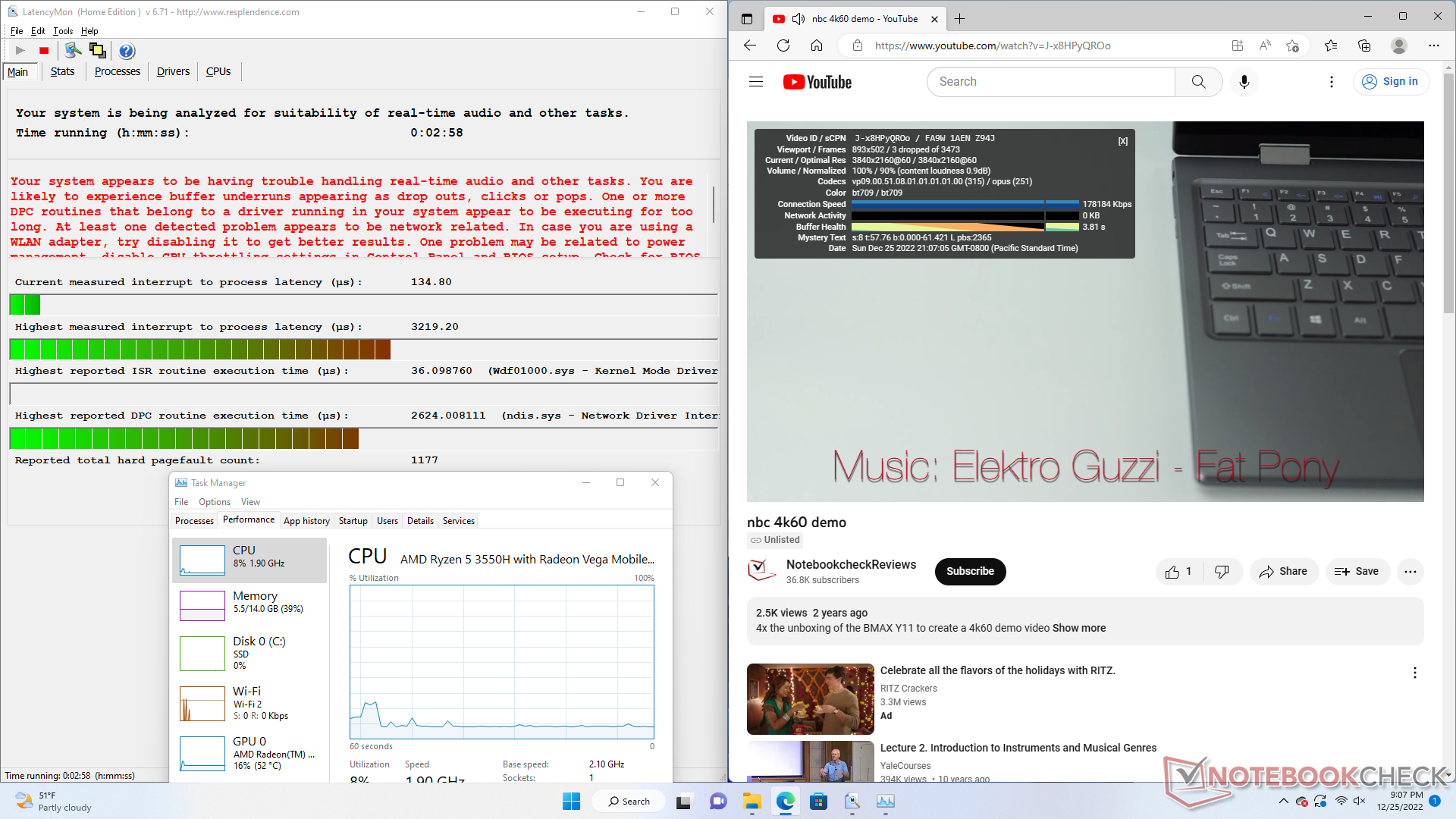

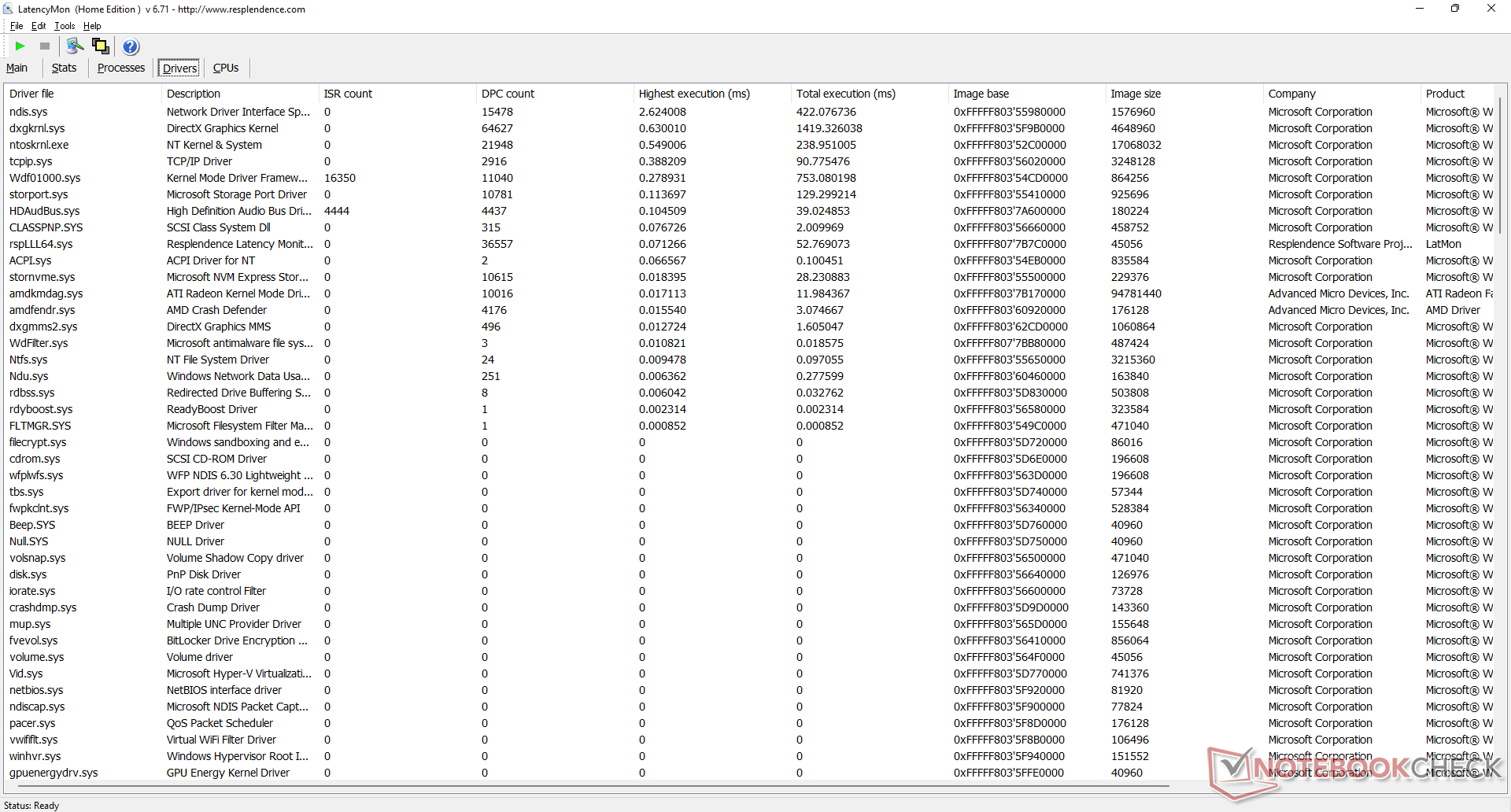

LatencyMon onthult DPC-problemen bij het openen van meerdere browsertabbladen van onze homepage. het afspelen van 4K-video's bij 60 FPS verloopt meestal soepel met slechts 3 dropped frames tijdens onze minutenlange testvideo.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
3219.2 μs *
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
1151 μs * +64%
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
830.3 μs * +74%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
562 μs * +83%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +84%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
167.2 μs * +95%

* ... kleiner is beter

Opslagapparaten

De Trigkey gebruikt dezelfdeKingston NV1 SNVS/500GCN M.2 2280 NVMe SSD zoals gevonden op vele Beelink mini PC's zoals de SEi11 Pro of SER Pro. Dit is een budget PCIe3 x4 schijf met maximale aanhoudende overdrachtssnelheden van ongeveer 2500 MB/s. Gebruikers kunnen één M.2 SSD en één 2,5-inch SATA III-schijf installeren als ze het bodempaneel kunnen openen.

AS SSD
AS SSD

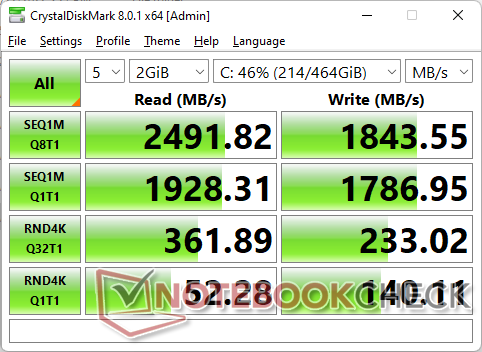

CDM 8
CDM 8
Kingston NV1 SNVS/500GCN
CDM 5/6 Read Seq Q32T1: 2517 MB/s
CDM 5/6 Write Seq Q32T1: 1837 MB/s
CDM 5/6 Read 4K Q32T1: 364 MB/s
CDM 5/6 Write 4K Q32T1: 232.6 MB/s
CDM 5 Read Seq: 1963 MB/s
CDM 5 Write Seq: 1784 MB/s
CDM 5/6 Read 4K: 51.91 MB/s
CDM 5/6 Write 4K: 138.1 MB/s
Drive Performance Rating - Percent
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
92.8 pt
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
70.5 pt
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
55.7 pt
Beelink SER Pro Ryzen 5 5600H -11!
Kingston NV1 SNVS/500GCN
55.1 pt
Trigkey S3
Kingston NV1 SNVS/500GCN
52.2 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
17.7 pt
DiskSpd
seq read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2512 (2493.51min - 2511.76max) MB/s +31%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2228 (1938.09min - 2228.38max) MB/s +16%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1976 (1950.06min - 1975.69max) MB/s +3%
Trigkey S3
Kingston NV1 SNVS/500GCN
1924 (1916.02min - 1924max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1638 (1628.34min - 1637.59max) MB/s -15%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s -74%
seq write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2848 (2821.72min - 2847.93max) MB/s +62%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2198 (2143.62min - 2198.23max) MB/s +25%
Trigkey S3
Kingston NV1 SNVS/500GCN
1758 (745.14min - 1757.99max) MB/s
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1746 (580.39min - 1746.23max) MB/s -1%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1661 (336.85min - 1661.33max) MB/s -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s -73%
seq q8 t1 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3632 (3373.44min - 3632.06max) MB/s +44%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
3497 (2944.82min - 3496.65max) MB/s +39%
Trigkey S3
Kingston NV1 SNVS/500GCN
2518 (2250.15min - 2517.63max) MB/s
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
2456 (2261.06min - 2456.06max) MB/s -2%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2374 (2218.75min - 2374.19max) MB/s -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s -78%
seq q8 t1 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2841 (2828.64min - 2841.01max) MB/s +57%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2573 (2547.29min - 2572.88max) MB/s +42%
Trigkey S3
Kingston NV1 SNVS/500GCN
1809 (1103.1min - 1809.06max) MB/s
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1763 (714.42min - 1763.25max) MB/s -3%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1433 (67.32min - 1432.98max) MB/s -21%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s -72%
4k q1 t1 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
79.3 (78.06min - 79.29max) MB/s +79%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
50.5 (48.13min - 50.48max) MB/s +14%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
44.7 (43.85min - 44.67max) MB/s +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
44.4 (42.57min - 44.42max) MB/s
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
44.3 (43.84min - 44.26max) MB/s 0%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s -51%
4k q1 t1 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
391 (374.32min - 390.86max) MB/s +189%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
173.6 (113.3min - 173.62max) MB/s +28%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
147.9 (117.82min - 147.87max) MB/s +9%
Trigkey S3
Kingston NV1 SNVS/500GCN
135.1 (104.83min - 135.1max) MB/s
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
127.3 (125.68min - 127.3max) MB/s -6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -66%
4k q32 t16 read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1942 (1940.61min - 1941.63max) MB/s +161%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
747 (745.51min - 747.02max) MB/s 0%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
745 (742.2min - 744.53max) MB/s 0%
Trigkey S3
Kingston NV1 SNVS/500GCN
745 (742.5min - 744.62max) MB/s
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
643 (632.31min - 643.46max) MB/s -14%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s -62%
4k q32 t16 write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2219 (2197.25min - 2218.83max) MB/s +180%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
860 (472.56min - 860.33max) MB/s +8%
Trigkey S3
Kingston NV1 SNVS/500GCN
793 (785.74min - 792.64max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
733 (332min - 733.18max) MB/s -8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s -58%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
328 (314.14min - 327.95max) MB/s -59%
AS SSD
Score Total
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
4619 Points +91%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
3536 Points +46%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2742 Points +13%
Trigkey S3
Kingston NV1 SNVS/500GCN
2421 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points -65%
Score Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1633 Points +69%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1042 Points +8%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
975 Points +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
969 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points -69%
Score Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
2278 Points +134%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1997 Points +105%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1282 Points +31%
Trigkey S3
Kingston NV1 SNVS/500GCN
975 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points -62%
Seq Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
3206.84 MB/s +44%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
2881 MB/s +29%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2246.84 MB/s +1%
Trigkey S3
Kingston NV1 SNVS/500GCN
2226.03 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s -76%
Seq Write
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1960 MB/s +19%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1764.26 MB/s +8%
Trigkey S3
Kingston NV1 SNVS/500GCN
1640.43 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s -71%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
463.76 MB/s -72%
4K Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
59.54 MB/s +41%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
45.38 MB/s +7%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
44.12 MB/s +4%
Trigkey S3
Kingston NV1 SNVS/500GCN
42.33 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s -52%
4K Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
280.94 MB/s +162%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
192.62 MB/s +80%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
182.89 MB/s +71%
Trigkey S3
Kingston NV1 SNVS/500GCN
107.09 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s -60%
4K-64 Read
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1252.33 MB/s +78%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
708.14 MB/s +1%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
706.35 MB/s 0%
Trigkey S3
Kingston NV1 SNVS/500GCN
704.26 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s -67%
4K-64 Write
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
1950.21 MB/s +177%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
1617.56 MB/s +130%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
912.72 MB/s +30%
Trigkey S3
Kingston NV1 SNVS/500GCN
703.84 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s -59%
Access Time Read
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * -75%
Trigkey S3
Kingston NV1 SNVS/500GCN
0.071 ms *
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.053 ms * +25%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
0.053 ms * +25%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.049 ms * +31%
Access Time Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.342 ms * -4%
Trigkey S3
Kingston NV1 SNVS/500GCN
0.328 ms *
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * +18%
Beelink SEi12 Core i5-1235U
Kingston NV1 SNVS/500GCN
0.07 ms * +79%
Intel NUC Pro Chassis_i7_1265U
WDC PC SN720 SDAQNTW-512G
0.022 ms * +93%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Trigkey S3: Ø2442 (2098.62-2474.72)

GPU-prestaties

De ruwe grafische prestaties zijn ruwweg 2x die van de UHD Graphics 620 die gewoonlijk op 10e generatie of oudere Intel CPU's zit. Het is niet genoeg om de meeste games aan te drijven, maar elk beetje helpt bij het streamen of draaien op schermen met een hogere resolutie.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra

3DMark Performance Rating - Percent
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
100 pt
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
64 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
62.3 pt
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
61.2 pt
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
60.4 pt
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
59.3 pt
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
56 pt
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
52.6 pt
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
50.4 pt
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
36.8 pt
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

31.6 pt
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
28.9 pt
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
18.6 pt
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
16.1 pt
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
15.3 pt
Geekom MiniAir 11 Special Edition -1!
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
9.4 pt
Chuwi LapBook Plus -1!
Intel HD Graphics 505, Intel Atom x7-E3950
7.3 pt
Chuwi Hi10 Air -3!
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
2.6 pt
3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
44579 Points +137%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
31437 Points +67%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
26093 Points +39%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
25485 Points +36%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
22735 Points +21%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
22363 Points +19%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
21602 Points +15%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
21276 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
21114 Points +12%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
18788 Points
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (7309 - 19399, n=37)
15327 Points -18%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
13791 Points -27%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
9921 Points -47%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
8388 Points -55%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
8164 Points -57%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4958 Points -74%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points -79%
1920x1080 Fire Strike Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
6962 Points +166%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4959 Points +90%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
4902 Points +87%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4883 Points +87%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
4523 Points +73%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4360 Points +67%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
4249 Points +62%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
4037 Points +54%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
3939 Points +51%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
2616 Points
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (1095 - 2901, n=41)
2224 Points -15%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
2027 Points -23%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
1288 Points -51%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1106 Points -58%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1078 Points -59%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
637 Points -76%
2560x1440 Time Spy Graphics
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2437 Points +257%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1630 Points +139%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1570 Points +130%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
1556 Points +128%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1443 Points +112%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1287 Points +89%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points +83%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
1234 Points +81%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
1147 Points +68%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
682 Points
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (523 - 790, n=23)
673 Points -1%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
609 Points -11%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
422 Points -38%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
365 Points -46%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
312 Points -54%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points -79%
3DMark 11 - 1280x720 Performance GPU
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
10566 Points +152%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6840 Points +63%
Intel NUC Pro Chassis_i7_1185G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6676 Points +59%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
6571 Points +57%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
6210 Points +48%
Prime Computer PrimeBook Circular-i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6091 Points +45%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points +45%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
5378 Points +28%
Beelink SEi12 Core i5-1235U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U
5054 Points +21%
Trigkey S3
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
4191 Points
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (1668 - 4317, n=44)
3447 Points -18%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
3245 Points -23%
BMAX B5 Pro G7H8
Intel UHD Graphics 620, Intel Core i5-8260U
1744 Points -58%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1660 Points -60%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1458 Points -65%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -80%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points -82%
Chuwi Hi10 Air
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
278 Points -93%
3DMark 11 Performance
4348 punten
3DMark Cloud Gate Standard Score
13817 punten
3DMark Fire Strike Score
2374 punten
3DMark Time Spy Score
771 punten
Help
The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
139.2 (119min) fps +175%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
90.7 (3.4min, 21.9P0.1, 53.7P1) fps +79%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
89.7 (45min) fps +77%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
89 (38.4min, 43.3P0.1, 52.8P1) fps +76%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
88.1 (3.39min, 21.4P0.1, 52.9P1) fps +74%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
81.4 (31.8min, 35.9P0.1, 47.9P1) fps +61%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
79.2 (75min) fps +56%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
77.7 (46min) fps +53%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
50.7 (41min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (22 - 50.7, n=18)
34.7 fps -32%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
23.8 (20min) fps -53%
1366x768 Medium Graphics & Postprocessing
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
84 (77min) fps +149%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
59.9 (15.7min, 28.4P0.1, 34P1) fps +77%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
57.9 (25.7min, 27.5P0.1, 33P1) fps +71%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
53.7 (44min) fps +59%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
52.3 (22.4min, 24.9P0.1, 29.9P1) fps +55%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
48.7 (45min) fps +44%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
48.7 (43min) fps +44%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
33.8 (31min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (16.3 - 33.8, n=10)
23.6 fps -30%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
13.5 (10min) fps -60%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
46 (41min) fps +151%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
33.5 (15.9min, 16.8P0.1, 18.7P1) fps +83%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
32 (14min, 15.4P0.1, 17.2P1) fps +75%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
27.8 (25min) fps +52%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
27.7 (12.8min, 13.7P0.1, 15.4P1) fps +51%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
26 (23min) fps +42%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
25.1 (22min) fps +37%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
18.3 (16min) fps
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
15.2 (8.49min, 8.73P0.1, 9.27P1) fps -17%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (6.7 - 18.3, n=14)
12.5 fps -32%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
7.3 (2min) fps -60%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
27.1 (24min) fps +168%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
15.8 (14min) fps +56%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
13.8 (12min) fps +37%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
12.2 (11min) fps +21%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
10.1 (8min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (4.44 - 10.1, n=7)
7.66 fps -24%
GTA V
1024x768 Lowest Settings possible
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
152.6 (4.69min, 100P1) fps +88%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
132.9 (18.4min, 90.9P1) fps +64%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
117.5 (24.8min, 71.4P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
108.6 (21.4min, 71.4P1) fps +34%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
105.8 (17.8min, 71.4P1) fps +30%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
102.1 (19.6min, 58.8P1) fps +26%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
97.6 (17.8min, 62.5P1) fps +20%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
94.2 (16.5min, 58.8P1) fps +16%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
81.2 (24.5min, 50P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (41 - 81.2, n=6)
61 fps -25%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
33.9 (12.8min, 19.2P1) fps -58%
1920x1080 Lowest Settings possible
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
112 (30.2min, 71.4P1) fps +117%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
88.4 (8.61min, 58.8P1) fps +71%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
87.4 (18min, 62.5P1) fps +69%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
81 (12.3min, 58.8P1) fps +57%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
80.4 (22.6min, 52.6P1) fps +56%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
75.1 (18.8min, 52.6P1) fps +46%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
67.2 (25.1min, 45.5P1) fps +30%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
65.9 (13.2min, 45.5P1) fps +28%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
51.6 (14.7min, 38.5P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (21.7 - 51.6, n=3)
35.4 fps -31%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
18.7 (10.2min, 12.8P1) fps -64%
1366x768 Normal/Off AF:4x
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
138 (28min, 90.9P1) fps +91%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
117.6 (20.9min, 71.4P1) fps +63%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
98.7 (7.72min, 66.7P1) fps +37%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
95.2 (17.8min, 58.8P1) fps +32%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
93.9 (23.8min, 58.8P1) fps +30%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
89.4 (9.45min, 55.6P1) fps +24%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
87.4 (20.5min, 50P1) fps +21%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
77.6 (21.9min, 50P1) fps +7%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
72.3 (16.7min, 47.6P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (29.9 - 72.3, n=5)
54 fps -25%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
28 (12.2min, 16.9P1) fps -61%
1920x1080 Normal/Off AF:4x
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
109.6 (8.03min, 71.4P1) fps +114%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
81.8 (14.1min, 55.6P1) fps +60%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
78 (15.8min, 50P1) fps +52%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
76.7 (2.83min, 50P1) fps +50%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
71.3 (22.8min, 45.5P1) fps +39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
66.5 (20.6min, 43.5P1) fps +30%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
64.7 (21.2min, 43.5P1) fps +26%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
57.3 (22.2min, 38.5P1) fps +12%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
51.2 (12.1min, 38.5P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (21.6 - 51.2, n=3)
35 fps -32%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
18.2 (9.02min, 12.3P1) fps -64%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
51.8 (9.91min, 35.7P1) fps +138%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
32.2 (8.1min, 23.3P1) fps +48%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
29.4 (12.5min, 20.8P1) fps +35%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
24.3 (8.65min, 18.2P1) fps +11%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
23.2 (11.5min, 15.9P1) fps +6%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
22.1 (11min, 16.7P1) fps +1%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
21.8 (7.98min, 15.6P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
19.4 (8.25min, 15.2P1) fps -11%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (9.09 - 25.3, n=6)
17.7 fps -19%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
17.2 (9.35min, 13.5P1) fps -21%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
6.56 (3.2min, 4.55P1) fps -70%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
23.7 (7.88min, 16.4P1) fps +130%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
14.5 (4.85min, 10.3P1) fps +41%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
10.3 (1.411min, 6.71P1) fps
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
9.51 (4.28min, 5.71P1) fps -8%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (4.95 - 12.3, n=4)
8.63 fps -16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
8.27 (3.9min, 4.85P1) fps -20%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
7.41 (3.52min, 4.12P1) fps -28%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
2.67 (1.309min, 1.961P1) fps -74%
Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
141.9 (121.4min) fps +94%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
137.5 (109.5min) fps +88%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
119.6 (108.4min) fps +64%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
116.4 (93.7min) fps +59%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
115.1 (96.2min) fps +58%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
110.4 (89.3min) fps +51%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
109 (85min) fps +49%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
93.8 (8.8min) fps +28%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
73 (59.4min) fps
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
72.8 (60.3min) fps 0%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (56.2 - 97.2, n=29)
70.4 fps -4%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
42.4 (30.8min) fps -42%
1366x768 med (1/3)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
112.7 (95min) fps +75%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
105.8 (88min) fps +64%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
103.1 (78.3min) fps +60%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
89 (72.1min) fps +38%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
88.7 (71min) fps +38%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
87.9 (69.9min) fps +36%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
85.7 (67min) fps +33%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
78.6 (66.2min) fps +22%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
64.4 (52.7min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (39.9 - 76.3, n=29)
58.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
45.1 (40.8min) fps -30%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
8.6 (6.3min) fps -87%
1920x1080 high (2/3)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
80.9 (71.6min) fps +99%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
68.4 (57.5min) fps +68%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
67.4 (60.9min) fps +66%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
63.1 (57.2min) fps +55%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
59.3 (52.5min) fps +46%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
50.4 (41.9min) fps +24%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
49.8 (46.3min) fps +22%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
45.5 (42.6min) fps +12%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
40.7 (36.4min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (20.4 - 47.8, n=29)
35.8 fps -12%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
18.4 (17min) fps -55%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
5.6 (4.2min) fps -86%
1920x1080 ultra (3/3) best looking
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
71.4 (62.3min) fps +89%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
61.9 (52.7min) fps +64%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
59.8 (52.4min) fps +58%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
57.9 (52min) fps +53%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
56.3 (49.3min) fps +49%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
47.4 (40.8min) fps +25%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
45.7 (42.8min) fps +21%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
42.2 (39.3min) fps +12%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
37.8 (34.2min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (18.8 - 44.8, n=29)
33 fps -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
16 (14.9min) fps -58%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
5.6 (2.2min) fps -85%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
68.5 fps +152%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
47.5 fps +75%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
43.6 fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
42.8 fps +57%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
41.1 fps +51%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
40.6 fps +49%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
38.6 fps +42%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
35.7 fps +31%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
27.2 fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (13.4 - 27.8, n=11)
22.2 fps -18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
10.8 fps -60%
BMAX B5 Pro G7H8
Intel Core i5-8260U, Intel UHD Graphics 620
5.61 fps -79%
1920x1080 Standard Quality
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
34.9 fps +153%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
25 fps +81%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
24.9 fps +80%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
23 fps +67%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
21.7 fps +57%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
20.3 fps +47%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
20.3 fps +47%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
19.3 fps +40%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
13.8 fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (6.22 - 14, n=10)
11.4 fps -17%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
5.08 fps -63%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
25 fps +158%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
24.5 fps +153%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
18.1 fps +87%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
16.4 fps +69%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
15.2 fps +57%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
14.9 fps +54%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
14.3 fps +48%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
13.5 fps +39%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
9.68 fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (3.7 - 9.68, n=8)
7.04 fps -27%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
3.75 fps -61%
X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
64.8 fps +463%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
62.3 fps +442%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
58.2 fps +406%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
53.4 fps +364%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
48.4 fps +321%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
48.4 fps +321%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
44.5 fps +287%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
37.9 fps +230%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (11.5 - 39.9, n=26)
25.5 fps +122%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
20.2 fps +76%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
11.5 fps
1920x1080 med (fps_test=2)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
52.6 fps +401%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
46.2 fps +340%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
41.2 fps +292%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
40.3 fps +284%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
35.8 fps +241%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
34.9 fps +232%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
33.3 fps +217%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
32.8 fps +212%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (10.5 - 31, n=26)
19.5 fps +86%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
13.1 fps +25%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
10.5 fps
1920x1080 high (fps_test=3)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.8 fps +336%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
40.4 fps +322%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
37.3 fps +289%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
35.7 fps +273%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
32.9 fps +243%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
30.4 fps +217%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.9 fps +212%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
29.5 fps +208%
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (9.58 - 27.3, n=25)
17.4 fps +82%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
12 fps +25%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
9.58 fps
Strange Brigade
1280x720 lowest AF:1
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
142.4 (86.5min, 118P1) fps +117%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
95.3 (72.8min, 84.4P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
90.1 (16.9min, 29.3P1) fps +38%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
89.9 (20min, 32.7P1) fps +37%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
87.6 (11.7min, 31P1) fps +34%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
79.3 (18.8min, 25.6P1) fps +21%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
66.1 (9.6min, 21.1P1) fps +1%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
65.9 (14.2min, 19.7P1) fps +1%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
65.5 (26.1min, 55.9P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (34.2 - 65.5, n=4)
54.3 fps -17%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
25.7 (5.3min, 6.92P1) fps -61%
1920x1080 medium AA:medium AF:4
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
57.4 (43.4min, 51P1) fps +163%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
39.5 (13.2min, 21.1P1) fps +81%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
38.3 (10.4min, 17.6P1) fps +76%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
38.1 (8.7min, 14.5P1) fps +75%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
36 (29.9min, 31P1) fps +65%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
33.9 (10.3min, 19.8P1) fps +56%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.6 (9.5min, 16P1) fps +36%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
26.5 (7min, 12.6P1) fps +22%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
21.8 (18.4min, 18.9P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (14 - 24.1, n=4)
20.4 fps -6%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
9.8 (5min, 5P1) fps -55%
1920x1080 high AA:high AF:8
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
48.5 (35.1min, 38.2P1) fps +177%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
32.5 (8.7min, 17P1) fps +86%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
30.4 (6.3min, 11.4P1) fps +74%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
30.1 (23.7min, 24.1P1) fps +72%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
29.7 (7.4min, 10.7P1) fps +70%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
27.7 (10min, 15.1P1) fps +58%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
23.5 (5.8min, 8.9P1) fps +34%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
21.4 (5min, 7.98P1) fps +22%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
17.5 (13.4min, 13.6P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (11.1 - 20, n=4)
15.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, Intel UHD Graphics 620
10.1 (5min, 5P1) fps -42%
1920x1080 ultra AA:ultra AF:16
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.6 (26.5min, 33P1) fps +185%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
26.2 (8.6min, 9.63P1) fps +79%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
25.5 (19.5min, 20.8P1) fps +75%
Intel NUC Pro Chassis_i7_1185G7
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
24.5 (5min, 6.62P1) fps +68%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
23.7 (5min, 6.21P1) fps +62%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
22.2 (5.6min, 7.76P1) fps +52%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
18.8 (5min, 5P1) fps +29%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
17.5 (5min, 5P1) fps +20%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
14.6 (10.1min, 11.6P1) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (8.3 - 16.7, n=4)
13.2 fps -10%
Cyberpunk 2077 1.6
1920x1080 Low Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
43 (18min) fps +298%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
20.9 (14min) fps +94%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
18.6 (8.1min) fps +72%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
13.4 (8.9min) fps +24%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
10.8 (7.4min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)
  (7.7 - 10.8, n=2)
9.25 fps -14%
1920x1080 Medium Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
33 (19.6min) fps +284%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
16.2 (12min) fps +88%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
15.6 (7.8min) fps +81%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
11.4 (8min) fps +33%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
8.6 (5.5min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

8.6 fps 0%
1920x1080 High Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
22.3 (5.3min) fps +254%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
11.7 (6.1min) fps +86%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
11.4 (8.7min) fps +81%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
9 (6.7min) fps +43%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
6.3 (4.5min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

6.3 fps 0%
1920x1080 Ultra Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
17.5 (4min) fps +250%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
9.8 (4.9min) fps +96%
Beelink SEi12 Core i5-1235U
Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs
7.4 (5.3min) fps +48%
Trigkey S3
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
5 (3.2min) fps
Gemiddeld AMD Radeon RX Vega 8 (Ryzen 2000/3000)

5 fps 0%

Stationair draaien op Witcher 3 toont framerates die periodiek dalen tot zo laag als 30 FPS voor korte periodes alvorens te herstellen. Dit gedrag wijst op slechte optimalisatie of onderbreken van achtergrondactiviteiten die mogelijk kunnen leiden tot dropped frames bij het streamen van andere inhoud.

Witcher 3 FPS Chart

0510152025303540455055Tooltip
Trigkey S3: Ø50 (29-56)
lage gem. hoge ultra
GTA V (2015) 81.2 72.3 21.8 10.3
The Witcher 3 (2015) 50.7 33.8 18.3 10.1
Dota 2 Reborn (2015) 73 64.4 40.7 37.8
Final Fantasy XV Benchmark (2018) 27.2 13.8 9.68
X-Plane 11.11 (2018) 11.5 10.5 9.58
Strange Brigade (2018) 65.5 21.8 17.5 14.6
Cyberpunk 2077 1.6 (2022) 10.8 8.6 6.3 5

Emissies

Systeemgeluid

Ventilator geluid is verrassend stil om een sterk hoogtepunt van de S3 te zijn. We halen slechts een maximum van iets meer dan 31 dB(A) bij veeleisende belastingen in vergelijking met 40 dB(A) of hoger op snellere mini PC's zoals de Beelink SEi12 of Beelink SER Pro.

Geluidsprofiel ventilator (Wit: Achtergrond, Rood: Systeem idle, Blauw: 3DMark 06, Oranje: Witcher 3, Groen: Prime95+FurMark stress)
Geluidsprofiel ventilator (Wit: Achtergrond, Rood: Systeem idle, Blauw: 3DMark 06, Oranje: Witcher 3, Groen: Prime95+FurMark stress)

Geluidsniveau

Onbelast
24.5 / 24.5 / 24.5 dB (A)
Belasting
27.1 / 31.3 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   omgevingslawaai: 23.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203538.334.738.937.22527.72926.130.629.23127.125.123.326.126.84030.823.823.826.625.65035.924.826.524.928.76331.821.824.522.322.58024.123.923.524.723.710021.52321.621.822.712520.120.618.519.520.416018.819.319.117.221.820019.616.916.51518.125017.615.616.414.717.931517.215.315.215.518.240017.416.712.713.517.550021.714.211.712.722.563018.214.110.310.619.880019.314.49.89.621.2100023.514.410.39.621.8125015.412.49.89.316.9160017.214.49.99.81920001915.7109.920.1250017.912.610.410.320.4315015.611.810.910.817.1400014.912.211.311.218500012.912.111.411.614.8630014.312.41211.612.4800015.716.215.711.515.51000019.618.617.211.619.61250026.124.117.911.525.91600017.417.114.810.816.2SPL30.627.124.523.231.3N1.30.80.60.51.4median 17.9median 15.3median 12median 11.5median 19Delta2.12.63.62.42.1hearing rangehide median Fan NoiseTrigkey S3
Trigkey S3
Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN
Intel NUC Pro Chassis_i7_1265U
Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink SEi12 Core i5-1235U
Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
Noise
-36%
-36%
-13%
-9%
-10%
uit / omgeving *
23.2
30.5
-31%
24.8
-7%
23.3
-0%
22.8
2%
22.8
2%
Idle Minimum *
24.5
31.4
-28%
35.6
-45%
27.8
-13%
24.7
-1%
26.1
-7%
Idle Average *
24.5
31.4
-28%
35.6
-45%
27.8
-13%
24.7
-1%
26.1
-7%
Idle Maximum *
24.5
31.4
-28%
35.6
-45%
27.8
-13%
25.3
-3%
28.7
-17%
Load Average *
27.1
43.8
-62%
36.2
-34%
32
-18%
33.2
-23%
32.3
-19%
Witcher 3 ultra *
30.6
38
-24%
34.1
-11%
34.5
-13%
32.8
-7%
Load Maximum *
31.3
44
-41%
47.6
-52%
39.2
-25%
37.8
-21%
36.4
-16%

* ... kleiner is beter

Temperatuur

AC adapter kan 40 C bereiken bij zware belasting
AC adapter kan 40 C bereiken bij zware belasting

Het oppervlak is het warmst aan de achterkant, waar warme lucht ontsnapt. Koele lucht komt binnen via de zijkanten en niet via de bovenkant zoals bij de Beelink SEi12, wat betekent dat het veilig is om items zoals papier bovenop de mini PC te plaatsen zonder de luchtstroom te belemmeren.

Stilstaand systeem (voorzijde)
Stilstaand systeem (voorzijde)
Systeem inactief (achterkant)
Systeem inactief (achterkant)
Prime95+FurMark stress (voorzijde)
Prime95+FurMark stress (voorzijde)
Prime95+FurMark stress (terug)
Prime95+FurMark stress (terug)

Stresstest

Bij het draaien van Prime95 om de CPU te belasten, stegen de CPU-kloksnelheden en het opgenomen vermogen op het bord tot respectievelijk 3 GHz en 13 W, alvorens enkele seconden later te dalen en zich te stabiliseren op 2,7 GHz, 11 W en 74 C. De kerntemperatuur stabiliseerde zich bij 70 C tijdens het draaien van Prime95 Witcher 3 wat vergelijkbaar is met de Beelink SEi12 onder vergelijkbare testomstandigheden, maar nog steeds warmer dan op deIntel NUC11TNKi5 Pro.

Stilstaand systeem
Stilstaand systeem
Witcher 3 stress
Witcher 3 stress
Prime95 stress
Prime95 stress
Prime95+FurMark stress
Prime95+FurMark stress
CPU Klok (GHz) GPU Klok (MHz) Gemiddelde CPU Temperatuur (°C)
Systeem Idle -- -- 42
Prime95 Stress 2.7 -- 74
Prime95 + FurMark Stress 2.2 523 75
Witcher 3 Stress 2.0 688 70

Energiebeheer

Stroomverbruik

Het verbruik piekt tot 45 W bij het starten van Prime95, daalt vervolgens en stabiliseert zich enkele seconden later op 40 W
Het verbruik piekt tot 45 W bij het starten van Prime95, daalt vervolgens en stabiliseert zich enkele seconden later op 40 W

Het stroomverbruik bij stationair draaien is relatief hoog, tot 22 W, vergeleken met de helft van dat van U-serie aangedreven mini PC's zoals de Intel NUC11 of Beelink SEi12, wat niet onverwacht is aangezien de S3 wordt aangedreven door een oudere H-serie processor. De situatie is omgekeerd bij het draaien van hogere belastingen zoals games, ondanks de tragere grafische prestaties van de geïntegreerde Radeon Vega 8. De algemene magere prestatie-per-watt is niet verrassend gezien het feit dat de Zen+ serie een paar jaar oud is.

Stroomgebruik
Uit / Standbydarklight 0.8 / 1.2 Watt
Inactiefdarkmidlight 11.3 / 21.8 / 22.2 Watt
Belasting midlight 39.7 / 48.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Trigkey S3
R5 3550H, Vega 8, Kingston NV1 SNVS/500GCN, , x,
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink SEi12 Core i5-1235U
i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,
Beelink SEi11 Pro
i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,
Beelink SER Pro Ryzen 5 5600H
R5 5600H, Vega 7, Kingston NV1 SNVS/500GCN, , x,
Power Consumption
32%
2%
-35%
3%
21%
Idle Minimum *
11.3
6.1
46%
11.5
-2%
15.8
-40%
9.8
13%
5.4
52%
Idle Average *
21.8
6.8
69%
12.4
43%
16.8
23%
10.3
53%
8.2
62%
Idle Maximum *
22.2
7.3
67%
12.9
42%
17
23%
10.5
53%
8.3
63%
Load Average *
39.7
46.3
-17%
40.7
-3%
54.4
-37%
54.2
-37%
49.3
-24%
Witcher 3 ultra *
37.5
43.9
-17%
50.7
-35%
53.1
-42%
46.1
-23%
Load Maximum *
48.9
50.7
-4%
73.5
-50%
119.1
-144%
59
-21%
50.2
-3%

* ... kleiner is beter

Power Consumption Witcher 3 / Stresstest

051015202530354045Tooltip
Trigkey S3; Witcher 3 ultra: Ø37.5 (36.7-41.8)
Trigkey S3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.7 (43.1-48.8)

Power Consumption external Monitor

051015202530354045Tooltip
Trigkey S3; Prime95 V2810 Stress (external Monitor): Ø39.9 (39.2-45.4)
Trigkey S3; Cinebench R15 Multi (external Monitor): Ø35.2 (33.6-39.9)
Trigkey S3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.3 (42.4-44.5)
Trigkey S3; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37.5 (36.7-41.8)
Trigkey S3; Idle 1min (external Monitor): Ø11.2 (11-14.5)

Pro

+ ondersteunt 2x SSD's, 2x DDR4 SODIMM
+ sneller dan Celeron of Atom opties
+ stil ventilatorgeluid
+ goedkoop

Contra

- relatief hoog stroomverbruik
- gestripte schroeven kunnen een probleem zijn
- tragere Wi-Fi 5 prestaties
- geen ondersteuning voor USB-C DP

Verdict - Sneller dan Celeron of Atom alternatieven

In review: Trigkey S3. Test unit geleverd door Trigkey
In review: Trigkey S3. Test unit geleverd door Trigkey

Wanneer we kijken naar mini PC's van minder dan $300 USD, is het gebruikelijk om genoegen te nemen met Intel Celeron of Atom-aangedreven oplossingen, omdat zulke processoren langzamer en goedkoper zijn dan de gebruikelijke Core-opties. Snelle CPU's zijn niet echt nodig voor de meeste basis HTPC doeleinden, maar Celeron en Atom CPU's zijn berucht omdat ze te traag zijn voor zelfs minimale multi-tasking inspanningen. Dit is waar de Trigkey S3 in stapt omdat zijn Ryzen 5 3550H CPU die extra prestatiepuf kan bieden zonder de prijs te verhogen.

De Trigkey S3 biedt Core i3-achtige prestaties voor de prijs van een Atom of Celeron mini PC.

Het belangrijkste nadeel is dat de Ryzen 5 3550H een oudere CPU is en dus in veel situaties iets meer vermogen vraagt dan de nieuwste U-serie opties. Toch is het geluid van de ventilator gelukkig niet luider, ondanks het hogere energieverbruik.

Prijs en beschikbaarheid

De Trigkey S3 wordt nu verzonden op Amazon voor 280 USD.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Trigkey S3 mini PC review: Core i3-achtige prestaties voor de prijs van een Celeron of Atom
Allen Ngo, 2023-01- 3 (Update: 2023-01- 3)
