NiPoGi CK10 met de Intel Core i7-10810U besproken: Kleine kantoor-pc met ruimte voor drie SSD's

Name: Minipc Union NiPoGi CK10 - 10810U
Brand: Minipc Union

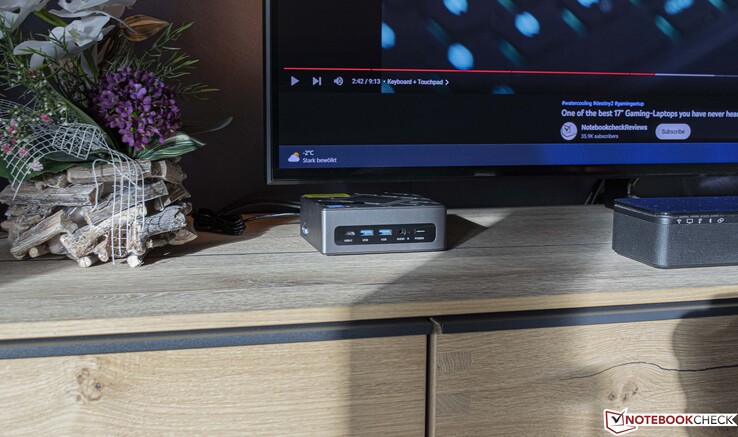

Een stille kantoor PC! In tijden van voortdurend stijgende energieprijzen zijn compacte PC's uitzonderlijk populair, omdat ze aanzienlijk minder energie verbruiken dan hun traditionele desktop broers en zussen. Met de NiPoGi CK10 hebben we deze kleine zeskernige kantoor-pc aan de tand gevoeld. Het is een extreem stil apparaat, maar hoe snel is zijn SoC? In onze review onthullen we alles wat je moet weten over de Intel Core i7-10810U gebaseerde NiPoGi CK10.

Sebastian Bade (vertaald door DeepL / Ninh Duy), Published 02-12-2022 🇺🇸 🇩🇪 ...

Desktop Intel Mini PC Comet Lake

We zijn al bekend met de Chinese systeemfabrikant Minipc Union nadat we zowel de Ace Magician AMR5 als de Ace Magician TK11-A0 - twee interessante mini PC's. Er is nu een andere kleine PC-concurrent verschenen in de vorm van ons NiPiGi CK10-review-exemplaar. Het systeem is gebaseerd op een Intel Core i7-10810U uit de Comet Lake serie. De SoC is niet langer het nieuwste kind op het blok, ondanks hoe veelbelovend 6 cores en 12 threads kunnen klinken. In combinatie met 16 GB DDR4 RAM en een 512 GB SSD en een Windows licentie kost het apparaat ongeveer 600 euro

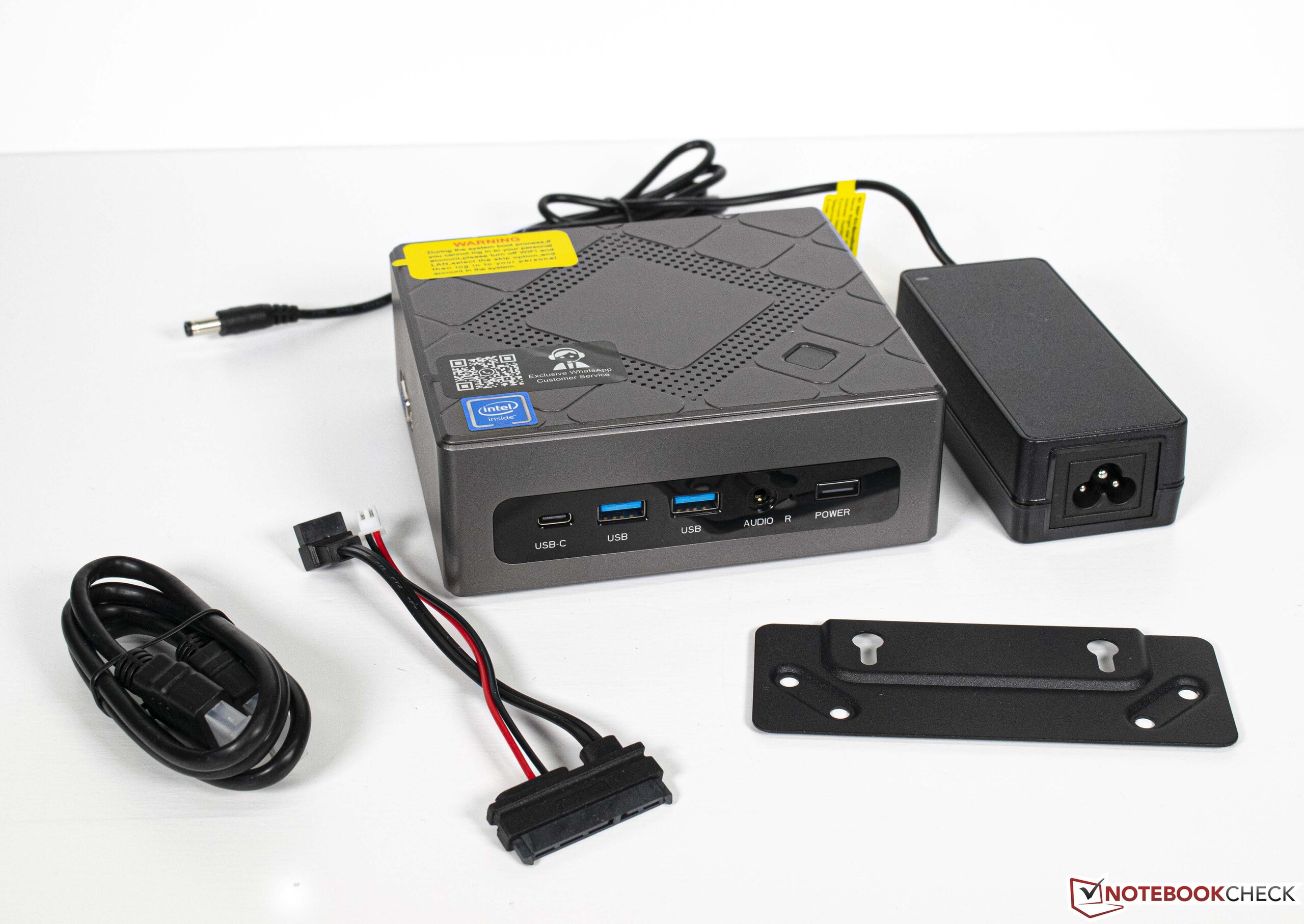

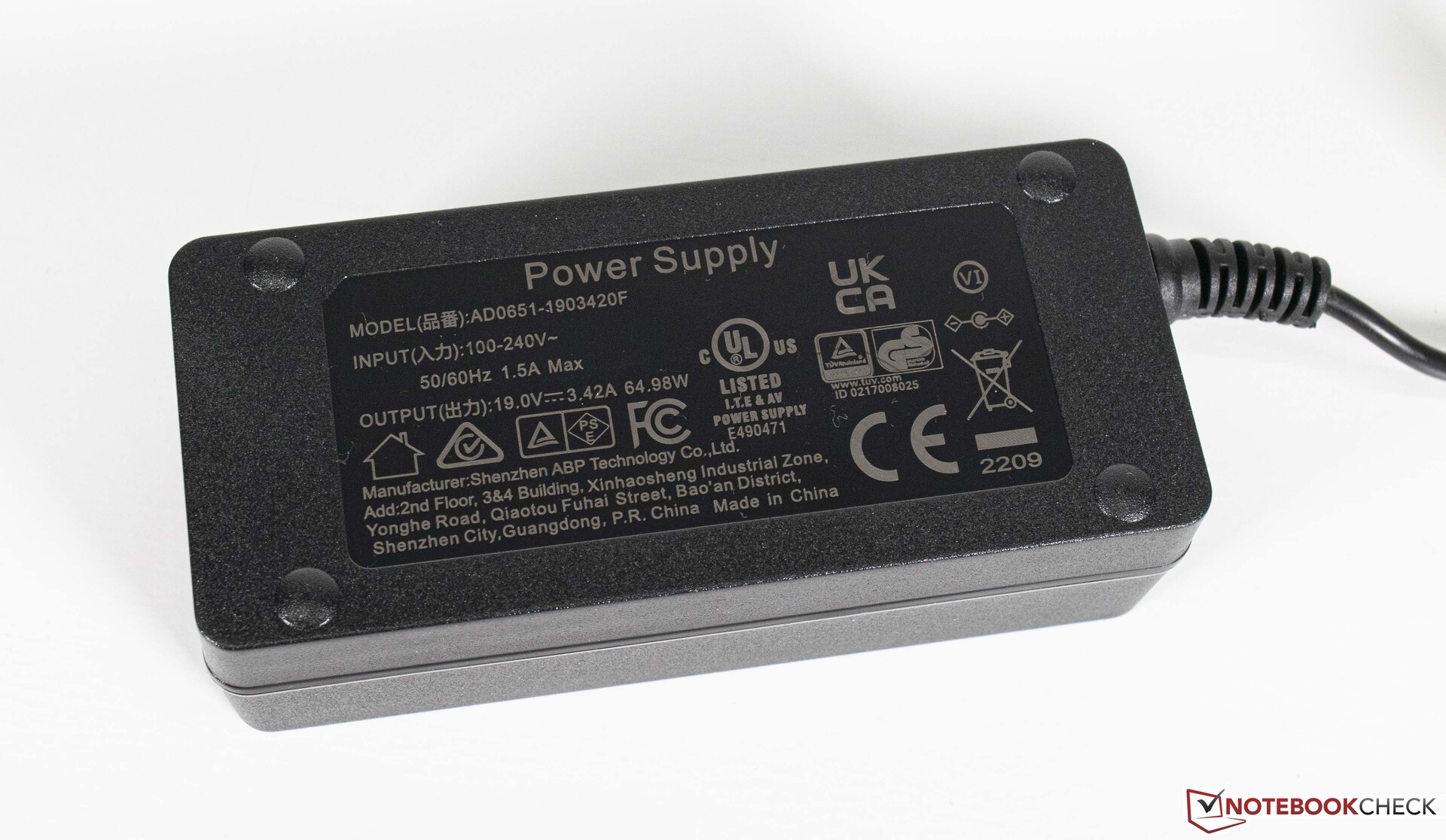

De Mini PC werd geleverd in een compacte verpakking, inclusief een 65 watt voedingsadapter en een VESA-bevestiging waarmee het apparaat aan een monitor kan worden bevestigd. Een overzicht van potentiële concurrenten is te vinden in onderstaande tabel.

Minipc Union NiPoGi CK10 - 10810U

Processor

Intel Core i7-10810U 6 x 1.1 - 4.9 GHz, 40 W PL2 / Short Burst, 15 W PL1 / Sustained, Comet Lake-U

Grafische kaart

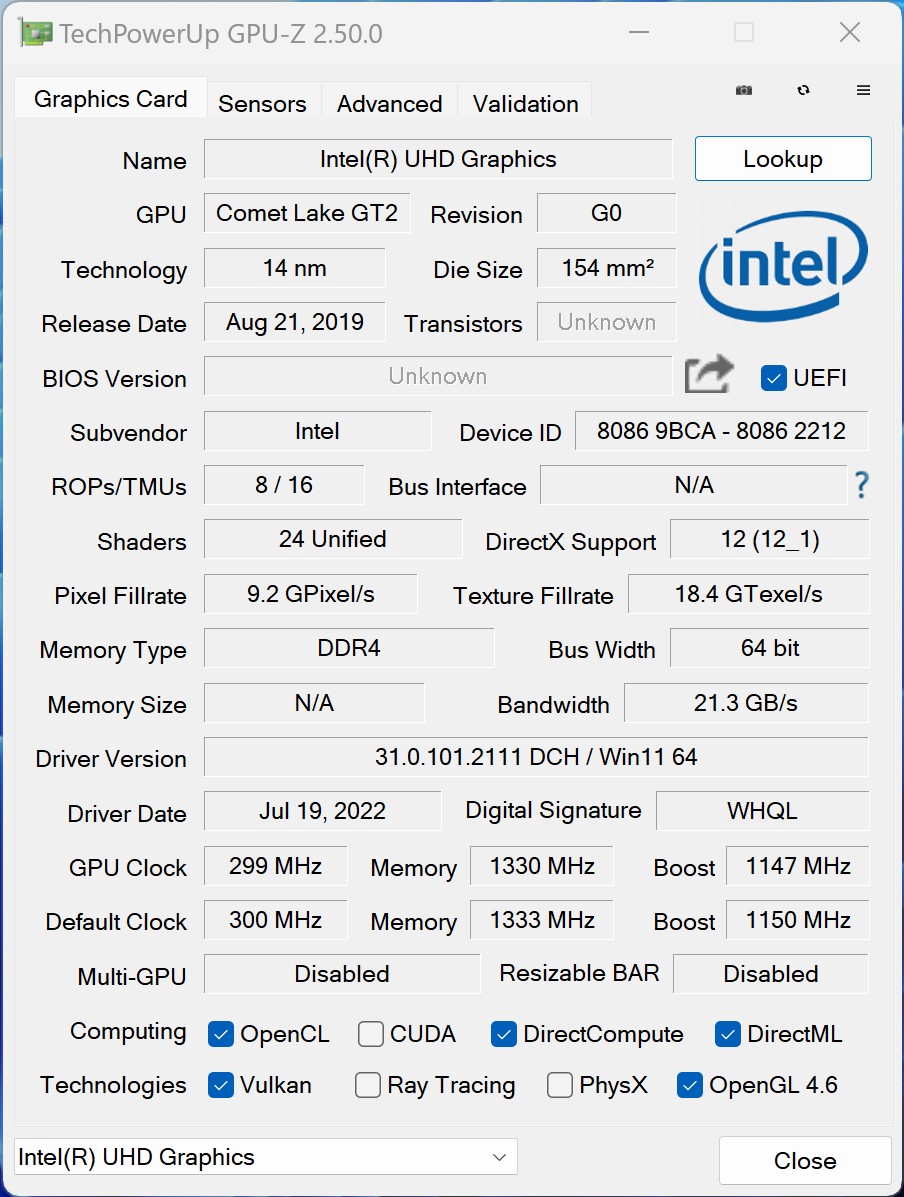

Intel UHD Graphics 620, Core: 1150 MHz, Geheugen: 1333 MHz

Geheugen

16 GB

, DDR4 2666, 1 of 2 installed, max. 32 GB

Moederbord

Intel Comet Lake-U PCH-LP Premium

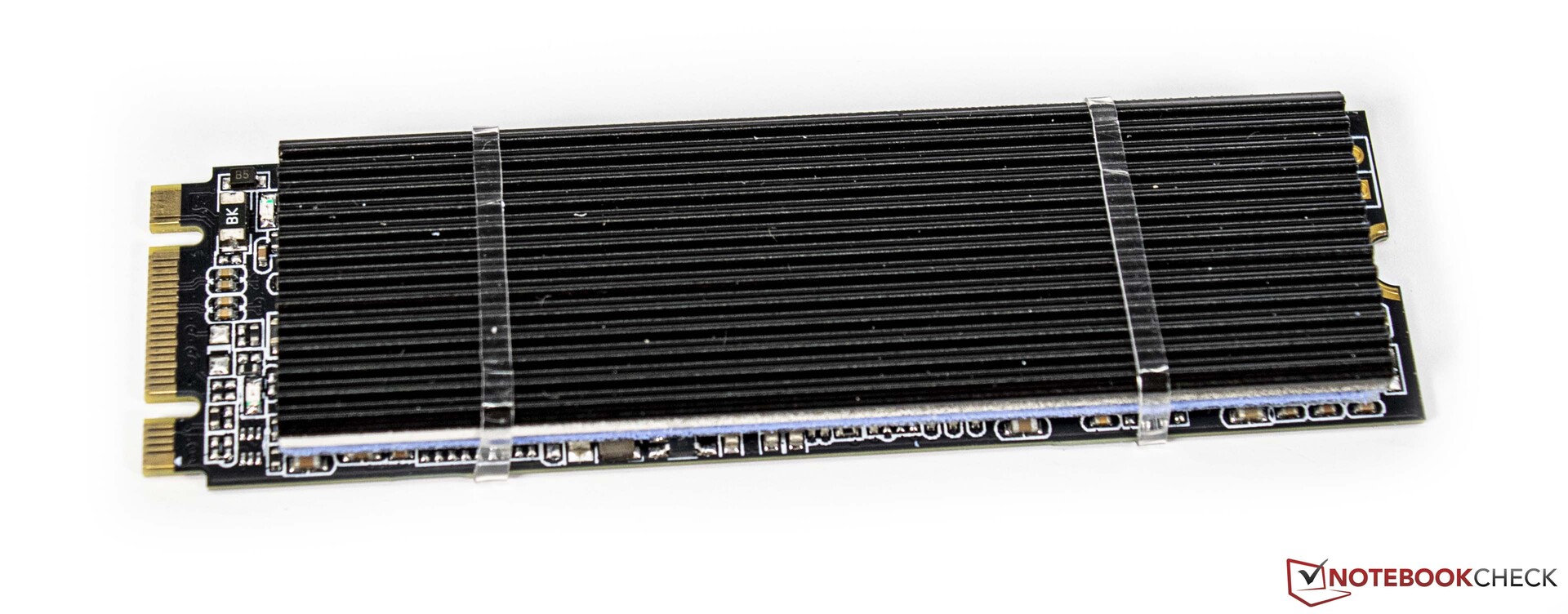

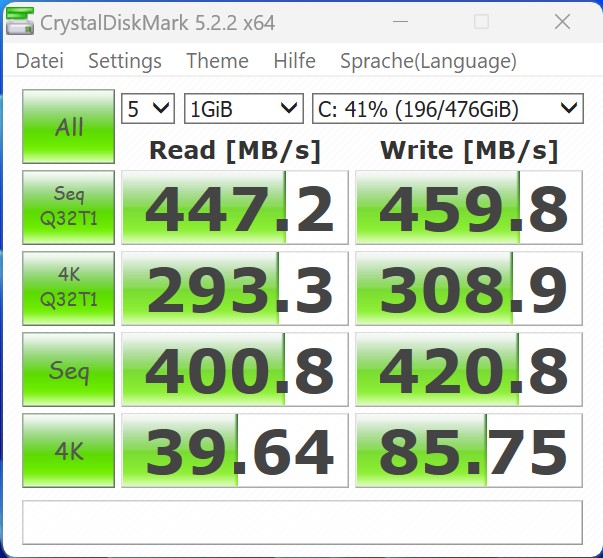

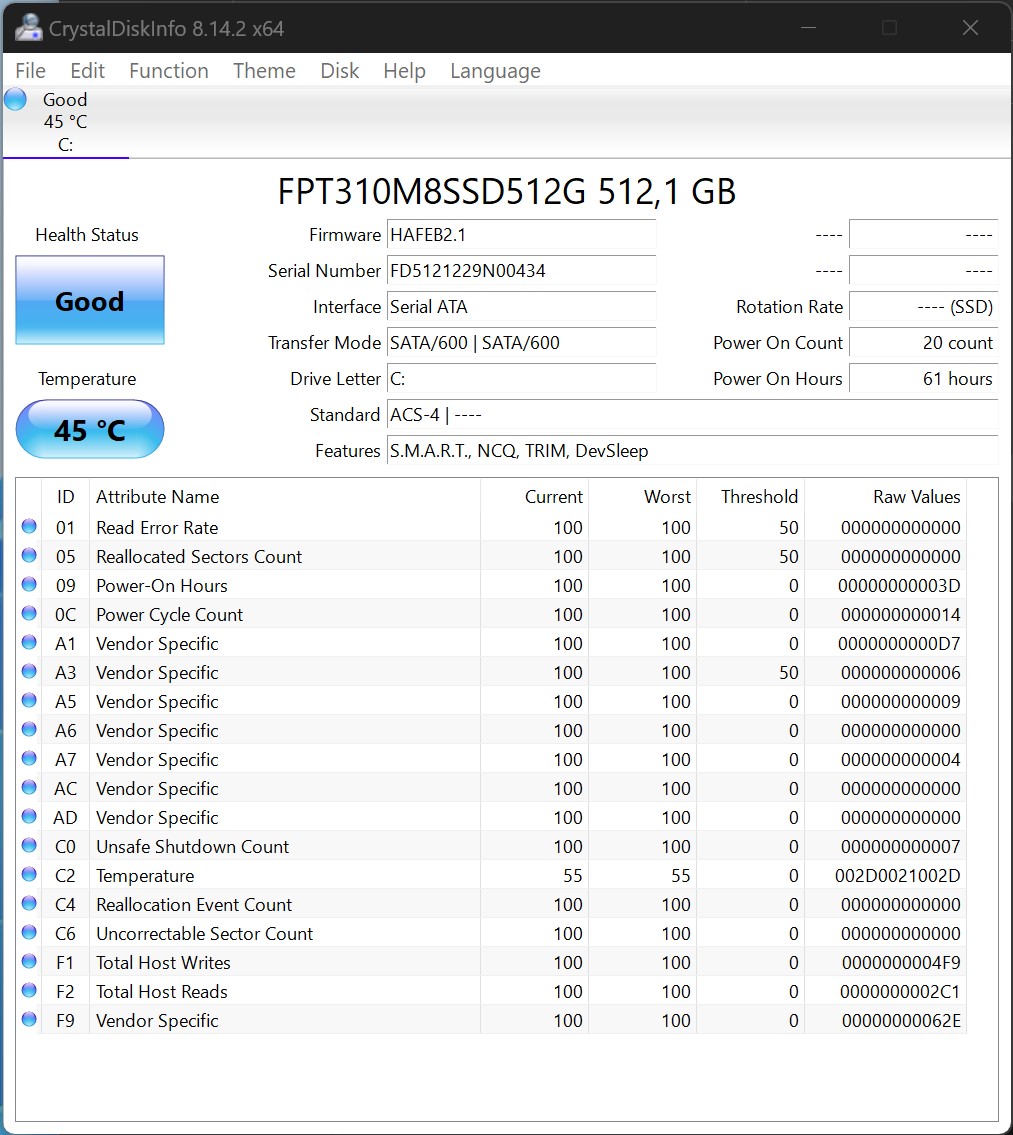

Opslag

FPT310M8SSD512G, 512 GB

, M.2 2280 SATA SSD, 440 GB beschikbaar

Geluidskaart

Intel Comet Lake PCH-LP - cAVS

Verbindingen

5 USB 3.0, 1 VGA, 2 HDMI

Netwerkmogelijkheden

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Afmetingen

hoogte x breedte x diepte (in mm): 50 x 137.5 x 125

Besturingssysteem

Microsoft Windows 11 Pro

Bijkomende functionaliteiten

12 Maanden Garantie

Gewicht

468 g, Voeding: 233 g

Prijs

599 EUR

Links

Minipc Union startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

Potentiële concurrenten in vergelijking

Evaluatie	Datum	Model	Gewicht	Hoogte
70.9 %	12-2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	01-2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	01-2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
	06-2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	02-2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
	09-2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	12-2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
	09-2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

NiPoGi CK10 - Verpakking met specificaties

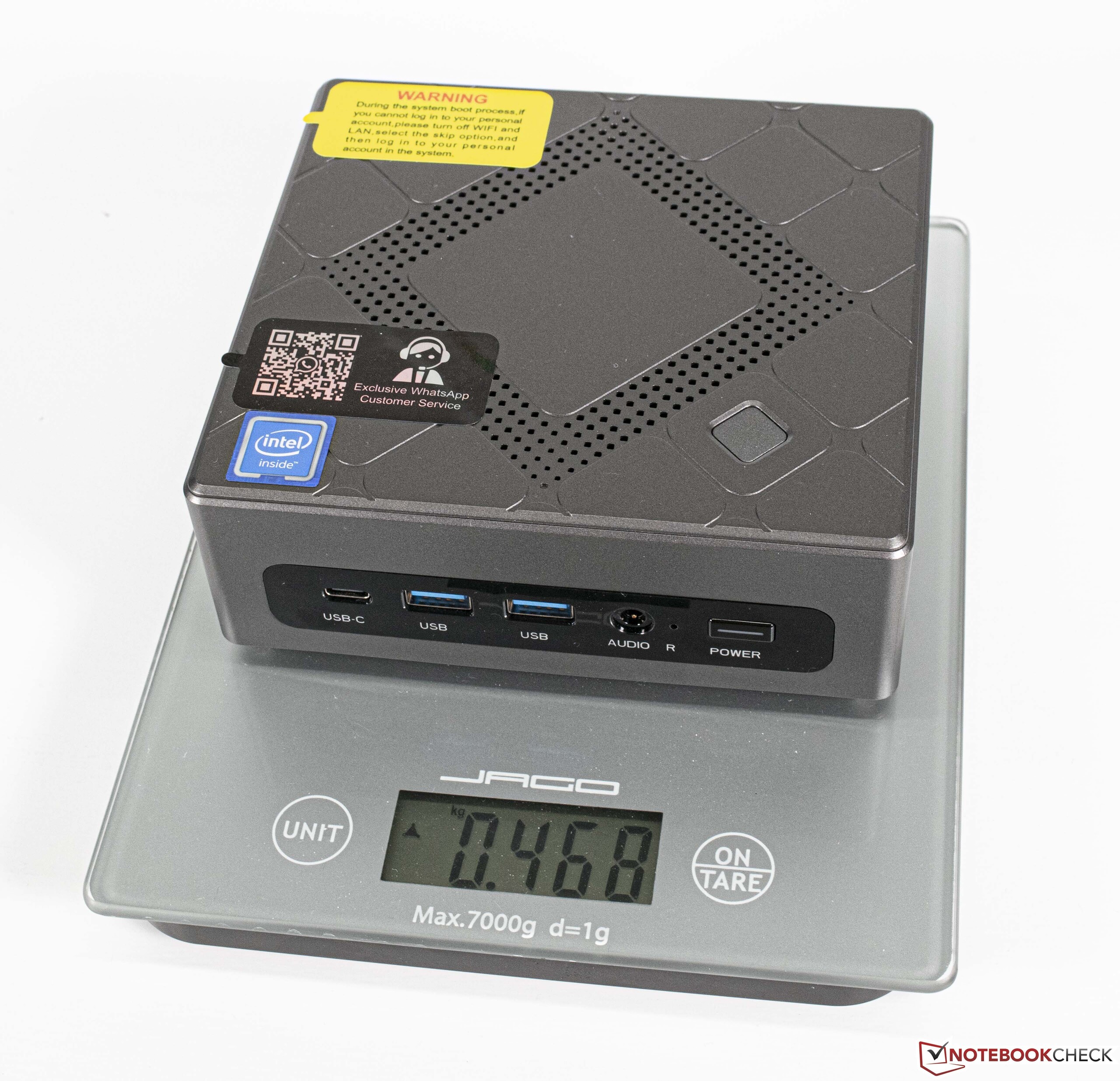

NiPoGi CK10 vs. elektronische weegschalen

Zaak

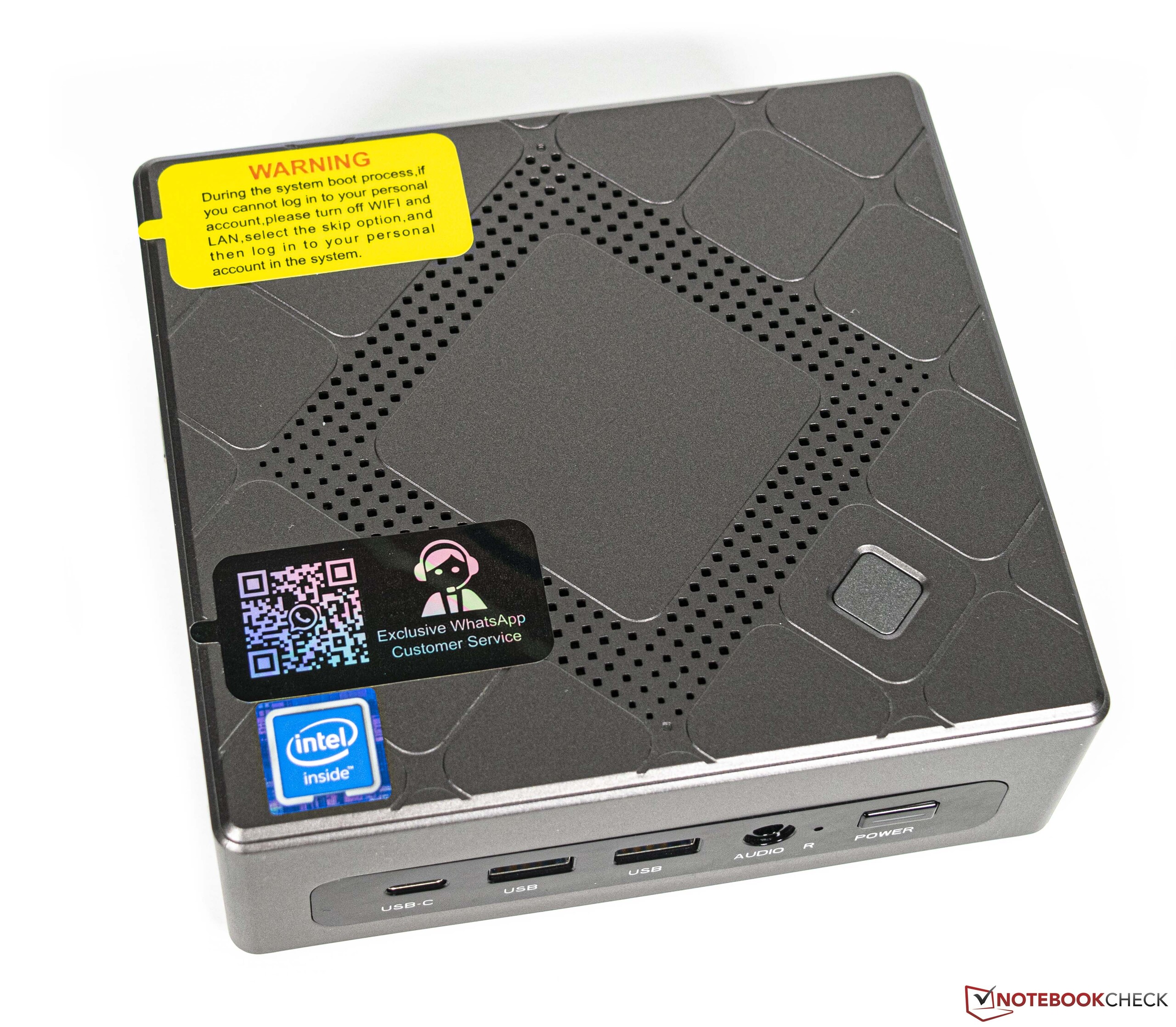

De NiPoGi CK10 is een eenvoudige mini PC zonder bijzondere hoogtepunten. Met een voetafdruk van 13,7 x 12,5 centimeter is hij kleiner dan veel van zijn concurrenten. In de hoogte is de compacte PC bijna precies vijf centimeter hoog. Wat betreft de materiaalkeuze is de NiPoGi CK10 grotendeels gemaakt van plastic. De fabrikant heeft de implementatie van een stabiliserend metalen frame volledig vermeden. Een dummy vingerafdrukscanner zit bovenop het apparaat en suggereert dat de behuizing is voorbereid op extra configuratiemogelijkheden.

Vergelijking grootte

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

Connectiviteit

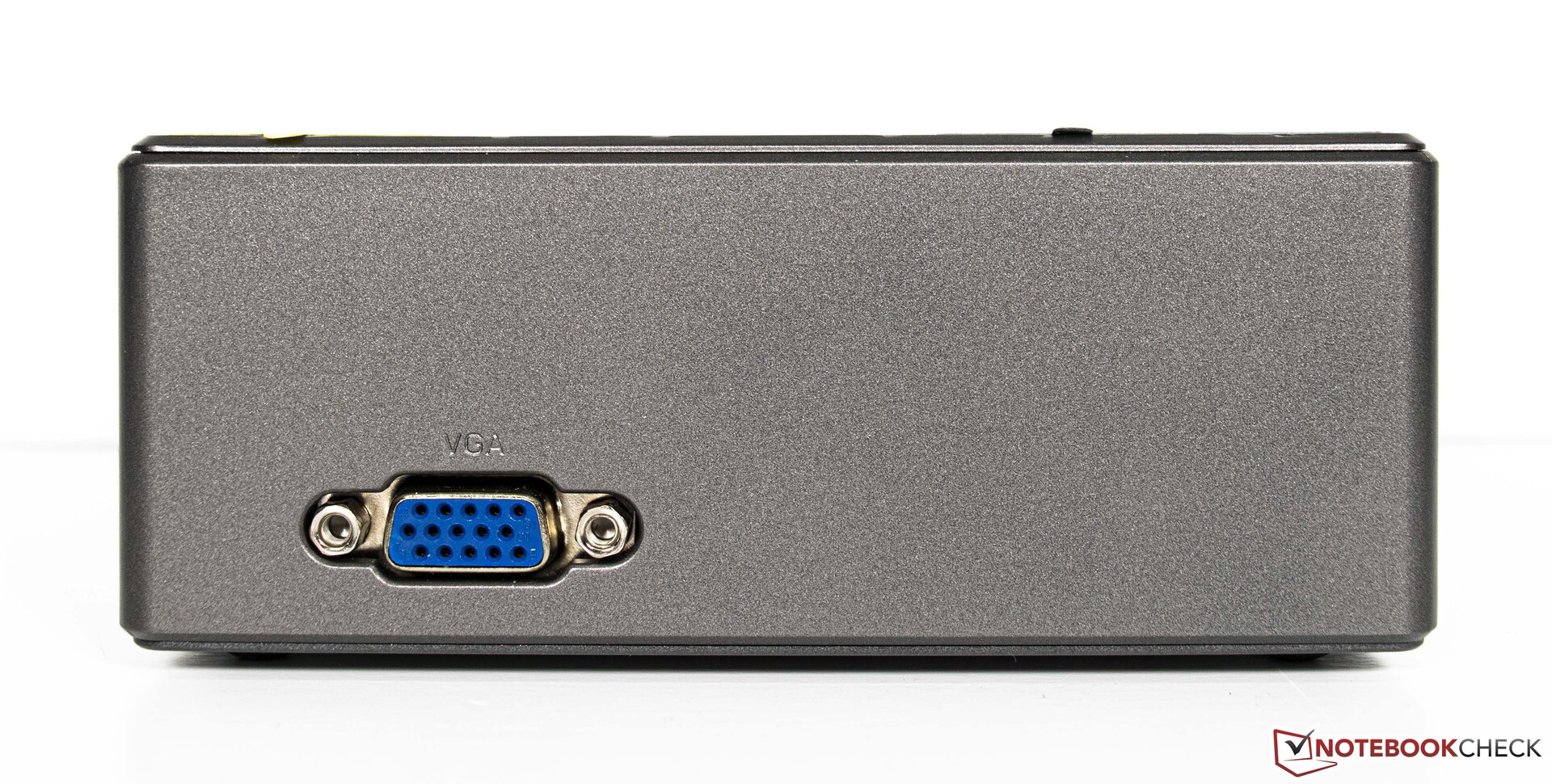

Op het gebied van externe interfaces biedt de NiPoGi CK10 een eenvoudige, standaard selectie. Een totaal van vijf USB-poorten is goed en zou voor de meeste gebruikers voldoende moeten zijn. De beschikbare Type-C poort biedt geen Thunderbolt ondersteuning. De VGA-aansluiting compenseert dit echter met gevoelens van nostalgie. Hoe interessant de analoge beeldschermpoort is, zal aan de gebruikers zelf liggen. Niettemin kunnen tot twee moderne beeldschermen probleemloos via HDMI worden bediend.

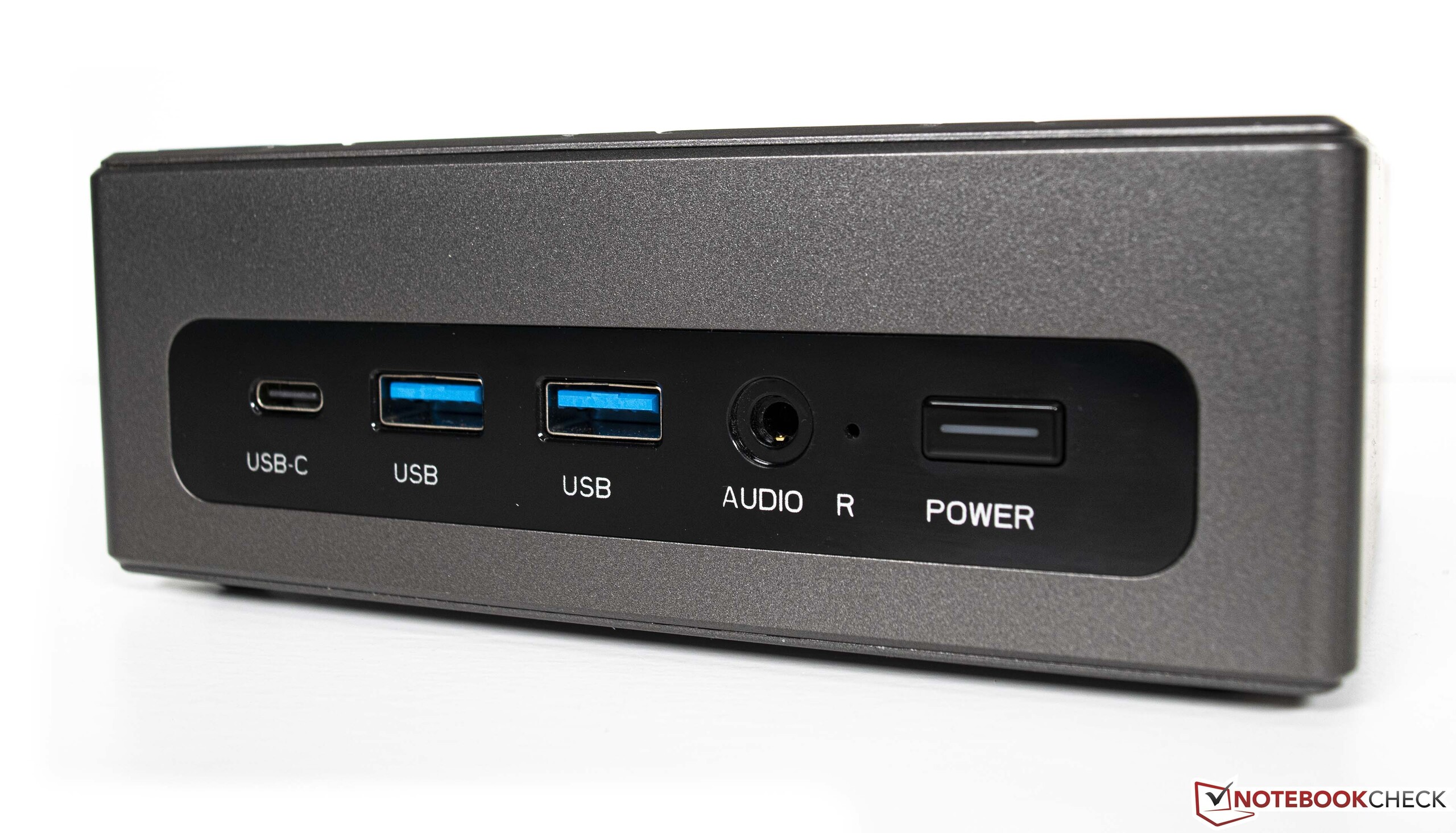

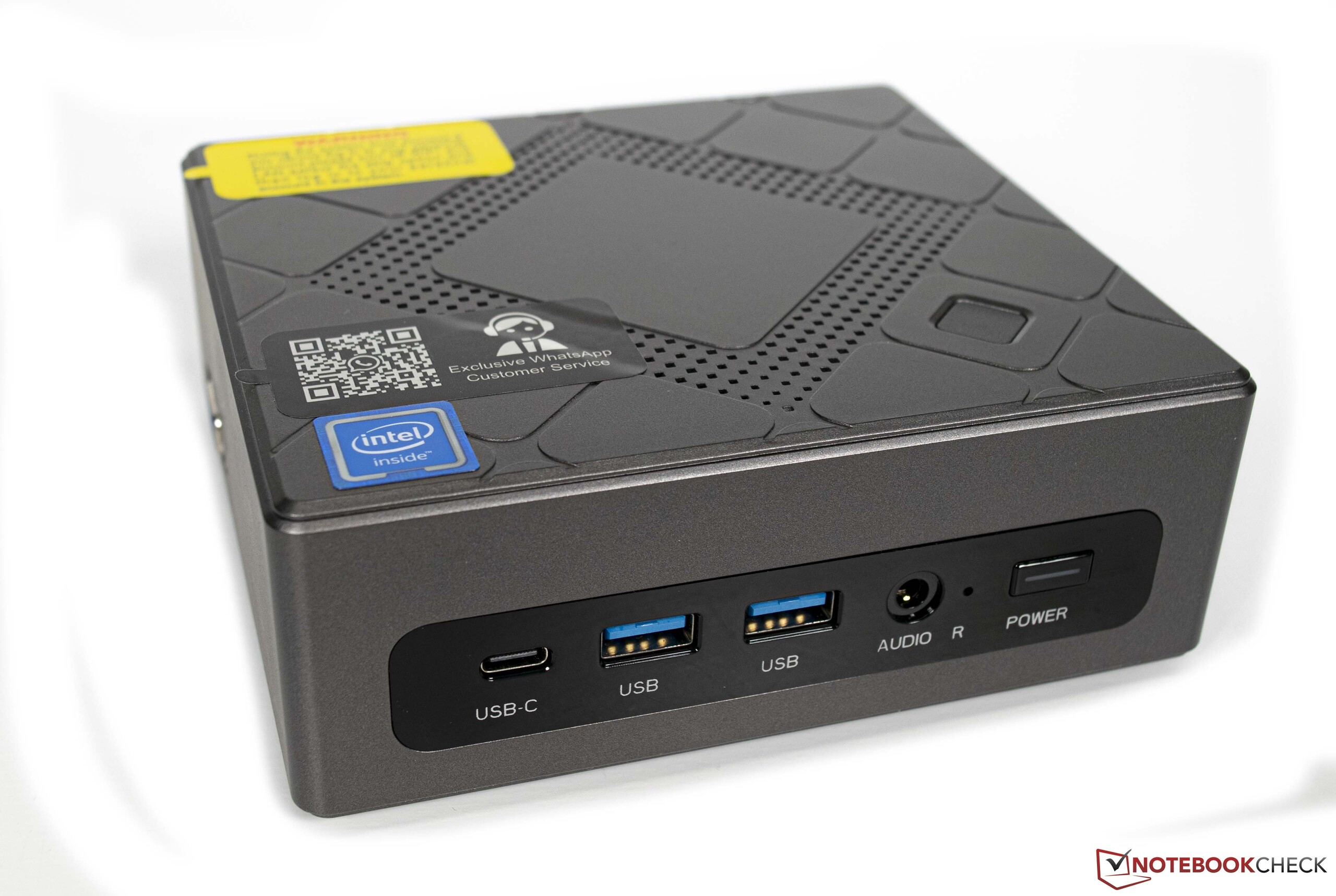

Voorkant: USB Type C (Data), 2x USB 3.0, 3,5-mm audio-aansluiting, aan/uit-knop

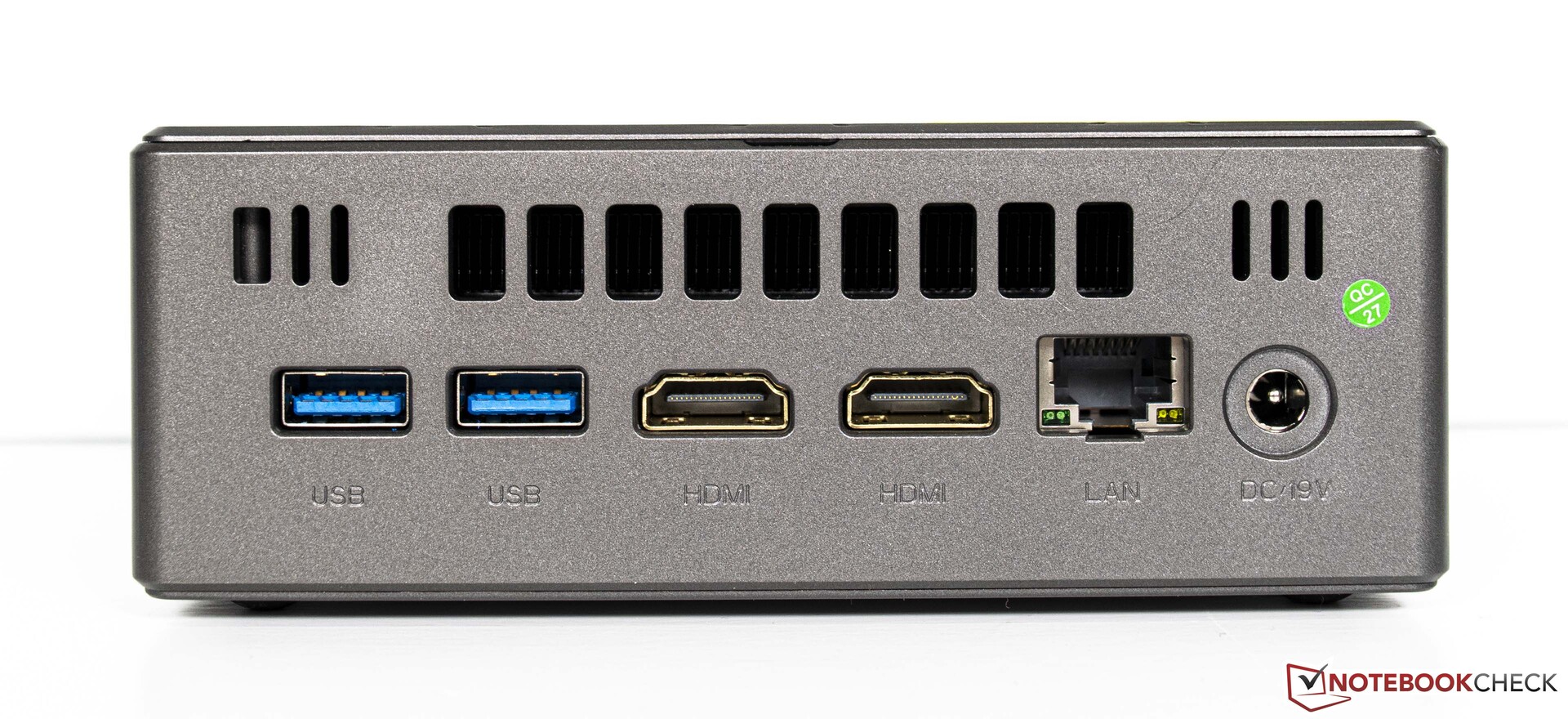

Achterkant: 2x USB 3.0, 2x HDMI, GBit LAN, netaansluiting

Communicatie

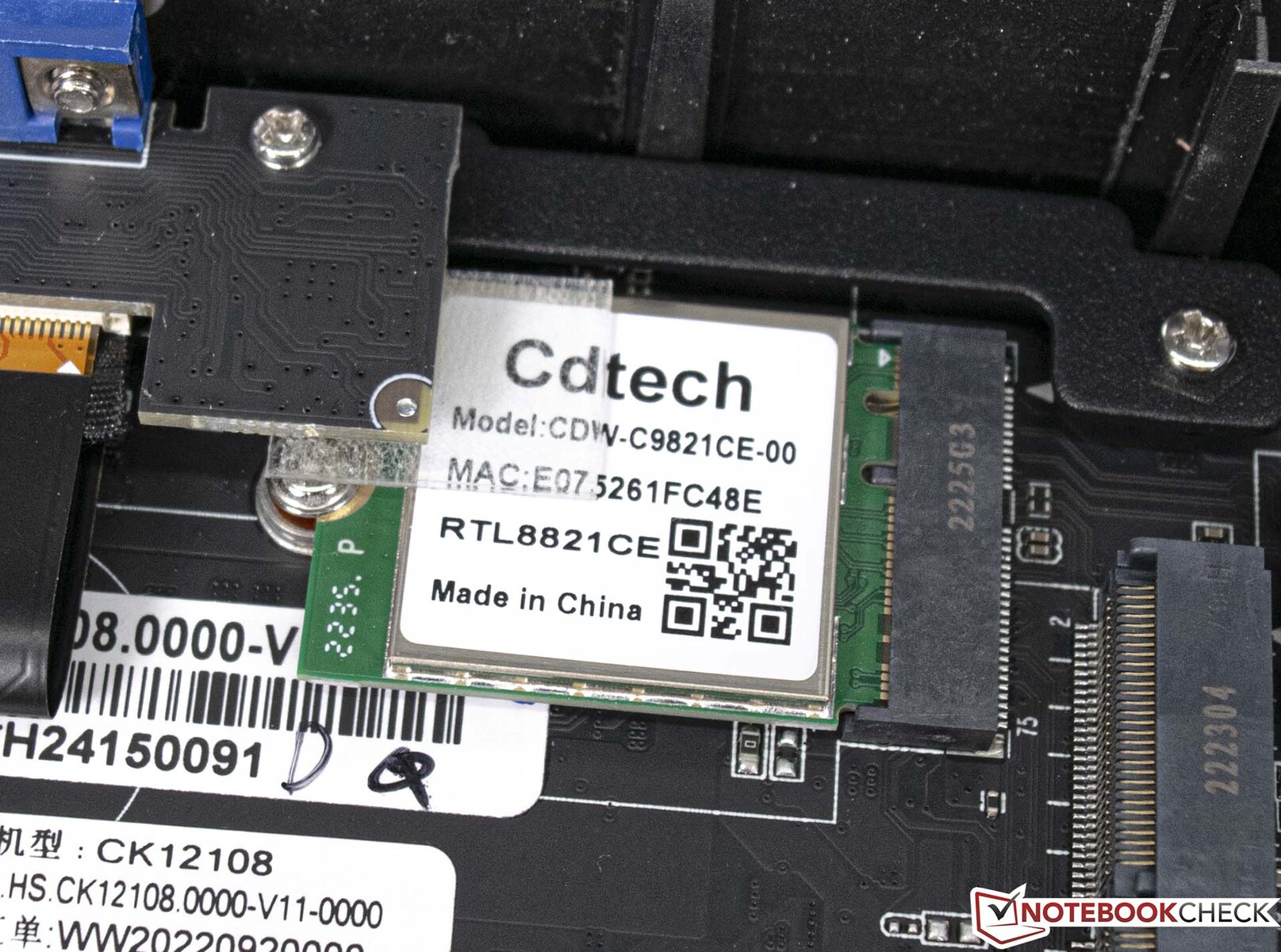

In de NiPoGi CK10 zit een Realtek Wi-Fi module verborgen. Tijdens het testen kon de draadloze module helaas geen overtuigende prestaties leveren in combinatie met onze testrouter, de Asus ROG Rapture GT-AXE11000. Met een aanzienlijke marge nam het testexemplaar de laatste plaats in onze vergelijkingstabel in. Gelukkig is een snellere internetverbinding tot 1 GBit/s mogelijk bij gebruik van een bekabelde verbinding.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +368%
Gemiddelde van klas Mini PC (192.9 - 1796, n=86, laatste 2 jaar)	897 MBit/s +365%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +102%
Gemiddeld RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s +40%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +152%
Gemiddelde van klas Mini PC (184.1 - 1776, n=86, laatste 2 jaar)	825 MBit/s +141%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s
Gemiddeld RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s -10%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

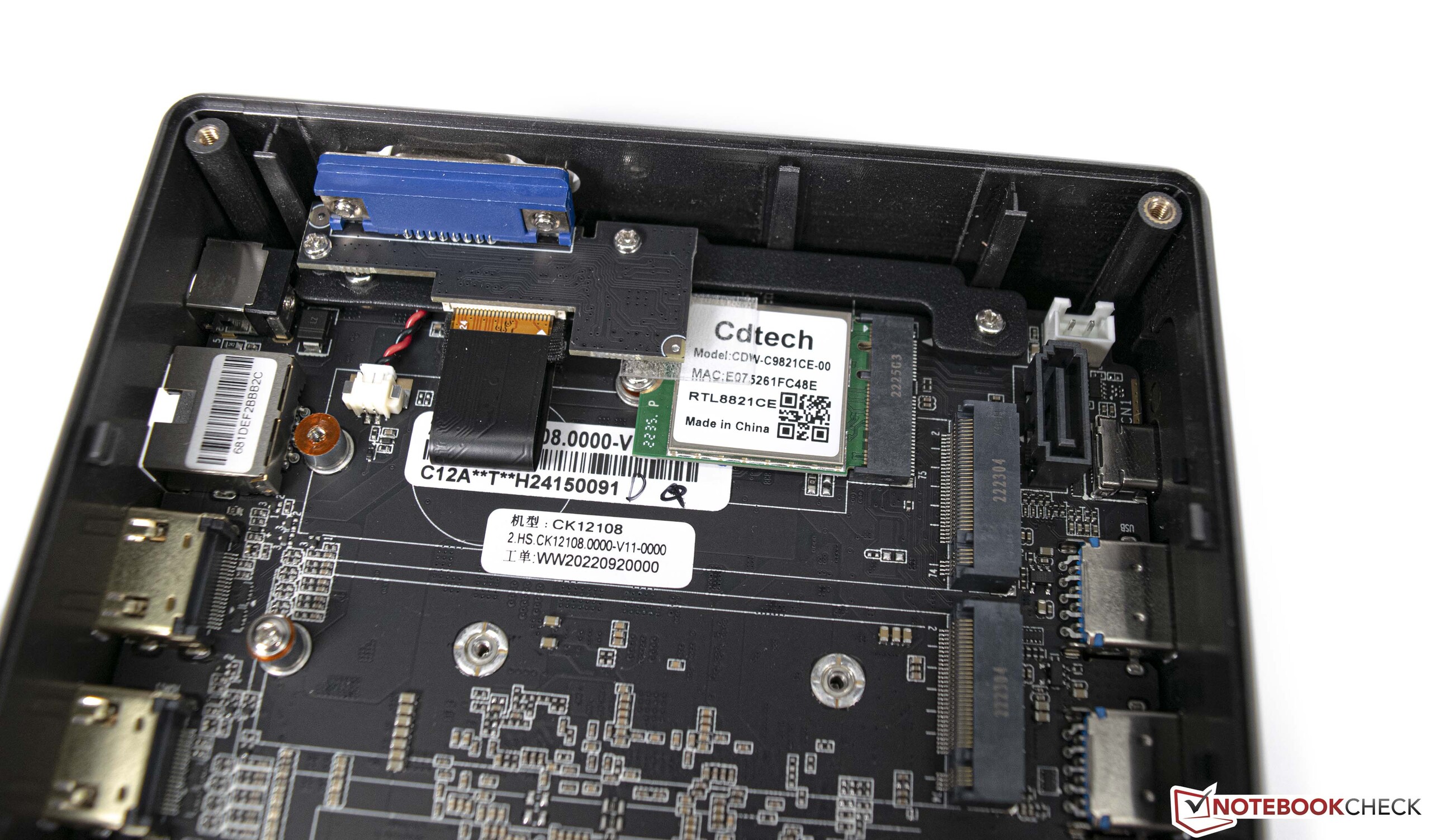

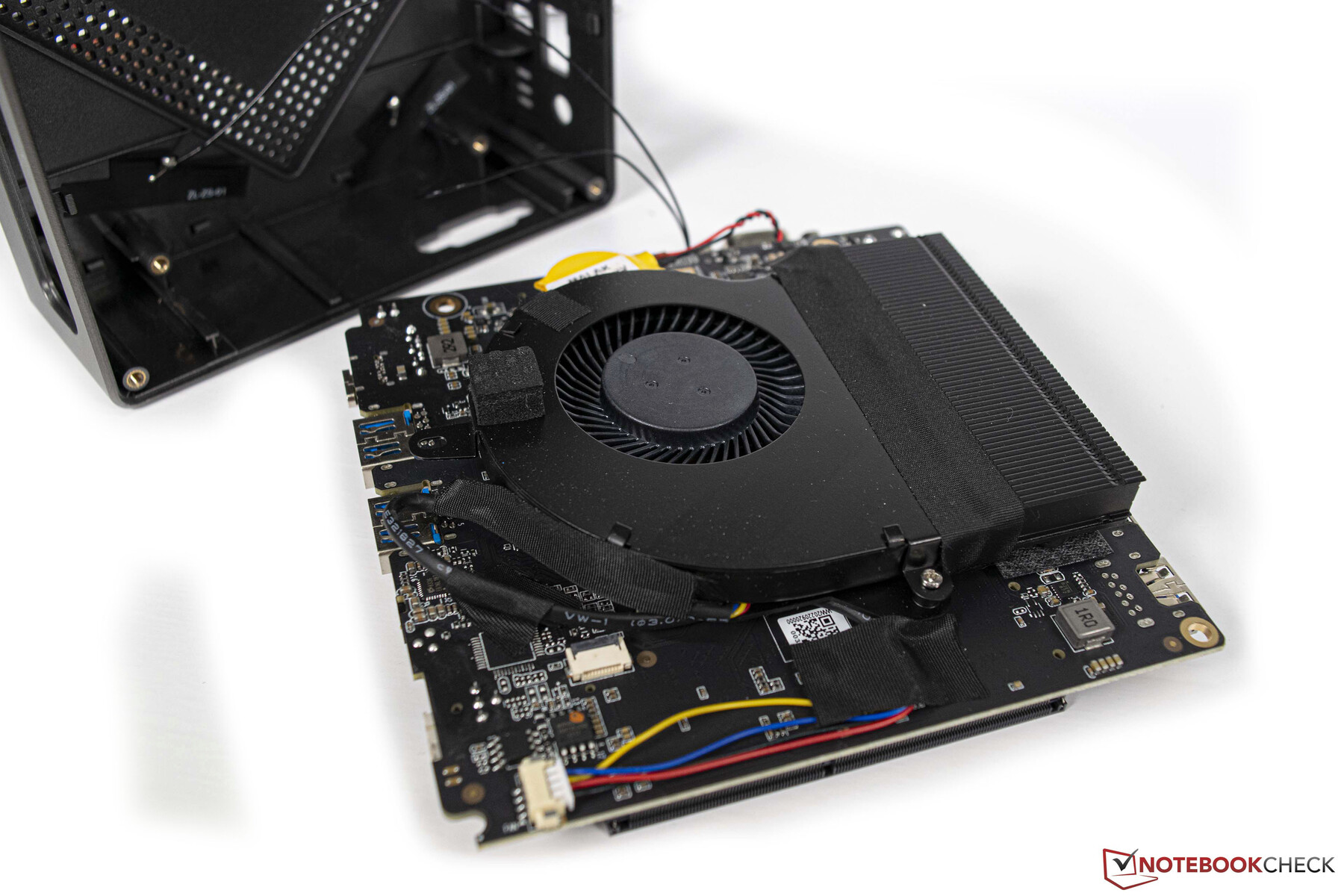

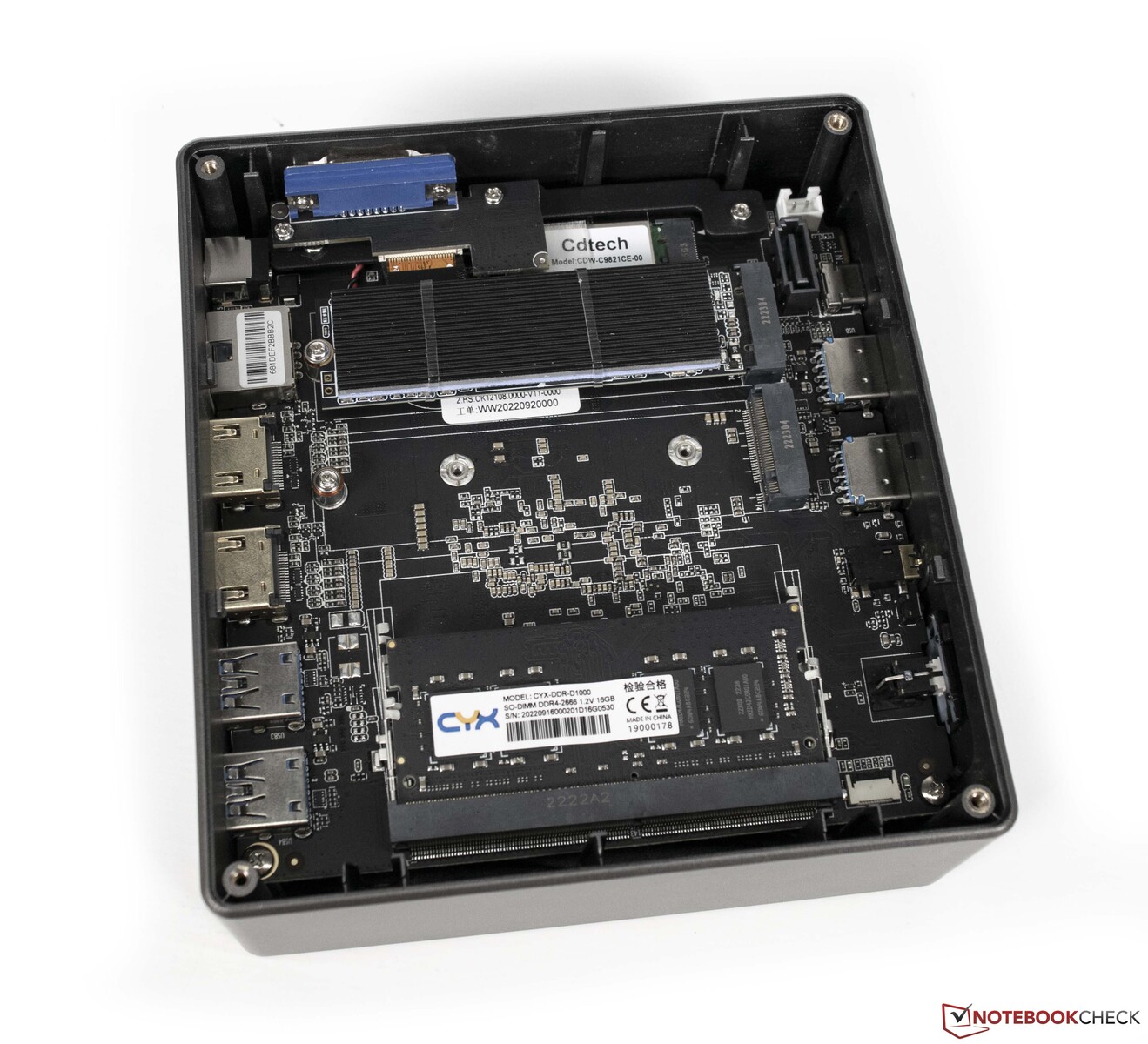

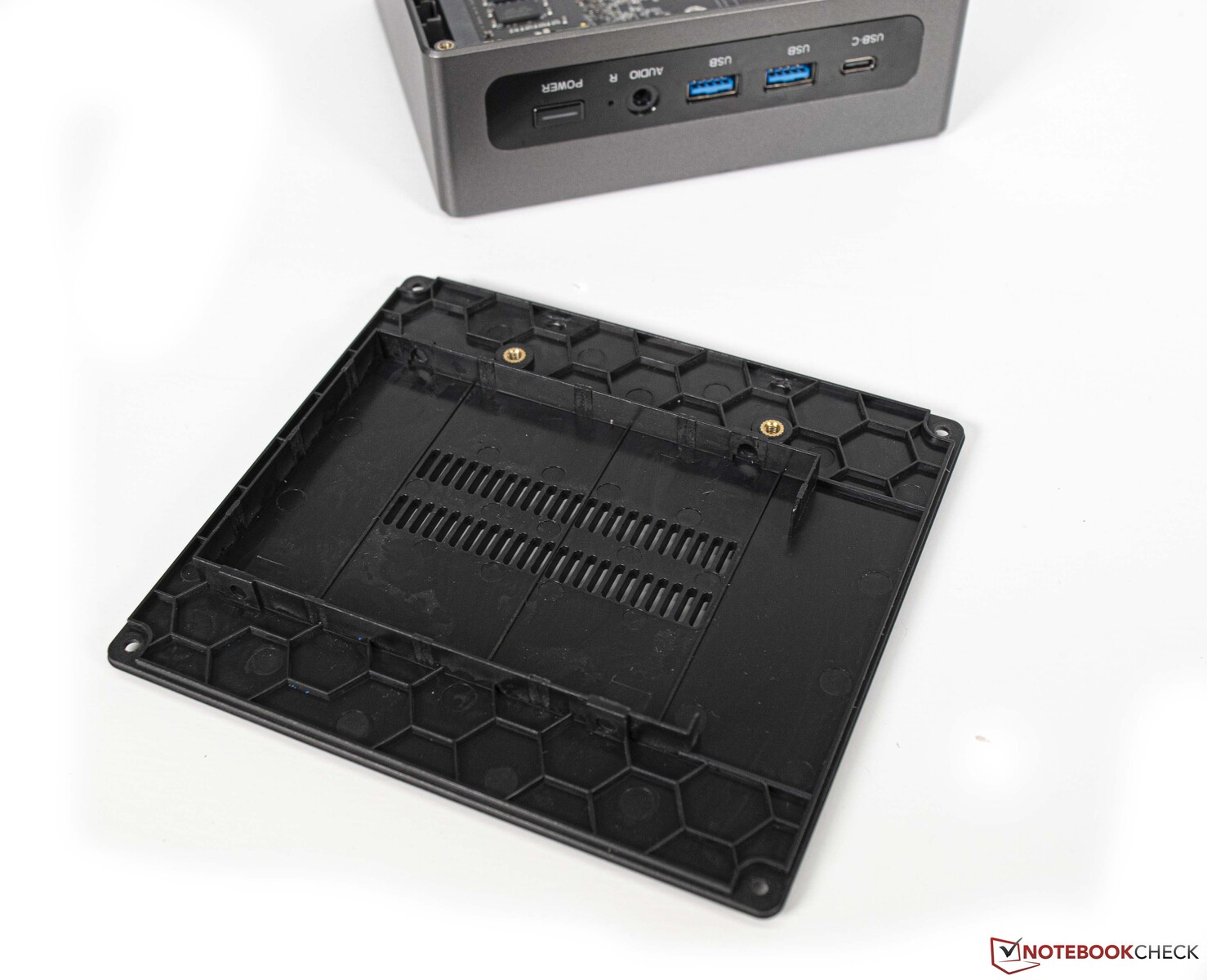

Onderhoud

Voorlopig is een upgrade niet nodig vanwege de solide basisconfiguratie. Mocht u toch toegang willen tot de ingebouwde componenten, dan kan dat eenvoudig, aangezien slechts vier kleine schroeven moeten worden losgedraaid om de bodemplaat te verwijderen. Een extra slot voor een extra SO DIMM-module en twee extra massaopslagapparaten konden worden ondergebracht in ons testexemplaar. Als u de ventilator wilt schoonmaken, is verdere demontage nodig zonder dat dit bijzonder problematisch is.

Prestaties

Op basisniveau is de Intel Core i7-10810U geschikt voor kantoortoepassingen en lichte, multi-thread werklasten die efficiënt worden verwerkt dankzij de 12 threads. Helaas heeft de fabrikant een deel van de prestaties verkwanseld door slechts één RAM-module te installeren. Hetzelfde geldt voor de ingebouwde SSD die alleen over SATA snelheid beschikt.

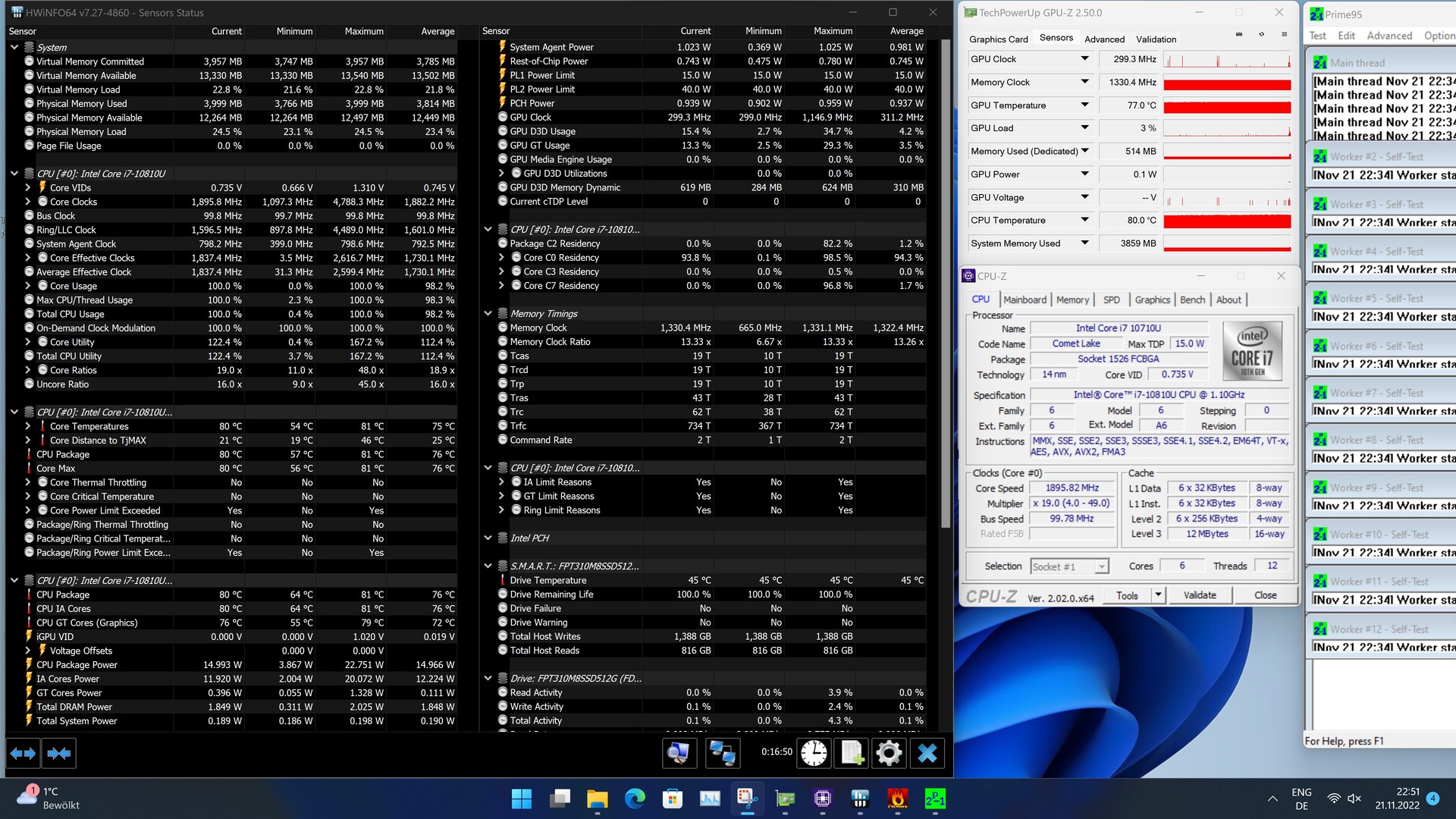

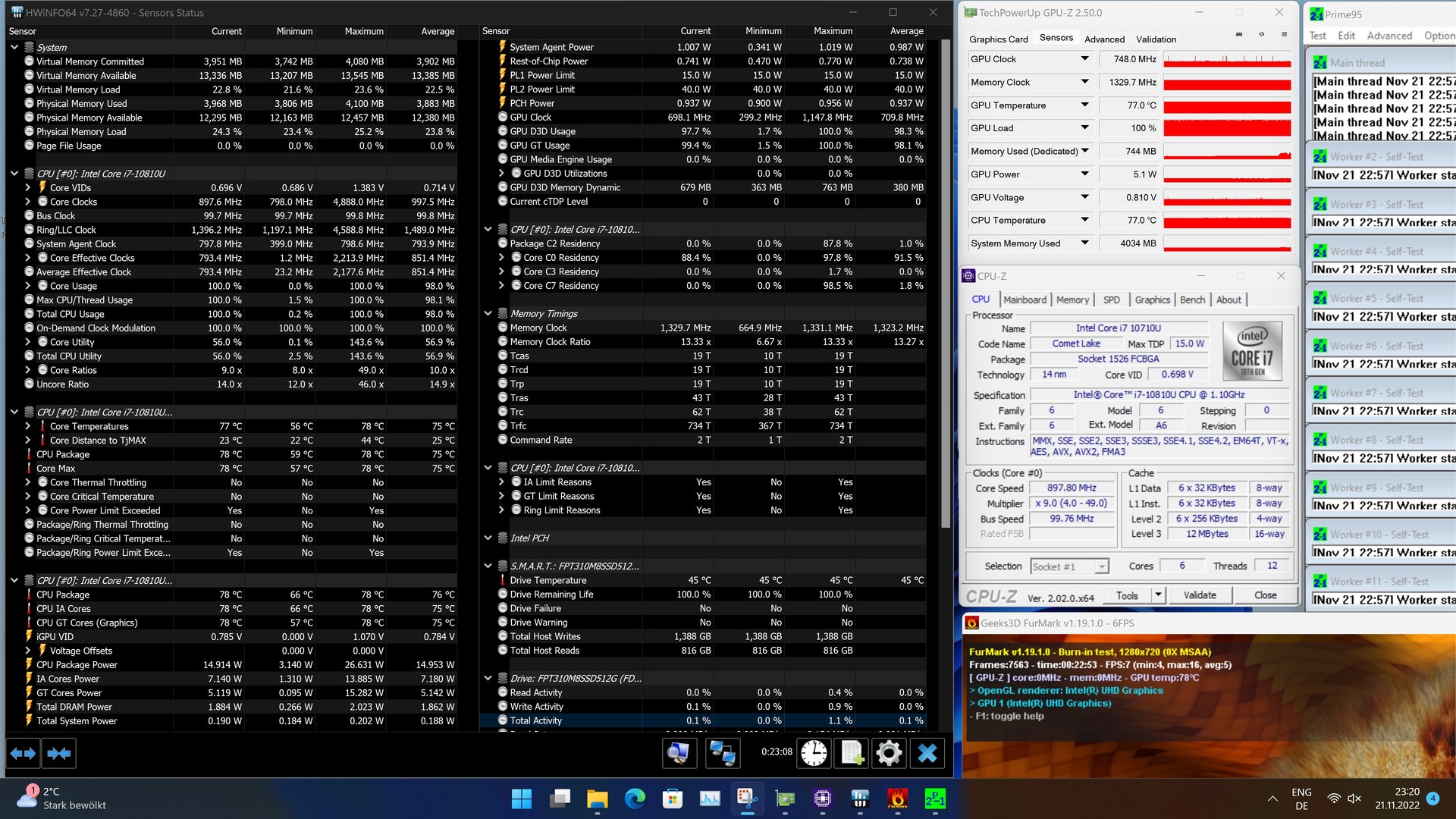

Testomstandigheden

Alle prestatietests werden uitgevoerd met fabrieksinstellingen. We hebben geen wijzigingen aangebracht aan de vermogensgrenzen van de SoC. Het BIOS staat echter toe dat deze waarden worden gewijzigd.

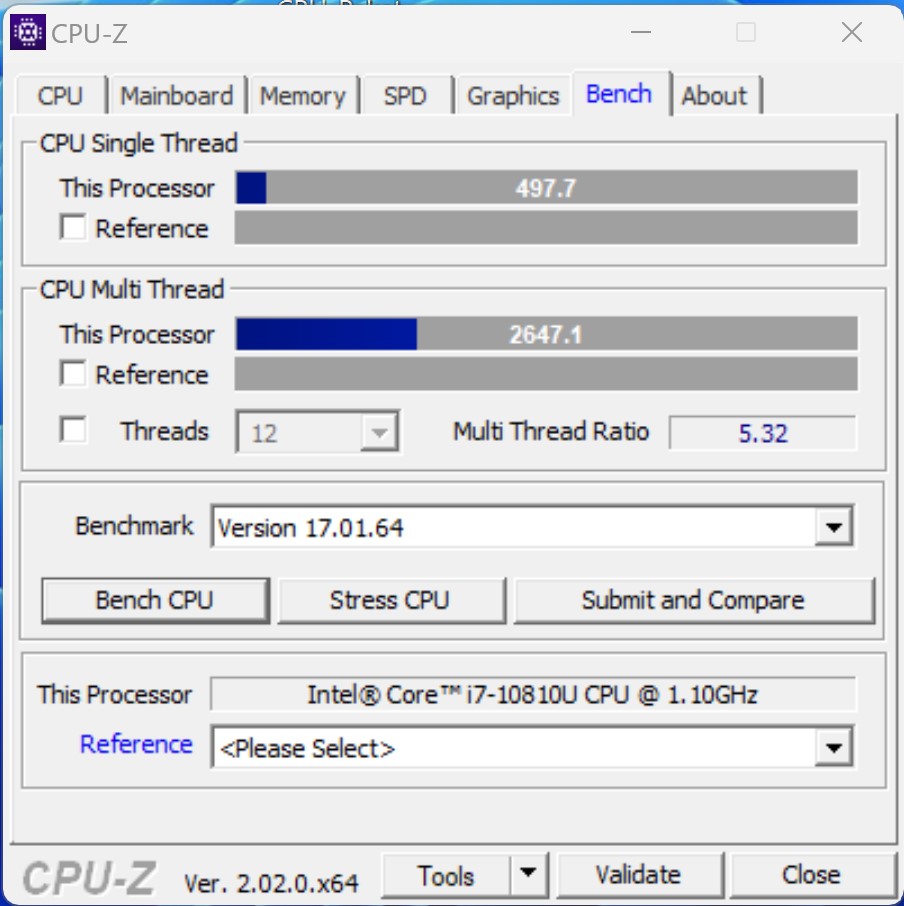

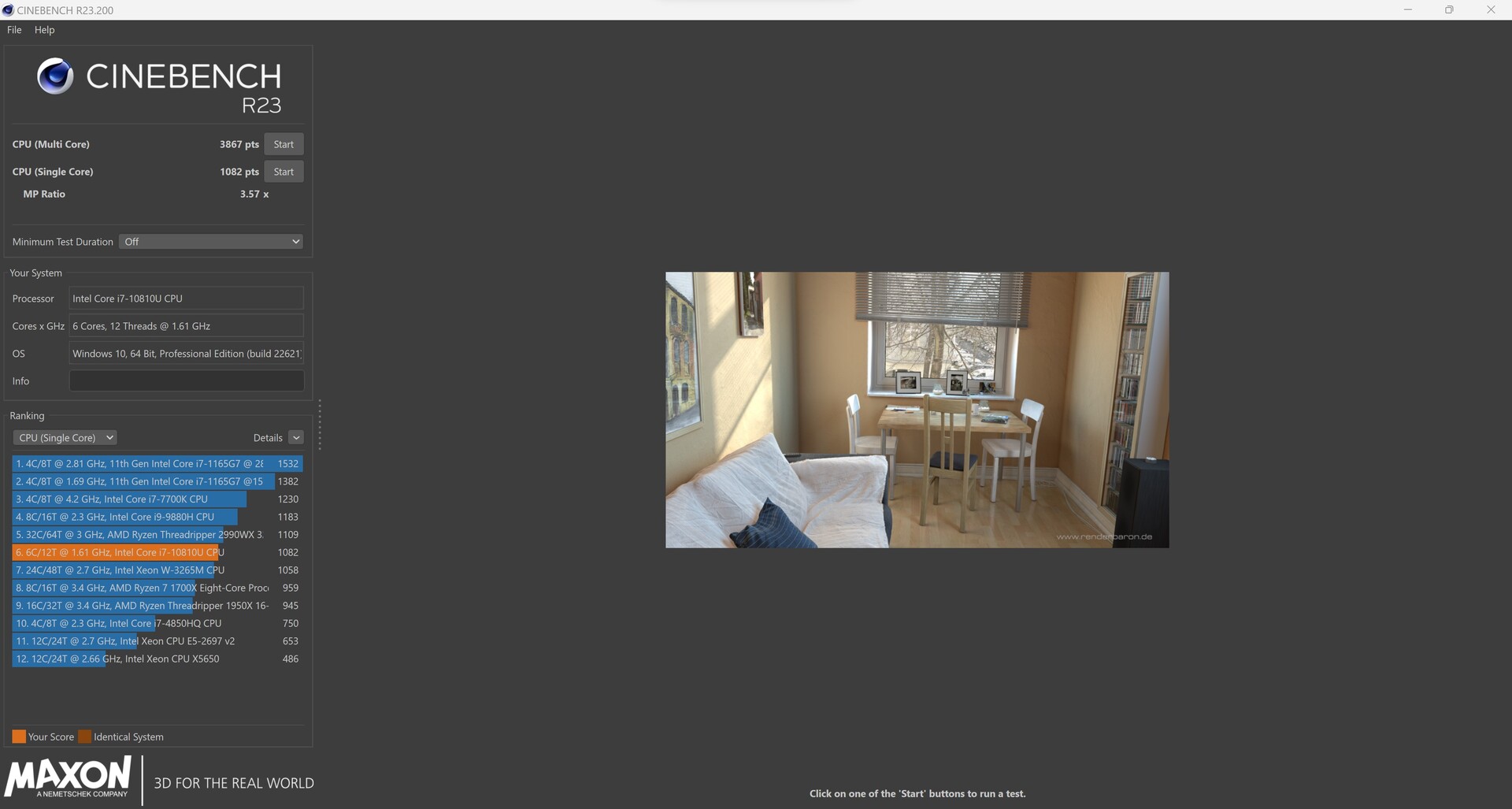

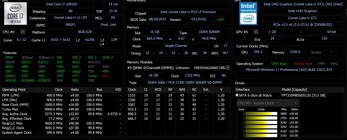

Processor

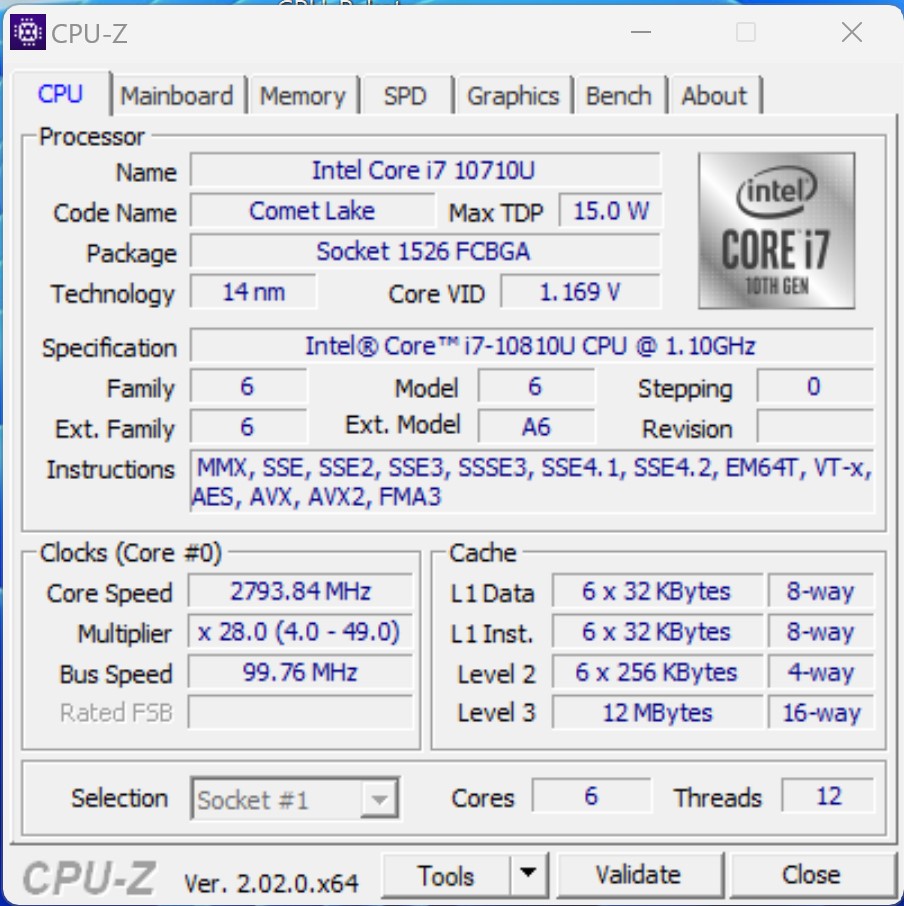

De Intel Core i7-10810U behoort tot de Comet Lake serie en biedt zes rekenkernen met Hyper-Threading voor een totaal van 12 threads. Het stroomverbruik is beperkt tot 40 watt (korte termijn vermogenslimiet) en 15 watt (lange termijn vermogenslimiet), waarbij de fabrikant op dit gebied zeer conservatief te werk gaat. Het koelsysteem heeft nog steeds de reserves om meer prestaties uit de SoC te persen. Dit betekent dat de NiPoGi CK10 moeite heeft om de concurrentie bij te houden. Alleen de Ace Magician TK11-A0 komt in de buurt en kan in veel multi-thread benchmarks worden verslagen. De verouderende Intel Core i7-10810U worstelt in vergelijking met concurrenten met native 8 cores

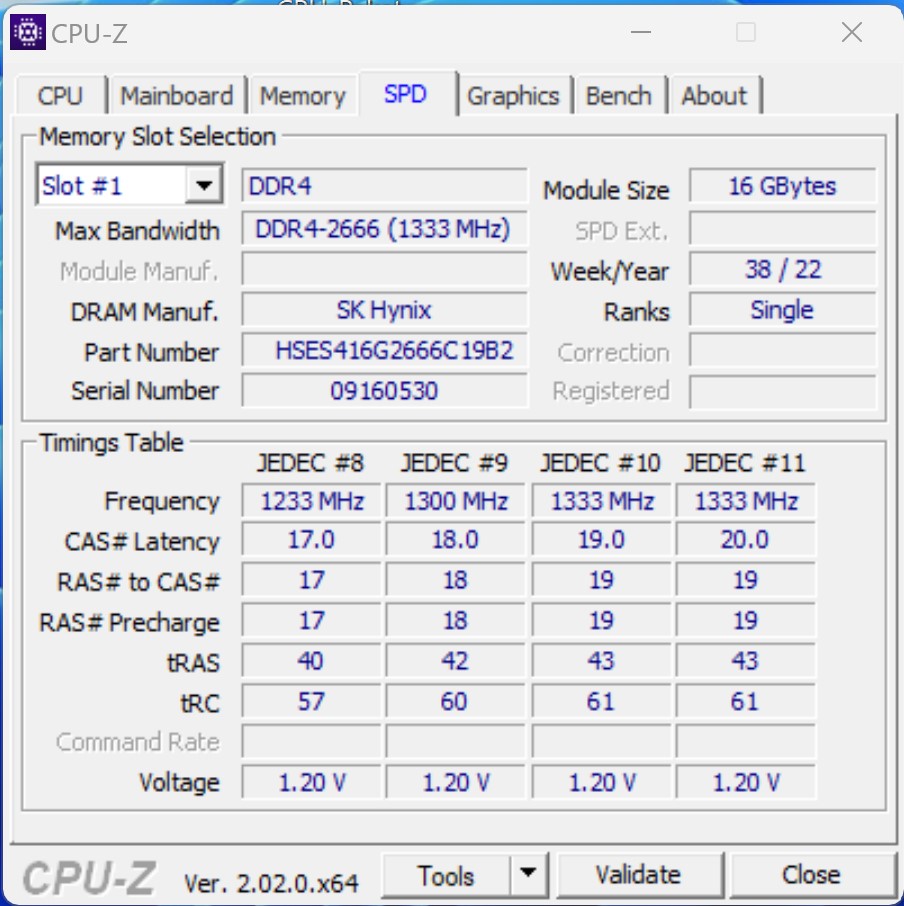

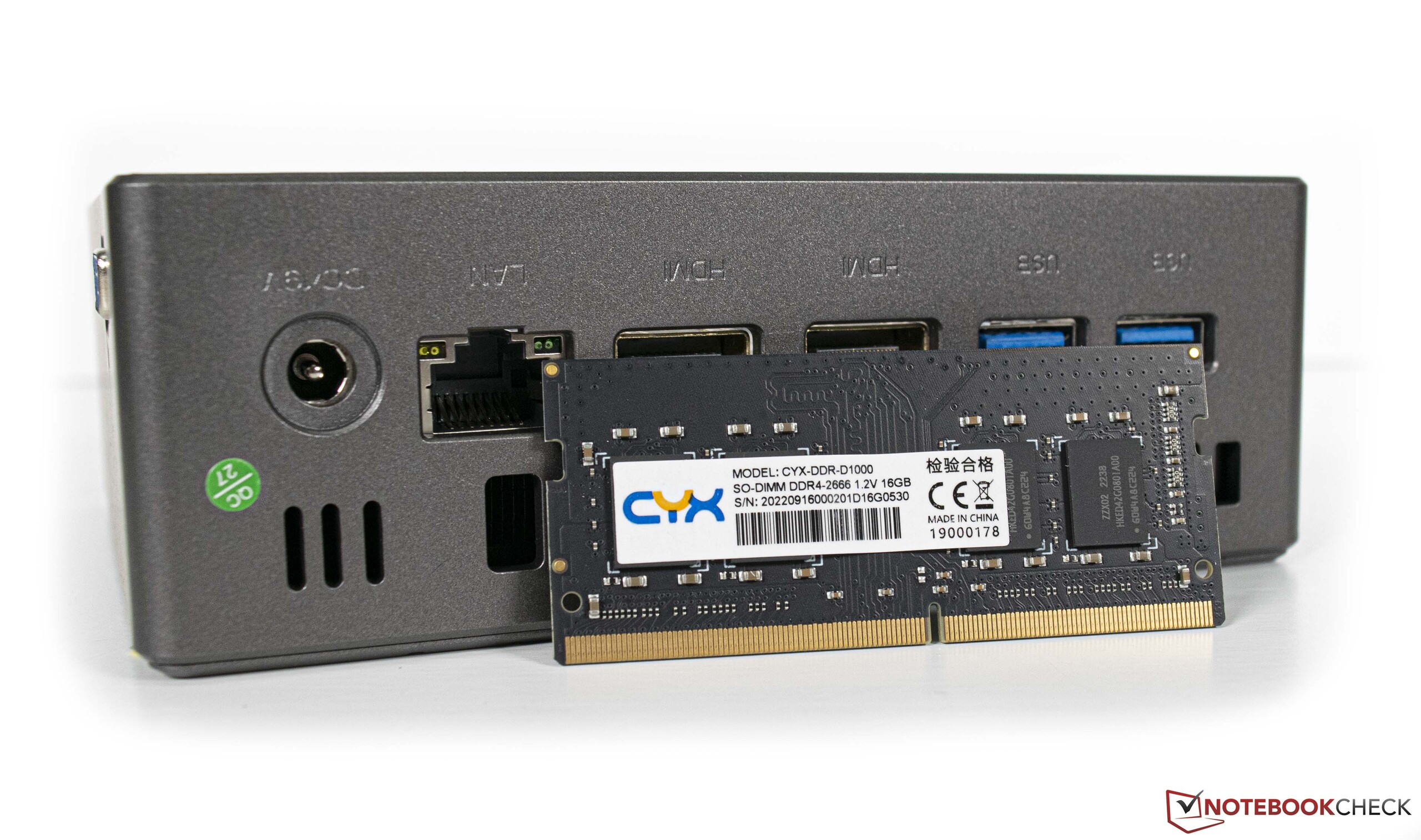

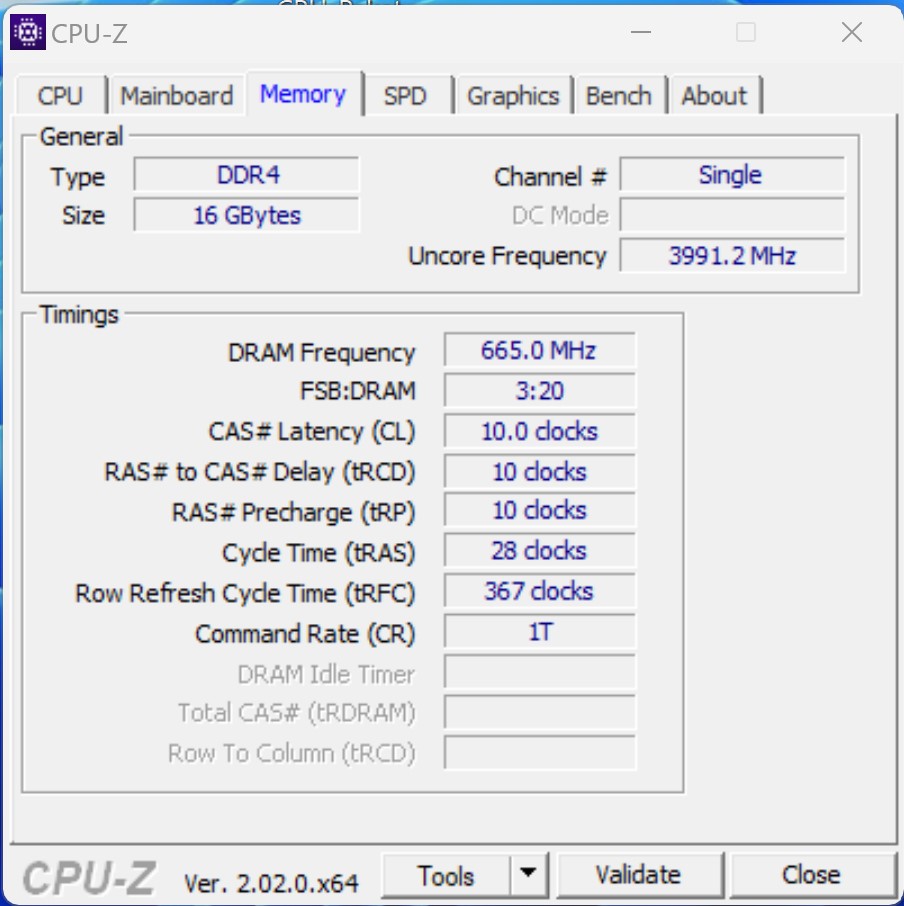

In geheugenbenchmarks is de enkele, ingebouwde RAM-module fataal voor de NiPoGi CK10. Dual channel mode kan alleen gebruikt worden met twee RAM modules en is iets waar het hele systeem baat bij zou hebben

U kunt extra processorbenchmarks vinden hier.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	42 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt
Gemiddeld Intel Core i7-10810U	34.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.5 pt

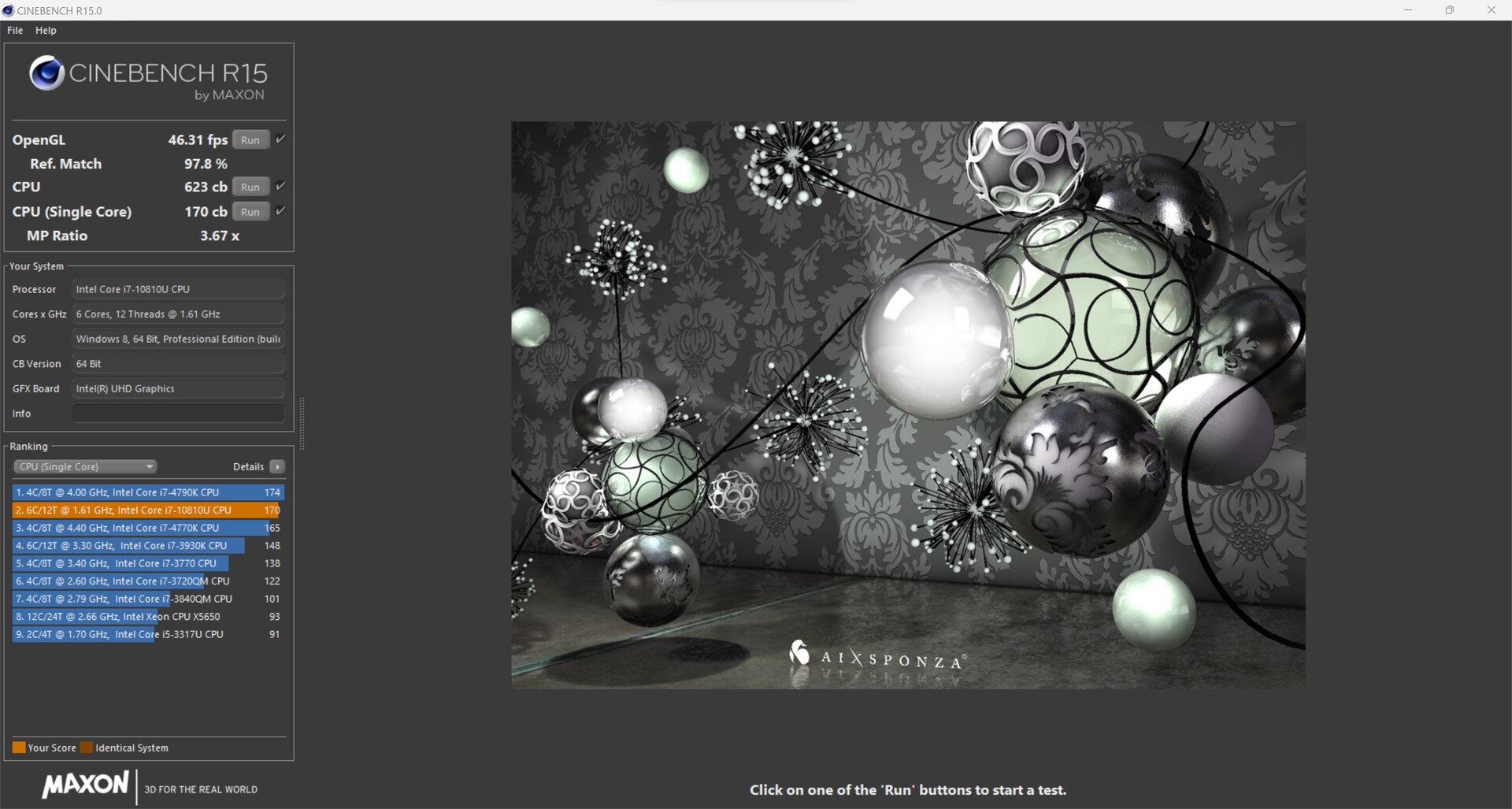

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points +14%
Gemiddeld Intel Core i7-10810U (161 - 183, n=5)	175.6 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +52%
Gemiddeld Intel Core i7-10810U (623 - 1064, n=4)	799 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -10%

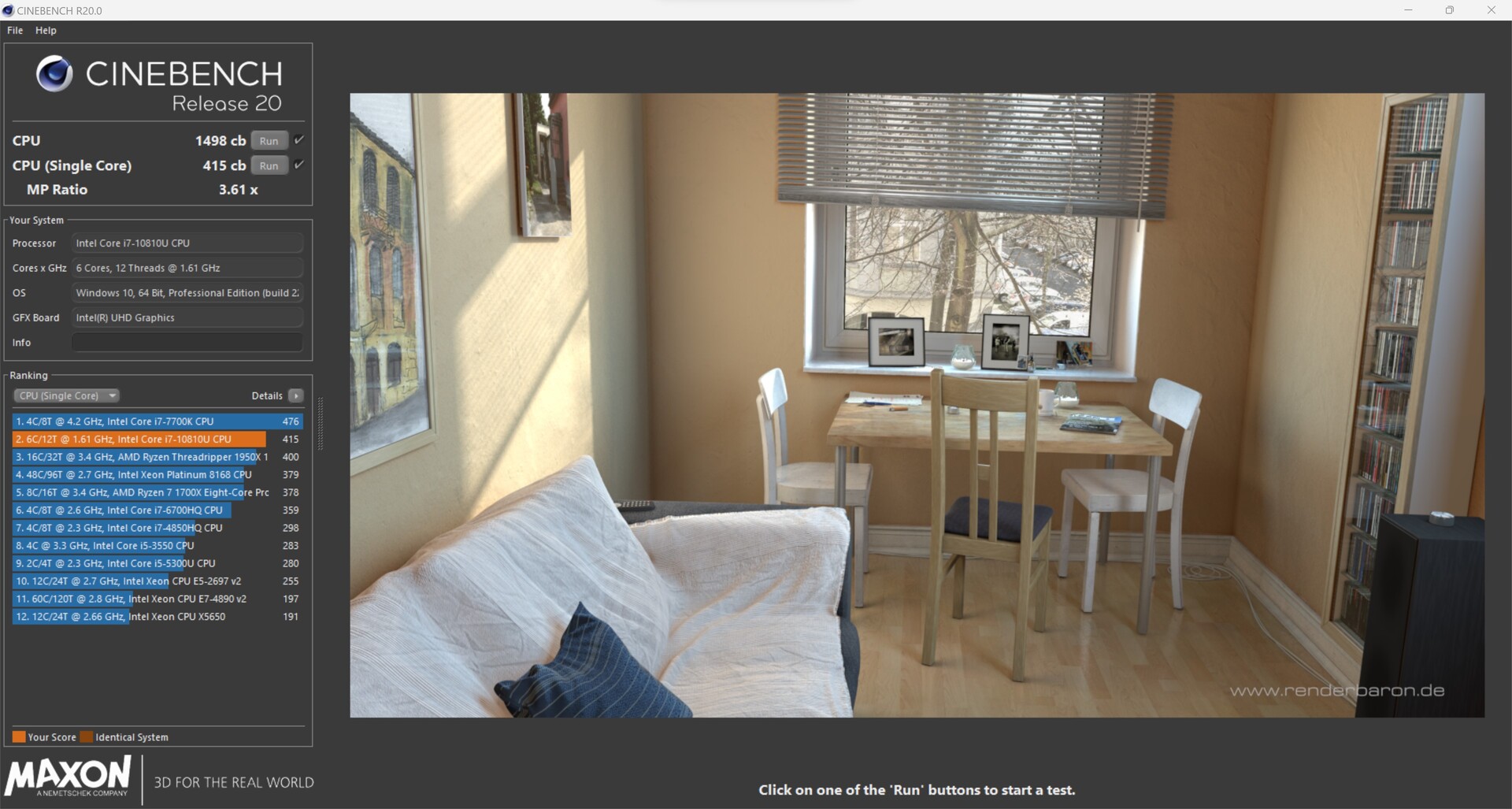

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points +22%
Gemiddeld Intel Core i7-10810U (396 - 447, n=5)	425 Points +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +55%
Gemiddeld Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points
Gemiddeld Intel Core i7-10810U ()	1.95 Points 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points
Gemiddeld Intel Core i7-10810U ()	6.98 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points
Gemiddeld Intel Core i7-10810U ()	8591 Points 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points
Gemiddeld Intel Core i7-10810U ()	23491 Points 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds *
Gemiddeld Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +2%
Gemiddeld Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s *
Gemiddeld Intel Core i7-10810U (205 - 267, n=2)	236 s * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps +17%
Gemiddeld Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +94%
Gemiddeld Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +15%
Gemiddeld Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s
Gemiddeld Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s
Gemiddeld Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +24%
Gemiddeld Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -21%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +25%
Gemiddeld Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +14%
Gemiddeld Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +43%
Gemiddeld Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points +1%
Gemiddeld Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points +11%
Gemiddeld Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Gemiddeld Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +78%
Gemiddeld Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +33%
Gemiddeld Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS
Gemiddeld Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +51%
Gemiddeld Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec *
Gemiddeld Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s *
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * +3%
Gemiddeld Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +29%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points
Gemiddeld Intel Core i7-10810U (202 - 207, n=5)	205 Points 0%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms *
Gemiddeld Intel Core i7-10810U (853 - 968, n=5)	901 ms * +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +63%
Gemiddeld Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +53%
Gemiddeld Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +91%
Gemiddeld Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points

* ... kleiner is beter

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s

NiPoGi CK10 Cinebench R15 multi-loop

De Cinebench R15 continue loop toonde aan dat het ingebouwde koelsysteem niet echt zijn werk heeft met de Intel Core i7-10810U. De conservatieve tuning zorgt voor een zeer korte turbokloksnelheid, waardoor we slechts minimaal prestatieverlies waarnamen na de eerste run. Met een gemiddelde van 612 punten waren de prestaties uitzonderlijk stabiel gedurende alle 50 runs.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Systeemprestaties

Benchmarks benadrukken dat de SoC al meer dan twee jaar oud is. Subjectief gezien zijn de prestatiebeperkingen van het systeem merkbaar door de relatief trage SSD en het RAM, dat alleen in eenkanaalswerking werkt. Soms kunnen kleine vertragingen worden waargenomen bij het openen van programma's. Daarnaast hebben de ondergemiddelde Wi-Fi-prestaties ook geen gunstig effect op workflows.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +156%
Gemiddelde van klas Mini PC (6481 - 70620, n=98, laatste 2 jaar)	42914 MB/s +126%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +121%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s +67%
Gemiddeld Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +123%
Gemiddelde van klas Mini PC (6914 - 71285, n=98, laatste 2 jaar)	43571 MB/s +122%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +119%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s +94%
Gemiddeld Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +175%
Gemiddelde van klas Mini PC (6862 - 89318, n=98, laatste 2 jaar)	46636 MB/s +155%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s +92%
Gemiddeld Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -50%
Gemiddelde van klas Mini PC (44.9 - 154.6, n=98, laatste 2 jaar)	87.8 ns * -46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -32%
Gemiddeld Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns *

* ... kleiner is beter

DPC latenties

De NiPoGi CK10 heeft latentieproblemen bij het openen van meerdere tabbladen in Edge. De latentie is niet verslechterd tijdens het afspelen van 4K Youtube video's. De Intel Core i7-10810U's iGPU werkt op een belasting van ongeveer 35 procent bij het afspelen van een dergelijke video.

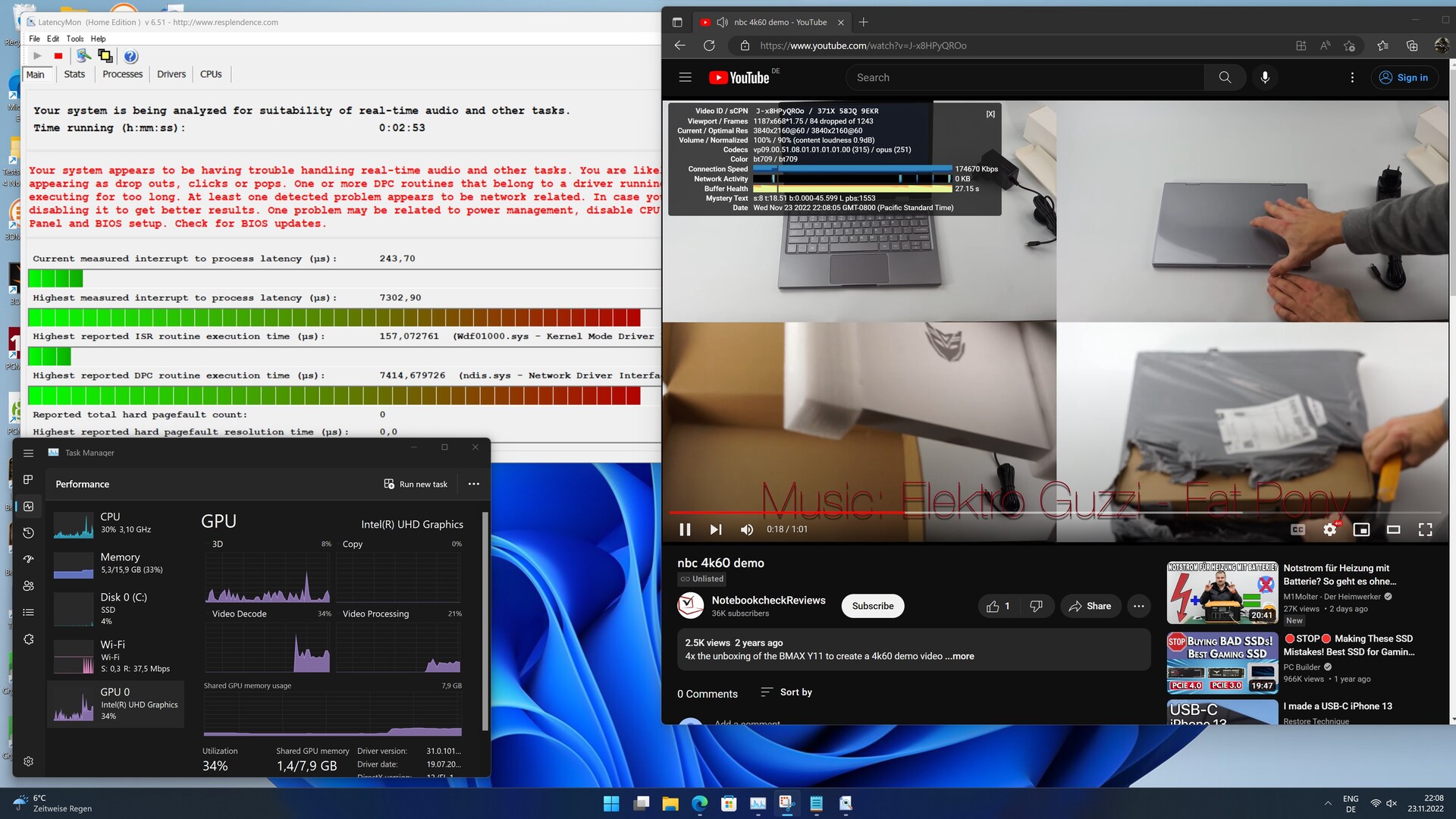

Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-videomateriaal

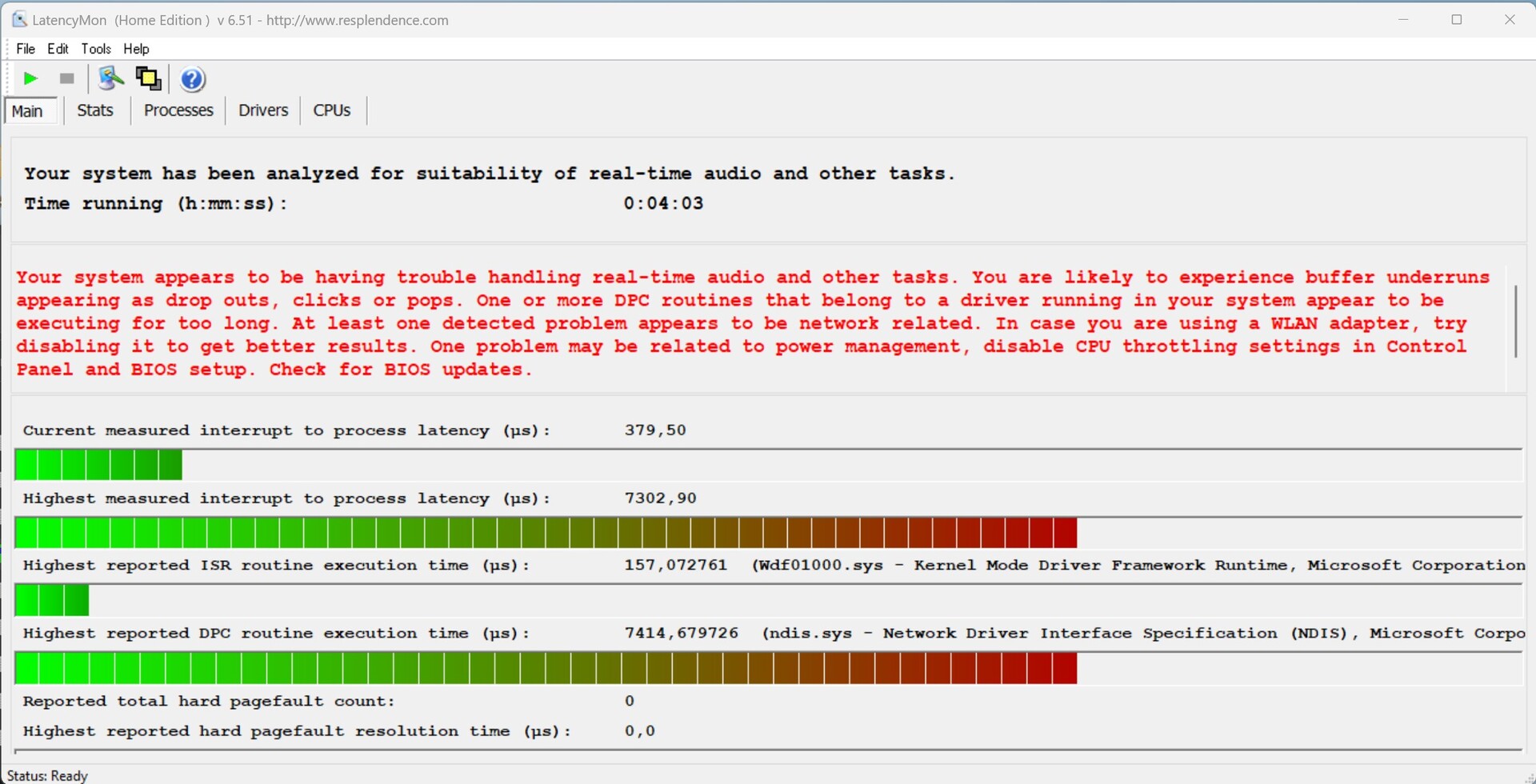

Maximale latentie na tien seconden Prime95

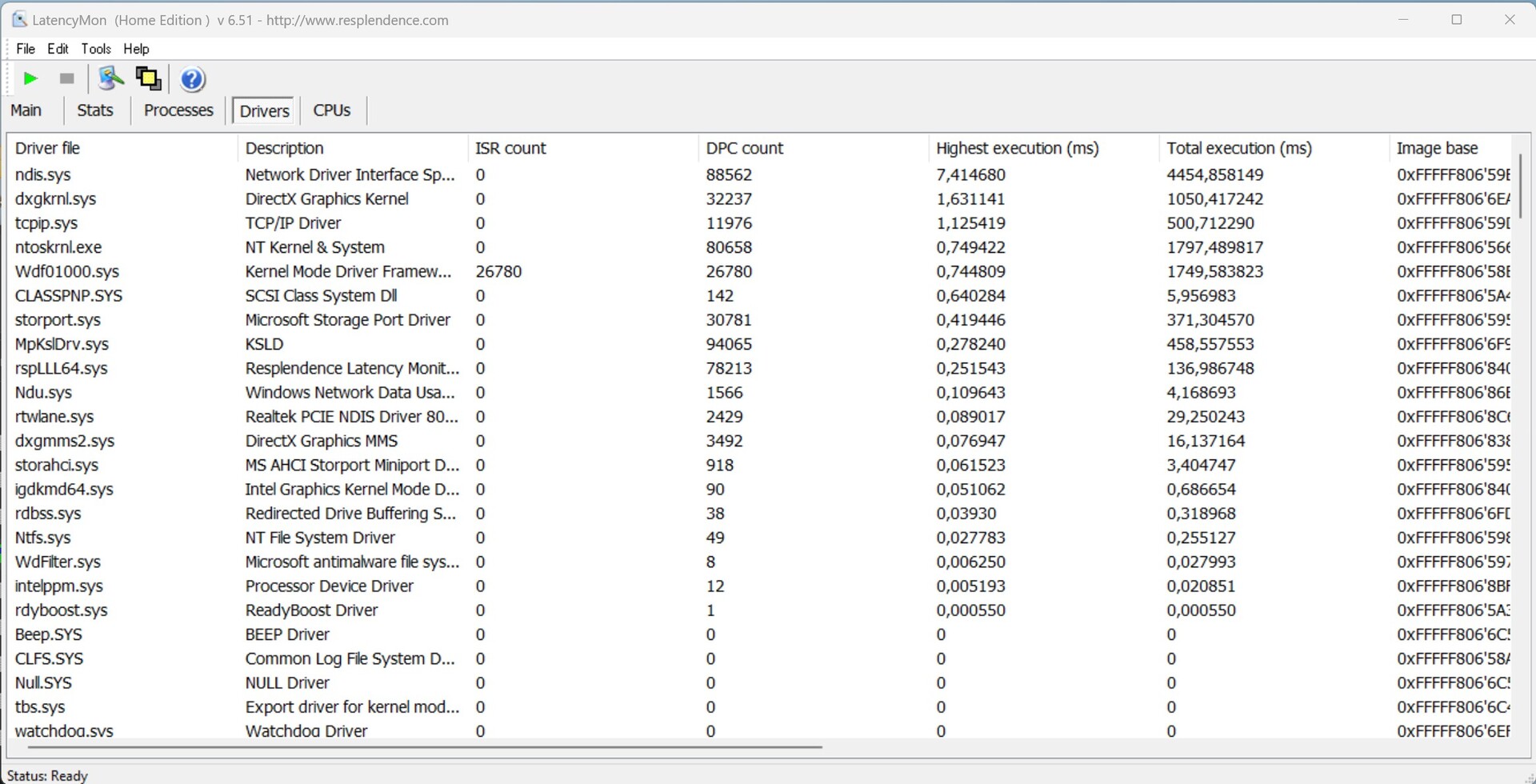

Drivers gerangschikt volgens hoogste latentie

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs *
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +95%

* ... kleiner is beter

Massa-opslag

De CK10 wordt aangedreven door een onbekende SSD met een opslagcapaciteit van 512 GB. Dit is een SATA-gebaseerde M.2 2280 SSD die duidelijk te zien is in benchmarks. De nadelen zijn duidelijk in vergelijking met snellere alternatieven zoals NVMe SSD's. De 4K leesprestaties liggen echter op een goed niveau. De mini PC kan worden uitgerust met maximaal drie massaopslagapparaten (2x M.2 2280, 1x 2,5 inch).

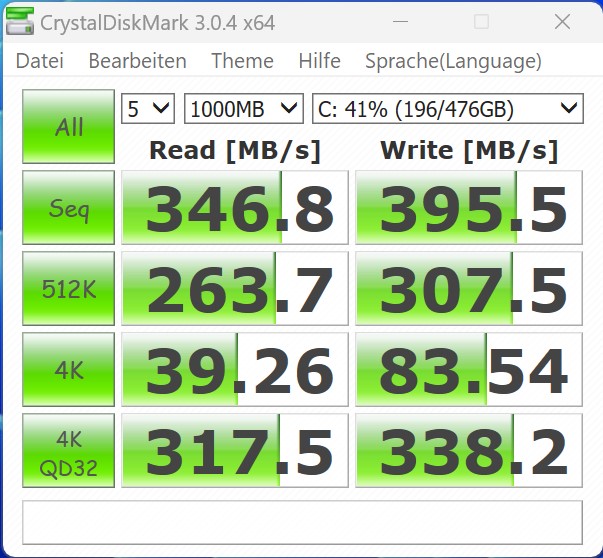

CrystalDiskMark 3.0

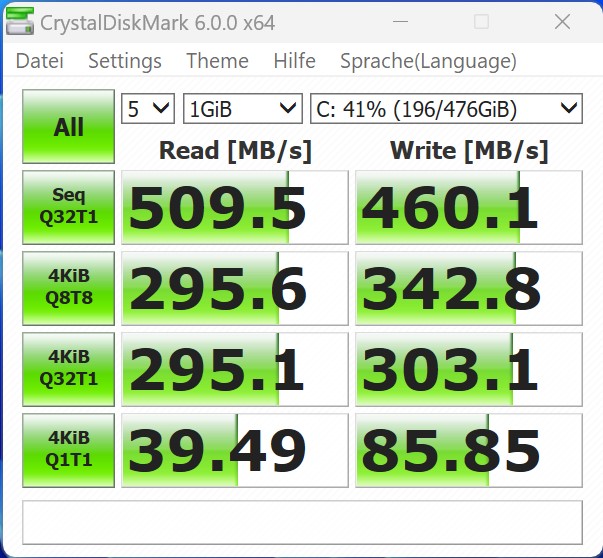

CrystalDiskMark 5.2 / 6

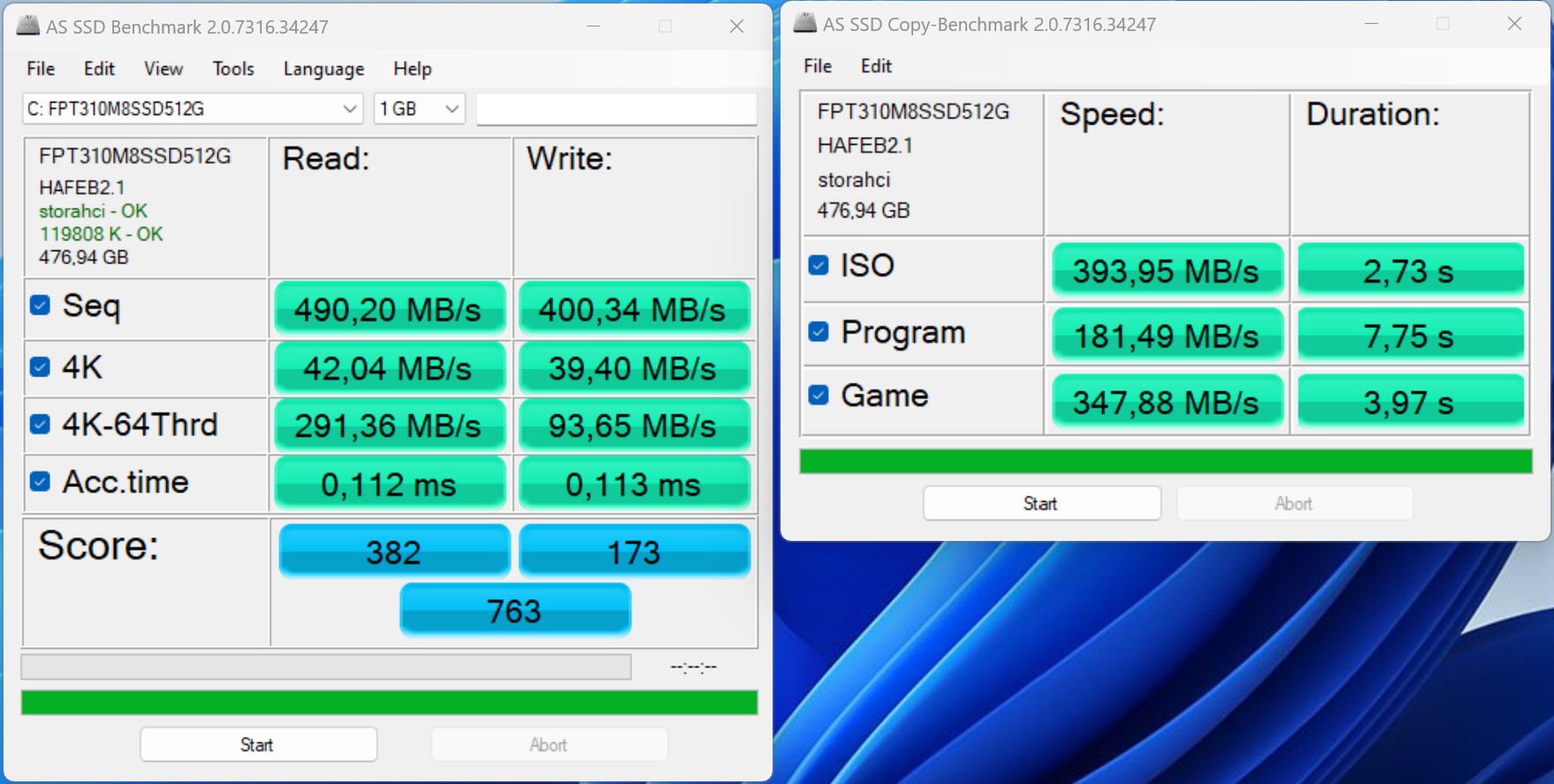

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +240%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +235%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +171%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +127%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s +99%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s
4k q32 t16 write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +214%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +197%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +183%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +171%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +135%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +100%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +1491%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +1441%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +1400%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +1139%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +1103%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +204%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +202%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +162%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +124%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +83%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points
Score Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +623%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +576%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +566%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +512%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +473%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points
Seq Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +370%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +361%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +350%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +318%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s +263%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +311%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +301%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +214%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +186%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s +132%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +38%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -34%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +370%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +287%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +266%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +263%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +208%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +206%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +203%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +144%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +113%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s
4K-64 Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +951%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +878%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +779%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +701%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +696%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -38%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * +6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +46%
Access Time Write
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms *
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +9%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +74%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +79%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Grafische

De Intel UHD Graphics 620 heeft moeite om zijn opvolgers bij te houden. Het vervolgmodel - de Intel Iris Xe Graphics - is in staat om te concurreren met AMD's Radeon RX Vega 8. De 3D-prestaties zouden verbeteren als het apparaat werd uitgerust met een tweede DDR4 RAM-module. Als referentiepunt hebben we de HP EliteBook x360 1040 G7 in de vergelijkingstabel.

Aanvullende benchmarks vindt u hier.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.4 pt
Gemiddeld Intel Iris Xe Graphics G7 96EUs	89.7 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	86.6 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.5 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	77.2 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.5 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	73.3 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	72.1 pt
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	30.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +329%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +293%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points +282%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +280%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +248%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +238%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points +235%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +235%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1959 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +303%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +254%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=172)	26334 Points +223%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +221%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +221%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +191%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +189%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +150%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	11437 Points +40%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points
1920x1080 Fire Strike Graphics
Gemiddeld Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points +355%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +339%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +305%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +250%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +246%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +233%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points +217%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points +213%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1444 Points +34%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	93 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	91.1 pt
Gemiddeld Intel Iris Xe Graphics G7 96EUs	90.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	78.8 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	78.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	74.9 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	73.6 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	69.8 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +330%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=17)	22.7 fps +320%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +263%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +228%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +220%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps +176%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps +150%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +309%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=17)	23.3 fps +309%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +275%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +216%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +211%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps +195%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps +170%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +282%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=15)	14.7 fps +277%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +264%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +197%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +195%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +190%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps +172%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Gemiddeld Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=15)	16.5 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +361%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +327%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	3499 Points +289%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points +289%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +280%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (2693 - 3797, n=21)	3359 Points +274%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +259%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +200%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points
1024x600 Normal, Fluid 3DTex
Gemiddeld Intel Iris Xe Graphics G7 96EUs (186 - 420, n=21)	308 Points +258%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +256%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +221%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	235 Points +173%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +173%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points +173%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +160%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +116%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points
1024x600 Normal, Fluid 2DTexArr
Gemiddeld Intel Iris Xe Graphics G7 96EUs (204 - 389, n=21)	299 Points +256%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +248%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +224%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	231 Points +175%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points +175%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points +162%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +152%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +143%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +623%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +588%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1066 Points +502%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +502%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +455%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (558 - 911, n=21)	773 Points +337%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +331%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +215%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +458%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1047 Points +424%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	964 Points +382%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +382%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +353%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +327%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (747 - 888, n=21)	829 Points +315%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +276%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +242%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +241%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (936 - 1303, n=21)	1149 Points +226%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +219%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1002 Points +185%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points +185%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +182%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points

3DMark 05 Standard		16972 punten
3DMark 06 Standard Score		11379 punten
3DMark Vantage P Result		6899 punten
3DMark 11 Performance		1848 punten
3DMark Ice Storm Standard Score		51368 punten
3DMark Cloud Gate Standard Score		7637 punten
3DMark Fire Strike Score		1004 punten
3DMark Fire Strike Extreme Score		474 punten
3DMark Time Spy Score		419 punten
Help

... in vergelijking

Spelprestaties

De Intel UHD Graphics 620 wordt overweldigd door alle huidige games. Zelfs oudere titels kunnen vaak alleen soepel gespeeld worden in 720p en met details op laag ingesteld. De iGPU kan het beste overweg met de eenvoudigste casual games op native resolutie

Verdere vergelijkingen en benchmarks zijn te vinden in onze GPU-spellenlijst.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +301%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +242%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +237%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +235%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +193%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +174%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +101%
Gemiddeld Intel UHD Graphics 620 (33.9 - 35.7, n=2)	34.8 fps +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +339%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +271%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +250%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +237%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +194%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +96%
Gemiddeld Intel UHD Graphics 620 (28 - 30.6, n=2)	29.3 fps +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +464%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +400%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +336%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +318%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +127%
Gemiddeld Intel UHD Graphics 620 (6 - 16, n=12)	12.9 fps +17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +480%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +480%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +320%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +320%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +240%
Gemiddeld Intel UHD Graphics 620 (5 - 7, n=5)	6.6 fps +32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +409%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +336%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +300%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +282%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +273%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +264%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +164%
Gemiddeld Intel UHD Graphics 620 (11 - 13, n=2)	12 fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +480%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +460%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +320%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +220%
Gemiddeld Intel UHD Graphics 620 (5 - 7, n=2)	6 fps +20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +347%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +271%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +265%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +255%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +253%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +213%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +137%
Gemiddeld Intel UHD Graphics 620 (25.5 - 29.2, n=4)	27.1 fps +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +368%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +322%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +265%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +264%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +242%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +188%
Gemiddeld Intel UHD Graphics 620 (11.1 - 13.5, n=4)	12.2 fps +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +74%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +71%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps
Gemiddeld Intel UHD Graphics 620 (42.4 - 90, n=92)	71.9 fps -1%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +137%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +114%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +109%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +100%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +78%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps
Gemiddeld Intel UHD Graphics 620 (8.6 - 57.1, n=92)	43.5 fps -4%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +289%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +241%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +240%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +214%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +212%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +184%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps +182%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps
Gemiddeld Intel UHD Graphics 620 (17 - 31, n=5)	23.9 fps -7%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +290%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +281%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +242%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +220%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +208%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +197%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +189%
Gemiddeld Intel UHD Graphics 620 (7 - 12.5, n=5)	10.2 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps

	lage	gem.	hoge	ultra
GTA V (2015)	33.9	28	6.56	2.67
Dota 2 Reborn (2015)	72.8	45.1	18.4	16
Final Fantasy XV Benchmark (2018)	10.8	5.08	3.75
X-Plane 11.11 (2018)	20.2	13.1	12
Far Cry 5 (2018)	11	5	5
Strange Brigade (2018)	25.7	9.8	10.1
Far Cry New Dawn (2019)	11	5	5
Metro Exodus (2019)	12.3	5.95	4.61
Borderlands 3 (2019)	14.9	5.83	3.69
F1 2020 (2020)	25.5	11.3		5.34
F1 2021 (2021)	28	12.2	9.22
Tiny Tina's Wonderlands (2022)	7.02	5.06	3.3

Emissies - consequent stil en zuinig

Geluidsemissies

De Intel Core i7-10810U's conservatieve vermogensgrens (PL1 en PL2) zorgt voor een zeer stil bedrijfsgeluid. Zowel stationair als onder belasting is de NiPoGi CK10 nooit echt hoorbaar. Met 31 dB(A) was de mini PC zeer stil tijdens de stresstests en verslaat daarmee elk vergelijkingsapparaat dat hier is getest met enige afstand.

Geluidsniveau

Onbelast		30.8 / 30.9 / 30.9 dB (A)
Belasting		31 / 31 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Earthworks M23R, Arta (15 cm afstand) omgevingslawaai: 30.4 dB(A)

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-2%	-9%	-23%	-8%
uit / omgeving *	30.4	30.2 1%	30.2 1%	30.5 -0%	30.28 -0%
Idle Minimum *	30.8	30.5 1%	30.8 -0%	31.5 -2%	31.82 -3%
Idle Average *	30.9	30.5 1%	32.1 -4%	32.6 -6%	32.27 -4%
Idle Maximum *	30.9	30.5 1%	32.9 -6%	33.8 -9%	33.17 -7%
Load Average *	31	31.2 -1%	33.9 -9%	49.3 -59%	35.82 -16%
Load Maximum *	31	35.1 -13%	41.4 -34%	50.9 -64%	37.1 -20%

* ... kleiner is beter

Temperatuur

De behuizingtemperaturen van de NiPoGi CK10 zijn meestal laag en kleine hotspots worden slechts selectief waargenomen. Tijdens SoC belastingstesten met Prime95 zagen we een temperatuur van maximaal 81°C. Dus zelfs onder volledige belasting is de Intel Core i7-10810U binnen zijn specificaties en overschrijdt duidelijk de basiskloksnelheid van 1,1 GHz.

NiPoGi CK10 netadapter tijdens stresstests

Stroomverbruik

Op het gebied van stroomverbruik profiteert de NiPoGi CK10 van zijn zeer zuinige SoC. Zowel in rusttoestand als onder lage belasting deed ons evaluatie-exemplaar het goed tegen de concurrentie. Tijdens stress tests moest de 65 watt netadapter korte tijd tot 54 watt trekken. Dit laat wat ruimte over voor een ander apparaat voor massaopslag en een extra SO-DIMM module.

Stroomgebruik

Uit / Standby	0.3 / 0.4 Watt
Inactief	4.8 / 4.9 / 5.5 Watt
Belasting	23 / 54 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Gemiddeld Intel UHD Graphics 620	Gemiddelde van klas Mini PC
Power Consumption		-143%	-64%	-20%	-24%	-119%
Idle Minimum *	4.8	8.9 -85%	8.4 -75%	3.4 29%	3.81 ?(1 - 12.4, n=259) 21%	9.8 ?(1.9 - 46.5, n=91, laatste 2 jaar) -104%
Idle Average *	4.9	9.6 -96%	8.7 -78%	5.7 -16%	6.94 ?(2.8 - 15.7, n=261) -42%	11.7 ?(1.9 - 63, n=90, laatste 2 jaar) -139%
Idle Maximum *	5.5	11.8 -115%	9.3 -69%	7 -27%	8.75 ?(3.8 - 30, n=259) -59%	14.7 ?(2.6 - 68.9, n=91, laatste 2 jaar) -167%
Load Average *	23	98.9 -330%	46.4 -102%	36.5 -59%	35 ?(8.1 - 51.6, n=259) -52%	51.9 ?(11.3 - 158.7, n=91, laatste 2 jaar) -126%
Load Maximum *	54	101.8 -89%	52 4%	68 -26%	47.5 ?(22 - 96.3, n=261) 12%	86 ?(18.1 - 271, n=91, laatste 2 jaar) -59%

* ... kleiner is beter

Power consumption with an external monitor

Minipc Union NiPoGi CK10 - 10810U; Prime95 V2810 Stress (external Monitor): Ø29.1 (25.3-42.4)

Minipc Union NiPoGi CK10 - 10810U; Cinebench R15 Multi (external Monitor): Ø32.6 (23.3-53.5)

Minipc Union NiPoGi CK10 - 10810U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.4 (23-37.2)

Minipc Union NiPoGi CK10 - 10810U; Idle 1min (external Monitor): Ø5.49 (5.09-6.37)

Pro

+ Kleine voetafdruk

+ 6 kernen en 12 threads

+ 16 GB RAM en 512 GB SSD

+ Tot drie opslagschijven mogelijk

+ Gemakkelijk te openen

+ Altijd stil

+ Laag energieverbruik

Contra

- Trage Wi-Fi

- Slechts één RAM-module geïnstalleerd (eenkanaals)

- Geen Thunderbolt

- Geen SD-kaartlezer

- Zeer hoge DPC latentie

Verdict - Een ultrastille kantoor-pc

De beoordelingseenheid werd geleverd door Minipc Union

Eerst en vooral is de NiPoGi CK10 een compacte kantoor-pc gebaseerd op een Intel Core i7-10810U. Hoewel de SoC niet meer tot de huidige modellen behoort, kan hij nog steeds uitstekende multi-thread prestaties leveren dankzij zijn 6 kernen en een totaal van 12 threads. Bovendien belooft een blik op de datasheet ook veel in termen van RAM en massaopslag. Bij nader inzien zou het systeem echter baat hebben gehad bij uiteindelijk verspilde bruikbare prestaties. Het RAM werkt alleen in single channel mode en de SSD biedt alleen SATA snelheid. Deze kleine nadelen kunnen worden verholpen omdat er upgrademogelijkheden zijn

Vergeleken met de concurrentie hier in onze test, worstelde de NiPoGi CK10 met de eerder genoemde beperkingen. Voor wie met die beperkingen kan omgaan, is de NiPoGi CK10 een goede mini-pc voor kantoorgebruik. Het grootste pluspunt van de compacte PC zijn de emissiewaarden

De NiPoGi CK10 is een goede thuiswerkplek. Door de prijs is het apparaat echter weinig interessant.

In de eerste plaats is de NiPoGi CK10 een goede keuze voor eenvoudig thuisgebruik op kantoor. Toch zijn er uitstekende alternatieven, waarvan sommige in eigen beheer worden gemaakt en een betere prijs-kwaliteitverhouding bieden. De Ace Magician TK11-A0 bevindt zich in dezelfde prestatiecategorie, zij het met enkele eigen nadelen. Daarnaast heeft Minisforum ook interessante alternatieven in zijn portfolio. Een vergelijking met de EliteMini TH50 is hier de moeite waard.

Prijs en beschikbaarheid

Momenteel is de NiPoGi CK10 met onze review specificaties te koop op Amazon voor 599 Euro in Duitsland. De identieke machine wordt in de VS verkocht onder de naam KAMURI CK10 met dezelfde specificaties. Op dit moment is de mini PC beschikbaar voor $599, ook op Amazon.

Notebookcheck kreeg de NiPoGi CK10 om te testen. De fabrikant heeft geen enkele invloed uitgeoefend op het resultaat van de beoordeling. Bovendien ontving de fabrikant de voltooide beoordeling niet voor publicatie.

Minipc Union NiPoGi CK10 - 10810U - 2022-11-25 25-11-2022 v7
Sebastian Bade

Behuizing

81 / 98 → 82%

Aansluitmogelijkheden

48 / 81 → 59%

Gewicht

84%

Gaming-performance

44%

Applicatie-performance

84%

Luidheid

88%

Gemiddelde

71%

Mini PC - Gewogen Gemiddelde

Gelinkte Artikelen

Minipc Union NiPoGi CK10 - 10810U (NiPoGi Serie)

Testrapport

•

NiPoGi GK3 Plus N95 besproken: Een compacte mini PC met een Intel N95 voor ...

Pricecompare

Editor of the original article: Andrew Dickson - Translator - 88 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 388744 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > NiPoGi CK10 met de Intel Core i7-10810U besproken: Kleine kantoor-pc met ruimte voor drie SSD's

Sebastian Bade, 2022-12- 2 (Update: 2022-12- 2)
