Beelink U59 Mini-S mini PC review: Het supervoordelige Intel NUC HTPC alternatief

Een lijntje naar betaalbaarheid. De Beelink U59 Mini-S is goedkoop genoeg om een respectabel alternatief te zijn voor de typische smart TV dongles of mediaspelers van Google, Amazon, Apple, of Roku, vooral voor gebruikers die de veelzijdigheid van een Windows-omgeving wensen.

Beelink biedt een uitgebreide familie van mini PC's aan, gaande van de zeer voordelige Celeron aangedreven U59 tot de waanzinnig snelle Ryzen 9 5900HX aangedreven GTR5. Ons U59 Mini-S review model zit vandaag in het lagere segment van het spectrum met de Celeron N5095 CPU, slechts 8 GB enkel-kanaals geheugen, en een 256 GB SSD voor ongeveer $220 dollar retail.

Alternatieven voor de U59 Mini-S zijn Atom of Celeron aangedreven mini PC's zoals de Chuwi HeroBox, GMK NucBox K1, NucBox 3, of de Intel NUC 11 Essential. De U59 Mini-S in review moet niet verward worden met de iets duurdere originele U59.

Meer Beelink reviews:

Beelink U59 Mini-S

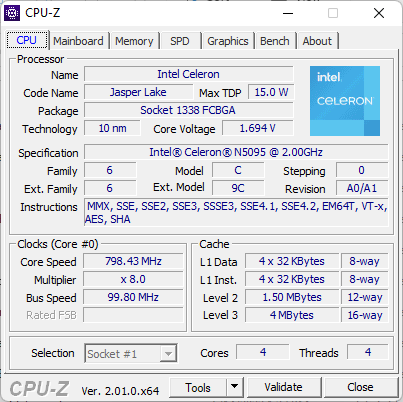

Processor
Intel Celeron N5095 4 x 2 - 2.9 GHz, 17 W PL2 / Short Burst, 14 W PL1 / Sustained, Jasper Lake
Grafische kaart
Geheugen
8 GB
, Single-Channel, DDR4-2666, 15-15-15-35, 2x SODIMM slots
Opslag
Silicon Motion AZW 256G M.228 220426 C SATA 3, 256 GB
Geluidskaart
Intel Jasper Lake PCH - cAVS Controller
Verbindingen
4 USB 3.0, 2 HDMI, 1 Kensington Lock, Audio Verbindingen: 3.5 mm
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 41 x 124 x 113
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten
Manual, 2x HDMI cables, removable VESA mount, additional screws, 12 Maanden Garantie
Gewicht
279 g, Voeding: 150 g
Prijs
220 USD
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Potentiële concurrenten in vergelijking

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Beste prijs
06-2022
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
279 g41 mmx
04-2022
Beelink SEi8
i3-8109U, Iris Plus Graphics 655
346 g41 mmx
04-2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
11-2021
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 g42 mmx
02-2022
GMK NucBox 3
Celeron J4125, UHD Graphics 600
410 g32.5 mmx
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 g51 mmx

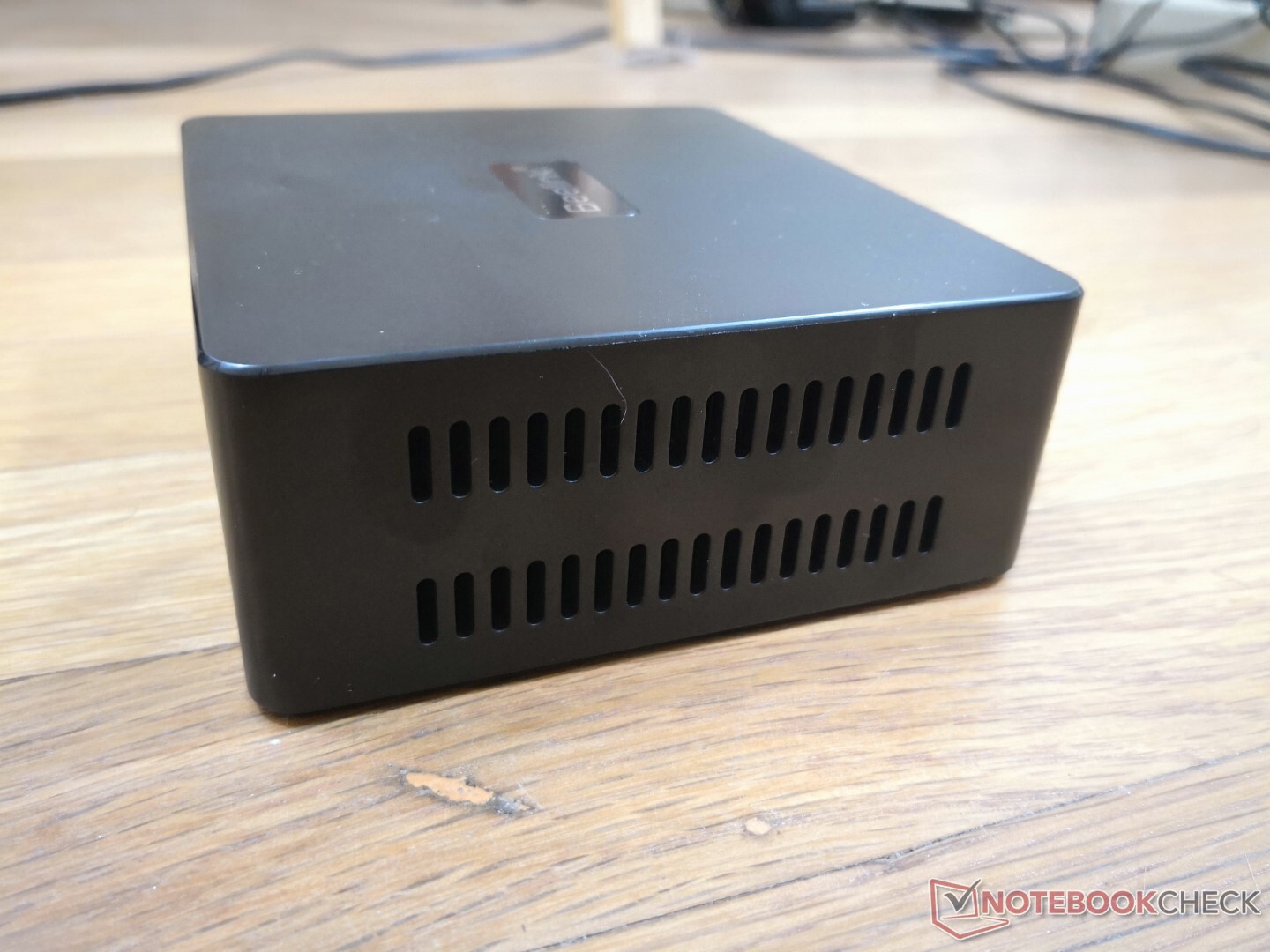

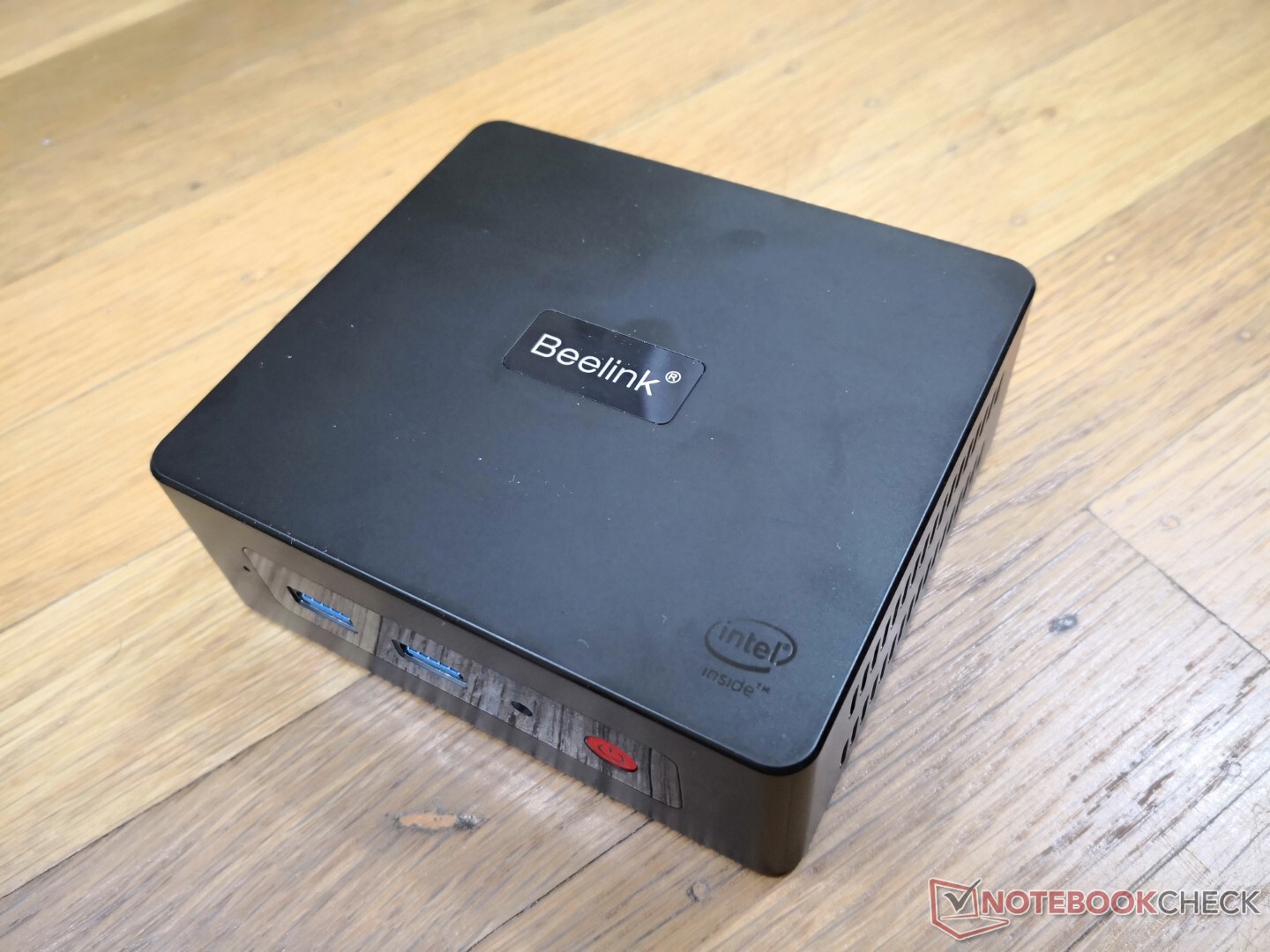

Case - Lichter dan het lijkt

Het chassis is bijna identiek aan de originele U59, zij het met een paar oppervlakkige verschillen. Het bovenpaneel, bijvoorbeeld, is nu glad mat in plaats van glanzend, wat volgens ons een slimme verandering is omdat het matte oppervlak beter bestand is tegen vingerafdrukken en slijtage. De zijkanten en onderkant van het chassis zijn van metaal voor een sterke eerste indruk.

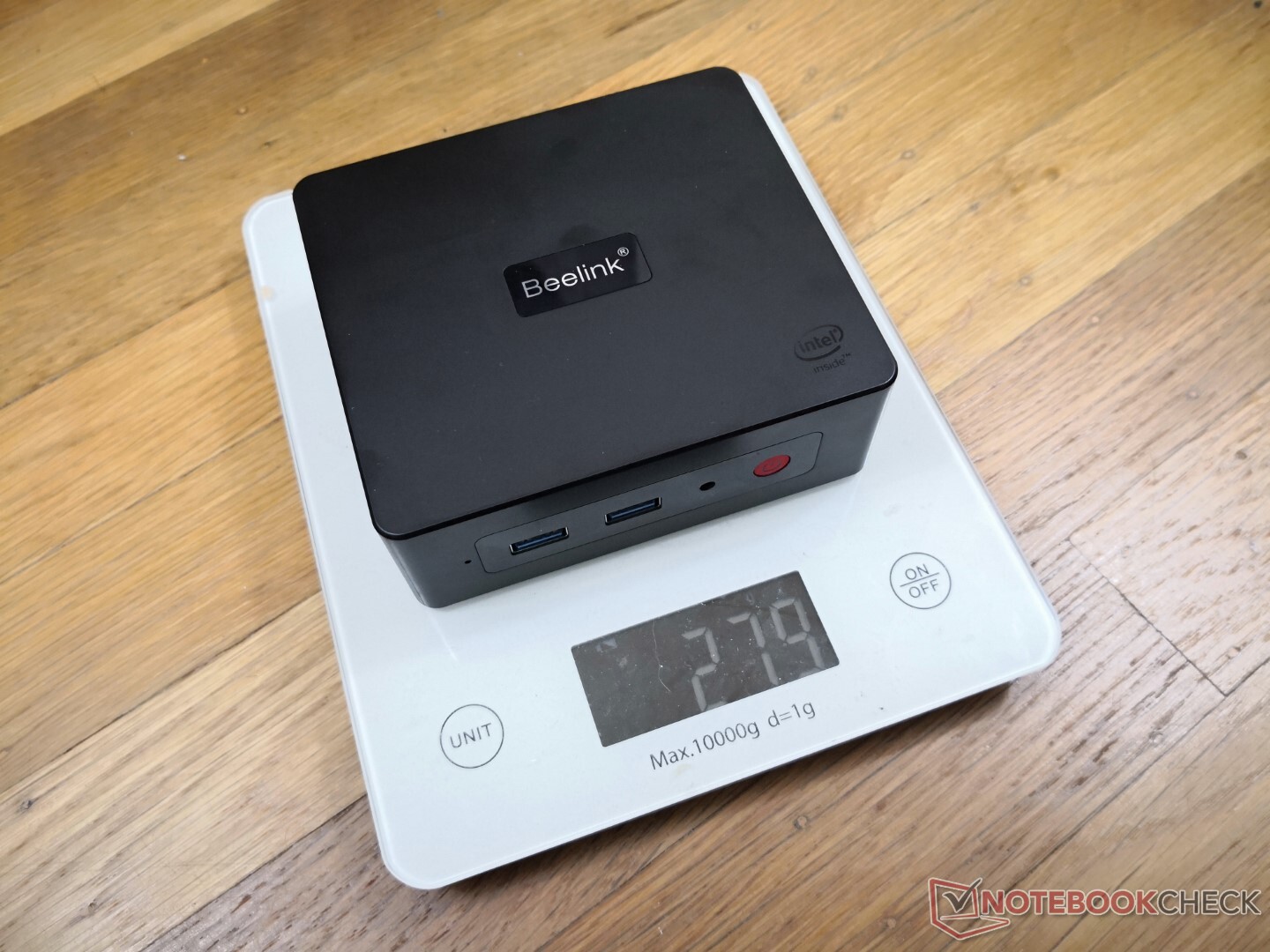

Een opmerkelijk aspect van de Beelink is zijn zeer lichte gewicht van slechts 279 g, vergeleken met meer dan 500 g op de even grote Intel NUC 11. De dunnere chassismaterialen van de Beelink en het ontbreken van een interne metalen kooi voor extra versteviging dragen bij tot de aanzienlijke gewichtsverschillen tussen de twee modellen.

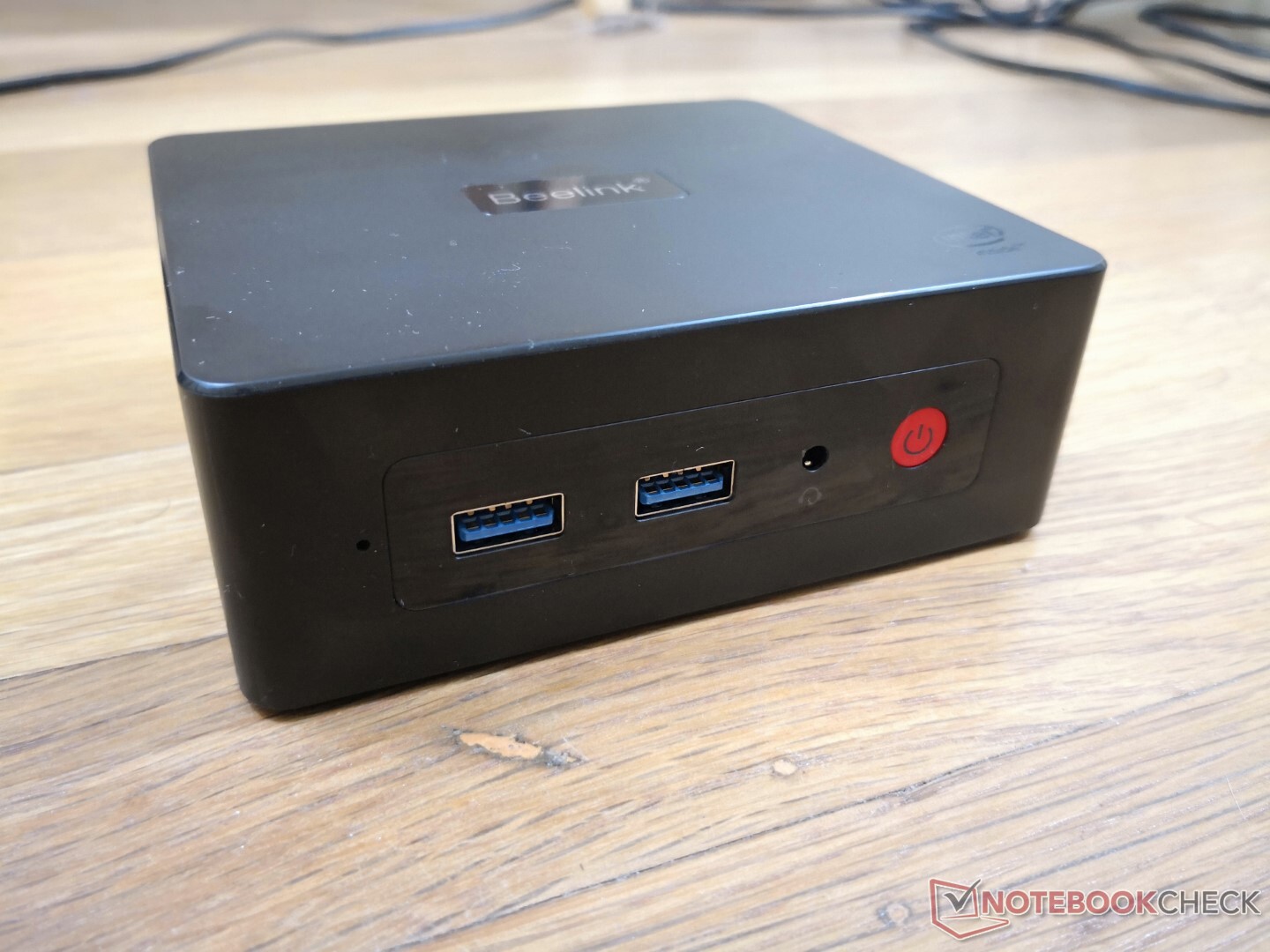

Bovenpaneel is mat in plaats van glanzend om vingerafdrukken te verminderen
Bovenpaneel is mat in plaats van glanzend om vingerafdrukken te verminderen

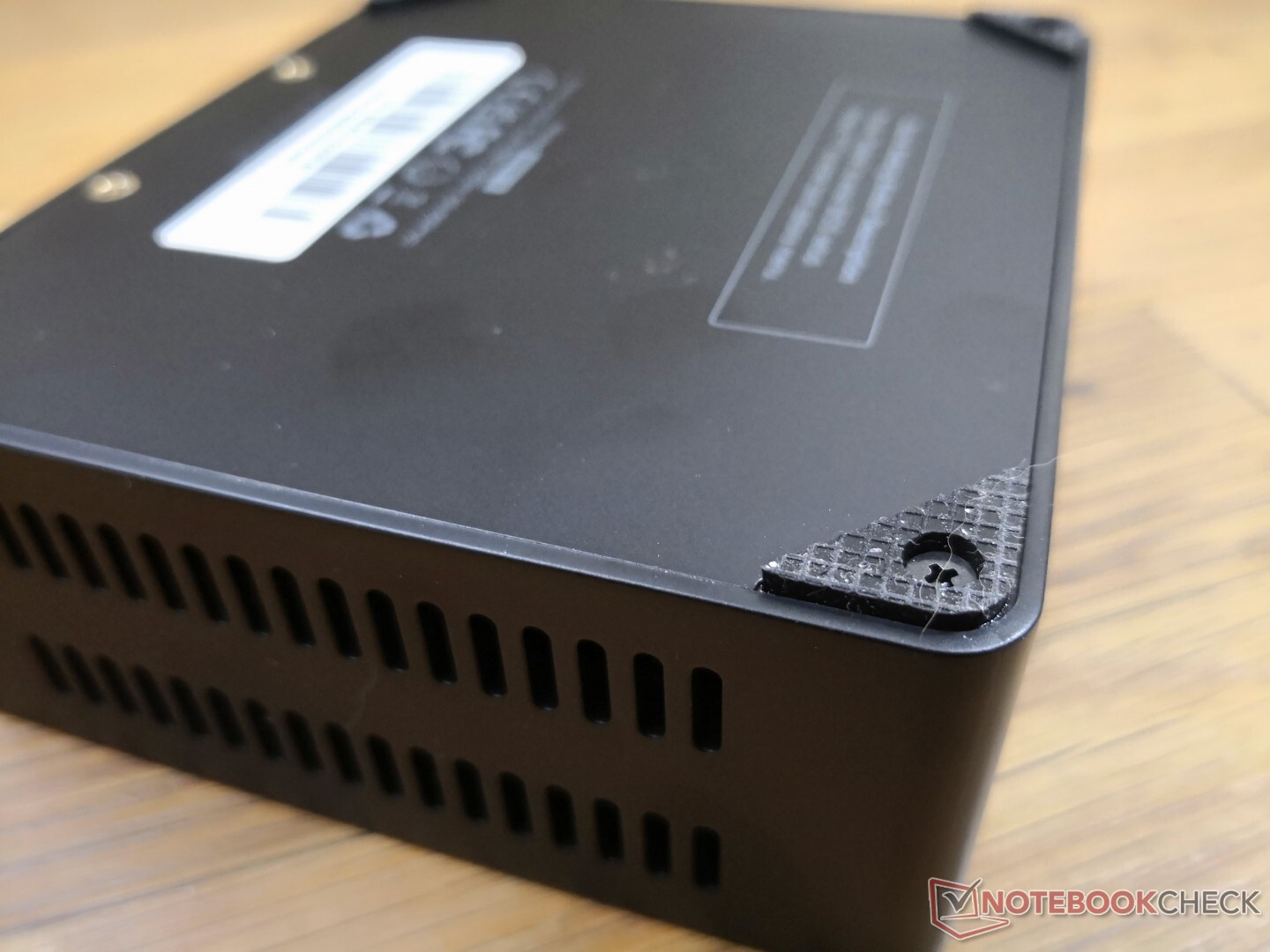

Rubberen voet op de bodem om de kans op uitglijden te verminderen
Rubberen voet op de bodem om de kans op uitglijden te verminderen

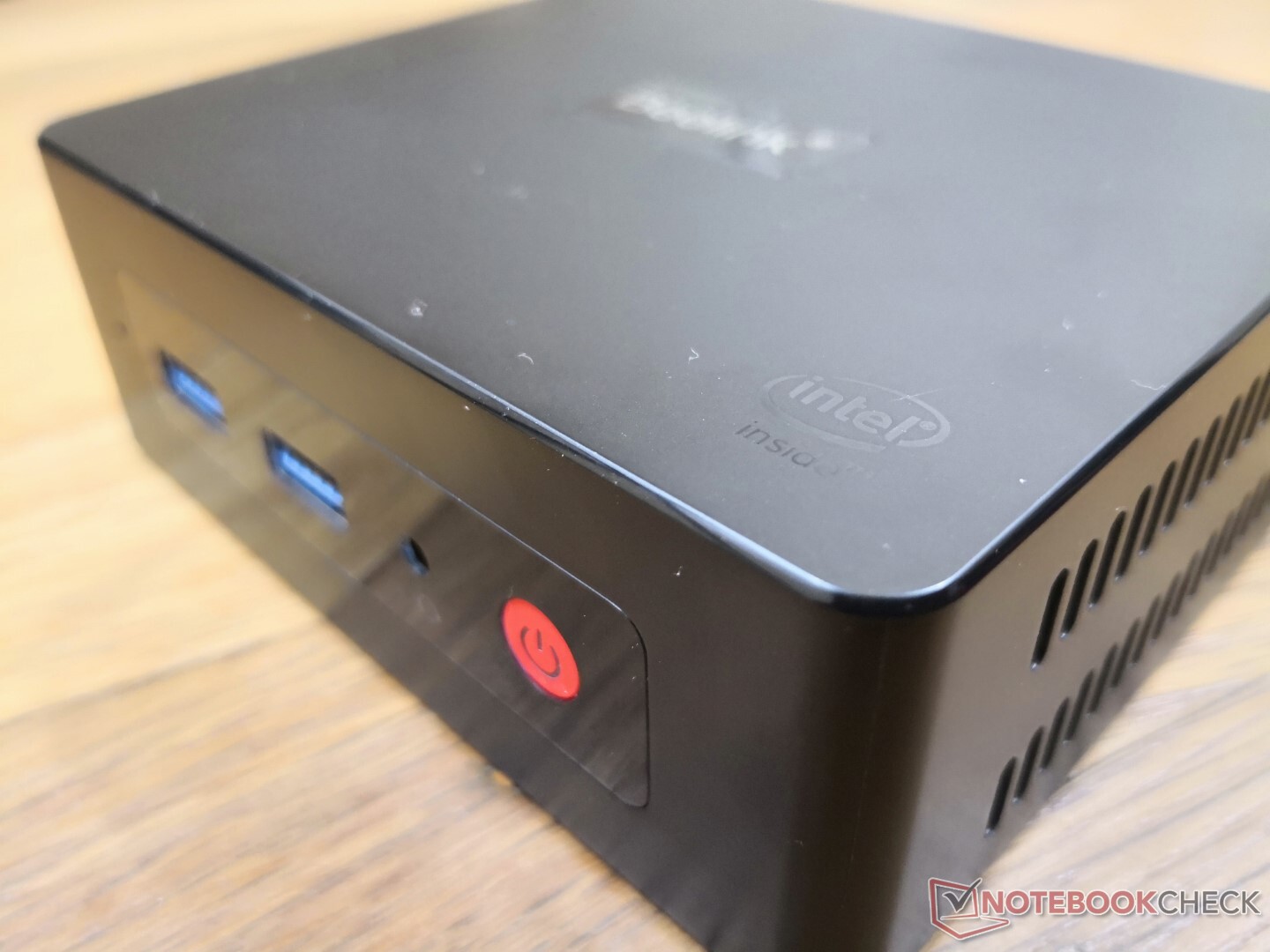

Metalen chassis is veel lichter en dunner dan bij een Intel NUC
Metalen chassis is veel lichter en dunner dan bij een Intel NUC

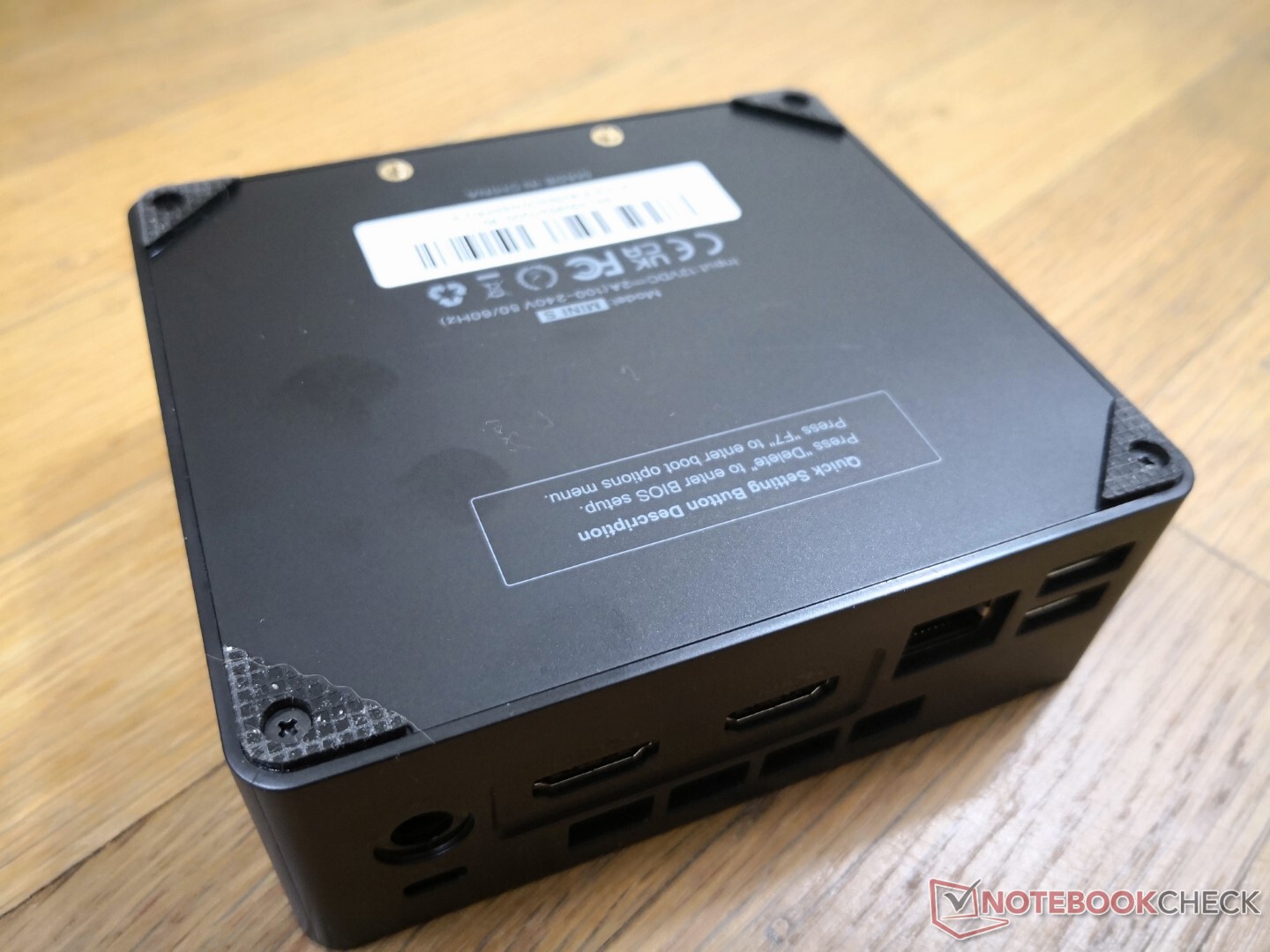

In tegenstelling tot de grote schroeven op een Intel NUC, vereisen de schroeven op de Beelink een schroevendraaier
In tegenstelling tot de grote schroeven op een Intel NUC, vereisen de schroeven op de Beelink een schroevendraaier

Vergelijking grootte

128 mm 126 mm 51 mm 472 g124 mm 113 mm 42 mm 329 g124 mm 113 mm 41 mm 279 g124 mm 113 mm 41 mm 346 g128 mm 128 mm 32.5 mm 410 g117 mm 112 mm 37 mm 504 g210 mm 148 mm 1 mm 2.9 g

Connectiviteit - Geen USB-C

De poortopties zijn identiek aan die van de U59, maar met één grote uitzondering: de USB-C poort is weggevallen. We vermoeden dat dit een kostenbesparende maatregel was.

Voorkant: 2x USB-A 3.0, 3.5 mm audio-aansluiting, Aan/uit-knop
Voorkant: 2x USB-A 3.0, 3.5 mm audio-aansluiting, Aan/uit-knop
Juist: Geen poorten
Juist: Geen poorten

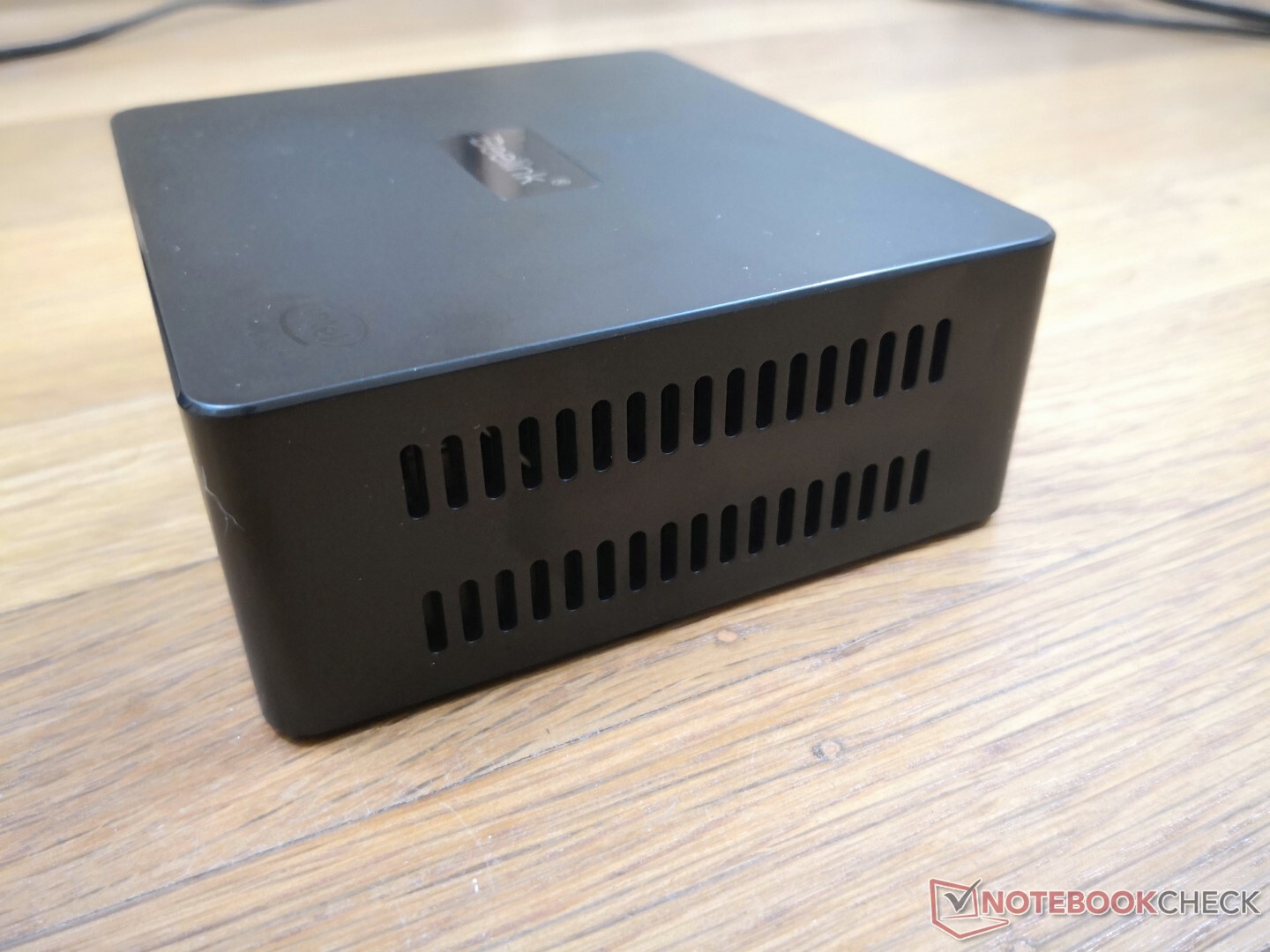

Links: Geen poorten
Links: Geen poorten

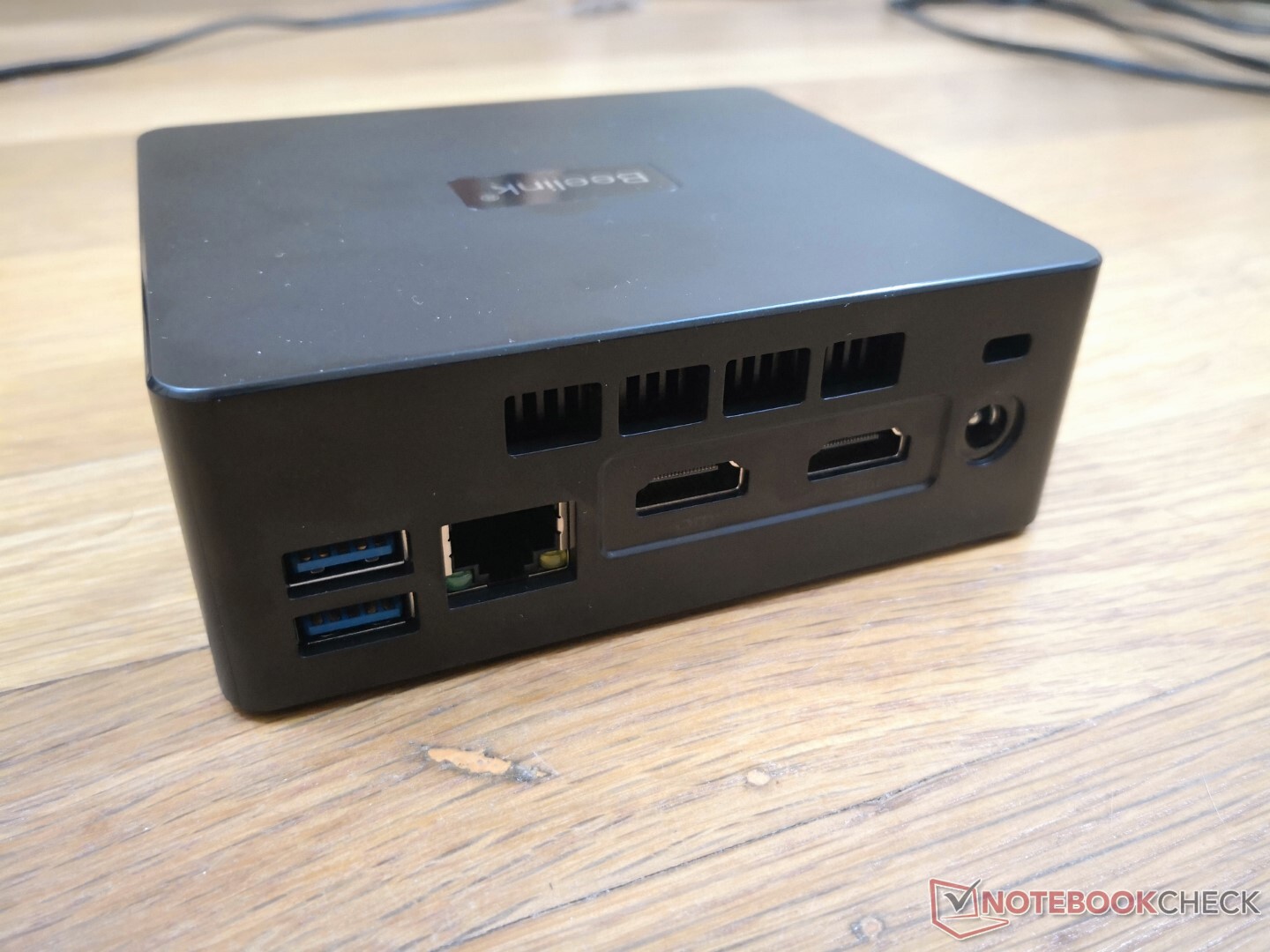

Achterzijde: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington-slot, AC-adapter
Achterzijde: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington-slot, AC-adapter

Communicatie

Een Intel 3165 is weer standaard aanwezig voor 1x1 Wi-Fi 5 en Bluetooth 4.2 connectiviteit. Hoewel traag naar huidige maatstaven, is het nog steeds snel genoeg voor 4K video streaming.

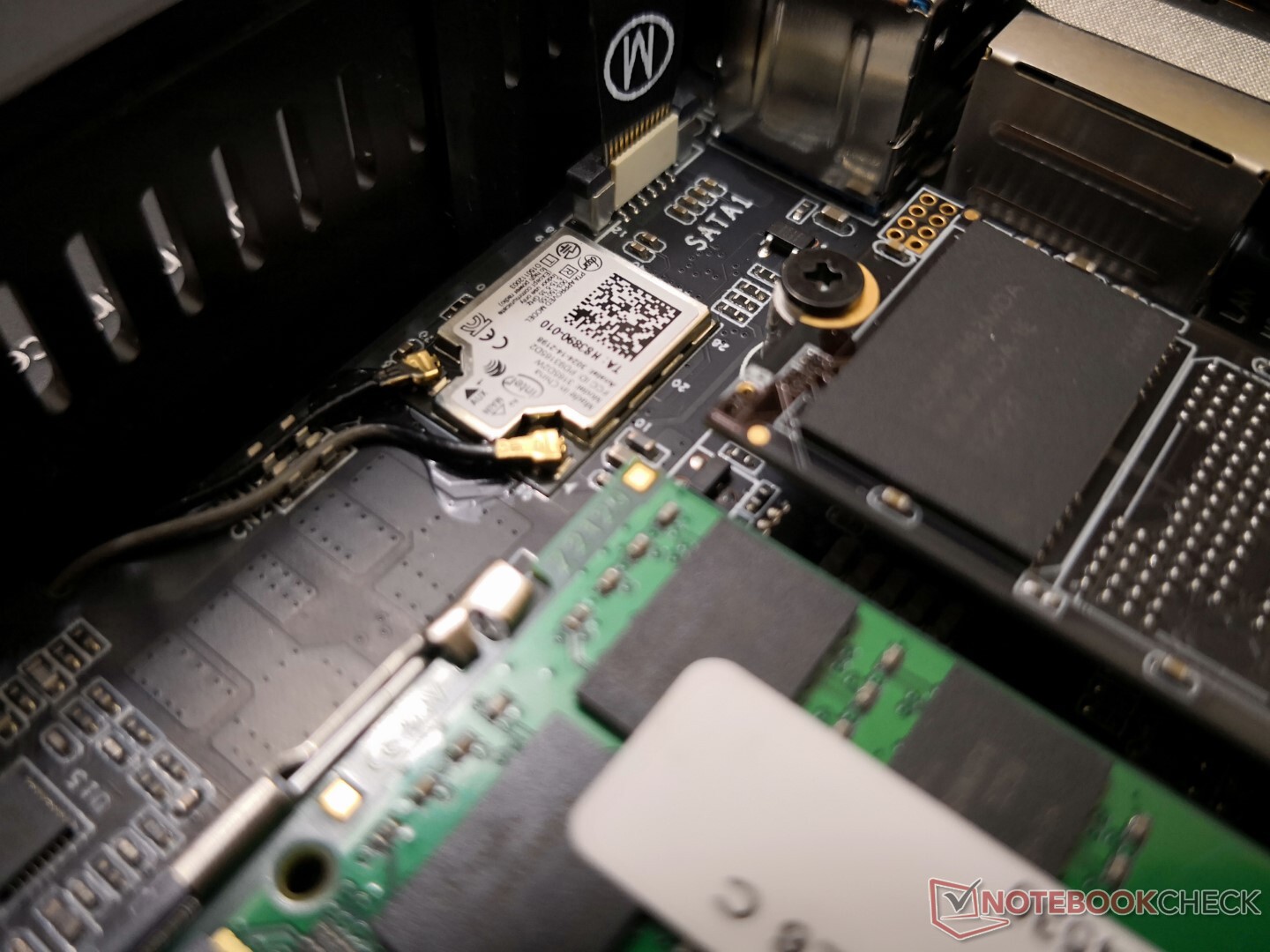

1216 WLAN-module is gesoldeerd en kan niet worden geüpgraded
1216 WLAN-module is gesoldeerd en kan niet worden geüpgraded
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s
Beelink SEi8
Intel Dual Band Wireless-AC 3165
200 (156min - 261max) MBit/s
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
152 (106min - 184max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
671 (648min - 684max) MBit/s
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s
Beelink SEi8
Intel Dual Band Wireless-AC 3165
338 (320min - 344max) MBit/s
iperf3 transmit AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
188.4 (153min - 228max) MBit/s
iperf3 receive AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
322 (295min - 337max) MBit/s
050100150200250300Tooltip
Beelink U59 Mini-S; iperf3 receive AXE11000; iperf 3.1.3: Ø321 (295-337)
Beelink U59 Mini-S; iperf3 transmit AXE11000; iperf 3.1.3: Ø188.4 (153-228)

Onderhoud

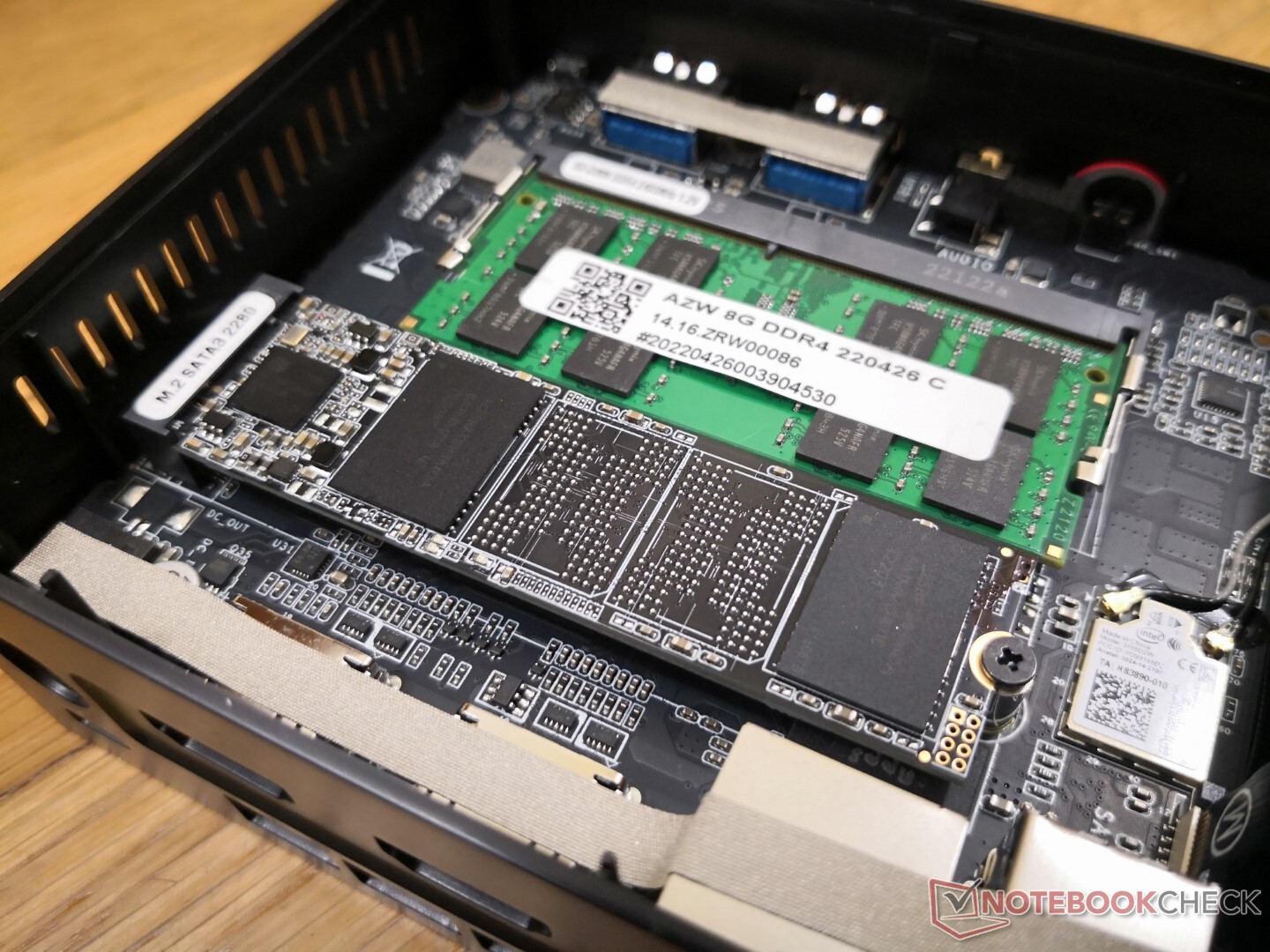

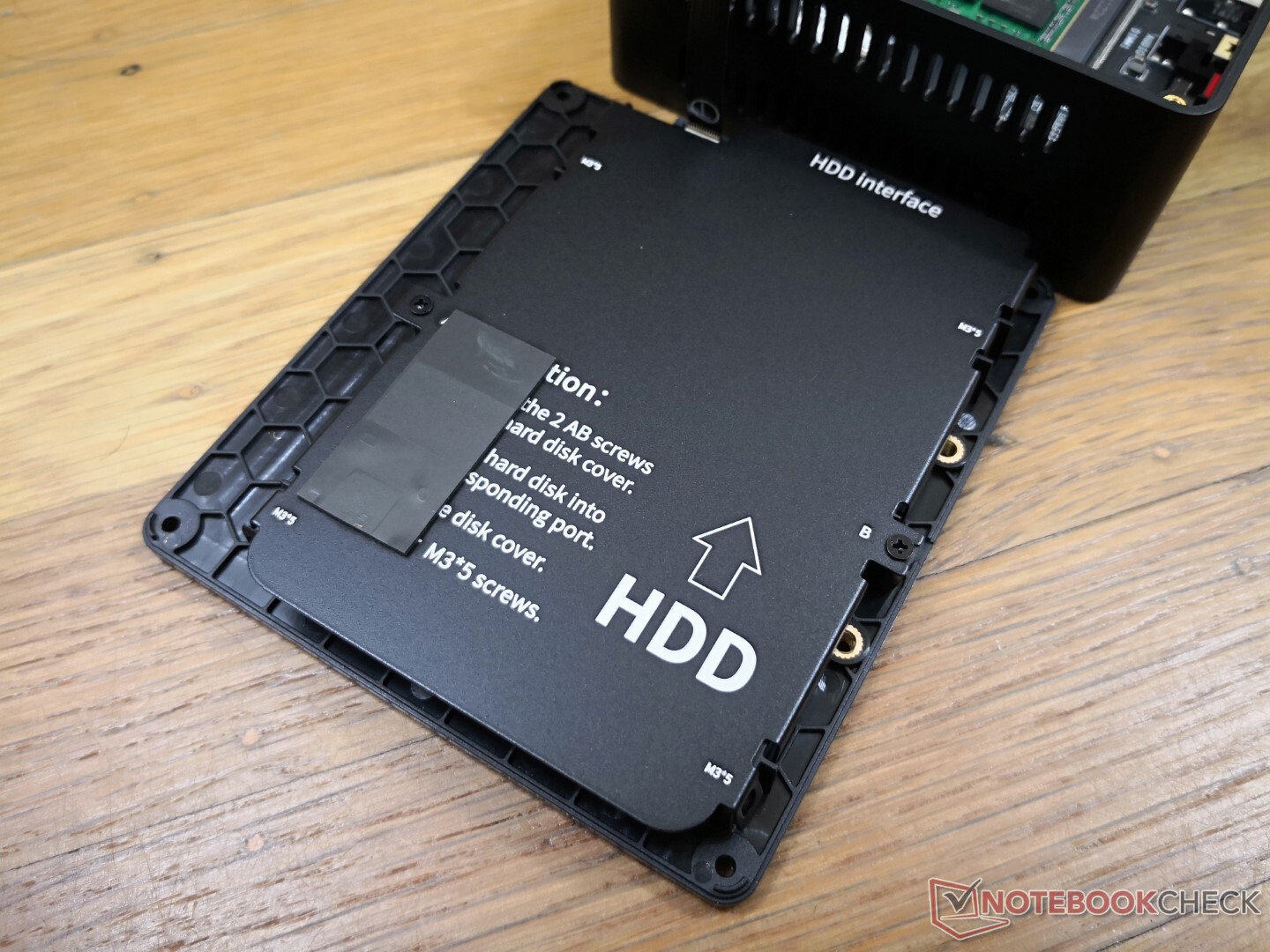

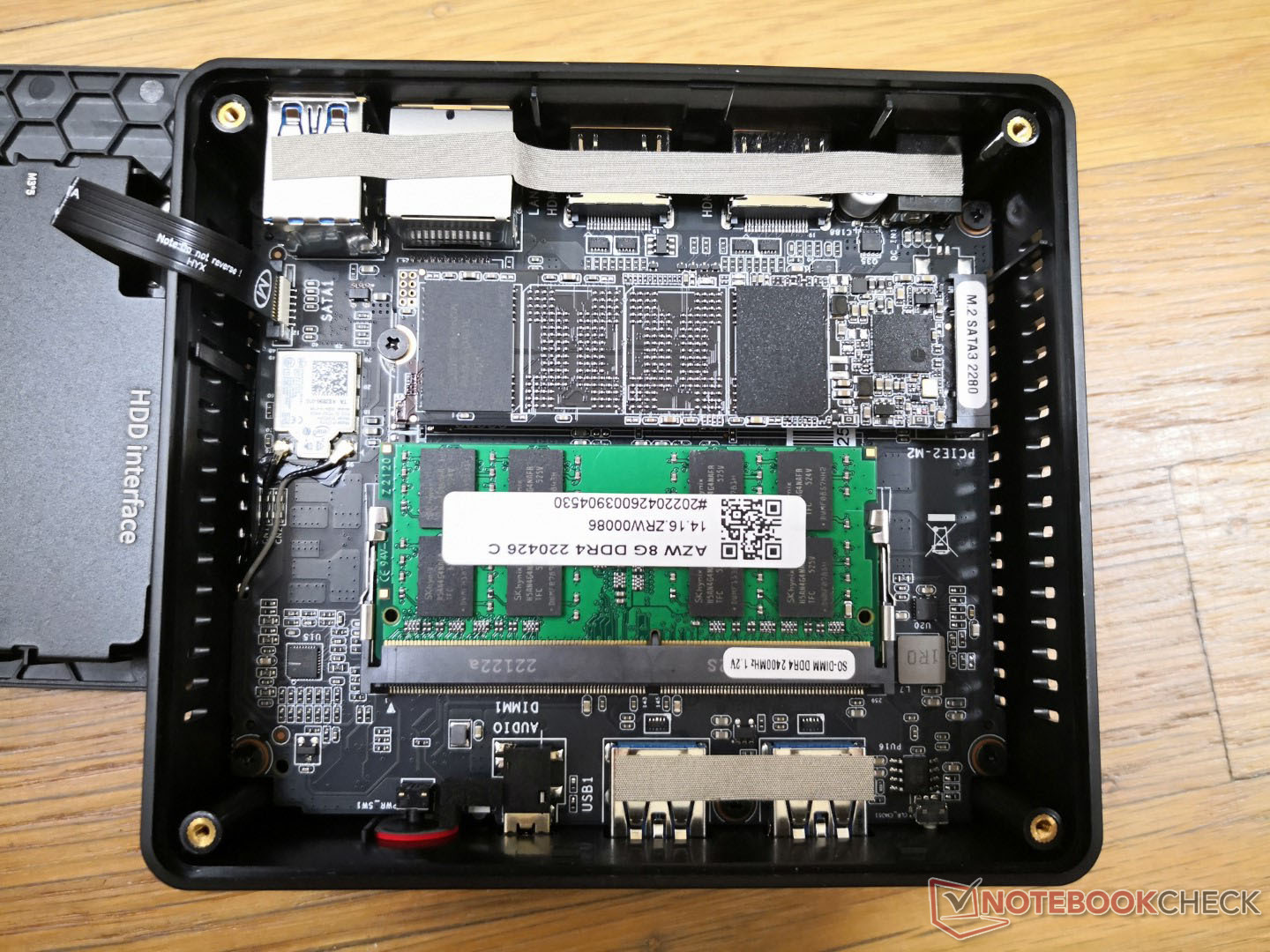

Het bodempaneel komt gemakkelijk los na het verwijderen van de 4 Philips-schroeven rond de hoeken. Gebruikers hebben direct toegang tot twee opslagsleuven (1x M.2 2280 SATA III + 1x 2,5-inch SATA III) en een enkele SODIMM DDR4-sleuf met ondersteuning voor maximaal 16 GB enkelkanaals geheugen.

Accessoires en garantie

De doos bevat een verwijderbare VESA-montagebeugel met schroeven die aan de bodemplaat van het toestel worden bevestigd. Er worden ook twee HDMI-kabels meegeleverd.

De standaard beperkte garantie van één jaar is van toepassing indien gekocht in de VS.

Prestaties




Testomstandigheden

Onze testeenheid werd ingesteld op de Windows Prestatiemodus voordat de onderstaande benchmark tests werden uitgevoerd, voor de hoogst mogelijke scores. Afgezien van de gebruikelijke BIOS instellingen, zijn er geen speciale applicaties voor het regelen van specifieke eigenschappen of gedragingen van de U59 Mini-S.

Processor - Sneller dan Atom, langzamer dan Core i3

Multi-thread prestaties zijn vergelijkbaar met de dual-core quad-thread Core i3-8109U terwijl de single-thread prestaties ongeveer 20 tot 45 procent langzamer zijn. De Celeron N5095 is niettemin sneller dan Celeron-oplossingen van de vorige generatie, waaronder deJ4125 ofN4100 met tot 2x in multi-threaded toepassingen.

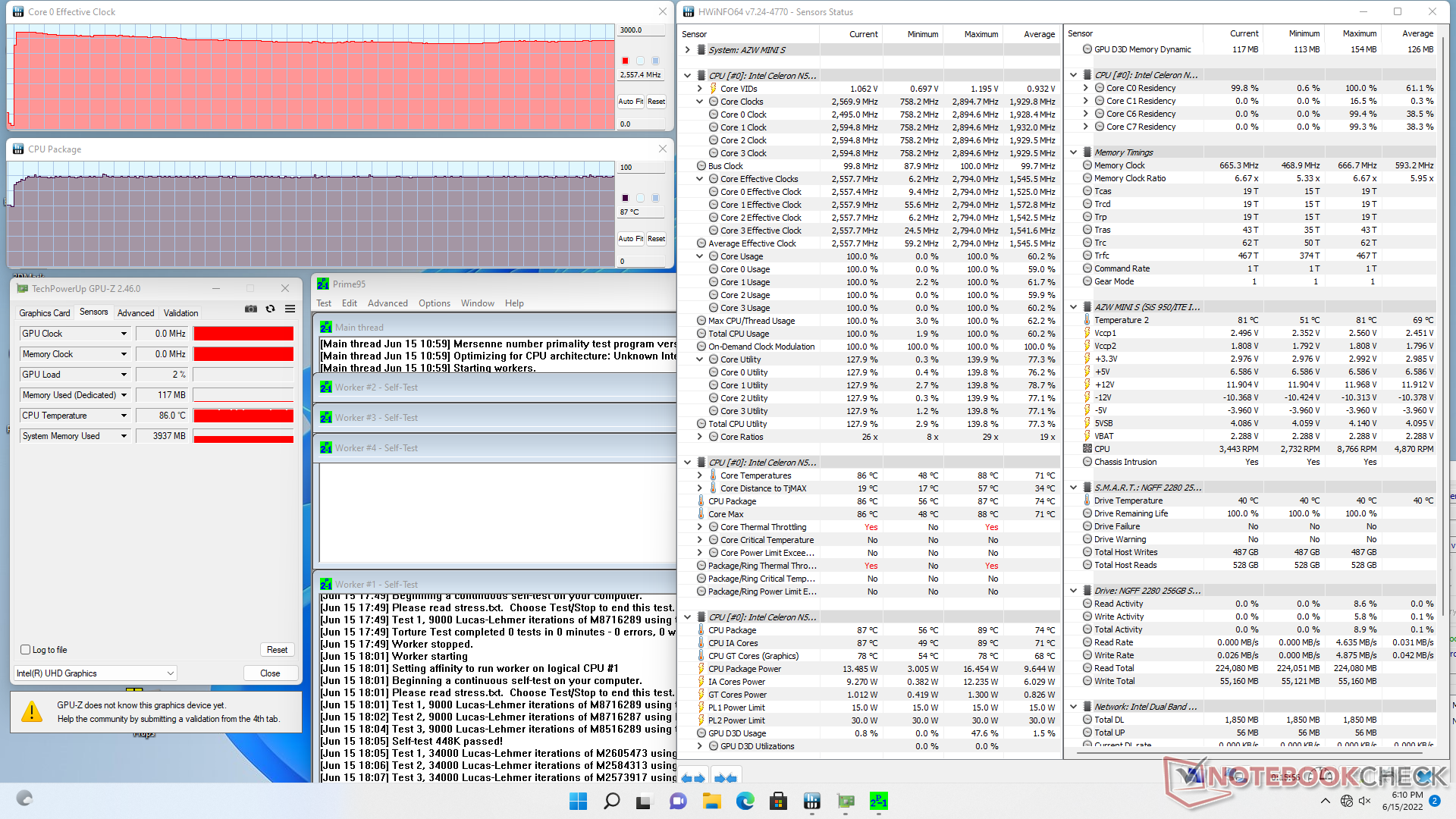

De duurzaamheid van de prestaties is goed, zonder grote dalingen bij het draaien van CineBench R15 xT in een loop.

Cinebench R15 Multi Loop

04080120160200240280320360400440480520560600640680720760Tooltip
Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)
Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Zotac ZBOX MI642 Nano Intel Core i5-10210U: Ø514 (504.41-521.83)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
3095 Points +285%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points +146%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1432 Points +78%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points +47%
Gemiddeld Intel Celeron N5095
  (804 - 844, n=5)
825 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095
804 Points
Beelink SEi8
Intel Core i3-8109U
772 Points -4%
GMK NucBox 3
Intel Celeron J4125
430 Points -47%
Chuwi UBook CWI509
Intel Celeron N4100
386 Points -52%
Blackview AceBook 1
Intel Celeron N4120
376 Points -53%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points -66%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points +121%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
473 Points +107%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
427 Points +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points +83%
Beelink SEi8
Intel Core i3-8109U
351 Points +54%
Gemiddeld Intel Celeron N5095
  (228 - 239, n=5)
234 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095
228 Points
GMK NucBox 3
Intel Celeron J4125
170 Points -25%
Blackview AceBook 1
Intel Celeron N4120
159 Points -30%
Chuwi UBook CWI509
Intel Celeron N4100
152 Points -33%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points -59%
Cinebench R23 / Multi Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
7719 Points +258%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points +136%
Gemiddeld Intel Celeron N5095
  (2150 - 2219, n=5)
2174 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095
2159 (2113.79min - 2158.74max) Points
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points -7%
GMK NucBox 3
Intel Celeron J4125
1186 (1172.17min - 1186.25max) Points -45%
Blackview AceBook 1
Intel Celeron N4120
965 (915.042min - 964.764max) Points -55%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points +123%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1217 Points +98%
Beelink SEi8
Intel Core i3-8109U
906 Points +47%
Beelink U59 Mini-S
Intel Celeron N5095
615 Points
Gemiddeld Intel Celeron N5095
  (587 - 621, n=5)
608 Points -1%
GMK NucBox 3
Intel Celeron J4125
438 Points -29%
Blackview AceBook 1
Intel Celeron N4120
409 Points -33%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1240 Points +246%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points +122%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
580 Points +62%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points +46%
Beelink U59 Mini-S
Intel Celeron N5095
358 (350.25min - 357.53max) Points
Gemiddeld Intel Celeron N5095
  (221 - 379, n=6)
343 Points -4%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points -9%
Blackview AceBook 1
Intel Celeron N4120
234 (225.47min - 233.66max) Points -35%
GMK NucBox 3
Intel Celeron J4125
207 (171.15min - 207.16max) Points -42%
Chuwi UBook CWI509
Intel Celeron N4100
175 Points -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points +111%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
178 Points +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points +75%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
165 Points +73%
Beelink SEi8
Intel Core i3-8109U
124.3 Points +30%
Gemiddeld Intel Celeron N5095
  (95.4 - 109, n=5)
103.9 Points +9%
Beelink U59 Mini-S
Intel Celeron N5095
95.4 Points
Blackview AceBook 1
Intel Celeron N4120
74.5 Points -22%
Chuwi UBook CWI509
Intel Celeron N4100
67 Points -30%
GMK NucBox 3
Intel Celeron J4125
63.1 Points -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points -57%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * -181%
GMK NucBox 3
Intel Celeron J4125
3032 Seconds * -87%
Blackview AceBook 1
Intel Celeron N4120
2583 Seconds * -59%
Beelink U59 Mini-S
Intel Celeron N5095
1624 Seconds *
Gemiddeld Intel Celeron N5095
  (1502 - 1624, n=5)
1548 Seconds * +5%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * +18%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
907 Seconds * +44%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * +45%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * +63%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
479 Seconds * +71%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
33282 MIPS +202%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS +111%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS +54%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
15043 MIPS +37%
Gemiddeld Intel Celeron N5095
  (10924 - 11168, n=5)
11024 MIPS 0%
Beelink U59 Mini-S
Intel Celeron N5095
11013 MIPS
Beelink SEi8
Intel Core i3-8109U
9489 MIPS -14%
Blackview AceBook 1
Intel Celeron N4120
7436 MIPS -32%
GMK NucBox 3
Intel Celeron J4125
5694 MIPS -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS -59%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS +52%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
4362 MIPS +40%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS +38%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4014 MIPS +28%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS +20%
Beelink U59 Mini-S
Intel Celeron N5095
3124 MIPS
Gemiddeld Intel Celeron N5095
  (2935 - 3124, n=5)
3074 MIPS -2%
Blackview AceBook 1
Intel Celeron N4120
2412 MIPS -23%
GMK NucBox 3
Intel Celeron J4125
2237 MIPS -28%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS -53%
Geekbench 5.5 / Multi-Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
6243 Points +223%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points +138%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points +101%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
3330 Points +72%
Gemiddeld Intel Celeron N5095
  (1933 - 2052, n=4)
2010 Points +4%
Beelink U59 Mini-S
Intel Celeron N5095
1933 Points
Beelink SEi8
Intel Core i3-8109U
1880 Points -3%
GMK NucBox 3
Intel Celeron J4125
1198 Points -38%
Geekbench 5.5 / Single-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points +117%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1121 Points +74%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points +73%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1027 Points +59%
Beelink SEi8
Intel Core i3-8109U
888 Points +38%
Gemiddeld Intel Celeron N5095
  (637 - 659, n=4)
649 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095
644 Points
GMK NucBox 3
Intel Celeron J4125
462 Points -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
9.18 fps +359%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps +232%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4.37 fps +119%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps +108%
Beelink SEi8
Intel Core i3-8109U
2.85 fps +43%
Beelink U59 Mini-S
Intel Celeron N5095
2 fps
Gemiddeld Intel Celeron N5095
  (1.9 - 2.05, n=5)
1.996 fps 0%
GMK NucBox 3
Intel Celeron J4125
1.26 fps -37%
Blackview AceBook 1
Intel Celeron N4120
1.02 fps -49%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps -51%
LibreOffice / 20 Documents To PDF
GMK NucBox 3
Intel Celeron J4125
159 s * -49%
Blackview AceBook 1
Intel Celeron N4120
157 s * -47%
Beelink U59 Mini-S
Intel Celeron N5095
106.5 s *
Gemiddeld Intel Celeron N5095
  (97 - 107.9, n=5)
103.6 s * +3%
Beelink SEi8
Intel Core i3-8109U
79 s * +26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * +35%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
67.3 s * +37%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
62.2 s * +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * +52%
R Benchmark 2.5 / Overall mean
Blackview AceBook 1
Intel Celeron N4120
1.649 sec * -40%
GMK NucBox 3
Intel Celeron J4125
1.525 sec * -29%
Beelink U59 Mini-S
Intel Celeron N5095
1.178 sec *
Gemiddeld Intel Celeron N5095
  (1.16 - 1.2, n=5)
1.174 sec * -0%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * +27%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * +41%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
0.686 sec * +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * +47%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
0.616 sec * +48%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit
358 Points
Cinebench R15 OpenGL 64Bit
25.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
95.4 Points
Help
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
99.8 pt
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
67 pt
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
43.3 pt
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
31.9 pt
Gemiddeld Intel Celeron N5095

31.2 pt
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30.4 pt
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
21 pt
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3775 KRay/s +203%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2663 KRay/s +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s
Gemiddeld Intel Celeron N5095
  (1241 - 1245, n=5)
1243 KRay/s 0%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
726 KRay/s -42%
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points +284%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
20498 Points +182%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
12985 Points +79%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points +3%
Gemiddeld Intel Celeron N5095
  (7264 - 7466, n=5)
7418 Points +2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
4191 Points -42%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s +265%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
919 MB/s +81%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
629 MB/s +24%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s +1%
Gemiddeld Intel Celeron N5095
  (508 - 515, n=5)
513 MB/s +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
300 MB/s -41%
AIDA64 / CPU Queen
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
47528 Points +118%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points +113%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
23893 Points +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points +1%
Gemiddeld Intel Celeron N5095
  (21458 - 22326, n=5)
21936 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
19745 Points -9%
AIDA64 / FPU SinJulia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points +344%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3766 Points +276%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2152 Points +115%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
1107 Points +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points
Gemiddeld Intel Celeron N5095
  (1000 - 1003, n=5)
1002 Points 0%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points +345%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
10030 Points +164%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
6615 Points +74%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points +4%
Gemiddeld Intel Celeron N5095
  (3802 - 3967, n=5)
3929 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
2231 Points -41%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s +250%
Gemiddeld Intel Celeron N5095
  (19076 - 19354, n=5)
19193 MB/s +1%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
14698 MB/s -23%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
8288 MB/s -57%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
8170 MB/s -57%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s +99%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
258 MB/s +37%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s +1%
Gemiddeld Intel Celeron N5095
  (187.7 - 190, n=5)
188.7 MB/s +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
147.2 MB/s -22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
105 MB/s -44%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
2058 KRay/s +206%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
1440 KRay/s +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s 0%
Gemiddeld Intel Celeron N5095
  (673 - 676, n=5)
675 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
404 KRay/s -40%
AIDA64 / CPU PhotoWorxx
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s +128%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
16602 MPixel/s +125%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
14060 MPixel/s +90%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s +26%
Gemiddeld Intel Celeron N5095
  (7386 - 9899, n=5)
8388 MPixel/s +14%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
6210 MPixel/s -16%

Systeemprestaties

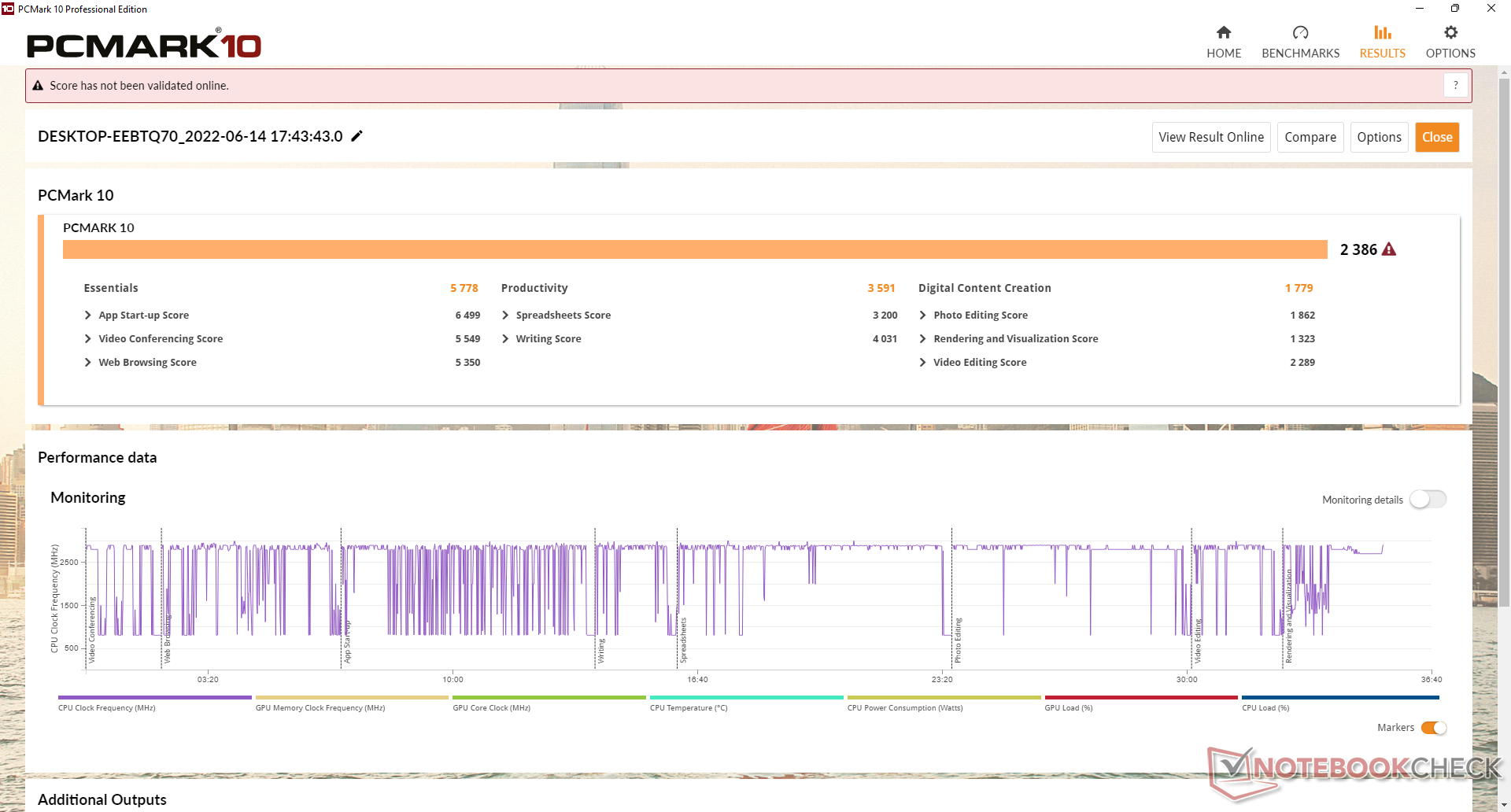

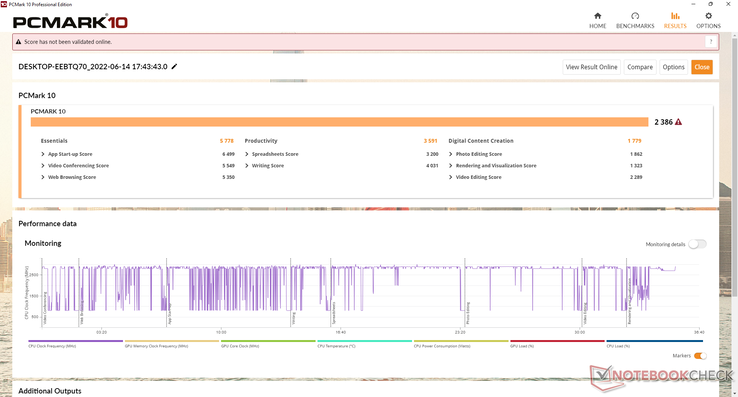

PCMark scores zitten comfortabel tussen mini PC's met de oudere Celeron J4125 zoals de GMK NucBox 3 en mini PC's aangedreven door Core i3 CPU's zoals de Beelink SEi8.

PCMark 10 / Score
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points +89%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points +59%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3645 Points +53%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (2317 - 2417, n=5)
2376 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1707 Points -28%
PCMark 10 / Essentials
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points +56%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
7861 Points +36%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points +35%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points +2%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (5516 - 5874, n=5)
5743 Points -1%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
4754 Points -18%
PCMark 10 / Productivity
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points +76%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points +72%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
6093 Points +70%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (3454 - 3666, n=5)
3576 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
2958 Points -18%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points +151%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points +69%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
2746 Points +54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1779 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (1752 - 1787, n=5)
1775 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
960 Points -46%
CrossMark / Overall
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (473 - 495, n=3)
486 Points -1%
CrossMark / Productivity
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (535 - 561, n=3)
551 Points -2%
CrossMark / Creativity
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (434 - 440, n=3)
437 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points
CrossMark / Responsiveness
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points
Gemiddeld Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (403 - 497, n=3)
456 Points -3%
PCMark 10 Score
2386 punten
Help
AIDA64 / Memory Copy
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
33609 MB/s +98%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
26641 MB/s +57%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s +36%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s +35%
Gemiddeld Intel Celeron N5095
  (16422 - 23009, n=5)
19089 MB/s +13%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16968 MB/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
12738 MB/s -25%
AIDA64 / Memory Read
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
30907 MB/s +82%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
30757 MB/s +82%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s +47%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16942 MB/s
Gemiddeld Intel Celeron N5095
  (15464 - 16959, n=5)
16477 MB/s -3%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s -3%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
9928 MB/s -41%
AIDA64 / Memory Write
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
34480 MB/s +78%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s +58%
Gemiddeld Intel Celeron N5095
  (18612 - 30843, n=5)
23707 MB/s +23%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s +21%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19340 MB/s
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
17678 MB/s -9%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
10380 MB/s -46%
AIDA64 / Memory Latency
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
94.4 ns * -63%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * -50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
86.4 ns * -49%
Gemiddeld Intel Celeron N5095
  (58 - 74.1, n=5)
62.3 ns * -7%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * -4%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
58 ns *
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
56 ns * +3%

* ... kleiner is beter

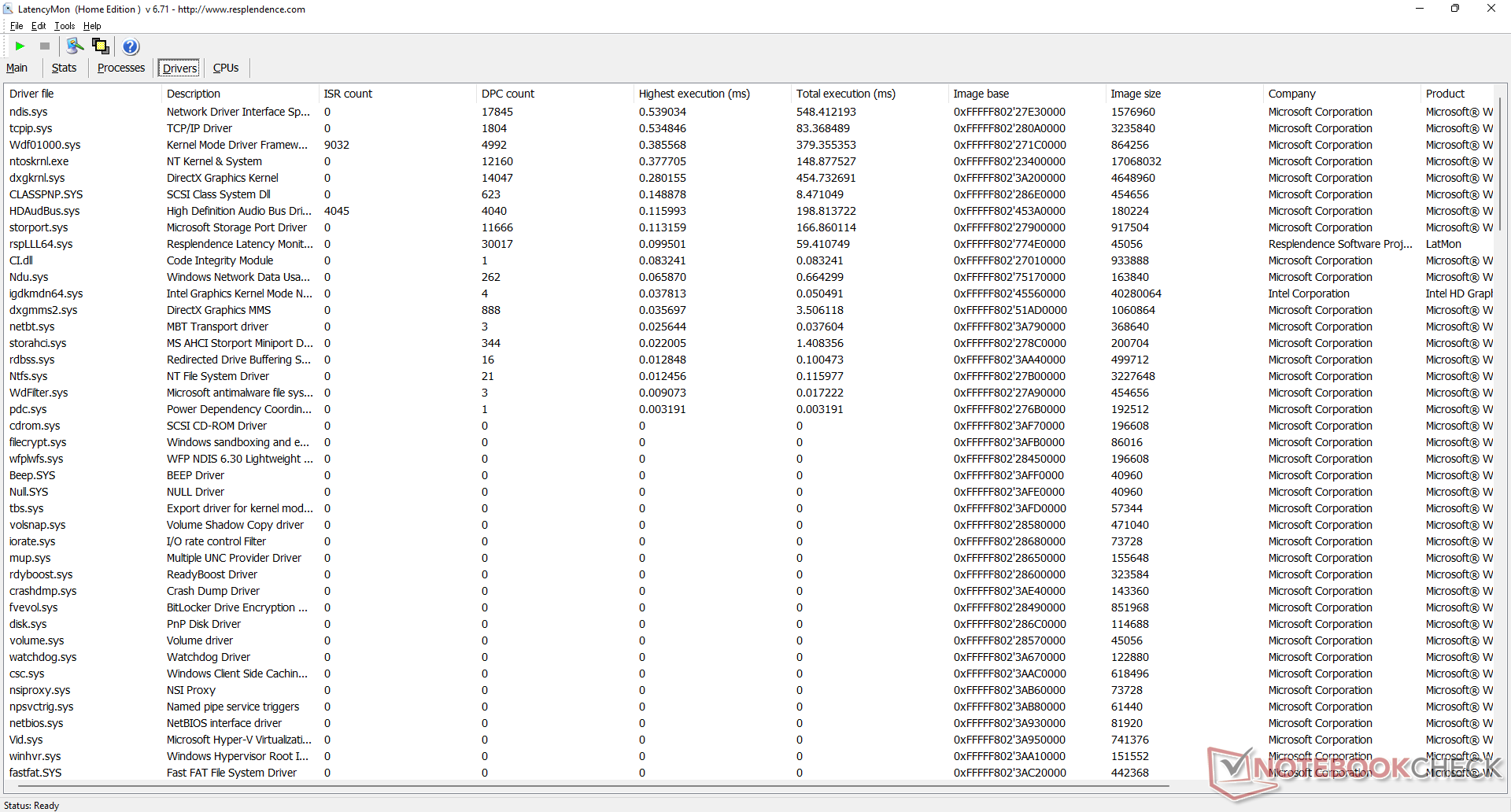

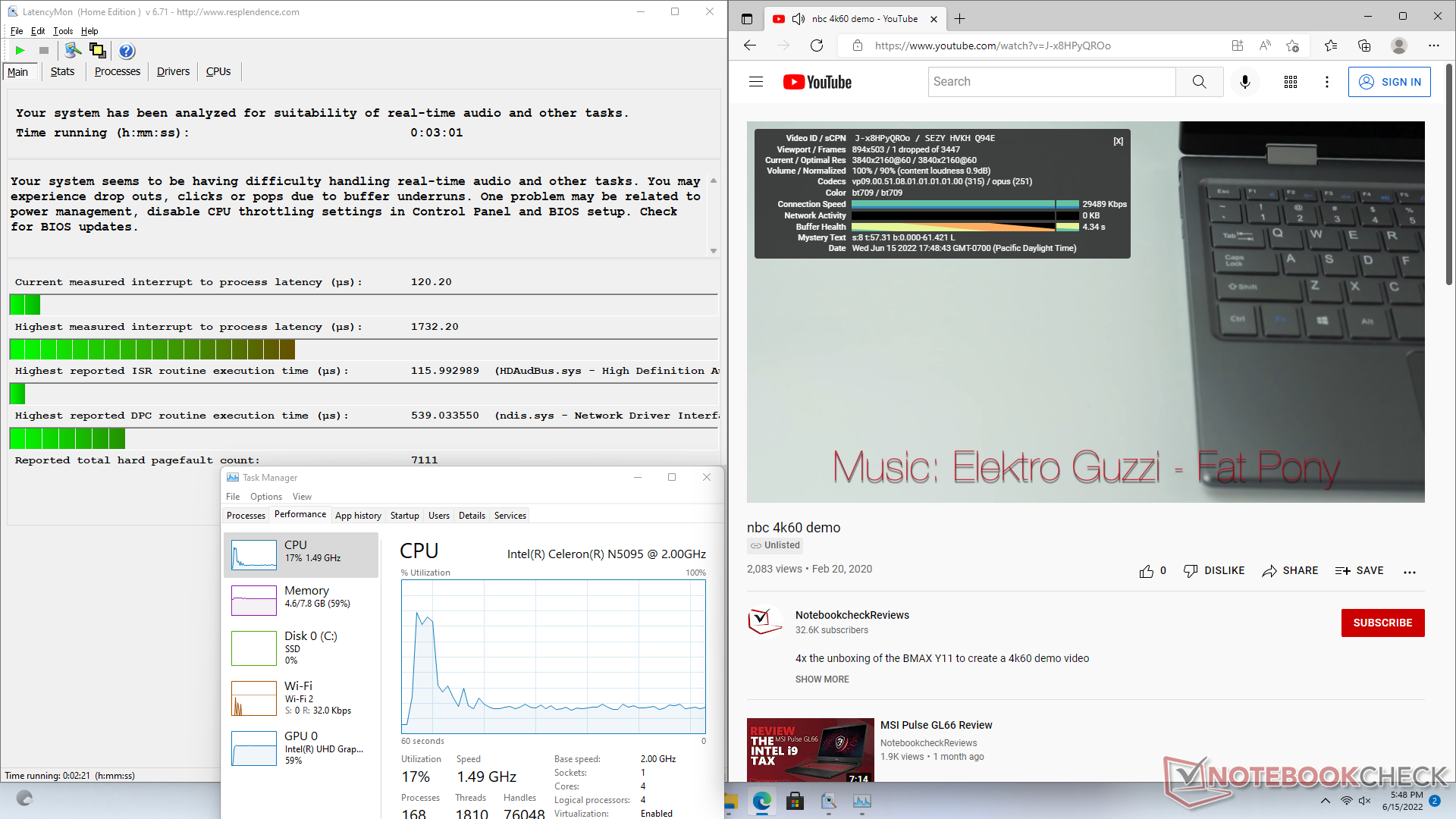

DPC latentie

LatencyMon onthult DPC-problemen bij het openen van meerdere browsertabbladen van onze startpagina. het afspelen van 4K-video's met 60 FPS verloopt verder vloeiend en met een redelijk laag CPU-gebruik van 17 procent, waarbij tijdens onze tests slechts één frame uitviel.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3231 μs * -87%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1913 μs * -10%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs *
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * +56%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +70%

* ... kleiner is beter

Opslagapparatuur - Tot twee interne schijven

Onze unit wordt geleverd met een ongebruikelijkeSilicon Motion AZW 256G M.228 220426 SATA III M.2 SSD voor sequentiële overdrachtssnelheden die maximaal rond de 500 MB/s liggen. Hoewel lang niet zo snel als een NVMe oplossing, is het toch voldoende gezien de doelgroep en Celeron CPU.

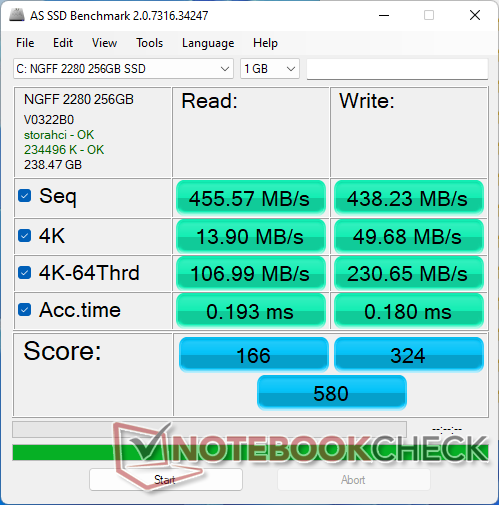

AS SSD
AS SSD

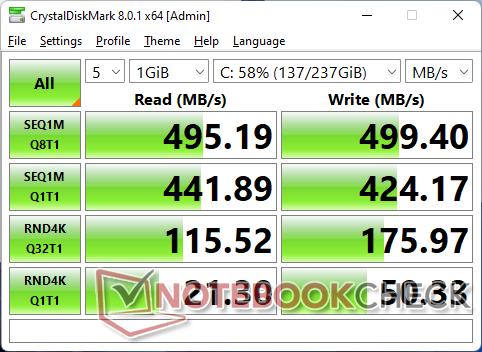

CDM 8
CDM 8
Primaire M.2 2280 SATA III-sleuf. Het model wordt niet geleverd met NVMe SSD's
Primaire M.2 2280 SATA III-sleuf. Het model wordt niet geleverd met NVMe SSD's
Secundaire 2,5-inch SATA III-sleuf
Secundaire 2,5-inch SATA III-sleuf
Silicon Motion AZW 256G M.228 220426 C SATA 3
CDM 5/6 Read Seq Q32T1: 495.3 MB/s
CDM 5/6 Write Seq Q32T1: 423.4 MB/s
CDM 5/6 Read 4K Q32T1: 140 MB/s
CDM 5/6 Write 4K Q32T1: 166.1 MB/s
CDM 5 Read Seq: 445.2 MB/s
CDM 5 Write Seq: 417.6 MB/s
CDM 5/6 Read 4K: 15.02 MB/s
CDM 5/6 Write 4K: 48.42 MB/s
Drive Performance Rating - Percent
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
94.6 pt
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
70.3 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
56.7 pt
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
45.6 pt
Beelink U59
Silicon Motion AZW 512G NV428
41.1 pt
GMK NucBox 3
Netac S535N8/256GYN
32 pt
DiskSpd
seq read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
734 (717.65min - 733.79max) MB/s +57%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s +9%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
490 (487.59min - 489.62max) MB/s +5%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s -14%
GMK NucBox 3
Netac S535N8/256GYN
201 (166.09min - 201.1max) MB/s -57%
seq write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700 (681.36min - 699.61max) MB/s +61%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
470 (456.41min - 470.18max) MB/s +8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s -30%
GMK NucBox 3
Netac S535N8/256GYN
241 (89.76min - 241.17max) MB/s -45%
seq q8 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
798 (733.79min - 797.55max) MB/s +63%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s +14%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
544 (436.87min - 543.62max) MB/s +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s
GMK NucBox 3
Netac S535N8/256GYN
484 (173.85min - 484.23max) MB/s -1%
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s -9%
seq q8 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
775 (766.03min - 775.03max) MB/s +59%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
515 (462.09min - 515.25max) MB/s +6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s +3%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s -40%
GMK NucBox 3
Netac S535N8/256GYN
235 (21.18min - 234.88max) MB/s -52%
4k q1 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
57.1 (51.23min - 57.13max) MB/s +257%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
40.1 (39.9min - 40.06max) MB/s +151%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s -19%
GMK NucBox 3
Netac S535N8/256GYN
7.53 (4.83min - 7.53max) MB/s -53%
4k q1 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
145.3 (143.17min - 145.33max) MB/s +210%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
104 (103.95min - 104.38max) MB/s +122%
GMK NucBox 3
Netac S535N8/256GYN
57.7 (45.42min - 57.74max) MB/s +23%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -1%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s -12%
4k q32 t16 read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
394 (375.15min - 393.85max) MB/s +141%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
347 (346.15min - 346.94max) MB/s +113%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s -17%
GMK NucBox 3
Netac S535N8/256GYN
88.1 (46.77min - 88.09max) MB/s -46%
4k q32 t16 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
517 (500.32min - 517.03max) MB/s +147%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s +58%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
307 (253.88min - 307.24max) MB/s +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s
GMK NucBox 3
Netac S535N8/256GYN
164 (0.14min - 163.91max) MB/s -22%
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s -46%
AS SSD
Score Total
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
1386 Points +139%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
1023 Points +76%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points +45%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points +6%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points
GMK NucBox 3
Netac S535N8/256GYN
490 Points -16%
Score Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
457 Points +175%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
449 Points +170%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points +83%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points +19%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points
GMK NucBox 3
Netac S535N8/256GYN
151 Points -9%
Score Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
687 Points +112%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points +16%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
324 Points 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points
Beelink U59
Silicon Motion AZW 512G NV428
321 Points -1%
GMK NucBox 3
Netac S535N8/256GYN
256 Points -21%
Seq Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700.68 MB/s +54%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s +16%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s +12%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
507 MB/s +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s
GMK NucBox 3
Netac S535N8/256GYN
391 MB/s -14%
Seq Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
640.31 MB/s +46%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s
GMK NucBox 3
Netac S535N8/256GYN
423.2 MB/s -3%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
413.8 MB/s -6%
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s -17%
4K Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
55.28 MB/s +298%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
36.75 MB/s +164%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s
GMK NucBox 3
Netac S535N8/256GYN
11.78 MB/s -15%
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s -23%
4K Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
128.45 MB/s +159%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
88.5 MB/s +78%
GMK NucBox 3
Netac S535N8/256GYN
49.71 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s -14%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s -39%
4K-64 Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
369.4 MB/s +245%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
323.95 MB/s +203%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s +116%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s +27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s
GMK NucBox 3
Netac S535N8/256GYN
100.4 MB/s -6%
4K-64 Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
494.85 MB/s +115%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s +24%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s +10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
193.7 MB/s -16%
GMK NucBox 3
Netac S535N8/256GYN
163.7 MB/s -29%
Access Time Read
GMK NucBox 3
Netac S535N8/256GYN
0.256 ms * -33%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms *
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * +10%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * +36%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.103 ms * +47%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.102 ms * +47%
Access Time Write
GMK NucBox 3
Netac S535N8/256GYN
0.374 ms * -108%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * -49%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms *
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * +3%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.136 ms * +24%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.095 ms * +47%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450475Tooltip
Beelink U59 Mini-S: Ø485 (394.52-487.59)

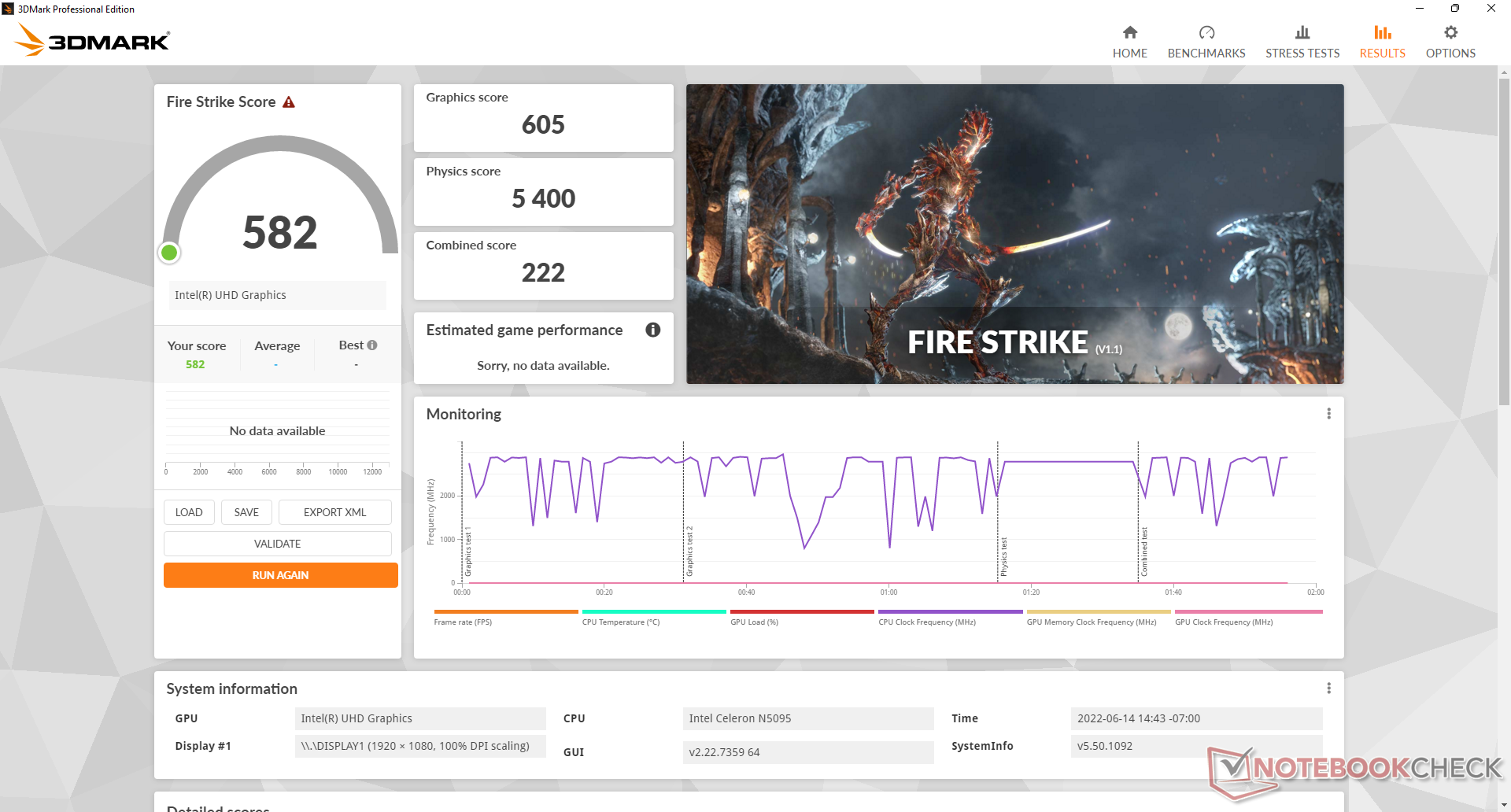

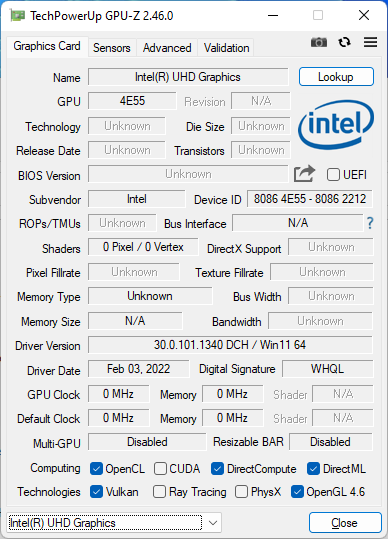

GPU-prestaties - te traag voor games

De grafische prestaties zijn slecht met resultaten die zelfs onder de oudeUHD Graphics 620 met meer dan 50 procent. Verwacht niet dat je zelfs de meest veeleisende 3D games kunt draaien, aangezien deze mini PC meer ontworpen is voor FHD of 4K video streaming.

3DMark 11
3DMark 11
Fire Strike
Fire Strike

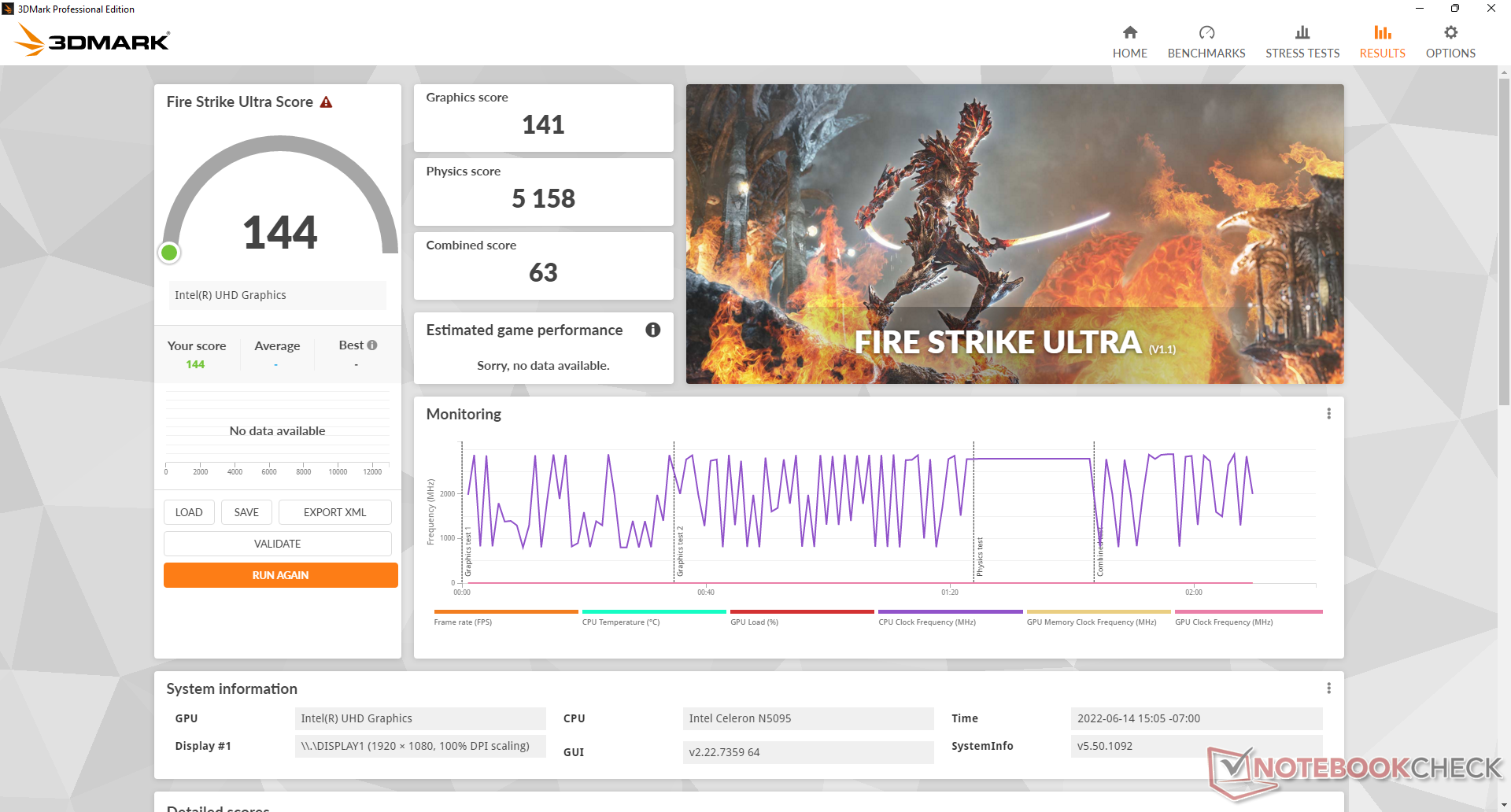

Fire Strike Ultra
Fire Strike Ultra

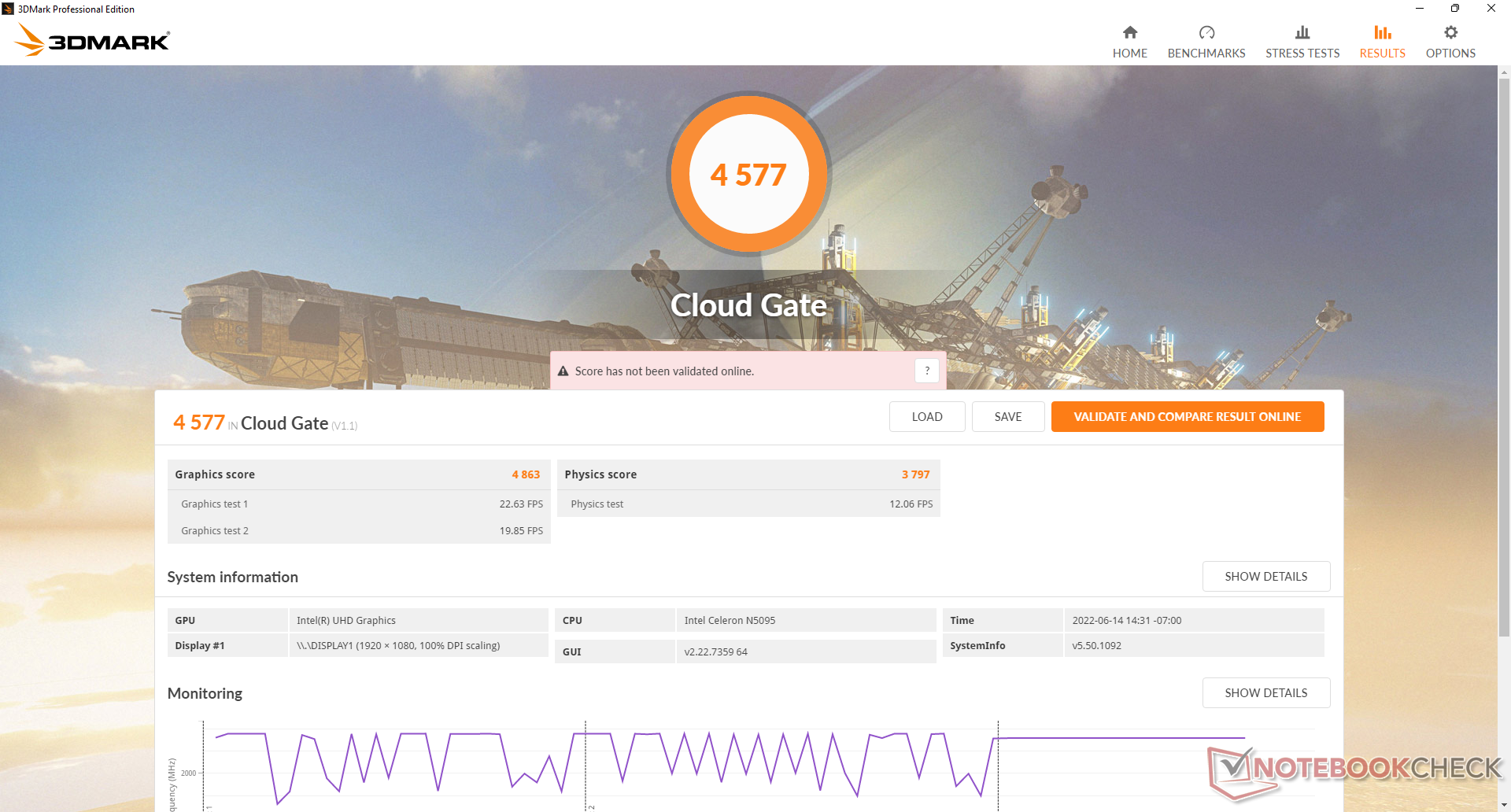

Cloud Gate
Cloud Gate

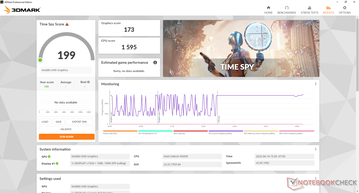

Time Spy
Time Spy

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
25431 Points +423%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19330 Points +297%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
18282 Points +276%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
13022 Points +168%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
10077 Points +107%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
10057 Points +107%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points
Gemiddeld Intel UHD Graphics (Jasper Lake 16 EU)
  (4210 - 5217, n=8)
4863 Points 0%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points -18%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
3441 Points -29%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
3057 Points -37%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
2453 Points -50%
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3579 Points +492%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points +421%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
2438 Points +303%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
1715 Points +183%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points +112%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
1232 Points +104%
Gemiddeld Intel UHD Graphics (Jasper Lake 16 EU)
  (392 - 679, n=8)
613 Points +1%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
436 Points -28%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
378 Points -38%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
371 Points -39%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1076 Points +522%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points +496%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
733 Points +324%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
569 Points +229%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points +133%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
173 Points
Gemiddeld Intel UHD Graphics (Jasper Lake 16 EU)
  (129 - 182, n=5)
168.2 Points -3%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points -18%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
102 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
99 Points -43%
2560x1440 Time Spy Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1221 Points +514%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points +483%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
825 Points +315%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
636 Points +220%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
462 Points +132%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
199 Points
Gemiddeld Intel UHD Graphics (Jasper Lake 16 EU)
  (145 - 210, n=5)
192.4 Points -3%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
161 Points -19%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
117 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
113 Points -43%

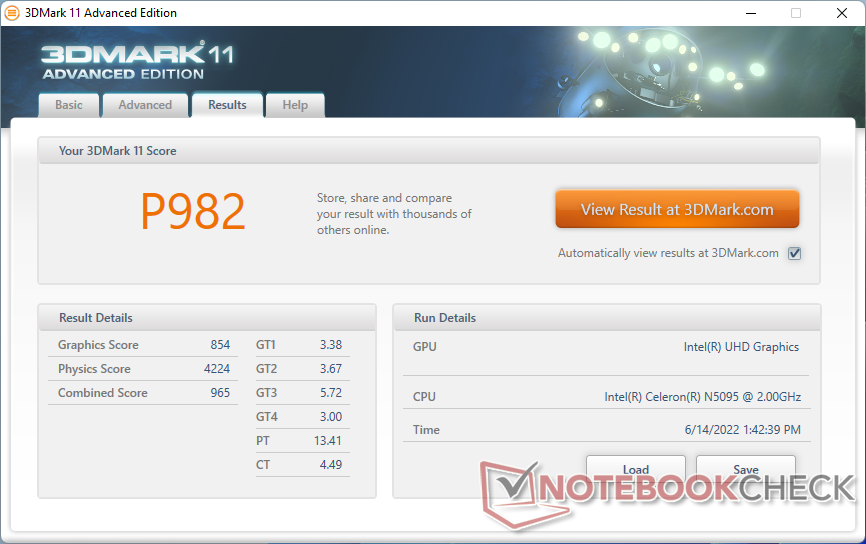

3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
5346 Points +526%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points +511%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
3535 Points +314%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
2801 Points +228%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points +118%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points
Gemiddeld Intel UHD Graphics (Jasper Lake 16 EU)
  (554 - 894, n=8)
819 Points -4%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points -10%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
583 Points -32%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
508 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
429 Points -50%
3DMark 11 Performance
982 punten
3DMark Cloud Gate Standard Score
4577 punten
3DMark Fire Strike Score
582 punten
3DMark Time Spy Score
199 punten
Help
lage gem. hoge ultra
Dota 2 Reborn (2015) 58.3 20.7 11.6 10.8
Final Fantasy XV Benchmark (2018) 6.86
X-Plane 11.11 (2018) 13.3 7.54 7.07

Emissies

Systeemgeluid - Stil onder de meeste omstandigheden

Hoewel het model niet passief gekoeld wordt, kan het dat in de praktijk net zo goed wel zijn, aangezien de ventilator tijdens de meeste belastingen stationair draait of nauwelijks hoorbaar is. Bij het uitvoeren van de eerste benchmark scene van 3DMark 06, bijvoorbeeld, zou het ventilatorgeluid slechts ongeveer 25 dB(A) bedragen tegen een stille achtergrond van 23 dB(A). De resultaten zijn veel stiller dan wat we waarnamen op de Beelink SEi8 of Intel NUC11, elk met krachtigere hardware.

We zijn in staat om tot 34 dB(A) te registreren wanneer de CPU wordt belast onder Prime95. Wanneer u langere tijd browset of video streamt, kunt u ventilatorgeluid verwachten in het 31 dB(A) bereik.

Ventilatorgeluidsprofiel (Wit: Achtergrond, Rood: Systeem in rust, Blauw: 3DMark 06, Groen: Prime95 stress)
Ventilatorgeluidsprofiel (Wit: Achtergrond, Rood: Systeem in rust, Blauw: 3DMark 06, Groen: Prime95 stress)

Geluidsniveau

Onbelast
24.2 / 24.2 / 24.2 dB (A)
Belasting
25.1 / 33.9 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   omgevingslawaai: 23.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.340.636.439.22531.22929.9323124.623.52725.74022.322.52123.45023.324.823.324.16329.629.424.529.88024.223.826.323.210020.420.421.421.312519.918.615.618.616016.515.114.416.920016.815.915.527.925015.915.413.129.831518.41714.518.540017.416.216.118.550013.112.811.918.36301312.31217.780012.29.89.919.9100013.29.59.223.61250119.39.820.7160010.79.99.622200011.110.11023.2250011.610.310.226.4315011.110.710.725.1400011.2111117.8500011.511.211.312.7630011.711.511.512800012.712.511.512.7100001716.911.516.91250018.717.411.418.91600013.712.910.613.8SPL25.124.223.333.9N0.60.50.51.8median 13.1median 12.5median 11.5median 18.6Delta2.82.923.1hearing rangehide median Fan NoiseBeelink U59 Mini-S
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
Noise
-19%
-39%
-9%
-36%
uit / omgeving *
23.3
24.5
-5%
24.8
-6%
24.5
-5%
27.8
-19%
Idle Minimum *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
27.8
-15%
Idle Average *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
33.9
-40%
Idle Maximum *
24.2
31.1
-29%
35.6
-47%
28.6
-18%
33.9
-40%
Load Average *
25.1
37.7
-50%
36.2
-44%
29.7
-18%
43.7
-74%
Load Maximum *
33.9
37.5
-11%
47.6
-40%
37.6
-11%
43.7
-29%
Witcher 3 ultra *
38
30.4

* ... kleiner is beter

Temperatuur

De oppervlaktetemperaturen zijn warmer dan verwacht en kunnen oplopen tot 40 C aan de bovenkant, zelfs wanneer het systeem stationair draait op het bureaublad. Wanneer veeleisende belastingen worden uitgevoerd, stijgt de bovenste hot spot slechts lichtjes tot 43 C. De hoge oppervlaktetemperatuur bij stationair draaien kan worden toegeschreven aan de stationair draaiende ventilator tijdens lage verwerkingsbelastingen om het systeem zo stil mogelijk te houden tot de ventilator nodig is.

Systeem inactief (voorzijde)
Systeem inactief (voorzijde)
Systeem inactief (achterkant)
Systeem inactief (achterkant)
Prime95 stress (voor)
Prime95 stress (voor)
Prime95 stress (rug)
Prime95 stress (rug)

Stresstest

Systeem inactief
Systeem inactief

Het draaien van Prime95 veroorzaakt CPU kloksnelheden en temperaturen die pieken tot respectievelijk 2.8 GHz en 87 C. Kloksnelheden zouden uiteindelijk dalen tot 2,5 tot 2,6 GHz na slechts een korte tijd om de kerntemperatuur van 87 C te behouden. Het stroomverbruik van de CPU liep op tot 16 W tijdens het begin van de test, voordat het stabiliseerde op 13 W als gevolg van thermische beperkingen.

Prime95 stress
Prime95 stress
Prime95+FurMark stress
Prime95+FurMark stress
CPU Klok (GHz) GPU Klok (MHz) Gemiddelde CPU Temperatuur (°C)
Systeem in rusttoestand -- -- 57
Prime95 Stress 2.6 -- 87
Prime95 + FurMark Stress 2.3 -- 86

Energiebeheer - zeer efficiënt

Stroomverbruik

Het apparaat verbruikt ongeveer 7 tot 8 W wanneer het stationair draait op een desktop zonder draaiende applicaties, wat efficiënter is dan de 11e generatie Core i5-aangedreven Intel NUC11 of 10e generatie Core i5-aangedreven Zotac ZBox Nano. Bij het uitvoeren van meer veeleisende belastingen, zoals games, trekt het systeem gemiddeld slechts 18 W, vergeleken met 41 W of 33 W op de eerder genoemde Intel en Zotac modellen, respectievelijk. Natuurlijk zijn de GPU prestaties aanzienlijk trager op de Beelink Mini-S en dus is de lagere energievraag te verwachten.

We zijn in staat om een maximale trek van 27 W te meten van de kleine (~7,9 x 4,8 x 3,4 cm) 36 W AC adapter. Dit is dezelfde adapter die ook met de originele U59 wordt meegeleverd.

Stroomgebruik
Uit / Standbydarklight 1.3 / 0.66 Watt
Inactiefdarkmidlight 7 / 7 / 7.6 Watt
Belasting midlight 18.3 / 27.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,
Beelink SEi8
i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
GMK NucBox 3
Celeron J4125, UHD Graphics 600, Netac S535N8/256GYN, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
Power Consumption
-43%
-101%
6%
42%
-56%
Idle Minimum *
7
7.5
-7%
11.5
-64%
6.7
4%
3
57%
8.9
-27%
Idle Average *
7
7.6
-9%
12.4
-77%
6.7
4%
3.1
56%
9
-29%
Idle Maximum *
7.6
9.2
-21%
12.9
-70%
7.4
3%
3.6
53%
9.9
-30%
Load Average *
18.3
41.1
-125%
40.7
-122%
16
13%
11.1
39%
33
-80%
Load Maximum *
27.1
41.4
-53%
73.5
-171%
25.6
6%
25.4
6%
58
-114%
Witcher 3 ultra *
43.9
13.1

* ... kleiner is beter

Power Consumption Witcher 3 / Stresstest

No graph data

Power Consumption external Monitor

0510152025Tooltip
Beelink U59 Mini-S; Prime95 V2810 Stress (external Monitor): Ø24.2 (22.9-27.1)
Beelink U59 Mini-S; Cinebench R15 Multi (external Monitor): Ø23 (20.9-23.9)
Beelink U59 Mini-S; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.7 (14.2-17.2)

Pro

+ stil onder de meeste omstandigheden
+ 2x interne opslagondersteuning
+ twee video-uitgangen
+ goedkoop

Contra

- geen SD-kaartlezer of USB-C
- alleen RAM met één kanaal
- korte AC-adapterkabel
- trage Wi-Fi

Verdict - Voor budget HTPC opstellingen

In review: Beelink U59 Mini-S. Test toestel geleverd door Beelink
In review: Beelink U59 Mini-S. Test toestel geleverd door Beelink

Voor iets meer dan $200 USD, is de Beelink U59 Mini-S een van de goedkoopste mini PC's die u kunt vinden die volledig geladen is met RAM, opslagruimte en Windows 11. Voor deze lage prijs, kan de Mini-S een fatsoenlijke optie zijn voor gebruikers die niet bereid zijn om honderden meer uit te geven aan een snellere Core ix-aangedreven mini PC en geen genoegen willen nemen met digitale media dongles zoals de Chromecast, Roku, of Amazon Fire TV. De Celeron N5905 is niet bijzonder snel, maar het is nog steeds sneller dan elke Atom optie die er is voor relatief soepelere werking en uitstekende 4K video streaming bij 60 FPS.

Opmerkelijke hoogtepunten van de Mini-S buiten zijn betaalbaarheid zijn de interne dubbele opslagoptie en het zeer stille ventilatorgeluid.

Er zijn een heleboel bezuinigingen om in gedachten te houden, meestal met betrekking tot het gebrek aan functies van het model. Er is geen SD-kaartlezer, USB-C, Wi-Fi 6, of dual-channel RAM. Het snoer van de AC-adapter is ook wat kort, slechts ongeveer 1 meter. Gelukkig doen deze tegenslagen niet al te veel afbreuk aan de kern HTPC ervaring.

Prijs en beschikbaarheid

De Beelink U59 Mini-S is nu beschikbaar op Amazon voor $209 USD na toepassing van de huidige coupon of $229 via de officiële Beelink website.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Beelink U59 Mini-S mini PC review: Het supervoordelige Intel NUC HTPC alternatief
Allen Ngo, 2022-06-20 (Update: 2022-06-20)
