Intel NUC Pro Chassis Element in review - Modulaire barebone voor vele doeleinden

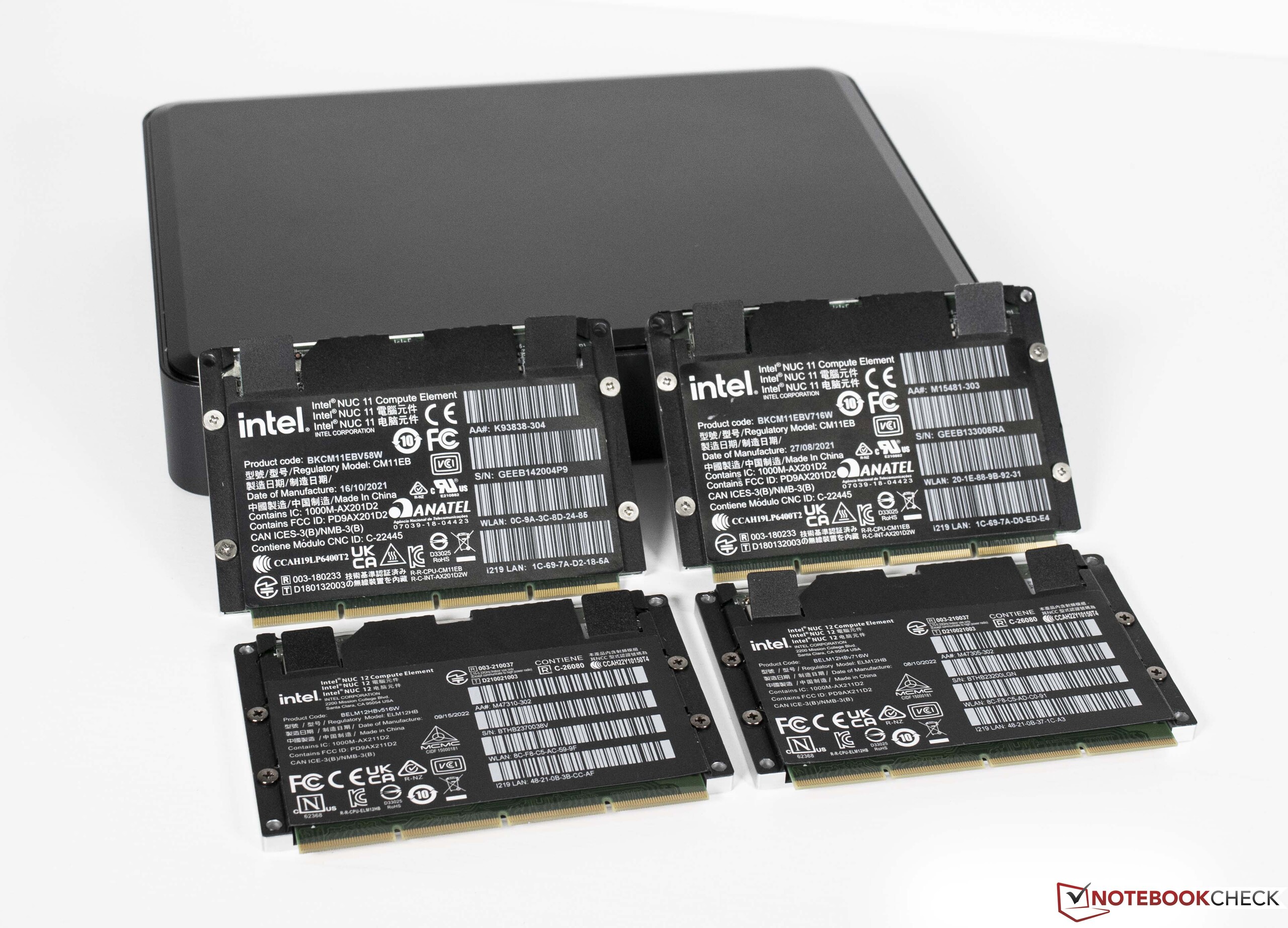

In tegenstelling tot conventionele Intel NUC systemen, die soms worden geleverd als barebone versie zonder RAM en SSD, wordt de Intel NUC Pro Chassis Element niet geleverd met een SoC in de basisconfiguratie. Deze is geïnstalleerd op een apart compute element en wordt geïnstalleerd als een extra plug-in kaart in het systeem.

De NUC Pro Chassis Element kost momenteel ongeveer 340 euro, wat niet goedkoop is gezien de extra kosten voor het rekenelement en de massaopslag. Bij de kleinste versie die we getest hebben, moet je rekenen op ongeveer 850 euro, het model in combinatie met de Intel Core i7-1265Ukan gemakkelijk 1.250 euro kosten. Intel volgt een soortgelijke aanpak met de Intel NUC P14E-laptop, die ook met bijbehorende rekenelementen kan worden uitgerust. Volgens Intel is de levensduur van de basis een groot voordeel, zowel voor de laptop als de desktopversie. Hoe de ondersteuning voor nieuwere modules er in de toekomst uit zal zien, is momenteel echter niet te zeggen. Een overzicht van de gebruikte rekenelementen is te zien in de volgende tabel.

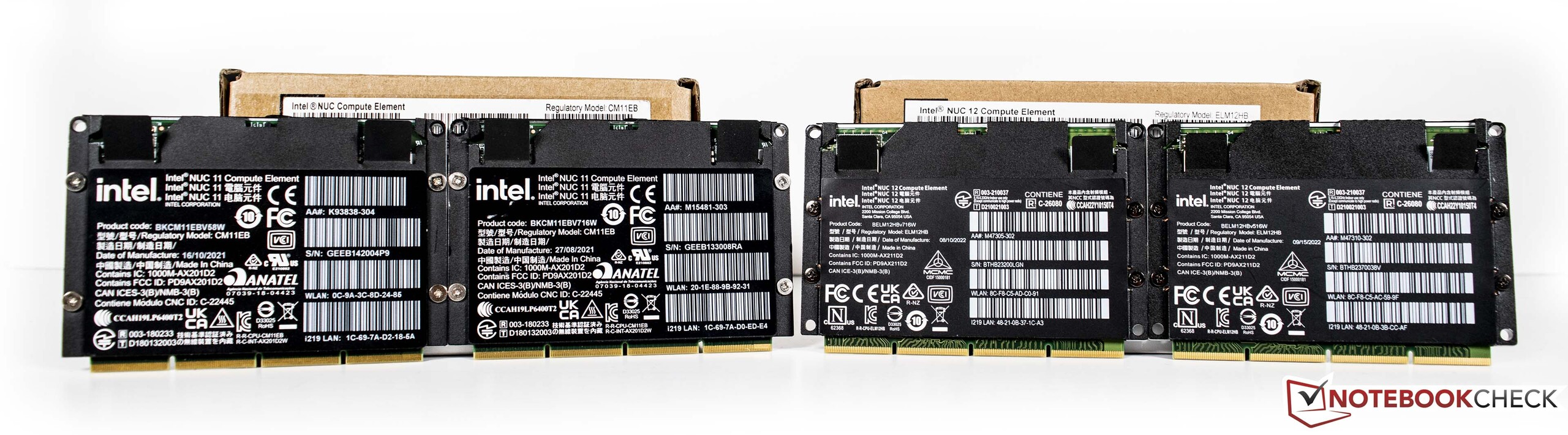

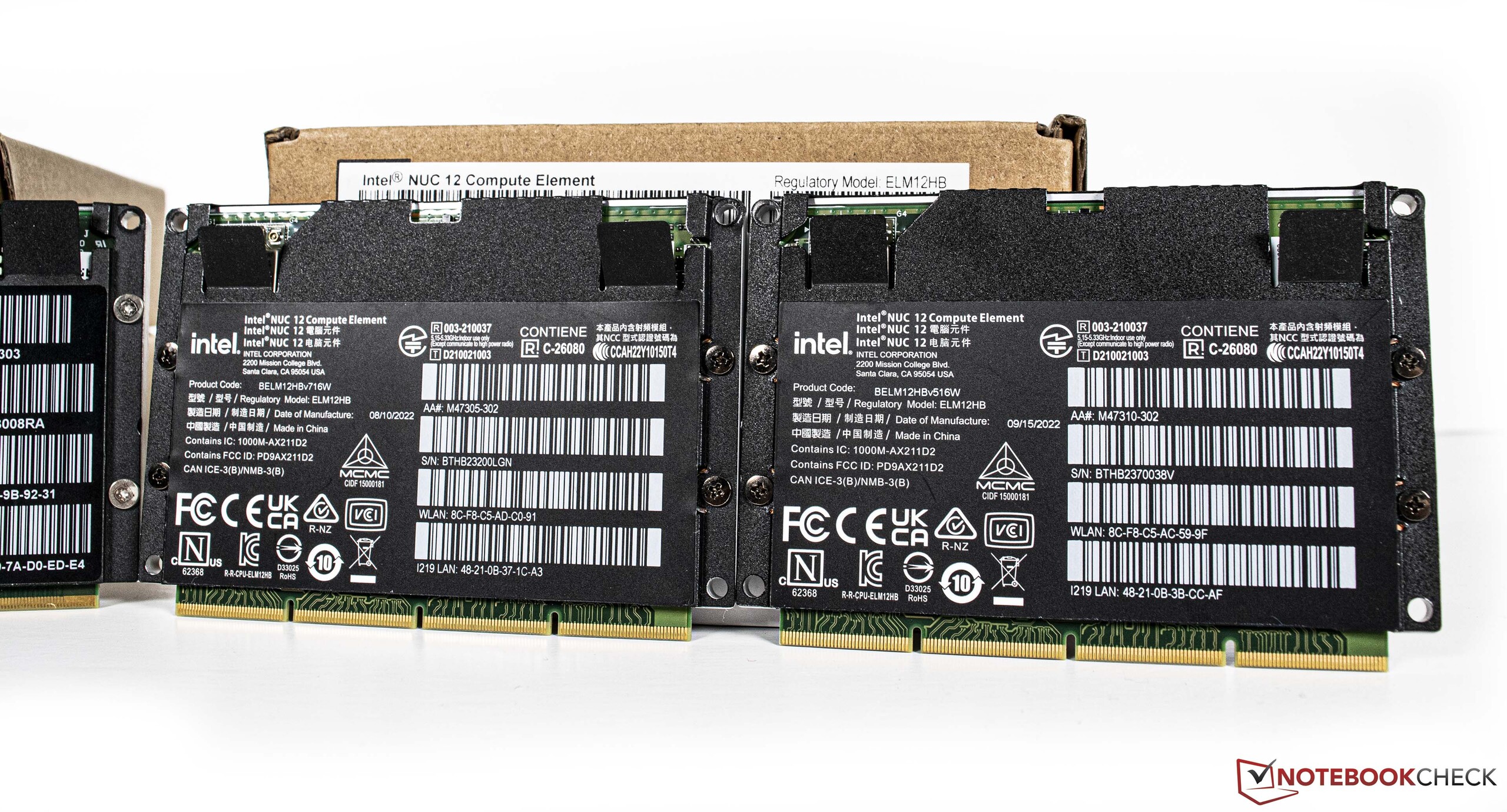

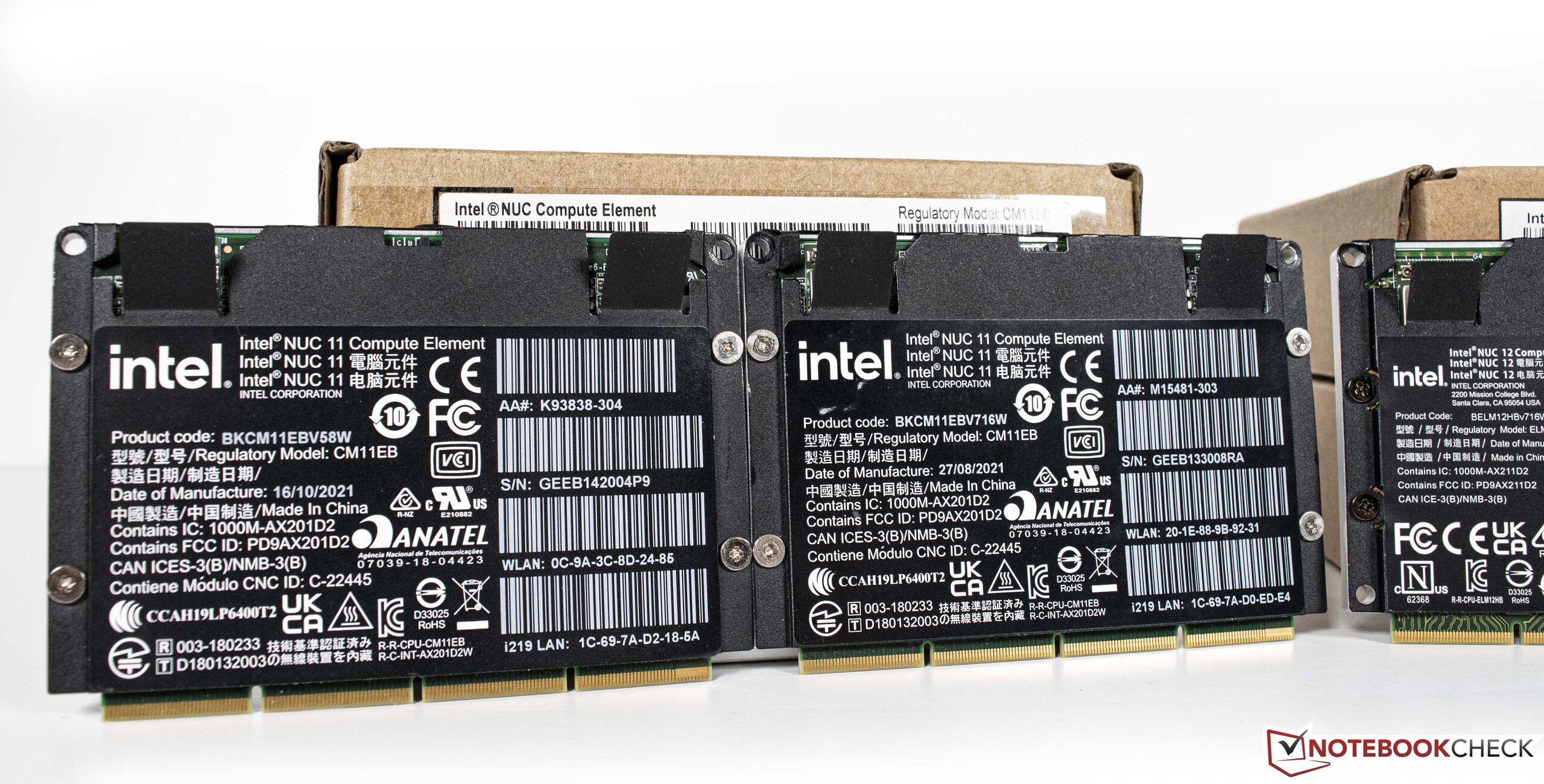

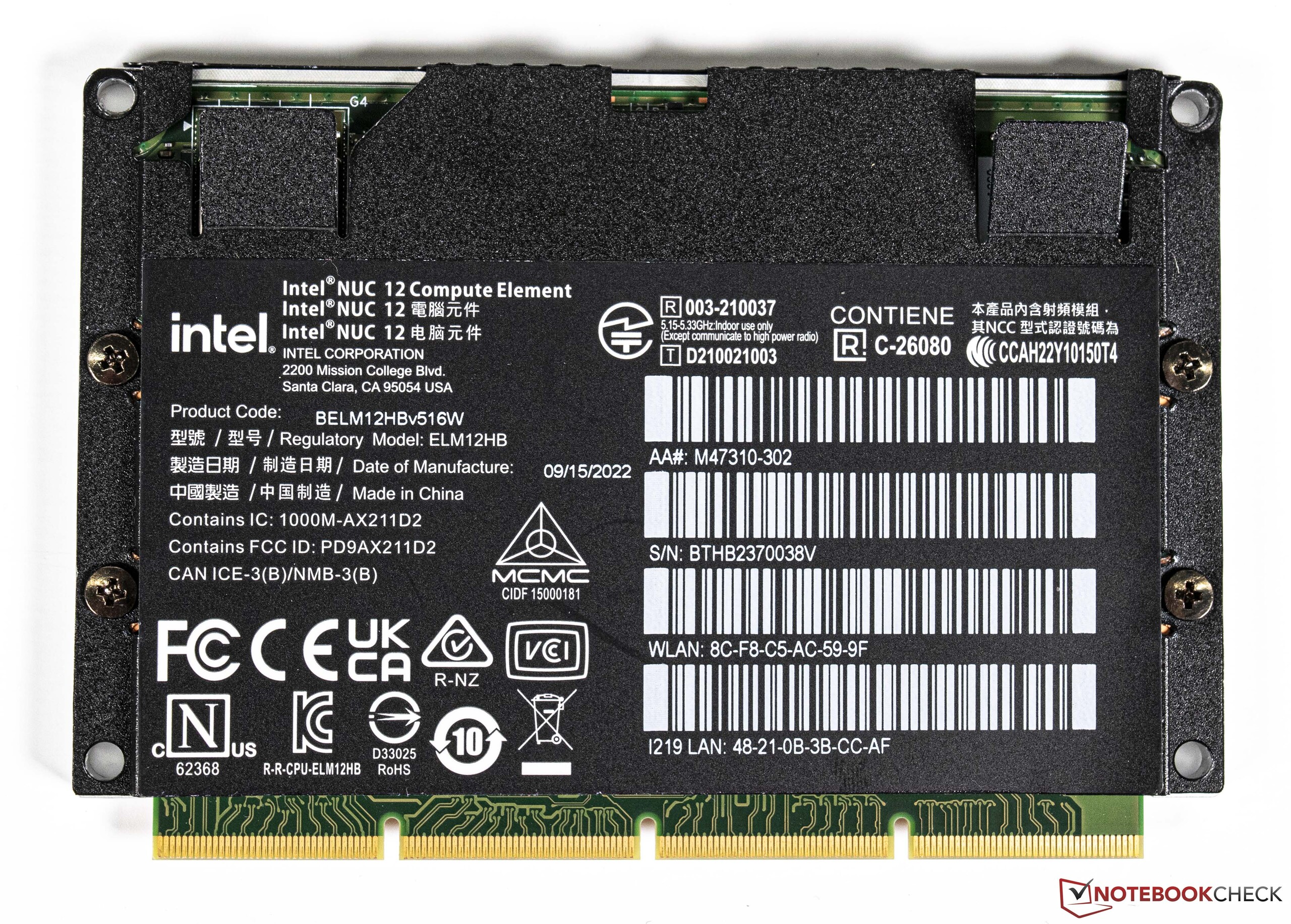

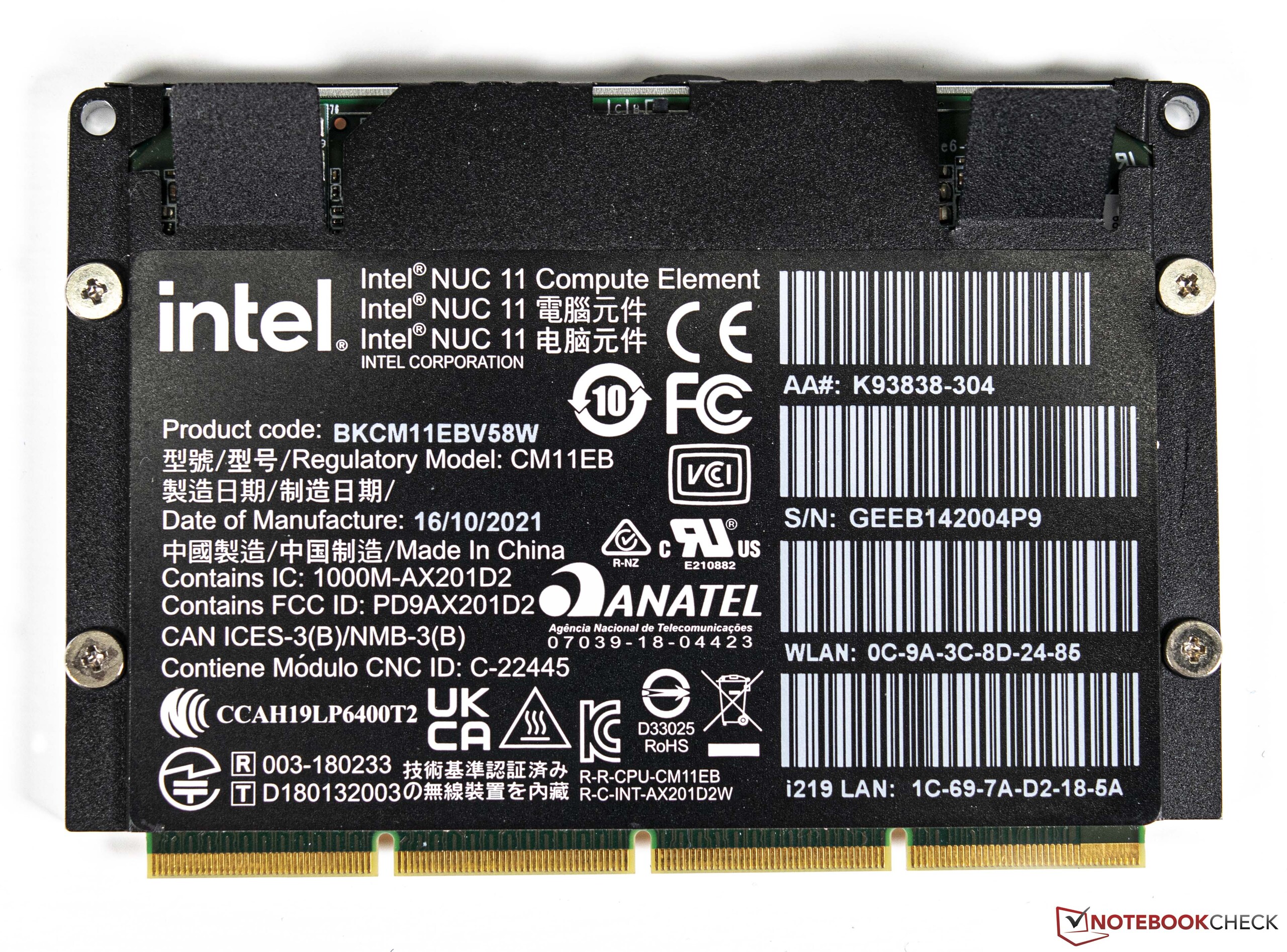

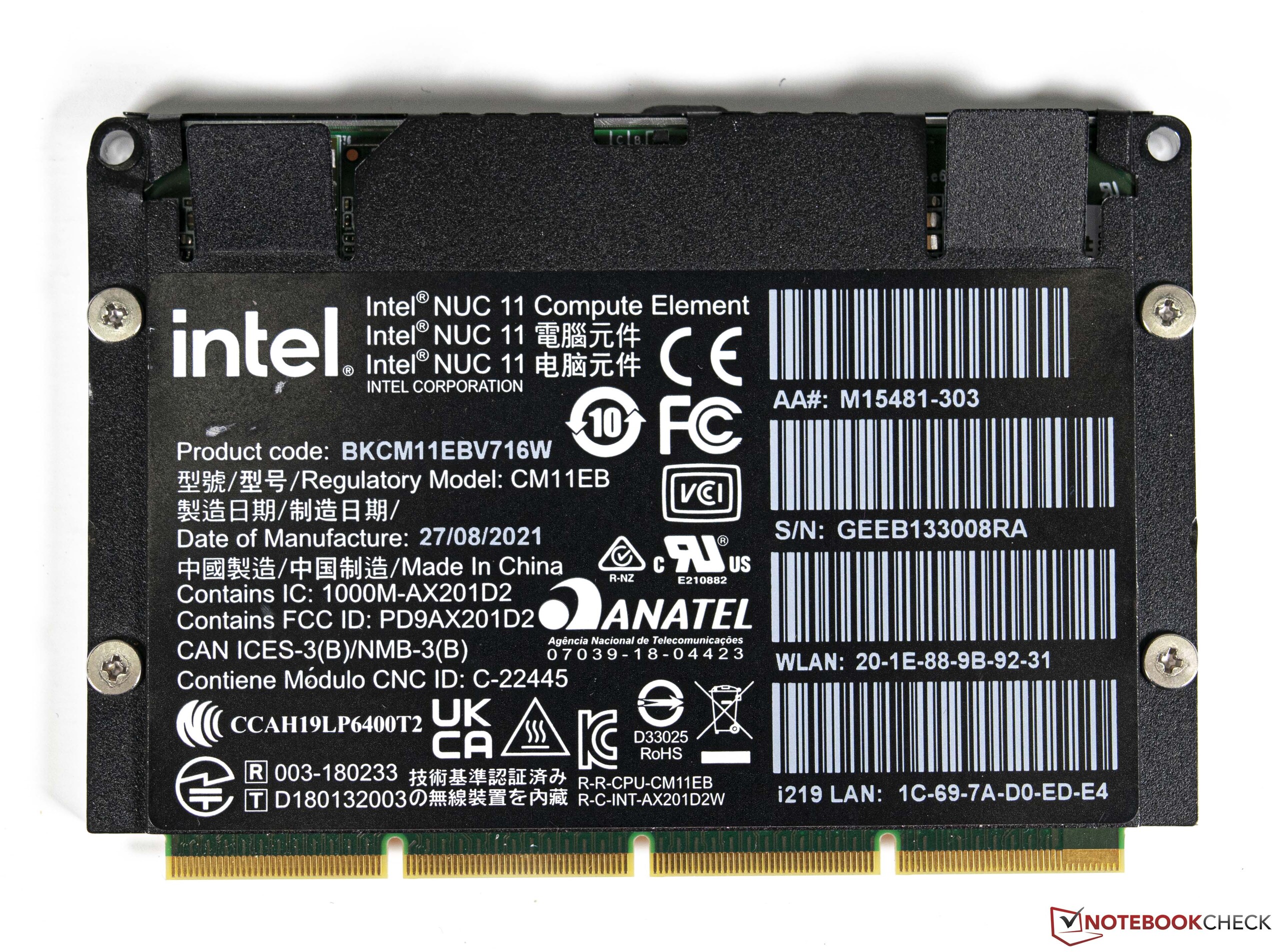

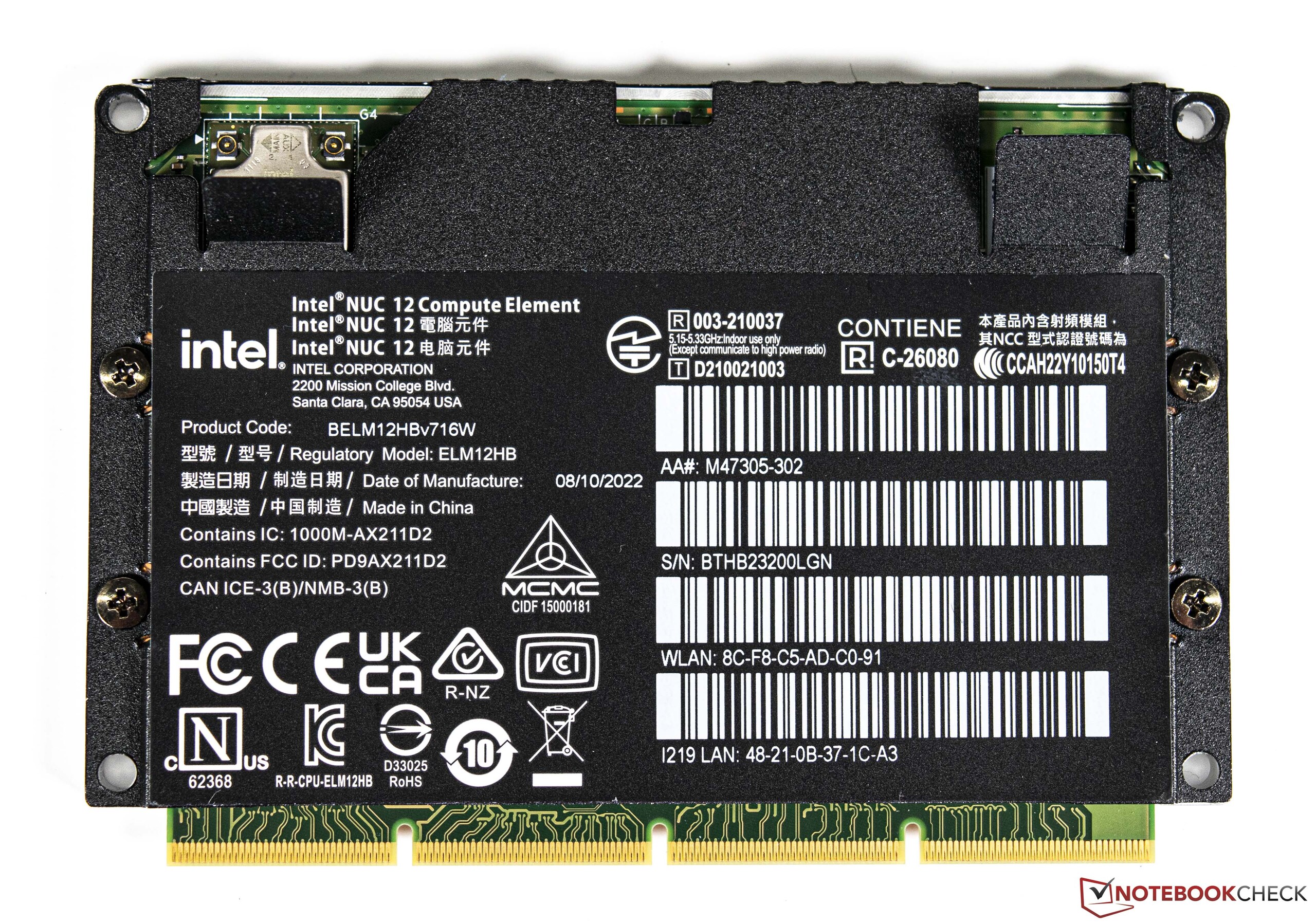

Model	Intel NUC 11 Compute Element (CM11EBv58W)	Intel NUC 11 Compute Element (CM11EBv716W)	Intel NUC 12 Compute Element (ELM12HBv5)	Intel NUC 12 Compute Element (ELM12HBv7)
SoC	Intel Core i5-1145G7	Intel Core i7-1185G7	Intel Core i5-1245U	Intel Core i7-1265U
Kernen / Threads	4 / 8	4 / 8	10 / 12	10 / 12
RAM	8GB (LPDDR4x-4266)	16GB (LPDDR4x-4266)	8GB, 16GB (LPDDR5-5200)	16GB, 32GB (LPDDR5-5200)
WiFi	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6E AX211	Intel Wi-Fi 6E AX211
Prijs in US dollars	447	669	508	765 - 885

Zaak

Het Intel NUC Pro chassiselement is volledig zwart en ziet er dus relatief onspectaculair uit, je zou zelfs kunnen zeggen vrij saai. Niettemin is de bouwkwaliteit op een hoog niveau, zoals we die kennen van Intels NUC-systemen. Alles is van plastic aan de buitenkant en er is een stevig metalen frame aan de binnenkant, wat het apparaat de nodige stabiliteit geeft.

Apparatuur

Op het eerste gezicht valt er veel te ontdekken op het gebied van connectiviteit. Een nadere blik onthult echter eerder een desillusie. 3x USB 2.0 is gewoon niet wat je in 2022 zou verwachten. Dit is nog wel te verdragen als de muis en het toetsenbord er via worden bediend. Toch hadden we graag modernere interfaces gezien - vooral USB-C inclusief Thunderbolt. De twee HDMI-uitgangen zijn goed en kunnen een opstelling met twee monitoren van stroom voorzien, maar de LAN-poorten schieten tekort met een snelheid van 1 GBit. Ook hier zou ten minste een 2,5 GBit LAN-poort zijn wat je momenteel zou mogen verwachten.

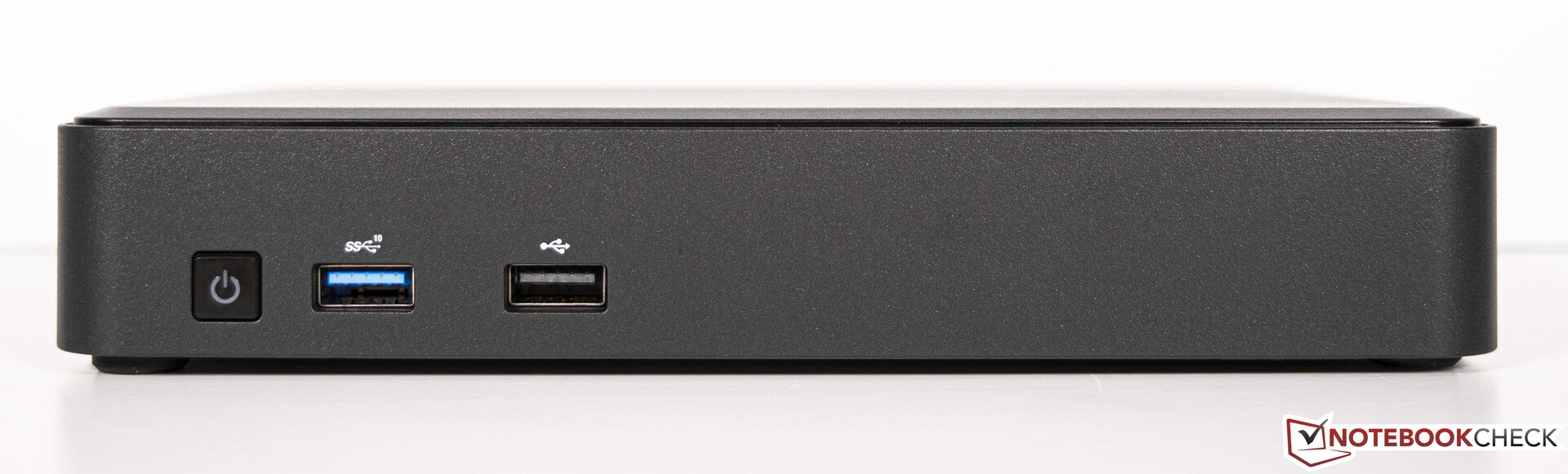

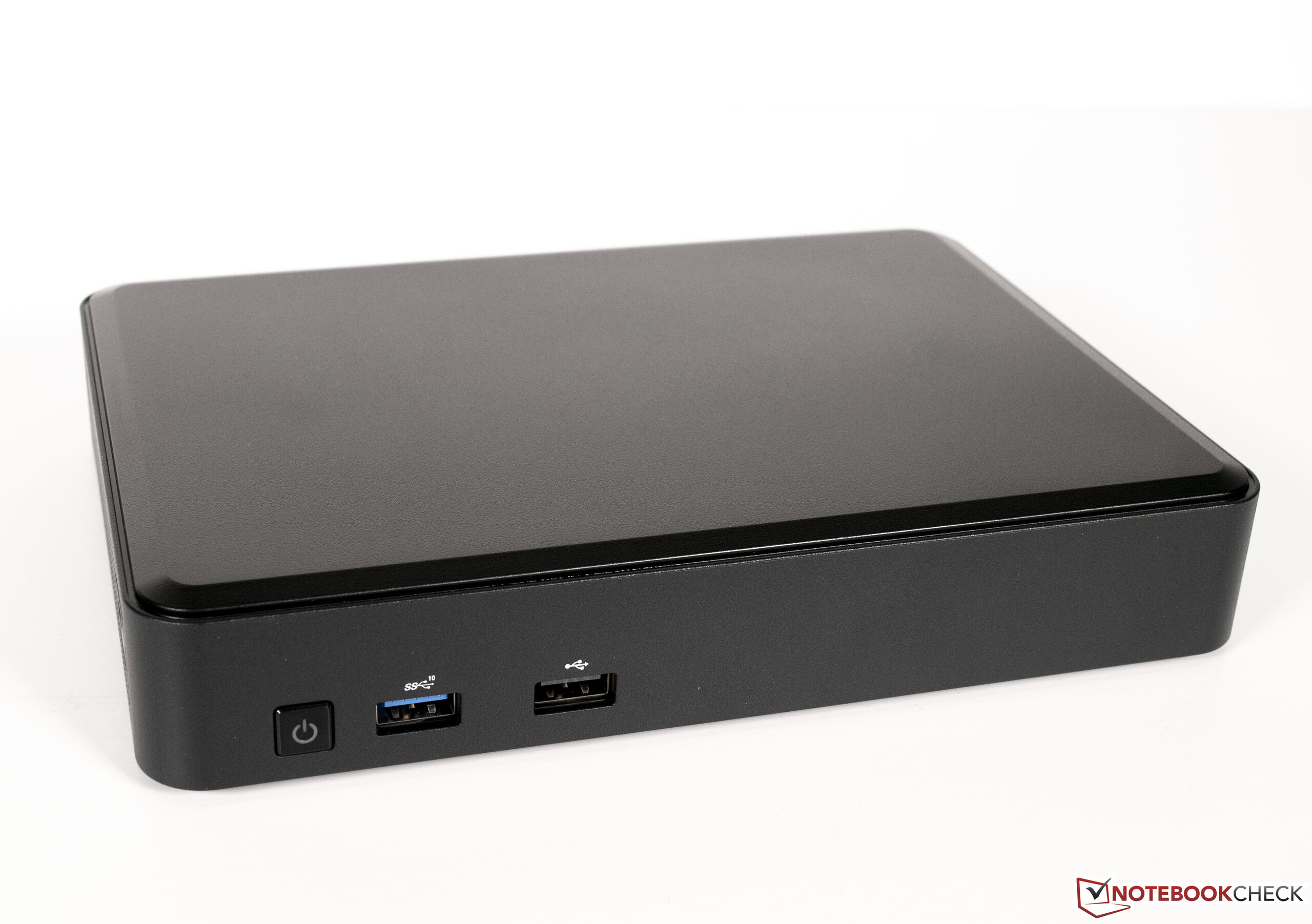

Voorkant: Power-On, 1x USB3.1 Gen.2, 1x USB2.0

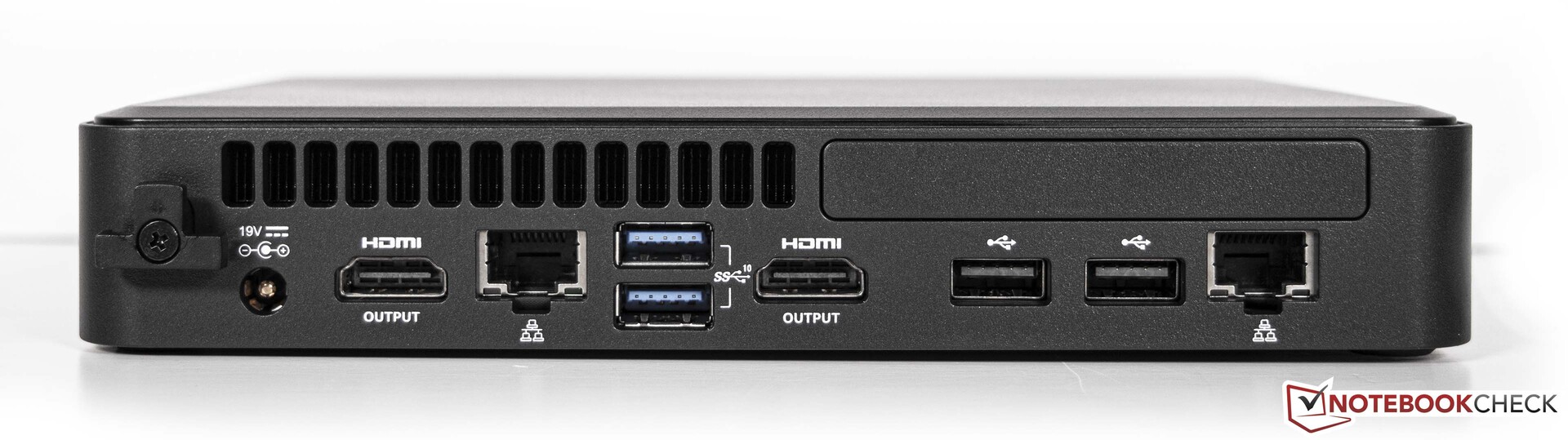

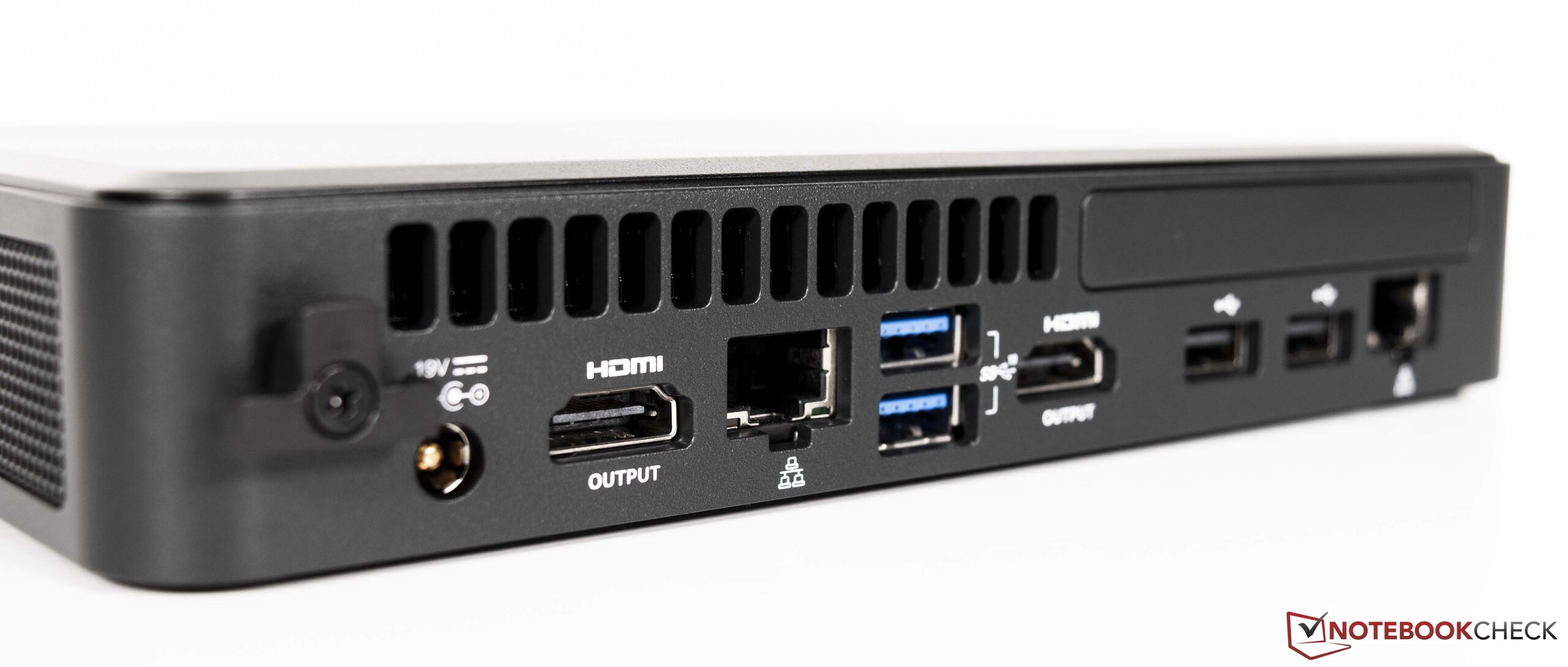

Achterkant: Stroomaansluiting, 2x HDMI, 2x LAN (Intel i219-LM GbE +Intel i211-AT GbE), 2x USB3.1 Gen.2, 2x USB2.0

Communicatie

Wat betreft de gebruikte Wi-Fi modules vertrouwt Intel op een Intel Wi-Fi 6 AX201 voor de Tiger-Lake gebaseerde rekenelementen, terwijl de Alder-Lake SoC's zijn gekoppeld aan een iets modernere Intel Wi-Fi 6 AX211. De prestaties van alle geteste configuraties zijn goed en verschillen slechts enkele procenten. Onze testrouter ASUS ROG Rapture GT-AXE11000 werd gebruikt voor deze test.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s ∼100%
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1701 (854^min - 1715^max) MBit/s ∼99%
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s ∼100%
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1062 (1009^min - 1098^max) MBit/s ∼97%
iperf3 receive AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1688 (1377^min - 1732^max) MBit/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1685 (841^min - 1722^max) MBit/s ∼100% 0%
iperf3 transmit AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1060 (544^min - 1101^max) MBit/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1011 (529^min - 1068^max) MBit/s ∼95% -5%

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1062 (1009-1098)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1074 (570-1168)

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1671 (854-1715)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1712 (1694-1728)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1687 (1377-1732)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1657 (841-1722)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1042 (544-1101)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø993 (529-1068)

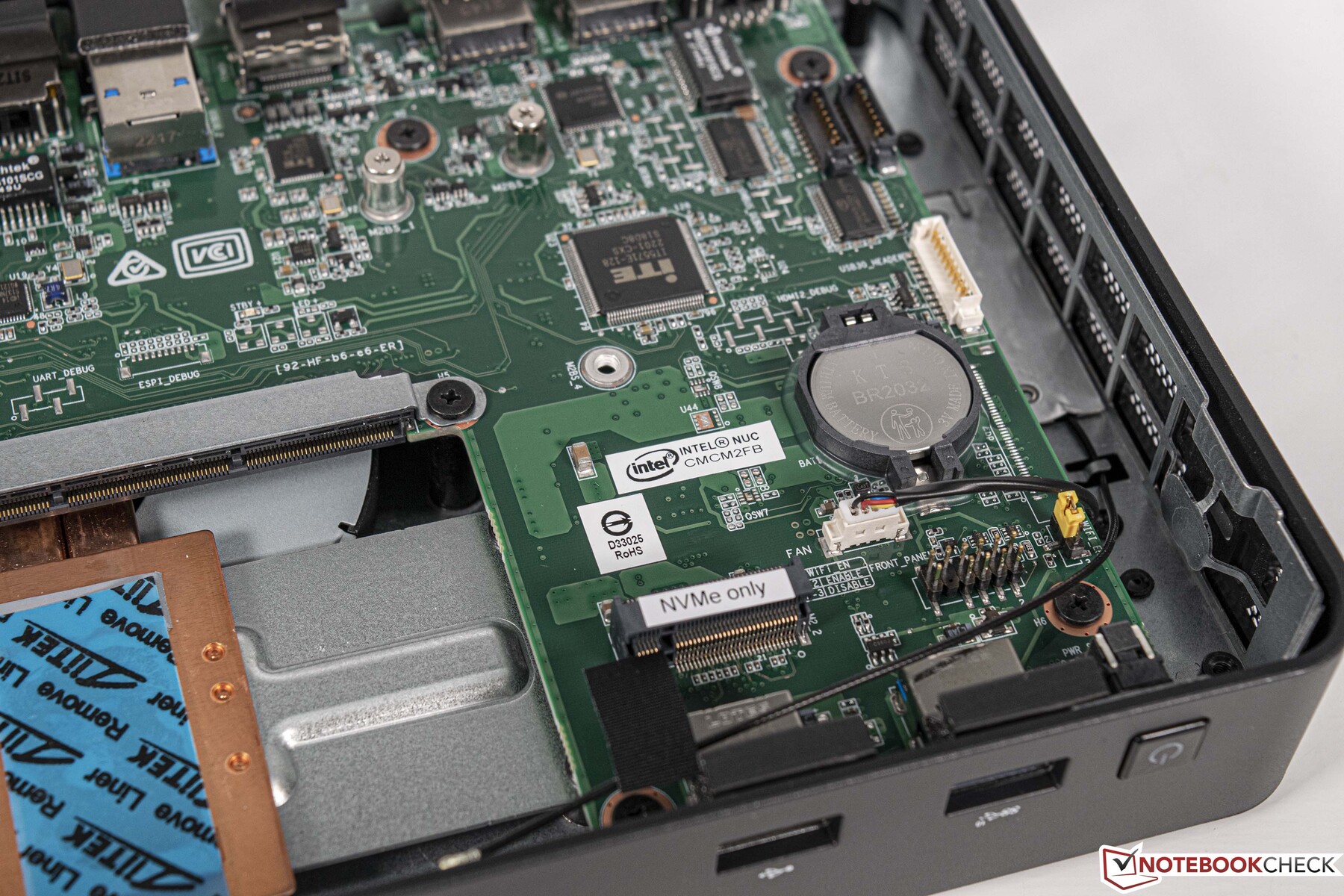

Onderhoud

De barebone optie maakt het eenvoudig om het Intel NUC Pro Chassis Element te openen. De bodemplaat is bevestigd met vier schroeven. Binnenin heb je gemakkelijk toegang tot de nodige interfaces om het apparaat uit te rusten met de meest essentiële zaken. Het rekenelement heeft zijn plaats in het voorste gedeelte. Bovendien is al een warmtegeleidingspad aangebracht om de warmteafvoer te garanderen. Verder moeten de twee WLAN-antennes worden aangesloten, die ook voorgeïnstalleerd zijn. Tot twee M.2 SSD's kunnen worden geïnstalleerd voor massaopslag.

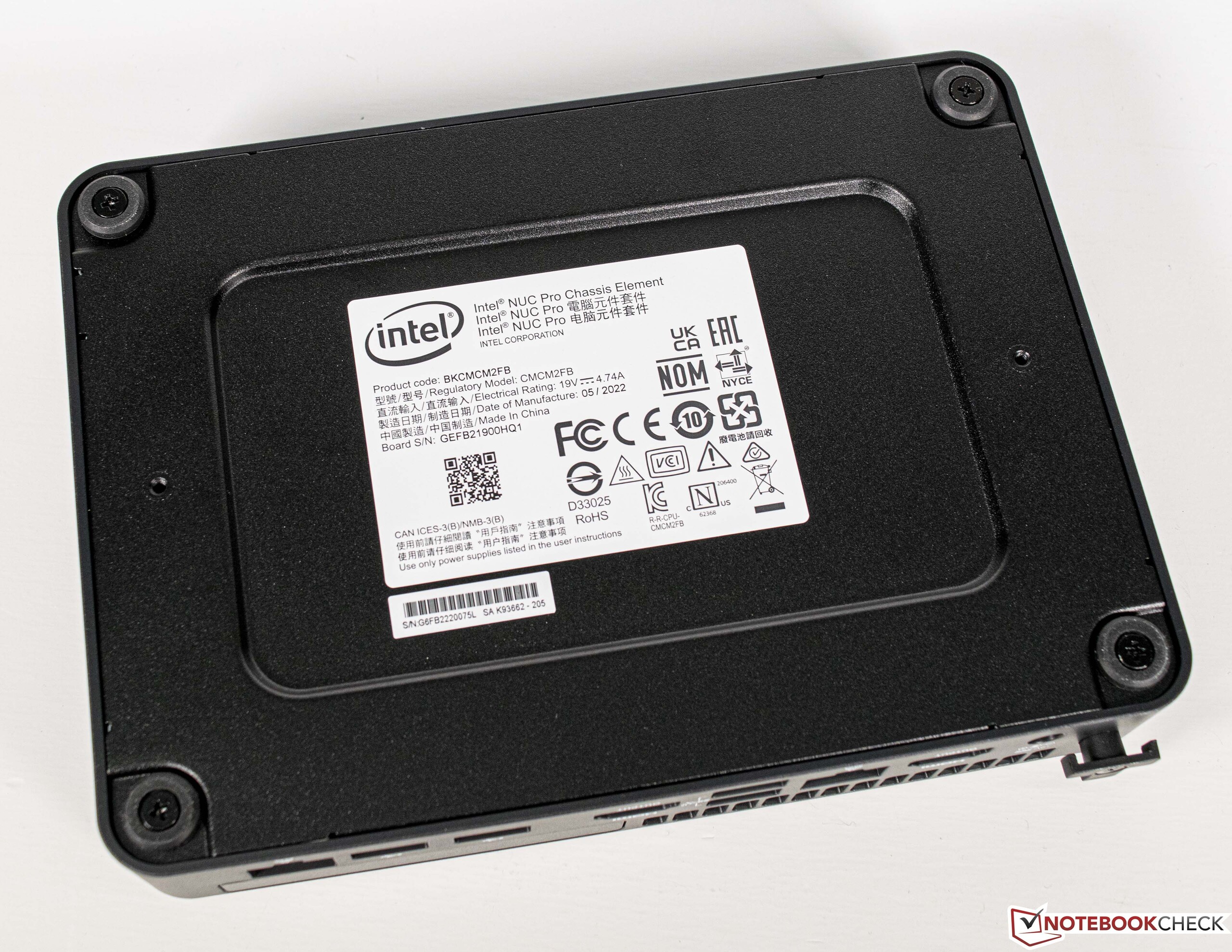

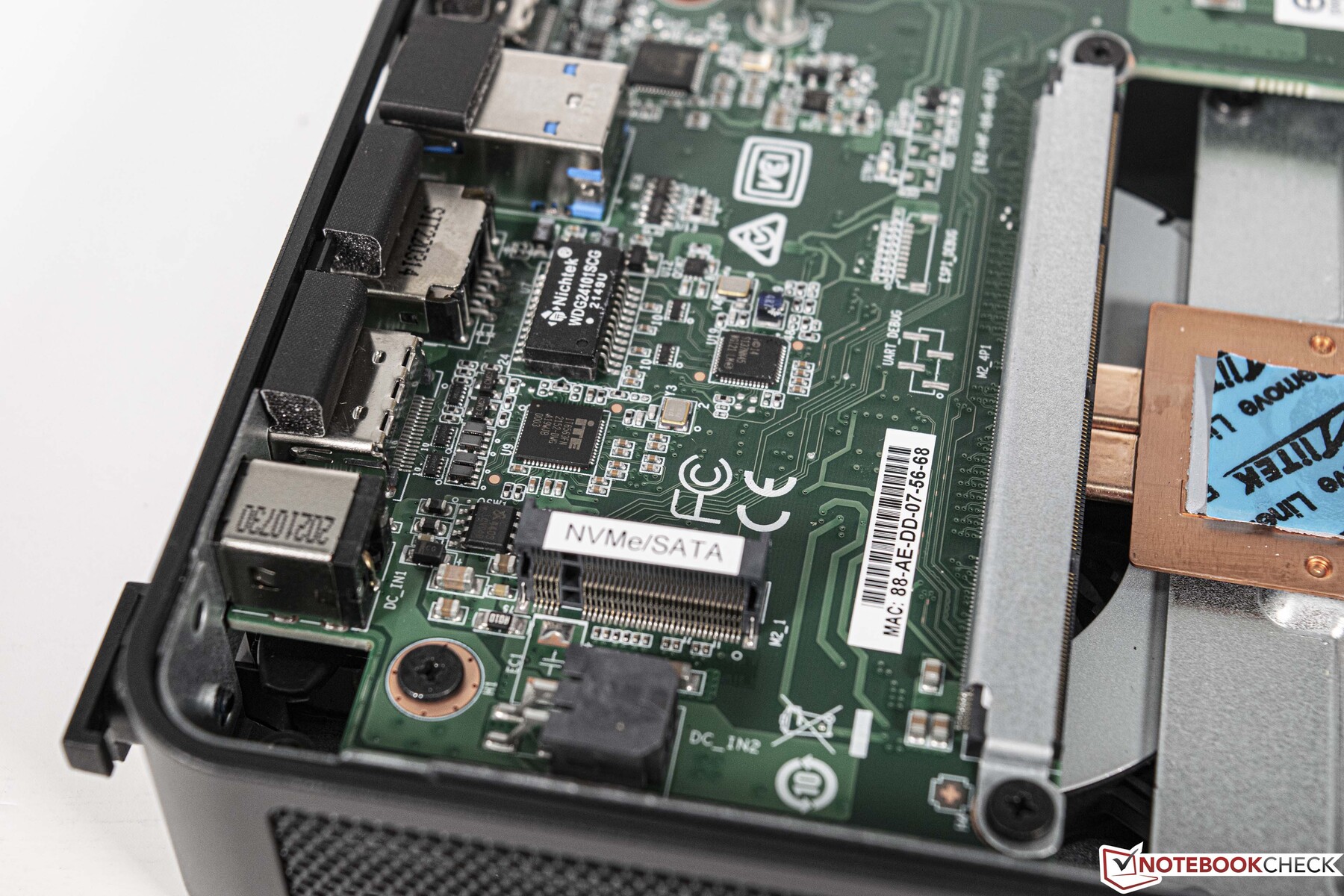

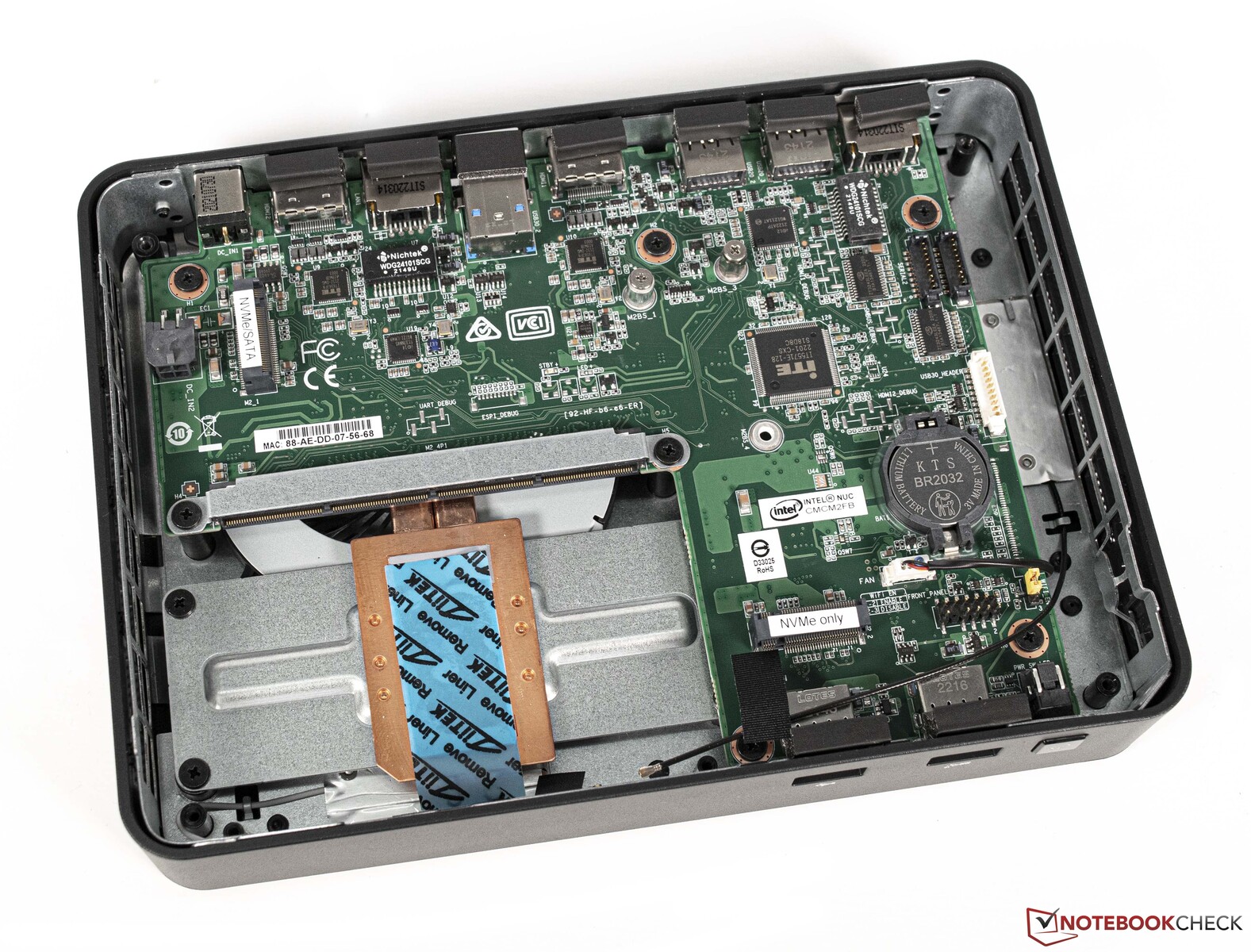

Intel NUC Pro Chassis Element zonder bodemplaat

Prestaties

Qua prestaties kan iedereen zelf bepalen hoeveel nodig is. Dankzij het modulaire ontwerp kan het Intel NUC Pro Chassis Element worden uitgerust op basis van het gebruik en het budget.

Processor benchmarks

De CPU-prestaties van de verschillende rekenelementen verschillen van elkaar zoals verwacht. Ongeveer 20 procent is het verschil tussen de Intel Core i5-1145G7 en de Intel Core i7-1265U. Het prestatieverschil tussen de twee Alder Lake SoC's is echter marginaal. Ze presteren bijna identiek door hetzelfde aantal cores en threads. Om de prestaties beter te kunnen beoordelen, hebben we ook de PrimeBook Circular. Deze is ook uitgerust met een rekenelement en behoort tot de beste apparaten op basis van de Intel Core i7-1165G7, wat hem direct achter de Intel Core i7-1185G7 in het klassement. Vergeleken met een AMD Ryzen 5 5600Udie we hebben getest in de Ace Magician AMR5 kan het Intel NUC Pro chassiselement met de Alder-Lake SoC's zich gemakkelijk onderscheiden.

Voor verdere vergelijkingen en benchmarks verwijzen we naar onzeCPU vergelijkingstabel.

Performance Rating - Percent
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	46.8 pt ∼47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	46.5 pt ∼47%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	42.8 pt ∼43%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	40.1 pt ∼40%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	39.4 pt ∼39%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	39.1 pt ∼39%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.6 pt ∼37%

Cinebench R15
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	245 Points ∼75% +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	242 Points ∼74% +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	223 Points ∼68% +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	221 Points ∼67% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	215 Points ∼66% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	202 Points ∼62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	197 Points ∼60% -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1320 Points ∼14% +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1311 Points ∼14% +66%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1265 Points ∼13% +60%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	832 Points ∼9% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	791 Points ∼8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	791 Points ∼8% 0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	560 Points ∼6% -29%

Cinebench R20
CPU (Single Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	654 Points ∼75% +23%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	649 Points ∼75% +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	568 Points ∼65% +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	558 Points ∼64% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	534 Points ∼61% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	531 Points ∼61%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	517 Points ∼59% -3%
CPU (Multi Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	3234 Points ∼14% +63%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	3153 Points ∼13% +58%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2975 Points ∼13% +49%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2051 Points ∼9% +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2027 Points ∼9% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1990 Points ∼8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1440 Points ∼6% -28%

Cinebench R23
Single Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1713 Points ∼75% +26%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1690 Points ∼74% +24%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1487 Points ∼65% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1451 Points ∼64% +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1376 Points ∼61% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1361 Points ∼60%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1346 Points ∼59% -1%
Multi Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8342 Points ∼14% +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8199 Points ∼13% +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7615 Points ∼12% +53%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5240 Points ∼9% +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5222 Points ∼9% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4991 Points ∼8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	3721 Points ∼6% -25%

Cinebench R11.5
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	2.99 Points ∼9% +27%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	2.92 Points ∼9% +24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2.64 Points ∼8% +12%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2.58 Points ∼8% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2.52 Points ∼8% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	2.36 Points ∼7%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2.31 Points ∼7% -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	16.48 Points ∼23% +81%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16.2 Points ∼23% +78%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	14.78 Points ∼21% +62%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9.78 Points ∼14% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	9.12 Points ∼13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	8.99 Points ∼13% -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.37 Points ∼9% -30%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	13904 Points ∼76% +33%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	13501 Points ∼74% +29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	11620 Points ∼63% +11%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11343 Points ∼62% +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	11098 Points ∼60% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	10472 Points ∼57%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	10395 Points ∼57% -1%
Rendering Multiple CPUs 64Bit
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	61863 Points ∼45% +75%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	60266 Points ∼43% +70%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	45363 Points ∼33% +28%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	36902 Points ∼27% +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	35564 Points ∼26% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	35372 Points ∼25%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	24499 Points ∼18% -31%

Blender - v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	759 Seconds * ∼5% -26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	750 Seconds * ∼5% -25%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	601 Seconds * ∼4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	590 Seconds * ∼4% +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	399 Seconds * ∼3% +34%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	388 Seconds * ∼3% +35%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	380 Seconds * ∼3% +37%

wPrime 2.10
32m
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.875 s * ∼1% -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.799 s * ∼1% -5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.499 s * ∼1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6.428 s * ∼1% +1%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5.435 s * ∼1% +16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5.377 s * ∼1% +17%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5.242 s * ∼1% +19%
1024m
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	286.835 s * ∼3% -26%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	240.405 s * ∼3% -6%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	229.096 s * ∼3% -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	227.285 s * ∼3%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	217.425 s * ∼3% +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	216.279 s * ∼3% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	156.33 s * ∼2% +31%

X264 HD Benchmark 4.0
Pass 1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	265.5 (255^min - 284^max) fps ∼62% +38%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	263 (250^min - 286^max) fps ∼62% +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	209 (207^min - 221^max) fps ∼49% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	198.8 (197.5^min - 231^max) fps ∼47% +4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	192 (188.3^min - 208^max) fps ∼45%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% -14%
Pass 2
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	80.95 (79.9^min - 96.6^max) fps ∼30% +75%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	78.35 (77.6^min - 101.7^max) fps ∼29% +69%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% +64%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	48.7 (48.7^min - 55.5^max) fps ∼18% +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.6 (46.4^min - 53.9^max) fps ∼17% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.3 (46^min - 51^max) fps ∼17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -21%

WinRAR - Result
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6877 KB/s ∼40% +32%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6154 KB/s ∼36% +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6045 KB/s ∼35% +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5960 KB/s ∼34% +14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5717 KB/s ∼33% +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5223 KB/s ∼30%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4185 KB/s ∼24% -20%

TrueCrypt
AES Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 GB/s ∼0% +73%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.2 GB/s ∼0% +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7.7 GB/s ∼0% +38%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5.8 GB/s ∼0% +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5.7 GB/s ∼0% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5.6 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.3 GB/s ∼0% -5%
Twofish Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1.6 GB/s ∼0% +100%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1.5 GB/s ∼0% +87%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1.1 GB/s ∼0% +37%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.819 GB/s ∼0% +2%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.813 GB/s ∼0% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.802 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -6%
Serpent Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.901 GB/s ∼0% +92%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.872 GB/s ∼0% +86%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.7 GB/s ∼0% +49%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.496 GB/s ∼0% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.469 GB/s ∼0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.447 GB/s ∼0% -5%

Geekbench 5.4
Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9065 Points ∼31% +66%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8772 Points ∼30% +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6175 Points ∼21% +13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5813 Points ∼20% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5467 Points ∼19%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4898 Points ∼17% -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4851 Points ∼17% -11%
Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1714 Points ∼74% +20%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1675 Points ∼72% +17%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1543 Points ∼67% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1506 Points ∼65% +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1430 Points ∼62% 0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1427 Points ∼62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1391 Points ∼60% -3%

Geekbench 5.0
5.0 Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8911 Points ∼28% +67%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8807 Points ∼28% +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6117 Points ∼19% +14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5745 Points ∼18% +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5351 Points ∼17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4841 Points ∼15% -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4813 Points ∼15% -10%
5.0 Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1674 Points ∼7% +18%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1585 Points ∼7% +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1553 Points ∼7% +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1508 Points ∼7% +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1423 Points ∼6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1385 Points ∼6% -3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1383 Points ∼6% -3%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	7515 Points ∼78% +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	7065 Points ∼73% +13%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6686 Points ∼69% +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6305 Points ∼65% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6226 Points ∼64%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5911 Points ∼61% -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5854 Points ∼60% -6%
64 Bit Multi-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	33057 Points ∼37% +59%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	33040 Points ∼37% +59%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	24495 Points ∼27% +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	22175 Points ∼25% +7%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	21011 Points ∼23% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	20787 Points ∼23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	19288 Points ∼22% -7%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16005 Points ∼44% +39%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	15485 Points ∼43% +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	12608 Points ∼35% +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	11536 Points ∼32%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11284 Points ∼31% -2%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	7797 Points ∼21% -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	7792 Points ∼21% -32%

7-Zip 18.03
7z b 4
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	39207 MIPS ∼24% +70%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	36343 MIPS ∼22% +57%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	35918 MIPS ∼22% +55%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	24006 MIPS ∼15% +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	23471 MIPS ∼15% +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	23123 MIPS ∼14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	17636 MIPS ∼11% -24%
7z b 4 -mmt1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5353 MIPS ∼64% +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5255 MIPS ∼63% +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5249 MIPS ∼63% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5235 MIPS ∼63% +8%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5097 MIPS ∼61% +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4853 MIPS ∼58%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4788 MIPS ∼57% -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	10.1 fps ∼22% +53%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 fps ∼21% +47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.47 fps ∼20% +43%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.6 fps ∼14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.55 fps ∼14% -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.26 fps ∼11% -20%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4.74 fps ∼10% -28%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.639 sec * ∼14% -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.63 sec * ∼14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.609 sec * ∼13% +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.599 sec * ∼13% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.537 sec * ∼12% +15%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.511 sec * ∼11% +19%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.4856 sec * ∼10% +23%

LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	52 s * ∼13% -11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	51.8 s * ∼13% -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	51.1 s * ∼13% -9%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	49.4 s * ∼12% -5%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	48.9 s * ∼12% -4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.9 s * ∼12%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.1 s * ∼12% +2%

WebXPRT 3 - ---
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	271 Points ∼69% +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	263 Points ∼67% +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	255 Points ∼65% +9%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	252 Points ∼64% +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	245 Points ∼62% +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	236 Points ∼60% +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	234 Points ∼59%

Mozilla Kraken 1.1 - Total Score
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	724 ms * ∼1% -0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	722 ms * ∼1%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	695 ms * ∼1% +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	646 ms * ∼1% +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	643 ms * ∼1% +11%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	597 ms * ∼1% +17%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	575 ms * ∼1% +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18463 Points ∼34% +37%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18218 Points ∼34% +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	17568 Points ∼32% +30%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13479 Points ∼25%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12661 Points ∼23% -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9561 Points ∼18% -29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9094 Points ∼17% -33%
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18467 Points ∼34% +38%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18108 Points ∼33% +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	18076 Points ∼33% +35%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13413 Points ∼25%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12768 Points ∼24% -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9354 Points ∼17% -30%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	8668 Points ∼16% -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	6307 Points ∼31% +41%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6185 Points ∼31% +38%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5443 Points ∼27% +21%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4487 Points ∼22%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	4426 Points ∼22% -1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	3070 Points ∼15% -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2867 Points ∼14% -36%

* ... kleiner is beter

De verschillende rekenelementen in de Cinebench R15 multi-loop

In alle vier de constellaties is een vergelijkbaar gedrag te zien. De CPU-prestaties dalen aanzienlijk na de eerste run als gevolg van de temperaturen. De prestatiedaling is aanzienlijk groter in de nieuwere Alder Lake SoC's. De prestaties blijven echter grotendeels stabiel in het verdere verloop

Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7: Ø757 (739.28-828.86)

Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7: Ø757 (738.48-856.13)

Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U: Ø1222 (1193.03-1456.4)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Synthetische benchmarks en toepassingsprestaties

In de synthetische benchmarks zien we een bijna identiek resultaat als voorheen in de pure CPU tests. Deze keer gaan de 1e en 2e plaats naar de twee Alder Lake SoC's in omgekeerde volgorde. Hieruit blijkt dus opnieuw dat de Core i7-1265Uniet altijd de betere optie is. De Tiger-Lake-gebaseerde rekenelementen liggen ook dicht bij elkaar, zodat de Core i7-1185G7 ook hier geen duidelijke overwinning behaalt.

Performance Rating | PCMark 10 | 3DMark | 3DMark 11 | CrossMark

Performance Rating - Percent
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	98.3 pt ∼98%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	97.9 pt ∼98%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90 pt ∼90%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	78.6 pt ∼79%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	76 pt ∼76%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.6 pt ∼65%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 pt ∼60%

PCMark 10 - Score
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5761 Points ∼100% +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	5510 Points ∼96% +15%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	5387 Points ∼94% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	5160 Points ∼90% +8%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	4892 Points ∼85% +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4792 Points ∼83%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	4521 Points ∼78% -6%

3DMark
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18467 Points ∼100% +38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	18108 Points ∼98% +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	18076 Points ∼98% +35%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	13413 Points ∼73%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	12768 Points ∼69% -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	9354 Points ∼51% -30%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	8668 Points ∼47% -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	6307 Points ∼100% +41%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	6185 Points ∼98% +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5443 Points ∼86% +21%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4487 Points ∼71%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	4426 Points ∼70% -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	3070 Points ∼49% -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	2867 Points ∼45% -36%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	16005 Points ∼100% +39%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15485 Points ∼97% +34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12608 Points ∼79% +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	11536 Points ∼72%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	11284 Points ∼71% -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	7797 Points ∼49% -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	7792 Points ∼49% -32%

CrossMark - Overall
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	1577 Points ∼100% +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	1559 Points ∼99% +22%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	1477 Points ∼94% +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	1474 Points ∼93% +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	1373 Points ∼87% +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	1279 Points ∼81%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	1245 Points ∼79% -3%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	70620 MB/s ∼100% +18%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s ∼99% +17%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	65021 MB/s ∼92% +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	62171 MB/s ∼88% +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	59767 MB/s ∼85%
Gemiddelde van klas Mini PC (16422 - 70620, n=22, laatste 2 jaar)	41831 MB/s ∼59% -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼50% -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼50% -41%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	65856 MB/s ∼100% +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s ∼99% +6%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	63583 MB/s ∼97% +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	61758 MB/s ∼94%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	59634 MB/s ∼91% -3%
Gemiddelde van klas Mini PC (14945 - 65856, n=22, laatste 2 jaar)	42998 MB/s ∼65% -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼61% -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼58% -38%

AIDA64 / Memory Write
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	66791 MB/s ∼100% +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	66047 MB/s ∼99%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	63908 MB/s ∼96% -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s ∼95% -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	63277 MB/s ∼95% -4%
Gemiddelde van klas Mini PC (10598 - 66047, n=22, laatste 2 jaar)	43451 MB/s ∼65% -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼59% -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼56% -43%

AIDA64 / Memory Latency
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * ∼100% -16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	99.9 ns * ∼100% -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	98.1 ns * ∼98% -14%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	92.3 ns * ∼92% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼91% -6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	86.4 ns * ∼86%
Gemiddelde van klas Mini PC (59.3 - 101.5, n=22, laatste 2 jaar)	85.1 ns * ∼85% +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼69% +20%

* ... kleiner is beter

DPC latenties

Alleen de combinatie met de Intel Core i7-1265U valt een beetje op qua DPC-latenties. Een herhaalde test liet hetzelfde resultaat zien. In de andere drie opstellingen waren er volgens LatancyMon geen problemen. De iGPU werd voor 30 - 40 procent benut bij het afspelen van de 4K YouTube video.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)	4415 μs * ∼100% -698%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * ∼26% -108%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * ∼17% -38%
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	740 μs * ∼17% -34%
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	738 μs * ∼17% -33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * ∼15% -19%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	553.1 μs * ∼13%

* ... kleiner is beter

Massa-opslag

Het Intel NUC Pro Chassis Element ondersteunt maximaal twee apparaten voor massaopslag in M.2-formaat. Wie echter een M.2 SSD met SATA-snelheid gebruikt, moet letten op de juiste keuze van de M.2-interface. Slechts één slot ondersteunt het iets tragere formaat. We gebruikten onze WDC PC SN720 met 512 GB voor de test. Ondanks de identieke SSD zijn er aanzienlijke verschillen in de test, die merkbaar zijn in de toegangstijden en in de 4K lees- en schrijfsnelheden. Er zijn geen problemen bij permanente belasting. Thermische pads op de bodemplaat van beide SSD-slots zorgen voor een goede warmteafvoer.

M.2 interface (NVMe + SATA ondersteuning)

M.2-interface (alleen NVMe-ondersteuning)

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAQNTW-512G

Sequential Read: 2451 MB/s

Sequential Write: 2512 MB/s

512K Read: 1521 MB/s

512K Write: 1490 MB/s

4K Read: 41.97 MB/s

4K Write: 212.4 MB/s

4K QD32 Read: 683.2 MB/s

4K QD32 Write: 435.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	94.6 pt ∼95%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	83.8 pt ∼84%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	80 pt ∼80%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	76.8 pt ∼77%
Gemiddelde van klas Mini PC	70.6 pt ∼71%

DiskSpd
seq read
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s ∼100% +23%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2058 (1847.09^min - 2057.65^max) MB/s ∼92% +14%
Gemiddelde van klas Mini PC (233 - 4168, n=21, laatste 2 jaar)	1849 MB/s ∼83% +2%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1811 (1731.93^min - 1810.83^max) MB/s ∼81% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1810 (1705.56^min - 1810.26^max) MB/s ∼81%
seq write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2249 (2126.93^min - 2248.57^max) MB/s ∼100% +29%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s ∼98% +26%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2149 (2077.61^min - 2148.85^max) MB/s ∼96% +24%
Gemiddelde van klas Mini PC (222 - 3938, n=21, laatste 2 jaar)	1765 MB/s ∼78% +1%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1739 (1663.04^min - 1739.25^max) MB/s ∼77%
seq q8 t1 read
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s ∼100% +1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3487 (2948.62^min - 3486.57^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3485 (3116.01^min - 3485^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3479 (2889.34^min - 3478.93^max) MB/s ∼99%
Gemiddelde van klas Mini PC (236 - 7061, n=21, laatste 2 jaar)	2661 MB/s ∼76% -24%
seq q8 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2573 (2526.46^min - 2573.42^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2564 (2533.74^min - 2564.49^max) MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2561 MB/s ∼100%
Gemiddelde van klas Mini PC (228 - 3938, n=21, laatste 2 jaar)	1919 MB/s ∼75% -25%
4k q1 t1 read
Gemiddelde van klas Mini PC (5.67 - 82.4, n=21, laatste 2 jaar)	48.5 MB/s ∼100% +15%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	46.8 (46.64^min - 46.84^max) MB/s ∼96% +11%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s ∼92% +6%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.2 (42.7^min - 43.23^max) MB/s ∼89% +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	42.2 (41.96^min - 42.19^max) MB/s ∼87%
4k q1 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	232 (230.89^min - 232.39^max) MB/s ∼100% +54%
Gemiddelde van klas Mini PC (22 - 425, n=21, laatste 2 jaar)	184.3 MB/s ∼79% +22%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	155.6 (152.79^min - 155.57^max) MB/s ∼67% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	150.5 (149.1^min - 150.47^max) MB/s ∼65%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s ∼55% -15%
4k q32 t16 read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1750 (1724.46^min - 1749.88^max) MB/s ∼100% +82%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	963 (935.31^min - 963.3^max) MB/s ∼55%
Gemiddelde van klas Mini PC (31 - 1944, n=21, laatste 2 jaar)	952 MB/s ∼54% -1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	926 (896.56^min - 926.49^max) MB/s ∼53% -4%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s ∼37% -33%
4k q32 t16 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1380 (935.1^min - 1380.02^max) MB/s ∼100% +235%
Gemiddelde van klas Mini PC (30.2 - 3741, n=21, laatste 2 jaar)	1007 MB/s ∼73% +144%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	423 (402.45^min - 423.18^max) MB/s ∼31% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	412 (397.32^min - 412.23^max) MB/s ∼30%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s ∼24% -20%

AS SSD
Score Total
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	4415 Points ∼100% +1%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	4358 Points ∼99%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points ∼80% -19%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3526 Points ∼80% -19%
Gemiddelde van klas Mini PC (151.3 - 7134, n=21, laatste 2 jaar)	3061 Points ∼69% -30%
Score Read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1657 Points ∼100% 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1656 Points ∼100%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1269 Points ∼77% -23%
Gemiddelde van klas Mini PC (61 - 2391, n=21, laatste 2 jaar)	1131 Points ∼68% -32%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points ∼63% -37%
Score Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points ∼100% +6%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1936 Points ∼97% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1888 Points ∼95%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1652 Points ∼83% -12%
Gemiddelde van klas Mini PC (97 - 3538, n=21, laatste 2 jaar)	1428 Points ∼72% -24%
Seq Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3039 MB/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3030 MB/s ∼100% 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s ∼95% -5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2854 MB/s ∼94% -6%
Gemiddelde van klas Mini PC (305 - 5799, n=21, laatste 2 jaar)	2382 MB/s ∼78% -22%
Seq Write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2390 MB/s ∼100% +5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2273 MB/s ∼95%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s ∼82% -14%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1846 MB/s ∼77% -19%
Gemiddelde van klas Mini PC (240 - 3737, n=21, laatste 2 jaar)	1642 MB/s ∼69% -28%
4K Read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	49.78 MB/s ∼100% +7%
Gemiddelde van klas Mini PC (6.08 - 103.7, n=21, laatste 2 jaar)	48.5 MB/s ∼97% +4%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	46.54 MB/s ∼93%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s ∼91% -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.07 MB/s ∼87% -7%
4K Write
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	205.06 MB/s ∼100% +5%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	201.42 MB/s ∼98% +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	195.91 MB/s ∼96%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s ∼89% -7%
Gemiddelde van klas Mini PC (33.7 - 366, n=21, laatste 2 jaar)	165.6 MB/s ∼81% -15%
4K-64 Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1305.92 MB/s ∼100%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1304.51 MB/s ∼100% 0%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	940.13 MB/s ∼72% -28%
Gemiddelde van klas Mini PC (24.7 - 1873, n=21, laatste 2 jaar)	844 MB/s ∼65% -35%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s ∼54% -46%
4K-64 Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s ∼100% +10%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1495.31 MB/s ∼92% +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1464.88 MB/s ∼91%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1262.16 MB/s ∼78% -14%
Gemiddelde van klas Mini PC (39.4 - 2866, n=21, laatste 2 jaar)	1098 MB/s ∼68% -25%
Access Time Read
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.237 ms * ∼100% -85%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.128 ms * ∼54%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.124 ms * ∼52% +3%
Gemiddelde van klas Mini PC (0.048 - 0.237, n=21, laatste 2 jaar)	0.107 ms * ∼45% +16%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * ∼22% +59%
Access Time Write
Gemiddelde van klas Mini PC (0.019 - 0.582, n=21, laatste 2 jaar)	0.1319 ms * ∼100% -528%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * ∼17% -5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.021 ms * ∼16%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.02 ms * ∼15% +5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.019 ms * ∼14% +10%

* ... kleiner is beter

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G: Ø3473 (3163.1-3486.1)

Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G: Ø3480 (2916.51-3492.11)

Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G: Ø3482 (3157.08-3490.29)

Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G: Ø3481 (3067.45-3492.18)

Grafische kaart

Een Intel Iris Xe Graphics G7 met 80 of 96 EU's wordt gebruikt als geïntegreerde GPU voor de rekenelementen. Hierdoor zijn er kleine prestatieverschillen. Het model met 96 EU's is ongeveer 15% sneller, maar dit is subjectief niet merkbaar. De prestaties van de AMD Radeon RX Vega 7 kunnen hier in vergelijking bijna altijd overtroffen worden.

Voor meer vergelijkingen en benchmarks verwijzen we naar onzeG PU vergelijkingstabel.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	99.7 pt ∼100%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	88.3 pt ∼88%
Gemiddelde van klas Mini PC	25 pt ∼25%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	19 pt ∼19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	18 pt ∼18%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	16.7 pt ∼17%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	16.4 pt ∼16%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	15.6 pt ∼16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	15.5 pt ∼16%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.7 pt ∼15%

3DMark 11 - 1280x720 Performance GPU
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	32662 Points ∼100% +471%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	27741 Points ∼85% +385%
Gemiddelde van klas Mini PC (837 - 45804, n=22, laatste 2 jaar)	8302 Points ∼25% +45%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points ∼20% +17%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points ∼19% +9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points ∼19% +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	5718 Points ∼18%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points ∼17% -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points ∼17% -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points ∼16% -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	153853 Points ∼100% +569%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	130964 Points ∼85% +470%
Gemiddelde van klas Mini PC (4958 - 175713, n=22, laatste 2 jaar)	34695 Points ∼23% +51%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points ∼17% +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points ∼17% +11%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	22983 Points ∼15%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points ∼15% -1%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points ∼14% -6%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points ∼14% -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points ∼13% -11%
1920x1080 Fire Strike Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	24135 Points ∼100% +472%
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	20081 Points ∼83% +376%
Gemiddelde van klas Mini PC (637 - 33270, n=22, laatste 2 jaar)	5961 Points ∼25% +41%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points ∼21% +18%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points ∼20% +16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points ∼18% +3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points ∼18% +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	4217 Points ∼17%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points ∼15% -12%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points ∼15% -15%
2560x1440 Time Spy Graphics
Schenker XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	8425 Points ∼100% +536%
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	8316 Points ∼99% +528%
Gemiddelde van klas Mini PC (365 - 12892, n=19, laatste 2 jaar)	2294 Points ∼27% +73%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points ∼19% +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points ∼18% +18%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	1324 Points ∼16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points ∼15% -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points ∼15% -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points ∼13% -16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points ∼13% -17%

Spelprestaties

De iGPU van de SoC is slechts beperkt geschikt als gaming-oplossing. Speelbare framerates zijn vaak mogelijk in lage resoluties en de laagste details. De gedocumenteerde framerates dalen drastisch bij hogere resoluties. Toch presteren de iGPU's van de rekenelementen in het Intel NUC Pro chassiselement vrij goed, zoals te zien is aan de gemiddelde prestaties.

GTA V
1024x768 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	179.6 (3.66^min, 142.9^P1) fps ∼100% +90%
Gemiddeld NVIDIA GeForce RTX 3060 Laptop GPU (164 - 186.8, n=37)	179.4 fps ∼100% +90%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps ∼65% +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps ∼64% +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps ∼59% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps ∼57% +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps ∼54% +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	94.4 (6.11^min, 50^P1) fps ∼53%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (52 - 157, n=107)	93.1 fps ∼52% -1%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (36.5 - 119.9, n=52)	75.9 fps ∼42% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps ∼38% -28%
1366x768 Normal/Off AF:4x
Gemiddeld NVIDIA GeForce RTX 3060 Laptop GPU (152 - 183.4, n=35)	173.9 fps ∼100% +117%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	172.2 (4.2^min, 125^P1) fps ∼99% +114%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps ∼60% +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps ∼55% +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps ∼54% +17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps ∼51% +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps ∼50% +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	80.3 (13.6^min, 47.6^P1) fps ∼46%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (24.1 - 137, n=108)	77.7 fps ∼45% -3%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (28.9 - 104.6, n=55)	64.2 fps ∼37% -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps ∼32% -32%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	367 (5.67^min, 43.9^P0.1, 264^P1) fps ∼100% +352%
Gemiddeld NVIDIA GeForce RTX 3060 Laptop GPU (221 - 449, n=34)	323 fps ∼88% +298%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps ∼25% +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps ∼24% +10%
Gemiddeld Intel Iris Xe Graphics G7 96EUs (28.9 - 109, n=133)	83.8 fps ∼23% +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps ∼22% 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	81.2 (4.78^min, 20.4^P0.1, 42.9^P1) fps ∼22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps ∼20% -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps ∼18% -19%
Gemiddeld Intel Iris Xe Graphics G7 80EUs (33.5 - 92.2, n=71)	62.7 fps ∼17% -23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps ∼17% -24%
1366x768 Medium Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	260 (41.7^min, 170.3^P0.1, 202^P1) fps ∼100% +400%
Gemiddeld NVIDIA GeForce RTX 3060 Laptop GPU (204 - 296, n=32)	237 fps ∼91% +356%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps ∼23% +15%
Intel NUC Pro Chassis_i7_1185G7

Intel NUC Pro Chassis Element in review - Modulaire barebone voor vele doeleinden

De in deze test gebruikte rekenelementen in detail

Zaak

Apparatuur

Communicatie

Onderhoud

Prestaties

Processor benchmarks

De verschillende rekenelementen in de Cinebench R15 multi-loop

Synthetische benchmarks en toepassingsprestaties

DPC latenties

Massa-opslag

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Grafische kaart

Spelprestaties
