Intel NUC 12 Pro Kit - Wall Street Canyon

Intel heeft zijn compacte NUC-minipc-serie vernieuwd met de nieuwe Alder Lake-P SoC's. De naam "Wall Street Canyon" duidt op de nieuwste modelserie op basis van de moderne SoC's. Er zijn twee basisconfiguraties, die verschillen qua afmetingen. Het iets duurdere model draagt de naam "Tall", wat duidt op de optie voor een extra 2,5-inch schijf. Ons "Slim" testtoestel biedt deze optie daarentegen niet. Qua prijs scheidt ongeveer 100 USD de twee varianten. Beide apparaten kunnen alleen als barebone worden geleverd. Gebruikers zullen dus zelf het RAM en de opslag moeten installeren.

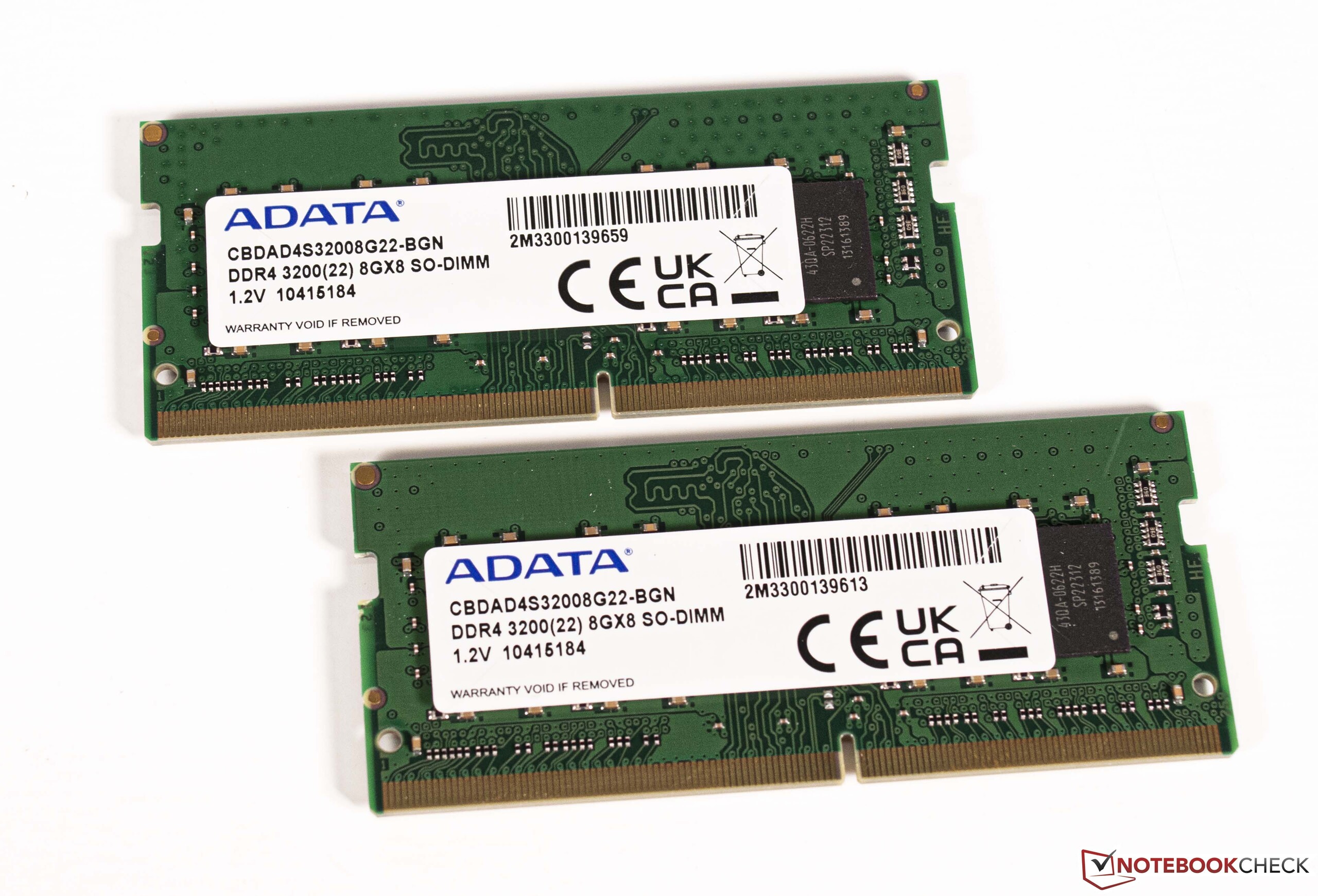

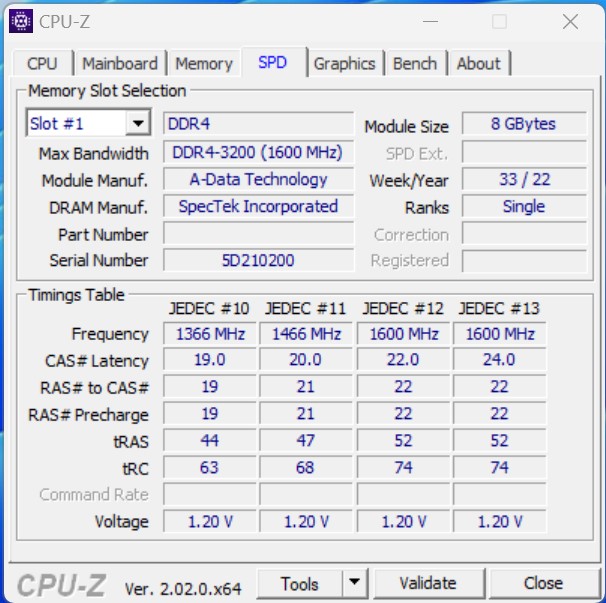

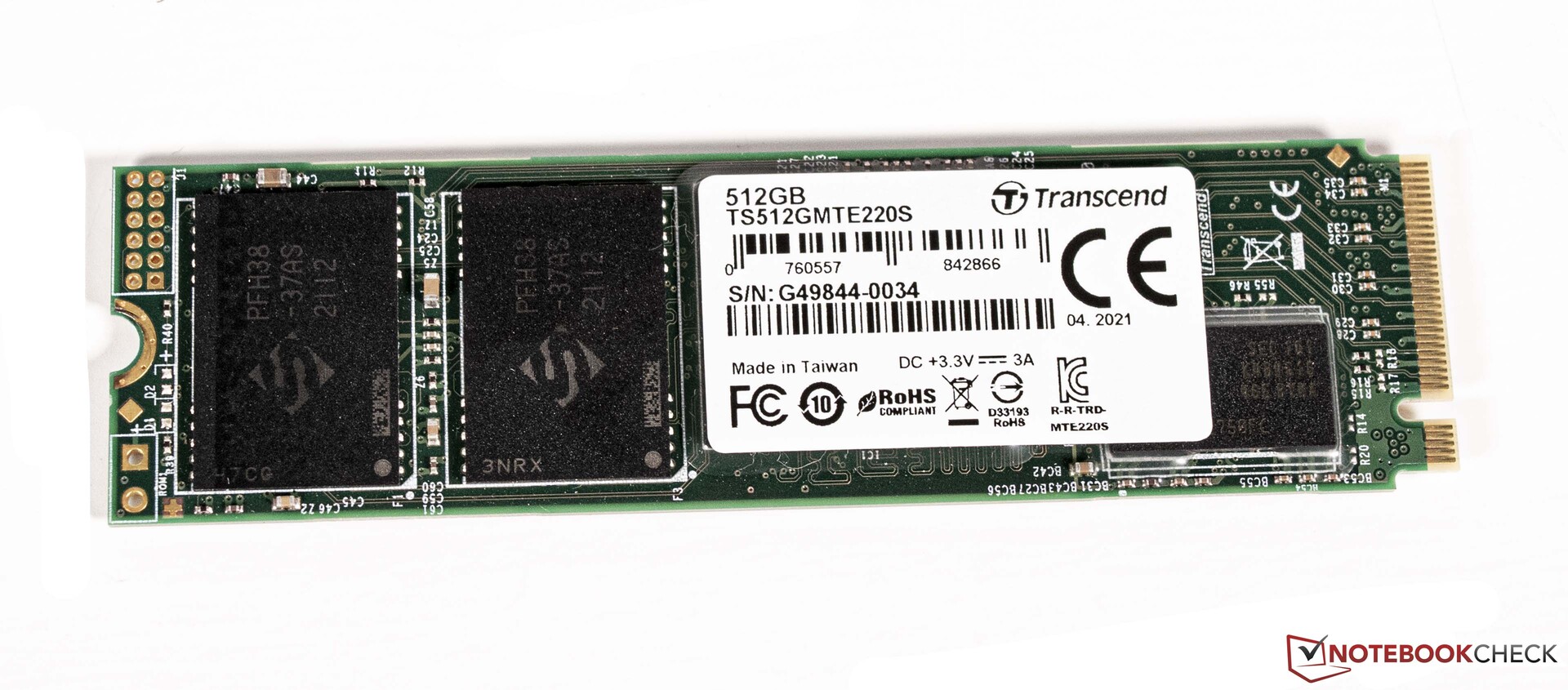

Voor onze tests hebben we twee 8-GB DDR4-3200 modules en een 512-GB SSD in ons testexemplaar geïnstalleerd. De laatste beschikbare versie van Windows 11 Professional ten tijde van deze review dient als besturingssysteem.

Zaak

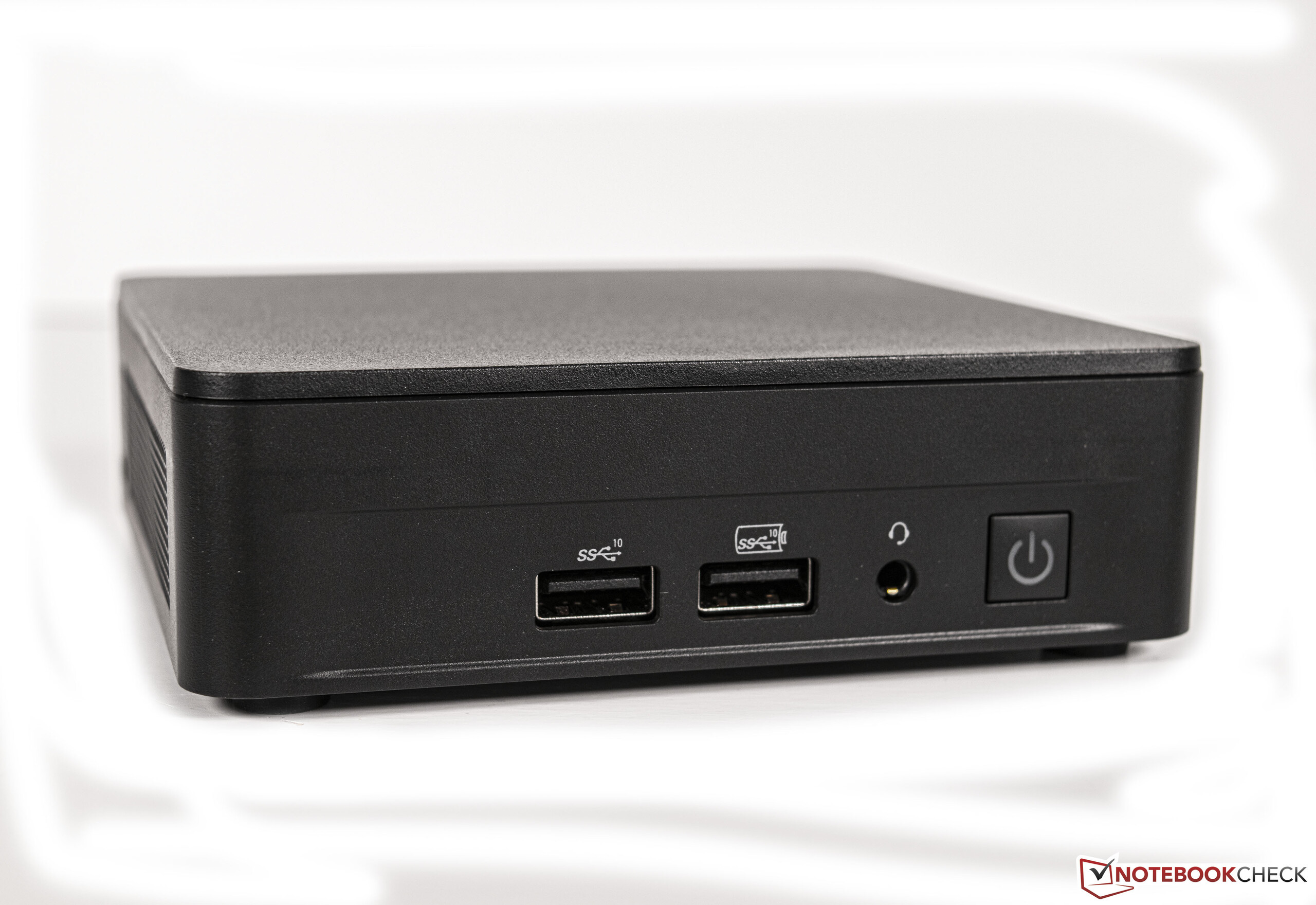

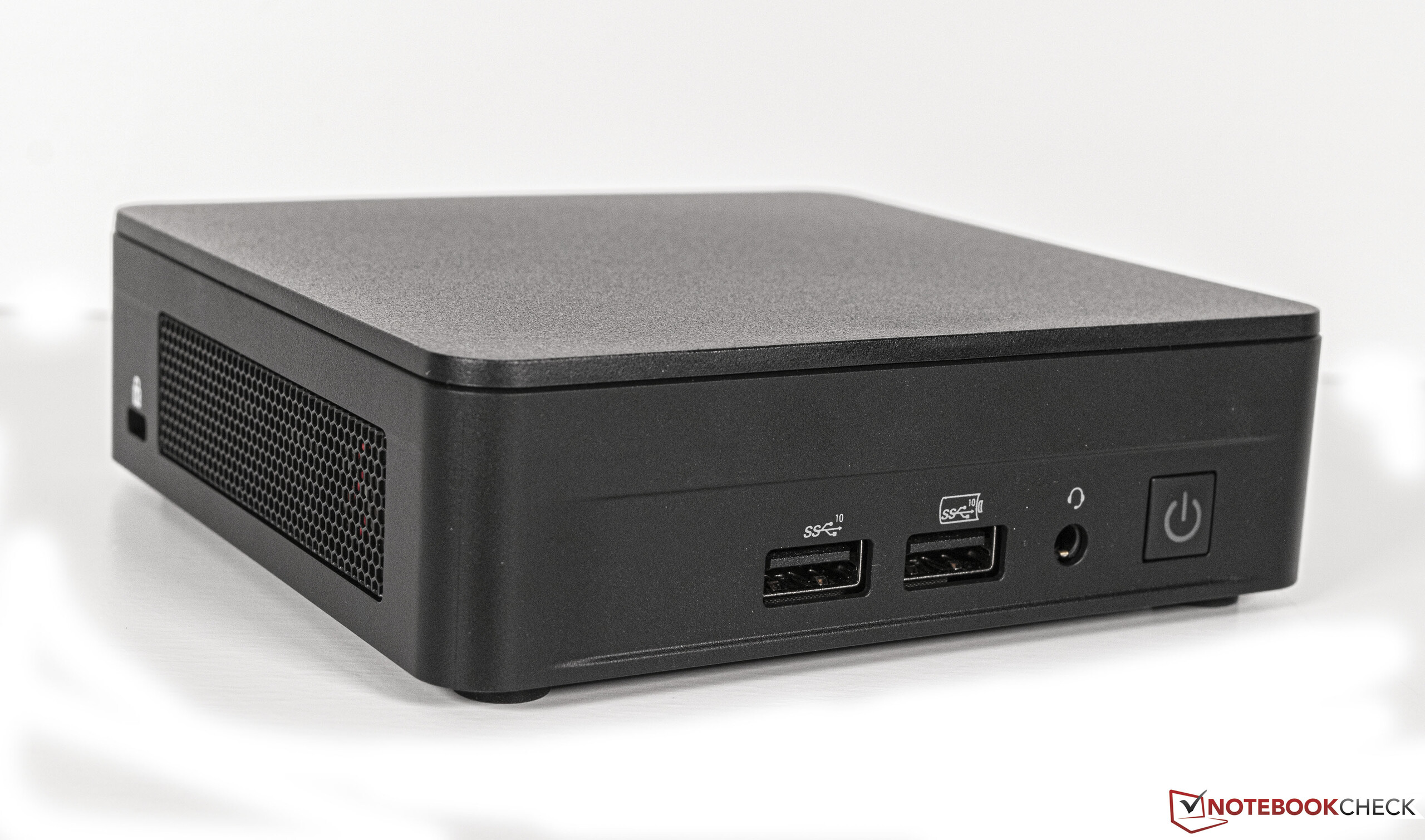

Visueel is de Wall Street Canyon heel duidelijk een Intel NUC. De buitenkant van het apparaat is zeer subtiel en er zijn nergens glanzende oppervlakken op het systeem. Hoewel de onderkant van de behuizing bestaat uit metaal, dat dient als koeling voor de opslag, bestaat een merkbaar deel van de NUC uit plastic. Het apparaat heeft een robuust metalen frame, dat bijna standaard is geworden op de compacte Intel NUC's en de PC van de nodige stevigheid voorziet. Met een hoogte van slechts 37 mm (~1.46 in) is onze Slim-versie vrij klein. Bovendien neemt het apparaat niet veel ruimte in op een bureau door zijn kleine voetafdruk van 11,7 x 11,2 cm. Als alternatief kan het aan een monitor worden bevestigd met de meegeleverde VESA-bevestiging.

Connectiviteit

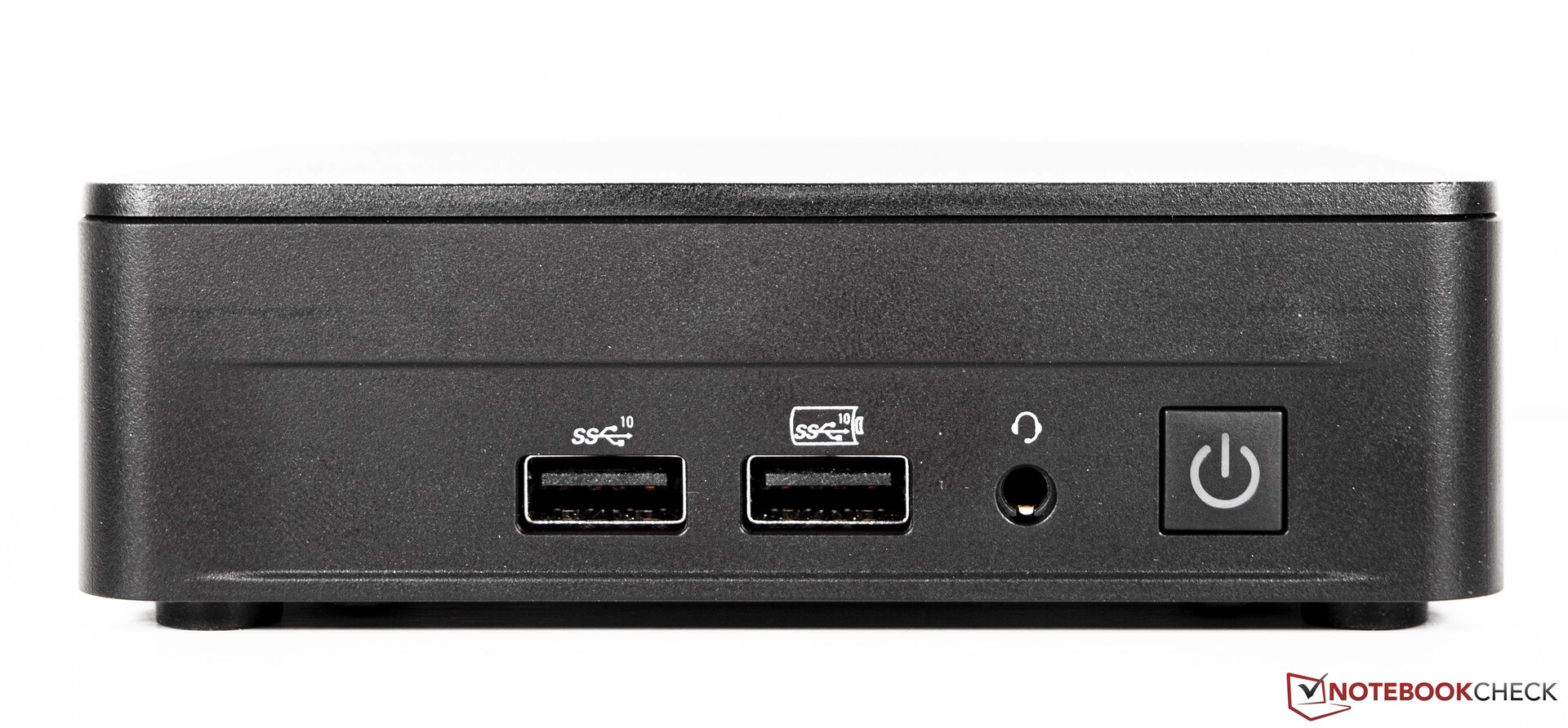

De Intel NUC 12 Pro Kit biedt alle gangbare opties wat betreft de poortkeuze. Er zijn vier USB type-A en twee USB type-C poorten. De type-C poorten ondersteunen USB4 snelheden. De twee Thunderbolt-interfaces verhogen ook enorm de flexibiliteit van het systeem. Het brede scala aan beschikbare accessoires is bijna eindeloos. Tot slot zijn er twee HDMI-poorten en een 2,5G Ethernet-poort.

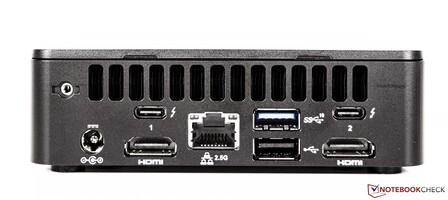

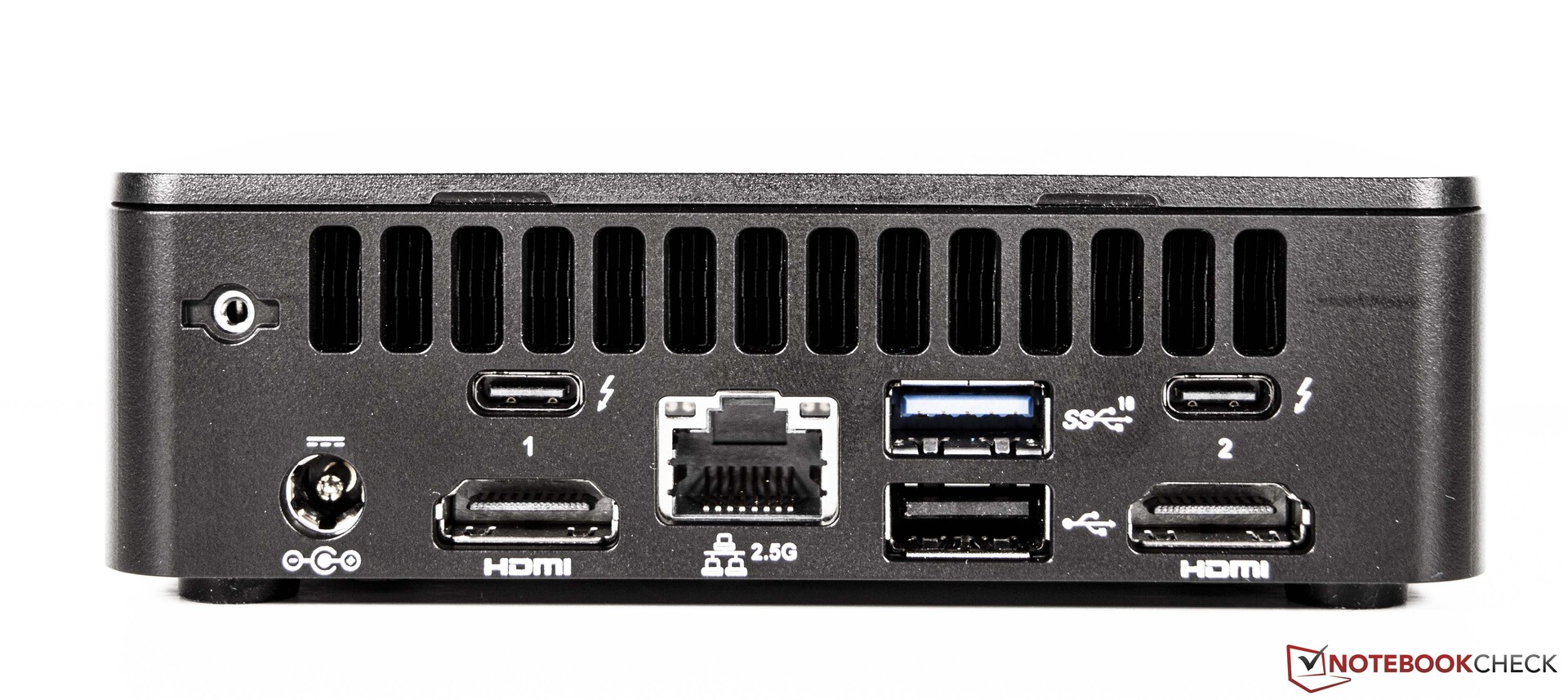

Achterkant: AC-adapter, 2x USB4 (type-C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1

Communicatie

Op de NUC 12 Pro Kit wordt Intels eigen Wi-Fi 6E AX211 module gebruikt voor draadloze netwerken. Het presteert goed in onze tests. Desondanks haalt het niet helemaal de overdrachtssnelheden waar we op hoopten bij het verzenden van gegevens. De Morefine S600-Apex behaalt aanzienlijk betere resultaten met dezelfde module. We gebruikten onze referentie router Asus ROG Rapture GT-AXE11000 voor deze test.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s
Gemiddeld Intel Wi-Fi 6E AX211 (700 - 1857, n=218)	1494 MBit/s -2%
Gemiddelde van klas Mini PC (684 - 1806, n=52, laatste 2 jaar)	1428 MBit/s -7%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s -32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -75%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s +80%
Gemiddelde van klas Mini PC (394 - 1800, n=52, laatste 2 jaar)	1370 MBit/s +49%
Gemiddeld Intel Wi-Fi 6E AX211 (385 - 1851, n=218)	1367 MBit/s +49%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -19%

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø904 (458-982)

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1530 (1509-1551)

Accessoires

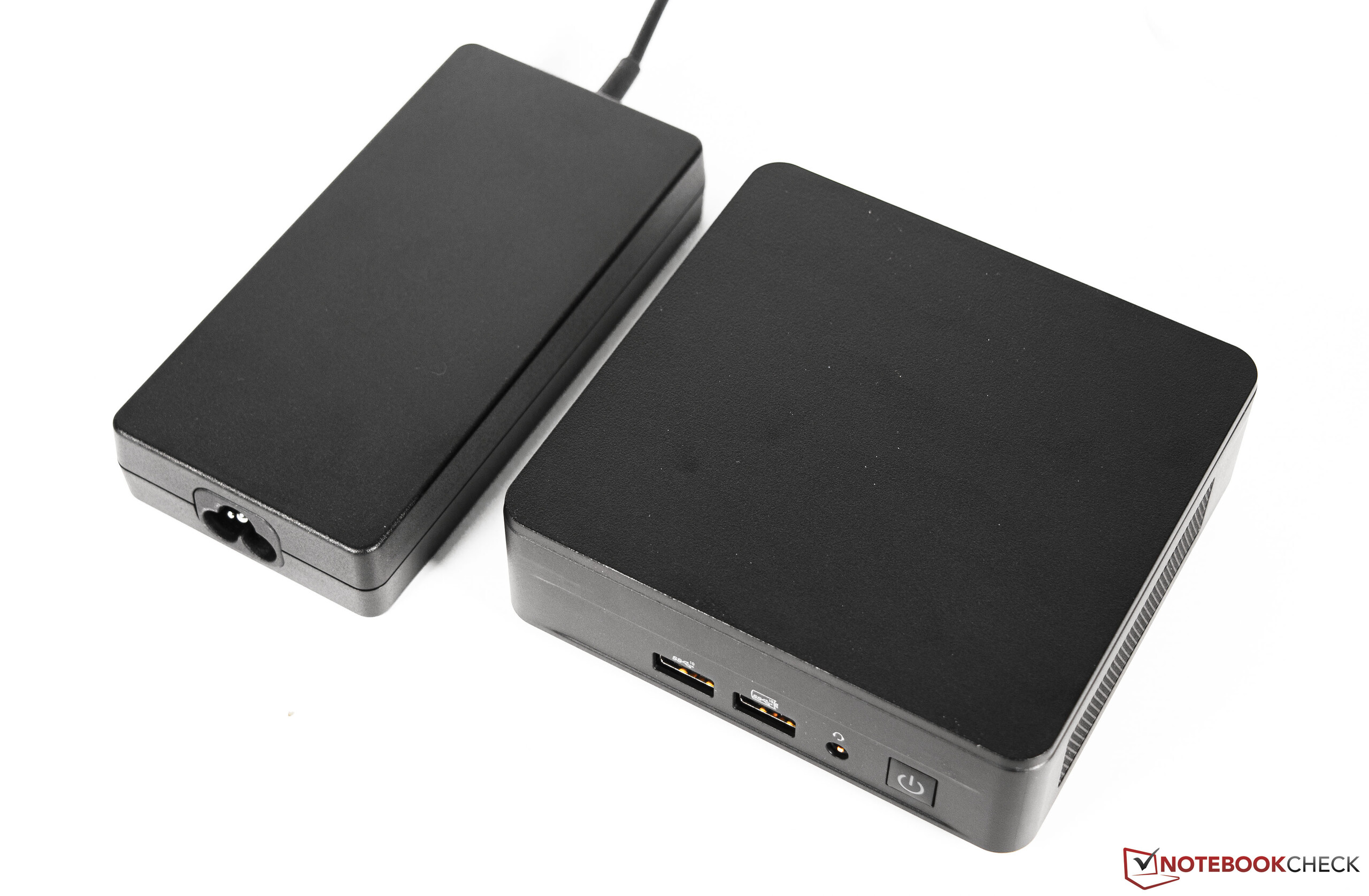

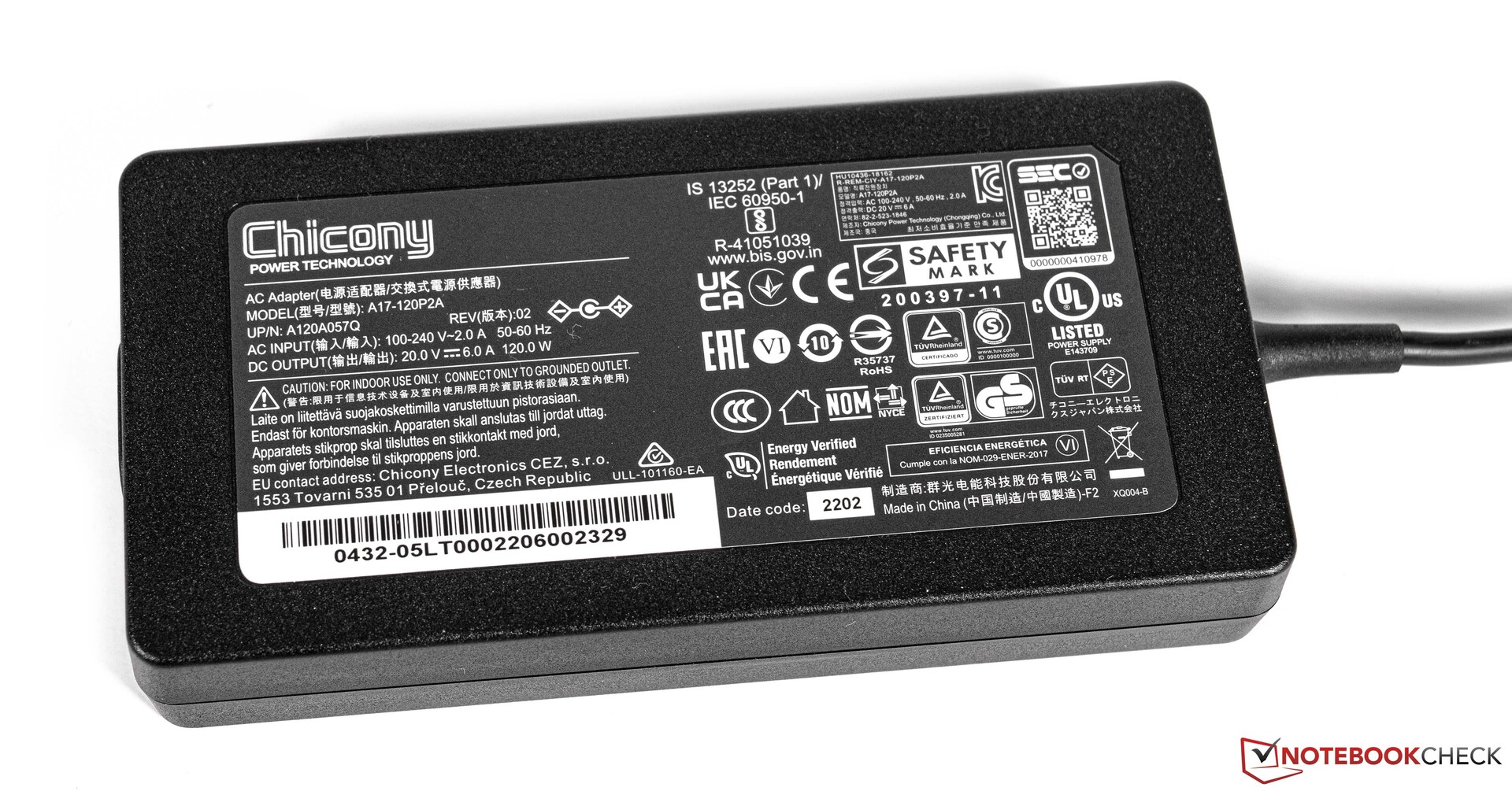

Naast het apparaat zelf bevat het pakket de 120-watt wisselstroomadapter en een plaat voor VESA-montage.

Onderhoud

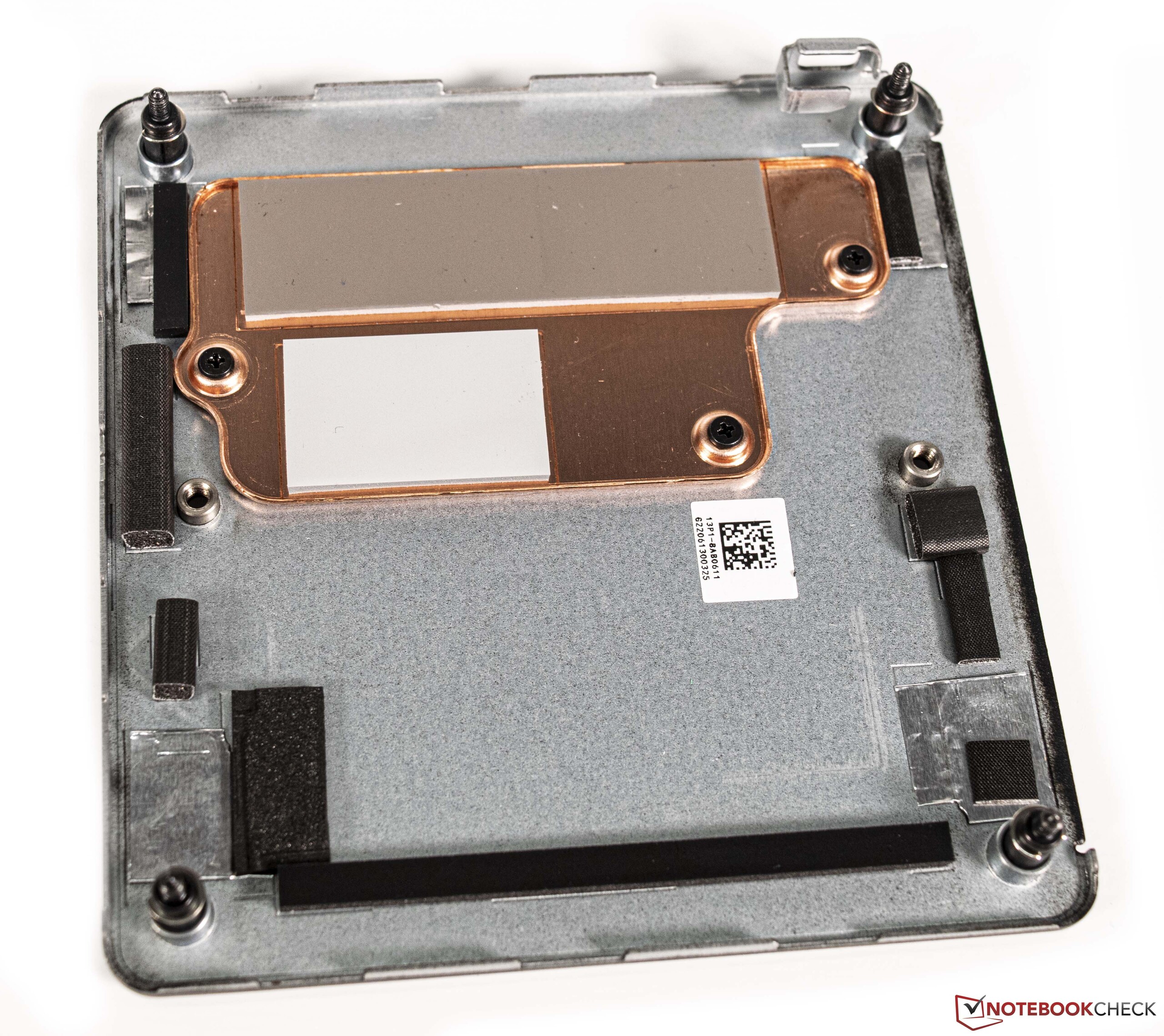

Zoals alle compacte Intel NUC's maakt de NUC 12 Pro Kit snel en eenvoudig onderhoud mogelijk via de onderkant van het apparaat. Het bodemdeksel wordt bevestigd met vier kleine schroeven en dient tevens als koeler voor de SSD's. Eenmaal binnen is de toegang tot de RAM en SSD slots zeer eenvoudig.

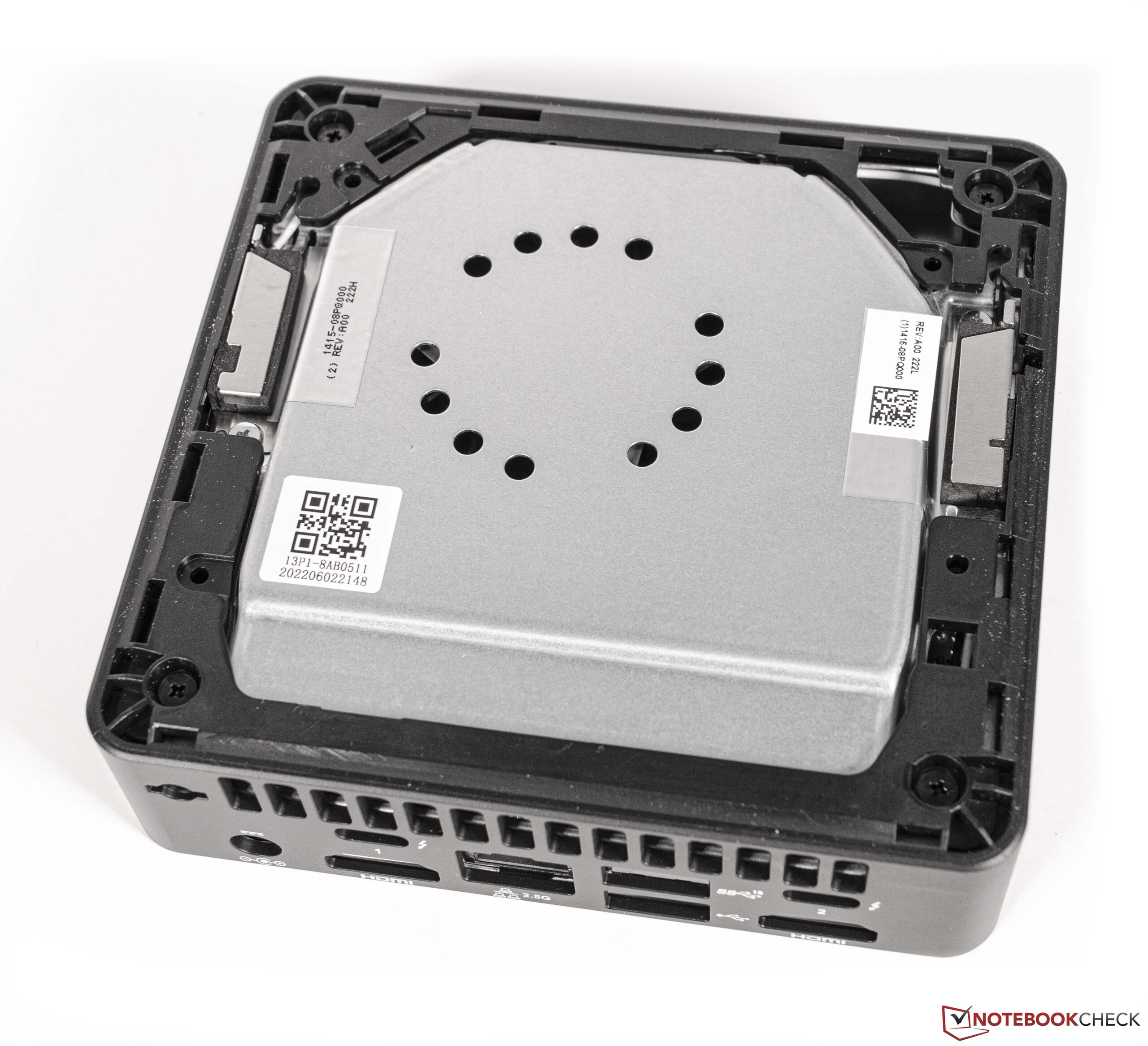

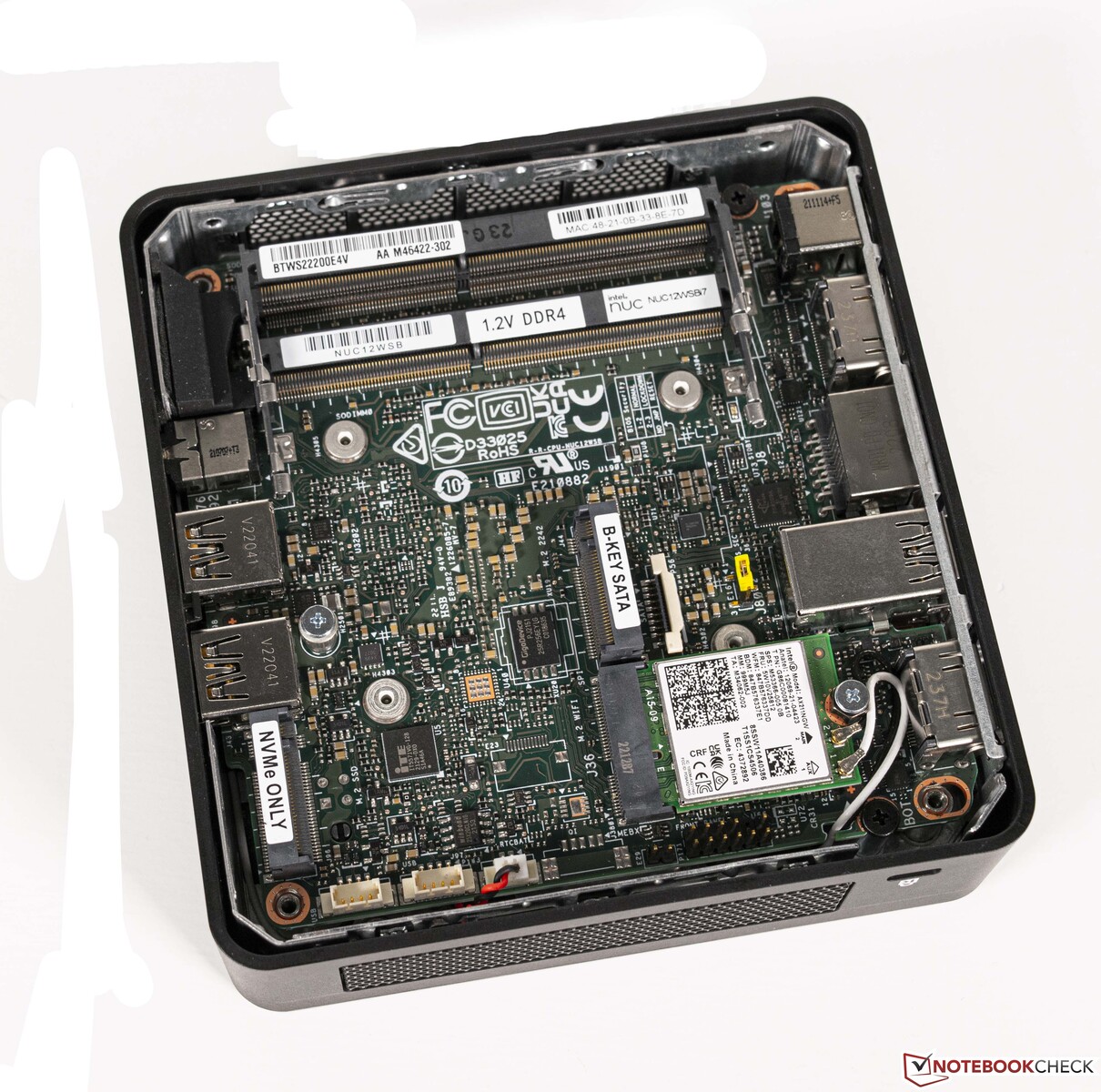

Intel NUC 12 Pro Kit - Wall Street Canyon met verwijderde onderkap

Prestaties - Core i7 met 12 kernen

Compacte pc's worden steeds krachtiger, zoals gebruikers die werken met de Intel NUC 12 Pro Kit zich snel zullen realiseren. In het hart van het systeem zit een 12-core CPU met 16 threads, waardoor het compacte systeem een uitstekende keuze is voor veeleisende taken.

Testomstandigheden

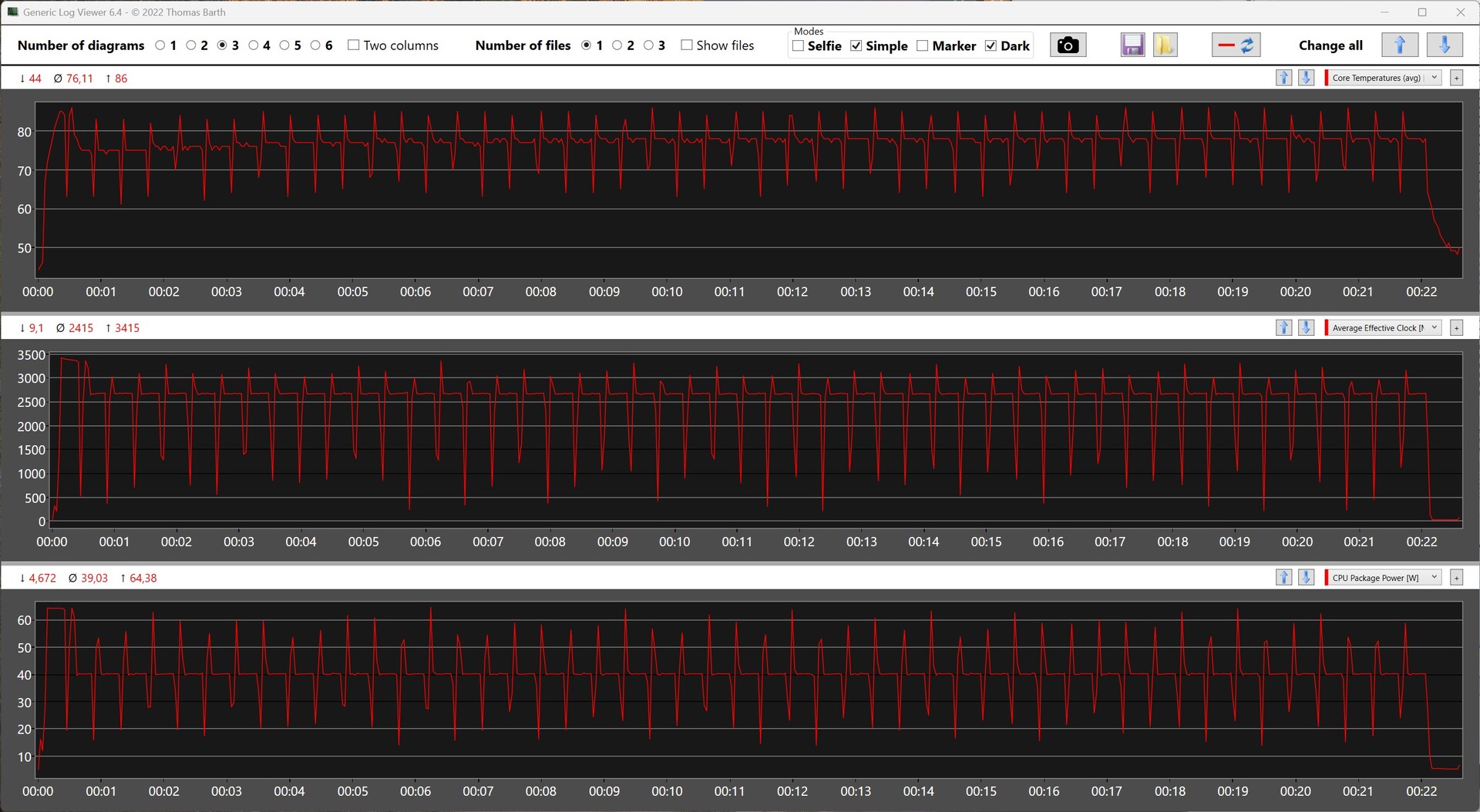

We hebben alle benchmarks uitgevoerd met het gebalanceerde stroomprofiel. We hebben de CPU prestatie-instellingen niet gewijzigd en alles op automatisch gezet in de BIOS instellingen.

Processor

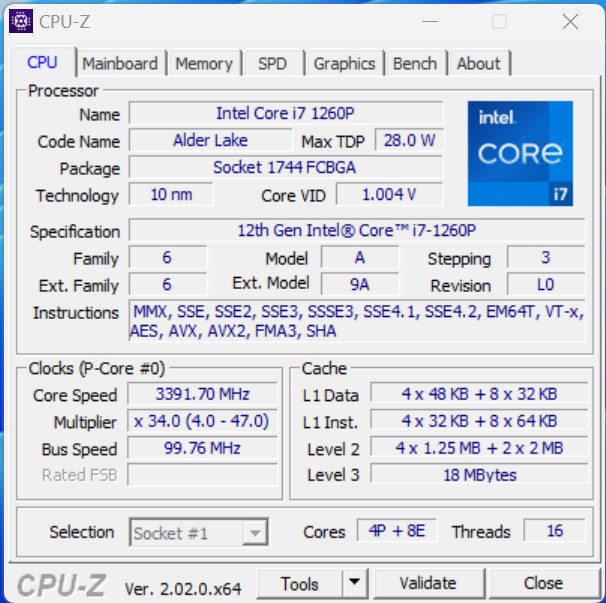

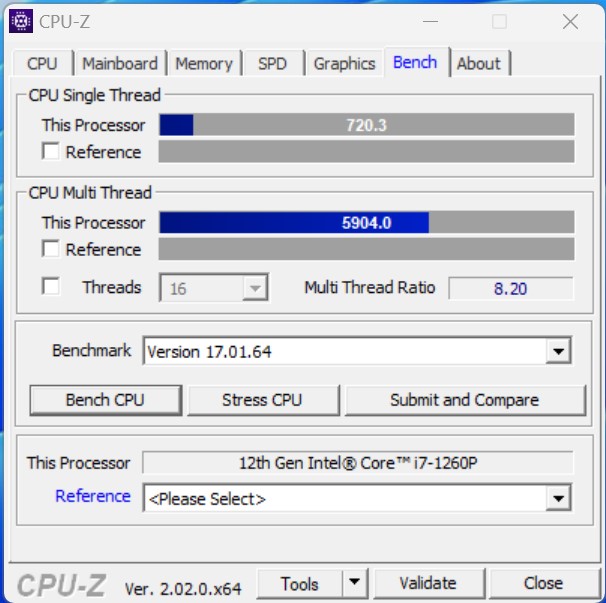

Met deIntel Core i7-1260Pbevat de Intel NUC 12 Pro kit een zeer recente SoC. Dankzij de 12 fysieke kernen en een totaal van 16 threads is de Intel Core i7-1260p een solide keuze, zelfs voor veeleisende gebruikers. Het is gewaardeerd voor een burst TDP (PL2) van 64 watt en een continue TDP (PL1) van 40 watt. Vergeleken met zijn concurrenten presteert de Intel NUC 12 Pro Kit zeer goed. Van zijn compacte PC concurrenten is alleen de Morefine S600-Apex een iets betere algemene score. Een achterstand van 14 procent ten opzichte van een Intel Core i5-12600K is nog steeds niet bijzonder groot. Dit illustreert verder hoe goed deze mobiele SoC in staat is om te presteren.

Meer vergelijkingen en benchmarks zijn te vinden op onze CPU benchmark pagina.

Performance Rating - Percent
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	56.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.2 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.7 pt
Gemiddeld Intel Core i7-1260P	46.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.7 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt

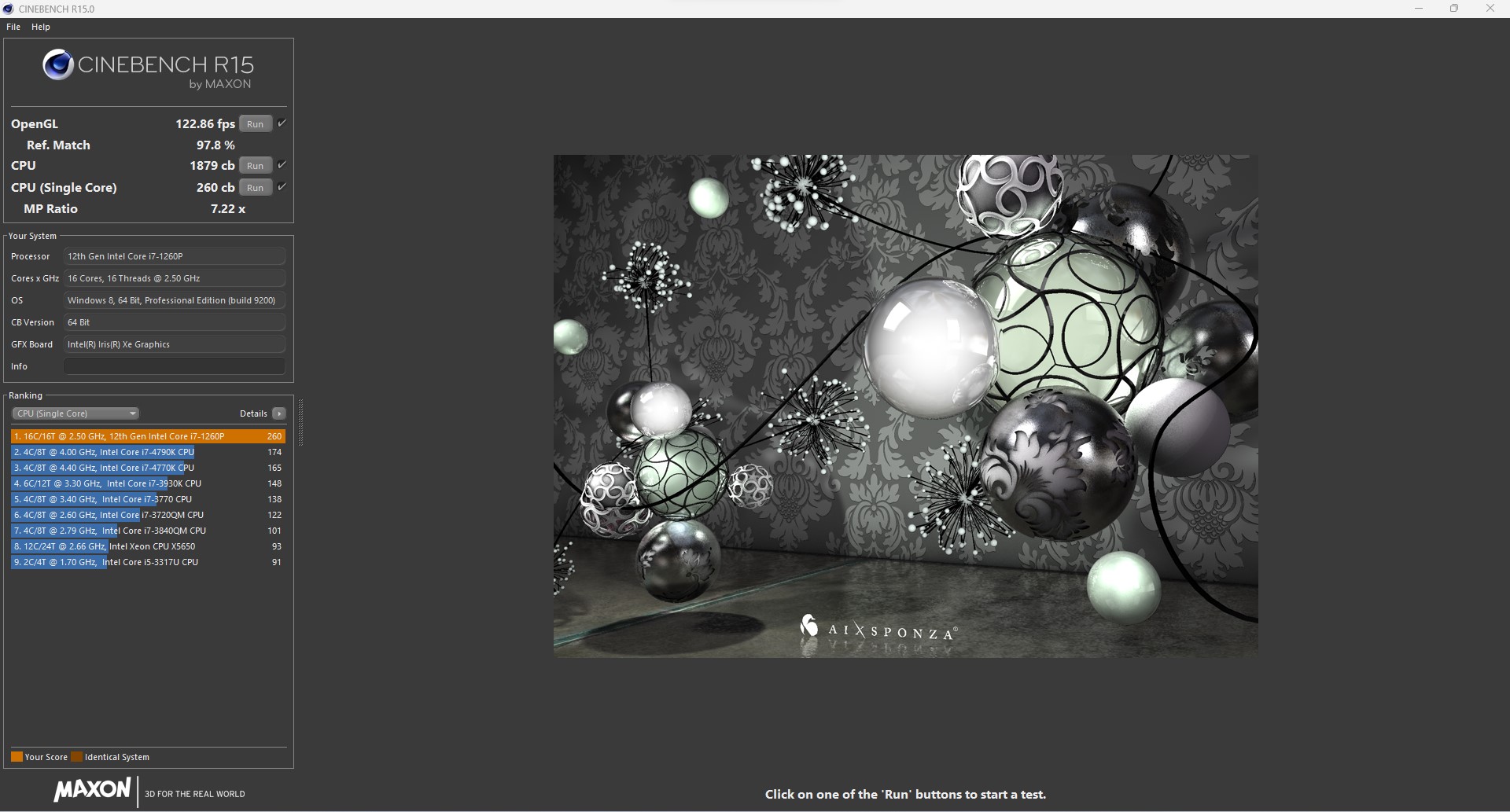

Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	275 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -7%
Gemiddeld Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -24%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2555 Points +36%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Gemiddeld Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -70%

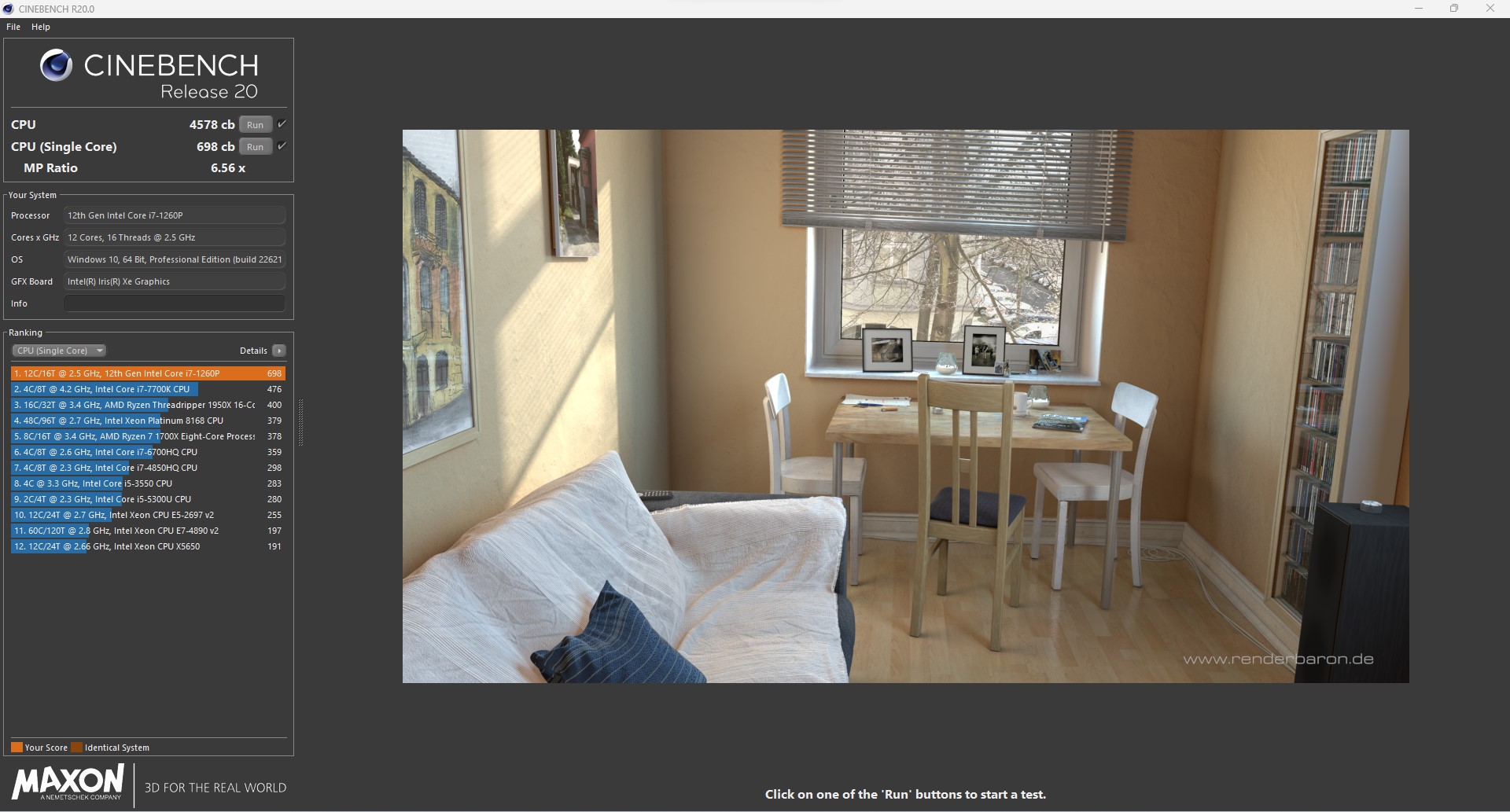

Cinebench R20
CPU (Single Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	734 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Gemiddeld Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -26%
CPU (Multi Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6692 Points +46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Gemiddeld Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -69%

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	3.31 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Gemiddeld Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -27%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.01 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Gemiddeld Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -73%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	15180 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Gemiddeld Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -28%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	89478 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -1%
Gemiddeld Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -67%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -168%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -43%
Gemiddeld Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +18%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	189.5 Seconds * +32%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -87%
Gemiddeld Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -48%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	4.725 s * -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +9%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -22%
Gemiddeld Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	202.7 s * +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +61%

X264 HD Benchmark 4.0
Pass 1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Gemiddeld Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -38%
Pass 2
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	148 (147^min - 148^max) fps +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Gemiddeld Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -67%

WinRAR - Result
Gemiddeld Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -4%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6239 KB/s -13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -42%

TrueCrypt
AES Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12.8 GB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Gemiddeld Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -54%
Twofish Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2.2 GB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Gemiddeld Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -60%
Serpent Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1.3 GB/s +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Gemiddeld Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -59%

Geekbench 5.5
Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12797 Points +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Gemiddeld Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -51%
Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1904 Points +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Gemiddeld Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12746 Points +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Gemiddeld Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -51%
5.0 Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1821 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Gemiddeld Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	8223 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Gemiddeld Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -23%
64 Bit Multi-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	46557 Points +26%
Gemiddeld Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -48%

3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	25017 Points +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -23%
Gemiddeld Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	64260 MIPS +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -17%
Gemiddeld Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -63%
7z b 4 -mmt1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	5944 MIPS +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Gemiddeld Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.1 fps +128%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Gemiddeld Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -60%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -12%
Gemiddeld Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	0.4456 sec * +7%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	71.8 s * -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -10%
Gemiddeld Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *

WebXPRT 3 - Overall
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	293 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Gemiddeld Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -13%
Gemiddeld Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	511 ms * +4%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29443 Points +52%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +19%
Gemiddeld Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -51%
1920x1080 Fire Strike Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29671 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -13%
Gemiddeld Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -55%
2560x1440 Time Spy CPU
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	13869 Points +65%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -17%
Gemiddeld Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -66%

* ... kleiner is beter

Cinebench R15
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Gemiddeld Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	201 Points -23%
CPU Multi 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Gemiddeld Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	794 (772.57^min - 794.38^max) Points -58%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Gemiddeld Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	503 Points -28%
CPU (Multi Core)
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Gemiddeld Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1974 Points -57%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Gemiddeld Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -15%
CPU Multi 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -1%
Gemiddeld Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Gemiddeld Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -15%
Rendering Multiple CPUs 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Gemiddeld Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%

Blender - v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	600 Seconds * -114%
Gemiddeld Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +17%

wPrime 2.10
32m
Gemiddeld Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +7%
1024m
Gemiddeld Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * +15%

X264 HD Benchmark 4.0
Pass 1
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Gemiddeld Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Pass 2
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Gemiddeld Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%

WinRAR - Result
Gemiddeld Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Gemiddeld Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Gemiddeld Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Gemiddeld Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Gemiddeld Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4593 Points -54%
Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Gemiddeld Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1396 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Gemiddeld Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4586 Points -53%
5.0 Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Gemiddeld Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1368 Points -19%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Gemiddeld Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	5828 Points -23%
64 Bit Multi-Core Score
Gemiddeld Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	18200 Points -51%

3DMark 11 - 1280x720 Performance Physics
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -4%
Gemiddeld Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	10105 Points -44%

7-Zip 18.03
7z b 4
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Gemiddeld Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	23280 MIPS -51%
7z b 4 -mmt1
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -7%
Gemiddeld Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4738 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Gemiddeld Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	6.63 fps -50%

R Benchmark 2.5 - Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	0.622 sec * -30%
Gemiddeld Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *

LibreOffice - 20 Documents To PDF
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	51.3 s * -14%
Gemiddeld Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +7%

WebXPRT 3 - Overall
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Gemiddeld Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	228 Points -20%

Mozilla Kraken 1.1 - Total
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	715 ms * -34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -9%
Gemiddeld Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +14%
Gemiddeld Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12434 Points -36%
1920x1080 Fire Strike Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Gemiddeld Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12562 Points -39%
2560x1440 Time Spy CPU
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Gemiddeld Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4117 Points -51%

* ... kleiner is beter

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	91.9 pt
Gemiddelde van klas Mini PC	77.3 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	70.1 pt
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	69 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	63.7 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	56.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	37.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +52%
Gemiddelde van klas Mini PC (769 - 51004, n=109, laatste 2 jaar)	14676 KRay/s +42%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -12%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	8243 KRay/s -20%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -46%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +93%
Gemiddelde van klas Mini PC (4140 - 214250, n=109, laatste 2 jaar)	69774 Points +34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	37321 Points -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -54%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +33%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	3250 MB/s +25%
Gemiddelde van klas Mini PC (290 - 9399, n=109, laatste 2 jaar)	3141 MB/s +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +27%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +16%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	88337 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points
Gemiddelde van klas Mini PC (8186 - 184747, n=109, laatste 2 jaar)	82007 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -43%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -44%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +90%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	9510 Points +41%
Gemiddelde van klas Mini PC (408 - 29064, n=109, laatste 2 jaar)	9356 Points +39%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -41%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +113%
Gemiddelde van klas Mini PC (2088 - 113499, n=109, laatste 2 jaar)	36197 Points +39%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	24230 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -43%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s
Gemiddelde van klas Mini PC (3691 - 325960, n=109, laatste 2 jaar)	87433 MB/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -28%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -36%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	58635 MB/s -37%

AIDA64 / CPU ZLib
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	988 MB/s +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +15%
Gemiddelde van klas Mini PC (77.4 - 2039, n=109, laatste 2 jaar)	813 MB/s +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s -48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -63%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +50%
Gemiddelde van klas Mini PC (432 - 26952, n=109, laatste 2 jaar)	7865 KRay/s +40%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	5149 KRay/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -47%

AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	48577 MPixel/s +71%
Gemiddelde van klas Mini PC (5333 - 62963, n=109, laatste 2 jaar)	30312 MPixel/s +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -32%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -47%

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop

CPU-metingen tijdens de Cinebench R15-lus

We krijgen onze eerste indruk van de efficiëntie van de geïntegreerde koeloplossing in onze Cinebench R15 loop. De maximale Turbo is alleen actief tijdens de eerste loop, waarbij de prestaties tijdens de tweede loop aanzienlijk afnemen. De scores dalen met ongeveer 10 procent. Er zijn geen grote schommelingen tijdens de rest van de test en de gemiddelde totaalscore is 1702 punten.

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø789 (772.57-794.38)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Systeemprestaties

Helaas is de Intel NUC 12 Pro Kit niet in staat zijn goede CPU benchmark scores naadloos om te zetten in goede synthetische benchmark scores. Als we de Intel Core i5-12600K buiten beschouwing laten, plaatst hij zich slechts op de derde plaats in PCMark 10. Crossmark daarentegen lijkt ons testapparaat opnieuw te bevoordelen en herstelt de oude prestatiehiërarchie. Ook bij de RAM-tests zien we bovengemiddelde overdrachtssnelheden in vergelijking met andere mini-pc's.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -3%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -24%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -24%

PCMark 10 / Essentials
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10650 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -3%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -16%

PCMark 10 / Productivity
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11001 Points +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -26%

CrossMark / Responsiveness
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +23%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -17%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -33%

CrossMark / Productivity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -21%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	70749 MB/s +58%
Gemiddeld Intel Core i7-1260P (25125 - 71544, n=25)	54361 MB/s +22%
Gemiddelde van klas Mini PC (8377 - 94438, n=109, laatste 2 jaar)	50832 MB/s +14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -49%

AIDA64 / Memory Read
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	76864 MB/s +65%
Gemiddeld Intel Core i7-1260P (24983 - 72065, n=25)	56385 MB/s +21%
Gemiddelde van klas Mini PC (8974 - 100086, n=109, laatste 2 jaar)	51640 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -47%

AIDA64 / Memory Write
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	73824 MB/s +60%
Gemiddelde van klas Mini PC (8762 - 100538, n=109, laatste 2 jaar)	55855 MB/s +21%
Gemiddeld Intel Core i7-1260P (23512 - 66799, n=25)	53353 MB/s +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -49%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns *
Gemiddelde van klas Mini PC (44.9 - 184.8, n=109, laatste 2 jaar)	92.4 ns * -0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +2%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +14%
Gemiddeld Intel Core i7-1260P (77.9 - 118.4, n=21)	78.7 ns * +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +26%

* ... kleiner is beter

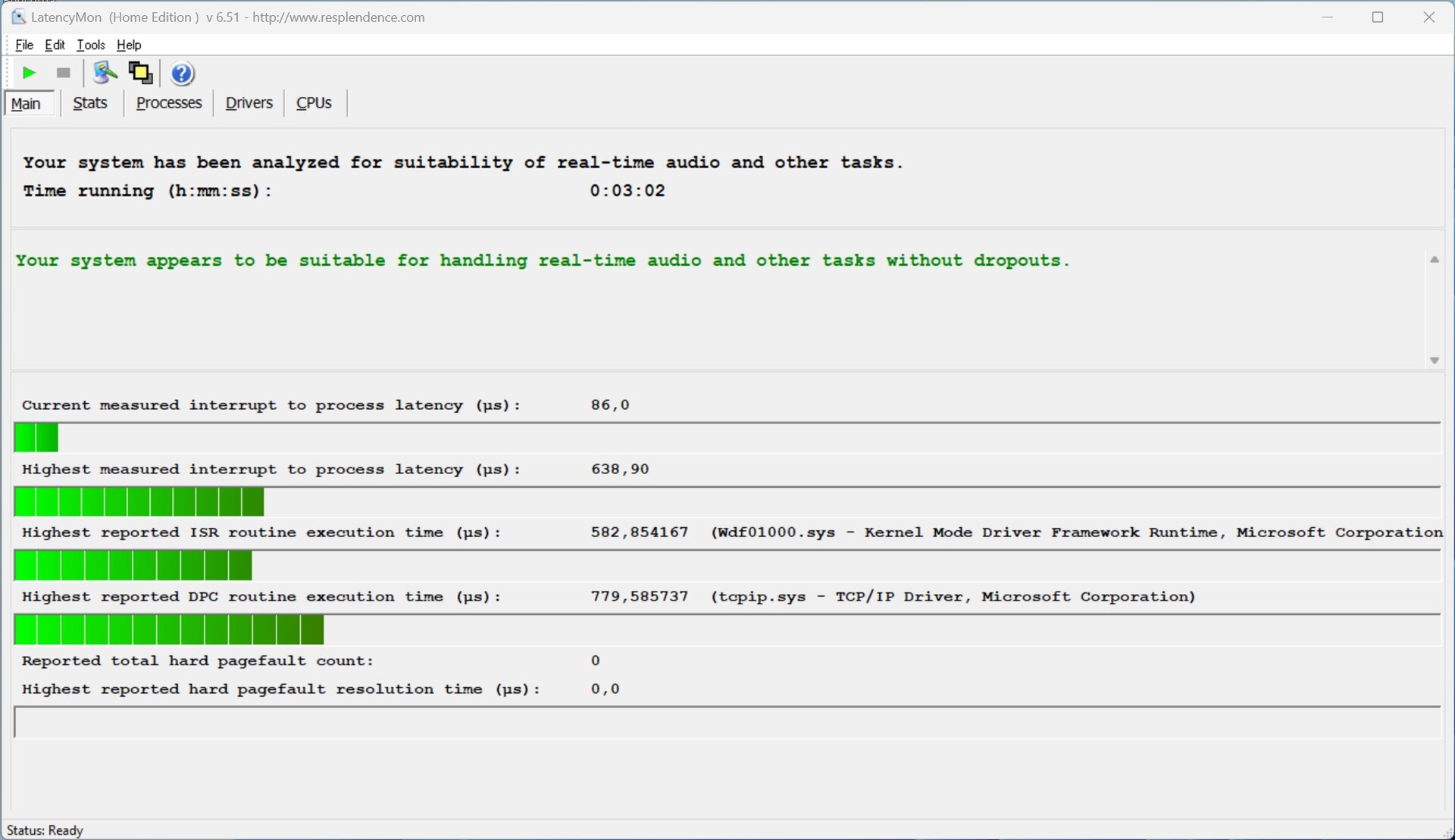

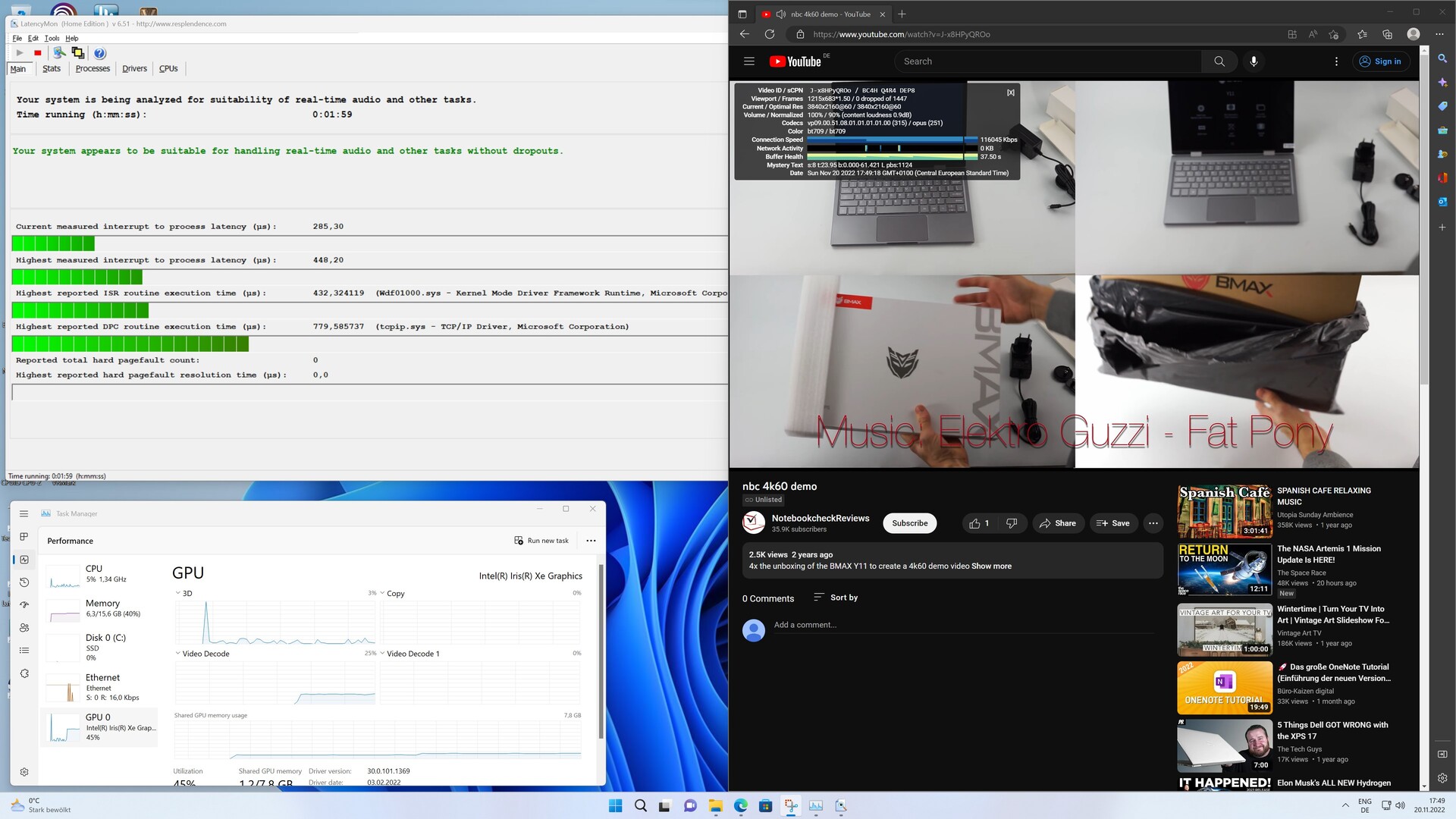

DPC latentie

De Intel NUC 12 Pro Kit presteert goed in combinatie met de Intel Core i7-1260P. We hebben geen problematische latenties waargenomen tijdens het afspelen van een videomonster. Hier was de iGPU op ongeveer 45 procent bezetting.

Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-video

Maximale latentie na belasting van het systeem met Prime95 gedurende tien seconden

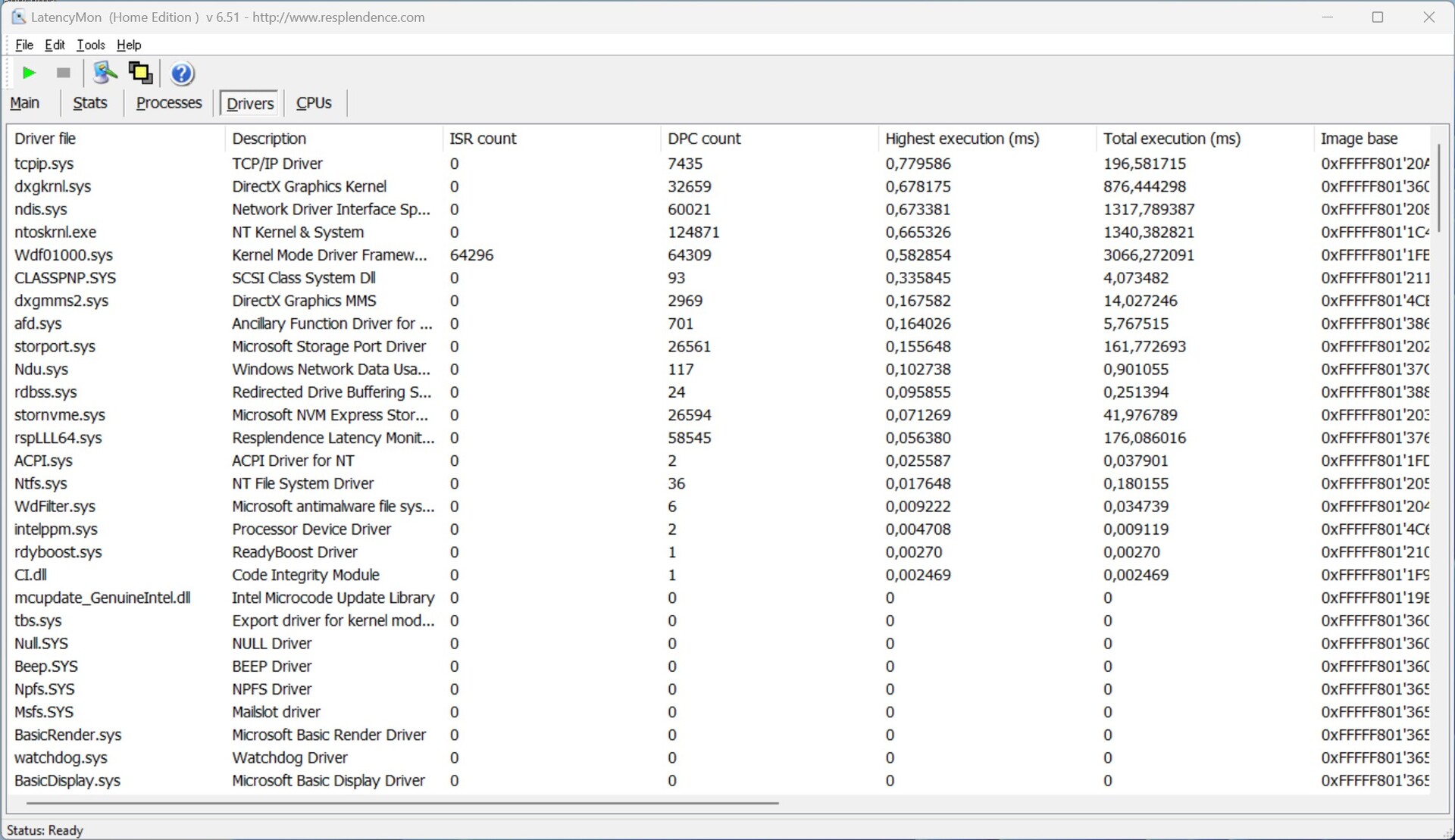

Bestuurders gerangschikt op hoogste uitvoeringstijd

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1106 μs * -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	961.5 μs * -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +15%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +33%

* ... kleiner is beter

Opslagoplossing

Ons testexemplaar van de Intel NUC 12 Pro Kit ondersteunt maximaal twee M.2 SSD's. Gebruikers zullen echter moeten letten op de vormfactor. Terwijl het primaire NVMe-M.2 slot alleen 80mm SSD's ondersteunt, accepteert het secundaire M.2 slot alleen kortere 42mm SSD's.

We gebruiken een Transcend SSD en RAM uit onze hardware voorraad. De SSD prestaties zijn solide. Andere apparaten in onze vergelijking zijn echter uitgerust met snellere SSD's. Het belang van deze resultaten moet niet worden overschat, aangezien gebruikers in staat zullen zijn om een SSD naar keuze te installeren in de Intel NUC 12 Pro Kit barebone.

Meer vergelijkingen en benchmarks zijn te vinden op onze SSD en HDD pagina.

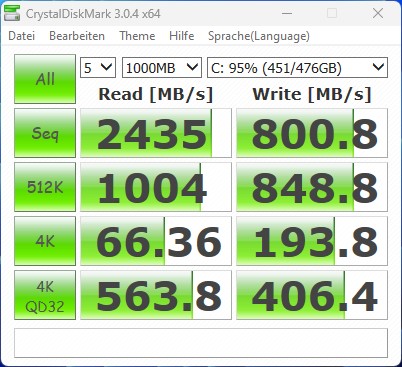

CrystalDiskMark 3.0

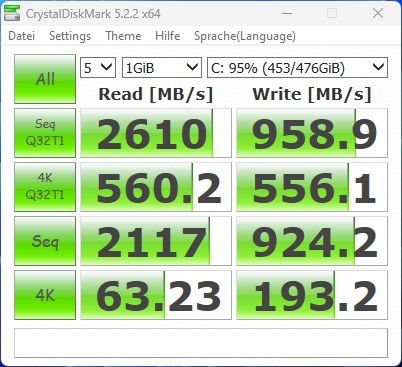

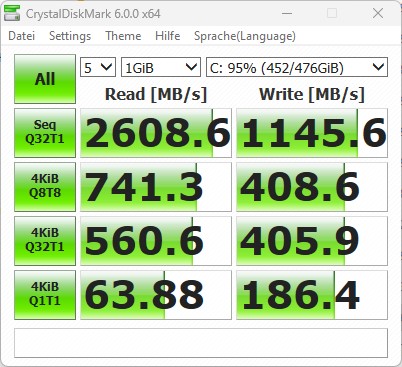

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2435 MB/s

Sequential Write: 800.8 MB/s

512K Read: 1004 MB/s

512K Write: 848.8 MB/s

4K Read: 66.36 MB/s

4K Write: 193.8 MB/s

4K QD32 Read: 563.8 MB/s

4K QD32 Write: 406.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Gemiddelde van klas Mini PC	92.8 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	68.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	66.8 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	55.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	51.7 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	18.5 pt

DiskSpd
seq read
Gemiddelde van klas Mini PC (413 - 4357, n=109, laatste 2 jaar)	2413 MB/s +35%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +22%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -72%
seq write
Gemiddelde van klas Mini PC (339 - 5595, n=109, laatste 2 jaar)	2742 MB/s +179%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +82%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +82%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -53%
seq q8 t1 read
Gemiddelde van klas Mini PC (397 - 8430, n=109, laatste 2 jaar)	4002 MB/s +76%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -13%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -75%
seq q8 t1 write
Gemiddelde van klas Mini PC (346 - 6669, n=109, laatste 2 jaar)	3086 MB/s +76%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -71%
4k q1 t1 read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s
Gemiddelde van klas Mini PC (6.85 - 87.3, n=109, laatste 2 jaar)	56.4 MB/s -10%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -23%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -25%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -28%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -66%
4k q1 t1 write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s
Gemiddelde van klas Mini PC (29.6 - 435, n=109, laatste 2 jaar)	196.9 MB/s -1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -2%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -77%
4k q32 t16 read
Gemiddelde van klas Mini PC (102.3 - 4158, n=109, laatste 2 jaar)	1483 MB/s +324%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +187%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -11%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -19%
4k q32 t16 write
Gemiddelde van klas Mini PC (70.3 - 4288, n=109, laatste 2 jaar)	1419 MB/s +153%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +74%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +38%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -41%

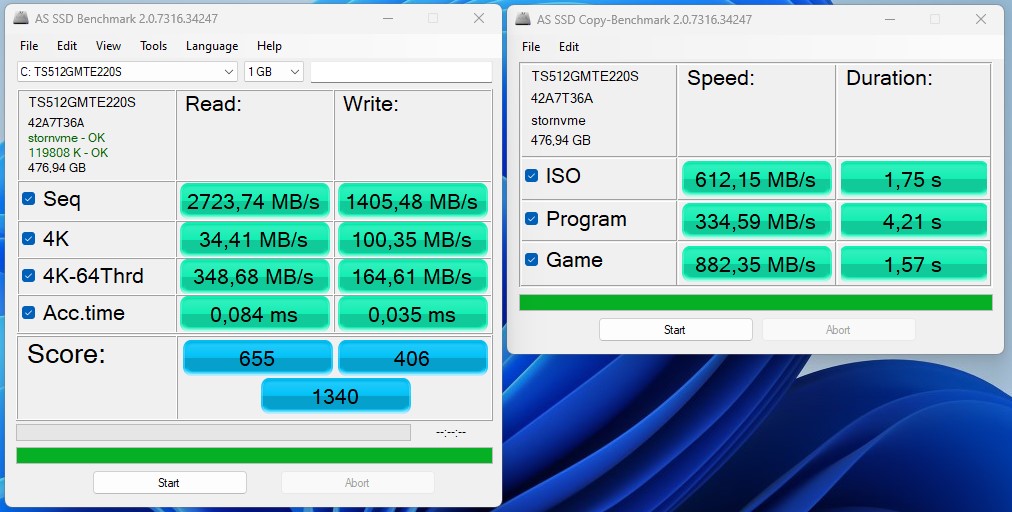

AS SSD
Score Total
Gemiddelde van klas Mini PC (507 - 10021, n=107, laatste 2 jaar)	4425 Points +230%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +115%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +109%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +63%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -37%
Score Read
Gemiddelde van klas Mini PC (172 - 3741, n=107, laatste 2 jaar)	1598 Points +144%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +77%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +76%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -54%
Score Write
Gemiddelde van klas Mini PC (210 - 4371, n=107, laatste 2 jaar)	2039 Points +402%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +188%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +184%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +161%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -8%
Seq Read
Gemiddelde van klas Mini PC (483 - 6620, n=107, laatste 2 jaar)	3316 MB/s +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -19%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -35%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -81%
Seq Write
Gemiddelde van klas Mini PC (326 - 5783, n=107, laatste 2 jaar)	2501 MB/s +78%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -67%
4K Read
Gemiddelde van klas Mini PC (18.2 - 104.3, n=107, laatste 2 jaar)	59.6 MB/s +73%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +58%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +85%
Gemiddelde van klas Mini PC (40.8 - 366, n=107, laatste 2 jaar)	177 MB/s +76%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -58%
4K-64 Read
Gemiddelde van klas Mini PC (94.3 - 3220, n=107, laatste 2 jaar)	1207 MB/s +246%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +156%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +153%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -34%
4K-64 Write
Gemiddelde van klas Mini PC (96.3 - 3731, n=107, laatste 2 jaar)	1612 MB/s +879%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +456%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +400%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +356%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -48%
Gemiddelde van klas Mini PC (0.025 - 0.288, n=107, laatste 2 jaar)	0.09438 ms * -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +29%
Access Time Write
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -669%
Gemiddelde van klas Mini PC (0.014 - 0.706, n=107, laatste 2 jaar)	0.1066 ms * -205%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -194%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -191%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +31%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Intel NUC 12 Pro Kit NUC12WSKi7: Ø2242 (1995.64-2278.98)

GPU-prestaties

Een Intel Iris Xe Graphics G7 met 96 EU's wordt gebruikt als geïntegreerde grafische oplossing. Qua prestaties is deze alleen geschikt voor 2D rendering. De 3D prestaties zijn beduidend minder dan die van een dedicated GPU. Er kan echter een externe GPU worden aangesloten via Thunderbolt. We hebben dit geprobeerd met onze Razer Core X en een Nvidia GeForce RTX 3060 Ti en documenteerden de resultaten, die in de volgende grafieken te vinden zijn. In een notendop, de prestaties van de Inte NUC 12 Pro Kit nemen aanzienlijk toe in dit scenario, waar het zelfs die van de Ace Magician TK11-A0.

Meer vergelijkingen en benchmarks zijn te vinden op onze GPU pagina.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	95.9 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	20.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	17.7 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.2 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.7 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.3 pt
Intel NUC11TNKi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	13.3 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +389%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +377%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -2%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -19%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +477%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +433%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points +44%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +37%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -3%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	19330 Points -8%
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +413%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +395%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -24%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -35%
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +577%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +546%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -32%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -32%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -37%
Fire Strike Extreme Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +514%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +499%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -20%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1578 Points -27%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -32%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | LuxMark v2.0 64Bit

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti ^-8! , i5-1135G7, Future Path FPE220M8SSD512G	76 pt
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	27.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	18.7 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +664%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +540%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -22%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -27%
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +631%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +501%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -24%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +941%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +588%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps -15%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +685%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +465%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -29%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -34%

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +688%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points -1%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -24%
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +1104%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points +33%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -17%
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +986%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -16%
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +541%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +20%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -37%
1024x600 Normal, Mandel Scalar
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	6278 Points +618%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	874 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	836 Points -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -14%
1024x600 Normal, QJuliaRayTrace
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +708%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -14%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points -31%

LuxMark v2.0 64Bit
Room GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	655 Samples/s +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	508 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	508 Samples/s 0%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	451 Samples/s -11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	450 Samples/s -11%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s -18%
Sala GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2494 Samples/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	2188 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2188 Samples/s 0%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s -25%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	993 Samples/s -55%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	939 Samples/s -57%

Spelprestaties

De iGPU is niet geschikt voor gaming. In het beste geval zijn sommige titels speelbaar bij lage resoluties en lage grafische instellingen. Hoe dan ook, de game-ervaring is nog steeds niet geweldig. Als u op zoek bent naar een apparaat voor gaming, zal een model met een speciale GPU beter passen. De nieuwste modellenHX90G en NUCXi7 van Minisforum kunnen geschikte alternatieven zijn. Als alternatief kan een Thunderbolt eGPU-dock worden gebruikt. Wij gebruikten de Razer Core X in combinatie met de Nvidia GeForce RTX 3060 Ti om deze configuratie te testen. Hoewel deze opstelling in staat is om veel games op hoge resoluties te draaien, zijn de prestaties nog steeds aanzienlijk slechter in vergelijking met een traditionele desktop-pc. Dit is een gevolg van het feit dat de Thunderbolt 4 poorten beperkt zijn tot slechts 4 PCIe lanes.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps +111%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +56%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.9 (8.18^min, 17.5^P0.1, 19^P1) fps +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps

GTA V
1024x768 Lowest Settings possible
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	114.9 (9.31^min, 76.9^P1) fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps -37%
1366x768 Normal/Off AF:4x
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps -42%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	59 (53^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52 (45^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -52%
1920x1080 Medium Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	30 (27^min) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps -37%

Far Cry New Dawn
1280x720 Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	53 (31^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47 (30^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps -38%
1920x1080 Medium Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (21^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps -41%

F1 2020
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	95.2 (83^min) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	95 (75^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps -36%
1920x1080 Medium Preset AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	49.4 (42^min) fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	48.7 (41^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps -33%

Strange Brigade
1280x720 lowest AF:1
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.4 (21.9^min, 40.2^P1) fps +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps -19%
1920x1080 medium AA:medium AF:4
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	44.6 (10.8^min, 23.9^P1) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps -28%

Borderlands 3
1920x1080 Medium Overall Quality (DX11)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	25.3 fps +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.1 fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -31%
1280x720 Very Low Overall Quality (DX11)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	60.1 fps +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	55.5 fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	53.4 fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52.4 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	33.9 fps -35%

Metro Exodus
1280x720 Low Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	42.9 (22.44^min) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.5 (21.89^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.2 (25.3^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	37.9 (22.1^min) fps -9%
1920x1080 Medium Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	21.1 (10.84^min) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	20.3 (10.85^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 (7.91^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	15.9 (8.1^min) fps -22%

F1 2021
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	106.6 (85^min, 83^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	101.1 (75^min, 72^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -6%
1920x1080 Medium Preset AA:T AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	52.6 (43^min, 42^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47.3 (37^min, 37^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps -16%

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	124.3 (35.1^min, 81.8^P0.1, 103.5^P1 - 390^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	85.6 (59^min, 67.3^P0.1, 74.7^P1 - 139.4^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	149.9 (6.21^min, 100^P1 - 286^max) fps +1713%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	106 (6.46^min, 76.9^P1 - 212^max) fps +1182%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	86.6 (3.43^min, 58.8^P1 - 176^max) fps +947%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +929%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +578%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	8.27 (3.9^min, 4.85^P1 - 22.7^max) fps
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	117 (8.45^min, 76.9^P1 - 225^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn
1920x1080 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	232.1 (197.7^min) fps +301%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	135.6 (116.6^min) fps +134%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	134.5 (115.1^min) fps +132%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75.3^min) fps +67%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (79.9^min) fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	57.9 (52^min) fps
3840x2160 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	169 (145.3^min) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark
1920x1080 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125.9 fps +668%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	103.3 fps +530%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.6 fps +495%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.4 fps +396%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	79 fps +382%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.4 fps
2560x1440 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	93.2 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11
1920x1080 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	152.7 fps +278%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	94.8 fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	90.3 fps +124%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 fps +46%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	47.1 fps +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	40.4 fps
3840x2160 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	127.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5
1920x1080 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	170 (134^min - 197^max) fps +608%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	120 (92^min - 158^max) fps +400%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	119 (90^min - 152^max) fps +396%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	110 (87^min - 142^max) fps +358%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60 (46^min - 78^max) fps +150%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	24 (21^min - 28^max) fps
2560x1440 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125 (113^min - 146^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn
1920x1080 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	142 (103^min - 196^max) fps +517%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	101 (74^min - 147^max) fps +339%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	100 (71^min - 156^max) fps +335%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	90 (63^min - 144^max) fps +291%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (39^min - 85^max) fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23 (17^min - 30^max) fps
2560x1440 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	121 (92^min - 148^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade
1920x1080 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	219 (159.8^min, 163.4^P1 - 311^max) fps +736%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	184.7 (56.8^min, 140.7^P1 - 287^max) fps +605%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	151.8 (107^min, 110.3^P1 - 258^max) fps +479%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +468%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	114.7 (58.8^min, 72.4^P1 - 210^max) fps +338%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.2 (8.6^min, 9.63^P1 - 224^max) fps
2560x1440 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	161.3 (124.3^min, 127.6^P1 - 219^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Metro Exodus
1920x1080 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	91.5 (46.9^min - 167.64^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	74.6 (38.07^min - 133.07^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	59.2 (34.14^min - 86.99^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	52.9 (24.48^min - 97.96^max) fps
2560x1440 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	72 (40.41^min - 128.37^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	59.9 (32.93^min - 102.72^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	46.1 (22.9^min - 80.71^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	45.1 (27.81^min - 61.71^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	76.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	108.5 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

Tiny Tina's Wonderlands
1920x1080 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	106.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	88.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	81.5 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	74.8 fps
2560x1440 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	74.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	61.9 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	49.4 fps

F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	201 (161^min - 240^max) fps +741%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	166.2 (136^min - 198^max) fps +595%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	132.4 (98^min - 165^max) fps +454%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	102.7 (53^min - 145^max) fps +330%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	81.5 (43^min - 107^max) fps +241%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 (17^min - 30^max) fps
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	150 (125^min - 175^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	107.8 (92^min, 92^P1 - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	147.6 (127^min, 126^P1 - 165^max) fps +449%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.1 (104^min, 93^P1 - 137^max) fps +358%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	95.8 (80^min, 80^P1 - 110^max) fps +256%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 (47^min, 47^P1 - 73^max) fps +143%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +92%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.9 (20^min, 21^P1 - 30^max) fps

F1 22
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	49.3 (42^min, 41^P1 - 58^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	39.7 (31^min, 29^P1 - 47^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	30.2 (20^min, 18^P1 - 37^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	24.4 (19^min, 19^P1 - 30^max) fps
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	77.7 (66^min, 65^P1 - 92^max) fps +228%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	61.9 (49^min, 37^P1 - 72^max) fps +161%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	39.9 (30^min, 30^P1 - 51^max) fps +68%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	31.5 (21^min, 18^P1 - 39^max) fps +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.7 (19^min, 19^P1 - 28^max) fps

Performance Rating - Percent
Gemiddeld NVIDIA GeForce RTX 3060 Ti	97.2 pt
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	96.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	84.6 pt
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	69.8 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 pt

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Gemiddeld NVIDIA GeForce RTX 3060 Ti (64.6 - 124.3, n=6)	94 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Gemiddeld NVIDIA GeForce RTX 3060 Ti (54.6 - 85.6, n=6)	75.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V - 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Gemiddeld NVIDIA GeForce RTX 3060 Ti (38.9 - 117, n=6)	87.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Gemiddeld NVIDIA GeForce RTX 3060 Ti (33.7 - 169, n=6)	121 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark - 2560x1440 High Quality
Gemiddeld NVIDIA GeForce RTX 3060 Ti (40.8 - 93.2, n=6)	78.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11 - 3840x2160 high (fps_test=3)
Gemiddeld NVIDIA GeForce RTX 3060 Ti (30.3 - 128.8, n=6)	90.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5 - 2560x1440 Ultra Preset AA:T
Gemiddeld NVIDIA GeForce RTX 3060 Ti (90 - 125, n=6)	107.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn - 2560x1440 Ultra Preset
Gemiddeld NVIDIA GeForce RTX 3060 Ti (73 - 121, n=6)	97.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade - 2560x1440 ultra AA:ultra AF:16
Gemiddeld NVIDIA GeForce RTX 3060 Ti (119.3 - 161.3, n=6)	140.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Gemiddeld NVIDIA GeForce RTX 3060 Ti (63.2 - 76.3, n=6)	68.9 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Gemiddeld NVIDIA GeForce RTX 3060 Ti (78.2 - 108.5, n=6)	92.6 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

F1 2020 - 2560x1440 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Gemiddeld NVIDIA GeForce RTX 3060 Ti (87.6 - 150, n=6)	117.4 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021 - 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Gemiddeld NVIDIA GeForce RTX 3060 Ti (45.2 - 107.8, n=6)	77 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

	lage	gem.	hoge	ultra
GTA V (2015)	108.6	93.9	19.4	8.27
The Witcher 3 (2015)	88.1		15.2
Dota 2 Reborn (2015)	116.4	87.9	63.1	57.9
Final Fantasy XV Benchmark (2018)	42.8	23	16.4
X-Plane 11.11 (2018)	62.3	46.2	40.4
Far Cry 5 (2018)	52	27	25	24
Strange Brigade (2018)	90.1	39.5	32.5	26.2
Far Cry New Dawn (2019)	47	27	26	23
Metro Exodus (2019)	41.5	20.3	14.4
Borderlands 3 (2019)	52.4	23	15
F1 2020 (2020)	95	48.7	37.4	23.9
F1 2021 (2021)	101.1	47.3	36.8	26.9
Tiny Tina's Wonderlands (2022)	31.8	24.2	15.2
F1 22 (2022)	44.3	42.6	30.9	23.7

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

	lage	gem.	hoge	ultra	QHD	4K
GTA V (2015)	178.5	172.4	128.2	85.1	57.8	39.4
The Witcher 3 (2015)	308	211	151.2	75.3		72.3
Dota 2 Reborn (2015)	167.7	150.9	144.9	134.5		109
Final Fantasy XV Benchmark (2018)	175.7	141.1	97.6		77.1	48.5
X-Plane 11.11 (2018)	126.9	110.6	90.3			80.1
Far Cry 5 (2018)	153	133	127	120	100
Strange Brigade (2018)	204	156.4	153.7	148.8	129.9	83.4
Far Cry New Dawn (2019)	133	115	111	101	92	59
Metro Exodus (2019)	144.5	91.9	70.5	52.9	46.1	33.8
Borderlands 3 (2019)	145.2	126.5	101.3	83.6	63.9	37.8
F1 2020 (2020)	209	124.7	126.1	102.7	92.7	60.3
F1 2021 (2021)	142.1	113.1	68.7	51.7	49.2	41.5
Tiny Tina's Wonderlands (2022)	173.9	139.5	100.3	81.5	61.9	36
F1 22 (2022)	71.3	70.4	57.7	31.5	30.2	21.1

Emissies

Systeemgeluid

De Intel NUC 12 Pro Kit is alleen stil tijdens inactiviteit. De ventilator draait zachtjes op 33 dB(A), waardoor hij nauwelijks merkbaar is. Onder belasting neemt deze waarde toe tot een gemiddelde van 38 dB(A) en een nog hogere 43 dB(A) tijdens de stresstest. Dat gezegd hebbende, is de Intel NUC 12 Pro Kit nog steeds niet het luidste apparaat in onze vergelijking. Echter, concurrenten zoals de Minisforum EliteMini HX90 zijn in staat om veel stiller te blijven.

Geluidsniveau

Onbelast		33.1 / 33.1 / 33.1 dB (A)
Belasting		38.1 / 43.6 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Earthworks M23R, Arta (15 cm afstand) omgevingslawaai: 30.4 dB(A)

Temperaturen

In rusttoestand en tijdens niet veeleisende taken blijft de oppervlaktetemperatuur van de Intel NUC 12 Pro Kit relatief koel. Warmte kan snel uit de behuizing ontsnappen via de achterkant.

Wanneer het systeem wordt belast met Prime95, kan de Intel Core i7-1260P een piektemperatuur van 93 °C en een kloksnelheid van 2,6 GHz op de P-kernen. Ondertussen houden de E kernen nog steeds een respectabele 2,3 GHz aan. De temperaturen zijn niets om je zorgen over te maken en er is geen thermische throttling tijdens pure CPU-stress. De CPU bereikt aanvankelijk de PL2 TDP limiet en daalt vervolgens naar de PL1 limiet van 40 watt. Deze waarde kan gedurende de gehele stresstest worden gehandhaafd.

Energieverbruik

De Intel NUC 12 Pro Kit kan niet worden omschreven als extreem energiezuinig. Dit komt door het enigszins hoge stroomverbruik tijdens inactiviteit. In dit scenario moet de 120 watt AC adapter minstens 12 watt leveren. Onder belasting loopt deze waarde op tot gemiddeld 64 watt met tijdelijke pieken tot bijna 99 watt wanneer de Turbo actief is. De wisselstroomadapter is dus voldoende gedimensioneerd. Verrassend genoeg is het energieverbruik tijdens de slaapstand (4,7 watt) en in uitgeschakelde toestand (1,6 watt) relatief hoog.

Stroomgebruik

Uit / Standby	1.66 / 4.73 Watt
Inactief	12.1 / 12.2 / 12.3 Watt
Belasting	64 / 98.8 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Gemiddeld Intel Iris Xe Graphics G7 96EUs	Gemiddelde van klas Mini PC
Power Consumption		12%	32%	48%	-231%	31%	-1%
Idle Minimum *	12.1	11.5 5%	8.4 31%	3.4 72%	46.5 -284%	5.41 ?(2.2 - 46.5, n=196) 55%	9.84 ?(2.2 - 45.7, n=110, laatste 2 jaar) 19%
Idle Average *	12.2	12.4 -2%	8.7 29%	5.7 53%	63 -416%	8.6 ?(3.8 - 63, n=196) 30%	12.2 ?(2.59 - 47.5, n=108, laatste 2 jaar) -0%
Idle Maximum *	12.3	12.9 -5%	9.3 24%	7 43%	68.9 -460%	10.9 ?(5.8 - 68.9, n=196) 11%	15.6 ?(2.6 - 49, n=110, laatste 2 jaar) -27%
Load Average *	64	40.7 36%	46.4 27%	36.5 43%	73.9 -15%	45.4 ?(12.5 - 87.3, n=196) 29%	60.3 ?(12.9 - 170.6, n=110, laatste 2 jaar) 6%
Load Maximum *	98.8	73.5 26%	52 47%	68 31%	80.8 18%	67.6 ?(30.1 - 123.3, n=196) 32%	103.3 ?(26.2 - 423, n=110, laatste 2 jaar) -5%
Witcher 3 ultra *		43.9

* ... kleiner is beter

Verdict - Geavanceerd, Krachtig en Toekomstbestendig

Intel NUC 12 Pro Kit - Wall Street Canyon in review - Met dank aan Intel Duitsland

De Intel NUC 12 Pro Kit is meer dan geschikt als uitstekende kantoor-pc. Hij is gebaseerd op de Intel Core i7-1260P, een snelle SoC met 12 cores en 16 threads die in staat is om veel applicaties tegelijk te draaien. Het belangrijkste voordeel van het systeem is de compacte vormfactor in combinatie met de nieuwste en grootste interfaces, die nauwelijks iets te wensen overlaten. Thunderbolt 4, dat dubbel beschikbaar is, is veruit de interessantste toevoeging.

De prijs van ongeveer 700 USD is een halve waarheid als het gaat om het maken van een aankoopbeslissing, aangezien het barebone systeem geen RAM, een SSD of een Windows licentie bevat. Dat gezegd hebbende, het aanbod van andere mini PC fabrikanten is van vergelijkbare aard. Onze bescheiden uitgeruste testconfiguratie bevat 16 GB RAM en een 512-GB SSD en presteert zeer goed. Subjectief gezien voelde het systeem nooit traag aan tijdens onze testperiode. Dankzij de goede DPC-latenties is het apparaat zeer geschikt als streaming client voor de woonkamer. Er kan ook een extern GPU-dock worden aangesloten voor het geval er meer 3D-prestaties nodig zijn. Tijdens de review van het systeem hebben we deze optie verkend met behulp van een Nvidia GeForce RTX 3060 Ti.

Eerst en vooral is de Intel NUC 12 Pro Kit een geweldige kantoor-pc. Met de juiste accessoires wordt het kleine systeem echter tot veel meer in staat.

Visueel valt de Intel NUC 12 Pro Kit in lijn met andere modellen uit Intel's NUC-serie. De bouwkwaliteit is goed, hoewel de met plastic beklede buitenkant er op het eerste gezicht wat goedkoop uitziet. Over het geheel genomen maakt de Intel NUC 12 Pro Kit geen grote misstappen die ons zouden diskwalificeren om het systeem aan te bevelen. Er zijn veel concurrenten in de mini PC ruimte. Dat gezegd hebbende, zijn er niet veel met Thunderbolt ondersteuning. De Ace Magician TK11-A0 is een van de uitzonderingen. Hij kan echter niet tippen aan de CPU-prestaties van de Intel NUC 12 Pro Kit.

Prijs en beschikbaarheid

De Intel NUC 12 Pro Kit - Wall Street Canyon is momenteel verkrijgbaar in diverse winkels, zoals Amazon voor ongeveer 710 USD.

Intel NUC 12 Pro Kit NUC12WSKi7 - 24-11-2022 v7 ^(old)
Sebastian Bade

Behuizing

81 / 98 → 83%

Aansluitmogelijkheden

55 / 81 → 68%

Gewicht

83%

Gaming-performance

67%

Applicatie-performance

94%

Luidheid

78%

Gemiddelde

76%

79%

Mini PC - Gewogen Gemiddelde

Evaluatie	Datum	Model	Gewicht	Hoogte
78.9 % v7 ^(old)	11-2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
v ^(old)	01-2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	04-2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm
v ^(old)	09-2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v7 ^(old)	09-2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v7 ^(old)	10-2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

Intel NUC 12 Pro Kit - Wall Street Canyon in review: Geavanceerde mini-pc met Intel Core i7-1260P voor grote veelzijdigheid

Snel en toekomstbestendig!

Potentiële concurrenten in vergelijking

Intel NUC 12 Pro Kit in detail

Zaak

Connectiviteit

Communicatie

Accessoires

Onderhoud

Prestaties - Core i7 met 12 kernen

Testomstandigheden

Processor

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop

Systeemprestaties

DPC latentie

Opslagoplossing

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestaties

Spelprestaties

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

Emissies

Systeemgeluid

Temperaturen

Energieverbruik

Consumption external Monitor

Pro

Contra

Verdict - Geavanceerd, Krachtig en Toekomstbestendig

Prijs en beschikbaarheid

Meer artikelen gerelateerd aan dit apparaat

3DMark 05 Standard		43430 punten
3DMark 06 Standard Score		32994 punten
3DMark Vantage P Result		24787 punten
3DMark 11 Performance		7421 punten
3DMark Ice Storm Standard Score		53585 punten
3DMark Cloud Gate Standard Score		19367 punten
3DMark Fire Strike Score		4564 punten
3DMark Fire Strike Extreme Score		2165 punten
3DMark Time Spy Score		1854 punten
Help

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs
Noise		9%	-2%	-7%	5%	-8%
uit / omgeving *	30.4	30.8 -1%	24.8 18%	30.5 -0%	30.28 -0%	29.6 3%
Idle Minimum *	33.1		35.6 -8%	31.5 5%	31.82 4%	36.1 -9%
Idle Average *	33.1	31.6 5%	35.6 -8%	32.6 2%	32.27 3%	37.6 -14%
Idle Maximum *	33.1		35.6 -8%	33.8 -2%	33.17 -0%	39.2 -18%
Load Average *	38.1		36.2 5%	49.3 -29%	35.82 6%	42.6 -12%
Load Maximum *	43.6	33.4 23%	47.6 -9%	50.9 -17%	37.1 15%	42.4 3%
Witcher 3 ultra *			38
