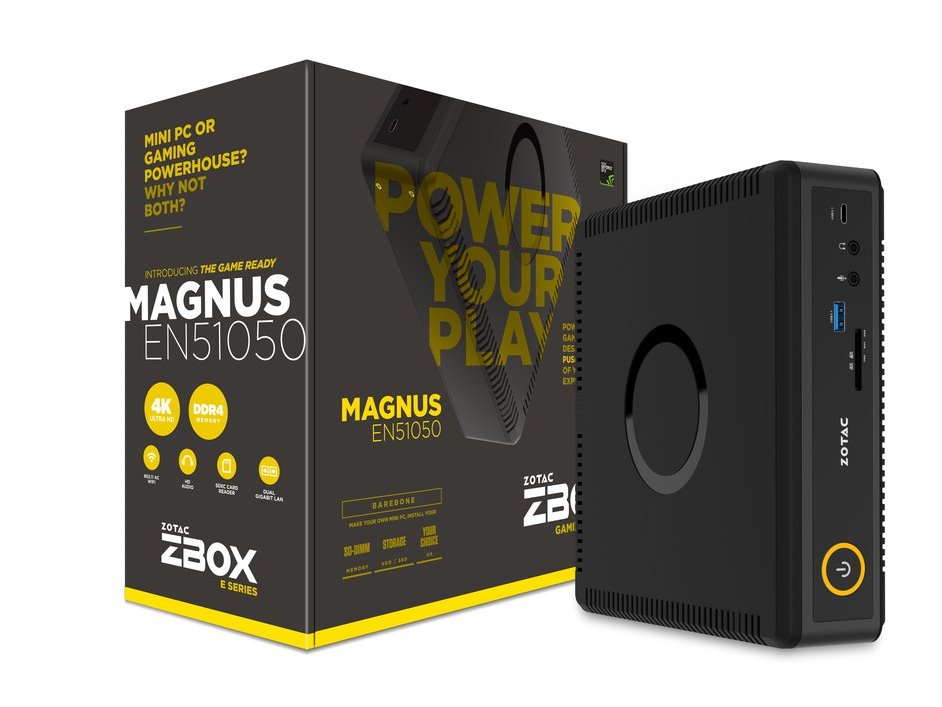

Kort testrapport Zotac ZBOX Magnus EN51050 Mini PC

Allen Ngo, 30-09-2017

Gaming zwarte doos. De middenklasse EN51050 behaalt met de i5-7500T CPU en GTX 1050 GPU een uitstekende balans in prestaties. Maar met € 700 bevindt de prijs van deze barebone zich bijna in het bereik van volwaardige game notebooks die uitgerust zijn met snellere hardware.

No, or more than one (0) Rating for the given SpecsID 283342 found

Zotac ZBOX Magnus EN51050

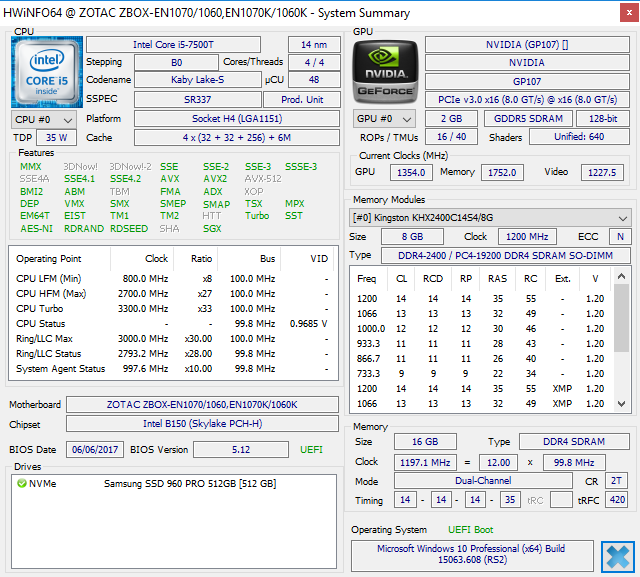

Processor

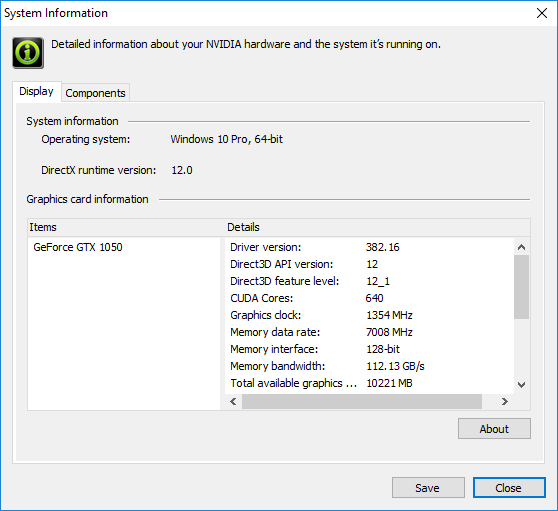

Grafische kaart

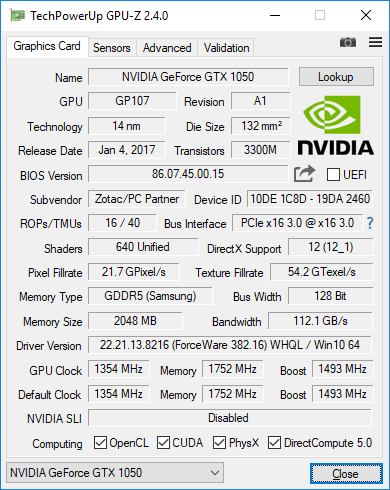

NVIDIA GeForce GTX 1050 (Notebook) - 2048 MB, Core: 1354 MHz, Geheugen: 7008 MHz, GDDR5, 382.16

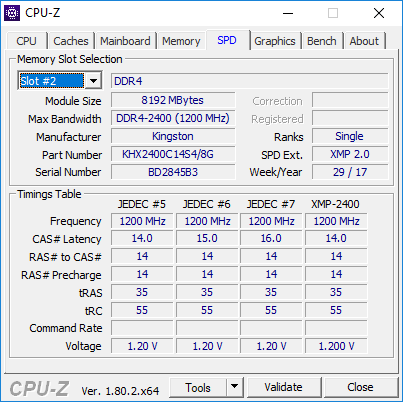

Geheugen
16384 MB

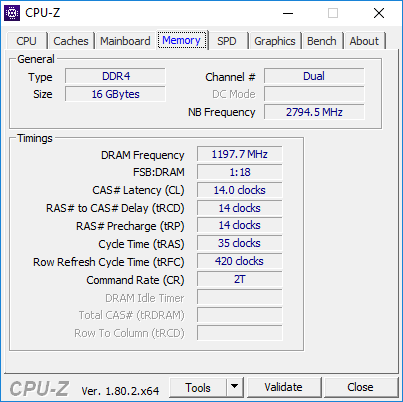

, DDR4 PC4-19200, 1600 MHz, 14-14-14-35, Dual-channel
Moederbord

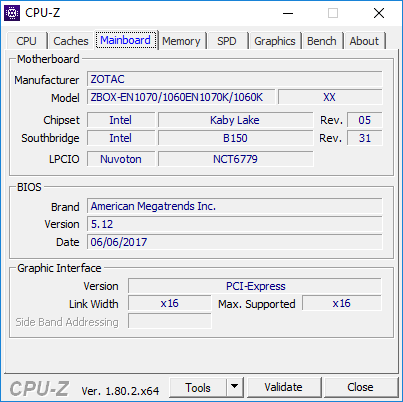

Intel B150 (Skylake PCH-H)
Opslag
Samsung SSD 960 Pro 512 GB m.2, 512 GB
, Secundair: leeg 2.5-inch SATA III slot
Geluidskaart
Intel Skylake PCH-H High Definition Audio Controller
Verbindingen
2 USB 2.0, 3 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Infrared, 1 Kensington Lock, Audio Verbindingen: 3.5 mm microphone, 3.5 mm headphones, Card Reader: SD-kaartlezer
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 62.2 x 210 x 203
Bijkomende functionaliteiten
snelstarthandleiding, gebruikershandleiding, antenne, garantiebewijs, drivers DVD, drivers USB flash drive
Gewicht
1.724 kg, Voeding: 794 g
Prijs
700 USD

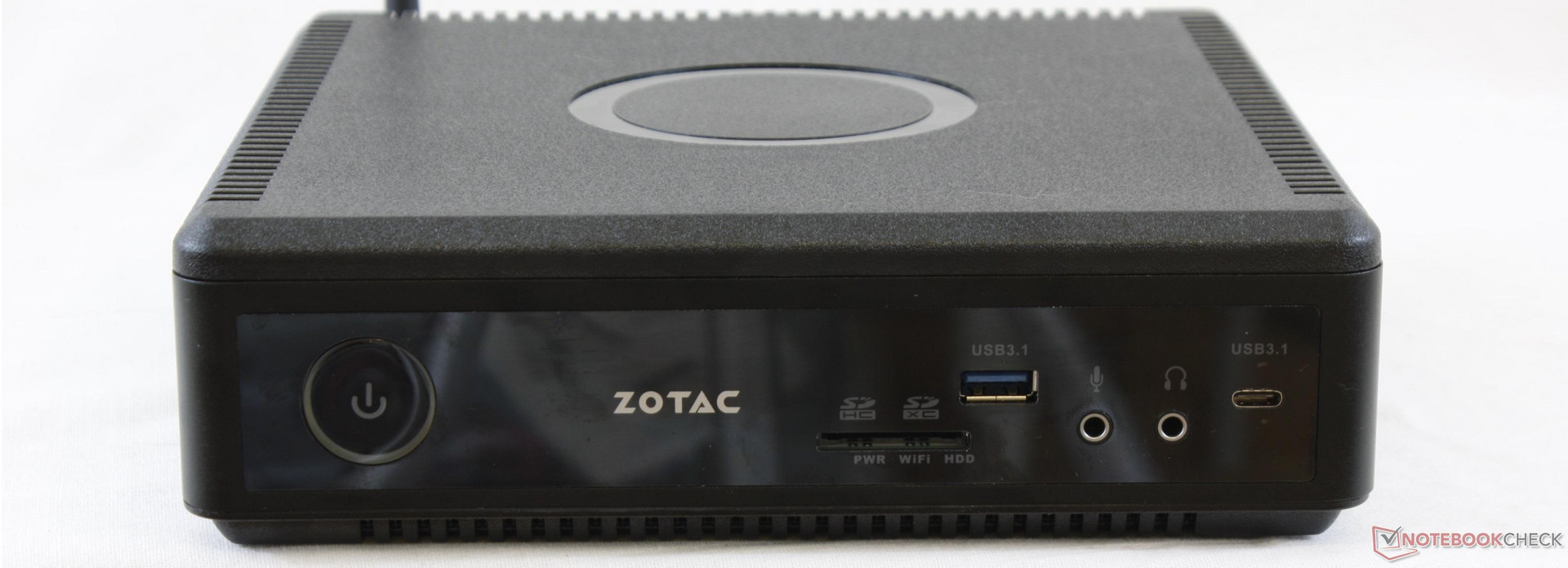

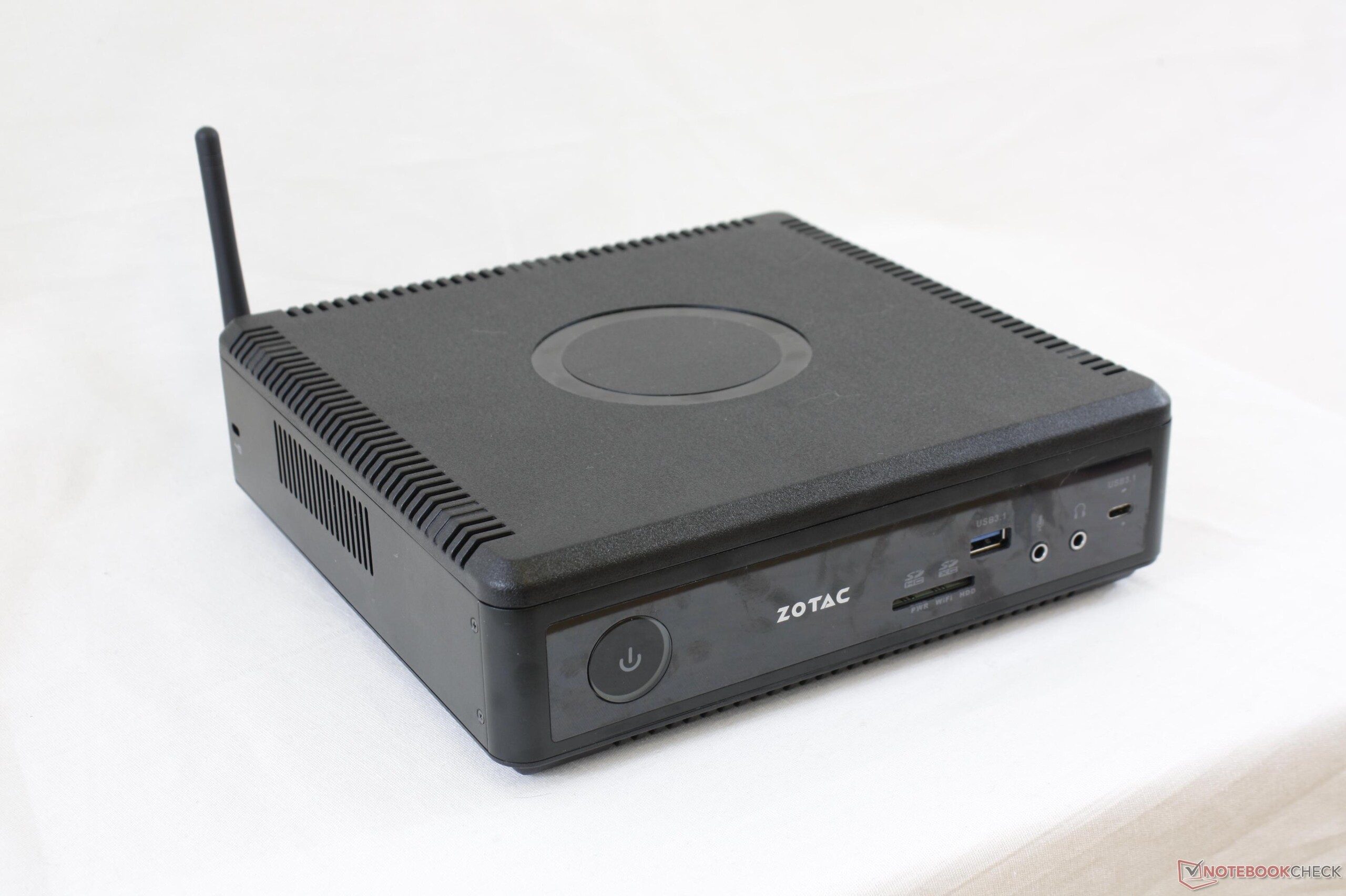

Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2
Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2

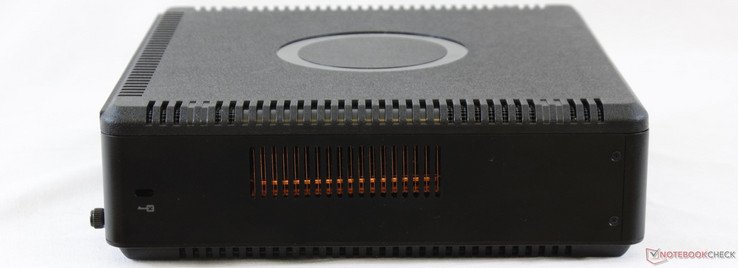

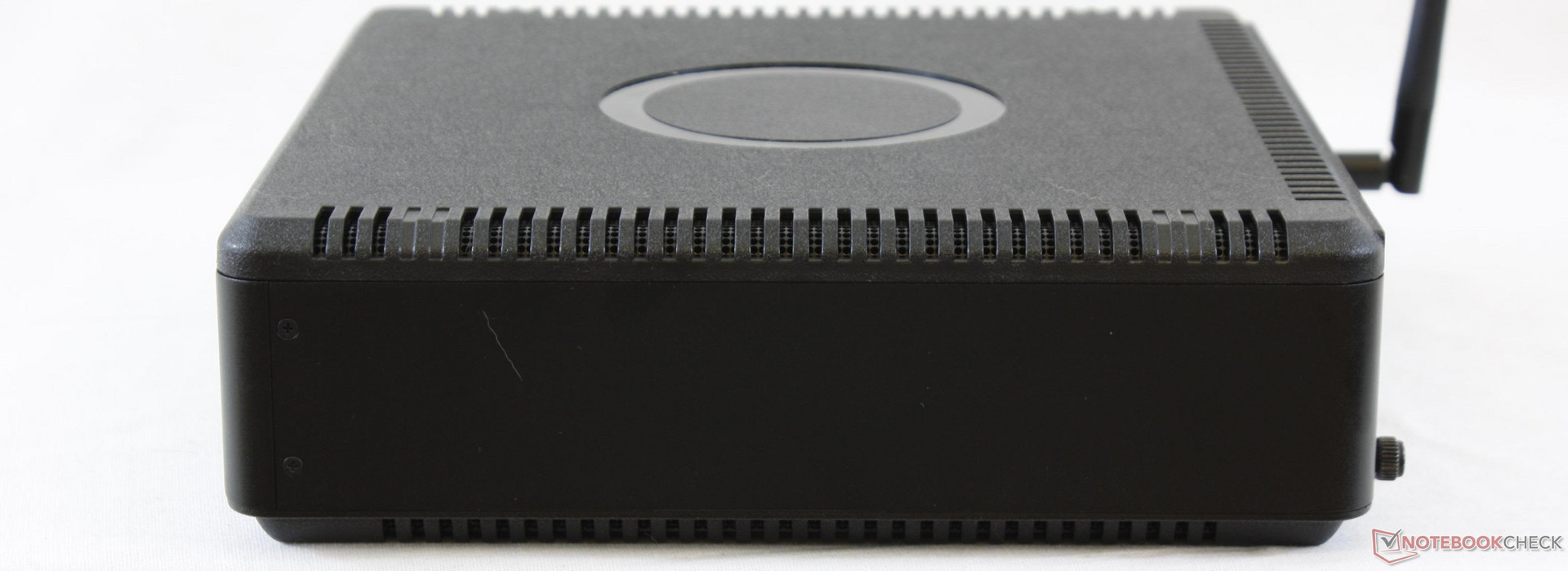

Left: Kensington Lock
Left: Kensington Lock

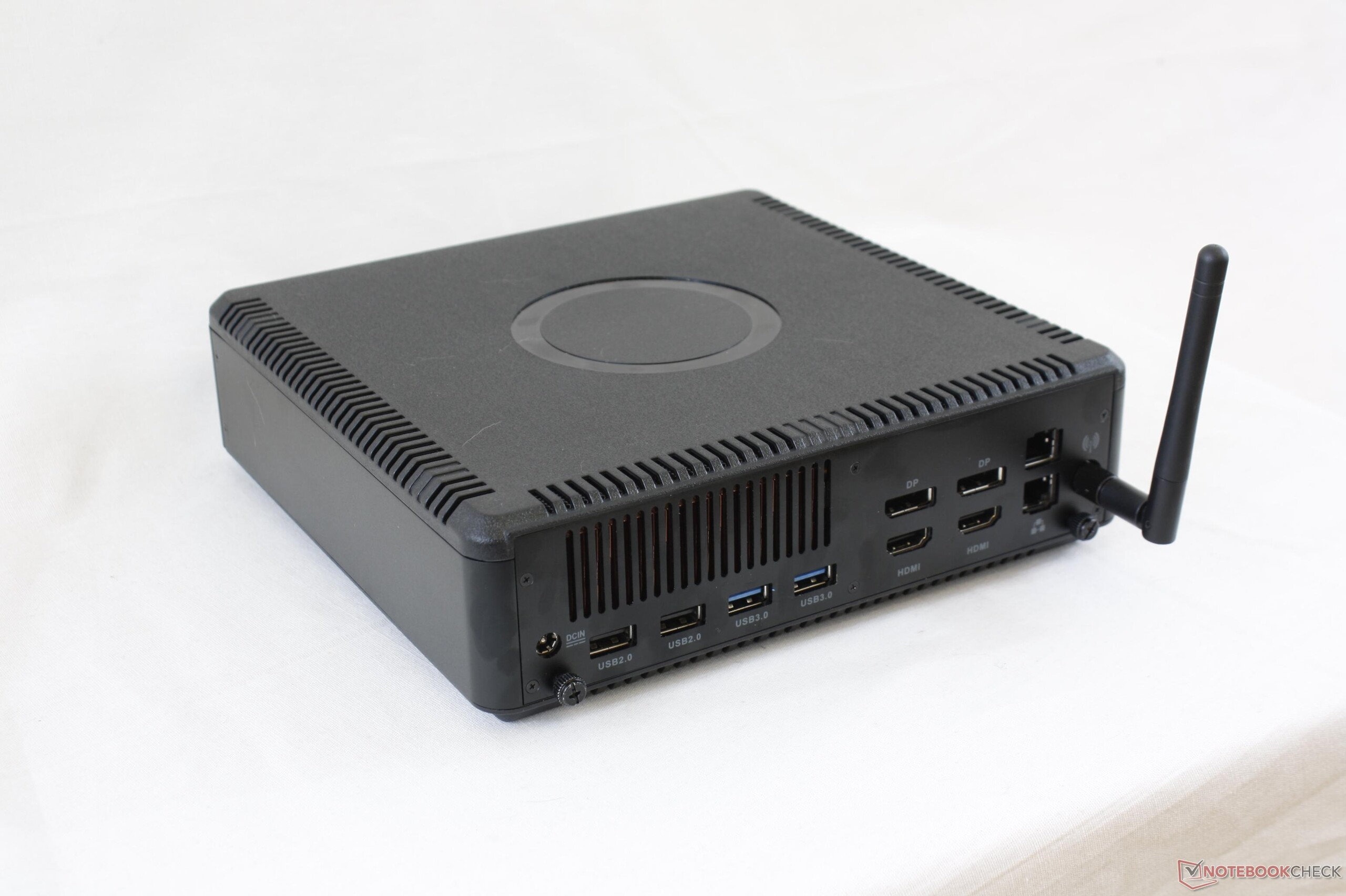

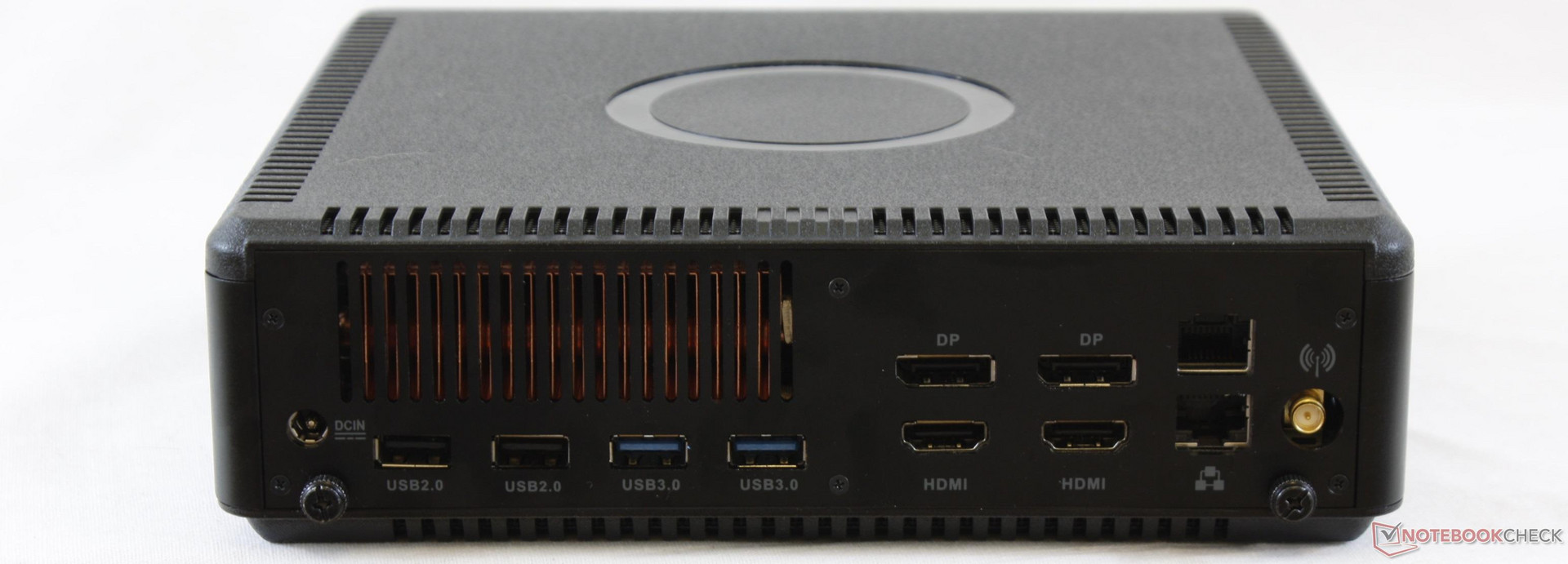

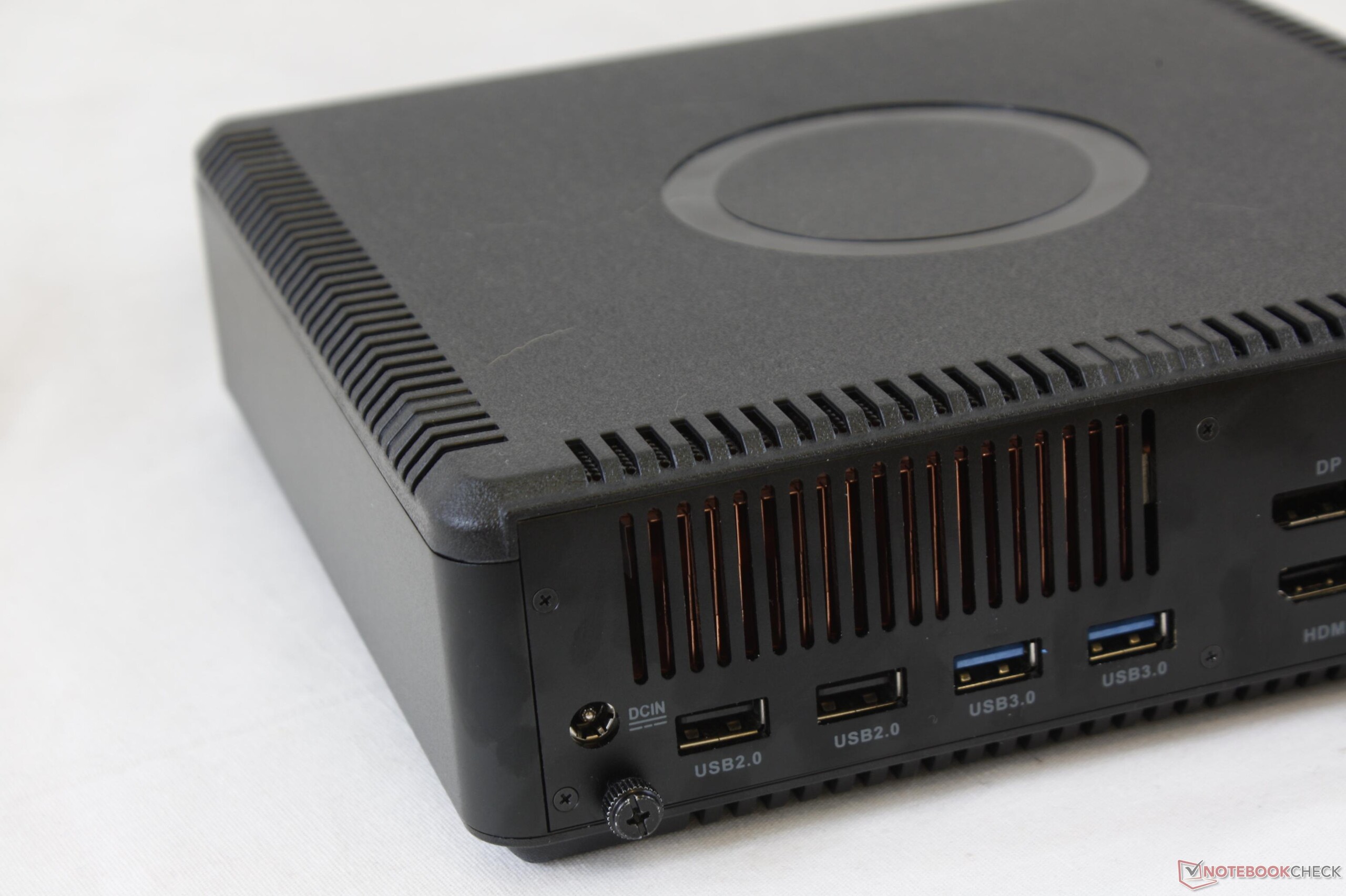

Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Right: No connectivity
Right: No connectivity
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Gigabyte Sabre 15G
78.76 MB/s ∼100% +82%
Zotac ZBOX Magnus EN51050
43.3 MB/s ∼55%
MSI GS43VR 7RE-069US
19.54 MB/s ∼25% -55%
maximum AS SSD Seq Read Test (1GB)
Gigabyte Sabre 15G
86.53 MB/s ∼100% +108%
Zotac ZBOX Magnus EN51050
41.68 MB/s ∼48%
MSI GS43VR 7RE-069US
19.83 MB/s ∼23% -52%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Eurocom Tornado F5 Killer Edition
Intel Dual Band Wireless-AC 8265
594 MBit/s ∼100% +82%
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
327 MBit/s ∼55%
Gigabyte Sabre 15G
Intel Dual Band Wireless-AC 3168
240 MBit/s ∼40% -27%
iperf3 Client (transmit) TCP 1 m 4M x10
Eurocom Tornado F5 Killer Edition
Intel Dual Band Wireless-AC 8265
505 MBit/s ∼100% +131%
Gigabyte Sabre 15G
Intel Dual Band Wireless-AC 3168
319 MBit/s ∼63% +46%
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
219 MBit/s ∼43%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
168 Points ∼84% +30%
Dell Latitude 7480
Intel Core i7-7600U
162 Points ∼81% +26%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
161 Points ∼81% +25%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
145 Points ∼73% +12%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points ∼70% +8%
Zotac ZBOX Magnus EN980-U
134 Points ∼67% +4%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
133 Points ∼67% +3%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points ∼65% +1%
Zotac ZBOX Magnus EN51050
129 Points ∼65%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
123 Points ∼62% -5%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
113 Points ∼57% -12%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
69 Points ∼35% -47%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
736 Points ∼34% +44%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points ∼33% +39%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
660 Points ∼31% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
543 Points ∼25% +6%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
538 (min: 467.61) Points ∼25% +5%
Zotac ZBOX Magnus EN51050
512 Points ∼24%
Zotac ZBOX Magnus EN980-U
510 Points ∼24% 0%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
503 Points ∼23% -2%
Dell Latitude 7480
Intel Core i7-7600U
343 Points ∼16% -33%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
328 Points ∼15% -36%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points ∼15% -36%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
284 Points ∼13% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
229 Points ∼11% -55%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
1.98 Points ∼87% +34%
Dell Latitude 7480
Intel Core i7-7600U
1.85 Points ∼81% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
1.84 Points ∼81% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
1.66 Points ∼73% +12%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
1.6 Points ∼70% +8%
Zotac ZBOX Magnus EN980-U
1.51 Points ∼67% +2%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
1.51 Points ∼67% +2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
1.48 Points ∼65% 0%
Zotac ZBOX Magnus EN51050
1.48 Points ∼65%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
1.45 Points ∼64% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
1.28 Points ∼56% -14%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
0.94 Points ∼41% -36%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
8.17 Points ∼34% +39%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
7.76 Points ∼32% +32%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
7.67 Points ∼32% +31%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
6.11 Points ∼26% +4%
Zotac ZBOX Magnus EN980-U
5.92 Points ∼25% +1%
Zotac ZBOX Magnus EN51050
5.86 Points ∼25%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
5.81 Points ∼24% -1%
Dell Latitude 7480
Intel Core i7-7600U
3.78 Points ∼16% -35%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
3.67 Points ∼15% -37%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
3.16 Points ∼13% -46%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
3.15 Points ∼13% -46%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2.7 Points ∼11% -54%
Cinebench R10
Rendering Single 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
6730 Points ∼76% +35%
Dell Latitude 7480
Intel Core i7-7600U
6243 Points ∼70% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
6107 Points ∼69% +22%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
5545 Points ∼63% +11%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
5536 Points ∼62% +11%
Zotac ZBOX Magnus EN980-U
5088 Points ∼57% +2%
Zotac ZBOX Magnus EN51050
5002 Points ∼56%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
4975 Points ∼56% -1%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
4920 Points ∼55% -2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
4904 Points ∼55% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
4368 Points ∼49% -13%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2640 Points ∼30% -47%
Rendering Multiple CPUs 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
23585 Points ∼47% +73%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
22273 Points ∼45% +64%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
21075 Points ∼42% +55%
Zotac ZBOX Magnus EN980-U
18297 Points ∼37% +34%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
17618 Points ∼35% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
14148 Points ∼28% +4%
Zotac ZBOX Magnus EN51050
13614 Points ∼27%
Dell Latitude 7480
Intel Core i7-7600U
12153 Points ∼24% -11%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
11373 Points ∼23% -16%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
10897 Points ∼22% -20%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
9723 Points ∼20% -29%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
7200 Points ∼14% -47%
wPrime 2.0x - 1024m
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
489.402 s * ∼6% -47%
Dell Latitude 7480
Intel Core i7-7600U
484.33 s * ∼6% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
415.484 s * ∼5% -25%
Zotac ZBOX Magnus EN51050
333.206 s * ∼4%
Zotac ZBOX Magnus EN980-U
327.064 s * ∼4% +2%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
314.7 s * ∼4% +6%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
253.57 s * ∼3% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
225.673 s * ∼3% +32%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
217.072 s * ∼3% +35%
Super Pi Mod 1.5 XS 32M - ---
HP Pavilion 17z 1EX13AV
AMD A12-9720P
863.551 Seconds * ∼4% -37%
Zotac ZBOX Magnus EN980-U
660.102 Seconds * ∼3% -5%
Zotac ZBOX Magnus EN51050
628.572 Seconds * ∼3%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
627.687 Seconds * ∼3% -0%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
611 Seconds * ∼3% +3%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
549.204 Seconds * ∼2% +13%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
538.979 Seconds * ∼2% +14%
Dell Latitude 7480
Intel Core i7-7600U
510.27 Seconds * ∼2% +19%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
467.526 Seconds * ∼2% +26%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
10608
Cinebench R10 Rendering Multiple CPUs 32Bit
13614
Cinebench R10 Rendering Single 32Bit
5002
Cinebench R11.5 OpenGL 64Bit
64.27 fps
Cinebench R11.5 CPU Multi 64Bit
5.86 Points
Cinebench R11.5 CPU Single 64Bit
1.48 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
122.86 fps
Cinebench R15 CPU Multi 64Bit
512 Points
Cinebench R15 CPU Single 64Bit
129 Points
Help
PCMark 10
Digital Content Creation
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4432 Points ∼47% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4243 Points ∼45%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3014 Points ∼32% -29%
Productivity
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
6781 Points ∼71%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
6749 Points ∼71% 0%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
6665 Points ∼70% -2%
Essentials
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
8076 Points ∼84% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
7791 Points ∼81%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
7542 Points ∼79% -3%
Score
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4364 Points ∼66% 0%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4355 Points ∼66%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3909 Points ∼59% -10%
PCMark 8
Work Score Accelerated v2
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
5063 Points ∼78% +1%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
5027 Points ∼77%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4431 Points ∼68% -12%
Creative Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
6341 Points ∼68%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
5540 Points ∼60% -13%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4274 Points ∼46% -33%
Home Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4755 Points ∼80%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4095 Points ∼69% -14%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
3431 Points ∼57% -28%
PCMark 8 Home Score Accelerated v2
4755 punten
PCMark 8 Creative Score Accelerated v2
6341 punten
PCMark 8 Work Score Accelerated v2
5027 punten
Help
Zotac ZBOX Magnus EN51050
Samsung SSD 960 Pro 512 GB m.2
Eurocom Q5
Samsung SSD 960 Pro 512 GB m.2
Gigabyte Sabre 15G
Liteonit CV3-8D128
Samsung Notebook 9 NP900X3N-K01US
Samsung CM871a MZNTY256HDHP
MSI WS63VR 7RL-023US
Toshiba NVMe THNSN5512GPU7
Asus ZenBook Pro UX550VD
Samsung PM961 NVMe MZVLW512HMJP
CrystalDiskMark 5.2
15%
-60%
-63%
-19%
-1%
Write 4K
164.8
202.6
23%
66.28
-60%
105.4
-36%
157.1
-5%
187.02
13%
Read 4K
54.79
57.19
4%
36.68
-33%
34.45
-37%
43.82
-20%
48.96
-11%
Write Seq
1956
2073
6%
469.2
-76%
458.4
-77%
1110
-43%
1378.45
-30%
Read Seq
1964
2763
41%
535.9
-73%
489.4
-75%
1162
-41%
1877.57
-4%
Write 4K Q32T1
424.8
498.7
17%
182
-57%
99.16
-77%
361.3
-15%
515.99
21%
Read 4K Q32T1
483.8
574.9
19%
357.9
-26%
273.5
-43%
562.8
16%
583.14
21%
Write Seq Q32T1
2042
2075
2%
506.6
-75%
512.1
-75%
1558
-24%
1586.6
-22%
Read Seq Q32T1
3157
3381
7%
562.3
-82%
551.1
-83%
2635
-17%
3266.5
3%
3DMark
3840x2160 Fire Strike Ultra Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
3093 Points ∼31% +325%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
2571 Points ∼25% +253%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
1810 Points ∼18% +149%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
843 Points ∼8% +16%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
742 Points ∼7% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
728 Points ∼7%
1920x1080 Fire Strike Physics
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
12557 Points ∼55% +85%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10851 Points ∼48% +60%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
10811 Points ∼48% +60%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
10564 Points ∼47% +56%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
10538 Points ∼47% +56%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
10210 Points ∼45% +51%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
9655 Points ∼43% +43%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9551 Points ∼42% +41%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
9499 Points ∼42% +40%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
6903 Points ∼31% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6773 Points ∼30%
1920x1080 Fire Strike Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
13510 Points ∼33% +123%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
11453 Points ∼28% +89%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10349 Points ∼25% +71%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7866 Points ∼19% +30%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7321 Points ∼18% +21%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
6797 Points ∼17% +12%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6166 Points ∼15% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6066 Points ∼15%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
4705 Points ∼12% -22%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3174 Points ∼8% -48%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points ∼5% -69%
3DMark 11
1280x720 Performance Combined
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
8876 Points ∼56% +28%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
8762 Points ∼55% +26%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
7998 Points ∼50% +15%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7952 Points ∼50% +15%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7163 Points ∼45% +3%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6938 Points ∼43%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6707 Points ∼42% -3%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
6666 Points ∼42% -4%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5861 Points ∼37% -16%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3682 Points ∼23% -47%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points ∼17% -60%
1280x720 Performance GPU
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
17811 Points ∼35% +127%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
15453 Points ∼30% +97%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
13279 Points ∼26% +70%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9824 Points ∼19% +25%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
9394 Points ∼18% +20%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
8571 Points ∼17% +9%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
7831 Points ∼15%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
7731 Points ∼15% -1%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5825 Points ∼11% -26%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
4457 Points ∼9% -43%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points ∼6% -59%
3DMark 11 Performance
7550 punten
3DMark Ice Storm Standard Score
98913 punten
3DMark Cloud Gate Standard Score
14862 punten
3DMark Fire Strike Score
5259 punten
3DMark Fire Strike Extreme Score
2535 punten
Help
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
66.8 fps ∼100% +101%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
42.8 fps ∼64% +29%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
38 fps ∼57% +14%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
36.9 (min: 34) fps ∼55% +11%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
33.3 fps ∼50%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
32.9 fps ∼49% -1%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
30.4 (min: 26) fps ∼46% -9%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
24.2 fps ∼36% -27%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
19.2 fps ∼29% -42%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
110 fps ∼100% +66%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
74 fps ∼67% +12%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
71.6 (min: 46) fps ∼65% +8%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
69.5 fps ∼63% +5%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
66.2 fps ∼60%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
63.1 fps ∼57% -5%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
55 (min: 9) fps ∼50% -17%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
45 fps ∼41% -32%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
34.9 fps ∼32% -47%
lage gem. hoge ultra
Guild Wars 2 (2012) 111.165.441.2fps
StarCraft II: Heart of the Swarm (2013) 106fps
BioShock Infinite (2013) 168.366.2fps
Metro: Last Light (2013) 106.983.845.3fps
Thief (2014) 115.492.380.343.1fps
The Witcher 3 (2015) 128.341.821.6fps
Batman: Arkham Knight (2015) 93823231fps
Metal Gear Solid V (2015) 60606055.2fps
Fallout 4 (2015) 42.335.4fps
Rise of the Tomb Raider (2016) 137.377.340.833.3fps
Ashes of the Singularity (2016) 54.53529.7fps
Overwatch (2016) 290.2122.996.256.6fps
Mafia 3 (2016) 64.937.427.1fps
Dirt 4 (2017) 24297.851.728.5fps
F1 2017 (2017) 124655936fps
0123456789101112131415161718192021222324252627282930313233343536373839404142434445Tooltip
The Witcher 3 high

Geluidsniveau

Onbelast
37.6 / 37.6 / 37.7 dB (A)
Belasting
39.3 / 44 dB (A)



30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   BK Precision 732A (15 cm afstand)   environment noise: 30.7 dB(A)
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, , HGST Travelstar 7K1000 HTS721010A9E630
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
MSI GS43VR 7RE-069US
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS128G39MNC-3510A
Asus Zenbook UX510UW-CN044T
GeForce GTX 960M, 6500U, SanDisk SD8SNAT256G1002
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Noise
4%
-2%
-9%
5%
7%
off / environment *
30.7
29.5
4%
28.2
8%
28
9%
31.6
-3%
29.5
4%
Idle Minimum *
37.6
36.2
4%
33
12%
33
12%
31.6
16%
31.6
16%
Idle Average *
37.6
36.2
4%
33.3
11%
34.5
8%
31.6
16%
32.2
14%
Idle Maximum *
37.7
36.5
3%
34.7
8%
35
7%
33.4
11%
32.3
14%
Load Average *
39.3
36.5
7%
44.5
-13%
54.2
-38%
41.7
-6%
43
-9%
Witcher 3 ultra *
40.6
49.2
-21%
56.7
-40%
Load Maximum *
44
42.9
2%
52.8
-20%
54.2
-23%
44.8
-2%
43.2
2%

* ... kleiner is beter

Stroomgebruik
Uit / Standbydarklight 1.38 / 1.82 Watt
Inactiefdarkmidlight 21.1 / 22.1 / 26.6 Watt
Belasting midlight 77.5 / 121.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), Samsung SSD 960 Pro 512 GB m.2, , ,
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, HGST Travelstar 7K1000 HTS721010A9E630, , , 0
Gigabyte Sabre 15G
7700HQ, GeForce GTX 1050 (Notebook), Liteonit CV3-8D128, IPS, 1920x1080, 15.6
Asus Zenbook UX510UW-CN044T
6500U, GeForce GTX 960M, SanDisk SD8SNAT256G1002, IPS, 1920x1080, 15.6
Intel Skull Canyon NUC6i7KYK
6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , , 0
Power Consumption
-88%
31%
49%
36%
Idle Minimum *
21.1
34.9
-65%
8
62%
5
76%
14.8
30%
Idle Average *
22.1
35.9
-62%
10.9
51%
8.9
60%
15.7
29%
Idle Maximum *
26.6
40.4
-52%
11
59%
11.8
56%
15.8
41%
Load Average *
77.5
190.4
-146%
76.7
1%
55
29%
62.7
19%
Load Maximum *
121.7
260.8
-114%
106.4
13%
93
24%
48.5
60%
Witcher 3 ultra *
92.4
94.9
-3%

* ... kleiner is beter

Pro

+ toegankelijke SODIMM-sloten, opslagapparaten en WLAN-module; geen schroevendraaier nodig
+ tijdens gamen lager systeemgeluid dan met GTX 1050-uitgeruste notebooks
+ NVMe ondersteuning; IR ontvanger; USB Type-C gen. 2
+ respectabele core temperaturen tijdens het gamen
+ 4x video-out poorten door HDMI 2.0 en DP 1.3
+ standaard 2 jaar beperkte garantie
+ stabiele CPU Turbo Boost prestaties
+ LGA1151- en MXM 3-sockets
+ breed aanbod poorten

Contra

- matige CPU prestaties; langzame single-core prestaties
- toegang tot de CPU en GPU maakt garantie ongeldig
- lagere prestaties dan een desktop GTX 1050
- luid ventilatorgeluid bij lage belastingen
- geen mogelijkheid ventilator stiller te zetten
- geen Thunderbolt 3 of 2x2 WLAN opties
- geen verticale of VESA bevestiging opties
- weinig indrukwekkend ontwerp
- SD-kaartlezer zou sneller kunnen zijn
In review: Zotac ZBox Magnus EN51050. Test model provided by Zotac US
In review: Zotac ZBox Magnus EN51050. Test model provided by Zotac US

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Vanuit het perspectief van notebooks gezien, is de EN51050 stiller en koeler tijdens het gamen maar met vergelijkbare prestaties als mainstream notebooks zoals de Sabre 15, Odyssey 15, XPS 15, Inspiron 7567 of de Pavilion 15 Power. De IR ontvanger en het brede aanbod van poorten maken de barebone ook geschikt voor HTPC doeleinden of multi-monitor setups. Hardware fanaten zullen blij zijn om te horen dat zowel de CPU als de GPU vervangbaar zijn, al vervalt daarmee wel de garantie. Voor een mini PC van deze kleine afmetingen zijn de LGA1151- en MXM 3-sockets een prettige verrassing.

Een paar nadelen houden de middenklasse EN51050 van een directe aanbeveling af. Ten eerste is de adviesprijs van € 700 bij de lancering voor een barebone kit slechts € 200 minder dan een volwaardig game notebook met dezelfde GTX 1050 en snellere Core i7-7700HQ CPU. Gebruikers besparen dus geen geld door voor deze mini PC te kiezen in plaats van een middenklasse game notebook die inclusief Windows 10, RAM, opslag, toetsenbord en beeldscherm komen. Ten tweede is de i5-7500T CPU een verbetering ten opzichte van de U-klasse CPUs die in de oudere Magnus EN970/EN760 gebruikt worden, maar blijft deze wel achter bij de quad-core Core i7 HQ-klasse CPU's die in de hiervoor genoemde middenklasse game notebooks gebruikt worden. De nieuwe Intel 8e generatie Kaby Lake-R CPU's in de nieuwste Ultrabooks bewijzen sneller te zijn met minder dan de helft van het TDP en zelfs de Skull Canyon NUC CPU is sneller voor slechts een fractie van het formaat. Processor prestaties van de barebone zijn vergelijkbaar met de dual-core i5-6400 en i5-7300HQ. Tot slot moeten gebruikers GPU prestaties verwachten die dichter bij de GTX 1050 voor notebooks liggen dan bij de GTX 1050 voor desktops.

We hopen dat toekomstige revisies geavanceerdere ventilatorbeheer krijgen zodat het minimale ventilatorgeluid gereduceerd kan worden. Ook zouden een snellere SD-kaartlezer en WLAN opties prettig zijn. Een Thunderbolt 3 poort zou al heel erg veel doen in het brengen van meerwaarde ten opzichte van game notebooks in dezelfde prijsklasse.

De EN51050 gaming barebone is een veel gebalanceerdere mini PC dan de EN51060 of EN51070, omdat de Intel T-klasse CPU beter past bij de middenklasse GTX 1050. Het systeem is verrassend  beter onderhoudbaar dan grotere gaming mini PC's zoals de Trident 3 of ROG GR8. Als quad-core processor prestaties niet nodig zijn, dan zal deze Zotac voldoende zijn voor een mainstream game ervaring.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Zotac ZBOX Magnus EN51050 Mini PC
Allen Ngo, 2017-09-30 (Update: 2017-10- 1)
