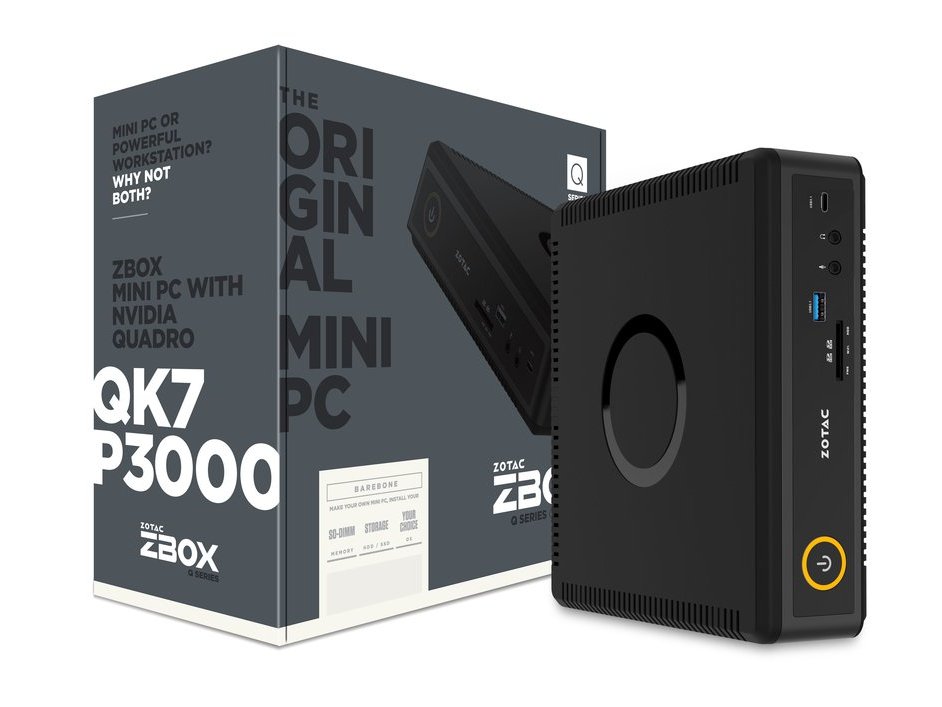

Kort testrapport Zotac ZBOX QK7P3000 (i7-7700T, Quadro P3000) Mini PC

Gamer omgevormd tot werkstation. Zotac heeft de GeForce GTX 1060 uit zijn ZBox Magnus-serie vervangen door een werkstation-versie GPU, de Quadro P3000, om een krachtige mini-PC te maken voor professionele gebruikers. Temperatuur en ventilatorgeluid zijn uitstekend in vergelijking met werkstation laptops. Bij extreem zware belasting kan er wel lichte throttling optreden, waardoor dit niet per definitie een aanbevolen aankoop is.
Zotac ZBOX-QK7P3000
Processor

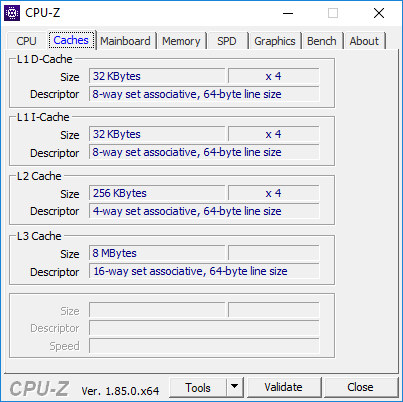

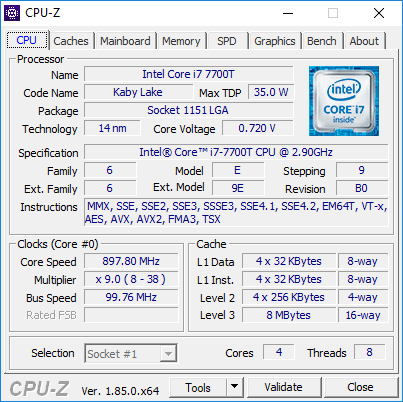

Intel Core i7-7700T 4 x 2.9 - 3.8 GHz, Kaby Lake
Grafische kaart

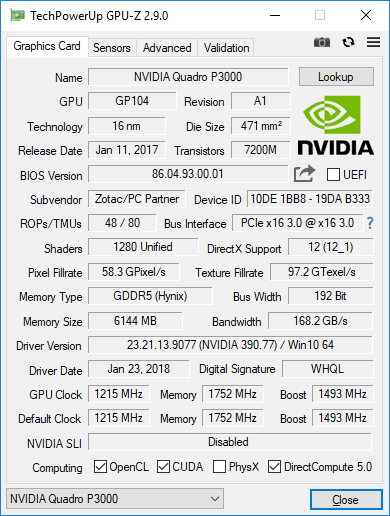

NVIDIA Quadro P3000 - 6144 MB, Core: 1215 MHz, Geheugen: 7008 MHz, GDDR5, 390.77

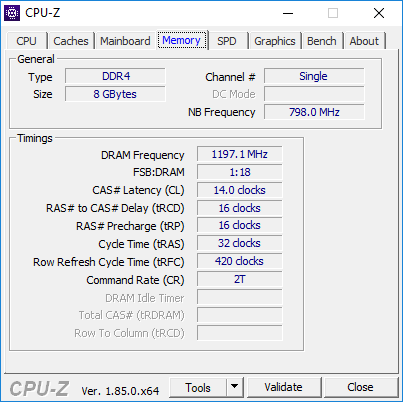

Geheugen

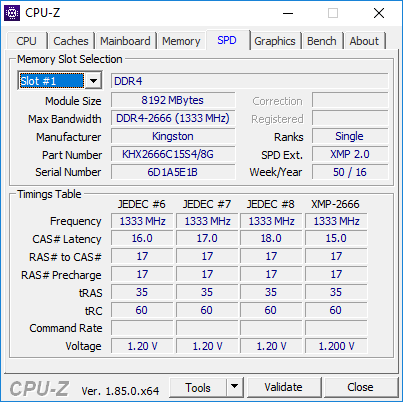

8192 MB
, DDR4 1600 MHz, 14-16-16-32, Single-Channel
Moederbord

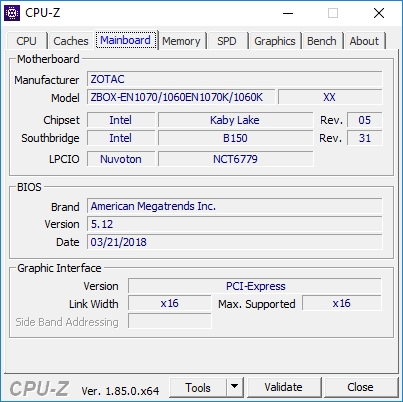

Intel B150 (Skylake PCH-H)
Opslag
Samsung SSD 960 Pro 512 GB m.2, 512 GB
Geluidskaart
NVIDIA GP104 - High Definition Audio Controller
Verbindingen
2 USB 2.0, 3 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Infrared, 1 Kensington Lock, Audio Verbindingen: 3.5 mm microphone, 3.5 mm headphones, Card Reader: SD reader
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 62.2 x 210 x 203
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Bijkomende functionaliteiten
Quick Start guide, gebruikershandleiding, antenne, garantiekaart, drivers DVD, drivers USB flash drive, 12 Maanden Garantie
Gewicht
1.676 kg, Voeding: 665 g
Prijs
1400 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

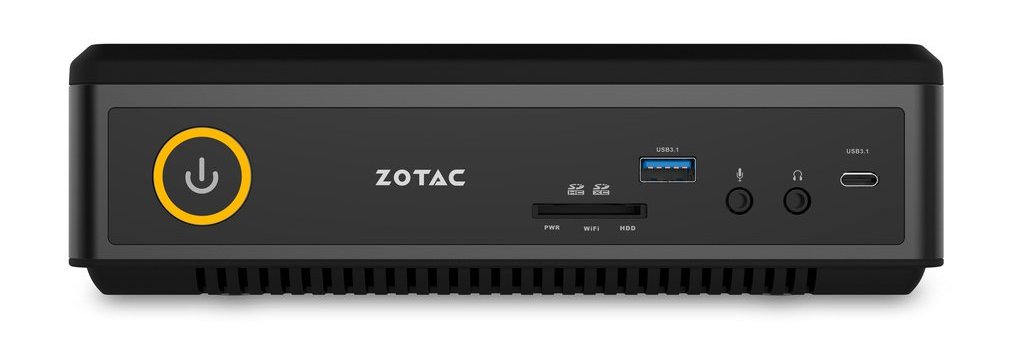

Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2
Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2

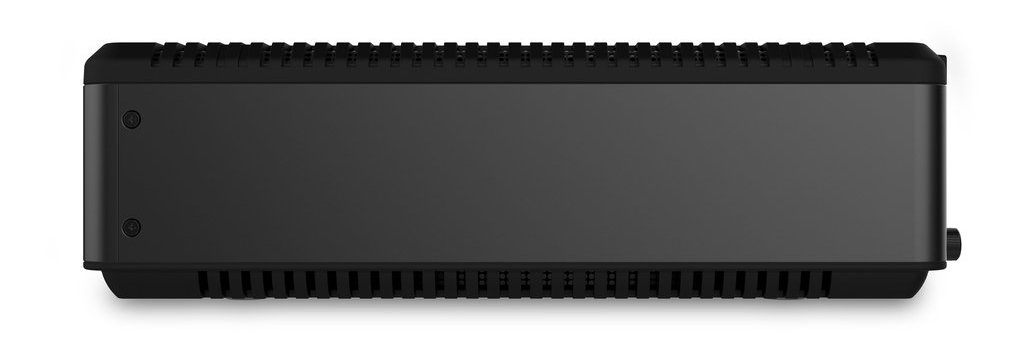

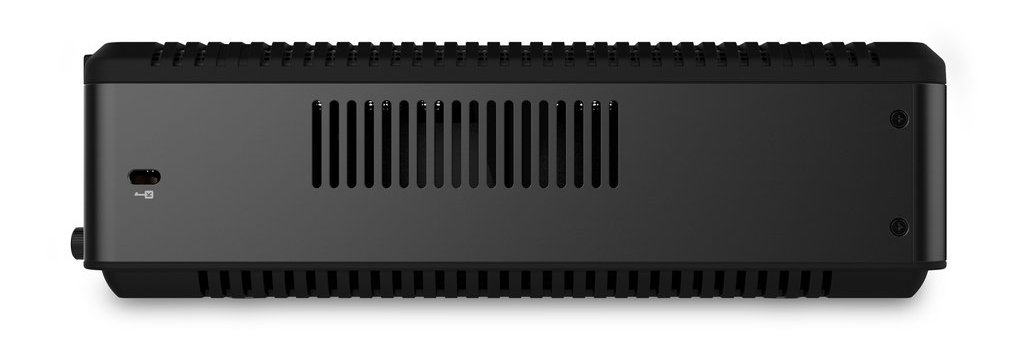

Left: Kensington Lock
Left: Kensington Lock

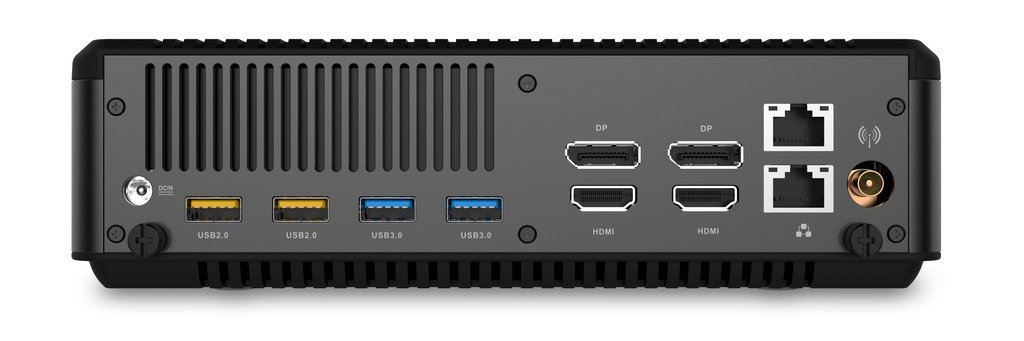

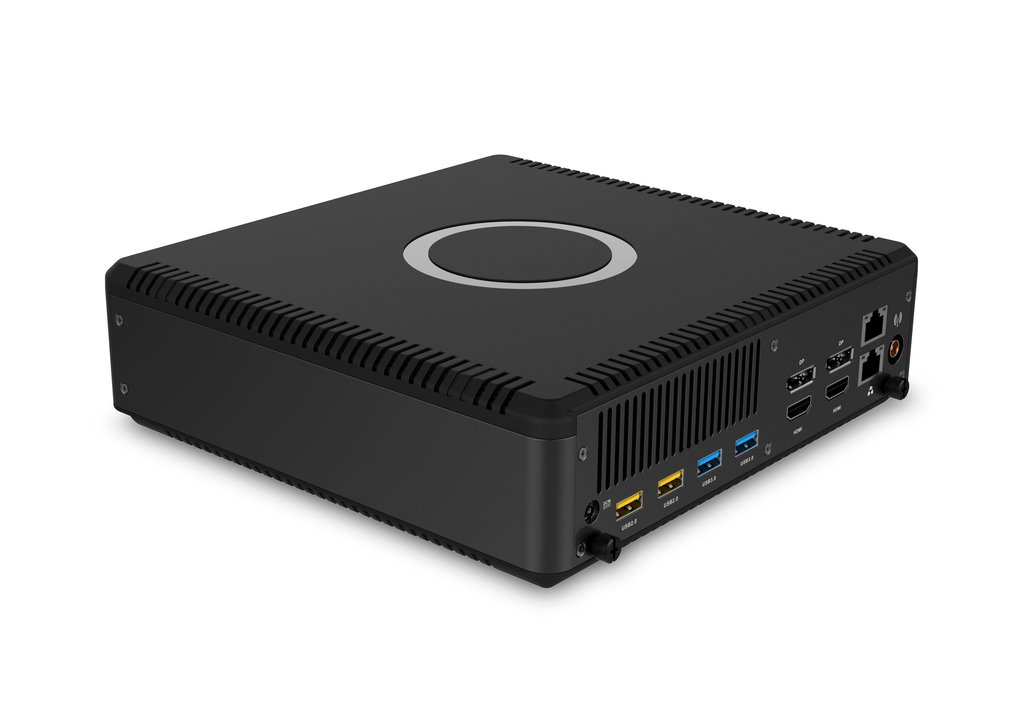

Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Right: No connectivity
Right: No connectivity
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s ∼100% +128%
Zotac ZBOX Magnus EK71080
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
41.11 MB/s ∼51% +16%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.52 MB/s ∼44%
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.27 MB/s ∼100% +107%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
42.73 MB/s ∼48%
Zotac ZBOX Magnus EK71080
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
42.45 MB/s ∼48% -1%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s ∼100% +102%
Zotac ZBOX Magnus EK71080
Intel Dual Band Wireless-AC 3165
321 MBit/s ∼54% +10%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
292 MBit/s ∼49%
iperf3 Client (transmit) TCP 1 m 4M x10
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s ∼100% +55%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
243 MBit/s ∼65%
Zotac ZBOX Magnus EK71080
Intel Dual Band Wireless-AC 3165
213 MBit/s ∼57% -12%

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Sky X4C
Intel Core i7-8700K
192 Points ∼71% +24%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼65% +15%
MSI GT63 Titan 8RG-046
Intel Core i7-8750H
174 Points ∼64% +12%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
169 Points ∼62% +9%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
161 Points ∼59% +4%
Dell XPS 15 9575 i5-8305G
Intel Core i5-8305G
157 Points ∼58% +1%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
155 Points ∼57%
Acer Swift 3 SF315-41-R6J9
AMD Ryzen 7 2700U
141 Points ∼52% -9%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
129 Points ∼47% -17%
CPU Multi 64Bit
Eurocom Sky X4C
Intel Core i7-8700K
1359 Points ∼30% +90%
MSI GT63 Titan 8RG-046
Intel Core i7-8750H
1091 Points ∼24% +53%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼19% +21%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
738 Points ∼16% +3%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
714 Points ∼16%
Dell XPS 15 9575 i5-8305G
Intel Core i5-8305G
710 Points ∼16% -1%
Acer Swift 3 SF315-41-R6J9
AMD Ryzen 7 2700U
566 Points ∼13% -21%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
531 Points ∼12% -26%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
512 Points ∼11% -28%
Cinebench R10 Shading 32Bit
5873
Cinebench R10 Rendering Multiple CPUs 32Bit
21587
Cinebench R10 Rendering Single 32Bit
6824
Cinebench R11.5 OpenGL 64Bit
114.93 fps
Cinebench R11.5 CPU Multi 64Bit
7.58 Points
Cinebench R11.5 CPU Single 64Bit
1.75 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
170.49 fps
Cinebench R15 CPU Multi 64Bit
714 Points
Cinebench R15 CPU Single 64Bit
155 Points
Help
PCMark 8 - Home Score Accelerated v2
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
5166 Points ∼82% +16%
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points ∼77% +8%
Dell XPS 15 9575 i5-8305G
Vega M GL / 870, i5-8305G, Toshiba XG5 KXG50ZNV256G
4693 Points ∼75% +5%
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
4472 Points ∼71%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100, i5-8550U, Toshiba XG5 KXG50ZNV256G
4438 Points ∼71% -1%
MSI WS63 7RF-290US
Quadro P3000, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4284 Points ∼68% -4%
PCMark 10 - Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points ∼60% +16%
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
5197 Points ∼59% +14%
Dell XPS 15 9575 i5-8305G
Vega M GL / 870, i5-8305G, Toshiba XG5 KXG50ZNV256G
4702 Points ∼54% +3%
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
4553 Points ∼52%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100, i5-8550U, Toshiba XG5 KXG50ZNV256G
3464 Points ∼39% -24%
PCMark 8 Home Score Accelerated v2
4472 punten
PCMark 10 Score
4553 punten
Help
Zotac ZBOX-QK7P3000
Samsung SSD 960 Pro 512 GB m.2
Intel Hades Canyon NUC8i7HVK
Intel Optane 120 GB SSDPEK1W120GA
Zotac ZBOX Magnus EK71080
Samsung PM961 MZVLW256HEHP
Dell XPS 15 9575 i5-8305G
Toshiba XG5 KXG50ZNV256G
MSI WS63 7RF-290US
Samsung SM961 MZVKW512HMJP m.2 PCI-e
AS SSD
38%
26%
-37%
49%
Copy Game MB/s
583.33
767.8
32%
1009.86
73%
250.54
-57%
1121.12
92%
Copy Program MB/s
234.58
342.37
46%
467.97
99%
174.87
-25%
447.28
91%
Copy ISO MB/s
870.75
1125.28
29%
1649.29
89%
392.69
-55%
1759.92
102%
Score Total
3863
3023
-22%
2791
-28%
1113
-71%
3759
-3%
Score Write
1705
714
-58%
669
-61%
307
-82%
1440
-16%
Score Read
1441
1524
6%
1429
-1%
595
-59%
1568
9%
Access Time Write *
0.09
0.033
63%
0.04
56%
0.056
38%
0.028
69%
Access Time Read *
0.079
0.025
68%
0.06
24%
0.146
-85%
0.036
54%
4K-64 Write
1479.26
555.59
-62%
443.75
-70%
181.22
-88%
1150.75
-22%
4K-64 Read
1199.66
1257.95
5%
1170.49
-2%
337.13
-72%
1244.06
4%
4K Write
43.07
103.46
140%
105.18
144%
92.73
115%
128.48
198%
4K Read
26.06
127.95
391%
46.69
79%
24.78
-5%
49.02
88%
Seq Write
1822.56
552.79
-70%
1204.91
-34%
334.27
-82%
1603.21
-12%
Seq Read
2153.9
1378.66
-36%
2118.71
-2%
2335.19
8%
2749.98
28%

* ... kleiner is beter

Samsung SSD 960 Pro 512 GB m.2
CDM 5/6 Read Seq Q32T1: 3354 MB/s
CDM 5/6 Write Seq Q32T1: 2039 MB/s
CDM 5/6 Read 4K Q32T1: 322.2 MB/s
CDM 5/6 Write 4K Q32T1: 250 MB/s
CDM 5 Read Seq: 1908 MB/s
CDM 5 Write Seq: 1837 MB/s
CDM 5/6 Read 4K: 42.82 MB/s
CDM 5/6 Write 4K: 104.7 MB/s
3DMark 11
1280x720 Performance Combined
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
12374 Points ∼51% +53%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
10428 Points ∼43% +29%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
9296 Points ∼38% +15%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
9063 Points ∼37% +12%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8654 Points ∼36% +7%
MSI GV62 8RE-016US
NVIDIA GeForce GTX 1060 Mobile, i5-8300H
8215 Points ∼34% +2%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
8076 Points ∼33%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
6938 Points ∼29% -14%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
4854 Points ∼20% -40%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
3016 Points ∼12% -63%
1280x720 Performance GPU
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
25589 Points ∼43% +77%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
20623 Points ∼35% +42%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
15837 Points ∼27% +9%
MSI GV62 8RE-016US
NVIDIA GeForce GTX 1060 Mobile, i5-8300H
15101 Points ∼26% +4%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
14483 Points ∼24%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
12105 Points ∼20% -16%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8313 Points ∼14% -43%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
7831 Points ∼13% -46%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
3749 Points ∼6% -74%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
3022 Points ∼5% -79%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
166.24 fps ∼72% +17%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
141.9 fps ∼62%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
119.9 fps ∼52% -16%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
117.68 fps ∼51% -17%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
102.91 fps ∼45% -27%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
84.84 fps ∼37% -40%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
53.48 fps ∼23% -62%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
26.11 fps ∼11% -82%
1900x1060 Siemens NX (snx-02)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
183.65 fps ∼67% +54%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
130.9 fps ∼48% +10%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
119.39 fps ∼43%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
111.7 fps ∼41% -6%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
71.77 fps ∼26% -40%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
65.79 fps ∼24% -45%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
28.31 fps ∼10% -76%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
14.27 fps ∼5% -88%
1900x1060 Showcase (showcase-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
106.41 fps ∼44% +92%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
62.6 fps ∼26% +13%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
62.33 fps ∼26% +13%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
55.28 fps ∼23%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
54.77 fps ∼23% -1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
43.81 fps ∼18% -21%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
12.13 fps ∼5% -78%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
5.19 fps ∼2% -91%
1900x1060 Medical (medical-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
74.58 fps ∼68% +85%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
71.53 fps ∼65% +78%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
41.8 fps ∼38% +4%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
40.22 fps ∼37%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
29.82 fps ∼27% -26%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
22.34 fps ∼20% -44%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
9.33 fps ∼9% -77%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
3.71 fps ∼3% -91%
1900x1060 Maya (maya-04)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
102.63 fps ∼44% +19%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102.08 fps ∼44% +19%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
86.12 fps ∼37%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
73 fps ∼31% -15%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
67.65 fps ∼29% -21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
50.38 fps ∼22% -42%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
21.61 fps ∼9% -75%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
9.22 fps ∼4% -89%
1900x1060 Energy (energy-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
18.58 fps ∼60% +112%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14.95 fps ∼49% +70%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
10.6 fps ∼34% +21%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
8.78 fps ∼29%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
7.7 fps ∼25% -12%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
4.85 fps ∼16% -45%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
0.55 fps ∼2% -94%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
0.31 fps ∼1% -96%
1900x1060 Creo (creo-01)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
126.57 fps ∼72% +18%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
107.07 fps ∼61%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
91.9 fps ∼52% -14%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
87 fps ∼50% -19%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
85.3 fps ∼49% -20%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
64.76 fps ∼37% -40%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
35.91 fps ∼20% -66%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
17.12 fps ∼10% -84%
1900x1060 Catia (catia-04)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
155.37 fps ∼53% +26%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
134.98 fps ∼46% +9%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
123.62 fps ∼42%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
110 fps ∼38% -11%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
96.46 fps ∼33% -22%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
77.86 fps ∼27% -37%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
27.97 fps ∼10% -77%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
15.05 fps ∼5% -88%
3DMark 11 Performance
12086 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 291.2 242.1 233.2 107.9 fps
The Witcher 3 (2015) 34 fps
012345678910111213141516171819202122232425262728293031323334353637Tooltip
The Witcher 3 ultra

Geluidsniveau

Onbelast
40.9 / 40.9 / 40.9 dB (A)
Belasting
40.9 / 41.6 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.6 dB(A)
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
Apple iMac Pro
Pro Vega 56, W-2145
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, i5-8550U, Samsung PM961 MZVLW256HEHP
Noise
12%
1%
12%
7%
20%
off / environment *
29.6
28.7
3%
29.9
-1%
29.1
2%
30
-1%
29
2%
Idle Minimum *
40.9
29
29%
38.6
6%
29.8
27%
30
27%
29
29%
Idle Average *
40.9
29
29%
38.6
6%
29.8
27%
30
27%
29
29%
Idle Maximum *
40.9
29
29%
39
5%
29.8
27%
30
27%
31.2
24%
Load Average *
40.9
36
12%
40.6
1%
39.7
3%
48.9
-20%
32.5
21%
Witcher 3 ultra *
41.6
42
-1%
41.7
-0%
32.5
22%
Load Maximum *
41.6
49.4
-19%
47
-13%
47.9
-15%
48.9
-18%
37.5
10%

* ... kleiner is beter

Stroomgebruik
Uit / Standbydarklight 1.43 / 1.8 Watt
Inactiefdarkmidlight 19.9 / 20.3 / 27.6 Watt
Belasting midlight 86.2 / 96.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Zotac ZBOX-QK7P3000
i7-7700T, Quadro P3000, Samsung SSD 960 Pro 512 GB m.2, , x,
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Zotac ZBOX Magnus EK71080
i7-7700HQ, GeForce GTX 1080 (Desktop), Samsung PM961 MZVLW256HEHP, , x, 0.00
Apple iMac Pro
W-2145, Pro Vega 56, , , 5120x2880, 27.00
Lenovo ThinkPad P52s-20LB000HGE
i5-8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.60
MSI WS63 7RF-290US
i7-7700HQ, Quadro P3000, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 1920x1080, 15.60
Power Consumption
-0%
-50%
-240%
57%
14%
Idle Minimum *
19.9
15.5
22%
27.1
-36%
49.5
-149%
4.1
79%
11
45%
Idle Average *
20.3
16.2
20%
27.4
-35%
86.7
-327%
7.7
62%
14.2
30%
Idle Maximum *
27.6
16.5
40%
28.8
-4%
88.9
-222%
10.7
61%
14.6
47%
Load Average *
86.2
83.4
3%
100.4
-16%
150.1
-74%
52
40%
77.7
10%
Witcher 3 ultra *
114.4
121.7
-6%
243.1
-113%
38.8
66%
89.1
22%
Load Maximum *
96.3
173.5
-80%
186.7
-94%
508.5
-428%
65
33%
161.7
-68%

* ... kleiner is beter

Pro

+ onder belasting stiller dan de meeste laptops
+ relatief koele core temperaturen
+ compacte form factor
+ makkelijk onderhoud
+ 2x sloten opslag

Contra

- kan niet de maximale CPU Turbo Boost vasthouden
- throttling bij extreme belasting
- SD-kaartlezer had beter kunnen presteren
- lichte brom in idle-modus; nooit stil
- langzame 1x1 WLAN module
- geen Thunderbolt 3

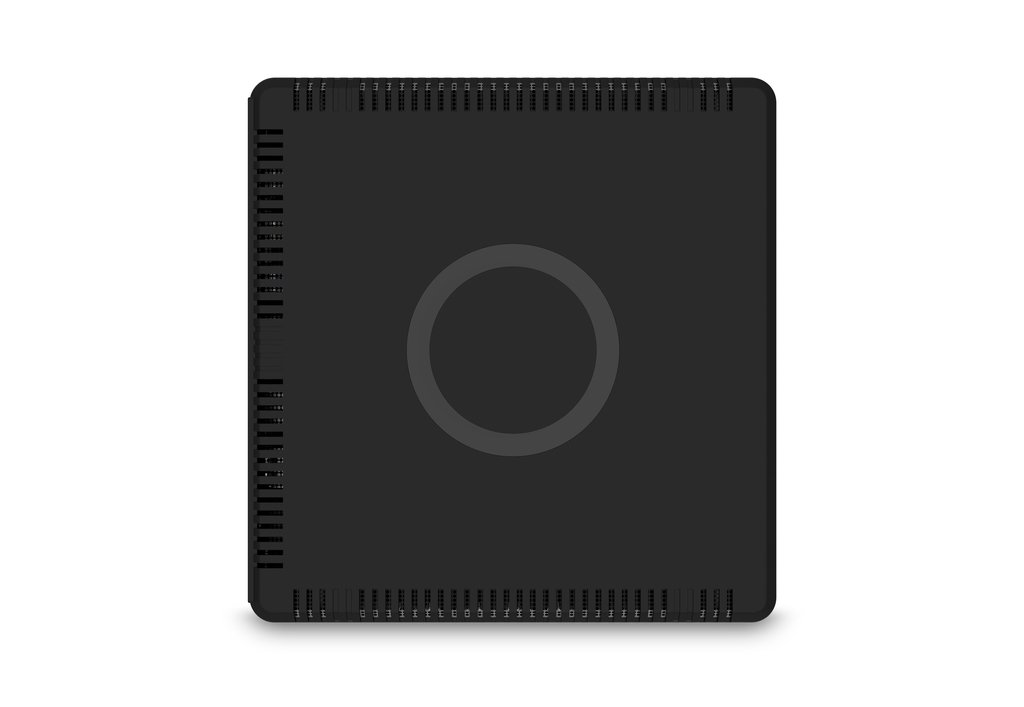

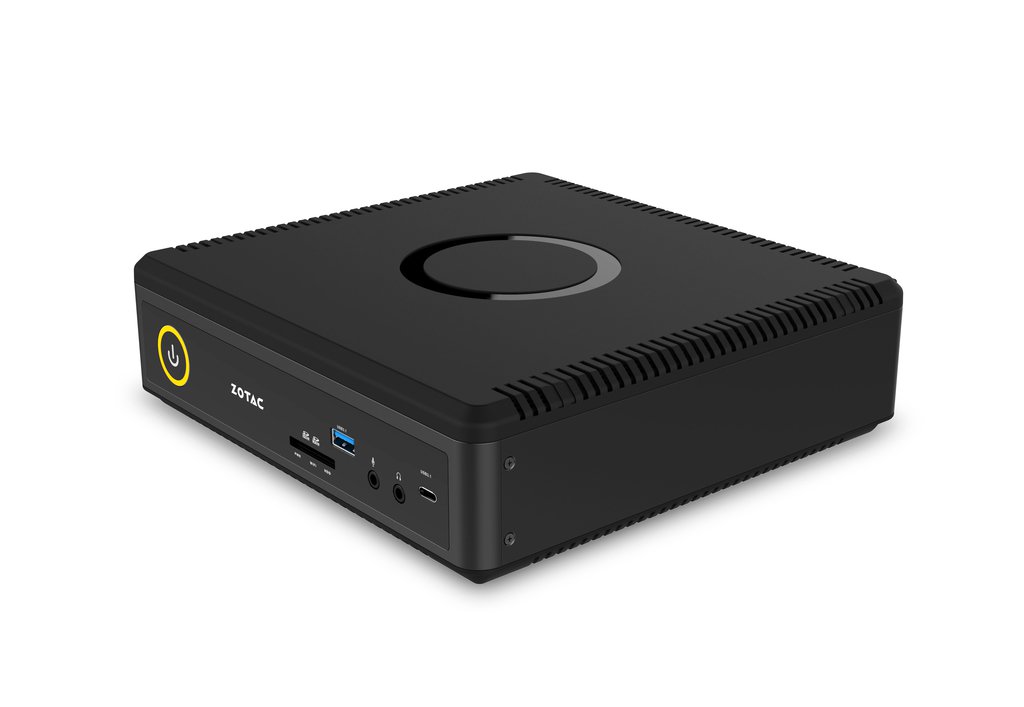

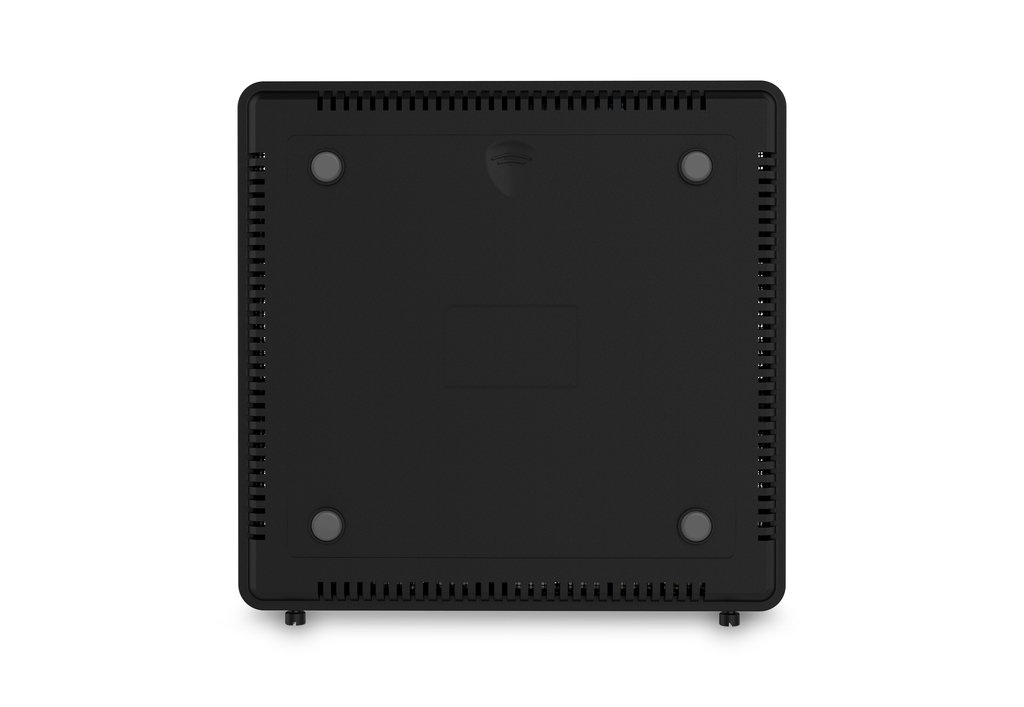

In review: Zotac ZBOX QK7P3000. Test model provided by Zotac
In review: Zotac ZBOX QK7P3000. Test model provided by Zotac

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

We zijn prettig verrast om de populaire, op gamen gerichte, Magnus EN51050, omgebouwd te zien tot werkstation voor professionele gebruikers. Net zoals de MSI WT- en WS-families afgeleidt zijn van de game-gerichte GT- en GS-series, brengt de Zotac Q-serie het beste dat de ZBox game modellen te bieden hebben inclusief de stille werking tijdens belasting, redelijke core temperaturen en grote prestaties in een klein formaat.

Helaas zijn er ook dezelde nadelen. Zotac heeft de WLAN niet verbeterd of nieuwe features toegevoegd die de Q-serie meer onderscheid kunnen geven. WiFi-snelheden zijn nog steeds beperkt door een 1x1 433 Mbps Intel 3165 module, waar nieuwe laptops meestal uitgerust zijn met de 1.73 Gbps Intel 9560. Thunderbolt 3 mist nog steeds en overdrachtssnelheden van de SD-kaartlezer zijn een fractie van wat de UHS-II beloofd. De GPU kan standaard niet zijn maximale Boost kloksnelheid behalen wat verbluffend is daar de core temperaturen voldoende marge hebben, zelfs bij belasting.

Veel van deze nadelen waren makkelijker te accepteren geweest ware het niet voor de hoge prijs. Met $ 1400 voor een barebone-kit zonder opslag of RAM denken we dat de QK7P3000 meer had kunnen bieden. Tegelijkertijd is dit een van de weinige mini PC's - zo niet de eerste - die geleverd worden met Quadro Pascal grafische chips en dus zijn er vrijwel geen alternatieven. We hopen dat de toekomstige revisies de mindere componenten vervangen om zo beter te passen in deze prijsklasse.

De rekenkracht die beschikbaar is zo'n kleine form factor moet niet onderschat worden. Werkstation gebruiker kunnen nu beschikken over dezelfde Pascal-aangedreven ultra-small form factor PC's als gamers al enige tijd hebben. Het biedt hoge prestaties per inhoud, zij het niet de hoogste prestaties voor je geld.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Zotac ZBOX QK7P3000 (i7-7700T, Quadro P3000) Mini PC
Allen Ngo, 2018-07-11 (Update: 2018-07-16)
Allen Ngo
Editor of the original article: Allen Ngo - US Editor in Chief
