Kort testrapport HP ZBook 17 G3 Workstation

Het perfecte workstation? HP's ZBook 17 G3 is een conventioneel workstation zonder de wens om zo dun mogelijk te zijn. In plaats ligt de focus op prestaties. Kan HP echter de veeleisende zakelijke klanten overtuigen met deze nieuwe generatie.
Andreas Osthoff, Stefanie Voigt (vertaald door Siemon Boes), 🇺🇸 🇩🇪 ...
, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

HP ZBook 17 G3 TZV66eA (ZBook 17 G3 Serie)

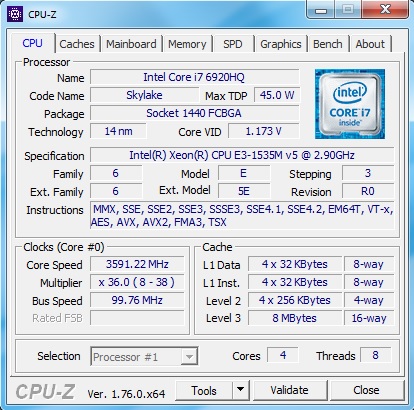

Processor
Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake
Grafische kaart
NVIDIA Quadro M3000M - 4096 MB, Core: 1050 MHz, Geheugen: 1253 MHz, GDDR5, 362.13, Optimus

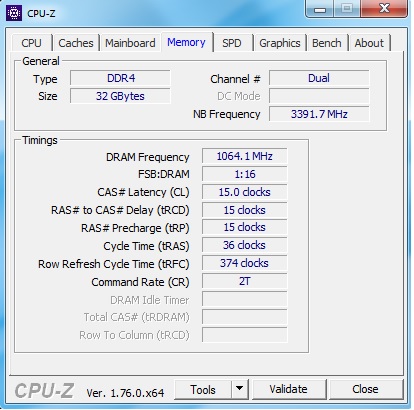

Geheugen
32768 MB
, DDR4-2133, Dual-Channel, 2/4 sleuven vrij, maximaal 64 GB
Beeldscherm
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, SDC3854, IPS, glimmend: nee

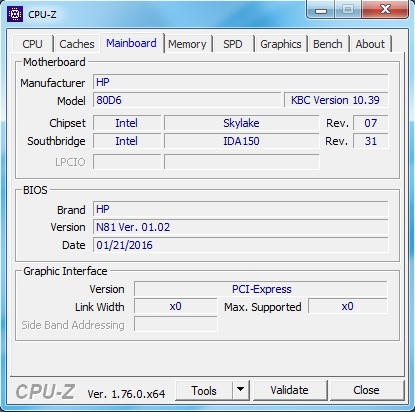

Moederbord
Intel CM236 (Skylake PCH-H)
Opslag
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB
Geluidskaart
Intel Skylake PCH-H High Definition Audio Controller

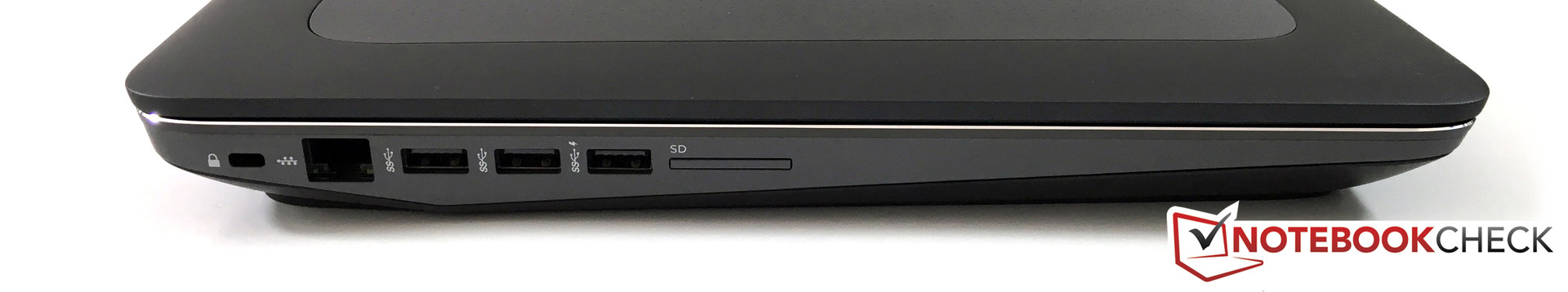

Verbindingen
3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm Headset, Card Reader: SD UHS-II, 1 SmartCard, 1 Vingerafdruklezer, Sensoren: Accelerometer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 30 x 420 x 280
Batterij
96 Wh Lithium-Ion, 6 cellen
Besturingssysteem
Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)
Camera
Webcam: HD-Webcam
Bijkomende functionaliteiten
Luidsprekers: Stereo-luidsprekers, Audio by Bang & Olufsen, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 200-Watt-voeding, handleiding, garantie-informatie, 2x 2.5-inch harde schijf-adapter + aansluitkabel, HP Performance Advisor, HP Remote Graphics Software, HP Velocity, HP Client Security, Microsoft Security Essentials, HP ePrint Driver, HP Recovery Manager, Foxit PhantomPDF Express, 36 Maanden Garantie
Gewicht
3.26 kg, Voeding: 987 g
Prijs
4500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

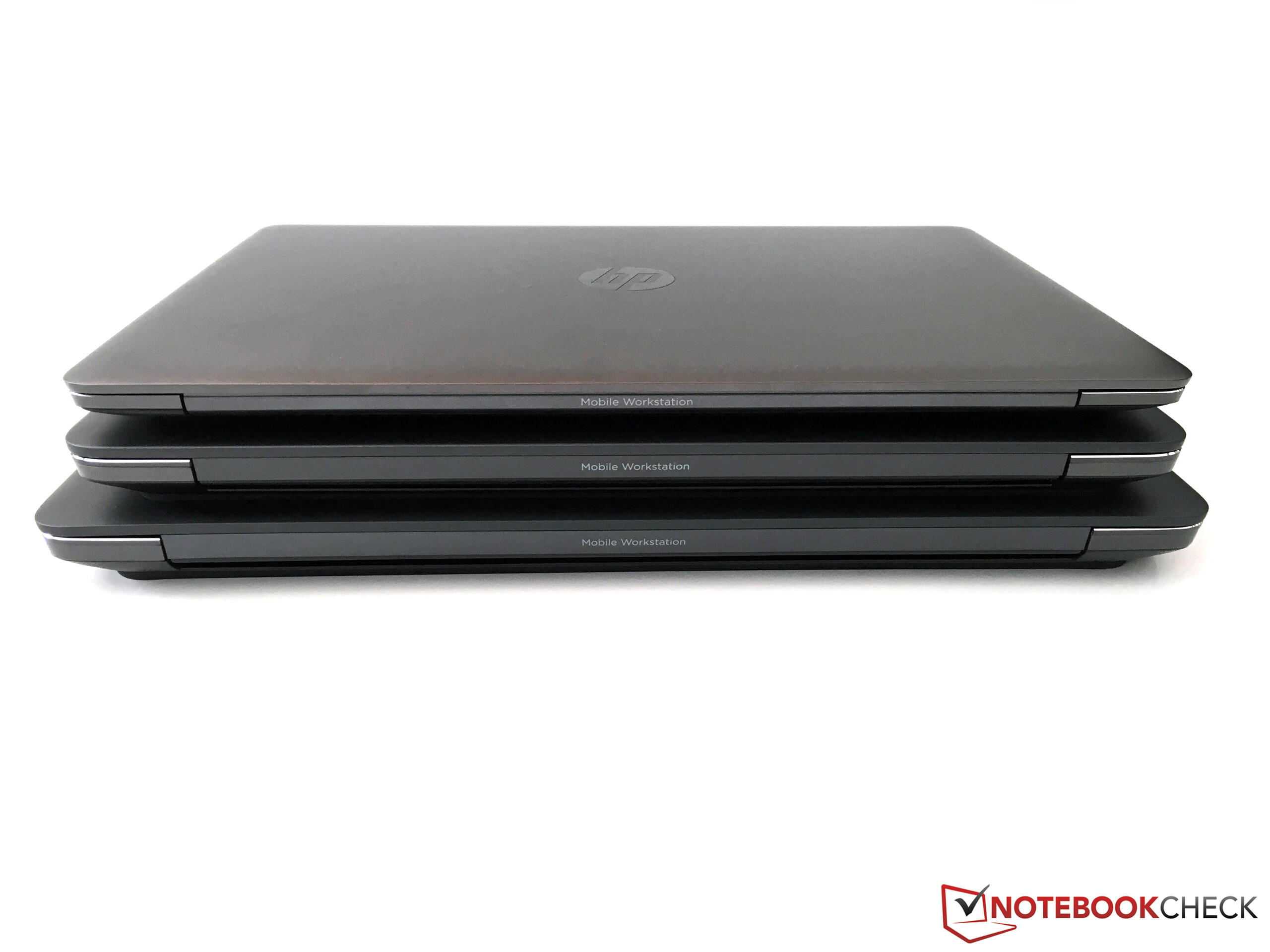

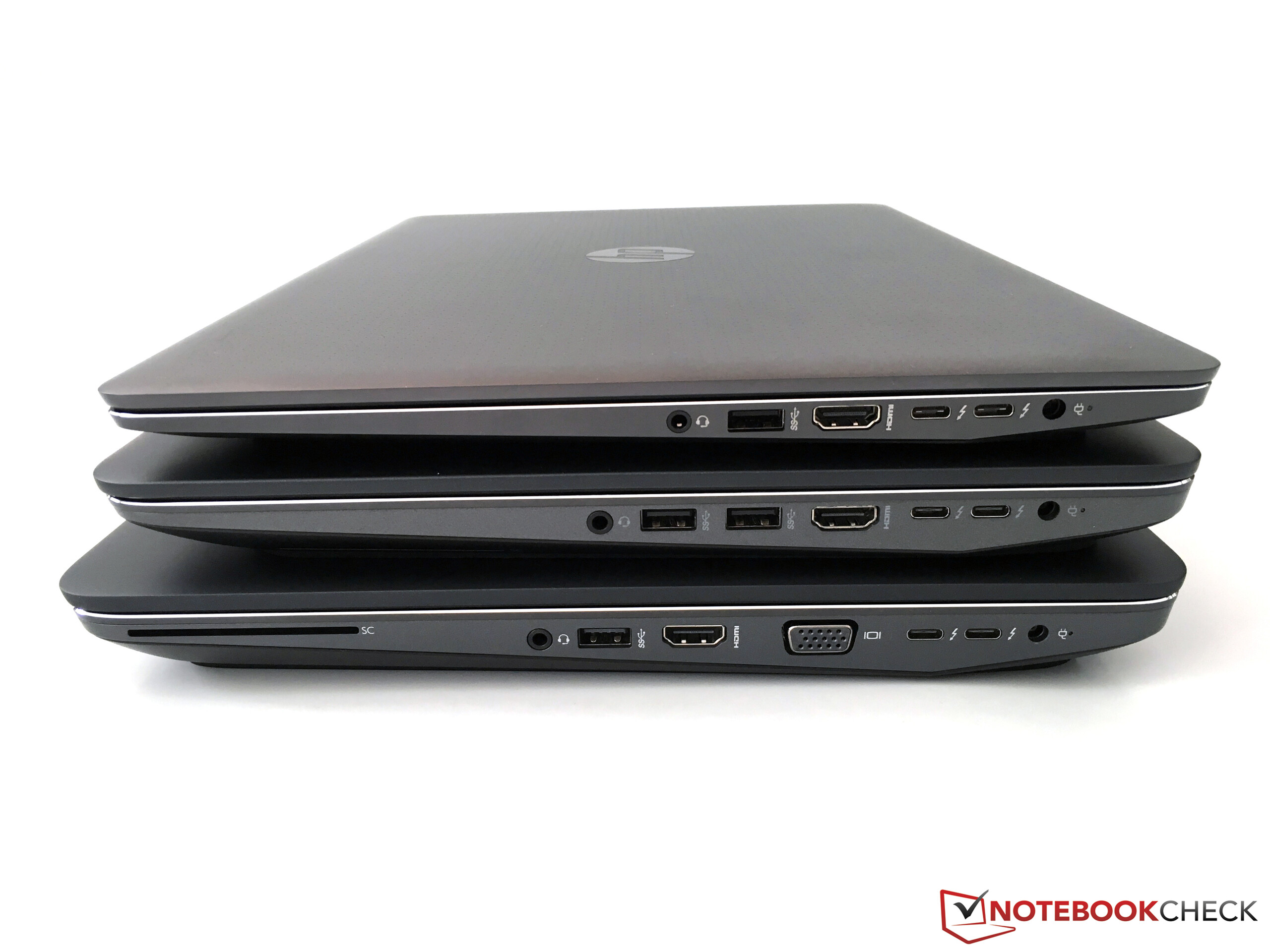

From top to bottom: ZBook Studio G3, ZBook 15 G3, ZBook 17 G3
From top to bottom: ZBook Studio G3, ZBook 15 G3, ZBook 17 G3

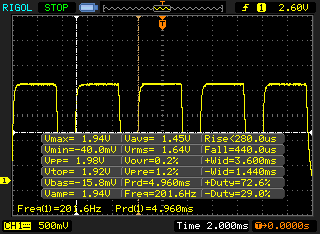

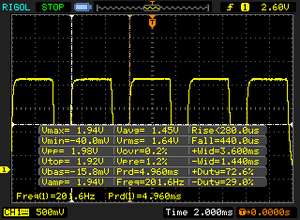

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 200 Hz ≤ 40 % helderheid instelling

Het backlight van het scherm flikkert aan 200 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 40 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 200 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9706 (minimum: 5 - maximum: 151500) Hz waargenomen.

249
cd/m²
256
cd/m²
242
cd/m²
259
cd/m²
252
cd/m²
240
cd/m²
241
cd/m²
227
cd/m²
222
cd/m²
Helderheidsverdeling
SDC3854
X-Rite i1Pro 2
Maximum: 259 cd/m² Gemiddelde: 243.1 cd/m² Minimum: 13 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 252 cd/m²
Contrast: 1200:1 (Zwart: 0.21 cd/m²)
ΔE Color 2.2 | 0.59-29.43 Ø5.6
ΔE Greyscale 2.7 | 0.64-98 Ø5.8
97% sRGB (Calman 2D)
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.02% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.93% sRGB (Argyll 2.2.0 3D)
67.25% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
HP ZBook 17 G3 TZV66eA
IPS, 1920x1080
Dell Precision 7710
IPS LED, 1920x1080
Lenovo ThinkPad P70
IPS, 3840x2160
MSI WT72-6QM
IPS, 1920x1080
Bullman E-Klasse 5
AH-IPS WLED, 1920x1080
HP ZBook 17 E9X11AA-ABA
LED IPS, 1920x1080
Display
-0%
21%
-7%
-8%
25%
Display P3 Coverage
67.25
66.64
-1%
90.84
35%
67.27
0%
66.47
-1%
85.65
27%
sRGB Coverage
95.93
96.9
1%
99.97
4%
85.39
-11%
84.51
-12%
99.99
4%
AdobeRGB 1998 Coverage
69.02
68.59
-1%
85.4
24%
62.45
-10%
61.79
-10%
99.22
44%
Response Times
-9%
10%
-11%
Response Time Grey 50% / Grey 80% *
50.4 (17.2, 33.2)
50 (17, 33)
1%
44 (17.2, 26.8)
13%
42 (13, 29)
17%
Response Time Black / White *
28.4 (7.2, 21.2)
36 (11, 25)
-27%
27.6 (4.8, 22.8)
3%
26 (7, 19)
8%
PWM Frequency
200 (40)
198 (25)
-1%
228 (95)
14%
86 (10, 15)
-57%
Screen
-11%
-22%
-42%
-18%
3%
Brightness middle
252
332
32%
365
45%
303
20%
355
41%
320
27%
Brightness
243
307
26%
341
40%
298
23%
335
38%
311
28%
Brightness Distribution
86
83
-3%
85
-1%
94
9%
89
3%
88
2%
Black Level *
0.21
0.33
-57%
0.4
-90%
0.46
-119%
0.44
-110%
0.359
-71%
Contrast
1200
1006
-16%
913
-24%
659
-45%
807
-33%
891
-26%
Colorchecker DeltaE2000 *
2.2
3
-36%
3.8
-73%
5.77
-162%
3.73
-70%
2.04
7%
Colorchecker DeltaE2000 max. *
3.8
Greyscale DeltaE2000 *
2.7
4
-48%
6.09
-126%
4.87
-80%
2.84
-5%
2.45
9%
Gamma
2.28 96%
2 110%
2.3 96%
1.99 111%
2.12 104%
2.28 96%
CCT
6686 97%
7089 92%
6332 103%
7363 88%
6457 101%
6518 100%
Color Space (Percent of AdobeRGB 1998)
62
62
0%
76.01
23%
56.04
-10%
55.45
-11%
93
50%
Color Space (Percent of sRGB)
96
97
1%
99.97
4%
85.27
-11%
84.39
-12%
100
4%
Totaal Gemiddelde (Programma / Instellingen)
-7% / -9%
3% / -7%
-20% / -29%
-13% / -15%
14% / 9%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

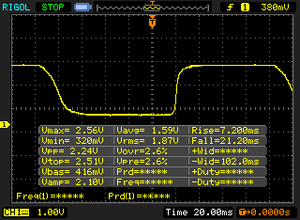

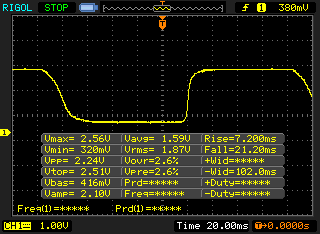

       Responstijd Zwart naar Wit
28.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 7.2 ms stijging
↘ 21.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 66 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.1 ms) van alle geteste toestellen.

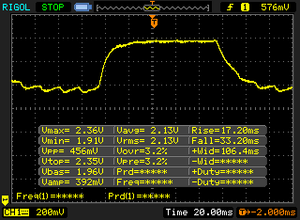

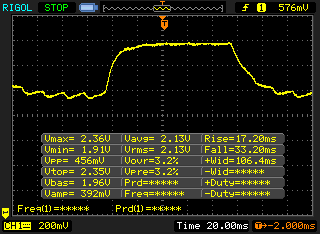

       Responstijd 50% Grijs naar 80% Grijs
50.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 17.2 ms stijging
↘ 33.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 82 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.2 ms) van alle geteste toestellen.
Cinebench R15
CPU Multi 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
843 Points ∼100% +14%
Dell Precision 7710
Intel Xeon E3-1535M v5
746 Points ∼88% +1%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
742 Points ∼88%
MSI WT72-6QM
Intel Xeon E3-1505M v5
724 Points ∼86% -2%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
699 Points ∼83% -6%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
657 Points ∼78% -11%
CPU Single 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
174 Points ∼100% +12%
Dell Precision 7710
Intel Xeon E3-1535M v5
162 Points ∼93% +4%
MSI WT72-6QM
Intel Xeon E3-1505M v5
157 Points ∼90% +1%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
156 Points ∼90%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
153 Points ∼88% -2%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
135 Points ∼78% -13%
Cinebench R11.5
CPU Multi 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
9.14 Points ∼100% +12%
Dell Precision 7710
Intel Xeon E3-1535M v5
8.24 Points ∼90% +1%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
8.16 Points ∼89%
MSI WT72-6QM
Intel Xeon E3-1505M v5
7.85 Points ∼86% -4%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
7.63 Points ∼83% -6%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
7.11 Points ∼78% -13%
CPU Single 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
1.95 Points ∼100% +7%
Dell Precision 7710
Intel Xeon E3-1535M v5
1.84 Points ∼94% +1%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
1.83 Points ∼94%
MSI WT72-6QM
Intel Xeon E3-1505M v5
1.77 Points ∼91% -3%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
1.7 Points ∼87% -7%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
1.54 Points ∼79% -16%
Cinebench R10
Rendering Multiple CPUs 32Bit
Bullman E-Klasse 5
Intel Core i7-4790K
25082 Points ∼100% +13%
Dell Precision 7710
Intel Xeon E3-1535M v5
22496 Points ∼90% +2%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
22147 Points ∼88%
MSI WT72-6QM
Intel Xeon E3-1505M v5
21475 Points ∼86% -3%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
20682 Points ∼82% -7%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
19450 Points ∼78% -12%
Rendering Single 32Bit
Bullman E-Klasse 5
Intel Core i7-4790K
6398 Points ∼100% +12%
Dell Precision 7710
Intel Xeon E3-1535M v5
5837 Points ∼91% +2%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
5708 Points ∼89%
MSI WT72-6QM
Intel Xeon E3-1505M v5
5627 Points ∼88% -1%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
5429 Points ∼85% -5%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
4993 Points ∼78% -13%
Rendering Multiple CPUs 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
31767 Points ∼100% +8%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
29416 Points ∼93%
Dell Precision 7710
Intel Xeon E3-1535M v5
29375 Points ∼92% 0%
MSI WT72-6QM
Intel Xeon E3-1505M v5
27938 Points ∼88% -5%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
27072 Points ∼85% -8%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
24894 Points ∼78% -15%
Rendering Single CPUs 64Bit
Bullman E-Klasse 5
Intel Core i7-4790K
8597 Points ∼100% +17%
Dell Precision 7710
Intel Xeon E3-1535M v5
7608 Points ∼88% +3%
MSI WT72-6QM
Intel Xeon E3-1505M v5
7421 Points ∼86% +1%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
7353 Points ∼86%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
6965 Points ∼81% -5%
HP ZBook 17 G2 J8Z55ET
Intel Core i7-4710MQ
6635 Points ∼77% -10%
Cinebench R10 Rendering Single CPUs 64Bit
7353 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
29416 Points
Cinebench R10 Shading 64Bit
6847 Points
Cinebench R10 Shading 32Bit
6844
Cinebench R10 Rendering Multiple CPUs 32Bit
22147
Cinebench R10 Rendering Single 32Bit
5708
Cinebench R11.5 OpenGL 64Bit
99.7 fps
Cinebench R11.5 CPU Multi 64Bit
8.16 Points
Cinebench R11.5 CPU Single 64Bit
1.83 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
116.08 fps
Cinebench R15 CPU Multi 64Bit
742 Points
Cinebench R15 CPU Single 64Bit
156 Points
Help
PCMark 7 - Score
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7
6657 Points ∼100% +21%
Bullman E-Klasse 5
4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL
6447 Points ∼97% +17%
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5487 Points ∼82%
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5072 Points ∼76% -8%
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH
5003 Points ∼75% -9%
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630
3356 Points ∼50% -39%
PCMark 8
Work Score Accelerated v2
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7
5655 Points ∼100% +7%
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5417 Points ∼96% +3%
Bullman E-Klasse 5
4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL
5372 Points ∼95% +2%
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5271 Points ∼93%
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630
4595 Points ∼81% -13%
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH
4411 Points ∼78% -16%
Creative Score Accelerated v2
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5668 Points ∼100% +24%
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630
4890 Points ∼86% +7%
Bullman E-Klasse 5
4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL
4761 Points ∼84% +4%
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4564 Points ∼81%
Home Score Accelerated v2
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4770 Points ∼100% +15%
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7
4731 Points ∼99% +14%
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630
4464 Points ∼94% +8%
Bullman E-Klasse 5
4790K, Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL
4355 Points ∼91% +5%
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4133 Points ∼87%
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH
3345 Points ∼70% -19%
PCMark 7 Score
5487 punten
PCMark 8 Home Score Accelerated v2
4133 punten
PCMark 8 Creative Score Accelerated v2
4564 punten
PCMark 8 Work Score Accelerated v2
5271 punten
Help
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read: 1481 MB/s
Sequential Write: 1243 MB/s
512K Read: 1202 MB/s
512K Write: 1163 MB/s
4K Read: 58.65 MB/s
4K Write: 207.4 MB/s
4K QD32 Read: 832 MB/s
4K QD32 Write: 377.9 MB/s
SPECviewperf 12
1900x1060 Solidworks (sw-03)
MSI WT72-6QM
NVIDIA Quadro M5000M
101.01 fps ∼100% +19%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
84.84 fps ∼84%
Dell Precision 7710
AMD FirePro W7170M
73 fps ∼72% -14%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
66.53 fps ∼66% -22%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
62 fps ∼61% -27%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
52.35 fps ∼52% -38%
1900x1060 Siemens NX (snx-02)
MSI WT72-6QM
NVIDIA Quadro M5000M
86.87 fps ∼100% +32%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
65.79 fps ∼76%
Dell Precision 7710
AMD FirePro W7170M
63 fps ∼73% -4%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
50.73 fps ∼58% -23%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
39.84 fps ∼46% -39%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
32 fps ∼37% -51%
1900x1060 Showcase (showcase-01)
MSI WT72-6QM
NVIDIA Quadro M5000M
44.14 fps ∼100% +1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
43.81 fps ∼99%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
39.81 fps ∼90% -9%
Dell Precision 7710
AMD FirePro W7170M
37 fps ∼84% -16%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
26.31 fps ∼60% -40%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
19 fps ∼43% -57%
1900x1060 Medical (medical-01)
MSI WT72-6QM
NVIDIA Quadro M5000M
31.35 fps ∼100% +40%
Dell Precision 7710
AMD FirePro W7170M
27 fps ∼86% +21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
22.34 fps ∼71%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
17.46 fps ∼56% -22%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
16.27 fps ∼52% -27%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
10 fps ∼32% -55%
1900x1060 Maya (maya-04)
MSI WT72-6QM
NVIDIA Quadro M5000M
69.57 fps ∼100% +38%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
50.38 fps ∼72%
Dell Precision 7710
AMD FirePro W7170M
46 fps ∼66% -9%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
39.17 fps ∼56% -22%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
28 fps ∼40% -44%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
23.08 fps ∼33% -54%
1900x1060 Energy (energy-01)
MSI WT72-6QM
NVIDIA Quadro M5000M
6.86 fps ∼100% +41%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
4.85 fps ∼71%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
4.68 fps ∼68% -4%
Dell Precision 7710
AMD FirePro W7170M
3.17 fps ∼46% -35%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
2.1 fps ∼31% -57%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
0.59 fps ∼9% -88%
1900x1060 Creo (creo-01)
MSI WT72-6QM
NVIDIA Quadro M5000M
81.34 fps ∼100% +26%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
64.76 fps ∼80%
Dell Precision 7710
AMD FirePro W7170M
50 fps ∼61% -23%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
42.61 fps ∼52% -34%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
42.17 fps ∼52% -35%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
29 fps ∼36% -55%
1900x1060 Catia (catia-04)
MSI WT72-6QM
NVIDIA Quadro M5000M
94.45 fps ∼100% +21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
77.86 fps ∼82%
Dell Precision 7710
AMD FirePro W7170M
58 fps ∼61% -26%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
45.24 fps ∼48% -42%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
44.02 fps ∼47% -43%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
33 fps ∼35% -58%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
67.36 fps ∼100% +35%
MSI WT72-6QM
NVIDIA Quadro M5000M
61.76 fps ∼92% +24%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
49.91 fps ∼74%
Dell Precision 7710
AMD FirePro W7170M
49 fps ∼73% -2%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
47.84 fps ∼71% -4%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
39 fps ∼58% -22%
1920x1080 Tcvis
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
56.28 fps ∼100%
MSI WT72-6QM
NVIDIA Quadro M5000M
55.94 fps ∼99% -1%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
42 fps ∼75% -25%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
41.16 fps ∼73% -27%
Dell Precision 7710
AMD FirePro W7170M
36 fps ∼64% -36%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
28.37 fps ∼50% -50%
1920x1080 SolidWorks
Dell Precision 7710
AMD FirePro W7170M
74 fps ∼100% +54%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
68.72 fps ∼93% +43%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
52 fps ∼70% +8%
MSI WT72-6QM
NVIDIA Quadro M5000M
49.26 fps ∼67% +3%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
48.01 fps ∼65%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
35.28 fps ∼48% -27%
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
22.46 fps ∼100%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
21 fps ∼93% -7%
MSI WT72-6QM
NVIDIA Quadro M5000M
17.87 fps ∼80% -20%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
16.08 fps ∼72% -28%
Dell Precision 7710
AMD FirePro W7170M
11.7 fps ∼52% -48%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
10.66 fps ∼47% -53%
1920x1080 Maya
Dell Precision 7710
AMD FirePro W7170M
106 fps ∼100% +84%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
99.72 fps ∼94% +73%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
85.96 fps ∼81% +49%
MSI WT72-6QM
NVIDIA Quadro M5000M
71.59 fps ∼68% +24%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
57.76 fps ∼54%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
55 fps ∼52% -5%
1920x1080 Lightwave
Dell Precision 7710
AMD FirePro W7170M
84 fps ∼100% +62%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
77.78 fps ∼93% +50%
MSI WT72-6QM
NVIDIA Quadro M5000M
59.58 fps ∼71% +15%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
56 fps ∼67% +8%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
51.87 fps ∼62%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
35.34 fps ∼42% -32%
1920x1080 Ensight
MSI WT72-6QM
NVIDIA Quadro M5000M
73.98 fps ∼100% +25%
Dell Precision 7710
AMD FirePro W7170M
70 fps ∼95% +18%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
59.49 fps ∼80% +1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
59.1 fps ∼80%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
55.74 fps ∼75% -6%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
39 fps ∼53% -34%
1920x1080 Catia
Dell Precision 7710
AMD FirePro W7170M
61 fps ∼100% +14%
MSI WT72-6QM
NVIDIA Quadro M5000M
55.25 fps ∼91% +3%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
53.44 fps ∼88%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
49.28 fps ∼81% -8%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
47 fps ∼77% -12%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
43.12 fps ∼71% -19%
LuxMark v2.0 64Bit
Room GPUs-only
MSI WT72-6QM
NVIDIA Quadro M5000M
1331 Samples/s ∼100% +3%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
1288 Samples/s ∼97%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
1258 Samples/s ∼95% -2%
Dell Precision 7710
AMD FirePro W7170M
782 Samples/s ∼59% -39%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
598 Samples/s ∼45% -54%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
215 Samples/s ∼16% -83%
Sala GPUs-only
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
2288 Samples/s ∼100%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
2234 Samples/s ∼98% -2%
MSI WT72-6QM
NVIDIA Quadro M5000M
2179 Samples/s ∼95% -5%
Dell Precision 7710
AMD FirePro W7170M
1412 Samples/s ∼62% -38%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
1084 Samples/s ∼47% -53%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
423 Samples/s ∼18% -82%
SiSoft Sandra 2016
Image Processing
Dell Precision 7710
AMD FirePro W7170M
527.4 MPix/s ∼100% +64%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
367.1 MPix/s ∼70% +14%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
322.56 MPix/s ∼61%
GP Cryptography (Higher Security AES256+SHA2-512)
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
12.74 GB/s ∼100%
Dell Precision 7710
AMD FirePro W7170M
12.47 GB/s ∼98% -2%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
11.12 GB/s ∼87% -13%
GP Financial Analysis (FP High/Double Precision)
Dell Precision 7710
AMD FirePro W7170M
66.36 KOPT/s ∼100% +104%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
32.97 KOPT/s ∼50% +2%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
32.46 KOPT/s ∼49%
Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WT72-6QM
NVIDIA Quadro M5000M
108.6 fps ∼100% +35%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
80.6 fps ∼74%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
79.3 fps ∼73% -2%
Dell Precision 7710
AMD FirePro W7170M
76.9 fps ∼71% -5%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
56.2 fps ∼52% -30%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
37 fps ∼34% -54%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WT72-6QM
NVIDIA Quadro M5000M
101.5 fps ∼100% +33%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
76.2 fps ∼75%
Dell Precision 7710
AMD FirePro W7170M
59.3 fps ∼58% -22%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
48.8 fps ∼48% -36%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
43.4 fps ∼43% -43%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
35.8 fps ∼35% -53%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
MSI WT72-6QM
NVIDIA Quadro M5000M
47.3 fps ∼100% +23%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
38.5 fps ∼81%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
37.8 fps ∼80% -2%
Dell Precision 7710
AMD FirePro W7170M
30.7 fps ∼65% -20%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
32.2 fps ∼100%
Dell Precision 7710
AMD FirePro W7170M
26.6 fps ∼83% -17%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
22 fps ∼68% -32%
3DMark
1920x1080 Fire Strike Score
MSI WT72-6QM
NVIDIA Quadro M5000M
7979 Points ∼100% +31%
Acer Predator 15 G9-592-7925
NVIDIA GeForce GTX 970M
6719 Points ∼84% +10%
Dell Precision 7710
AMD FirePro W7170M
6180 Points ∼77% +1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
6108 Points ∼77%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
5835 Points ∼73% -4%
Schenker XMG A726
NVIDIA GeForce GTX 965M
5339 Points ∼67% -13%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
4018 Points ∼50% -34%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
3644 Points ∼46% -40%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
2731 Points ∼34% -55%
1920x1080 Fire Strike Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M
9087 Points ∼100% +36%
Acer Predator 15 G9-592-7925
NVIDIA GeForce GTX 970M
7624 Points ∼84% +15%
Dell Precision 7710
AMD FirePro W7170M
6935 Points ∼76% +4%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M
6658 Points ∼73%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M
6415 Points ∼71% -4%
Schenker XMG A726
NVIDIA GeForce GTX 965M
6103 Points ∼67% -8%
MSI GE62-6QD16H11
NVIDIA GeForce GTX 960M
4372 Points ∼48% -34%
HP ZBook 17 G2 J8Z55ET
AMD FirePro M6100
4010 Points ∼44% -40%
Bullman E-Klasse 5
NVIDIA Quadro K3100M
2855 Points ∼31% -57%
3DMark 06 Standard
27895 punten
3DMark 11 Performance
8586 punten
3DMark Ice Storm Standard Score
91685 punten
3DMark Cloud Gate Standard Score
23083 punten
3DMark Fire Strike Score
6108 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 226.3 182.7 166.7 69.8 fps
The Witcher 3 (2015) 122.7 74.6 42.4 22.5 fps
Rise of the Tomb Raider (2016) 114.9 69.9 40.2 33.4 fps

Geluidsniveau

Onbelast
30 / 30 / 30 dB (A)
Belasting
48.9 / 48.9 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm afstand)   environment noise: 30 dB(A)
HP ZBook 17 G3 TZV66eA
Quadro M3000M
Dell Precision 7710
FirePro W7170M
Lenovo ThinkPad P70
Quadro M3000M
MSI WT72-6QM
Quadro M5000M
Bullman E-Klasse 5
Quadro K3100M
HP ZBook 17 G2 J8Z55ET
FirePro M6100
Noise
3%
7%
1%
3%
2%
off / environment *
30
30
-0%
30
-0%
Idle Minimum *
30
30
-0%
30
-0%
33.3
-11%
28.5
5%
29.2
3%
Idle Average *
30
30
-0%
30
-0%
33.4
-11%
28.5
5%
29.9
-0%
Idle Maximum *
30
30
-0%
30
-0%
33.5
-12%
28.5
5%
29.9
-0%
Load Average *
48.9
43.2
12%
36.5
25%
38.8
21%
47.8
2%
46.8
4%
Load Maximum *
48.9
47.13
4%
40.8
17%
40.2
18%
50.8
-4%
46.8
4%

* ... kleiner is beter

Max. Belasting
 41.8 °C55.5 °C44.7 °C
 31.7 °C39.5 °C31.7 °C
 26.3 °C29.4 °C28.4 °C
Maximum: 55.5 °C
Gemiddelde: 36.6 °C
37.9 °C55.8 °C37.9 °C
29.2 °C45.3 °C28.8 °C
27.1 °C31.2 °C26.6 °C
Maximum: 55.8 °C
Gemiddelde: 35.5 °C
Stroomadapter (max.)  50.6 °C | Kamertemperatuur 20 °C | Fennel FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 36.6 °C / 98 F, compared to the average of 31.6 °C / 89 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 55.5 °C / 132 F, compared to the average of 37.7 °C / 100 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.8 °C / 132 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 31.6 °C / 89 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.6 °C / -2.9 F).
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M
Dell Precision 7710
E3-1535M v5, FirePro W7170M
Lenovo ThinkPad P70
6820HQ, Quadro M3000M
MSI WT72-6QM
E3-1505M v5, Quadro M5000M
Bullman E-Klasse 5
4790K, Quadro K3100M
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100
Heat
6%
12%
5%
-12%
12%
Maximum Upper Side *
55.5
35.6
36%
39
30%
40.6
27%
42.3
24%
39.2
29%
Maximum Bottom *
55.8
55
1%
35.4
37%
42.6
24%
44.2
21%
37.2
33%
Idle Upper Side *
29.1
29.3
-1%
30.8
-6%
28.2
3%
41.6
-43%
28.9
1%
Idle Bottom *
29
32.8
-13%
33.1
-14%
38.6
-33%
43.9
-51%
33
-14%

* ... kleiner is beter

Stroomgebruik
Uit / Standbydarklight 0.4 / 0.7 Watt
Inactiefdarkmidlight 6.7 / 12.5 / 13.2 Watt
Belasting midlight 128.2 / 158.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, 1920x1080
Dell Precision 7710
E3-1535M v5, FirePro W7170M, 1920x1080
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, 3840x2160
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, 1920x1080
Bullman E-Klasse 5
4790K, Quadro K3100M, 1920x1080
HP ZBook 17 G2 J8Z55ET
4710MQ, FirePro M6100, 1920x1080
Power Consumption
-47%
-31%
-108%
-175%
-164%
Idle Minimum *
6.7
6.04
10%
12.1
-81%
24.8
-270%
33.7
-403%
29.7
-343%
Idle Average *
12.5
15.2
-22%
19.7
-58%
29.7
-138%
39.3
-214%
41.6
-233%
Idle Maximum *
13.2
42.3
-220%
20.5
-55%
30.1
-128%
40.2
-205%
42.3
-220%
Load Average *
128.2
112.8
12%
94.3
26%
105.2
18%
148
-15%
136.1
-6%
Load Maximum *
158.9
182.2
-15%
139.6
12%
192.2
-21%
221
-39%
184
-16%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
15h 56min
NBC WiFi Websurfing Battery Test 1.3 (IE 11)
4h 50min
Big Buck Bunny H.264 1080p
4h 59min
Belast (maximale helderheid)
1h 50min
HP ZBook 17 G3 TZV66eA
96 Wh,  mAh
Dell Precision 7710
72 Wh,  mAh
Lenovo ThinkPad P70
96 Wh,  mAh
MSI WT72-6QM
 Wh, 86580 mAh
Bullman E-Klasse 5
82 Wh,  mAh
HP ZBook 17 G2 J8Z55ET
75 Wh,  mAh
Batterijduur
-5%
-5%
-35%
-54%
-64%
Reader / Idle
956
775
-19%
464
-51%
413
-57%
166
-83%
162
-83%
H.264
299
283
-5%
452
51%
123
-59%
142
-53%
WiFi v1.3
290
365
26%
361
24%
245
-16%
144
-50%
Load
110
85
-23%
64
-42%
76
-31%
85
-23%
49
-55%
WiFi
149

Pro

+ uitstekende behuizing
+ relatief dun en licht
+ erg hoge prestaties
+ nauwkeurig scherm

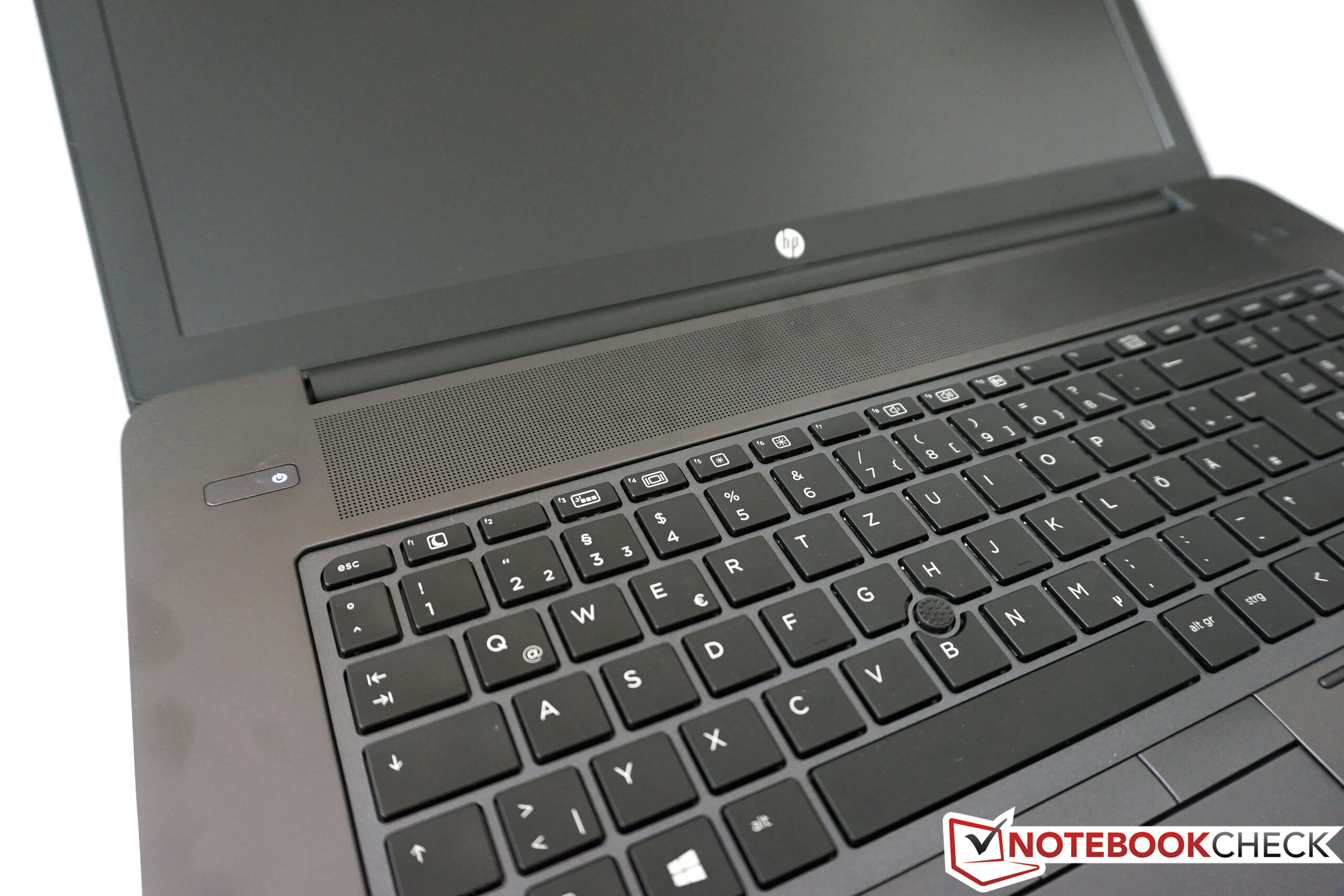

+ prima invoerapparatuur
+ moderne poorten

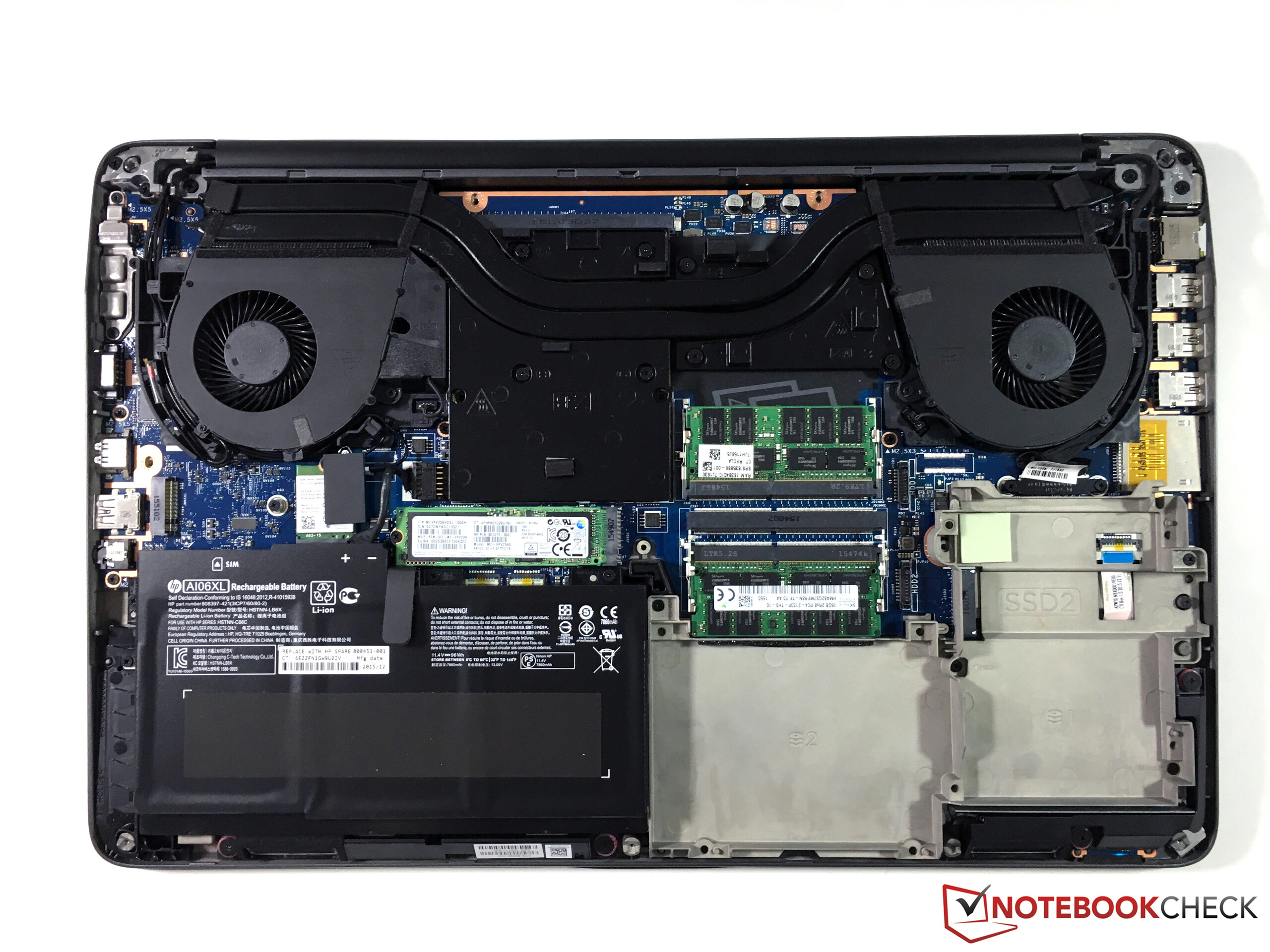

+ erg goede uitbreidbaarheid
+ snelle WLAN
+ grote selectie aan onderdelen

Contra

- luid en warm onder belasting
- scherm zou helderder mogen
- ons testtoestel had een piepend scharnier
- processor wordt niet ten volle benut onder aanhoudende belasting
- verminderde prestaties in batterij-modus
- batterij niet meer toegankelijk van buiten
- PWM
- locatie van de SIM-sleuf
- erg duur
In review: HP ZBook 17 G3. Test model courtesy of HP Germany.
In review: HP ZBook 17 G3. Test model courtesy of HP Germany.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Is de HP ZBook 17 G3 het perfecte workstation? Het antwoord is nee, maar HP biedt wel een zeer goed toestel. We zijn vooral erg te spreken over het huidige design van de behuizing van de G3-serie, die tot de beste behoort op vlak van bouwkwaliteit. We krijgen moderne poorten, een grote variëteit aan componenten en de onderhoudbaarheid is uitstekend.

Een groter minpunt is de emissies: sommige concurrenten presteren hier een stuk beter, ondanks vergelijkbare onderdelen. Het Full-HD-scherm kan ons evenmin volledig overtuigen. Dit is reeds erg nauwkeurig in geleverde toestand en het contrast is ook uitstekend, maar de helderheid is een stuk lager dan dat van de concurrenten, inclusief de voorganger. Het optionele 4K DreamColor scherm zou op dit vlak beter scoren, maar configuraties met deze optie zijn momenteel nog niet verkrijgbaar. Een ander probleem van ons testtoestel is het piepende scharnier, maar we beschouwen dit als een alleenstaand incident.

De HP ZBook 17 G3 is een erg goed workstation met moderne interfaces en een uitstekende behuizing. De geteste configuratie is echter ook verreweg het duurste toestel en wordt niettemin op een aantal vlakken overtroffen door zijn concurrenten.

Een ander belangrijk aspect is uiteraard de prijs; en ons testmodel is met meer dan 4500 euro (~$5014) extreem duur. Het is zeker de moeite waard om eens te kijken naar de goedkopere configuraties die reeds vanaf ongeveer 2100 euro (~$2340) starten. We hebben nu alle huidige workstations van de grote fabrikanten getest en het is niet eenvoudig om een duidelijke winnaar aan te wijzen. De ZBook 17 G3 haalt een iets hogere score, maar elk toestel heeft zijn eigen voor- en nadelen, waardoor persoonlijke voorkeuren en beoogde gebruiksscenario's ook erg belangrijk zijn. In het bijzonder de emissies van de ZBook 17 G3 laten nog ruimte voor verbeteringen.

HP ZBook 17 G3 TZV66eA - 24-05-2016 v5.1(old)
Andreas Osthoff

Behuizing
94 / 98 → 96%
Toetsenbord
91%
Aanwijsapparaat
89%
Aansluitmogelijkheden
85 / 81 → 100%
Gewicht
55 / 10-66 → 80%
Batterij
80%
Beeldscherm
90%
Gaming-performance
89%
Applicatie-performance
94%
Temperatuur
86 / 95 → 90%
Luidheid
81 / 90 → 90%
Audio
74%
Camera
42 / 85 → 49%
Gemiddelde
81%
89%
Workstation - Gewogen Gemiddelde

Pricecompare

Andreas Osthoff
Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1268 articles published on Notebookcheck since 2013
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport HP ZBook 17 G3 Workstation
Andreas Osthoff, 2016-06- 5 (Update: 2016-06- 5)
