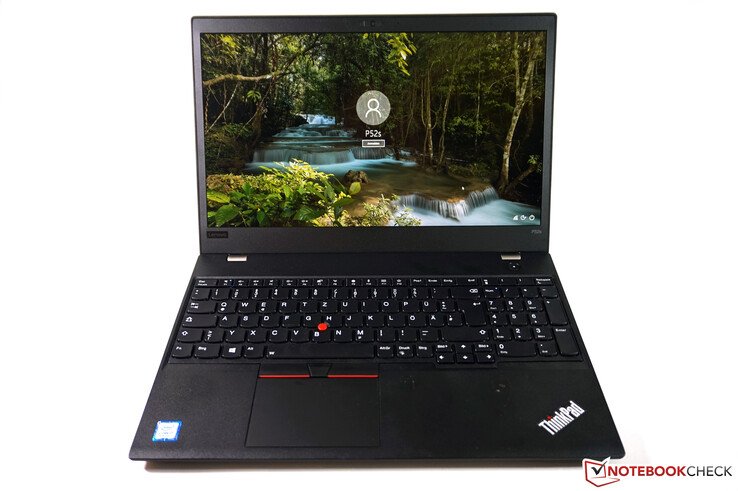

Kort testrapport Lenovo ThinkPad P52s (i7-8550U, Full-HD) Workstation

Benjamin Herzig, 28-06-2018

Zwakke quadro. Na een blik te hebben geworpen op de ThinkPad P52s leken we een déjà-vu te ervaren. Het mobiele werkstation lijkt namelijk sprekend op de ThinkPad T580. Is het combineren van een zakelijke notebook behuizing met een Quadro GPU een goed idee? Lees het in dit artikel.

Lenovo ThinkPad P52s-20LB000HGE
Grafische kaart
NVIDIA Quadro P500 - 2048 MB, Core: 1519 MHz, Geheugen: 1253 MHz, GDDR5, 388.16, Optimus
Geheugen
8192 MB
, DDR4-2400, Single-Channel, max. 32 GB
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, NV156FHM-N47, IPS LED, glimmend: nee
Moederbord
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Opslag
Samsung PM961 MZVLW256HEHP, 256 GB
, M.2 2280 PCIe NVMe
Geluidskaart
Realtek ALC3287
Verbindingen
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: gecombineerde audiopoort, Card Reader: 4-in-1 SD kaartlezer, 1 SmartCard, 1 Vingerafdruklezer, NFC
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 20.2 x 365.8 x 252.8
Batterij
104 Wh Lithium-Ion, removeable, internal 32-Wh battery, external 72-Wh battery
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit

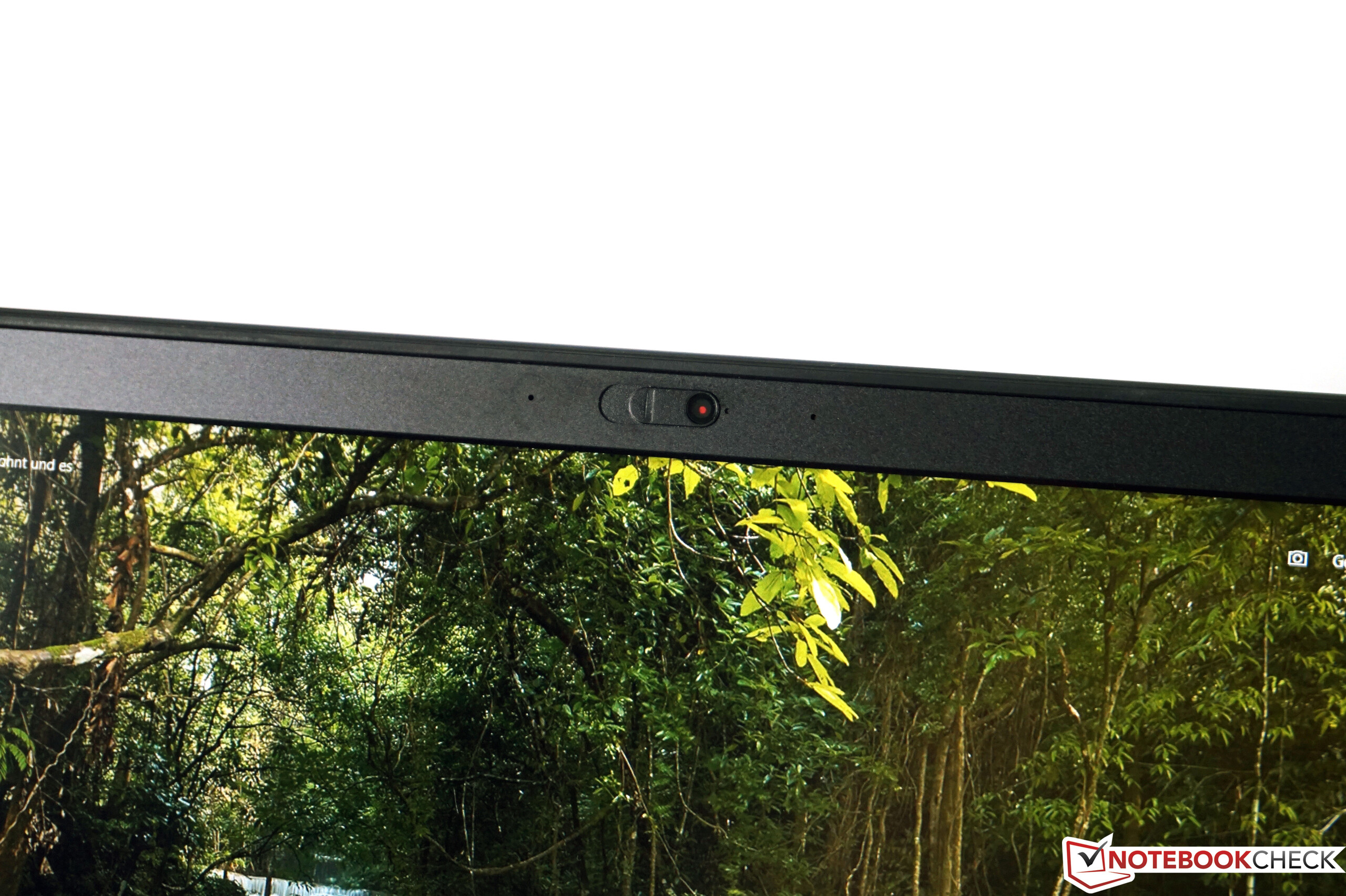

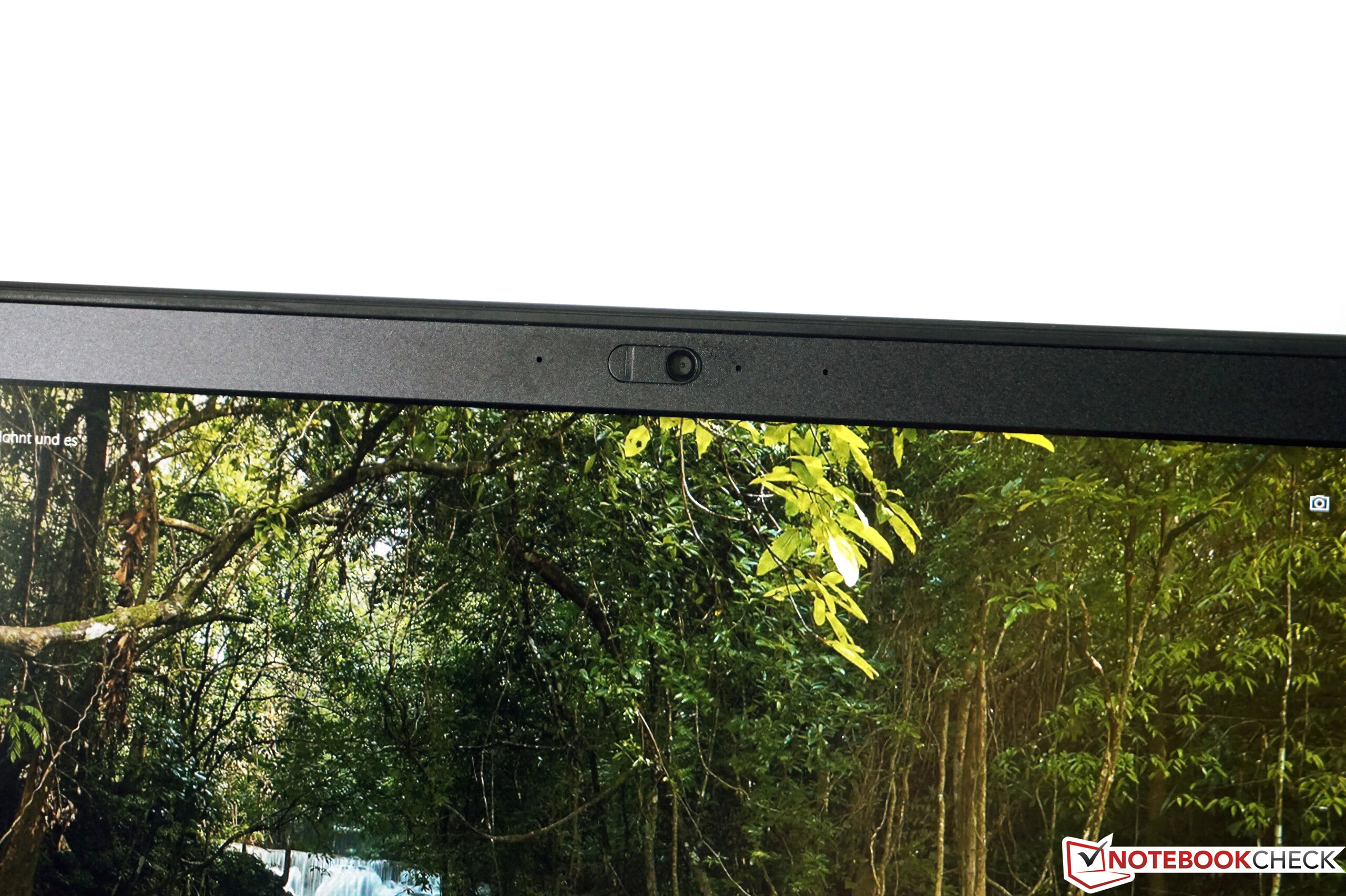

Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: 2 Watt stereo luidsprekers, Toetsenbord: 6 rijen chiclet met nummberblok, Toetsenbordverlichting: ja, Lenovo Vantage, Microsoft Office testversie, 36 Maanden Garantie
Gewicht
2.222 kg, Voeding: 356 g
Prijs
1865 Euro



Size Comparison

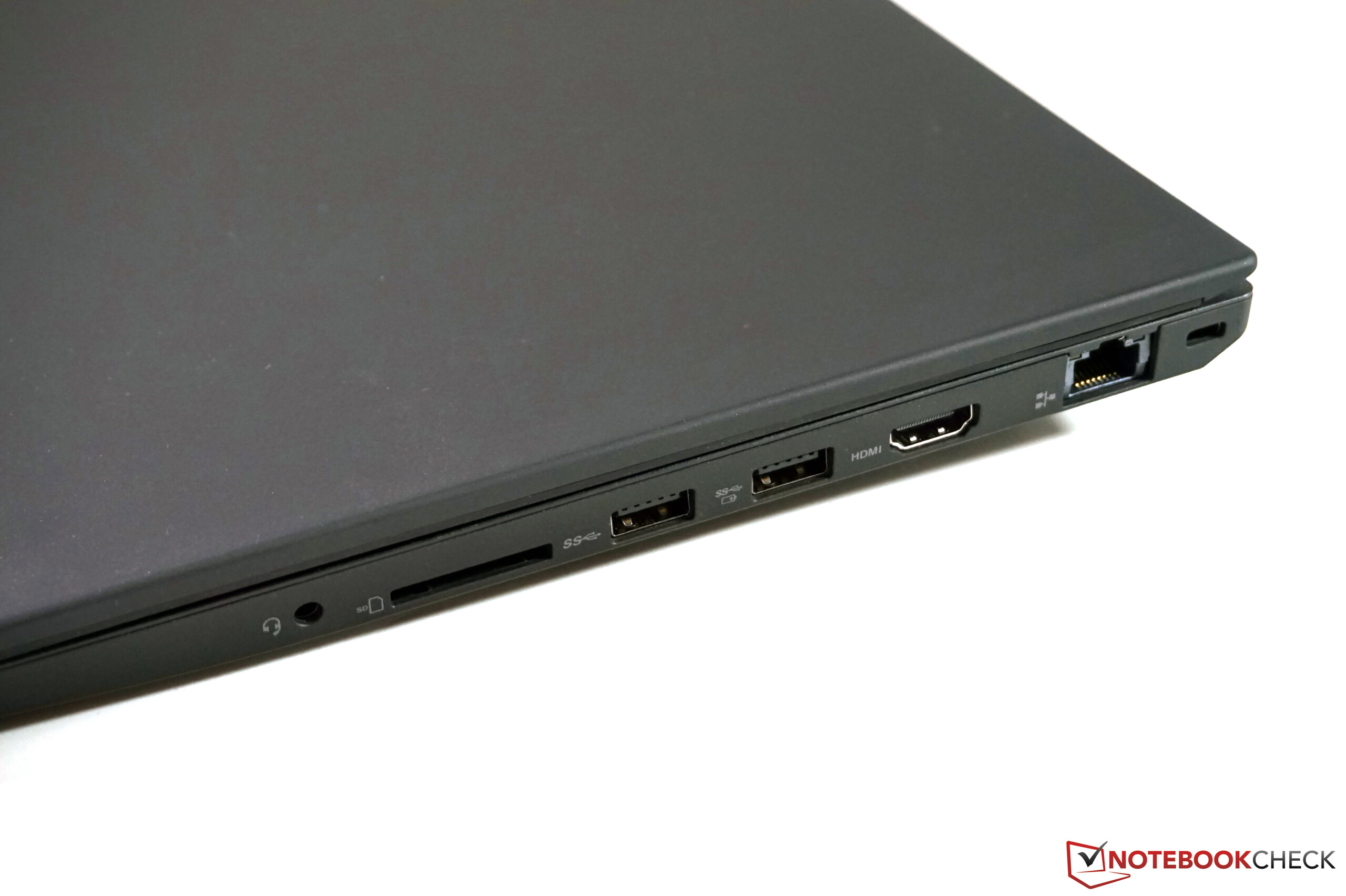

Rechterkant: gecombineerde audiopoort, SD kaartlezer, 2x USB 3.0 Type A, HDMI, RJ45 Ethernet, Kensington Lock
Rechterkant: gecombineerde audiopoort, SD kaartlezer, 2x USB 3.0 Type A, HDMI, RJ45 Ethernet, Kensington Lock
Linkerkant: USB 3.1 Type C, Thunderbolt/docking port, mini Ethernet, smartcard lezer
Linkerkant: USB 3.1 Type C, Thunderbolt/docking port, mini Ethernet, smartcard lezer
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
155 MB/s ∼100% +95%
Average of class Workstation
  (17.2 - 213, n=34)
128 MB/s ∼83% +61%
Lenovo ThinkPad P52s-20LB000HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
79.6 MB/s ∼51%
Lenovo ThinkPad T580-20LAS01H00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.8 MB/s ∼50% -2%
Lenovo ThinkPad P51s 20HB000SGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.8 MB/s ∼50% -4%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
215 MB/s ∼100% +146%
Average of class Workstation
  (18.4 - 255, n=34)
170 MB/s ∼79% +95%
Lenovo ThinkPad P51s 20HB000SGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
89 MB/s ∼41% +2%
Lenovo ThinkPad P52s-20LB000HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.4 MB/s ∼41%
Lenovo ThinkPad T580-20LAS01H00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.4 MB/s ∼40% -2%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
672 MBit/s ∼100% +7%
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
643 MBit/s ∼96% +2%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼95% +1%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
638 MBit/s ∼95% +1%
Lenovo ThinkPad P52s-20LB000HGE
Intel Dual Band Wireless-AC 8265
630 MBit/s ∼94%
Average of class Workstation
  (351 - 705, n=19)
605 MBit/s ∼90% -4%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼100% +5%
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
508 MBit/s ∼96% +1%
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
508 MBit/s ∼96% +1%
Lenovo ThinkPad P52s-20LB000HGE
Intel Dual Band Wireless-AC 8265
505 MBit/s ∼96%
Average of class Workstation
  (287 - 665, n=19)
495 MBit/s ∼94% -2%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
162 MBit/s ∼31% -68%
278
cd/m²
291
cd/m²
283
cd/m²
273
cd/m²
291
cd/m²
289
cd/m²
266
cd/m²
292
cd/m²
291
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 292 cd/m² Gemiddelde: 283.8 cd/m²
Helderheidsverdeling: 91 %
Helderheid in Batterij-modus: 291 cd/m²
Contrast: 2645:1 (Zwart: 0.11 cd/m²)
ΔE Color 6.7 | 0.8-29.43 Ø6.3, calibrated: 4.5
ΔE Greyscale 4.5 | 0.64-98 Ø6.6
61.7% sRGB (Argyll 3D) 39.6% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.28
Lenovo ThinkPad P52s-20LB000HGE
NV156FHM-N47, , 1920x1080, 15.6
HP ZBook 15u G5 2ZC05EA
CMN15E7, , 1920x1080, 15.6
Lenovo ThinkPad P51 20HH0016GE
LEN40BD, B156ZAN02.1, , 3840x2160, 15.6
Dell Precision 5520 UHD
SHP1476, , 3840x2160, 15.6
HP ZBook Studio G4-Y6K17EA
SHP1445, , 3840x2160, 15.6
Lenovo ThinkPad P51s 20HB000SGE
BOE NV156QUM-N44, , 3840x2160, 15.6
Lenovo ThinkPad T580-20LAS01H00
NV156QUM-N44, , 3840x2160, 15.6
Response Times
19%
24%
-17%
-22%
-14%
-27%
Response Time Grey 50% / Grey 80% *
47.2 (25.2, 22)
41.6 (22, 19.6)
12%
40.8 (20.8, 20)
14%
59.2 (27.6, 31.6)
-25%
44.8 (22, 22.8)
5%
38.4 (20.4, 18)
19%
51.2 (24.4, 26.8)
-8%
Response Time Black / White *
38.4 (22.8, 15.6)
28.8 (15.6, 13.2)
25%
25.2 (14, 11.2)
34%
41.6 (26.8, 14.8)
-8%
30 (17.2, 12.8)
22%
24.8 (13.6, 11.2)
35%
29.6 (17.2, 12.4)
23%
PWM Frequency
21550 (91)
25770 (40)
20%
1497 (50)
-93%
980.4 (90)
-95%
952.4 (99)
-96%
Screen
-9%
8%
-8%
16%
-3%
13%
Brightness middle
291
229
-21%
317
9%
372.4
28%
324
11%
317
9%
310
7%
Brightness
284
212
-25%
309
9%
368
30%
338
19%
290
2%
283
0%
Brightness Distribution
91
88
-3%
89
-2%
90
-1%
78
-14%
85
-7%
87
-4%
Black Level *
0.11
0.23
-109%
0.36
-227%
0.48
-336%
0.3
-173%
0.32
-191%
0.24
-118%
Contrast
2645
996
-62%
881
-67%
776
-71%
1080
-59%
991
-63%
1292
-51%
Colorchecker DeltaE2000 *
6.7
4.2
37%
2.7
60%
2.6
61%
1.6
76%
3.6
46%
3.1
54%
Colorchecker DeltaE2000 max. *
20.2
18
11%
4.1
80%
5.6
72%
4.6
77%
6.6
67%
7.6
62%
Colorchecker DeltaE2000 calibrated *
4.5
4.2
7%
2.2
51%
Greyscale DeltaE2000 *
4.5
2
56%
3
33%
3.7
18%
2.5
44%
4.2
7%
2.3
49%
Gamma
2.28 105%
2.23 108%
2.27 106%
2.14 112%
2.21 109%
2.24 107%
2.21 109%
CCT
7503 87%
6292 103%
6077 107%
7096 92%
6273 104%
6740 96%
6876 95%
Color Space (Percent of AdobeRGB 1998)
39.6
41
4%
87.6
121%
63
59%
85.7
116%
59.5
50%
59.1
49%
Color Space (Percent of sRGB)
61.7
64.5
5%
99.5
61%
99
60%
98.9
60%
91.1
48%
90.1
46%
Totaal Gemiddelde (Programma / Instellingen)
5% / -3%
16% / 10%
-13% / -9%
-3% / 7%
-9% / -6%
-7% / 5%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

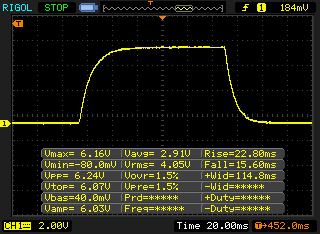

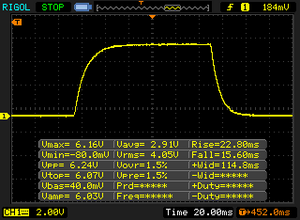

       Responstijd Zwart naar Wit
38.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 22.8 ms stijging
↘ 15.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 95 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (26 ms) van alle geteste toestellen.

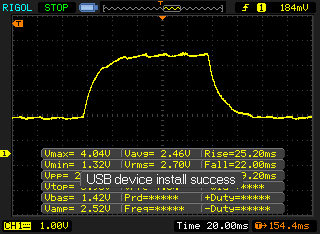

       Responstijd 50% Grijs naar 80% Grijs
47.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 25.2 ms stijging
↘ 22 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 76 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (41.6 ms) van alle geteste toestellen.

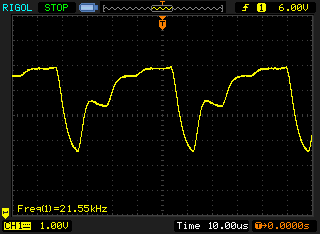

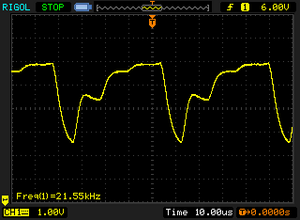

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 21550 Hz ≤ 91 % helderheid instelling

Het backlight van het scherm flikkert aan 21550 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 91 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 21550 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 54 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 10727 (minimum: 43 - maximum: 588200) Hz waargenomen.

HWiNFO
HWiNFO

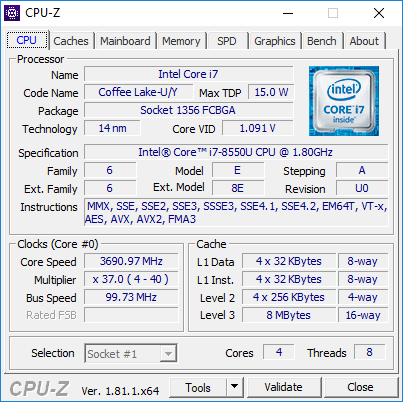

CPU-Z
CPU-Z
CPU-Z Caches
CPU-Z Caches

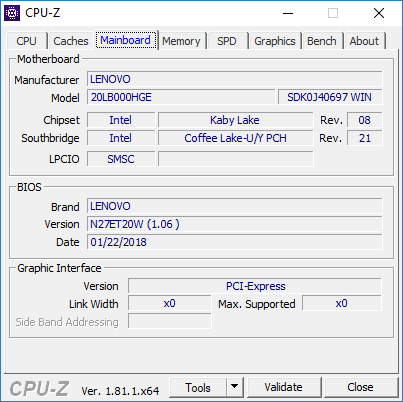

CPU-Z Mainboard
CPU-Z Mainboard
CPU-Z Memory
CPU-Z Memory

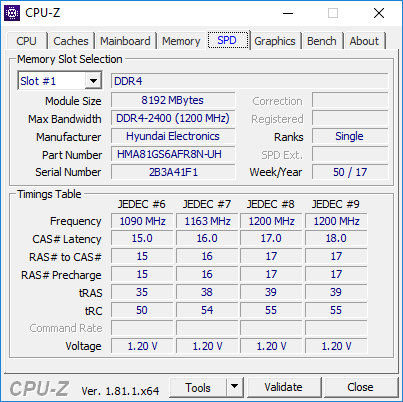

CPU-Z SPD
CPU-Z SPD

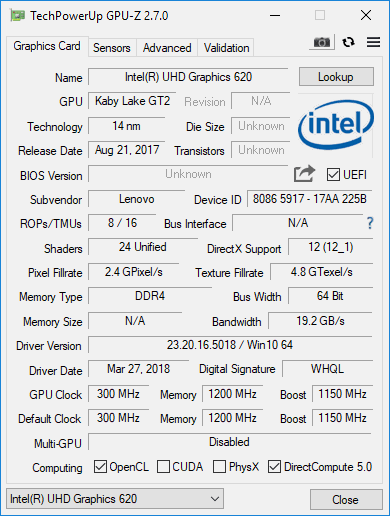

GPU-Z Intel UHD Graphics 620
GPU-Z Intel UHD Graphics 620

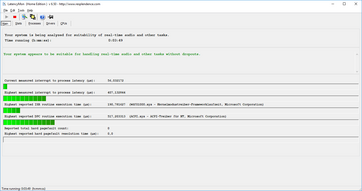

LatencyMon
LatencyMon


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Schenker Key 15 Coffee Lake
Intel Core i7-8750H
175 Points ∼100% +2%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼98% +1%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
171 Points ∼98% 0%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
171 Points ∼98%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points ∼97% -1%
HP ZBook Studio G4-Y6K17EA
Intel Xeon E3-1505M v6
170 Points ∼97% -1%
Lenovo ThinkPad T580-20LAS01H00
Intel Core i7-8550U
163 Points ∼93% -5%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
162 Points ∼93% -5%
Average Intel Core i7-8550U
  (108 - 172, n=45)
161 Points ∼92% -6%
Average of class Workstation
  (117 - 179, n=67)
151 Points ∼86% -12%
CPU Multi 64Bit
Schenker Key 15 Coffee Lake
Intel Core i7-8750H
1103 Points ∼100% +53%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
792 Points ∼72% +10%
HP ZBook Studio G4-Y6K17EA
Intel Xeon E3-1505M v6
737 Points ∼67% +3%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
719 Points ∼65%
Lenovo ThinkPad T580-20LAS01H00
Intel Core i7-8550U
660 Points ∼60% -8%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points ∼59% -9%
Average of class Workstation
  (260 - 873, n=68)
642 Points ∼58% -11%
Average Intel Core i7-8550U
  (301 - 761, n=47)
574 Points ∼52% -20%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼50% -23%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
379 Points ∼34% -47%
Cinebench R15 CPU Single 64Bit
171 Points
Cinebench R15 CPU Multi 64Bit
719 Points
Cinebench R15 OpenGL 64Bit
92.97 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 8
Work Score Accelerated v2
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼100% +3%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4980 Points ∼97%
Average Intel Core i7-8550U, NVIDIA Quadro P500

4980 Points ∼97% 0%
Average of class Workstation
  (3311 - 5655, n=50)
4738 Points ∼92% -5%
HP ZBook Studio G4-Y6K17EA
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4408 Points ∼86% -11%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points ∼84% -14%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
4256 Points ∼83% -15%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4193 Points ∼82% -16%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
4063 Points ∼79% -18%
Home Score Accelerated v2
HP ZBook Studio G4-Y6K17EA
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4093 Points ∼100% +10%
Average of class Workstation
  (2320 - 5505, n=49)
3920 Points ∼96% +5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3728 Points ∼91%
Average Intel Core i7-8550U, NVIDIA Quadro P500

3728 Points ∼91% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼91% 0%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
3641 Points ∼89% -2%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points ∼86% -6%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3232 Points ∼79% -13%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
3145 Points ∼77% -16%
PCMark 8 Home Score Accelerated v2
3728 punten
PCMark 8 Creative Score Accelerated v2
4851 punten
PCMark 8 Work Score Accelerated v2
4980 punten
Help
Lenovo ThinkPad P52s-20LB000HGE
Samsung PM961 MZVLW256HEHP
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad P51 20HH0016GE
Samsung PM961 NVMe MZVLW512HMJP
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP ZBook Studio G4-Y6K17EA
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad P51s 20HB000SGE
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Lenovo ThinkPad T580-20LAS01H00
Samsung SSD PM981 MZVLB512HAJQ-000L7
Average Samsung PM961 MZVLW256HEHP

CrystalDiskMark 3.0
3%
51%
54%
46%
24%
-11%
18%
Write 4k QD32
470.67
351.5
-25%
559.5
19%
506.1
8%
595.1
26%
548.6
17%
264.9
-44%
399 (94.9 - 621, n=37)
-15%
Read 4k QD32
562.94
276.7
-51%
664.2
18%
633.1
12%
645.3
15%
641.7
14%
336.2
-40%
436 (132 - 650, n=37)
-23%
Write 4k
164.77
99.1
-40%
176
7%
169.4
3%
182
10%
161.4
-2%
135.3
-18%
131 (46.6 - 177, n=37)
-20%
Read 4k
61.63
35.5
-42%
61.27
-1%
56.08
-9%
56.54
-8%
54.8
-11%
63.93
4%
53.5 (29.8 - 62.6, n=37)
-13%
Write 512
557.75
488.9
-12%
1157
107%
1611
189%
1279
129%
959.4
72%
564.8
1%
777 (338 - 890, n=37)
39%
Read 512
557.38
912.4
64%
1038
86%
459.1
-18%
391.4
-30%
782.1
40%
555.3
0%
897 (406 - 1295, n=37)
61%
Write Seq
862.2
916.7
6%
1541
79%
1662
93%
1562
81%
1138
32%
924
7%
1118 (341 - 1409, n=37)
30%
Read Seq
897.9
2040
127%
1705
90%
2253
151%
2229
148%
1189
32%
943.5
5%
1628 (800 - 2196, n=37)
81%
Samsung PM961 MZVLW256HEHP
Sequential Read: 897.9 MB/s
Sequential Write: 862.2 MB/s
512K Read: 557.38 MB/s
512K Write: 557.75 MB/s
4K Read: 61.63 MB/s
4K Write: 164.77 MB/s
4K QD32 Read: 562.94 MB/s
4K QD32 Write: 470.67 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
7425 Points ∼100% +146%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
5515 Points ∼74% +82%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
5105 Points ∼69% +69%
Average of class Workstation
  (841 - 20623, n=82)
4891 Points ∼66% +62%
Lenovo ThinkPad T580-20LAS01H00
NVIDIA GeForce MX150, Intel Core i7-8550U
4392 Points ∼59% +45%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3632 Points ∼49% +20%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
3022 Points ∼41%
Average NVIDIA Quadro P500

3022 Points ∼41% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2658 Points ∼36% -12%
3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5850 Points ∼100% +158%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
4165 Points ∼71% +83%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
4118 Points ∼70% +81%
Average of class Workstation
  (752 - 14990, n=74)
4102 Points ∼70% +81%
Lenovo ThinkPad T580-20LAS01H00
NVIDIA GeForce MX150, Intel Core i7-8550U
3291 Points ∼56% +45%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2644 Points ∼45% +16%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2342 Points ∼40% +3%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
2270 Points ∼39%
Average NVIDIA Quadro P500

2270 Points ∼39% 0%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
86.23 fps ∼100% +61%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
78.37 fps ∼91% +47%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
69.01 fps ∼80% +29%
Average of class Workstation
  (22.4 - 166, n=58)
66.6 fps ∼77% +25%
Average NVIDIA Quadro P500

53.5 fps ∼62% 0%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
53.48 fps ∼62%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
45.9 fps ∼53% -14%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.31 fps ∼36% -41%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
57.74 fps ∼100% +104%
Average of class Workstation
  (4.87 - 184, n=58)
47.6 fps ∼82% +68%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
34.66 fps ∼60% +22%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
34.18 fps ∼59% +21%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
28.31 fps ∼49%
Average NVIDIA Quadro P500

28.3 fps ∼49% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
24.13 fps ∼42% -15%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.74 fps ∼32% -34%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
32.8 fps ∼100% +170%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
26.2 fps ∼80% +116%
Average of class Workstation
  (3.93 - 68.8, n=58)
26.2 fps ∼80% +116%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
22.17 fps ∼68% +83%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
12.13 fps ∼37%
Average NVIDIA Quadro P500

12.1 fps ∼37% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
11.8 fps ∼36% -3%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.28 fps ∼22% -40%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
25.66 fps ∼100% +175%
Average of class Workstation
  (0.99 - 71.5, n=58)
18.1 fps ∼71% +94%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
17.77 fps ∼69% +90%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
17.49 fps ∼68% +87%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
9.33 fps ∼36%
Average NVIDIA Quadro P500

9.33 fps ∼36% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
8.29 fps ∼32% -11%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3.99 fps ∼16% -57%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
46.93 fps ∼100% +117%
Average of class Workstation
  (5.4 - 102, n=58)
38.4 fps ∼82% +78%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
37.29 fps ∼79% +73%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
32.07 fps ∼68% +48%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
21.61 fps ∼46%
Average NVIDIA Quadro P500

21.6 fps ∼46% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
19.51 fps ∼42% -10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
11.75 fps ∼25% -46%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5.26 fps ∼100% +856%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
3.85 fps ∼73% +600%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
3.78 fps ∼72% +587%
Average of class Workstation
  (0.06 - 15, n=58)
3.5 fps ∼67% +536%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
0.55 fps ∼10%
Average NVIDIA Quadro P500

0.55 fps ∼10% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
0.53 fps ∼10% -4%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
0.26 fps ∼5% -53%
1900x1060 Creo (creo-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
68.15 fps ∼100% +90%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
46.97 fps ∼69% +31%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
46.12 fps ∼68% +28%
Average of class Workstation
  (14 - 132, n=58)
45.7 fps ∼67% +27%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
35.91 fps ∼53%
Average NVIDIA Quadro P500

35.9 fps ∼53% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
27.98 fps ∼41% -22%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.82 fps ∼28% -48%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
72.03 fps ∼100% +158%
Average of class Workstation
  (13.4 - 156, n=58)
51.4 fps ∼71% +84%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
45.86 fps ∼64% +64%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
45.75 fps ∼64% +64%
Average NVIDIA Quadro P500

28 fps ∼39% 0%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
27.97 fps ∼39%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
26.22 fps ∼36% -6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17.1 fps ∼24% -39%
1900x1060 3ds Max (3dsmax-05)
Average of class Workstation
  (11.4 - 93.6, n=7)
39.2 fps ∼100%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.28 fps ∼80%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
19.73 fps ∼50%
3DMark 11 Performance
3338 punten
3DMark Fire Strike Score
2144 punten
3DMark Fire Strike Extreme Score
921 punten
Help
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
47 fps ∼100% +90%
Average of class Workstation
  (6 - 129, n=52)
43.4 fps ∼92% +76%
HP ZBook Studio G4-Y6K17EA
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
42.61 fps ∼91% +73%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
32.5 fps ∼69% +32%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
24.7 fps ∼53%
Average NVIDIA Quadro P500

24.7 fps ∼53% 0%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
24.2 fps ∼51% -2%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
23.4 fps ∼50% -5%
The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
66.6 fps ∼100% +153%
Average of class Workstation
  (16.7 - 123, n=32)
51.6 fps ∼77% +96%
HP ZBook Studio G4-Y6K17EA
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
45.9 fps ∼69% +75%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
31.7 fps ∼48% +21%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
29 fps ∼44% +10%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
26.3 fps ∼39%
Average NVIDIA Quadro P500

26.3 fps ∼39% 0%
lage gem. hoge ultra
BioShock Infinite (2013) 134.977.866.424.7fps
The Witcher 3 (2015) 35.826.314.58.2fps
Dota 2 Reborn (2015) 92.985.34944.8fps
Rise of the Tomb Raider (2016) 47.827.714.5fps
The Division (2016) 47.72912.9fps
For Honor (2017) 63.421.42116fps
Ghost Recon Wildlands (2017) 36.914.7fps
Assassin´s Creed Origins (2017) 3314fps
Star Wars Battlefront 2 (2017) 55.617.3fps
Far Cry 5 (2018) 321513fps

Geluidsniveau

Onbelast
29 / 29 / 31.2 dB (A)
Belasting
32.5 / 37.5 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2028.531.433.831.132.52528.330.330.729.330.43131.334.932.131.129.54028.630.529.631.1275028.127.227.529.727.66326.827.127.22627.88025.524.926.626.62610025.12627.425.727.412524.125.225.323.923.816024.625.426.623.824.320022.922.524.822.623.525022.522.32522.422.43152120.821.820.420.640020.619.620.218.920.750020.319.419.218.121.563021.219.519.317.722.680021.419.619.516.723.5100022.321.519.116.723.212502319.818.916.124.5160024.321.919.315.724.3200023.220.318.415.925250025.221.519.615.927.1315027.522.919.915.931.340002420.118.116.326.850002118.317.416.623.7630020.418.317.416.922.8800018.818.217.617.219.21000018.818.417.717.218.31250018.918.517.717.3181600020.221.217.917.418SPL35.332.531.22937.5N2.21.71.61.22.5median 22.3Lenovo ThinkPad P52s-20LB000HGEmedian 20.3median 19.3median 17.2median 23.5Delta1.71.51.91.71.533.129.631.933.329.526.52929.732.730.430.634.730.527.328.130.32927.528.727.526.827.426.327.725.725.425.631.726.626.225.827.224.424.525252423.623.224.223.122.422.223.421.420.921.621.920.119.520.421.119.418.71920.719.118.218.521.519.417.717.421.418.517.517.222.519.117.217.422.320.116.716.924.120.716.516.826.220.716.717.427.722.617.417.427.919171727.418.217.117.322.917.917.417.220.717.818.417.52018.919.217.918.518.719.417.917.92020.918.317.719.220.41817.531.93029.836.51.61.31.32.3median 19.4HP ZBook 15u G5 2ZC05EAmedian 18.4median 17.9median 22.31.21.81.72.3hearing rangehide median Fan Noise
Max. Belasting
 39.6 °C40.3 °C36.8 °C
 40.9 °C41.8 °C37 °C
 36.9 °C31.3 °C32 °C
Maximum: 41.8 °C
Gemiddelde: 37.4 °C
44.2 °C51.2 °C55.9 °C
46.4 °C50.6 °C55 °C
28.4 °C32 °C33.1 °C
Maximum: 55.9 °C
Gemiddelde: 44.1 °C
Stroomadapter (max.)  40.3 °C | Kamertemperatuur 21.2 °C | Voltcraft IR-900
The maximum temp on the upper side is 41.8 °C, compared to the average of 35.9 °C ranging from 21.1 °C to 71 °C for class Workstation.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.130.72529.330.13131.131.84031.130.45029.730.6632630.98026.630.510025.732.512523.934.916023.841.520022.654.725022.462.731520.462.940018.962.750018.164.563017.766.380016.775.3100016.773.5125016.170.4160015.769.7200015.967.2250015.968.4315015.966.1400016.364.3500016.665.3630016.963.2800017.262.61000017.253.21250017.353.61600017.457.6SPL2980.6N1.248median 17.2Lenovo ThinkPad P52s-20LB000HGEmedian 63.2Delta1.76.231.935.32931.230.634.428.131.228.729.126.330.425.627.725.829.62531.423.240.222.251.421.654.320.457.61965.718.568.917.46917.265.817.469.316.969.916.869.817.472.217.472.51772.617.374.317.273.417.573.717.97117.972.618.367.61854.329.883.61.359.2median 17.9HP ZBook 15u G5 2ZC05EAmedian 691.78.7hearing rangehide median Pink Noise
Lenovo ThinkPad P52s-20LB000HGE audio analysis

(±) | speaker loudness is average but good (80.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 11% similar, 67% worse
» The best had a delta of 13%, average was 20%, worst was 31%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 72% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP ZBook 15u G5 2ZC05EA audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.9% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (2.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.4% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 11% similar, 50% worse
» The best had a delta of 13%, average was 20%, worst was 31%
Compared to all devices tested
» 28% of all tested devices were better, 6% similar, 65% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.36 / 0.58 Watt
Inactiefdarkmidlight 4.1 / 7.7 / 10.7 Watt
Belasting midlight 52 / 65 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
HP ZBook Studio G4-Y6K17EA
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
Lenovo ThinkPad P51s 20HB000SGE
7600U, Quadro M520, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS, 3840x2160, 15.6
Lenovo ThinkPad T580-20LAS01H00
8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ-000L7, IPS LED, 3840x2160, 15.6
Power Consumption
0%
-97%
-95%
-117%
-27%
-21%
Idle Minimum *
4.1
3.2
22%
8.6
-110%
8.9
-117%
12.6
-207%
5.8
-41%
5.3
-29%
Idle Average *
7.7
6.1
21%
15.9
-106%
13.6
-77%
17.1
-122%
10.4
-35%
10.2
-32%
Idle Maximum *
10.7
9.7
9%
22.1
-107%
14.1
-32%
19.3
-80%
13.5
-26%
13.6
-27%
Load Average *
52
62
-19%
84.4
-62%
100.3
-93%
88.3
-70%
62.4
-20%
58.3
-12%
Load Maximum *
65
71
-9%
130.6
-101%
126.3
-94%
147.3
-127%
73.1
-12%
65.3
-0%
Witcher 3 ultra *
38.8
48
-24%
100.2
-158%
74.8
-93%
47.8
-23%

* ... kleiner is beter

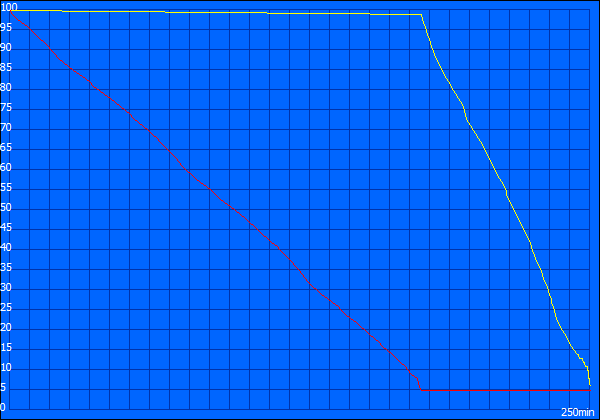

SPECviewperf looptijd: 250 minuten
SPECviewperf looptijd: 250 minuten

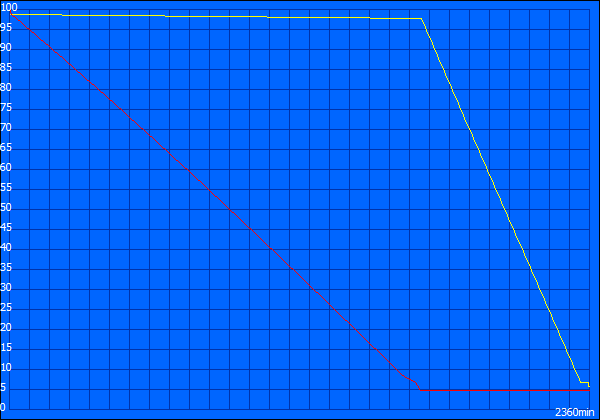

Rust looptijd: 2360 minuten
Rust looptijd: 2360 minuten

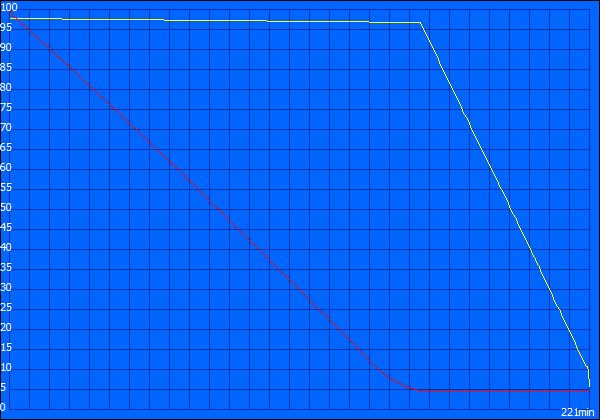

Belasting looptijd: 221 minuten
Belasting looptijd: 221 minuten
WiFi looptijd: 974 minuten
WiFi looptijd: 974 minuten

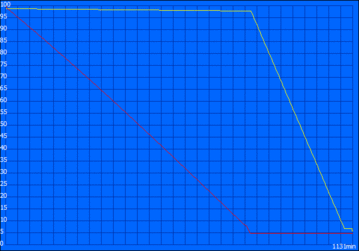

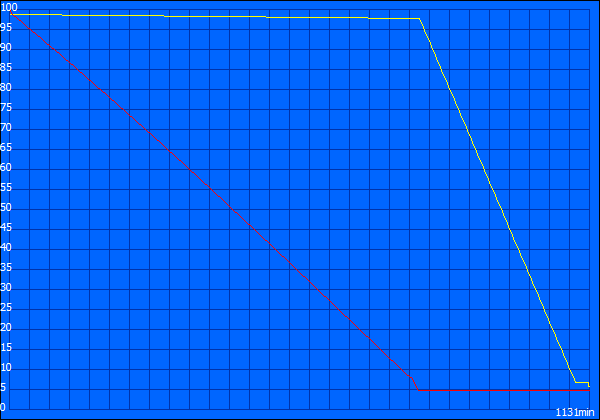

Big Buck Bunny looptijd: 1131 minuten
Big Buck Bunny looptijd: 1131 minuten

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
39h 20min
NBC WiFi Websurfing Battery Test 1.3 (Edge 41.16299.402.0)
16h 14min
Big Buck Bunny H.264 1080p
18h 51min
Belast (maximale helderheid)
3h 41min
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, 104 Wh
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, 90 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
HP ZBook Studio G4-Y6K17EA
E3-1505M v6, Quadro M1200, 64 Wh
Lenovo ThinkPad P51s 20HB000SGE
7600U, Quadro M520, 104 Wh
Lenovo ThinkPad T580-20LAS01H00
8550U, GeForce MX150, 105 Wh
Average of class Workstation

Batterijduur
-37%
-58%
-72%
-80%
-13%
-44%
-67%
Reader / Idle
2360
1301
-45%
981
-58%
724
-69%
410
-83%
1581
-33%
1181
-50%
539 (63 - 2360, n=102)
-77%
H.264
1131
623
-45%
455
-60%
700
-38%
565
-50%
362 (123 - 1131, n=48)
-68%
WiFi v1.3
974
514
-47%
413
-58%
254
-74%
201
-79%
712
-27%
522
-46%
365 (106 - 974, n=45)
-63%
Load
221
200
-10%
95
-57%
61
-72%
50
-77%
323
46%
158
-29%
87.8 (22 - 323, n=95)
-60%

Pro

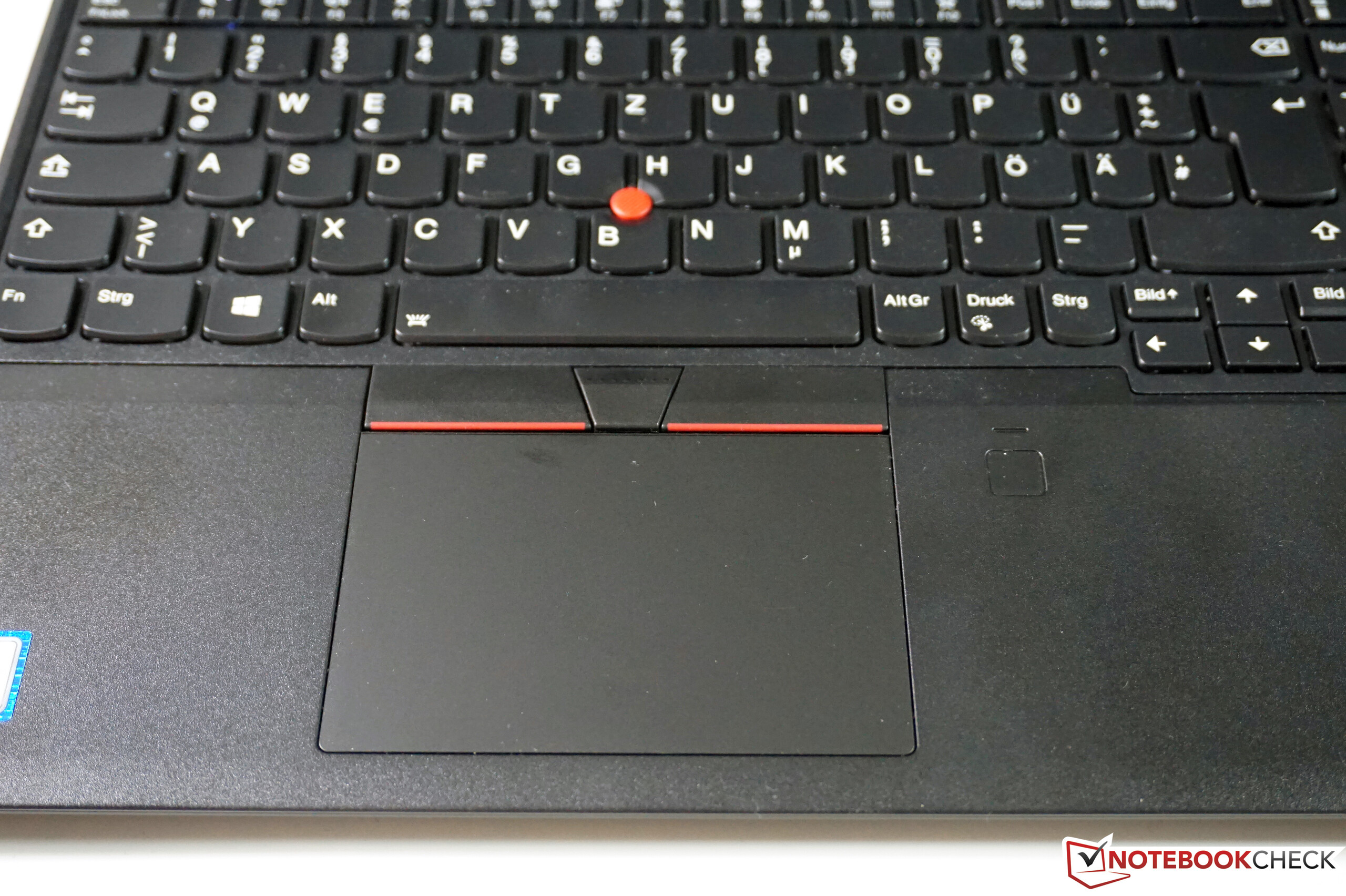

+ Zeer goede ThinkPad invoerapparaten
+ Zeer lange looptijden

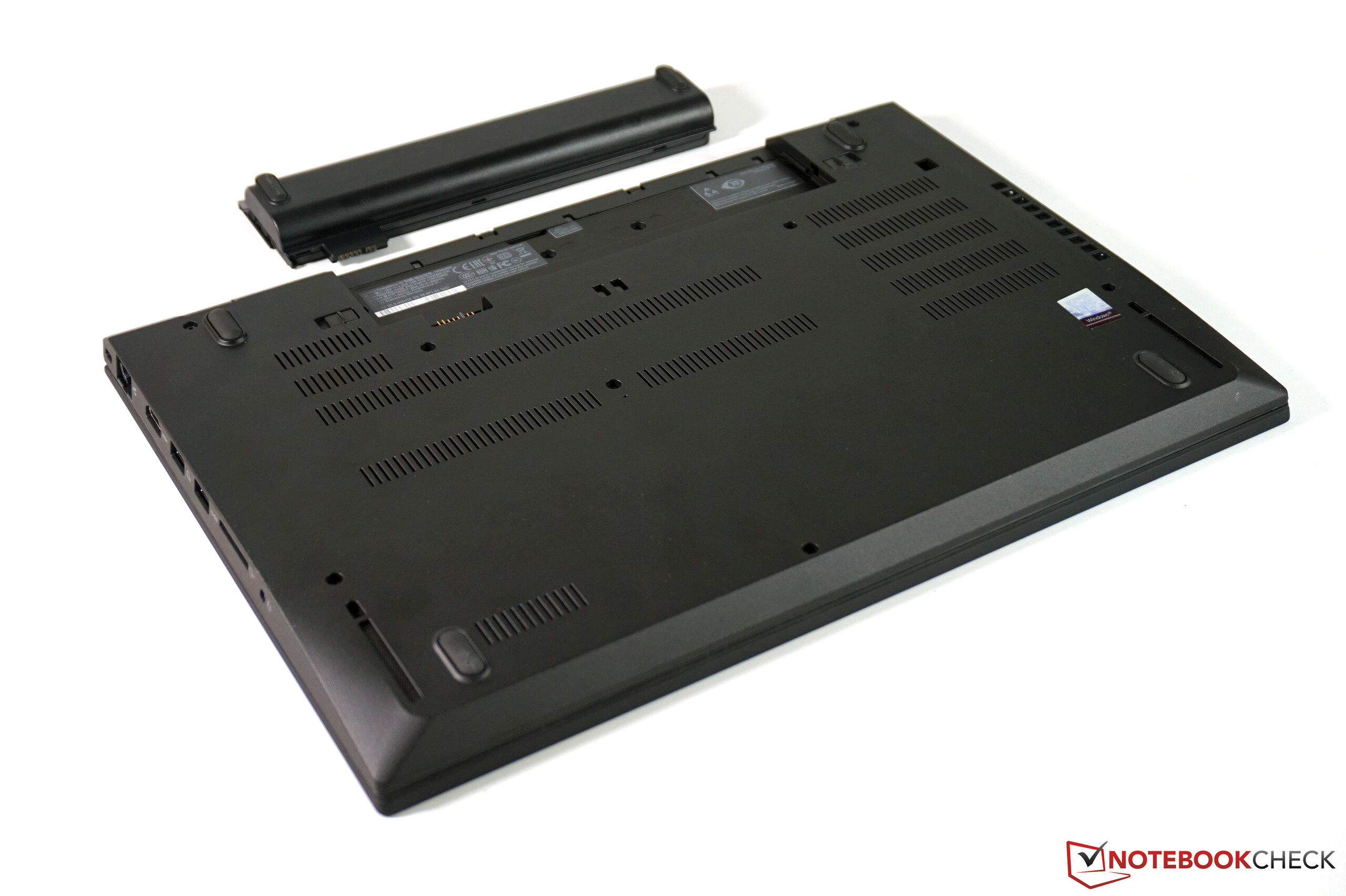

+ Robuuste behuizing met onderhoudsmogelijkheden
+ Veel moderne poorten
+ Bovengemiddelde CPU prestaties
+ 3 jaar garantie
+ Veel beveiligingsopties, waaronder ThinkShutter
+ Flexibel Power Bridge accusysteem

Contra

- Quadro P500 zwakker dan de MX150 in de ThinkPad T580 met dezelfde behuizing
- Klein kleurenspectrum
- Hoge warmteontwikkeling
- Lange laadtijden

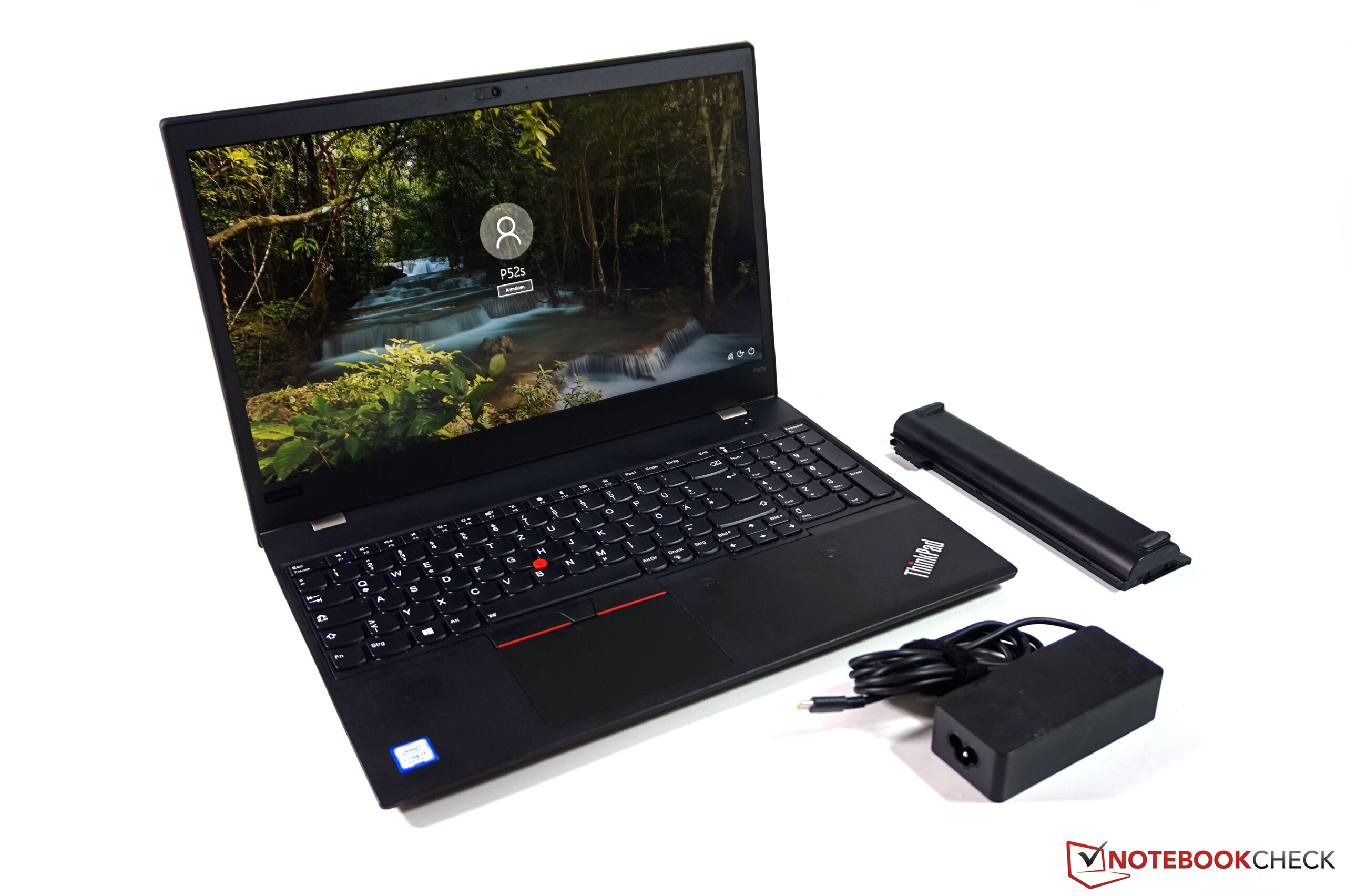

Lenovo ThinkPad P52s. Testmodel geleverd door lapstars.de
Lenovo ThinkPad P52s. Testmodel geleverd door lapstars.de

Voor het volledige, Engelse testrapport, klik hier.

Tot nu is het concept van een werkstation met energie-efficiënte processoren nooit echt goed uit de verf gekomen. De Lenovo ThinkPad P52s is de eerste laptop waarbij dit idee aan begint te slaan.

Dit komt voornamelijk door de Ultra-Low-Voltage processoren van Kaby Lake Refresh generatie, die grote sprongen in rekenkracht hebben gemaakt. Hoewel de CPU prestaties nog ver af liggen van 45 Watt Coffee Lake CPU's, voldoet de chip aan de eisen van een mobiel werkstation. Daarnaast presteert de processor bovengemiddeld goed en aanzienlijk beter dan in de ZBook 15u G5. Ook heeft de P52s meerdere sterke kanten overgenomen van de ThinkPad T580, waaronder de robuuste behuizing met onderhoudsmogelijkheden, de populaire ThinkPad invoerapparaten, het grote aanbod van moderne poorten, de vele beveiligingsmogelijkheden en garantietermijn. In tegenstelling tot de T580 heeft dit testmodel lange looptijden n PowerBridge, wat grote voordelen met zich meebrengt.

Ironisch genoeg is de Quadro P500, het enige echte verschil tussen de P52s en ThinkPad T580, gelijk de zwakste schakel. De prestaties van de Quadro GPU zijn geen partij voor de GeForce MX150 in de T580 vanwege een klein aantal shaders. Ook zijn diverse aandachtspunten van de T580 overgenomen door de P52s, zoals de lange laadtijden en grote warmteontwikkeling. Het beeldscherm van onze P52s heeft slechts een Full-HD resolutie. Bepaalde testresultaten komen ver uit boven de door Lenovo beloofde waardes, waaronder het contrast. Echter, het kleurenspectrum is nog steeds teleurstellend, wat een significant nadeel is voor een mobiel werkstation.

We kunnen de Lenovo ThinkPad P52s aanbevelen, maar zal alleen aantrekkelijk zijn voor gebruikers die weinig vragen van de GPU.

Kunnen we het apparaat een aanbeveling geven? In principe wel. Het apparaat verslaat de direct concurrent, de HP ZBook 15u, op vele vlakken. De ZBook scoort alleen hoger op temperatuurbeheersing en een hoogwaardige afwerking van de behuizing. Echter, de P52s is alleen geschikt voor een kleine doelgroep aangezien de ThinkPad T580 dezelfde kwaliteiten als de P52s biedt en een sterkere GPU bevat. Alleen gebruikers van CAD software kunnen de voorkeur geven aan de P52s, maar dan opnieuw rest de vraag of deze potentiële kopers niet kiezen voor een groter, zwaarder werkstation met een sterkere CPU en GPU. Dit beperkt de markt tot een aantal gebruikers die veel waarde hechten aan lange looptijden en een energiezuinige GPU die geoptimaliseerd is voor CAD.

Lenovo ThinkPad P52s-20LB000HGE - 25-06-2018 v6
Benjamin Herzig

Behuizing
86 / 98 → 87%
Toetsenbord
94%
Aanwijsapparaat
89%
Aansluitmogelijkheden
71 / 81 → 87%
Gewicht
62 / 10-66 → 92%
Batterij
99%
Beeldscherm
85%
Gaming-performance
69%
Applicatie-performance
91%
Temperatuur
87 / 95 → 91%
Luidheid
95 / 90 → 100%
Audio
36%
Camera
39 / 85 → 46%
Gemiddelde
76%
83%
Workstation - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad P52s (i7-8550U, Full-HD) Workstation
Benjamin Herzig, 2018-06-28 (Update: 2018-06-28)
