Kort testrapport HP ZBook 15u G5 (FHD, i7-8550U) Workstation

Benjamin Herzig (vertaald door Siemon Boes), 09-06-2018

Te veel kantoorlaptop, te weinig workstation. De Zbook 1xu-serie bevindt zich onderaan HP's hiërarchie van workstation-toestellen. Deze modellen zijn gebaseerd op de EliteBook om kosten te besparen. Kom in dit testrapport van de ZBook 15u G5 te weten of het concept nog werkt.

HP ZBook 15u G5 2ZC05EA
Grafische kaart
AMD Radeon Pro WX 3100 Mobile - 2048 MB, Core: 1046 MHz, Geheugen: 1500 MHz, 23.20.787.768, AMD Switchable Graphics
Geheugen
8192 MB
, DDR4 2400, 1 van 2 sleuven bezet, max. 32 GB RAM ondersteund
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, CMN15E7, IPS LED, glimmend: nee
Moederbord
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Opslag
Toshiba XG5 KXG50ZNV256G, 256 GB
, M.2 2280 SSD, 162 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: Combo-audio, 1 SmartCard, 1 Vingerafdruklezer, NFC, Brightness Sensor
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 19 x 371 x 251
Batterij
56 Wh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: Bang & Olufsen stereo-luidsprekers, Toetsenbord: 6 rijen chiclet-toetsenbord met numpad, Toetsenbordverlichting: ja, HP Jumpstart, HP Client Security, HP Power Manager, HP WorkWise, HP Support Assistant, HP Sure Run, HP Velocity, Microsoft Office Trial, 36 Maanden Garantie
Gewicht
1.914 kg, Voeding: 352 g
Prijs
1750 Euro



Formaat Vergelijking

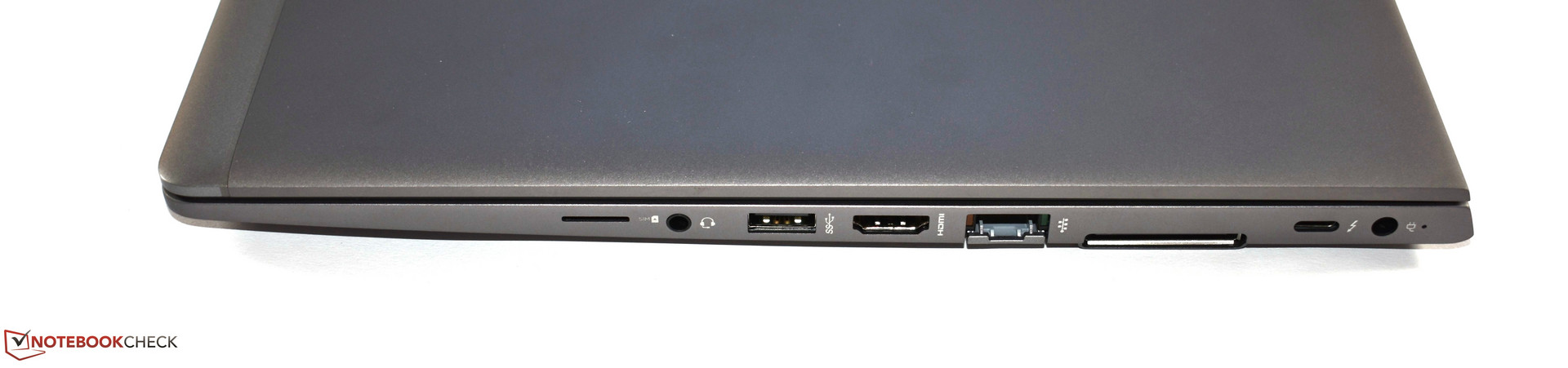

Rechts: SIM-sleuf, 3.5-mm-klink, USB 3.0 Type-A-poort, HDMI, RJ45 Ethernet, docking-poort, USB Type-C Thunderbolt 3-poort, stroomconnector
Rechts: SIM-sleuf, 3.5-mm-klink, USB 3.0 Type-A-poort, HDMI, RJ45 Ethernet, docking-poort, USB Type-C Thunderbolt 3-poort, stroomconnector

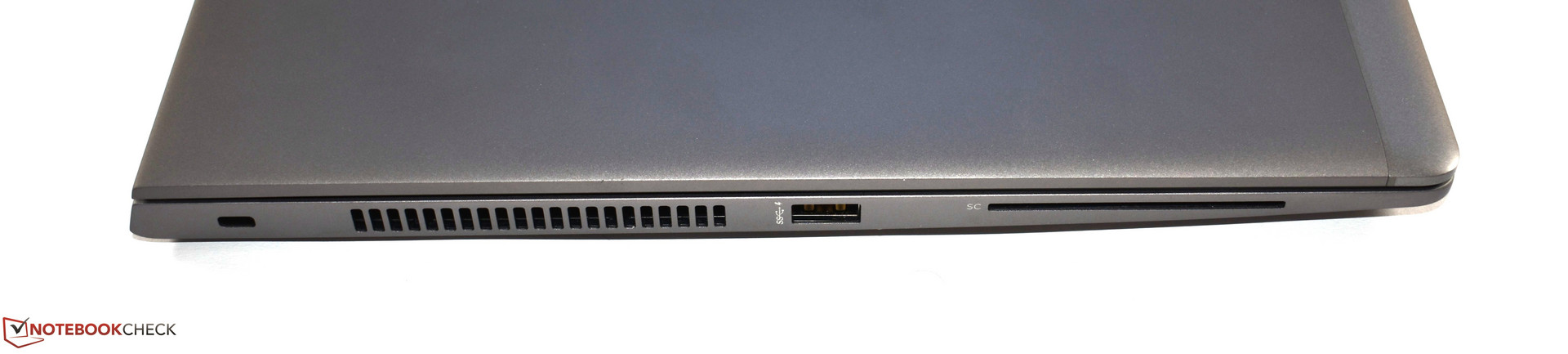

Links: Kensington Lock, USB 3.0 Type-A-poorten, SmartCard-lezer
Links: Kensington Lock, USB 3.0 Type-A-poorten, SmartCard-lezer
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼100%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
638 MBit/s ∼100% 0%
Average of class Workstation
  (292 - 705, n=22)
595 MBit/s ∼93% -7%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
559 MBit/s ∼87% -13%
HP EliteBook 850 G5 3JX58EA
Intel Dual Band Wireless-AC 8265
532 MBit/s ∼83% -17%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
515 MBit/s ∼81% -19%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 850 G5 3JX58EA
Intel Dual Band Wireless-AC 8265
667 MBit/s ∼100% +26%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼79%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
506 MBit/s ∼76% -4%
Average of class Workstation
  (158 - 665, n=22)
476 MBit/s ∼71% -10%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
475 MBit/s ∼71% -10%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
162 MBit/s ∼24% -69%
224
cd/m²
208
cd/m²
203
cd/m²
206
cd/m²
229
cd/m²
202
cd/m²
204
cd/m²
226
cd/m²
210
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 229 cd/m² Gemiddelde: 212.4 cd/m² Minimum: 11.1 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 229 cd/m²
Contrast: 996:1 (Zwart: 0.23 cd/m²)
ΔE Color 4.2 | 0.4-29.43 Ø6.3, calibrated: 4.2
ΔE Greyscale 2 | 0.64-98 Ø6.5
64.5% sRGB (Argyll 3D) 41% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.23
HP ZBook 15u G5 2ZC05EA
CMN15E7, , 1920x1080, 15.6
HP ZBook 15u G4
LP156WF6, , 1920x1080, 15.6
HP EliteBook 850 G5 3JX58EA
AUO24ED, , 1920x1080, 15.6
HP ZBook 15 G4-Y4E80AV
LG Philips LGD057E, , 1920x1080, 15.6
Lenovo ThinkPad P52s-20LB000HGE
NV156FHM-N47, , 1920x1080, 15.6
Response Times
3%
6%
-1%
-21%
Response Time Grey 50% / Grey 80% *
41.6 (22, 19.6)
39.6 (22.4, 17.2)
5%
42 (20, 22)
-1%
39.2 (20.4, 18.8)
6%
47.2 (25.2, 22)
-13%
Response Time Black / White *
28.8 (15.6, 13.2)
22 (12, 10)
24%
25 (14, 11)
13%
25.6 (14.8, 10.8)
11%
38.4 (22.8, 15.6)
-33%
PWM Frequency
25770 (40)
20830 (90)
-19%
20830 (80)
-19%
21550 (91)
-16%
Screen
-9%
5%
13%
6%
Brightness middle
229
320
40%
402
76%
321
40%
291
27%
Brightness
212
310
46%
383
81%
320
51%
284
34%
Brightness Distribution
88
92
5%
88
0%
89
1%
91
3%
Black Level *
0.23
0.45
-96%
0.41
-78%
0.29
-26%
0.11
52%
Contrast
996
711
-29%
980
-2%
1107
11%
2645
166%
Colorchecker DeltaE2000 *
4.2
5.5
-31%
5.25
-25%
4.5
-7%
6.7
-60%
Colorchecker DeltaE2000 max. *
18
9
50%
8.65
52%
9.5
47%
20.2
-12%
Colorchecker DeltaE2000 calibrated *
4.2
5.19
-24%
4.5
-7%
Greyscale DeltaE2000 *
2
4.8
-140%
4
-100%
2.9
-45%
4.5
-125%
Gamma
2.23 108%
2.28 105%
2.68 90%
2.27 106%
2.28 105%
CCT
6292 103%
6987 93%
6756 96%
6519 100%
7503 87%
Color Space (Percent of AdobeRGB 1998)
41
55
34%
58
41%
54.2
32%
39.6
-3%
Color Space (Percent of sRGB)
64.5
83.8
30%
89
38%
82.6
28%
61.7
-4%
Totaal Gemiddelde (Programma / Instellingen)
-3% / -6%
6% / 5%
6% / 10%
-8% / 1%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

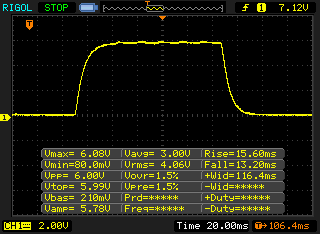

       Responstijd Zwart naar Wit
28.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15.6 ms stijging
↘ 13.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 66 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.9 ms) van alle geteste toestellen.

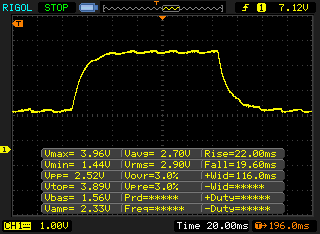

       Responstijd 50% Grijs naar 80% Grijs
41.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 22 ms stijging
↘ 19.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 52 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (41.4 ms) van alle geteste toestellen.

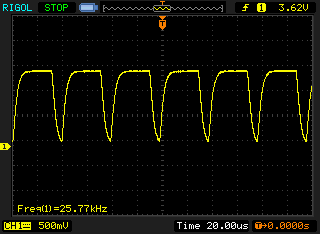

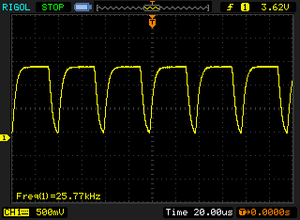

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 25770 Hz ≤ 40 % helderheid instelling

Het backlight van het scherm flikkert aan 25770 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 40 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 25770 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 54 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8895 (minimum: 43 - maximum: 142900) Hz waargenomen.

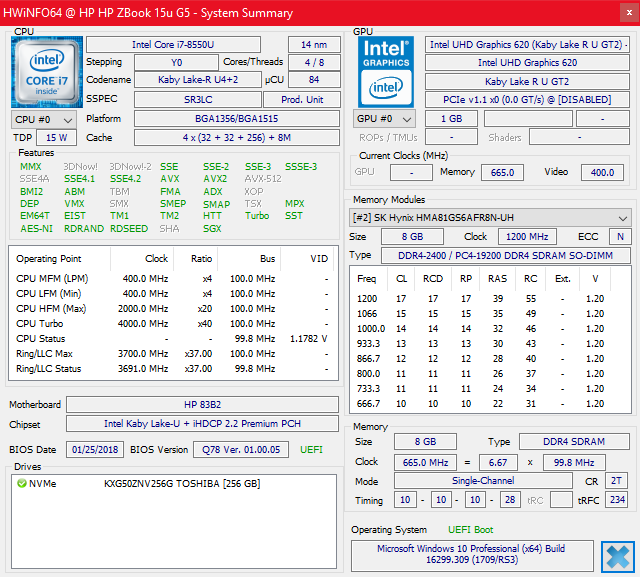

HWiNFO
HWiNFO

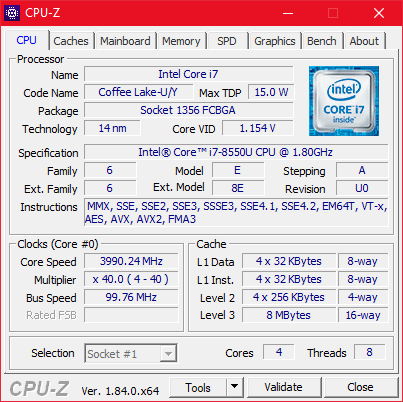

CPU-Z
CPU-Z

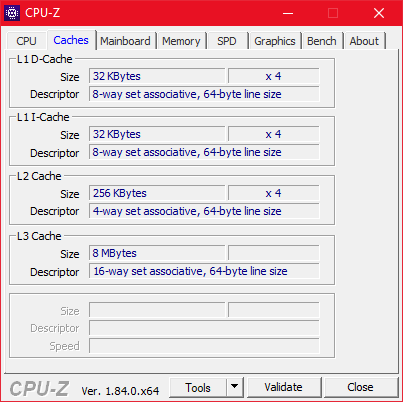

CPU-Z Caches
CPU-Z Caches

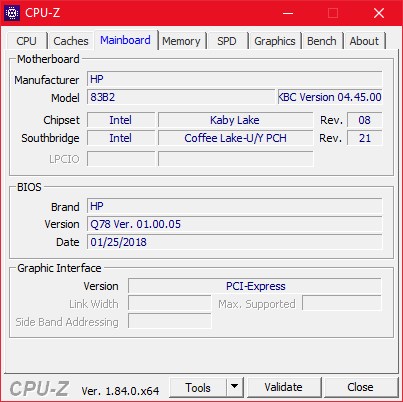

CPU-Z Mainboard
CPU-Z Mainboard

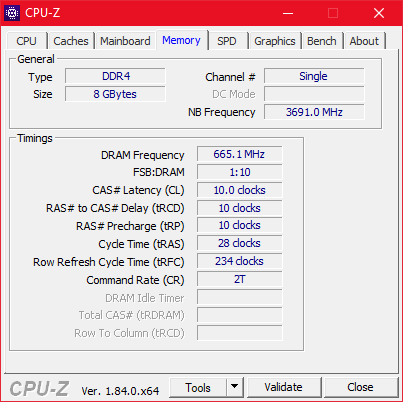

CPU-Z Memory
CPU-Z Memory

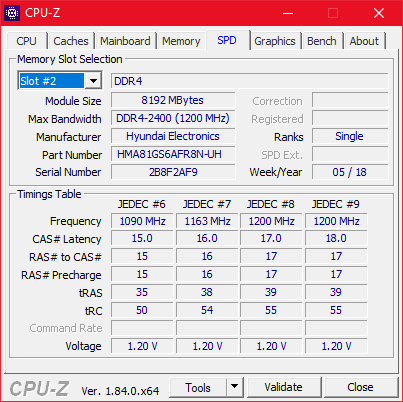

CPU-Z SPD
CPU-Z SPD

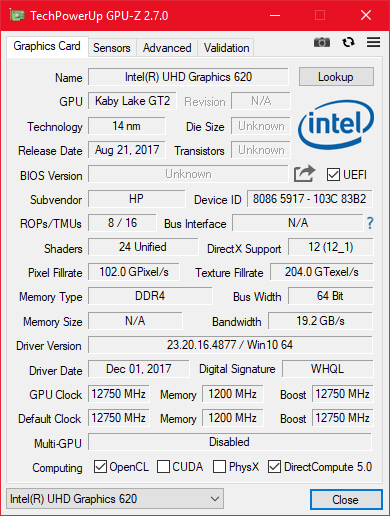

GPU-Z Intel UHD Graphics 620
GPU-Z Intel UHD Graphics 620

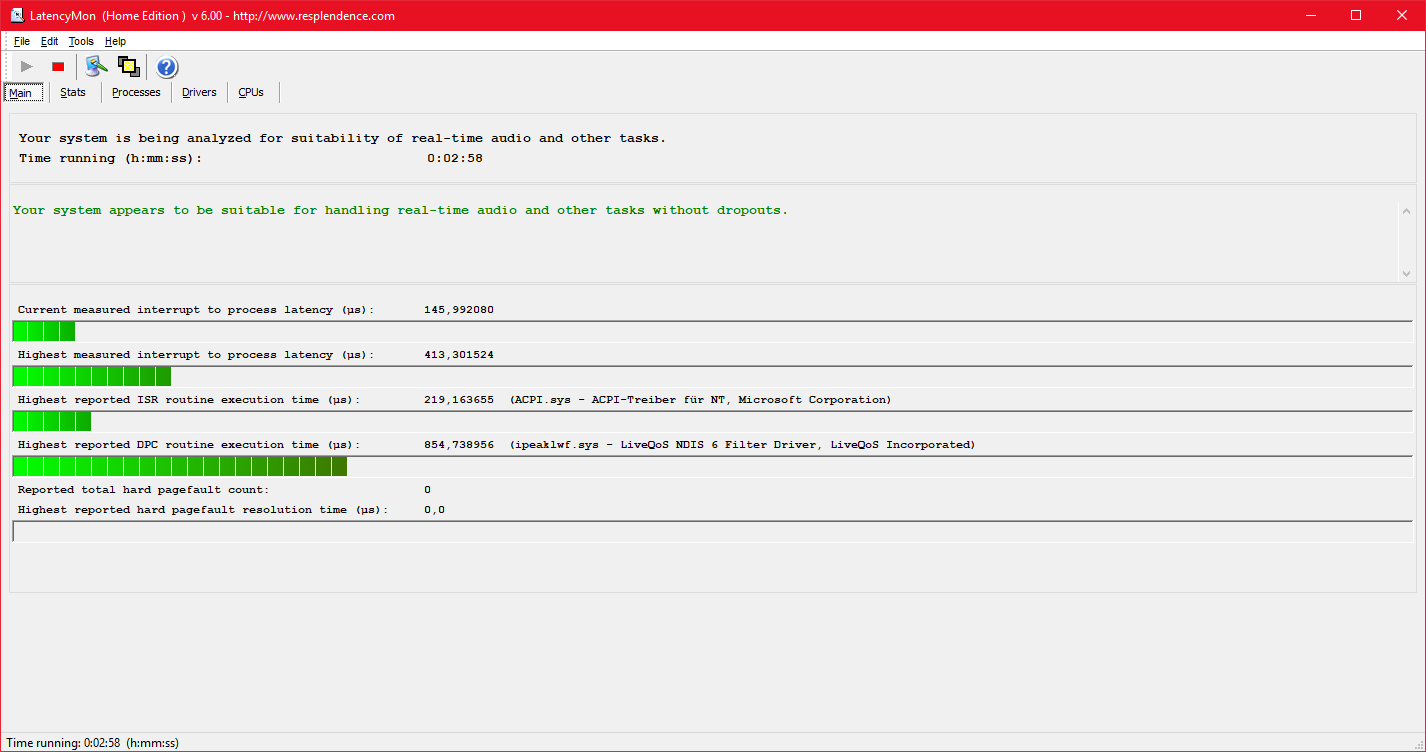

LatencyMon
LatencyMon
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
176 Points ∼100% +2%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼98%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
171 Points ∼97% -1%
Average Intel Core i7-8550U
  (108 - 172, n=49)
161 Points ∼91% -6%
Average of class Workstation
  (117 - 179, n=70)
151 Points ∼86% -12%
HP ZBook 15u G4
Intel Core i7-7500U
147 Points ∼84% -15%
HP EliteBook 850 G5 3JX58EA
Intel Core i5-8250U
144 Points ∼82% -16%
CPU Multi 64Bit
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
806 Points ∼100% +46%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
719 Points ∼89% +30%
Average of class Workstation
  (260 - 1217, n=71)
651 Points ∼81% +18%
HP EliteBook 850 G5 3JX58EA
Intel Core i5-8250U
588 Points ∼73% +7%
Average Intel Core i7-8550U
  (301 - 761, n=52)
577 Points ∼72% +5%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼68%
HP ZBook 15u G4
Intel Core i7-7500U
357 Points ∼44% -35%
Cinebench R10 Rendering Multiple CPUs 32Bit
17505
Cinebench R10 Shading 32Bit
8307
Cinebench R10 Rendering Single 32Bit
6445
Cinebench R10 Shading 64Bit
5661 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
22346 Points
Cinebench R10 Rendering Single CPUs 64Bit
8430 Points
Cinebench R11.5 CPU Single 32Bit
1.72 Points
Cinebench R11.5 CPU Multi 32Bit
5.55 Points
Cinebench R11.5 OpenGL 32Bit
75.59 fps
Cinebench R11.5 CPU Single 64Bit
1.93 Points
Cinebench R11.5 CPU Multi 64Bit
5.86 Points
Cinebench R11.5 OpenGL 64Bit
75.3 fps
Cinebench R15 OpenGL 64Bit
74.18 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
552 Points
Cinebench R15 CPU Single 64Bit
172 Points
Help
PCMark 8
Work Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5423 Points ∼100% +6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (5137 - 5183, n=2)
5160 Points ∼95% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼95%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5100 Points ∼94% -1%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4980 Points ∼92% -3%
Average of class Workstation
  (3311 - 5655, n=52)
4739 Points ∼87% -8%
Creative Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5663 Points ∼100% +5%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (5369 - 5376, n=2)
5373 Points ∼95% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5369 Points ∼95%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5127 Points ∼91% -5%
Average of class Workstation
  (2399 - 8015, n=42)
5042 Points ∼89% -6%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4851 Points ∼86% -10%
Home Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4375 Points ∼100% +18%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4169 Points ∼95% +12%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3721 - 4438, n=2)
4080 Points ∼93% +10%
Average of class Workstation
  (2320 - 5505, n=52)
3917 Points ∼90% +5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3728 Points ∼85% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼85%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
3669 Points ∼84% -1%
PCMark 10
Digital Content Creation
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4633 Points ∼100% +36%
Average of class Workstation
  (2466 - 6889, n=14)
4612 Points ∼100% +36%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3397 - 3473, n=2)
3435 Points ∼74% +1%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3397 Points ∼73%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
2807 Points ∼61% -17%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
2734 Points ∼59% -20%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
2609 Points ∼56% -23%
Productivity
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
7539 Points ∼100% +11%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7201 Points ∼96% +6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (6777 - 6944, n=2)
6861 Points ∼91% +1%
Average of class Workstation
  (5424 - 7944, n=14)
6838 Points ∼91% +1%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
6777 Points ∼90%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
5795 Points ∼77% -14%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
5660 Points ∼75% -16%
Essentials
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
8774 Points ∼100% +12%
Average of class Workstation
  (7172 - 8842, n=14)
8055 Points ∼92% +3%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
7874 Points ∼90% +1%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (7810 - 7842, n=2)
7826 Points ∼89% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7810 Points ∼89%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7673 Points ∼87% -2%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
7262 Points ∼83% -7%
Score
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4834 Points ∼100% +19%
Average of class Workstation
  (3281 - 5606, n=14)
4445 Points ∼92% +10%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼84%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3818 Points ∼79% -6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3464 - 4046, n=2)
3755 Points ∼78% -7%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
3517 Points ∼73% -13%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3498 Points ∼72% -14%
PCMark 8 Home Score Accelerated v2
3721 punten
PCMark 8 Creative Score Accelerated v2
5369 punten
PCMark 8 Work Score Accelerated v2
5137 punten
Help
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
HP ZBook 15u G4
Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP EliteBook 850 G5 3JX58EA
Toshiba XG5 KXG50ZNV256G
HP ZBook 15 G4-Y4E80AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Lenovo ThinkPad P52s-20LB000HGE
Samsung PM961 MZVLW256HEHP
Average Toshiba XG5 KXG50ZNV256G

CrystalDiskMark 3.0
59%
-14%
71%
24%
-14%
Write 4k QD32
351.5
478.3
36%
338.5
-4%
618.5
76%
470.67
34%
331 (208 - 352, n=9)
-6%
Read 4k QD32
276.7
551.8
99%
282
2%
733.4
165%
562.94
103%
311 (245 - 396, n=9)
12%
Write 4k
99.1
152.7
54%
99.15
0%
187.6
89%
164.77
66%
107 (94.5 - 133, n=9)
8%
Read 4k
35.5
53.35
50%
31.76
-11%
57.52
62%
61.63
74%
28.4 (7.04 - 35.5, n=9)
-20%
Write 512
488.9
1535
214%
284.9
-42%
1175
140%
557.75
14%
330 (266 - 489, n=9)
-33%
Read 512
912.4
413.4
-55%
913.9
0%
411.6
-55%
557.38
-39%
829 (444 - 922, n=9)
-9%
Write Seq
916.7
1580
72%
393.4
-57%
1682
83%
862.2
-6%
400 (270 - 917, n=9)
-56%
Read Seq
2040
2042
0%
2069
1%
2166
6%
897.9
-56%
1838 (1046 - 2069, n=9)
-10%
Toshiba XG5 KXG50ZNV256G
Sequential Read: 2040 MB/s
Sequential Write: 916.7 MB/s
512K Read: 912.4 MB/s
512K Write: 488.9 MB/s
4K Read: 35.5 MB/s
4K Write: 99.1 MB/s
4K QD32 Read: 276.7 MB/s
4K QD32 Write: 351.5 MB/s
3DMark 11 - 1280x720 Performance GPU
Average of class Workstation
  (841 - 20623, n=84)
5019 Points ∼100% +38%
Average AMD Radeon Pro WX 3100 Mobile
  (3632 - 3749, n=2)
3691 Points ∼74% +2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3632 Points ∼72%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
3022 Points ∼60% -17%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
2379 Points ∼47% -34%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
1682 Points ∼34% -54%
3DMark
1920x1080 Fire Strike Graphics
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5786 Points ∼100% +119%
Average of class Workstation
  (752 - 14990, n=76)
4087 Points ∼71% +55%
Average AMD Radeon Pro WX 3100 Mobile
  (2644 - 2698, n=2)
2671 Points ∼46% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2644 Points ∼46%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
2270 Points ∼39% -14%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
1806 Points ∼31% -32%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
1002 Points ∼17% -62%
1280x720 Cloud Gate Standard Graphics
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
37796 Points ∼100% +111%
Average of class Workstation
  (5836 - 102368, n=76)
26759 Points ∼71% +49%
Average AMD Radeon Pro WX 3100 Mobile
  (17922 - 19122, n=2)
18522 Points ∼49% +3%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17922 Points ∼47%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
12601 Points ∼33% -30%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
8065 Points ∼21% -55%
1280x720 Ice Storm Standard Score
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
144957 Points ∼100% +207%
Average of class Workstation
  (26525 - 161394, n=69)
77105 Points ∼53% +64%
Average AMD Radeon Pro WX 3100 Mobile
  (47152 - 48101, n=2)
47627 Points ∼33% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
47152 Points ∼33%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
27.9 fps ∼100% +158%
Average of class Workstation
  (6.1 - 74.8, n=28)
26.5 fps ∼95% +145%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
11.9 fps ∼43% +10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
10.8 fps ∼39%
Average AMD Radeon Pro WX 3100 Mobile
  (9.4 - 10.8, n=2)
10.1 fps ∼36% -6%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
6.2 fps ∼22% -43%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
23.2 fps ∼100% +268%
Average of class Workstation
  (5.6 - 60.8, n=27)
21 fps ∼91% +233%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
10.1 fps ∼44% +60%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.4 fps ∼36% +33%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
6.3 fps ∼27%
Average AMD Radeon Pro WX 3100 Mobile
  (5.6 - 6.3, n=2)
5.95 fps ∼26% -6%
Unigine Heaven 4.0
Extreme Preset OpenGL
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
30.6 fps ∼100% +314%
Average of class Workstation
  (6.8 - 88.2, n=15)
28.4 fps ∼93% +284%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
13.2 fps ∼43% +78%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
7.5 fps ∼25% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.4 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (6.8 - 7.4, n=2)
7.1 fps ∼23% -4%
Extreme Preset DX11
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
35 fps ∼100% +298%
Average of class Workstation
  (8.1 - 100, n=19)
29.5 fps ∼84% +235%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
14.3 fps ∼41% +63%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.8 fps ∼25% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
8.8 fps ∼25%
Average AMD Radeon Pro WX 3100 Mobile
  (8.1 - 8.8, n=2)
8.45 fps ∼24% -4%
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
Average of class Workstation
  (9.9 - 163, n=51)
47.1 fps ∼100% +28%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
36.8 fps ∼78%
Average AMD Radeon Pro WX 3100 Mobile

36.8 fps ∼78% 0%
SPECviewperf 11
1920x1080 Siemens NX
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
49.48 fps ∼100% +99%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
38.74 fps ∼78% +56%
Average of class Workstation
  (2.54 - 111, n=90)
33.4 fps ∼68% +34%
Average AMD Radeon Pro WX 3100 Mobile
  (24.9 - 25.3, n=2)
25.1 fps ∼51% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
24.88 fps ∼50%
1920x1080 Tcvis
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
52.86 fps ∼100% +163%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
41.41 fps ∼78% +106%
Average of class Workstation
  (3.52 - 58.1, n=90)
32.5 fps ∼61% +62%
Average AMD Radeon Pro WX 3100 Mobile
  (20.1 - 20.7, n=2)
20.4 fps ∼39% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
20.1 fps ∼38%
1920x1080 SolidWorks
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
56.8 fps ∼100% +21%
Average AMD Radeon Pro WX 3100 Mobile
  (46.8 - 47.8, n=2)
47.3 fps ∼83% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
46.79 fps ∼82%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
42.52 fps ∼75% -9%
Average of class Workstation
  (6.73 - 74, n=90)
41.8 fps ∼74% -11%
1920x1080 Pro/ENGINEER
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
22.18 fps ∼100% +190%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
16.57 fps ∼75% +116%
Average of class Workstation
  (2.62 - 24, n=90)
13.8 fps ∼62% +80%
Average AMD Radeon Pro WX 3100 Mobile
  (7.66 - 7.69, n=2)
7.68 fps ∼35% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.66 fps ∼35%
1920x1080 Maya
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
57.67 fps ∼100% +26%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
54.64 fps ∼95% +20%
Average of class Workstation
  (6.2 - 124, n=90)
51.5 fps ∼89% +13%
Average AMD Radeon Pro WX 3100 Mobile
  (45.6 - 46.8, n=2)
46.2 fps ∼80% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
45.64 fps ∼79%
1920x1080 Lightwave
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
64.82 fps ∼100%
Average AMD Radeon Pro WX 3100 Mobile
  (64.7 - 64.8, n=2)
64.7 fps ∼100% 0%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
57.49 fps ∼89% -11%
Average of class Workstation
  (7.99 - 84, n=90)
49.1 fps ∼76% -24%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
46.67 fps ∼72% -28%
1920x1080 Ensight
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
58.49 fps ∼100% +225%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
32.3 fps ∼55% +79%
Average of class Workstation
  (3.39 - 110, n=90)
32.1 fps ∼55% +78%
Average AMD Radeon Pro WX 3100 Mobile
  (18 - 18.6, n=2)
18.3 fps ∼31% +2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.01 fps ∼31%
1920x1080 Catia
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
52.67 fps ∼100% +55%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
40.16 fps ∼76% +18%
Average of class Workstation
  (5.1 - 82.3, n=89)
37.7 fps ∼72% +11%
Average AMD Radeon Pro WX 3100 Mobile
  (34 - 38, n=2)
36 fps ∼68% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
33.99 fps ∼65%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
99.53 fps ∼100% +218%
Average of class Workstation
  (15.6 - 166, n=61)
67.3 fps ∼68% +115%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
53.48 fps ∼54% +71%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.31 fps ∼31%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
30.12 fps ∼30% -4%
Average AMD Radeon Pro WX 3100 Mobile
  (26.1 - 31.3, n=2)
28.7 fps ∼29% -8%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
59.02 fps ∼100% +215%
Average of class Workstation
  (4.87 - 184, n=61)
48.6 fps ∼82% +159%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
28.31 fps ∼48% +51%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
19.91 fps ∼34% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.74 fps ∼32%
Average AMD Radeon Pro WX 3100 Mobile
  (14.3 - 18.7, n=2)
16.5 fps ∼28% -12%
1900x1060 Showcase (showcase-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
31.14 fps ∼100% +328%
Average of class Workstation
  (3.93 - 68.8, n=61)
26.5 fps ∼85% +264%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
12.13 fps ∼39% +67%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.21 fps ∼33% +40%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.28 fps ∼23%
Average AMD Radeon Pro WX 3100 Mobile
  (5.19 - 7.28, n=2)
6.24 fps ∼20% -14%
1900x1060 Medical (medical-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
24.64 fps ∼100% +518%
Average of class Workstation
  (0.99 - 71.5, n=60)
18.4 fps ∼75% +361%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
9.33 fps ∼38% +134%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
4.51 fps ∼18% +13%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3.99 fps ∼16%
Average AMD Radeon Pro WX 3100 Mobile
  (3.71 - 3.99, n=2)
3.85 fps ∼16% -4%
1900x1060 Maya (maya-04)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
48.34 fps ∼100% +311%
Average of class Workstation
  (5.4 - 102, n=61)
38.7 fps ∼80% +229%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
21.61 fps ∼45% +84%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
16.66 fps ∼34% +42%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
11.75 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (9.22 - 11.8, n=2)
10.5 fps ∼22% -11%
1900x1060 Energy (energy-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5.15 fps ∼100% +1881%
Average of class Workstation
  (0.06 - 15, n=61)
3.55 fps ∼69% +1265%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
0.55 fps ∼11% +112%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
0.34 fps ∼7% +31%
Average AMD Radeon Pro WX 3100 Mobile
  (0.26 - 0.31, n=2)
0.285 fps ∼6% +10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
0.26 fps ∼5%
1900x1060 Creo (creo-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.24 fps ∼100% +279%
Average of class Workstation
  (14 - 132, n=61)
46.4 fps ∼65% +147%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
35.91 fps ∼50% +91%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.82 fps ∼26%
Average AMD Radeon Pro WX 3100 Mobile
  (17.1 - 18.8, n=2)
18 fps ∼25% -4%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
16.87 fps ∼24% -10%
1900x1060 Catia (catia-04)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.41 fps ∼100% +318%
Average of class Workstation
  (13.4 - 156, n=61)
52.2 fps ∼73% +205%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
27.97 fps ∼39% +64%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
18.13 fps ∼25% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17.1 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (15.1 - 17.1, n=2)
16.1 fps ∼23% -6%
1900x1060 3ds Max (3dsmax-05)
Average of class Workstation
  (11.4 - 93.6, n=8)
40.9 fps ∼100% +31%
Average AMD Radeon Pro WX 3100 Mobile

31.3 fps ∼77% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.28 fps ∼76%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
11.42 fps ∼28% -63%
3DMark 06 Standard
18186 punten
3DMark Vantage P Result
11702 punten
3DMark 11 Performance
3993 punten
3DMark Ice Storm Standard Score
47152 punten
3DMark Cloud Gate Standard Score
11601 punten
3DMark Fire Strike Score
2448 punten
Help
012345678910Tooltip
The Witcher 3 ultra
BioShock Infinite - 1366x768 High Preset
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
149.1 fps ∼100% +119%
Average of class Workstation
  (22.2 - 233, n=48)
101 fps ∼68% +48%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
85.2 fps ∼57% +25%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
68.2 fps ∼46%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
66.4 fps ∼45% -3%
Average AMD Radeon Pro WX 3100 Mobile
  (47 - 68.2, n=2)
57.6 fps ∼39% -16%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
46.86 fps ∼31% -31%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
23.1 fps ∼15% -66%
lage gem. hoge ultra
BioShock Infinite (2013) 154.876.668.223.4fps
The Witcher 3 (2015) 48.22915.46.65fps
Rise of the Tomb Raider (2016) 50.429.114.8fps
Doom (2016) 30.515.6fps
Civilization VI (2016) 7351.118.2fps
Warhammer 40.000: Dawn of War III (2017) 71.822.41fps
Call of Duty WWII (2017) 84.645.524.8fps
Star Wars Battlefront 2 (2017) 6523.1fps

Geluidsniveau

Onbelast
29.8 / 29.8 / 30.8 dB (A)
Belasting
32.9 / 36.5 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.129.631.933.32529.526.52929.73132.730.430.634.74030.527.328.130.3502927.528.727.56326.827.426.327.78025.725.425.631.710026.626.225.827.212524.424.525251602423.623.224.220023.122.422.223.425021.420.921.621.931520.119.520.421.140019.418.71920.750019.118.218.521.563019.417.717.421.480018.517.517.222.5100019.117.217.422.3125020.116.716.924.1160020.716.516.826.2200020.716.717.427.7250022.617.417.427.9315019171727.4400018.217.117.322.9500017.917.417.220.7630017.818.417.520800018.919.217.918.51000018.719.417.917.9125002020.918.317.71600019.220.41817.5SPL31.93029.836.5N1.61.31.32.3median 19.4HP ZBook 15u G5 2ZC05EAmedian 18.4median 17.9median 22.3Delta1.21.81.72.328.531.433.831.132.528.330.330.729.330.431.334.932.131.129.528.630.529.631.12728.127.227.529.727.626.827.127.22627.825.524.926.626.62625.12627.425.727.424.125.225.323.923.824.625.426.623.824.322.922.524.822.623.522.522.32522.422.42120.821.820.420.620.619.620.218.920.720.319.419.218.121.521.219.519.317.722.621.419.619.516.723.522.321.519.116.723.22319.818.916.124.524.321.919.315.724.323.220.318.415.92525.221.519.615.927.127.522.919.915.931.32420.118.116.326.82118.317.416.623.720.418.317.416.922.818.818.217.617.219.218.818.417.717.218.318.918.517.717.31820.221.217.917.41835.332.531.22937.52.21.71.61.22.5median 22.3Lenovo ThinkPad P52s-20LB000HGEmedian 20.3median 19.3median 17.2median 23.51.71.51.91.71.5hearing rangehide median Fan Noise
Max. Belasting
 37.3 °C39.8 °C38.3 °C
 36.2 °C39.2 °C37.2 °C
 28.9 °C26.9 °C27 °C
Maximum: 39.8 °C
Gemiddelde: 34.5 °C
42.7 °C43.1 °C39.4 °C
37 °C38.5 °C38.7 °C
30.5 °C32.8 °C33.6 °C
Maximum: 43.1 °C
Gemiddelde: 37.4 °C
Stroomadapter (max.)  43.4 °C | Kamertemperatuur 20.7 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.935.3252931.23130.634.44028.131.25028.729.16326.330.48025.627.710025.829.61252531.416023.240.220022.251.425021.654.331520.457.64001965.750018.568.963017.46980017.265.8100017.469.3125016.969.9160016.869.8200017.472.2250017.472.531501772.6400017.374.3500017.273.4630017.573.7800017.9711000017.972.61250018.367.6160001854.3SPL29.883.6N1.359.2median 17.9HP ZBook 15u G5 2ZC05EAmedian 69Delta1.78.731.130.729.330.131.131.831.130.429.730.62630.926.630.525.732.523.934.923.841.522.654.722.462.720.462.918.962.718.164.517.766.316.775.316.773.516.170.415.769.715.967.215.968.415.966.116.364.316.665.316.963.217.262.617.253.217.353.617.457.62980.61.248median 17.2Lenovo ThinkPad P52s-20LB000HGEmedian 63.21.76.2hearing rangehide median Pink Noise
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP ZBook 15u G5 2ZC05EA audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.9% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (2.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.4% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 10% similar, 50% worse
» The best had a delta of 13%, average was 20%, worst was 31%
Compared to all devices tested
» 28% of all tested devices were better, 6% similar, 66% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad P52s-20LB000HGE audio analysis

(±) | speaker loudness is average but good (80.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 25% of all tested devices in this class were better, 10% similar, 65% worse
» The best had a delta of 13%, average was 20%, worst was 31%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 73% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.39 / 0.52 Watt
Inactiefdarkmidlight 3.2 / 6.1 / 9.7 Watt
Belasting midlight 62 / 71 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
HP ZBook 15u G4
7500U, FirePro W4190M, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 15.6
HP EliteBook 850 G5 3JX58EA
8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6
Average AMD Radeon Pro WX 3100 Mobile

Average of class Workstation

Power Consumption
-11%
13%
-69%
-4%
2%
-169%
Idle Minimum *
3.2
3.85
-20%
2.7
16%
5.9
-84%
4.1
-28%
3.3 (3.2 - 3.4, n=2)
-3%
14.2 (2.4 - 65.2, n=105)
-344%
Idle Average *
6.1
7.5
-23%
8.1
-33%
8.9
-46%
7.7
-26%
5.85 (5.6 - 6.1, n=2)
4%
20.3 (5.3 - 69, n=104)
-233%
Idle Maximum *
9.7
11.8
-22%
10.1
-4%
12.7
-31%
10.7
-10%
9.1 (8.5 - 9.7, n=2)
6%
23.8 (7.1 - 73.1, n=105)
-145%
Load Average *
62
47.7
23%
39
37%
95.2
-54%
52
16%
58.6 (55.2 - 62, n=2)
5%
88 (34.4 - 185, n=103)
-42%
Load Maximum *
71
90.2
-27%
37.2
48%
154
-117%
65
8%
71.2 (71 - 71.4, n=2)
-0%
128 (43.5 - 266, n=103)
-80%
Witcher 3 ultra *
48
46.7
3%
87.7
-83%
38.8
19%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
21h 41min
NBC WiFi Websurfing Battery Test 1.3 (IE 11)
8h 34min
Big Buck Bunny H.264 1080p
10h 23min
Belast (maximale helderheid)
3h 20min
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
HP ZBook 15u G4
7500U, FirePro W4190M, 51 Wh
HP EliteBook 850 G5 3JX58EA
8250U, UHD Graphics 620, 56 Wh
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, 90 Wh
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, 104 Wh
Average of class Workstation

Batterijduur
-32%
-1%
-13%
66%
-46%
Reader / Idle
1301
966
-26%
1066
-18%
1096
-16%
2360
81%
543 (63 - 2360, n=103)
-58%
H.264
623
486
-22%
627
1%
629
1%
1131
82%
362 (123 - 1131, n=48)
-42%
WiFi v1.3
514
457
-11%
556
8%
547
6%
974
89%
372 (106 - 974, n=46)
-28%
Load
200
65
-67%
207
4%
115
-42%
221
11%
88.4 (22 - 323, n=96)
-56%

Pro

+ hoogwaardige metalen behuizing
+ degelijke connectiviteit
+ prima selectie van poorten en beveiligingsfeatures
+ blijft steeds koel
+ drie jaar garantie
+ indrukwekkende touchpad in glas

Contra

- scherm is niet goed genoeg voor een workstation
- ondermaatse CPU-prestaties
- GPU-throttling bij alledaags gebruik

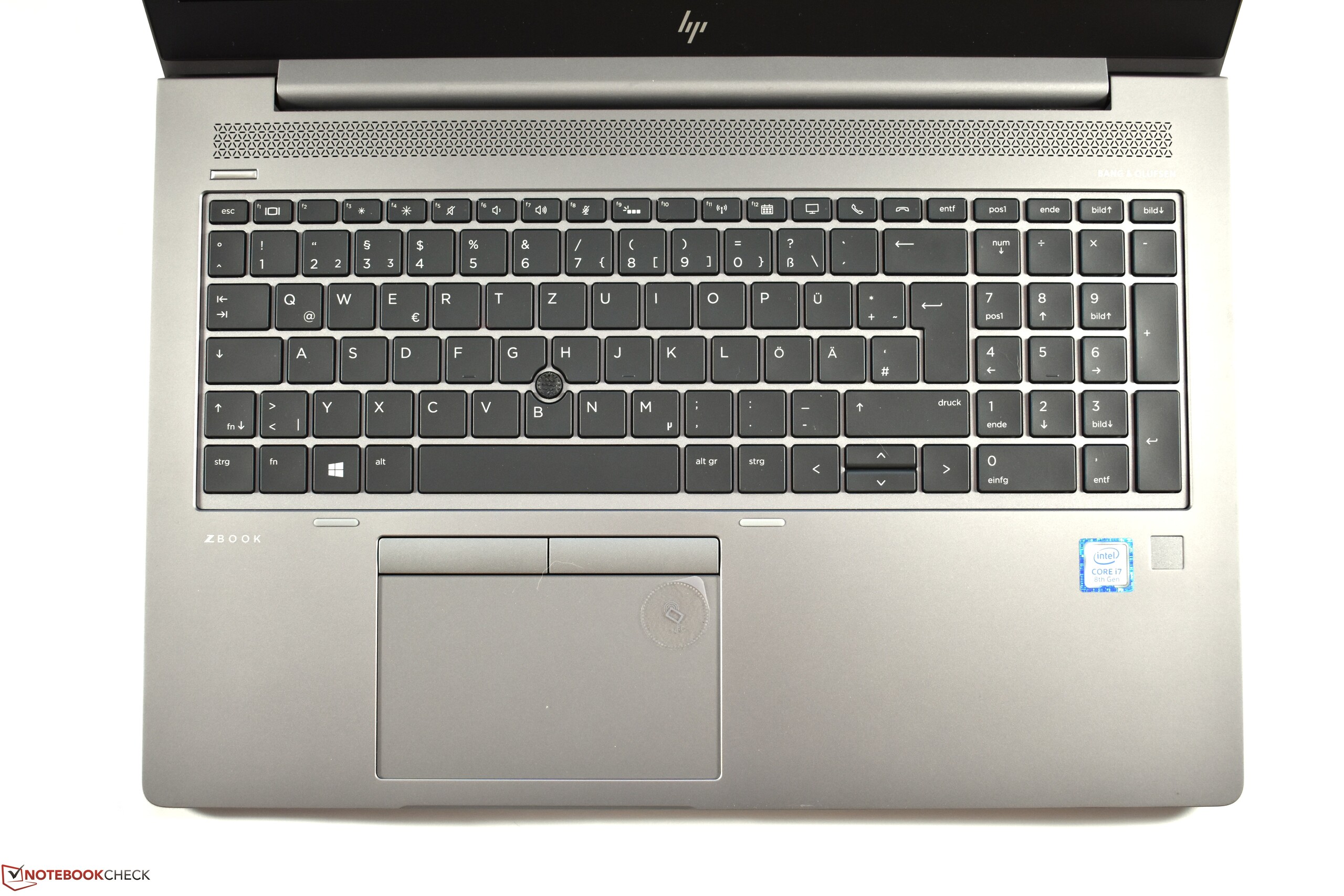

- PointStick is slechter dan een TrackPoint
- geen SD-kaartlezer
- frustrerende ventilator
- coil whine
- zwakke upgradebaarheid voor een workstation

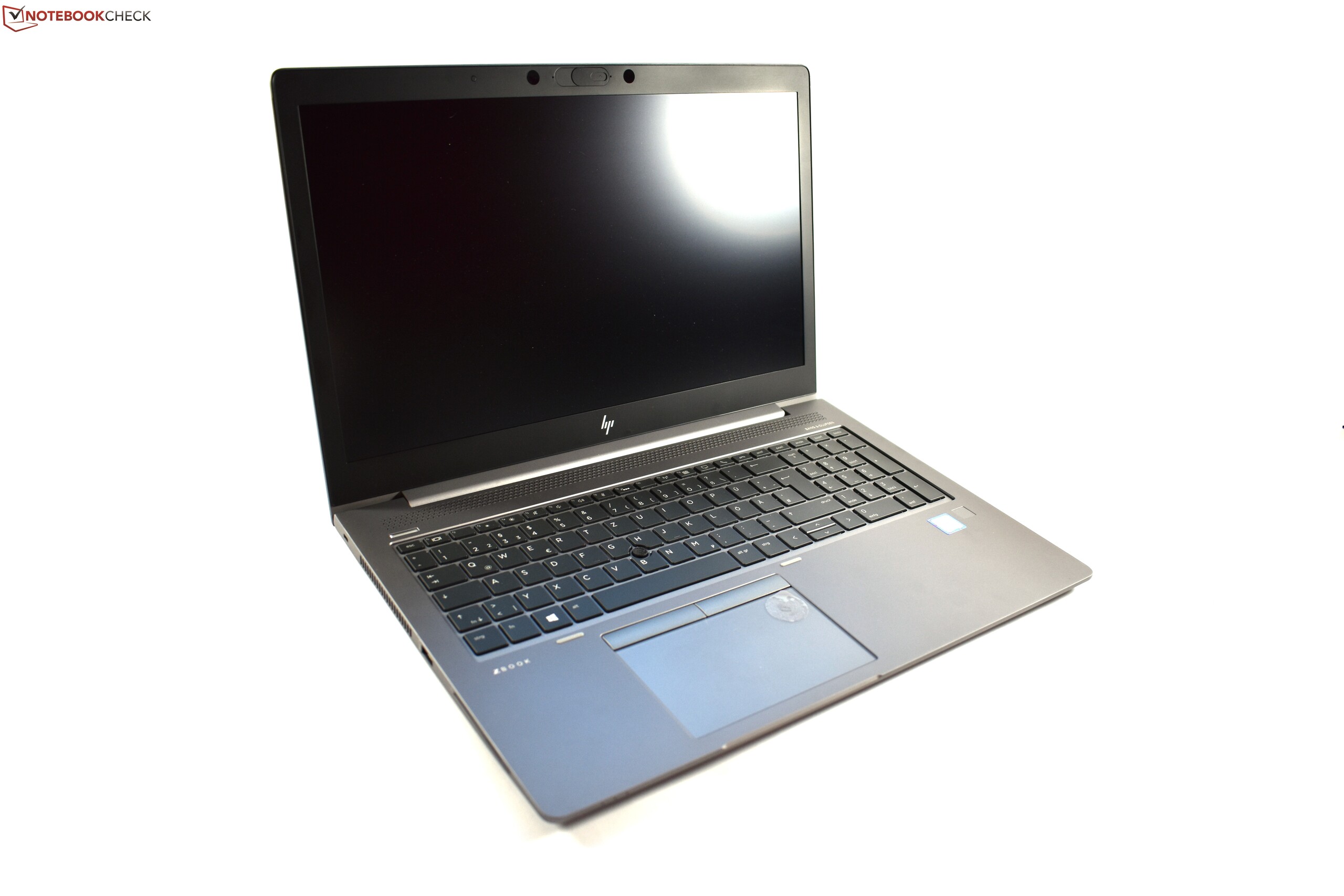

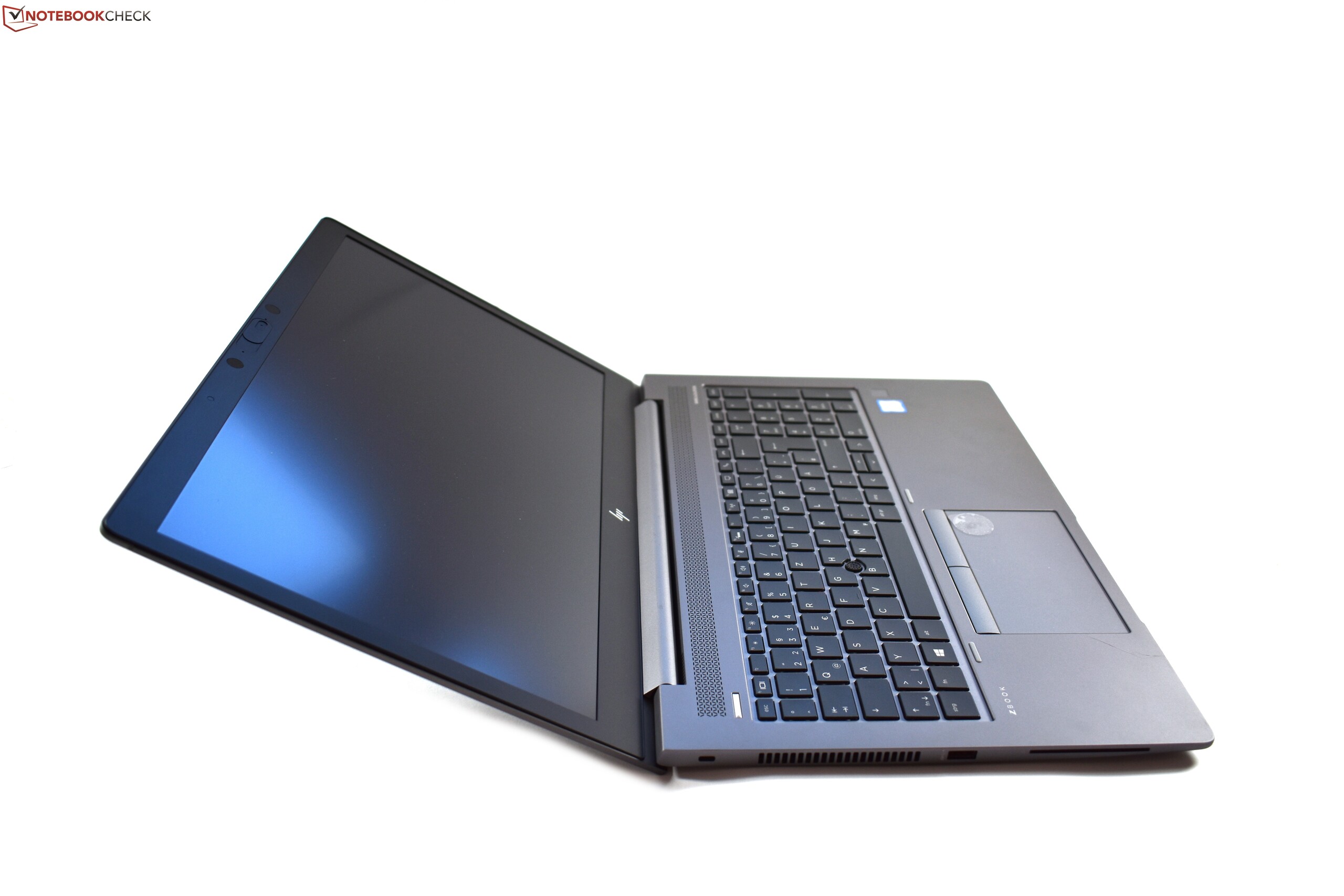

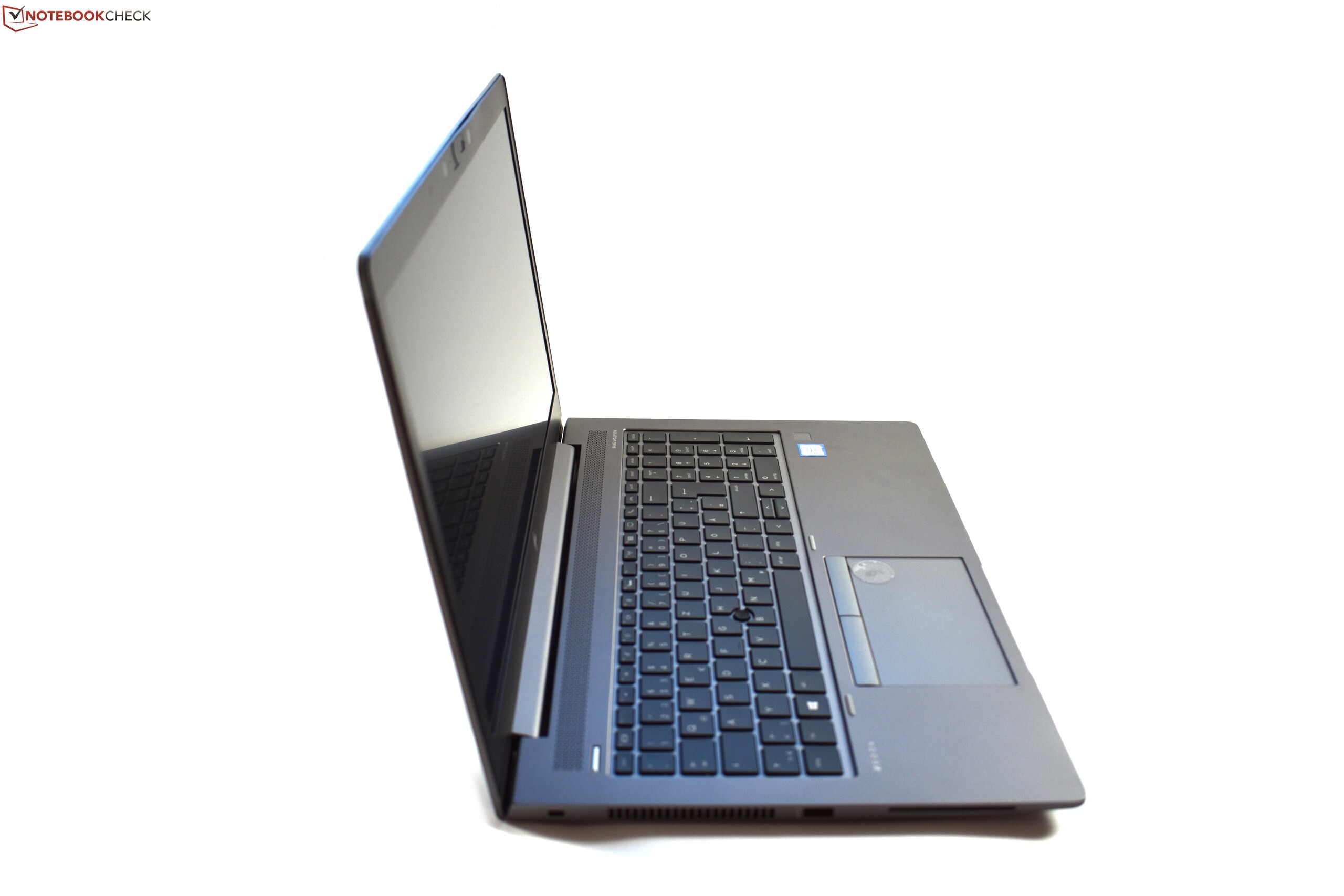

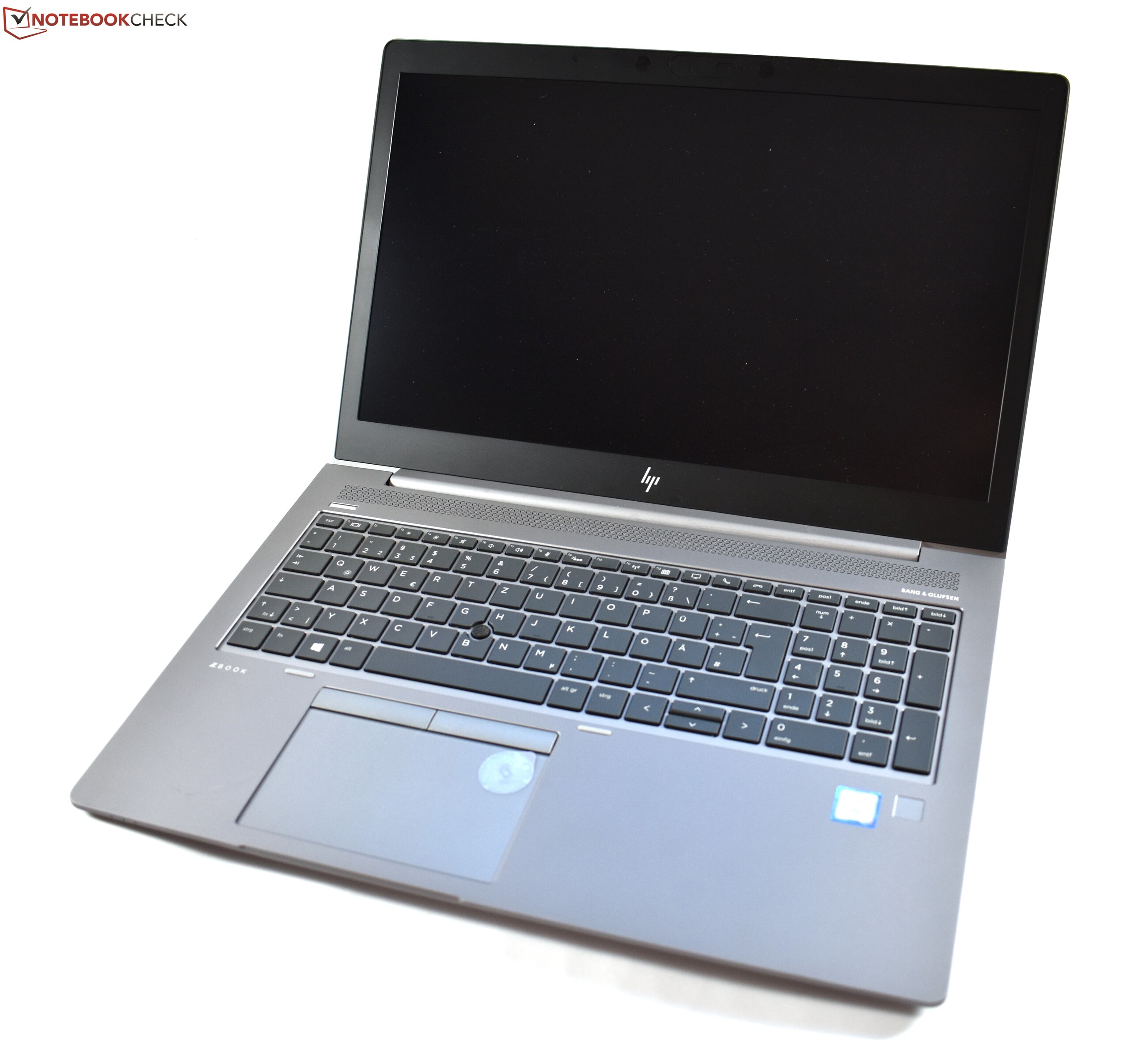

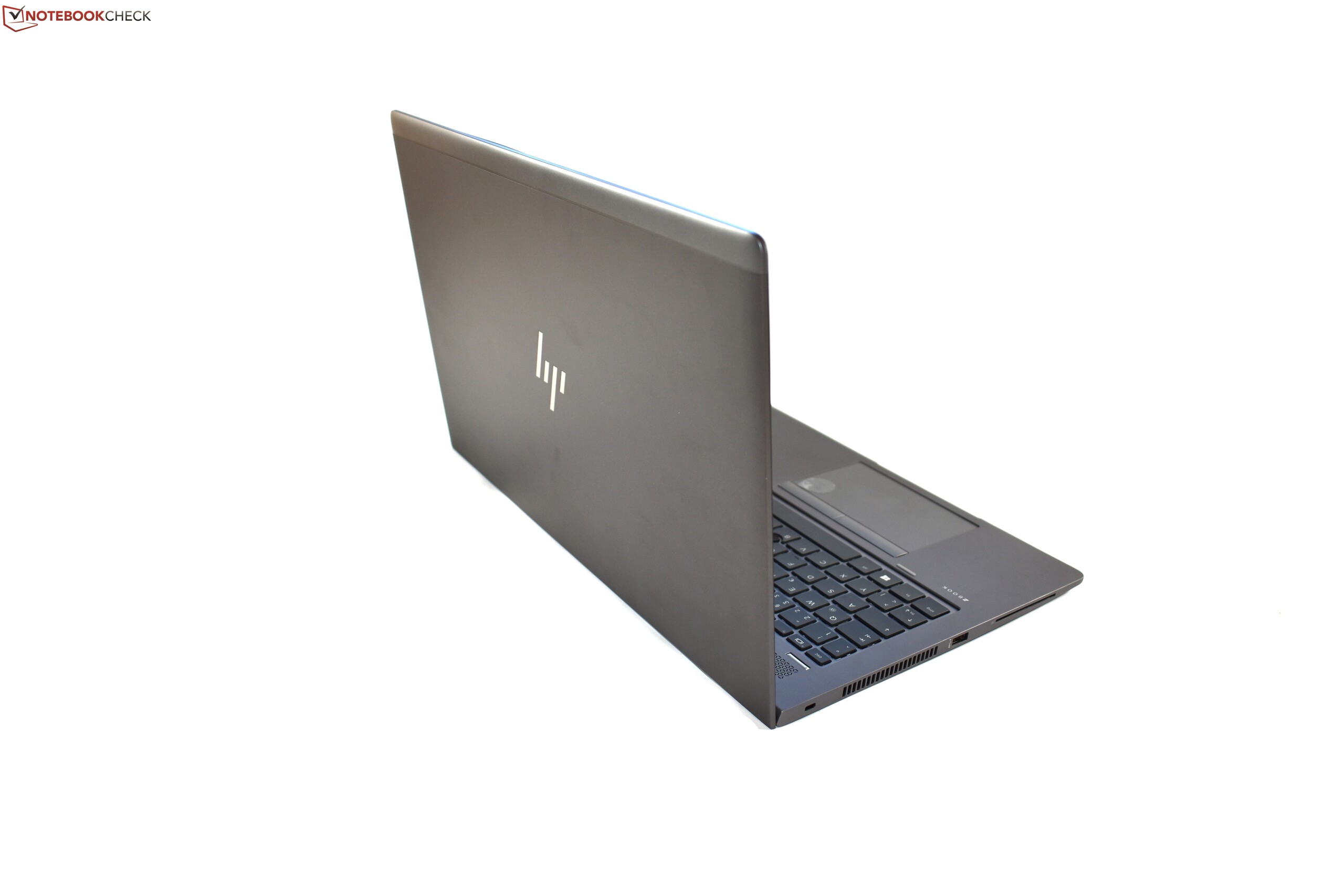

De HP ZBook 15u G5 onder de loep. Testtoestel voorzien door Cyberport.
De HP ZBook 15u G5 onder de loep. Testtoestel voorzien door Cyberport.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De HP ZBook 15u G5 lijkt een antwoord te bieden op onze kritiek op de ZBook 15u G4 door een geüpdatete GPU en krachtigere quad-core-CPU in de strijd te werpen.

De ZBook 15u G5 is gebaseerd op de EliteBook 850 G5, wat zeker niet negatief is. De EliteBook 850 G5 heeft een aantal indrukwekkende kwaliteiten zoals een hoogwaardige metalen behuizing en een degelijk touchpad. HP heeft zelfs de lage oppervlaktetemperaturen en uitstekende selectie van poorten en beveiligingsfeatures van de EliteBook 850 G5 kunnen behouden. De ZBook 15u G5 heeft ook dezelfde garantieperiode als de EliteBook 850 G5.

In principe is de ZBook 15u G5 een office-notebook met een ISV-gecertificeerde GPU. Dit maakt van de ZBook 15u G5 nog geen volwaardige workstation. De ZBook 15u G5 heeft alleen lage oppervlaktetemperaturen omwille van de conservatieve temperatuurlimieten. Deze limieten in combinatie met de ondermaatse koeling geven aanleiding tot zwakke CPU- en GPU-prestaties, in die mate dat de Core i7-8550U niet het normale prestatieniveau van de - op papier - zwakkere Core i5-8250U in de EliteBook 850 G5 haalt. Daarnaast slaagt ook de GPU er niet in om zijn volle potentieel te demonstreren aangezien er thermische throttling optreedt, waardoor de Radeon Pro WX 3100 in sommige benchmarks overtroffen wordt door zijn voorganger. Deze frustrerende ervaring wordt nog erger gemaakt door het vervelende geluid van de ventilator en de alom gevreesde coil whine. Alles samengevat bevestigt de ZBook 15u G5 de notie dat een goede workstation niet gebaseerd kan zijn op het referentieontwerp van een office-notebook.

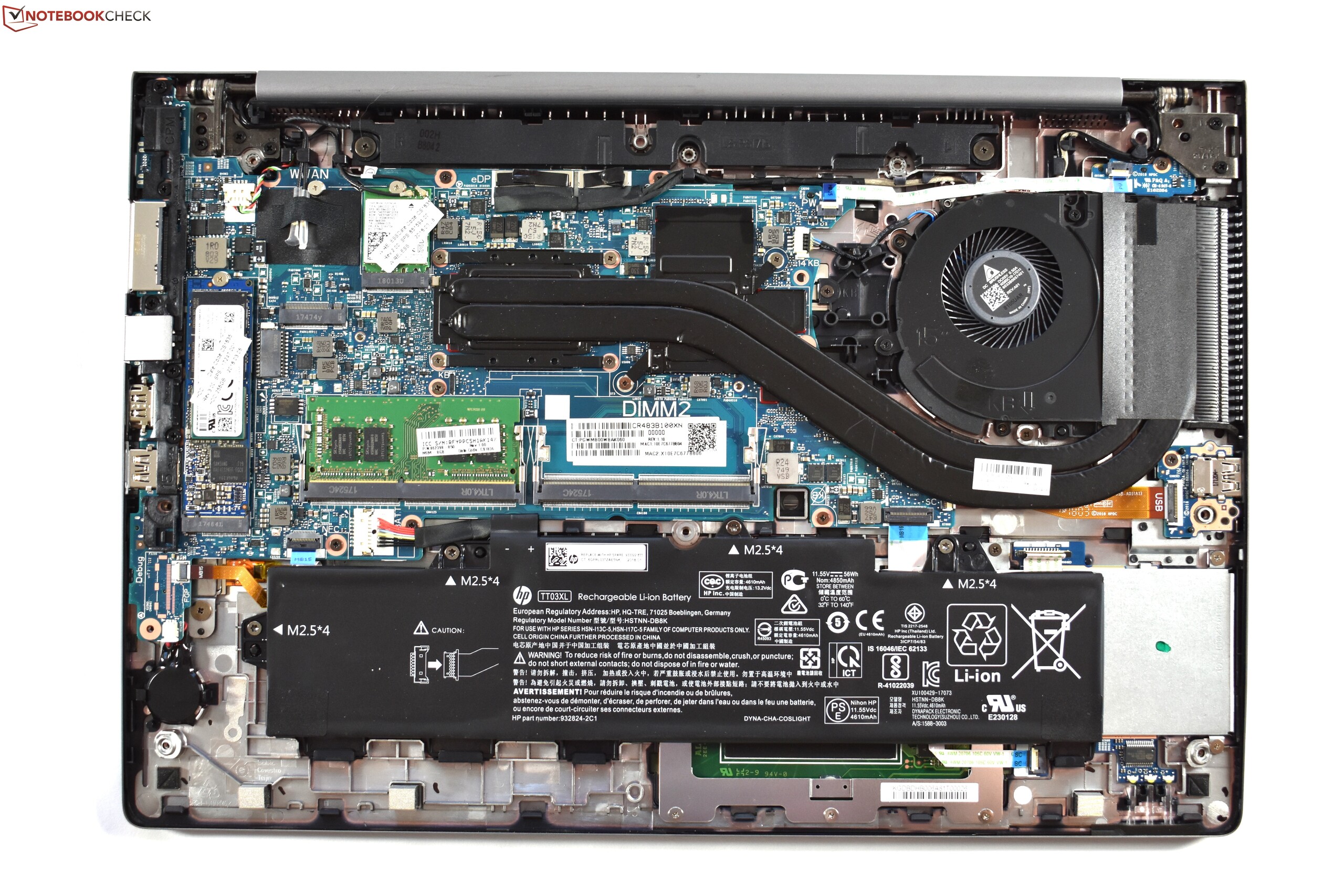

Helaas is dit niet het einde van de lijst minpunten. Het scherm in ons toestel is gewoonweg ontoereikend voor een toestel van meer dan 1700 euro. De dekking van de kleurruimte en de helderheid zijn te laag om bruikbaar te zijn in een workstation. We hadden ook een SD-kaartlezer en een betere versie van de PointStick in de EliteBook 850 G5 verwacht; PointStick haalt niet het niveau van de TrackPoint van een ThinkPad. Ten slotte hadden we graag op zijn minst twee M.2-2280 SSD-sleuven aangetroffen in een 15.6-inch-workstation in plaats van de enige sleuf die is voorzien. Eén kan volstaan voor office-notebooks, maar niet voor workstations, zeker als er plaats is voor een extra sleuf.

De HP ZBook 15u G5 schroeft zijn kloksnelheden drastisch terug onder belasting, wat we niet verwachten van een toestel dat geadverteerd wordt als workstation.

Al bij al is het onduidelijk voor wie de HP ZBook 15u G5 is ontworpen. Het toestel schiet tekort als een workstation omwille van zijn ondermaatse prestaties - in vergelijking met andere workstations - en scherm dat ongeschikt is voor professioneel gebruik. De ZBook 14u G5 is een betere keuze als je veel waarde hecht aan mobiliteit en een ZBook wilt hebben. Daarnaast bestaan er ook betere alternatieven voor een office-notebook, zoals de goedkopere EliteBook 850 G5.

Met deze ernstige tekortkomingen in het achterhoofd kunnen we de HP ZBook 15u G5 dus niet aanbevelen als workstation.

HP ZBook 15u G5 2ZC05EA - 23-05-2018 v6
Benjamin Herzig

Behuizing
91 / 98 → 93%
Toetsenbord
86%
Aanwijsapparaat
88%
Aansluitmogelijkheden
69 / 81 → 85%
Gewicht
64 / 10-66 → 96%
Batterij
91%
Beeldscherm
85%
Gaming-performance
50%
Applicatie-performance
91%
Temperatuur
90 / 95 → 95%
Luidheid
85 / 90 → 95%
Audio
47%
Camera
27 / 85 → 32%
Gemiddelde
73%
80%
Workstation - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport HP ZBook 15u G5 (FHD, i7-8550U) Workstation
Benjamin Herzig, 2018-06- 9 (Update: 2018-06- 9)
