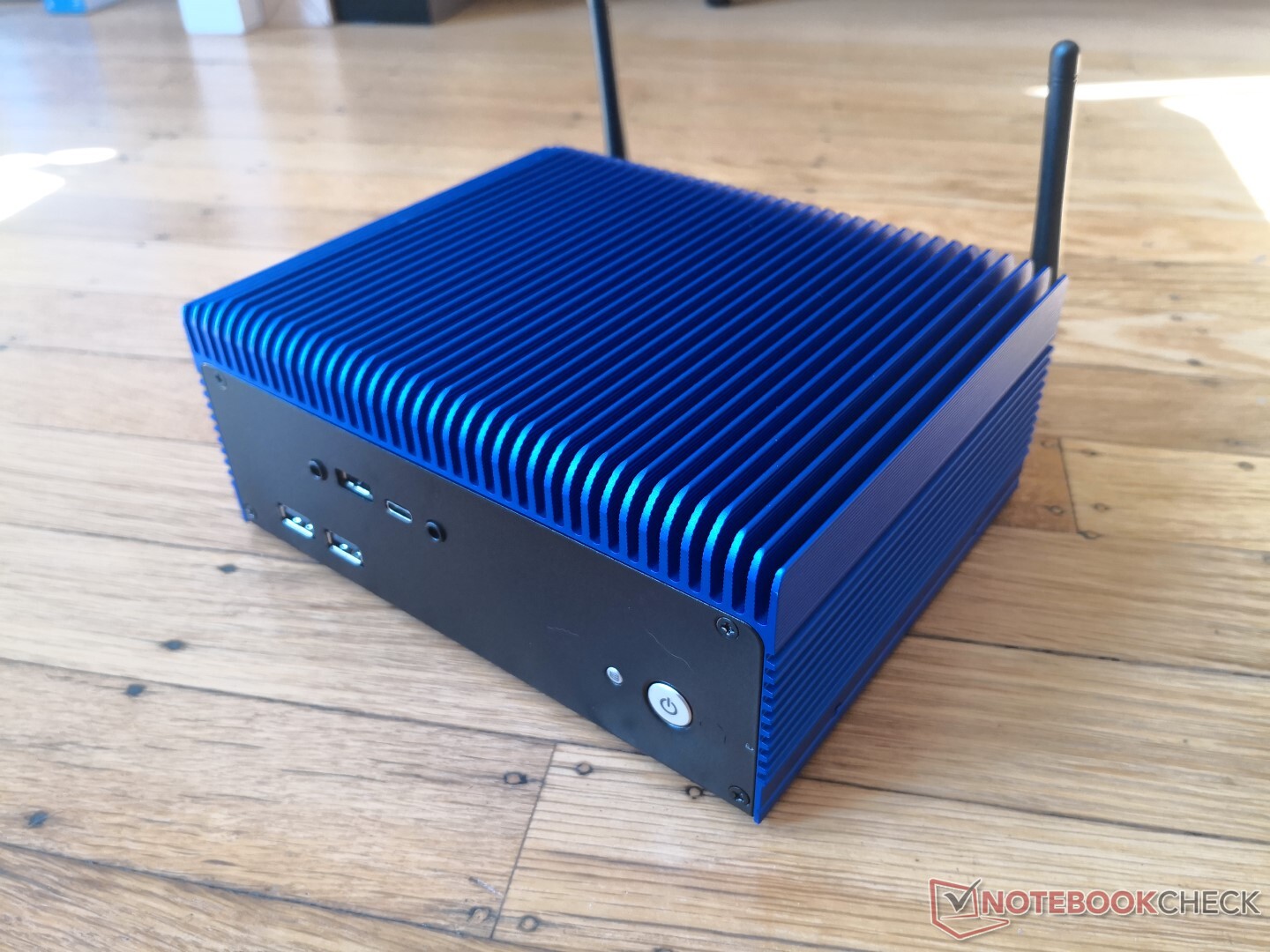

Kort testrapport Impact Display Solutions IMP-3654-B1-R Mini-PC: passief gekoelde Core i9

Allen Ngo, 👁 Allen Ngo, 10-04-2020

35-W Core i9-9900T in actie. Kun je een 8-core 16-thread Core i9-processor koelen met niets meer dan een enorme warmteafleider? We leggen de Impact Display Solutions IMP-3654-B1-R mini-PC het vuur aan de schenen om te zien hoe ver we het systeem kunnen duwen voordat throttling begint.

Impact Display Solutions IMP-3654-B1-R Core i9-9900T

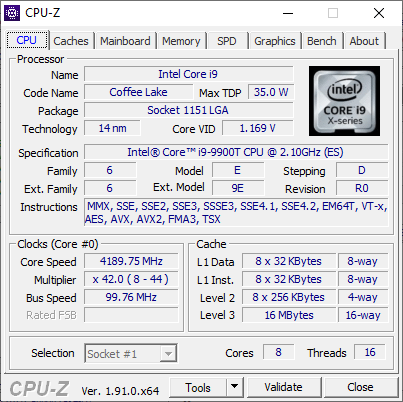

Processor
Intel Core i9-9900T

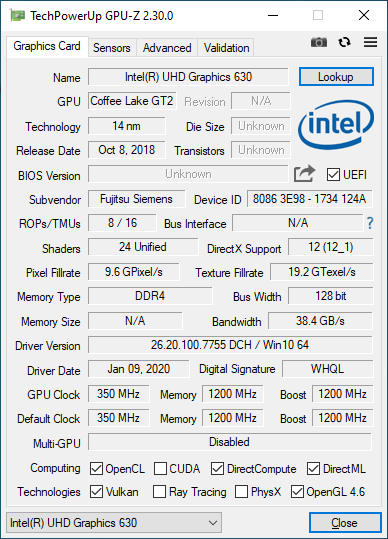

Grafische kaart
Intel UHD Graphics 630, 26.20.100.7755

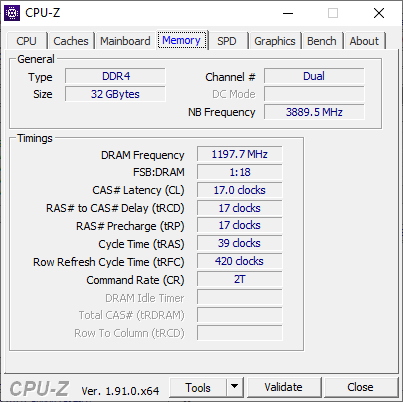

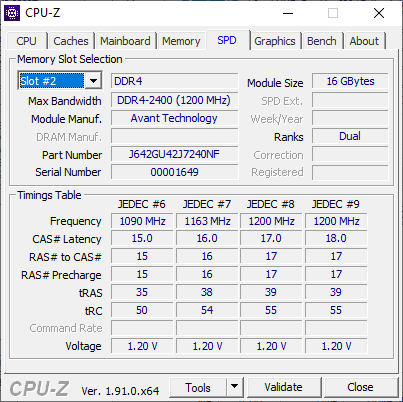

Geheugen
32768 MB
, Avant DDR4-2400, 17-17-17-39, Dual-Channel

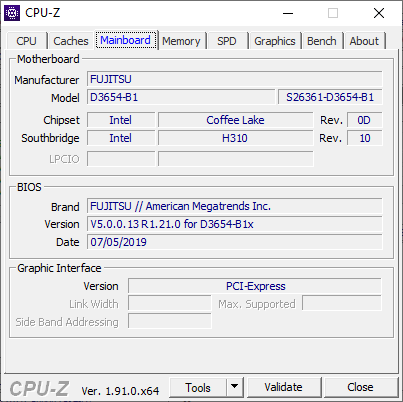

Moederbord
Intel H310 (Cannon Lake-H)
Opslag
EDGE NextGen SSD 1TB, 1024 GB
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)

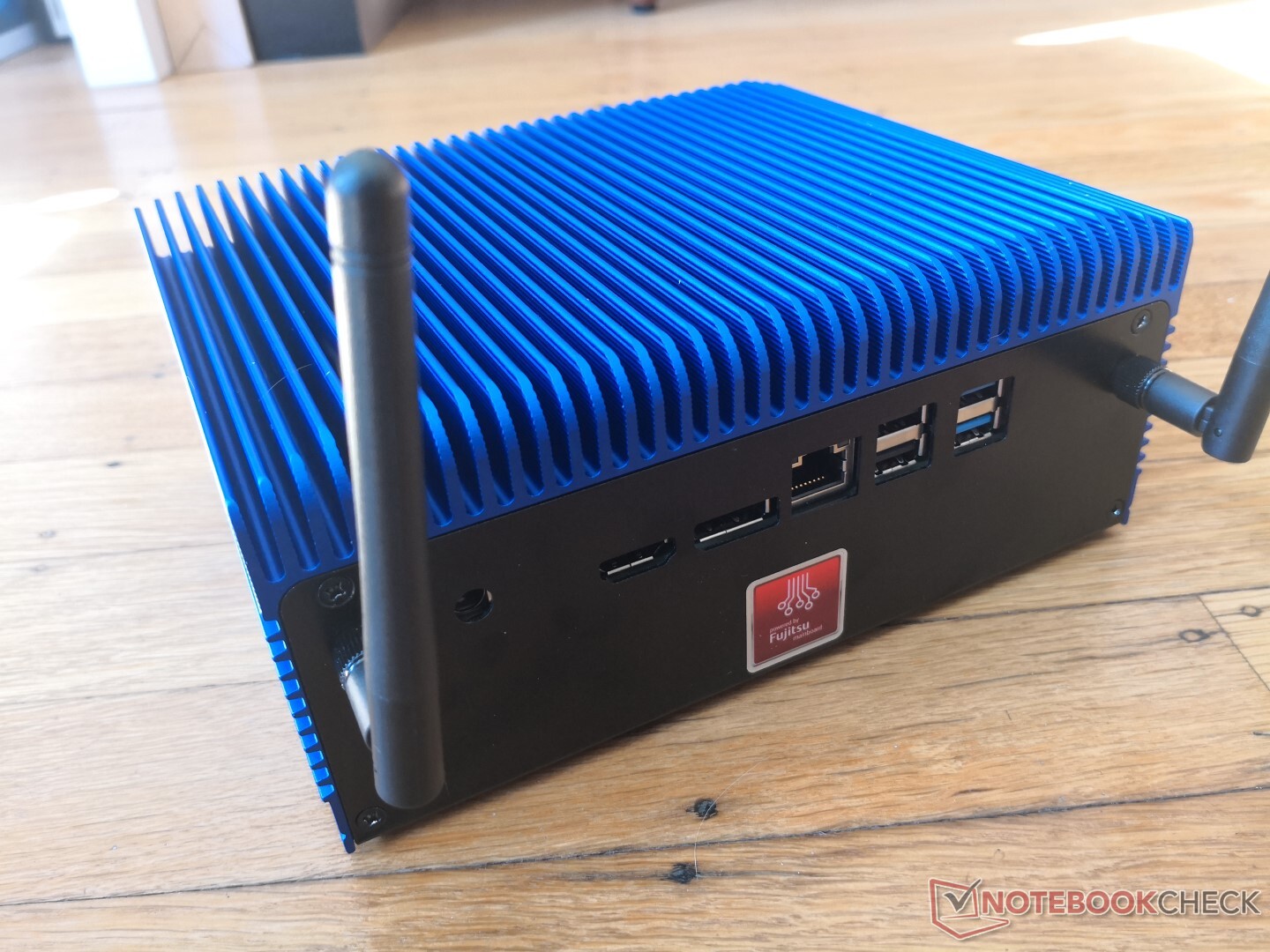

Verbindingen
4 USB 2.0, 8 USB 3.0, 1 HDMI, 1 DisplayPort
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 80 x 188 x 153
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Bijkomende functionaliteiten
fanless
Gewicht
2 kg, Voeding: 323 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø526 (494-548)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø177 (84-313)
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200121012201230124012501260127012801290Tooltip
Impact Display Solutions IMP-3654-B1-R Core i9-9900T UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB; CPU Multi 64Bit: Ø939 (350.72-1113.77)
Lenovo Legion Y740-17IRHg-81UJ001VGE GeForce RTX 2080 Max-Q, i7-9750H, Samsung SSD PM981 MZVLB1T0HALR; CPU Multi 64Bit: Ø1123 (1105.49-1224.89)
Walmart EVOO Gaming 17 GeForce RTX 2060 Mobile, i7-9750H, Intel SSD 660p 1TB SSDPEKNW010T8; CPU Multi 64Bit: Ø1260 (1250.7-1281.39)
Cinebench R20
CPU (Single Core)
Medion Erazer X15805
Intel Core i9-8950HK
498 Points ∼94% +13%
Corsair One i160
Intel Core i9-9900K
495 Points ∼93% +13%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
495 Points ∼93% +13%
Intel NUC10i7FNH
Intel Core i7-10710U
480 Points ∼90% +9%
Alienware m17 R2 P41E
Intel Core i9-9980HK
478 Points ∼90% +9%
MSI GE65 Raider 9SF-049US
Intel Core i9-9880H
474 Points ∼89% +8%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
440 Points ∼83%
Lenovo Yoga C940-15IRH
Intel Core i7-9750H
434 Points ∼82% -1%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
418 Points ∼79% -5%
MSI GF63 Thin 9SC
Intel Core i5-9300H
418 Points ∼79% -5%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
404 Points ∼76% -8%
CPU (Multi Core)
Corsair One i160
Intel Core i9-9900K
4816 Points ∼48% +83%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
4288 Points ∼43% +63%
Alienware m17 R2 P41E
Intel Core i9-9980HK
4136 Points ∼41% +58%
MSI GE65 Raider 9SF-049US
Intel Core i9-9880H
3505 Points ∼35% +33%
Medion Erazer X15805
Intel Core i9-8950HK
2924 Points ∼29% +11%
Lenovo Yoga C940-15IRH
Intel Core i7-9750H
2643 Points ∼26% +1%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
2626 Points ∼26%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
2340 Points ∼23% -11%
Intel NUC10i7FNH
Intel Core i7-10710U
2303 Points ∼23% -12%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
2005 Points ∼20% -24%
MSI GF63 Thin 9SC
Intel Core i5-9300H
1737 Points ∼17% -34%
Cinebench R15
CPU Single 64Bit
Medion Erazer X15805
Intel Core i9-8950HK
203 Points ∼91% +10%
Corsair One i160
Intel Core i9-9900K
203 Points ∼91% +10%
MSI GE65 Raider 9SF-049US
Intel Core i9-9880H
198 Points ∼88% +7%
Alienware m17 R2 P41E
Intel Core i9-9980HK
195 Points ∼87% +5%
Intel NUC10i7FNH
Intel Core i7-10710U
194 Points ∼87% +5%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
193 Points ∼86% +4%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
185 Points ∼83%
Lenovo Yoga C940-15IRH
Intel Core i7-9750H
184 Points ∼82% -1%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼79% -4%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
174 Points ∼78% -6%
MSI GF63 Thin 9SC
Intel Core i5-9300H
173 Points ∼77% -6%
CPU Multi 64Bit
Corsair One i160
Intel Core i9-9900K
1987 Points ∼45% +79%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
1863 Points ∼43% +68%
Alienware m17 R2 P41E
Intel Core i9-9980HK
1754 Points ∼40% +58%
MSI GE65 Raider 9SF-049US
Intel Core i9-9880H
1601 Points ∼37% +44%
Medion Erazer X15805
Intel Core i9-8950HK
1217 Points ∼28% +9%
Lenovo Yoga C940-15IRH
Intel Core i7-9750H
1203 Points ∼27% +8%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
1112 (min: 349.67, max: 1112.32) Points ∼25%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
1079 Points ∼25% -3%
Intel NUC10i7FNH
Intel Core i7-10710U
1067 Points ∼24% -4%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼20% -22%
MSI GF63 Thin 9SC
Intel Core i5-9300H
797 Points ∼18% -28%
Cinebench R11.5
CPU Single 64Bit
Corsair One i160
Intel Core i9-9900K
2.33 Points ∼91% +11%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
2.23 Points ∼87% +7%
Intel NUC10i7FNH
Intel Core i7-10710U
2.19 Points ∼86% +5%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
2.09 Points ∼82%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
1.99 Points ∼78% -5%
CPU Multi 64Bit
Corsair One i160
Intel Core i9-9900K
21.76 Points ∼49% +76%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
18.21 Points ∼41% +47%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
12.38 Points ∼28%
Intel NUC10i7FNH
Intel Core i7-10710U
10.89 Points ∼25% -12%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
9.41 Points ∼21% -24%
Cinebench R10
Rendering Single 32Bit
Corsair One i160
Intel Core i9-9900K
7786 Points ∼72% +15%
Medion Erazer X15805
Intel Core i9-8950HK
7735 Points ∼71% +14%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
6758 Points ∼62%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
6668 Points ∼62% -1%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
6645 Points ∼61% -2%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
5866 Points ∼54% -13%
Rendering Multiple CPUs 32Bit
Corsair One i160
Intel Core i9-9900K
49142 Points ∼75% +57%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
37938 Points ∼58% +21%
Medion Erazer X15805
Intel Core i9-8950HK
36591 Points ∼56% +17%
Schenker XMG Neo 15 Turing
Intel Core i7-8750H
31800 Points ∼49% +1%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
31357 Points ∼48%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
25809 Points ∼40% -18%
wPrime 2.0x - 1024m
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
186.66 s * ∼2% -15%
Intel NUC10i7FNH
Intel Core i7-10710U
177.37 s * ∼2% -9%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
162.118 s * ∼2%
Corsair One i160
Intel Core i9-9900K
91.284 s * ∼1% +44%
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
88.237 s * ∼1% +46%
Super Pi Mod 1.5 XS 32M - ---
Asus Zephyrus G14 GA401IV
AMD Ryzen 9 4900HS
547.066 Seconds * ∼2% -14%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
484.864 Seconds * ∼2% -1%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel Core i9-9900T
481.027 Seconds * ∼2%
Intel NUC10i7FNH
Intel Core i7-10710U
466.042 Seconds * ∼2% +3%
Corsair One i160
Intel Core i9-9900K
435.588 Seconds * ∼2% +9%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
10037
Cinebench R10 Rendering Multiple CPUs 32Bit
31357
Cinebench R10 Rendering Single 32Bit
6758
Cinebench R11.5 OpenGL 64Bit
48.35 fps
Cinebench R11.5 CPU Multi 64Bit
12.38 Points
Cinebench R11.5 CPU Single 64Bit
2.09 Points
Cinebench R15 CPU Single 64Bit
185 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
59.2 fps
Cinebench R15 CPU Multi 64Bit
1112 Points
Help
PCMark 10
Digital Content Creation
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5598 Points ∼43% +64%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
3856 Points ∼30% +13%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
3777 Points ∼29% +11%
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
3671 Points ∼28% +7%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
3415 Points ∼26%
Productivity
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
7915 Points ∼76% +13%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
7035 Points ∼68%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
6876 Points ∼66% -2%
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
5816 Points ∼56% -17%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
5759 Points ∼55% -18%
Essentials
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
9160 Points ∼80% +7%
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
9125 Points ∼80% +6%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
9013 Points ∼79% +5%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
8763 Points ∼76% +2%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
8585 Points ∼75%
Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points ∼65% +25%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
4418 Points ∼54% +4%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
4236 Points ∼52%
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
4161 Points ∼51% -2%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
4154 Points ∼51% -2%
PCMark 8
Work Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5454 Points ∼83% +6%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
5154 Points ∼78%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
5039 Points ∼76% -2%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
4631 Points ∼70% -10%
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
4578 Points ∼69% -11%
Home Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points ∼79% +24%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
3938 Points ∼65% +1%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
UHD Graphics 630, i9-9900T, EDGE NextGen SSD 1TB
3899 Points ∼64%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
3825 Points ∼63% -2%
Dell XPS 13 7390 Core i7-10710U
UHD Graphics 620, i7-10710U, SK Hynix PC601 NVMe 512 GB
3442 Points ∼56% -12%
PCMark 8 Home Score Accelerated v2
3899 punten
PCMark 8 Work Score Accelerated v2
5154 punten
Help
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
EDGE NextGen SSD 1TB
Intel Hades Canyon NUC8i7HVK
Intel Optane 120 GB SSDPEK1W120GA
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
Zotac ZBOX Magnus EK71080
Samsung PM961 MZVLW256HEHP
Intel NUC7CJYH
SanDisk Ultra II
AS SSD
62%
0%
46%
-37%
Copy Game MB/s
1072.24
767.8
-28%
734.57
-31%
1009.86
-6%
175.51
-84%
Copy Program MB/s
422.79
342.37
-19%
346.04
-18%
467.97
11%
102.04
-76%
Copy ISO MB/s
2082.4
1125.28
-46%
976.28
-53%
1649.29
-21%
197.01
-91%
Score Total
1800
3023
68%
1944
8%
2791
55%
1025
-43%
Score Write
694
714
3%
762
10%
669
-4%
268
-61%
Score Read
726
1524
110%
804
11%
1429
97%
498
-31%
Access Time Write *
0.286
0.033
88%
0.07
76%
0.04
86%
0.089
69%
Access Time Read *
0.118
0.025
79%
0.114
3%
0.06
49%
0.115
3%
4K-64 Write
520.36
555.59
7%
647.56
24%
443.75
-15%
174.58
-66%
4K-64 Read
578.07
1257.95
118%
651.73
13%
1170.49
102%
420.47
-27%
4K Write
43.25
103.46
139%
53.52
24%
105.18
143%
47.43
10%
4K Read
25.97
127.95
393%
21.53
-17%
46.69
80%
26.98
4%
Seq Write
1305.99
552.79
-58%
611
-53%
1204.91
-8%
464.8
-64%
Seq Read
1217.77
1378.66
13%
1306
7%
2118.71
74%
480.03
-61%
CrystalDiskMark 5.2 / 6
6%
94%
9%
-64%
Write 4K
111.8
133.7
20%
442.4
296%
132.7
19%
61.13
-45%
Read 4K
56.79
178.6
214%
371.1
553%
44.48
-22%
31.99
-44%
Write Seq
1148
607.8
-47%
900.2
-22%
1193
4%
421.7
-63%
Read Seq
1522
1428
-6%
1582
4%
1371
-10%
427.4
-72%
Write 4K Q32T1
399.7
323.6
-19%
373.8
-6%
398.5
0%
97.02
-76%
Read 4K Q32T1
570.4
282.3
-51%
374.9
-34%
483.5
-15%
121.9
-79%
Write Seq Q32T1
1375
626.7
-54%
893
-35%
1202
-13%
504.4
-63%
Read Seq Q32T1
1626
1521
-6%
1581.5
-3%
3388
108%
551.4
-66%
Write 4K Q8T8
399.1
183.1
Read 4K Q8T8
687.9
221.3
Totaal Gemiddelde (Programma / Instellingen)
34% / 42%
47% / 34%
28% / 32%
-51% / -47%

* ... kleiner is beter

EDGE NextGen SSD 1TB
CDM 5/6 Read Seq Q32T1: 1626 MB/s
CDM 5/6 Write Seq Q32T1: 1375 MB/s
CDM 5/6 Read 4K Q32T1: 570.4 MB/s
CDM 5/6 Write 4K Q32T1: 399.7 MB/s
CDM 5 Read Seq: 1522 MB/s
CDM 5 Write Seq: 1148 MB/s
CDM 5/6 Read 4K: 56.79 MB/s
CDM 5/6 Write 4K: 111.8 MB/s
3DMark
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
2908 Points ∼19% +559%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
872 Points ∼6% +98%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
852 Points ∼6% +93%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
824 Points ∼6% +87%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
708 Points ∼5% +61%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
472 Points ∼3% +7%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
443 Points ∼3% 0%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
441 Points ∼3%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
428 Points ∼3% -3%
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10248 Points ∼25% +1319%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
3026 Points ∼7% +319%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
2999 Points ∼7% +315%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
2950 Points ∼7% +309%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
2789 Points ∼7% +286%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
1755 Points ∼4% +143%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
1418 Points ∼3% +96%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
1353 Points ∼3% +87%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
722 Points ∼2%
1280x720 Cloud Gate Standard Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
59162 Points ∼30% +1432%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
20784 Points ∼11% +438%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
19255 Points ∼10% +398%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
17872 Points ∼9% +363%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
17803 Points ∼9% +361%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
12698 Points ∼6% +229%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
11065 Points ∼6% +186%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
10450 Points ∼5% +171%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
3863 Points ∼2%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
282345 Points ∼39% +1380%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
78094 Points ∼11% +309%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
70492 Points ∼10% +270%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
59091 Points ∼8% +210%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
49814 Points ∼7% +161%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
48446 Points ∼7% +154%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
48252 Points ∼7% +153%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
19075 Points ∼3%
3DMark 11
1280x720 Performance Combined
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10391 Points ∼46% +517%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
4086 Points ∼18% +142%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
3502 Points ∼15% +108%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
3247 Points ∼14% +93%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
3041 Points ∼13% +80%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
2552 Points ∼11% +51%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
2142 Points ∼9% +27%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
2088 Points ∼9% +24%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
1685 Points ∼7%
1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
14302 Points ∼28% +2128%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
4508 Points ∼9% +602%
Microsoft Surface Laptop 3 15 Ryzen 5 3580U
AMD Radeon RX Vega 9, R5 3580U
4380 Points ∼9% +582%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
4297 Points ∼8% +569%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, R7 3700U
4165 Points ∼8% +549%
Dell XPS 13 9300 i5 FHD
Intel UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1
2578 Points ∼5% +302%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
1983 Points ∼4% +209%
Lenovo ThinkPad T490 20RY0002US
Intel UHD Graphics 620, i7-10510U
1942 Points ∼4% +202%
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
Intel UHD Graphics 630, i9-9900T
642 Points ∼1%
3DMark 06 Standard
13646 punten
3DMark 11 Performance
790 punten
3DMark Ice Storm Standard Score
28176 punten
3DMark Cloud Gate Standard Score
3712 punten
3DMark Fire Strike Score
779 punten
3DMark Time Spy Score
512 punten
Help
lage gem. hoge ultra
Dota 2 Reborn (2015) 70.4 44.8 7.8 6.8 fps
X-Plane 11.11 (2018) 12.7 11 11 fps
Stroomgebruik
Uit / Standbydarklight 0.6 / 1.28 Watt
Inactiefdarkmidlight 6.6 / 8.3 / 8.8 Watt
Belasting midlight 46.2 / 69.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Impact Display Solutions IMP-3654-B1-R Core i9-9900T
i9-9900T, UHD Graphics 630, EDGE NextGen SSD 1TB, , x,
Zotac ZBOX-QK7P3000
Quadro P3000, Samsung SSD 960 Pro 512 GB m.2, , x,
Zotac ZBOX Magnus EK71080
7700HQ, GeForce GTX 1080 (Desktop), Samsung PM961 MZVLW256HEHP, , x, 0
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Lenovo Yoga C940-15IRH
i7-9750H, GeForce GTX 1650 Max-Q, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202AL, IPS, 1920x1080, 15.6
Apple MacBook Pro 16 2019 i9 5500M
i9-9880H, Radeon Pro 5500M, Apple SSD AP1024 7171, IPS, 3072x1920, 16
Power Consumption
-137%
-211%
-110%
-74%
-48%
Idle Minimum *
6.6
19.9
-202%
27.1
-311%
15.5
-135%
5.2
21%
3.7
44%
Idle Average *
8.3
20.3
-145%
27.4
-230%
16.2
-95%
10.7
-29%
12.1
-46%
Idle Maximum *
8.8
27.6
-214%
28.8
-227%
16.5
-88%
24.3
-176%
17
-93%
Load Average *
46.2
86.2
-87%
100.4
-117%
83.4
-81%
84.4
-83%
91.5
-98%
Load Maximum *
69.7
96.3
-38%
186.7
-168%
173.5
-149%
142.8
-105%
102.3
-47%
Witcher 3 ultra *
114.4
243.1
121.7
83.9
103

* ... kleiner is beter

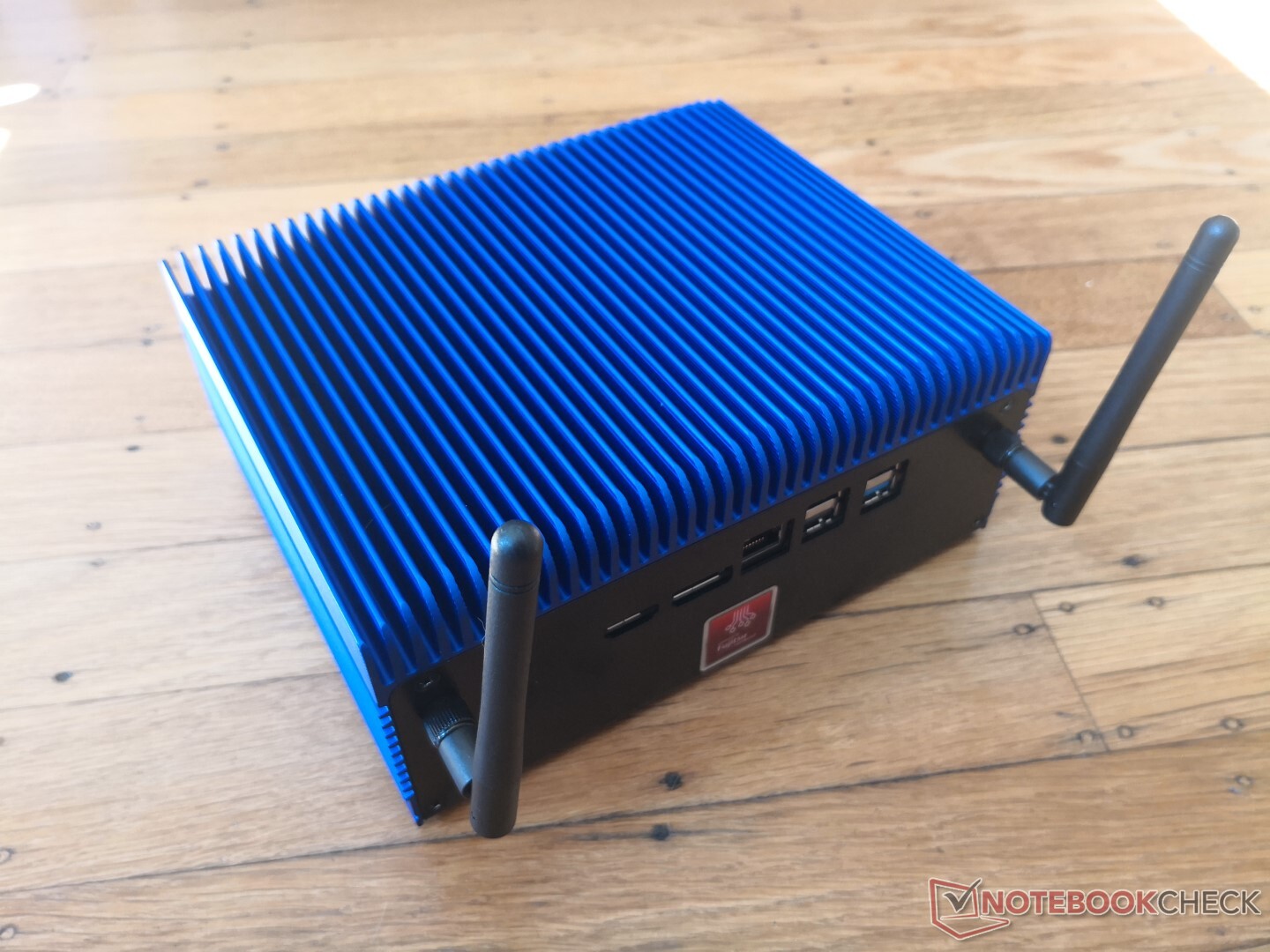

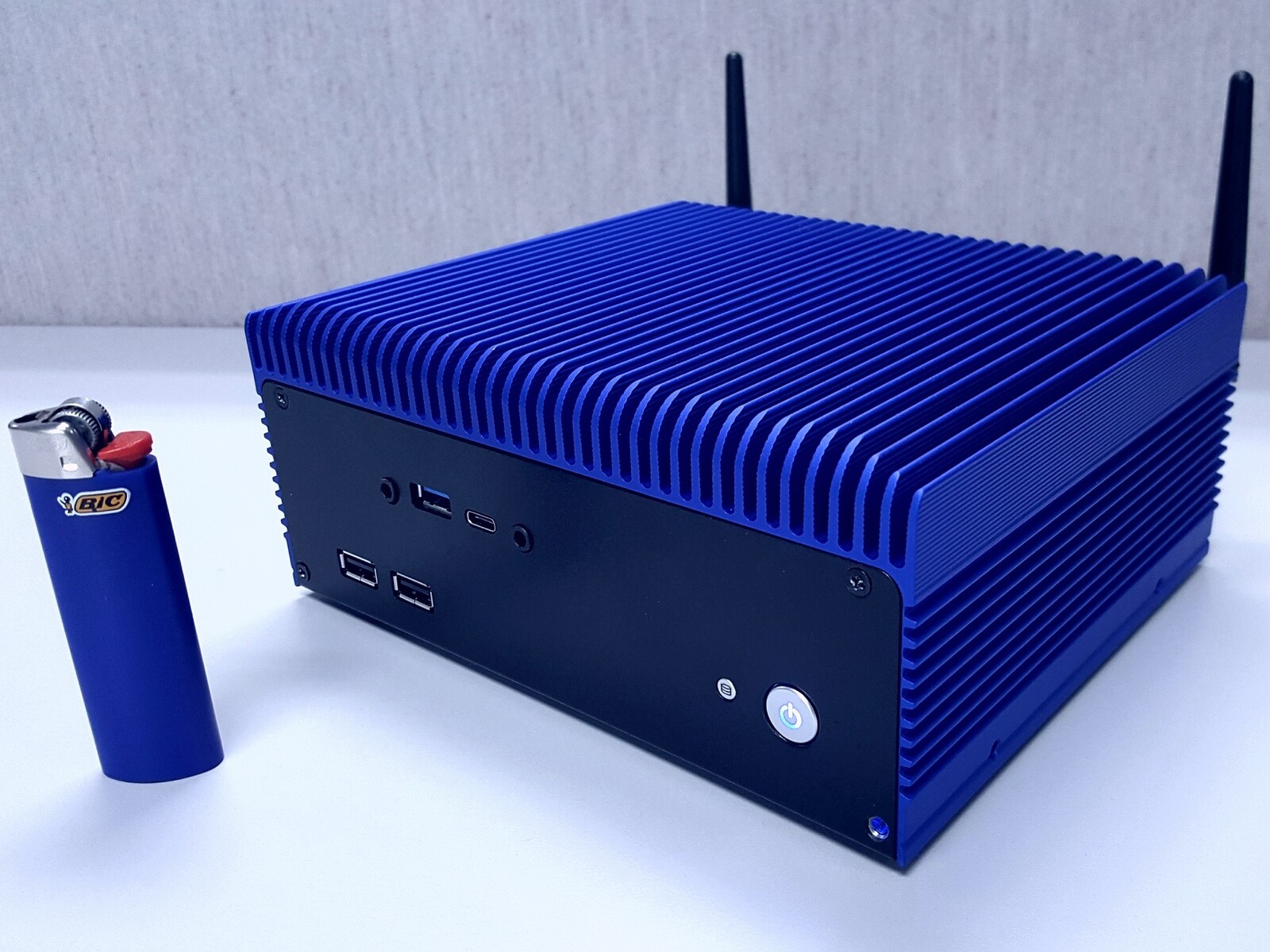

Getest: Impact Display Solution IMP-3654-B1-R Mini-PC. Testtoestel voorzien door Impact
Getest: Impact Display Solution IMP-3654-B1-R Mini-PC. Testtoestel voorzien door Impact

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Kan de Impact IMP-3654-B1-R Mini-PC een Core i9 CPU volledig passief koelen? Zeker en vast, maar slechts voor een beperkte tijd. Wanneer het systeem voor een langere periode volledig wordt belast, zullen de kloksnelheden uiteindelijk sterk afnemen, zoals we hierboven in meerdere gevallen hebben aangetoond. Op zijn best zullen de kloksnelheden rond 2,5 GHz stabiliseren voor een algemeen multi-core prestatieniveau vergelijkbaar met de 45-W hexa-core Core i7-9750H, ook al is de Core i9-9900T een 35-W octa-core. Dit is een van de snelste, geruisloze mini-PC's die op die markt te vinden is.

Als je niet van plan bent om gedurende lange tijd extreem CPU-intensieve taken uit te voeren en slechts af en toe gebruik wilt maken van de prestatieverbetering van de Core i9 CPU, dan kan de geruisloze IMP-3654-B1-R Mini-PC de juiste keuze zijn. Een Thunderbolt 3-poort of SD-lezer zou de mini-PC nog veelzijdiger hebben gemaakt.

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Impact Display Solutions IMP-3654-B1-R Mini-PC: passief gekoelde Core i9
Allen Ngo, 2020-04-10 (Update: 2020-04-10)
Allen Ngo
Editor of the original article: Allen Ngo - US Editor in Chief
