Kort testrapport Intel NUC Kit NUC7CJYH (Celeron J4005, UHD 600) Mini PC

Klein en betaalbaar. Intel NUC-Mini-PC’s staan bekend voor hun compacte design. De nieuwe NUC-generatie behoudt dit concept en pakt daarnaast ook uit met een nieuwe processor van Intel. In dit testrapport nemen we de NUC Kit NUC7CJYH onder de loep; een instap-NUC-Mini-PC die is uitgerust met een Intel Celeron J4005-processor. Komt in dit testrapport te weten of de Gemini-Lake-processor op zijn plaats is in dit toestel.

Sebastian Bade, 👁 Klaus Hinum, ✓ Stefanie Voigt (vertaald door Siemon Boes), Published 14-06-2018 🇺🇸 🇩🇪 ...

Desktop Windows

Intel NUC7CJYH

Processor

Intel Celeron J4005 2 x 2 - 2.7 GHz, Gemini Lake

Grafische kaart

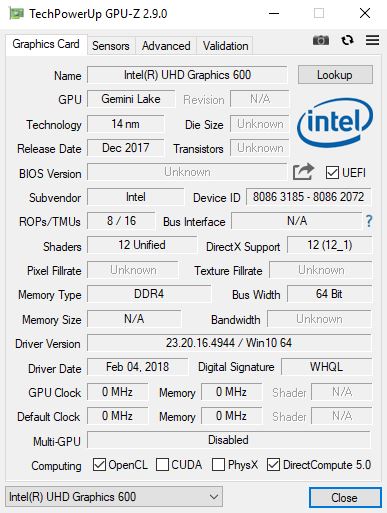

Intel UHD Graphics 600, Core: 700 MHz, 23.20.16.4944

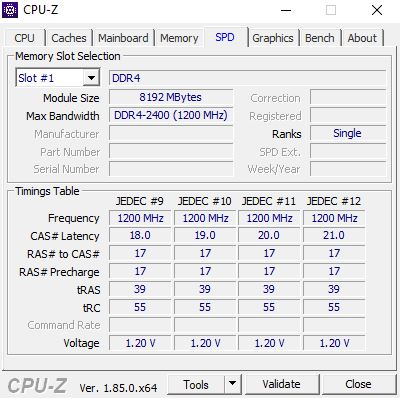

Geheugen

8 GB

, DDR4-2400 1.2V SO-DIMM. Max. 32 GB RAM met twee DIMM's.

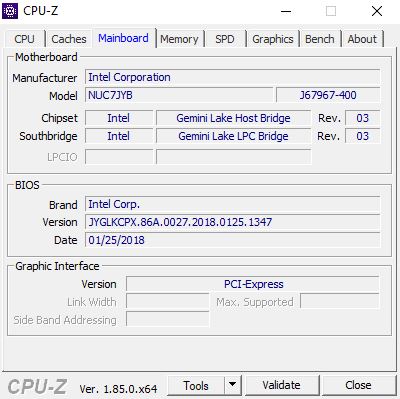

Moederbord

Gemini Lake

Opslag

SanDisk Ultra II, 240 GB

, 2.5-inch-SSD

Verbindingen

4 USB 3.0, 2 HDMI, 1 Kensington Lock

Netwerkmogelijkheden

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Afmetingen

hoogte x breedte x diepte (in mm): 51 x 115 x 111

Besturingssysteem

Microsoft Windows 10 Pro 64 Bit

Bijkomende functionaliteiten

Power Supply, 36 Maanden Garantie, 36 maanden garantie, geen OS, SSD of RAM inbegrepen

Gewicht

577 g, Voeding: 330 g

Prijs

0 EUR

Links

Intel startpagina

Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

zie alle specificaties

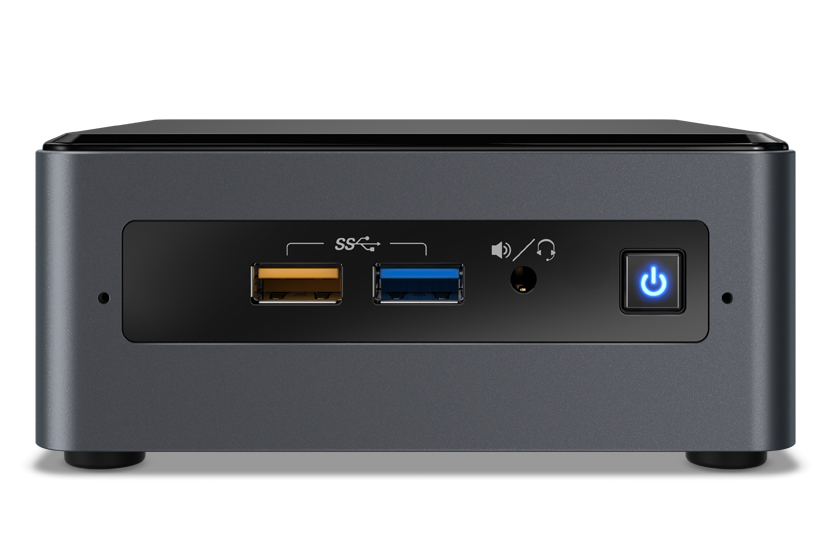

Voor: USB 3.0 Type-A port x2, 3.5 mm koptelefoon- & microfoonklink, aan/uit-knop.

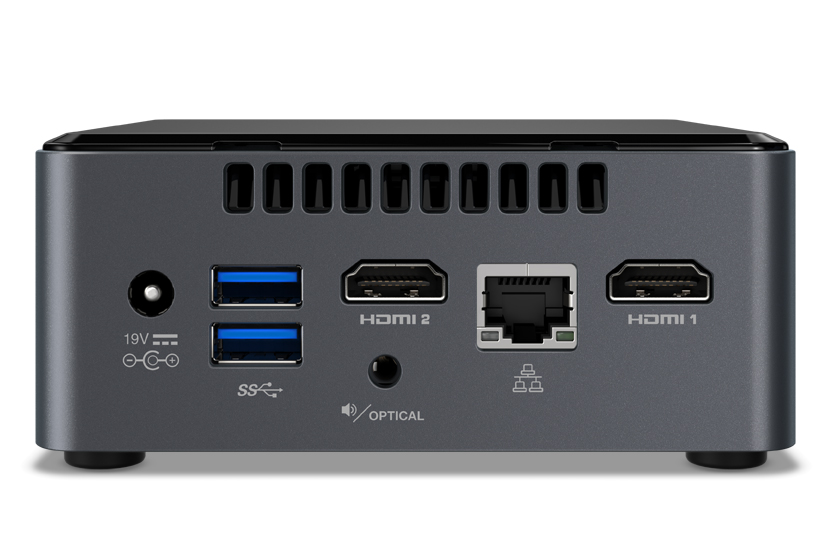

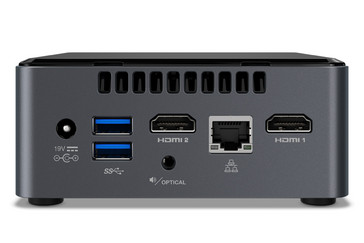

Achter: voeding, USB 3.0 Type-A poorten x2, HDMI port x2, optische audioconnector RJ45 Ethernet-poort.

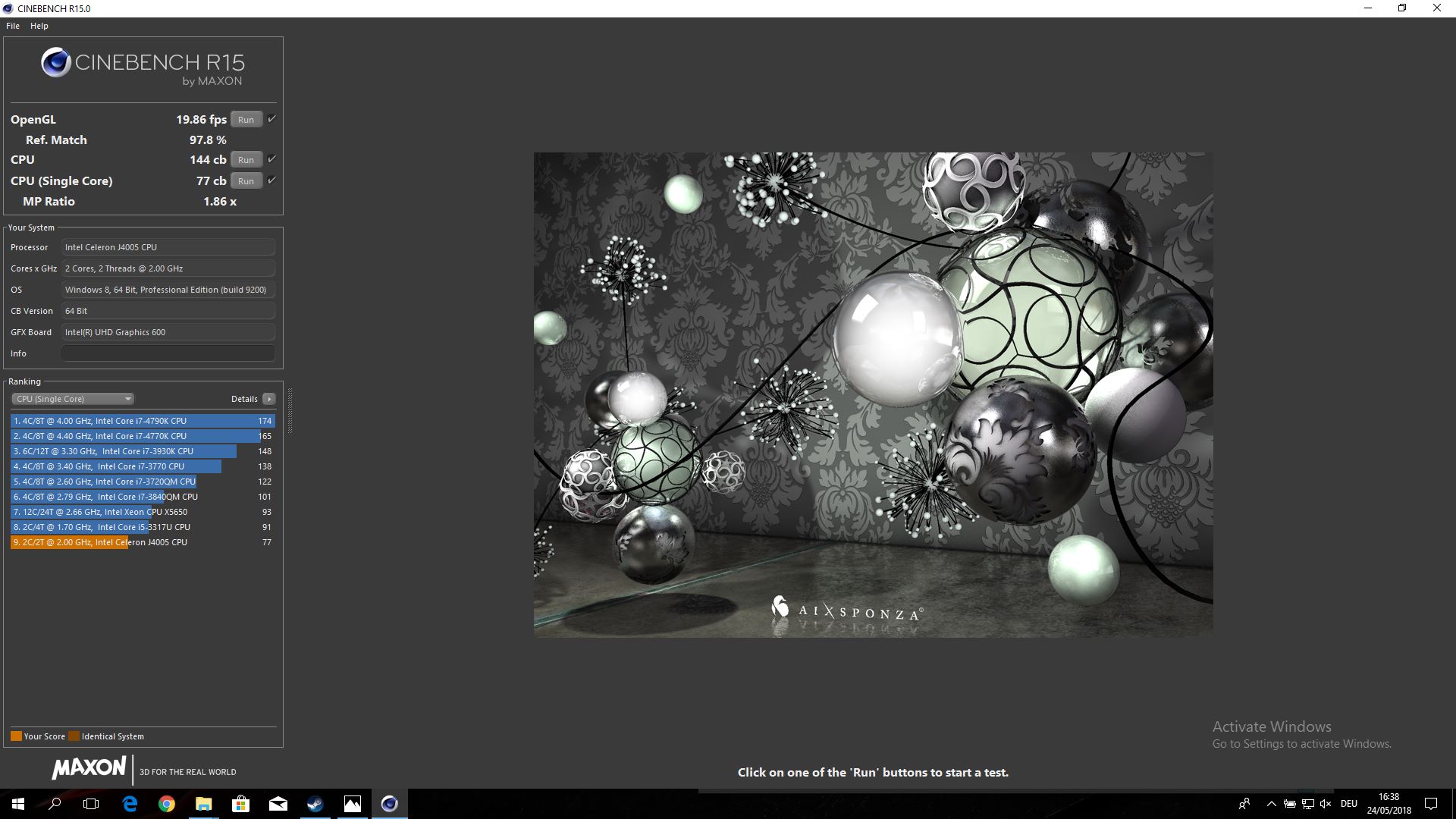

Cinebench R15
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	127 Points +65%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points +52%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points +40%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points +9%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	77 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	53 Points -31%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	48 Points -38%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	327 Points +127%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points +107%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points +81%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points +53%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points +47%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	165 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	144 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	135 Points -6%

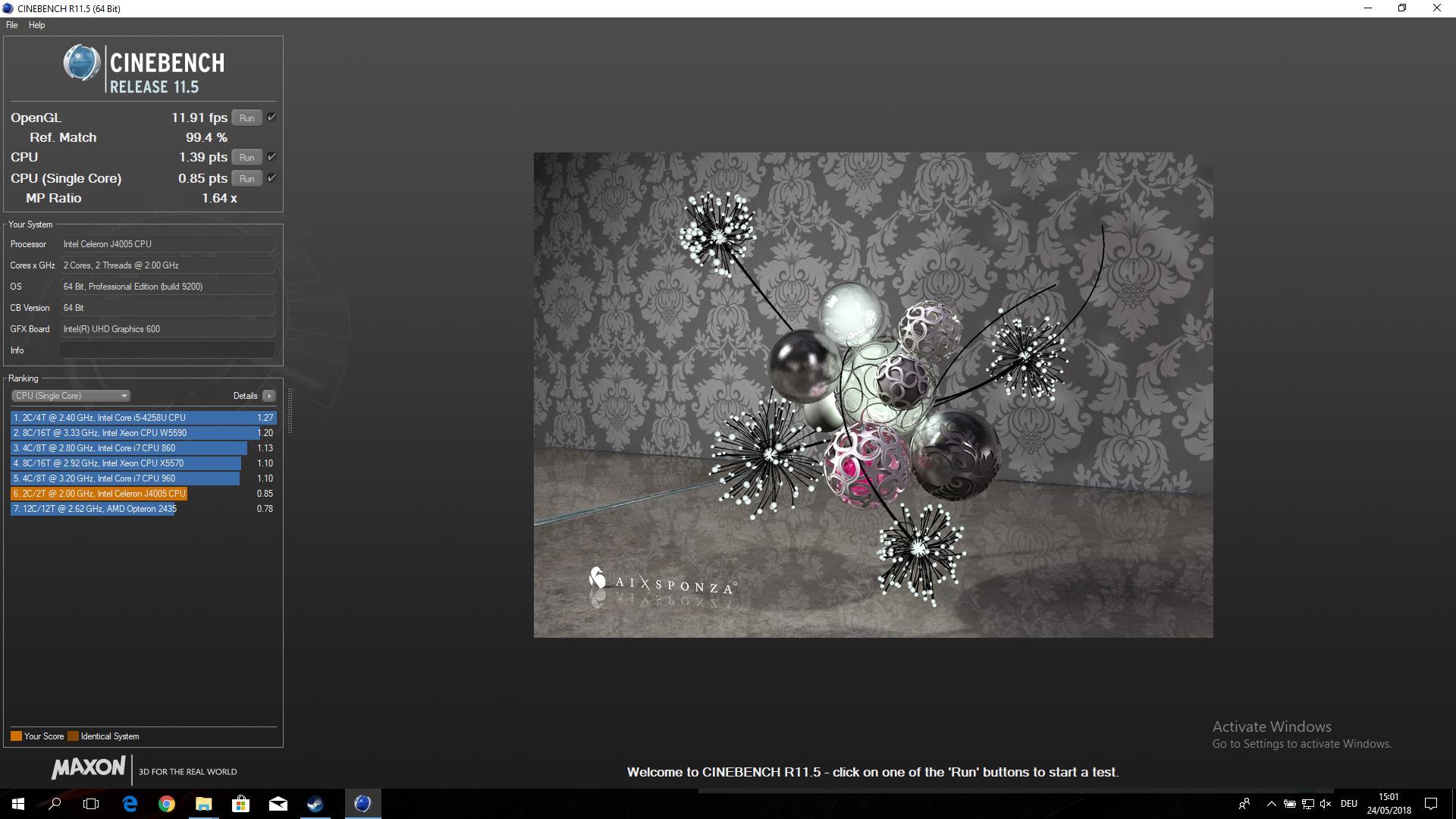

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.46 Points +72%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points +56%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points +51%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.85 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.66 Points -22%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3.65 Points +163%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points +135%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points +106%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2.09 Points +50%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1.39 Points

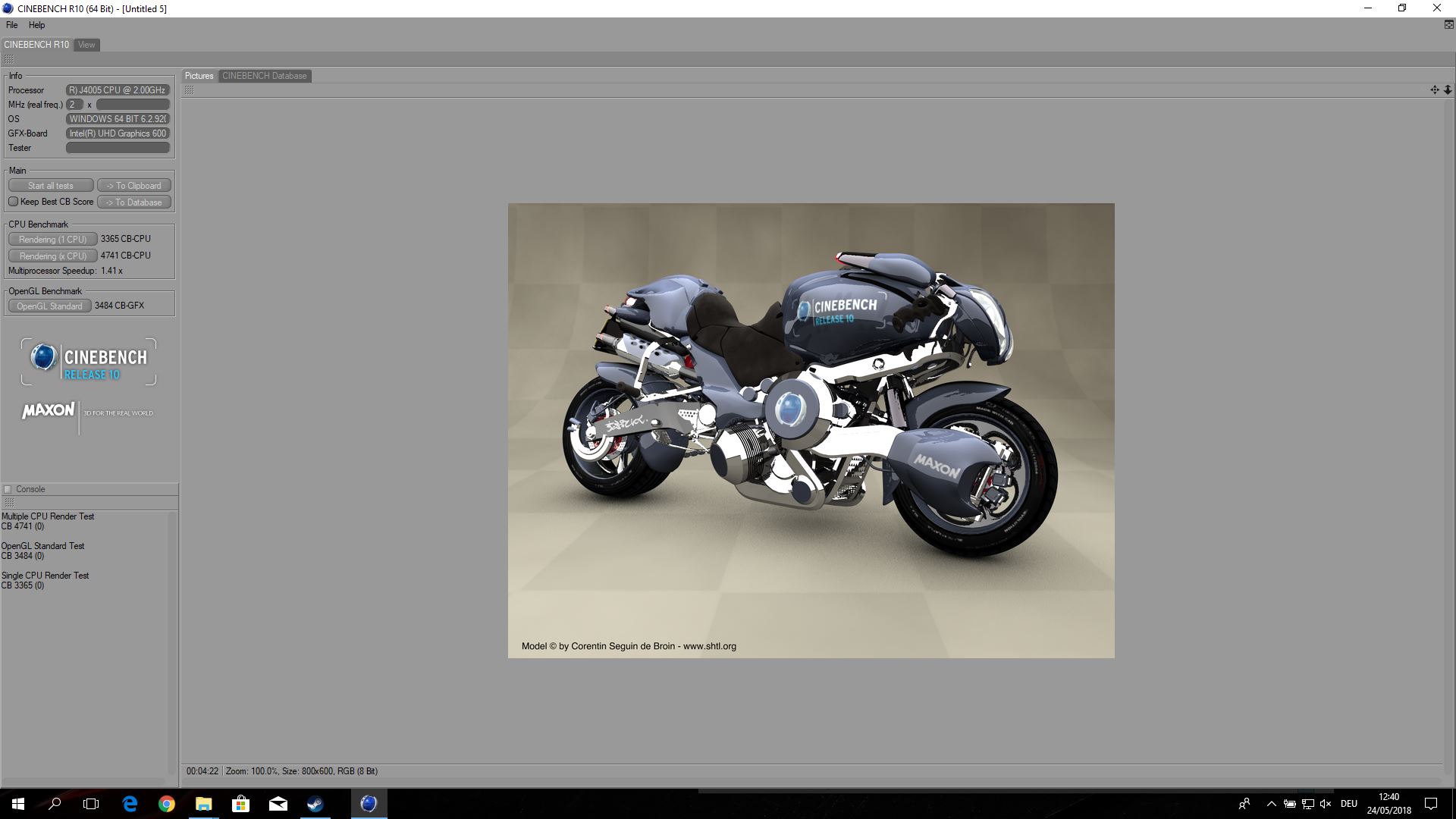

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5521 Points +64%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3365 Points
Rendering Multiple CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11202 Points +136%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4741 Points

Blender - v2.79 BMW27 CPU
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4124 Seconds *

wPrime 2.10
1024m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1042 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	724 s * +31%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * +40%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	469 s * +55%
32m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	33.07 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	20.13 s * +39%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * +41%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	14.88 s * +55%

X264 HD Benchmark 4.0
Pass 2
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps +94%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps +65%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps +38%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	12.02 fps +21%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	9.955 (9.95^min - 9.98^max) fps
Pass 1
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +110%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps +48%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	60 fps +20%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	49.92 (49.69^min - 50.04^max) fps

WinRAR - Result
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2461 KB/s +208%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2457 KB/s +208%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2111 KB/s +165%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	944 KB/s +18%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	798 KB/s

TrueCrypt
Serpent Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.189 GB/s +102%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.171 GB/s +83%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s +78%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s +52%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s +42%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.0935 GB/s
Twofish Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.322 GB/s +140%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s +111%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s +83%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.237 GB/s +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s +49%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.134 GB/s
AES Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.9 GB/s +97%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s +77%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s +56%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1.4 GB/s +45%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s +35%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.963 GB/s

Geekbench 4.4
64 Bit Multi-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points +45%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	4001 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3491 Points
64 Bit Single-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points +31%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1997 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1399 Points -30%

* ... kleiner is beter

Intel Celeron J4005 Cinebench R15 CPU Multi 64 Bit

PCMark 10 | PCMark 8 | PCMark 7

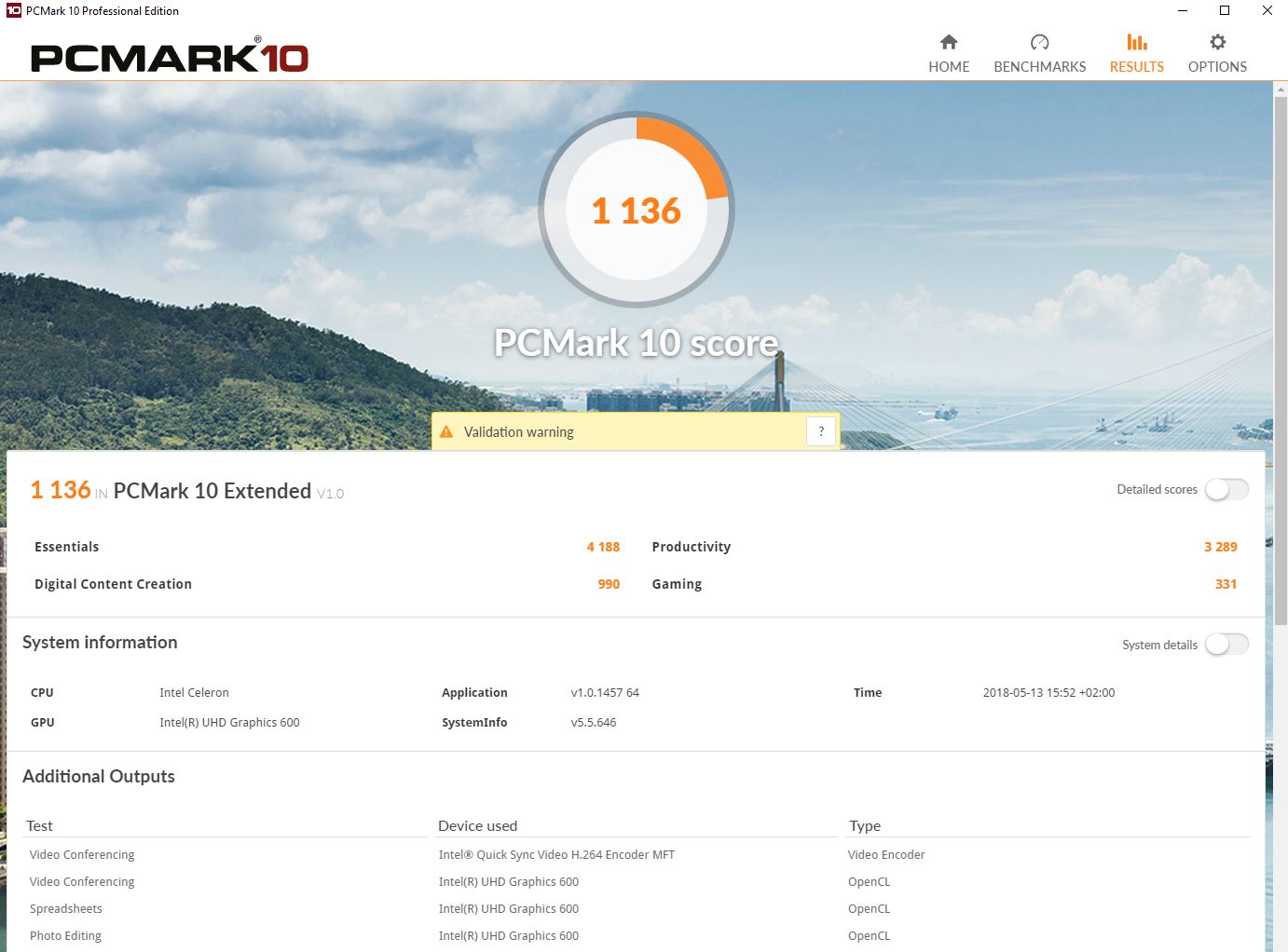

PCMark 10
Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points +110%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1181 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1136 Points
Productivity
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +24%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3289 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1926 Points -41%

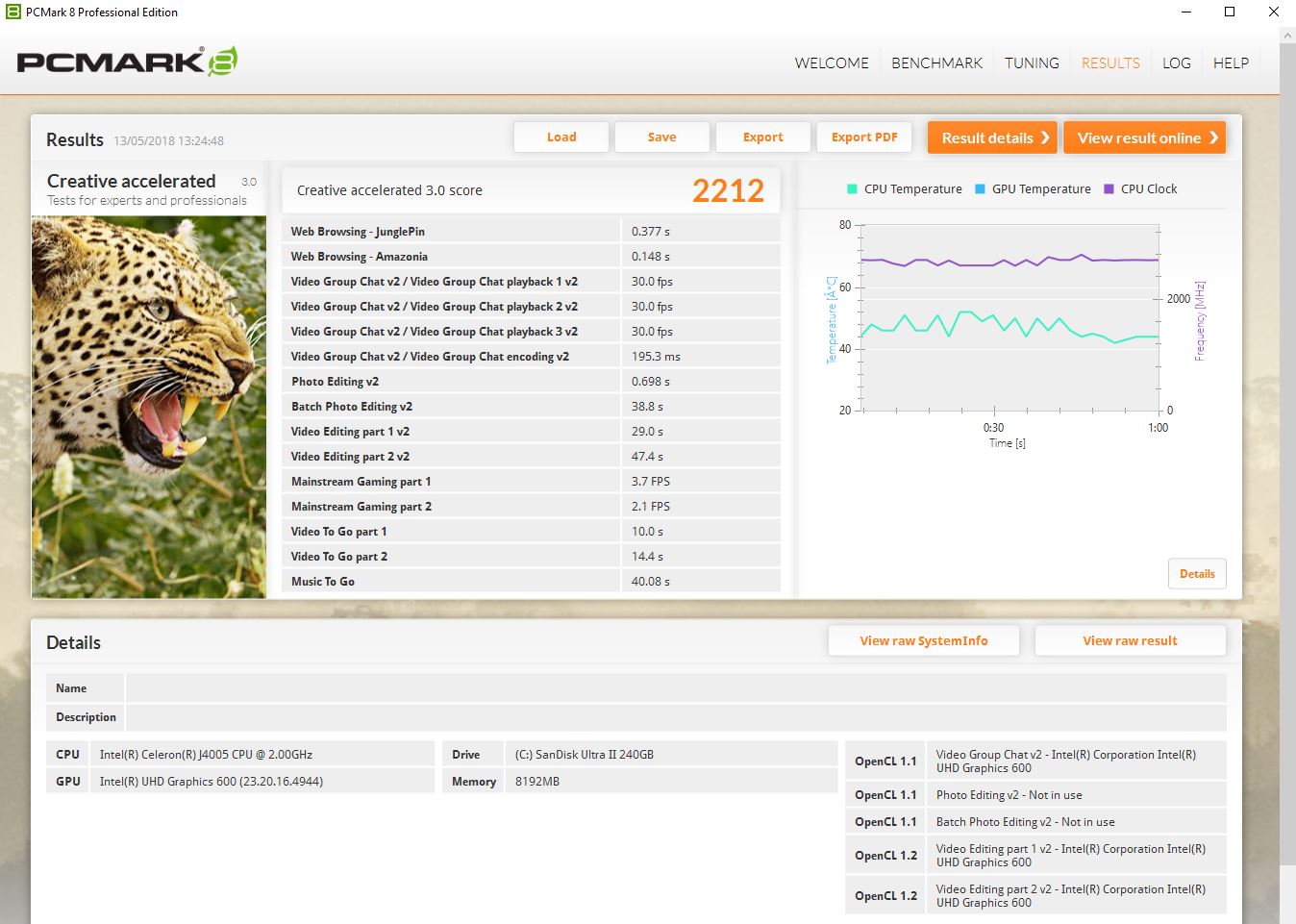

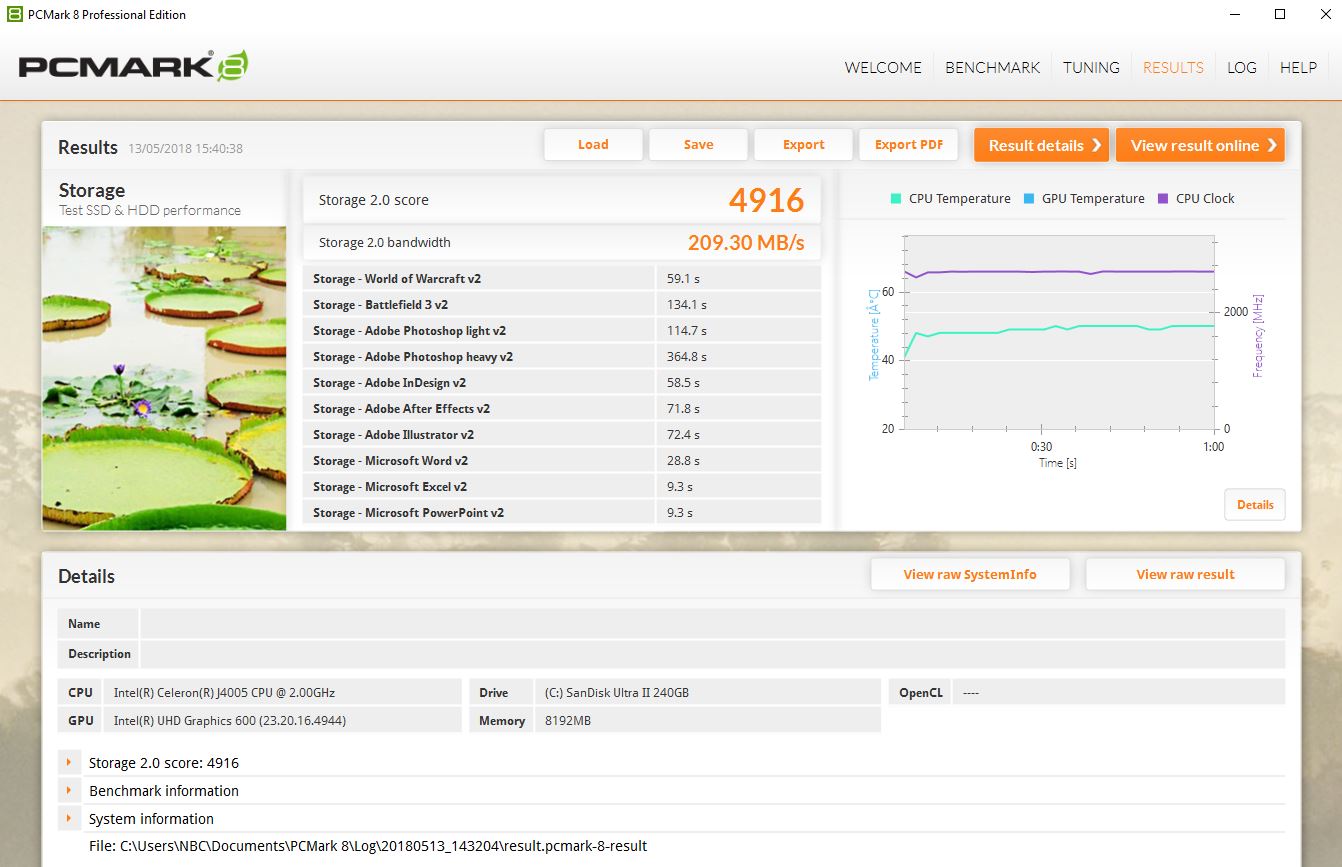

PCMark 8

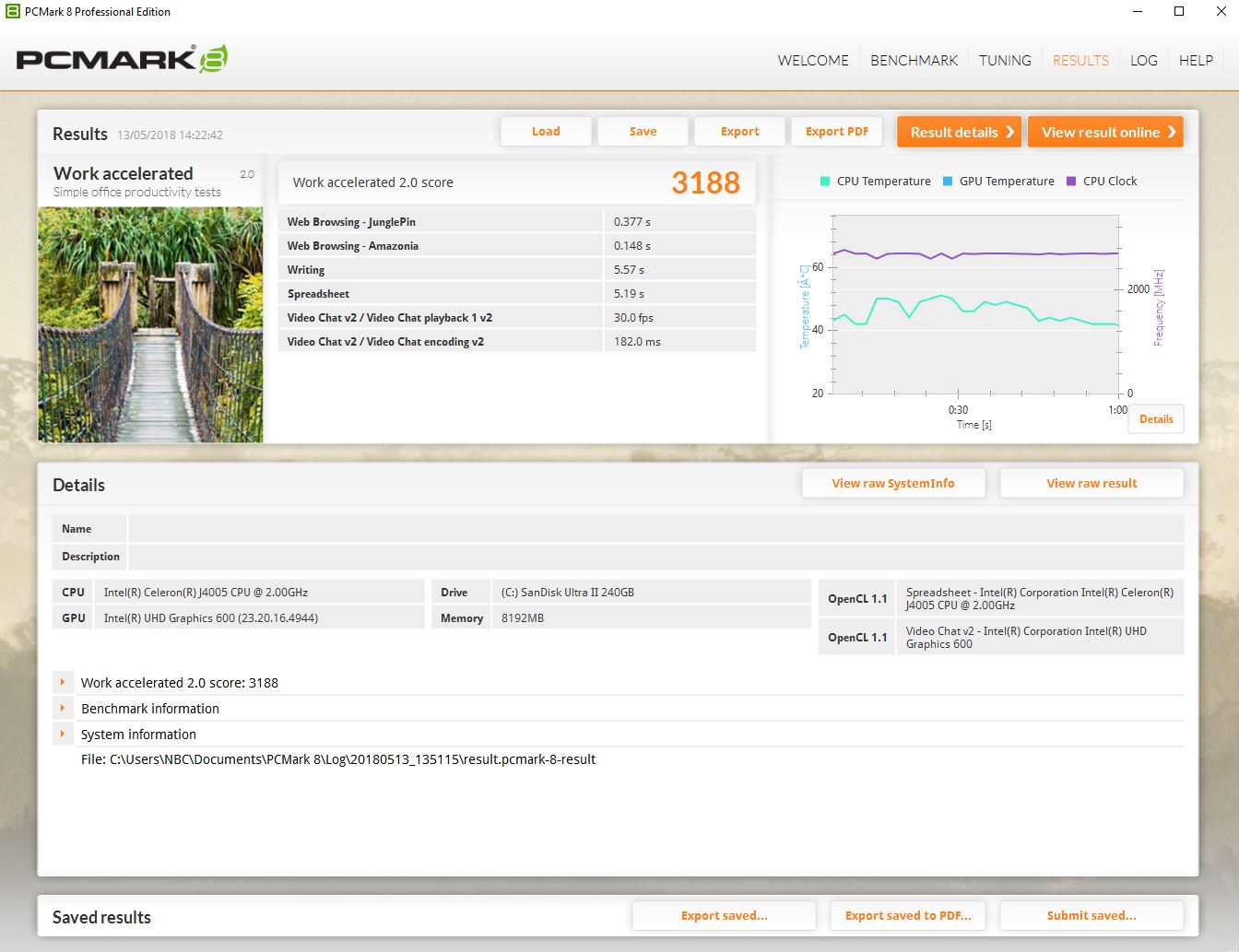

Work Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4588 Points +44%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	4390 Points +38%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	4046 Points +27%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3732 Points +17%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3188 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2801 Points -12%

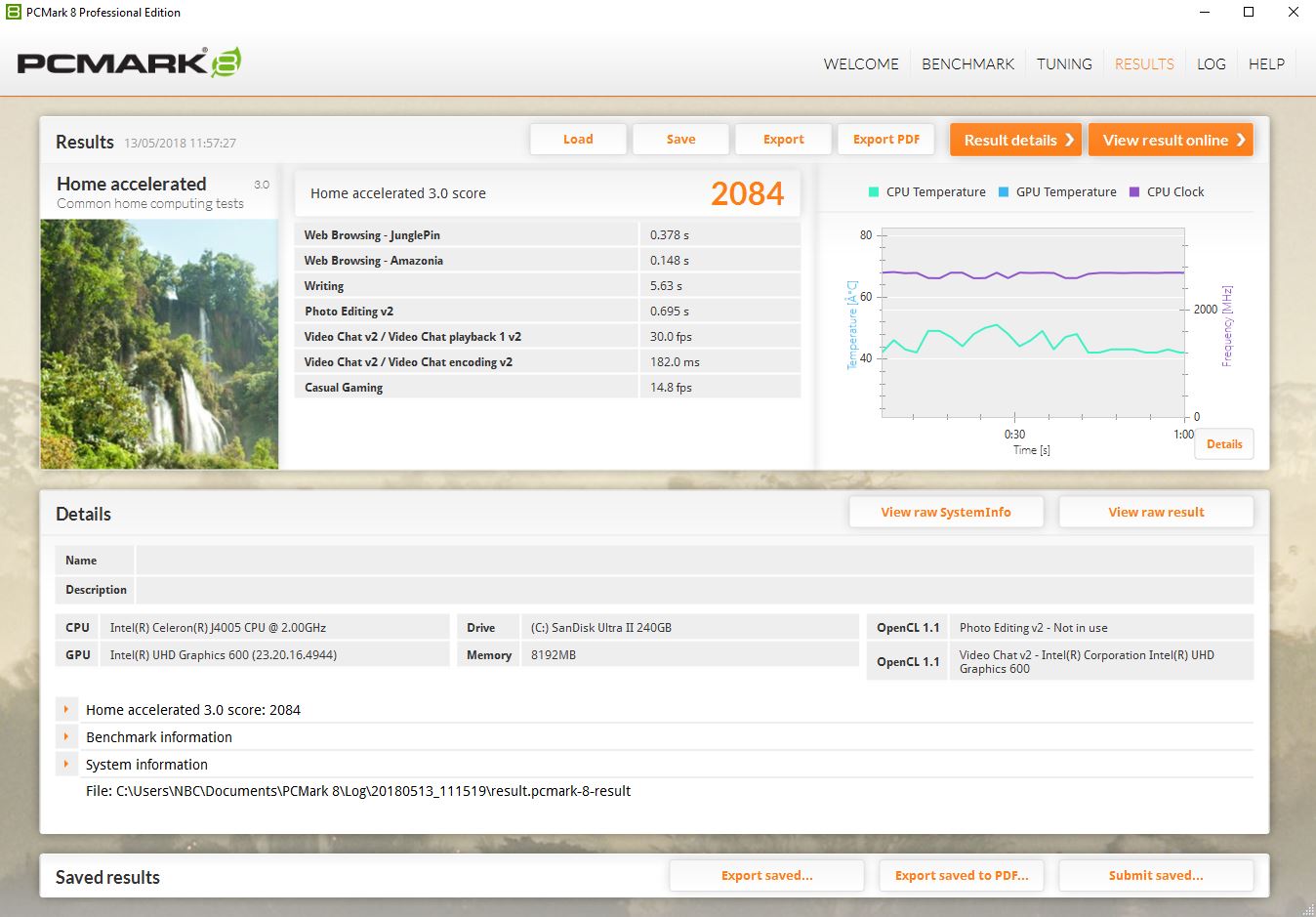

Home Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3667 Points +76%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3345 Points +61%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3062 Points +47%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2901 Points +39%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	2084 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2073 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1530 Points -27%

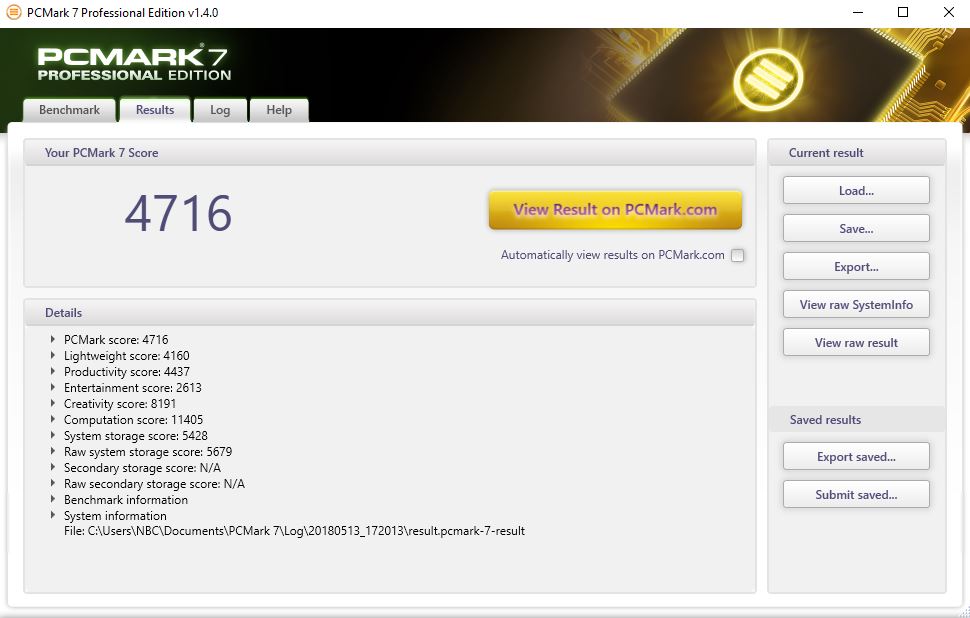

PCMark 7
Score
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4716 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2441 Points -48%
Productivity
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4437 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1414 Points -68%

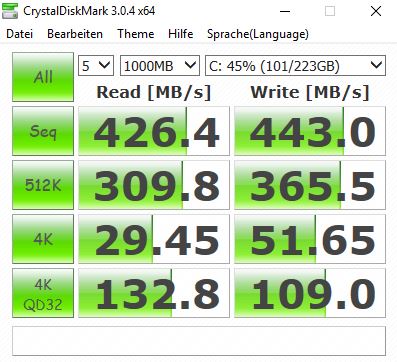

CrystalDiskMark 3.0

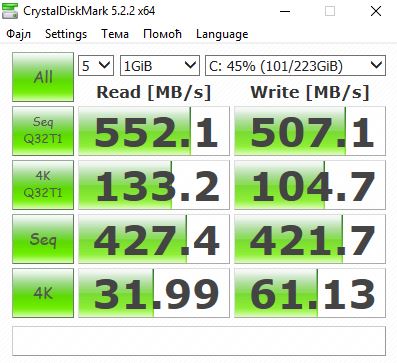

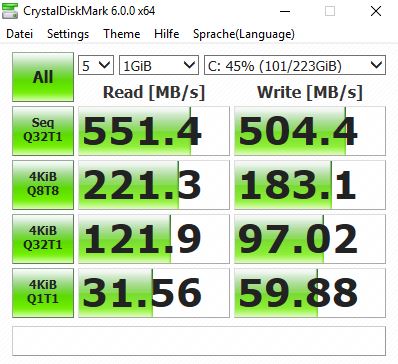

CrystalDiskMark 5.2 / 6

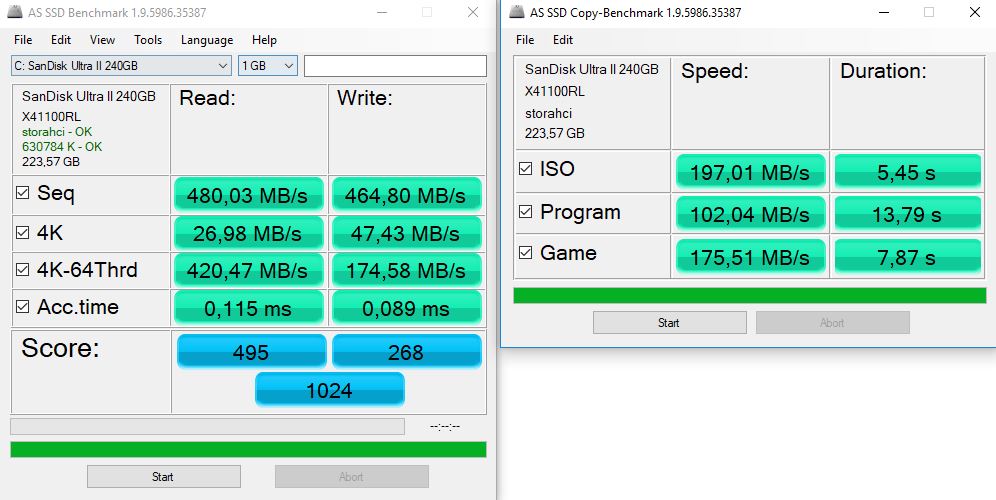

AS SSD

SanDisk Ultra II

Sequential Read: 426.4 MB/s

Sequential Write: 443 MB/s

512K Read: 309.8 MB/s

512K Write: 365.5 MB/s

4K Read: 29.45 MB/s

4K Write: 51.7 MB/s

4K QD32 Read: 132.8 MB/s

4K QD32 Write: 109 MB/s

3DMark 11 | 3DMark

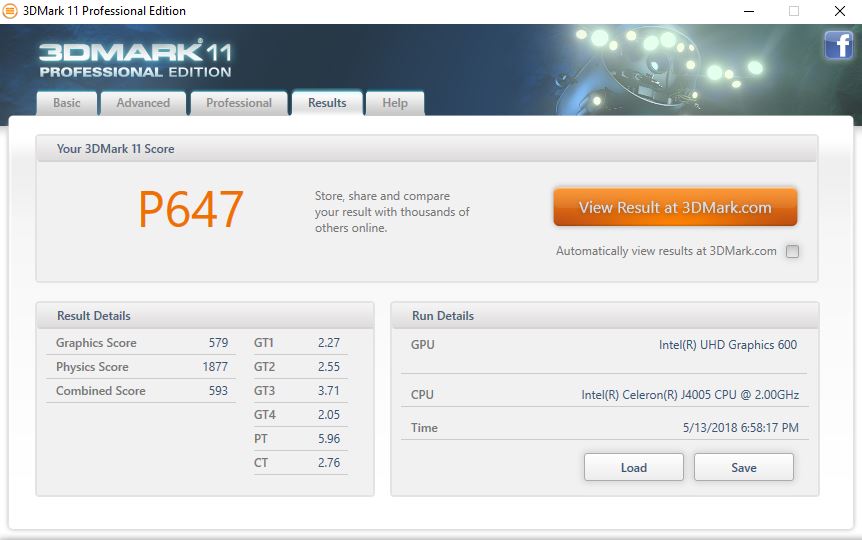

3DMark 11
1280x720 Performance
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2484 Points +284%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1568 Points +142%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1354 Points +109%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1298 Points +101%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	647 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	642 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	414 Points -36%
1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +301%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points +152%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1281 Points +121%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points +103%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	583 Points +1%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	579 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	368 Points -36%

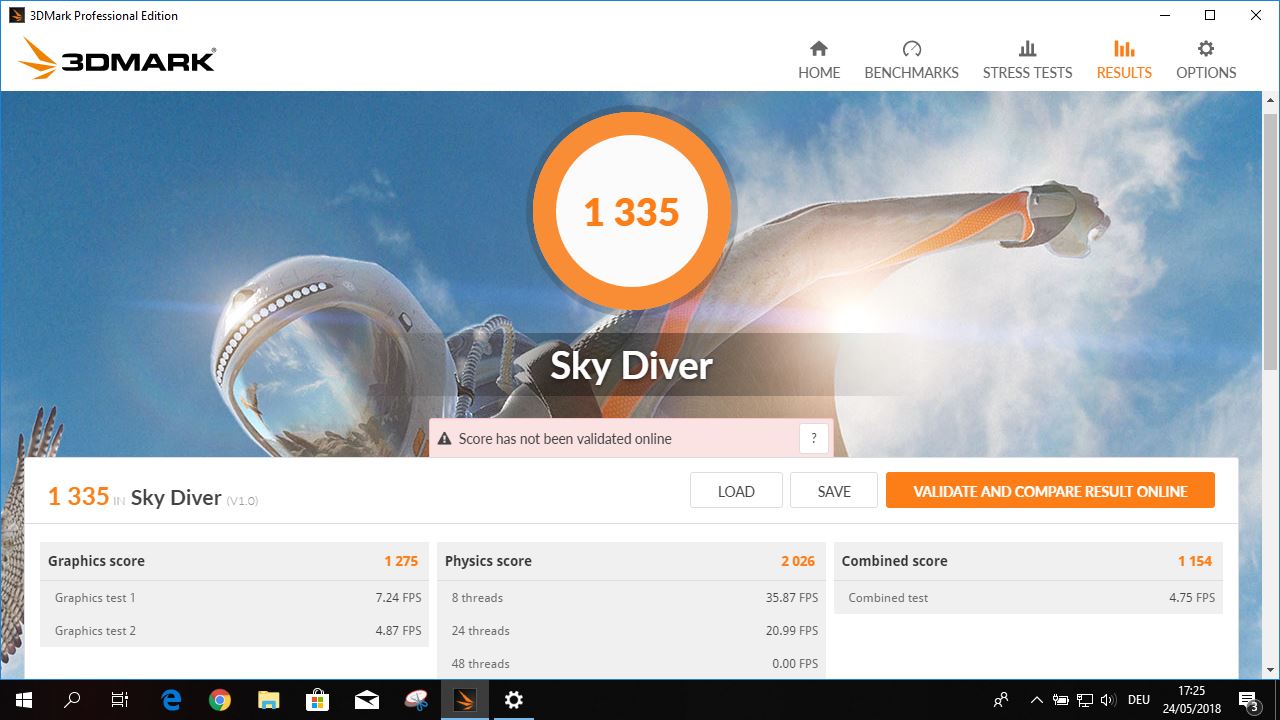

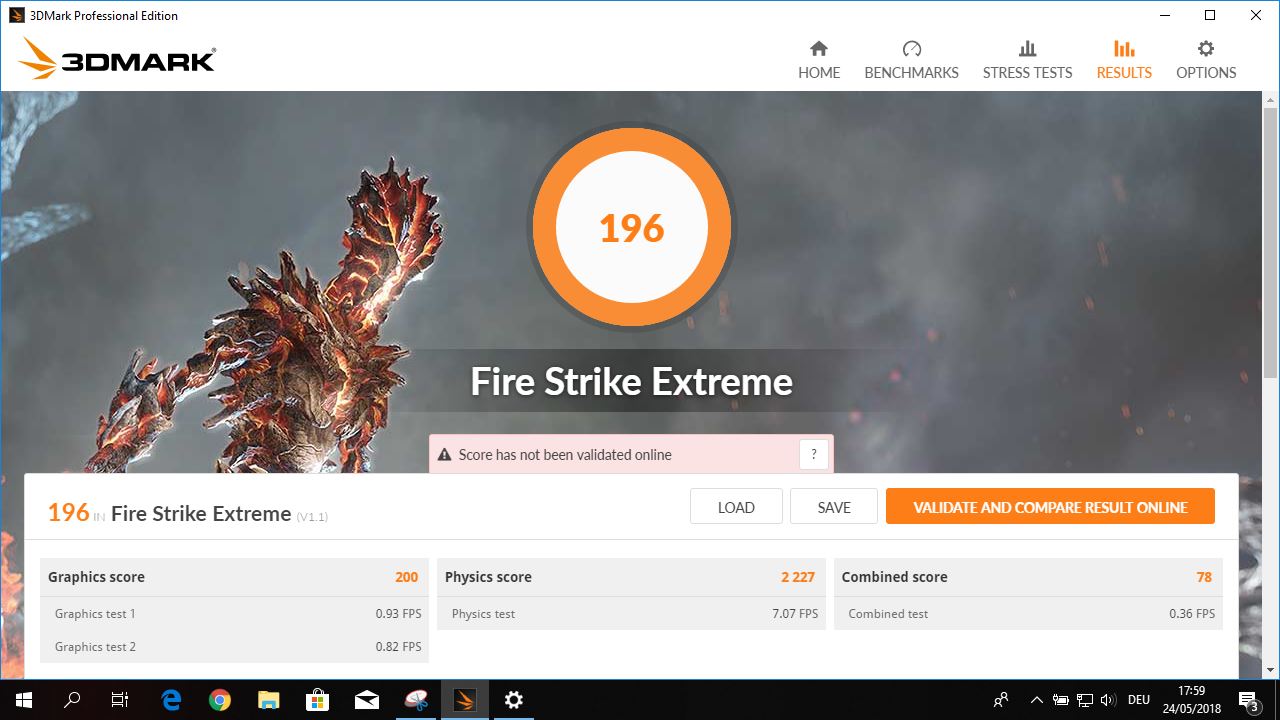

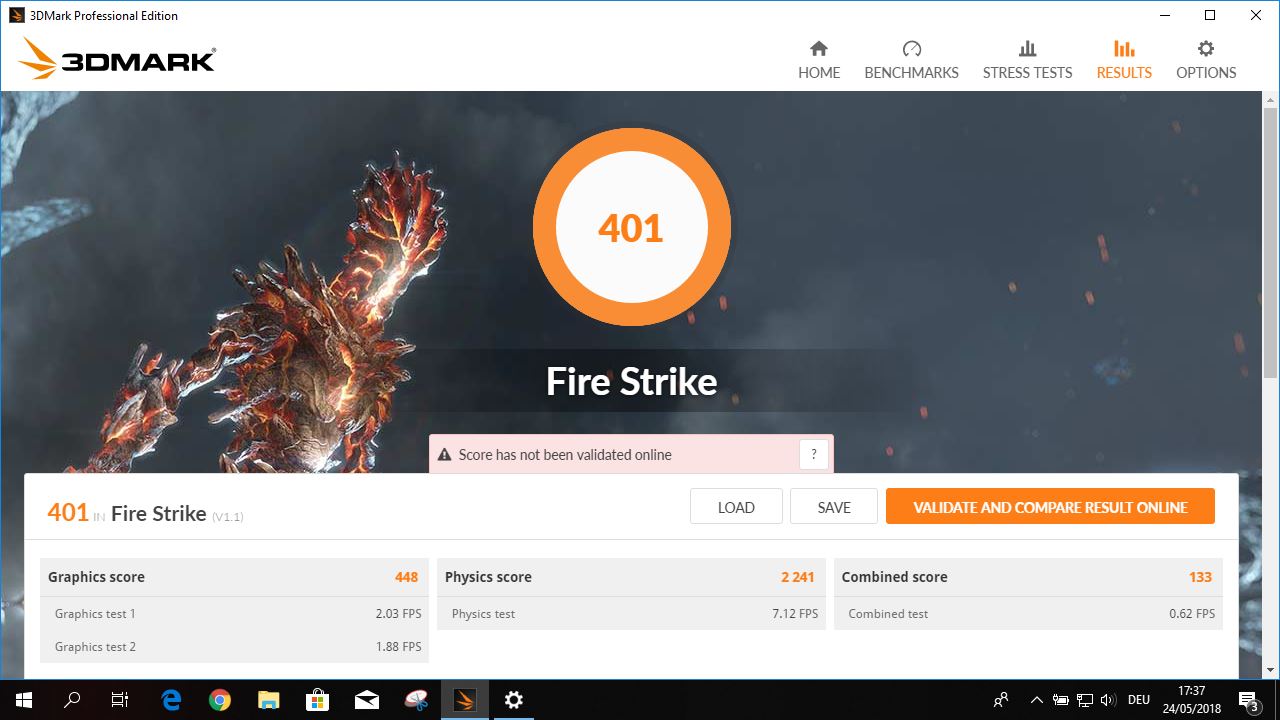

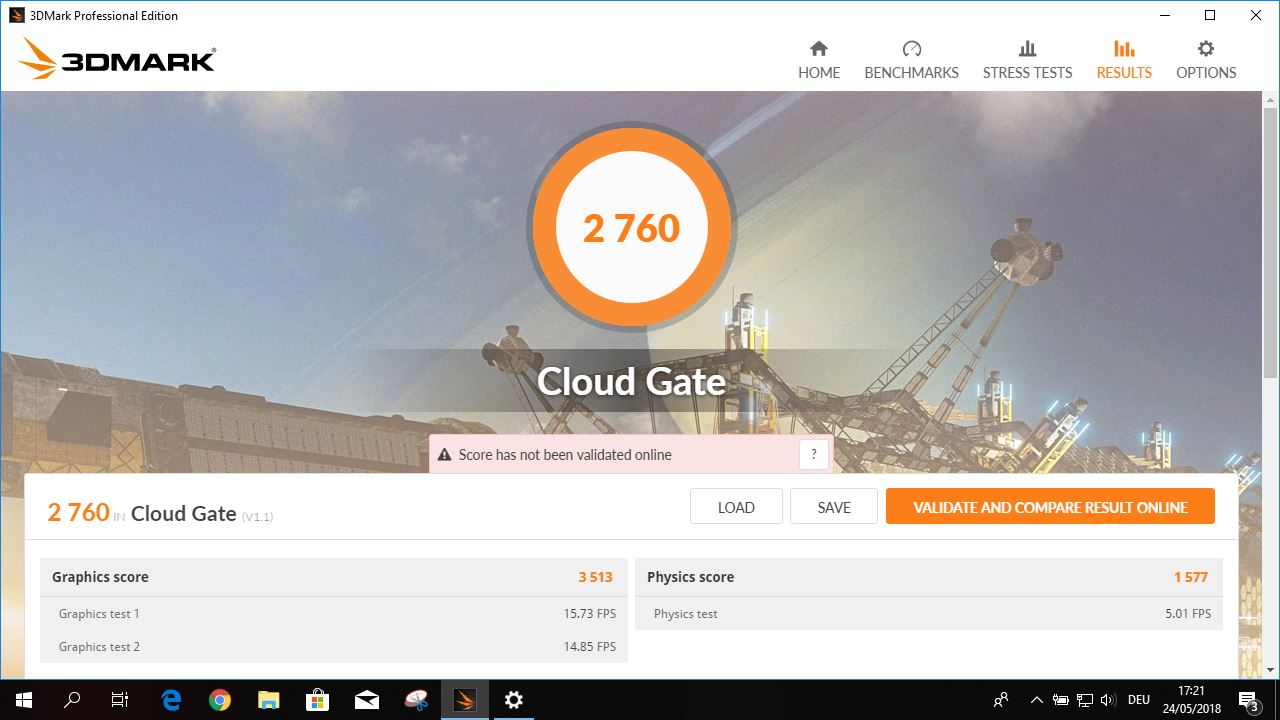

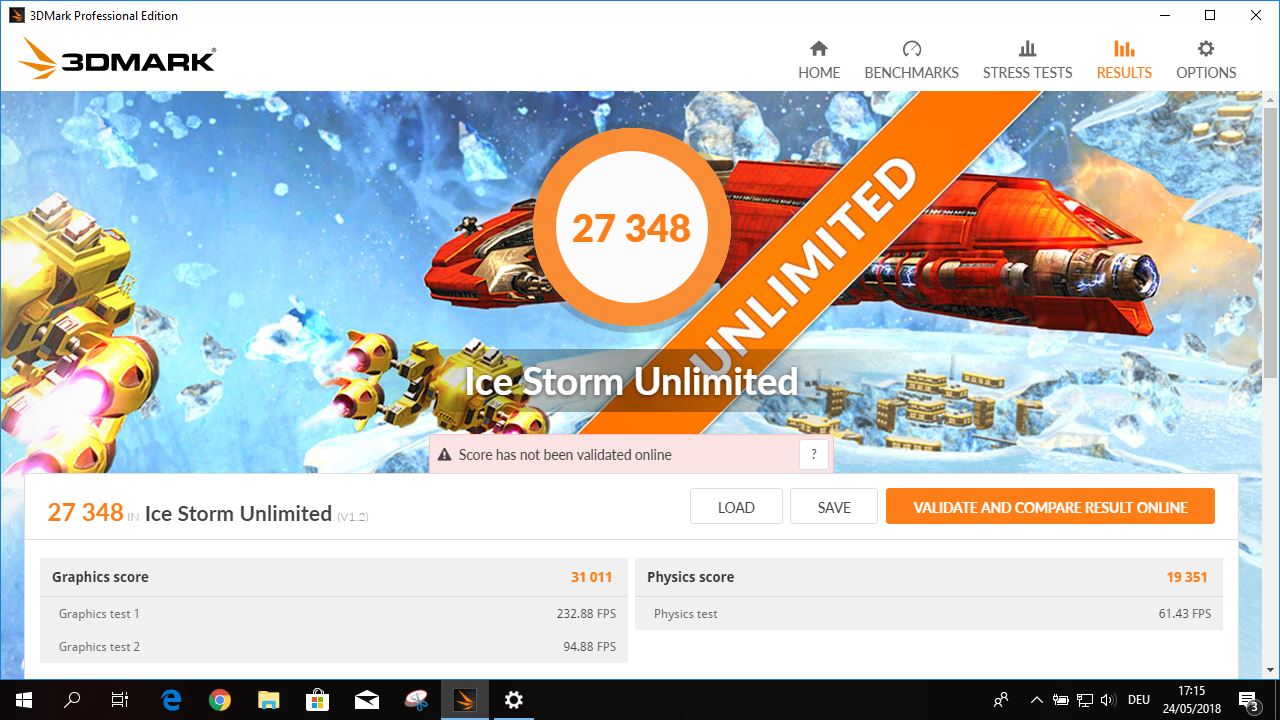

3DMark

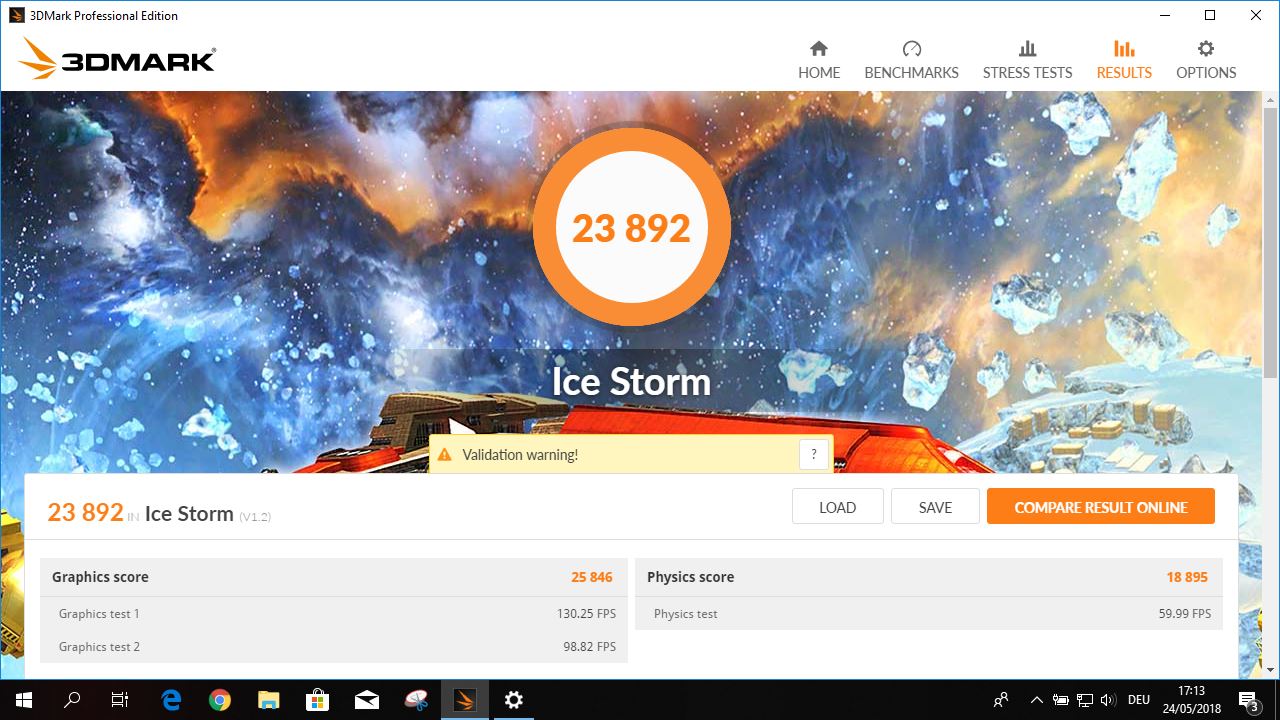

1280x720 Ice Storm Standard Score
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	53073 Points +122%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	47545 Points +99%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	24851 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	23892 Points
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +140%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	51216 Points +98%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	29561 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	25846 Points

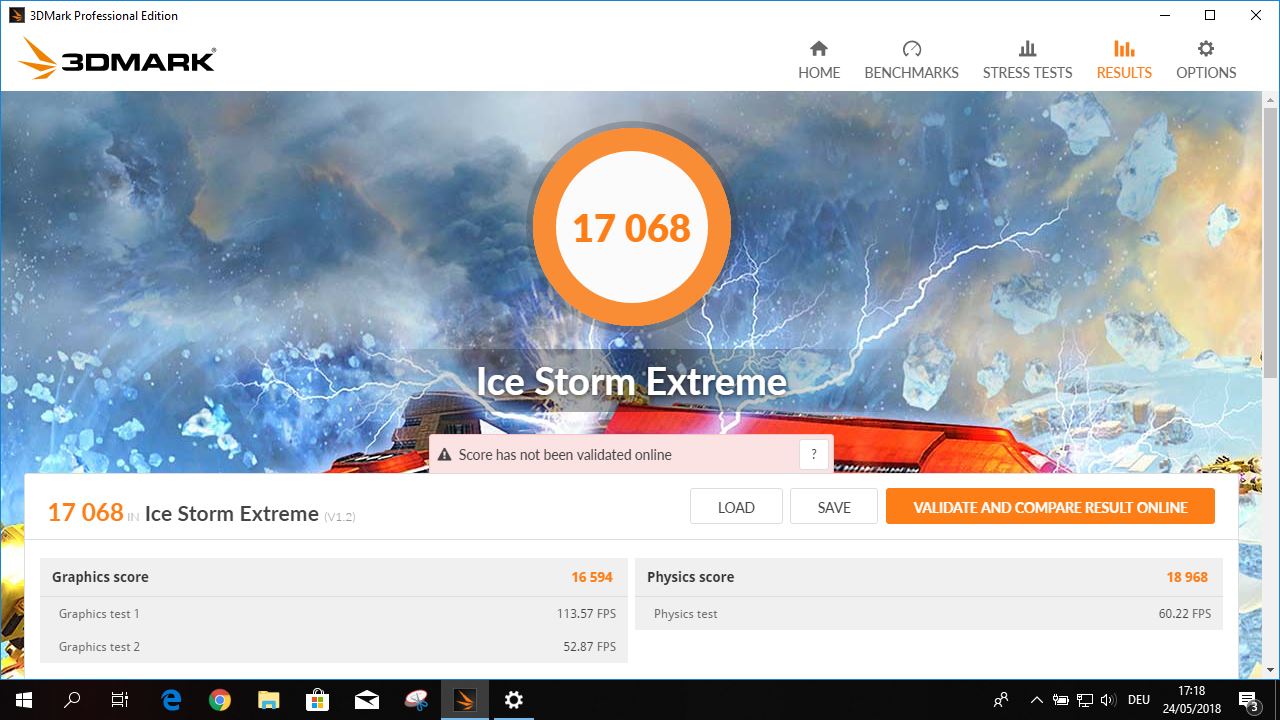

1920x1080 Ice Storm Extreme Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	37240 Points +118%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	34211 Points +100%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18052 Points +6%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	17068 Points
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +145%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	33478 Points +102%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18860 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	16594 Points

	lage	gem.	hoge	ultra
BioShock Infinite (2013)	20.1	10

Stroomgebruik

Uit / Standby	0.8 / Watt
Inactief	3.9 / 4.5 / 8.4 Watt
Belasting	12.3 / 21.4 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pro

+ stevige behuizing

+ erg compact

+ stil in gebruik

+ prima systeemprestaties

+ laag energieverbruik

+ betaalbaar

Contra

- geen USB Type-C

- delicate, glanzende oppervlakken

- instaptoestel zonder RAM, interne opslag of OS geïnstalleerd

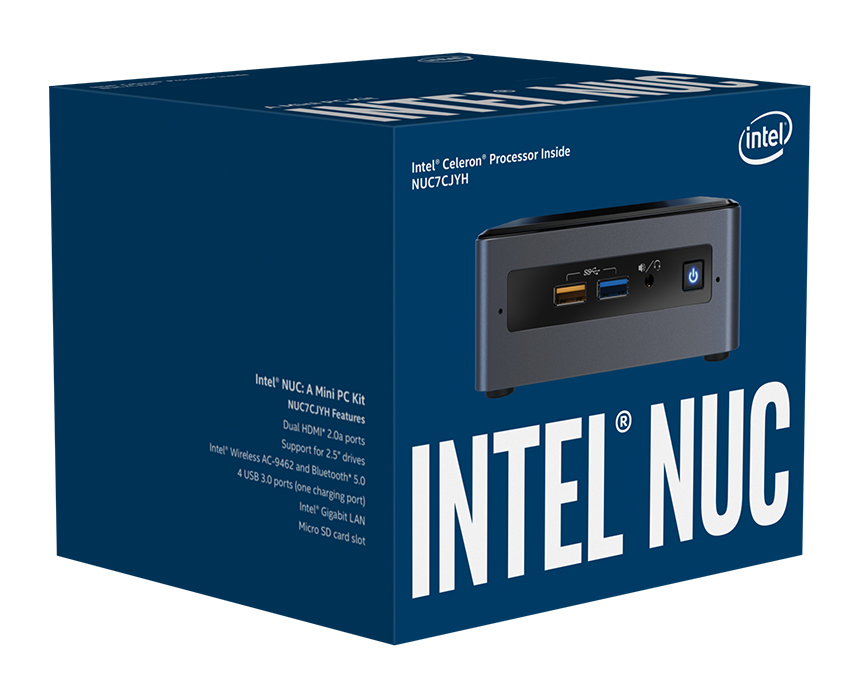

Getest: de Intel NUC Kit NUC7CJYH. Testtoestel voorzien door Intel Germany.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

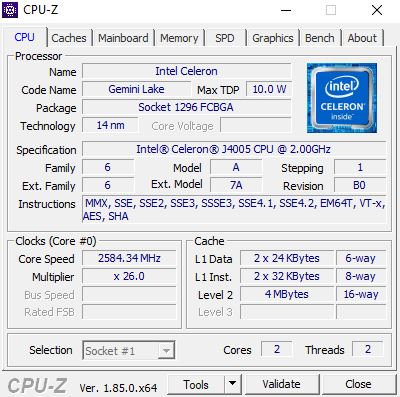

De Intel NUC7CJYH is een compacte en betaalbare Mini-PC die omwille van zijn lage prijs een interessante optie is voor kantoorwerk. De NUC7CJYH is uitgerust met een Intel Celeron J4005 dual-core-processor en een Intel UHD Graphics 600 geïntegreerde GPU. Belangrijk is wel om het beoogde gebruiksscenario van het toestel in het achterhoofd te houden.

De betaalbare prijs is aanlokkelijk, maar gaat ten koste van een OS, RAM en interne opslag. Hiervoor zullen dus bijkomende investeringen gemaakt moeten worden, waar je zeker rekening mee moet houden als je de NUC7CJYH in overweging neemt.

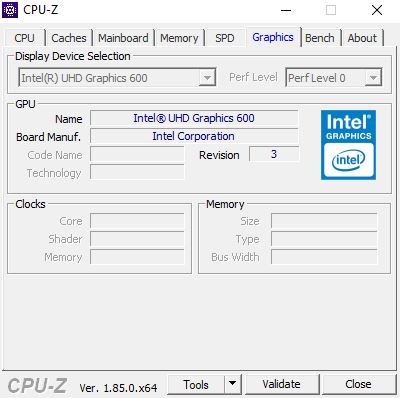

Prestaties zijn toereikend voor eenvoudige office-applicaties en surfen op het web. De NUC7CJYH kan zelfs 2160p-video's de- en encoderen dankzij zijn Intel UHD Graphics 600. De NUC7CJYH is echter geen verstandige keuze voor gaming of grafisch intensieve taken.

Al bij al biedt de NUC Kit NUC7CJYH indrukwekkende systeemprestaties gezien zijn lage energieverbruik en compacte design.

Editor of the original article: Alex Alderson - Senior Tech Writer - 9864 articles published on Notebookcheck since 2018

contact me via: @aldersonaj

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Intel NUC Kit NUC7CJYH (Celeron J4005, UHD 600) Mini PC

Sebastian Bade, 2018-06-14 (Update: 2018-06-14)
