ARM Mali-T760 MP8

ARM Mali-T760 MP8

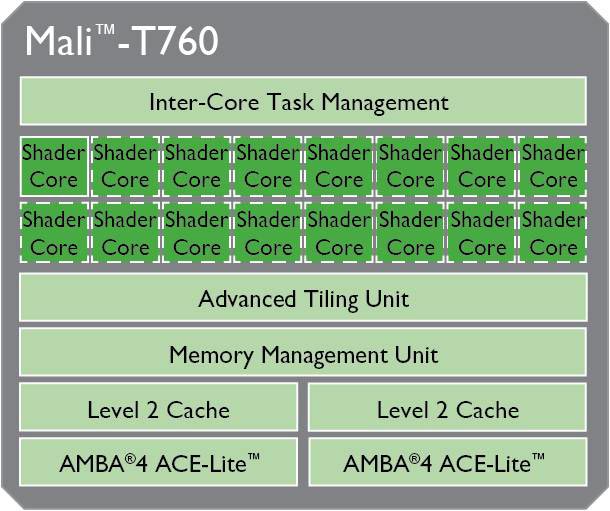

De ARM Mali-T760 MP8 is een snelle mobile grafische kaart die aangetroffen kan worden in ARM-SoC's als de Samsun Exynos 7420 Octa (Galaxy S6). De chip is verkrijgbaar sinds het eerste kwartaal van 2015 en is één van de snelste GPU's binnen zijn klasse op het moment van introductie. Naast OpenGL ES 3.1, biedt de GPU ondersteuning voor OpenCL 1.1 en DirectX 11. Volgens ARM kan de Mali-T760 geschaald worden van 1 - 16 cores/clusters.

De MP8-versie biedt 8 clusters geklokt aan maximaal 772 MHz (302 GFLOPS). In de meeste benchmarks is de GPU in staat om de concurrerende Adreno 420 (Snapdragon 805) en PowerVR GX 6450 (Apple A8) te verslaan. alleen een aantal tablet-chips zoals Tegra K1/X1 of de GXA6850 (Apple A8X) zijn nog wat sneller. Al bij al is de Mali-T760 MP8 de snelste smartphone-GPU in het begin van 2015 en worden zelfs de meest veeleisende Android-games vloeiend afgehandeld in hoge resoluties.

Ondanks zijn indrukwekkende performance heeft de Mali-T760 MP8 / Exynos 7420 een erg bescheiden stroomverbruik dankzij een geavanceerd 14nm-FinFET-proces (Samsung LPE). Daarom kan hij zelfs in kleinere smartphones gebruikt worden.

Mali-T700 Serie

Mali-T760 MP8 8 @ 0.7 - 0.77 GHz
Mali-T760 MP6 6 @ 0.7 GHz
Mali-T760 MP4 4 @ 0.6 GHz
Mali-T760 MP2 2 @ 0.7 GHz
Mali-T720 MP4 4 @ 0.6 GHz
Mali-T720 MP2 2 @ 0.65 GHz
Mali-T720 1 @ 0.6 GHz
CodenaamMidgard (3rd Generation)
ArchitectuurMidgard (3rd-gen)
Pipelines8 - verenigd
Core-snelheid700 - 772 (Boost) MHz
Gedeeld geheugennee
APIDirectX 11, OpenGL ES 3.1
technologie14 nm
FaciliteitenOpenGL ES 3.1, OpenCL 1.1, DirectX 11, Renderscript, FSAA/MSAA
Aangekondigde datum01.03.2015
Link naar fabrikantwww.arm.com
CPU in Mali-T760 MP8GPU Base SpeedGPU Boost / Turbo
Samsung Exynos 7420 Octa8 x 2100 MHz700 MHz772 MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
min: 23193     gem: 25970     mediaan: 26964 (3%)     max: 28192 Points
GFXBench 3.1 - GFXBench Manhattan ES 3.1 Offscreen
13 fps (0%)
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 18     gem: 21.9     mediaan: 22.5 (1%)     max: 25.5 fps
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 46     gem: 52.3     mediaan: 53.5 (0%)     max: 56.1 fps
Basemark ES 2.0 - Basemark ES 2.0
min: 59.4     gem: 59.9     mediaan: 59.8 (99%)     max: 60.4 fps
Basemark X 1.1 - Basemark X 1.1 High Quality
min: 9252     gem: 22140     mediaan: 26124 (59%)     max: 27059 Points
Basemark X 1.1 - Basemark X 1.1 Medium Quality
min: 31743     gem: 35781     mediaan: 36339.5 (81%)     max: 38701 Points
NenaMark2 - NenaMark2 Score
min: 59.7     gem: 60.1     mediaan: 60.1 (89%)     max: 60.5 fps
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 2D Graphics Tests
min: 4691     gem: 5019     mediaan: 5054.5 (5%)     max: 5274 Points
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 3D Graphics Tests
min: 2227     gem: 2263     mediaan: 2239.5 (4%)     max: 2345 Points
Smartbench 2012 - Smartbench 2012 Gaming Index
min: 4489     gem: 4519     mediaan: 4510 (98%)     max: 4566 punten
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
