Kort testrapport Eurocom Tornado F7W (i9-9900K, Quadro P5200) Workstation

Core i9-9900K en Quadro P5200 in één laptop. Voor ongeveer $5000+ USD krijgen professionele gebruikers wat in essentie een high-end desktop is, verpakt in een 17,3-inch behuizing. De prestaties zijn ongetwijfeld snel, maar niet zo snel als het had kunnen zijn met betrekking tot de CPU.
, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

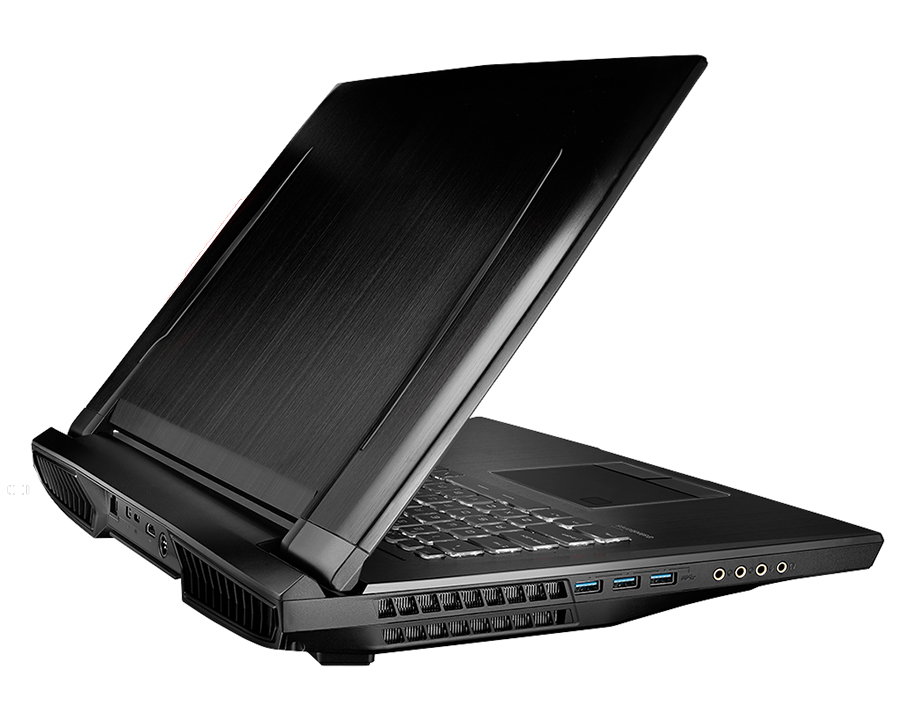

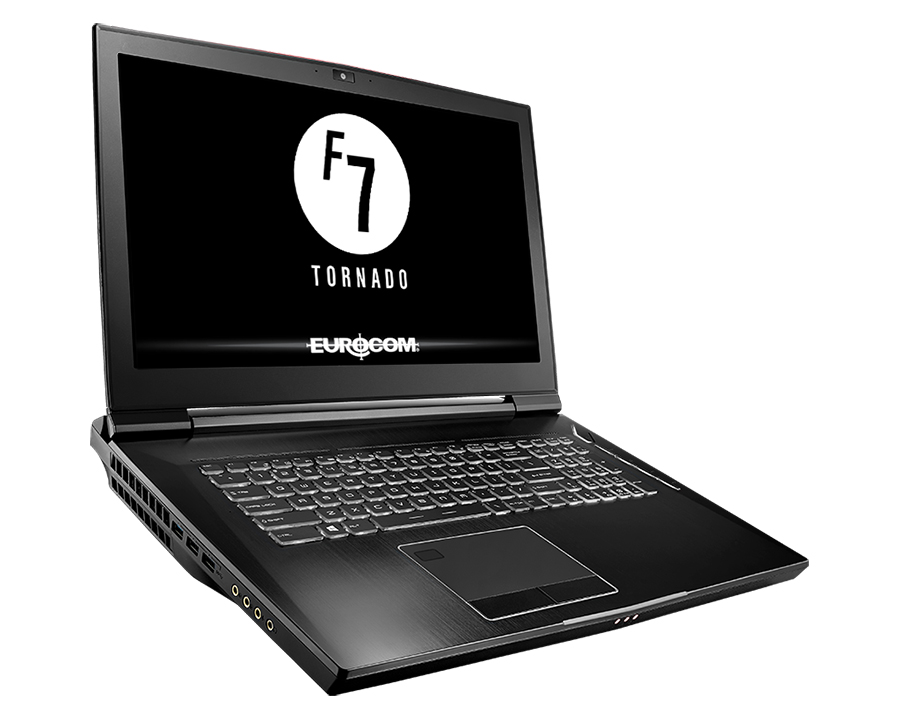

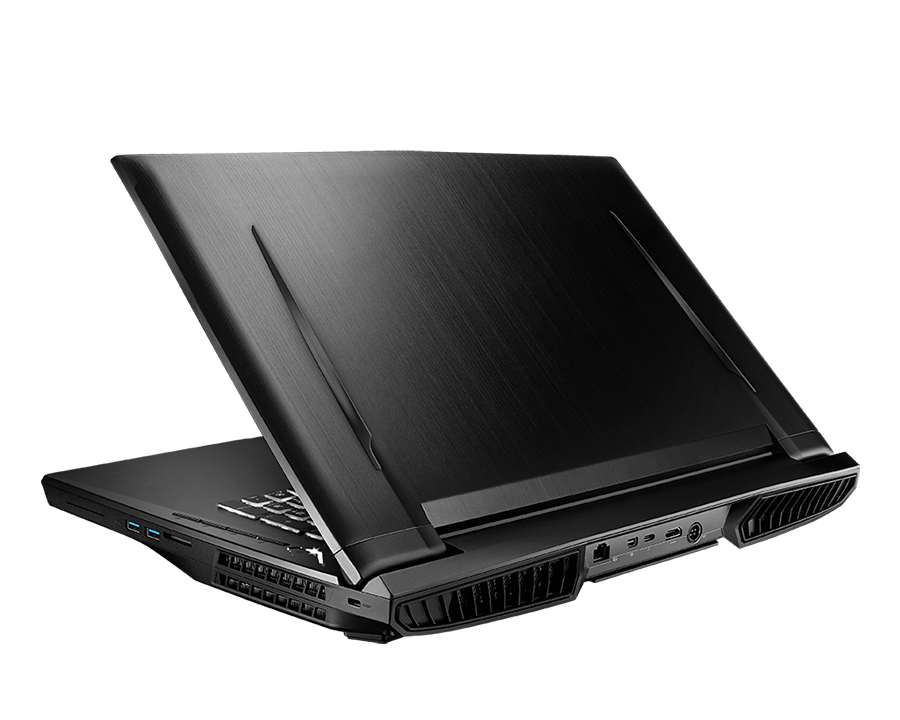

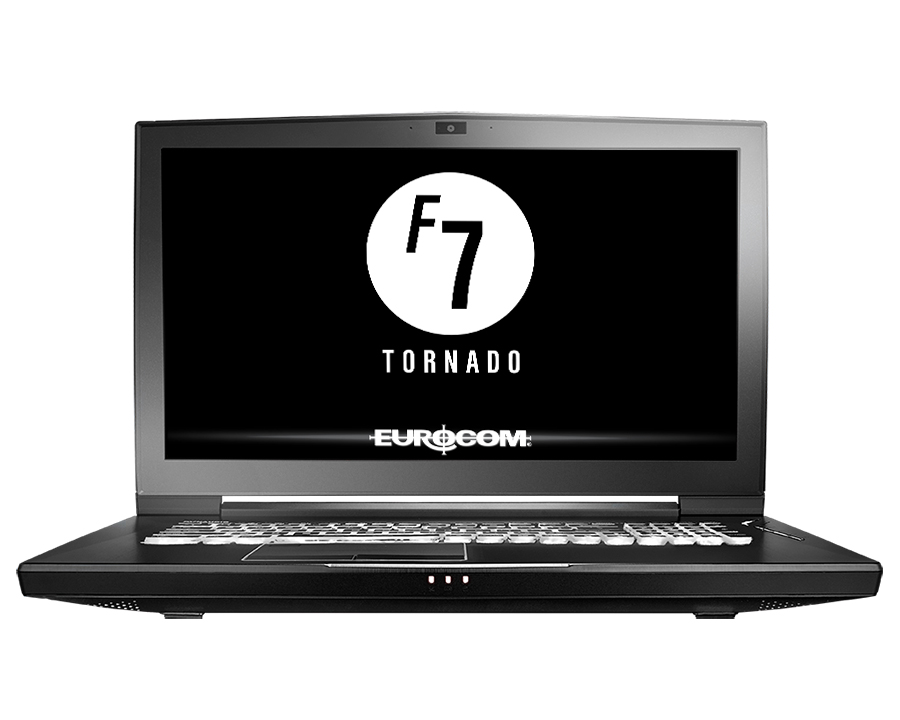

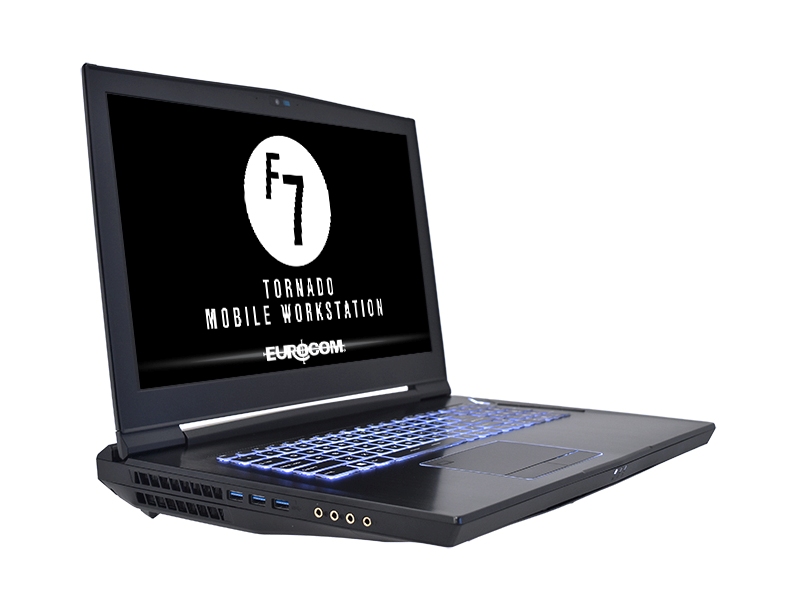

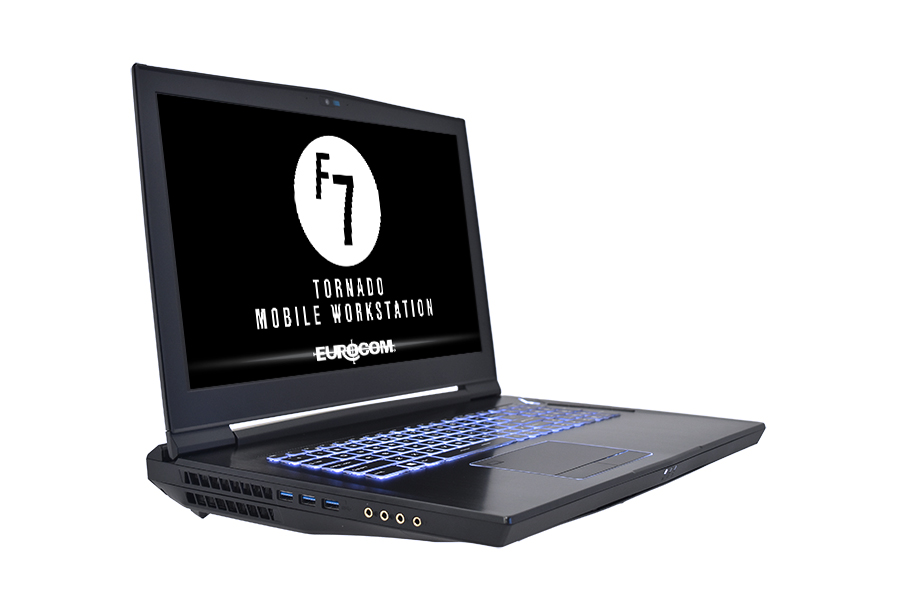

Eurocom Tornado F7W

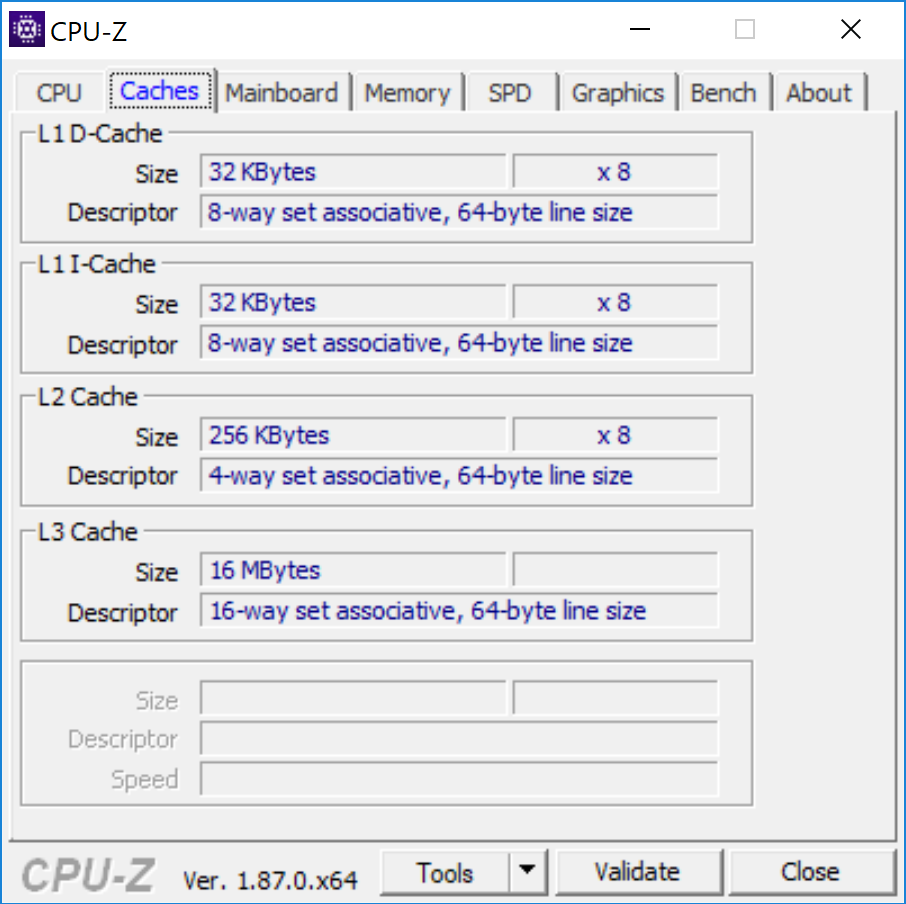

Processor
Intel Core i9-9900K 8 x 3.6 - 5 GHz, Coffee Lake-R

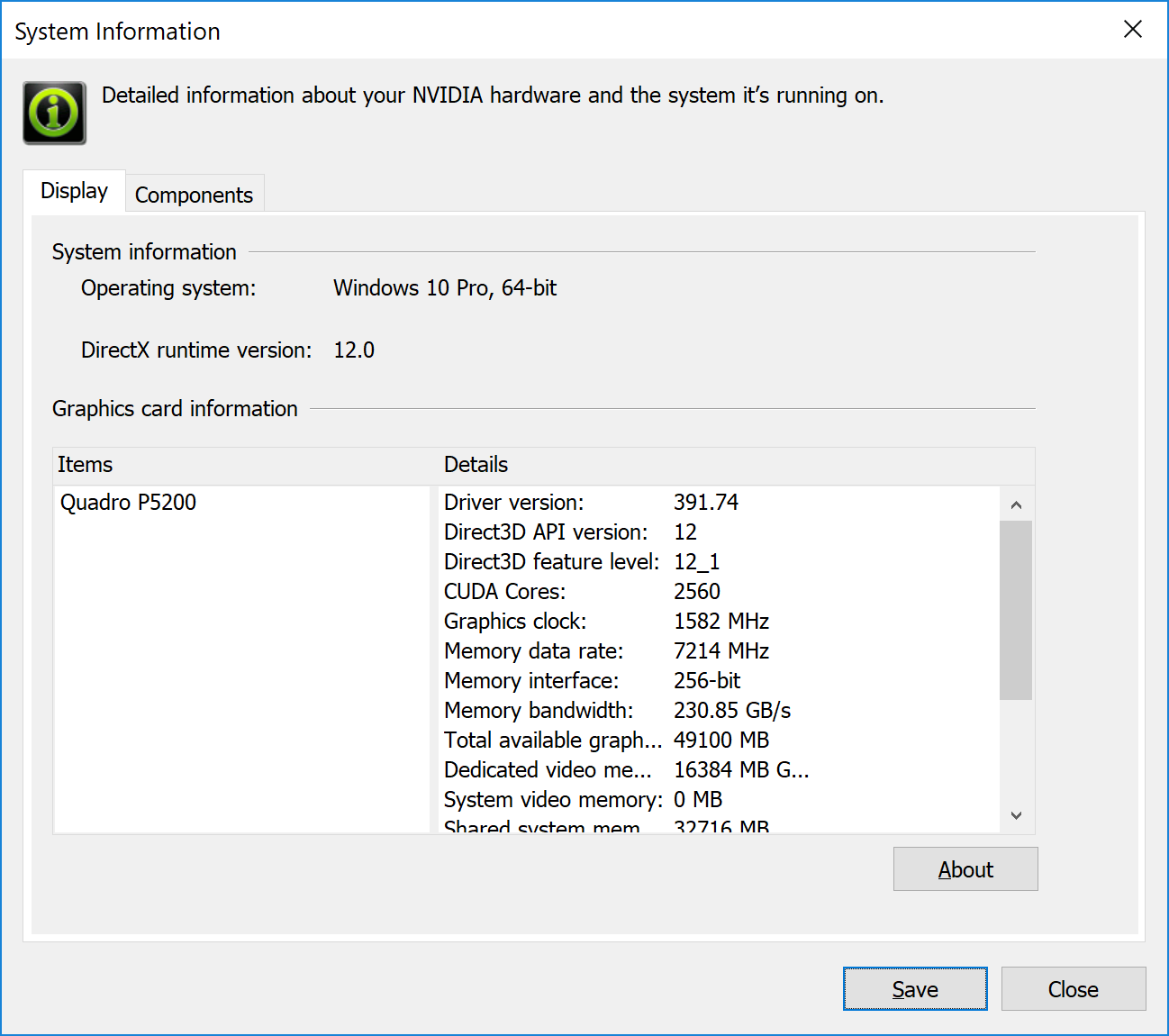

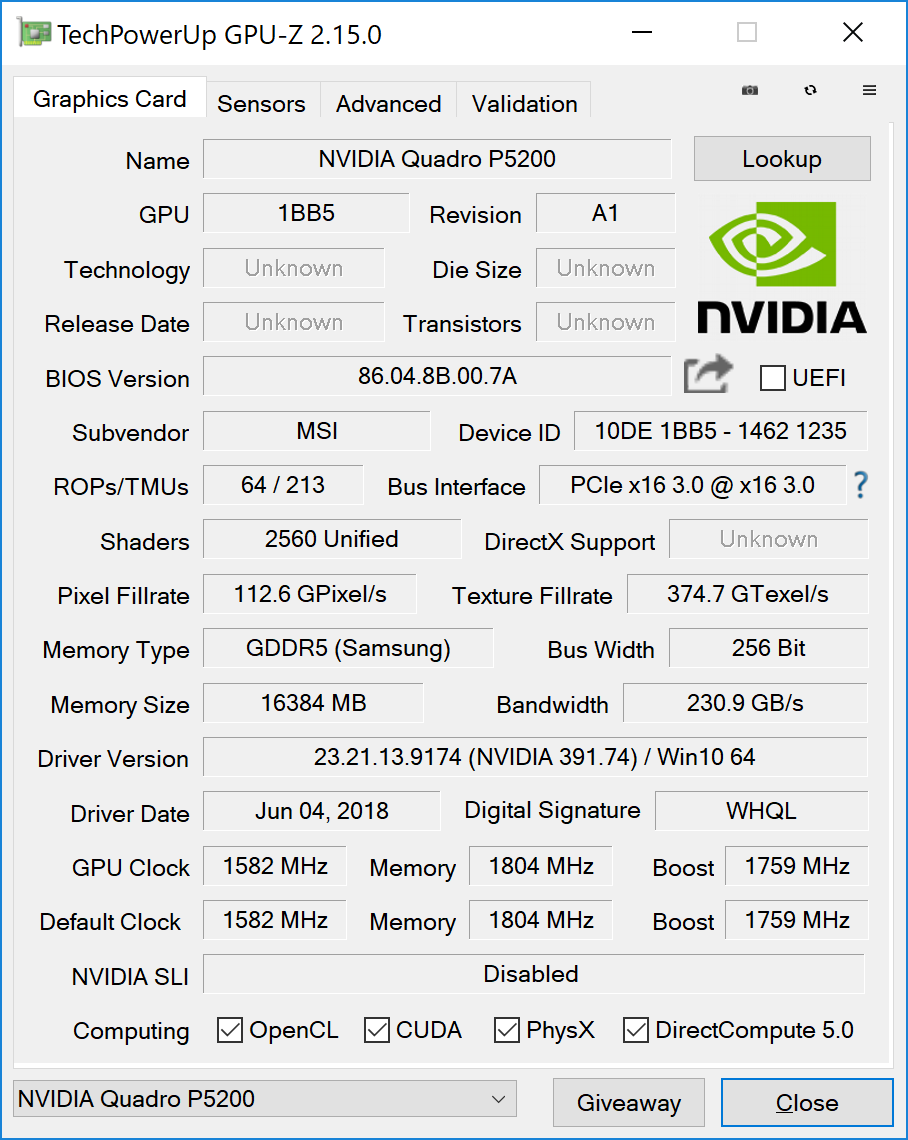

Grafische kaart
NVIDIA Quadro P5200 - 16384 MB, Core: 1582 MHz, Geheugen: 7214 MHz, GDDR5, 411.95

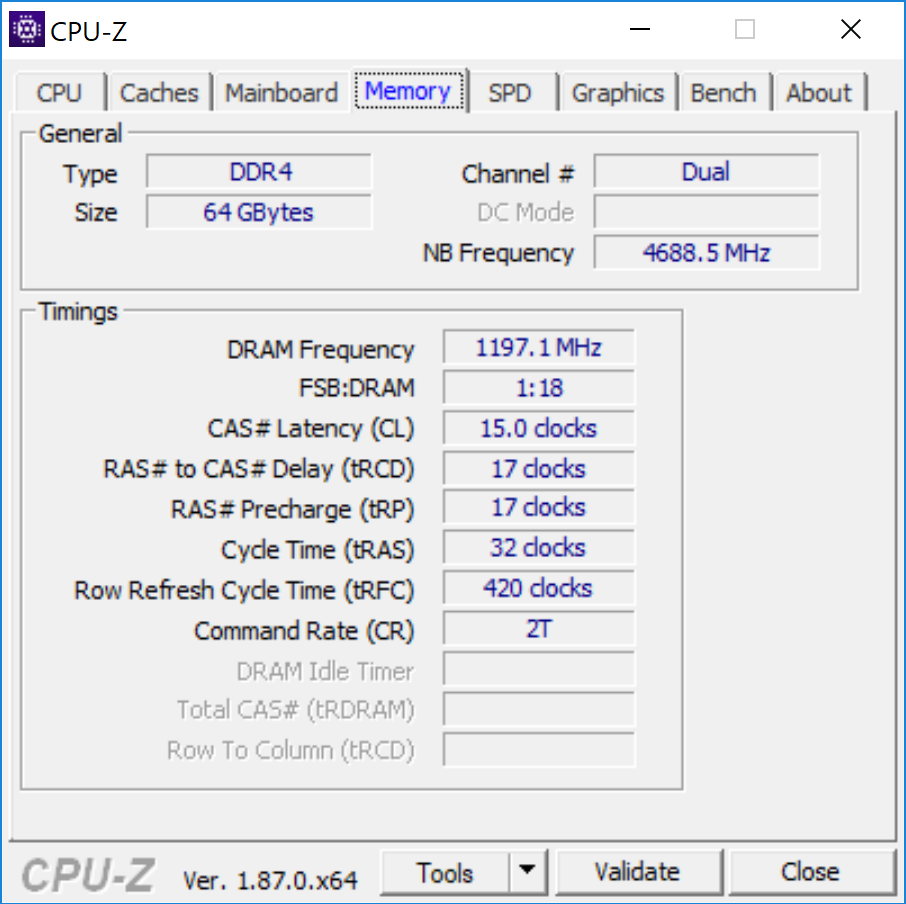

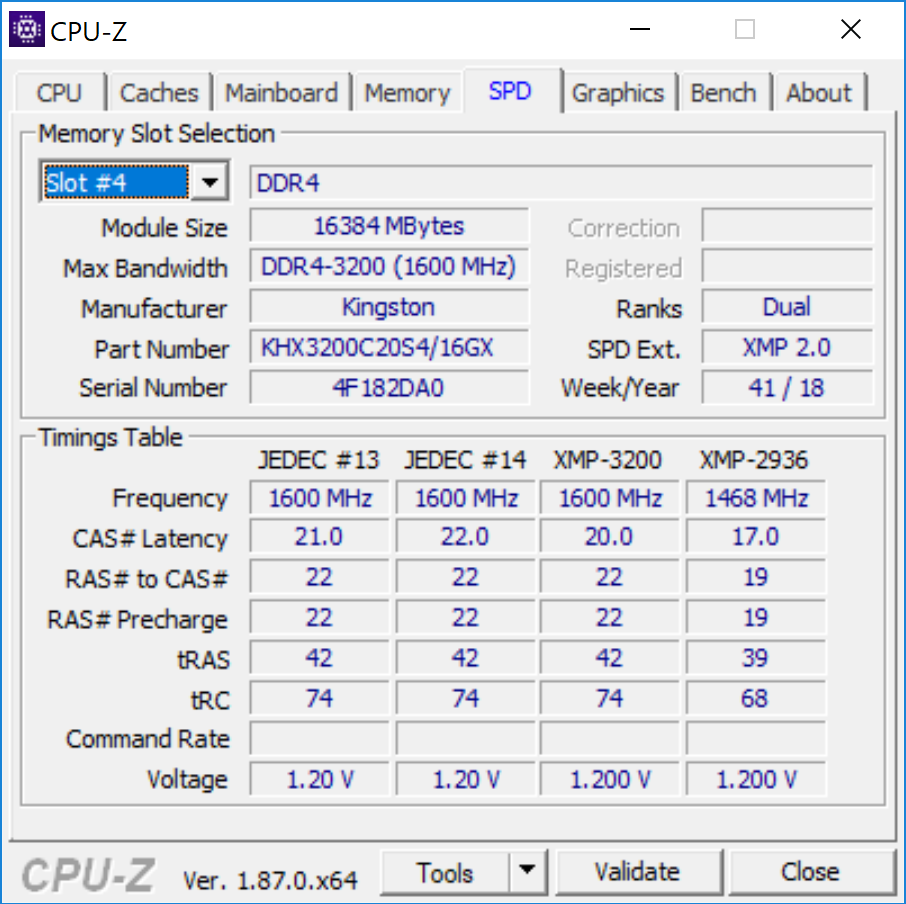

Geheugen
65536 MB
, 1333.3 MHz, 15-17-27-32, Dual-Channel
Beeldscherm
17.30 inch 16:9, 3840 x 2160 pixel 255 PPI, AU Optronics B173ZAN01.0, IPS, AUO109B, glimmend: nee
Moederbord
Intel C246 (Cannon Lake-H)
Opslag
3x Samsung SSD 970 Pro 512GB (RAID 0), 1536 GB
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Verbindingen
5 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: Mic in; Headphone S/PDIF out; Line-in; Line out, Card Reader: SD kaartlezer, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 51 x 428 x 314
Batterij
90 Wh, 6250 mAh Lithium-Ion, 8 cellen
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 2 MP
Bijkomende functionaliteiten
Luidsprekers: 2 Watt stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 12 Maanden Garantie
Gewicht
4.2 kg, Voeding: 1.9 kg
Prijs
8000 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

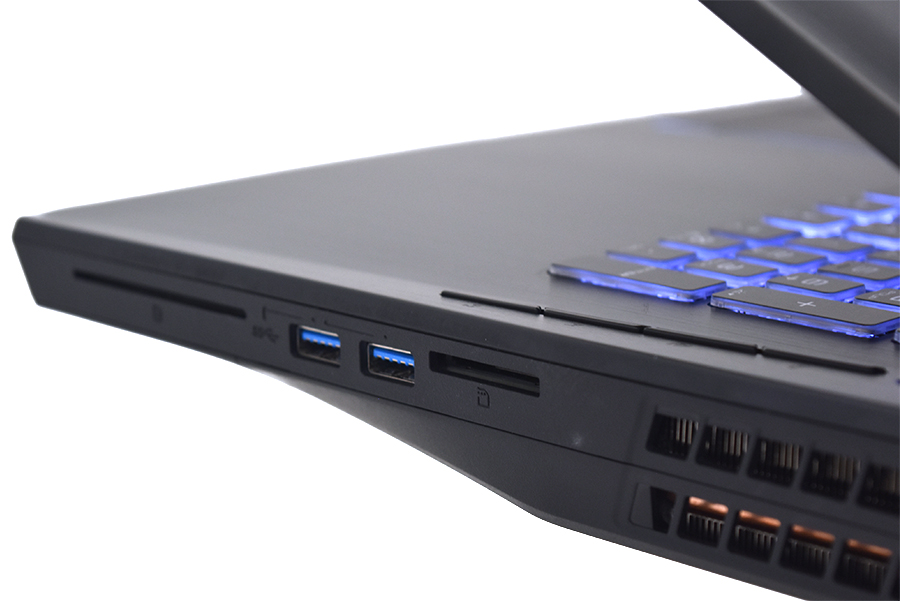

Rechterkant: Smartcard lezer, 2x USB 3.1, SD kaartlezer, Kensington Lock
Rechterkant: Smartcard lezer, 2x USB 3.1, SD kaartlezer, Kensington Lock

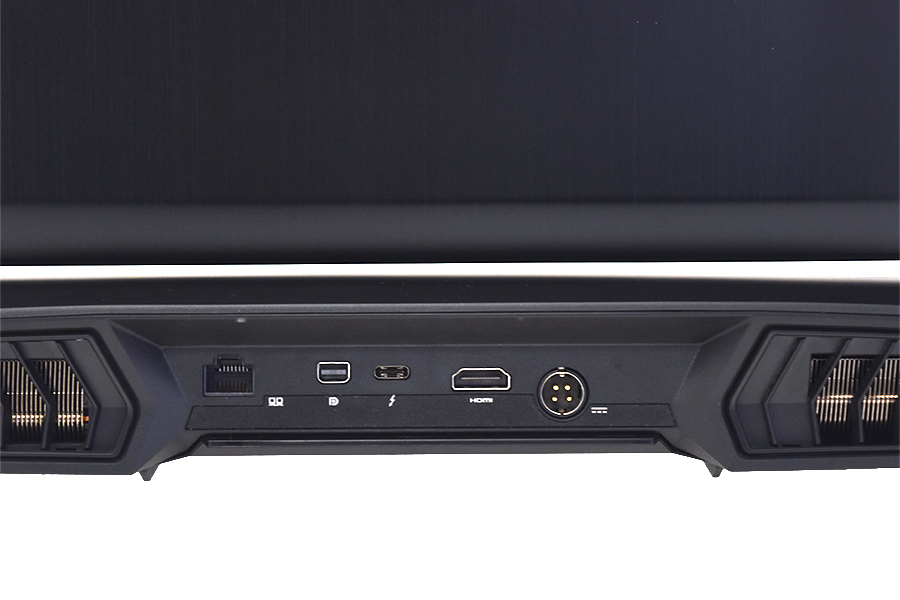

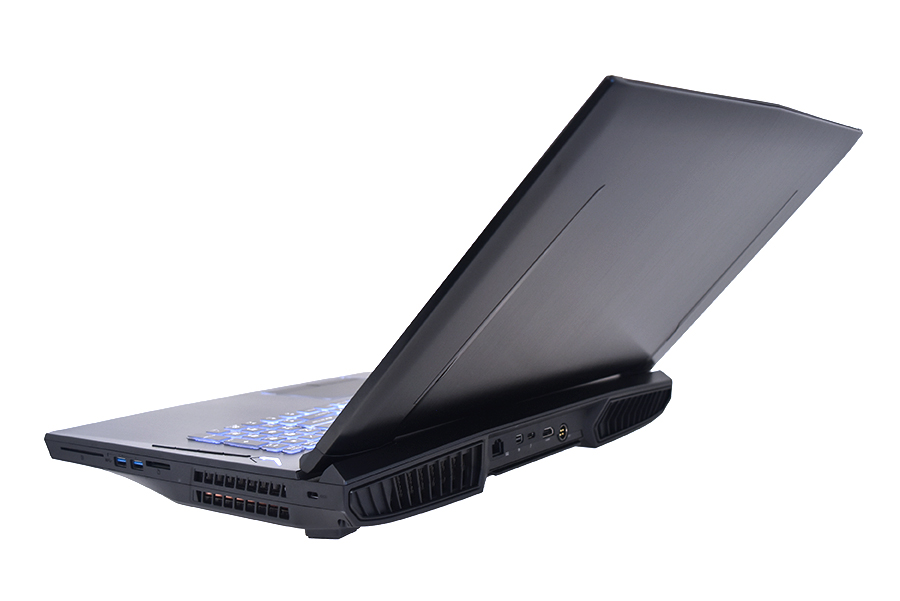

Actherkant: Gigabit RJ-45, mini DisplayPort, Thunderbolt 3, HDMI 2.0, stroomadapter
Actherkant: Gigabit RJ-45, mini DisplayPort, Thunderbolt 3, HDMI 2.0, stroomadapter

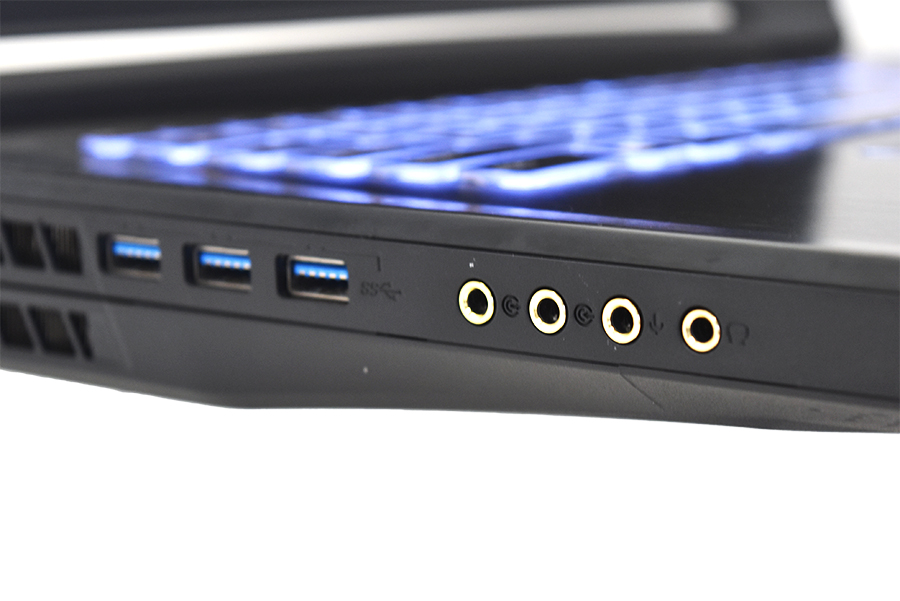

Linkerkant: 3x USB 3.1, Microfoon in, Koptelefoon S/PDIF uit, Line-in, Line uit
Linkerkant: 3x USB 3.1, Microfoon in, Koptelefoon S/PDIF uit, Line-in, Line uit
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Asus Chimera G703GI
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
198 MB/s ∼100% +6%
Eurocom Sky X7C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
194.3 MB/s ∼98% +4%
Eurocom Sky X9C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
191.05 MB/s ∼96% +2%
Eurocom Tornado F7W
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
186.9 MB/s ∼94%
HP Omen X 17-ap0xx
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
73.04 MB/s ∼37% -61%
maximum AS SSD Seq Read Test (1GB)
Asus Chimera G703GI
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
246 MB/s ∼100% +23%
Eurocom Sky X7C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
209.48 MB/s ∼85% +5%
Eurocom Sky X9C
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
207.93 MB/s ∼85% +4%
Eurocom Tornado F7W
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
200 MB/s ∼81%
HP Omen X 17-ap0xx
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.35 MB/s ∼36% -56%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Asus Chimera G703GI
Intel Wireless-AC 9560
690 MBit/s ∼100% +731%
Eurocom Sky X7C
Killer Wireless-AC 1550 Wireless Network Adapter
679 MBit/s ∼98% +718%
Acer Predator Helios 500 PH517-51-93LS
Killer Wireless-AC 1550 Wireless Network Adapter
640 MBit/s ∼93% +671%
Eurocom Sky X9C
Intel Wireless-AC 9260
594 MBit/s ∼86% +616%
Eurocom Tornado F7W
Intel Wireless-AC 9260
83 MBit/s ∼12%
iperf3 Client (receive) TCP 1 m 4M x10
Asus Chimera G703GI
Intel Wireless-AC 9560
681 MBit/s ∼100% +14%
Eurocom Sky X7C
Killer Wireless-AC 1550 Wireless Network Adapter
670 MBit/s ∼98% +12%
Eurocom Sky X9C
Intel Wireless-AC 9260
668 MBit/s ∼98% +12%
Acer Predator Helios 500 PH517-51-93LS
Killer Wireless-AC 1550 Wireless Network Adapter
637 MBit/s ∼94% +6%
Eurocom Tornado F7W
Intel Wireless-AC 9260
599 MBit/s ∼88%
306.2
cd/m²
315.2
cd/m²
314.4
cd/m²
307.3
cd/m²
328.2
cd/m²
317.1
cd/m²
301.5
cd/m²
303.6
cd/m²
300.9
cd/m²
Helderheidsverdeling
AU Optronics B173ZAN01.0
X-Rite i1Pro 2
Maximum: 328.2 cd/m² Gemiddelde: 310.5 cd/m² Minimum: 16.41 cd/m²
Helderheidsverdeling: 92 %
Helderheid in Batterij-modus: 328.2 cd/m²
Contrast: 887:1 (Zwart: 0.37 cd/m²)
ΔE Color 6.62 | 0.59-29.43 Ø5.6, calibrated: 3.93
ΔE Greyscale 6.7 | 0.64-98 Ø5.8
100% sRGB (Argyll 1.6.3 3D)
87.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
98.29% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.98% sRGB (Argyll 2.2.0 3D)
85.91% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
Eurocom Tornado F7W
AU Optronics B173ZAN01.0, IPS, 17.30, 3840x2160
Eurocom Sky X7C
AU Optronics B173ZAN01.0, IPS, 17.30, 3840x2160
Asus Chimera G703GI
B173HAN03.2 (AUO329D), IPS, 17.30, 1920x1080
HP Omen X 17-ap0xx
AU Optronics B173HW01, IPS, 17.30, 1920x1080
Eurocom Sky X9C
ID: AUO109B, Name: AU Optronics B173ZAN01.0, IPS, 17.30, 3840x2160
MSI GT75 8RG-090 Titan
CMN N173HHE-G32 (CMN1747), TN, 17.30, 1920x1080
Display
0%
-21%
-24%
1%
-2%
Display P3 Coverage
85.91
86.01
0%
65.85
-23%
63.66
-26%
86.63
1%
90.91
6%
sRGB Coverage
99.98
99.94
0%
92.64
-7%
88.21
-12%
100
0%
99.99
0%
AdobeRGB 1998 Coverage
98.29
98.89
1%
67
-32%
64.2
-35%
99.41
1%
86.16
-12%
Response Times
10%
75%
-5%
0%
81%
Response Time Grey 50% / Grey 80% *
40 (18.8, 21.2)
38.4 (18, 20.4)
4%
6.4 (3.4, 3)
84%
44 (22, 22)
-10%
43.6 (24, 19.6)
-9%
8 (4.4, 3.6)
80%
Response Time Black / White *
31.6 (18, 13.6)
26.8 (15.6, 11.2)
15%
10.8 (6, 4.8)
66%
31.6 (16, 15.6)
-0%
28.8 (17.2, 11.6)
9%
5.6 (3.8, 1.8)
82%
PWM Frequency
26000 (19)
Screen
1%
19%
15%
2%
22%
Brightness middle
328.2
333
1%
285
-13%
343
5%
347.7
6%
240
-27%
Brightness
310
330
6%
275
-11%
332
7%
324
5%
248
-20%
Brightness Distribution
92
88
-4%
82
-11%
83
-10%
87
-5%
83
-10%
Black Level *
0.37
0.4
-8%
0.22
41%
0.35
5%
0.4
-8%
0.22
41%
Contrast
887
833
-6%
1295
46%
980
10%
869
-2%
1091
23%
Colorchecker DeltaE2000 *
6.62
5.87
11%
3.18
52%
3.35
49%
6.39
3%
2.14
68%
Colorchecker DeltaE2000 max. *
9.49
9.74
-3%
5.99
37%
5.62
41%
9.69
-2%
5.04
47%
Colorchecker DeltaE2000 calibrated *
3.93
4.59
-17%
1.73
56%
2.5
36%
1.54
61%
Greyscale DeltaE2000 *
6.7
4.5
33%
2.93
56%
2.4
64%
5.4
19%
1.62
76%
Gamma
2.44 90%
2.34 94%
2.45 90%
2.35 94%
2.4 92%
2.28 96%
CCT
6462 101%
6384 102%
7165 91%
6495 100%
6271 104%
6846 95%
Color Space (Percent of AdobeRGB 1998)
87.9
88
0%
60
-32%
57
-35%
87.8
0%
77
-12%
Color Space (Percent of sRGB)
100
100
0%
93
-7%
88
-12%
100
0%
100
0%
Totaal Gemiddelde (Programma / Instellingen)
4% / 2%
24% / 19%
-5% / 5%
1% / 1%
34% / 25%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

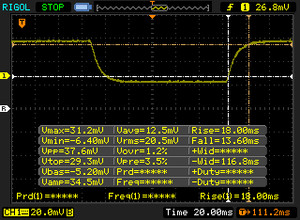

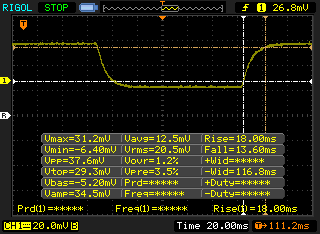

       Responstijd Zwart naar Wit
31.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18 ms stijging
↘ 13.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 80 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24 ms) van alle geteste toestellen.

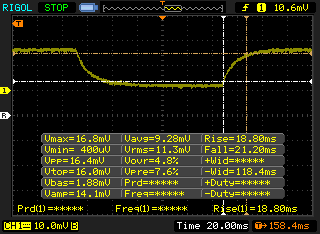

       Responstijd 50% Grijs naar 80% Grijs
40 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18.8 ms stijging
↘ 21.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 47 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (38.1 ms) van alle geteste toestellen.

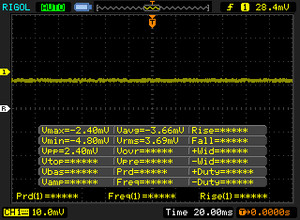

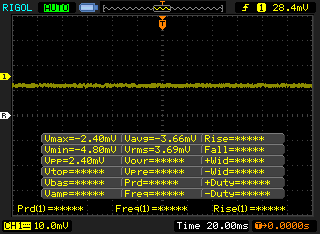

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 14793 (minimum: 5 - maximum: 2500000) Hz waargenomen.

010020030040050060070080090010001100120013001400150016001700180019001624.71603.41634.121590.081631.991613.491640.421590.461615.511602.371615.511620.611620.681598.271612.511616.551623.711594.391621.671601.281639.281609.461631.991605.391633.051611.471643.591607.331608.431600.511627.81607.521605.461598.41625.751602.371626.811590.461633.051613.551640.551596.361616.551612.451627.871608.491620.611620.611636.191601.3518651709.181697.291755.231761.261771.321753.391750.391761.261739.131746.721755.931733.481747.261754.391734.681752.461757.861748.11753.161746.041745.351742.771737.471742.541740.641739.131746.341748.561744.741748.631741.861740.951749.091734.911750.471727.041748.631740.641740.421747.951746.651750.471751.471733.181747.111747.411737.921752.541743.071939.861948.651935.451969.761933.961959.151950.171950.171951.61926.691933.961957.711960.691953.221950.171919.481942.781929.661925.31956.181953.131935.451957.711922.431950.361938.361945.811950.171948.751963.671956.181923.821941.371922.431936.951950.171935.451954.651951.71941.281947.231959.151923.821933.961953.221954.651953.131933.961941.371931.061922.341951.61941.281919.481965.411624.71603.41634.121590.081631.991613.491640.421590.461615.511602.371615.511620.611620.681598.271612.511616.551623.711594.391621.671601.281639.281609.461631.991605.391633.051611.471643.591607.331608.431600.511627.81607.521605.461598.41625.751602.371626.811590.461633.051613.551640.551596.361616.551612.451627.871608.491620.611620.611636.191601.3518651709.181697.291755.231761.261771.321753.391750.391761.261739.131746.721755.931733.481747.261754.391734.681752.461757.861748.11753.161746.041745.351742.771737.471742.541740.641739.131746.341748.561744.741748.631741.861740.951749.091734.911750.471727.041748.631740.641740.421747.951746.651750.471751.471733.181747.111747.411737.921752.541743.071939.861948.651935.451969.761933.961959.151950.171950.171951.61926.691933.961957.711960.691953.221950.171919.481942.781929.661925.31956.181953.131935.451957.711922.431950.361938.361945.811950.171948.751963.671956.181923.821941.371922.431936.951950.171935.451954.651951.71941.281947.231959.151923.821933.961953.221954.651953.131933.961941.371931.061922.341951.61941.281919.481965.411624.71603.41634.121590.081631.991613.491640.421590.461615.511602.371615.511620.611620.681598.271612.511616.551623.711594.391621.671601.281639.281609.461631.991605.391633.051611.471643.591607.331608.431600.511627.81607.521605.461598.41625.751602.371626.811590.461633.051613.551640.551596.361616.551612.451627.871608.491620.611620.611636.191601.3518651709.181697.291755.231761.261771.321753.391750.391761.261739.131746.721755.931733.481747.261754.391734.681752.461757.861748.11753.161746.041745.351742.771737.471742.541740.641739.131746.341748.561744.741748.631741.861740.951749.091734.911750.471727.041748.631740.641740.421747.951746.651750.471751.471733.181747.111747.411737.921752.541743.071939.861948.651935.451969.761933.961959.151950.171950.171951.61926.691933.961957.711960.691953.221950.171919.481942.781929.661925.31956.181953.131935.451957.711922.431950.361938.361945.811950.171948.751963.671956.181923.821941.371922.431936.951950.171935.451954.651951.71941.281947.231959.151923.821933.961953.221954.651953.131933.961941.371931.061922.341951.61941.281919.481965.41Tooltip
Eurocom Tornado F7W Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0); CPU Multi 64Bit: Ø1615 (1590.08-1643.59)
Schenker XMG Ultra 17 Coffee Lake Refresh GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB; CPU Multi 64Bit: Ø1747 (1697.29-1865)
Intel Core i9-9900K, AMD Radeon RX Vega 64 RX Vega 64, i9-9900K; CPU Multi 64Bit: Ø1944 (1919.48-1969.76)
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F7W
Intel Core i9-9900K
214 Points ∼79%
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
213 Points ∼78% 0%
Average Intel Core i9-9900K
  (203 - 218, n=9)
211 Points ∼78% -1%
Eurocom Sky X7C
Intel Core i7-8086K
207 Points ∼76% -3%
MSI GT75 8RG-090 Titan
Intel Core i9-8950HK
205 Points ∼75% -4%
Eurocom Tornado F5
Intel Core i7-7700K
190 Points ∼70% -11%
Eurocom Sky X9C
Intel Core i7-8700K
190 Points ∼70% -11%
Eurocom Q6
Intel Core i7-8750H
170 Points ∼63% -21%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
163 Points ∼60% -24%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
156 Points ∼57% -27%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
144 Points ∼53% -33%
CPU Multi 64Bit
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
2040 Points ∼21% +26%
Average Intel Core i9-9900K
  (1623 - 2040, n=9)
1939 Points ∼20% +19%
Eurocom Tornado F7W
Intel Core i9-9900K
1623 Points ∼17%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
1408 Points ∼15% -13%
Eurocom Sky X7C
Intel Core i7-8086K
1408 Points ∼15% -13%
MSI GT75 8RG-090 Titan
Intel Core i9-8950HK
1378 Points ∼14% -15%
Eurocom Sky X9C
Intel Core i7-8700K
1362 Points ∼14% -16%
Eurocom Q6
Intel Core i7-8750H
1070 Points ∼11% -34%
Eurocom Tornado F5
Intel Core i7-7700K
897 Points ∼9% -45%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
815 Points ∼8% -50%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
772 Points ∼8% -52%
Cinebench R11.5
CPU Single 64Bit
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
2.44 Points ∼78% 0%
Eurocom Tornado F7W
Intel Core i9-9900K
2.43 Points ∼77%
Average Intel Core i9-9900K
  (2.33 - 2.44, n=5)
2.39 Points ∼76% -2%
MSI GT75 8RG-090 Titan
Intel Core i9-8950HK
2.33 Points ∼74% -4%
Eurocom Sky X9C
Intel Core i7-8700K
2.23 Points ∼71% -8%
Eurocom Sky X7C
Intel Core i7-8086K
2.2 Points ∼70% -9%
Eurocom Tornado F5
Intel Core i7-7700K
2.19 Points ∼70% -10%
Eurocom Q6
Intel Core i7-8750H
1.95 Points ∼62% -20%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
1.92 Points ∼61% -21%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
1.84 Points ∼59% -24%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
1.63 Points ∼52% -33%
CPU Multi 64Bit
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
21.63 Points ∼40% +25%
Average Intel Core i9-9900K
  (17.4 - 21.8, n=5)
20.7 Points ∼38% +19%
Eurocom Tornado F7W
Intel Core i9-9900K
17.37 Points ∼32%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
15.76 Points ∼29% -9%
Eurocom Sky X7C
Intel Core i7-8086K
15.41 Points ∼28% -11%
MSI GT75 8RG-090 Titan
Intel Core i9-8950HK
15.05 Points ∼28% -13%
Eurocom Sky X9C
Intel Core i7-8700K
15.02 Points ∼28% -14%
Eurocom Q6
Intel Core i7-8750H
11.62 Points ∼21% -33%
Eurocom Tornado F5
Intel Core i7-7700K
9.78 Points ∼18% -44%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
8.91 Points ∼16% -49%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
8.44 Points ∼16% -51%
Cinebench R10
Rendering Multiple CPUs 32Bit
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
48749 Points ∼75% +33%
Average Intel Core i9-9900K
  (36683 - 49142, n=4)
45846 Points ∼70% +25%
Eurocom Sky X9C
Intel Core i7-8700K
39382 Points ∼60% +7%
Eurocom Tornado F7W
Intel Core i9-9900K
36683 Points ∼56%
Eurocom Sky X7C
Intel Core i7-8086K
33064 Points ∼51% -10%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
29330 Points ∼45% -20%
Eurocom Tornado F5
Intel Core i7-7700K
28189 Points ∼43% -23%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
23041 Points ∼35% -37%
Rendering Single 32Bit
Eurocom Tornado F7W
Intel Core i9-9900K
8042 Points ∼72%
Average Intel Core i9-9900K
  (7786 - 8042, n=4)
7924 Points ∼71% -1%
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
7832 Points ∼70% -3%
Eurocom Sky X9C
Intel Core i7-8700K
7423 Points ∼66% -8%
Eurocom Tornado F5
Intel Core i7-7700K
7222 Points ∼64% -10%
Eurocom Sky X7C
Intel Core i7-8086K
6541 Points ∼58% -19%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
6182 Points ∼55% -23%
Asus GL702ZC-GC104T
AMD Ryzen 7 1700
4286 Points ∼38% -47%
wPrime 2.10 - 1024m
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
299 s * ∼4% -203%
Eurocom Sky MX5 R3
Intel Core i7-7820HK
213.193 s * ∼3% -116%
Eurocom Tornado F5
Intel Core i7-7700K
176.329 s * ∼2% -79%
Eurocom Sky X7C
Intel Core i7-8086K
119.722 s * ∼1% -21%
Eurocom Sky X9C
Intel Core i7-8700K
116.591 s * ∼1% -18%
Eurocom Tornado F7W
Intel Core i9-9900K
98.728 s * ∼1%
Average Intel Core i9-9900K
  (85.6 - 98.7, n=3)
91.9 s * ∼1% +7%
Intel Core i9-9900K, AMD Radeon RX Vega 64
Intel Core i9-9900K
85.558 s * ∼1% +13%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
6836
Cinebench R10 Rendering Multiple CPUs 32Bit
36683
Cinebench R10 Rendering Single 32Bit
8042
Cinebench R11.5 OpenGL 64Bit
170.52 fps
Cinebench R11.5 CPU Multi 64Bit
17.37 Points
Cinebench R11.5 CPU Single 64Bit
2.43 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
249.64 fps
Cinebench R15 CPU Multi 64Bit
1623 Points
Cinebench R15 CPU Single 64Bit
214 Points
Help
PCMark 10
Score
Schenker XMG Ultra 17 Coffee Lake Refresh
GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB
6959 Points ∼79% +11%
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
6607 Points ∼75% +6%
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
6558 Points ∼75% +5%
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
6495 Points ∼74% +4%
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
6255 Points ∼71%
Eurocom Tornado F5W
Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2
5340 Points ∼61% -15%
Average of class Workstation
  (2817 - 6939, n=39, last 2 years)
5165 Points ∼59% -17%
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
4576 Points ∼52% -27%
Essentials
Schenker XMG Ultra 17 Coffee Lake Refresh
GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB
10668 Points ∼93% +8%
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
9982 Points ∼87% +1%
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
9847 Points ∼86%
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
9776 Points ∼85% -1%
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
9775 Points ∼85% -1%
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
9366 Points ∼81% -5%
Average of class Workstation
  (5223 - 10829, n=39, last 2 years)
9168 Points ∼80% -7%
Eurocom Tornado F5W
Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2
8293 Points ∼72% -16%
Productivity
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
8968 Points ∼80% +8%
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
8877 Points ∼80% +7%
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
8657 Points ∼78% +4%
Schenker XMG Ultra 17 Coffee Lake Refresh
GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB
8625 Points ∼77% +4%
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
8307 Points ∼74%
Average of class Workstation
  (3998 - 9317, n=39, last 2 years)
7548 Points ∼68% -9%
Eurocom Tornado F5W
Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2
7236 Points ∼65% -13%
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
5828 Points ∼52% -30%
Digital Content Creation
Schenker XMG Ultra 17 Coffee Lake Refresh
GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB
9940 Points ∼64% +22%
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
8836 Points ∼57% +9%
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
8786 Points ∼57% +8%
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
8732 Points ∼56% +8%
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
8122 Points ∼52%
Eurocom Tornado F5W
Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2
6889 Points ∼44% -15%
Average of class Workstation
  (2329 - 10441, n=39, last 2 years)
5548 Points ∼36% -32%
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
4765 Points ∼31% -41%
PCMark 8 - Home Score Accelerated v2
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
6093 Points ∼97% +19%
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
5720 Points ∼91% +12%
Eurocom Tornado F5W
Quadro P5000, E3-1280 v5, Samsung SSD 960 Pro 512 GB m.2
5273 Points ∼84% +3%
Schenker XMG Ultra 17 Coffee Lake Refresh
GeForce GTX 1080 Mobile, i9-9900K, Samsung SSD 970 Pro 1TB
5243 Points ∼84% +2%
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
5130 Points ∼82%
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
5005 Points ∼80% -2%
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
4882 Points ∼78% -5%
Average of class Workstation
  (3257 - 4487, n=28, last 2 years)
3893 Points ∼62% -24%
PCMark 8 Home Score Accelerated v2
5130 punten
PCMark 10 Score
6255 punten
Help
Eurocom Tornado F7W
3x Samsung SSD 970 Pro 512GB (RAID 0)
Eurocom Sky X7C
2x Samsung SSD 970 Pro 512GB (RAID 0)
Asus Chimera G703GI
2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
MSI GT75 8RG-090 Titan
2x Samsung PM961 MZVLW256HEHP (RAID 0)
Eurocom Tornado F5
Samsung SSD 960 Pro 512 GB m.2
AS SSD
11%
43%
3%
11%
Seq Read
2139.33
3146.5
47%
4885.76
128%
3058.28
43%
2819.05
32%
Seq Write
2446.83
2865.87
17%
4110.47
68%
2196.29
-10%
2046.28
-16%
4K Read
29.7
48.74
64%
57.4
93%
38.37
29%
50.96
72%
4K Write
102.54
116.69
14%
141.26
38%
97.68
-5%
150.46
47%
4K-64 Read
1299.13
1348.21
4%
1452.88
12%
1346.92
4%
1178.67
-9%
4K-64 Write
1236.25
1202.93
-3%
1302.78
5%
1235.98
0%
1333.91
8%
Access Time Read *
0.045
0.034
24%
0.03
33%
0.056
-24%
0.03
33%
Access Time Write *
0.033
0.032
3%
0.026
21%
0.038
-15%
0.024
27%
Score Read
1543
1712
11%
1999
30%
1691
10%
1512
-2%
Score Write
1583
1606
1%
1855
17%
1553
-2%
1689
7%
Score Total
3928
4184
7%
4843
23%
4066
4%
3943
0%
Copy ISO MB/s
2320.07
2330.48
0%
1614.11
-30%
Copy Program MB/s
621.34
518.41
-17%
634.94
2%
Copy Game MB/s
1585.11
1321.19
-17%
1310.15
-17%
CrystalDiskMark 5.2 / 6
11%
44%
-11%
Write 4K
116.3
152.2
31%
130.2
12%
111.8
-4%
Read 4K
52.65
60.4
15%
57.33
9%
42.09
-20%
Write Seq
2539
3002
18%
4049
59%
2288
-10%
Read Seq
2972
3329
12%
5325
79%
3321
12%
Write 4K Q32T1
454.6
432.9
-5%
383.2
-16%
308.3
-32%
Read 4K Q32T1
515.1
494
-4%
424.9
-18%
364.9
-29%
Write Seq Q32T1
3101
3391
9%
4316
39%
2440
-21%
Read Seq Q32T1
3078
3405
11%
8905
189%
3485
13%
Totaal Gemiddelde (Programma / Instellingen)
11% / 11%
44% / 43%
-4% / -3%
11% / 11%

* ... kleiner is beter

3x Samsung SSD 970 Pro 512GB (RAID 0)
CDM 5/6 Read Seq Q32T1: 3078 MB/s
CDM 5/6 Write Seq Q32T1: 3101 MB/s
CDM 5/6 Read 4K Q32T1: 515.1 MB/s
CDM 5/6 Write 4K Q32T1: 454.6 MB/s
CDM 5 Read Seq: 2972 MB/s
CDM 5 Write Seq: 2539 MB/s
CDM 5/6 Read 4K: 52.65 MB/s
CDM 5/6 Write 4K: 116.3 MB/s
3DMark 11
1280x720 Performance GPU
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
46773 Points ∼76% +88%
Eurocom Sky X7C
NVIDIA GeForce GTX 1080 Mobile, i7-8086K
27275 Points ∼45% +9%
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
24934 Points ∼41%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
20623 Points ∼34% -17%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
19569 Points ∼32% -22%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
17021 Points ∼28% -32%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
15837 Points ∼26% -36%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
10020 Points ∼16% -60%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8201 Points ∼13% -67%
1280x720 Performance Combined
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
16418 Points ∼68%
Eurocom Sky X7C
NVIDIA GeForce GTX 1080 Mobile, i7-8086K
14228 Points ∼59% -13%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
14119 Points ∼58% -14%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
10960 Points ∼45% -33%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
10778 Points ∼45% -34%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
10428 Points ∼43% -36%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
9296 Points ∼38% -43%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
8166 Points ∼34% -50%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8059 Points ∼33% -51%
3DMark
1920x1080 Fire Strike Graphics
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
40582 Points ∼80% +121%
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
18390 Points ∼36%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14990 Points ∼30% -18%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
14666 Points ∼29% -20%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
12555 Points ∼25% -32%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
12312 Points ∼24% -33%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
7333 Points ∼14% -60%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
6741 Points ∼13% -63%
2560x1440 Time Spy Graphics
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
6390 Points ∼32%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
4378 Points ∼22% -31%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
2898 Points ∼15% -55%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
2062 Points ∼10% -68%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
2046 Points ∼10% -68%
SPECviewperf 12
1900x1060 Catia (catia-04)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
196.6 fps ∼67%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
155.37 fps ∼53% -21%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
139.86 fps ∼48% -29%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
126.84 fps ∼43% -35%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
110 fps ∼38% -44%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
79.93 fps ∼27% -59%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
69.61 fps ∼24% -65%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
64.39 fps ∼22% -67%
1900x1060 Creo (creo-01)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
159.99 fps ∼91%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
126.57 fps ∼72% -21%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
117.15 fps ∼67% -27%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
112.57 fps ∼64% -30%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
91.9 fps ∼52% -43%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
64.99 fps ∼37% -59%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
57.43 fps ∼33% -64%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
57.21 fps ∼33% -64%
1900x1060 Energy (energy-01)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
16.88 fps ∼45%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14.95 fps ∼40% -11%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
14.22 fps ∼38% -16%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
10.61 fps ∼28% -37%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
10.6 fps ∼28% -37%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
8.9 fps ∼24% -47%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
5.27 fps ∼14% -69%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
2.94 fps ∼8% -83%
1900x1060 Maya (maya-04)
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
160.06 fps ∼68% +8%
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
147.92 fps ∼63%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102.08 fps ∼44% -31%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
92.73 fps ∼40% -37%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
88.79 fps ∼38% -40%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
73 fps ∼31% -51%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
59.21 fps ∼25% -60%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
42.84 fps ∼18% -71%
1900x1060 Medical (medical-01)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
79.43 fps ∼48%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
71.53 fps ∼43% -10%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
62.74 fps ∼38% -21%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
48.93 fps ∼30% -38%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
47.28 fps ∼29% -40%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
41.8 fps ∼25% -47%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
22.84 fps ∼14% -71%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
19.94 fps ∼12% -75%
1900x1060 Showcase (showcase-01)
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
101.04 fps ∼42% +35%
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
74.96 fps ∼31%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
68.76 fps ∼29% -8%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
62.6 fps ∼26% -16%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
62.33 fps ∼26% -17%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
58.52 fps ∼24% -22%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
38.31 fps ∼16% -49%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
30.73 fps ∼13% -59%
1900x1060 Siemens NX (snx-02)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
217.93 fps ∼77%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
183.65 fps ∼65% -16%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
157.44 fps ∼56% -28%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
130.1 fps ∼46% -40%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
111.7 fps ∼40% -49%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
65.85 fps ∼23% -70%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
59.96 fps ∼21% -72%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
14.98 fps ∼5% -93%
1900x1060 Solidworks (sw-03)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
212 fps ∼92%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
166.24 fps ∼72% -22%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
148.39 fps ∼64% -30%
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
142.34 fps ∼62% -33%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
119.9 fps ∼52% -43%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
103.79 fps ∼45% -51%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, i7-8706G
75.15 fps ∼33% -65%
Eurocom Sky X9C
NVIDIA GeForce GTX 1080 SLI (Laptop), i7-8700K
66.12 fps ∼29% -69%
SPECviewperf 13
3ds Max (3dsmax-06)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
149.6 fps ∼45%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
105.9 fps ∼32% -29%
Catia (catia-05)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
302.43 fps ∼65%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
200.5 fps ∼43% -34%
Creo (creo-02)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
247.66 fps ∼67%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
165.3 fps ∼44% -33%
Energy (energy-02)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
17.28 fps ∼20%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
8.41 fps ∼10% -51%
Maya (maya-05)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
255.04 fps ∼54%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
163.9 fps ∼35% -36%
Medical (medical-02)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
61.7 fps ∼42%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
29.9 fps ∼20% -52%
Showcase (showcase-02)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
74.67 fps ∼31%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
58.4 fps ∼24% -22%
Siemens NX (snx-03)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
396.3 fps ∼78%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
238.9 fps ∼47% -40%
Solidworks (sw-04)
Eurocom Tornado F7W
NVIDIA Quadro P5200, i9-9900K
189.22 fps ∼87%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, i7-8850H
133.5 fps ∼62% -29%
3DMark 06 Standard
44390 punten
3DMark Vantage P Result
65844 punten
3DMark 11 Performance
22226 punten
3DMark Ice Storm Standard Score
185544 punten
3DMark Cloud Gate Standard Score
47810 punten
3DMark Fire Strike Score
16723 punten
3DMark Time Spy Score
6713 punten
Help
05101520253035404550556065636363636265656564636262636263636363626463626463636261616262616262616262616262616262626162626161626262626262616261616261616261626162646464626261626263626161615961616161606161616161616161616161616161616261626160626162616161616162616161616161616261616363636363636362626261626162616260626262616262616161626162626161626162626364636262636464626262616261626262626062616261626261626261636263626263636263646463626261616261616162636162646361626262626364636263626362626261626262616262626262616362626261626261626566646363626464646262636262626263626162626362626262636262626363626362626362626262626363636363636363626463636363636262636363636364646465646464646362636362636362636263646363646363646364636463646362626364636365646564646564636463646364646364636463636364636263636362646362646263636364646363656665636463646363636565676364626363626363636362646363636263646364636364636363636463626364636364656564646463646363636463646364646464646464646566676664656364646364636264646364656665636463646363636463646364646464636364646463646364646364636363636364636363636463636363636463646364636463656563636363636363636363626463636363646364636363646465646564646563646364646364636464636364636566666664646364636362626362626363646564646564656464646665646363646364636463646464646463636463646464646463636463646363646363646363656363636463636364656564656464646364636363636765666563646463646364636364636363646363636462626361626263636162626263656564636462646363646364636465646564646463636363636363646363636463636363636363636362626262626262626262626262636263626263626361616362626363636262636565666364626363636363636363626262626263626263626262626263626263646463636365656564626262616362626362626263626362646264646362636263626263636262636363626363626365656463626262626261626264646162626262626262636263636263636363646363636363636462636463636263626263646464646364626263626262636163616362626262626262636362636363636363656464646463636363636363636362636364636363626363626263636362626363636363636464646463646263636263636263636263636262636363636465656563626263636263626262636262636262626262636162626363626263666566646364636263636363636363636363636363636363636565636364646465646464646364636463636463646363636463646665636463646363646363646363656564646464636464636463646463646464636565646565646564646463646463646463646463646463646463646364646365676765646464636464646364646463646463646464646365646564646666646464646365646464656465646464646465646464646564656564656465656665666565666465646465646464656465646565656565646565646767676765656465646564666465646565646465656466656664656465646566676565646465646466676767656564656465646565646465656666676465656465646564656464656465656464656465646565666765656465646465656464656465656465646565646564656465646464656365666766666564646464656364636263646362636462646462646565646466646463646363656463636463636363646365676764646464626463646365656564636665656566656664646464636363636466666664646363646364646464636363626363636362636363636363636363636362626464656363636363646363626363636464646465656363646364646363656664636464636364646466656566656564656464646464656464646366666463646364636464646463646364646364646364656364636364636464646464636464646464646364646364646364636464646463636464656363636363636363636364626363636262646466646364626362626263626362626362626263636362646263626464636362626261636263626263626262646363626263636262636262636464636364636362626262626163626363626465646363636363636363636463626362636362666565646363636263636462636363636263636264646362626262636262626162636464646262616262626362626362626362636362636365646362646463646364636363626262626362626362636263626362656565636363626363626362636363606362636563646464646362636363636463626362636263636264656562636362636363636363636263636363636363646566666363636362636363626363626363636263636362636362636363636365656463636565656463626364646464646363626261626262616263626263626363626263646665646363626262636262626262626262636162626362636362636263626364646463646364626363626362626262626363636263636363626362626362626363646262636262636363626363636362636362646363656665636363626362636262636362636262636362646563646463636262616262616262636362616362626263646262626162626162626262636263626262616262626262626263626262626162626163616262616262626262626262626361626262636163646362626261626262626262626163646363636463626262626163626261626261616261626061626162616162626261626162616364636163646664636363626263626263626261616262626261626261626261616262616262626162616261626165646562626262636363626363616261616261626261626262626261626264646463626261626161626162626361626261626262626162626262626262626261626162616260616363626363626361616261626261616264636262616162626161626161626163626362616262616262616261626162616261616262616162626161626261616261626362626262626262636162Tooltip
Eurocom Tornado F7W Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0): Ø63 (59-67)
lage gem. hoge ultra4K
Sleeping Dogs (2012) 344.2 288.1 267.3 118.8 fps
Guild Wars 2 (2012) 145.1 83.5 85.4 fps
StarCraft II: Heart of the Swarm (2013) 752.5 346.2 296.6 218.9 fps
BioShock Infinite (2013) 435 375.5 346.5 fps
Metro: Last Light (2013) 177.5 175.2 171.6 119.2 fps
Thief (2014) 149.4 145.1 145.7 114.2 fps
The Witcher 3 (2015) 303.5 211.6 116.1 63.4 43.9 fps
Batman: Arkham Knight (2015) 186 176 131 90 50 fps
Metal Gear Solid V (2015) 60 60 60 60 60 fps
Fallout 4 (2015) 241.9 236.3 46.8 fps
Rise of the Tomb Raider (2016) 292.9 210.1 121.5 101 44.9 fps
Ashes of the Singularity (2016) 113 99.1 97.8 43.5 fps
Overwatch (2016) 300 300 252.2 174.1 88.7 fps
Prey (2017) 145 144.6 145 144.1 60.9 fps
Rocket League (2017) 248.5 247 185.8 92.5 fps
Dirt 4 (2017) 354.1 221.2 126 84.4 56.8 fps
Middle-earth: Shadow of War (2017) 219 137 106 84 33 fps
Destiny 2 (2017) 13 12.7 12.6 12.2 12.3 fps
Monster Hunter World (2018) 183.5 110.1 100.4 77.4 24.1 fps
F1 2018 (2018) 212 152 125 83 46 fps
Shadow of the Tomb Raider (2018) 147 91 84 72 26 fps
Eurocom Tornado F7W
Quadro P5200, i9-9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
Acer Predator Helios 500 PH517-51-93LS
GeForce GTX 1070 Mobile, i9-8950HK, Liteon CA1-8D512
Asus Chimera G703GI
GeForce GTX 1080 Mobile, i9-8950HK, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID)
HP Omen X 17-ap0xx
GeForce GTX 1080 Mobile, i7-7820HK, Samsung PM961 MZVLW256HEHP
Eurocom Sky X9C
GeForce GTX 1080 SLI (Laptop), i7-8700K, 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0)
MSI GT75 8RG-090 Titan
GeForce GTX 1080 Mobile, i9-8950HK, 2x Samsung PM961 MZVLW256HEHP (RAID 0)
Noise
16%
-2%
9%
-5%
-2%
off / environment *
28.2
29.4
-4%
29
-3%
28.3
-0%
28.4
-1%
30
-6%
Idle Minimum *
33.2
29.4
11%
30
10%
31.5
5%
34.2
-3%
32
4%
Idle Average *
33.2
29.4
11%
34
-2%
31.6
5%
39.6
-19%
34
-2%
Idle Maximum *
33.2
30.1
9%
42
-27%
31.6
5%
39.6
-19%
37
-11%
Load Average *
47
36
23%
53
-13%
36.8
22%
48.5
-3%
43
9%
Witcher 3 ultra *
52.2
37.6
28%
51
2%
48.2
8%
54
-3%
57
-9%
Load Maximum *
64
42.2
34%
53
17%
52.1
19%
56.5
12%
62
3%

* ... kleiner is beter

Geluidsniveau

Onbelast
33.2 / 33.2 / 33.2 dB (A)
Belasting
47 / 64 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 28.2 dB(A)
Max. Belasting
 34 °C34 °C32 °C
 25.8 °C31.4 °C28.2 °C
 21.2 °C18.8 °C20.2 °C
Maximum: 34 °C
Gemiddelde: 27.3 °C
47.6 °C28.4 °C42.4 °C
36 °C25.8 °C27 °C
20.2 °C20.8 °C20.4 °C
Maximum: 47.6 °C
Gemiddelde: 29.8 °C
Stroomadapter (max.)  26.4 °C | Kamertemperatuur 20 °C | Raytek Raynger ST // Voltcraft IR-360 // FIRT 550-Pocket // Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 27.3 °C / 81 F, compared to the average of 31.6 °C / 89 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 34 °C / 93 F, compared to the average of 37.7 °C / 100 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 47.6 °C / 118 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 21.3 °C / 70 F, compared to the device average of 31.6 °C / 89 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 31.6 °C / 89 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.6 °C / 72.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+5.2 °C / 9.3 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.137.42532.135.73133.932.54032.932.95031.6326333.236.3802941.710029.747.912528.754.416028.258.420026.857.725027.361.531526.164.440026.663.550025.865.563025.170.880024.972.5100024.767.6125024.170.616002479.4200024.780.7250024.279.9315024.175.5400023.772.3500023.874.1630023.774.7800023.569.41000023.667.51250023.658.31600023.562.7SPL36.587.8N2.769.5median 24.7median 67.6Delta1.35.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseEurocom Tornado F7WApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Eurocom Tornado F7W audio analysis

(±) | speaker loudness is average but good (80.68 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.3% lower than median
(±) | linearity of bass is average (9.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.8% higher than median
(+) | highs are linear (5.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 6%, average was 18%, worst was 31%
Compared to all devices tested
» 22% of all tested devices were better, 5% similar, 74% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 6.7 / 8 Watt
Inactiefdarkmidlight 28.5 / 36.7 / 37.8 Watt
Belasting midlight 144.6 / 336 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Eurocom Tornado F7W
i9-9900K, Quadro P5200, 3x Samsung SSD 970 Pro 512GB (RAID 0), IPS, 3840x2160, 17.30
Eurocom Sky X7C
i7-8086K, GeForce GTX 1080 Mobile, 2x Samsung SSD 970 Pro 512GB (RAID 0), IPS, 3840x2160, 17.30
Asus Chimera G703GI
i9-8950HK, GeForce GTX 1080 Mobile, 2x Intel 760p 512 GB + 1x Samsung SM961 512 GB (RAID), IPS, 1920x1080, 17.30
Eurocom Sky X9C
i7-8700K, GeForce GTX 1080 SLI (Laptop), 2x Samsung SSD 960 Pro 1TB m.2 NVMe (RAID 0), IPS, 3840x2160, 17.30
MSI GT75 8RG-090 Titan
i9-8950HK, GeForce GTX 1080 Mobile, 2x Samsung PM961 MZVLW256HEHP (RAID 0), TN, 1920x1080, 17.30
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile, Samsung SSD 960 Pro 512 GB m.2, IPS, 1920x1080, 15.60
Power Consumption
10%
-7%
-54%
-8%
22%
Idle Minimum *
28.5
33.3
-17%
29
-2%
54.7
-92%
31
-9%
21.2
26%
Idle Average *
36.7
40.1
-9%
37
-1%
55.7
-52%
35
5%
25.1
32%
Idle Maximum *
37.8
42.1
-11%
46
-22%
56.8
-50%
45
-19%
26.3
30%
Load Average *
144.6
95.6
34%
156
-8%
183.7
-27%
130
10%
169.4
-17%
Witcher 3 ultra *
218.9
152.9
30%
252
-15%
454.8
-108%
268
-22%
Load Maximum *
336
220
35%
314
7%
321.8
4%
374
-11%
202.4
40%

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3
3h 00min
Eurocom Tornado F7W
i9-9900K, Quadro P5200, 90 Wh
Eurocom Sky X7C
i7-8086K, GeForce GTX 1080 Mobile, 82 Wh
Asus Chimera G703GI
i9-8950HK, GeForce GTX 1080 Mobile, 71 Wh
Eurocom Sky X9C
i7-8700K, GeForce GTX 1080 SLI (Laptop), 89 Wh
MSI GT75 8RG-090 Titan
i9-8950HK, GeForce GTX 1080 Mobile, 75 Wh
Eurocom Tornado F5
i7-7700K, GeForce GTX 1070 Mobile, 75.24 Wh
Batterijduur
-21%
-28%
-57%
20%
Reader / Idle
169
83
225
291
WiFi v1.3
180
143
-21%
130
-28%
78
-57%
216
20%
Load
51
47
63
67

Pro

+ respectabele WLAN batterijlevensduur
+ relatief koele oppervlaktetemperaturen
+ eenvoudig te onderhouden en te upgraden
+ relatief stil tijdens lage belasting
+ zeer brede configuratie-opties
+ luidsprekers met subwoofer
+ LGA 1151- en MXM 3.1-slots
+ 128 GB DDR4 RAM-ondersteuning
+ stil toetsenbord
+ sterke behuizing

Contra

- grote en zware stroomadapter; dikke en onhandelbare kabels
- gemiddelde zwart-zwarte en grijs-grijze responstijden
- stroomadapter produceert een pieptoon
- mat 4K UHD-paneel is licht korrelig
- NumPad-toetsen zijn klein en smal
- verminderde prestaties op accustroom
- Achterste poorten zijn moeilijk te bereiken
- basisgarantie is slechts één jaar
- geen individuele RGB-toetsverlichting
- deksel kan stijver
- luid onder hoge belasting
- laadt traag op
Getest: Eurocom Tornado F7W. Testmodel geleverd door Eurocom
Getest: Eurocom Tornado F7W. Testmodel geleverd door Eurocom

Voor het volledige, Engelse testrapport, klik hier.

De grootste redenen om voor een Eurocom-werkstation te kiezen, zijn de prestaties, configureerbare opties en het onderhoud van de eindgebruiker. Concurrerende systemen van bekende merken zoals Lenovo, Dell of HP hebben doorgaans langzamere hardware, minder upgrade-opties en bieden minder mogelijkheden voor onderhoud. Gebruikers die van plan zijn deze drie voordelen te benutten, zullen zeer tevreden zijn over de Tornado F7W.

Er zijn nog veel verbeteringen denkbaar als je dieper in de details duikt. Vooral CPU-prestaties kunnen beter zijn, omdat gebruikers niet het volledige potentieel van de Core i9-9900K kunnen benutten. Het 4K UHD-beeldscherm is iets korreliger dan we gewend zijn, zelfs voor een mat paneel en de actief gekoelde stroomadapter kan soms luider zijn dan de laptop onder gemiddelde belasting. Het ogenschijnlijk buggy-BIOS en WLAN dat we hebben meegemaakt, zijn waarschijnlijk problemen met dit specifieke apparaat, maar ze zijn toch een vermelding waard. Tot slot, kleine klachten zoals de kleinere NumPad-toetsen, gebrek aan RGB-achtergrondverlichting en 10 Gbit Ethernet, moeilijk te bereiken poorten en een dikke voedingskabel tellen zeker op. Veel van deze kunnen worden vergeven bij goedkopere en meer gangbare alternatieven, maar gebruikers verwachten perfectie gezien de prijs van dit systeem.

De Eurocom Tornado F7W heeft geen gelijke in de wereld van 17-inch mobiele werkstations. De extreme prestaties en veelzijdigheid van de hardware moeten voldoen aan professionals die vertrouwd zijn met het uitwisselen van componenten en het zelfstandig oplossen van problemen. Toch zijn er een handvol kleinere ergernissen en gebreken waarvan we hopen dat toekomstige iteraties dit zullen aanpakken.

Eurocom Tornado F7W - 06-12-2018 v6(old)
Allen Ngo

Behuizing
86 / 98 → 87%
Toetsenbord
81%
Aanwijsapparaat
83%
Aansluitmogelijkheden
65 / 81 → 80%
Gewicht
48 / 10-66 → 67%
Batterij
69%
Beeldscherm
86%
Gaming-performance
99%
Applicatie-performance
99%
Temperatuur
93 / 95 → 98%
Luidheid
62 / 90 → 69%
Audio
70%
Camera
79 / 85 → 93%
Gemiddelde
80%
86%
Workstation - Gewogen Gemiddelde

Pricecompare

Allen Ngo
Editor of the original article: Allen Ngo - Lead Editor U.S. - 4589 articles published on Notebookcheck since 2011
contact me via: @AllenNgoNBC
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Eurocom Tornado F7W (i9-9900K, Quadro P5200) Workstation
Allen Ngo, 2018-12- 7 (Update: 2018-12- 7)
