Kort testrapport Dell Precision 5530 2-in-1 (i7-8706G, Radeon WX Vega M GL, 4K UHD) Workstation

Allen Ngo, 👁 Allen Ngo (vertaald door Siemon Boes), 16-10-2018

Kaby Lake-G workstation. Alsof Kaby Lake-G al niet niche genoeg was, is Dell nog een stap verder gegaan en biedt de fabrikant nu een workstation-convertible met de zeldzame Intel-AMD-CPU. Het eindresultaat is een van de krachtigste 15-inch convertible-workstations ooit, al is er onderweg wel wat connectiviteit verloren gegaan.

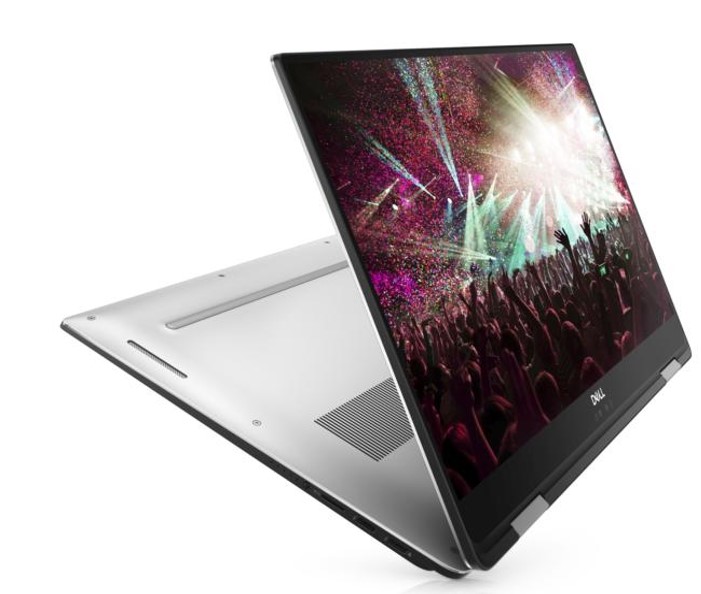

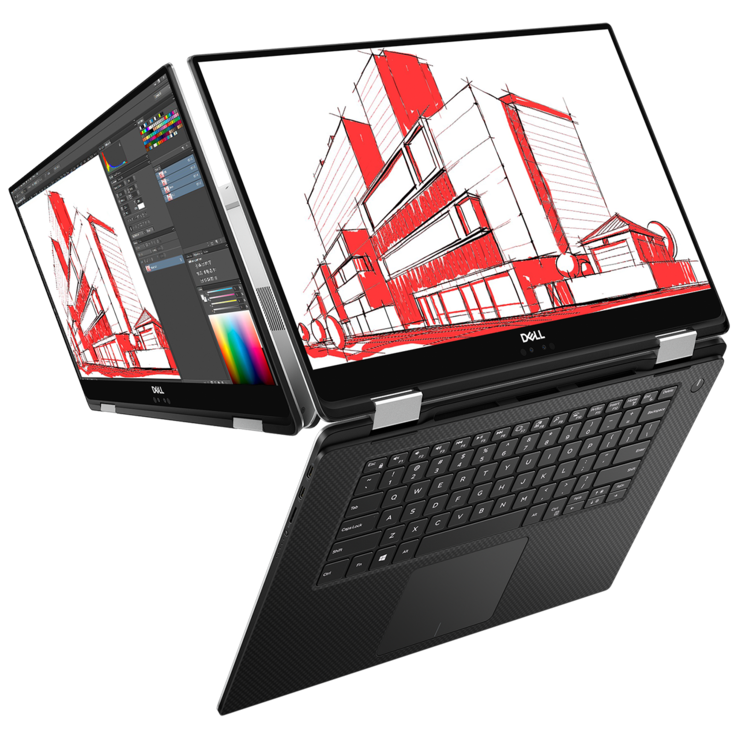

Dell Precision 5530 2-in-1 (Precision Serie)

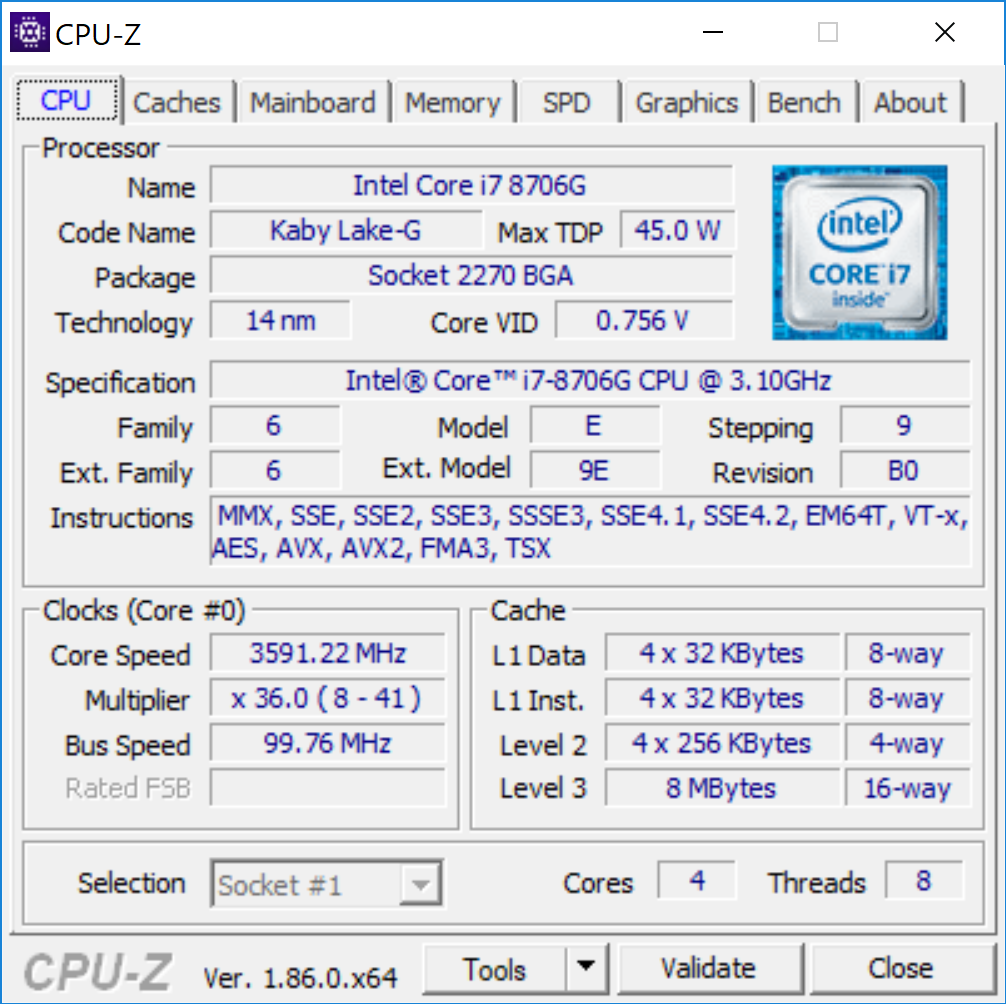

Processor
Intel Core i7-8706G

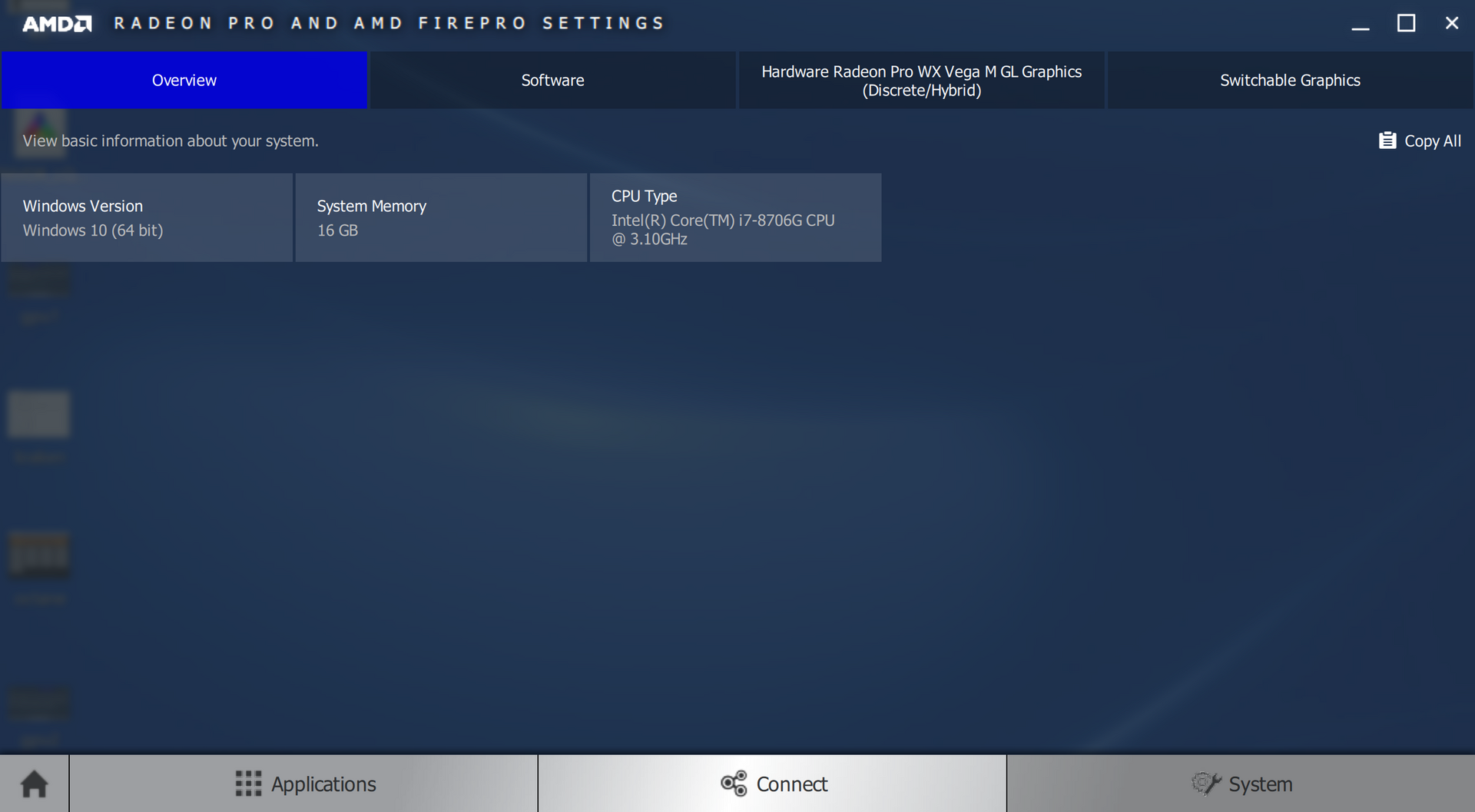

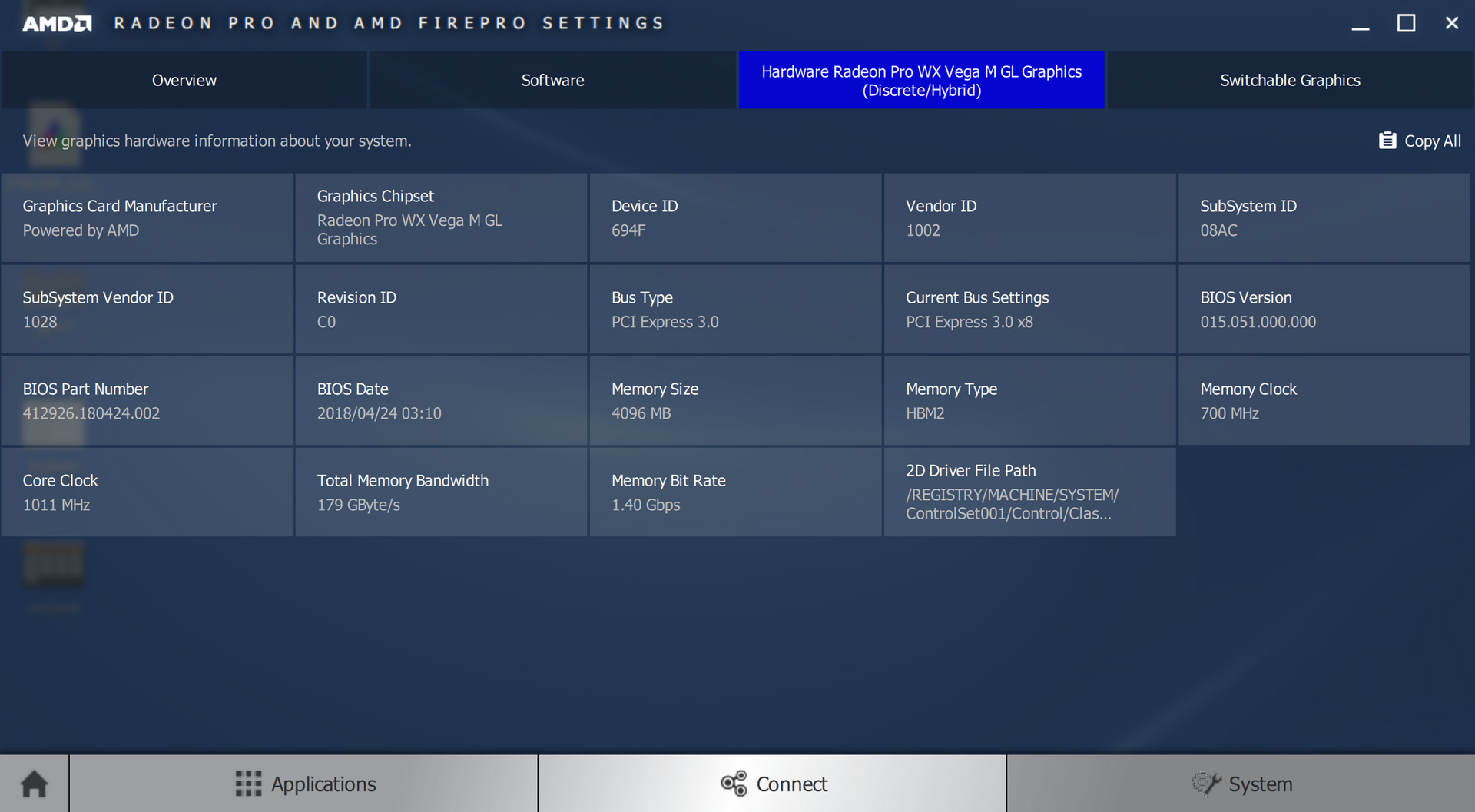

Grafische kaart
AMD Radeon Pro WX Vega M GL - 4096 MB, Core: 1011 MHz, Geheugen: 700 MHz, HBM2, 17.10.26-180627a-330846C
Geheugen
16384 MB
, 1300 MHz, 17-17-17-39, Dual-Channel
Beeldscherm
15.6 inch 16:9, 3840 x 2160 pixel 282 PPI, 10-punt capacitief, Sharp SHP148D, IPS, Naam: LQ156D1, Dell P/N: FNVDR, glimmend: ja
Moederbord
Intel QM175 (Skylake PCH-H)
Opslag
SK Hynix PC401 512GB M.2 (HFS512GD9TNG), 512 GB
Geluidskaart
Intel Skylake PCH-H High Definition Audio Controller
Verbindingen
4 USB 3.0, 2 Thunderbolt, 1 Kensington Lock, Audio Verbindingen: 3.5 mm combo, Card Reader: MicroSD, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 16 x 354 x 235
Batterij
75 Wh, 6 mAh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: Stereo 1 W x 2, Toetsenbord: MagLev chiclet, Toetsenbordverlichting: ja, Actieve pen PN579X, Radeon Pro en AMD FirePro Settings, 12 Maanden Garantie
Gewicht
2 kg, Voeding: 422 g
Prijs
2000 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

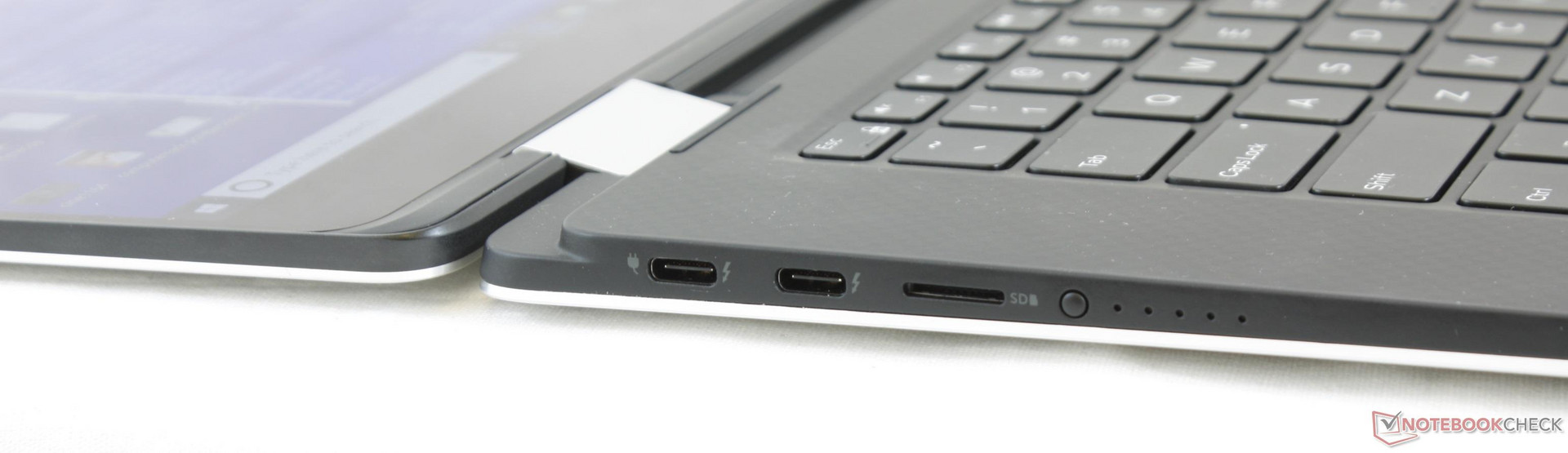

Links: 2x USB Type-C met Thunderbolt 3, MicroSD-lezer, batterij-indicator
Links: 2x USB Type-C met Thunderbolt 3, MicroSD-lezer, batterij-indicator

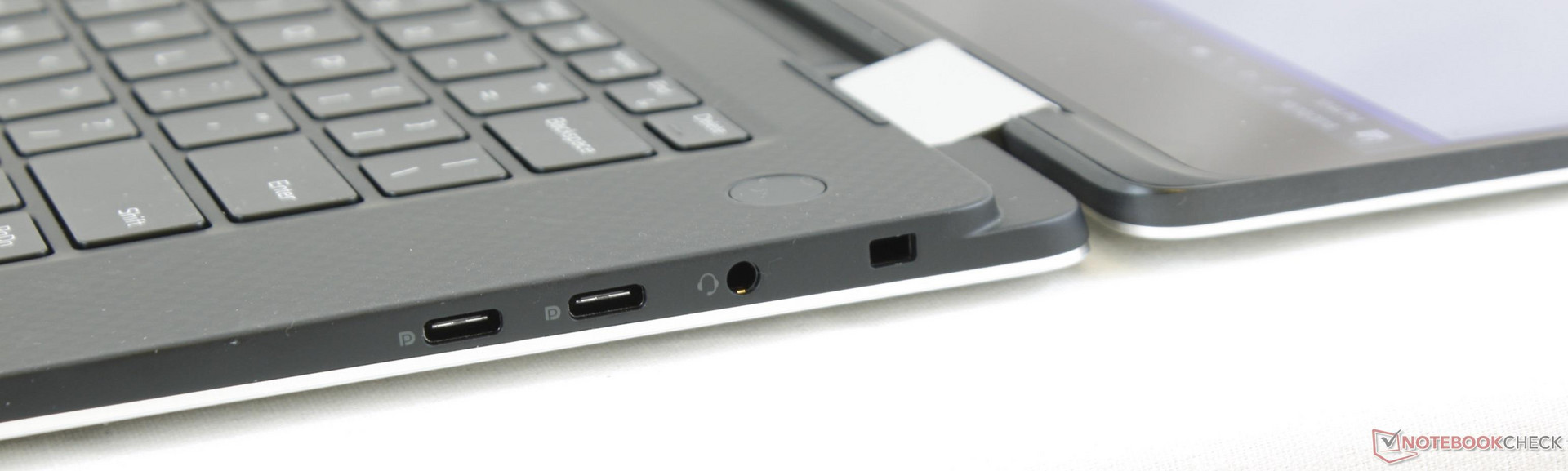

Rechts: 2x USB 3.1 Type-C, 3.5-mm combo-audio, Noble Lock
Rechts: 2x USB 3.1 Type-C, 3.5-mm combo-audio, Noble Lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Gigabyte Aero 15X v8
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
191 MB/s ∼100% +49%
Lenovo ThinkPad X1 Extreme-20MF000XGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189 MB/s ∼99% +47%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.23 MB/s ∼87% +29%
Dell Precision 5530 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
128.6 MB/s ∼67%
maximum AS SSD Seq Read Test (1GB)
Gigabyte Aero 15X v8
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
242 MB/s ∼100% +17%
Lenovo ThinkPad X1 Extreme-20MF000XGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
241.7 MB/s ∼100% +17%
Dell Precision 5530 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
206.5 MB/s ∼85%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
190.7 MB/s ∼79% -8%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Gigabyte Aero 15X v8
Intel Dual Band Wireless-AC 8265
682 MBit/s ∼100% +12%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
663 MBit/s ∼97% +9%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼94% +5%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Wireless-AC 9560
627 (min: 319, max: 666) MBit/s ∼92% +3%
Dell Precision 5530 2-in-1
Intel Dual Band Wireless-AC 8265
609 MBit/s ∼89%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
648 MBit/s ∼100% +27%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Wireless-AC 9560
628 (min: 593, max: 651) MBit/s ∼97% +23%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼81% +4%
Dell Precision 5530 2-in-1
Intel Dual Band Wireless-AC 8265
510 MBit/s ∼79%
Gigabyte Aero 15X v8
Intel Dual Band Wireless-AC 8265
379 MBit/s ∼58% -26%
354.5
cd/m²
411.2
cd/m²
395.1
cd/m²
365.2
cd/m²
430.9
cd/m²
443.3
cd/m²
349.5
cd/m²
396.3
cd/m²
434.7
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 443.3 cd/m² Gemiddelde: 397.9 cd/m² Minimum: 20.98 cd/m²
Helderheidsverdeling: 79 %
Helderheid in Batterij-modus: 430.9 cd/m²
Contrast: 1231:1 (Zwart: 0.35 cd/m²)
ΔE Color 3.29 | 0.4-29.43 Ø6.3, calibrated: 3.58
ΔE Greyscale 2.6 | 0.64-98 Ø6.5
100% sRGB (Argyll 3D) 87.2% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.19
Dell Precision 5530 2-in-1
Sharp SHP148D, IPS, 15.6, 3840x2160
MSI GS65 Stealth Thin 8RE-051US
AUO80ED, IPS, 15.6, 1920x1080
Lenovo ThinkPad X1 Extreme-20MF000XGE
B156ZAN03.2, IPS, 15.6, 3840x2160
Dell Precision 5530 Xeon E-2176M
Sharp SHP148D / LQ156D1, IGZO, 15.6, 3840x2160
Gigabyte Aero 15X v8
LGD05C0, IPS, 15.6, 1920x1080
HP ZBook 15u G5 2ZC05EA
CMN15E7, IPS LED, 15.6, 1920x1080
Dell XPS 15 9575 i7-8705G
Sharp SHP148D, IPS, 15.6, 3840x2160
Response Times
64%
-5%
5%
68%
847%
3%
Response Time Grey 50% / Grey 80% *
49.6 (25.2, 24.4)
20 (10, 10)
60%
61.6 (30.8, 30.8)
-24%
48 (24.4, 23.6)
3%
16.8 (8.4, 8.4)
66%
41.6 (22, 19.6)
16%
48.4 (23.2, 25.2)
2%
Response Time Black / White *
37.6 (20.4, 17.2)
12 (6.8, 5.2)
68%
32 (15.6, 16.4)
15%
33.6 (19.6, 14)
11%
11.2 (6, 5.2)
70%
28.8 (15.6, 13.2)
23%
34.8 (19.2, 15.6)
7%
PWM Frequency
990.1 (25)
1000
1%
25770 (40)
2503%
1000 (25)
1%
Screen
-11%
-4%
-5%
10%
-29%
1%
Brightness middle
430.9
250.9
-42%
396
-8%
451.7
5%
313
-27%
229
-47%
488
13%
Brightness
398
257
-35%
380
-5%
440
11%
300
-25%
212
-47%
440
11%
Brightness Distribution
79
83
5%
90
14%
90
14%
78
-1%
88
11%
81
3%
Black Level *
0.35
0.32
9%
0.28
20%
0.4
-14%
0.33
6%
0.23
34%
0.3
14%
Contrast
1231
784
-36%
1414
15%
1129
-8%
948
-23%
996
-19%
1627
32%
Colorchecker DeltaE2000 *
3.29
2.77
16%
4
-22%
3.11
5%
1.29
61%
4.2
-28%
3.16
4%
Colorchecker DeltaE2000 max. *
7.46
5.89
21%
7.6
-2%
8.62
-16%
2.04
73%
18
-141%
8.8
-18%
Colorchecker DeltaE2000 calibrated *
3.58
2.5
30%
0.9
75%
3.07
14%
4.2
-17%
Greyscale DeltaE2000 *
2.6
4
-54%
6.1
-135%
3.7
-42%
0.69
73%
2
23%
3.3
-27%
Gamma
2.19 100%
2.27 97%
2.25 98%
2.11 104%
2.43 91%
2.23 99%
2.178 101%
CCT
6870 95%
6901 94%
7786 83%
6492 100%
6550 99%
6292 103%
6811 95%
Color Space (Percent of AdobeRGB 1998)
87.2
60
-31%
88.5
1%
69
-21%
60
-31%
41
-53%
71.7
-18%
Color Space (Percent of sRGB)
100
92
-8%
100
0%
98
-2%
94
-6%
64.5
-35%
97.9
-2%
Totaal Gemiddelde (Programma / Instellingen)
27% / 0%
-5% / -4%
0% / -3%
39% / 20%
409% / 159%
2% / 2%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

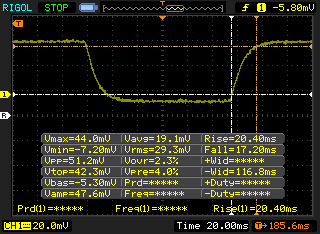

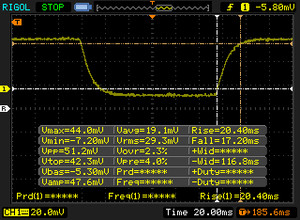

       Responstijd Zwart naar Wit
37.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20.4 ms stijging
↘ 17.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 94 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.6 ms) van alle geteste toestellen.

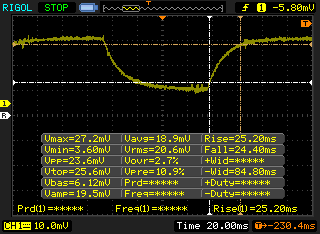

       Responstijd 50% Grijs naar 80% Grijs
49.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 25.2 ms stijging
↘ 24.4 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 83 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (41 ms) van alle geteste toestellen.

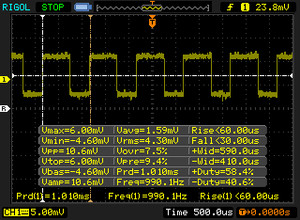

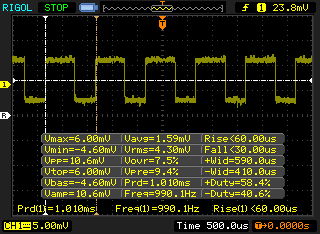

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 990.1 Hz ≤ 25 % helderheid instelling

Het backlight van het scherm flikkert aan 990.1 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 25 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 990.1 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8781 (minimum: 43 - maximum: 142900) Hz waargenomen.


010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130Tooltip
Dell Precision 5530 2-in-1 WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG): Ø748 (717.21-781.39)
Dell XPS 15 9575 i7-8705G Vega M GL / 870, 8705G, SK hynix PC401 NVMe 500 GB: Ø677 (641.53-746.06)
Dell XPS 15 9575 i5-8305G Vega M GL / 870, 8305G, Toshiba XG5 KXG50ZNV256G: Ø666 (631.88-709.46)
Dell Precision 5530 Xeon E-2176M Quadro P2000, E-2176M, SK hynix PC400 512 GB: Ø1024 (1006.14-1126.25)
Cinebench R15
CPU Single 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
189 Points ∼89% +10%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼84% +3%
HP ZBook 17 G4-Y3J82AV
Intel Xeon E3-1535M v6
175 Points ∼82% +2%
MSI GS65 Stealth Thin 8RE-051US
Intel Core i7-8750H
175 Points ∼82% +2%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
174 Points ∼82% +1%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼81% 0%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
172 Points ∼81%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
156 Points ∼73% -9%
Average of class Workstation
  (117 - 189, n=79)
155 Points ∼73% -10%
HP EliteBook 735 G5 3UN62EA
AMD Ryzen 7 2700U
147 Points ∼69% -15%
CPU Multi 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1095 Points ∼35% +43%
MSI GS65 Stealth Thin 8RE-051US
Intel Core i7-8750H
1011 Points ∼33% +32%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼28% +13%
HP ZBook 17 G4-Y3J82AV
Intel Xeon E3-1535M v6
806 Points ∼26% +5%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
767 Points ∼25%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
740 Points ∼24% -4%
Average of class Workstation
  (260 - 1267, n=81)
704 Points ∼23% -8%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
699 Points ∼22% -9%
HP EliteBook 735 G5 3UN62EA
AMD Ryzen 7 2700U
640 Points ∼21% -17%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼18% -28%
Cinebench R11.5
CPU Single 64Bit
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
1.99 Points ∼82% 0%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1.99 Points ∼82% 0%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
1.99 Points ∼82%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
1.97 Points ∼81% -1%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
1.93 Points ∼79% -3%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
1.74 Points ∼71% -13%
Average of class Workstation
  (1.09 - 2.15, n=80)
1.668 Points ∼68% -16%
CPU Multi 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
12.4 Points ∼46% +47%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
9.41 Points ∼35% +11%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
8.44 Points ∼31%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
8.14 Points ∼30% -4%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
7.65 Points ∼28% -9%
Average of class Workstation
  (2.16 - 13.9, n=98)
6.61 Points ∼24% -22%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
5.86 Points ∼22% -31%
Cinebench R10
Rendering Single 32Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
6973 Points ∼64% +6%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
6668 Points ∼62% +2%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
6549 Points ∼60%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
6445 Points ∼59% -2%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
6436 Points ∼59% -2%
Average of class Workstation
  (3094 - 9142, n=83)
5283 Points ∼49% -19%
Rendering Multiple CPUs 32Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
32132 Points ∼65% +33%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
28975 Points ∼58% +20%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
25809 Points ∼52% +7%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
24130 Points ∼49%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
23794 Points ∼48% -1%
Average of class Workstation
  (8373 - 43681, n=84)
19159 Points ∼39% -21%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
17505 Points ∼35% -27%
wPrime 2.0x - 1024m
Average of class Workstation
  (130 - 1390, n=56)
331 s * ∼4% -66%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
216.41 s * ∼3% -8%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
199.577 s * ∼2%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
197.647 s * ∼2% +1%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
186.66 s * ∼2% +6%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
147.028 s * ∼2% +26%
Super Pi Mod 1.5 XS 32M - ---
Average of class Workstation
  (-1 - 172530, n=685)
8619 Seconds * ∼38% -1607%
MSI WS63VR 7RL-023US
Intel Core i7-7700HQ
561 Seconds * ∼2% -11%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
504.883 Seconds * ∼2%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
503.967 Seconds * ∼2% -0%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
484.864 Seconds * ∼2% +4%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
475.198 Seconds * ∼2% +6%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
9667
Cinebench R10 Rendering Multiple CPUs 32Bit
24130
Cinebench R10 Rendering Single 32Bit
6549
Cinebench R11.5 CPU Multi 64Bit
8.44 Points
Cinebench R11.5 OpenGL 64Bit
108.89 fps
Cinebench R11.5 CPU Single 64Bit
1.99 Points
Cinebench R15 CPU Single 64Bit
172 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
132.52 fps
Cinebench R15 CPU Multi 64Bit
767 Points
Help
PCMark 10 - Score
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5072 Points ∼65% +7%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
5059 Points ∼65% +6%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
4785 Points ∼62% +1%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4760 Points ∼61%
MSI GS65 Stealth Thin 8RE-051US
GeForce GTX 1060 (Laptop), 8750H, Samsung SSD PM981 MZVLB256HAHQ
4646 Points ∼60% -2%
Average of class Workstation
  (3281 - 5738, n=24)
4583 Points ∼59% -4%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼52% -15%
PCMark 8
Work Score Accelerated v2
MSI GS65 Stealth Thin 8RE-051US
GeForce GTX 1060 (Laptop), 8750H, Samsung SSD PM981 MZVLB256HAHQ
5731 Points ∼88% +38%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
5676 Points ∼87% +37%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼79% +24%
Average of class Workstation
  (3311 - 5655, n=62)
4762 Points ∼73% +15%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
4666 Points ∼72% +13%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
4381 Points ∼67% +6%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4146 Points ∼64%
Home Score Accelerated v2
MSI GS65 Stealth Thin 8RE-051US
GeForce GTX 1060 (Laptop), 8750H, Samsung SSD PM981 MZVLB256HAHQ
4676 Points ∼77% +34%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
4504 Points ∼74% +29%
Average of class Workstation
  (2320 - 5505, n=62)
3919 Points ∼64% +13%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
3831 Points ∼63% +10%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼61% +7%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
3611 Points ∼59% +4%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
3480 Points ∼57%
PCMark 8 Home Score Accelerated v2
3480 punten
PCMark 8 Work Score Accelerated v2
4146 punten
Help
Dell Precision 5530 2-in-1
SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
Lenovo ThinkPad X1 Extreme-20MF000XGE
Samsung SSD PM981 MZVLB1T0HALR
Dell Precision 5530 Xeon E-2176M
SK hynix PC400 512 GB
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
Average SK Hynix PC401 512GB M.2 (HFS512GD9TNG)

AS SSD
84%
3%
-27%
-1%
Copy Game MB/s
740.69
741.77
0%
653 (362 - 905, n=5)
-12%
Copy Program MB/s
435.54
324.8
-25%
414 (333 - 496, n=5)
-5%
Copy ISO MB/s
913.22
1145.95
25%
1057 (757 - 1641, n=5)
16%
Score Total
2509
5355
113%
2922
16%
1697
-32%
2377 (1951 - 2680, n=5)
-5%
Score Write
1180
2147
82%
1121
-5%
710
-40%
1042 (677 - 1298, n=5)
-12%
Score Read
899
2132
137%
1226
36%
689
-23%
913 (860 - 965, n=5)
2%
Access Time Write *
0.051
0.028
45%
0.053
-4%
0.051
-0%
0.051 (0.051 - 0.051, n=5)
-0%
Access Time Read *
0.043
0.034
21%
0.073
-70%
0.103
-140%
0.0456 (0.043 - 0.051, n=5)
-6%
4K-64 Write
989.57
1782.15
80%
926.09
-6%
564.31
-43%
839 (486 - 1087, n=5)
-15%
4K-64 Read
684.54
1804.84
164%
970.47
42%
488.39
-29%
667 (623 - 690, n=5)
-3%
4K Write
101.92
130.92
28%
92.85
-9%
101.5
0%
110 (99.5 - 124, n=5)
8%
4K Read
42.43
56.81
34%
38.43
-9%
31.28
-26%
42.6 (40.6 - 44.7, n=5)
0%
Seq Write
887.14
2336
163%
1022.39
15%
441.04
-50%
926 (680 - 1209, n=5)
4%
Seq Read
1697.11
2703
59%
2169.24
28%
1695.81
0%
2025 (1596 - 2340, n=5)
19%

* ... kleiner is beter

SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
CDM 5/6 Read Seq Q32T1: 2664 MB/s
CDM 5/6 Write Seq Q32T1: 661.9 MB/s
CDM 5/6 Read 4K Q32T1: 393.6 MB/s
CDM 5/6 Write 4K Q32T1: 336.6 MB/s
CDM 5 Read Seq: 2065 MB/s
CDM 5 Write Seq: 635.2 MB/s
CDM 5/6 Read 4K: 45.7 MB/s
CDM 5/6 Write 4K: 128.9 MB/s
3DMark 11
1280x720 Performance Combined
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
10778 Points ∼59% +32%
MSI GS65 Stealth Thin 8RE-051US
NVIDIA GeForce GTX 1060 (Laptop), 8750H
10475 Points ∼58% +28%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
10391 Points ∼57% +27%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
9296 Points ∼51% +14%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
9063 Points ∼50% +11%
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, 8705G
8633 Points ∼48% +6%
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
8589 Points ∼47% +5%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
8166 Points ∼45%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8059 Points ∼44% -1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
4606 Points ∼25% -44%
Average of class Workstation
  (830 - 12508, n=94)
4550 Points ∼25% -44%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, 2700U
1872 Points ∼10% -77%
1280x720 Performance GPU
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
19569 Points ∼38% +95%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
15837 Points ∼31% +58%
MSI GS65 Stealth Thin 8RE-051US
NVIDIA GeForce GTX 1060 (Laptop), 8750H
14879 Points ∼29% +48%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
14302 Points ∼28% +43%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
12105 Points ∼24% +21%
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, 8705G
10118 Points ∼20% +1%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
10020 Points ∼20%
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
8619 Points ∼17% -14%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8201 Points ∼16% -18%
Average of class Workstation
  (841 - 20623, n=94)
5370 Points ∼11% -46%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
3632 Points ∼7% -64%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, 2700U
2907 Points ∼6% -71%
3DMark
1920x1080 Fire Strike Graphics
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
14666 Points ∼36% +100%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
12312 Points ∼30% +68%
MSI GS65 Stealth Thin 8RE-051US
NVIDIA GeForce GTX 1060 (Laptop), 8750H
11814 Points ∼29% +61%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
10248 Points ∼25% +40%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
9489 Points ∼23% +29%
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, 8705G
7348 Points ∼18% 0%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
7333 Points ∼18%
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
7199 Points ∼18% -2%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
6741 Points ∼17% -8%
Average of class Workstation
  (752 - 14990, n=86)
4370 Points ∼11% -40%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
2644 Points ∼7% -64%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, 2700U
1740 Points ∼4% -76%
1280x720 Cloud Gate Standard Graphics
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
86679 Points ∼47% +122%
MSI GS65 Stealth Thin 8RE-051US
NVIDIA GeForce GTX 1060 (Laptop), 8750H
83747 Points ∼45% +115%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
74933 Points ∼41% +92%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
65089 Points ∼35% +67%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
59162 Points ∼32% +52%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
42598 Points ∼23% +9%
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, 8705G
42351 Points ∼23% +9%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
38986 Points ∼21%
Average of class Workstation
  (5836 - 102368, n=86)
28099 Points ∼15% -28%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
17922 Points ∼10% -54%
HP EliteBook 735 G5 3UN62EA
AMD Radeon RX Vega 10, 2700U
9904 Points ∼5% -75%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
282345 Points ∼39%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
121766 Points ∼17%
Average of class Workstation
  (20741 - 310648, n=18)
115491 Points ∼16%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
75457 Points ∼10%
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, 8705G
46963 Points ∼6%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
142.34 fps ∼86% +89%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
119.9 fps ∼72% +60%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
103.79 fps ∼62% +38%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
102.91 fps ∼62% +37%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
75.15 fps ∼45%
Average of class Workstation
  (15.6 - 166, n=71)
70.5 fps ∼42% -6%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
66.93 fps ∼40% -11%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
31.31 fps ∼19% -58%
1900x1060 Siemens NX (snx-02)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
157.44 fps ∼86% +163%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
111.7 fps ∼61% +86%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
71.77 fps ∼39% +20%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
65.85 fps ∼36% +10%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
59.96 fps ∼33%
Average of class Workstation
  (4.87 - 184, n=71)
50.9 fps ∼28% -15%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
20.8 fps ∼11% -65%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
18.74 fps ∼10% -69%
1900x1060 Showcase (showcase-01)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
68.76 fps ∼44% +79%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
62.6 fps ∼40% +63%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
54.77 fps ∼35% +43%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
49.34 fps ∼32% +29%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
38.31 fps ∼25%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
30.73 fps ∼20% -20%
Average of class Workstation
  (3.93 - 68.8, n=69)
27.7 fps ∼18% -28%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
7.28 fps ∼5% -81%
1900x1060 Medical (medical-01)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
62.74 fps ∼84% +215%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
41.8 fps ∼56% +110%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
29.82 fps ∼40% +50%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
22.84 fps ∼31% +15%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
21.43 fps ∼29% +7%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
19.94 fps ∼27%
Average of class Workstation
  (0.99 - 71.5, n=70)
19.1 fps ∼26% -4%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
3.99 fps ∼5% -80%
1900x1060 Maya (maya-04)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
88.79 fps ∼46% +107%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
73 fps ∼38% +70%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
67.65 fps ∼35% +58%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
59.21 fps ∼30% +38%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
54.04 fps ∼28% +26%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
42.84 fps ∼22%
Average of class Workstation
  (5.4 - 102, n=71)
40.3 fps ∼21% -6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
11.75 fps ∼6% -73%
1900x1060 Energy (energy-01)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
14.22 fps ∼60% +384%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
10.6 fps ∼45% +261%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
7.7 fps ∼32% +162%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
5.27 fps ∼22% +79%
Average of class Workstation
  (0.06 - 15, n=71)
3.73 fps ∼16% +27%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
3.52 fps ∼15% +20%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
2.94 fps ∼12%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
0.26 fps ∼1% -91%
1900x1060 Creo (creo-01)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
117.15 fps ∼89% +104%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
91.9 fps ∼70% +60%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
87 fps ∼66% +51%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
64.99 fps ∼49% +13%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
57.43 fps ∼44%
Average of class Workstation
  (14 - 132, n=71)
48.7 fps ∼37% -15%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
45.55 fps ∼35% -21%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
18.82 fps ∼14% -67%
1900x1060 Catia (catia-04)
Dell Precision 7720
NVIDIA Quadro P5000, E3-1535M v6
139.86 fps ∼90% +117%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
110 fps ∼71% +71%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, 7700HQ
96.46 fps ∼62% +50%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
77.04 fps ∼50% +20%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
69.61 fps ∼45% +8%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, 8706G
64.39 fps ∼41%
Average of class Workstation
  (13.4 - 156, n=71)
54.3 fps ∼35% -16%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
17.1 fps ∼11% -73%
1900x1060 3ds Max (3dsmax-05)
Average of class Workstation
  (11.4 - 93.6, n=11)
41 fps ∼23%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, 8550U
31.28 fps ∼18%
3DMark 11 Performance
9731 punten
3DMark Ice Storm Standard Score
49024 punten
3DMark Cloud Gate Standard Score
19765 punten
3DMark Fire Strike Score
6253 punten
3DMark Time Spy Score
2213 punten
Help
lage gem. hoge ultra4K
Sleeping Dogs (2012) 113.195.984.636fps
StarCraft II: Heart of the Swarm (2013) 254146134.171.4fps
BioShock Infinite (2013) 106.5101.2102.959.6fps
Metro: Last Light (2013) 98.294.877.541fps
Thief (2014) 68.667.164.342.7fps
The Witcher 3 (2015) 94.77944.223.915.1fps
Batman: Arkham Knight (2015) 73735016fps
Metal Gear Solid V (2015) 6060605025.1fps
Fallout 4 (2015) 106.980.449.835.514.7fps
Rise of the Tomb Raider (2016) 74.477.640.431.813.8fps
Ashes of the Singularity (2016) 50.334.816fps
Overwatch (2016) 193.7173.4109.852.332.9fps
Prey (2017) 116.191.374.965.519.9fps
Rocket League (2017) 185.6146.2100.234.3fps
Dirt 4 (2017) 194.397.154.531.318.3fps
F1 2017 (2017) 12278654017fps
Final Fantasy XV Benchmark (2018) 6332.521.88.3fps
F1 2018 (2018) 10765543415fps
Shadow of the Tomb Raider (2018) 823733288fps
Assassin´s Creed Odyssey (2018) 4433271710fps

Geluidsniveau

Onbelast
28.6 / 28.6 / 29.1 dB (A)
Belasting
39.8 / 47 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 28.6 dB(A)
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, 7700HQ, Toshiba NVMe THNSN5512GPU7
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
Dell XPS 15 9575 i7-8705G
Vega M GL / 870, 8705G, SK hynix PC401 NVMe 500 GB
Noise
-3%
5%
-1%
6%
5%
off / environment *
28.6
28
2%
28.8
-1%
28.4
1%
29.8
-4%
28.2
1%
Idle Minimum *
28.6
33.2
-16%
28.8
-1%
28.4
1%
29.8
-4%
28.2
1%
Idle Average *
28.6
33.2
-16%
28.8
-1%
28.4
1%
29.8
-4%
28.2
1%
Idle Maximum *
29.1
33.2
-14%
31.3
-8%
28.4
2%
30.8
-6%
28.2
3%
Load Average *
39.8
41.4
-4%
36.4
9%
46.5
-17%
32.9
17%
29
27%
Witcher 3 ultra *
47
38.4
18%
36.4
23%
46.5
1%
36.5
22%
44.7
5%
Load Maximum *
47
43.5
7%
39.2
17%
46.5
1%
36.5
22%
47.4
-1%

* ... kleiner is beter

Max. Belasting
 48.6 °C39.6 °C33.2 °C
 44.6 °C41.8 °C28.8 °C
 30.2 °C26.8 °C25.8 °C
Maximum: 48.6 °C
Gemiddelde: 35.5 °C
33.4 °C37.6 °C42.2 °C
30.8 °C36.2 °C40 °C
29 °C32.2 °C35.2 °C
Maximum: 42.2 °C
Gemiddelde: 35.2 °C
Stroomadapter (max.)  53 °C | Kamertemperatuur 22.4 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 35.5 °C / 96 F, compared to the average of 31.2 °C / 88 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 48.6 °C / 119 F, compared to the average of 37.2 °C / 99 F, ranging from 23.1 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 42.2 °C / 108 F, compared to the average of 40.3 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.1 °C / 95 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.2 °C / 88.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.1 °C / -5.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.637.72533.5333134.635.24032.633.95032.932.26332.531.9803232.810030.340.212530.146.316028.855.420028.461.625028.162.531526.464.140026.464.750025.468.263025.464.380024.569.6100024.670.5125024.468.8160023.866.1200023.869.5250023.764.6315023.566.3400023.462.3500023.464.6630023.470.8800023.472.51000023.366.21250023.363.81600023.157.6SPL36.380.1N2.750.9median 24.4median 64.6Delta1.62.435.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseDell Precision 5530 2-in-1Apple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Precision 5530 2-in-1 audio analysis

(±) | speaker loudness is average but good (72.49 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.6% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(±) | linearity of highs is average (9.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 3% similar, 93% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 7% of all tested devices were better, 1% similar, 92% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 96% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.58 / 1.03 Watt
Inactiefdarkmidlight 7.4 / 12.4 / 13.3 Watt
Belasting midlight 79.2 / 96.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Dell Precision 5530 2-in-1
8706G, WX Vega M GL, SK Hynix PC401 512GB M.2 (HFS512GD9TNG), IPS, 3840x2160, 15.6
MSI WS63VR 7RL-023US
7700HQ, Quadro P4000 Max-Q, Toshiba NVMe THNSN5512GPU7, IPS, 3840x2160, 15.6
Lenovo ThinkPad X1 Extreme-20MF000XGE
8750H, GeForce GTX 1050 Ti Max-Q, Samsung SSD PM981 MZVLB1T0HALR, IPS, 3840x2160, 15.6
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, SK hynix PC400 512 GB, IGZO, 3840x2160, 15.6
Gigabyte Aero 15X v8
8750H, GeForce GTX 1070 Max-Q, Toshiba NVMe THNSN5512GPU7, IPS, 1920x1080, 15.6
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
Power Consumption
-34%
-15%
-23%
-61%
38%
Idle Minimum *
7.4
13.3
-80%
7.6
-3%
9.8
-32%
14
-89%
3.2
57%
Idle Average *
12.4
17.2
-39%
14.8
-19%
16.8
-35%
18
-45%
6.1
51%
Idle Maximum *
13.3
17.9
-35%
17.6
-32%
16.9
-27%
22
-65%
9.7
27%
Load Average *
79.2
83.7
-6%
86
-9%
102.3
-29%
91
-15%
62
22%
Load Maximum *
96.5
114.3
-18%
118.9
-23%
114.5
-19%
173
-79%
71
26%
Witcher 3 ultra *
82.2
101.9
-24%
85
-3%
76.5
7%
142
-73%
48
42%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
12h 17min
NBC WiFi Websurfing Battery Test 1.3
7h 15min
Belast (maximale helderheid)
1h 10min
Dell Precision 5530 2-in-1
8706G, WX Vega M GL, 75 Wh
MSI WS63VR 7RL-023US
7700HQ, Quadro P4000 Max-Q, 48 Wh
Lenovo ThinkPad X1 Extreme-20MF000XGE
8750H, GeForce GTX 1050 Ti Max-Q, 80 Wh
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, 97 Wh
Gigabyte Aero 15X v8
8750H, GeForce GTX 1070 Max-Q, 94.24 Wh
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
Batterijduur
-50%
17%
35%
48%
94%
Reader / Idle
737
235
-68%
691
-6%
991
34%
762
3%
1301
77%
WiFi v1.3
435
175
-60%
384
-12%
501
15%
513
18%
514
18%
Load
70
54
-23%
119
70%
110
57%
156
123%
200
186%
Witcher 3 ultra
63

Pro

+ optionele AI-gebaseerde optimalisatiesoftware
+ opties voor heldere, kwaliteitsvolle FHD- en 4K-touchscreens
+ USB Type-C-adapters en WACOM-pen inbegrepen
+ erg krachtige CPU en GPU voor het formaat
+ volledige dekking van sRGB en AdobeRGB
+ compacte en dunne vormfactor
+ unieke MagLev-toetsen
+ Thunderbolt 3

Contra

- PWM bij lagere helderheidsniveaus
- trage responstijden van scherm; problemen met 'ghosting'
- verminderde prestaties in batterij-modus
- mist poorten die standaard zijn voor workstations
- stylus-knoppen bieden zwakke feedback
- slechts één sleuf voor interne opslag
- luide ventilatoren onder belasting
- RAM niet uitbreidbaar
- geen opties voor ECC-RAM
- geen WAN of 4G-LTE
Onder de loep: Dell Precision 5530 2-in-1. Testmodel voorzien door Dell US
Onder de loep: Dell Precision 5530 2-in-1. Testmodel voorzien door Dell US

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Als je een gebruiker bent van een traditionele workstation en nood hebt aan geïntegreerde VGA, poorten van normaal formaat, een forse behuizing, ECC-geheugen, Smart Card-lezers, talrijke opslagmogelijkheden, compatibiliteit met E-Port en eenvoudige onderhoudbaarheid, dan is de Precision 5530 2-in-1 niet voor jou. Een toestel van de Precision 7000-serie, zoals de 7720, zal in dat geval wellicht een geschiktere optie zijn.

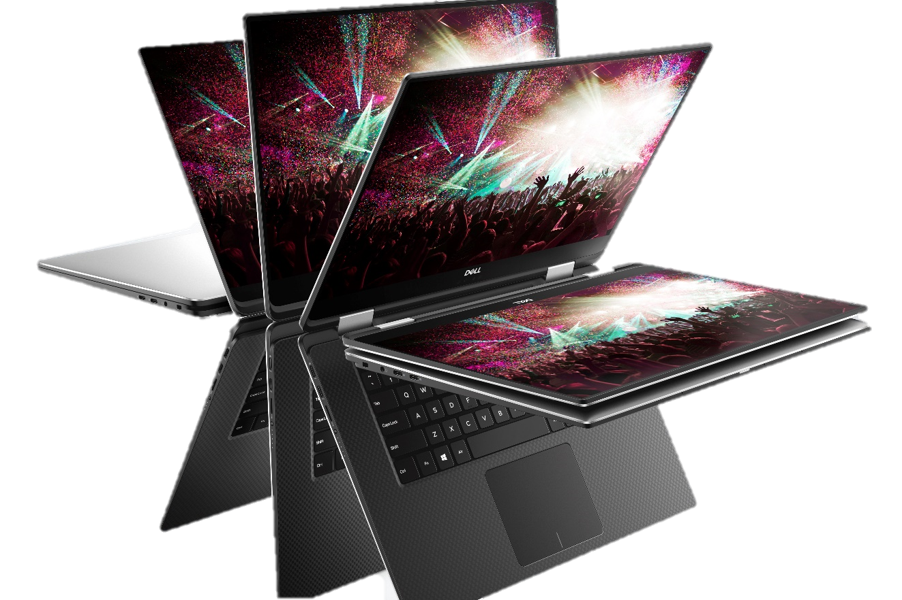

Aan de ander kant, professionele gebruikers die hun werk onderweg steeds moeten meenemen en zich aangetrokken voelen tot het veelzijdige 360-graden-scharnier, zullen er wel goed aan doen om de Precision 5530 2-in-1 te overwegen. De CPU en GPU vinden een geslaagd evenwicht op het vlak van individuele prestaties en het heldere IGZO-scherm kan zowel sRGB en AdobeRGB nauwkeurig dekken. Ondanks de extreme draagbaarheid en dunne profiel heb je hier te maken met een verrassend krachtige workstation.

Gebruikers die op zoek zijn naar een mobiele workstation maar voor de rest geen waarde hechten aan een touchscreen of tablet-modus, vinden wellicht een alternatief in de Precision 5530 of MSI WS63VR. De behuizing van het toestel van MSI is niet zo stevig als die van de Dell, maar de opties voor geïntegreerde Quadro P3000 en P4000 Max-Q zullen op prijs gesteld worden door veeleisende workstation-gebruikers.

De Precision 5530 2-in-1 is een mobiele krachtpatser die een geslaagd evenwicht vindt tussen prestaties en draagbaarheid. Als je echter je zinnen hebt gezet op poorten en onderhoudsvriendelijkheid, is een traditioneler toestel zoals de Precision 7720 een betere en krachtigere optie.

Dell Precision 5530 2-in-1 - 12-10-2018 v6
Allen Ngo

Behuizing
95 / 98 → 97%
Toetsenbord
85%
Aanwijsapparaat
86%
Aansluitmogelijkheden
47 / 81 → 58%
Gewicht
63 / 10-66 → 95%
Batterij
89%
Beeldscherm
86%
Gaming-performance
85%
Applicatie-performance
88%
Temperatuur
88 / 95 → 93%
Luidheid
87 / 90 → 97%
Audio
50%
Camera
55 / 85 → 65%
Gemiddelde
77%
83%
Workstation - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Dell Precision 5530 2-in-1 (i7-8706G, Radeon WX Vega M GL, 4K UHD) Workstation
Allen Ngo, 2018-10-16 (Update: 2018-10-17)
