Beelink SER6 Pro review: De AMD Radeon 680M is verbluffend op een mini PC

De Beelink SER6 Pro is de opvolger van de oudere generatie Beelink SER5 Pro. Het introduceert nieuwe externe wijzigingen en een opgewaardeerde Zen 3+ Ryzen 7 6800H CPU ter vervanging van de Zen 3 Ryzen 7 5800H op het uitgaande model. Er zijn op dit moment geen andere CPU-opties beschikbaar voor de SER6 Pro.

De SER6 Pro concurreert rechtstreeks met veel Intel NUC oplossingen evenals de Zotac ZBox of de MSI Cubi serie. Onze specifieke configuratie van Beelink wordt verkocht tussen 600 en 700 USD.

Meer Beelink beoordelingen:

Evaluatie	Datum	Model	Gewicht	Hoogte	Resolutie
	01-2023	Beelink SER6 Pro R7 6800H, Radeon 680M	511 g	42 mm	x
	11-2022	Beelink GTR6 R9 6900HX, Radeon 680M	815 g	43 mm	x
	09-2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
78.9 %	11-2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm	x
	04-2021	Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile	1.4 kg	42 mm	x
	04-2018	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm	x

Zaak

Het chassis is aan alle zijden van metaal, afgezien van de afneembare stoffen kap. De totale afmetingen lijken sterk op die van deSEi11 Pro zij het iets zwaarder door de herziene interne onderdelen. Verrassend genoeg weegt de SER6 Pro evenveel als de NUC 12 Pro ook al is de NUC kleiner.

De ademende stoffen bovenkant voegt een gevoel van stijl of kwaliteit toe in vergelijking met de gebruikelijke plastic of gewoon metaal

Verchroomde randen en hoeken langs de metalen basis

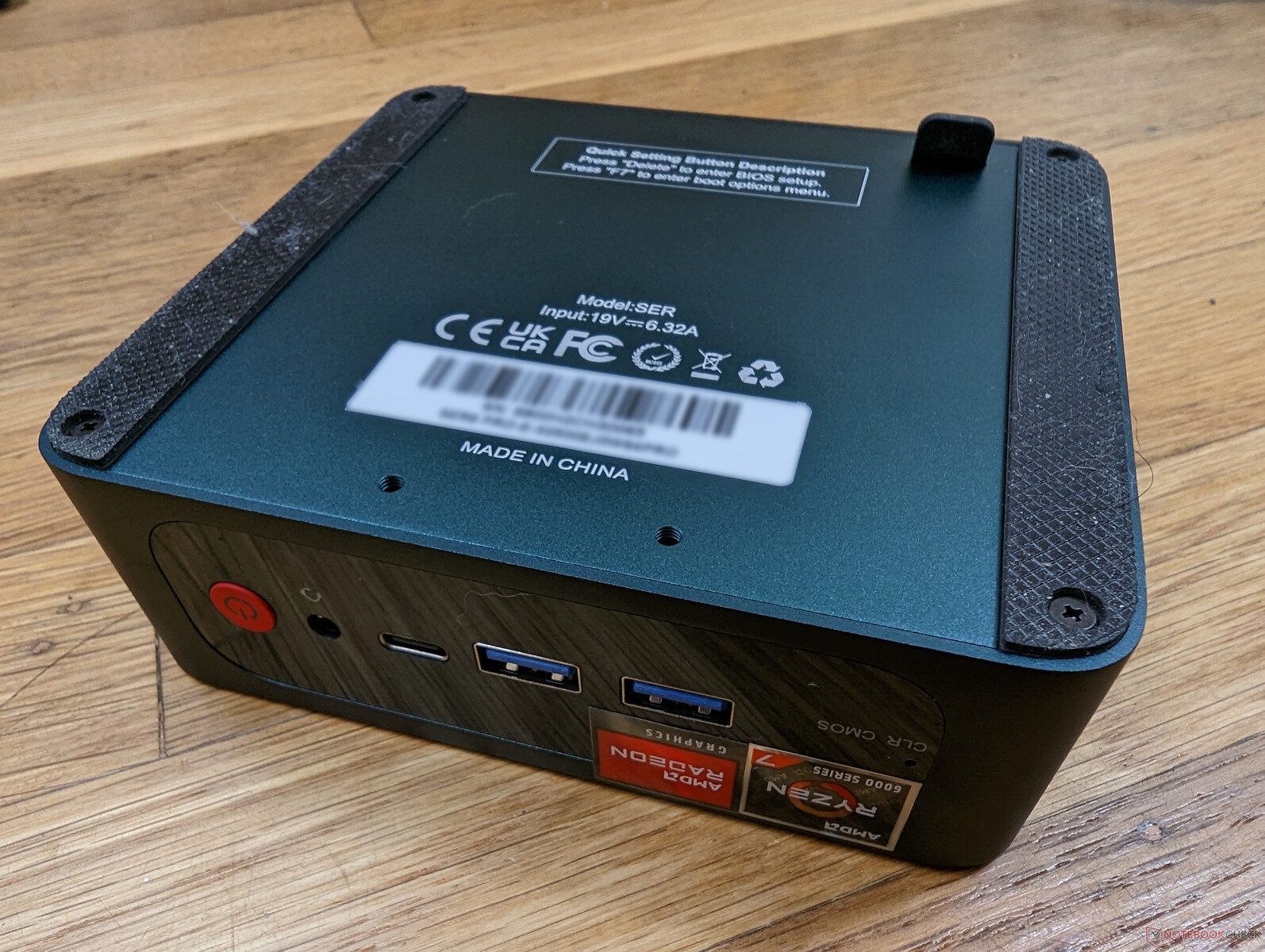

De onderkant bevat een VESA-montagesteun, een rubberen flap om de plaat los te trekken en rubberen voetjes

De 120 W AC-adapter is groot (14,5 x 6,4 x 3 cm) ten opzichte van de kleine mini PC

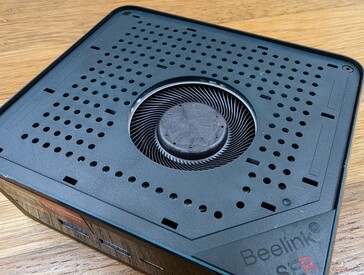

Het verwijderen van de bovenste rode stof onthult de eerste 50 mm ventilator

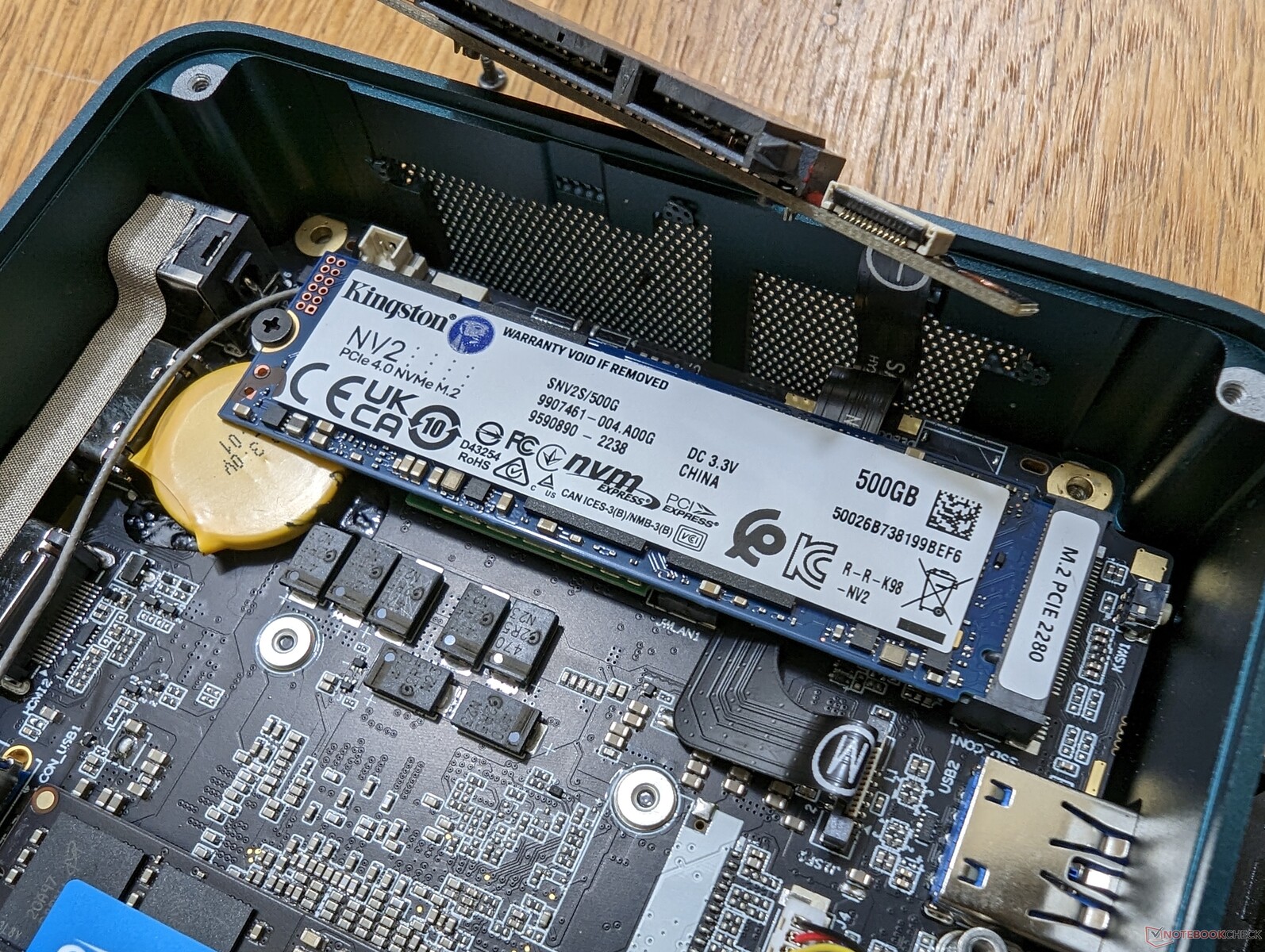

Als u de onderste metalen plaat verwijdert, ziet u de uitbreidbare 2,5-inch SATA III-sleuf en de tweede 35 mm ventilator

Vergelijking grootte

Intel NUC11PHKi7C Intel Hades Canyon NUC8i7HVK Beelink GTR6 Beelink SER6 Pro Beelink SEi11 Pro Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

Connectiviteit

Poortopties en positionering zijn identiek aan de SER5 Pro, maar met één opvallende upgrade: de RJ-45-poort ondersteunt nu 2,5 Gbps-snelheden in plaats van slechts 1 Gbps. Het systeem kan ook worden gevoed door USB-C AC-adapters van derden, mocht je ooit de eigen adapter kwijtraken die in de doos zit. Onze 130 W AC-adapter die bij de Dell XPS 17zou bijvoorbeeld onze SER6 Pro zonder problemen van stroom voorzien.

Communicatie

Beelink heeft de MediaTek RZ608 in de SER5 Pro vervangen door de meer gebruikelijke Intel AX200 module. Deze specifieke Intel module heeft geen Wi-Fi 6E mogelijkheden, maar de overdrachtssnelheden zijn niettemin snel met gemiddeld ongeveer 1200 Mbps wanneer gekoppeld aan onze Asus AXE11000 test router.

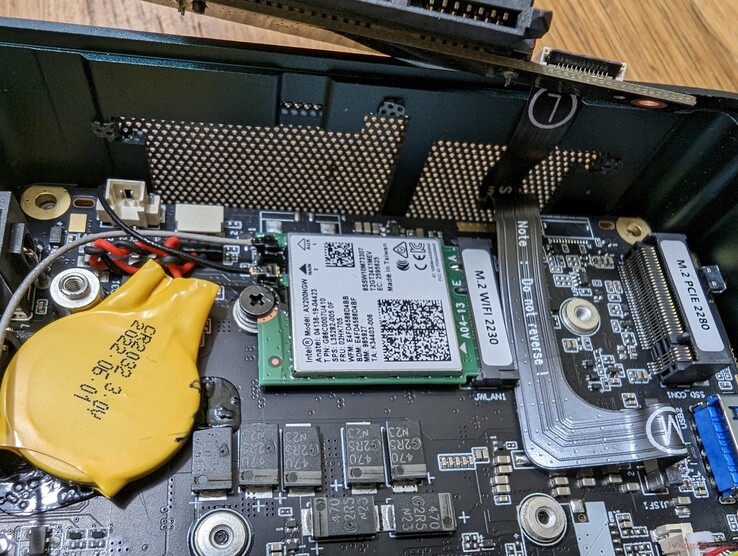

Verwijderbare WLAN module zit onder de M.2 SSD

Networking
iperf3 transmit AX12
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	1129 (1014^min - 1229^max) MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s ∼33%
iperf3 receive AX12
Intel NUC11PHKi7C Intel Wi-Fi 6 AX201	870 (452^min - 924^max) MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s ∼68%
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s ∼100%
Beelink GTR6 MediaTek RZ608	886 (867^min - 900^max) MBit/s ∼58%
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s ∼49%
iperf3 receive AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1282 (247^min - 1409^max) MBit/s ∼100%
Beelink GTR6 MediaTek RZ608	860 (440^min - 882^max) MBit/s ∼67% -33%
iperf3 transmit AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1273 (1063^min - 1401^max) MBit/s ∼100%
Beelink GTR6 MediaTek RZ608	909 (429^min - 966^max) MBit/s ∼71% -29%
iperf3 transmit AXE11000 6GHz
Beelink GTR6 MediaTek RZ608	948 (476^min - 1030^max) MBit/s ∼100%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s ∼97%
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s ∼76%

Beelink SER6 Pro Intel Wi-Fi 6 AX200; iperf3 transmit AXE11000; iperf 3.1.3: Ø1273 (1063-1401)

Beelink GTR6 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø895 (429-966)

Beelink SER6 Pro Intel Wi-Fi 6 AX200; iperf3 receive AXE11000; iperf 3.1.3: Ø1282 (247-1409)

Beelink GTR6 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø845 (440-882)

Onderhoud

RAM en opslag upgrades zijn eenvoudig en vereisen alleen een Philips schroevendraaier. Gebruikers kunnen maximaal twee SODIMM RAM-modules en twee schijven (1x M.2 PCIe4 x4 + 1x 2,5-inch SATA III) installeren.

Accessoires en garantie

De verkoopverpakking bevat twee HDMI-kabels, een verwijderbare VESA-montagebeugel, zwarte en rode stoffen bovenkappen, een wisselstroomadapter en papierwerk. Bij aankoop in de VS geldt de gebruikelijke beperkte fabrieksgarantie van een jaar.

Prestaties

Testomstandigheden

We hebben ons toestel in de prestatiemodus gezet voordat we onderstaande benchmarks uitvoerden. Er zijn geen voorgeïnstalleerde control center-achtige toepassingen.

Processor

De ruwe processorprestaties zijn bijna identiek aan die van de vorige generatie Ryzen 7 5800H. Single-thread prestaties kunnen tot 5 procent sneller zijn, maar eventuele verschillen zijn op zijn best marginaal. In plaats daarvan heeft de grootste verbetering tussen de twee CPU's betrekking op hun geïntegreerde GPU's, zoals onze GPU-sectie hieronder zal aantonen.

Cinebench R15 Multi Loop

Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)

Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Intel NUC11PHKi7C Intel Core i7-1165G7: Ø914 (901.51-1011.79)

Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G: Ø857 (853.53-862.44)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	5276 Points ∼100% +18%
Gemiddeld AMD Ryzen 7 6800H (4460 - 5661, n=6)	5195 Points ∼98% +16%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points ∼88% +4%
Dell G15 5515 AMD Ryzen 7 5800H	4588 Points ∼87% +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	4578 Points ∼87% +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points ∼85%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points ∼59% -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points ∼58% -31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	2975 Points ∼56% -33%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points ∼42% -50%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points ∼38% -55%
Intel NUC11PHKi7C Intel Core i7-1165G7	1660 Points ∼31% -63%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points ∼28% -66%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points ∼28% -67%
Trigkey S3 AMD Ryzen 5 3550H	1421 Points ∼27% -68%

Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	698 Points ∼100% +20%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points ∼90% +8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points ∼89% +6%
Gemiddeld AMD Ryzen 7 6800H (580 - 605, n=6)	595 Points ∼85% +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points ∼84%
Intel NUC11PHKi7C Intel Core i7-1165G7	583 Points ∼84% 0%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	580 Points ∼83% -1%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points ∼80% -4%
Dell G15 5515 AMD Ryzen 7 5800H	554 Points ∼79% -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	534 Points ∼77% -9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points ∼76% -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points ∼59% -29%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points ∼58% -31%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points ∼57% -32%
Trigkey S3 AMD Ryzen 5 3550H	357 Points ∼51% -39%

Cinebench R23 / Multi Core
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	13528 Points ∼100% +18%
Gemiddeld AMD Ryzen 7 6800H (11481 - 14660, n=6)	13401 Points ∼99% +17%
Dell G15 5515 AMD Ryzen 7 5800H	11912 Points ∼88% +4%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points ∼88% +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	11815 Points ∼87% +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points ∼85%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points ∼60% -29%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points ∼59% -31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	7615 Points ∼56% -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	6093 (5825.6^min - 6093.08^max) Points ∼45% -47%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points ∼42% -50%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points ∼29% -66%
Trigkey S3 AMD Ryzen 5 3550H	3646 (3617.23^min - 3645.96^max) Points ∼27% -68%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points ∼22% -74%

Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1812 Points ∼100% +20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points ∼89% +7%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points ∼89% +7%
Intel NUC11PHKi7C Intel Core i7-1165G7	1533 Points ∼85% +2%
Gemiddeld AMD Ryzen 7 6800H (1500 - 1552, n=6)	1524 Points ∼84% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points ∼83%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	1491 Points ∼82% -1%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points ∼81% -3%
Dell G15 5515 AMD Ryzen 7 5800H	1417 Points ∼78% -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1376 Points ∼76% -9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points ∼75% -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points ∼60% -28%
Trigkey S3 AMD Ryzen 5 3550H	922 Points ∼51% -39%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points ∼35% -58%

Cinebench R15 / CPU Multi 64Bit
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	2222 Points ∼100% +15%
Gemiddeld AMD Ryzen 7 6800H (1931 - 2366, n=6)	2195 Points ∼99% +14%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points ∼89% +2%
Dell G15 5515 AMD Ryzen 7 5800H	1968 Points ∼89% +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points ∼87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1879 Points ∼85% -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points ∼63% -27%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points ∼59% -32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1265 Points ∼57% -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	1012 (901.51^min - 1011.79^max) Points ∼46% -48%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points ∼39% -55%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points ∼39% -56%
Trigkey S3 AMD Ryzen 5 3550H	643 (633.41^min - 642.56^max) Points ∼29% -67%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points ∼28% -68%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points ∼28% -68%

Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	260 Points ∼100% +7%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points ∼100% +7%
Gemiddeld AMD Ryzen 7 6800H (240 - 250, n=6)	245 Points ∼94% +1%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	242 Points ∼93% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points ∼93%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points ∼89% -5%
Intel NUC11PHKi7C Intel Core i7-1165G7	229 Points ∼88% -5%
Dell G15 5515 AMD Ryzen 7 5800H	229 Points ∼88% -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	223 Points ∼86% -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points ∼85% -9%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points ∼82% -12%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points ∼68% -26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points ∼65% -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points ∼60% -35%
Trigkey S3 AMD Ryzen 5 3550H	141.8 Points ∼55% -41%

Blender / v2.79 BMW27 CPU
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * ∼100% -171%
Trigkey S3 AMD Ryzen 5 3550H	724 Seconds * ∼100% -170%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * ∼96% -159%
Intel NUC11PHKi7C Intel Core i7-1165G7	543 Seconds * ∼75% -103%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * ∼75% -102%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * ∼74% -100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	399 Seconds * ∼55% -49%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * ∼54% -46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * ∼53% -43%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	280 Seconds * ∼39% -4%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * ∼37%
Dell G15 5515 AMD Ryzen 7 5800H	259 Seconds * ∼36% +3%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * ∼35% +4%
Gemiddeld AMD Ryzen 7 6800H (213 - 268, n=5)	233 Seconds * ∼32% +13%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	231 Seconds * ∼32% +14%

7-Zip 18.03 / 7z b 4
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	61760 MIPS ∼100% +10%
Gemiddeld AMD Ryzen 7 6800H (55963 - 64817, n=5)	61051 MIPS ∼99% +9%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS ∼93% +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS ∼91%
Dell G15 5515 AMD Ryzen 7 5800H	53762 MIPS ∼87% -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	47064 MIPS ∼76% -16%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS ∼65% -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	39207 MIPS ∼63% -30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS ∼58% -36%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS ∼40% -56%
Intel NUC11PHKi7C Intel Core i7-1165G7	24684 MIPS ∼40% -56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS ∼33% -64%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS ∼31% -65%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS ∼31% -66%
Trigkey S3 AMD Ryzen 5 3550H	17375 MIPS ∼28% -69%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS ∼100% +4%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	5798 MIPS ∼97% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS ∼96%
Gemiddeld AMD Ryzen 7 6800H (5669 - 5803, n=5)	5748 MIPS ∼96% 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	5738 MIPS ∼96% -1%
Dell G15 5515 AMD Ryzen 7 5800H	5538 MIPS ∼92% -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS ∼90% -6%
Intel NUC11PHKi7C Intel Core i7-1165G7	5260 MIPS ∼88% -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	5249 MIPS ∼87% -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS ∼86% -10%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS ∼85% -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS ∼77% -20%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS ∼68% -29%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS ∼68% -30%
Trigkey S3 AMD Ryzen 5 3550H	3652 MIPS ∼61% -37%

Geekbench 5.4 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	9935 Points ∼100% +8%
Gemiddeld AMD Ryzen 7 6800H (9218 - 10355, n=6)	9698 Points ∼98% +5%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points ∼94% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points ∼93%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	9020 Points ∼91% -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points ∼79% -15%
Dell G15 5515 AMD Ryzen 7 5800H	7441 Points ∼75% -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	6175 Points ∼62% -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points ∼61% -34%
Intel NUC11PHKi7C Intel Core i7-1165G7	5209 Points ∼52% -43%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points ∼50% -46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points ∼40% -57%
Trigkey S3 AMD Ryzen 5 3550H	3281 Points ∼33% -64%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points ∼18% -80%

Geekbench 5.4 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1715 Points ∼100% +10%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points ∼96% +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points ∼95% +5%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	1560 Points ∼91% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points ∼91%
Gemiddeld AMD Ryzen 7 6800H (1535 - 1566, n=6)	1553 Points ∼91% 0%
Intel NUC11PHKi7C Intel Core i7-1165G7	1544 Points ∼90% -1%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points ∼89% -2%
Dell G15 5515 AMD Ryzen 7 5800H	1453 Points ∼85% -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points ∼84% -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1430 Points ∼83% -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points ∼71% -22%
Trigkey S3 AMD Ryzen 5 3550H	907 Points ∼53% -42%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points ∼37% -59%

HWBOT x265 Benchmark v2.2 / 4k Preset
Gemiddeld AMD Ryzen 7 6800H (15 - 18.5, n=5)	17 fps ∼100% +13%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	15.9 fps ∼94% +6%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps ∼91% +3%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps ∼88%
Dell G15 5515 AMD Ryzen 7 5800H	14.3 fps ∼84% -5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	13.2 fps ∼78% -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps ∼62% -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	10.1 fps ∼59% -33%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps ∼55% -37%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps ∼43% -51%
Intel NUC11PHKi7C Intel Core i7-1165G7	7.14 fps ∼42% -52%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps ∼42% -53%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps ∼31% -65%
Trigkey S3 AMD Ryzen 5 3550H	4.04 fps ∼24% -73%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps ∼11% -88%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * ∼100% -121%
Dell G15 5515 AMD Ryzen 7 5800H	107 s * ∼99% -119%
Trigkey S3 AMD Ryzen 5 3550H	87.8 s * ∼81% -80%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * ∼63% -40%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	59 s * ∼55% -21%
Gemiddeld AMD Ryzen 7 6800H (48.8 - 79.5, n=5)	58.2 s * ∼54% -19%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * ∼48% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	51.1 s * ∼47% -5%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * ∼46% -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * ∼45%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * ∼45% -0%
Intel NUC11PHKi7C Intel Core i7-1165G7	48 s * ∼44% +2%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * ∼43% +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	45 s * ∼42% +8%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * ∼100% -152%
Trigkey S3 AMD Ryzen 5 3550H	0.732 sec * ∼58% -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * ∼56% -40%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * ∼46% -16%
Intel NUC11PHKi7C Intel Core i7-1165G7	0.561 sec * ∼45% -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	0.537 sec * ∼43% -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * ∼42% -6%
Dell G15 5515 AMD Ryzen 7 5800H	0.518 sec * ∼41% -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * ∼41% -3%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * ∼40%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX	0.492 sec * ∼39% +1%
Gemiddeld AMD Ryzen 7 6800H (0.4783 - 0.501, n=5)	0.491 sec * ∼39% +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	0.4787 sec * ∼38% +4%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * ∼37% +7%

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... kleiner is beter

Performance Rating
Gemiddeld AMD Ryzen 7 6800H	99.3 pt ∼99%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	91.7 pt ∼92%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	88.7 pt ∼89%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.8 pt ∼70%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	50.2 pt ∼50%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48.3 pt ∼48%

AIDA64 / FP32 Ray-Trace
Gemiddeld AMD Ryzen 7 6800H (12876 - 17031, n=5)	15736 KRay/s ∼100% +22%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	13630 KRay/s ∼87% +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	12876 KRay/s ∼82%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s ∼66% -20%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	7216 KRay/s ∼46% -44%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s ∼45% -45%

AIDA64 / FPU Julia
Gemiddeld AMD Ryzen 7 6800H (82673 - 105987, n=5)	98832 Points ∼100% +20%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	86563 Points ∼88% +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	82673 Points ∼84%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points ∼53% -37%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	30533 Points ∼31% -63%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points ∼30% -64%

AIDA64 / CPU SHA3
Gemiddeld AMD Ryzen 7 6800H (2886 - 3634, n=5)	3356 MB/s ∼100% +16%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	3033 MB/s ∼90% +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	2886 MB/s ∼86%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s ∼77% -10%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	2059 MB/s ∼61% -29%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s ∼59% -31%

AIDA64 / CPU Queen
Gemiddeld AMD Ryzen 7 6800H (90468 - 106322, n=5)	100447 Points ∼100% +7%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94363 Points ∼94% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	93785 Points ∼93%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points ∼82% -12%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	50477 Points ∼50% -46%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points ∼48% -49%

AIDA64 / FPU SinJulia
Gemiddeld AMD Ryzen 7 6800H (11981 - 13120, n=5)	12764 Points ∼100% +7%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	12291 Points ∼96% +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	11981 Points ∼94%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points ∼53% -44%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	4793 Points ∼38% -60%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points ∼37% -60%

AIDA64 / FPU Mandel
Gemiddeld AMD Ryzen 7 6800H (45287 - 58327, n=5)	54338 Points ∼100% +20%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	47561 Points ∼88% +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	45287 Points ∼83%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points ∼48% -43%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	18656 Points ∼34% -59%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points ∼33% -60%

AIDA64 / CPU AES
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	122402 MB/s ∼100% +3%
Gemiddeld AMD Ryzen 7 6800H (67816 - 137383, n=5)	118768 MB/s ∼97% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	118383 MB/s ∼97%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s ∼75% -22%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	73326 MB/s ∼60% -38%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s ∼56% -42%

AIDA64 / CPU ZLib
Gemiddeld AMD Ryzen 7 6800H (732 - 901, n=5)	854 MB/s ∼100% +17%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	757 MB/s ∼89% +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	732 MB/s ∼86%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s ∼85% -1%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	397 MB/s ∼46% -46%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s ∼43% -50%

AIDA64 / FP64 Ray-Trace
Gemiddeld AMD Ryzen 7 6800H (6917 - 8980, n=5)	8344 KRay/s ∼100% +21%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	7214 KRay/s ∼86% +4%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	6917 KRay/s ∼83%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s ∼67% -19%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	3838 KRay/s ∼46% -45%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s ∼46% -45%

AIDA64 / CPU PhotoWorxx
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	30600 MPixel/s ∼100% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	30360 MPixel/s ∼99%
Gemiddeld AMD Ryzen 7 6800H (28224 - 30360, n=5)	29442 MPixel/s ∼96% -3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s ∼93% -7%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	27471 MPixel/s ∼90% -10%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s ∼85% -14%

Systeemprestaties

De resultaten van PCMark behoren tot de hoogste voor een mini PC zonder dedicated graphics. De hoge scores zijn toe te schrijven aan de nieuwe Radeon 680M wat een aanzienlijke sprong is ten opzichte van de oudere geïntegreerde Radeon RX Vega serie of Iris Xe serie.

PCMark 10 / Score
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	7109 Points ∼100% +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	6936 Points ∼98%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	6936 Points ∼98% 0%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5931 Points ∼83% -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points ∼83% -15%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points ∼83% -15%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points ∼75% -24%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points ∼72% -27%

PCMark 10 / Essentials
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	11323 Points ∼100% +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	11158 Points ∼99%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	11158 Points ∼99% 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points ∼94% -4%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points ∼91% -7%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points ∼91% -8%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	9233 Points ∼82% -17%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points ∼81% -18%

PCMark 10 / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	10210 Points ∼100% +5%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	9759 Points ∼96%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	9759 Points ∼96% 0%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points ∼91% -5%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	8818 Points ∼86% -10%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points ∼78% -19%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points ∼75% -22%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points ∼68% -29%

PCMark 10 / Digital Content Creation
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	8432 Points ∼100% +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	8319 Points ∼99%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	8319 Points ∼99% 0%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	6957 Points ∼83% -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	6908 Points ∼82% -17%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points ∼69% -30%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points ∼66% -33%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points ∼60% -39%

CrossMark / Overall
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1704 Points ∼100%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	1704 Points ∼100% 0%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1691 Points ∼99% -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points ∼99% -1%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points ∼78% -22%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1311 Points ∼77% -23%

CrossMark / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1701 Points ∼100% +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1674 Points ∼98%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	1674 Points ∼98% 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points ∼97% -1%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points ∼83% -15%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1355 Points ∼80% -19%

CrossMark / Creativity
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points ∼100% +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1763 Points ∼99%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	1763 Points ∼99% 0%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1698 Points ∼95% -4%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1315 Points ∼74% -25%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points ∼70% -29%

CrossMark / Responsiveness
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1639 Points ∼100% +1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1625 Points ∼99%
Gemiddeld AMD Ryzen 7 6800H, AMD Radeon 680M	1625 Points ∼99% 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points ∼90% -9%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points ∼82% -18%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1177 Points ∼72% -28%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51186 MB/s ∼100%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	50935 MB/s ∼100% 0%
Gemiddeld AMD Ryzen 7 6800H (48695 - 51186, n=5)	50231 MB/s ∼98% -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s ∼87% -13%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s ∼80% -20%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	35353 MB/s ∼69% -31%

AIDA64 / Memory Read
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	51869 MB/s ∼100% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51679 MB/s ∼100%
Gemiddeld AMD Ryzen 7 6800H (50372 - 51778, n=5)	51218 MB/s ∼99% -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s ∼90% -10%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s ∼90% -10%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	41238 MB/s ∼80% -20%

AIDA64 / Memory Write
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	55316 MB/s ∼100% 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	55238 MB/s ∼100%
Gemiddeld AMD Ryzen 7 6800H (55101 - 55307, n=5)	55196 MB/s ∼100% 0%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s ∼85% -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s ∼84% -16%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	39237 MB/s ∼71% -29%

AIDA64 / Memory Latency
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * ∼100% -11%
Intel NUC11PHKi7C Intel Core i7-1165G7, GeForce RTX 2060 Mobile	92 ns * ∼99% -10%
Gemiddeld AMD Ryzen 7 6800H (83.5 - 89.6, n=5)	86.7 ns * ∼94% -4%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	83.5 ns * ∼90%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	82.9 ns * ∼89% +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * ∼87% +3%

* ... kleiner is beter

DPC latentie

LatencyMon onthult DPC-problemen bij het openen van meerdere browsertabbladen van onze homepage. het afspelen van 4K-video's bij 60 FPS verloopt verder soepel met slechts twee dropped frames tijdens onze testvideo van een minuut.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1329 μs * ∼100%
Intel NUC11PHKi7C GeForce RTX 2060 Mobile, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	1132 μs * ∼85% +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * ∼59% +41%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	509.9 μs * ∼38% +62%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * ∼13% +87%

* ... kleiner is beter

Opslagapparaten

de Kingston SNV2S PCIe4 x4 SSD in onze unit is een NVMe-schijf uit het middensegment met sequentiële lees- en snelheden van respectievelijk ongeveer 3700 MB/s en 2200 MB/s, vergeleken met 5000 MB/s of meer bij alternatieven zoals de Samsung PM9A1. De schijf komt in contact met een binnenste metalen plaat onder de 2,5-inch SATA III-sleuf voor warmteafvoer.

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 500GB SNV2S/500G

CDM 5/6 Read Seq Q32T1: 3456 MB/s

CDM 5/6 Write Seq Q32T1: 2145 MB/s

CDM 5/6 Read 4K Q32T1: 645.2 MB/s

CDM 5/6 Write 4K Q32T1: 344.5 MB/s

CDM 5 Read Seq: 3195 MB/s

CDM 5 Write Seq: 408.3 MB/s

CDM 5/6 Read 4K: 61.29 MB/s

CDM 5/6 Write 4K: 208.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	93.6 pt ∼94%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	56.8 pt ∼57%
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	52.6 pt ∼53%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	46.6 pt ∼47%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	40.9 pt ∼41%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.7 pt ∼35%

DiskSpd
seq read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	4168 (3579.63^min - 4168.09^max) MB/s ∼100% +36%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3074 (3056.63^min - 3074.49^max) MB/s ∼74%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2068 (2046.82^min - 2067.79^max) MB/s ∼50% -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s ∼43% -42%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s ∼39% -47%
seq write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3783.49^min - 3937.52^max) MB/s ∼100% +73%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2277 (2253.07^min - 2277.24^max) MB/s ∼58%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1887 (1880.31^min - 1887.23^max) MB/s ∼48% -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s ∼42% -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s ∼25% -57%
seq q8 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	7061 (6122.84^min - 7060.97^max) MB/s ∼100% +99%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3553 (3164.22^min - 3552.99^max) MB/s ∼50%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3415 (3195.01^min - 3414.88^max) MB/s ∼48% -4%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s ∼34% -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s ∼32% -36%
seq q8 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3914.12^min - 3937.52^max) MB/s ∼100% +73%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	3400 (3383.13^min - 3399.9^max) MB/s ∼86% +50%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2271 (2252.65^min - 2271.35^max) MB/s ∼58%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s ∼45% -23%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s ∼36% -37%
4k q1 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	80.4 (79.66^min - 80.38^max) MB/s ∼100% +89%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s ∼78% +48%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s ∼63% +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	42.6 (42.44^min - 42.57^max) MB/s ∼53%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	41.8 (41.45^min - 41.8^max) MB/s ∼52% -2%
4k q1 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	284 (282.24^min - 284.12^max) MB/s ∼100% +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	239 (236.27^min - 238.58^max) MB/s ∼84%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s ∼70% -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s ∼61% -27%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	60.6 (60.37^min - 60.61^max) MB/s ∼21% -75%
4k q32 t16 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1942 (1940.94^min - 1941.94^max) MB/s ∼100% +24%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1568 (1565.33^min - 1568.49^max) MB/s ∼81%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1146 (1123.37^min - 1146.36^max) MB/s ∼59% -27%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s ∼38% -52%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s ∼18% -78%
4k q32 t16 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3741 (3667.09^min - 3740.76^max) MB/s ∼100% +169%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1391 (1351.44^min - 1391.2^max) MB/s ∼37%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s ∼20% -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s ∼15% -60%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	502 (468.48^min - 501.52^max) MB/s ∼13% -64%

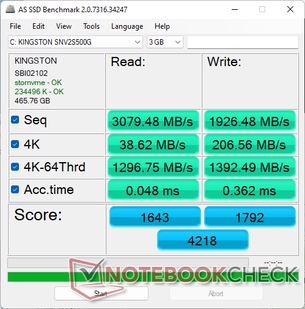

AS SSD
Score Total
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	6722 Points ∼100% +59%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	4218 Points ∼63%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	4036 Points ∼60% -4%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points ∼45% -28%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points ∼41% -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points ∼20% -68%
Score Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2207 Points ∼100% +34%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1643 Points ∼74%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points ∼69% -7%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1439 Points ∼65% -12%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points ∼44% -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points ∼30% -60%
Score Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3477 Points ∼100% +94%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1923 Points ∼55% +7%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1792 Points ∼52%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points ∼37% -28%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points ∼21% -60%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points ∼12% -77%
Seq Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	5799.1 MB/s ∼100% +88%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3079.48 MB/s ∼53%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s ∼47% -12%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	2562 MB/s ∼44% -17%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s ∼39% -27%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s ∼24% -55%
Seq Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3737.17 MB/s ∼100% +94%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1926.48 MB/s ∼52%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s ∼47% -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s ∼38% -27%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1265 MB/s ∼34% -34%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s ∼15% -71%
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s ∼100% +231%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	75.39 MB/s ∼59% +95%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s ∼34% +14%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	39.24 MB/s ∼31% +2%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	38.62 MB/s ∼30%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s ∼27% -11%
4K Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	237.79 MB/s ∼100% +15%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	206.56 MB/s ∼87%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s ∼81% -7%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s ∼44% -50%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s ∼42% -51%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	63.5 MB/s ∼27% -69%
4K-64 Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1551.47 MB/s ∼100% +20%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1296.75 MB/s ∼84%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s ∼81% -3%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1143 MB/s ∼74% -12%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s ∼46% -46%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s ∼22% -73%
4K-64 Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2865.66 MB/s ∼100% +106%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	1733 MB/s ∼60% +24%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1392.49 MB/s ∼49%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s ∼32% -34%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s ∼19% -60%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s ∼6% -88%
Access Time Read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * ∼100% -75%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.075 ms * ∼89% -56%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.057 ms * ∼68% -19%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * ∼63% -10%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.048 ms * ∼57%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * ∼30% +48%
Access Time Write
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.362 ms * ∼100%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * ∼94% +6%
Intel NUC11PHKi7C Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.193 ms * ∼53% +47%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.047 ms * ∼13% +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * ∼10% +90%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * ∼9% +91%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER6 Pro: Ø3043 (2655.48-3280.21)

GPU-prestaties

De geïntegreerde Radeon 680M is een aanzienlijke upgrade ten opzichte van de vorige generatie Radeon RX Vega 7 of Vega 8, zoals te vinden op de Ryzen 5 5600H of Ryzen 7 5800H, respectievelijk. De ruwe prestaties zijn 70 tot 100 procent sneller voor een merkbaar betere game-ervaring. Dit wil niet zeggen dat de SER6 Pro een gaming machine is, want hij is nog steeds meer dan 2x langzamer dan een GeForce RTX 2060-aangedreven laptop, maar het heeft nog steeds genoeg kracht om de meeste games comfortabel op 1080p te draaien op lage tot laag-medium instellingen.

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	22884 Points ∼100% +226%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	17077 Points ∼75% +143%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points ∼45% +46%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points ∼31%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points ∼30% -1%
Gemiddeld AMD Radeon 680M (3791 - 7279, n=13)	6345 Points ∼28% -10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points ∼21% -31%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points ∼20% -36%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points ∼18% -43%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points ∼17% -44%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	3769 Points ∼16% -46%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points ∼16% -49%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2616 Points ∼11% -63%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points ∼6% -82%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points ∼5% -85%
2560x1440 Time Spy Graphics
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	7685 Points ∼100% +213%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6599 Points ∼86% +169%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points ∼38% +19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points ∼32%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points ∼32% -1%
Gemiddeld AMD Radeon 680M (1359 - 2452, n=13)	2120 Points ∼28% -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points ∼21% -34%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points ∼19% -41%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points ∼16% -49%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1212 Points ∼16% -51%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points ∼15% -53%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points ∼14% -55%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	682 Points ∼9% -72%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points ∼5% -83%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points ∼5% -85%
2560x1440 Time Spy Score
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	8015 Points ∼100% +191%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	6380 Points ∼80% +132%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points ∼39% +13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points ∼34%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points ∼34% -1%
Gemiddeld AMD Radeon 680M (1546 - 2751, n=13)	2376 Points ∼30% -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1854 Points ∼23% -33%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points ∼20% -41%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points ∼18% -49%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1383 Points ∼17% -50%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points ∼16% -52%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1251 Points ∼16% -55%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	771 Points ∼10% -72%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	484 Points ∼6% -82%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	419 Points ∼5% -85%

3DMark 11 - 1280x720 Performance GPU
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	31877 Points ∼100% +195%
Intel NUC11PHKi7C NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7	23992 Points ∼75% +122%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points ∼45% +32%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points ∼34%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points ∼33% -2%
Gemiddeld AMD Radeon 680M (6969 - 10856, n=12)	9648 Points ∼30% -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points ∼21% -37%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points ∼21% -39%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points ∼19% -44%
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	5679 Points ∼18% -47%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points ∼18% -48%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points ∼16% -53%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	4191 Points ∼13% -61%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points ∼5% -84%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points ∼5% -85%

3DMark | 3DMark 11

Blender
v3.3 Classroom HIP/AMD
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	926 Seconds * ∼100% -191%
Gemiddeld AMD Radeon 680M (318 - 555, n=10)	370 Seconds * ∼40% -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * ∼38% -12%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * ∼34%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	87 Seconds * ∼9% +73%
v3.3 Classroom CPU
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1402 Seconds * ∼100% -209%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1346 Seconds * ∼96% -197%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	1297 Seconds * ∼93% -186%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * ∼71% -120%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * ∼50% -56%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * ∼48% -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	494 Seconds * ∼35% -9%
Gemiddeld AMD Radeon 680M (394 - 528, n=10)	486 Seconds * ∼35% -7%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * ∼32%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * ∼31% +4%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	405 Seconds * ∼29% +11%

* ... kleiner is beter

Final Fantasy XV Benchmark
1280x720 Lite Quality
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	197.7 fps ∼100% +190%
Intel NUC11PHKi7C Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile	130 fps ∼66% +91%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps ∼41% +20%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps ∼35% +1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps ∼34%
Gemiddeld AMD Radeon 680M (34.4 - 70.7, n=12)	59.3 fps ∼30% -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.8 fps ∼22% -37%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps ∼21% -40%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs

Cinebench R15 CPU Multi 64 Bit in vergelijking
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
Schenker XMG Focus 17 i7-11800H, GeForce RTX 3050 Ti Laptop GPU	1922
Schenker XMG Core 15 GK5NR0O R7 4800H, GeForce RTX 2060 Mobile	1926
Lenovo Yoga Slim 7 Pro 14 OLED Ryzen 9 R9 5900HS, GeForce MX450	1927
Beelink SER6 Pro R7 6800H, Radeon 680M	1931
Lenovo IdeaCentre AIO 3 24IAP7 i7-1260P, GeForce MX550	1932
Eluktronics RP-17 R7 4800H, GeForce RTX 2060 Mobile	1932
MSI Creator Z16 A11UET-209 i7-11800H, GeForce RTX 3060 Laptop GPU	1933
...
(max) TR Pro 3995WX, Radeon Pro W6800	9706

3DMark 11 Performance		10825 punten
3DMark Cloud Gate Standard Score		33584 punten
3DMark Fire Strike Score		6492 punten
3DMark Time Spy Score		2751 punten
Help

3DMark 11 in vergelijking
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
HP Omen 17-w100ng 6300HQ, GeForce GTX 1060 Mobile	10805
Acer ConceptD 3 Ezel CC314-72G-7513 i7-10750H, GeForce GTX 1650 Ti Max-Q	10813
One K73-3S 4800MQ, Radeon HD 8970M Crossfire	10816
Beelink SER6 Pro R7 6800H, Radeon 680M	10825
Asus ROG Flow X13 GV301QH R9 5980HS, GeForce GTX 1650 Max-Q	10920
HP Envy 14-eb0010nr i5-1135G7, GeForce GTX 1650 Ti Max-Q	10940
Asus TUF FX505DT-EB73 R7 3750H, GeForce GTX 1650 Mobile	10963
...
(max) R9 7950X, NVIDIA GeForce RTX 4090	69323

Beelink SER6 Pro review: De AMD Radeon 680M is verbluffend op een mini PC

Potentiële concurrenten in vergelijking

Zaak

Vergelijking grootte

Connectiviteit

Communicatie

Onderhoud

Accessoires en garantie

Prestaties

Testomstandigheden

Processor

Cinebench R15 Multi Loop

Systeemprestaties

DPC latentie

Opslagapparaten

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestaties
