Microsoft Surface Pro 7 Plus in review: Tiger Lake zorgt voor prestatieverbetering

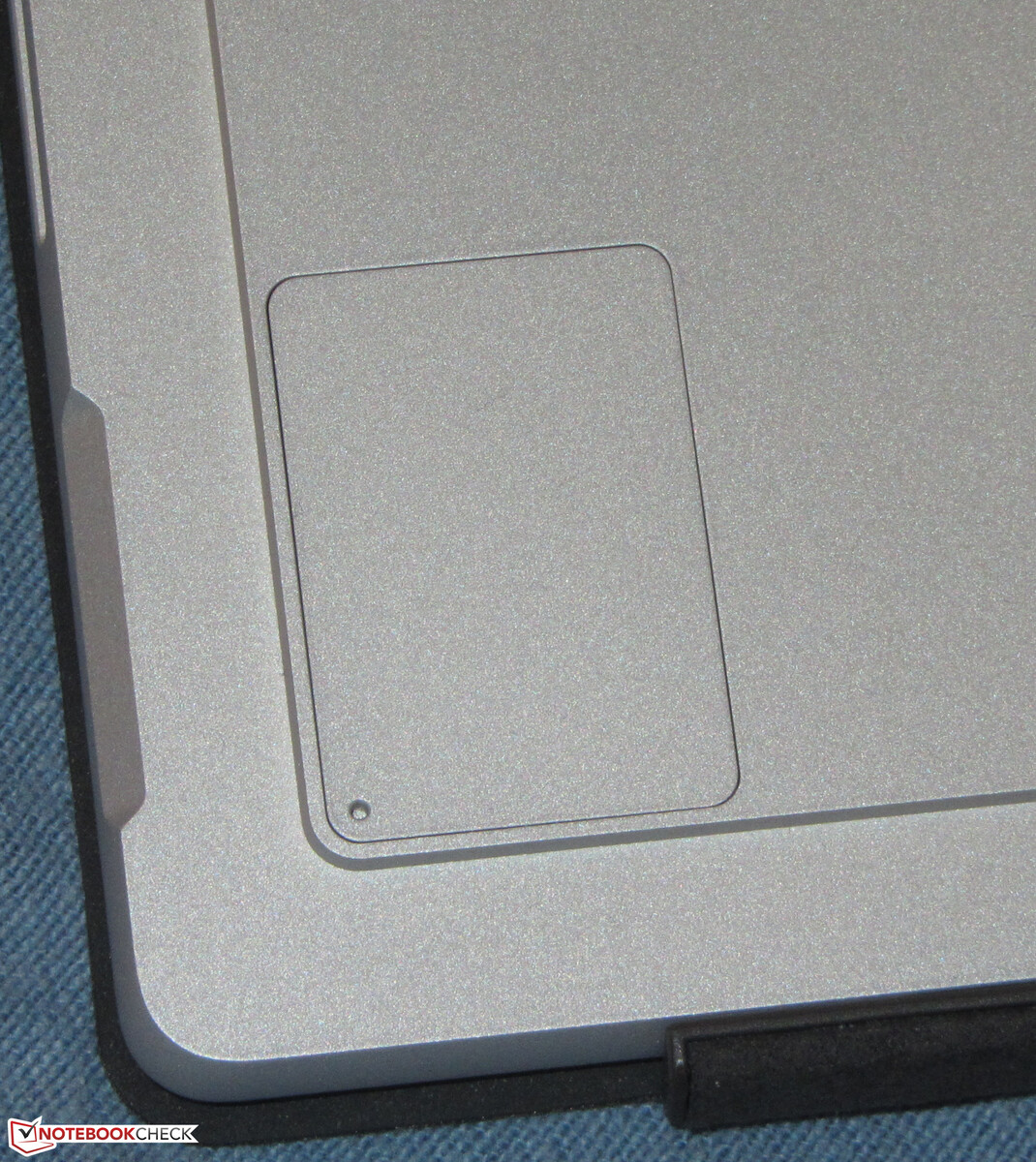

Tijger en Draak. LTE-modem, Tiger Lake, verwisselbare SSD - Microsoft voegt nieuwe functies toe aan de Surface Pro 7 en noemt het hele pakket Surface Pro 7 Plus. Consumenten kunnen het apparaat (nog) niet kopen. De verkoopgroep beperkt zich vooralsnog tot bedrijven en scholen.
Sascha Mölck, 👁 Andreas Osthoff (vertaald door DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...

De Surface Pro 7 is al sinds 2019 verkrijgbaar. Daarom vindt Microsoft dat het tijd is om wat updates te introduceren. Binnenin zitten er nu Tiger Lake in plaats van Ice Lake processoren, de SSD kan vervangen worden, de batterijcapaciteit is iets toegenomen en een LTE-modem is optioneel beschikbaar - dat laatste alleen in combinatie met een Core i5 processor. Uiterlijk is er vrijwel niets veranderd ten opzichte van de reguliere Surface Pro 7-modellen. De Surface Pro 7 Plus concurreert met de Dell Latitude 12 7210en deLenovo Yoga Duet 7.

Aangezien we al twee Surface Pro 7 modellen hebben gereviewd, zullen we in deze review niet verder ingaan op de behuizing, connectiviteit, invoerapparaten en luidsprekers. De bijbehorende informatie is te vinden in de review van de Core i5 Surface Pro 7

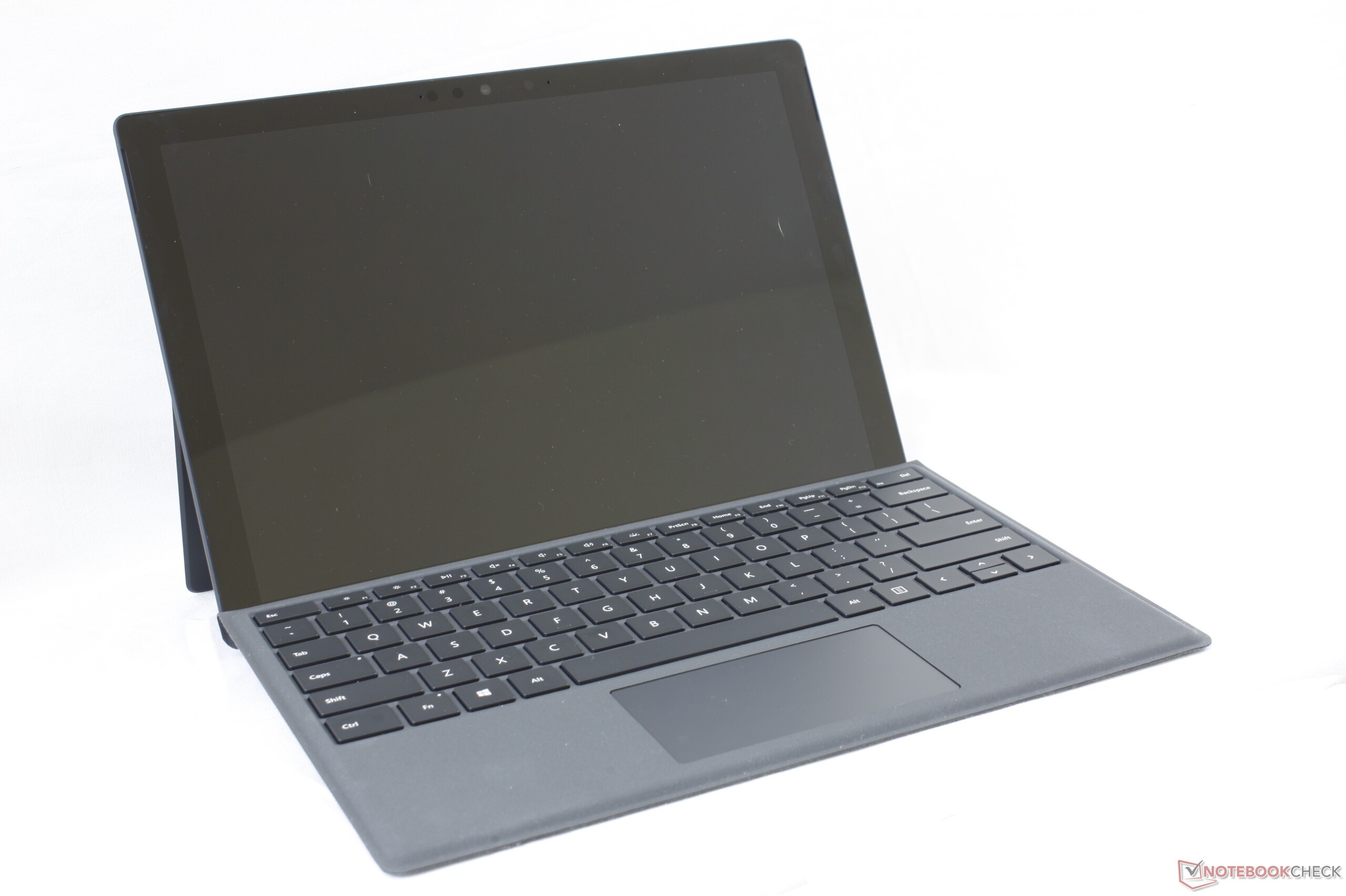

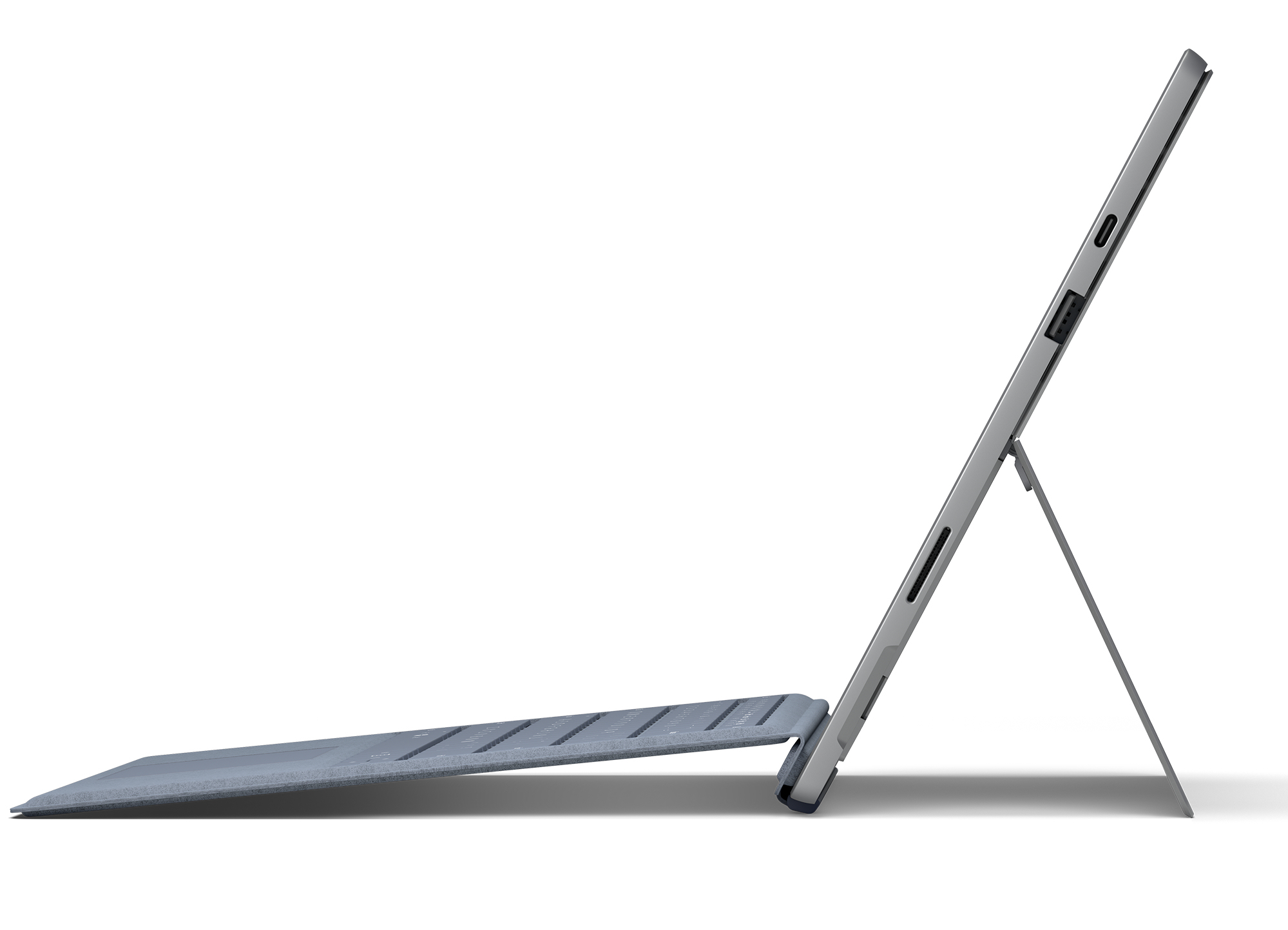

Microsoft Surface Pro 7 Plus (Surface Pro Serie)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 60 W PL2 / Short Burst, 30 W PL1 / Sustained, Tiger Lake UP3
Grafische kaart
Intel Iris Xe Graphics G7 80EUs, Core: 1300 MHz, quad-channel mode, 27.20.100.9316
Geheugen
16384 MB
, LPDDR4X, quad-channel mode, on-board, no memory slots
Beeldscherm
12.30 inch 3:2, 2736 x 1824 pixel 267 PPI, capacitive, 10 touchpoints, native pen support, LG Philips LP123WQ332684, IPS, glimmend: ja, detachable screen, 60 Hz
Moederbord
Intel Tiger Lake-UP3 PCH-LP

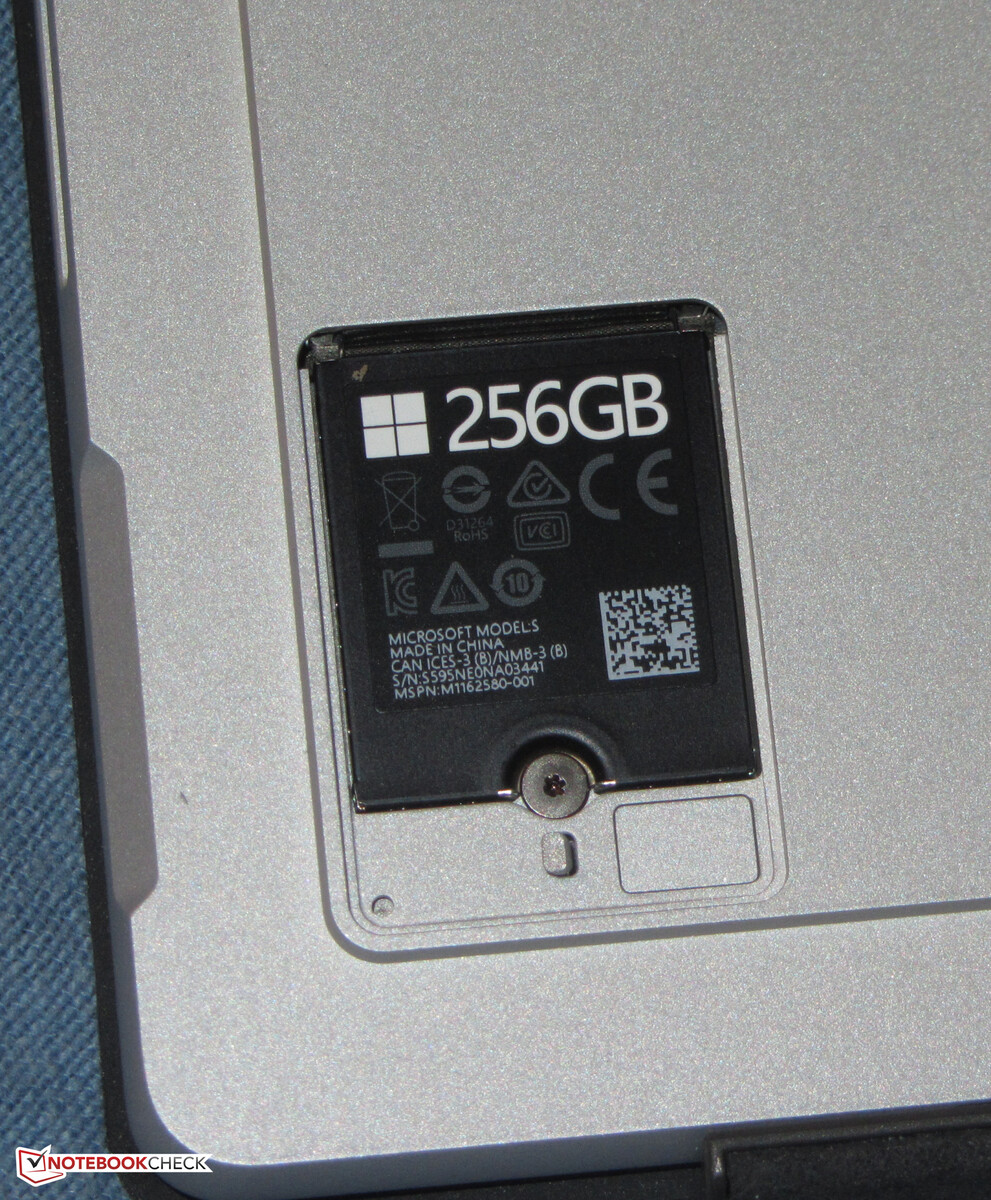

Opslag
Samsung PM991 MZ9LQ256HBJQ, 256 GB
, M.2-2230, NMVe, 190 GB beschikbaar
Verbindingen
2 USB 3.0, USB-C Power Delivery (PD), 1 DisplayPort, Audio Verbindingen: combined headset port, Brightness Sensor, Sensoren: acceleration sensor, gyroscope, magnetometer, TPM 2.0
Netwerkmogelijkheden
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5, Qualcomm Snapdragon X20, LTE
Afmetingen
hoogte x breedte x diepte (in mm): 8.5 x 292 x 201
Batterij
48.9 Wh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: Full HD
Primary Camera: 8 MPix
Secondary Camera: 5 MPix
Bijkomende functionaliteiten
Luidsprekers: stereo, Toetsenbord: chiclet, Toetsenbordverlichting: ja, SIM ejector tool, MS Office 365 apps for enterprise (trial), 12 Maanden Garantie, fanless
Gewicht
796 g, Voeding: 255 g
Prijs
2,140 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
89 %
03-2021
Microsoft Surface Pro 7 Plus
i5-1135G7, Iris Xe G7 80EUs
796 g8.5 mm12.30"2736x1824
87 %
11-2020
Lenovo Yoga Duet 7 13IML05-82AS000WGE
i5-10210U, UHD Graphics 620
1.2 kg9.2 mm13.00"2160x1350
90 %
03-2021
Dell Latitude 12 7210 2-in-1
i7-10610U, UHD Graphics 620
850 g9.35 mm12.30"1920x1280

Size comparison

297 mm 207 mm 9.2 mm 1.2 kg292 mm 208.8 mm 9.35 mm 850 g292 mm 201 mm 8.5 mm 796 g

Connectiviteit - Een LTE-modem is nu optioneel

Snapdragon X20

Microsoft installeert de Qualcomm Snapdragon X20-modem in de Surface. De simkaartsleuf bevindt zich achter de standaard. De geheugenkaartlezer moest worden verwijderd. Bovendien is de LTE-modem alleen beschikbaar in combinatie met een Core i5-processor

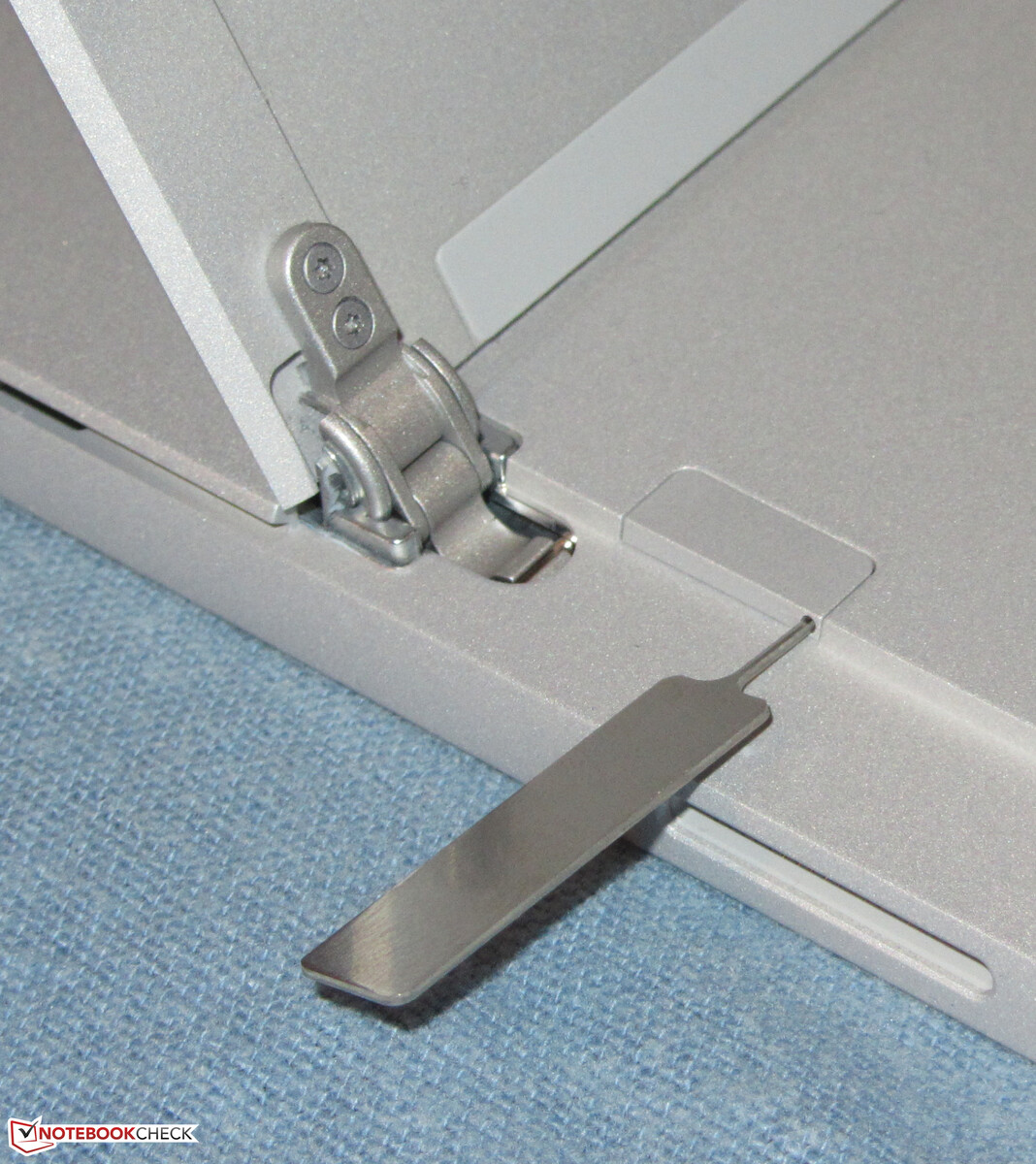

Een SIM-tool is inbegrepen.
Een SIM-tool is inbegrepen.

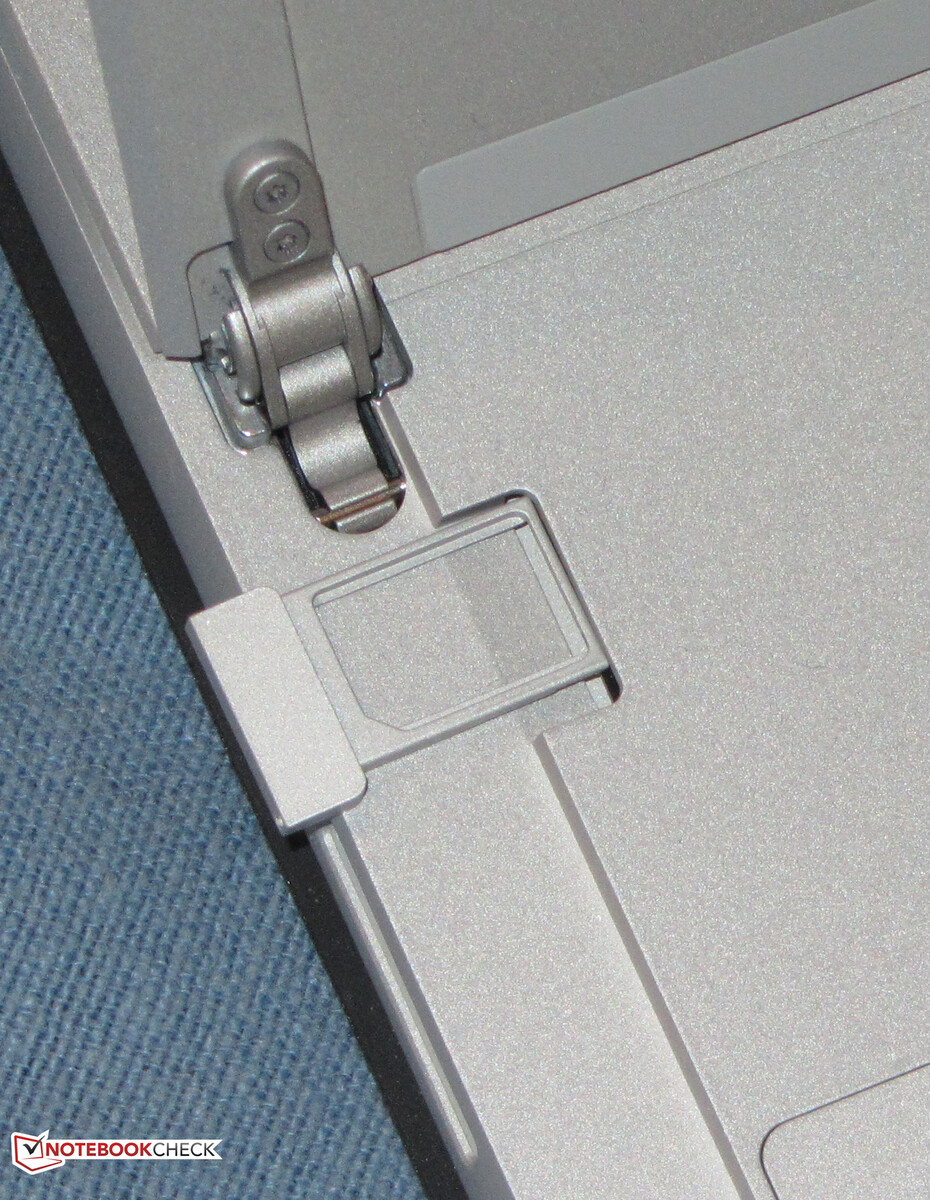

De sleuf ondersteunt nano-SIM-kaarten.
De sleuf ondersteunt nano-SIM-kaarten.
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Microsoft Surface Pro 7 Plus
Intel Wi-Fi 6 AX201
1354 (783min - 1513max) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=199)
1241 MBit/s ∼92% -8%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Wi-Fi 6 AX201
928 (877min - 942max) MBit/s ∼69% -31%
Dell Latitude 12 7210 2-in-1
Intel Wi-Fi 6 AX201
919 (714min - 1122max) MBit/s ∼68% -32%
Average of class Convertible
  (262 - 1498, n=73, last 2 years)
859 MBit/s ∼63% -37%
Microsoft Surface Pro 7
Intel Wi-Fi 6 AX201
836 (743min - 888max) MBit/s ∼62% -38%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Latitude 12 7210 2-in-1
Intel Wi-Fi 6 AX201
1690 (1490min - 1764max) MBit/s ∼100% +22%
Microsoft Surface Pro 7 Plus
Intel Wi-Fi 6 AX201
1382 (984min - 1508max) MBit/s ∼82%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Wi-Fi 6 AX201
1320 (1237min - 1367max) MBit/s ∼78% -4%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=199)
1137 MBit/s ∼67% -18%
Average of class Convertible
  (291 - 1690, n=73, last 2 years)
828 MBit/s ∼49% -40%
Microsoft Surface Pro 7
Intel Wi-Fi 6 AX201
634 (561min - 705max) MBit/s ∼38% -54%
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750783139415081488151313151261126313141366150013091188134314491466135313781258129011701110122513071362123212291509151314209189399318879029299359409119379379159219339269318779369329349349409379389429089319389399381015100910261122962917820907922797957870105189010387559908259818449597149788889858499129147598918368808888738288478267818818268618537868088058238148668198658428718708558697438248167828287831394150814881513131512611263131413661500130911881343144914661353137812581290117011101225130713621232122915091513142091893993188790292993594091193793791592193392693187793693293493494093793894290893193893993810151009102611229629178209079227979578701051890103875599082598184495971497888898584991291475989183688088887382884782678188182686185378680880582381486681986584287187085586974382481678282811541336150813041495144415081471125614471459143411581343143813931490144614659841397138113881380138813421409147613941372136713581312133413181325133413321359134113291332135713431316131213181349126312431240125413091321134012371321133413641343172717641677173516621639170417541745166417101697170616791617170016911673170316941714170816821707171414901652167617141714644669646641626630640623633618644561705638635638632639615632634634625619654619638606635640Tooltip
Microsoft Surface Pro 7 Plus Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1327 (783-1513)
Lenovo Yoga Duet 7 13IML05-82AS000WGE Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø927 (877-942)
Dell Latitude 12 7210 2-in-1 Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø918 (714-1122)
Microsoft Surface Pro 7 Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø836 (743-888)
Microsoft Surface Pro 7 Plus Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1382 (984-1508)
Lenovo Yoga Duet 7 13IML05-82AS000WGE Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1320 (1237-1367)
Dell Latitude 12 7210 2-in-1 Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1690 (1490-1764)
Microsoft Surface Pro 7 Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø634 (561-705)
ColorChecker
25.3 ∆E
28.9 ∆E
28.1 ∆E
24.5 ∆E
26.8 ∆E
19.5 ∆E
18 ∆E
33.1 ∆E
19.5 ∆E
21.6 ∆E
15.4 ∆E
16 ∆E
22.2 ∆E
14.6 ∆E
7.8 ∆E
4.6 ∆E
15.3 ∆E
20.1 ∆E
2.5 ∆E
13.1 ∆E
11.6 ∆E
13.4 ∆E
10.8 ∆E
11.1 ∆E
ColorChecker Lenovo Yoga Duet 7 13IML05-82AS000WGE: 17.66 ∆E min: 2.47 - max: 33.09 ∆E
ColorChecker
20 ∆E
10.7 ∆E
18.5 ∆E
24.3 ∆E
13.7 ∆E
15.7 ∆E
5.6 ∆E
10.3 ∆E
7.8 ∆E
7.1 ∆E
15.7 ∆E
6 ∆E
6 ∆E
16.5 ∆E
7.6 ∆E
7.8 ∆E
6.7 ∆E
14.8 ∆E
4.5 ∆E
5.5 ∆E
8.5 ∆E
8.5 ∆E
4.6 ∆E
3.4 ∆E
ColorChecker Microsoft Surface Pro 7 Plus: 10.42 ∆E min: 3.41 - max: 24.26 ∆E
ColorChecker
7.5 ∆E
11.7 ∆E
12.9 ∆E
6.8 ∆E
13.3 ∆E
9 ∆E
8.1 ∆E
12.4 ∆E
12.6 ∆E
5 ∆E
3.7 ∆E
8.3 ∆E
8 ∆E
5.2 ∆E
9.5 ∆E
13.7 ∆E
2 ∆E
4.3 ∆E
10 ∆E
8.7 ∆E
8.9 ∆E
10.6 ∆E
7.9 ∆E
8.4 ∆E
ColorChecker Dell Latitude 12 7210 2-in-1: 8.69 ∆E min: 1.98 - max: 13.67 ∆E

Beeldscherm - IPS in het 3:2-formaat

Het 12,3-inch touchscreen display heeft een native resolutie van 2736x1824 pixels. De helderheid (425,4 cd/m²) en het contrast (1.200:1) zijn goed. Verder flikkert het scherm met een frequentie van 199,2 Hz bij helderheidsniveaus van 57% (gelijk aan ongeveer 119 cd/m²) en lager. Vanwege de lage frequentie kunnen gevoelige gebruikers last krijgen van hoofdpijn en/of oogproblemen

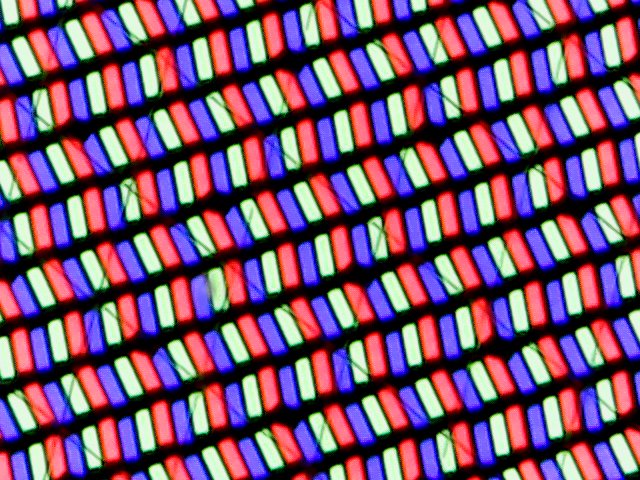

Pixelraster
Pixelraster

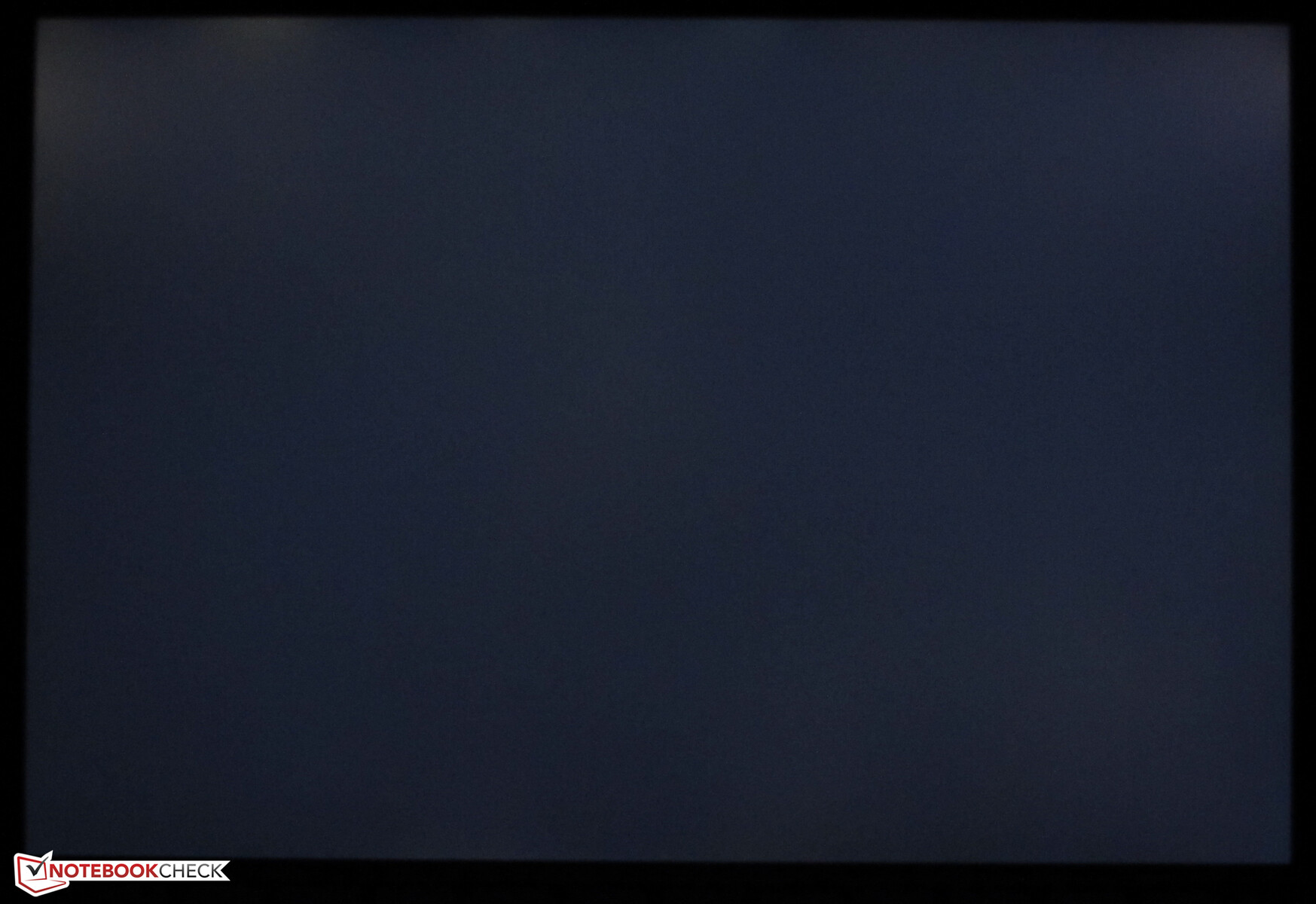

Scherm bloeding
Scherm bloeding
447
cd/m²
451
cd/m²
463
cd/m²
411
cd/m²
408
cd/m²
437
cd/m²
392
cd/m²
396
cd/m²
424
cd/m²
Helderheidsverdeling
LG Philips LP123WQ332684
X-Rite i1Pro 2
Maximum: 463 cd/m² Gemiddelde: 425.4 cd/m² Minimum: 5.3 cd/m²
Helderheidsverdeling: 85 %
Helderheid in Batterij-modus: 407 cd/m²
Contrast: 1200:1 (Zwart: 0.34 cd/m²)
ΔE Color 1.5 | 0.59-29.43 Ø5.6, calibrated: 1.4
ΔE Greyscale 1.6 | 0.64-98 Ø5.9
96.8% sRGB (Argyll 3D) 63.7% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.05
Microsoft Surface Pro 7 Plus
LG Philips LP123WQ332684, IPS, 2736x1824, 12.30
Lenovo Yoga Duet 7 13IML05-82AS000WGE
CSOT T3 LEN8290, IPS, 2160x1350, 13.00
Dell Latitude 12 7210 2-in-1
Sharp LQ123N1, IPS, 1920x1280, 12.30
Microsoft Surface Pro 7
LG Philips LP123WQ112604, IPS, 2736x1824, 12.30
Microsoft Surface Pro 7 Core i5-1035G4
LG Philips LP123WQ112604, IPS, 2736x1824, 12.30
Response Times
5%
208%
21%
3590%
Response Time Grey 50% / Grey 80% *
50.8 (25.2, 25.6)
58 (24, 34)
-14%
29 (4, 25)
43%
40 (19, 21)
21%
34.8 (16.8, 18)
31%
Response Time Black / White *
33.6 (18.8, 14.8)
26 (14, 12)
23%
16 (4, 12)
52%
28 (16, 12)
17%
26.4 (13.2, 13.2)
21%
PWM Frequency
199.2 (57, 119)
1250 (30)
528%
250 (50)
26%
21550 (24)
10718%
Screen
-65%
-13%
-6%
-74%
Brightness middle
408
450
10%
380
-7%
435
7%
480.4
18%
Brightness
425
411
-3%
378
-11%
422
-1%
485
14%
Brightness Distribution
85
83
-2%
86
1%
90
6%
91
7%
Black Level *
0.34
0.22
35%
0.31
9%
0.32
6%
0.48
-41%
Contrast
1200
2045
70%
1226
2%
1359
13%
1001
-17%
Colorchecker DeltaE2000 *
1.5
4.15
-177%
2.28
-52%
1.18
21%
5
-233%
Colorchecker DeltaE2000 max. *
2.5
11.49
-360%
3.93
-57%
2.27
9%
7.72
-209%
Colorchecker DeltaE2000 calibrated *
1.4
1.09
22%
0.97
31%
3.49
-149%
2.44
-74%
Greyscale DeltaE2000 *
1.6
6.66
-316%
2.56
-60%
1.12
30%
5.9
-269%
Gamma
2.05 107%
2.42 91%
2.32 95%
2.3 96%
2.38 92%
CCT
6432 101%
6043 108%
6130 106%
6502 100%
7805 83%
Color Space (Percent of AdobeRGB 1998)
63.7
65
2%
63
-1%
60
-6%
60.3
-5%
Color Space (Percent of sRGB)
96.8
98
1%
97
0%
96
-1%
93.2
-4%
Totaal Gemiddelde (Programma / Instellingen)
-30% / -55%
98% / 34%
8% / -0%
1758% / 711%

* ... kleiner is beter

Het beeldscherm laat meteen een goede kleurweergave zien en voldoet aan de doelstelling (Delta E minder dan 3) met een kleurafwijking van 1,5. Het beeldscherm heeft ook geen last van een blauwe tint. Daarnaast zorgt kalibratie voor lichte verbeteringen: De kleurafwijking daalt tot 1,4, en grijstinten worden evenwichtiger weergegeven. Het beeldscherm kan de AdobeRGB (63,7%) en sRGB (96,8%) kleurruimten niet volledig reproduceren

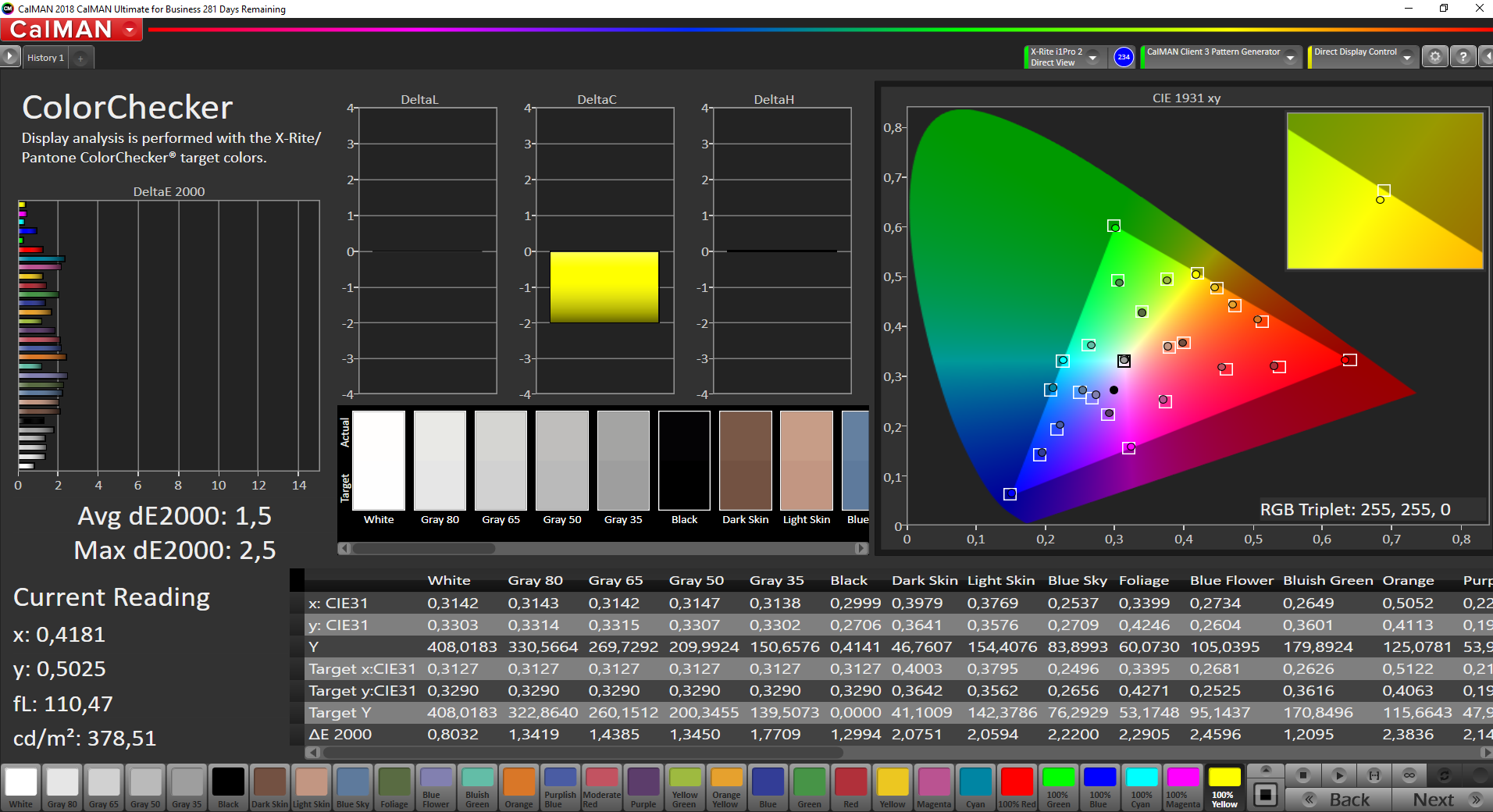

CalMAN - Kleurcontroleur
CalMAN - Kleurcontroleur

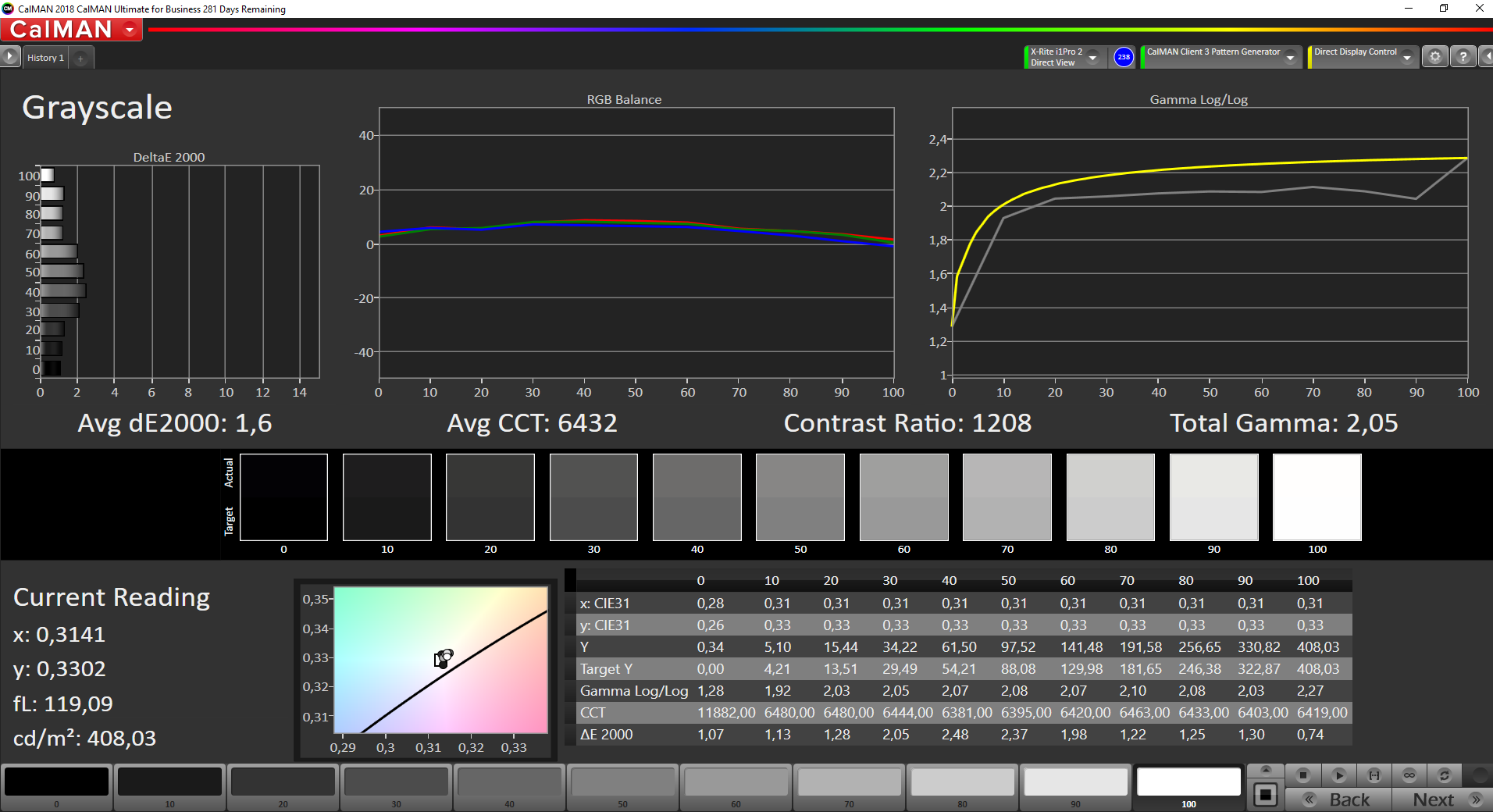

CalMAN - Grijstinten
CalMAN - Grijstinten

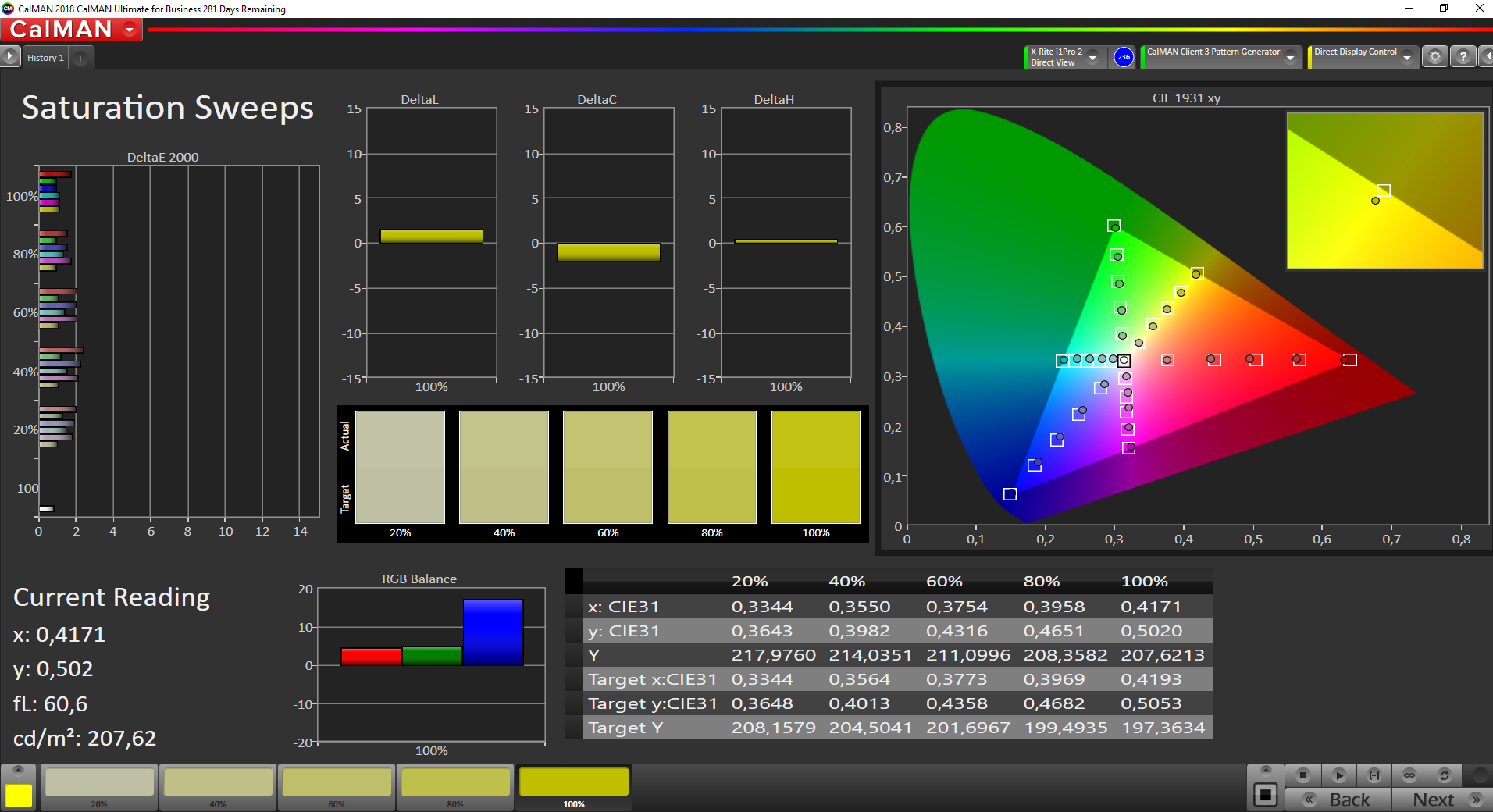

CalMAN - Kleurverzadiging
CalMAN - Kleurverzadiging

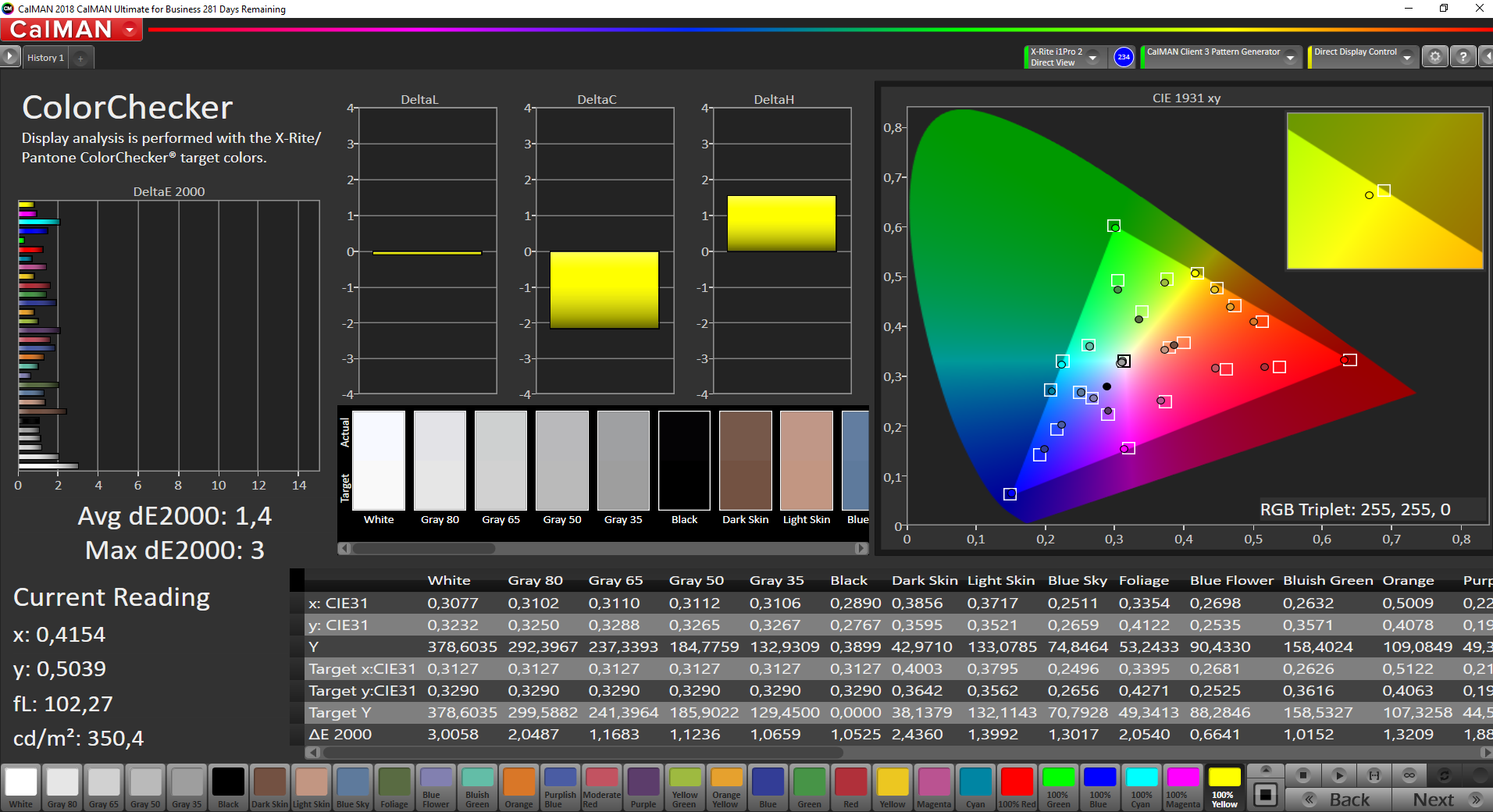

CalMAN - ColorChecker (gekalibreerd)
CalMAN - ColorChecker (gekalibreerd)
CalMAN - Grijstinten (gekalibreerd)
CalMAN - Grijstinten (gekalibreerd)

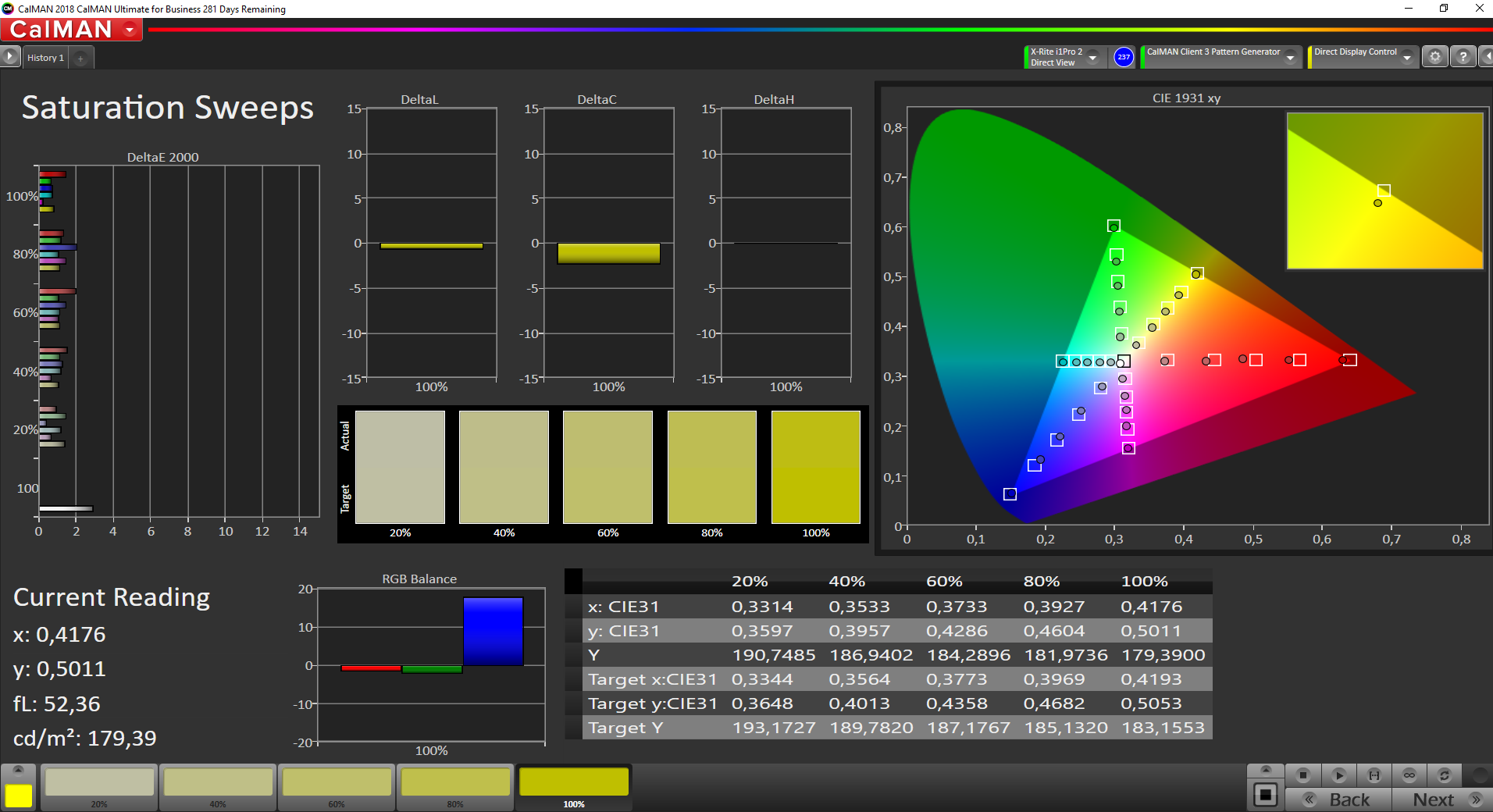

CalMAN - Kleurverzadiging (gekalibreerd)
CalMAN - Kleurverzadiging (gekalibreerd)

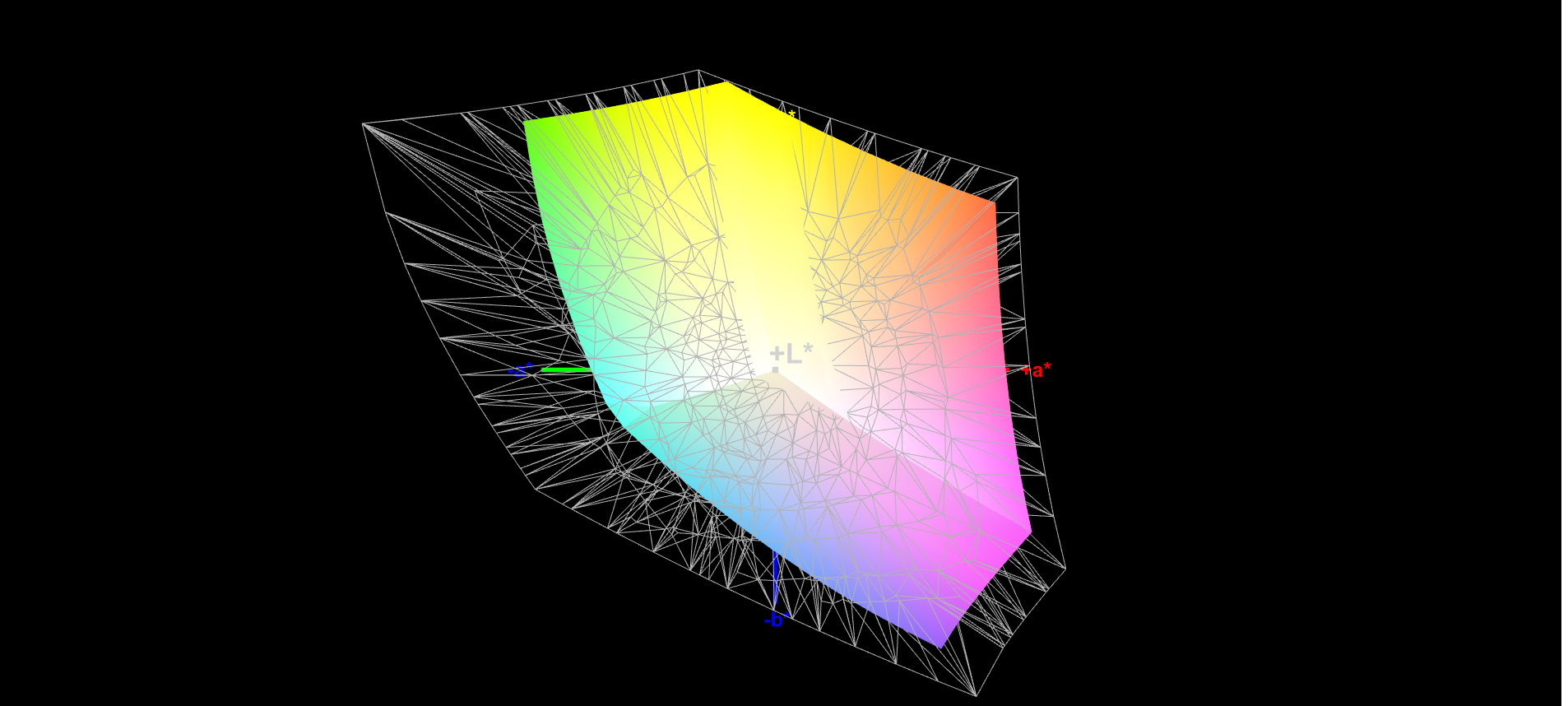

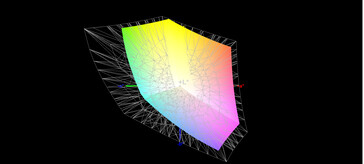

Surface Pro 7 Plus vs. AdobeRGB
Surface Pro 7 Plus vs. AdobeRGB

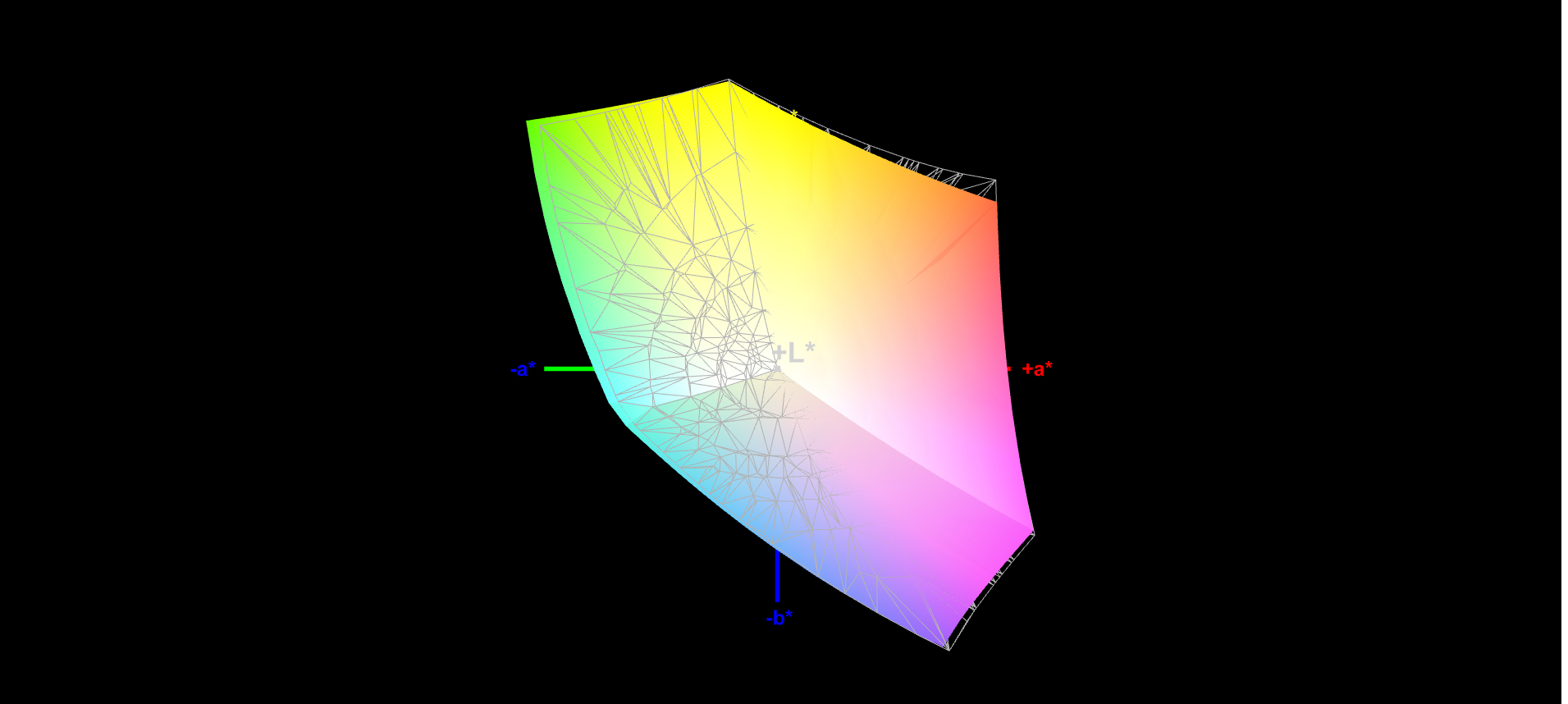

Surface Pro 7 Plus vs. sRGB
Surface Pro 7 Plus vs. sRGB

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

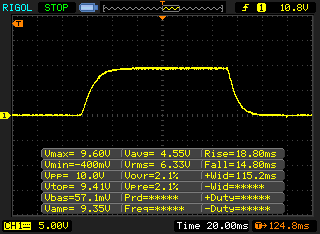

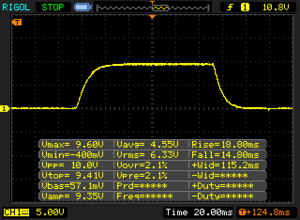

       Responstijd Zwart naar Wit
33.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18.8 ms stijging
↘ 14.8 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 87 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.2 ms) van alle geteste toestellen.

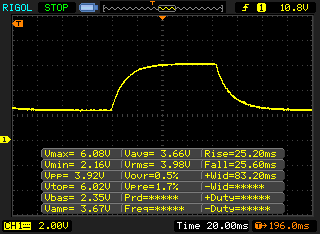

       Responstijd 50% Grijs naar 80% Grijs
50.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 25.2 ms stijging
↘ 25.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 83 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.5 ms) van alle geteste toestellen.

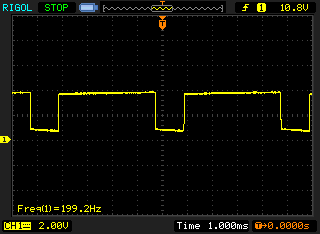

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 199.2 Hz ≤ 57 % helderheid instelling
≤ 119 cd/m² helderheid

Het backlight van het scherm flikkert aan 199.2 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 57 % (119 cd/m²) en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 199.2 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Fllickering treedt alleen op aan een relatief lage helderheid. Daarom kan langdurig gebruik binnenshuis met deze helderheidsinstelling vermoeiend zijn.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9729 (minimum: 5 - maximum: 151500) Hz waargenomen.

Het kijkhoekstabiele IPS-paneel kan vanuit elke positie worden gelezen. Het biedt voldoende helderheid om ook buitenshuis te kunnen worden bekeken. Het glanzende displayoppervlak belemmert echter vaak de leesbaarheid

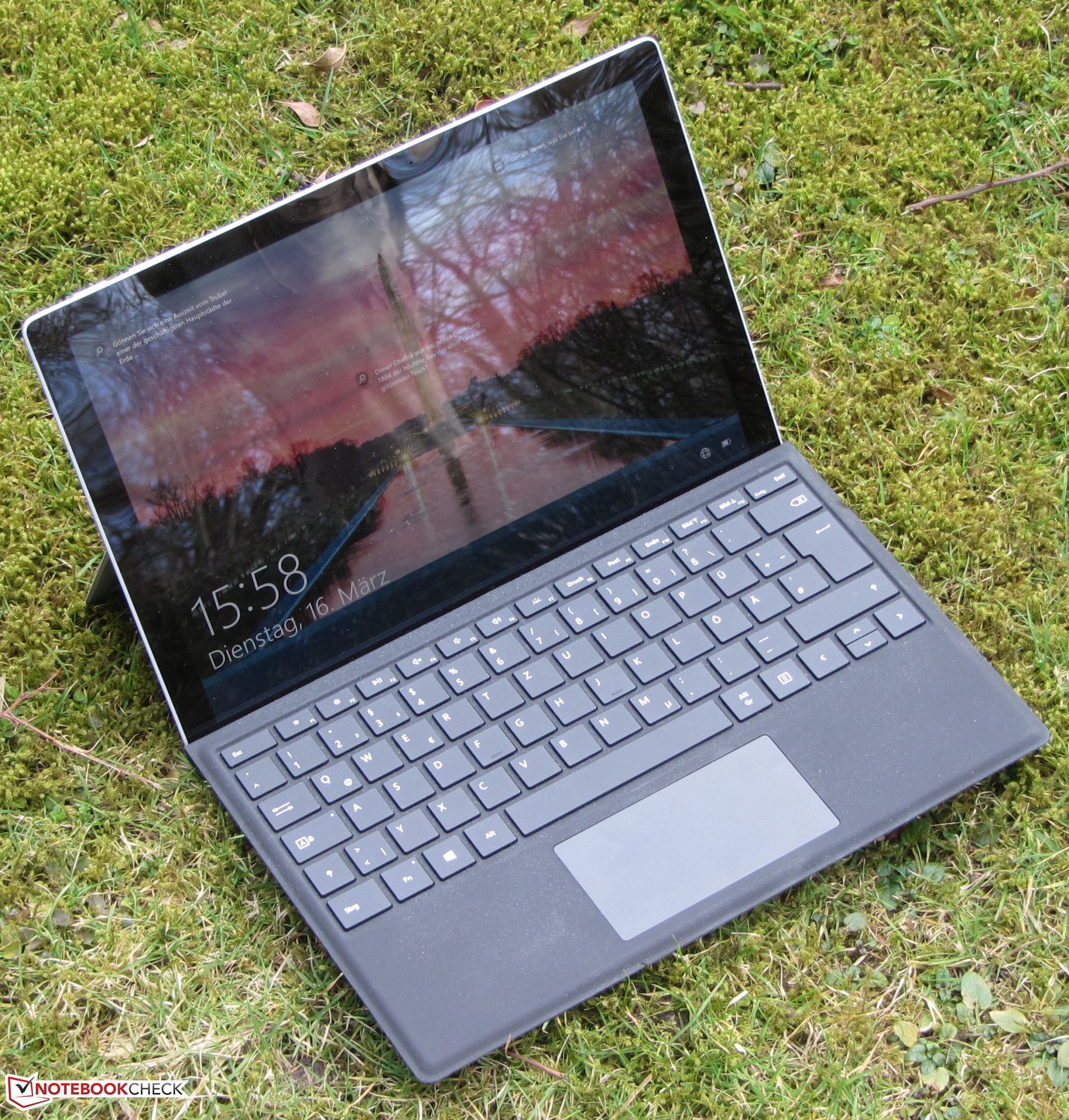

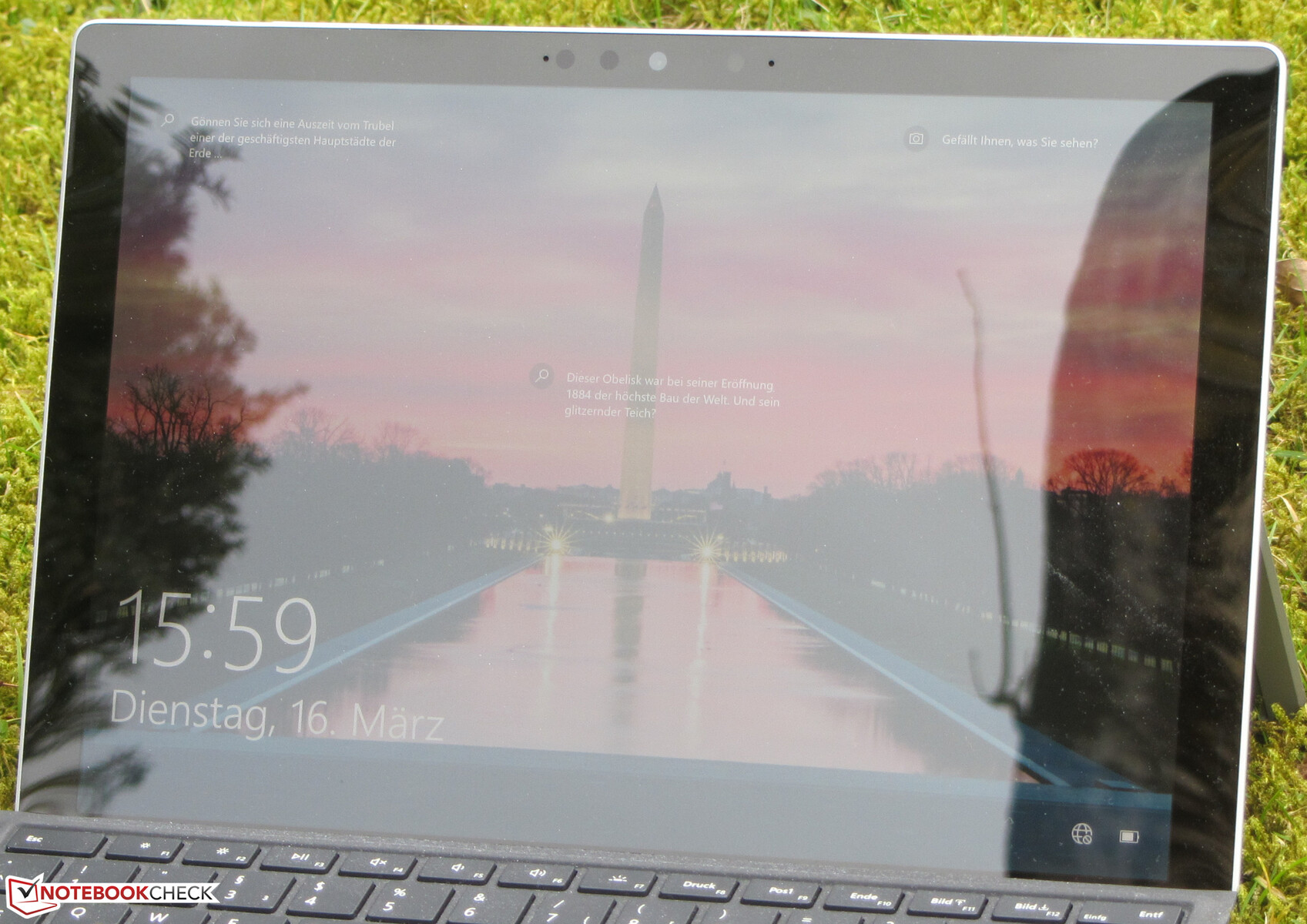

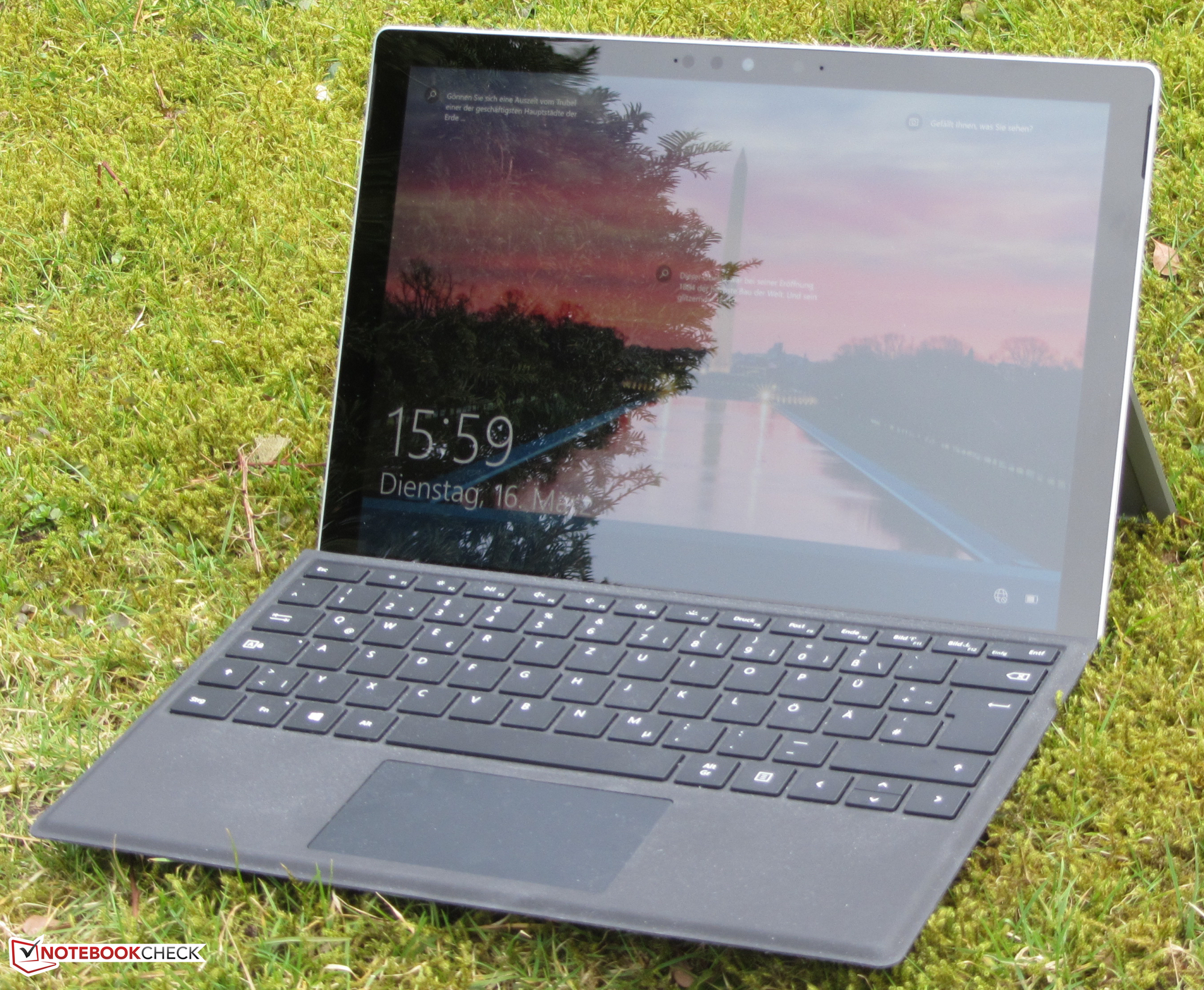

De Surface Pro 7 Plus buiten.
De Surface Pro 7 Plus buiten.

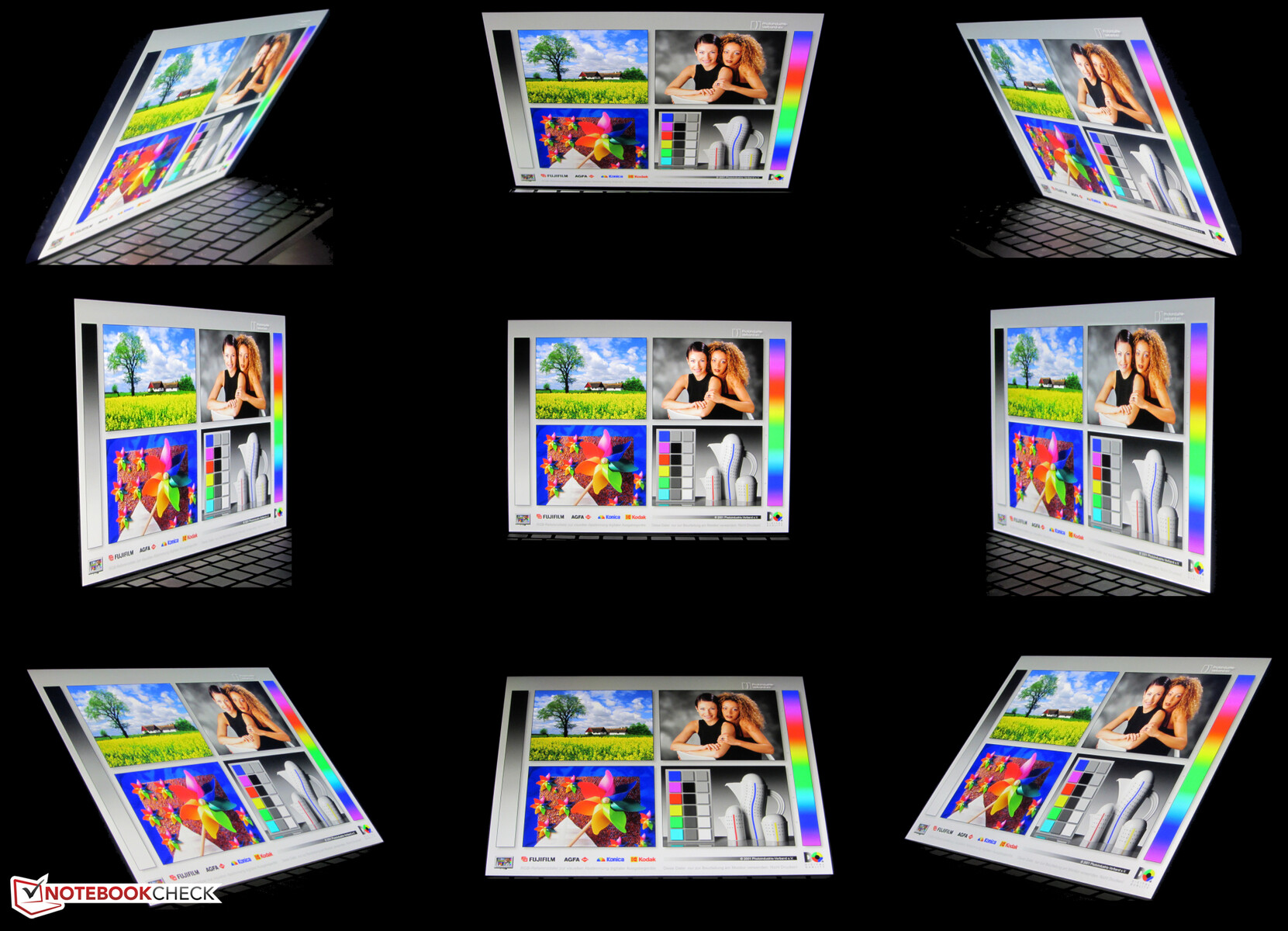

Kijkhoeken
Kijkhoeken

Prestaties - Meer prestaties dankzij Tiger Lake

De Surface Pro 7 Plus van Microsoft is een 12,3-inch 2-in-1-apparaat voor bedrijven en scholen dat voldoende rekenkracht biedt voor kantoor- en internettoepassingen. Er zijn verschillende configuraties beschikbaar

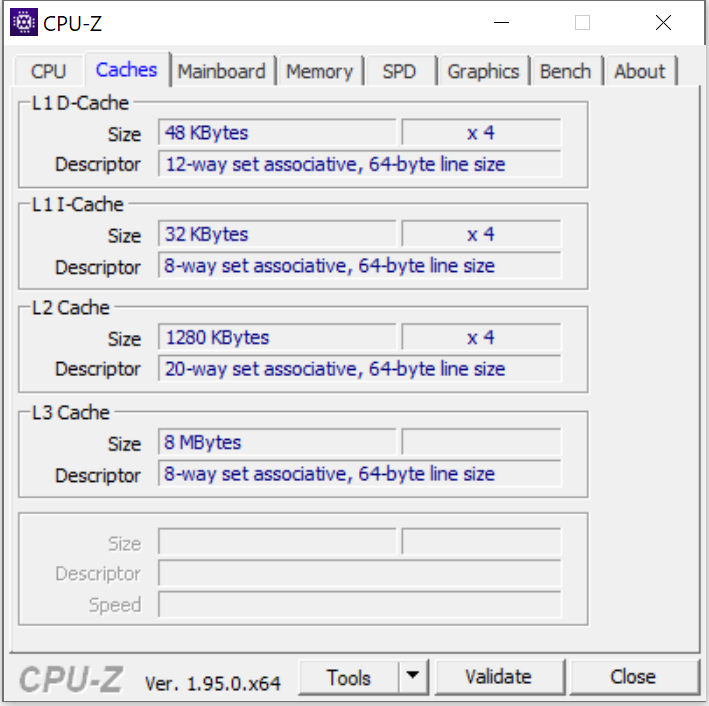

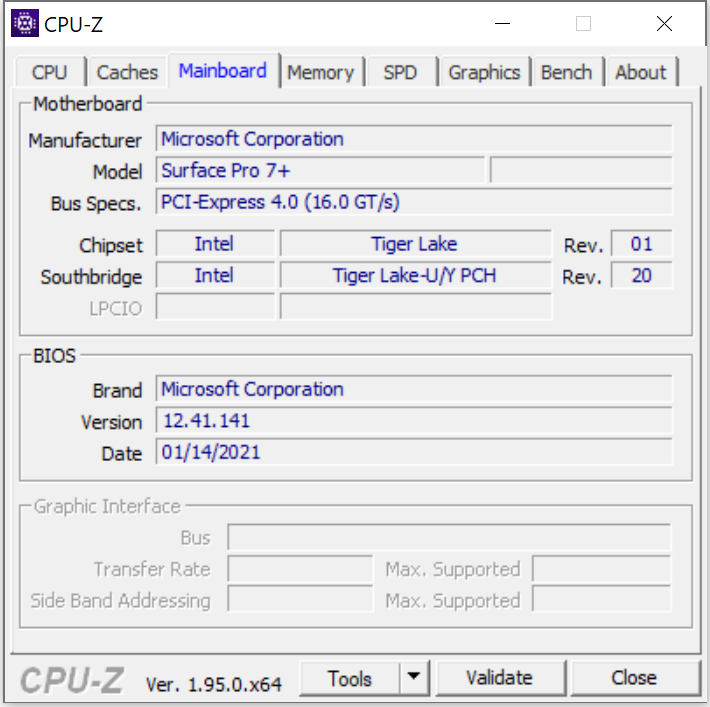

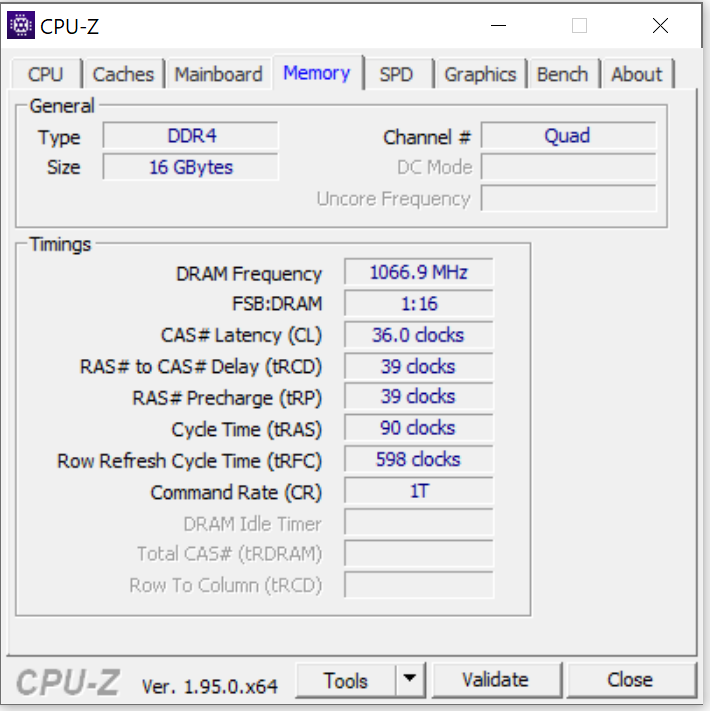

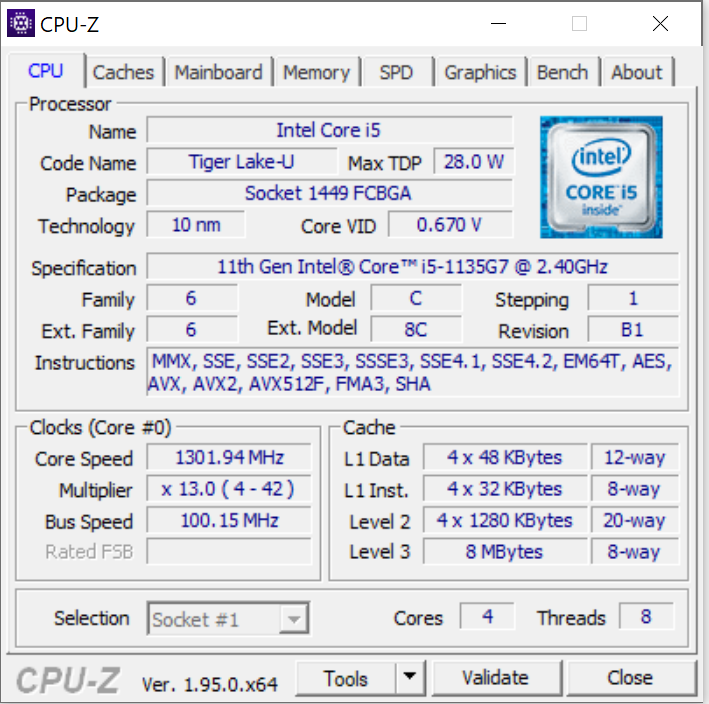

CPU-Z
CPU-Z
CPU-Z
CPU-Z

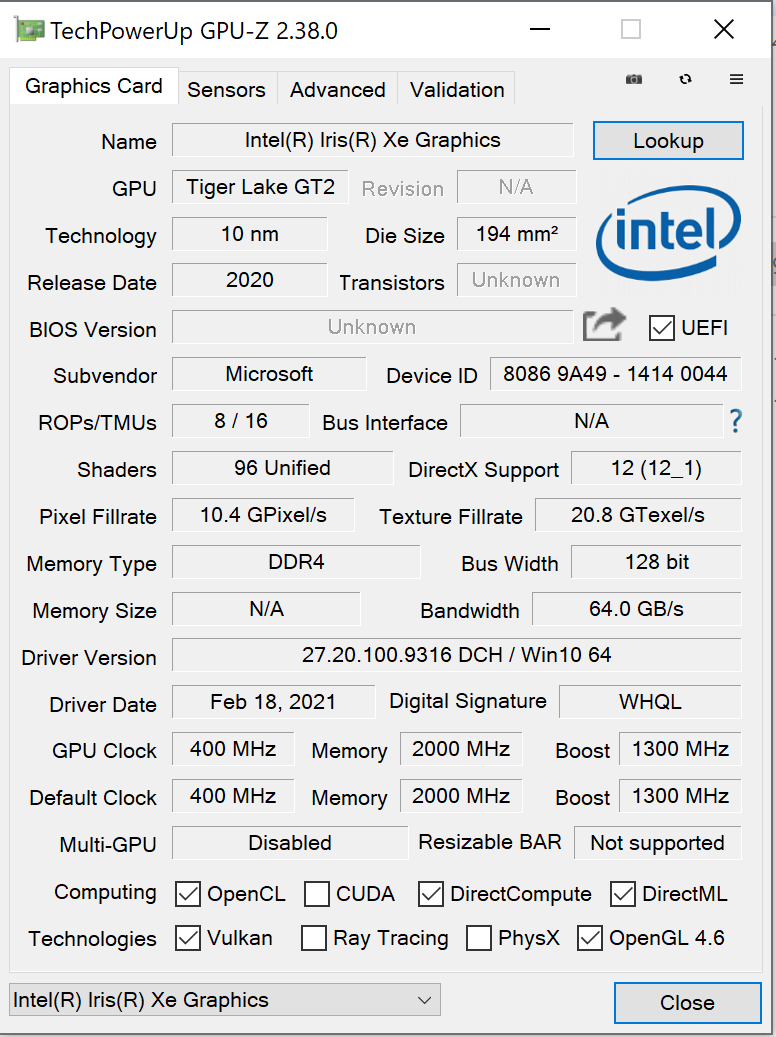

GPU-Z

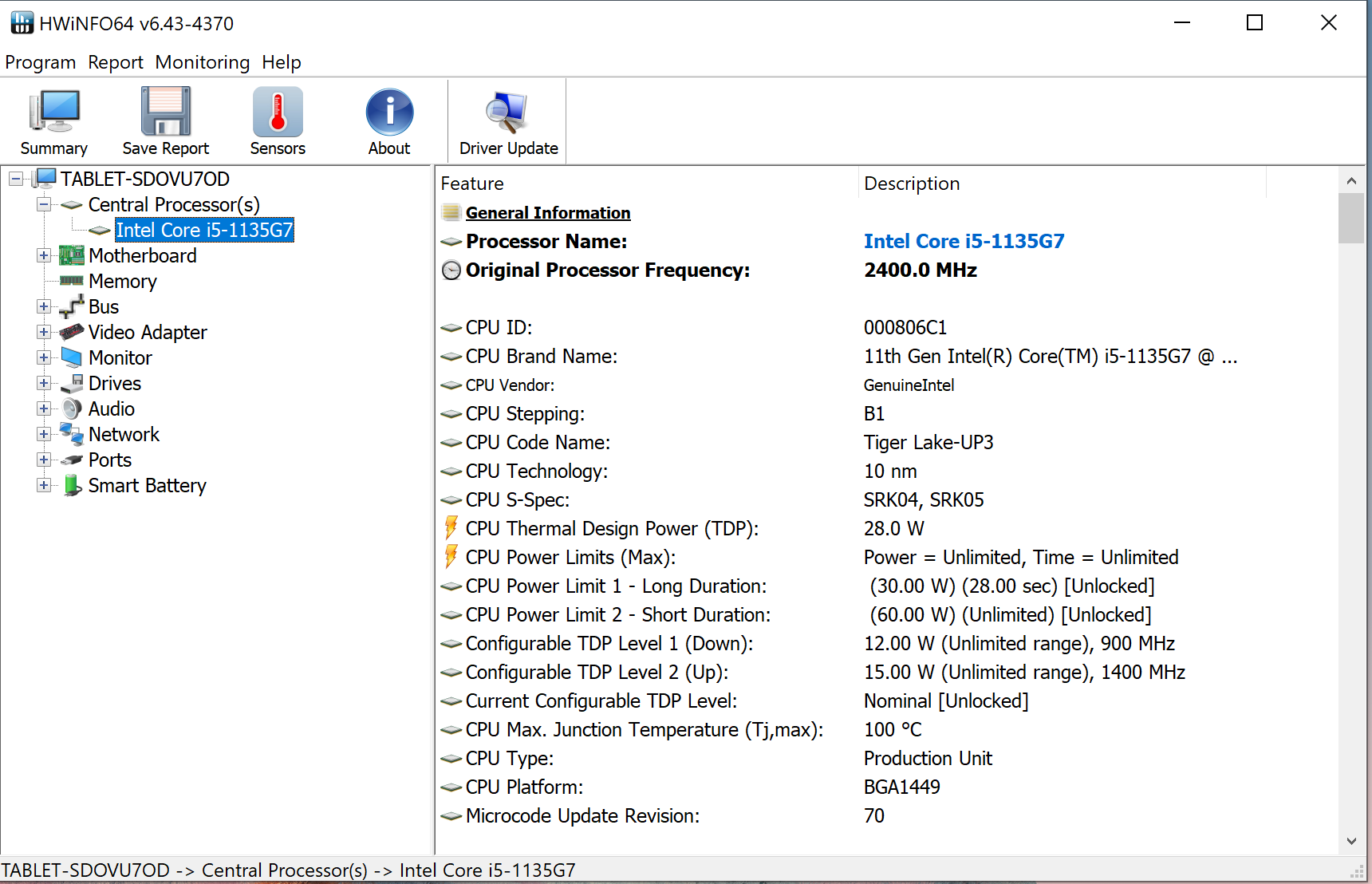

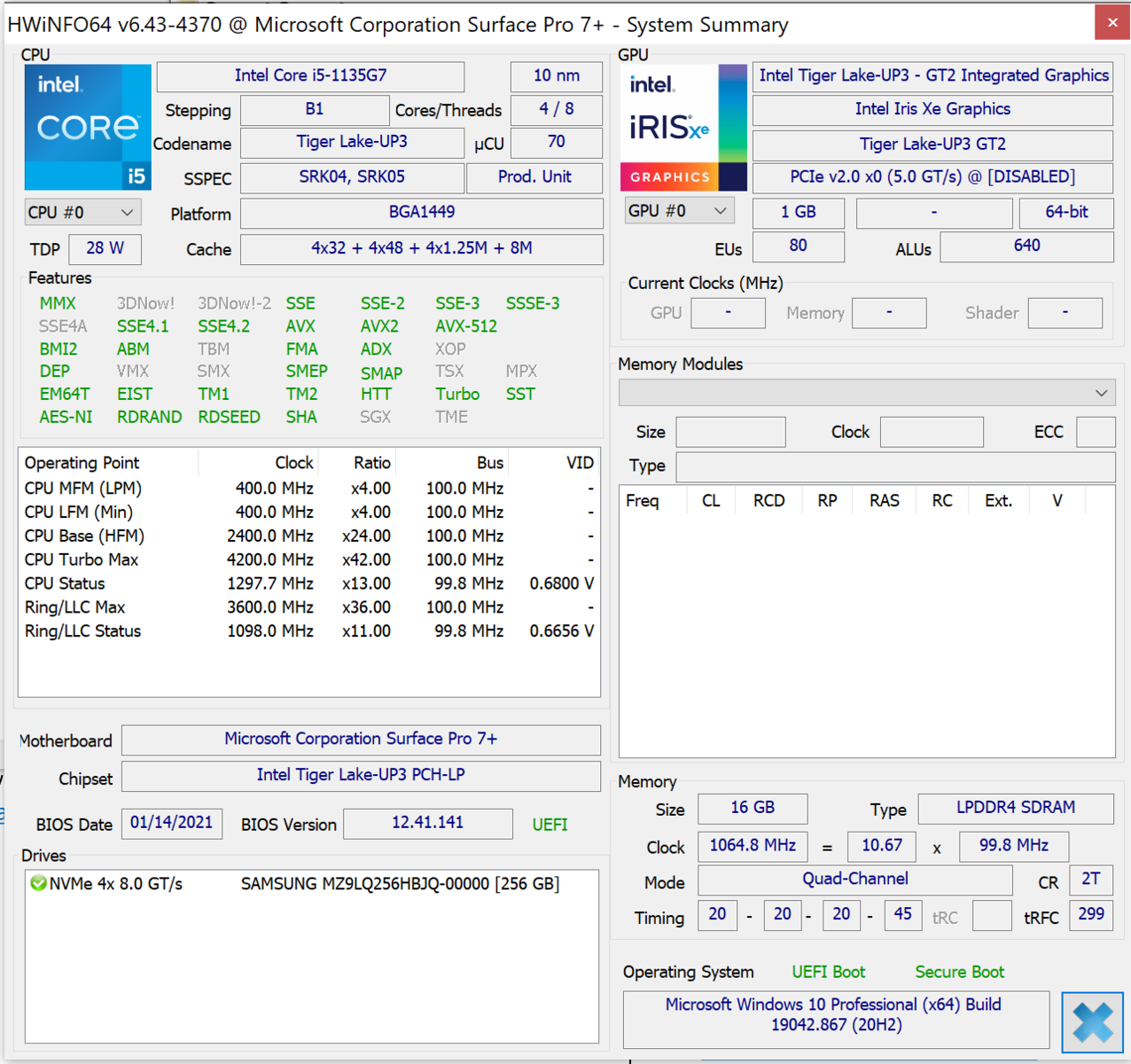

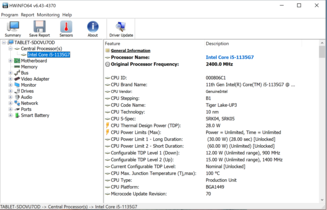

HWiNFO
HWiNFO


Processor

Microsoft heeft gekozen voor Tiger Lake CPU's voor het Plus-model van de Surface Pro 7. Ons review-exemplaar is uitgerust met een Corei5-1135G7 quad-core

processor die draait op een basiskloksnelheid van 2,4 GHz. Een verhoging naar 3,8 GHz (alle kernen) of 4,2 GHz (één kern) is mogelijk via Turbo. Hyper-Threading (twee threads per core) wordt ondersteund.

De multithread-tests van de Cinebench-benchmarks worden uitgevoerd op 3 tot 3,5 GHz, terwijl de single-thread tests worden uitgevoerd op 3,1 tot 4,1 GHz. Op batterijvoeding zijn de kloksnelheden respectievelijk 2,4 tot 2,8 GHz (multithread) en 1,5 tot 2,5 GHz (single-thread).

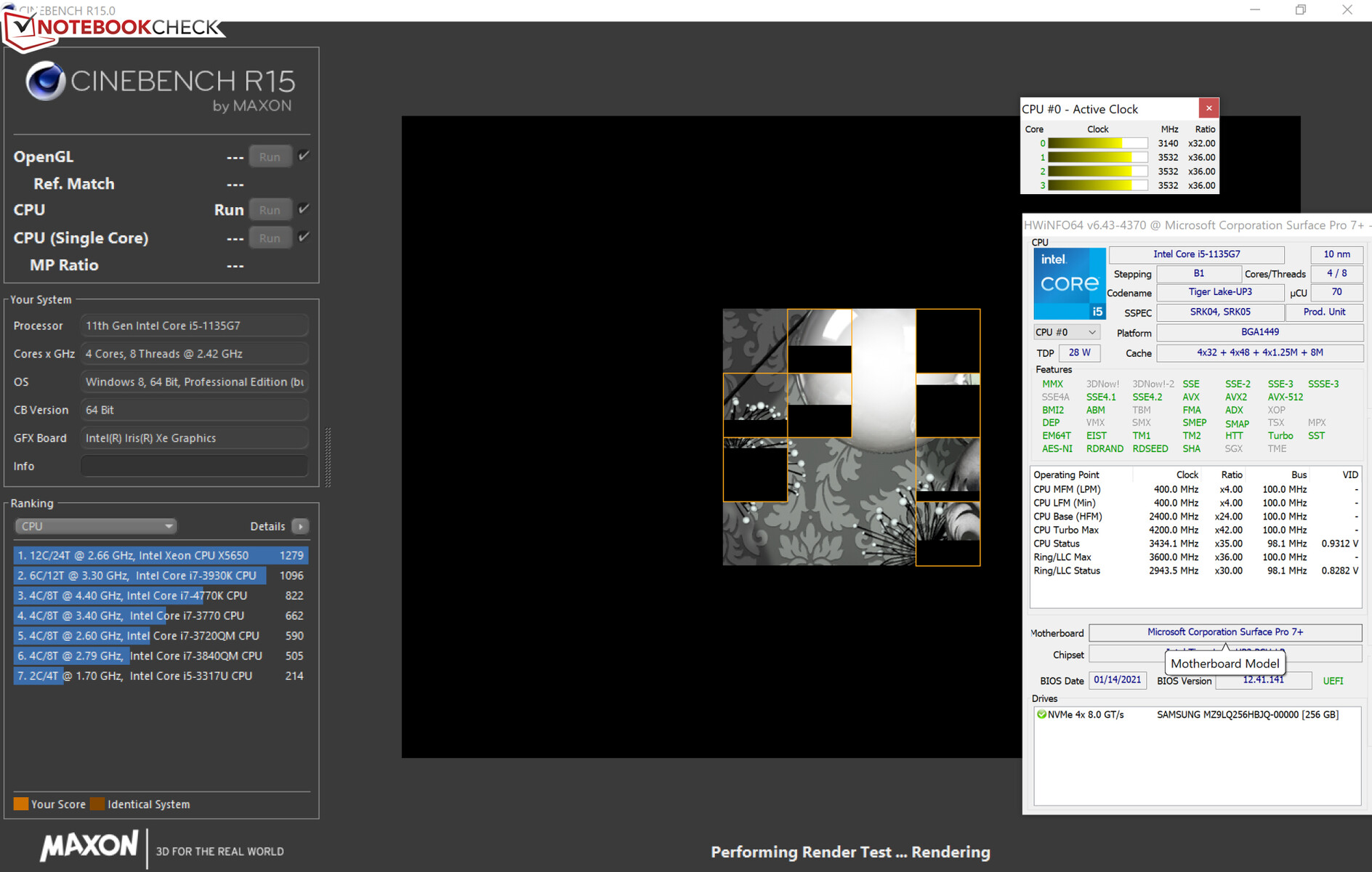

Multithread (ingeplugd)
Multithread (ingeplugd)

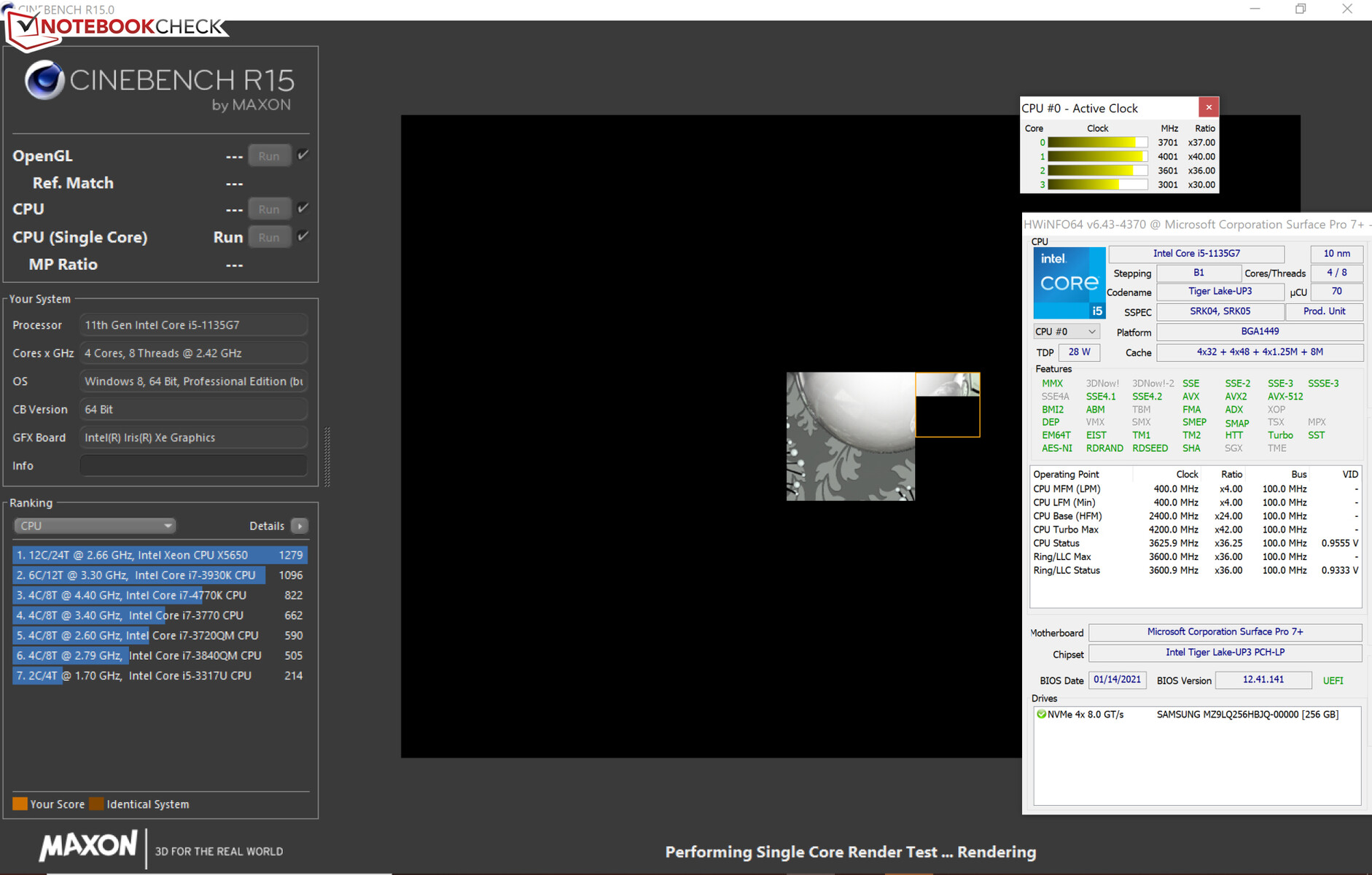

Enkelvoudige draad (ingeplugd)
Enkelvoudige draad (ingeplugd)

We controleren of de CPU Turbo consequent wordt gebruikt wanneer hij is aangesloten door de multithread test van de Cinebench R15 benchmark gedurende ten minste 30 minuten in een ononderbroken lus uit te voeren. Kloksnelheden boven 3 GHz worden alleen in de eerste drie minuten van de test bereikt. In het verdere verloop moet de CPU worden afgeremd en zakt hij onder zijn basis kloksnelheid - de passieve koeling wordt hier merkbaar.

Al met al zijn de benchmark resultaten goed. De Tiger Lake processor reageert op korte belastingspieken met veel rekenkracht en presteert beter dan de Ice Lake Core i5 processor in de Surface Pro 7. Bij langdurige belasting worden de prestaties echter op de knieën gedwongen

04080120160200240280320360400440480520560600640680720760784.28770.03769.78598.58603.34599.86574.65500.17483.2481.37476.17479.62481.59479.24479.05477.57477478.66479.9479.56476.94476.49475.61478.6480.22477.71480.25477.36479.84478.66477.56477.3476.09478.3475.43476.33479.81478.63477.53478.83634.71624.35602.21583.86576.81571.41569.11562.45561.25560.84562.17553.3563.89560.41558.91549.33560.38559.65550.5552.39559.51556.61556.89555.93548.1559.8556.35551.26559.97557.32557.72558.6557.66558.8555.49555.68549.2559.36558.29560.42551.84562.25554.97560.73560.4559.51559.71557.79559.3550.2579.32575.57574.48578.93580.89579.9580.59578.92581.16538.05549.13549.76538.4566.21536.11537.03541.82549.38537.32542.05539.61539539.19541.51540.7535.88532.65538.52533.92535.52537.56535.86542.17535.77532.2536.84535.35535.52535.88543.79783.03749.93715.99714.77714.69714.43714.41713.52708.63622.27612.33618.93616.38615.26610.04585.94572.38575.34572.63575.48574.39577.26572.34561558.63555.54559.96558.5561.12559.92558.6558.69560.29560.23555.93560.07558.5556.1556.54558.99556.57557.11558.13559.67558.83559.51556.72559.03557.79558.33559.1558.32559.16555.99560.07555.88559.21557.43557.07559.27684.65626.91625.37629.77556.12549.38551.37548.52532.03512.89510.26511.12511.78511.99510.79510.45514.02512.72511.05497.78498.27495.42499.03498.13498.54498.62498.83499.52497.69496.94495.6499.56502.08503.09499.88501.75499.62499.9501.35499.05499.88502.14500.73500.56501.03502.05503.01500.53503.16501.05Tooltip
Microsoft Surface Pro 7 Plus Intel Core i5-1135G7: Ø513 (475.43-784.28)
Lenovo Yoga Duet 7 13IML05-82AS000WGE Intel Core i5-10210U: Ø563 (548.1-634.71)
Dell Latitude 12 7210 2-in-1 Intel Core i7-10610U: Ø549 (532.2-581.16)
Microsoft Surface Pro 7 Intel Core i7-1065G7: Ø592 (555.54-783.03)
Microsoft Surface Pro 7 Core i5-1035G4 Intel Core i5-1035G4: Ø518 (495.42-684.65)

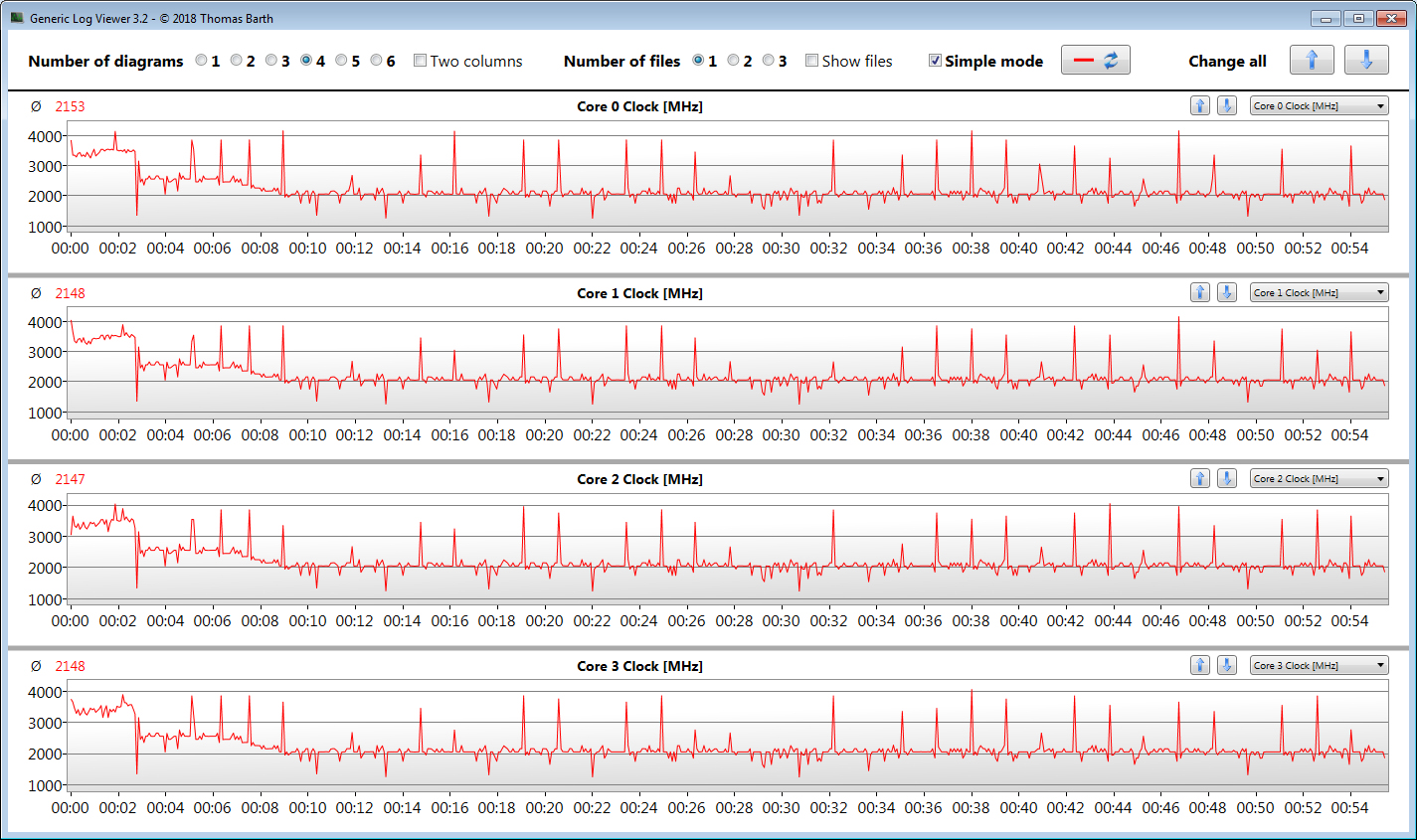

CPU kloksnelheden tijdens het uitvoeren van de CB15 lus
CPU kloksnelheden tijdens het uitvoeren van de CB15 lus
Cinebench R15 CPU Multi 64Bit
784 Points
Cinebench R15 CPU Single 64Bit
188 Points
Cinebench R15 OpenGL 64Bit
83.13 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
Cinebench R15
CPU Single 64Bit
Average Intel Core i5-1135G7
  (181 - 205, n=21)
197 Points ∼100% +5%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
188 Points ∼95%
Microsoft Surface Pro 7
Intel Core i7-1065G7
184 Points ∼93% -2%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
172 Points ∼87% -9%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
165 Points ∼84% -12%
Average of class Convertible
  (47.6 - 243, n=78, last 2 years)
164 Points ∼83% -13%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
133 Points ∼68% -29%
CPU Multi 64Bit
Average Intel Core i5-1135G7
  (506 - 925, n=23)
791 Points ∼100% +1%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
784 Points ∼99%
Microsoft Surface Pro 7
Intel Core i7-1065G7
783 Points ∼99% 0%
Average of class Convertible
  (90 - 2083, n=83, last 2 years)
649 Points ∼82% -17%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
644 Points ∼81% -18%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
634 (338.11min - 341.64max) Points ∼80% -19%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
579 Points ∼73% -26%
Blender 2.79 - BMW27 CPU
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
1339 Seconds * ∼100% -82%
Average of class Convertible
  (246 - 5811, n=58, last 2 years)
1066 Seconds * ∼80% -45%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
900 Seconds * ∼67% -22%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
798 Seconds * ∼60% -9%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
735 Seconds * ∼55%
Average Intel Core i5-1135G7
  (499 - 946, n=18)
667 Seconds * ∼50% +9%
7-Zip 18.03
7z b 4
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
22950 MIPS ∼100%
Average Intel Core i5-1135G7
  (16116 - 24873, n=19)
21801 MIPS ∼95% -5%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
20211 MIPS ∼88% -12%
Average of class Convertible
  (3541 - 57319, n=61, last 2 years)
18053 MIPS ∼79% -21%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
11030 MIPS ∼48% -52%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
10950 MIPS ∼48% -52%
7z b 4 -mmt1
Average Intel Core i5-1135G7
  (4098 - 4867, n=19)
4667 MIPS ∼100% +8%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
4313 MIPS ∼92%
Average of class Convertible
  (1307 - 5623, n=59, last 2 years)
4170 MIPS ∼89% -3%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4136 MIPS ∼89% -4%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
3737 MIPS ∼80% -13%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
1307 MIPS ∼28% -70%
Cinebench R20
CPU (Single Core)
Average Intel Core i5-1135G7
  (478 - 527, n=19)
513 Points ∼100% +2%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
501 Points ∼98%
Microsoft Surface Pro 7
Intel Core i7-1065G7
461 Points ∼90% -8%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
452 Points ∼88% -10%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
441 Points ∼86% -12%
Average of class Convertible
  (106 - 604, n=69, last 2 years)
416 Points ∼81% -17%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
322 Points ∼63% -36%
CPU (Multi Core)
Average Intel Core i5-1135G7
  (1237 - 2382, n=19)
1844 Points ∼100% +17%
Microsoft Surface Pro 7
Intel Core i7-1065G7
1754 Points ∼95% +12%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
1573 Points ∼85%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
1510 Points ∼82% -4%
Average of class Convertible
  (200 - 4953, n=69, last 2 years)
1474 Points ∼80% -6%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
1410 Points ∼76% -10%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
771 Points ∼42% -51%
Geekbench 5.3
64 Bit Multi-Core Score
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
4866 Points ∼100%
Average Intel Core i5-1135G7
  (3475 - 5329, n=19)
4700 Points ∼97% -3%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4224 Points ∼87% -13%
Average of class Convertible
  (858 - 8620, n=51, last 2 years)
4128 Points ∼85% -15%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
2079 Points ∼43% -57%
64 Bit Single-Core Score
Average Intel Core i5-1135G7
  (1304 - 1428, n=19)
1393 Points ∼100% +4%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
1334 Points ∼96%
Average of class Convertible
  (263 - 1566, n=51, last 2 years)
1179 Points ∼85% -12%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
1155 Points ∼83% -13%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
1059 Points ∼76% -21%
HWBOT x265 Benchmark v2.2 - 4k Preset
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
6.09 fps ∼100%
Average Intel Core i5-1135G7
  (4 - 7.6, n=18)
6.02 fps ∼99% -1%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
5.095 fps ∼84% -16%
Average of class Convertible
  (0.7 - 15.2, n=58, last 2 years)
4.73 fps ∼78% -22%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4.57 fps ∼75% -25%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
2.66 fps ∼44% -56%
LibreOffice - 20 Documents To PDF
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
72.8 s * ∼100% -27%
Average of class Convertible
  (46.9 - 172, n=43, last 2 years)
67.5 s * ∼93% -18%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
67 s * ∼92% -17%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
57.2 s * ∼79%
Average Intel Core i5-1135G7
  (47.8 - 57.6, n=18)
52 s * ∼71% +9%
R Benchmark 2.5 - Overall mean
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U
0.862 sec * ∼100% -27%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
0.781 sec * ∼91% -15%
Average of class Convertible
  (0.504 - 1.759, n=44, last 2 years)
0.752 sec * ∼87% -11%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
0.68 sec * ∼79%
Average Intel Core i5-1135G7
  (0.619 - 0.68, n=18)
0.637 sec * ∼74% +6%

* ... kleiner is beter

Prestaties van het systeem

Het soepele en snelle systeem leverde geen problemen op. Het biedt meer dan genoeg rekenkracht voor kantoor- en internettoepassingen. Dit wordt aangevuld met goede PCMark resultaten. Het RAM geheugen van de 12.3-incher (16 GB, LPDDR4X, on-board) werkt in quad-channel modus. Uitbreiding van het geheugen is niet mogelijk

PCMark 8 Home Score Accelerated v2
3472 punten
PCMark 8 Creative Score Accelerated v2
4157 punten
PCMark 8 Work Score Accelerated v2
2473 punten
PCMark 10 Score
4026 punten
Help
PCMark 10
Digital Content Creation
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 4749, n=16)
4399 Points ∼100% +12%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
3921 Points ∼89%
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
3784 Points ∼86% -3%
Average of class Convertible
  (681 - 6844, n=72, last 2 years)
3364 Points ∼76% -14%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
3315 Points ∼75% -15%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
3313 Points ∼75% -16%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX
3035 Points ∼69% -23%
Productivity
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
6730 Points ∼100% +21%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
6710 Points ∼100% +21%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
6678 Points ∼99% +20%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX
6455 Points ∼96% +16%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6487, n=16)
6218 Points ∼92% +12%
Average of class Convertible
  (1881 - 8653, n=72, last 2 years)
6206 Points ∼92% +12%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
5544 Points ∼82%
Essentials
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9772, n=16)
9300 Points ∼100% +14%
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
8879 Points ∼95% +9%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
8847 Points ∼95% +9%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
8541 Points ∼92% +5%
Average of class Convertible
  (3258 - 10700, n=72, last 2 years)
8451 Points ∼91% +4%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
8149 Points ∼88%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX
7981 Points ∼86% -2%
Score
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4794, n=16)
4540 Points ∼100% +13%
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
4367 Points ∼96% +8%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
4163 Points ∼92% +3%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
4120 Points ∼91% +2%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
4026 Points ∼89%
Average of class Convertible
  (1154 - 5971, n=72, last 2 years)
3997 Points ∼88% -1%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX
3862 Points ∼85% -4%
PCMark 8
Work Score Accelerated v2
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
4900 Points ∼100% +98%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
4639 Points ∼95% +88%
Average of class Convertible
  (2435 - 5366, n=55, last 2 years)
4391 Points ∼90% +78%
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
3440 Points ∼70% +39%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (2473 - 3214, n=6)
2961 Points ∼60% +20%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
2473 Points ∼50%
Home Score Accelerated v2
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3472 - 4463, n=6)
4046 Points ∼100% +17%
Microsoft Surface Pro 7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba KBG40ZNS256G NVMe
3660 Points ∼90% +5%
Average of class Convertible
  (1670 - 5041, n=58, last 2 years)
3616 Points ∼89% +4%
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, Toshiba BG4 KBG40ZPZ256G
3537 Points ∼87% +2%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
3472 Points ∼86%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
3425 Points ∼85% -1%

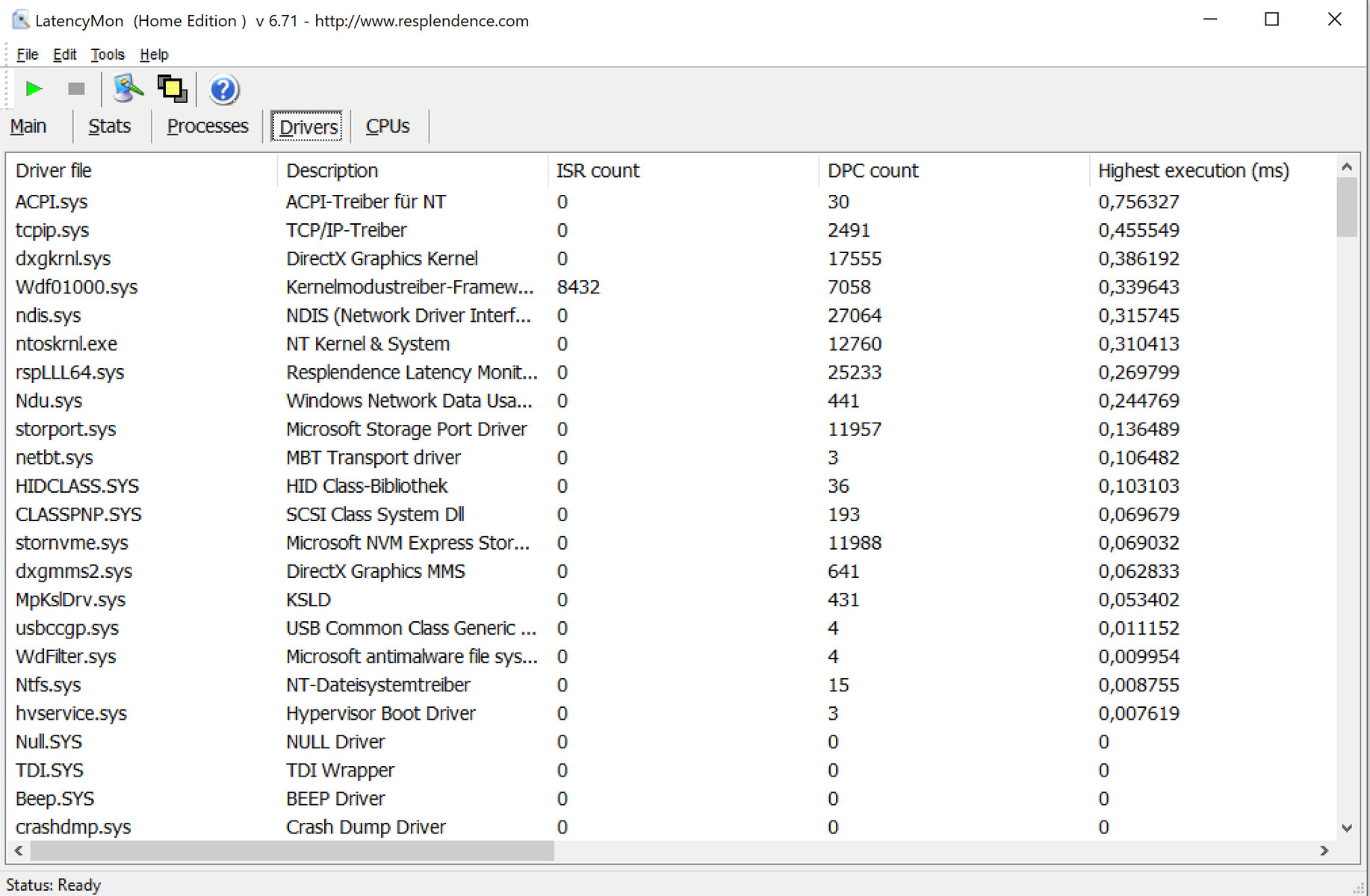

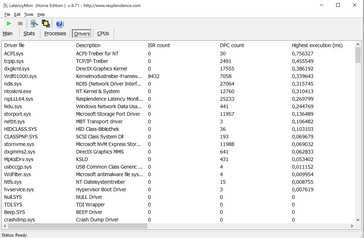

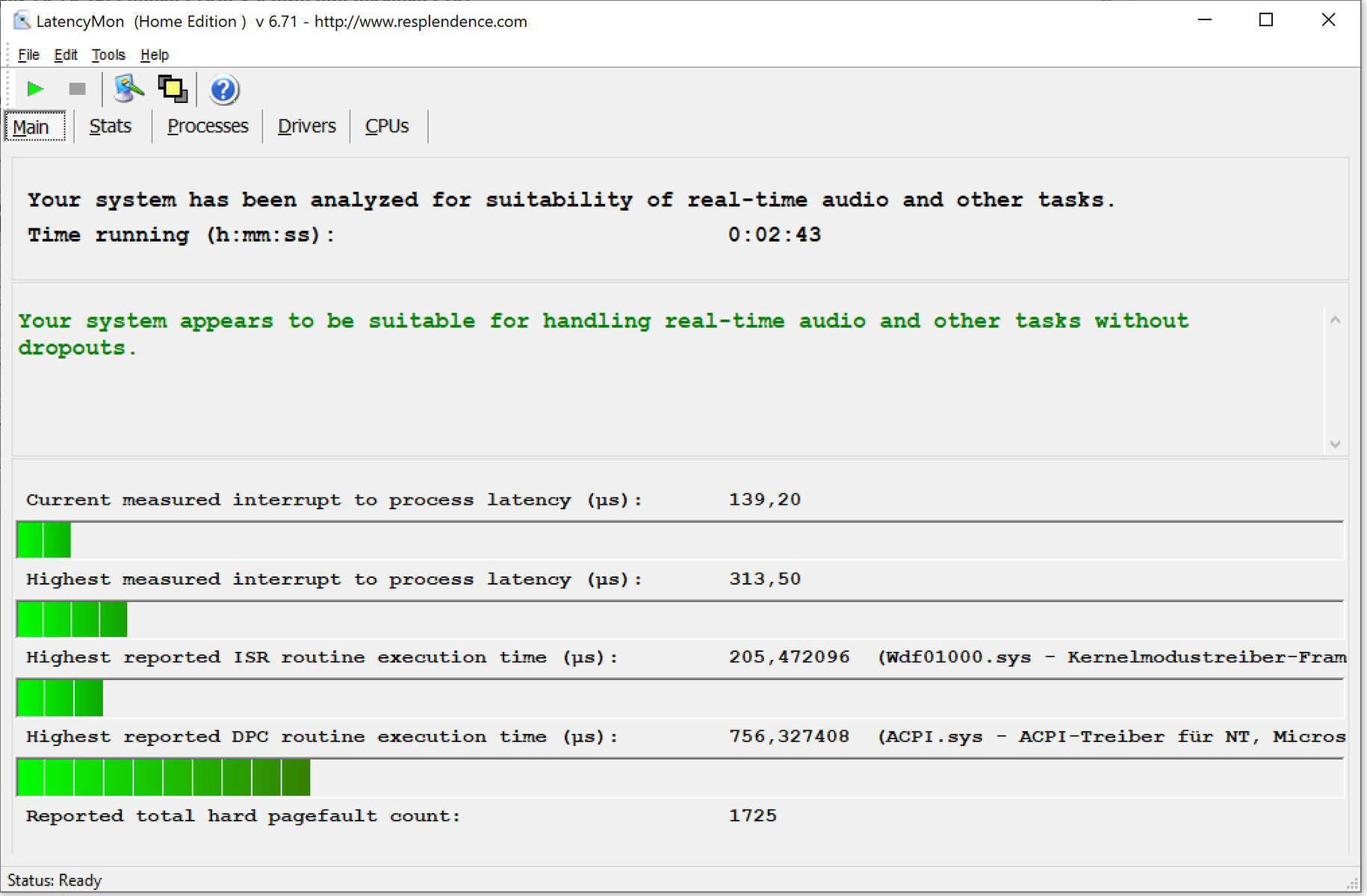

DPC latenties

In onze gestandaardiseerde latency monitor test (web browsen, 4K video afspelen, hoge belasting Prime95), hebben we geen problemen met DPC latencies waargenomen. Het systeem lijkt geschikt te zijn voor real-time video- en audio-editing

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX
5702 μs * ∼100% -1719%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
1736.9 μs * ∼30% -454%
Microsoft Surface Pro 7 Plus
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ
313.5 μs * ∼5%

* ... kleiner is beter

Opslag

Een 256 GB NVMe SSD (M.2-2230) van Samsung dient als systeemschijf, en het levert goede overdrachtssnelheden. Het is echter niet een van de beste SSD-modellen. Het vervangen van de SSD kan gemakkelijk worden gedaan dankzij een klein onderhoudsluikje, maar het aanbod van SSD's in het M.2-2230 formaat is (nog) beperkt. Het luikje wordt magnetisch vastgehouden en kan worden geopend met de meegeleverde SIM-tool of vergelijkbare apparatuur

Het luik...
Het luik...
...herbergt de SSD.
...herbergt de SSD.
Samsung PM991 MZ9LQ256HBJQ
CDM 5/6 Read Seq Q32T1: 2251 MB/s
CDM 5/6 Write Seq Q32T1: 1060 MB/s
CDM 5/6 Read 4K Q32T1: 479.2 MB/s
CDM 5/6 Write 4K Q32T1: 423.5 MB/s
CDM 5 Read Seq: 867.3 MB/s
CDM 5 Write Seq: 954.7 MB/s
CDM 5/6 Read 4K: 42.95 MB/s
CDM 5/6 Write 4K: 165.3 MB/s
Microsoft Surface Pro 7 Plus
Samsung PM991 MZ9LQ256HBJQ
Lenovo Yoga Duet 7 13IML05-82AS000WGE
UMIS RPJTJ256MEE1OWX
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
Microsoft Surface Pro 7
Toshiba KBG40ZNS256G NVMe
Microsoft Surface Pro 7 Core i5-1035G4
Toshiba BG4 KBG40ZPZ256G
Average Samsung PM991 MZ9LQ256HBJQ

CrystalDiskMark 5.2 / 6
12%
25%
29%
16%
0%
Write 4K
165.3
118
-29%
182.7
11%
131.3
-21%
118.5
-28%
165
0%
Read 4K
42.95
52.98
23%
51.42
20%
52.4
22%
54.06
26%
43
0%
Write Seq
954.7
1208
27%
1303
36%
1613
69%
1166
22%
955
0%
Read Seq
867.3
1625
87%
1450
67%
1613
86%
1676
93%
867
0%
Write 4K Q32T1
423.5
431
2%
342.9
-19%
411.6
-3%
330.5
-22%
424
0%
Read 4K Q32T1
479.2
356
-26%
523.3
9%
415.6
-13%
393.1
-18%
479
0%
Write Seq Q32T1
1060
1278
21%
1776
68%
2340.1
121%
1569
48%
1060
0%
Read Seq Q32T1
2251
1949
-13%
2378
6%
1567.5
-30%
2390
6%
2251
0%
Write 4K Q8T8
410.9
Read 4K Q8T8
1032.8
AS SSD
-9%
32%
-31%
-169%
0%
Copy Game MB/s
562.27
730
30%
840.51
49%
990.94
76%
922.99
64%
562
0%
Copy Program MB/s
262.83
532
102%
468.52
78%
454.72
73%
405.97
54%
263
0%
Copy ISO MB/s
1173.67
1074
-8%
1554.66
32%
1159.65
-1%
1176.98
0%
1174
0%
Score Total
2616
1441
-45%
3389
30%
2826
8%
2157
-18%
2616
0%
Score Write
992
550
-45%
1460
47%
927
-7%
475
-52%
992
0%
Score Read
1093
614
-44%
1286
18%
1288
18%
1133
4%
1093
0%
Access Time Write *
0.028
0.035
-25%
0.046
-64%
0.221
-689%
0.697
-2389%
0.028
-0%
Access Time Read *
0.279
0.068
76%
0.069
75%
0.069
75%
0.066
76%
0.279
-0%
4K-64 Write
761.91
377
-51%
1124.74
48%
702.63
-8%
294.65
-61%
762
0%
4K-64 Read
870.01
411
-53%
1021.29
17%
1047.57
20%
923.75
6%
870
0%
4K Write
136.88
107
-22%
161.65
18%
154.08
13%
109.36
-20%
137
0%
4K Read
50.11
47.87
-4%
46.28
-8%
52.34
4%
50.7
1%
50.1
0%
Seq Write
931.11
694
-25%
1731
86%
703.42
-24%
713.9
-23%
931
0%
Seq Read
1725.01
1629
-6%
2185
27%
1880.78
9%
1589.92
-8%
1725
0%
Totaal Gemiddelde (Programma / Instellingen)
2% / -1%
29% / 30%
-1% / -9%
-77% / -102%
0% / 0%

* ... kleiner is beter

Continuous load read: DiskSpd Read Loop, Queue Depth 8

01252503755006257508751000112512501375150016251750187520002125225023751882.42178.572179.952181.082181.842181.842182.722183.342183.522184.572184.812185.062185.482185.652185.892186.72187.092188.142188.352188.382188.382188.822189.242189.612190.082190.272190.452190.682191.542191.712191.732192.172192.552194.062194.652194.672195.092195.292195.312195.722197.612197.812197.832198.022198.652198.862199.492200.542200.752201.381889.532146.342146.642146.642146.962147.062147.172147.272147.692147.92147.92148.112148.222148.322148.322148.432148.432148.532148.532148.532148.742148.742148.852148.952149.062149.062149.062149.162149.162149.272149.272149.272149.272149.482149.482149.482149.582149.692149.692149.892149.892150.12150.12150.12150.12150.312150.312150.312150.522150.522023.272433.742437.422438.512439.142439.142439.562440.192440.462440.822440.882441.442441.442441.442441.442441.442441.652441.922441.922442.072442.072442.132442.282442.762442.972443.122443.182443.542443.812443.962444.022444.022444.172444.172444.172444.582444.582444.652444.792444.862445.072445.212445.282445.72445.72446.052446.052446.052448.842450.1Tooltip
Microsoft Surface Pro 7 Plus Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZ9LQ256HBJQ: Ø2184 (1882.4-2201.38)
Lenovo Yoga Duet 7 13IML05-82AS000WGE UHD Graphics 620, i5-10210U, UMIS RPJTJ256MEE1OWX: Ø2144 (1889.53-2150.52)
Dell Latitude 12 7210 2-in-1 UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G: Ø2435 (2023.27-2450.1)

Grafische kaart

Intel's geïntegreerde IrisXe Graphics G7 80EUs GPU is verantwoordelijk voor de grafische uitvoer. Deze ondersteunt DirectX 12 en bereikt een operationele kloksnelheid van maximaal 1.300 MHz. De Witcher 3 test toont aan dat de Tiger Lake GPU ongeveer zeven minuten op volle snelheid kan werken. Daarna eist de passieve koeling zijn tol.

De 3DMark resultaten behoren tot de beste waarden die we tot nu toe hebben vastgesteld voor de hier geïnstalleerde GPU. Vergeleken met de Ice Lake Surface Pro 7 modellen is er een aanzienlijke toename in grafische prestaties

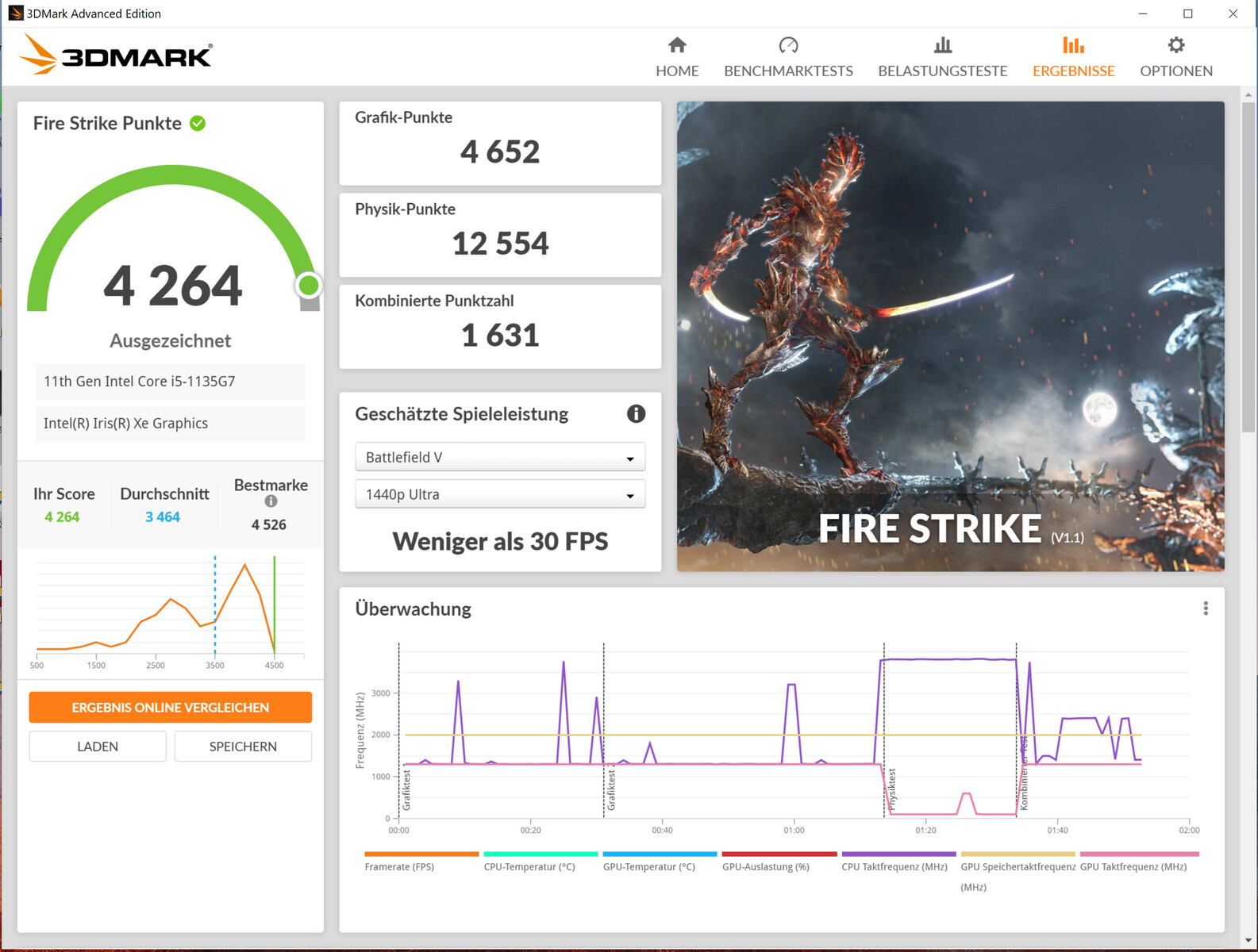

Fire Strike (ingeplugd)
Fire Strike (ingeplugd)
Fire Strike (batterijvoeding)
Fire Strike (batterijvoeding)

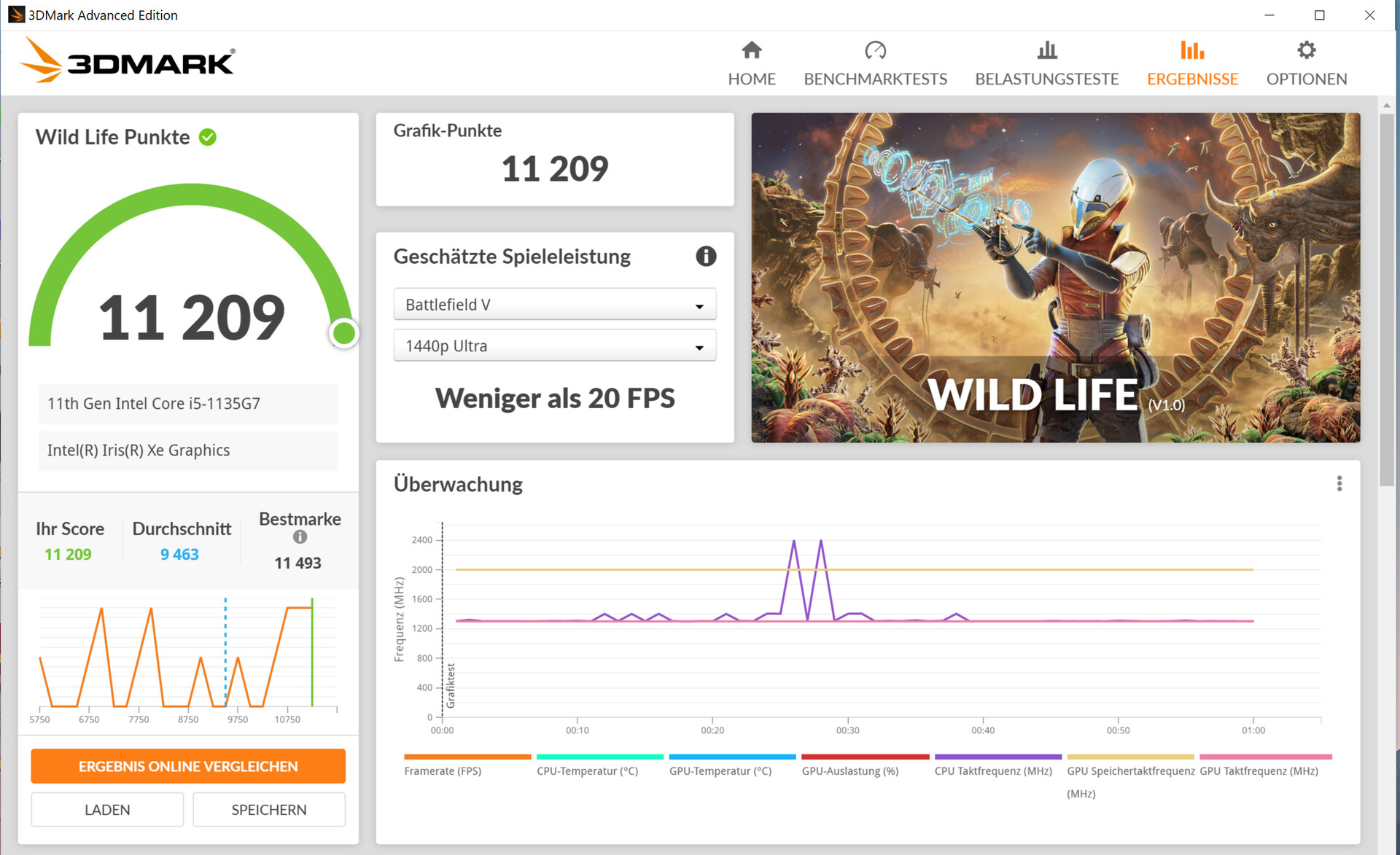

Wild Life (ingeplugd)
Wild Life (ingeplugd)
3DMark 11 Performance
6343 punten
3DMark Ice Storm Standard Score
81444 punten
3DMark Cloud Gate Standard Score
17777 punten
3DMark Fire Strike Score
4264 punten
3DMark Time Spy Score
1537 punten
Help
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5926 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (4013 - 6117, n=14)
5288 Points ∼89% -11%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
4297 Points ∼73% -27%
Average of class Convertible
  (429 - 17421, n=75, last 2 years)
3673 Points ∼62% -38%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
3228 Points ∼54% -46%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
1988 Points ∼34% -66%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel UHD Graphics 620, Intel Core i5-10210U
1657 Points ∼28% -72%
3DMark
2560x1440 Time Spy Graphics
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1376 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (743 - 1384, n=16)
1117 Points ∼81% -19%
Average of class Convertible
  (91 - 5126, n=53, last 2 years)
871 Points ∼63% -37%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
708 Points ∼51% -49%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
619 Points ∼45% -55%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
441 Points ∼32% -68%
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4652 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (2087 - 4846, n=16)
3570 Points ∼77% -23%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3026 Points ∼65% -35%
Average of class Convertible
  (311 - 13158, n=72, last 2 years)
2616 Points ∼56% -44%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
1379 Points ∼30% -70%
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
25875 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (13867 - 30894, n=12)
20834 Points ∼81% -19%
Microsoft Surface Pro 7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
17872 Points ∼69% -31%
Average of class Convertible
  (2714 - 38419, n=62, last 2 years)
15652 Points ∼60% -40%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
10937 Points ∼42% -58%
GFXBench
Aztec Ruins High Tier Onscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
32.4 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

32.4 fps ∼100% 0%
Average of class Convertible
  (4.5 - 39.1, n=9, last 2 years)
22.8 fps ∼70% -30%
2560x1440 Aztec Ruins High Tier Offscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
47.5 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

47.5 fps ∼100% 0%
Average of class Convertible
  (2.7 - 63.8, n=9, last 2 years)
30.4 fps ∼64% -36%
Aztec Ruins Normal Tier Onscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
50.5 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

50.5 fps ∼100% 0%
Average of class Convertible
  (7.4 - 57.1, n=9, last 2 years)
34.6 fps ∼69% -31%
1920x1080 Aztec Ruins Normal Tier Offscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
120.1 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

120 fps ∼100% 0%
Average of class Convertible
  (7.9 - 158, n=9, last 2 years)
73.7 fps ∼61% -39%
off screen Car Chase Offscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
91.4 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

91.4 fps ∼100% 0%
Average of class Convertible
  (7.3 - 110, n=10, last 2 years)
56.4 fps ∼62% -38%
on screen Car Chase Onscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
40.9 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

40.9 fps ∼100% 0%
Average of class Convertible
  (7 - 55.9, n=9, last 2 years)
28 fps ∼68% -32%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16
Average Intel Iris Xe Graphics G7 80EUs

257 fps ∼100% 0%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
256.9 fps ∼100%
Average of class Convertible
  (37 - 502, n=9, last 2 years)
234 fps ∼91% -9%
T-Rex HD Onscreen C24Z16
Average Intel Iris Xe Graphics G7 80EUs

158 fps ∼100% 0%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
157.5 fps ∼100%
Average of class Convertible
  (33 - 243, n=9, last 2 years)
104 fps ∼66% -34%
GFXBench 3.0
off screen Manhattan Offscreen OGL
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
170.4 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

170 fps ∼100% 0%
Average of class Convertible
  (20 - 223, n=9, last 2 years)
111 fps ∼65% -35%
on screen Manhattan Onscreen OGL
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
86.6 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

86.6 fps ∼100% 0%
Average of class Convertible
  (19 - 130, n=9, last 2 years)
52.7 fps ∼61% -39%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen
Average Intel Iris Xe Graphics G7 80EUs

109 fps ∼100% 0%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
108.6 fps ∼100%
Average of class Convertible
  (12 - 165, n=9, last 2 years)
78 fps ∼72% -28%
on screen Manhattan ES 3.1 Onscreen
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
46.5 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

46.5 fps ∼100% 0%
Average of class Convertible
  (11 - 77.4, n=9, last 2 years)
36.8 fps ∼79% -21%
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
63.2 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

63.2 fps ∼100% 0%
Average of class Convertible
  (29.5 - 101, n=4, last 2 years)
57.5 fps ∼91% -9%
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
57.3 (13min - 143.6max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

57.3 fps ∼100% 0%
Average of class Convertible
  (20.1 - 65, n=4, last 2 years)
44 fps ∼77% -23%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
43.8 fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

43.8 fps ∼100% 0%
Average of class Convertible
  (25.1 - 70.2, n=4, last 2 years)
42.4 fps ∼97% -3%
Unigine Heaven 4.0
Extreme Preset OpenGL
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
24.5 (7min - 55.2max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

24.5 fps ∼100% 0%
Average of class Convertible
  (8.8 - 34.1, n=4, last 2 years)
19.8 fps ∼81% -19%
Extreme Preset DX11
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
26 (7.1min - 57.3max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

26 fps ∼100% 0%
Average of class Convertible
  (8.9 - 33.7, n=7, last 2 years)
16.8 fps ∼65% -35%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
11.2 fps ∼43% -57%
Unigine Superposition
1920x1080 1080p High
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1907 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs

1907 Points ∼100% 0%
Average of class Convertible
  (last 2 years)
1907 Points ∼100% 0%
1280x720 720p Low
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
6057 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs

6057 Points ∼100% 0%
Average of class Convertible
  (last 2 years)
6057 Points ∼100% 0%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
17.4 (9.4min - 33.1max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

17.4 fps ∼100% 0%
Average of class Convertible
  (7 - 30.8, n=5, last 2 years)
16.5 fps ∼95% -5%
1920x1080 Extreme HD Preset OpenGL AA:x8
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
18.8 (10.8min - 36.3max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

18.8 fps ∼100% 0%
Average of class Convertible
  (5.7 - 27.2, n=4, last 2 years)
15.3 fps ∼81% -19%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
Average Intel Iris Xe Graphics G7 80EUs
  (993 - 1009, n=2)
1001 Points ∼100% +1%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
993 Points ∼99%
Average of class Convertible
  (303 - 1432, n=11, last 2 years)
808 Points ∼81% -19%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
615 Points ∼61% -38%
1024x600 Normal, Mandel Scalar
Average Intel Iris Xe Graphics G7 80EUs
  (738 - 743, n=2)
741 Points ∼100% 0%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
738 Points ∼100%
Average of class Convertible
  (222 - 1176, n=11, last 2 years)
691 Points ∼93% -6%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
480 Points ∼65% -35%
1024x600 Normal, Mandel Vector
Average Intel Iris Xe Graphics G7 80EUs
  (582 - 589, n=2)
586 Points ∼100% +1%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
582 Points ∼99%
Average of class Convertible
  (186 - 1213, n=11, last 2 years)
535 Points ∼91% -8%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
287 Points ∼49% -51%
1024x600 Normal, Fluid 2DTexArr
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
309 Points ∼100%
Average of class Convertible
  (85 - 549, n=11, last 2 years)
256 Points ∼83% -17%
Average Intel Iris Xe Graphics G7 80EUs
  (146 - 309, n=2)
228 Points ∼74% -26%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
167 Points ∼54% -46%
1024x600 Normal, Fluid 3DTex
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
328 Points ∼100%
Average of class Convertible
  (86 - 559, n=11, last 2 years)
297 Points ∼91% -9%
Average Intel Iris Xe Graphics G7 80EUs
  (148 - 328, n=2)
238 Points ∼73% -27%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
235 Points ∼72% -28%
1024x600 Normal, Score
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2950 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (2634 - 2950, n=2)
2792 Points ∼95% -5%
Average of class Convertible
  (881 - 4719, n=11, last 2 years)
2587 Points ∼88% -12%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
1784 Points ∼60% -40%
LuxMark v2.0 64Bit
Room GPUs-only
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
692 Samples/s ∼100%
Average of class Convertible
  (181 - 968, n=8, last 2 years)
525 Samples/s ∼76% -24%
Average Intel Iris Xe Graphics G7 80EUs
  (286 - 692, n=2)
489 Samples/s ∼71% -29%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
384 Samples/s ∼55% -45%
Sala GPUs-only
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2194 Samples/s ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (1176 - 2194, n=2)
1685 Samples/s ∼77% -23%
Average of class Convertible
  (506 - 2194, n=8, last 2 years)
1284 Samples/s ∼59% -41%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
875 Samples/s ∼40% -60%
Geekbench 5.3
OpenCL Score 5.3
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
15616 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (10068 - 15930, n=15)
12957 Points ∼83% -17%
Average of class Convertible
  (3635 - 36507, n=29, last 2 years)
12441 Points ∼80% -20%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
5992 Points ∼38% -62%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel UHD Graphics 620, Intel Core i5-10210U
4146 Points ∼27% -73%
Vulkan Score 5.3
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
14595 Points ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (9897 - 16313, n=15)
13049 Points ∼89% -11%
Average of class Convertible
  (4448 - 19205, n=29, last 2 years)
11565 Points ∼79% -21%
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
5707 Points ∼39% -61%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel UHD Graphics 620, Intel Core i5-10210U
4448 Points ∼30% -70%

Gaming prestaties

De Surface Pro 7 Plus is geen gaming-apparaat. Desalniettemin: De geïnstalleerde CPU-GPU combinatie is over het algemeen in staat om veel van de games in onze database soepel op het scherm te brengen - bij lage resoluties en lage kwaliteitsinstellingen.

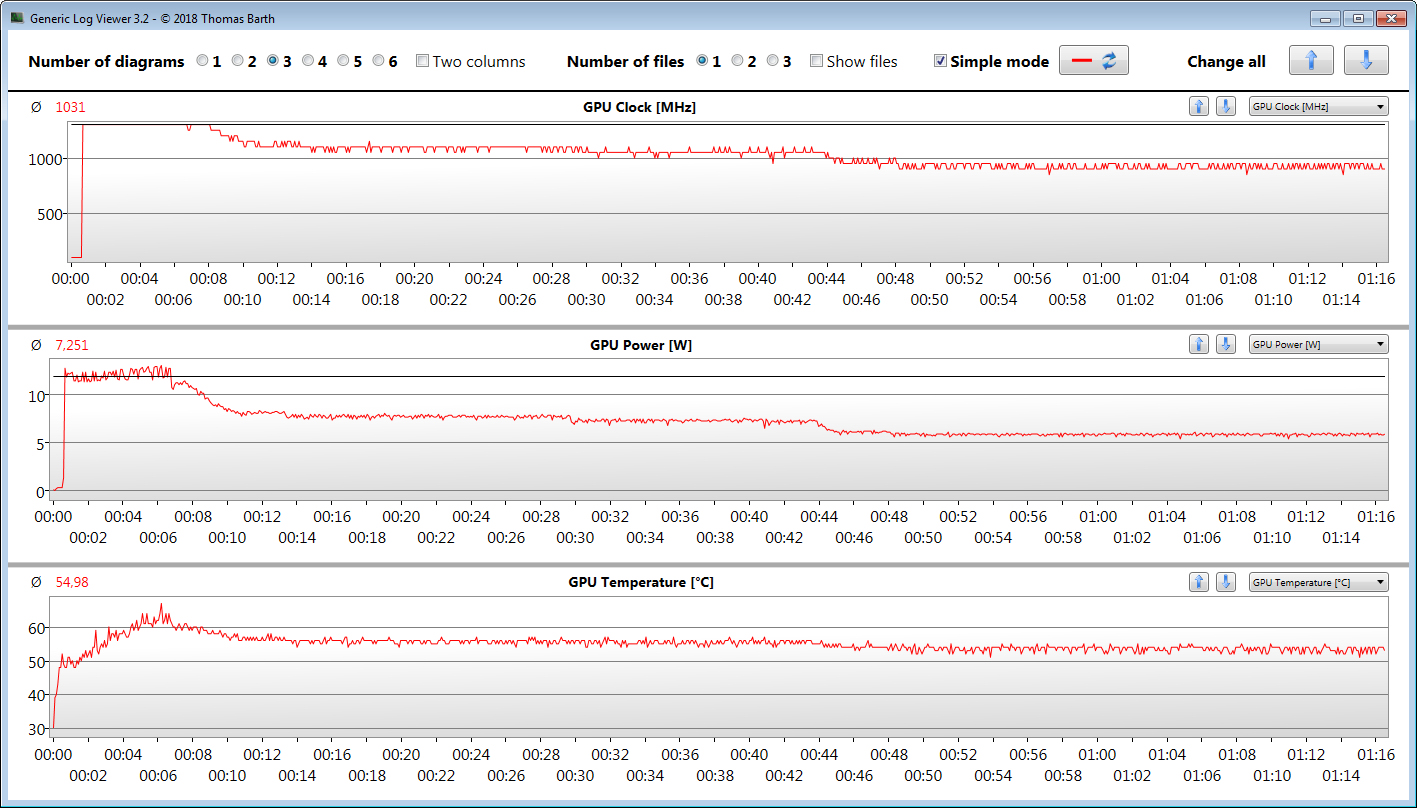

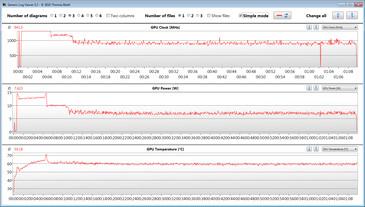

Aangezien de CPU en GPU na een paar minuten worden gesmoord, dalen de framerates als gevolg daarvan. Daarom raden we titels aan die geen overdreven hoge hardware-eisen stellen en zelfs bij lagere kloksnelheden nog soepel draaien.

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
81.9 (62min - 93max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (38.8 - 92.2, n=10)
64.5 fps ∼79% -21%
Average of class Convertible
  (4.69 - 168, n=47, last 2 years)
50.3 fps ∼61% -39%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
39.4 fps ∼48% -52%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, Intel UHD Graphics 620
8.8 fps ∼11% -89%
Dota 2 Reborn - 1366x768 med (1/3)
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
60.5 (36min) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (36.7 - 70.1, n=16)
53.8 fps ∼89% -11%
Average of class Convertible
  (11.9 - 120, n=56, last 2 years)
49.2 fps ∼81% -19%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, Intel UHD Graphics 620
46.9 (40.3min) fps ∼78% -22%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, Intel UHD Graphics 620
25.8 (22.4min) fps ∼43% -57%
Far Cry 5 - 1280x720 Low Preset AA:T
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
54 (43min - 66max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (27 - 54, n=7)
37.9 fps ∼70% -30%
Average of class Convertible
  (6 - 78, n=18, last 2 years)
35.6 fps ∼66% -34%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, Intel UHD Graphics 620
15 (13min - 18max) fps ∼28% -72%
Lenovo Yoga Duet 7 13IML05-82AS000WGE
Intel Core i5-10210U, Intel UHD Graphics 620
6 fps ∼11% -89%
Shadow of the Tomb Raider - 1280x720 Lowest Preset
Average Intel Iris Xe Graphics G7 80EUs
  (37 - 44.4, n=2)
40.7 fps ∼100% +10%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37 fps ∼91%
Average of class Convertible
  (13 - 72, n=16, last 2 years)
34.8 fps ∼86% -6%
Microsoft Surface Pro 7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
33 fps ∼81% -11%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
18 fps ∼44% -51%
F1 2020 - 1280x720 Ultra Low Preset
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
76.6 (65min - 89max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs

76.6 fps ∼100% 0%
Average of class Convertible
  (49 - 76.6, n=6, last 2 years)
