Kort testrapport Lenovo ThinkPad P1 (Xeon E-2176M, Quadro P2000 Max-Q) Workstation

Steve Schardein, 👁 Allen Ngo (vertaald door Siemon Boes), 19-10-2018

Extreem... professioneel? Vandaag nemen we het workstation-broertje van de bejubelde ThinkPad X1 Extreme onder de loep. Onze topconfiguratie van meer dan 4000 euro beschikt over een Xeon E-2176M CPU, Quadro P2000 Max-Q GPU, 2 TB NVMe-SSD en 32 GB RAM. Hoe brengt de laptop het ervan af op onze onderzoekstafel?

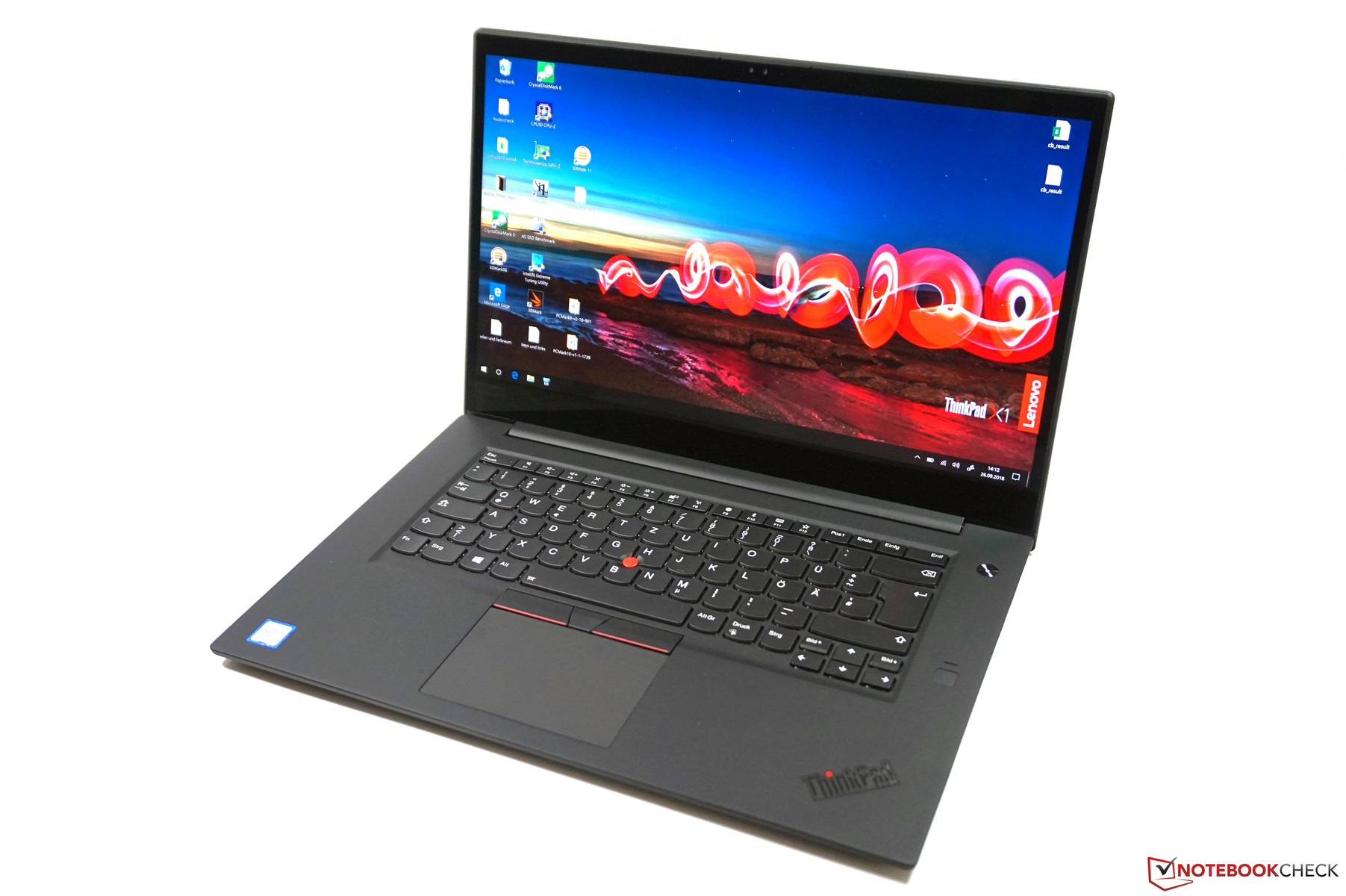

Lenovo ThinkPad P1-20MD002LUS (ThinkPad P Serie)
Processor
Intel Xeon E-2176M
Grafische kaart
NVIDIA Quadro P2000 Max-Q - 4096 MB, Core: 1215 - 1468 MHz, Geheugen: 1502 MHz, GDDR5, 24.21.13.9921, yes
Geheugen
32768 MB
, DDR4-2666
Beeldscherm
15.6 inch 16:9, 3840 x 2160 pixel 282 PPI, 10-point multitouch, B156ZAN03.2, IPS, glimmend: ja
Moederbord
Intel CM246
Opslag
Samsung SSD PM981 MZVLB2T0HMLB, 2048 GB
Geluidskaart
Realtek ALC285 @ Intel Kaby Lake-U/Y PCH - High Definition Audio Controller

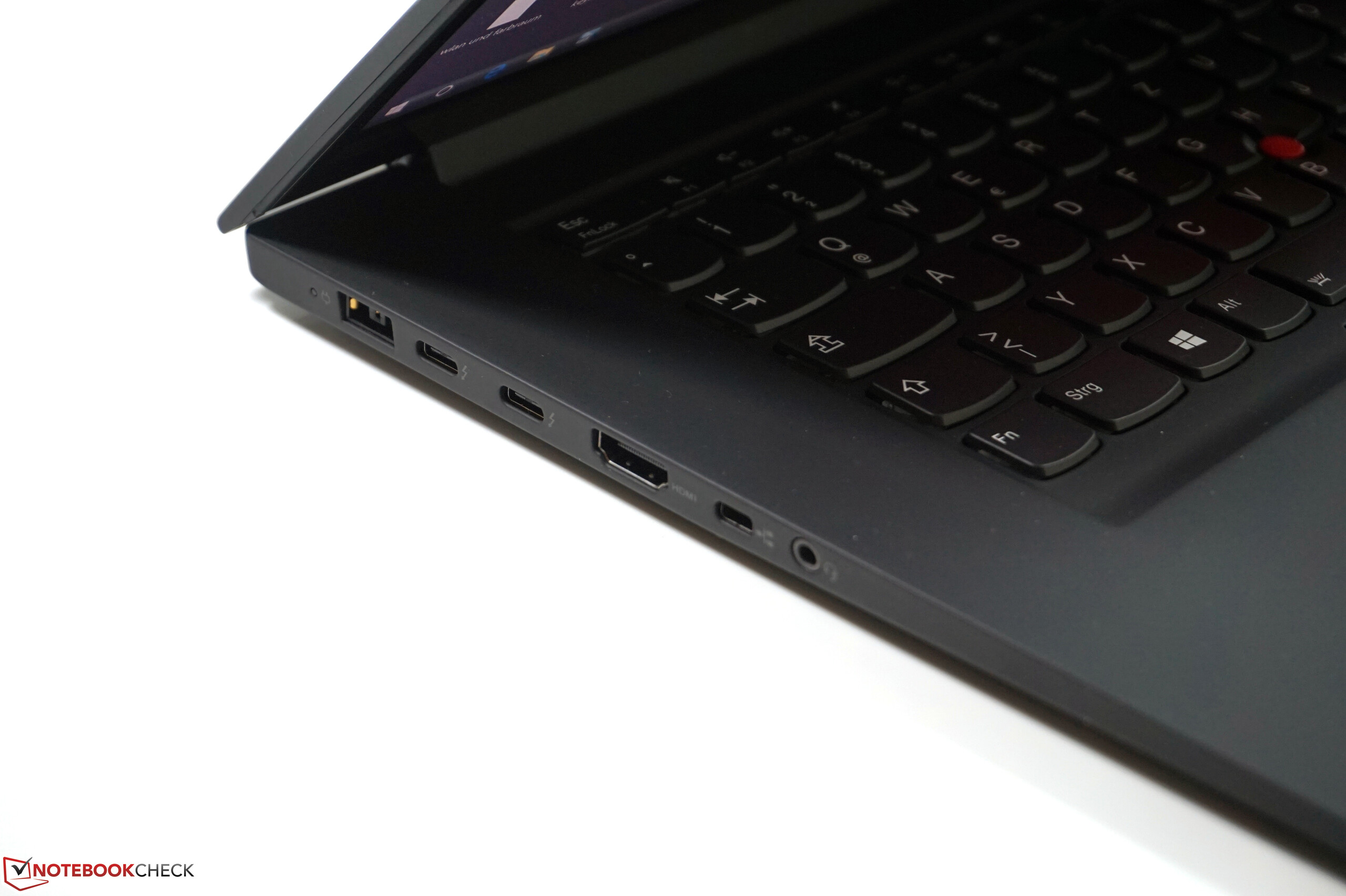

Verbindingen
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5 mm combo audio, Card Reader: SD-lezer, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 18.7 x 361.8 x 245.7
Batterij
80 Wh
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p + IR-webcam
Primary Camera: 1 MPix
Bijkomende functionaliteiten
Luidsprekers: 2x2 Watt Stereo, onderzijde, Toetsenbord: Precision, Toetsenbordverlichting: ja, 36 Maanden Garantie
Gewicht

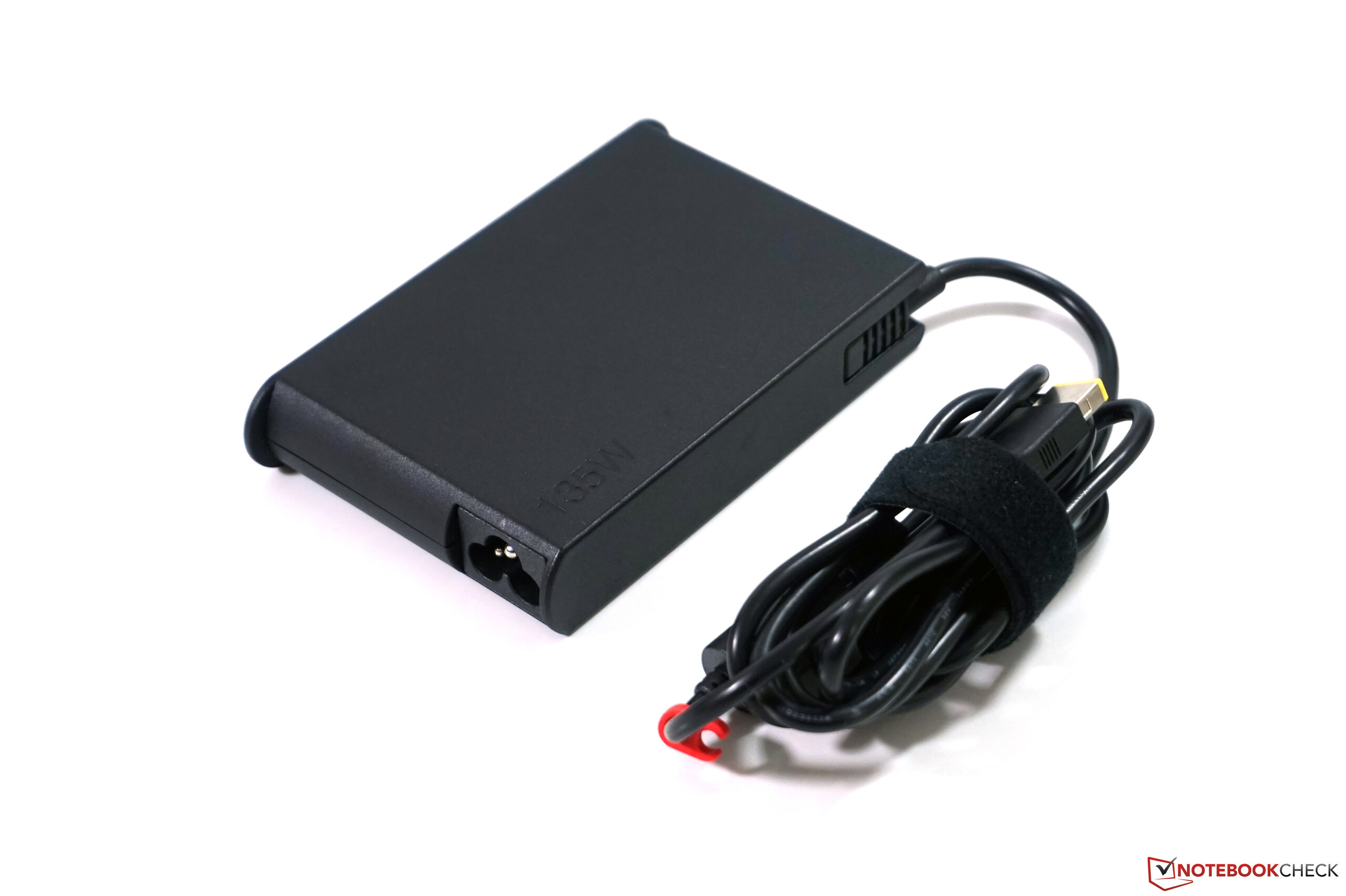

1.84 kg, Voeding: 450 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
  (Toshiba Exceria Pro M501)
191.2 MB/s ∼100% +10%
Lenovo ThinkPad X1 Extreme-20MF000XGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189 MB/s ∼99% +9%
Lenovo ThinkPad P1-20MD002LUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
173.6 MB/s ∼91%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.23 MB/s ∼87% -4%
HP EliteBook 1050 G1-4QY20EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
152.1 MB/s ∼80% -12%
Average of class Workstation
  (17.2 - 213, n=47)
131 MB/s ∼69% -25%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad X1 Extreme-20MF000XGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
241.7 MB/s ∼100% +5%
Lenovo ThinkPad P1-20MD002LUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
230.5 MB/s ∼95%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
  (Toshiba Exceria Pro M501)
223.9 MB/s ∼93% -3%
HP EliteBook 1050 G1-4QY20EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
210 MB/s ∼87% -9%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
190.7 MB/s ∼79% -17%
Average of class Workstation
  (18.4 - 255, n=47)
168 MB/s ∼70% -27%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Broadcom 802.11ac
817 (min: 664, max: 835) MBit/s ∼100% +22%
Lenovo ThinkPad P1-20MD002LUS
Intel Wireless-AC 9560
667 MBit/s ∼82%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
663 MBit/s ∼81% -1%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Dual Band Wireless-AC 8265
633 MBit/s ∼77% -5%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Wireless-AC 9560
627 (min: 319, max: 666) MBit/s ∼77% -6%
Average of class Workstation
  (292 - 705, n=32)
603 MBit/s ∼74% -10%
HP EliteBook 1050 G1-4QY20EA
Intel Wireless-AC 9560
362 MBit/s ∼44% -46%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 1050 G1-4QY20EA
Intel Wireless-AC 9560
649 MBit/s ∼100% +1%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
648 MBit/s ∼100% 0%
Lenovo ThinkPad P1-20MD002LUS
Intel Wireless-AC 9560
645 MBit/s ∼99%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Wireless-AC 9560
628 (min: 593, max: 651) MBit/s ∼97% -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Broadcom 802.11ac
602 (min: 543, max: 628) MBit/s ∼93% -7%
Average of class Workstation
  (158 - 690, n=32)
524 MBit/s ∼81% -19%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼79% -21%
366.3
cd/m²
386.6
cd/m²
358.2
cd/m²
407.2
cd/m²
397.6
cd/m²
397.5
cd/m²
412.4
cd/m²
421.7
cd/m²
414.4
cd/m²
Helderheidsverdeling
X-Rite i1Pro Basic 2
Maximum: 421.7 cd/m² Gemiddelde: 395.8 cd/m² Minimum: 4.1 cd/m²
Helderheidsverdeling: 85 %
Helderheid in Batterij-modus: 397.6 cd/m²
Contrast: 1590:1 (Zwart: 0.25 cd/m²)
ΔE Color 4.95 | 0.4-29.43 Ø6.3, calibrated: 4.22
ΔE Greyscale 5.1 | 0.64-98 Ø6.5
100% sRGB (Argyll 3D) 87.6% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.234
Lenovo ThinkPad P1-20MD002LUS
B156ZAN03.2, IPS, 15.6, 3840x2160
Lenovo ThinkPad X1 Extreme-20MF000XGE
B156ZAN03.2, IPS, 15.6, 3840x2160
Dell Precision 5530 Xeon E-2176M
Sharp SHP148D / LQ156D1, IGZO, 15.6, 3840x2160
HP EliteBook 1050 G1-4QY20EA
AUO30EB, IPS LED, 15.6, 3840x2160
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
APPA040, IPS, 15.4, 2880x1800
Response Times
-8%
3%
3%
11%
Response Time Grey 50% / Grey 80% *
55.6 (38, 37.6)
61.6 (30.8, 30.8)
-11%
48 (24.4, 23.6)
14%
56 (26, 30)
-1%
43.2 (20.4, 22.8)
22%
Response Time Black / White *
30.8 (16.4, 14.4)
32 (15.6, 16.4)
-4%
33.6 (19.6, 14)
-9%
29 (14, 15)
6%
31.2 (16.4, 14.8)
-1%
PWM Frequency
1000
117000 (75, 150)
Screen
8%
2%
0%
27%
Brightness middle
397.6
396
0%
451.7
14%
440
11%
520
31%
Brightness
396
380
-4%
440
11%
389
-2%
492
24%
Brightness Distribution
85
90
6%
90
6%
83
-2%
88
4%
Black Level *
0.25
0.28
-12%
0.4
-60%
0.34
-36%
0.39
-56%
Contrast
1590
1414
-11%
1129
-29%
1294
-19%
1333
-16%
Colorchecker DeltaE2000 *
4.95
4
19%
3.11
37%
5.04
-2%
1.2
76%
Colorchecker DeltaE2000 max. *
10.23
7.6
26%
8.62
16%
6.99
32%
2.3
78%
Colorchecker DeltaE2000 calibrated *
4.22
0.9
79%
3.07
27%
2.04
52%
Greyscale DeltaE2000 *
5.1
6.1
-20%
3.7
27%
4.98
2%
1.3
75%
Gamma
2.234 98%
2.25 98%
2.11 104%
2.48 89%
2.18 101%
CCT
7543 86%
7786 83%
6492 100%
7777 84%
6738 96%
Color Space (Percent of AdobeRGB 1998)
87.6
88.5
1%
69
-21%
61
-30%
Color Space (Percent of sRGB)
100
100
0%
98
-2%
94
-6%
Totaal Gemiddelde (Programma / Instellingen)
0% / 5%
3% / 2%
2% / 0%
19% / 24%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

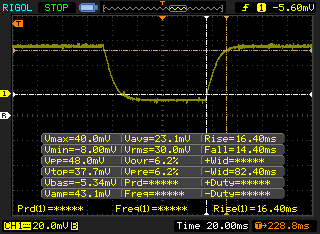

       Responstijd Zwart naar Wit
30.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16.4 ms stijging
↘ 14.4 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 78 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.6 ms) van alle geteste toestellen.

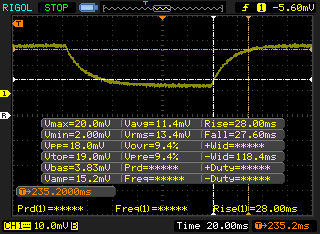

       Responstijd 50% Grijs naar 80% Grijs
55.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 38 ms stijging
↘ 37.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 91 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (41 ms) van alle geteste toestellen.

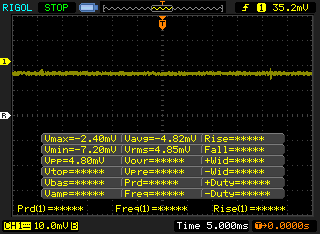

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8773 (minimum: 43 - maximum: 142900) Hz waargenomen.

CPU-Z CPU
CPU-Z CPU

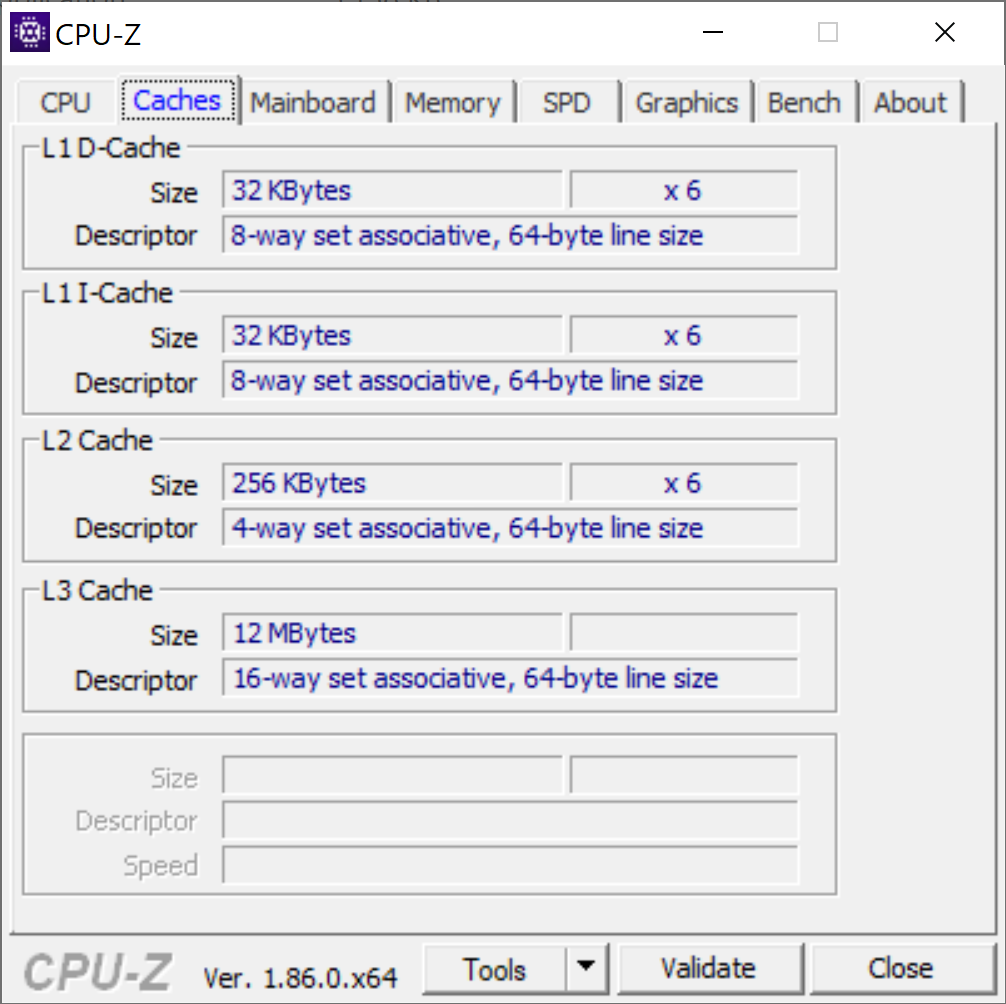

CPU-Z Caches
CPU-Z Caches

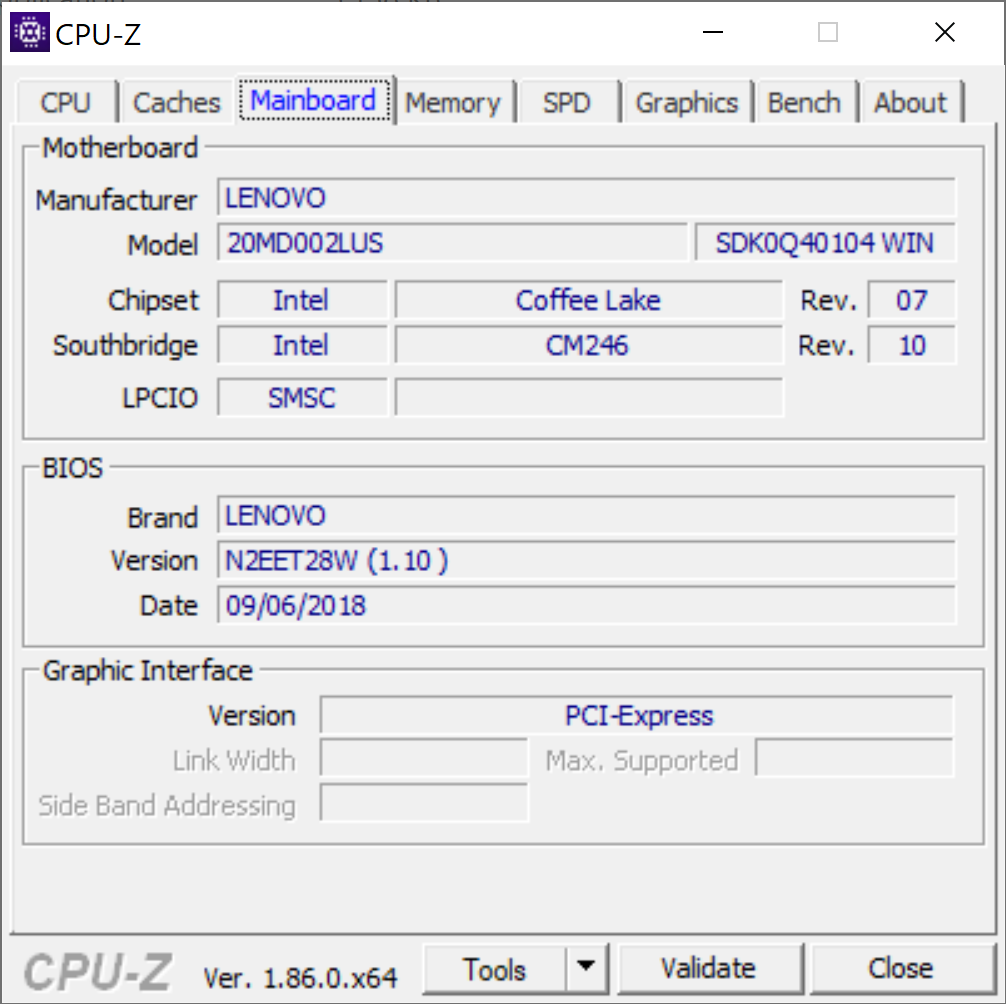

CPU-Z Mainboard
CPU-Z Mainboard

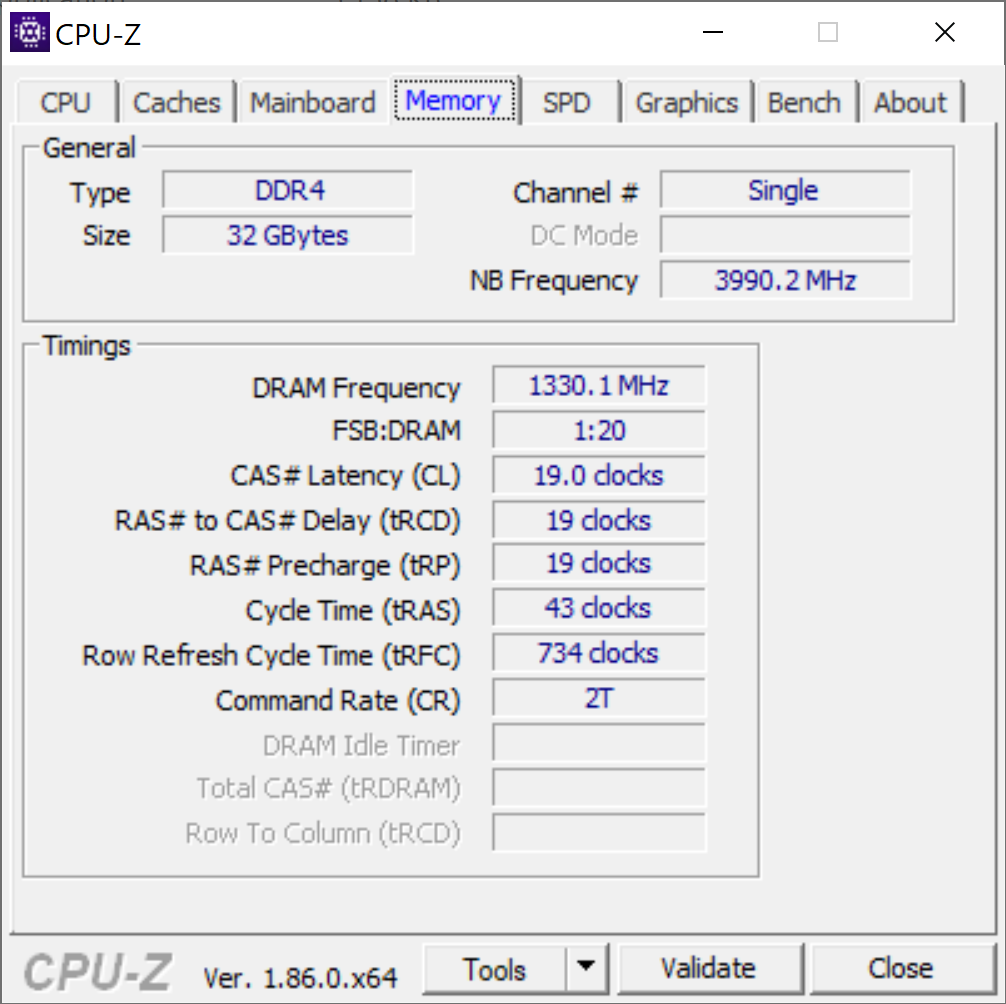

CPU-Z Memory
CPU-Z Memory

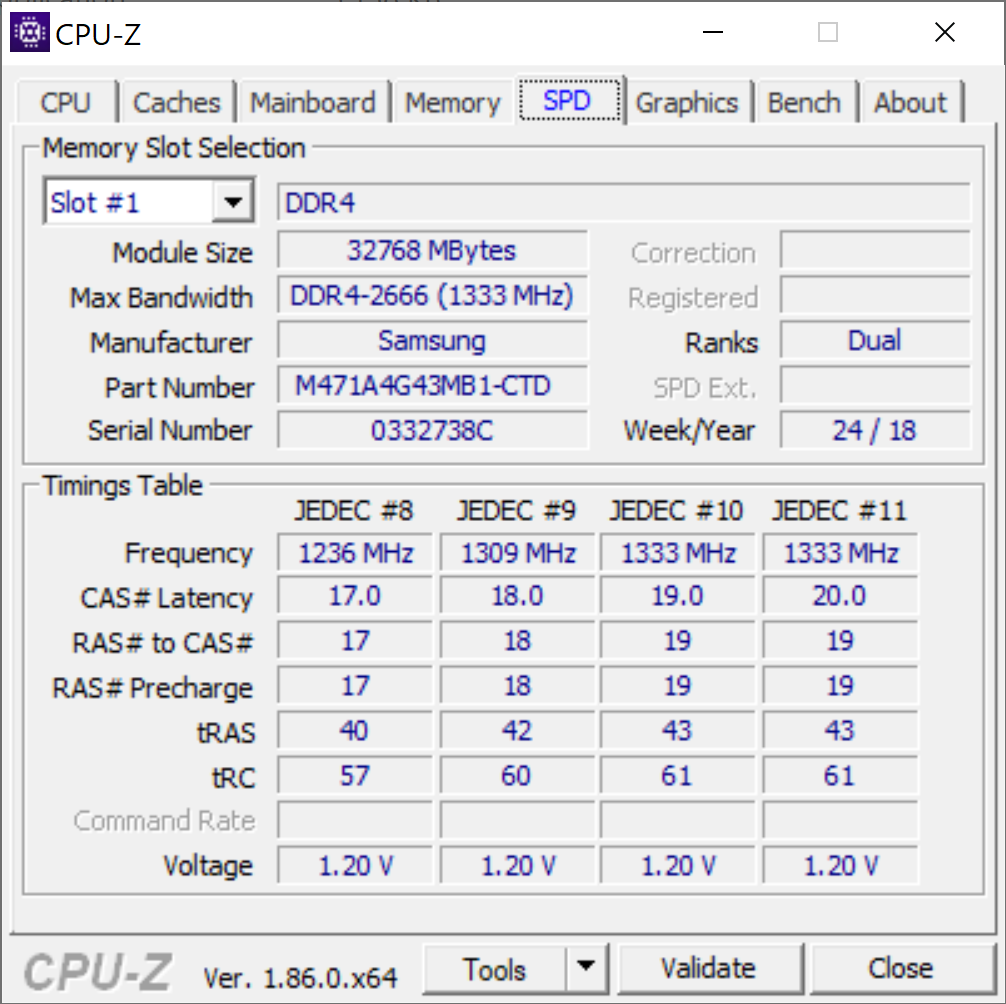

CPU-Z RAM SPD
CPU-Z RAM SPD

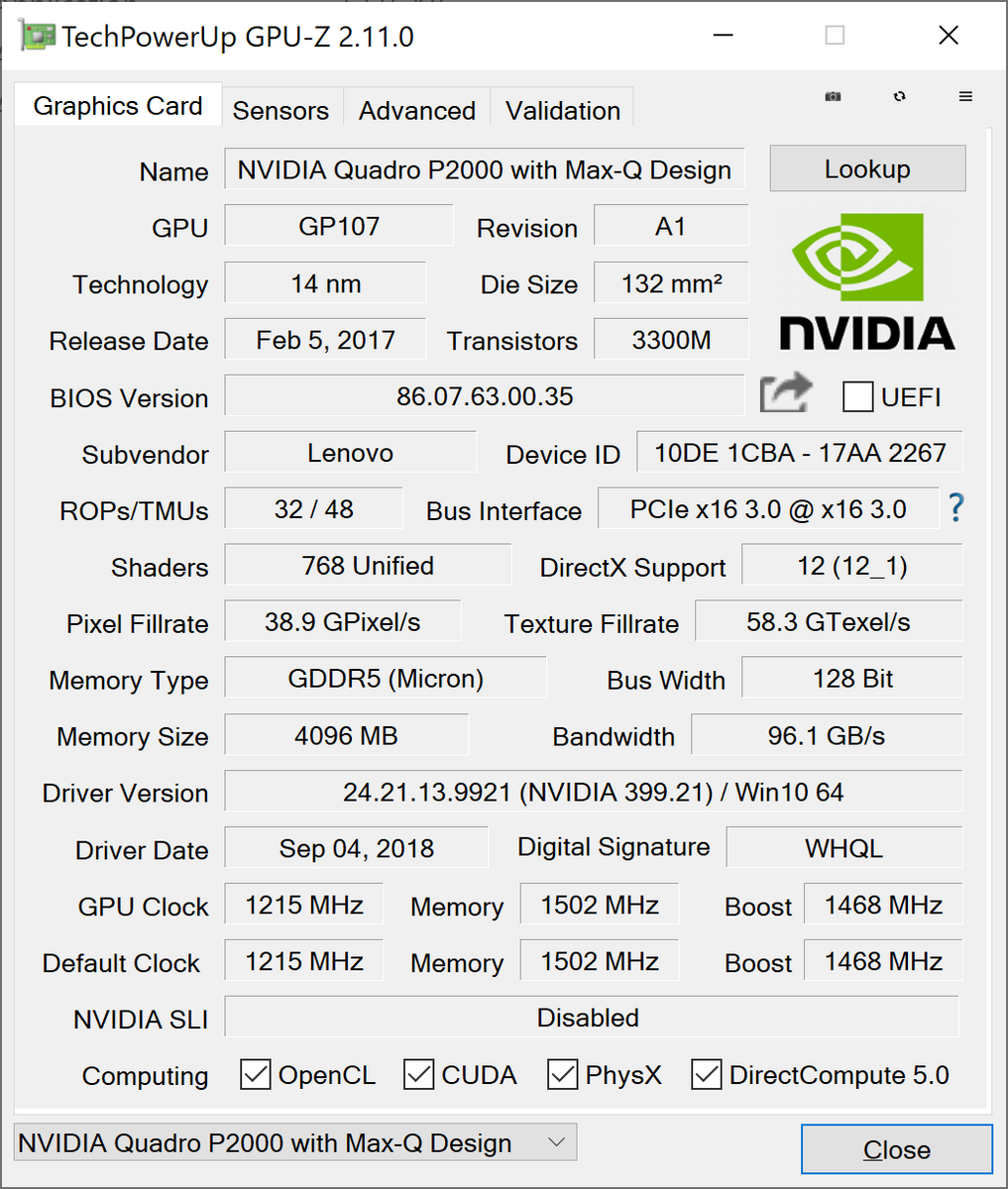

GPU-Z
GPU-Z

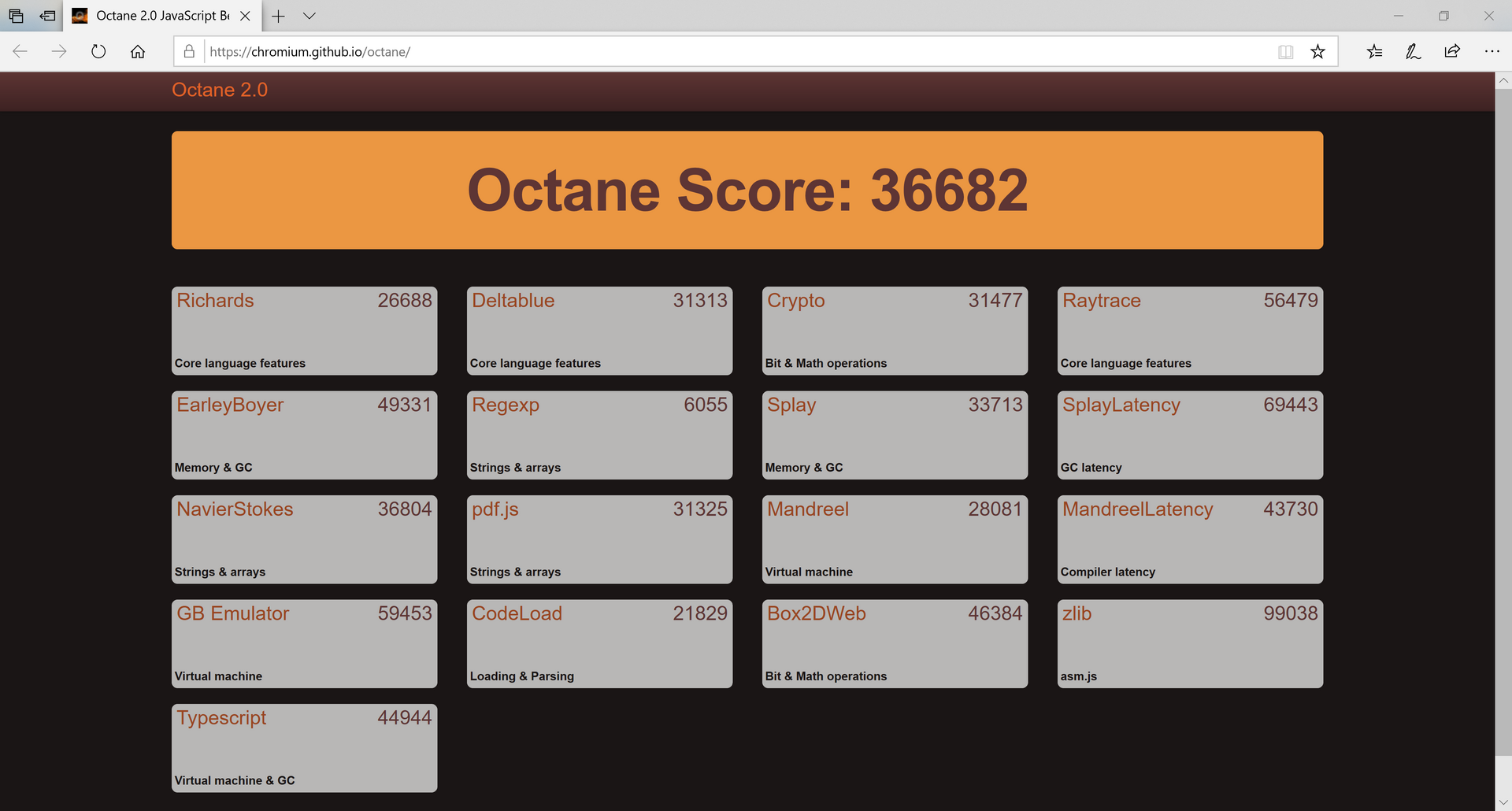

Octane v2
Octane v2

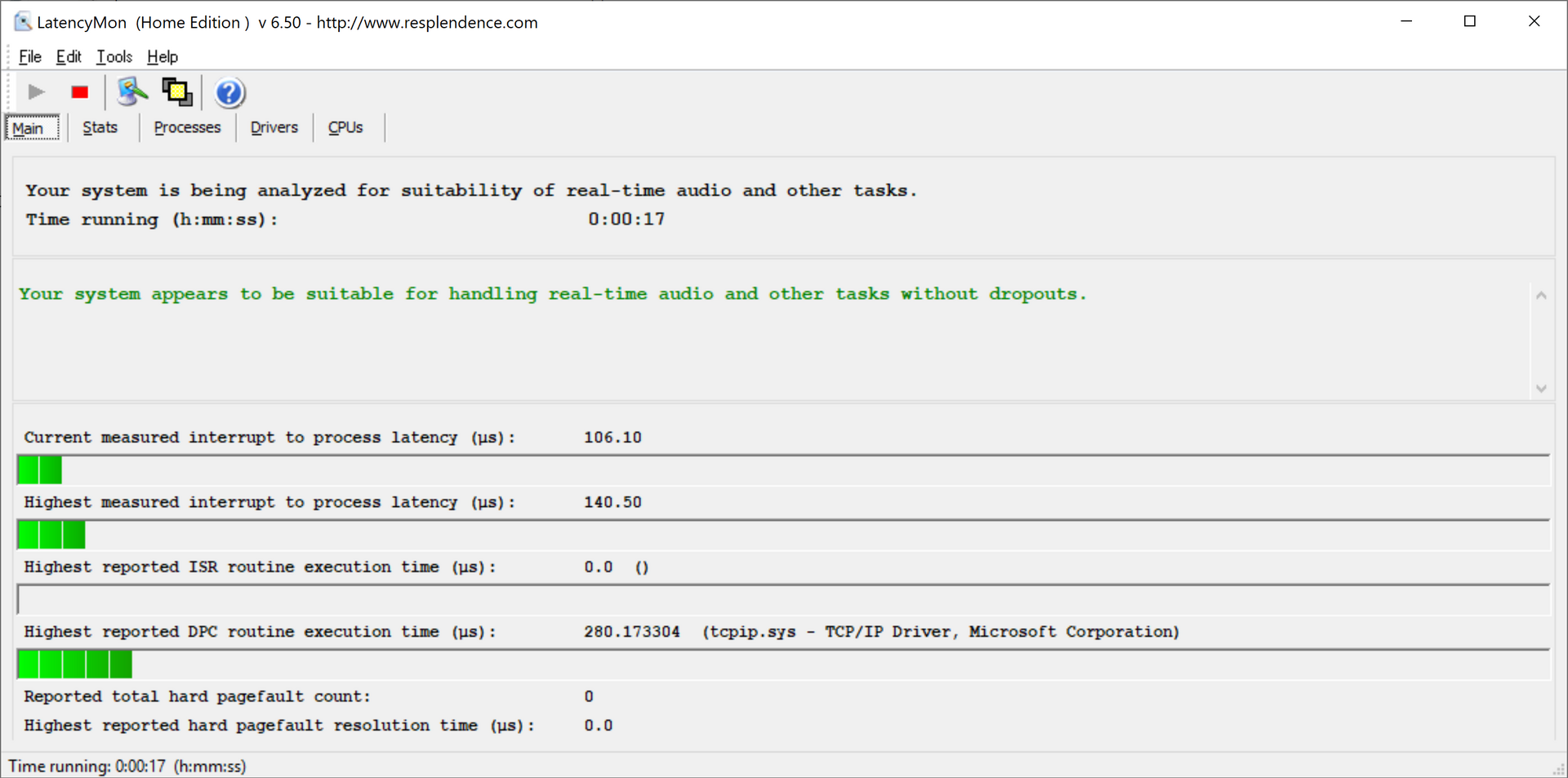

LatencyMon
LatencyMon
Cinebench R15
CPU Single 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
189 Points ∼89% +1%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
187 Points ∼88%
Average Intel Xeon E-2176M
  (169 - 189, n=3)
182 Points ∼85% -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
177 Points ∼83% -5%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
177 Points ∼83% -5%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Core i7-8750H
176 Points ∼83% -6%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
168 Points ∼79% -10%
Average of class Workstation
  (117 - 189, n=79)
155 Points ∼73% -17%
CPU Multi 64Bit
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Core i7-8750H
1218 Points ∼39% +9%
Lenovo ThinkPad X1 Extreme-20MF000XGE
Intel Core i7-8750H
1135 Points ∼36% +2%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
1131 Points ∼36% +1%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
1118 Points ∼36%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1095 Points ∼35% -2%
Average Intel Xeon E-2176M
  (987 - 1118, n=3)
1067 Points ∼34% -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1064 Points ∼34% -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1057 Points ∼34% -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
953 Points ∼31% -15%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
708 Points ∼23% -37%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
648 Points ∼21% -42%
Average of class Workstation
  (260 - 1267, n=81)
704 Points ∼23% -37%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
2.12 Points ∼87%
Average Intel Xeon E-2176M
  (1.99 - 2.12, n=3)
2.05 Points ∼84% -3%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1.99 Points ∼82% -6%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
1.99 Points ∼82% -6%
Average of class Workstation
  (1.09 - 2.15, n=80)
1.668 Points ∼68% -21%
CPU Multi 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
12.4 Points ∼46% +1%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
12.35 Points ∼46% 0%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
12.29 Points ∼45%
Average Intel Xeon E-2176M
  (9.32 - 12.4, n=3)
11.3 Points ∼42% -8%
Average of class Workstation
  (2.16 - 13.9, n=98)
6.61 Points ∼24% -46%
Cinebench R10
Rendering Single 32Bit
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
9142 Points ∼84%
Average Intel Xeon E-2176M
  (6928 - 9142, n=3)
7681 Points ∼71% -16%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
6973 Points ∼64% -24%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
6643 Points ∼61% -27%
Average of class Workstation
  (3094 - 9142, n=83)
5283 Points ∼49% -42%
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
43681 Points ∼88%
Average Intel Xeon E-2176M
  (31923 - 43681, n=3)
35912 Points ∼72% -18%
HP EliteBook 1050 G1-4QY20EA
Intel Core i7-8750H
33110 Points ∼67% -24%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
32132 Points ∼65% -26%
Average of class Workstation
  (8373 - 43681, n=84)
19159 Points ∼39% -56%
Cinebench R10 Shading 32Bit
6820
Cinebench R10 Rendering Multiple CPUs 32Bit
43681
Cinebench R10 Rendering Single 32Bit
9142
Cinebench R11.5 OpenGL 64Bit
99.72 fps
Cinebench R11.5 CPU Multi 64Bit
12.29 Points
Cinebench R11.5 CPU Single 64Bit
2.12 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
137.9 fps
Cinebench R15 CPU Multi 64Bit
1118 Points
Cinebench R15 CPU Single 64Bit
187 Points
Help
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200121012201230Tooltip
Lenovo ThinkPad P1-20MD002LUS Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB: Ø1026 (1012.5-1120.61)
Lenovo ThinkPad X1 Extreme-20MF000XGE GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR; Undervolting: Ø1218 (1194.56-1224.81)
Lenovo ThinkPad X1 Extreme-20MF000XGE GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR: Ø1065 (1052.44-1126.79)
Dell Precision 5530 Xeon E-2176M Quadro P2000, E-2176M, SK hynix PC400 512 GB: Ø1024 (1006.14-1126.25)
HP EliteBook 1050 G1-4QY20EA GeForce GTX 1050 Max-Q, 8750H, Toshiba XG5-P KXG50PNV2T04: Ø1015 (972-1114)
Apple MacBook Pro 15 2018 (2.6 GHz, 560X) Radeon Pro 560X, 8850H, Apple SSD AP0512; macOS Software Update: Ø1006 (962.51-1065.02)
Apple MacBook Pro 15 2018 (2.6 GHz, 560X) Radeon Pro 560X, 8850H, Apple SSD AP0512; macOS Software Update 2: Ø1031 (1009-1058)
Apple MacBook Pro 15 2018 (2.6 GHz, 560X) Radeon Pro 560X, 8850H, Apple SSD AP0512; macOS: Ø832 (773-940)
PCMark 10 - Score
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5072 Points ∼65% +10%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
4805 Points ∼62% +4%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
4785 Points ∼62% +4%
HP EliteBook 1050 G1-4QY20EA
GeForce GTX 1050 Max-Q, 8750H, Toshiba XG5-P KXG50PNV2T04
4666 Points ∼60% +1%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4618 Points ∼59%
Average Intel Xeon E-2176M, NVIDIA Quadro P2000 Max-Q

4618 Points ∼59% 0%
Average of class Workstation
  (3281 - 5738, n=24)
4583 Points ∼59% -1%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3905 Points ∼50% -15%
PCMark 8
Work Score Accelerated v2
Average of class Workstation
  (3311 - 5655, n=62)
4762 Points ∼73% +8%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
4666 Points ∼72% +6%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4664 Points ∼72% +6%
HP EliteBook 1050 G1-4QY20EA
GeForce GTX 1050 Max-Q, 8750H, Toshiba XG5-P KXG50PNV2T04
4643 Points ∼71% +5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
4575 Points ∼70% +4%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4404 Points ∼68%
Average Intel Xeon E-2176M, NVIDIA Quadro P2000 Max-Q

4404 Points ∼68% 0%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
4381 Points ∼67% -1%
Creative Score Accelerated v2
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5351 Points ∼56% +11%
Average of class Workstation
  (2399 - 8015, n=48)
5071 Points ∼53% +5%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
5027 Points ∼53% +4%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4832 Points ∼51%
Average Intel Xeon E-2176M, NVIDIA Quadro P2000 Max-Q

4832 Points ∼51% 0%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
4725 Points ∼50% -2%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
3836 Points ∼40% -21%
Home Score Accelerated v2
Average of class Workstation
  (2320 - 5505, n=62)
3919 Points ∼64% +11%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
3831 Points ∼63% +8%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3752 Points ∼62% +6%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
3735 Points ∼61% +6%
Lenovo ThinkPad X1 Extreme-20MF000XGE
GeForce GTX 1050 Ti Max-Q, 8750H, Samsung SSD PM981 MZVLB1T0HALR
3611 Points ∼59% +2%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
3536 Points ∼58%
Average Intel Xeon E-2176M, NVIDIA Quadro P2000 Max-Q

3536 Points ∼58% 0%
HP EliteBook 1050 G1-4QY20EA
GeForce GTX 1050 Max-Q, 8750H, Toshiba XG5-P KXG50PNV2T04
3433 Points ∼56% -3%
PCMark 8 Home Score Accelerated v2
3536 punten
PCMark 8 Creative Score Accelerated v2
4832 punten
PCMark 8 Work Score Accelerated v2
4404 punten
Help
Lenovo ThinkPad P1-20MD002LUS
Samsung SSD PM981 MZVLB2T0HMLB
Lenovo ThinkPad X1 Extreme-20MF000XGE
Samsung SSD PM981 MZVLB1T0HALR
Dell Precision 5530 Xeon E-2176M
SK hynix PC400 512 GB
HP EliteBook 1050 G1-4QY20EA
Toshiba XG5-P KXG50PNV2T04
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Apple SSD AP0512
Average Samsung SSD PM981 MZVLB2T0HMLB

AS SSD
19%
-37%
-38%
-97%
0%
Score Total
4784
5355
12%
2922
-39%
2768
-42%
2119
-56%
4784
0%
Score Write
2200
2147
-2%
1121
-49%
1153
-48%
347
-84%
2200
0%
Score Read
1722
2132
24%
1226
-29%
1120
-35%
1199
-30%
1722
0%
Access Time Write *
0.032
0.028
12%
0.053
-66%
0.056
-75%
0.032
-0%
Access Time Read *
0.038
0.034
11%
0.073
-92%
0.051
-34%
0.225
-492%
0.038
-0%
4K-64 Write
1866.41
1782.15
-5%
926.09
-50%
953.17
-49%
163.46
-91%
1866
0%
4K-64 Read
1449.63
1804.84
25%
970.47
-33%
855.74
-41%
965.14
-33%
1450
0%
4K Write
118.4
130.92
11%
92.85
-22%
105.36
-11%
18.78
-84%
118
0%
4K Read
28.61
56.81
99%
38.43
34%
19.07
-33%
9.46
-67%
28.6
0%
Seq Write
2154.59
2336
8%
1022.39
-53%
948.36
-56%
1643.8
-24%
2155
0%
Seq Read
2440.26
2703
11%
2169.24
-11%
2454.1
1%
2239.35
-8%
2440
0%

* ... kleiner is beter

Samsung SSD PM981 MZVLB2T0HMLB
CDM 5/6 Read Seq Q32T1: 3493 MB/s
CDM 5/6 Write Seq Q32T1: 2433 MB/s
CDM 5/6 Read 4K Q32T1: 375 MB/s
CDM 5/6 Write 4K Q32T1: 302.4 MB/s
CDM 5 Read Seq: 1367 MB/s
CDM 5 Write Seq: 1476 MB/s
CDM 5/6 Read 4K: 37.24 MB/s
CDM 5/6 Write 4K: 108 MB/s
3DMark 11
1280x720 Performance Combined
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
8589 Points ∼47% +10%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8059 Points ∼44% +4%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, E-2176M
7777 Points ∼43%
Average NVIDIA Quadro P2000 Max-Q

7777 Points ∼43% 0%
HP EliteBook 1050 G1-4QY20EA
NVIDIA GeForce GTX 1050 Max-Q, 8750H
7176 Points ∼40% -8%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, 8850H
7155 Points ∼39% -8%
Average of class Workstation
  (830 - 12508, n=94)
4550 Points ∼25% -41%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, 8550U
1880 Points ∼10% -76%
1280x720 Performance GPU
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
8619 Points ∼17% +6%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
8201 Points ∼16% +1%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, E-2176M
8148 Points ∼16%
Average NVIDIA Quadro P2000 Max-Q

8148 Points ∼16% 0%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, 8850H
7590 Points ∼15% -7%
HP EliteBook 1050 G1-4QY20EA
NVIDIA GeForce GTX 1050 Max-Q, 8750H
6874 Points ∼13% -16%
Average of class Workstation
  (841 - 20623, n=94)
5370 Points ∼11% -34%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, 8550U
1901 Points ∼4% -77%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad X1 Extreme-20MF000XGE
NVIDIA GeForce GTX 1050 Ti Max-Q, 8750H
7199 Points ∼18% +7%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, E-2176M
6742 Points ∼17%
Average NVIDIA Quadro P2000 Max-Q

6742 Points ∼17% 0%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
6741 Points ∼17% 0%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, 8850H
5699 Points ∼14% -15%
HP EliteBook 1050 G1-4QY20EA
NVIDIA GeForce GTX 1050 Max-Q, 8750H
5677 Points ∼14% -16%
Average of class Workstation
  (752 - 14990, n=86)
4370 Points ∼11% -35%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, 8550U
1283 Points ∼3% -81%
1280x720 Cloud Gate Standard Graphics
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
42598 Points ∼23% +49%
HP EliteBook 1050 G1-4QY20EA
NVIDIA GeForce GTX 1050 Max-Q, 8750H
34926 Points ∼19% +22%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, 8850H
32449 Points ∼18% +13%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, E-2176M
28679 Points ∼16%
Average NVIDIA Quadro P2000 Max-Q

28679 Points ∼16% 0%
Average of class Workstation
  (5836 - 102368, n=86)
28099 Points ∼15% -2%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, 8550U
10123 Points ∼5% -65%
1920x1080 Ice Storm Extreme Graphics
Average of class Workstation
  (20741 - 310648, n=18)
115491 Points ∼16% +218%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, E-2176M
75457 Points ∼10% +108%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, E-2176M
36339 Points ∼5%
Average NVIDIA Quadro P2000 Max-Q

36339 Points ∼5% 0%
3DMark 06 Standard
31482 punten
3DMark Vantage P Result
32724 punten
3DMark 11 Performance
8363 punten
3DMark Ice Storm Standard Score
23769 punten
3DMark Cloud Gate Standard Score
14996 punten
3DMark Fire Strike Score
5958 punten
3DMark Fire Strike Extreme Score
3104 punten
3DMark Time Spy Score
2206 punten
Help
0102030
