Kort testrapport Lenovo ThinkPad P52 (i7, P1000, FHD) Workstation

Benjamin Herzig, 👁 Andreas Osthoff, Stefanie Voigt, 19-08-2018

Traditional powerhouse. Ondanks de aandacht die stijlvolle werkstations zoals de Dell XPS 15 krijgen van de media, vormen tradionele draagbare werkstations zoals de Lenovo ThinkPad P52 nog steeds het gros van de werkstation markt. Hoe het nieuwste model van Lenovo's conventionele ThinkPad krachtpatser het doet? Lees het in ons testrapport!

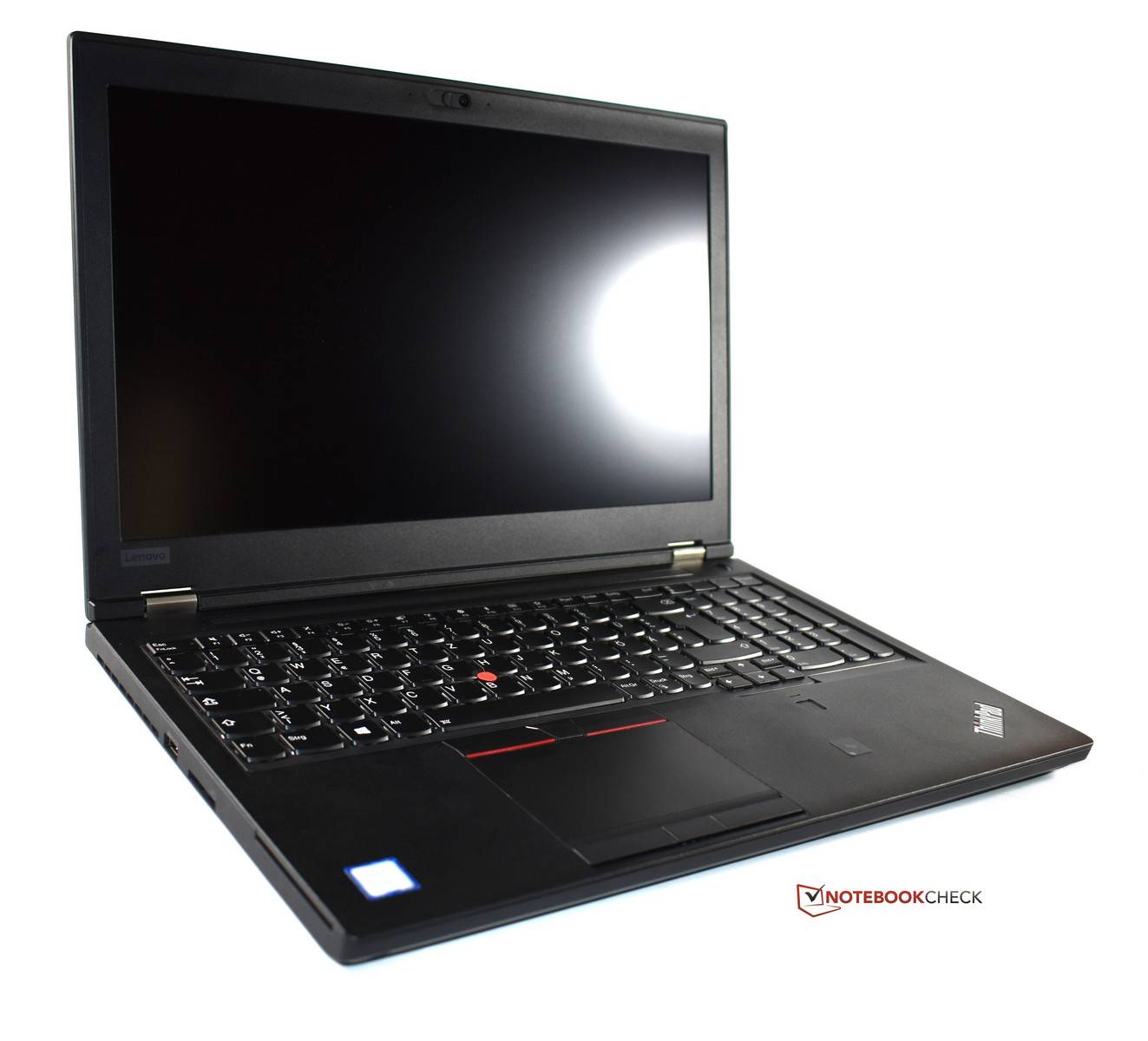

Lenovo ThinkPad P52 20MAS03N00
Grafische kaart
NVIDIA Quadro P1000 - 4096 MB, Core: 1519 MHz, Geheugen: 1502 MHz, GDDR5, 397.97, Optimus
Geheugen
8192 MB
, DDR4-2666, 1 van 4 sloten bezet, max. 128 GB
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, N156HCE-EN1, IPS LED, glimmend: nee
Moederbord
Intel CM246
Opslag
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, M.2 2280 PCIe NVMe SSD, 455 GB beschikbaar
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Verbindingen
3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Verbindingen: audio combo, Card Reader: 4-in-1 SD, 1 SmartCard, 1 Vingerafdruklezer, NFC
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 29.4 x 377.4 x 252.3
Batterij
96 Wh Lithium-Ion, removeable
Camera
Webcam: 720p met ThinkShutter
Bijkomende functionaliteiten
Luidsprekers: 2 W stereo luidsprekers, Toetsenbord: 6-rij chiclet met numpad, Toetsenbordverlichting: ja, 36 Maanden Garantie
Gewicht
2.591 kg, Voeding: 667 g
Prijs
1699 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

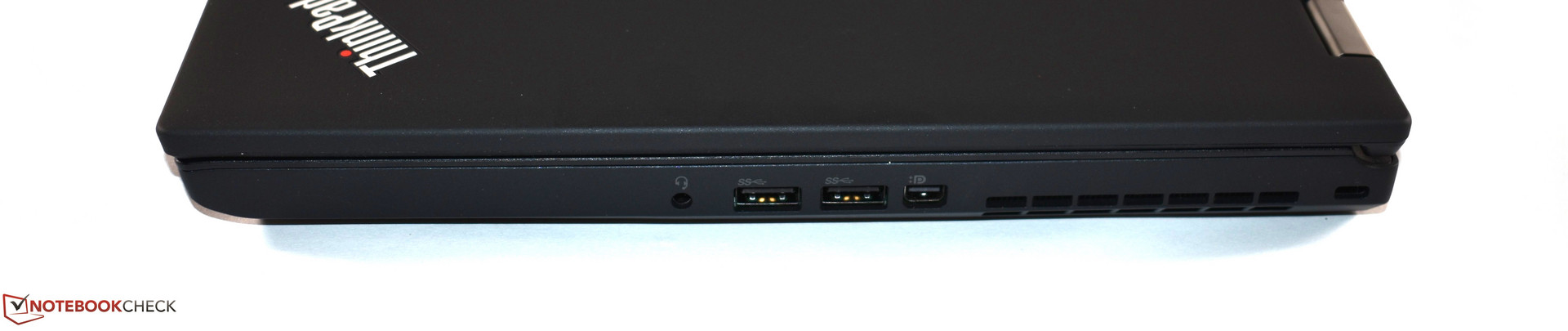

Right: audio combo jack, 2x USB 3.0 Type-A, MiniDisplayPort
Right: audio combo jack, 2x USB 3.0 Type-A, MiniDisplayPort

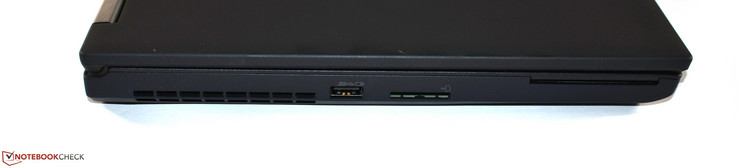

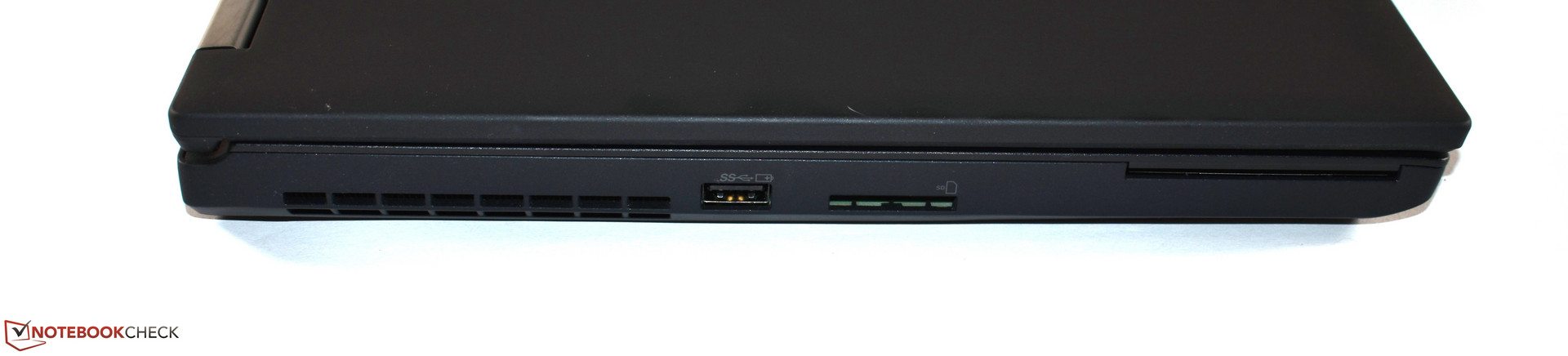

Left: USB 3.0 Type-A, SD card reader, smart card reader
Left: USB 3.0 Type-A, SD card reader, smart card reader
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
186 MB/s ∼100% +10%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
169 MB/s ∼91%
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
157.5 MB/s ∼85% -7%
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
155 MB/s ∼83% -8%
Average of class Workstation
  (17.2 - 213, n=47)
131 MB/s ∼70% -22%
Dell Precision 7510 (4K IGZO)

122.9 MB/s ∼66% -27%
Lenovo ThinkPad P52s-20LB000HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
79.6 MB/s ∼43% -53%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
254.5 MB/s ∼100% +35%
Lenovo ThinkPad P51 20HH0016GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
215 MB/s ∼84% +14%
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
209.8 MB/s ∼82% +11%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189.2 MB/s ∼74%
Average of class Workstation
  (18.4 - 255, n=47)
168 MB/s ∼66% -11%
Lenovo ThinkPad P52s-20LB000HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.4 MB/s ∼34% -54%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
643 MBit/s ∼100% +2%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼99% +2%
Lenovo ThinkPad P52s-20LB000HGE
Intel Dual Band Wireless-AC 8265
630 MBit/s ∼98% 0%
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
629 MBit/s ∼98%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
622 MBit/s ∼97% -1%
Average of class Workstation
  (292 - 705, n=32)
603 MBit/s ∼94% -4%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
559 MBit/s ∼87% -11%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
662 MBit/s ∼100%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼80% -20%
Average of class Workstation
  (158 - 690, n=32)
524 MBit/s ∼79% -21%
Lenovo ThinkPad P51 20HH0016GE
Intel Dual Band Wireless-AC 8265
508 MBit/s ∼77% -23%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
506 (min: 622) MBit/s ∼76% -24%
Lenovo ThinkPad P52s-20LB000HGE
Intel Dual Band Wireless-AC 8265
505 MBit/s ∼76% -24%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
475 MBit/s ∼72% -28%
307
cd/m²
311
cd/m²
303
cd/m²
294
cd/m²
304
cd/m²
291
cd/m²
278
cd/m²
276
cd/m²
273
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 311 cd/m² Gemiddelde: 293 cd/m² Minimum: 3.45 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 307 cd/m²
Contrast: 1169:1 (Zwart: 0.26 cd/m²)
ΔE Color 4.5 | 0.4-29.43 Ø6.3, calibrated: 2.4
ΔE Greyscale 5.2 | 0.64-98 Ø6.5
90.1% sRGB (Argyll 3D) 53.8% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.26
Lenovo ThinkPad P52 20MAS03N00
N156HCE-EN1, , 1920x1080, 15.6
Lenovo ThinkPad P50
LP156WF6-SPK1, , 1920x1080, 15.6
Lenovo ThinkPad P51 20HH0016GE
LEN40BD, B156ZAN02.1, , 3840x2160, 15.6
HP ZBook 15 G4-Y4E80AV
LG Philips LGD057E, , 1920x1080, 15.6
Dell Precision 7510 (4K IGZO)
Sharp LQ156D1, , 3840x2160, 15.6
Lenovo ThinkPad P52s-20LB000HGE
NV156FHM-N47, , 1920x1080, 15.6
HP ZBook 15u G5 2ZC05EA
CMN15E7, , 1920x1080, 15.6
Dell Precision 5520 UHD
SHP1476, , 3840x2160, 15.6
Response Times
-9%
-1%
-5%
-36%
-28%
-5%
-56%
Response Time Grey 50% / Grey 80% *
39.2 (21.2, 18)
46 (17, 29)
-17%
40.8 (20.8, 20)
-4%
39.2 (20.4, 18.8)
-0%
40.4 (19.6, 20.8)
-3%
47.2 (25.2, 22)
-20%
41.6 (22, 19.6)
-6%
59.2 (27.6, 31.6)
-51%
Response Time Black / White *
26 (14.4, 11.6)
26 (9, 17)
-0%
25.2 (14, 11.2)
3%
25.6 (14.8, 10.8)
2%
27.6 (6.8, 20.8)
-6%
38.4 (22.8, 15.6)
-48%
28.8 (15.6, 13.2)
-11%
41.6 (26.8, 14.8)
-60%
PWM Frequency
25250 (50)
20830 (80)
-18%
198.4 (29)
-99%
21550 (91)
-15%
25770 (40)
2%
Screen
-10%
15%
1%
10%
-15%
-23%
6%
Brightness middle
304
263
-13%
317
4%
321
6%
279.2
-8%
291
-4%
229
-25%
372.4
23%
Brightness
293
236
-19%
309
5%
320
9%
271
-8%
284
-3%
212
-28%
368
26%
Brightness Distribution
88
78
-11%
89
1%
89
1%
83
-6%
91
3%
88
0%
90
2%
Black Level *
0.26
0.34
-31%
0.36
-38%
0.29
-12%
0.266
-2%
0.11
58%
0.23
12%
0.48
-85%
Contrast
1169
774
-34%
881
-25%
1107
-5%
1050
-10%
2645
126%
996
-15%
776
-34%
Colorchecker DeltaE2000 *
4.5
2.35
48%
2.7
40%
4.5
-0%
4.14
8%
6.7
-49%
4.2
7%
2.6
42%
Colorchecker DeltaE2000 max. *
7.7
4.1
47%
9.5
-23%
6.56
15%
20.2
-162%
18
-134%
5.6
27%
Colorchecker DeltaE2000 calibrated *
2.4
4.5
-88%
4.2
-75%
Greyscale DeltaE2000 *
5.2
3.33
36%
3
42%
2.9
44%
3.26
37%
4.5
13%
2
62%
3.7
29%
Gamma
2.26 97%
2.38 92%
2.27 97%
2.27 97%
2.19 100%
2.28 96%
2.23 99%
2.14 103%
CCT
6789 96%
6917 94%
6077 107%
6519 100%
6375 102%
7503 87%
6292 103%
7096 92%
Color Space (Percent of AdobeRGB 1998)
53.8
37
-31%
87.6
63%
54.2
1%
85.68
59%
39.6
-26%
41
-24%
63
17%
Color Space (Percent of sRGB)
90.1
58
-36%
99.5
10%
82.6
-8%
99.72
11%
61.7
-32%
64.5
-28%
99
10%
Totaal Gemiddelde (Programma / Instellingen)
-10% / -10%
7% / 12%
-2% / -0%
-13% / -1%
-22% / -18%
-14% / -19%
-25% / -5%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

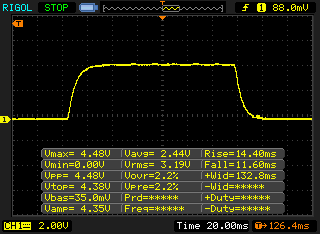

       Responstijd Zwart naar Wit
26 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14.4 ms stijging
↘ 11.6 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 46 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.6 ms) van alle geteste toestellen.

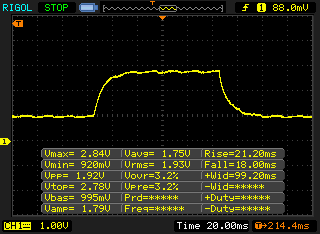

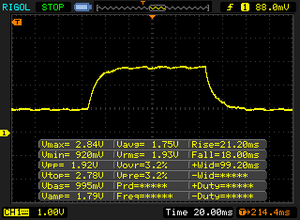

       Responstijd 50% Grijs naar 80% Grijs
39.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21.2 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 42 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (41 ms) van alle geteste toestellen.

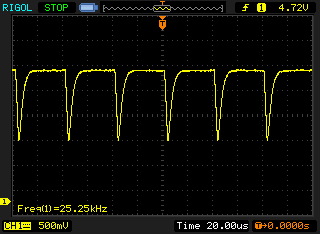

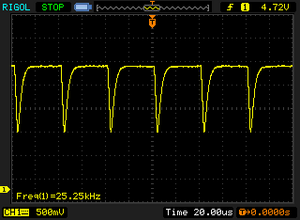

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 25250 Hz ≤ 50 % helderheid instelling

Het backlight van het scherm flikkert aan 25250 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 50 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 25250 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8781 (minimum: 43 - maximum: 142900) Hz waargenomen.

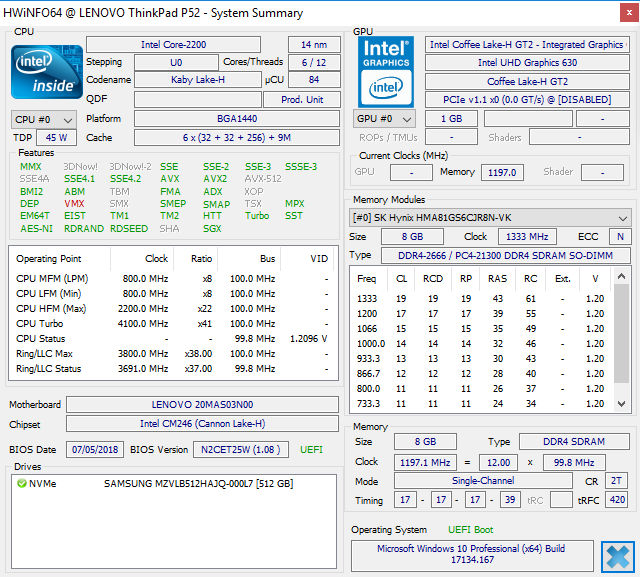

HWiNFO
HWiNFO

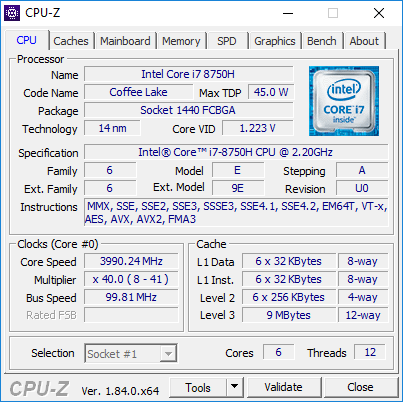

CPU-Z
CPU-Z

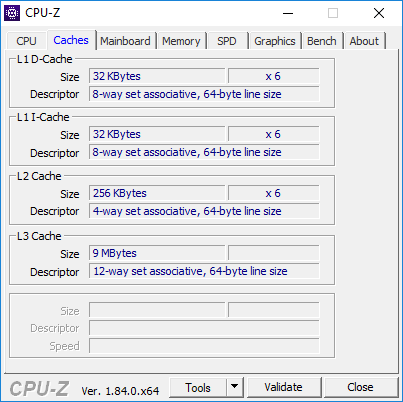

CPU-Z Caches
CPU-Z Caches

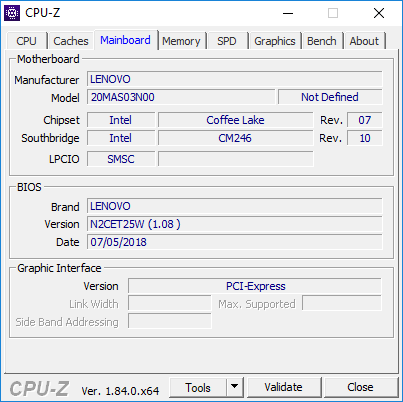

CPU-Z Mainboard
CPU-Z Mainboard

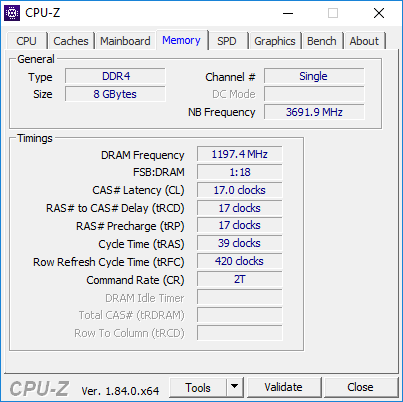

CPU-Z Memory
CPU-Z Memory

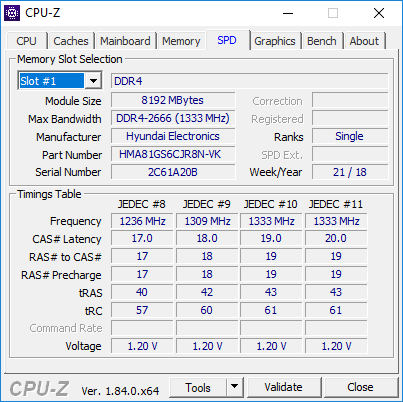

CPU-Z SPD
CPU-Z SPD

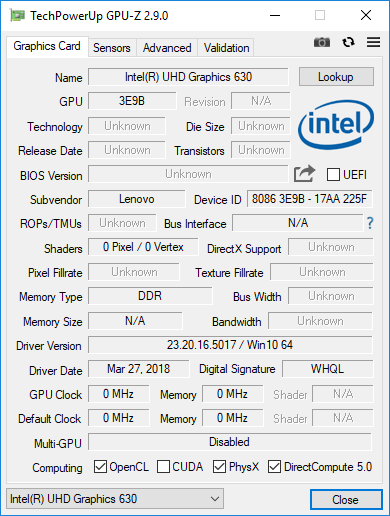

GPU-Z Intel UHD Graphics 630
GPU-Z Intel UHD Graphics 630

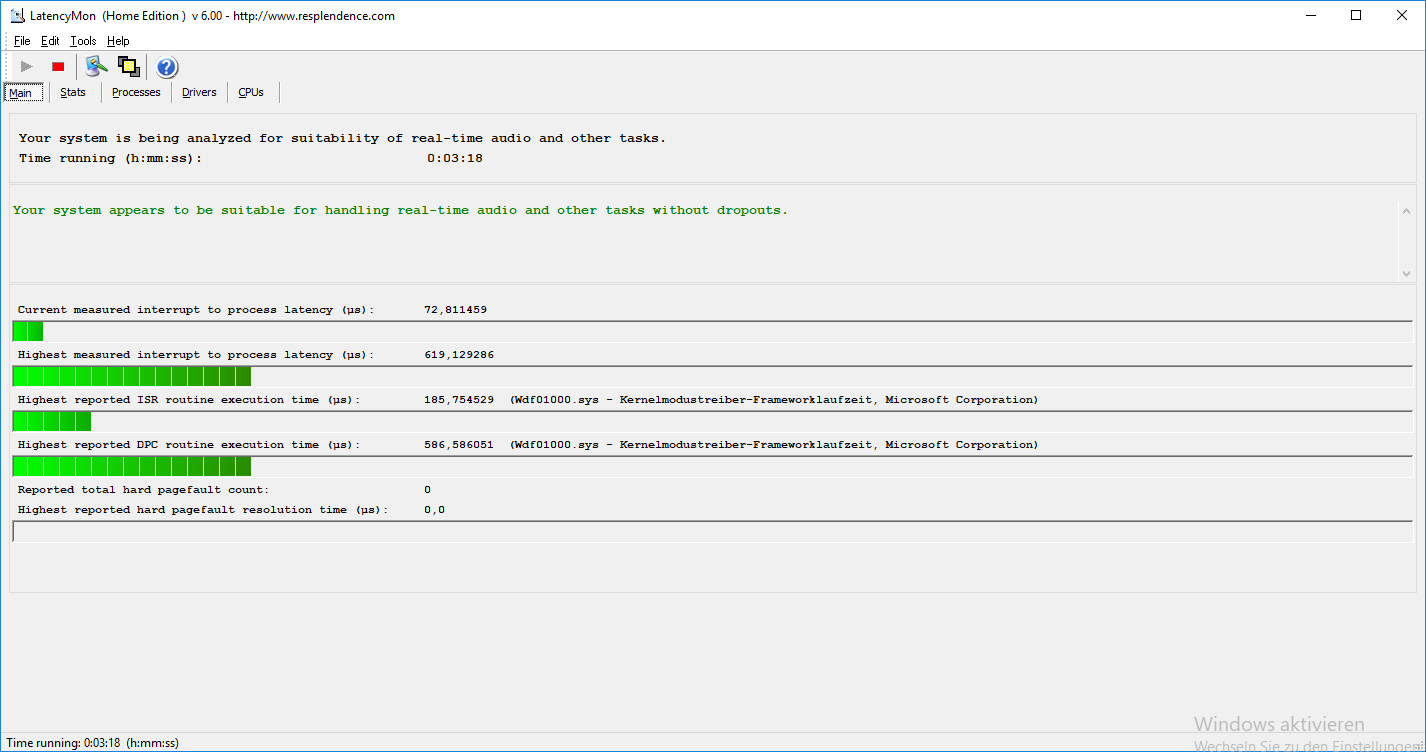

LatencyMon
LatencyMon
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220Tooltip
Lenovo ThinkPad P52 20MAS03N00 Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ: Ø1034 (1019-1128)
Dell XPS 15 9570 i7 UHD GeForce GTX 1050 Ti Max-Q, 8750H, Toshiba XG5 KXG50ZNV512G; Undervolting: Ø1168 (1123.47-1219.85)
Dell XPS 15 9570 i7 UHD GeForce GTX 1050 Ti Max-Q, 8750H, Toshiba XG5 KXG50ZNV512G: Ø1012 (980.27-1215.12)
Cinebench R15
CPU Single 64Bit
Aorus X5 v8
Intel Core i7-8850H
182 Points ∼100% +4%
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
176 Points ∼97% +1%
Dell XPS 15 9570 i7 UHD
Intel Core i7-8750H
175 Points ∼96% 0%
Lenovo ThinkPad P52 20MAS03N00
Intel Core i7-8750H
175 Points ∼96%
Acer Predator Helios 500 PH517-51-79BY
Intel Core i7-8750H
173 Points ∼95% -1%
Average Intel Core i7-8750H
  (163 - 177, n=47)
173 Points ∼95% -1%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼95% -2%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
171 Points ∼94% -2%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
171 Points ∼94% -2%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points ∼93% -3%
Dell Precision 7510 (4K IGZO)
Intel Xeon E3-1535M v5
162 Points ∼89% -7%
Average of class Workstation
  (117 - 189, n=79)
155 Points ∼85% -11%
Lenovo ThinkPad P50
Intel Core i7-6820HQ
117 Points ∼64% -33%
CPU Multi 64Bit
Aorus X5 v8
Intel Core i7-8850H
1265 Points ∼100% +4%
Dell XPS 15 9570 i7 UHD
Intel Core i7-8750H
1251 Points ∼99% +3%
Dell XPS 15 9570 i7 UHD
Intel Core i7-8750H
1215 Points ∼96% 0%
Lenovo ThinkPad P52 20MAS03N00
Intel Core i7-8750H
1217 Points ∼96%
Average Intel Core i7-8750H
  (863 - 1251, n=50)
1103 Points ∼87% -9%
Acer Predator Helios 500 PH517-51-79BY
Intel Core i7-8750H
1007 Points ∼80% -17%
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
806 Points ∼64% -34%
Lenovo ThinkPad P51 20HH0016GE
Intel Xeon E3-1505M v6
792 Points ∼63% -35%
Dell Precision 7510 (4K IGZO)
Intel Xeon E3-1535M v5
750 Points ∼59% -38%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
719 Points ∼57% -41%
Average of class Workstation
  (260 - 1267, n=81)
704 Points ∼56% -42%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points ∼52% -46%
Lenovo ThinkPad P50
Intel Core i7-6820HQ
592 Points ∼47% -51%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼44% -55%
Cinebench R10 Rendering Multiple CPUs 64Bit
43494 Points
Cinebench R10 Shading 64Bit
6126 Points
Cinebench R10 Rendering Single 32Bit
6539
Cinebench R10 Rendering Multiple CPUs 32Bit
34568
Cinebench R10 Shading 32Bit
5759
Cinebench R10 Rendering Single CPUs 64Bit
8481 Points
Cinebench R11.5 CPU Single 64Bit
1.96 Points
Cinebench R11.5 OpenGL 32Bit
111.36 fps
Cinebench R11.5 CPU Multi 32Bit
11.91 Points
Cinebench R11.5 CPU Multi 64Bit
12.8 Points
Cinebench R11.5 OpenGL 64Bit
110.52 fps
Cinebench R11.5 CPU Single 32Bit
1.74 Points
Cinebench R15 CPU Single 64Bit
175 Points
Cinebench R15 CPU Multi 64Bit
1217 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
136.47 fps
Help
PCMark 8
Work Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5423 Points ∼100% +2%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5329 Points ∼98%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼95% -4%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4453 - 5335, n=3)
5039 Points ∼93% -5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4980 Points ∼92% -7%
Average of class Workstation
  (3311 - 5655, n=62)
4762 Points ∼88% -11%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
4677 Points ∼86% -12%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points ∼79% -19%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
4256 Points ∼78% -20%
Dell Precision 7510 (4K IGZO)
Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4246 Points ∼78% -20%
Home Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4375 Points ∼100% +11%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
4213 Points ∼96% +6%
Dell Precision 7510 (4K IGZO)
Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4020 Points ∼92% +2%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3959 Points ∼90%
Average of class Workstation
  (2320 - 5505, n=62)
3919 Points ∼90% -1%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (3433 - 4244, n=3)
3879 Points ∼89% -2%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3728 Points ∼85% -6%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼85% -6%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
3641 Points ∼83% -8%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points ∼80% -11%
PCMark 10
Digital Content Creation
Average of class Workstation
  (2466 - 6907, n=24)
4744 Points ∼100% +9%
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4633 Points ∼98% +7%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4348 - 4742, n=3)
4610 Points ∼97% +6%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4348 Points ∼92%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3397 Points ∼72% -22%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
2609 Points ∼55% -40%
Productivity
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
7539 Points ∼100% +13%
Average of class Workstation
  (4897 - 7994, n=24)
6902 Points ∼92% +4%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
6777 Points ∼90% +2%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (6573 - 6749, n=3)
6657 Points ∼88% 0%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6649 Points ∼88%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
5660 Points ∼75% -15%
Essentials
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
8774 Points ∼100% +6%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (7739 - 9007, n=3)
8348 Points ∼95% +1%
Average of class Workstation
  (7172 - 9366, n=24)
8321 Points ∼95% 0%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
8298 Points ∼95%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
7874 Points ∼90% -5%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7810 Points ∼89% -6%
Score
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4834 Points ∼100% +9%
Average of class Workstation
  (3281 - 5738, n=24)
4583 Points ∼95% +4%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4428 - 4735, n=3)
4542 Points ∼94% +3%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4428 Points ∼92%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼84% -9%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3498 Points ∼72% -21%
PCMark 8 Home Score Accelerated v2
3959 punten
PCMark 8 Work Score Accelerated v2
5329 punten
Help
Lenovo ThinkPad P52 20MAS03N00
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad P50
Samsung SSD PM871 MZNLN256HCHP
Lenovo ThinkPad P51 20HH0016GE
Samsung PM961 NVMe MZVLW512HMJP
HP ZBook 15 G4-Y4E80AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Dell Precision 7510 (4K IGZO)
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad P52s-20LB000HGE
Samsung PM961 MZVLW256HEHP
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Average Samsung SSD PM981 MZVLB512HAJQ

AS SSD
-56%
-1%
11%
-14%
-17%
-52%
3%
-44%
Score Total
4307
1070
-75%
3424
-21%
4303
0%
2637
-39%
3131
-27%
1697
-61%
3681
-15%
3864 (2348 - 4771, n=21)
-10%
Score Write
2079
374
-82%
917
-56%
1472
-29%
669
-68%
868
-58%
710
-66%
1379
-34%
1646 (147 - 2147, n=21)
-21%
Score Read
1485
462
-69%
1690
14%
1902
28%
1311
-12%
1504
1%
689
-54%
1554
5%
1473 (896 - 2125, n=21)
-1%
Access Time Write *
0.031
0.038
-23%
0.025
19%
0.023
26%
0.025
19%
0.026
16%
0.051
-65%
0.023
26%
0.1586 (0.027 - 2.52, n=21)
-412%
Access Time Read *
0.072
0.058
19%
0.032
56%
0.034
53%
0.036
50%
0.065
10%
0.103
-43%
0.038
47%
0.049 (0.029 - 0.073, n=21)
32%
4K-64 Write
1779.98
258.25
-85%
623.19
-65%
1136.39
-36%
375.72
-79%
612.14
-66%
564.31
-68%
1054.63
-41%
1392 (96.2 - 1866, n=21)
-22%
4K-64 Read
1203
381.23
-68%
1372.12
14%
1578.04
31%
1066.68
-11%
1312.4
9%
488.39
-59%
1222.65
2%
1239 (735 - 1823, n=21)
3%
4K Write
121
88.83
-27%
143.09
18%
158.04
31%
145.09
20%
139.96
16%
101.5
-16%
155.28
28%
101 (1.76 - 134, n=21)
-17%
4K Read
52.62
29.14
-45%
55.57
6%
51.66
-2%
49.22
-6%
44.98
-15%
31.28
-41%
51.45
-2%
49.3 (31.7 - 58, n=21)
-6%
Seq Write
1781.29
272.75
-85%
1506.12
-15%
1776.51
0%
1484.15
-17%
1163.6
-35%
441.04
-75%
1694.02
-5%
1534 (487 - 1991, n=21)
-14%
Seq Read
2293.89
514.56
-78%
2623.53
14%
2718.57
19%
1953.18
-15%
1462.8
-36%
1695.81
-26%
2799.35
22%
1850 (1099 - 2469, n=21)
-19%

* ... kleiner is beter

Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1796 MB/s
Sequential Write: 1717 MB/s
512K Read: 1016 MB/s
512K Write: 1801 MB/s
4K Read: 63.59 MB/s
4K Write: 139.6 MB/s
4K QD32 Read: 395.7 MB/s
4K QD32 Write: 314.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell XPS 15 9570 i7 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, Intel Core i7-8750H
9079 Points ∼100% +48%
Asus VivoBook 15 X570UD
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8550U
7563 Points ∼83% +24%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
7425 Points ∼82% +21%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
6115 Points ∼67%
Average NVIDIA Quadro P1000
  (5982 - 6115, n=3)
6033 Points ∼66% -1%
Average of class Workstation
  (841 - 20623, n=94)
5370 Points ∼59% -12%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
5105 Points ∼56% -17%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
5023 Points ∼55% -18%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3632 Points ∼40% -41%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
3022 Points ∼33% -51%
3DMark
1920x1080 Fire Strike Graphics
Dell XPS 15 9570 i7 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, Intel Core i7-8750H
7428 Points ∼100% +53%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5850 Points ∼79% +21%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5786 Points ∼78% +19%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
4843 Points ∼65%
Average NVIDIA Quadro P1000
  (4756 - 4843, n=3)
4795 Points ∼65% -1%
Average of class Workstation
  (752 - 14990, n=86)
4370 Points ∼59% -10%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
4193 Points ∼56% -13%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
4165 Points ∼56% -14%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2644 Points ∼36% -45%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
2270 Points ∼31% -53%
1280x720 Cloud Gate Standard Graphics
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
37796 Points ∼100% +20%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
36877 Points ∼98% +17%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
31396 Points ∼83%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
28254 Points ∼75% -10%
Average of class Workstation
  (5836 - 102368, n=86)
28099 Points ∼74% -11%
Average NVIDIA Quadro P1000
  (21391 - 31396, n=3)
27836 Points ∼74% -11%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
26869 Points ∼71% -14%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17922 Points ∼47% -43%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
99.53 fps ∼100% +15%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
86.62 fps ∼87%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
86.23 fps ∼87% 0%
Average NVIDIA Quadro P1000
  (75.2 - 89.8, n=3)
83.9 fps ∼84% -3%
Average of class Workstation
  (15.6 - 166, n=71)
70.5 fps ∼71% -19%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
69.01 fps ∼69% -20%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
68.7 fps ∼69% -21%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
53.48 fps ∼54% -38%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.31 fps ∼31% -64%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
59.02 fps ∼100% +3%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
57.74 fps ∼98% +1%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
57.4 fps ∼97%
Average NVIDIA Quadro P1000
  (55.4 - 57.4, n=3)
56.2 fps ∼95% -2%
Average of class Workstation
  (4.87 - 184, n=71)
50.9 fps ∼86% -11%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
34.18 fps ∼58% -40%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
32.41 fps ∼55% -44%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
28.31 fps ∼48% -51%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.74 fps ∼32% -67%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
32.8 fps ∼100% +19%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
31.14 fps ∼95% +13%
Average of class Workstation
  (3.93 - 68.8, n=69)
27.7 fps ∼84% +1%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
27.56 fps ∼84%
Average NVIDIA Quadro P1000
  (27.4 - 27.6, n=3)
27.5 fps ∼84% 0%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
26.2 fps ∼80% -5%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
21.15 fps ∼64% -23%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
12.13 fps ∼37% -56%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.28 fps ∼22% -74%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
25.66 fps ∼100% +67%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
24.64 fps ∼96% +60%
Average of class Workstation
  (0.99 - 71.5, n=70)
19.1 fps ∼74% +24%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
18.19 fps ∼71% +18%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
17.49 fps ∼68% +13%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
15.41 fps ∼60%
Average NVIDIA Quadro P1000
  (14.9 - 15.4, n=3)
15.1 fps ∼59% -2%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
9.33 fps ∼36% -39%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3.99 fps ∼16% -74%
1900x1060 Maya (maya-04)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
48.34 fps ∼100% +14%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
46.93 fps ∼97% +11%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
42.26 fps ∼87%
Average NVIDIA Quadro P1000
  (37 - 42.3, n=3)
40.5 fps ∼84% -4%
Average of class Workstation
  (5.4 - 102, n=71)
40.3 fps ∼83% -5%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
35.55 fps ∼74% -16%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
32.07 fps ∼66% -24%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
21.61 fps ∼45% -49%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
11.75 fps ∼24% -72%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
5.26 fps ∼100% +15%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5.15 fps ∼98% +13%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
4.57 fps ∼87%
Average NVIDIA Quadro P1000
  (3.66 - 4.57, n=3)
4.04 fps ∼77% -12%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
3.98 fps ∼76% -13%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
3.78 fps ∼72% -17%
Average of class Workstation
  (0.06 - 15, n=71)
3.73 fps ∼71% -18%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
0.55 fps ∼10% -88%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
0.26 fps ∼5% -94%
1900x1060 Creo (creo-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.24 fps ∼100% +25%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
68.15 fps ∼96% +19%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
57.11 fps ∼80%
Average NVIDIA Quadro P1000
  (51.2 - 59, n=3)
55.8 fps ∼78% -2%
Average of class Workstation
  (14 - 132, n=71)
48.7 fps ∼68% -15%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
46.12 fps ∼65% -19%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
45 fps ∼63% -21%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
35.91 fps ∼50% -37%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.82 fps ∼26% -67%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
72.03 fps ∼100% +30%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.41 fps ∼99% +29%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
55.35 fps ∼77%
Average NVIDIA Quadro P1000
  (53.8 - 55.4, n=3)
54.4 fps ∼76% -2%
Average of class Workstation
  (13.4 - 156, n=71)
54.3 fps ∼75% -2%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
45.75 fps ∼64% -17%
Dell Precision 7510 (4K IGZO)
NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5
45.28 fps ∼63% -18%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
27.97 fps ∼39% -49%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17.1 fps ∼24% -69%
1900x1060 3ds Max (3dsmax-05)
Average NVIDIA Quadro P1000
  (50.8 - 55.4, n=3)
53.1 fps ∼100% 0%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
52.91 fps ∼100%
Average of class Workstation
  (11.4 - 93.6, n=11)
41 fps ∼77% -23%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.28 fps ∼59% -41%
LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
1318 Samples/s ∼100% +85%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
1306 Samples/s ∼99% +83%
Dell XPS 15 9570 i7 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, Intel Core i7-8750H
1167 Samples/s ∼89% +64%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
979 Samples/s ∼74% +37%
Average NVIDIA Quadro P1000
  (713 - 777, n=2)
745 Samples/s ∼57% +4%
Average of class Workstation
  (49 - 2337, n=72)
721 Samples/s ∼55% +1%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
713 Samples/s ∼54%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
386 Samples/s ∼29% -46%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
344 Samples/s ∼26% -52%
Sala GPUs-only
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
2107 Samples/s ∼100% +67%
Dell XPS 15 9570 i7 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, Intel Core i7-8750H
2100 Samples/s ∼100% +67%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
2099 Samples/s ∼100% +67%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
1562 Samples/s ∼74% +24%
Average of class Workstation
  (48 - 4369, n=73)
1312 Samples/s ∼62% +4%
Average NVIDIA Quadro P1000
  (1260 - 1361, n=2)
1311 Samples/s ∼62% +4%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
1260 Samples/s ∼60%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
747 Samples/s ∼35% -41%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
547 Samples/s ∼26% -57%
SiSoft Sandra 2016
Image Processing
Average of class Workstation
  (95.8 - 819, n=31)
277 MPix/s ∼100% +3%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
269 MPix/s ∼97%
Average NVIDIA Quadro P1000
  (264 - 269, n=3)
266 MPix/s ∼96% -1%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
265.3 MPix/s ∼96% -1%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
239.6 MPix/s ∼86% -11%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
226.64 MPix/s ∼82% -16%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
128.1 MPix/s ∼46% -52%
GP Cryptography (Higher Security AES256+SHA2-512)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
14.11 GB/s ∼100% +30%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
11.7 GB/s ∼83% +8%
Average of class Workstation
  (3.92 - 33.3, n=31)
11.4 GB/s ∼81% +5%
Average NVIDIA Quadro P1000
  (10.8 - 11, n=3)
10.9 GB/s ∼77% 0%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
10.88 GB/s ∼77%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
5.24 GB/s ∼37% -52%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
5.16 GB/s ∼37% -53%
GP Financial Analysis (FP High/Double Precision)
Average of class Workstation
  (11.8 - 100, n=31)
33.2 KOPT/s ∼100% +40%
Lenovo ThinkPad P51 20HH0016GE
NVIDIA Quadro M2200, Intel Xeon E3-1505M v6
31.9 KOPT/s ∼96% +34%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
26.48 KOPT/s ∼80% +11%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
25.76 KOPT/s ∼78% +8%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
23.76 KOPT/s ∼72%
Average NVIDIA Quadro P1000
  (23.2 - 23.8, n=3)
23.5 KOPT/s ∼71% -1%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
11.84 KOPT/s ∼36% -50%
3DMark 06 Standard
32223 punten
3DMark Vantage P Result
24240 punten
3DMark 11 Performance
6363 punten
3DMark Ice Storm Standard Score
73409 punten
3DMark Cloud Gate Standard Score
20654 punten
3DMark Fire Strike Score
4545 punten
Help
01234567891011121314151617Tooltip
The Witcher 3 ultra
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Dell XPS 15 9570 i7 UHD
GeForce GTX 1050 Ti Max-Q, 8750H, Toshiba XG5 KXG50ZNV512G
48.2 fps ∼100% +61%
MSI GL63 8RC-069US
GeForce GTX 1050 (Notebook), 8300H, Toshiba HG6 THNSNJ256G8NY
42.4 fps ∼88% +42%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
37.2 fps ∼77% +24%
Average of class Workstation
  (8.7 - 97.5, n=46)
32.9 fps ∼68% +10%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
29.9 fps ∼62%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
29 fps ∼60% -3%
Average NVIDIA Quadro P1000
  (26.1 - 29.9, n=3)
28.5 fps ∼59% -5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
14.5 fps ∼30% -52%
Rise of the Tomb Raider - 1366x768 Medium Preset AF:2x
MSI GL63 8RC-069US
GeForce GTX 1050 (Notebook), 8300H, Toshiba HG6 THNSNJ256G8NY
74.9 fps ∼100% +27%
Dell XPS 15 9570 i7 UHD
GeForce GTX 1050 Ti Max-Q, 8750H, Toshiba XG5 KXG50ZNV512G
73.6 fps ∼98% +25%
Lenovo ThinkPad P51 20HH0016GE
Quadro M2200, E3-1505M v6, Samsung PM961 NVMe MZVLW512HMJP
71.6 fps ∼96% +21%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
59.1 fps ∼79%
Average of class Workstation
  (14 - 149, n=33)
58.9 fps ∼79% 0%
Average NVIDIA Quadro P1000
  (55.7 - 59.1, n=3)
57.4 fps ∼77% -3%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
27.7 fps ∼37% -53%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Dell XPS 15 9570 i7 UHD
GeForce GTX 1050 Ti Max-Q, 8750H, Toshiba XG5 KXG50ZNV512G
74.6 fps ∼100% +45%
MSI GL63 8RC-069US
GeForce GTX 1050 (Notebook), 8300H, Toshiba HG6 THNSNJ256G8NY
64 fps ∼86% +25%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
51.3 fps ∼69%
Average NVIDIA Quadro P1000
  (51 - 51.7, n=3)
51.3 fps ∼69% 0%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
47 fps ∼63% -8%
Average of class Workstation
  (6 - 129, n=60)
45.9 fps ∼62% -11%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
24.7 fps ∼33% -52%
lage gem. hoge ultra
BioShock Infinite (2013) 229.9149.3132.351.3fps
The Witcher 3 (2015) 88.853.829.915.7fps
Rise of the Tomb Raider (2016) 101.559.13226.2fps
Doom (2016) 91.778.443.341.6fps
Civilization VI (2016) 114.771.333.527fps
Rocket League (2017) 235.5123.881.8fps
Call of Duty WWII (2017) 127.18141.133.4fps
Star Wars Battlefront 2 (2017) 114.444.637.926.6fps
Far Cry 5 (2018) 64322927fps

Geluidsniveau

Onbelast
29.5 / 29.5 / 29.5 dB (A)
Belasting
34.7 / 39.4 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.431.433.531.132.42528.228.128.728.928.23131.229.7302831.2402927.228.427.3295027.327.72726.427.36325.625.825.424.325.68024.626.124.324.924.610024.323.823.223.324.312523.423.822.722.723.416024.623.523.121.424.620024.923.522.120.724.925024.62221.319.524.631523.52220.118.923.540025.822.820.218.225.850027.624.12117.627.66302723.820.816.62780025.32219.516.325.3100026.522.620.215.726.5125027.823.921.315.827.816003026.221.915.830200030.224.319.91630.2250031.22420.316.331.2315027.321.220.516.827.3400025.120.320.917.525.1500023.519.121.417.723.5630022.91921.518.322.9800021.119.421.91921.11000020.419.421.919.220.41250022.421.122.320.322.41600026.923.523.122.226.9SPL39.434.733.129.539.4N3.12.11.81.23.1median 25.1median 22.8median 21.3median 18.2median 25.1Delta1.91.80.92.21.931.929.83230.63432.933.130.928.225.626.226.925.928.432.627.727.129.429.228.630.630.226.426.62626.827.727.230.526.326.22726.227.424.727.123.423.622.22423.123.727.923.720.621.823.522.62524.821.521.421.823.222.124.922.622.720.520.722.221.621.922.321.720.920.621.320.721.42221.820.721.420.220.321.223.322.621.522.920.319.723.122.521.320201918.622.724.922.121.220.819.318.924.425.722.921.520.519.719.326.527.123.722.321.119.519.127.726.423.72220.719.7192627.92422.421.419.219.12728.926.223.72219.618.828.230.827.32522.219.418.730.629.526.624.522.918.518.130.128.52522.519.718.217.828.231.926.323.620.618.917.332.33024.72220.118.516.630.426.421.719.618.217.516.326.323.919.418.117.116.716.124.119.817.816.916.716.615.619.61817.417.21717.215.417.417.918.419.319.118.41515.917.317.418.118.718.114.614.940.336.534.332.630.729.940.43.32.421.71.41.33.3median 24.9median 22.6median 21.4median 20.6median 19.2median 18.7median 24.92.921.41.30.71.43.2hearing rangehide median Fan NoiseLenovo ThinkPad P52 20MAS03N00Dell XPS 15 9570 i7 UHD
Max. Belasting
 39.1 °C36.2 °C42.7 °C
 33.1 °C33.2 °C35.9 °C
 30.1 °C30.9 °C30.2 °C
Maximum: 42.7 °C
Gemiddelde: 34.6 °C
43 °C41.4 °C36.7 °C
36.2 °C37.5 °C35.1 °C
29.2 °C33.1 °C32.4 °C
Maximum: 43 °C
Gemiddelde: 36.1 °C
Stroomadapter (max.)  41.4 °C | Kamertemperatuur 22.4 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 31.2 °C / 88 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 42.7 °C / 109 F, compared to the average of 37.2 °C / 99 F, ranging from 23.1 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 43 °C / 109 F, compared to the average of 40.3 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 36.2 °C / 97 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.1 °C / 89.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-4 °C / -7.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.3322528.231312931.14028.129.2503736.96325.127.68023.330.410025.329.21252229.916021.730.620021.236.625019.842.931518.948.540018.454.450016.659.163016.967.980016.569100015.863.4125015.763160015.860.6200016.360.3250016.457.8315016.855.7400017.350.7500017.852.4630018.351.4800018.749.81000019.446.11250019.844.81600020.744.5SPL29.573.1N1.227.9median 18.3median 51.4Delta2.28.145.64345.638.335.938.336.535.936.535.734.235.735.433.235.433.934.333.936.835.136.846.732.646.753.731.153.758.23058.254.229.154.249.627.649.65427.95457.527.157.556.826.856.866.625.766.668.325.268.366.725.166.765.524.765.56925.16958.824.558.862.524.262.569.223.969.27223.97266.423.866.463.323.763.37123.67166.823.666.869.523.769.566.323.766.379.636.879.646.82.946.8median 65.5median 25.1median 65.55.22.15.2hearing rangehide median Pink NoiseLenovo ThinkPad P52 20MAS03N00Dell Precision 5520 UHD
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad P52 20MAS03N00 audio analysis

(±) | speaker loudness is average but good (73.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.1% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 10.8% higher than median
(±) | linearity of mids is average (11% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.5% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 10% similar, 3% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 80% of all tested devices were better, 5% similar, 15% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell Precision 5520 UHD audio analysis

(±) | speaker loudness is average but good (79.57 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (12% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 14% of all tested devices in this class were better, 14% similar, 72% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.3 / 0.74 Watt
Inactiefdarkmidlight 4.02 / 7.2 / 11.46 Watt
Belasting midlight 76.3 / 154 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P52 20MAS03N00
8750H, Quadro P1000, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 1920x1080, 15.6
Lenovo ThinkPad P50
6820HQ, Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP, IPS, 1920x1080, 15.6
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6
Dell Precision 7510 (4K IGZO)
E3-1535M v5, Quadro M2000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IGZO IPS, 3840x2160, 15.6
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
Average NVIDIA Quadro P1000

Average of class Workstation

Power Consumption
-5%
-65%
-21%
-197%
23%
26%
-47%
-11%
-103%
Idle Minimum *
4.02
5.6
-39%
8.6
-114%
5.9
-47%
23.9
-495%
4.1
-2%
3.2
20%
8.9
-121%
5.09 (4.02 - 6.8, n=3)
-27%
13.7 (2.4 - 65.2, n=115)
-241%
Idle Average *
7.2
8.6
-19%
15.9
-121%
8.9
-24%
28.9
-301%
7.7
-7%
6.1
15%
13.6
-89%
9.25 (7.2 - 11.3, n=3)
-28%
19.7 (5.3 - 69, n=114)
-174%
Idle Maximum *
11.46
9.3
19%
22.1
-93%
12.7
-11%
30
-162%
10.7
7%
9.7
15%
14.1
-23%
13 (11.5 - 14.3, n=3)
-13%
23.1 (7.1 - 73.1, n=115)
-102%
Load Average *
76.3
89.5
-17%
84.4
-11%
95.2
-25%
95.2
-25%
52
32%
62
19%
100.3
-31%
78.2 (76.3 - 80.4, n=3)
-2%
87.8 (34.4 - 185, n=113)
-15%
Load Maximum *
154
105
32%
130.6
15%
154
-0%
157.1
-2%
65
58%
71
54%
126.3
18%
133 (118 - 154, n=3)
14%
127 (43.5 - 266, n=113)
18%
Witcher 3 ultra *
74
87.7
-19%
38.8
48%
48
35%
100.2
-35%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
25h 19min
NBC WiFi Websurfing Battery Test 1.3 (Edge)
10h 37min
Big Buck Bunny H.264 1080p
12h 13min
Belast (maximale helderheid)
1h 19min
Lenovo ThinkPad P52 20MAS03N00
8750H, Quadro P1000, 96 Wh
Lenovo ThinkPad P50
6820HQ, Quadro M2000M, 90 Wh
Lenovo ThinkPad P51 20HH0016GE
E3-1505M v6, Quadro M2200, 90 Wh
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, 90 Wh
Dell Precision 7510 (4K IGZO)
E3-1535M v5, Quadro M2000M, 91 Wh
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, 104 Wh
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
Average of class Workstation

Batterijduur
-12%
-22%
-3%
-52%
86%
26%
-45%
-33%
Reader / Idle
1519
860
-43%
981
-35%
1096
-28%
268
-82%
2360
55%
1301
-14%
724
-52%
