Kort testrapport Asus ZenBook 14 UM431DA laptop: maakt ook een goede indruk met Ryzen

Zen-tastisch. De Asus ZenBook 14 kan ook een goede indruk maken met AMD's krachtige Ryzen 7, maar kan niet zijn volle prestatiepotentieel bereiken, zelfs met ventilatoren op volle toeren. Met zijn platte ontwerp is de 14-inch notebook zoals gebruikelijk handzaam en kleine features zoals het geïntegreerde numeriek toetspad zijn prettig. Ons testrapport laat zien wat de ZenBook 14 nog meer te bieden heeft.
Mike Wobker, 👁 Sebastian Jentsch, Andrea Grüblinger,
Asus ZenBook 14 UM431DA-AM020T (ZenBook 14 Serie)
Processor
AMD Ryzen 7 3700U 4 x 2.3 - 4 GHz, Zen+
Grafische kaart
AMD Radeon RX Vega 10
Geheugen
8192 MB
, DDR4 2400, dual-channel
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel, CEC PA LM140LF-3L03, IPS, glimmend: nee
Moederbord
AMD Promontory/Bixby FCH
Opslag
SK hynix BC501 HFM512GDHTNG-8310A, 512 GB
, 430 GB beschikbaar
Geluidskaart
AMD Raven - Audio Processor - HD Audio Controller
Verbindingen
1 USB 2.0, 2 USB 3.0, 1 HDMI, Audio Verbindingen: 3.5mm combo aansluiting, Card Reader: SD
Netwerkmogelijkheden
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 16 x 324 x 212
Batterij
47 Wh, 6150 mAh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Bijkomende functionaliteiten
Luidsprekers: stereo, Harman/Kardon, Toetsenbord: chiclet, Toetsenbordverlichting: ja, tas, McAfee, 24 Maanden Garantie
Gewicht
1.39 kg, Voeding: 151 g
Prijs
700 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
81 %
02-2020
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10
1.4 kg16 mm14"1920x1080
88 %
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10
1.9 kg19.9 mm15.6"1920x1080
80 %
08-2019
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10
1.8 kg19.5 mm15.6"1920x1080
81 %
02-2020
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250
1.2 kg16 mm14"1920x1080
78 %
01-2020
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250
1.6 kg18 mm14"1920x1080
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Left side: power supply, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Left side: power supply, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Right side: SD card reader, combined 3.5 mm audio jack, 1x USB 2.0 Type-A
Right side: SD card reader, combined 3.5 mm audio jack, 1x USB 2.0 Type-A
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad E595-20NF0000GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
77.1 MB/s ∼100% +192%
Average of class Subnotebook
  (8 - 186, n=134)
63.6 MB/s ∼82% +141%
Dell Inspiron 15 5000 5585
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.7 MB/s ∼49% +43%
HP Pavilion 14-ce3040ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
32 MB/s ∼42% +21%
MSI Modern 14 A10RB-459US
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
28 MB/s ∼36% +6%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.4 MB/s ∼34%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad E595-20NF0000GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
87.6 MB/s ∼100% +136%
Average of class Subnotebook
  (17.7 - 251, n=136)
80.1 MB/s ∼91% +116%
Dell Inspiron 15 5000 5585
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.6 MB/s ∼43% +1%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.1 MB/s ∼42%
HP Pavilion 14-ce3040ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
33 MB/s ∼38% -11%
MSI Modern 14 A10RB-459US
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.1 MB/s ∼31% -27%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Pavilion 14-ce3040ng
Intel Wi-Fi 6 AX201
1070 MBit/s ∼100% +157%
Lenovo ThinkPad E595-20NF0000GE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
640 MBit/s ∼60% +54%
Average of class Subnotebook
  (30.9 - 1658, n=159)
588 MBit/s ∼55% +41%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
416 (min: 375, max: 465) MBit/s ∼39%
Dell Inspiron 15 5000 5585
Qualcomm Atheros QCA9377 Wireless Network Adapter
309 MBit/s ∼29% -26%
iperf3 Client (transmit) TCP 1 m 4M x10
HP Pavilion 14-ce3040ng
Intel Wi-Fi 6 AX201
928 MBit/s ∼100% +55%
Lenovo ThinkPad E595-20NF0000GE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
613 MBit/s ∼66% +3%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
598 (min: 519, max: 628) MBit/s ∼64%
Average of class Subnotebook
  (36 - 1416, n=159)
570 MBit/s ∼61% -5%
Dell Inspiron 15 5000 5585
Qualcomm Atheros QCA9377 Wireless Network Adapter
290 MBit/s ∼31% -52%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø415 (375-465)
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø598 (519-628)
275
cd/m²
266
cd/m²
255
cd/m²
245
cd/m²
253
cd/m²
215
cd/m²
239
cd/m²
240
cd/m²
221
cd/m²
Helderheidsverdeling
CEC PA LM140LF-3L03
X-Rite i1Pro 2
Maximum: 275 cd/m² Gemiddelde: 245.4 cd/m² Minimum: 18 cd/m²
Helderheidsverdeling: 78 %
Helderheid in Batterij-modus: 263 cd/m²
Contrast: 1124:1 (Zwart: 0.225 cd/m²)
ΔE Color 8.89 | 0.6-29.43 Ø5.9, calibrated: 4.9
ΔE Greyscale 6.33 | 0.64-98 Ø6.1
91% sRGB (Argyll 3D) 60% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.52
Asus ZenBook 14 UM431DA-AM020T
CEC PA LM140LF-3L03, IPS, 1920x1080, 14
Lenovo ThinkPad E595-20NF0000GE
NV156FHM-N49, IPS, 1920x1080, 15.6
Dell Inspiron 15 5000 5585
LG Philips 156WFC, IPS, 1920x1080, 15.6
MSI Modern 14 A10RB-459US
Chi Mei N140HCE-EN2, IPS, 1920x1080, 14
HP Pavilion 14-ce3040ng
AUO543D, IPS, 1920x1080, 14
Response Times
878%
8%
18891%
-42%
Response Time Grey 50% / Grey 80% *
36 (19, 17)
41.2 (22, 19.2)
-14%
28.4 (10.4, 18)
21%
39.2 (20.8, 18.4)
-9%
60.8 (29.2, 31.6)
-69%
Response Time Black / White *
26 (15, 11)
32.8 (18, 14.8)
-26%
27.2 (16.4, 10.8)
-5%
35.6 (21.2, 14.4)
-37%
29.6 (13.2, 16.4)
-14%
PWM Frequency
44 (20)
1220 (99)
2673%
25000 (28)
56718%
Screen
-16%
-22%
30%
14%
Brightness middle
253
318
26%
253.6
0%
324.1
28%
395
56%
Brightness
245
297
21%
227
-7%
301
23%
375
53%
Brightness Distribution
78
89
14%
84
8%
87
12%
91
17%
Black Level *
0.225
0.17
24%
0.27
-20%
0.22
2%
0.26
-16%
Contrast
1124
1871
66%
939
-16%
1473
31%
1519
35%
Colorchecker DeltaE2000 *
8.89
5.5
38%
6.05
32%
1.63
82%
5.92
33%
Colorchecker DeltaE2000 max. *
4.56
21
-361%
14.03
-208%
4.25
7%
9.79
-115%
Colorchecker DeltaE2000 calibrated *
4.9
5.1
-4%
4.97
-1%
1.42
71%
0.91
81%
Greyscale DeltaE2000 *
6.33
1.8
72%
3.2
49%
2.2
65%
6.69
-6%
Gamma
2.52 87%
2.12 104%
2 110%
2.26 97%
2.78 79%
CCT
6745 96%
6257 104%
6820 95%
6887 94%
7596 86%
Color Space (Percent of AdobeRGB 1998)
60
37.6
-37%
35.5
-41%
60.2
0%
63
5%
Color Space (Percent of sRGB)
91
58.2
-36%
55.6
-39%
95
4%
98
8%
Totaal Gemiddelde (Programma / Instellingen)
431% / 175%
-7% / -17%
9461% / 4071%
-14% / 5%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

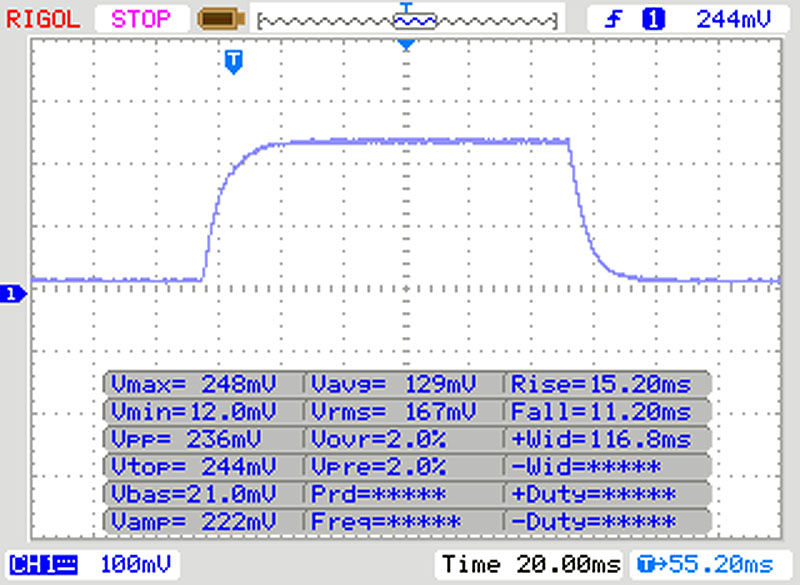

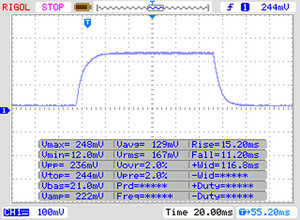

       Responstijd Zwart naar Wit
26 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15 ms stijging
↘ 11 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 47 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (24.7 ms) van alle geteste toestellen.

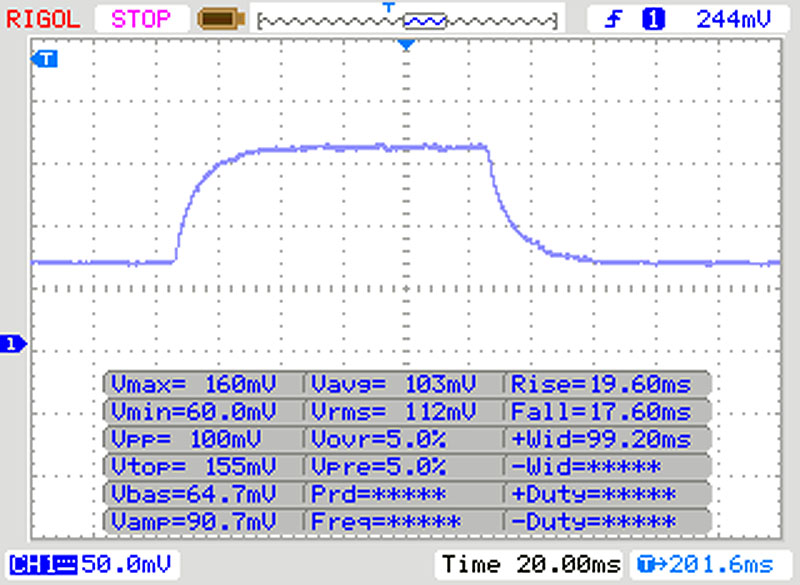

       Responstijd 50% Grijs naar 80% Grijs
36 ms ... stijging ↗ en daling ↘ gecombineerd↗ 19 ms stijging
↘ 17 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 30 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39.2 ms) van alle geteste toestellen.

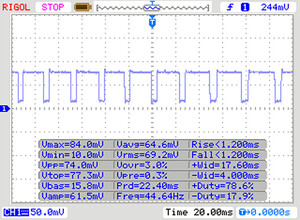

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 44 Hz ≤ 20 % helderheid instelling

Het backlight van het scherm flikkert aan 44 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 20 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 44 Hz is erg laag en kan dus aanleiding geven tot geïrriteerde ogen en hoofdpijn bij langer gebruik.

Ter vergelijking: 50 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 18099 (minimum: 5 - maximum: 2500000) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700Tooltip
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø512 (499.03-642.87)
Lenovo ThinkPad E595-20NF0000GE AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø684 (680.39-687.17)
Dell Inspiron 15 5000 5585 AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø654 (639.01-676.19)
MSI Modern 14 A10RB-459US Intel Core i5-10210U, Intel Core i5-10210U: Ø565 (559.89-595.69)
HP Pavilion 14-ce3040ng Intel Core i7-1065G7, Intel Core i7-1065G7: Ø625 (592.25-691)
Cinebench R15
CPU Single 64Bit
HP Pavilion 14-ce3040ng
Intel Core i7-1065G7
190 Points ∼100% +43%
MSI Modern 14 A10RB-459US
Intel Core i5-10210U
170 Points ∼89% +28%
Lenovo ThinkPad E595-20NF0000GE
AMD Ryzen 7 3700U
144 Points ∼76% +8%
Average AMD Ryzen 7 3700U
  (127 - 146, n=7)
138 Points ∼73% +4%
Dell Inspiron 15 5000 5585
AMD Ryzen 7 3700U
135 Points ∼71% +2%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
133 Points ∼70%
Average of class Subnotebook
  (20 - 185, n=314)
119 Points ∼63% -11%
CPU Multi 64Bit
HP Pavilion 14-ce3040ng
Intel Core i7-1065G7
691 Points ∼100% +8%
Lenovo ThinkPad E595-20NF0000GE
AMD Ryzen 7 3700U
683 (min: 680.39, max: 687.17) Points ∼99% +6%
Dell Inspiron 15 5000 5585
AMD Ryzen 7 3700U
672 Points ∼97% +5%
Average AMD Ryzen 7 3700U
  (537 - 683, n=7)
648 Points ∼94% +1%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
642 Points ∼93%
MSI Modern 14 A10RB-459US
Intel Core i5-10210U
596 Points ∼86% -7%
Average of class Subnotebook
  (32 - 1051, n=326)
369 Points ∼53% -43%
Cinebench R15 CPU Single 64Bit
133 Points
Cinebench R15 CPU Multi 64Bit
642 Points
Cinebench R15 OpenGL 64Bit
48.35 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
PCMark 10
Digital Content Creation
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4461 Points ∼100% +29%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3581 Points ∼80% +3%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3466 Points ∼78%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3082 - 3581, n=7)
3333 Points ∼75% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3258 Points ∼73% -6%
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
3233 Points ∼72% -7%
Average of class Subnotebook
  (405 - 4709, n=127)
2603 Points ∼58% -25%
Productivity
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
7433 Points ∼100% +28%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
7040 Points ∼95% +21%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
5859 Points ∼79% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
5823 Points ∼78%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (5459 - 5952, n=7)
5745 Points ∼77% -1%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
5637 Points ∼76% -3%
Average of class Subnotebook
  (1014 - 7676, n=127)
5324 Points ∼72% -9%
Essentials
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
8912 Points ∼100% +16%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
7861 Points ∼88% +2%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
7692 Points ∼86% 0%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
7685 Points ∼86%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (6927 - 7692, n=7)
7306 Points ∼82% -5%
Average of class Subnotebook
  (2062 - 9664, n=127)
7018 Points ∼79% -9%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
6927 Points ∼78% -10%
Score
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4497 Points ∼100% +17%
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
4289 Points ∼95% +11%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3903 Points ∼87% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3851 Points ∼86%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3522 - 3903, n=7)
3720 Points ∼83% -3%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3605 Points ∼80% -6%
Average of class Subnotebook
  (743 - 4886, n=130)
3262 Points ∼73% -15%
PCMark 8
Work Score Accelerated v2
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4992 Points ∼100% +3%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
4842 Points ∼97%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (4418 - 4869, n=6)
4665 Points ∼93% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
4593 Points ∼92% -5%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
4429 Points ∼89% -9%
Average of class Subnotebook
  (1283 - 5363, n=242)
4096 Points ∼82% -15%
Home Score Accelerated v2
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3325 - 3993, n=7)
3628 Points ∼100% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3604 Points ∼99%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3504 Points ∼97% -3%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
3464 Points ∼95% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3342 Points ∼92% -7%
Average of class Subnotebook
  (1027 - 4251, n=271)
3086 Points ∼85% -14%
PCMark 8 Home Score Accelerated v2
3604 punten
PCMark 8 Work Score Accelerated v2
4842 punten
Help
Asus ZenBook 14 UM431DA-AM020T
SK hynix BC501 HFM512GDHTNG-8310A
Lenovo ThinkPad E595-20NF0000GE
SK Hynix BC501 HFM512GDJTNG
Dell Inspiron 15 5000 5585
WDC PC SN520 SDAPNUW-512G
MSI Modern 14 A10RB-459US
Kingston RBUSNS8154P3512GJ
HP Pavilion 14-ce3040ng
Toshiba XG6 KXG60ZNV1T02
Average SK hynix BC501 HFM512GDHTNG-8310A

CrystalDiskMark 5.2 / 6
11%
-3%
15%
108%
10%
Write 4K
118.8
129.5
9%
105.9
-11%
107.7
-9%
181.6
53%
110 (89.3 - 122, n=3)
-7%
Read 4K
41.62
41.23
-1%
36.56
-12%
39.73
-5%
57.41
38%
40.6 (37.4 - 42.7, n=3)
-2%
Write Seq
795.7
810.7
2%
1165
46%
926.3
16%
1982
149%
677 (608 - 796, n=3)
-15%
Read Seq
1101
1145
4%
423.2
-62%
1014
-8%
1899
72%
1104 (1019 - 1193, n=3)
0%
Write 4K Q32T1
234.7
314.1
34%
332.1
41%
343.6
46%
509.4
117%
438 (235 - 590, n=3)
87%
Read 4K Q32T1
313.8
356.2
14%
229.3
-27%
499.1
59%
544.7
74%
338 (285 - 415, n=3)
8%
Write Seq Q32T1
842.3
838.5
0%
1460
73%
1033
23%
3072
265%
860 (842 - 872, n=3)
2%
Read Seq Q32T1
1645
2042
24%
472.5
-71%
1604
-2%
3281
99%
1786 (1635 - 2078, n=3)
9%
AS SSD
5%
-9%
-25%
79%
6%
Score Total
2270
2261
0%
2279
0%
2294
1%
4568
101%
2315 (2234 - 2442, n=3)
2%
Score Write
906
831
-8%
1155
27%
916
1%
1853
105%
867 (843 - 906, n=3)
-4%
Score Read
918
973
6%
721
-21%
911
-1%
1801
96%
981 (918 - 1085, n=3)
7%
Access Time Write *
0.045
0.036
20%
0.047
-4%
0.136
-202%
0.03
33%
0.0353 (0.03 - 0.045, n=3)
22%
Access Time Read *
0.047
0.04
15%
0.072
-53%
0.084
-79%
0.094
-100%
0.046 (0.045 - 0.047, n=3)
2%
4K-64 Write
747.86
668.81
-11%
984.63
32%
733.32
-2%
1456.46
95%
763 (672 - 871, n=3)
2%
4K-64 Read
739.73
763.82
3%
646.86
-13%
769.2
4%
1473.01
99%
794 (740 - 869, n=3)
7%
4K Write
80.08
87.71
10%
82.07
2%
86.98
9%
147.5
84%
109 (80.1 - 127, n=3)
36%
4K Read
37.03
39.18
6%
34.54
-7%
35.59
-4%
52.09
41%
40.2 (37 - 43.2, n=3)
9%
Seq Write
781.17
740.1
-5%
884.4
13%
953
22%
2493.03
219%
612 (518 - 781, n=3)
-22%
Seq Read
1417.21
1697.5
20%
398.93
-72%
1060.87
-25%
2762.37
95%
1471 (1264 - 1731, n=3)
4%
Totaal Gemiddelde (Programma / Instellingen)
8% / 7%
-6% / -6%
-5% / -8%
94% / 91%
8% / 8%

* ... kleiner is beter

SK hynix BC501 HFM512GDHTNG-8310A
CDM 5/6 Read Seq Q32T1: 1645 MB/s
CDM 5/6 Write Seq Q32T1: 842.3 MB/s
CDM 5/6 Read 4K Q32T1: 313.8 MB/s
CDM 5/6 Write 4K Q32T1: 234.7 MB/s
CDM 5 Read Seq: 1101 MB/s
CDM 5 Write Seq: 795.7 MB/s
CDM 5/6 Read 4K: 41.62 MB/s
CDM 5/6 Write 4K: 118.8 MB/s
3DMark 11 - 1280x720 Performance GPU
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
4920 Points ∼100% +45%
HP Pavilion 14-ce3040ng
NVIDIA GeForce MX250, Intel Core i7-1065G7
4614 Points ∼94% +36%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
4165 Points ∼85% +23%
Average AMD Radeon RX Vega 10
  (2688 - 4165, n=15)
3455 Points ∼70% +2%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3389 Points ∼69%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3287 Points ∼67% -3%
Average of class Subnotebook
  (230 - 11501, n=400)
1469 Points ∼30% -57%
3DMark
1920x1080 Fire Strike Graphics
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
3845 Points ∼100% +69%
HP Pavilion 14-ce3040ng
NVIDIA GeForce MX250, Intel Core i7-1065G7
3580 Points ∼93% +58%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2999 Points ∼78% +32%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2272 Points ∼59%
Average AMD Radeon RX Vega 10
  (1567 - 2999, n=14)
2157 Points ∼56% -5%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2025 Points ∼53% -11%
Average of class Subnotebook
  (222 - 8093, n=279)
1174 Points ∼31% -48%
1280x720 Cloud Gate Standard Graphics
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
23376 Points ∼100% +46%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
20784 Points ∼89% +30%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
16048 Points ∼69%
Average AMD Radeon RX Vega 10
  (9364 - 20784, n=14)
14465 Points ∼62% -10%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
13891 Points ∼59% -13%
Average of class Subnotebook
  (1484 - 30436, n=297)
8244 Points ∼35% -49%
3DMark 11 Performance
3449 punten
3DMark Cloud Gate Standard Score
11126 punten
3DMark Fire Strike Score
2028 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 93.78 60.7 49.72 17.4 fps
Dota 2 Reborn (2015) 68.7 58.6 36 30.2 fps
Final Fantasy XV Benchmark (2018) 16.1 8.1 fps

Geluidsniveau

Onbelast
28 / 28 / 28 dB (A)
Belasting
36.8 / 39 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.428.230.933.731.425333134.734.133313131.332.430.9314030.531.731.22930.55030.829.328.72930.86328.128.627.627.228.18025.725.626.726.425.710025.625.924.524.225.612524.824.723.824.524.816023.624.123.724.523.620022.422.921.922.522.425021.922.421.521.721.931521.821.320.720.221.840021.920.819.719.221.950022.622.21918.522.663028.126.518.318.828.180028.72617.71828.7100030.628.517.317.430.6125030.127.317.117.330.1160028.325.816.71728.3200029.326.916.917.129.325002825.317.116.92831502523.117.217.225400026.824.517.517.426.850002421.317.617.62463002018.917.817.720800018.518.417.617.818.51000017.91817.617.717.91250017.61817.417.517.61600017.718.417.517.517.7SPL3936.829.829.939N2.92.51.31.32.9median 24median 23.1median 17.6median 17.7median 24Delta42.81.71.64hearing rangehide median Fan NoiseAsus ZenBook 14 UM431DA-AM020T
Max. Belasting
 37 °C36.9 °C34.3 °C
 35.3 °C34.8 °C24.4 °C
 29.4 °C26.9 °C26.2 °C
Maximum: 37 °C
Gemiddelde: 31.7 °C
32.6 °C34.7 °C36.3 °C
27.5 °C32.2 °C35 °C
26.6 °C28.5 °C30.5 °C
Maximum: 36.3 °C
Gemiddelde: 31.5 °C
Stroomadapter (max.)  45 °C | Kamertemperatuur 21.7 °C | FIRT 550-Pocket / Fluke t3000 FC
(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 37 °C / 99 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 36.3 °C / 97 F, compared to the average of 39.7 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (-0.9 °C / -1.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.733.733.72535.534.135.53130.830.930.84030.82930.85028.72928.76328.427.228.48031.326.431.310041.524.241.512547.124.547.116048.324.548.320045.822.545.82505321.75331561.820.261.840065.619.265.650065.318.565.363063.318.863.380065.11865.1100066.417.466.4125066.917.366.9160069.51769.5200068.917.168.9250063.716.963.7315060.117.260.140006017.460500057.717.657.7630057.517.757.5800054.217.854.2100005117.7511250051.617.551.61600053.917.553.9SPL76.729.976.7N37.31.337.3median 60median 17.7median 60Delta71.6735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAsus ZenBook 14 UM431DA-AM020TApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook 14 UM431DA-AM020T audio analysis

(-) | not very loud speakers (69.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11% lower than median
(±) | linearity of bass is average (14% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.4% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.9% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 8% similar, 64% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.32 / 0.36 Watt
Inactiefdarkmidlight 3.6 / 7.2 / 10.8 Watt
Belasting midlight 38 / 45.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, SK hynix BC501 HFM512GDHTNG-8310A, IPS, 1920x1080, 14
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10, SK Hynix BC501 HFM512GDJTNG, IPS, 1920x1080, 15.6
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 15.6
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250, Kingston RBUSNS8154P3512GJ, IPS, 1920x1080, 14
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250, Toshiba XG6 KXG60ZNV1T02, IPS, 1920x1080, 14
Average AMD Radeon RX Vega 10

Average of class Subnotebook

Power Consumption
6%
6%
-16%
-21%
-1%
-20%
Idle Minimum *
3.6
4.2
-17%
4.2
-17%
4.2
-17%
4
-11%
4.57 (3.2 - 5.9, n=15)
-27%
6.46 (1 - 36, n=638)
-79%
Idle Average *
7.2
7.92
-10%
6.8
6%
5.9
18%
7
3%
7.51 (2.8 - 10.6, n=15)
-4%
9.67 (2.06 - 39, n=638)
-34%
Idle Maximum *
10.8
8.16
24%
7
35%
7.2
33%
10
7%
9.63 (7 - 12.9, n=15)
11%
11.9 (3.9 - 55, n=638)
-10%
Load Average *
38
29
24%
36.5
4%
63.4
-67%
62
-63%
33.5 (24.2 - 40.6, n=15)
12%
33.4 (6.3 - 75, n=628)
12%
Load Maximum *
45.2
42.2
7%
44
3%
67.4
-49%
64
-42%
44.8 (38.5 - 55.5, n=15)
1%
40.7 (7.6 - 111, n=631)
10%
Witcher 3 ultra *
37.9
53.5
58

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
17h 48min
NBC WiFi Websurfing Battery Test 1.3
6h 44min
Belast (maximale helderheid)
2h 05min
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, 47 Wh
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10, 45 Wh
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10, 42 Wh
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250, 50 Wh
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250, 41 Wh
Average of class Subnotebook

Batterijduur
-8%
-17%
1%
-30%
-7%
Reader / Idle
1068
941
-12%
856
-20%
986
-8%
694
-35%
629 (87 - 2735, n=559)
-41%
WiFi v1.3
404
460
14%
421
4%
515
27%
368
-9%
491 (206 - 991, n=258)
22%
Load
125
92
-26%
81
-35%
105
-16%
69
-45%
122 (40 - 369, n=577)
-2%

Pro

+ plat en licht
+ aantrekkelijk ontwerp

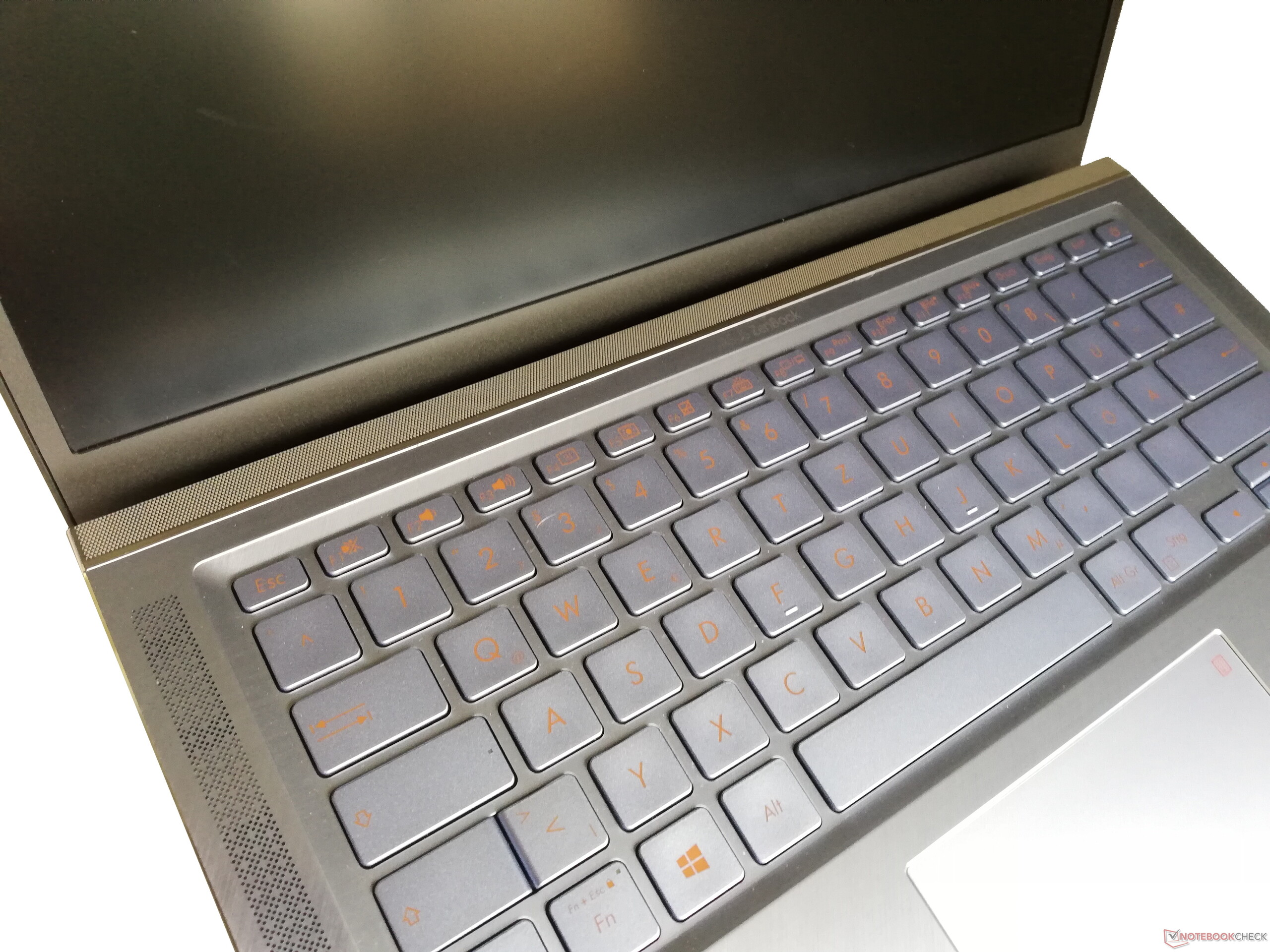

+ nummeriek toetspad is geïntegreerd in touchpad

Contra

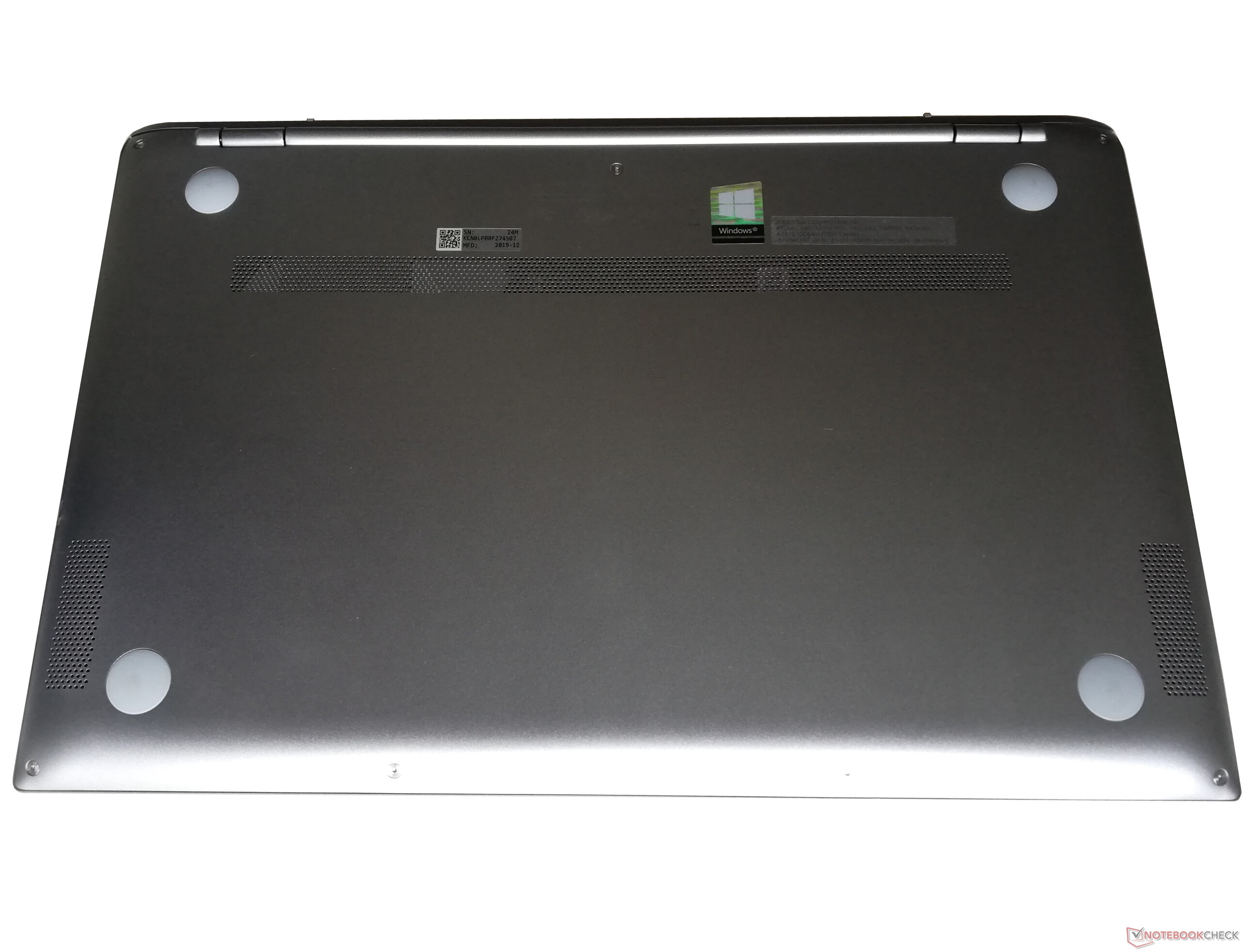

- weinig onderhoudsopties
- glad oppervlak toetsenbord
- matige CPU prestaties
- matige batterijduur

Verdict - Pretty design with slowed-down CPU

In review: Asus ZenBook 14 UM431DA. Test device provided by:
In review: Asus ZenBook 14 UM431DA. Test device provided by:

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

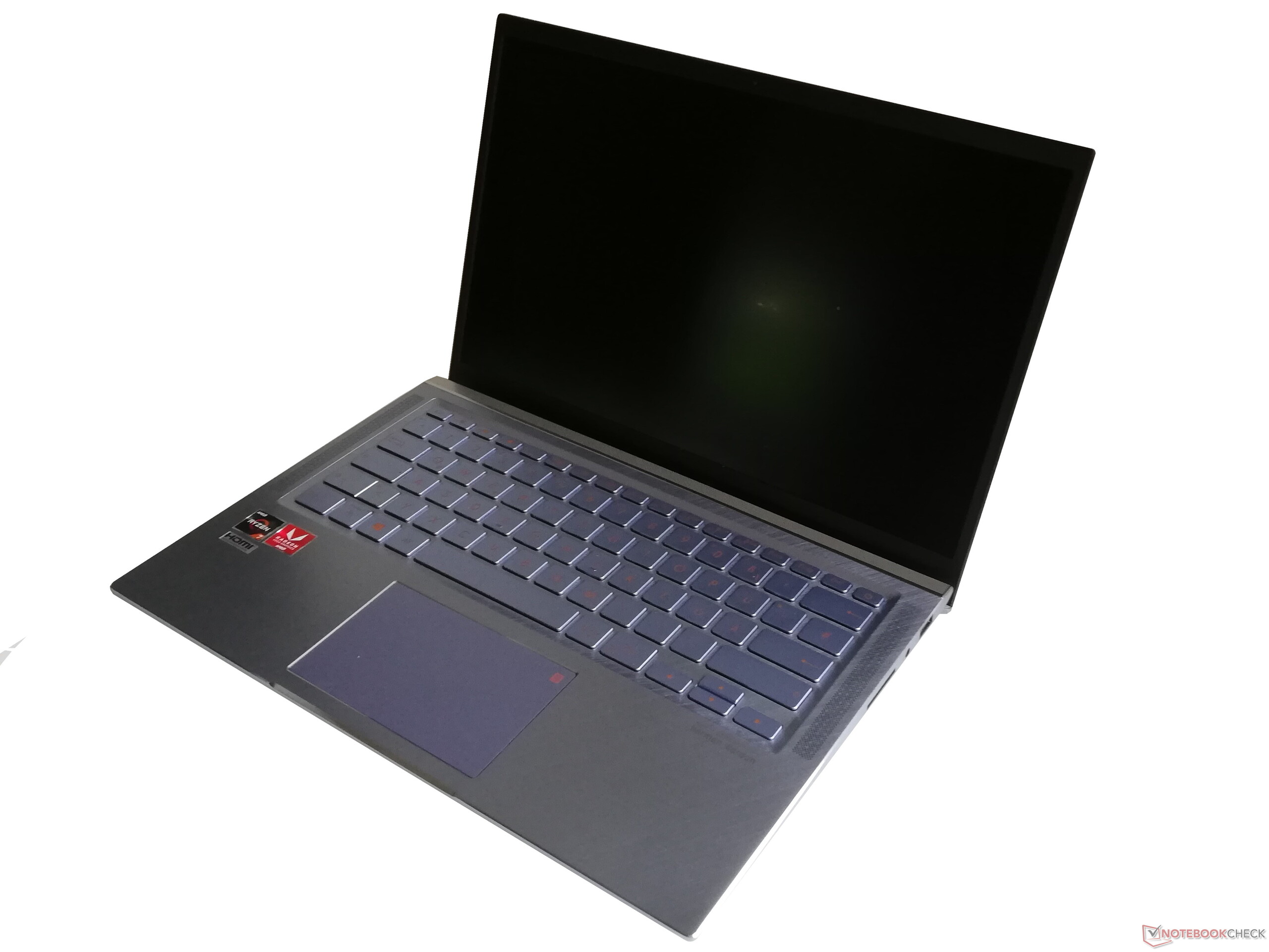

Met de Asus ZenBook 14 UM431DA krijg je als consument een notebook met een geweldig ontwerp dat makkelijk vervoerbaar is voor een relatief lage prijs. De behuizing ziet er kwalitatief goed uit en diverse decoratieve aspecten doen de notebook er duurder uitzien. Hiernaast heb je ook nog het geïntegreerde numeriek toetsenbord, wat achteraf gezien een vrij handige toevoeging blijkt te zijn. De poortconfiguratie is solide. Alhoewel Wi-Fi 5 niet een grote stap vooruit is, zijn de draadloze verbinding nog steeds snel en up-to-date.

De ZenBook 14 is een solide notebook met een aantrekkelijk ontwerp. Helaas faalt de notebook erin de volledige potentie van de CPU te gebruiken.

Echter moeten toekomstige kopers zichzelf niet limiteren tot dit model met de Ryzen 7 3700U maar kunnen zelfverzekerd het model met een minder krachtige CPU kiezen. Omdat het koelsysteem 100% CPU belasting alleen heel kort vol kan houden, zijn de prestaties op lange termijn veel slechter dan wij die hadden ingeschat voor deze processor. Omdat het niet mogelijk is om de RAM uit te breiden, moet je zorgen dat je een uitvoering koopt met genoeg RAM. Als je vooral geïnteresseerd bent in het ontwerp en cijfers op papier en niet zozeer in de werkelijke prestaties, kun je deze notebook nog steeds overwegen.

Asus ZenBook 14 UM431DA-AM020T - 11-02-2020 v7
Mike Wobker

Behuizing
80 / 98 → 82%
Toetsenbord
80%
Aanwijsapparaat
75%
Aansluitmogelijkheden
41 / 75 → 55%
Gewicht
70 / 20-75 → 91%
Batterij
73%
Beeldscherm
82%
Gaming-performance
57 / 78 → 73%
Applicatie-performance
76 / 85 → 89%
Temperatuur
95%
Luidheid
96%
Audio
61 / 91 → 67%
Camera
40 / 85 → 47%
Gemiddelde
71%
81%
Subnotebook - Gewogen Gemiddelde
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Asus ZenBook 14 UM431DA laptop: maakt ook een goede indruk met Ryzen
Mike Wobker, 2020-02-16 (Update: 2020-02-18)
