Kort testrapport HP EliteBook x360 1030 G3 (i7-8650U, FHD) Convertible

Allen Ngo, 👁 Allen Ngo, 08-11-2018

Could be faster. De EliteBook x360 1030 G3 Core i7 SKU is een perfect voorbeeld van waarom een duurdere configuratie niet altijd sneller is dan een minder dure SKU. De Core i7 CPU op onze HP is meetbaar langzamer dan hetzelfde model met de meer betaalbare Core i5.

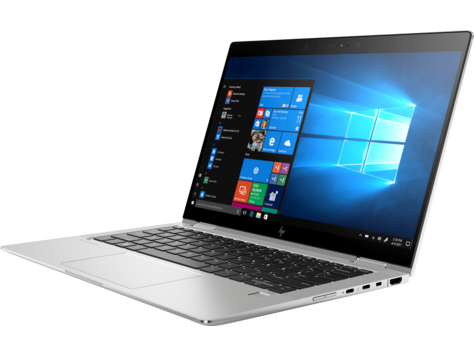

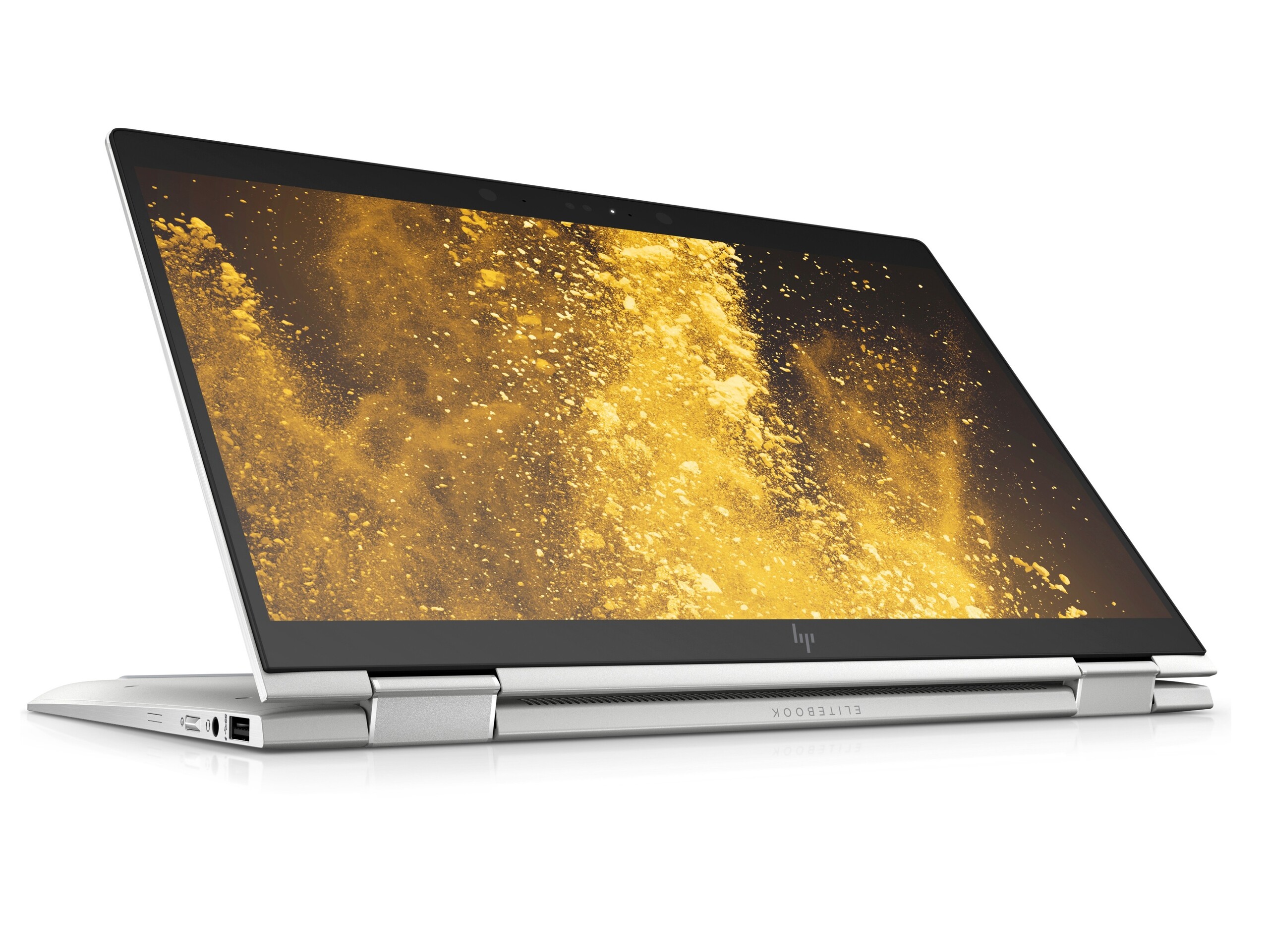

HP EliteBook x360 1030 G3 45X96UT (EliteBook 1030 Serie)
Processor
Intel Core i7-8650U
Grafische kaart
Intel UHD Graphics 620, Core: 300 MHz, Geheugen: 1067 MHz, DDR3, 24.20.100.6286
Geheugen
16384 MB
, 10-10-10-28, Dual-Channel
Beeldscherm
13.3 inch 16:9, 1920 x 1080 pixel 166 PPI, Capacitief, native pen support, Chi Mei CMN1380, IPS, glimmend: ja
Moederbord
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Opslag
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm combo, 1 Vingerafdruklezer, NFC, Brightness Sensor, Sensoren: Versnellingsmeter, Omgevignslichtsensor, Gyroscoop, Magnetometer, Hall sensor
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 15.8 x 305.8 x 205
Batterij
56.2 Wh Lithium-Polymer, 4 cellen
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Bijkomende functionaliteiten
Luidsprekers: Quad luidsprekers, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, HP Active Pen, HP Client Security, B&O Audio, HP Sure Click, HP Velocity, HP PhoneWise, 36 Maanden Garantie
Gewicht
1.26 kg, Voeding: 261 g
Prijs
2400 USD
Links
HP startpagina
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



322 mm 227 mm 14.9 mm 1.4 kg318 mm 216 mm 17 mm 1.4 kg305.8 mm 205 mm 15.8 mm 1.3 kg304 mm 217 mm 14.6 mm 1.3 kg300 mm 231.5 mm 7.9 mm 1.2 kg292 mm 201 mm 8.5 mm 781 g

Top 10 Testrapporten

» Top 10 Multimedia Notebooks
» Top 10 Gaming-Notebooks
» Top 10 Budget Office/Business-Notebooks
» Top 10 Premium Office/Business-Notebooks
» Top 10 Workstation-Laptops
» Top 10 Lichtgewicht Gaming-Notebooks
» Top 10 Subnotebooks
» Top 10 Smartphones tot €120
» Top 10 Smartphones tot €300
» Top 10 Ultrabooks
» Top 10 Convertibles
» Top 10 Tablets
» Top 10 Windows-Tablets
» Top 10 Phablets (>5.5-inch)
» Top 10 Smartphones
» Top 10 Smartphones (≤5-inch)
» Best Geteste Notebook Beeldschermen
» Top 10 Notebooks tot € 1.000De beste notebookbeeldschermen zoals getest door Notebookcheck
» Top 10 Notebooks tot €500
» Top 10 Notebooks tot €300

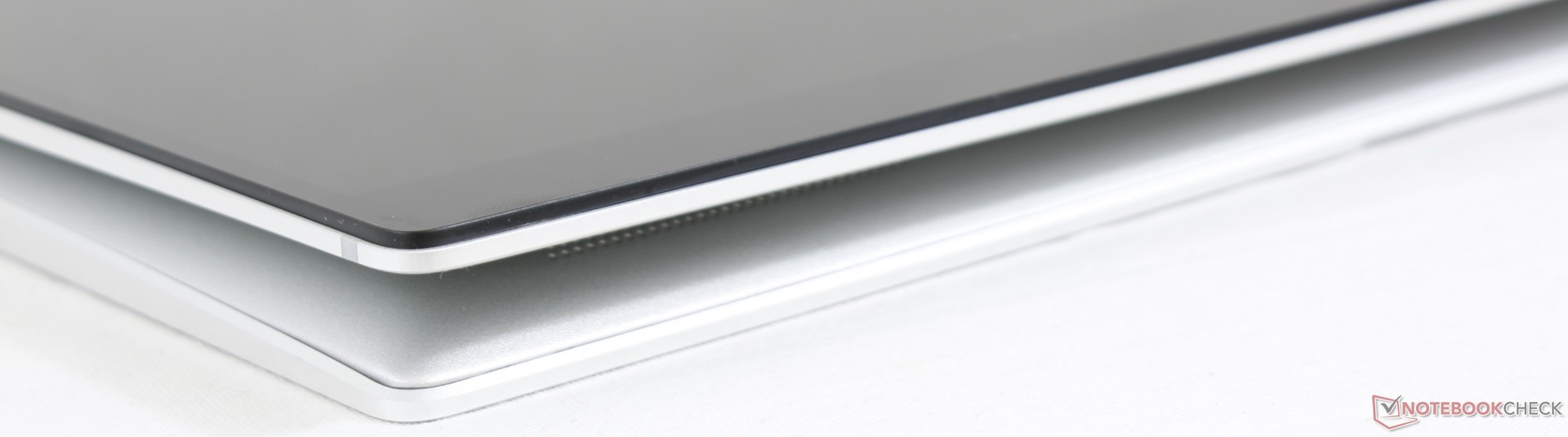

Voorkant: geen aansluitingen
Voorkant: geen aansluitingen

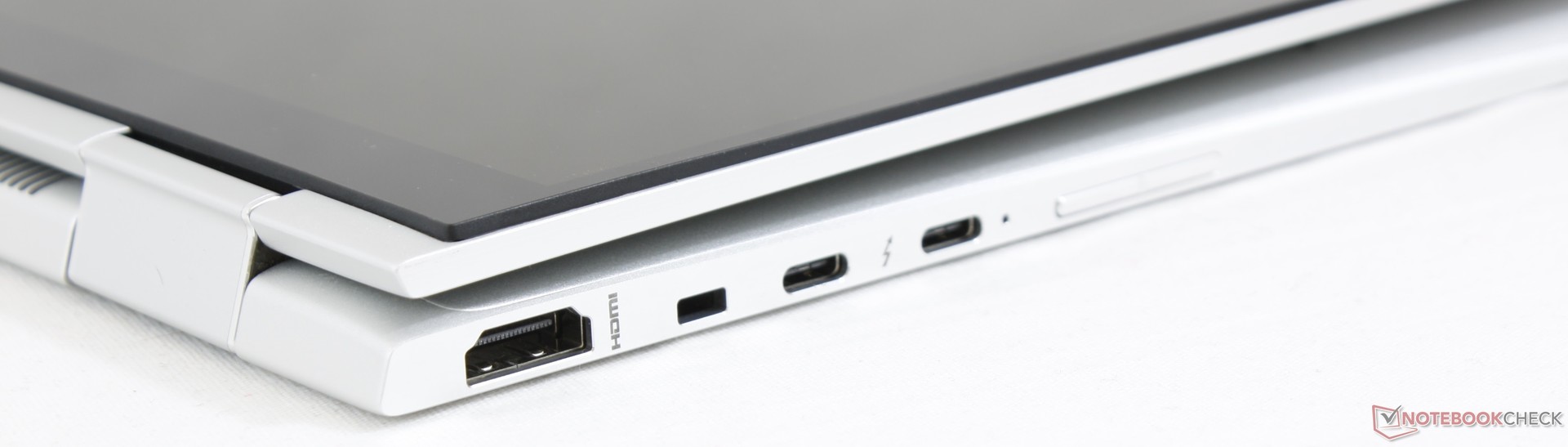

Rechterkant: Volumeknop, 2x USB Type-C + Thunderbolt 3, DriveLock, HDMI 1.4
Rechterkant: Volumeknop, 2x USB Type-C + Thunderbolt 3, DriveLock, HDMI 1.4

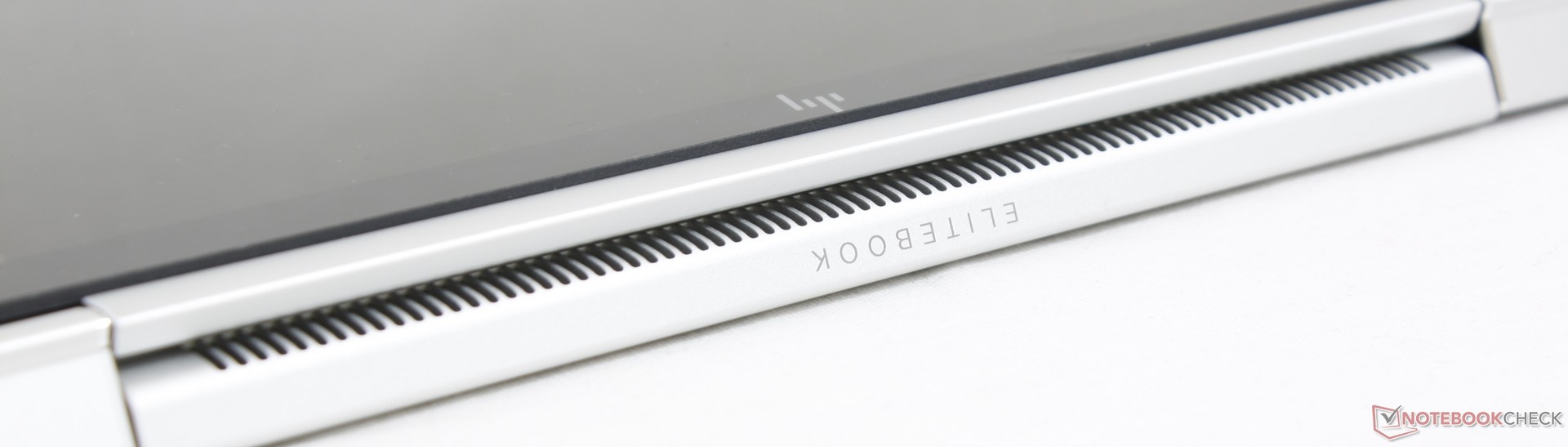

Achterkant: geen aansluitingen
Achterkant: geen aansluitingen

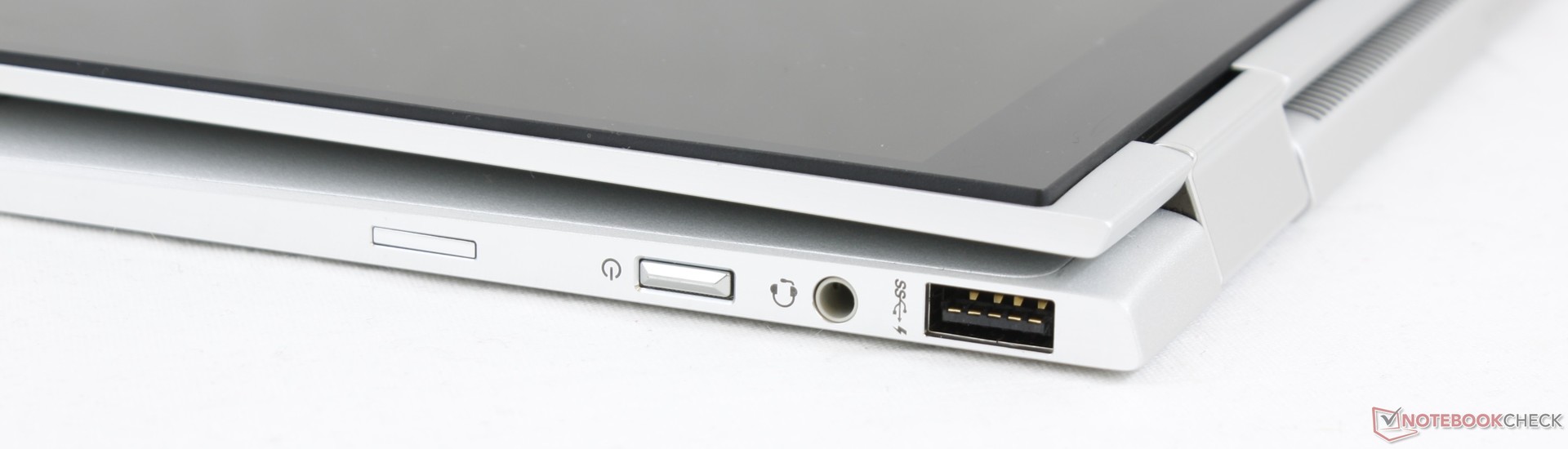

Linkerkant: USB 3.1 Type-A, 3.5 mm audiopoort, Power button, Nano-SIM slot (optioneel)
Linkerkant: USB 3.1 Type-A, 3.5 mm audiopoort, Power button, Nano-SIM slot (optioneel)
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
660 MBit/s ∼100% +5%
Lenovo Yoga C930-13IKB
Intel Wireless-AC 9260
638 (min: 401, max: 679) MBit/s ∼97% +1%
HP EliteBook x360 1030 G3 45X96UT
Intel Dual Band Wireless-AC 8265
630 MBit/s ∼95%
Microsoft Surface Pro 6, Core i5, 128 GB
Marvell AVASTAR Wireless-AC Network Controller
577 (min: 517, max: 605) MBit/s ∼87% -8%
Chuwi LapBook SE
Intel Dual Band Wireless-AC 3165
309 (min: 299, max: 316) MBit/s ∼47% -51%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo Yoga C930-13IKB
Intel Wireless-AC 9260
657 (min: 602, max: 709) MBit/s ∼100% +29%
Microsoft Surface Pro 6, Core i5, 128 GB
Marvell AVASTAR Wireless-AC Network Controller
517 (min: 437, max: 572) MBit/s ∼79% +2%
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
513 MBit/s ∼78% +1%
HP EliteBook x360 1030 G3 45X96UT
Intel Dual Band Wireless-AC 8265
509 MBit/s ∼77%
Chuwi LapBook SE
Intel Dual Band Wireless-AC 3165
301 (min: 237, max: 351) MBit/s ∼46% -41%
452.3
cd/m²		445.4
cd/m²		426.4
cd/m²
467.2
cd/m²		467.2
cd/m²		453.8
cd/m²
428.8
cd/m²		430.2
cd/m²		437.8
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 467.2 cd/m² Gemiddelde: 445.5 cd/m² Minimum: 22.85 cd/m²
Helderheidsverdeling: 91 %
Helderheid in Batterij-modus: 467.2 cd/m²
Contrast: 1168:1 (Zwart: 0.4 cd/m²)
ΔE Color 2.41 | 0.6-29.43 Ø6.1, calibrated: 1.33
ΔE Greyscale 3.7 | 0.64-98 Ø6.3
99.6% sRGB (Argyll 3D) 62.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.37
HP EliteBook x360 1030 G3 45X96UT
Chi Mei CMN1380, IPS, 13.3, 1920x1080		Lenovo Yoga C930-13IKB
B139HAN03_0, IPS, 13.9, 1920x1080		Chuwi LapBook SE
13.3, 1920x1080		Microsoft Surface Pro 6, Core i5, 128 GB
LGPhilips LP123WQ112604, IPS, 12.3, 2736x1834		Huawei Matebook X Pro i5
Tianma XM, IPS, 13.9, 3000x2000		HP Elite x2 1013 G3-2TT14EA
AU Optronics AUO101A, IPS, 13, 3000x2000
Response Times
-2%
-33%
-6%
2%
-8%
Response Time Grey 50% / Grey 80% *
39.6 (20.8, 18.8)
40.8 (20.4, 20.4)
-3%
39.2 (19.2, 20)
1%
42 (22, 20)
-6%
40.4 (19.2, 21.2)
-2%
47 (23, 24)
-19%
Response Time Black / White *
27.2 (14.8, 12.4)
27.6 (15.6, 12)
-1%
27.7 (14.8, 12.9)
-2%
25 (14, 11)
8%
25.6 (11.6, 14)
6%
26 (14, 12)
4%
PWM Frequency
26040 (62)
200 (29)
-99%
20800 (50)
-20%
Screen
-46%
-69%
-14%
-13%
-18%
Brightness middle
467.2
316
-32%
227
-51%
463
-1%
442.7
-5%
452
-3%
Brightness
445
291
-35%
210
-53%
450
1%
428
-4%
412
-7%
Brightness Distribution
91
83
-9%
89
-2%
83
-9%
84
-8%
85
-7%
Black Level *
0.4
0.36
10%
0.44
-10%
0.32
20%
0.31
22%
0.48
-20%
Contrast
1168
878
-25%
516
-56%
1447
24%
1428
22%
942
-19%
Colorchecker DeltaE2000 *
2.41
5.9
-145%
6.6
-174%
3.76
-56%
2.24
7%
4.05
-68%
Colorchecker DeltaE2000 max. *
5.58
12.9
-131%
12.2
-119%
7.35
-32%
7.19
-29%
6.64
-19%
Colorchecker DeltaE2000 calibrated *
1.33
1.3
2%
1.9
-43%
2.68
-102%
1.11
17%
1.56
-17%
Greyscale DeltaE2000 *
3.7
8.6
-132%
7.9
-114%
3.18
14%
9.7
-162%
4.87
-32%
Gamma
2.37 93%
2.1 105%
2.16 102%
2.53 87%
1.42 155%
2.71 81%
CCT
7158 91%
6854 95%
8879 73%
6994 93%
6227 104%
7160 91%
Color Space (Percent of AdobeRGB 1998)
62.5
60.7
-3%
59
-6%
61.6
-1%
62
-1%
Color Space (Percent of sRGB)
99.6
94.5
-5%
90
-10%
95
-5%
97
-3%
Totaal Gemiddelde (Programma / Instellingen)
-24% / -39%
-51% / -60%
-10% / -13%
-6% / -11%
-13% / -16%

* ... kleiner is beter

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

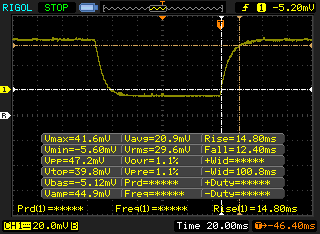

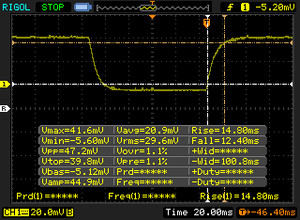

   ↔    Responstijd Zwart naar Wit
27.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14.8 ms stijging
↘ 12.4 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 56 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.1 ms) van alle geteste toestellen.

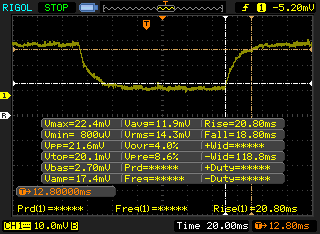

   ↔    Responstijd 50% Grijs naar 80% Grijs
39.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20.8 ms stijging
↘ 18.8 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 44 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (40.1 ms) van alle geteste toestellen.

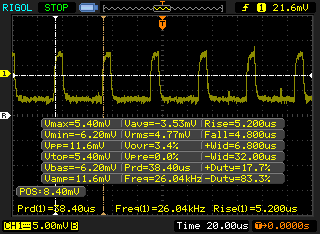

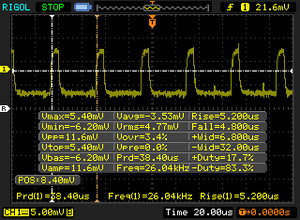

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 26040 Hz ≤ 62 % helderheid instelling

Het backlight van het scherm flikkert aan 26040 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 62 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 26040 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9447 (minimum: 43 - maximum: 142900) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640Tooltip
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ; CPU Multi 64Bit: Ø432 (413.4-494.22)
HP EliteBook x360 1030 G3 UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ; CPU Multi 64Bit: Ø483 (463.47-532.04)
Microsoft Surface Pro 6, Core i7, 512 GB UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G; CPU Multi 64Bit: Ø571 (559.56-638.59)
Cinebench R15
CPU Single 64Bit
Average Intel Core i7-8650U
  (128 - 178, n=17)
165 Points ∼76% +1%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
163 Points ∼75% 0%
HP EliteBook x360 1030 G3 45X96UT
Intel Core i7-8650U
163 Points ∼75%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
145 Points ∼67% -11%
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
143 Points ∼66% -12%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
143 Points ∼66% -12%
HP Envy x360 15-bq102ng
AMD Ryzen 5 2500U
142 Points ∼65% -13%
HP EliteBook x360 1030 G3
Intel Core i5-8250U
141 Points ∼65% -13%
Lenovo IdeaPad 720-15IKB
Intel Core i5-7200U
129 Points ∼59% -21%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel Atom x5-Z8550
36 Points ∼17% -78%
CPU Multi 64Bit
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
639 Points ∼15% +43%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
630 Points ∼14% +41%
HP Envy x360 15-bq102ng
AMD Ryzen 5 2500U
618 Points ∼14% +38%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
613 Points ∼14% +37%
Average Intel Core i7-8650U
  (447 - 675, n=19)
580 Points ∼13% +30%
HP EliteBook x360 1030 G3
Intel Core i5-8250U
493 Points ∼11% +10%
HP EliteBook x360 1030 G3 45X96UT
Intel Core i7-8650U
447 Points ∼10%
Lenovo IdeaPad 720-15IKB
Intel Core i5-7200U
331 Points ∼8% -26%
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
317 Points ∼7% -29%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel Atom x5-Z8550
134 Points ∼3% -70%
Cinebench R15 CPU Single 64Bit
163 Points
Cinebench R15 CPU Multi 64Bit
447 Points
Cinebench R15 OpenGL 64Bit
49.96 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 10 | PCMark 8
PCMark 10
Digital Content Creation
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
2952 Points ∼26% +7%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (2117 - 3174, n=10)
2868 Points ∼26% +4%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
2855 Points ∼26% +4%
Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
2795 Points ∼25% +1%
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ
2758 Points ∼25%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
2714 Points ∼24% -2%
Chuwi LapBook SE
UHD Graphics 600, N4100, SanDisk DF4032
949 Points ∼8% -66%
Productivity
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ
6694 Points ∼69%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (5271 - 7142, n=10)
6457 Points ∼67% -4%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
5739 Points ∼59% -14%
Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
5715 Points ∼59% -15%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
5698 Points ∼59% -15%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
5353 Points ∼55% -20%
Chuwi LapBook SE
UHD Graphics 600, N4100, SanDisk DF4032
2567 Points ∼26% -62%
Essentials
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ
8733 Points ∼82%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
8356 Points ∼78% -4%
Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
8355 Points ∼78% -4%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (6877 - 8992, n=10)
7944 Points ∼74% -9%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
7919 Points ∼74% -9%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
7039 Points ∼66% -19%
Chuwi LapBook SE
UHD Graphics 600, N4100, SanDisk DF4032
3776 Points ∼35% -57%
Score
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ
3901 Points ∼50%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
3695 Points ∼48% -5%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (2403 - 4078, n=10)
3686 Points ∼47% -6%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
3559 Points ∼46% -9%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
3448 Points ∼44% -12%
Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
2603 Points ∼34% -33%
Chuwi LapBook SE
UHD Graphics 600, N4100, SanDisk DF4032
1502 Points ∼19% -61%
PCMark 8 - Home Score Accelerated v2
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ
4103 Points ∼67%
Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
3774 Points ∼62% -8%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (3216 - 4103, n=10)
3722 Points ∼61% -9%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
3453 Points ∼57% -16%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
3413 Points ∼56% -17%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
3281 Points ∼54% -20%
PCMark 8 Home Score Accelerated v2
4103 punten
Help
HP EliteBook x360 1030 G3 45X96UT
Samsung SSD PM981 MZVLB512HAJQ		Lenovo Yoga C930-13IKB
SK hynix PC401 HFS256GD9TNG		Chuwi LapBook SE
SanDisk DF4032		Microsoft Surface Pro 6, Core i5, 128 GB
Toshiba KBG30ZPZ128G		Huawei Matebook X Pro i5
Samsung PM961 MZVLW256HEHP		HP EliteBook x360 1030 G3
Samsung PM871b MZNLN128HAHQ
AS SSD
-50%
-518%
-261%
-23%
-73%
Copy Game MB/s
989.72
340.01
-66%
124.38
-87%
486.26
-51%
164.53
-83%
Copy Program MB/s
453.91
209.69
-54%
94
-79%
312.26
-31%
74.3
-84%
Copy ISO MB/s
1947.34
539.41
-72%
128.13
-93%
739.44
-62%
208.12
-89%
Score Total
3484
1373
-61%
120
-97%
870
-75%
2575
-26%
781
-78%
Score Write
1032
427
-59%
36
-97%
244
-76%
620
-40%
268
-74%
Score Read
1634
657
-60%
58
-96%
430
-74%
1329
-19%
335
-79%
Access Time Write *
0.036
0.056
-56%
1.233
-3325%
0.301
-736%
0.036
-0%
0.048
-33%
Access Time Read *
0.041
0.069
-68%
0.671
-1537%
0.913
-2127%
0.058
-41%
0.093
-127%
4K-64 Write
790.01
266.32
-66%
9.11
-99%
129.31
-84%
399.62
-49%
156.5
-80%
4K-64 Read
1407.92
434.3
-69%
25.65
-98%
277.89
-80%
1039.05
-26%
255.09
-82%
4K Write
104.31
94.98
-9%
13.6
-87%
80.6
-23%
103.13
-1%
70.83
-32%
4K Read
46.05
38.04
-17%
6.3
-86%
40.46
-12%
48.33
5%
31.07
-33%
Seq Write
1373.63
661.05
-52%
131.8
-90%
340
-75%
1169.65
-15%
403.21
-71%
Seq Read
1797.58
1849.93
3%
264.1
-85%
1113.69
-38%
2415.81
34%
488.2
-73%

* ... kleiner is beter

CrystalDiskMark 5.2 / 6
AS SSD
hddimg
Samsung SSD PM981 MZVLB512HAJQ
CDM 5/6 Read Seq Q32T1: 3376 MB/s
CDM 5/6 Write Seq Q32T1: 1860 MB/s
CDM 5/6 Read 4K Q32T1: 288.7 MB/s
CDM 5/6 Write 4K Q32T1: 391.8 MB/s
CDM 5 Read Seq: 2227 MB/s
CDM 5 Write Seq: 1814 MB/s
CDM 5/6 Read 4K: 43.42 MB/s
CDM 5/6 Write 4K: 120 MB/s
3DMark 11 | 3DMark
3DMark 11
1280x720 Performance Combined
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
2820 Points ∼12% +90%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
2683 Points ∼12% +81%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, 8650U
1858 Points ∼8% +25%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, 2700U
1854 Points ∼8% +25%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, 7500U
1555 Points ∼7% +5%
Average Intel UHD Graphics 620
  (959 - 1968, n=154)
1527 Points ∼7% +3%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
1524 Points ∼7% +3%
HP EliteBook x360 1030 G3
Intel UHD Graphics 620, 8250U
1489 Points ∼7% 0%
HP EliteBook x360 1030 G3 45X96UT
Intel UHD Graphics 620, 8650U
1485 Points ∼7%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
480 Points ∼2% -68%
Chuwi LapBook SE
Intel UHD Graphics 600, N4100
455 Points ∼2% -69%
1280x720 Performance GPU
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
3549 Points ∼7% +115%
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
3512 Points ∼7% +113%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, 2700U
2885 Points ∼6% +75%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, 8650U
1977 Points ∼4% +20%
HP EliteBook x360 1030 G3
Intel UHD Graphics 620, 8250U
1738 Points ∼3% +5%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
1734 Points ∼3% +5%
Average Intel UHD Graphics 620
  (1235 - 1979, n=154)
1706 Points ∼3% +3%
HP EliteBook x360 1030 G3 45X96UT
Intel UHD Graphics 620, 8650U
1649 Points ∼3%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, 7500U
1569 Points ∼3% -5%
Chuwi LapBook SE
Intel UHD Graphics 600, N4100
482 Points ∼1% -71%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
418 Points ∼1% -75%
3DMark
2560x1440 Time Spy Graphics
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
843 Points ∼6%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
649 Points ∼5%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
349 Points ∼2%
Average Intel UHD Graphics 620
  (299 - 402, n=24)
348 Points ∼2%
Chuwi LapBook SE
Intel UHD Graphics 600, N4100
85 Points ∼1%
1920x1080 Fire Strike Graphics
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
2874 Points ∼7%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
2310 Points ∼6%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, 2700U
1738 Points ∼4%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
1216 Points ∼3%
Average Intel UHD Graphics 620
  (557 - 1401, n=123)
1117 Points ∼3%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, 7500U
1029 Points ∼3%
1280x720 Cloud Gate Standard Graphics
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
17325 Points ∼9%
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
15186 Points ∼8%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, 2700U
10604 Points ∼6%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, 8650U
10213 Points ∼6%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
10003 Points ∼5%
HP EliteBook x360 1030 G3
Intel UHD Graphics 620, 8250U
9478 Points ∼5%
Average Intel UHD Graphics 620
  (6910 - 11436, n=141)
9107 Points ∼5%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, 7500U
7636 Points ∼4%
Chuwi LapBook SE
Intel UHD Graphics 600, N4100
2826 Points ∼2%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
2455 Points ∼1%
1920x1080 Ice Storm Extreme Graphics
HP Envy x360 15-bq102ng
AMD Radeon RX Vega 8, 2500U
68150 Points ∼9%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, 8250U
56912 Points ∼8%
HP Envy 13-ah0003ng
NVIDIA GeForce MX150, 8550U
44844 Points ∼6%
Average Intel UHD Graphics 620
  (29002 - 59483, n=34)
44317 Points ∼6%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, 7500U
37394 Points ∼5%
3DMark 11 Performance
1814 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 70.932.928.58.9fps

Geluidsniveau

Onbelast
28.5 / 28.5 / 28.5 dB (A)
Belasting
30.8 / 32.8 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 28.5 dB(A)
HP EliteBook x360 1030 G3 45X96UT
UHD Graphics 620, 8650U, Samsung SSD PM981 MZVLB512HAJQ		Lenovo Yoga C930-13IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG		HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ		HP Envy x360 15-bq102ng
Vega 8, 2500U, Samsung PM961 MZVLW256HEHP		HP Spectre x360 13-ac033dx
HD Graphics 620, 7500U, Samsung PM961 NVMe MZVLW512HMJP		Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
Noise
-3%
-1%
-11%
-14%
-6%
off / environment *
28.5
29.3
-3%
28.5
-0%
30.13
-6%
28.7
-1%
30.3
-6%
Idle Minimum *
28.5
29.3
-3%
28.5
-0%
30.13
-6%
28.7
-1%
30.3
-6%
Idle Average *
28.5
29.3
-3%
28.5
-0%
30.13
-6%
34.2
-20%
30.3
-6%
Idle Maximum *
28.5
29.7
-4%
28.5
-0%
30.13
-6%
35.8
-26%
30.3
-6%
Load Average *
30.8
31.8
-3%
31.3
-2%
38.8
-26%
35.8
-16%
33.5
-9%
Load Maximum *
32.8
32.7
-0%
33.5
-2%
38.8
-18%
39.6
-21%
33.5
-2%

* ... kleiner is beter

Max. Belasting
 33.8 °C40 °C34.4 °C
 30.4 °C40 °C27.8 °C
 27 °C26.4 °C26.8 °C
Maximum: 40 °C
Gemiddelde: 31.8 °C
33.4 °C46.2 °C34.2 °C
30.2 °C38 °C31.8 °C
28.6 °C30.8 °C29.4 °C
Maximum: 46.2 °C
Gemiddelde: 33.6 °C
Stroomadapter (max.)  35 °C | Kamertemperatuur 20 °C | Fluke 62 Mini IR Thermometer
(+) The average temperature for the upper side under maximal load is 31.8 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46.2 °C / 115 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (+2 °C / 3.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.337.42535.833.3313234.64030.933.75030.932.36328.930.88029.933.810029.942.612527.651.716027.659.920026.864.525026.56931526.670.440025.170.850024.667.463024.365.280023.769.4100023.969.1125023.468.5160023.166200023.263.8250023.369315023.267.4400023.173500022.971.863002377.780002378.21000022.974.51250022.870.71600022.768SPL35.684.1N2.562.3median 23.4median 69Delta13.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseHP EliteBook x360 1030 G3 45X96UTApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP EliteBook x360 1030 G3 45X96UT audio analysis

(±) | speaker loudness is average but good (78.19 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.8% lower than median
(±) | linearity of bass is average (13.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.5% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 2% similar, 98% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 2% of all tested devices were better, 2% similar, 96% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.36 / 0.56 Watt
Inactiefdarkmidlight 3.4 / 7.6 / 11.5 Watt
Belasting midlight 35.4 / 51.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP EliteBook x360 1030 G3 45X96UT
8650U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 13.3		Lenovo Yoga C930-13IKB
8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 13.9		Chuwi LapBook SE
N4100, UHD Graphics 600, SanDisk DF4032, , 1920x1080, 13.3		Microsoft Surface Pro 6, Core i7, 512 GB
8650U, UHD Graphics 620, Toshiba KBG30ZPZ512G, IPS, 2736x1824, 12.3		HP Elite x2 1013 G3-2TT14EA
8350U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13		HP EliteBook x360 1030 G3
8250U, UHD Graphics 620, Samsung PM871b MZNLN128HAHQ, IPS, 1920x1080, 13.3
Power Consumption
1%
38%
8%
-3%
12%
Idle Minimum *
3.4
3.3
3%
2.7
21%
3.2
6%
4.9
-44%
3.8
-12%
Idle Average *
7.6
6.8
11%
6.3
17%
8.7
-14%
8.9
-17%
7.5
1%
Idle Maximum *
11.5
9.5
17%
7.6
34%
10.4
10%
11
4%
8.6
25%
Load Average *
35.4
40.8
-15%
12.6
64%
29.2
18%
32
10%
33.1
6%
Load Maximum *
51.9
57
-10%
24.6
53%
40.8
21%
36
31%
31.8
39%

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3
9h 49min
HP EliteBook x360 1030 G3 45X96UT
8650U, UHD Graphics 620, 56.2 Wh		Lenovo Yoga C930-13IKB
8250U, UHD Graphics 620, 60 Wh		Chuwi LapBook SE
N4100, UHD Graphics 600, 37 Wh		Huawei Matebook X Pro i5
8250U, GeForce MX150, 57.4 Wh		Microsoft Surface Pro 6, Core i7, 512 GB
8650U, UHD Graphics 620, 45 Wh		HP EliteBook x360 1030 G3
8250U, UHD Graphics 620, 56.2 Wh
Batterijduur
-7%
-25%
-5%
-14%
2%
Reader / Idle
1432
1243
1083
1381
WiFi v1.3
589
550
-7%
444
-25%
557
-5%
509
-14%
602
2%
Load
124
347
133
131
189

Pro

+ geweldige geluidskwaliteit voor de grootte; luide luidsprekers
+ kleine voetafdruk; draagbaar en lichtgewicht
+ gepatenteerde meerlaagse beveiligingsfuncties
+ toetsenbordtoetsen hebben geweldige feedback
+ optionele 4G LTE en NFC
+ Thunderbolt 3-ondersteuning
+ uitstekende bouwkwaliteit
+ Opladen via USB Type-C
+ volledige sRGB-dekking
+ goede batterijlevensduur
+ stille ventilator
+ helder beeldscherm

Contra

- warmere oppervlakken dan de EliteBook x360 1030 G2
- PWM op lagere helderheidsniveaus
- niet zo stijf als de dikkere EliteBook 830-serie
- niet in staat om maximale CPU Turbo Boost vol te houden
- lagere prestaties op accustroom
- onderhoudsgemak had eenvoudiger kunnen zijn
- Enige backlight bleeding
- trage prestaties van de Core i7-8650U
- geen SD- of Smart Card-lezers
- geen speciale muisknoppen
- geen discrete GPU-opties
- hoge startprijs
- gesoldeerd RAM
Getest: HP EliteBook x360 1030 G3 45X96UT. Testmodel geleverd door HP US
Getest: HP EliteBook x360 1030 G3 45X96UT. Testmodel geleverd door HP US

Voor het volledige, Engelse testrapport, klik hier.

In ons oorspronkelijke testrapport van de Core i5 EliteBook x360 1030 G3 hebben we gezegd dat dit de beste 13-inch zakelijke convertible is met meer functies en een helderder beeldscherm dan het typische Ultrabook-vlaggenschip. Dit geldt nog steeds voor de Core i7-configuratie, maar met één belangrijk nadeel: het apparaat is niet zo veel sneller dan de minder dure Core i5-8250U-optie. Eigenlijk laten onze resultaten zien dat de i7-CPU consequent langzamer is dan de i5 CPU als gevolg van prestatiebeperkingen van de Core i7. De Core i7 Yoga C930 daarentegen is sneller dan de Core i5 Yoga C930, vooral wanneer deze zwaar wordt belast, dus we zijn teleurgesteld om het tegenovergestelde te zien op een van HP's beste subnotebooks.

De EliteBook x360 1030 G3 is nog steeds zeer aan te bevelen, omdat de kwaliteiten ervan ruimschoots opwegen tegen de paar minpunten. Dat gezegd hebbende stellen we voor om de Core i7-8650U SKU over te slaan en het extra budget te gebruiken voor meer bruikbaardere opties zoals Sure View, de 700 nit "Outdoor Mode" achtergrondverlichting, 4G LTE en zelfs een externe Thunderbolt Dock G2 of monitor .

De Core i7 SKU is ten minste $200 of $300 duurder dan de Core i5 SKU en de bijbehorende prestatievoordelen - of het ontbreken daarvan - rechtvaardigen de meerprijs niet. De Core i5 SKU blijft de beste die de EliteBook x360 1030 G3 te bieden heeft.

HP EliteBook x360 1030 G3 45X96UT - 06-11-2018 v6
Allen Ngo

Behuizing
93 / 98 → 95%
Toetsenbord
92%
Aanwijsapparaat
93%
Aansluitmogelijkheden
66 / 80 → 83%
Gewicht
72 / 35-78 → 86%
Batterij
92%
Beeldscherm
87%
Gaming-performance
58 / 68 → 85%
Applicatie-performance
92 / 87 → 100%
Temperatuur
91%
Luidheid
97%
Audio
71 / 91 → 78%
Camera
47 / 85 → 56%
Gemiddelde
81%
90%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport HP EliteBook x360 1030 G3 (i7-8650U, FHD) Convertible
Allen Ngo, 2018-11- 8 (Update: 2018-11- 8)
