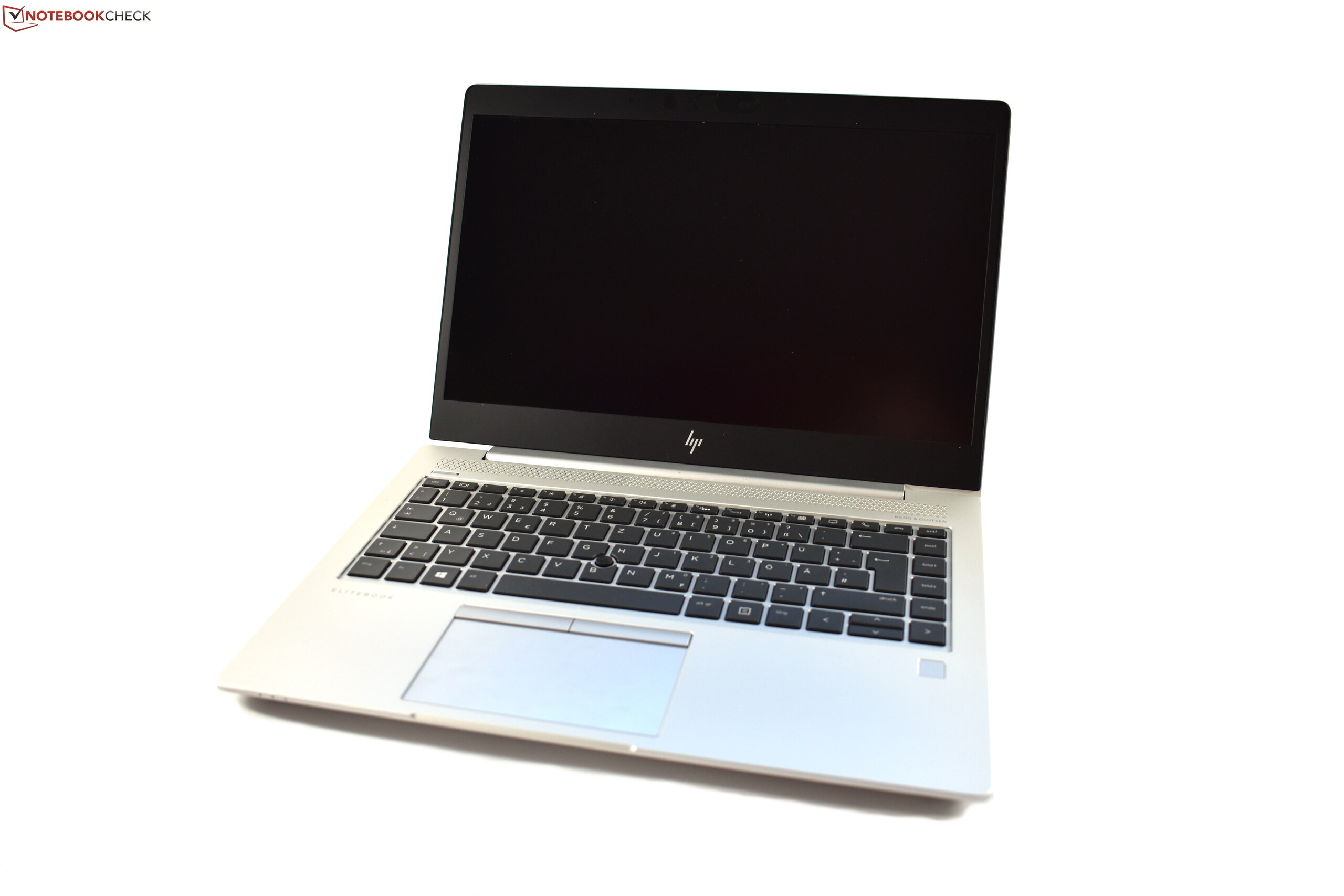

Kort testrapport HP EliteBook 745 G5 (Ryzen 7 2700U) Laptop

Benjamin Herzig, 👁 Sebastian Jentsch, Felicitas Krohn (vertaald door Siemon Boes), 27-07-2018

Zeer goede teleurstelling. AMD Ryzen, vooral bekend van de CPU's voor privé-consumenten, wilt ook in de zakelijke sector concurreren met Intel. De EliteBook 745 G5, gebaseerd op de uitstekende EliteBook 840 G5, lijkt op papier alvast een geschikte kandidaat. Lees in dit testrapport of het toestel in werkelijkheid ook weet te overtuigen.

HP EliteBook 745 G5 3UN74EA (EliteBook 700 Serie)
Grafische kaart
AMD Radeon RX Vega 10, 17.7
Geheugen
8192 MB
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, AUO383D, IPS LED, glimmend: nee
Moederbord
AMD CZ FCH
Opslag
Toshiba XG5 KXG50ZNV256G, 256 GB
, M.2 2280, PCIe NVMe, 174 GB beschikbaar
Geluidskaart
AMD Raven - Audio Processor - HD Audio Controller
Verbindingen
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: Combo-audio, 1 SmartCard, 1 Vingerafdruklezer, Brightness Sensor
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 17.9 x 326 x 234
Batterij
50 Wh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera

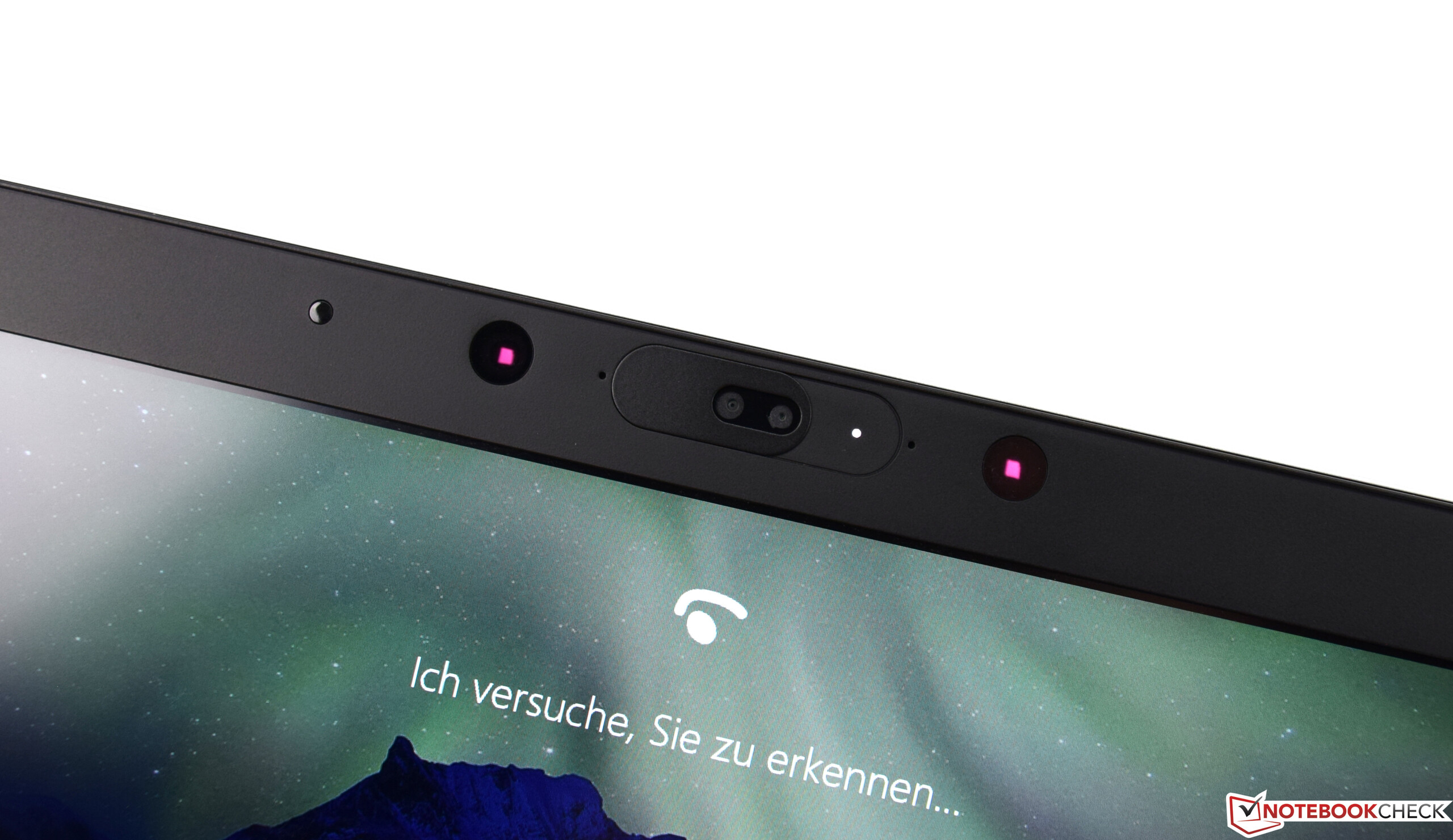

Webcam: 720p met infrarood voor Windows Hello
Bijkomende functionaliteiten

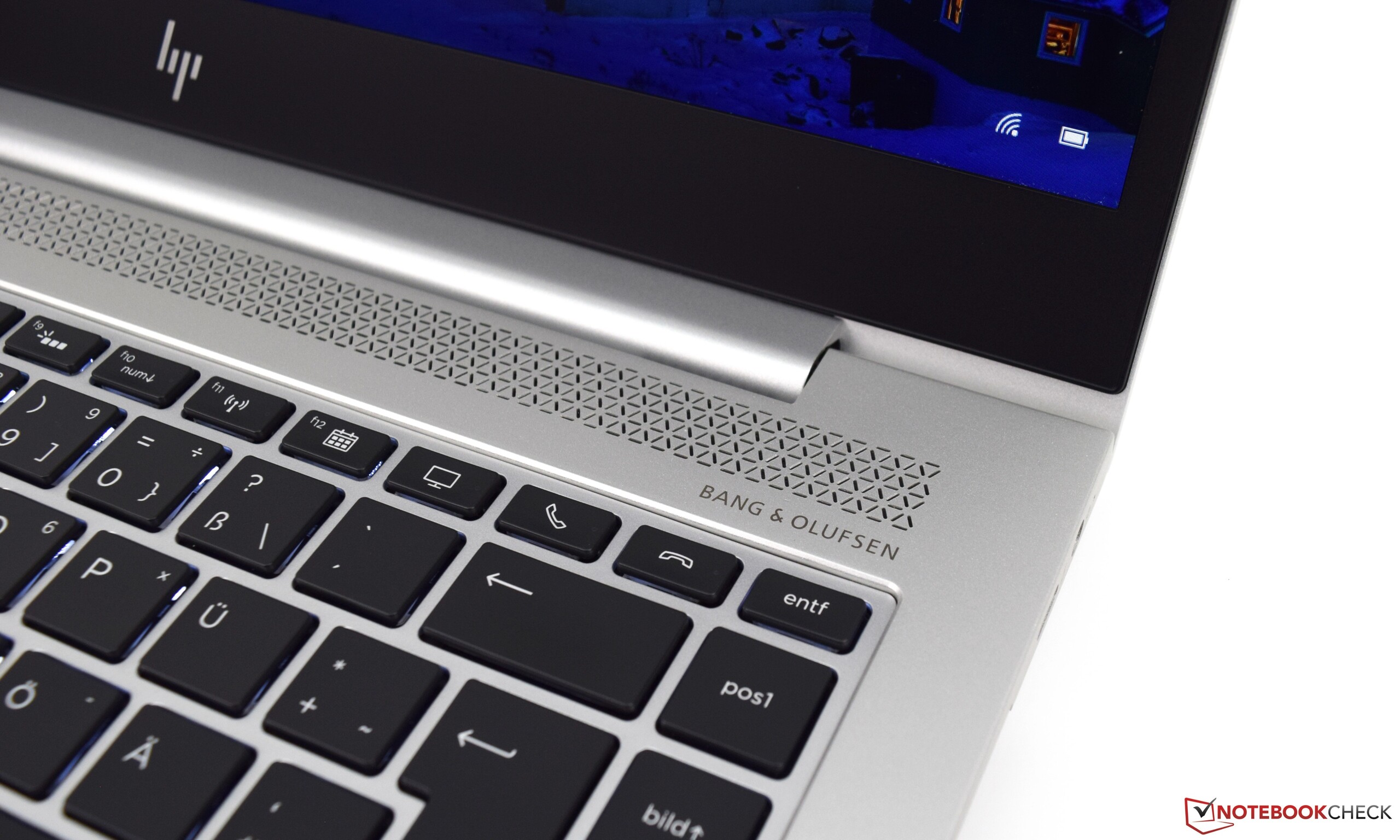

Luidsprekers: stereo, Toetsenbord: chiclet, Toetsenbordverlichting: ja, Microsoft Office Trial, Bang, 36 Maanden Garantie
Gewicht
1.541 kg, Voeding: 201 g
Prijs
1399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Formaat Vergelijking

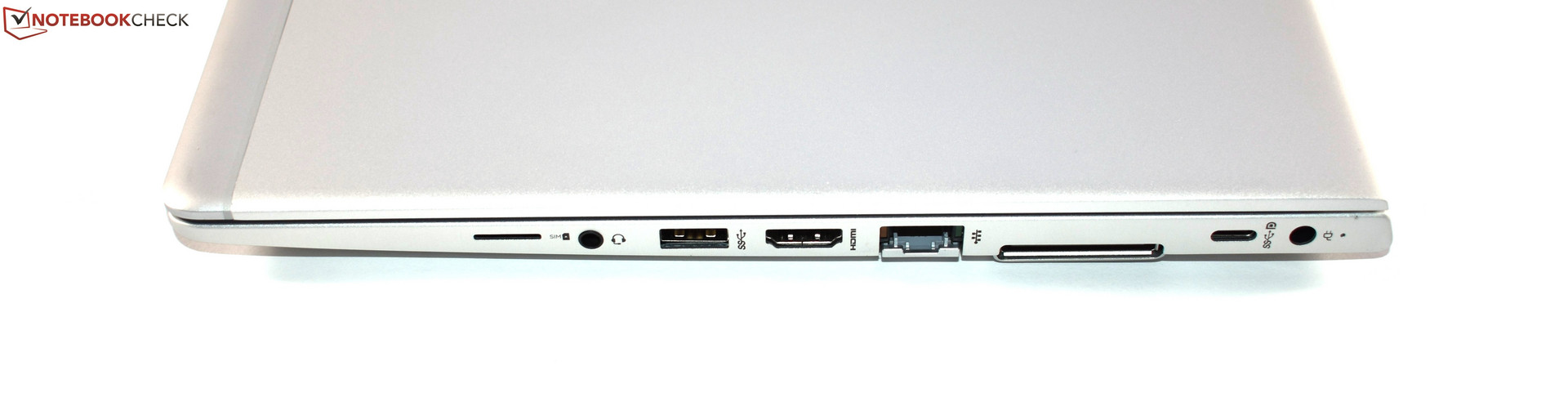

Rechts: SIM-sleuf, audio-klink, USB 3.0 type-A, HDMI, RJ45-Ethernet, docking-poort, USB 3.1 Gen1 type-C, Power
Rechts: SIM-sleuf, audio-klink, USB 3.0 type-A, HDMI, RJ45-Ethernet, docking-poort, USB 3.1 Gen1 type-C, Power

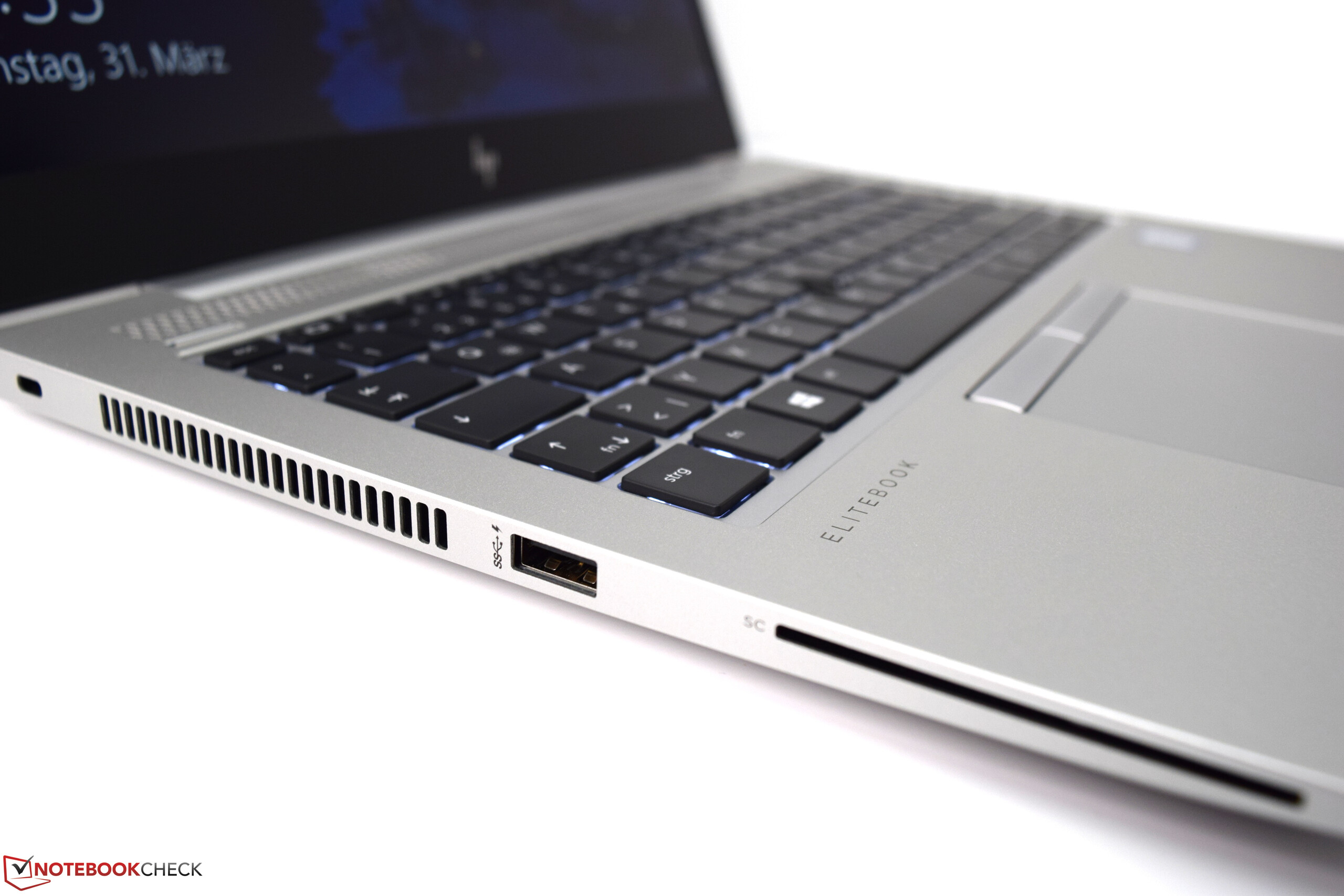

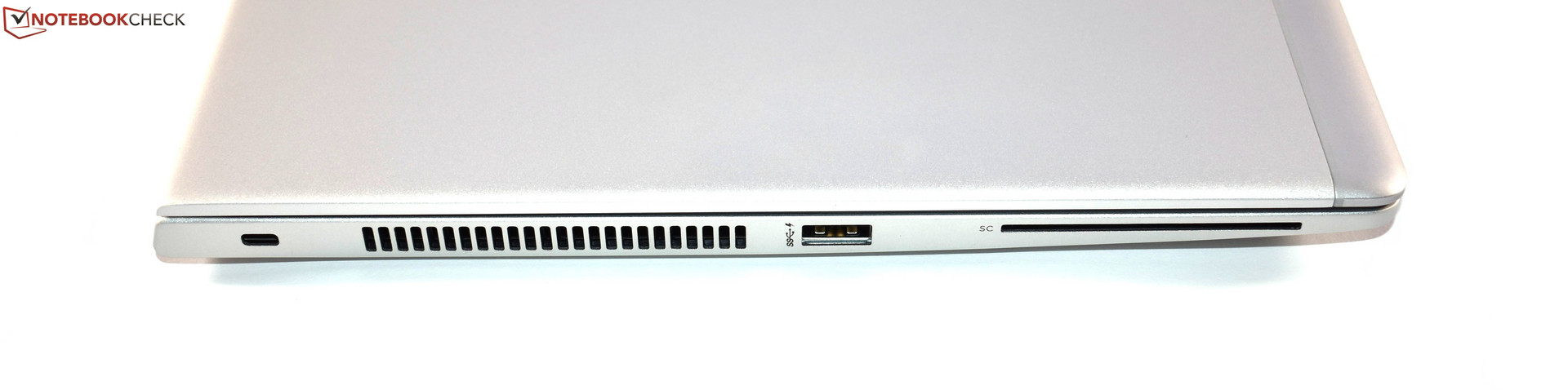

Links: Kensington-lock, USB 3.0 type A, smartcard-lezer
Links: Kensington-lock, USB 3.0 type A, smartcard-lezer
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 7490
Intel Dual Band Wireless-AC 8265
650 MBit/s ∼100% +59%
HP EliteBook 840 G5-3JX66EA
Intel Dual Band Wireless-AC 8265
644 MBit/s ∼99% +57%
Lenovo ThinkPad T480-20L6S01V00
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
625 MBit/s ∼96% +53%
Lenovo ThinkPad T480s-20L8S02D00
Intel Dual Band Wireless-AC 8265
618 MBit/s ∼95% +51%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
607 MBit/s ∼93% +48%
Average of class Office
  (5 - 688, n=174)
458 MBit/s ∼70% +12%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
409 MBit/s ∼63%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
593 MBit/s ∼100%
HP EliteBook 840 G5-3JX66EA
Intel Dual Band Wireless-AC 8265
523 MBit/s ∼88% -12%
Lenovo ThinkPad T480-20L6S01V00
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
520 MBit/s ∼88% -12%
Lenovo ThinkPad T480s-20L8S02D00
Intel Dual Band Wireless-AC 8265
519 MBit/s ∼88% -12%
Dell Latitude 7490
Intel Dual Band Wireless-AC 8265
513 MBit/s ∼87% -13%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
511 MBit/s ∼86% -14%
Average of class Office
  (34 - 688, n=174)
425 MBit/s ∼72% -28%
382
cd/m²
392
cd/m²
399
cd/m²
362
cd/m²
421
cd/m²
387
cd/m²
415
cd/m²
417
cd/m²
406
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 421 cd/m² Gemiddelde: 397.9 cd/m² Minimum: 20 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 422 cd/m²
Contrast: 1559:1 (Zwart: 0.27 cd/m²)
ΔE Color 4.08 | 0.4-29.43 Ø6.2
ΔE Greyscale 2.92 | 0.64-98 Ø6.5
87% sRGB (Argyll 3D) 57% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.32
HP EliteBook 745 G5 3UN74EA
AUO383D, , 1920x1080, 14
HP EliteBook 840 G5-3JX66EA
AUO3B3D, , 1920x1080, 14
Lenovo ThinkPad T480s-20L8S02D00
LP140QH2-SPB1, , 2560x1440, 14
Lenovo ThinkPad T480-20L6S01V00
Lenovo LP140WF6-SPB7, , 1920x1080, 14
Dell Latitude 5490-TD70X
AU Optronics AUO263D, , 1920x1080, 14
Dell Latitude 7490
AUO503D (D04YD_B140HAN), , 1920x1080, 14
HP EliteBook 745 G3
2560x1440, 14
Response Times
-24%
-12%
-1%
-30%
-24%
-18%
Response Time Grey 50% / Grey 80% *
35 (17, 18)
42.4 (19.6, 22.8)
-21%
38.4 (19.6, 18.8)
-10%
35.6 (17.6, 18)
-2%
46.9 (23.6, 23.3)
-34%
41.6 (22, 19.6)
-19%
46.8 (18, 28.8)
-34%
Response Time Black / White *
25 (15, 10)
31.6 (18, 13.6)
-26%
28.4 (15.6, 12.8)
-14%
24.8 (13.2, 11.6)
1%
31.2 (18, 13.2)
-25%
32 (16.4, 15.6)
-28%
25.2 (6, 19.2)
-1%
PWM Frequency
Screen
-18%
-17%
-38%
-38%
-27%
-28%
Brightness middle
421
414
-2%
352
-16%
307
-27%
227
-46%
308.6
-27%
319
-24%
Brightness
398
387
-3%
343
-14%
295
-26%
211
-47%
294
-26%
301
-24%
Brightness Distribution
86
87
1%
91
6%
90
5%
88
2%
89
3%
74
-14%
Black Level *
0.27
0.25
7%
0.46
-70%
0.25
7%
0.19
30%
0.23
15%
0.29
-7%
Contrast
1559
1656
6%
765
-51%
1228
-21%
1195
-23%
1342
-14%
1100
-29%
Colorchecker DeltaE2000 *
4.08
5.5
-35%
3.3
19%
5.7
-40%
5.6
-37%
6.07
-49%
7.23
-77%
Colorchecker DeltaE2000 max. *
7.48
9.9
-32%
7.3
2%
21.3
-185%
22.4
-199%
10.58
-41%
Greyscale DeltaE2000 *
2.92
6.4
-119%
5.3
-82%
3.7
-27%
2.4
18%
7.3
-150%
6
-105%
Gamma
2.32 95%
2.31 95%
2.22 99%
2.11 104%
2.44 90%
2.061 107%
2.14 103%
CCT
7043 92%
7811 83%
6452 101%
7353 88%
6506 100%
7269 89%
6904 94%
Color Space (Percent of AdobeRGB 1998)
57
56.9
0%
68.4
20%
37.4
-34%
34.5
-39%
62
9%
65.8
15%
Color Space (Percent of sRGB)
87
88.1
1%
98
13%
58.7
-33%
54.4
-37%
97
11%
95.3
10%
Colorchecker DeltaE2000 calibrated *
2.3
4.7
1.67
Totaal Gemiddelde (Programma / Instellingen)
-21% / -19%
-15% / -16%
-20% / -32%
-34% / -36%
-26% / -26%
-23% / -26%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

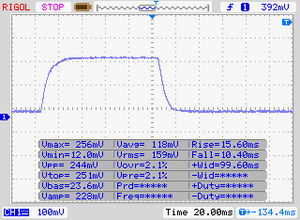

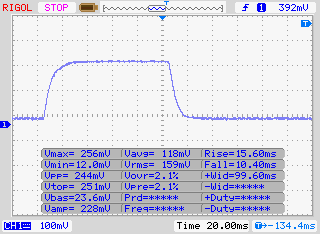

       Responstijd Zwart naar Wit
25 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15 ms stijging
↘ 10 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 40 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.6 ms) van alle geteste toestellen.

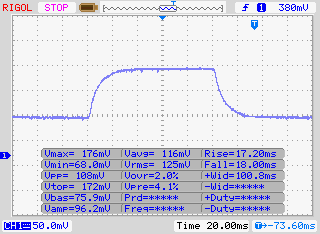

       Responstijd 50% Grijs naar 80% Grijs
35 ms ... stijging ↗ en daling ↘ gecombineerd↗ 17 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 25 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (41 ms) van alle geteste toestellen.

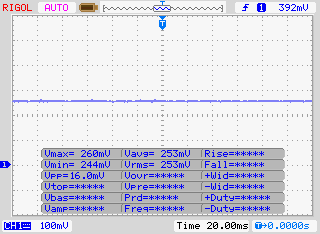

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8933 (minimum: 43 - maximum: 142900) Hz waargenomen.

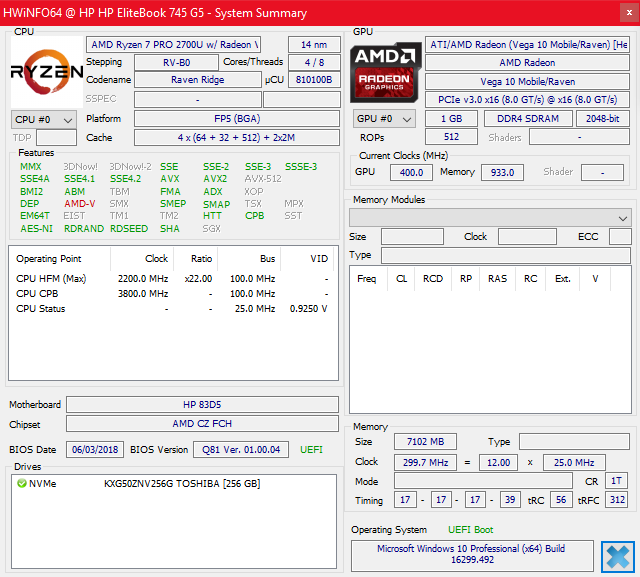

HWiNFO
HWiNFO

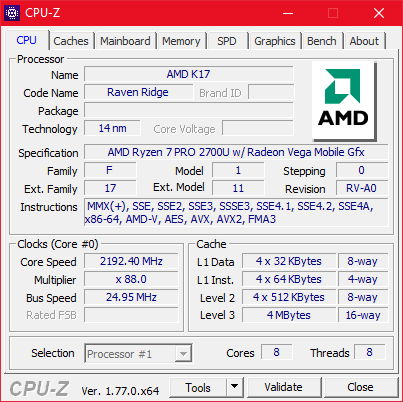

CPU-Z
CPU-Z

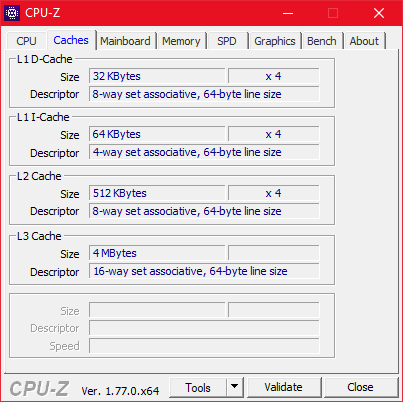

CPU-Z Caches
CPU-Z Caches

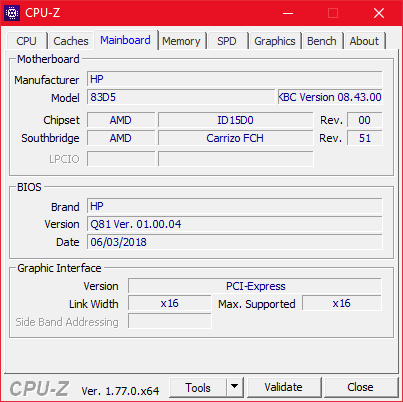

CPU-Z Mainboard
CPU-Z Mainboard

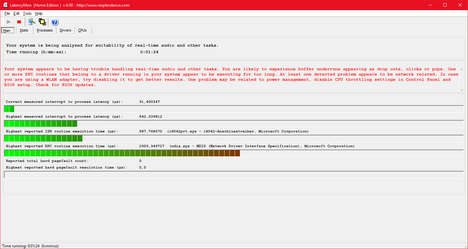

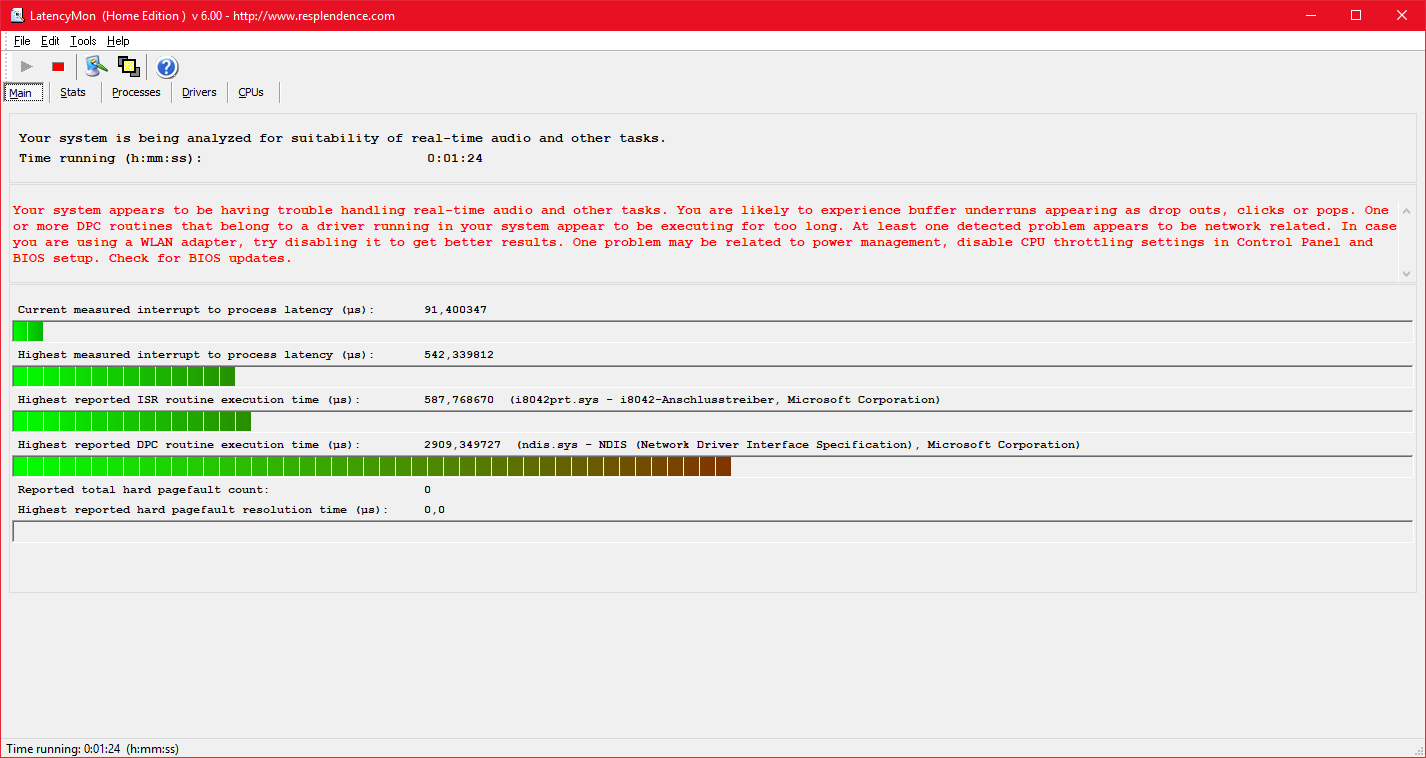

LatencyMon
LatencyMon

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
HP EliteBook 745 G5 3UN74EA AMD Ryzen 7 2700U; CPU Multi 64Bit: Ø539 (523-626)
HP EliteBook 840 G5-3JX61EA Intel Core i7-8550U; CPU Multi 64Bit: Ø526 (517.01-554.05)
Cinebench R15
CPU Single 64Bit
HP EliteBook 840 G5-3JX61EA
Intel Core i7-8550U
167 Points ∼100% +17%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
161 Points ∼96% +13%
Dell Latitude 7490
Intel Core i5-8350U
153 Points ∼92% +7%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
143 Points ∼86% 0%
HP EliteBook 840 G5-3JX66EA
Intel Core i5-8250U
143 Points ∼86% 0%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
143 Points ∼86%
Average AMD Ryzen 7 2700U
  (134 - 150, n=9)
143 Points ∼86% 0%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
142 Points ∼85% -1%
Average of class Office
  (20 - 178, n=478)
108 Points ∼65% -24%
HP EliteBook 745 G3
AMD Pro A12-8800B
72 Points ∼43% -50%
CPU Multi 64Bit
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
724 Points ∼100% +15%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
716 Points ∼99% +14%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
657 Points ∼91% +4%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
630 Points ∼87%
Average AMD Ryzen 7 2700U
  (530 - 719, n=9)
630 Points ∼87% 0%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
599 Points ∼83% -5%
HP EliteBook 840 G5-3JX66EA
Intel Core i5-8250U
583 Points ∼81% -7%
Dell Latitude 7490
Intel Core i5-8350U
569 Points ∼79% -10%
HP EliteBook 840 G5-3JX61EA
Intel Core i7-8550U
554 Points ∼77% -12%
Average of class Office
  (36 - 1050, n=482)
318 Points ∼44% -50%
HP EliteBook 745 G3
AMD Pro A12-8800B
202 Points ∼28% -68%
Cinebench R15 OpenGL 64Bit
29.01 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
630 Points
Cinebench R15 CPU Single 64Bit
143 Points
Help
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
5025 Points ∼100% +14%
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
5004 Points ∼100% +14%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
4906 Points ∼98% +11%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
4832 Points ∼96% +10%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
4774 Points ∼95% +8%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (4391 - 4774, n=5)
4546 Points ∼90% +3%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
4508 Points ∼90% +2%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
4403 Points ∼88%
Average of class Office
  (1226 - 5428, n=303)
3953 Points ∼79% -10%
HP EliteBook 745 G3
Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP
3424 Points ∼68% -22%
Home Score Accelerated v2
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
3966 Points ∼100% +26%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
3723 Points ∼94% +18%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
3695 Points ∼93% +17%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3675 Points ∼93% +16%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
3652 Points ∼92% +16%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3503 Points ∼88% +11%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (3155 - 3640, n=5)
3308 Points ∼83% +5%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3155 Points ∼80%
Average of class Office
  (1169 - 4458, n=355)
3009 Points ∼76% -5%
HP EliteBook 745 G3
Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP
2445 Points ∼62% -23%
PCMark 10
Digital Content Creation
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3258 Points ∼100% +18%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3004 Points ∼92% +8%
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
2954 Points ∼91% +7%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
2911 Points ∼89% +5%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (2410 - 3047, n=5)
2829 Points ∼87% +2%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
2807 Points ∼86% +1%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2772 Points ∼85%
Average of class Office
  (320 - 3503, n=97)
2524 Points ∼77% -9%
Productivity
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
6651 Points ∼100% +95%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6500 Points ∼98% +91%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
5844 Points ∼88% +71%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
5739 Points ∼86% +68%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
5721 Points ∼86% +68%
Average of class Office
  (1444 - 7142, n=97)
5372 Points ∼81% +58%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (3408 - 5146, n=5)
4308 Points ∼65% +26%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3408 Points ∼51%
Essentials
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
8236 Points ∼100% +44%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
7376 Points ∼90% +29%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
7358 Points ∼89% +28%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
7139 Points ∼87% +25%
Average of class Office
  (2683 - 8787, n=97)
6799 Points ∼83% +19%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6423 Points ∼78% +12%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (5395 - 6537, n=5)
6090 Points ∼74% +6%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
5732 Points ∼70%
Score
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
3906 Points ∼100% +44%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3686 Points ∼94% +36%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3602 Points ∼92% +33%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
3564 Points ∼91% +31%
Average of class Office
  (803 - 4269, n=98)
3134 Points ∼80% +16%
Average AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
  (2584 - 3354, n=5)
3008 Points ∼77% +11%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2712 Points ∼69%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
2429 Points ∼62% -10%
PCMark 8 Home Score Accelerated v2
3155 punten
PCMark 8 Work Score Accelerated v2
4403 punten
Help
HP EliteBook 745 G5 3UN74EA
Toshiba XG5 KXG50ZNV256G
HP EliteBook 840 G5-3JX66EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad T480s-20L8S02D00
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad T480-20L6S01V00
Samsung SSD PM981 MZVLB512HAJQ
Dell Latitude 5490-TD70X
Toshiba KSG60ZMV512G
HP EliteBook 745 G3
Samsung SSD PM851 256 GB MZNTE256HMHP
HP EliteBook 840 G5-3JX61EA
Toshiba KXG50ZNV1T02
Average Toshiba XG5 KXG50ZNV256G

CrystalDiskMark 3.0
16%
165%
61%
0%
-22%
67%
19%
Write 4k QD32
208.4
351.3
69%
342.95
65%
271.4
30%
300.2
44%
188.9
-9%
391.5
88%
320 (208 - 352, n=10)
54%
Read 4k QD32
310.6
244.7
-21%
444.91
43%
383.4
23%
295.6
-5%
239.8
-23%
312.1
0%
309 (245 - 396, n=10)
-1%
Write 4k
97.08
94.48
-3%
160.65
65%
108
11%
88.96
-8%
84.4
-13%
110.1
13%
106 (94.5 - 133, n=10)
9%
Read 4k
24.9
30.94
24%
66.88
169%
64.39
159%
27.34
10%
27.12
9%
32.84
32%
28.1 (7.04 - 35.5, n=10)
13%
Write 512
298.1
286.1
-4%
1715.92
476%
566.8
90%
360.7
21%
268.8
-10%
623.1
109%
331 (266 - 489, n=10)
11%
Read 512
823.4
907.9
10%
834.67
1%
561.1
-32%
410.1
-50%
361.6
-56%
992.9
21%
832 (444 - 922, n=10)
1%
Write Seq
269.7
340
26%
1613.2
498%
927.8
244%
425
58%
268.9
0%
906.7
236%
394 (270 - 917, n=10)
46%
Read Seq
1549
1929
25%
1540
-1%
922
-40%
465.1
-70%
446.1
-71%
2087
35%
1843 (1046 - 2069, n=10)
19%
Toshiba XG5 KXG50ZNV256G
Sequential Read: 1549 MB/s
Sequential Write: 269.7 MB/s
512K Read: 823.4 MB/s
512K Write: 298.1 MB/s
4K Read: 24.9 MB/s
4K Write: 97.08 MB/s
4K QD32 Read: 310.6 MB/s
4K QD32 Write: 208.4 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
4300 Points ∼100% +49%
Acer Swift 3 SF315-41-R6J9
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
3728 Points ∼87% +29%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
3551 Points ∼83% +23%
Average AMD Radeon RX Vega 10
  (2688 - 3728, n=5)
2987 Points ∼69% +4%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2885 Points ∼67%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
1849 Points ∼43% -36%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
1648 Points ∼38% -43%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
1633 Points ∼38% -43%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
1617 Points ∼38% -44%
HP EliteBook 745 G3
AMD Radeon R7 (Carrizo), AMD Pro A12-8800B
1546 Points ∼36% -46%
Average of class Office
  (185 - 4967, n=603)
1222 Points ∼28% -58%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
3585 Points ∼100% +106%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
2807 Points ∼78% +62%
Acer Swift 3 SF315-41-R6J9
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2442 Points ∼68% +41%
Average AMD Radeon RX Vega 10
  (1567 - 2442, n=5)
1840 Points ∼51% +6%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1738 Points ∼48%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
1336 Points ∼37% -23%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
1001 Points ∼28% -42%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
981 Points ∼27% -44%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
963 Points ∼27% -45%
Average of class Office
  (138 - 4109, n=430)
941 Points ∼26% -46%
HP EliteBook 745 G3
AMD Radeon R7 (Carrizo), AMD Pro A12-8800B
782 Points ∼22% -55%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
21893 Points ∼100% +106%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
17743 Points ∼81% +67%
Acer Swift 3 SF315-41-R6J9
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
15613 Points ∼71% +47%
Average AMD Radeon RX Vega 10
  (9364 - 15613, n=5)
11213 Points ∼51% +6%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10604 Points ∼48%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
10331 Points ∼47% -3%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
8226 Points ∼38% -22%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
7943 Points ∼36% -25%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
7658 Points ∼35% -28%
Average of class Office
  (1208 - 27117, n=474)
6562 Points ∼30% -38%
HP EliteBook 745 G3
AMD Radeon R7 (Carrizo), AMD Pro A12-8800B
4250 Points ∼19% -60%
3DMark 11 Performance
2919 punten
3DMark Cloud Gate Standard Score
8100 punten
3DMark Fire Strike Score
1556 punten
Help
BioShock Infinite - 1280x720 Very Low Preset
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
158.27 fps ∼100% +87%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
84.7 fps ∼54%
Average AMD Radeon RX Vega 10
  (65.7 - 86, n=4)
79.6 fps ∼50% -6%
Average of class Office
  (12.2 - 204, n=324)
52.6 fps ∼33% -38%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
41.9 fps ∼26% -51%
lage gem. hoge ultra
BioShock Infinite (2013) 84.714.2fps
Rise of the Tomb Raider (2016) 33.510.9fps
Civilization VI (2016) 56.513.7fps

Geluidsniveau

Onbelast
30.5 / 30.5 / 30.5 dB (A)
Belasting
36 / 36 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.336.332.739.32539.237.53539.23148.443.237.248.44035.337.531.835.35032.732.230.332.76330.129.230.830.1802730.126.62710027.227.827.527.212526.728.225.526.71602525.124.32520023.124.723.323.125023.724.422.623.731522.723.721.822.74002222.220.7225002121.519.92163020.921.719.420.980023.623.718.623.6100024.224.518.424.2125023.924.117.823.9160025.725.417.625.72000262617.726250026.326.517.626.3315026.12618.126.1400022.722.918.222.7500021.721.918.521.7630019.819.918.519.8800019.11918.719.1100001919.118.8191250019.119.118.919.11600019.820.219.119.8SPL35.93630.735.9N2.22.21.32.2median 23.1median 23.7median 18.8median 23.1Delta2.12.11.82.130.633.232.330.630.932.132.730.935.634.634.335.632.129.530.232.135.33332.735.327.729.626.227.726.526.826.926.526.124.624.526.125.424.125.225.424.323.722.724.323.723.822.123.723.122.72223.123.222.120.123.221.22119.721.22120.519.22119.520.318.919.521.421.318.321.421.321.617.821.32221.917.62223.323.617.323.323.323.317.523.324.124.317.724.122.622.717.922.620.220.317.920.219.819.618.119.81918.618.41919.118.718.519.119.218.718.519.219.118.618.419.119.918.818.519.933.833.830.333.81.81.81.21.8median 21.4median 21.6median 18.5median 21.41.81.71.11.833.631.628.131.231.132.533.228.529.129.629.329.130.33032.231.231.130.83030.529.529.931.129.527.226.828.82829.727.226.326.326.225.72626.526.125.124.72626.625.926252525.525.724.823.924.6252423.925.225.125.12323.323.824.123.324.522.222.722.62422.823.421.521.322.422.921.720.920.820.720.422.220.620.320.320.218.921.422.420.521.119.718.12222.319.621.619.117.722.321.519.520.21916.721.523.119.92219.716.723.225.220.624.422.116.125.527.723.627.12415.727.229.42327.122.915.929.328.822.126.923.315.928.128.320.525.720.715.928.12920.126.921.116.328.524.718.422.318.616.624.32017.619.217.916.919.918.417.618.317.717.218.31817.818.318.117.2181818.218.518.917.317.91918.520.521.217.418.638.232.836.533.229382.61.82.31.81.22.6median 23.1median 20.5median 22median 20.7median 17.2median 23.22.42.42.61.91.72.2hearing rangehide median Fan NoiseHP EliteBook 745 G5 3UN74EAHP EliteBook 840 G5-3JX61EALenovo ThinkPad T480s-20L8S02E00
Max. Belasting
 38.4 °C37.8 °C36.6 °C
 36.9 °C37.3 °C35.3 °C
 30.2 °C28.4 °C30.3 °C
Maximum: 38.4 °C
Gemiddelde: 34.6 °C
35.2 °C35.6 °C32.8 °C
35.4 °C35.8 °C33.5 °C
32.3 °C32.2 °C31.7 °C
Maximum: 35.8 °C
Gemiddelde: 33.8 °C
Stroomadapter (max.)  47.1 °C | Kamertemperatuur 23.7 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.4 °C / 101 F, compared to the average of 33.9 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35.8 °C / 96 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2 °C / -3.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.932.737.92535.83535.83140.137.240.14033.231.833.25032.630.332.66328.730.828.78029.326.629.310029.227.529.212532.725.532.716036.524.336.520044.323.344.325041.622.641.631554.821.854.84006820.76850063.919.963.963065.319.465.380063.318.663.3100068.718.468.7125071.217.871.2160070.817.670.8200066.917.766.9250070.917.670.9315070.118.170.1400067.518.267.5500070.118.570.1630069.818.569.880006618.7661000070.818.870.8125006718.9671600058.119.158.1SPL8130.781N47.71.347.7median 66.9median 18.8median 66.9Delta9.81.89.830.131.329.430.330.229.929.331.431.632.5262725.526.626.729.525.529.624.438.622.848.922.351.719.656.918.563.717.665.717.167.216.266.616.371.115.973.715.472.715.572.415.572.715.872.516.175.616.67916.877.417.271.317.471.817.467.217.35628.885.81.264.1median 17.2median 67.21.89.5hearing rangehide median Pink NoiseHP EliteBook 745 G5 3UN74EAHP EliteBook 840 G5-3JX66EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP EliteBook 745 G5 3UN74EA audio analysis

(-) | not very loud speakers (71.23 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.1% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.9% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 36% of all tested devices were better, 6% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook 840 G5-3JX66EA audio analysis

(+) | speakers can play relatively loud (85.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.1% higher than median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.5% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 14% similar, 39% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 44% of all tested devices were better, 9% similar, 47% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.48 / 0.6 Watt
Inactiefdarkmidlight 4.9 / 8.1 / 10.6 Watt
Belasting midlight 32.2 / 42.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 14
HP EliteBook 840 G5-3JX66EA
8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS, 1920x1080, 14
Lenovo ThinkPad T480s-20L8S02D00
8250U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 2560x1440, 14
Lenovo ThinkPad T480-20L6S01V00
8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, Toshiba KSG60ZMV512G, IPS, 1920x1080, 14
Dell Latitude 7490
8350U, UHD Graphics 620, Toshiba KSG60ZMV256G, IPS, 1920x1080, 14
HP EliteBook 745 G3
Pro A12-8800B, Radeon R7 (Carrizo), Samsung SSD PM851 256 GB MZNTE256HMHP, IPS-Panel, 2560x1440, 14
HP EliteBook 840 G5-3JX61EA
8550U, UHD Graphics 620, Toshiba KXG50ZNV1T02, IPS, 1920x1080, 14
Lenovo ThinkPad T480s-20L8S02E00
8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 2560x1440, 14
Average AMD Radeon RX Vega 10

Average of class Office

Power Consumption
-1%
-10%
-22%
2%
27%
-26%
4%
-20%
-7%
-32%
Idle Minimum *
4.9
3.2
35%
3.1
37%
3.6
27%
3.3
33%
2
59%
6.2
-27%
3.8
22%
3.4
31%
5.34 (4.9 - 5.9, n=5)
-9%
7.78 (0.77 - 32, n=913)
-59%
Idle Average *
8.1
6.6
19%
6.8
16%
7.1
12%
5.54
32%
4.7
42%
9.4
-16%
8.3
-2%
7.5
7%
9.3 (8.1 - 10.6, n=5)
-15%
11.6 (4.2 - 42, n=913)
-43%
Idle Maximum *
10.6
9.5
10%
10.1
5%
9.5
10%
6.59
38%
5.7
46%
14.8
-40%
10.7
-1%
10.8
-2%
11 (8.7 - 12.9, n=5)
-4%
14.1 (5 - 67, n=913)
-33%
Load Average *
32.2
36.2
-12%
48.4
-50%
63.9
-98%
42.4
-32%
38.4
-19%
44.8
-39%
35.5
-10%
55.4
-72%
34.8 (29.3 - 40.6, n=5)
-8%
37.3 (7.43 - 99.3, n=898)
-16%
Load Maximum *
42.3
65.6
-55%
67.1
-59%
67.3
-59%
67.6
-60%
38.9
8%
45.2
-7%
37
13%
70.3
-66%
42.8 (38.5 - 46.6, n=5)
-1%
45.8 (12.2 - 129, n=900)
-8%
Witcher 3 ultra *
53.9
34

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
10h 39min
NBC WiFi Websurfing Battery Test 1.3 (Edge)
6h 34min
Big Buck Bunny H.264 1080p
7h 06min
Belast (maximale helderheid)
1h 35min
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, 50 Wh
HP EliteBook 840 G5-3JX66EA
8250U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad T480s-20L8S02D00
8250U, UHD Graphics 620, 57 Wh
Lenovo ThinkPad T480-20L6S01V00
8550U, GeForce MX150, 72 Wh
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, 68 Wh
Dell Latitude 7490
8350U, UHD Graphics 620, 60 Wh
HP EliteBook 745 G3
Pro A12-8800B, Radeon R7 (Carrizo), 46 Wh
HP EliteBook 840 G5-3JX61EA
8550U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad T480s-20L8S02E00
8550U, GeForce MX150, 57 Wh
Average of class Office

Batterijduur
37%
45%
95%
90%
39%
-39%
13%
40%
-2%
Reader / Idle
639
1138
78%
1671
162%
1556
144%
442
-31%
1366
114%
557 (101 - 1857, n=770)
-13%
H.264
426
399
-6%
721
69%
638
50%
791
86%
211
-50%
550
29%
413 (139 - 791, n=149)
-3%
WiFi v1.3
394
447
13%
537
36%
794
102%
897
128%
548
39%
187
-53%
444
13%
530
35%
404 (105 - 964, n=295)
3%
Load
95
156
64%
124
31%
159
67%
97
2%
76
-20%
76
-20%
101 (37 - 259, n=715)
6%

Pro

+ AMD-CPU biedt betere boost-prestaties
+ hogere GPU-prestaties dan Intel-iGPU's
+ stevige metalen behuizing

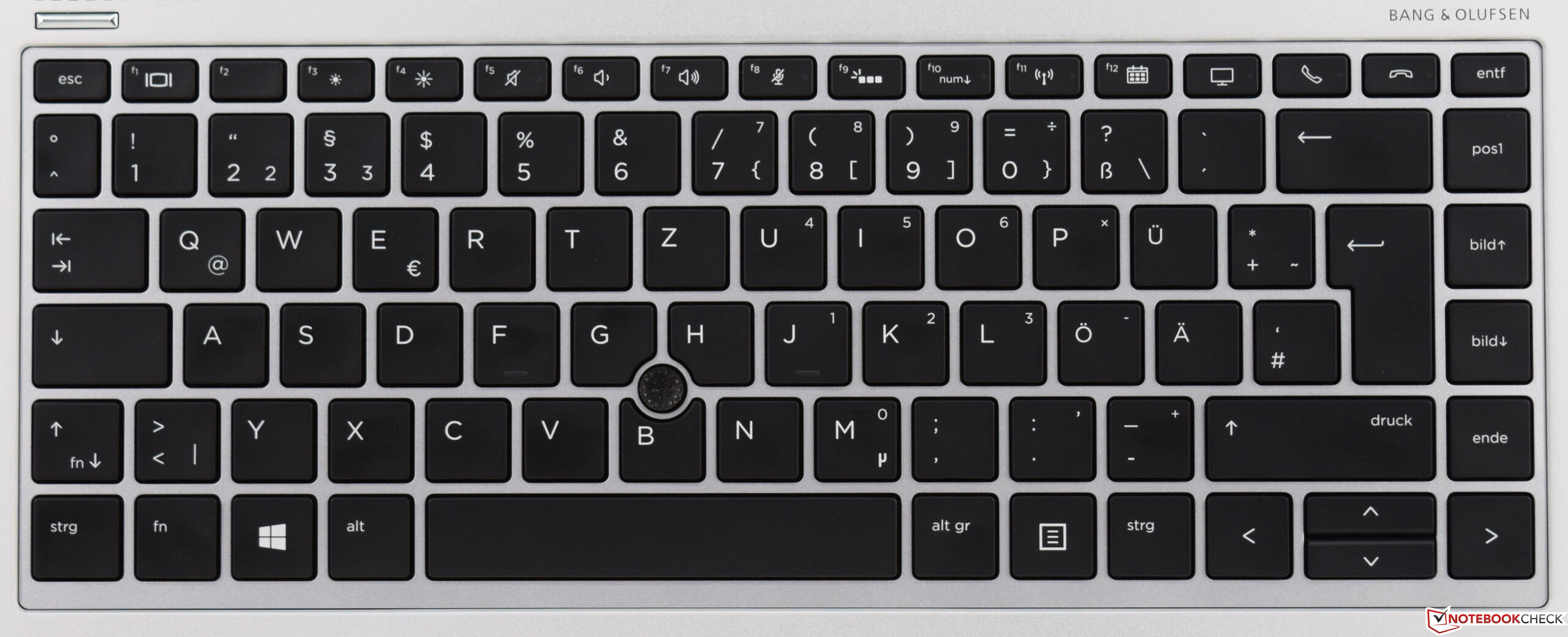

+ comfortabele invoerapparaturen
+ degelijke poortselectie (inclusief docking-poort)
+ veel beveiligingsfeatures
+ blijft steeds koel en stil
+ 3 jaar garantie

Contra

- CPU & GPU hebben in sommige gevallen last van throttling
- zwakke batterijduur in vergelijking met concurrentie
- geen Thunderbolt 3
- geen opties voor scherm met hoge resolutie
- SSD traag voor PCIe-NVMe-SSD
- geen SD-kaartlezer
- haalt geen 100% sRGB
HP EliteBook 745 G5, testtoestel voorzien door HP
HP EliteBook 745 G5, testtoestel voorzien door HP

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Op het moment dat we dit besluit schreven, was de HP EliteBook 840 G5 het beste toestel in onze rangschikking. Een EliteBook 745 G5 met AMD-CPU die op dezelfde basis verder bouwt lijkt ons veelbelovend!

De sterktes van de EliteBook 745 G5 zijn overwegend identiek aan die van zijn Intel-tegenhanger: het toestel heeft een elegant en stevige metalen behuizing met comfortabele invoerapparatuur en een erg helder scherm. De EliteBook is uitgerust met voldoende poorten en beveiligingsfeatures. Net als zijn zustermodel met Intel-processor, blijft de 745 G5 zelfs onder belasting koel en is hij geruisloos in idle-modus. Daarnaast komt hij eveneens met een garantie van 36 maanden. Er zijn echter ook een aantal nadelen: de SSD is niet erg snel voor een PCIe-NVMe-SSD en een SD-kaartlezer ontbreekt volledig.

Ondanks de degelijke basis, slaagt de EliteBook 745 G5 er niet in de score van de EliteBook 840 G5 te evenaren. De AMD-CPU is tegelijk een vloek en een zegen. De CPU biedt aanzienlijk hogere boost-prestaties, maar deze nemen na slechts vier minuten af tot hetzelfde niveau van de Intel-notebook. De GPU-prestaties van de iGPU liggen merkbaar hoger dan bij het Intel-model, maar veel lager dan ze hadden kunnen zijn - het is nauwelijks een vervanging voor een discrete GPU. Dit heeft vooral te maken met HP's strikte temperatuurbeheer: de thermische capaciteiten worden niet maximaal benut, wat valt af te leiden van de lage oppervlaktetemperaturen. Niettemin kiest HP ervoor om de kloksnelheden van zowel de CPU als GPU terug te schroeven onder belasting. Het energieverbruik in idle-modus (en onder minimale belasting) ligt hoger dan dat van de Intel-notebook, wat resulteert in een nog kortere batterijduur. Daarnaast beperkt HP nodeloos de configuratiemogelijkheden. De EliteBook 745 G5 heeft geen optie voor een 4K-scherm (3,820 x 2,160). In tegenstelling tot de EliteBook 840 G5 beschikt de 745 G5 niet over een Thunderbolt 3-poort en wordt de CPU in batterij-modus steeds lager geklokt. Het feit dat het scherm evenmin de beloofde 100% sRGB-dekking haalt is ook een minpunt.

Soms is zeer goed niet goed genoeg: de Intel-gebaseerde EliteBook 840 G5 biedt een veel evenwichtiger totaalpakket dan zijn tegenhanger met AMD-CPU.

De EliteBook 745 G5 verdient nog altijd een aanbeveling en krijgt de score 'zeer goed'. We kunnen hem echter alleen aanbevelen op voorwaarde dat je per se Intel-computers wilt vermijden. Afgezien daarvan kan je ook de Lenovo ThinkPad T480s of de Dell Latitude 7490 overwegen, afhankelijk van je voorkeuren op vlak van fabrikant, design en features. Hun batterijduur is langer en als je meer grafische rekenkracht wenst is een laptop met discrete GPU meer aangewezen dan de EliteBook 745 G5.

HP EliteBook 745 G5 3UN74EA - 15-07-2018 v6
Benjamin Herzig

Behuizing
92 / 98 → 94%
Toetsenbord
89%
Aanwijsapparaat
89%
Aansluitmogelijkheden
64 / 80 → 80%
Gewicht
69 / 20-67 → 100%
Batterij
89%
Beeldscherm
89%
Gaming-performance
64 / 68 → 94%
Applicatie-performance
81 / 92 → 88%
Temperatuur
93%
Luidheid
96%
Audio
53%
Camera
33 / 85 → 39%
Gemiddelde
77%
89%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport HP EliteBook 745 G5 (Ryzen 7 2700U) Laptop
Benjamin Herzig, 2018-07-27 (Update: 2018-07-27)
