Kort testrapport Dell Latitude 7390 (i5-8350U, SSD 256 GB) Laptop

Sven Kloevekorn, 14-04-2018

Slimme zaken. Dell update zijn zakelijke subnotebooks in de 7000-serie met de huidige Kaby Lake-R(efresh) processoren en heeft de 7390 naast andere beveiligingsfeatures uitgerust met een smart card slot. Ons testrapport bepaald of naast de erg lange batterijlevensduur het beeldscherm, de aansluitingen en de invoerapparaten ook voldoen aan de eisen van een zakelijke gebruiker.

Dell Latitude 7390 (Latitude 7390 Serie)

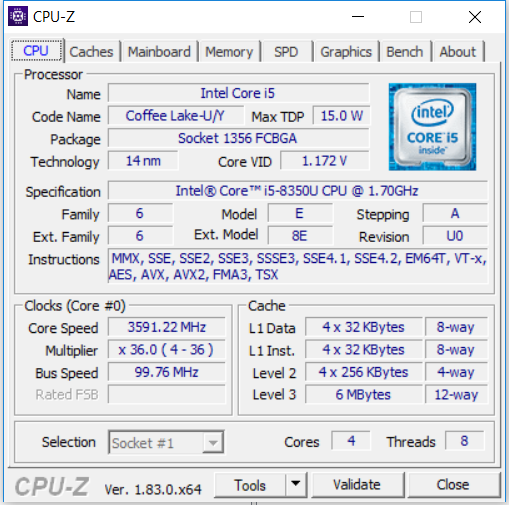

Processor
Intel Core i5-8350U

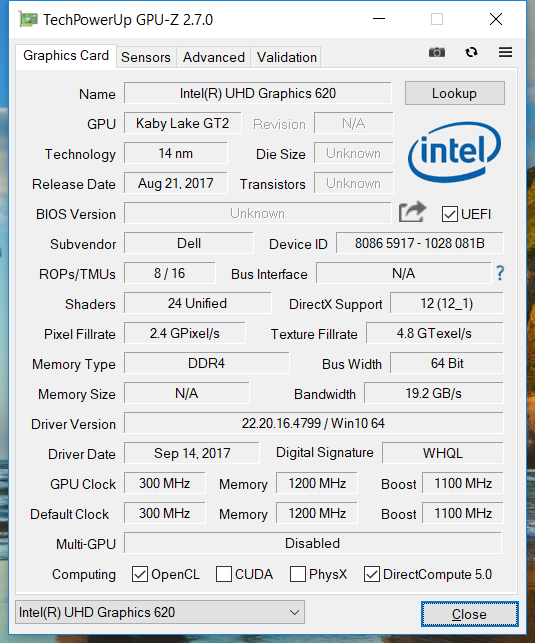

Grafische kaart
Intel UHD Graphics 620, Core: 300 - 1100 MHz, gedeeld geheugen, 22.20.16.4799

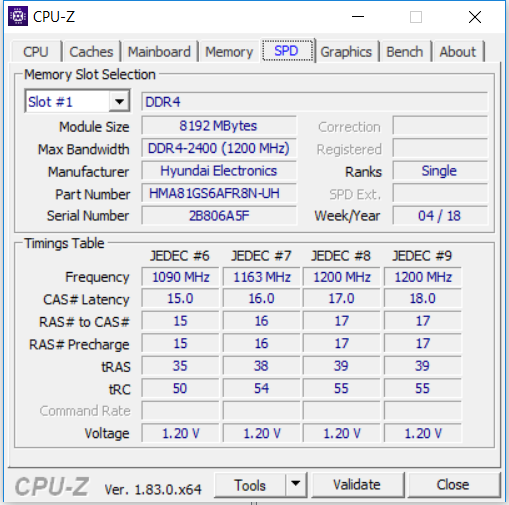

Geheugen
8192 MB
, DDR4, 2400 MHz, single channel, enkel slot bezet, 16 GB max.
Beeldscherm
13.3 inch 16:9, 1920 x 1080 pixel 165 PPI, AU Optronics AUO462D / B133HAN [DELL P/N:F7VDJ], IPS, glimmend: nee

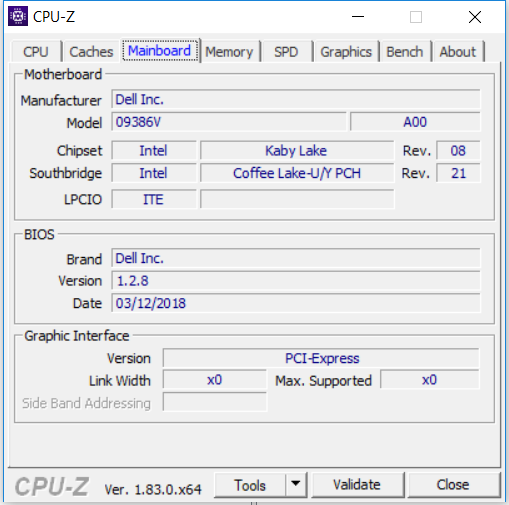

Moederbord
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Opslag
SK hynix SC311 M.2, 256 GB
, 196 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm combo audio aansluiting, Card Reader: microSD/SDHC/SDXC, 1 Vingerafdruklezer, NFC, Brightness Sensor
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 16.5 x 305 x 208
Batterij
60 Wh Lithium-Ion, 4-cellen
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Bijkomende functionaliteiten
Luidsprekers: stereo, onderzijde voorkant, Toetsenbord: chiclet, Toetsenbordverlichting: ja, Office 365 trial versie 30 dagen, 36 Maanden Garantie
Gewicht
1.307 kg, Voeding: 300 g
Prijs
1379 EUR



Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390
Dell Latitude 7390

Size Comparison

Left side: power, USB 3.1  Gen1 Type C with DP, HDMI 1.4, USB 3.1 Gen1 with Powershare, smart card reader
Left side: power, USB 3.1 Gen1 Type C with DP, HDMI 1.4, USB 3.1 Gen1 with Powershare, smart card reader
Right side: audio in/out, microSD and Micro-SIM tray below (deactivated), USB 3.1, Ethernet, slot for Noble security lock (wedge shape)
Right side: audio in/out, microSD and Micro-SIM tray below (deactivated), USB 3.1, Ethernet, slot for Noble security lock (wedge shape)
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 7390
  (Toshiba Exceria Pro M501)
166 MB/s ∼100%
Dell Latitude 13 7380
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.59 MB/s ∼46% -54%
Toshiba Portege X30-D (PT274U-01N001)
  (Toshiba Exceria Pro M401)
63.2 MB/s ∼38% -62%
Average of class Office
  (16.5 - 191, n=199)
61.1 MB/s ∼37% -63%
Asus Zenbook UX3430UQ-GV012T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.1 MB/s ∼21% -79%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 7390
  (Toshiba Exceria Pro M501)
201.1 MB/s ∼100%
Toshiba Portege X30-D (PT274U-01N001)
  (Toshiba Exceria Pro M401)
89.6 MB/s ∼45% -55%
Dell Latitude 13 7380
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.77 MB/s ∼44% -56%
Average of class Office
  (9.5 - 255, n=178)
78.7 MB/s ∼39% -61%
Asus Zenbook UX3430UQ-GV012T

40.4 MB/s ∼20% -80%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Toshiba Portege X30-D (PT274U-01N001)
Intel Dual Band Wireless-AC 8265
647 MBit/s ∼100% +6%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
613 MBit/s ∼95% 0%
Dell Latitude 7390
Intel Dual Band Wireless-AC 8265
611 MBit/s ∼94%
Dell Latitude 13 7380
Intel Dual Band Wireless-AC 8265
600 MBit/s ∼93% -2%
Asus Zenbook UX3430UQ-GV012T
Intel Dual Band Wireless-AC 8260
503 MBit/s ∼78% -18%
Average of class Office
  (5 - 688, n=133)
468 MBit/s ∼72% -23%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus Zenbook UX3430UQ-GV012T
Intel Dual Band Wireless-AC 8260
666 MBit/s ∼100% +31%
Dell Latitude 13 7380
Intel Dual Band Wireless-AC 8265
534 MBit/s ∼80% +5%
Dell Latitude 7390
Intel Dual Band Wireless-AC 8265
507 MBit/s ∼76%
Toshiba Portege X30-D (PT274U-01N001)
Intel Dual Band Wireless-AC 8265
488 MBit/s ∼73% -4%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
455 MBit/s ∼68% -10%
Average of class Office
  (34 - 688, n=133)
431 MBit/s ∼65% -15%
308
cd/m²
320
cd/m²
323
cd/m²
306
cd/m²
329
cd/m²
321
cd/m²
304
cd/m²
317
cd/m²
315
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 329 cd/m² Gemiddelde: 315.9 cd/m² Minimum: 15.4 cd/m²
Helderheidsverdeling: 92 %
Helderheid in Batterij-modus: 332 cd/m²
Contrast: 1316:1 (Zwart: 0.25 cd/m²)
ΔE Color 4.3 | 0.8-29.43 Ø6.4, calibrated: 2.5
ΔE Greyscale 3.6 | 0.64-98 Ø6.6
90.6% sRGB (Argyll) 59.1% AdobeRGB 1998 (Argyll)
Gamma: 2.43
Dell Latitude 7390
AU Optronics AUO462D / B133HAN [DELL P/N:F7VDJ], , 1920x1080, 13.3
Asus Zenbook UX3430UQ-GV012T
Chi Mei CMN14D2 / N140HCE-EN1, , 1920x1080, 14
HP EliteBook x360 1030 G2
CMN1374, , 1920x1080, 13.3
Toshiba Portege X30-D (PT274U-01N001)
Toshiba TOS508F, , 1920x1080, 13.3
Dell Latitude 13 7380
LGD0589, , 1920x1080, 13.3
Response Times
19%
5%
21%
23%
Response Time Grey 50% / Grey 80% *
48.8 (24.8, 24)
40 (20, 20)
18%
55.2 (21.2, 34)
-13%
36.8 (18.8, 18)
25%
34 (17.2, 16.8)
30%
Response Time Black / White *
35.2 (21.2, 14)
28 (17, 11)
20%
27.2 (7.6, 19.6)
23%
29.6 (17.2, 12.4)
16%
29.6 (17.2, 12.4)
16%
PWM Frequency
Screen
1%
-19%
7%
-25%
Brightness middle
329
353
7%
262
-20%
332.6
1%
317
-4%
Brightness
316
366
16%
256
-19%
323
2%
295
-7%
Brightness Distribution
92
88
-4%
83
-10%
86
-7%
87
-5%
Black Level *
0.25
0.34
-36%
0.25
-0%
0.28
-12%
0.3
-20%
Contrast
1316
1038
-21%
1048
-20%
1188
-10%
1057
-20%
Colorchecker DeltaE2000 *
4.3
2.88
33%
5.13
-19%
2.6
40%
6.3
-47%
Colorchecker DeltaE2000 max. *
7.8
6.61
15%
9.46
-21%
6.7
14%
10.4
-33%
Colorchecker DeltaE2000 calibrated *
2.5
Greyscale DeltaE2000 *
3.6
4.24
-18%
6.23
-73%
2.5
31%
7.8
-117%
Gamma
2.43 99%
2.38 101%
2.45 98%
2.12 113%
1.81 133%
CCT
6928 94%
7380 88%
6413 101%
6720 97%
7120 91%
Color Space (Percent of AdobeRGB 1998)
59.1
64
8%
57.84
-2%
62
5%
61
3%
Color Space (Percent of sRGB)
90.6
99
9%
88.57
-2%
94
4%
92
2%
Totaal Gemiddelde (Programma / Instellingen)
10% / 4%
-7% / -15%
14% / 9%
-1% / -17%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

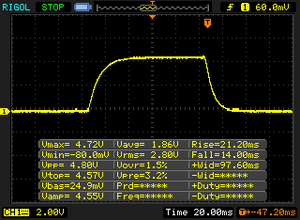

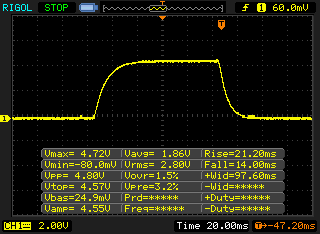

       Responstijd Zwart naar Wit
35.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21.2 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 90 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (26.2 ms) van alle geteste toestellen.

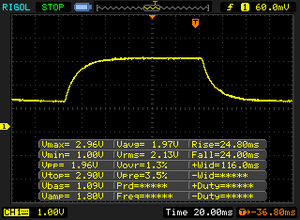

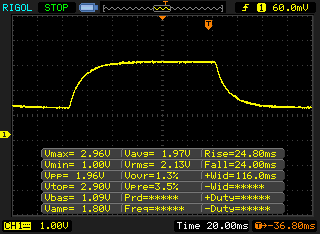

       Responstijd 50% Grijs naar 80% Grijs
48.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 24.8 ms stijging
↘ 24 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 80 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (41.9 ms) van alle geteste toestellen.

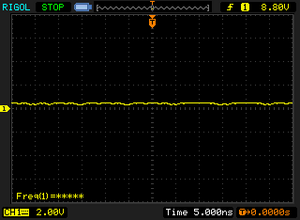

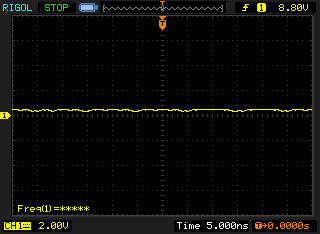

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 54 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 10374 (minimum: 43 - maximum: 588200) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Dell Latitude 13 7380
Intel Core i7-7600U
161 Points ∼100% +6%
Dell Latitude 7390
Intel Core i5-8350U
152 Points ∼94%
Average Intel Core i5-8350U
  (142 - 152, n=4)
149 Points ∼93% -2%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
144 Points ∼89% -5%
Asus Zenbook UX3430UQ-GV012T
Intel Core i7-7500U
135 Points ∼84% -11%
Toshiba Portege X30-D (PT274U-01N001)
Intel Core i7-7600U
126 Points ∼78% -17%
Average of class Office
  (20 - 178, n=439)
106 Points ∼66% -30%
CPU Multi 64Bit
Dell Latitude 7390
Intel Core i5-8350U
625 Points ∼100%
Average Intel Core i5-8350U
  (501 - 625, n=4)
560 Points ∼90% -10%
Dell Latitude 13 7380
Intel Core i7-7600U
359 Points ∼57% -43%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
346 Points ∼55% -45%
Asus Zenbook UX3430UQ-GV012T
Intel Core i7-7500U
346 Points ∼55% -45%
Toshiba Portege X30-D (PT274U-01N001)
Intel Core i7-7600U
341 Points ∼55% -45%
Average of class Office
  (36 - 736, n=443)
300 Points ∼48% -52%
Cinebench R15 CPU Multi 64Bit
625 Points
Cinebench R15 CPU Single 64Bit
152 Points
Help
PCMark 8
Work Score Accelerated v2
Dell Latitude 13 7380
HD Graphics 620, 7600U, Samsung PM961 MZVLW256HEHP
5060 Points ∼100% +6%
Toshiba Portege X30-D (PT274U-01N001)
HD Graphics 620, 7600U, Samsung PM961 MZVLW256HEHP
4910 Points ∼97% +3%
Asus Zenbook UX3430UQ-GV012T
GeForce 940MX, 7500U, SanDisk SD8SN8U512G1002
4812 Points ∼95% +1%
HP EliteBook x360 1030 G2
HD Graphics 620, 7300U, Sandisk SD8TN8U-256G-1006
4803 Points ∼95% +1%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (4764 - 4774, n=3)
4769 Points ∼94% 0%
Dell Latitude 7390
UHD Graphics 620, 8350U, SK hynix SC311 M.2
4768 Points ∼94%
Average of class Office
  (1226 - 5200, n=277)
3888 Points ∼77% -18%
Home Score Accelerated v2
Asus Zenbook UX3430UQ-GV012T
GeForce 940MX, 7500U, SanDisk SD8SN8U512G1002
3913 Points ∼100% +9%
Dell Latitude 13 7380
HD Graphics 620, 7600U, Samsung PM961 MZVLW256HEHP
3872 Points ∼99% +8%
HP EliteBook x360 1030 G2
HD Graphics 620, 7300U, Sandisk SD8TN8U-256G-1006
3774 Points ∼96% +5%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (3600 - 3776, n=3)
3690 Points ∼94% +3%
Dell Latitude 7390
UHD Graphics 620, 8350U, SK hynix SC311 M.2
3600 Points ∼92%
Toshiba Portege X30-D (PT274U-01N001)
HD Graphics 620, 7600U, Samsung PM961 MZVLW256HEHP
3543 Points ∼91% -2%
Average of class Office
  (1169 - 4458, n=317)
2967 Points ∼76% -18%
PCMark 8 Home Score Accelerated v2
3600 punten
PCMark 8 Work Score Accelerated v2
4768 punten
Help
Dell Latitude 7390
SK hynix SC311 M.2
Asus Zenbook UX3430UQ-GV012T
SanDisk SD8SN8U512G1002
HP EliteBook x360 1030 G2
Sandisk SD8TN8U-256G-1006
Toshiba Portege X30-D (PT274U-01N001)
Samsung PM961 MZVLW256HEHP
Average SK hynix SC311 M.2

CrystalDiskMark 3.0
5%
-1%
129%
1%
Write 4k QD32
254.5
251.1
-1%
225.2
-12%
535.7
110%
267 (255 - 280, n=2)
5%
Read 4k QD32
284.4
311.3
9%
311.3
9%
625.5
120%
284 (283 - 284, n=2)
0%
Write 4k
64.67
56.85
-12%
56.48
-13%
143.6
122%
68.3 (64.7 - 71.8, n=2)
6%
Read 4k
27.63
28.34
3%
29.43
7%
40.9
48%
27.2 (26.7 - 27.6, n=2)
-2%
Write 512
322.6
415
29%
372.5
15%
762.9
136%
323 (323 - 323, n=2)
0%
Read 512
354.6
345.6
-3%
312.3
-12%
857.6
142%
365 (355 - 374, n=2)
3%
Write Seq
413.4
457.4
11%
443.6
7%
1213
193%
401 (389 - 413, n=2)
-3%
Read Seq
493.4
500.2
1%
467.1
-5%
1270
157%
494 (493 - 496, n=2)
0%
SK hynix SC311 M.2
Sequential Read: 493.4 MB/s
Sequential Write: 413.4 MB/s
512K Read: 354.6 MB/s
512K Write: 322.6 MB/s
4K Read: 27.63 MB/s
4K Write: 64.67 MB/s
4K QD32 Read: 284.4 MB/s
4K QD32 Write: 254.5 MB/s
3DMark 11 - 1280x720 Performance GPU
Asus Zenbook UX3430UQ-GV012T
NVIDIA GeForce 940MX, Intel Core i7-7500U
2197 Points ∼100% +37%
Average Intel UHD Graphics 620
  (1366 - 1915, n=63)
1660 Points ∼76% +3%
Dell Latitude 13 7380
Intel HD Graphics 620, Intel Core i7-7600U
1633 Points ∼74% +2%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
1606 Points ∼73%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
1476 Points ∼67% -8%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, Intel Core i7-7600U
1446 Points ∼66% -10%
Average of class Office
  (185 - 4967, n=563)
1158 Points ∼53% -28%
3DMark
1920x1080 Fire Strike Graphics
Asus Zenbook UX3430UQ-GV012T
NVIDIA GeForce 940MX, Intel Core i7-7500U
1540 Points ∼100% +61%
Average Intel UHD Graphics 620
  (819 - 1336, n=58)
1068 Points ∼69% +11%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
972 Points ∼63% +1%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
959 Points ∼62%
Dell Latitude 13 7380
Intel HD Graphics 620, Intel Core i7-7600U
926 Points ∼60% -3%
Average of class Office
  (138 - 4109, n=400)
888 Points ∼58% -7%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, Intel Core i7-7600U
847 Points ∼55% -12%
1280x720 Cloud Gate Standard Graphics
Average Intel UHD Graphics 620
  (6910 - 10493, n=60)
8712 Points ∼100% +8%
Asus Zenbook UX3430UQ-GV012T
NVIDIA GeForce 940MX, Intel Core i7-7500U
8492 Points ∼97% +5%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
8220 Points ∼94% +1%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
8104 Points ∼93%
Dell Latitude 13 7380
Intel HD Graphics 620, Intel Core i7-7600U
7794 Points ∼89% -4%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, Intel Core i7-7600U
7068 Points ∼81% -13%
Average of class Office
  (1208 - 27117, n=444)
6272 Points ∼72% -23%
3DMark 11 Performance
1755 punten
3DMark Cloud Gate Standard Score
7618 punten
3DMark Fire Strike Score
901 punten
Help
lage gem. hoge ultra
Rise of the Tomb Raider (2016) 19.6fps
Farming Simulator 17 (2016) 51.219.7fps
Final Fantasy XV Benchmark (2018) 8.8fps

Geluidsniveau

Onbelast
29.5 / 29.5 / 29.5 dB (A)
Belasting
32.4 / 39.9 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.536.436.733.834.12530.330.830.930.4333133.336.433.733.835.54030.632.730.930.634.35028.129.128.428.729.86328.727.527.327.929.58026.427.124.725.827.410027.12525.427.627.812525.228.824.327.226.916025.524.625.326.427.620024.52323.423.725.92502322.92323.324.731522.321.821.521.523.640022.62119.719.524.850021.921.31919.224.863023.120.417.918.826.58002320.717.517.826.4100025.72117.217.626.7125024.721.816.316.528.316002521.115.61629.4200024.823.315.815.930.2250024.120.216.115.829.4315021.718.215.916.129.5400020.517.716.516.327.3500021.918.617.316.728.263002017.817.816.927.4800019.217.81917.224100001817.618.817.520.81250017.517.518.117.418.71600017.417.618.817.318.3SPL35.132.429.629.539.9N2.21.71.31.33.3median 23Dell Latitude 7390median 21median 18.1median 17.5median 26.7Delta1.82.32.52.51.831.433.436.53231.434.134.44333.534.139.839.151.140.139.829.832.439.630.529.835.532.735.934.335.530.631.137.529.530.627.428.727.727.427.425.726.726.826.425.726.926.827.425.526.924.624.324.52424.623.423.323.522.523.423.122.522.521.923.123.322.822.320.923.322.821.521.320.822.821.720.720.319.421.722.220.519.818.722.22321.119.718.42326.123.220.81826.126.323.720.418.326.327.52420.618.127.528.324.821.117.928.329.426.121.717.929.42723.219.518.32727.423.419.218.527.427.822.61918.627.824.520.618.918.924.521.719.7191921.720.119.419.119.120.119.719.519.219.119.719.619.919.519.219.638.435.132.430.838.42.92.21.81.52.9median 24.5Asus Zenbook UX3430UQ-GV012Tmedian 22.8median 20.4median 19median 24.52.31.81.51.62.330.732.830.232.531.230.132.131.340.14030.129.228.127.935.735.734.534.225.42428.325.227.724.430.422.727.421.825.520.723.920.224.61925.918.624.418.924.418.624.718.923.818.722.518.522.2192219.920.319.519.819.320.420.1202119.620.23632.12.61.7median 24.4HP EliteBook x360 1030 G2median 20.12.72.7hearing rangehide median Fan Noise
 23.7 °C23.7 °C23.1 °C
 23.5 °C23.4 °C22.9 °C
 22.7 °C22.6 °C22.5 °C
Maximum: 23.7 °C
Gemiddelde: 23.1 °C
23 °C23.4 °C23.6 °C
22.5 °C23.1 °C23.4 °C
22.1 °C22.6 °C23 °C
Maximum: 23.6 °C
Gemiddelde: 23 °C
Stroomadapter (max.)  21.3 °C | Kamertemperatuur 19.8 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.233.12529.4303135.6334031.7315030.428.16326.928.18025.627.210025.83012525.332.816026.13920023.345.125021.951.13152157.840018.259.150018.259.863017.765.180017.170.3100016.868.4125015.771.7160015.571.7200015.771.9250015.670.5315015.871.1400016.174.3500016.574.8630016.871.8800017.1641000017.267.51250017.263.41600017.361.6SPL2983.1N1.255.2median 17.2Dell Latitude 7390median 65.1Delta2.59.933.934.733.936.334.536.342.343.142.333.432.133.439.538.939.533.633.433.62827.92831.126.231.138.827.838.843.824.743.840.823.540.848.122.748.153.121.553.157.220.757.256.619.756.659.119.659.166.118.566.164.718.164.766.418.266.463.71863.760.517.960.561.61861.661.118.161.161.918.461.962.518.462.561.818.661.866.71966.773.119.173.175.21975.265.919.565.977.530.977.538.41.538.4median 61.6Asus Zenbook UX3430UQ-GV012Tmedian 19median 61.66.71.66.73641.837.137.74535.835.347.750.746.655.659.5596056.562.668.973.870.277.375.873.478.27774.672.169.767.8626086.363.8median 67.8HP EliteBook x360 1030 G28.442.23837.234.435.835.435.334.733.732.232.533.732.63331.231.43031.328.737.328.349.927.458.827.261.726.860.526.160.625.458.924.965.624.462.923.96223.367.823.366.323.367.423.261.722.965.12359.92362.42367.323.269.323.165.123.16136772.640.8median 23.9Toshiba Portege X30-D (PT274U-01N001)median 61.71.96.13736.83735.534.835.534.134.134.133.633.733.632.232.632.235323537.629.737.634.129.234.139.928.839.947.428.247.446.826.946.842.326.542.344.525.644.550.224.950.254.624.454.654.324.154.354.924.354.953.223.453.255.323.455.357.523.257.558.723.458.756.423.356.457.723.457.762.823.162.856.723.256.760.123.460.158.823.458.86623.56659.523.859.563.424.763.470.935.770.927.52.527.5median 55.3Dell Latitude 13 7380median 23.8median 55.34.81.64.8hearing rangehide median Pink Noise
Dell Latitude 7390 audio analysis

(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.5% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.8% higher than median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 9% similar, 42% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 42% of all tested devices were better, 8% similar, 50% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Asus Zenbook UX3430UQ-GV012T audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.9% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.2% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 6% similar, 41% worse
» The best had a delta of 9%, average was 19%, worst was 47%
Compared to all devices tested
» 33% of all tested devices were better, 6% similar, 61% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook x360 1030 G2 audio analysis

(+) | speakers can play relatively loud (86.3 dB)
Analysis not possible as minimum curve is missing or too high

Toshiba Portege X30-D (PT274U-01N001) audio analysis

(±) | speaker loudness is average but good (77.04 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.7% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (9.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.2% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 9% similar, 64% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 27% of all tested devices were better, 7% similar, 67% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell Latitude 13 7380 audio analysis

(-) | not very loud speakers (70.93 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.5% away from median
(±) | linearity of highs is average (12.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.7% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 9% similar, 52% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 35% of all tested devices were better, 6% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.26 / 0.38 Watt
Inactiefdarkmidlight 2.34 / 5.6 / 6.5 Watt
Belasting midlight 43 / 67.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Dell Latitude 7390
8350U, UHD Graphics 620, SK hynix SC311 M.2, IPS, 1920x1080, 13.3
Asus Zenbook UX3430UQ-GV012T
7500U, GeForce 940MX, SanDisk SD8SN8U512G1002, IPS, 1920x1080, 14
HP EliteBook x360 1030 G2
7300U, HD Graphics 620, Sandisk SD8TN8U-256G-1006, IPS, 1920x1080, 13.3
Toshiba Portege X30-D (PT274U-01N001)
7600U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 13.3
Dell Latitude 13 7380
7600U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 13.3
Power Consumption
4%
7%
-11%
11%
Idle Minimum *
2.34
2.6
-11%
3.2
-37%
4.6
-97%
3.2
-37%
Idle Average *
5.6
5.9
-5%
5.5
2%
7.6
-36%
5.5
2%
Idle Maximum *
6.5
6.25
4%
6.5
-0%
8.2
-26%
6.1
6%
Load Average *
43
42
2%
29.7
31%
23.8
45%
29.5
31%
Load Maximum *
67.4
46
32%
41.3
39%
28
58%
32
53%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
27h 40min
Big Buck Bunny H.264 1080p
12h 29min
Belast (maximale helderheid)
1h 32min
Dell Latitude 7390
8350U, UHD Graphics 620, 60 Wh
Asus Zenbook UX3430UQ-GV012T
7500U, GeForce 940MX, 50 Wh
HP EliteBook x360 1030 G2
7300U, HD Graphics 620, 57 Wh
Toshiba Portege X30-D (PT274U-01N001)
7600U, HD Graphics 620, 48 Wh
Dell Latitude 13 7380
7600U, HD Graphics 620, 60 Wh
Average of class Office

Batterijduur
-9%
46%
-7%
25%
-34%
Reader / Idle
1660
1292
-22%
1387
-16%
898
-46%
1594
-4%
551 (101 - 1857, n=752)
-67%
H.264
749
659
-12%
407 (139 - 791, n=138)
-46%
Load
92
97
5%
244
165%
121
32%
141
53%
101 (37 - 259, n=694)
10%
WiFi v1.3
527
630
430
630
401 (105 - 964, n=254)

Pro

+ simpel, representatief design
+ solide, anti-slip behuizing
+ foutloze fabricage
+ beeldscherm openingshoek van > 180 °
+ complete beveiliging door mogelijkheid smart card
+ verstandige aansluitingen
+ snelle kaartlezer
+ goede toegankelijkheid na makkelijk openen
+ 3 jaar fabrieksgarantie
+ bevredigende type-ervaring
+ lage zwartwaarden, hoog contrast
+ af fabriek goede kleur echtheid
+ stille werking
+ uitstekend uithoudingsvermogen

Contra

- kan niet met een hand geopend
- deksel kan basiseenheid opwippen
- geen Thunderbolt 3
- geen onderhoudsklep, batterij niet toegankelijk van buiten
- relatief klein toetsenbord
- iets onbetrouwbare vingerafdruksensor
- touchpad toetsen zijn lage kwaliteit
- luide spatie-toets
- geen PCIe SSD
- slecht en uitermate ergerlijk geluidssysteem
The Dell Latitude 7390 - provided by Dell Germany
The Dell Latitude 7390 - provided by Dell Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Met de nieuwe Latitude 7390, heeft Dell bijna alles goed gedaan. Voor een niet zo forse € 1400 die ons testmodel kost, ontvang je een goed gebalanceerd product met slecht enkele minpunten.

We moeten het ietwat kleine maar verder erg prettige toetsenbord benoemen, de matige touchpad toetsen, het ontbreken van Thunderbolt 3 en de luide spatie-toets. Het is een kleine ontwerpfout dat de deksel de basiseenheid optilt bij een openingshoek vanaf ongeveer 135°. Het enige dat we echt niet waarderen is het erbarmelijke geluidssysteem en de suboptimale vingerafdruksensor.

Niet alleen zijn er meer pluspunten te benoemen, dit zijn ook belangrijkere punten. Het kan gesteld worden dat met de i5-8350 de Latitude een onredelijk overschot aan rekenkracht heeft  voor simpele kantoortaken, maar omdat de batterijlevensduur hier geen last van heeft kan de extra rekenkracht zeker geen kwaad. Het simpel ontworpen maar hoge bouwkwaliteit behuizing, de goede tot erg goede invoerapparaten, de uitgebreide beveiligingsfeatures, de verstandige aansluitingen, het hoge contrast beeldscherm, Windows 10 Pro en tot slot 3 jaar fabrieksgarantie komen allemaal in een stil werkend apparaat dat duidelijk aangeraden kan worden.

Dell Latitude 7390 - 05-04-2018 v6
Sven Kloevekorn

Behuizing
87 / 98 → 88%
Toetsenbord
90%
Aanwijsapparaat
88%
Aansluitmogelijkheden
65 / 80 → 81%
Gewicht
71 / 20-67 → 100%
Batterij
93%
Beeldscherm
89%
Gaming-performance
59 / 68 → 87%
Applicatie-performance
88 / 92 → 95%
Temperatuur
89%
Luidheid
91%
Audio
44%
Camera
63 / 85 → 74%
Gemiddelde
78%
89%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Dell Latitude 7390 (i5-8350U, SSD 256 GB) Laptop
Sven Kloevekorn, 2018-04-14 (Update: 2018-04-17)
