Intel NUC11 Essential Kit alias Atlas Canyon met Intel Pentium Silver N6005 en Intel Celeron N4505 review

Intel NUC11 Essentiële Kit - Atlas Canyon

Intel heeft onder het pseudoniem Atlas Canyon hun NUC 11 Essential Kit-serie uitgebracht, die Jasper Lake-processoren gebruikt. De barebone-versies van de pc's zijn vrij betaalbaar. Op het moment van testen was het systeem met een Intel Celeron N4505ongeveer 129 dollar en de versie van de Intel NUC11 Essential Kit - Atlas Canyon met een Intel Pentium Silver N6005kost rond de $229. Barebone systemen worden vaak verkocht zonder RAM en SSD's, wat in gedachten moet worden gehouden bij het berekenen van de kosten. Een licentie voor het besturingssysteem is ook niet bij de prijs inbegrepen. Voor onze test installeerden we 16 GB DDR4 RAM en een 512 GB SSD in beide testapparaten.

De vergelijkingsapparaten, met vergelijkbare specificaties, staan in de volgende tabel.

Evaluatie	Datum	Model	Gewicht	Hoogte
70.9 %	03-2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 g	36 mm
63.2 %	03-2023	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	535 g	36 mm
65.9 %	01-2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm
		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm
	02-2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm
	08-2021	AC6-M Mini-PC Celeron J4125, UHD Graphics 600		58 mm
68.2 %	03-2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	381 g	47 mm

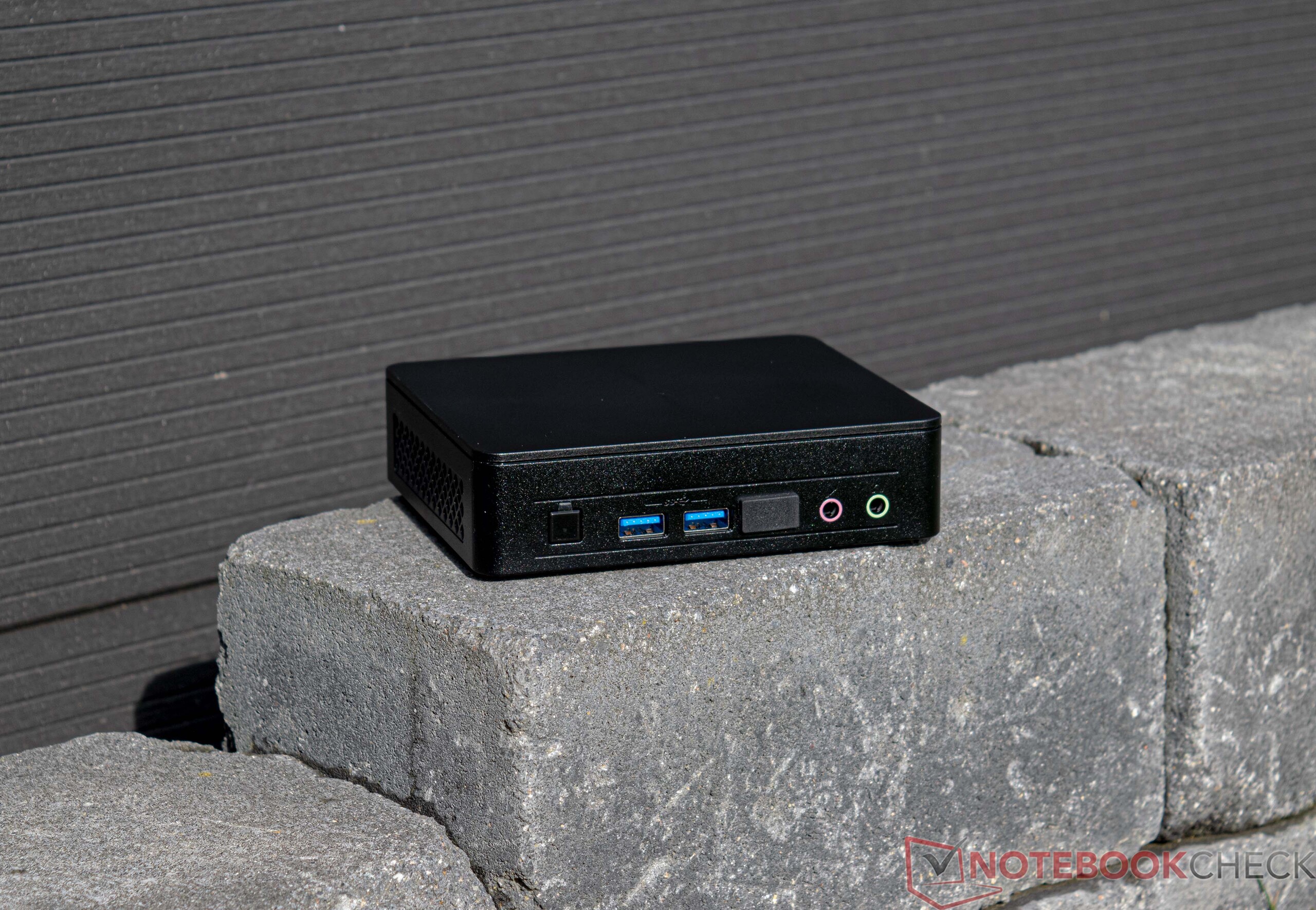

Zaak

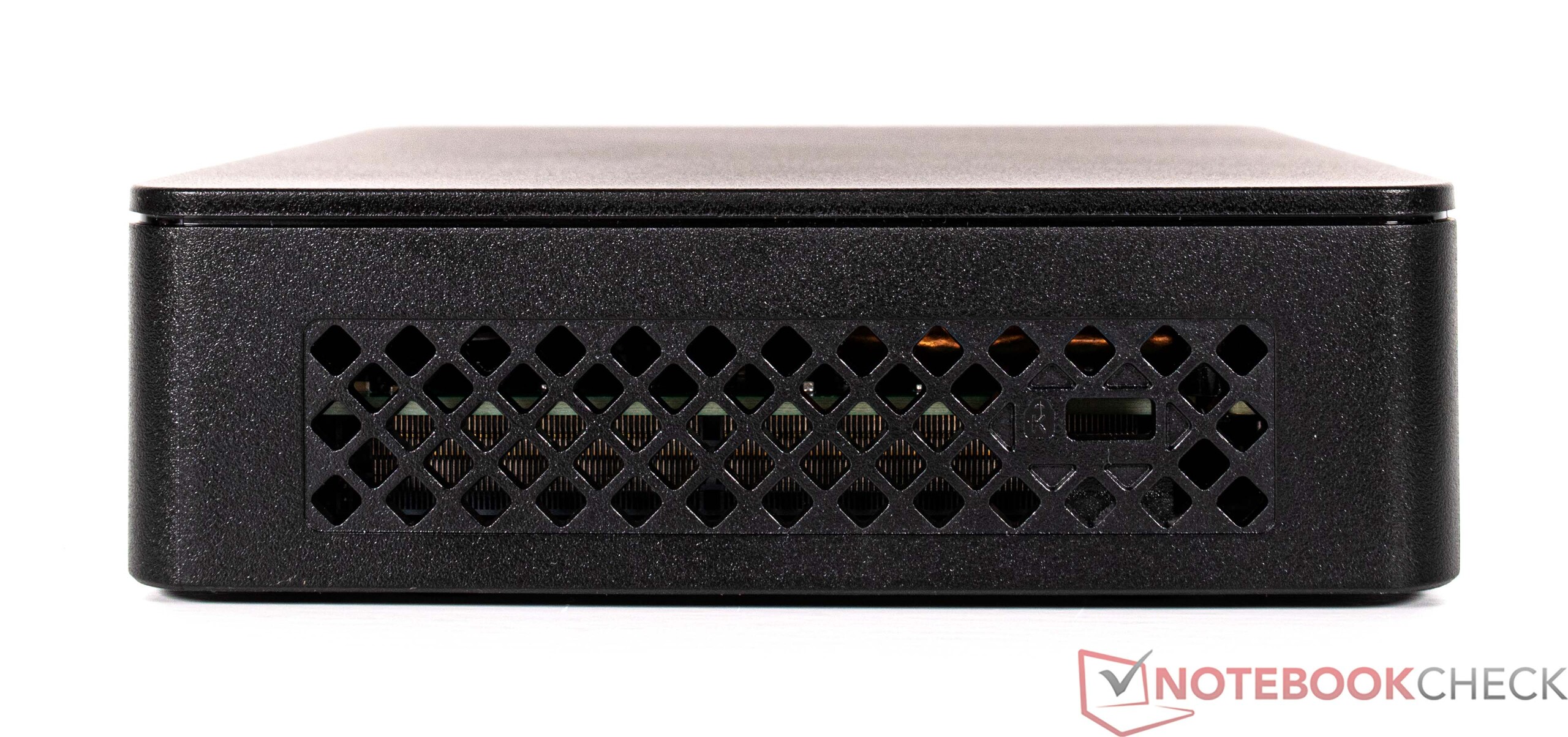

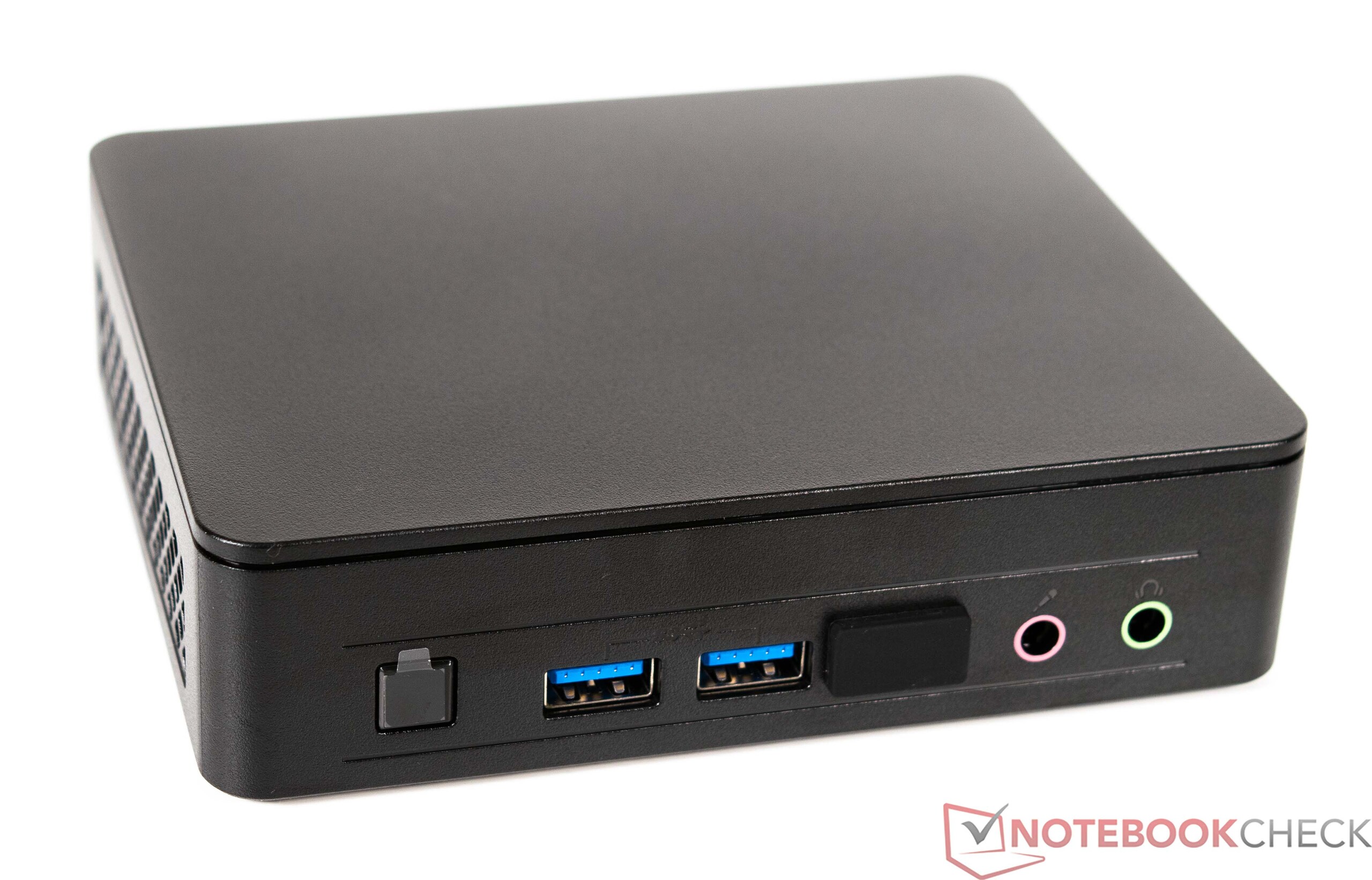

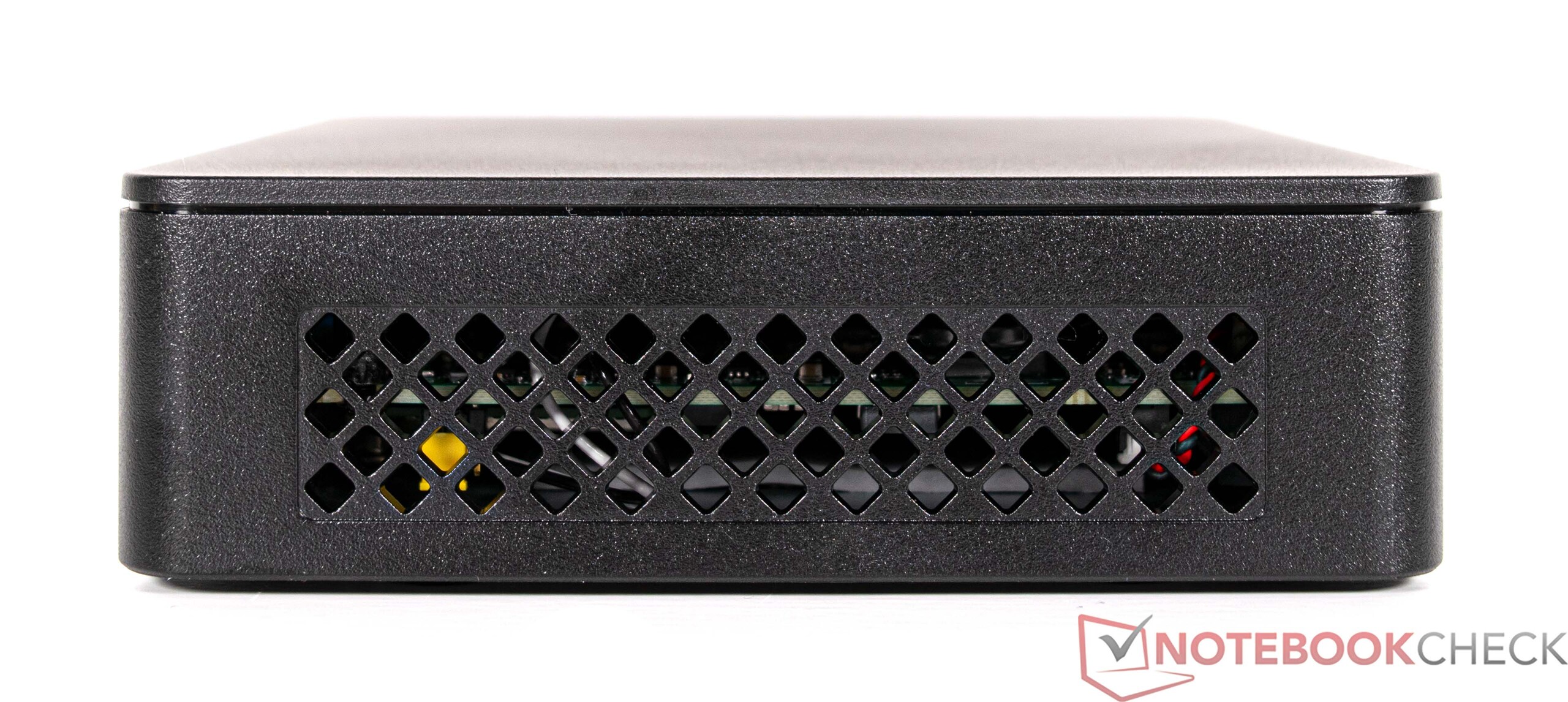

De Intel NUC11 Essential Kit - Atlas Canyon is helemaal zwart en heeft geen hoogglanzende oppervlakken. Op het eerste gezicht ziet de plastic behuizing er een beetje goedkoop uit. De werkelijke tastbaarheid van de behuizing is echter veel beter - het apparaat is zeer stevig dankzij de interne metalen steunen. Dit is zeer vergelijkbaar met andere apparaten in de NUC-serie en de fabrikant maakt geen uitzonderingen voor de Intel NUC11 Essential Kit - Atlas Canyon. Als het gaat om de grootte, zien we een beetje een verschil met andere modellen in de serie. De mini-pc heeft een voetafdruk van 13,5 x 11,5 centimeter - optisch doet dit relatief kleine apparaat denken aan de Intel NUC Pro Chassis Element. Technisch gezien zijn ze heel anders gebouwd. De Intel NUC11 Essential Kit - Atlas Canyon kan aan een monitor worden bevestigd met behulp van de meegeleverde VESA-bevestiging.

Vergelijking grootte

Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Intel NUC11ATKPE, N6005 Intel NUC11ATKC2, N4505 Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

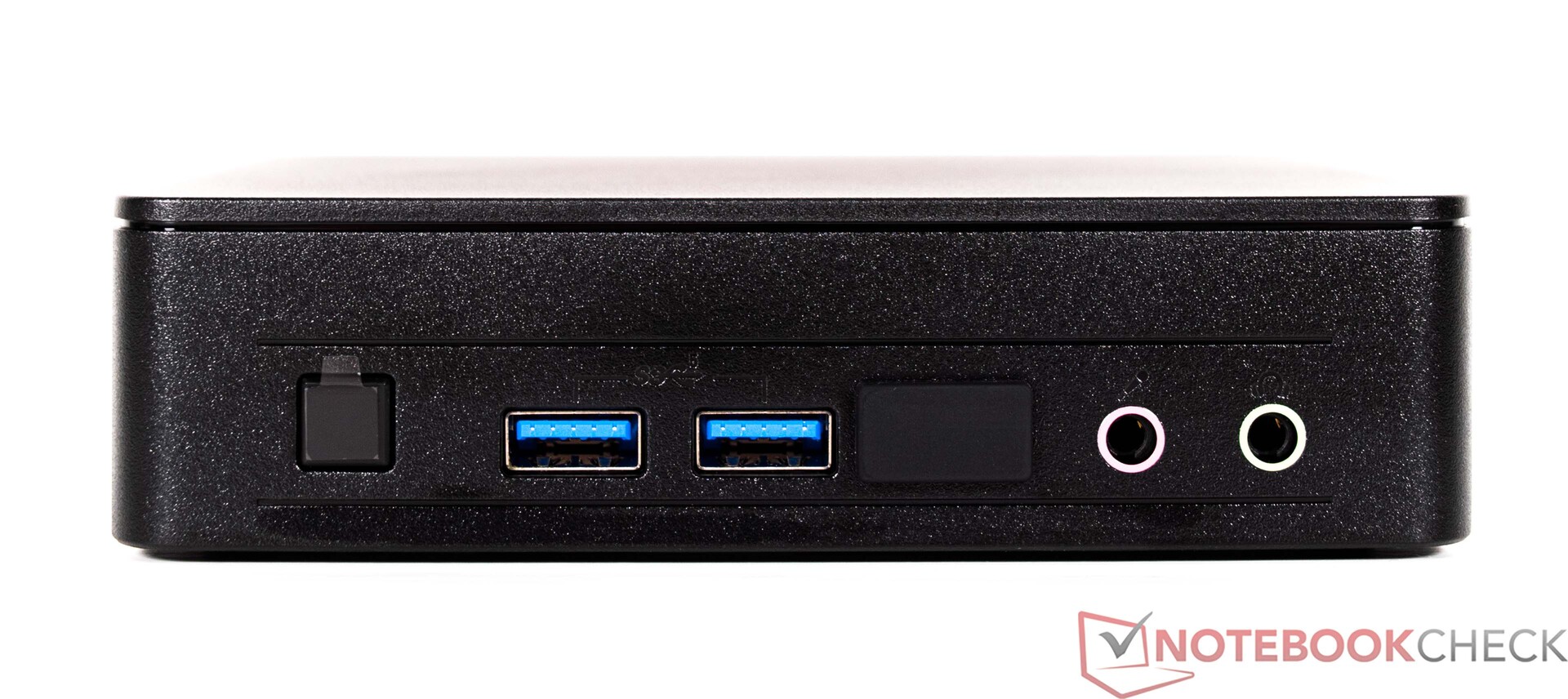

Connectiviteit

De Intel NUC 11 Essential Kit - Atlas Canyon heeft vrij standaard connectiviteit voor een mini-pc in deze apparaatklasse. Zes USB Type-A poorten zijn meer dan genoeg voor dagelijks gebruik. Je kunt monitoren aansluiten via DisplayPort of HDMI. Beide apparaten zijn precies hetzelfde uitgerust, dus we hebben ervan afgezien ze apart te presenteren.

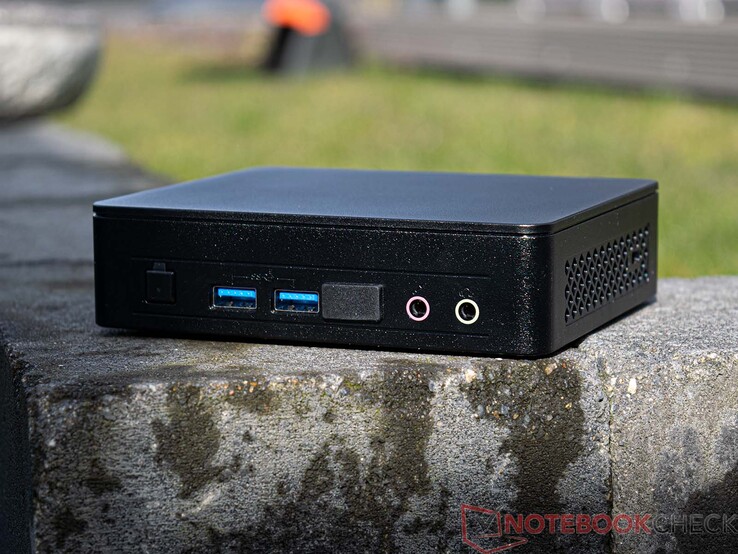

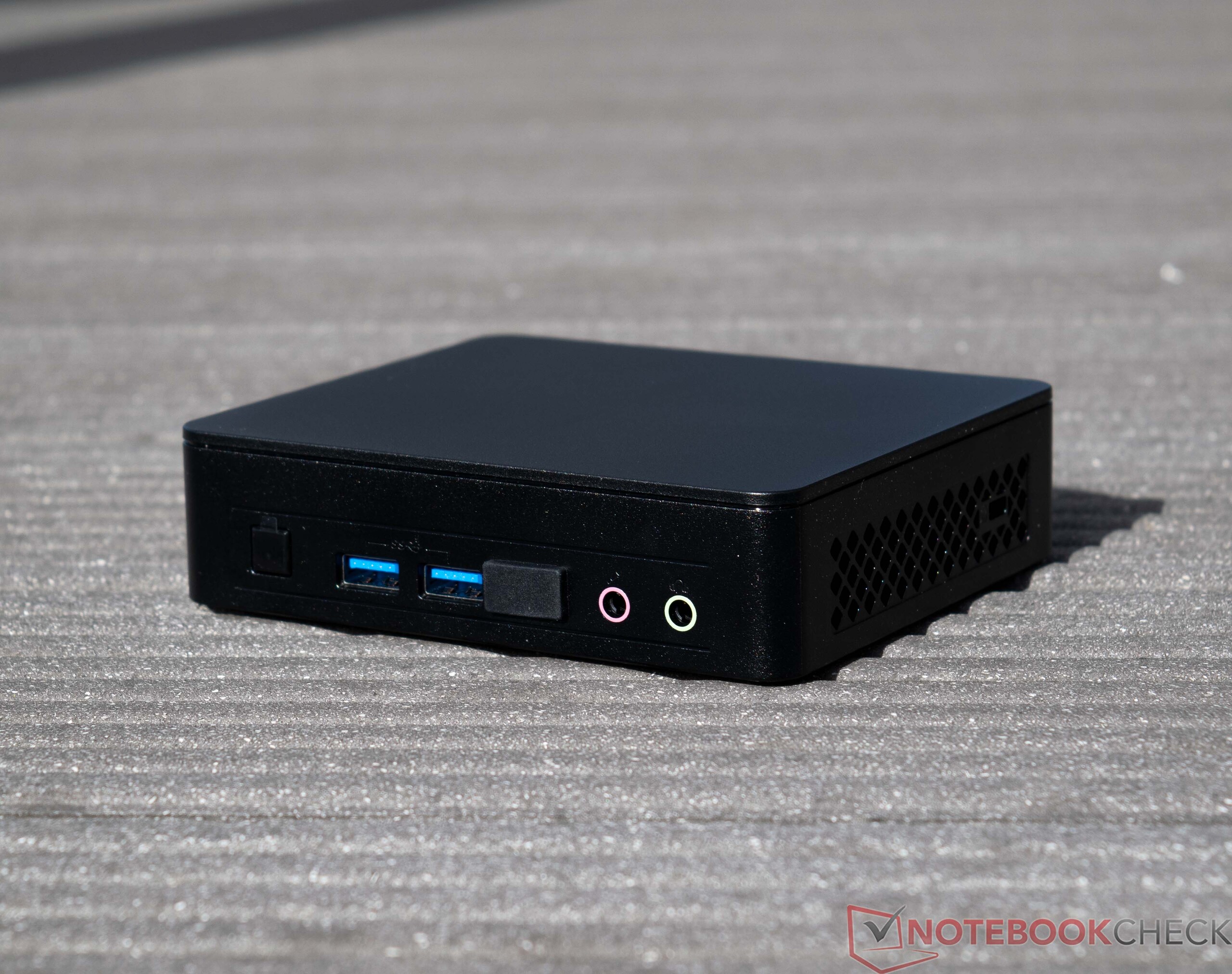

Voorkant: 2x USB 3.2, 3,5 mm aansluiting

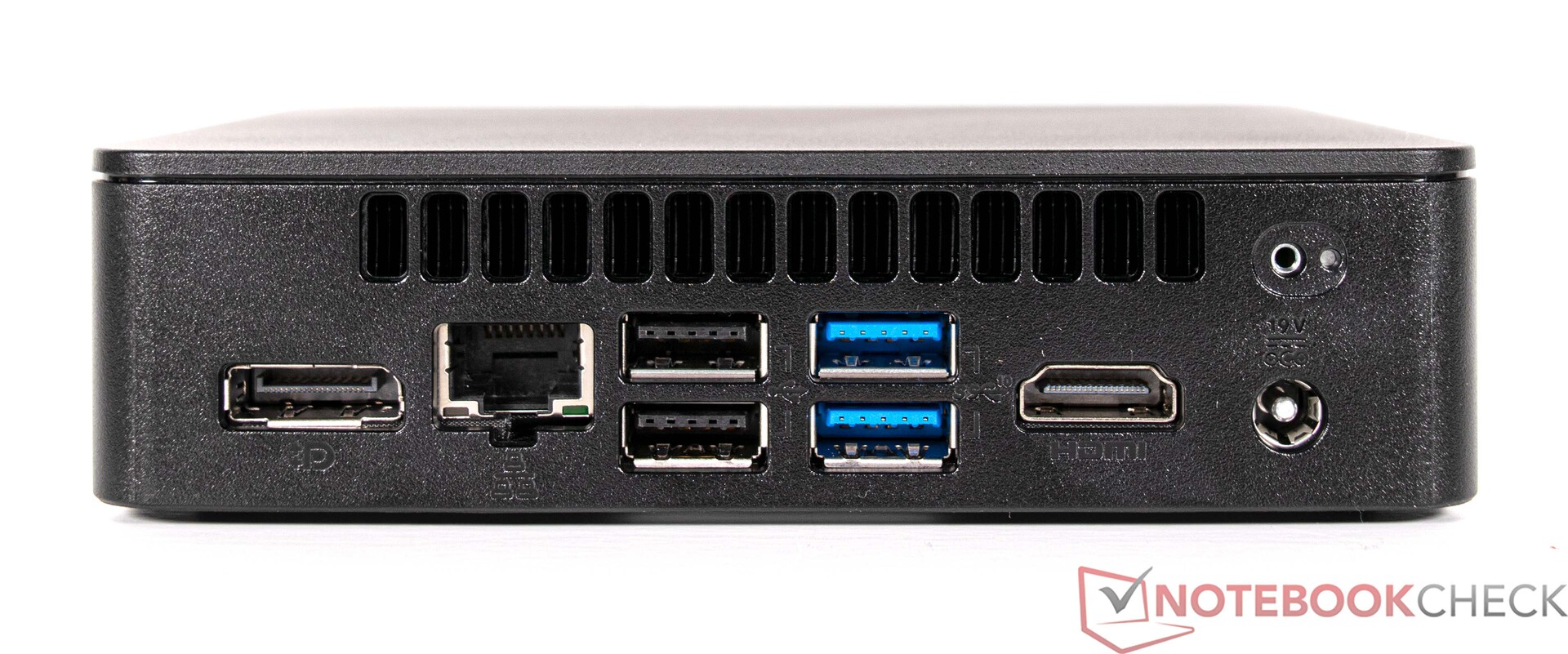

Achterkant: DisplayPort, GBit LAN, 2x USB 2.0, 2x USB 3.2, HDMI, stroomvoorziening

Communicatie

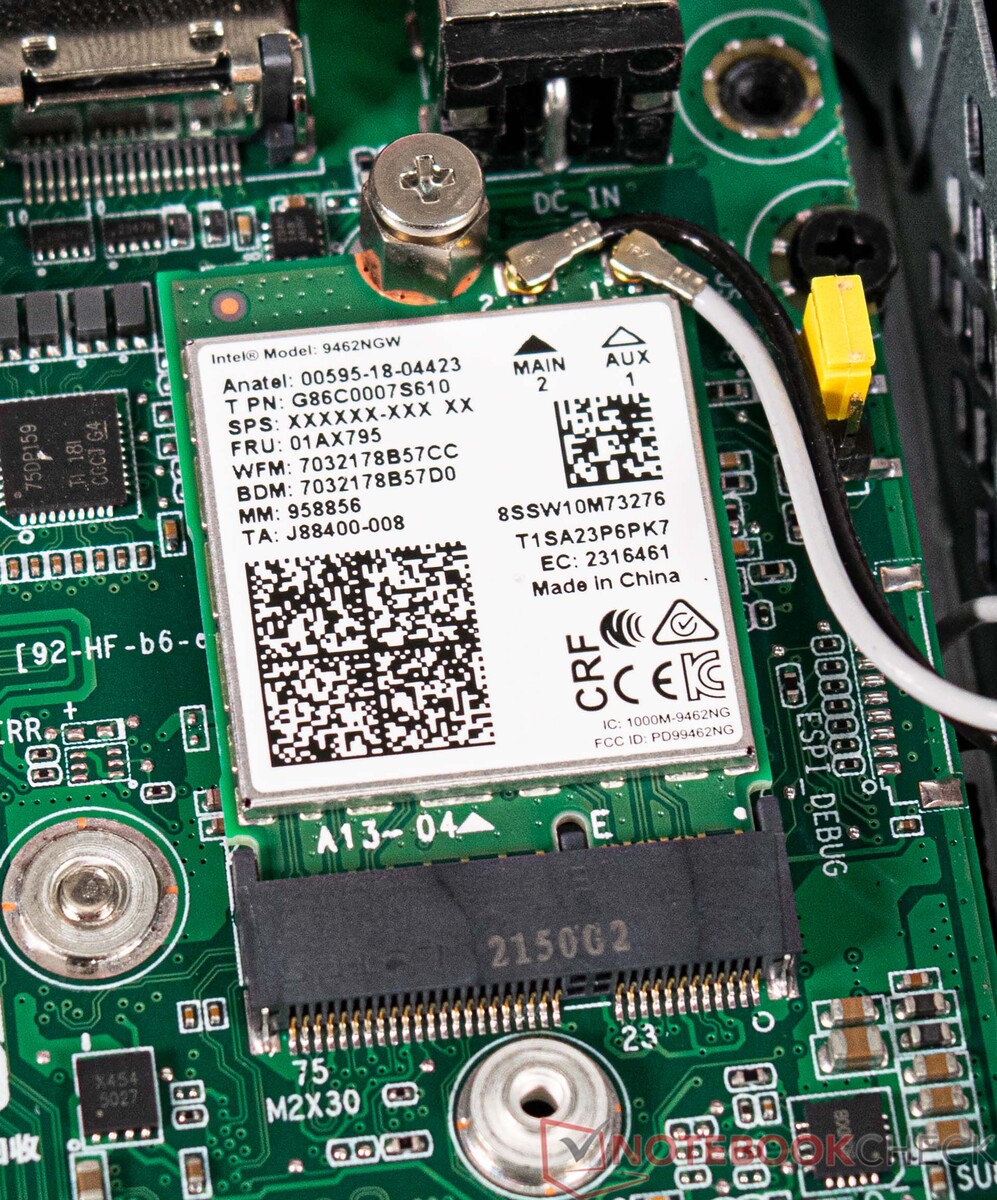

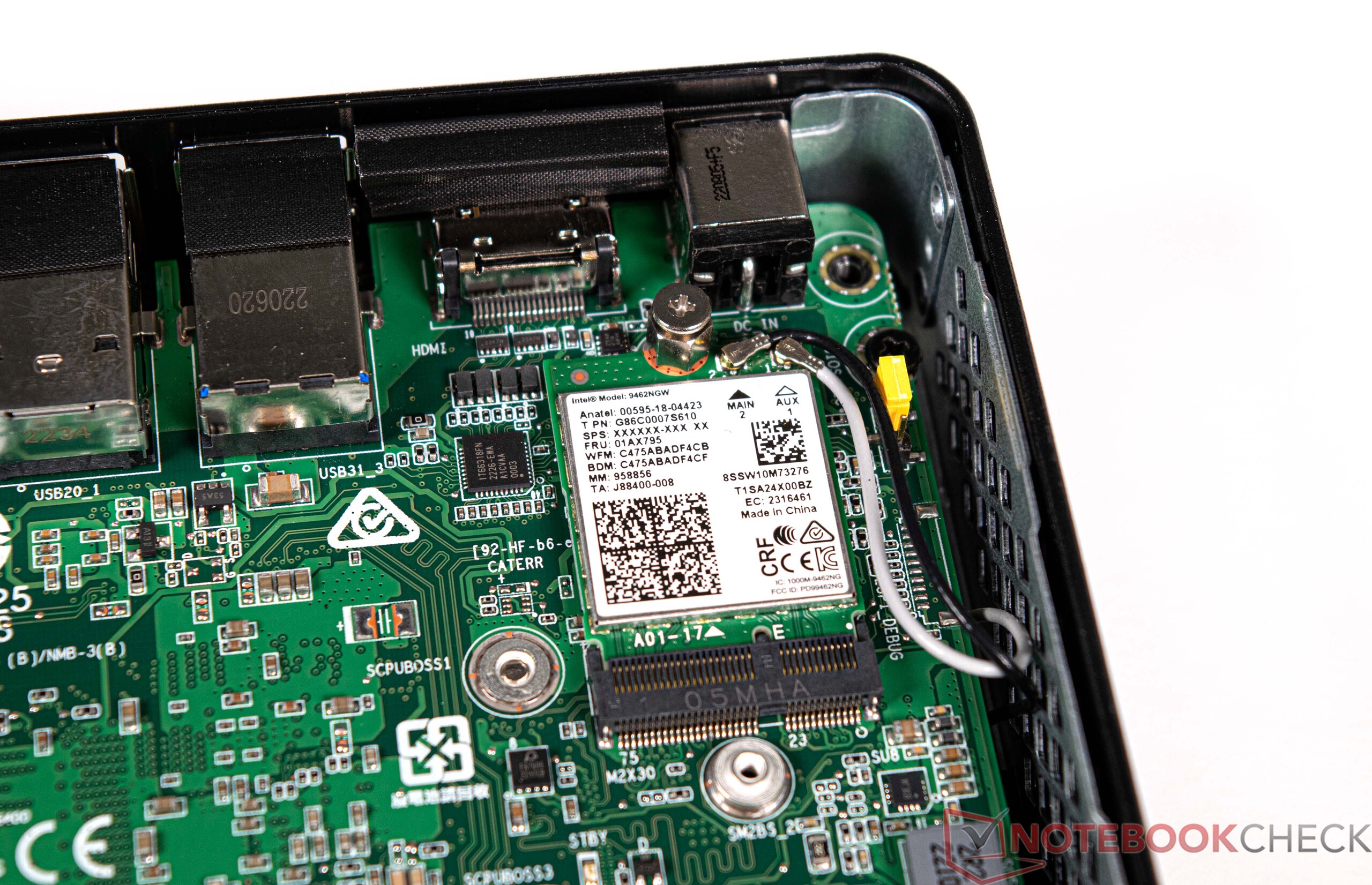

De Intel NUC11 Essential Kit is voorzien van Intels eigen WLAN-module, de Wireless AC 9462. De prestaties zijn goed in vergelijking met de concurrentie - misschien soms zelfs beter. Helaas hebben we nog steeds overdrachtssnelheden gemeten die aanzienlijk langzamer waren dan het gemiddelde voor de mini PC's die we hebben getest. Beide modellen van The Intel NUC 11 Essential Kit vertrouwen op dezelfde WLAN-module, daarom kregen we bijna identieke resultaten voor elk model. We gebruikten de Asus ROG Rapture GT-AXE11000 als onze testrouter in deze test.

Networking
iperf3 receive AXE11000
Gemiddelde van klas Mini PC (192.9 - 1688, n=23, laatste 2 jaar)	842 MBit/s ∼100% +127%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s ∼44%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (333^min - 376^max) MBit/s ∼43% -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s ∼43% -2%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s ∼43% -4%
Gemiddeld Intel Wireless AC 9462 (245 - 371, n=4)	327 MBit/s ∼39% -12%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s ∼34% -22%
iperf3 transmit AXE11000
Gemiddelde van klas Mini PC (184.1 - 1491, n=23, laatste 2 jaar)	783 MBit/s ∼100% +118%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (332^min - 393^max) MBit/s ∼47% +2%
Gemiddeld Intel Wireless AC 9462 (359 - 370, n=4)	366 MBit/s ∼47% +2%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s ∼46%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s ∼34% -25%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s ∼29% -37%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s ∼24% -49%

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø364 (186-374)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø366 (333-376)

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø359 (322-389)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø366 (332-393)

Accessoires

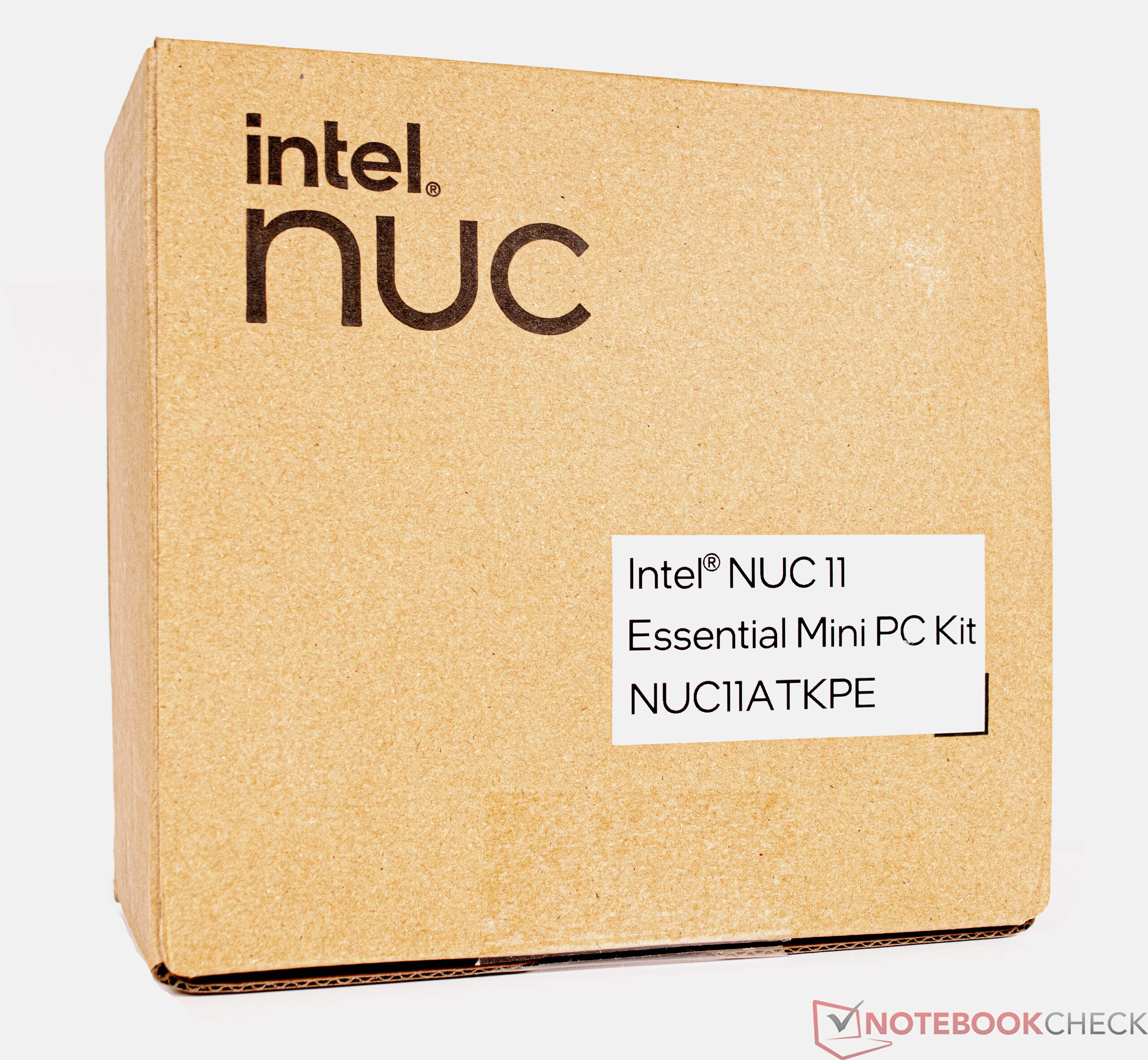

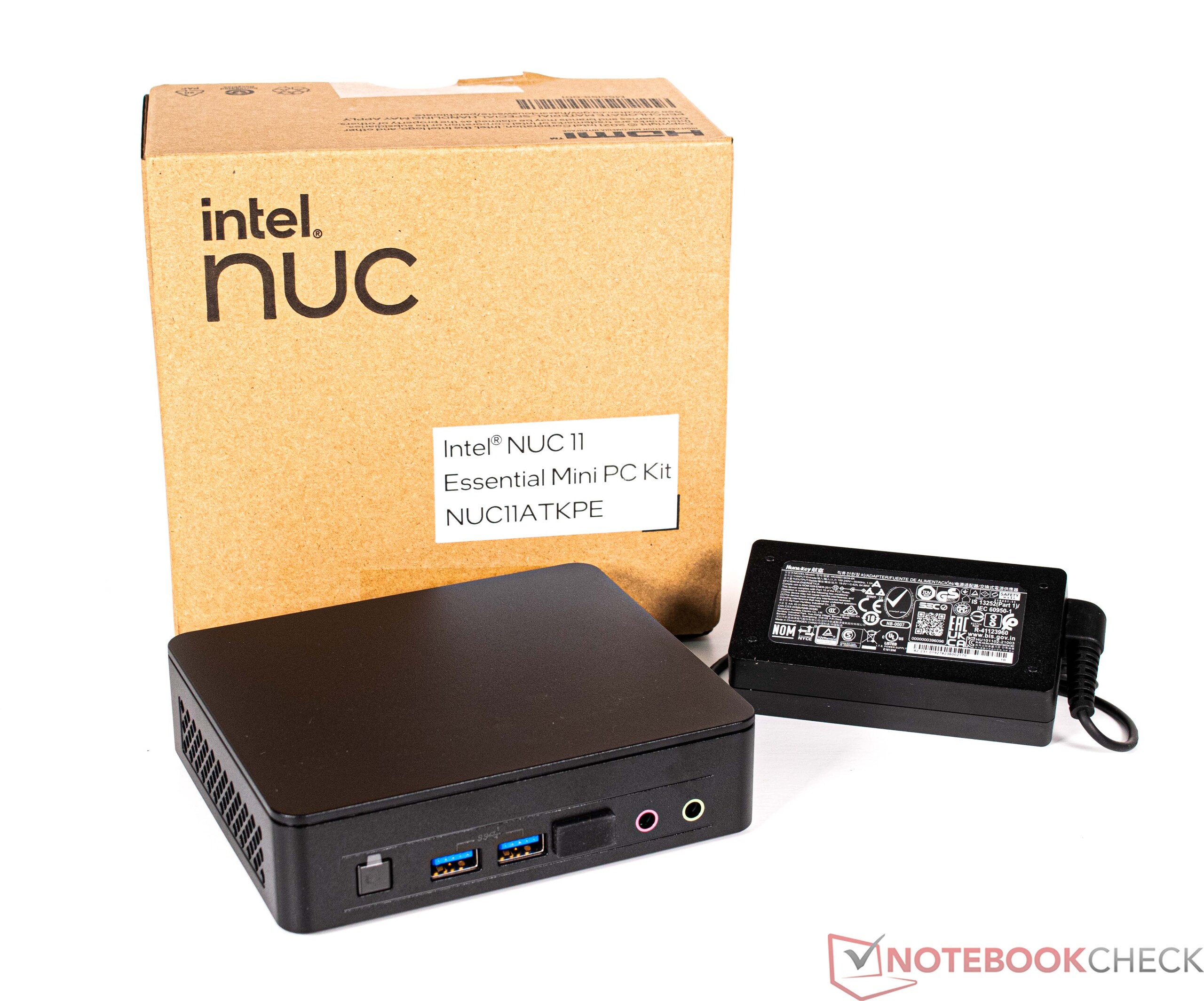

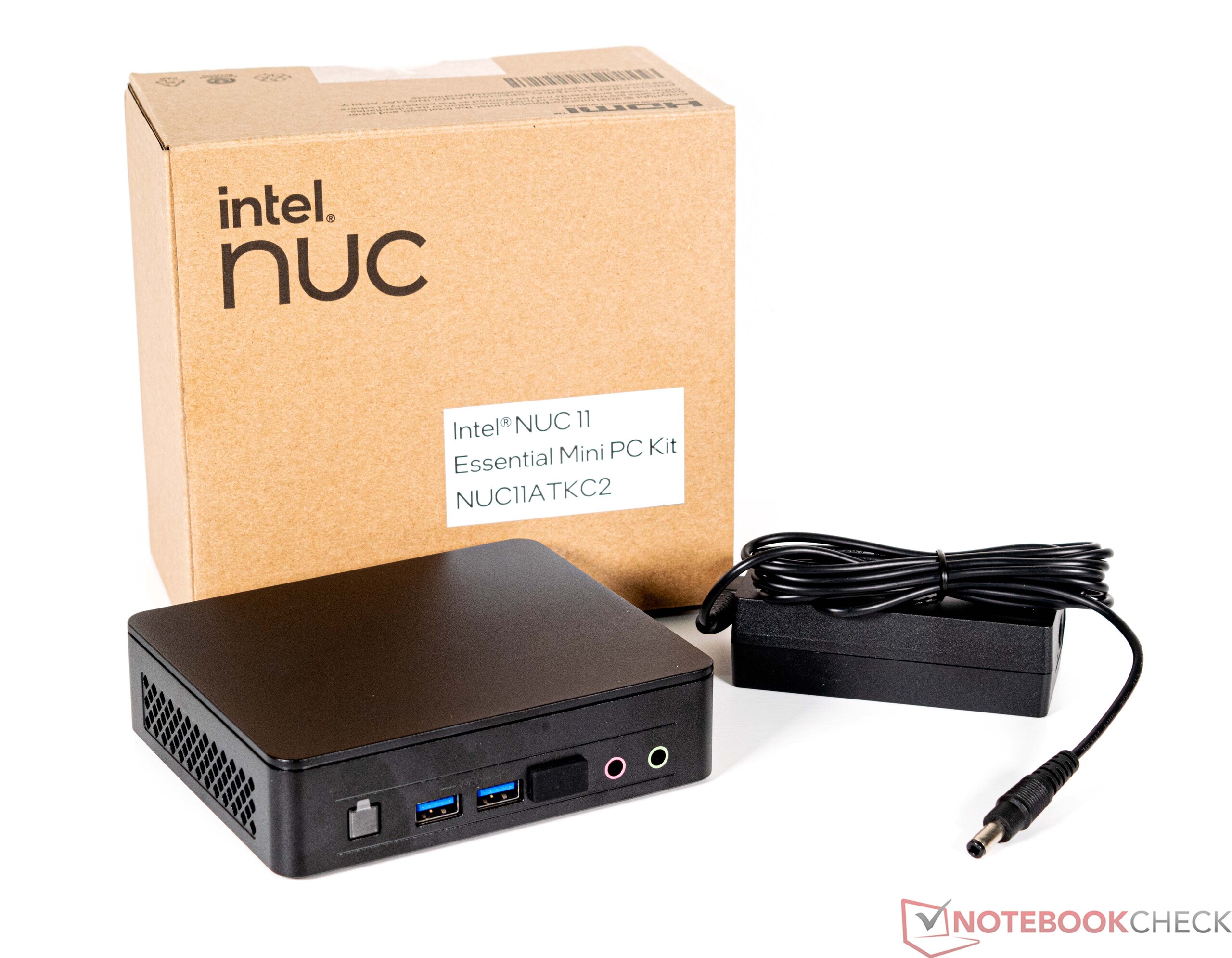

De mini-pc wordt geleverd met een 65-watt voedingsadapter en een montageplaat voor de VESA-bevestiging.

Onderhoud

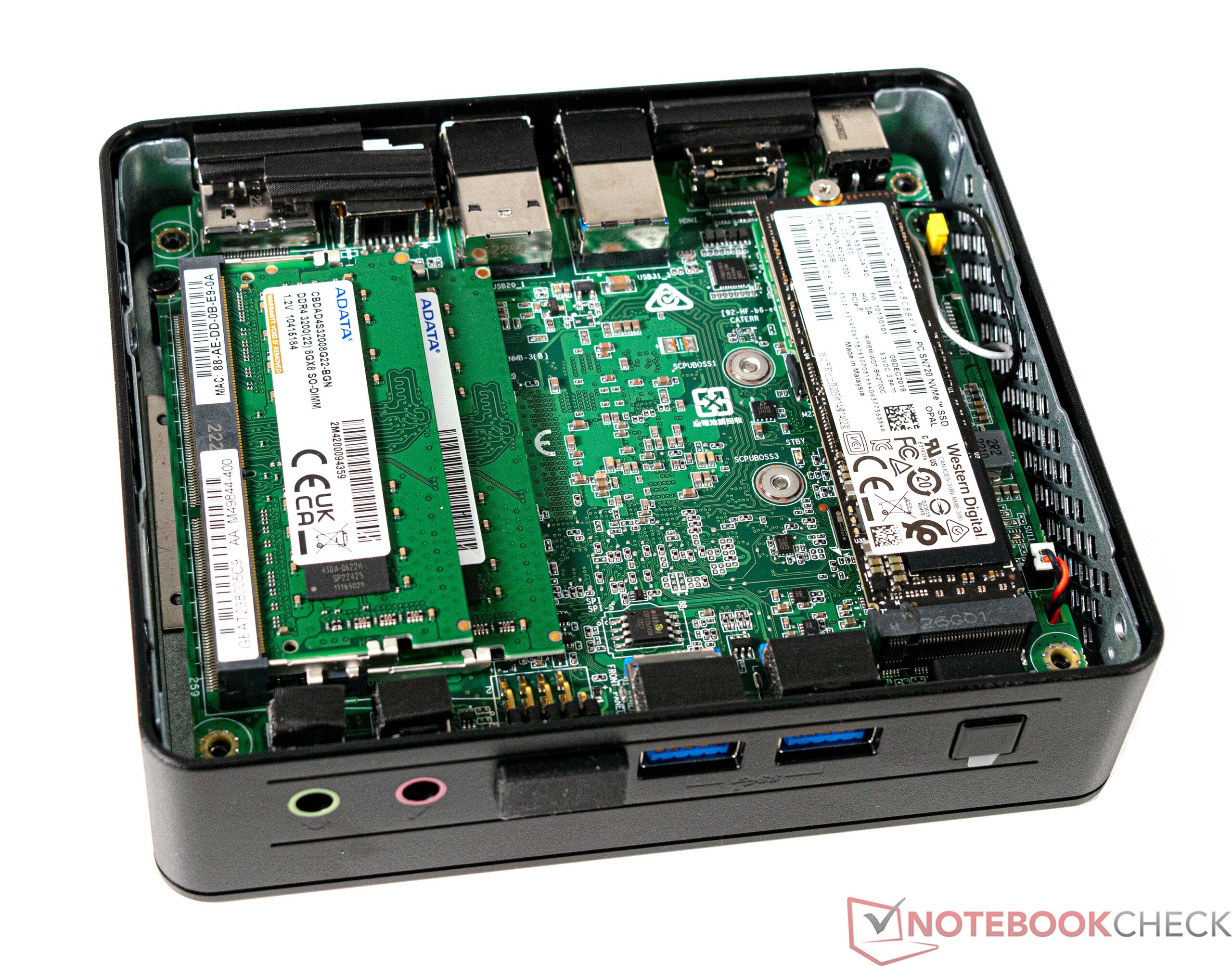

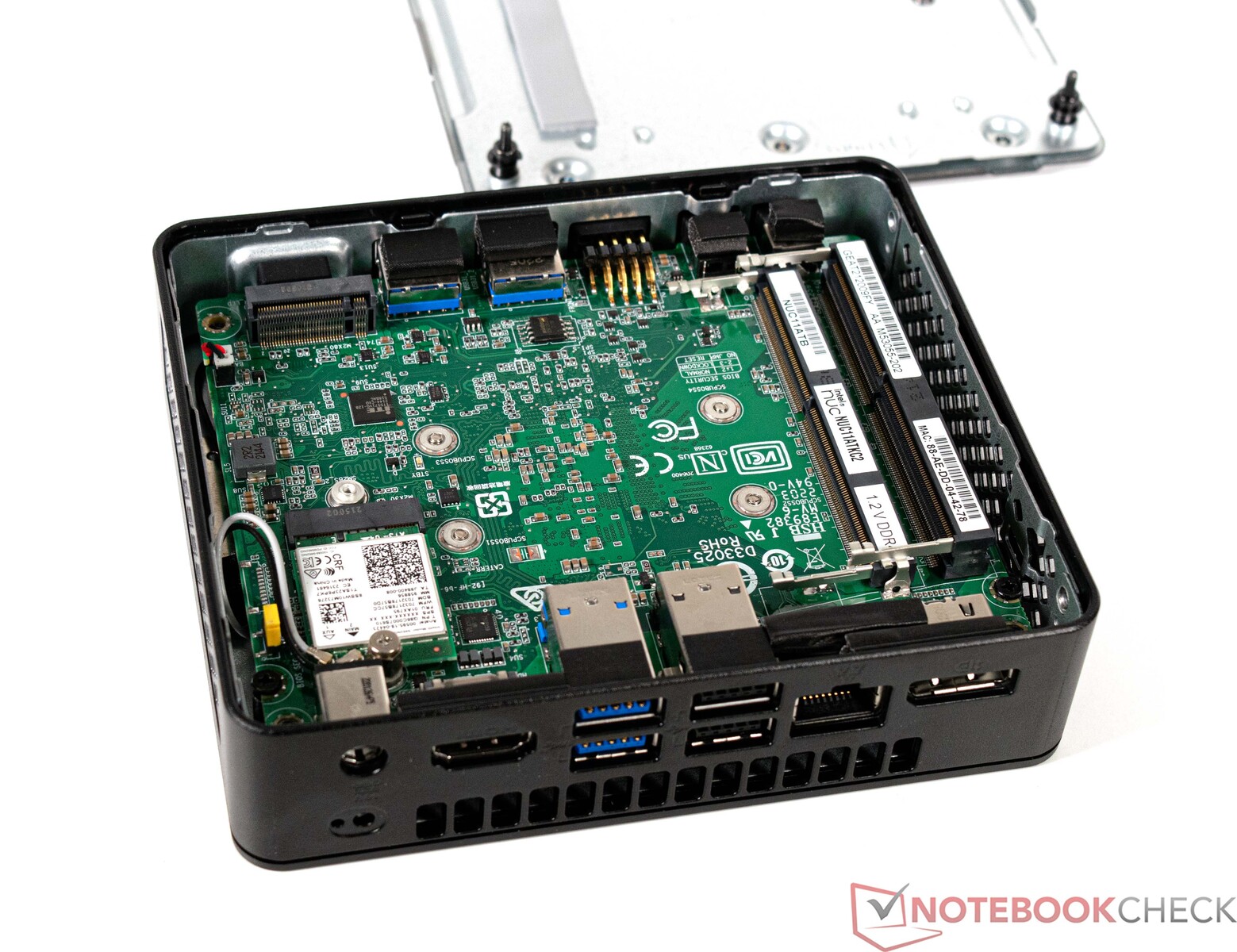

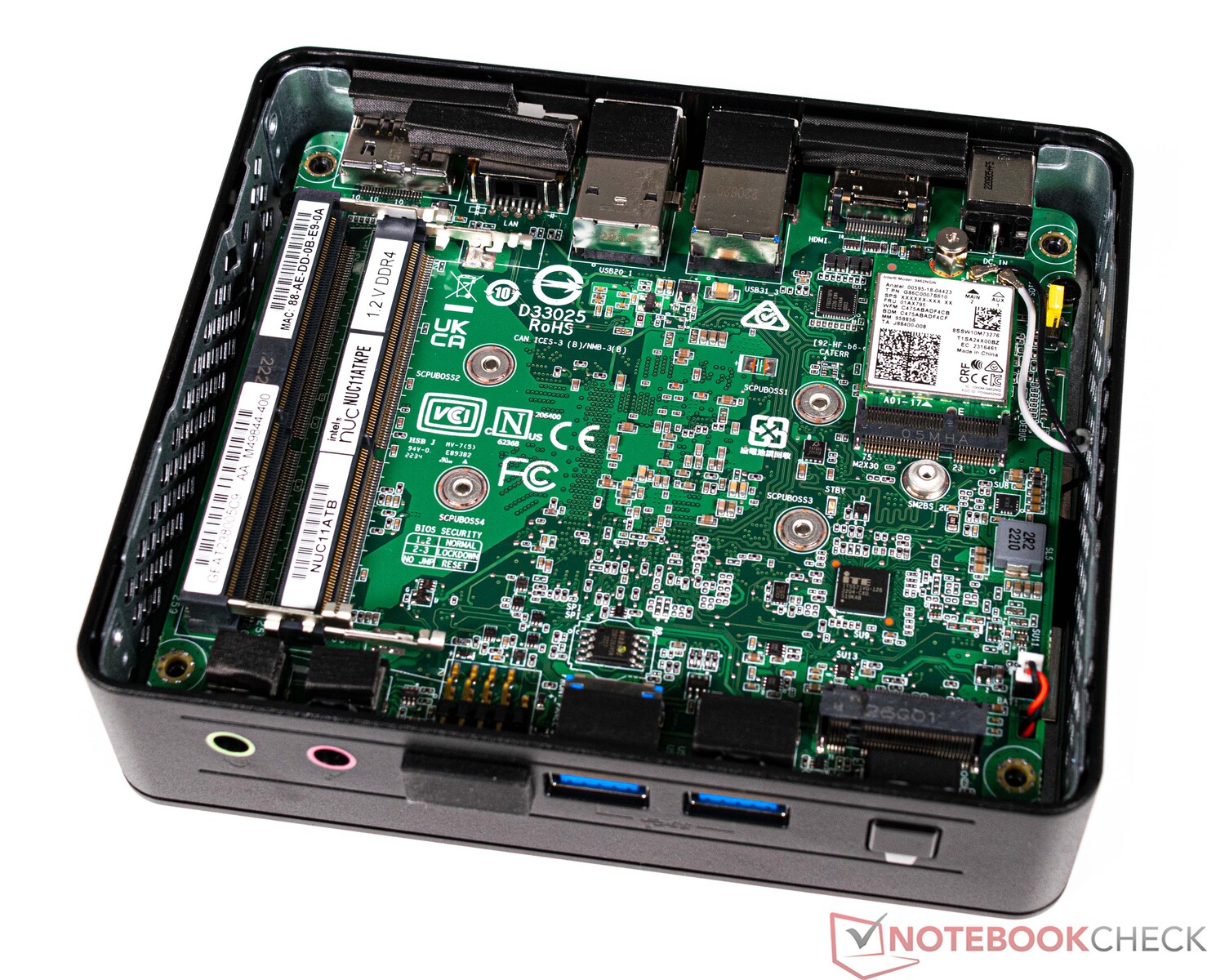

De onderkant van de Intel NUC11 Essential Kit - Atlas Canyon kan gemakkelijk worden geopend, aangezien de bodemplaat slechts met vier schroeven is bevestigd. Binnenin zijn de RAM-sleuven en M.2-poort gemakkelijk toegankelijk. Als je de CPU ventilator wilt schoonmaken, zul je het apparaat verder uit elkaar moeten halen.

Intel NUC11 Essentiële Kit - Atlas Canyon (Intel Celeron N4505)

Intel NUC11 Essential Kit - Atlas Canyon (Intel Pentium Silver N6005)

Prestaties - 4 kernen maken dagelijks gebruik aanzienlijk soepeler

De Intel NUC11 Essential Kit - Atlas Canyon heeft een paar Jasper Lake opties - in onze test nemen we een kijkje naar de Intel Celeron N4505en deIntel Pentium Silver N6005. Omdat de Intel Celeron N4505 slechts 2 kernen heeft, loopt dit model al snel tegen zijn grenzen aan. Voor dagelijks gebruik is de Intel Pentium Silver N6005 zeker de verstandigste keuze - zijn 4 kernen zorgen voor een merkbare verbetering van de prestaties. Maar voor specifiek gebruik met een kleiner besturingssysteem is de Intel NUC11 Essential Kit - Atlas Canyon met een Intel Celeron N4505 zeker nog op zijn plaats. Volgens de specificaties wordt Linux ook door dit model ondersteund.

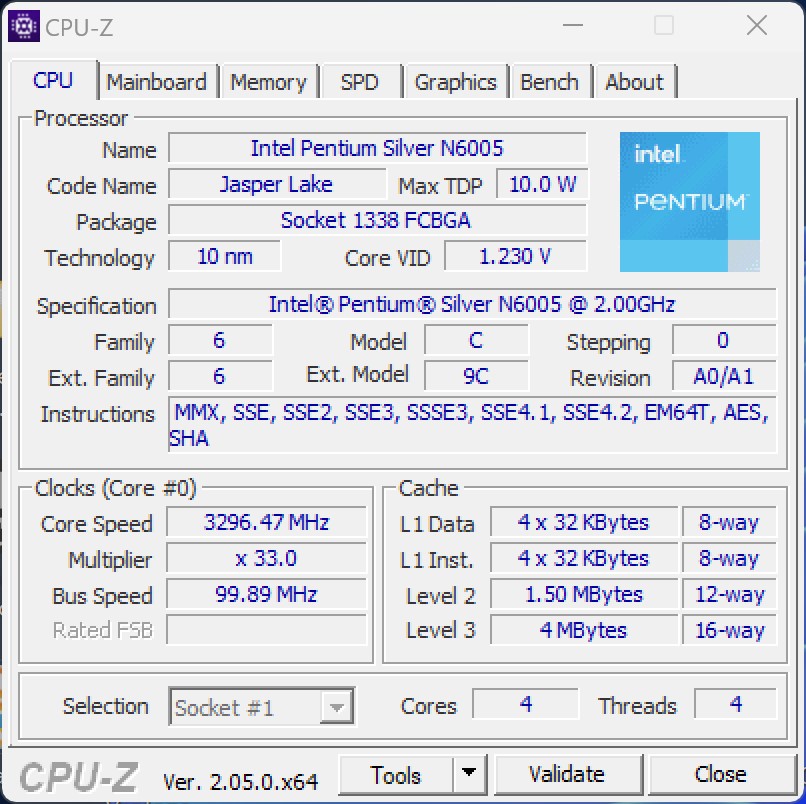

Intel Pentium Zilver N6005

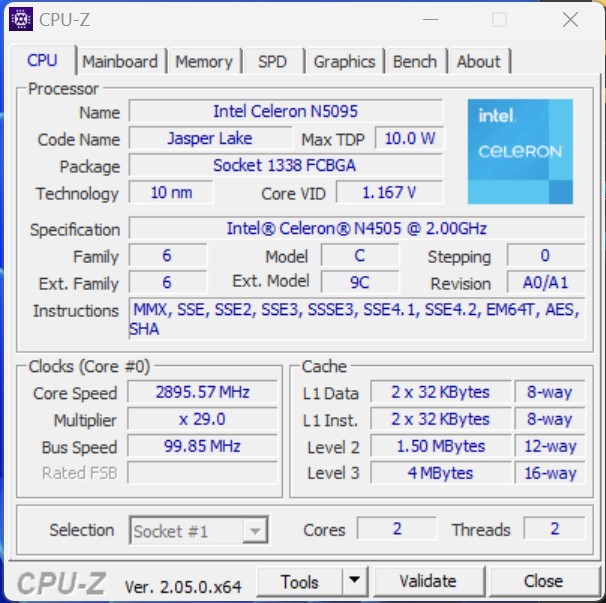

Intel Celeron N4505

Testomstandigheden

We hebben alle prestatietests uitgevoerd met het energieprofiel "gebalanceerd". We hebben de prestaties van de CPU niet veranderd - in plaats daarvan hebben we hem in de automatische modus gelaten, in overeenstemming met de BIOS-instellingen.

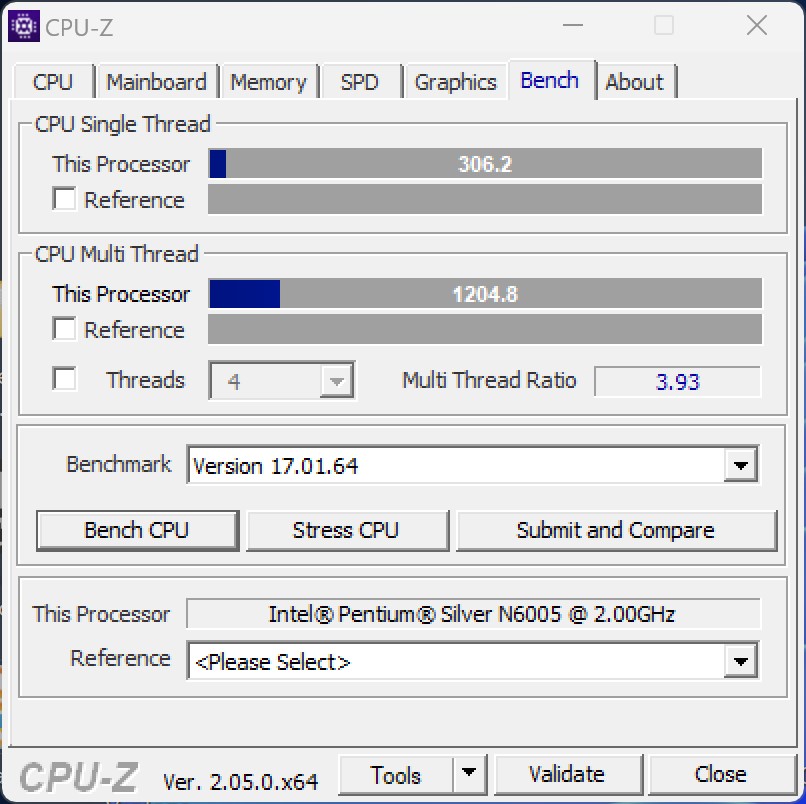

Processor

De processoren uit de Jasper Lake serie hebben 2 kernen in de Intel Celeron N4505en 4 kernen in de Intel Pentium Silver N6005. De dual-core SoC worstelde behoorlijk tijdens onze test, terwijl het model met 4 cores het aanzienlijk beter deed. Zelfs de single-core prestaties van de Intel Pentium Silver N6005 waren beter, hoewel dezelfde SoC beter presteerde in de Newsmay AC8.

Toch moet je nagaan waar het apparaat zal worden gebruikt: Voor kleinere, embedded systemen met beperkte verantwoordelijkheden die Linux als besturingssysteem gebruiken, is de Intel NUC11 Essential Kit - Atlas Canyon met een Intel Celeron N4505 zeker een geldige en kosteneffectieve optie. Als het systeem Windows moet draaien, dan raden we de Intel NUC11 Essential Kit - Atlas Canyon met een Intel Pentium N6005 aan.

Kijk voor meer vergelijkingen en benchmarks naar onzeCPU vergelijkingstabel.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	88.9 pt ∼89%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	85.7 pt ∼86%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	74.9 pt ∼75%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	74 pt ∼74%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	71.9 pt ∼72%
AC6-M Mini-PC ^-2! Intel Celeron J4125, 2000 MHz	51.2 pt ∼51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	50.6 pt ∼51%

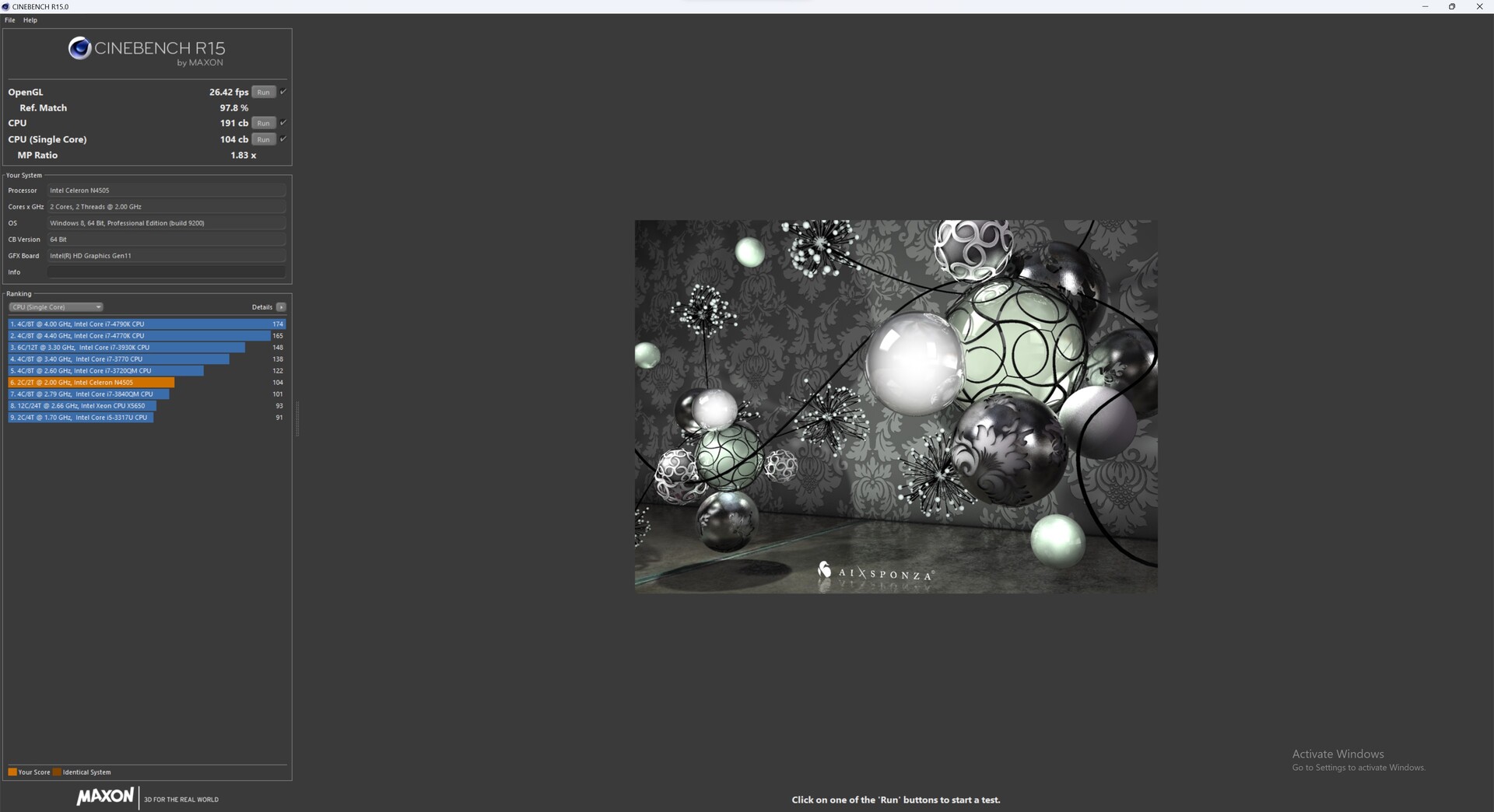

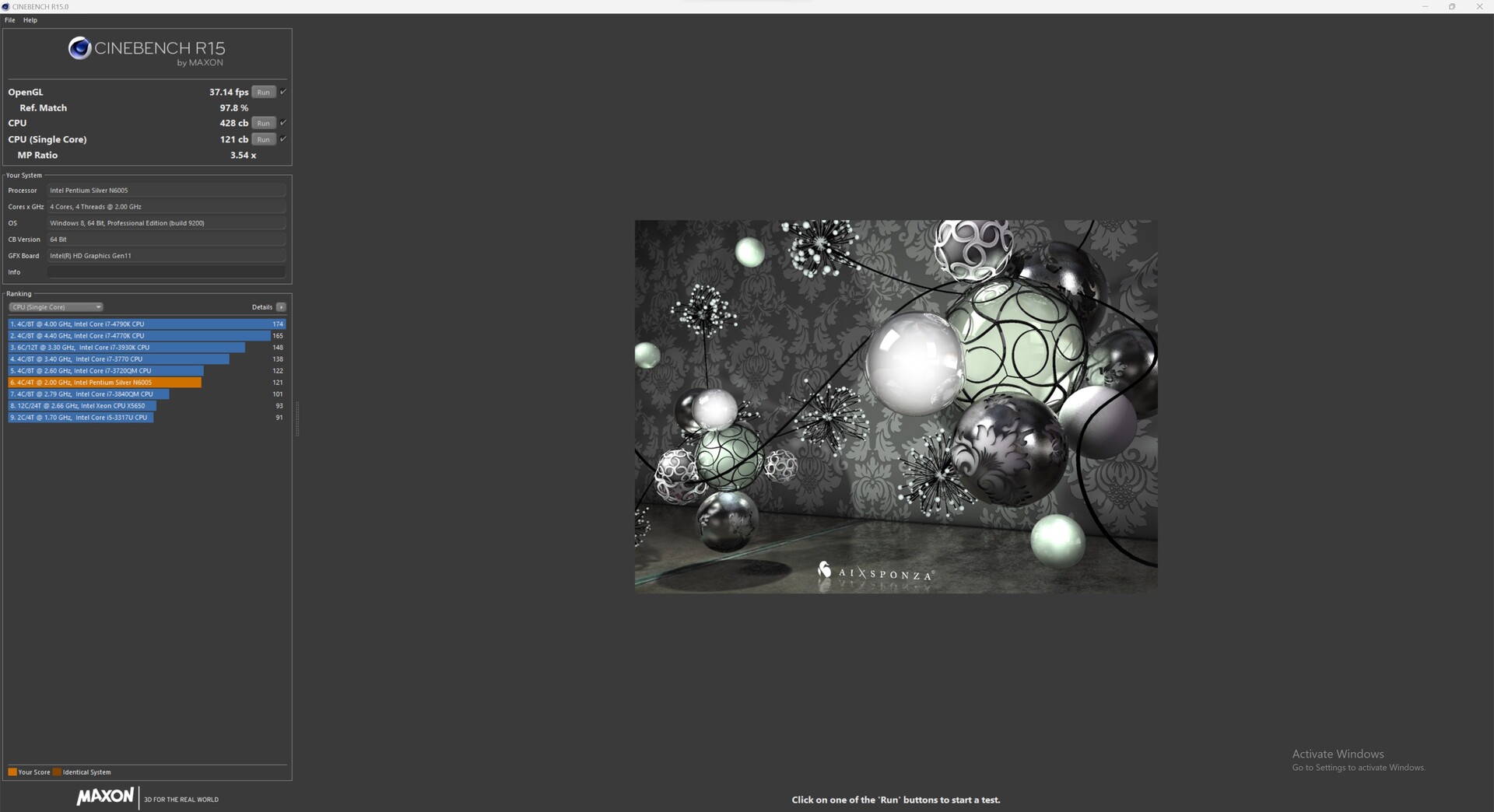

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points ∼100% +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	121 Points ∼98%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points ∼86% -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	104 Points ∼85% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points ∼83% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points ∼63% -36%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	428 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points ∼95% -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points ∼75% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points ∼58% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	191 Points ∼45% -55%

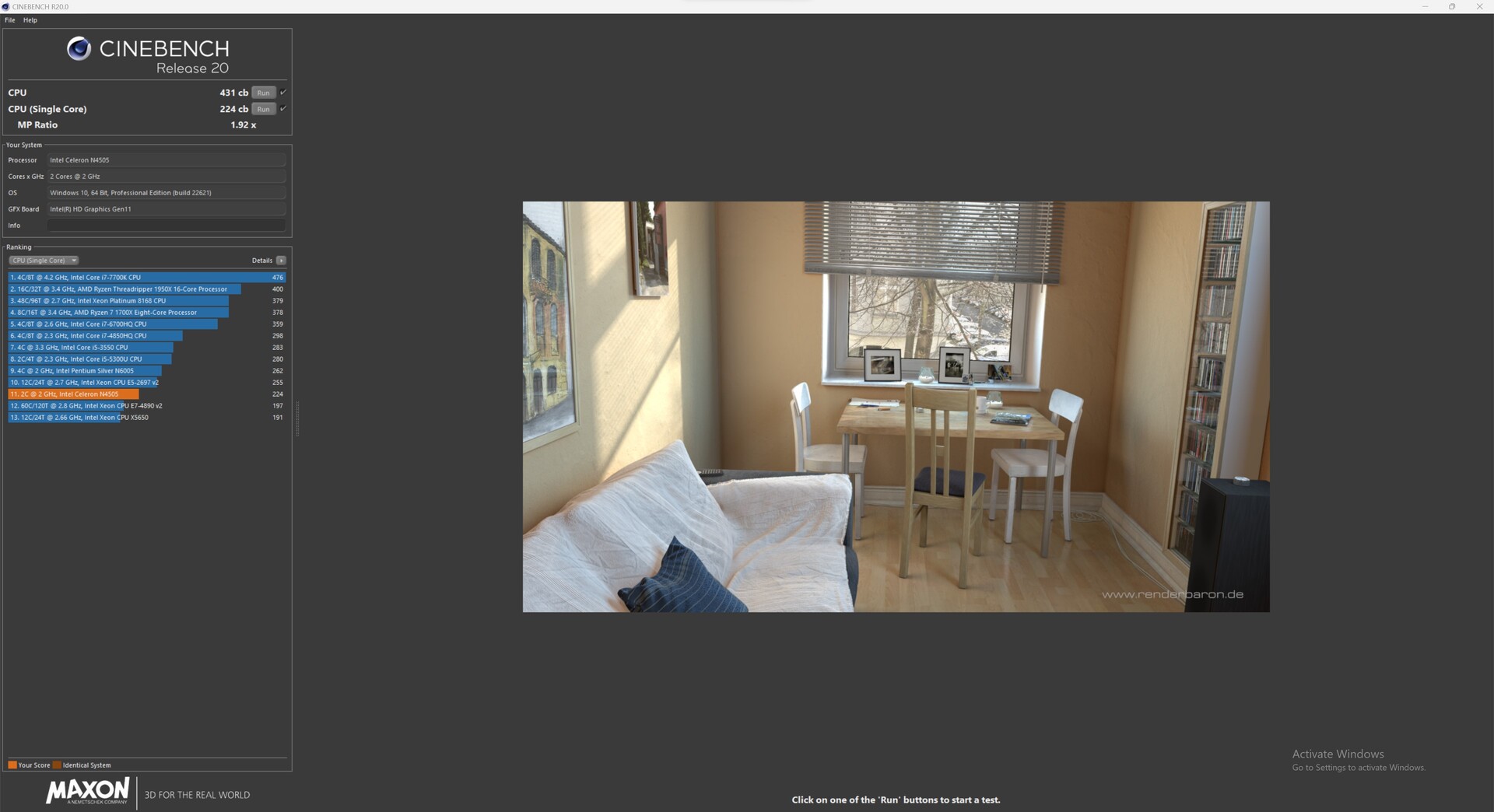

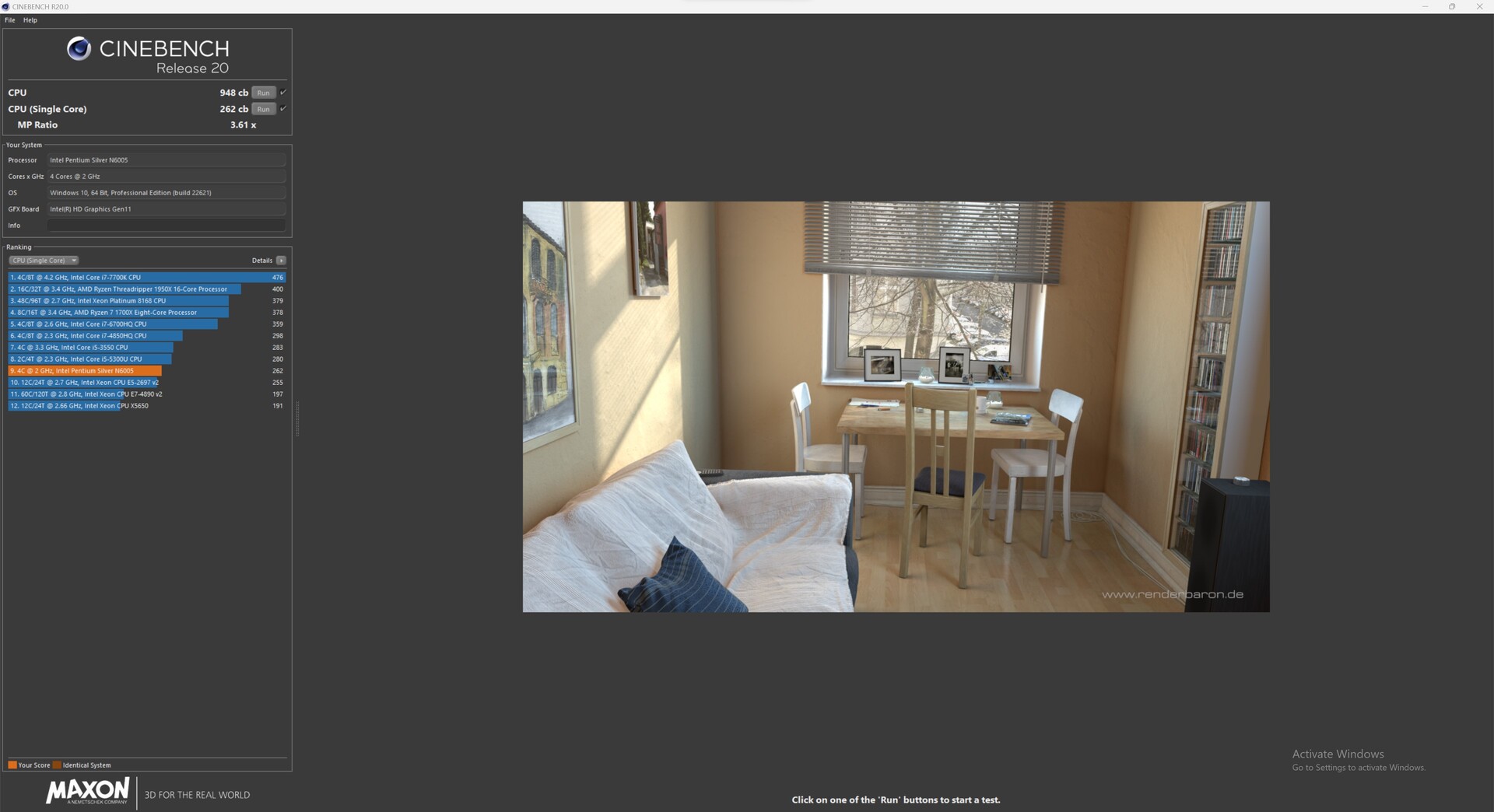

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	262 Points ∼98%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points ∼91% -8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points ∼88% -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points ∼88% -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	224 Points ∼84% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points ∼64% -35%
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	948 Points ∼97%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points ∼85% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points ∼84% -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points ∼74% -24%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points ∼57% -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	431 Points ∼44% -55%

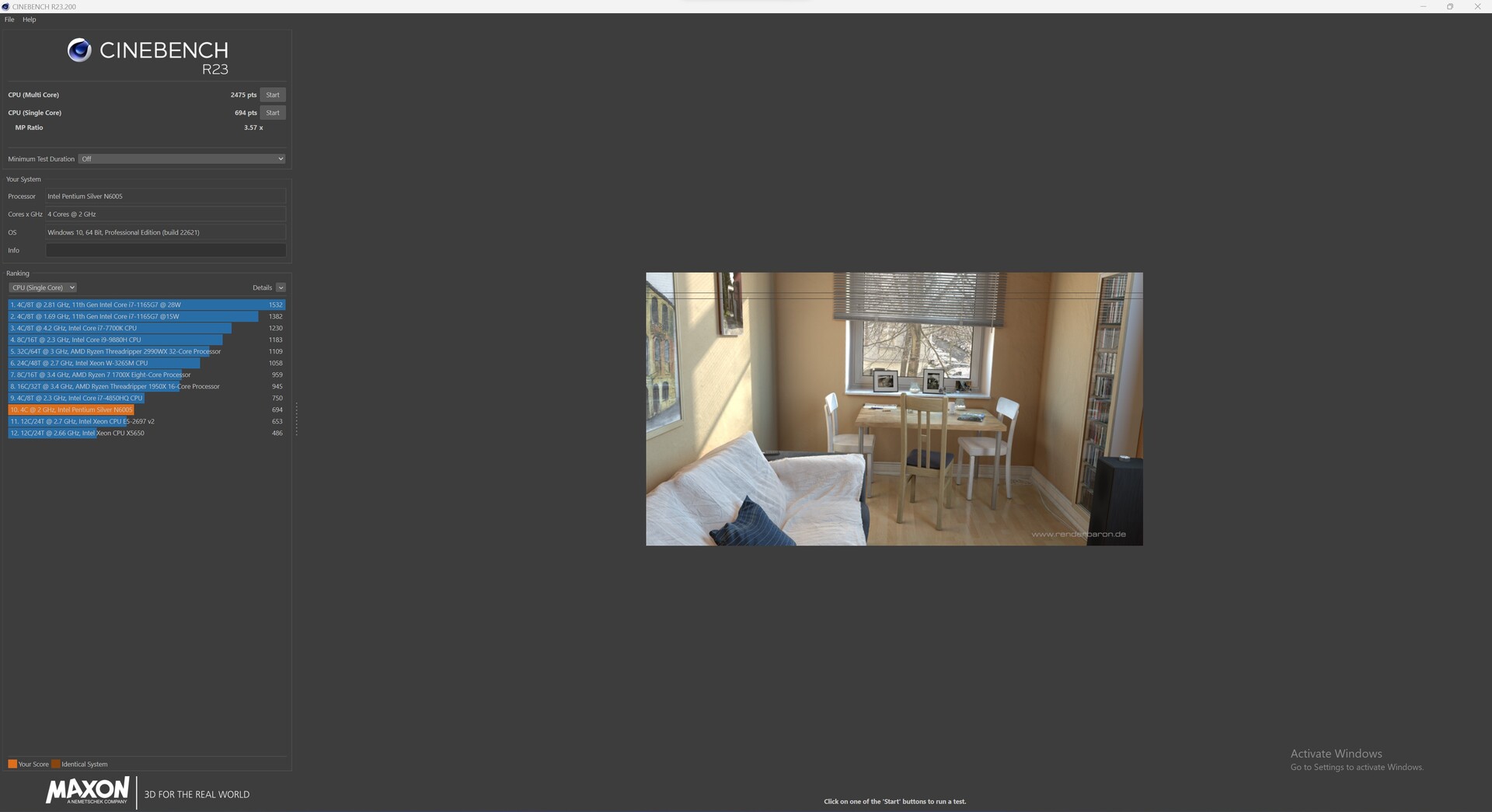

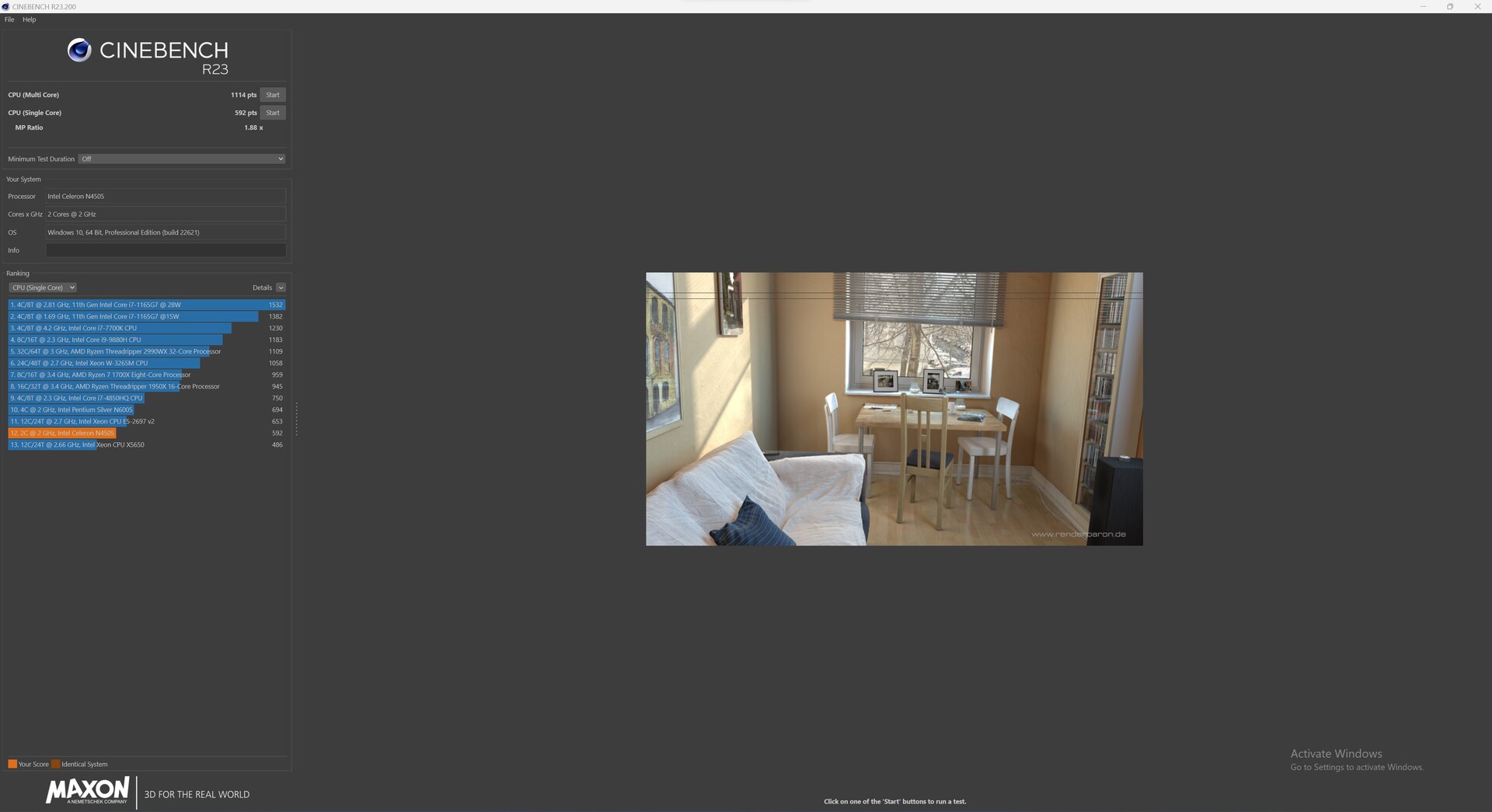

Cinebench R23
Single Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points ∼100% +1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points ∼99% 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points ∼99%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points ∼87% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points ∼87% -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	592 Points ∼85% -15%
Multi Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points ∼100% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2475 Points ∼98%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points ∼86% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points ∼85% -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points ∼73% -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1114 Points ∼44% -55%

Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.48 Points ∼99%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points ∼99% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points ∼87% -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.27 Points ∼85% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points ∼84% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points ∼62% -38%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5.56 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points ∼93% -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points ∼74% -26%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points ∼56% -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2.46 Points ∼44% -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points ∼100% +6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6172 Points ∼94%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points ∼94% 0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points ∼83% -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5294 Points ∼81% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points ∼80% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points ∼57% -40%
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	20238 Points ∼99%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points ∼85% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points ∼80% -19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points ∼76% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points ∼52% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	10063 Points ∼49% -50%

Blender - v2.79 BMW27 CPU
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2953 Seconds * ∼100% -118%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * ∼81% -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * ∼61% -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * ∼52% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * ∼52% -14%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1354 Seconds * ∼46%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * ∼39% +15%

wPrime 2.10
32m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	35.481 s * ∼100% -122%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * ∼56% -24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * ∼54% -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * ∼49% -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * ∼48% -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * ∼46% -3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	16.004 s * ∼45%
1024m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1120.441 s * ∼100% -127%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * ∼55% -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * ∼55% -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * ∼54% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * ∼51% -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * ∼48% -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	493.256 s * ∼44%

X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps ∼100% +7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	135.5 (134.3^min - 136.3^max) fps ∼93%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps ∼83% -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps ∼78% -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps ∼70% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps ∼54% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	72.3 (71.9^min - 72.4^max) fps ∼50% -47%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	28.75 (28.3^min - 29.5^max) fps ∼97%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps ∼85% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps ∼83% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps ∼73% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps ∼56% -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	13.8 (13.8^min - 13.8^max) fps ∼47% -52%

WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s ∼100% +20%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1824 KB/s ∼84%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s ∼82% -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s ∼75% -11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s ∼70% -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s ∼52% -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1000 KB/s ∼46% -45%

TrueCrypt
AES Mean 100MB
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.9 GB/s ∼100%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s ∼90% -10%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼86% -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s ∼83% -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s ∼66% -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.3 GB/s ∼45% -55%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s ∼100% +23%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼81% 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼81%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼74% -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼74% -8%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s ∼54% -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.192 GB/s ∼39% -52%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s ∼100% +11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s ∼95% +5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.219 GB/s ∼90%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼81% -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼81% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s ∼75% -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.101 GB/s ∼42% -54%

Geekbench 5.4
Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2402 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points ∼100% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points ∼85% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points ∼84% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points ∼70% -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points ∼62% -38%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1225 Points ∼51% -49%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼100% +9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	738 Points ∼92%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points ∼82% -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	647 Points ∼80% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points ∼79% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points ∼75% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points ∼57% -38%

Geekbench 5.0
5.0 Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2455 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points ∼97% -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points ∼83% -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points ∼81% -19%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points ∼60% -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points ∼53% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1205 Points ∼49% -51%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼100% +16%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points ∼86%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points ∼81% -6%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	645 Points ∼80% -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points ∼79% -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points ∼75% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points ∼56% -35%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points ∼100% +8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3314 Points ∼92%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2942 Points ∼82% -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points ∼82% -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points ∼80% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points ∼71% -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points ∼54% -42%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	9426 Points ∼98%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points ∼82% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points ∼81% -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points ∼57% -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points ∼56% -43%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5078 Points ∼53% -46%

3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points ∼100% +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5024 Points ∼99%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points ∼84% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points ∼84% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points ∼72% -27%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points ∼55% -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2700 Points ∼53% -46%

7-Zip 18.03
7z b 4
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	12851 MIPS ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS ∼91% -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS ∼86% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS ∼85% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS ∼78% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS ∼61% -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5871 MIPS ∼46% -54%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS ∼100% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3425 MIPS ∼97%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS ∼89% -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS ∼88% -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2971 MIPS ∼85% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS ∼83% -14%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS ∼68% -31%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps ∼100% +29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.34 fps ∼77%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps ∼67% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps ∼66% -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps ∼54% -29%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps ∼49% -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.16 fps ∼38% -50%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * ∼100% -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.224 sec * ∼78% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * ∼76% -12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * ∼74% -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * ∼72% -6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.073 sec * ∼68%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * ∼65% +4%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * ∼100% -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	111.7 s * ∼78%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	105.1 s * ∼73% +6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * ∼72% +7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * ∼72% +8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * ∼65% +17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * ∼56% +28%

WebXPRT 3 - ---
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points ∼100% +9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points ∼94% +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	142.3 Points ∼92%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points ∼82% -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points ∼79% -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	113.3 Points ∼73% -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points ∼56% -39%

Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * ∼100% -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1798 ms * ∼79% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * ∼71% -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * ∼69% -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1516 ms * ∼66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * ∼61% +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * ∼54% +18%

3DMark - 1920x1080 Fire Strike Physics
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6403 Points ∼100%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points ∼92% -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points ∼86% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points ∼85% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points ∼67% -33%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points ∼61% -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2979 Points ∼47% -53%

* ... kleiner is beter

Performance Rating
Gemiddelde van klas Mini PC	100 pt ∼100%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	28 pt ∼28%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	25.1 pt ∼25%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	24.2 pt ∼24%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	19.5 pt ∼20%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	13.5 pt ∼14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	11.5 pt ∼12%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8.1 pt ∼8%

AIDA64 / FP32 Ray-Trace
Gemiddelde van klas Mini PC (561 - 15814, n=31, laatste 2 jaar)	8043 KRay/s ∼100% +454%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s ∼18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s ∼15% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s ∼15% -14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s ∼12% -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	744 KRay/s ∼9% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	646 KRay/s ∼8% -55%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s ∼5% -71%

AIDA64 / FPU Julia
Gemiddelde van klas Mini PC (3604 - 99936, n=31, laatste 2 jaar)	45067 Points ∼100% +413%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points ∼20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points ∼17% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points ∼17% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points ∼14% -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	3970 Points ∼9% -55%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	3857 Points ∼9% -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points ∼5% -73%

AIDA64 / CPU SHA3
Gemiddelde van klas Mini PC (225 - 3570, n=31, laatste 2 jaar)	1950 MB/s ∼100% +229%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s ∼30%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼26% -13%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s ∼26% -13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s ∼20% -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	270 MB/s ∼14% -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	260 MB/s ∼13% -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s ∼9% -72%

AIDA64 / CPU Queen
Gemiddelde van klas Mini PC (8178 - 104437, n=31, laatste 2 jaar)	62902 Points ∼100% +140%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points ∼42%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points ∼35% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points ∼35% -16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points ∼32% -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	11639 Points ∼19% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	8178 Points ∼13% -69%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points ∼13% -70%

AIDA64 / FPU SinJulia
Gemiddelde van klas Mini PC (408 - 13164, n=31, laatste 2 jaar)	6398 Points ∼100% +441%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points ∼19% +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points ∼18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼16% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points ∼16% -15%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	519 Points ∼8% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	408 Points ∼6% -65%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points ∼6% -66%

AIDA64 / FPU Mandel
Gemiddelde van klas Mini PC (1958 - 55002, n=31, laatste 2 jaar)	23908 Points ∼100% +412%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points ∼20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points ∼17% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points ∼17% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points ∼14% -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	2049 Points ∼9% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	1987 Points ∼8% -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points ∼5% -73%

AIDA64 / CPU AES
Gemiddelde van klas Mini PC (3778 - 136723, n=31, laatste 2 jaar)	63407 MB/s ∼100% +409%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s ∼31% +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s ∼31% +55%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s ∼20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s ∼16% -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7954 MB/s ∼13% -36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s ∼10% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	5504 MB/s ∼9% -56%

AIDA64 / CPU ZLib
Gemiddelde van klas Mini PC (74.8 - 982, n=31, laatste 2 jaar)	506 MB/s ∼100% +128%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s ∼44%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s ∼37% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s ∼37% -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s ∼26% -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	98.7 MB/s ∼20% -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	74.9 MB/s ∼15% -66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s ∼12% -73%

AIDA64 / FP64 Ray-Trace
Gemiddelde van klas Mini PC (308 - 8447, n=31, laatste 2 jaar)	4293 KRay/s ∼100% +427%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s ∼19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% -17%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s ∼13% -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	412 KRay/s ∼10% -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	350 KRay/s ∼8% -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s ∼5% -74%

AIDA64 / CPU PhotoWorxx
Gemiddelde van klas Mini PC (4408 - 44347, n=31, laatste 2 jaar)	23582 MPixel/s ∼100% +101%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s ∼50%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s ∼42% -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	7994 MPixel/s ∼34% -32%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s ∼32% -35%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s ∼29% -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4408 MPixel/s ∼19% -62%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s ∼11% -79%

Intel NUC11 Essential Kit - Atlas Canyon vs. Cinebench R15 Multi Loop

In de Cinebench R15 continue loop test kregen we een eerste blik op de koelcapaciteiten van de apparaten. De prestaties van beide testsystemen bleven stabiel gedurende de 50 cycli. Vergeleken met deNewsmay AC8leverde ons testexemplaar met dezelfde SoC een veel beter resultaat op dankzij het actieve koelsysteem. Dankzij de Intel Celeron N4505kon het systeem zijn concurrenten niet bijhouden en eindigde het op de laatste plaats met 193,9 punten.

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø414 (407.59-416.69)

Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel Celeron N4505: Ø193.9 (178.74-195.53)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Systeemprestaties

We zagen vergelijkbare resultaten in de synthetische systeemprestatiebenchmarks. De Intel NUC11 Essential Kit met eenIntel Pentium Silver N6005was in staat om te concurreren met de NiPoGi GK3Plusdie ook een quad-core SoC heeft - de Intel N95. De Intel N95 is echter een veel nieuwere SoC, wat resulteerde in 10-25 procent betere prestaties. Het testmonster met een Intel Celeron N4505presteerde zelfs beter dan de Newsmay AC6-Mdie 4 kernen heeft. In de RAM-tests presteerden onze beide testvoorbeelden goed in vergelijking met hun concurrenten.

Performance Rating | PCMark 10

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	100 pt ∼100%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	88.7 pt ∼89%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	84.2 pt ∼84%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	83.4 pt ∼83%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	80.9 pt ∼81%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	72.6 pt ∼73%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	65.3 pt ∼65%

PCMark 10
Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	2983 Points ∼100% +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	2746 Points ∼92%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points ∼85% -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points ∼81% -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points ∼79% -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	2067 Points ∼69% -25%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points ∼61% -34%
Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	6650 Points ∼100% +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	6113 Points ∼92%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points ∼88% -4%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points ∼85% -7%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points ∼82% -11%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	4876 Points ∼73% -20%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points ∼71% -23%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	4524 Points ∼100% +22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points ∼85% +4%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	3719 Points ∼82%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points ∼81% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points ∼78% -5%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	3396 Points ∼75% -9%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points ∼65% -21%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	100 pt ∼100%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	79.7 pt ∼80%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	74.5 pt ∼75%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	69.4 pt ∼69%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	66 pt ∼66%

CrossMark
Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	661 Points ∼100% +37%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points ∼75% +3%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	482 Points ∼73%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	419 Points ∼63% -13%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points ∼61% -16%
Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	616 Points ∼100% +21%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	510 Points ∼83%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points ∼71% -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points ∼71% -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	388 Points ∼63% -24%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	721 Points ∼100% +22%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	591 Points ∼82%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points ∼77% -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points ∼74% -9%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	513 Points ∼71% -13%
Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	666 Points ∼100% +24%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	539 Points ∼81%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points ∼74% -8%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points ∼71% -12%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	442 Points ∼66% -18%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Gemiddelde van klas Mini PC (6481 - 70620, n=31, laatste 2 jaar)	40390 MB/s ∼100% +52%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s ∼66%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	25028 MB/s ∼62% -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s ∼55% -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s ∼41% -38%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13833 MB/s ∼34% -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6481 MB/s ∼16% -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s ∼16% -76%

AIDA64 / Memory Read
Gemiddelde van klas Mini PC (6914 - 65856, n=31, laatste 2 jaar)	41175 MB/s ∼100% +113%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s ∼47%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s ∼40% -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	15613 MB/s ∼38% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s ∼38% -20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10204 MB/s ∼25% -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6914 MB/s ∼17% -64%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s ∼16% -66%

AIDA64 / Memory Write
Gemiddelde van klas Mini PC (6862 - 66047, n=31, laatste 2 jaar)	42793 MB/s ∼100% +24%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s ∼81%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s ∼72% -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	29332 MB/s ∼69% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s ∼43% -46%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10449 MB/s ∼24% -70%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s ∼16% -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6862 MB/s ∼16% -80%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	146 ns * ∼100% -164%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * ∼99% -160%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	89.5 ns * ∼61% -62%
Gemiddelde van klas Mini PC (55.3 - 146, n=31, laatste 2 jaar)	85.5 ns * ∼59% -55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * ∼51% -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * ∼41% -7%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	59.1 ns * ∼40% -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns * ∼38%

* ... kleiner is beter

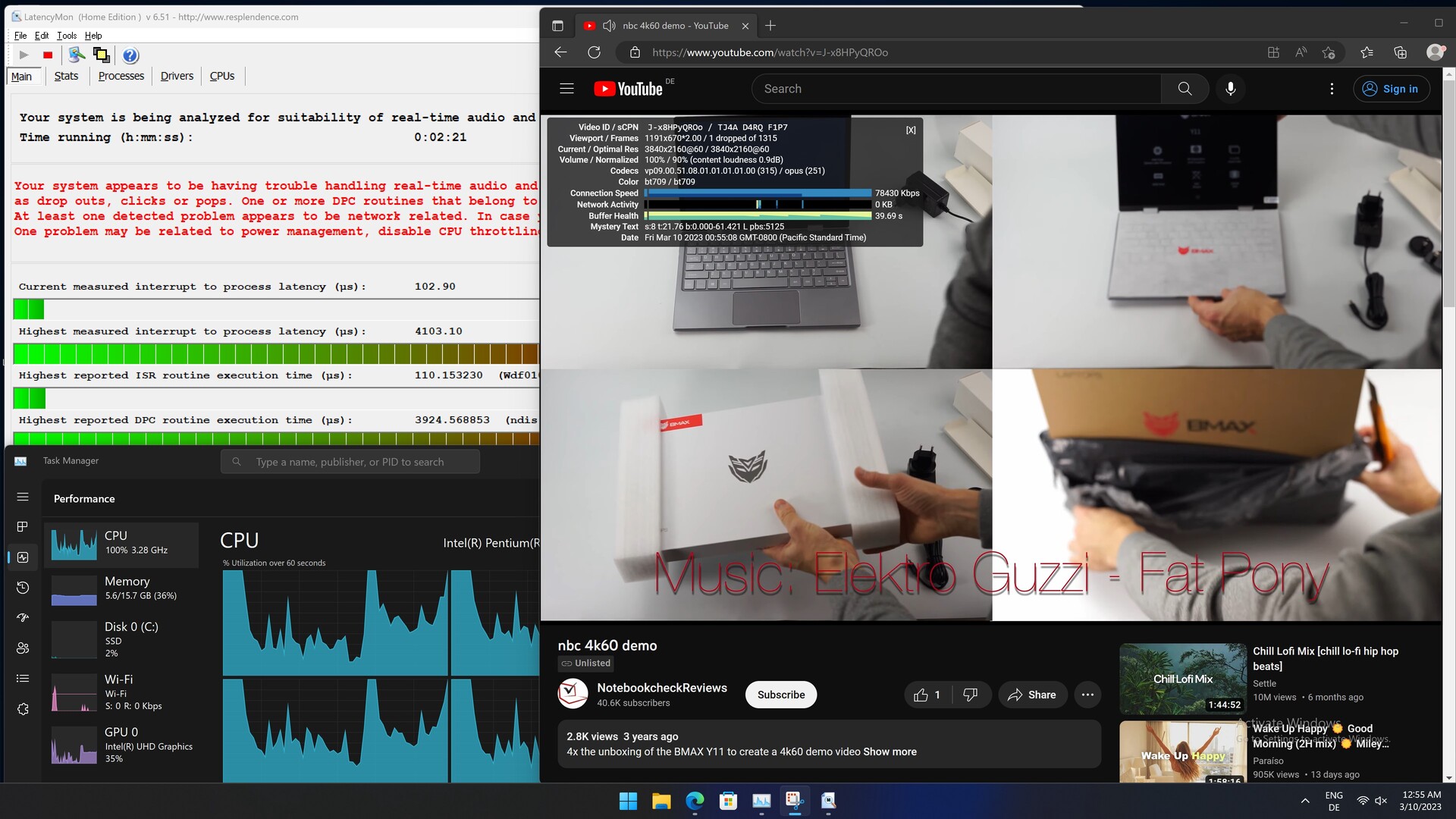

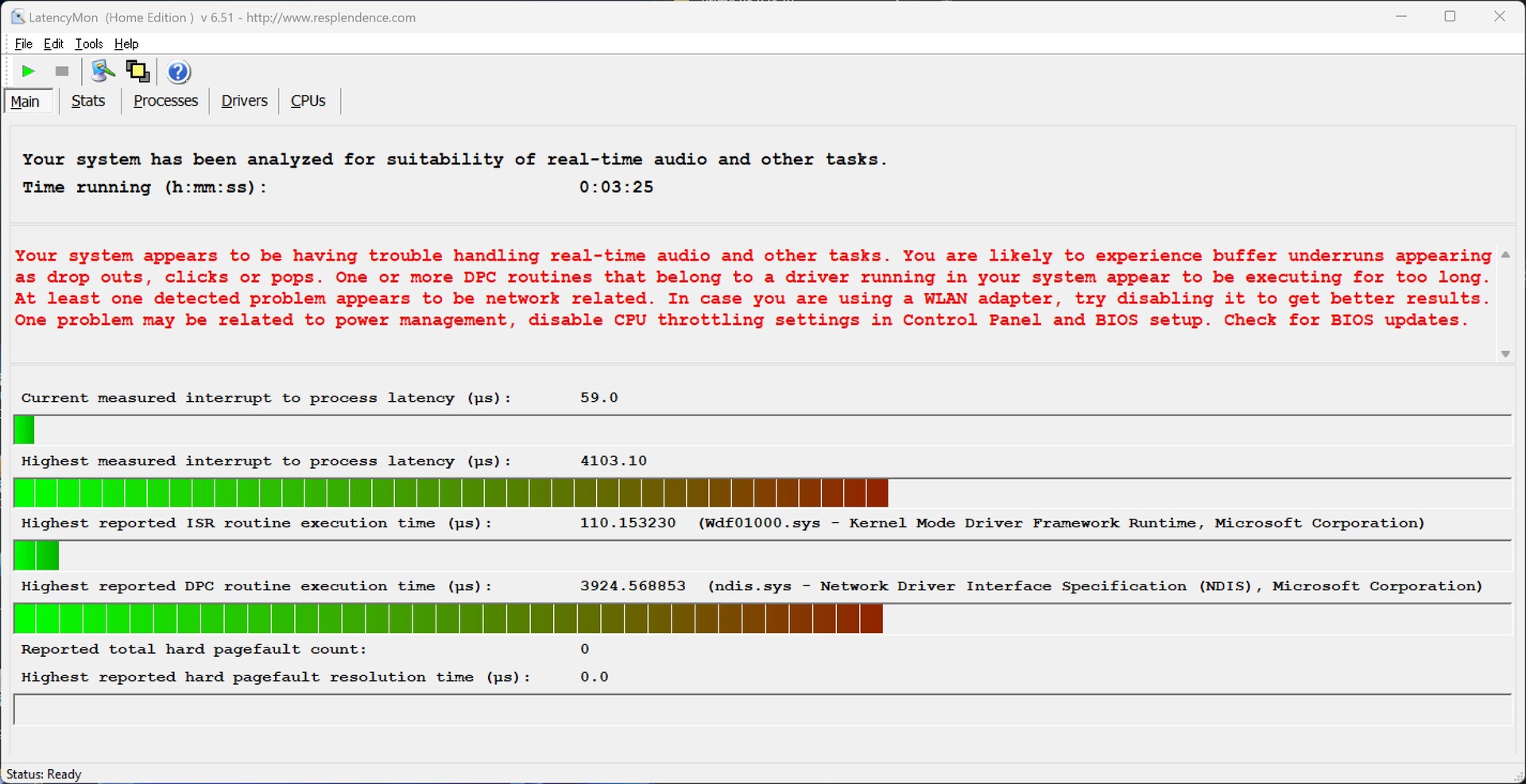

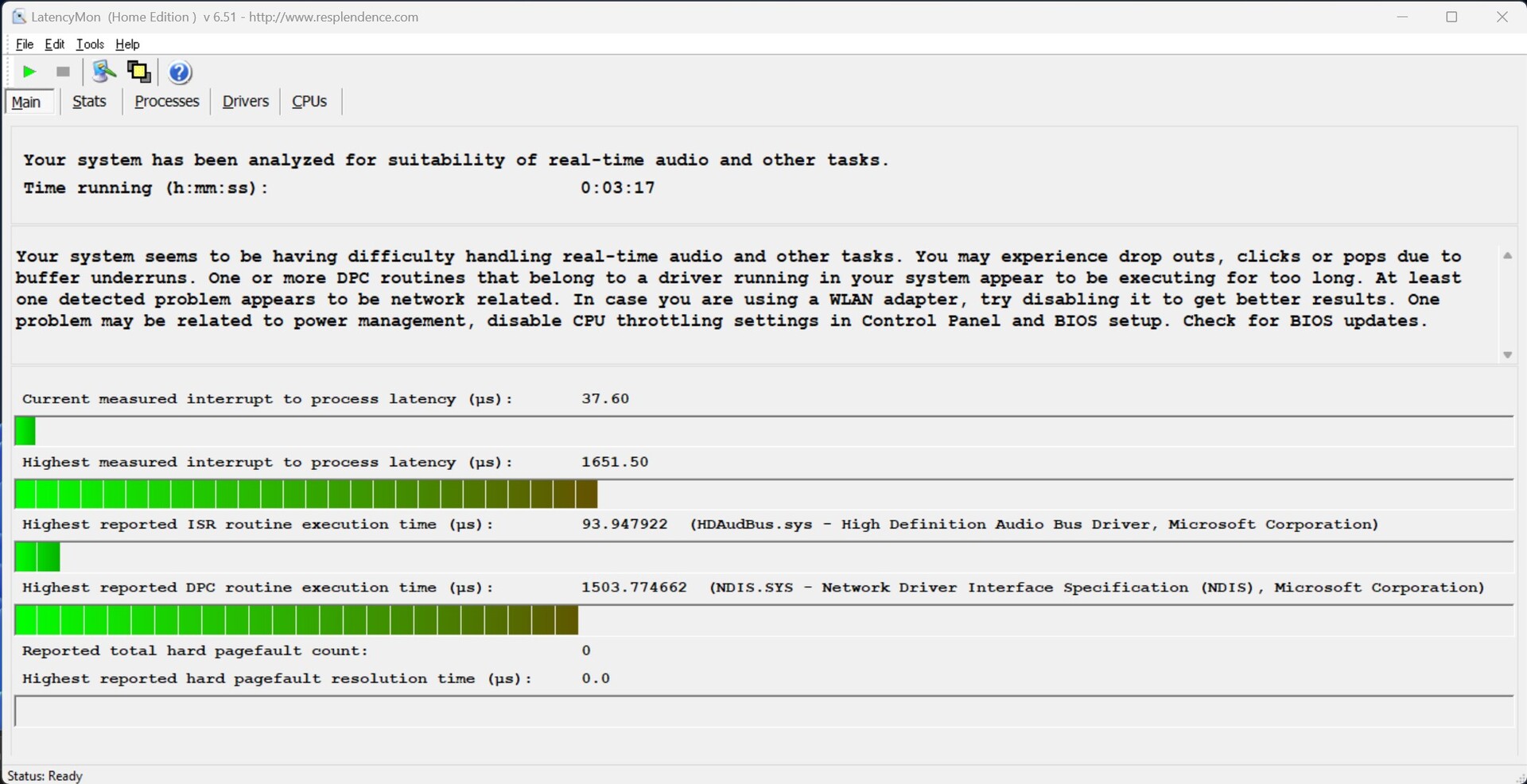

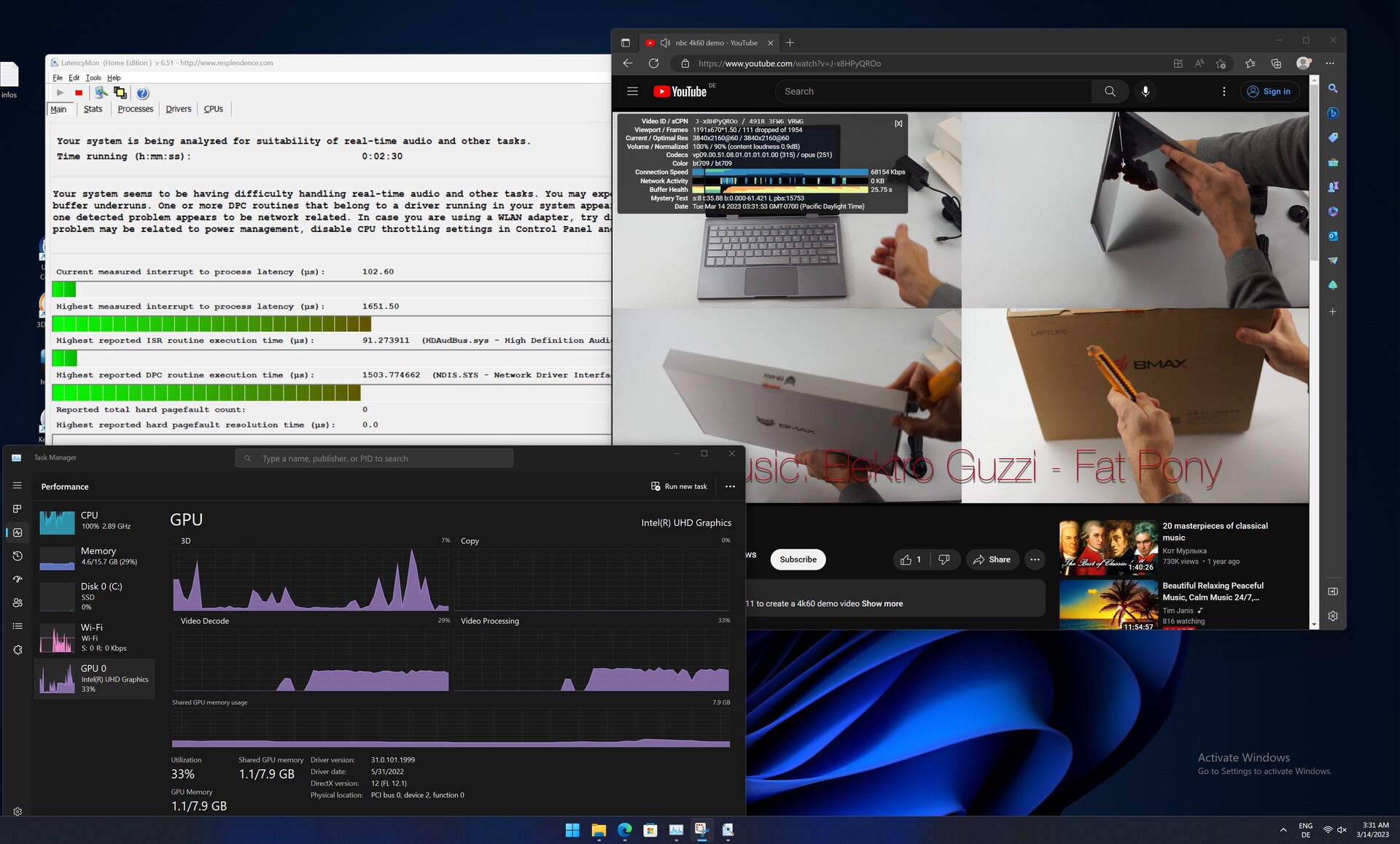

DPC latentie

Beide testsystemen worstelden met hoge latenties. Verrassend genoeg zagen we slechtere resultaten in het zogenaamd snellere apparaat. Aan de andere kant hadden beide apparaten moeite met het afspelen van hoge resolutie video in 4K.

Intel NUC11ATKPE, N6005

Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-video

Maximale latentie na tien seconden Prime95

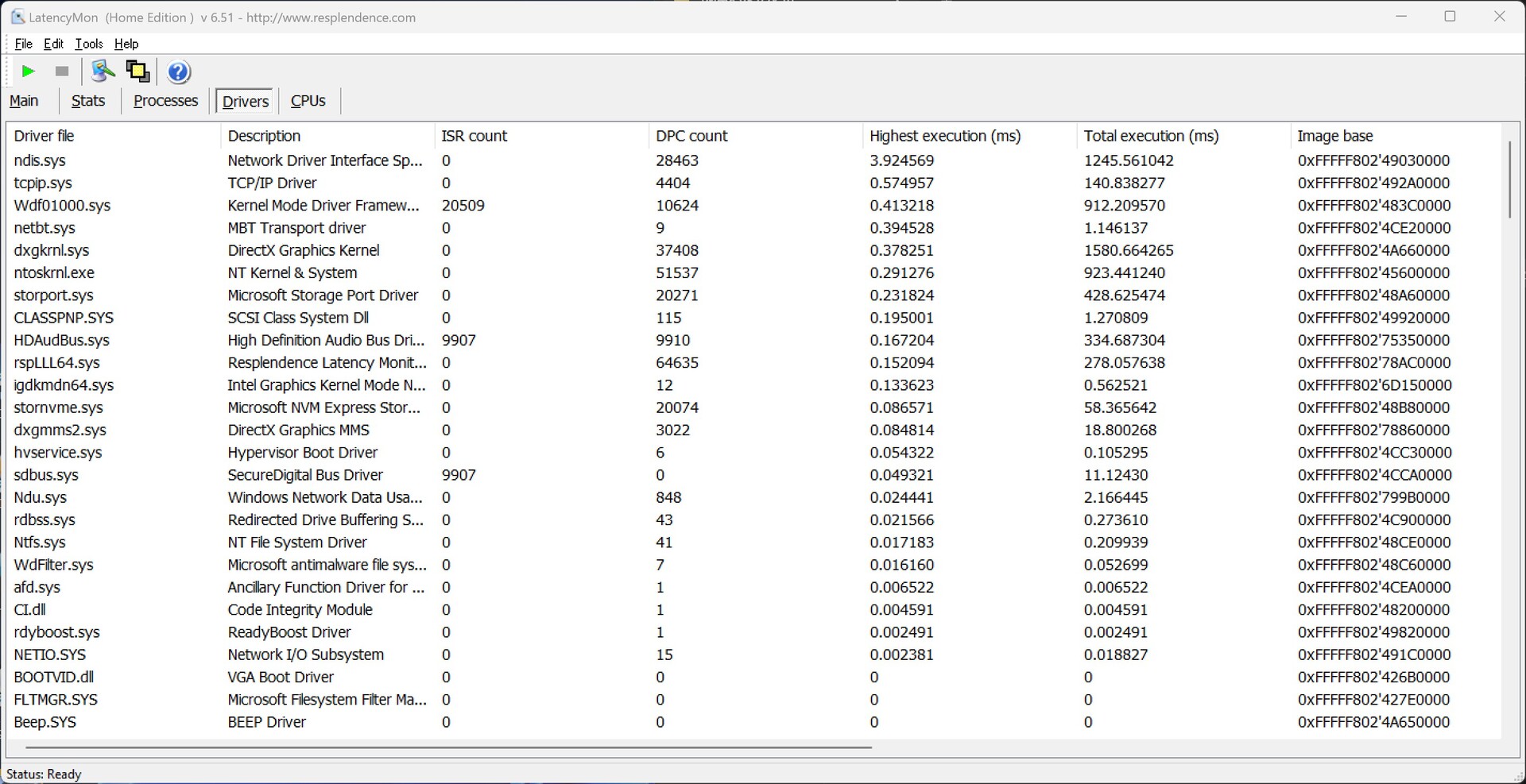

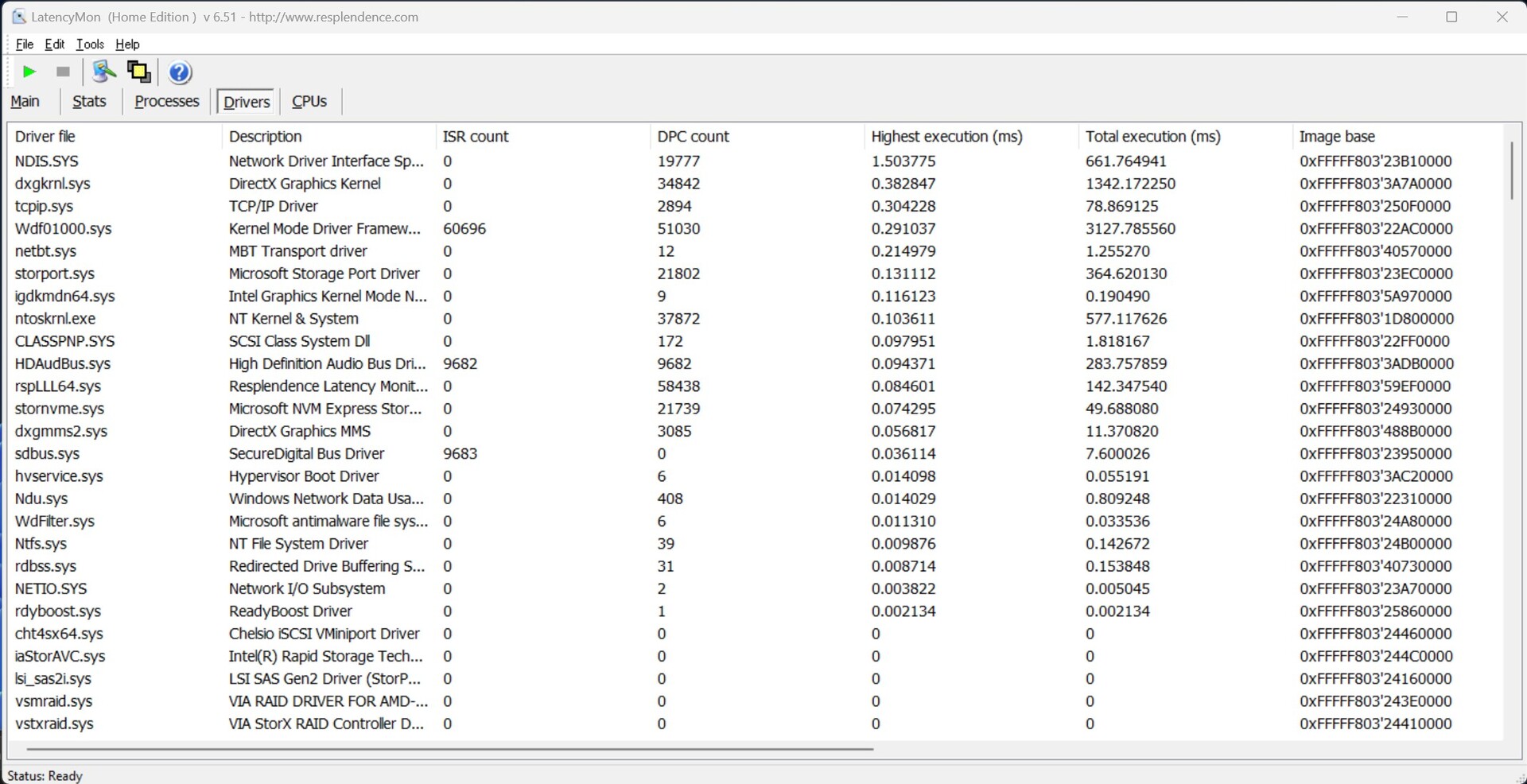

Bestuurders gerangschikt volgens langste uitvoeringsduur

Intel NUC11ATKC2, N4505

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4075 μs * ∼100% -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs * ∼96%
AC6-M Mini-PC UHD Graphics 600, Celeron J4125	3767 μs * ∼92% +4%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Kimtigo KTB900SM28/512GB	3463 μs * ∼85% +12%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * ∼65% +33%
Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G	1503.7 μs * ∼37% +62%
Geekom MiniAir 11 Special Edition UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	687.3 μs * ∼17% +82%

* ... kleiner is beter

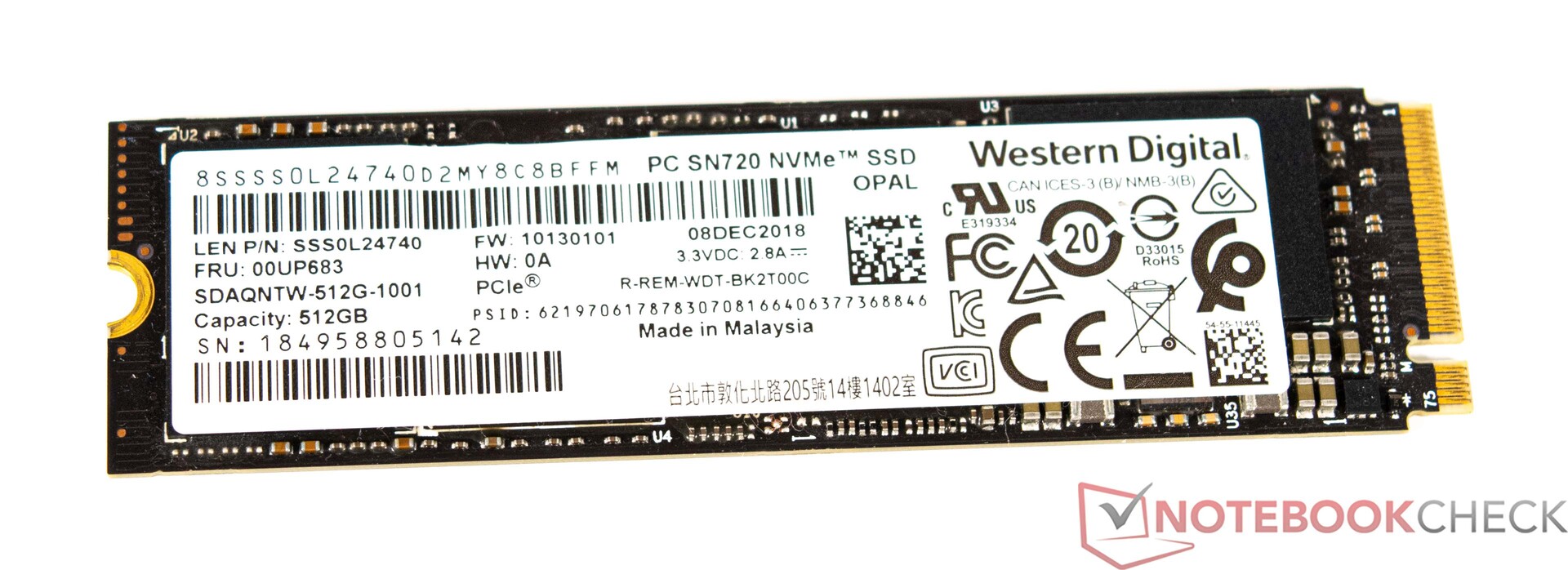

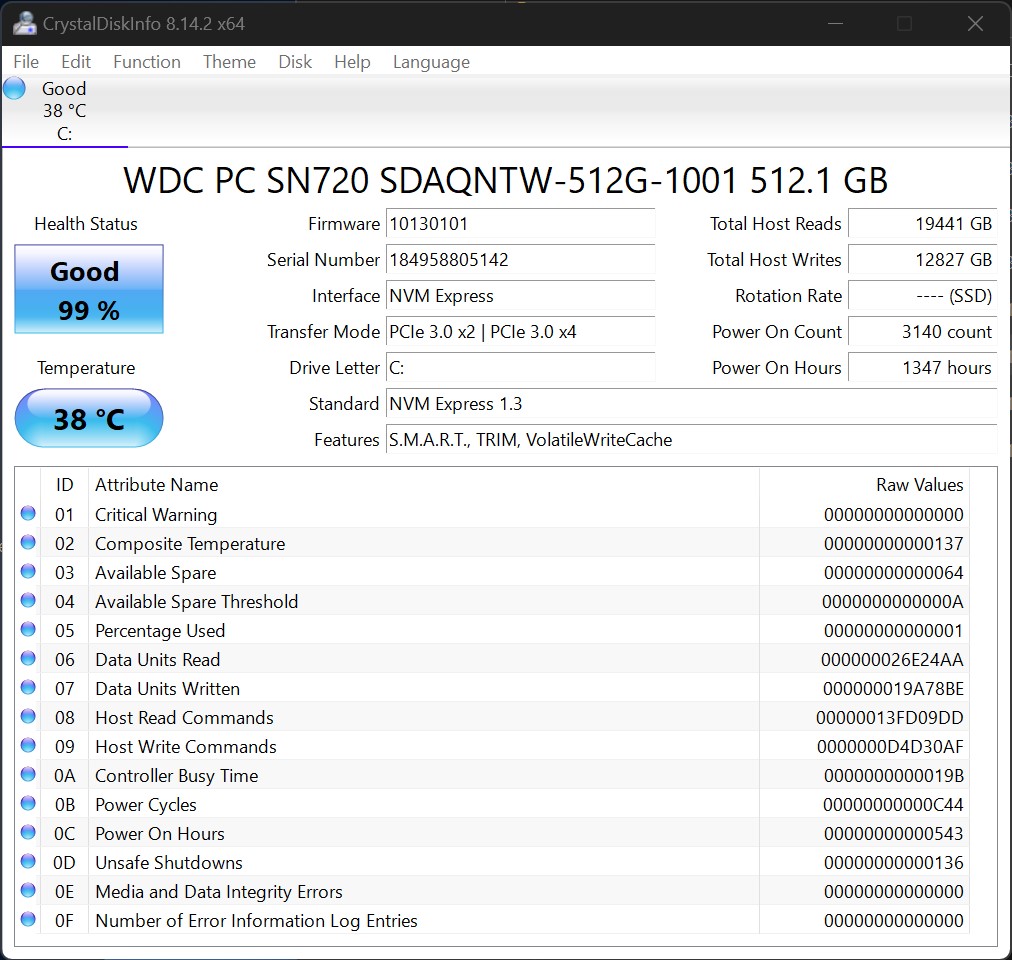

Opslagapparaten

Zoals vermeld in onze inleiding, is de Intel NUC11 Essential Kit - Atlas Canyon een barebone systeem. Voor onze test installeerden we een 512 GB SSD van Western Digital. Het uitgeruste model leverde snelle en stabiele overdrachtssnelheden. Intel gebruikt de bodemplaat om het apparaat te koelen - deze is al voorzien van een warmtegeleidingspad. De Intel NUC11 Essential Kit - Atlas Canyon kan slechts met één SSD worden uitgerust.

Bekijk voor meer vergelijkingen en benchmarks onze vergelijkingstabel.

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

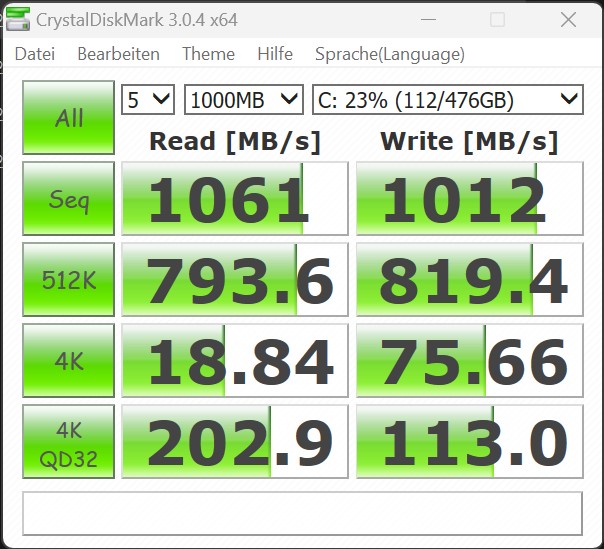

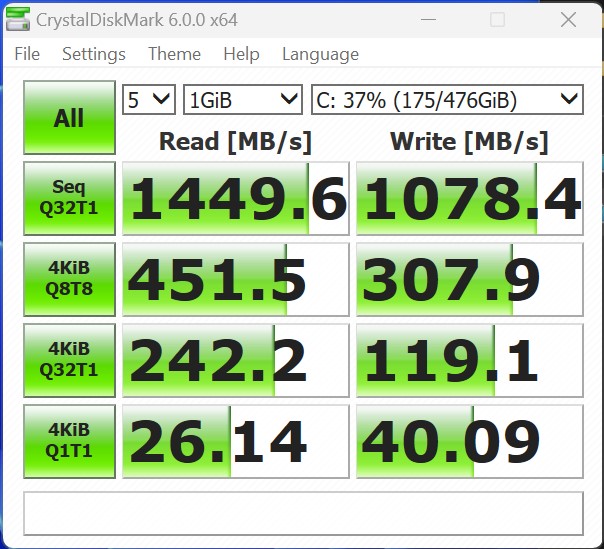

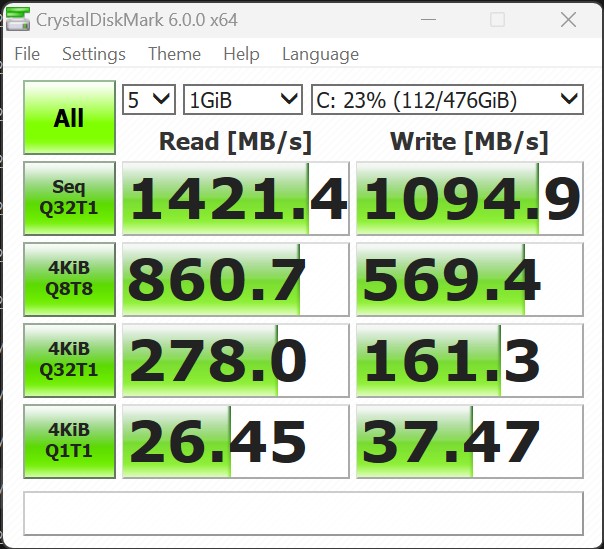

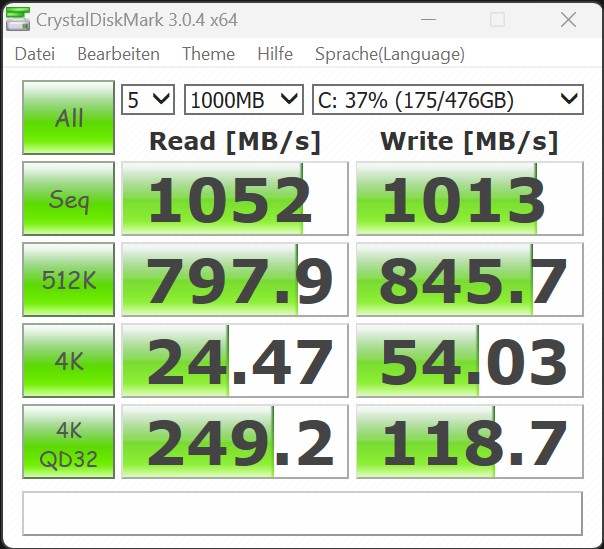

CrystalDiskMark 3.0

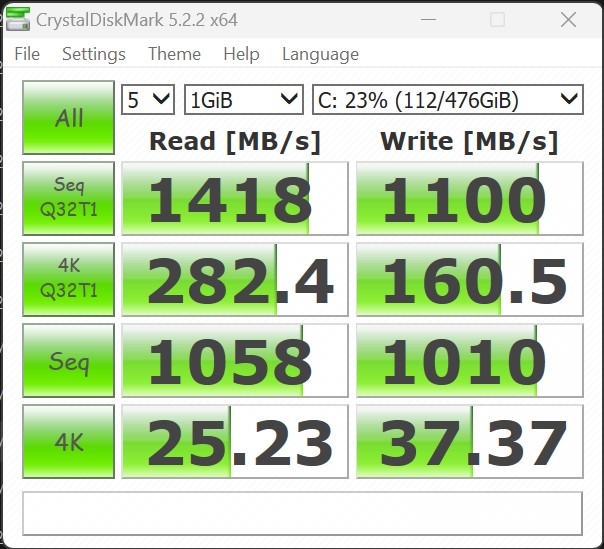

CrystalDiskMark 5.2 / 6

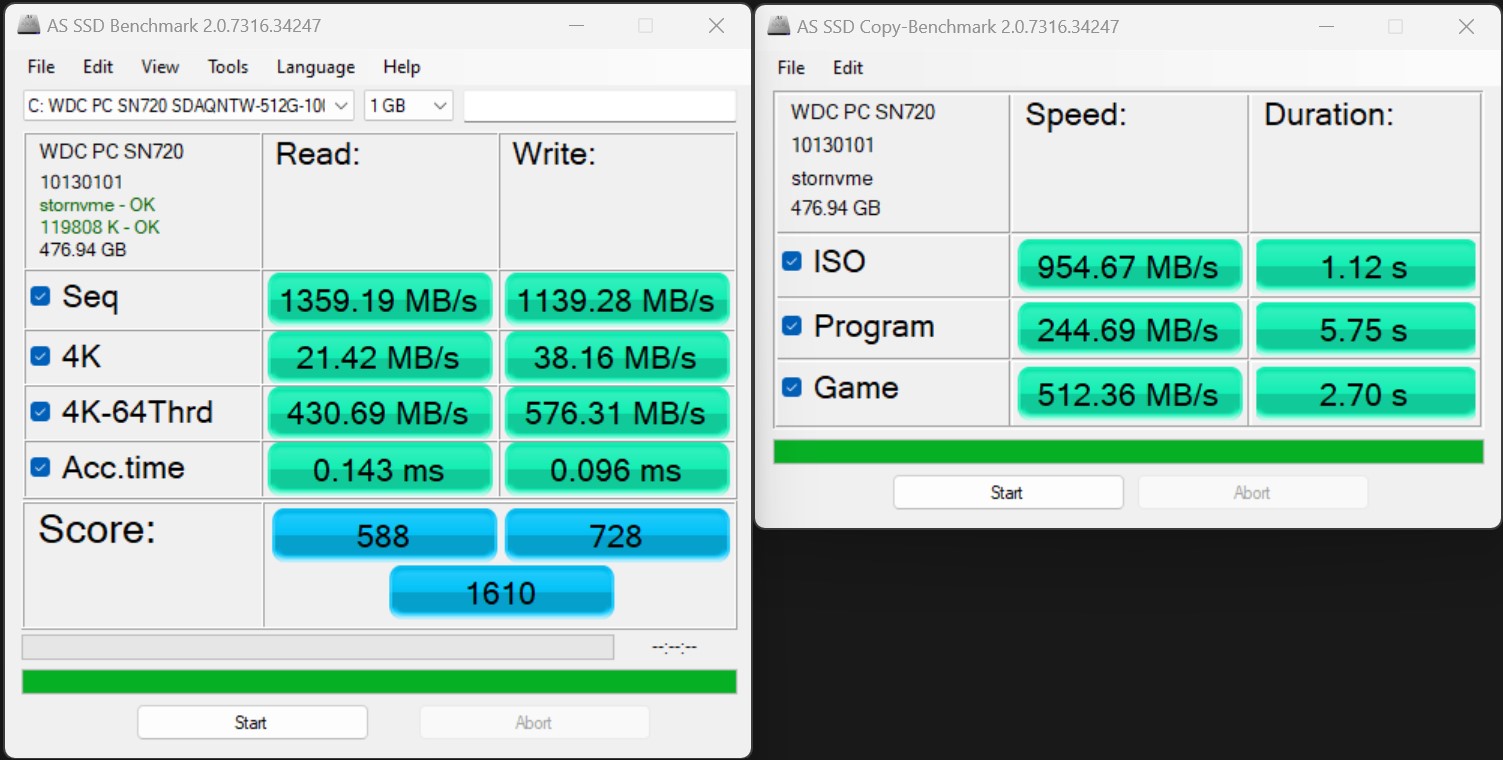

AS SSD

DiskSpd

WDC PC SN720 SDAPNTW-512G

Sequential Read: 1061 MB/s

Sequential Write: 1012 MB/s

512K Read: 793.6 MB/s

512K Write: 819.4 MB/s

4K Read: 18.84 MB/s

4K Write: 75.66 MB/s

4K QD32 Read: 202.9 MB/s

4K QD32 Write: 113 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Gemiddelde van klas Mini PC	94.7 pt ∼95%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	52.4 pt ∼52%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	45 pt ∼45%
AC6-M Mini-PC	31.7 pt ∼32%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	31.2 pt ∼31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	28.3 pt ∼28%
Newsmay AC8 N6005 Lexar 128GB SSD	27.7 pt ∼28%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.5 pt ∼17%

DiskSpd
seq read
Gemiddelde van klas Mini PC (233 - 4168, n=30, laatste 2 jaar)	1855 MB/s ∼100% +75%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s ∼57%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1026 (988.51^min - 1025.76^max) MB/s ∼55% -3%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s ∼28% -52%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s ∼26% -55%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s ∼25% -55%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s ∼25% -57%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s ∼23% -59%
seq write
Gemiddelde van klas Mini PC (222 - 3938, n=30, laatste 2 jaar)	1846 MB/s ∼100% +89%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1022 (961.96^min - 1021.79^max) MB/s ∼55% +5%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s ∼53%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s ∼27% -49%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s ∼27% -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s ∼25% -53%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s ∼23% -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s ∼22% -58%
seq q8 t1 read
Gemiddelde van klas Mini PC (236 - 7061, n=30, laatste 2 jaar)	2753 MB/s ∼100% +88%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s ∼53%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1426 (1221.66^min - 1425.85^max) MB/s ∼52% -2%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s ∼20% -61%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s ∼20% -62%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s ∼20% -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s ∼18% -66%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s ∼16% -69%
seq q8 t1 write
Gemiddelde van klas Mini PC (228 - 3938, n=30, laatste 2 jaar)	1963 MB/s ∼100% +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s ∼67%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1283 (1273.81^min - 1283.04^max) MB/s ∼65% -3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s ∼26% -61%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s ∼26% -61%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s ∼25% -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s ∼24% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s ∼18% -74%
4k q1 t1 read
Gemiddelde van klas Mini PC (5.67 - 86.6, n=30, laatste 2 jaar)	49.5 MB/s ∼100% +104%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s ∼68% +40%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s ∼53% +9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s ∼52% +7%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	24.4 (23.94^min - 24.41^max) MB/s ∼49% 0%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s ∼49%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s ∼28% -43%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s ∼26% -47%
4k q1 t1 write
Gemiddelde van klas Mini PC (22 - 425, n=30, laatste 2 jaar)	185.7 MB/s ∼100% +346%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s ∼54% +140%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s ∼52% +131%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s ∼40% +78%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s ∼33% +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s ∼22%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	40 (39.1^min - 40.03^max) MB/s ∼22% -4%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s ∼12% -47%
4k q32 t16 read
Gemiddelde van klas Mini PC (31 - 1948, n=30, laatste 2 jaar)	950 MB/s ∼100% +32%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s ∼76%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	460 (454.97^min - 459.58^max) MB/s ∼48% -36%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s ∼32% -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s ∼28% -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s ∼27% -64%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s ∼19% -74%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s ∼18% -76%
4k q32 t16 write
Gemiddelde van klas Mini PC (30.2 - 3830, n=30, laatste 2 jaar)	1194 MB/s ∼100% +136%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s ∼42%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s ∼29% -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s ∼27% -37%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	316 (312.68^min - 316.32^max) MB/s ∼26% -38%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s ∼24% -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s ∼22% -49%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s ∼14% -67%

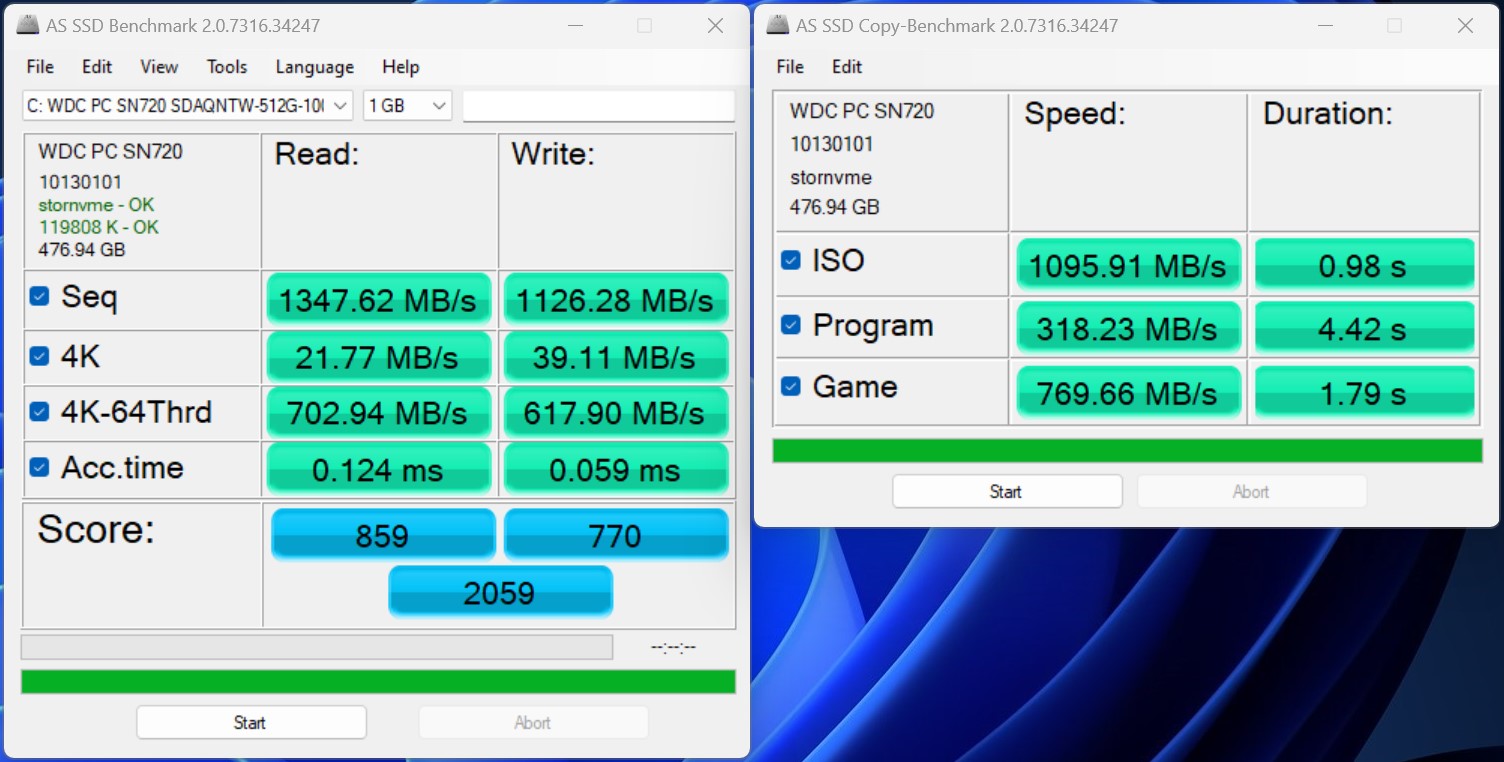

AS SSD
Score Total
Gemiddelde van klas Mini PC (151.3 - 9030, n=31, laatste 2 jaar)	3580 Points ∼100% +74%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points ∼58%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1610 Points ∼45% -22%
AC6-M Mini-PC	1091 Points ∼30% -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points ∼21% -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points ∼19% -66%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points ∼17% -71%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points ∼4% -93%
Score Read
Gemiddelde van klas Mini PC (61 - 3635, n=31, laatste 2 jaar)	1311 Points ∼100% +53%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points ∼66%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	588 Points ∼45% -32%
AC6-M Mini-PC	473 Points ∼36% -45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points ∼24% -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points ∼18% -73%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points ∼17% -75%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points ∼10% -84%
Score Write
Gemiddelde van klas Mini PC (97 - 4185, n=31, laatste 2 jaar)	1659 Points ∼100% +115%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points ∼46%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	728 Points ∼44% -5%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points ∼24% -49%
AC6-M Mini-PC	374 Points ∼23% -51%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points ∼22% -52%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points ∼19% -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points ∼13% -73%
Seq Read
Gemiddelde van klas Mini PC (305 - 5799, n=31, laatste 2 jaar)	2612 MB/s ∼100% +94%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1359 MB/s ∼52% +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s ∼52%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s ∼20% -62%
AC6-M Mini-PC	492 MB/s ∼19% -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s ∼19% -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s ∼18% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s ∼17% -68%
Seq Write
Gemiddelde van klas Mini PC (240 - 3927, n=31, laatste 2 jaar)	1845 MB/s ∼100% +64%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1139 MB/s ∼62% +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s ∼61%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s ∼26% -57%
AC6-M Mini-PC	450 MB/s ∼24% -60%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s ∼22% -63%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s ∼21% -66%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s ∼19% -69%
4K Read
Gemiddelde van klas Mini PC (6.08 - 103.7, n=31, laatste 2 jaar)	52.6 MB/s ∼100% +141%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s ∼67% +63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s ∼52% +26%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s ∼44% +7%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s ∼41%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	21.4 MB/s ∼41% -2%
AC6-M Mini-PC	19.43 MB/s ∼37% -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s ∼31% -26%
4K Write
Gemiddelde van klas Mini PC (33.7 - 366, n=31, laatste 2 jaar)	165 MB/s ∼100% +322%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s ∼52% +119%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s ∼50% +112%
AC6-M Mini-PC	51.4 MB/s ∼31% +31%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s ∼24%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.2 MB/s ∼23% -2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s ∼23% -3%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s ∼22% -6%
4K-64 Read
Gemiddelde van klas Mini PC (24.7 - 3035, n=31, laatste 2 jaar)	998 MB/s ∼100% +42%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s ∼70%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	431 MB/s ∼43% -39%
AC6-M Mini-PC	404.1 MB/s ∼40% -43%
Minipc Union Ace Magician T8Pro FP

Intel NUC11 Essential Kit alias Atlas Canyon met Intel Pentium Silver N6005 en Intel Celeron N4505 review

Potentiële concurrenten in vergelijking

Intel NUC11 Essential Kit - Atlas Canyon in detail

Zaak

Vergelijking grootte

Connectiviteit

Communicatie

Accessoires

Onderhoud

Prestaties - 4 kernen maken dagelijks gebruik aanzienlijk soepeler

Intel Pentium Zilver N6005

Intel Celeron N4505

Testomstandigheden

Processor

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Intel NUC11 Essential Kit - Atlas Canyon vs. Cinebench R15 Multi Loop

Systeemprestaties

DPC latentie

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505

Opslagapparaten

Intel NUC11ATKPE, N6005

Intel NUC11ATKC2, N4505
