Ace Magician T8Pro review: Budget mini PC voor kantoorgebruik

De systeemfabrikant Minipc Union biedt een breed scala aan compacte PC's voor toepassingen variërend van elementaire kantoortaken tot budget gaming. De Ace Magician T8Pro is een zeer compacte mini PC aangedreven door een Intel Celeron N5095A. Het apparaat wordt ook geleverd met 8 GB RAM en een 256 GB SSD. U kunt verwachten ongeveer €290 (US$309) te betalen voor het apparaat, wat een eerlijke prijs is in vergelijking met andere compacte minicomputers. Er zijn geen andere varianten beschikbaar - niet dat we dat nodig vinden trouwens. Bovendien is Windows 11 Pro bij de prijs inbegrepen.

De mini-pc wordt geleverd in een kleine doos die ook een 65-watt lader en een VESA-beugel voor de montage van het apparaat op een monitor bevat.

Zaak

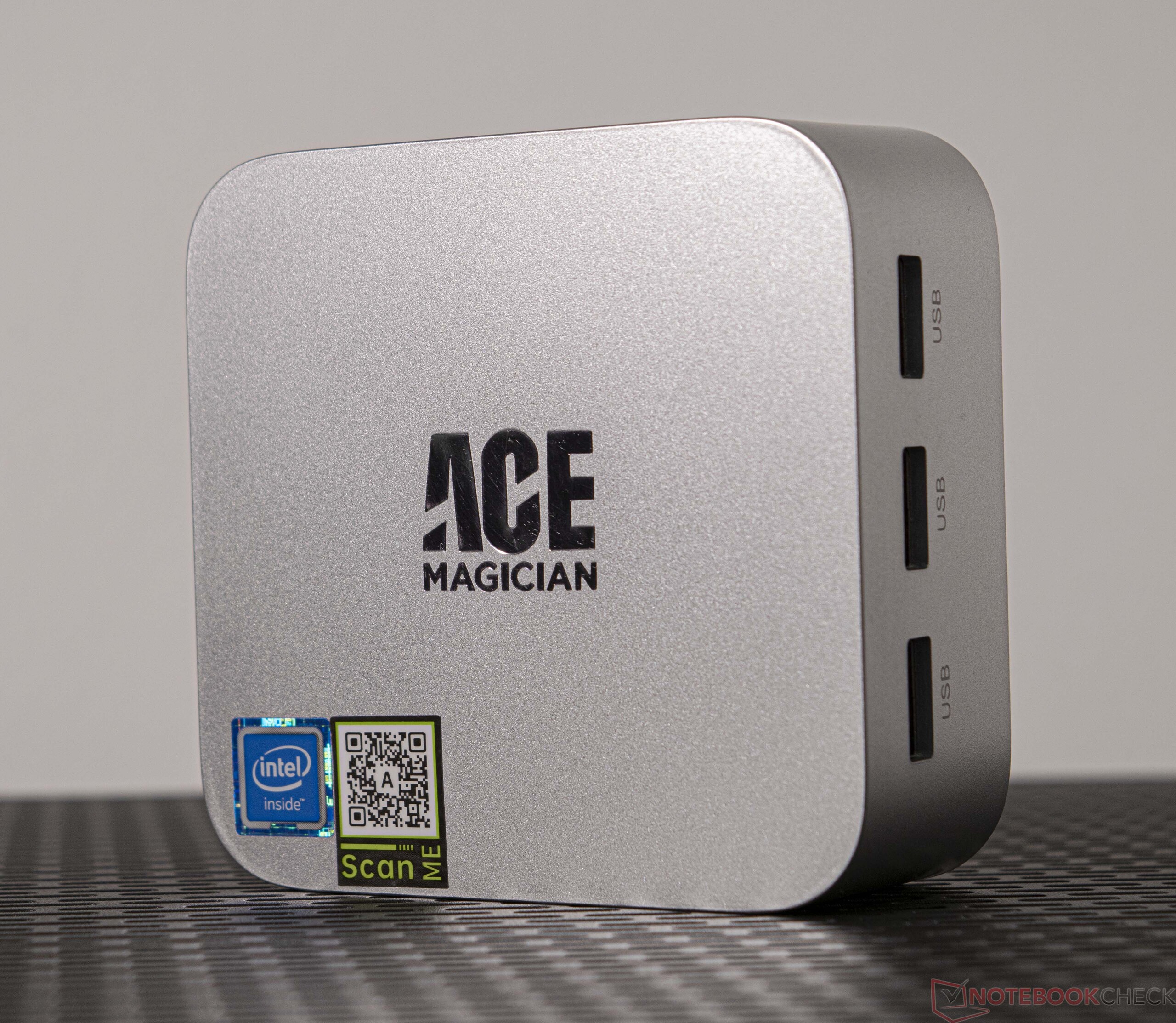

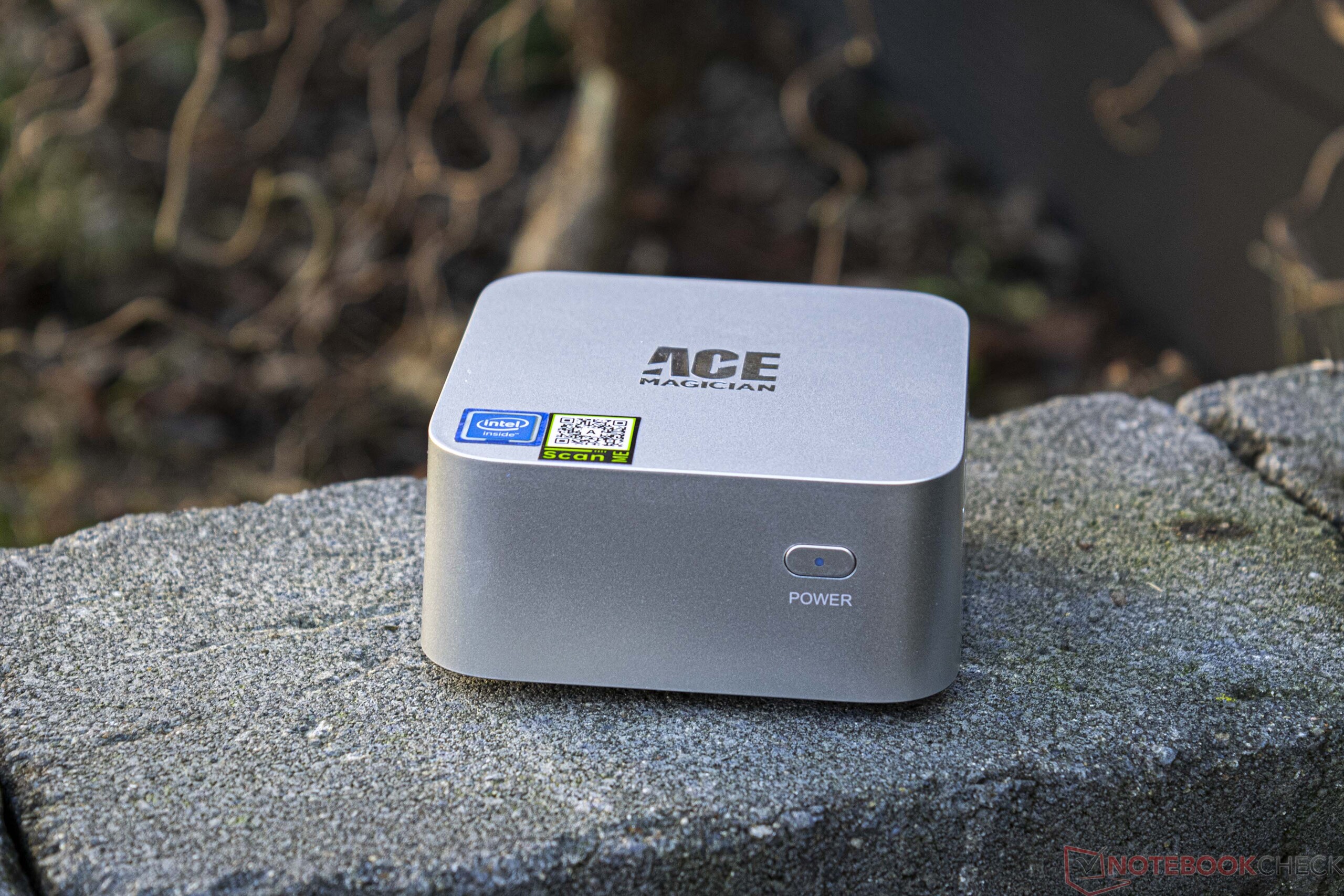

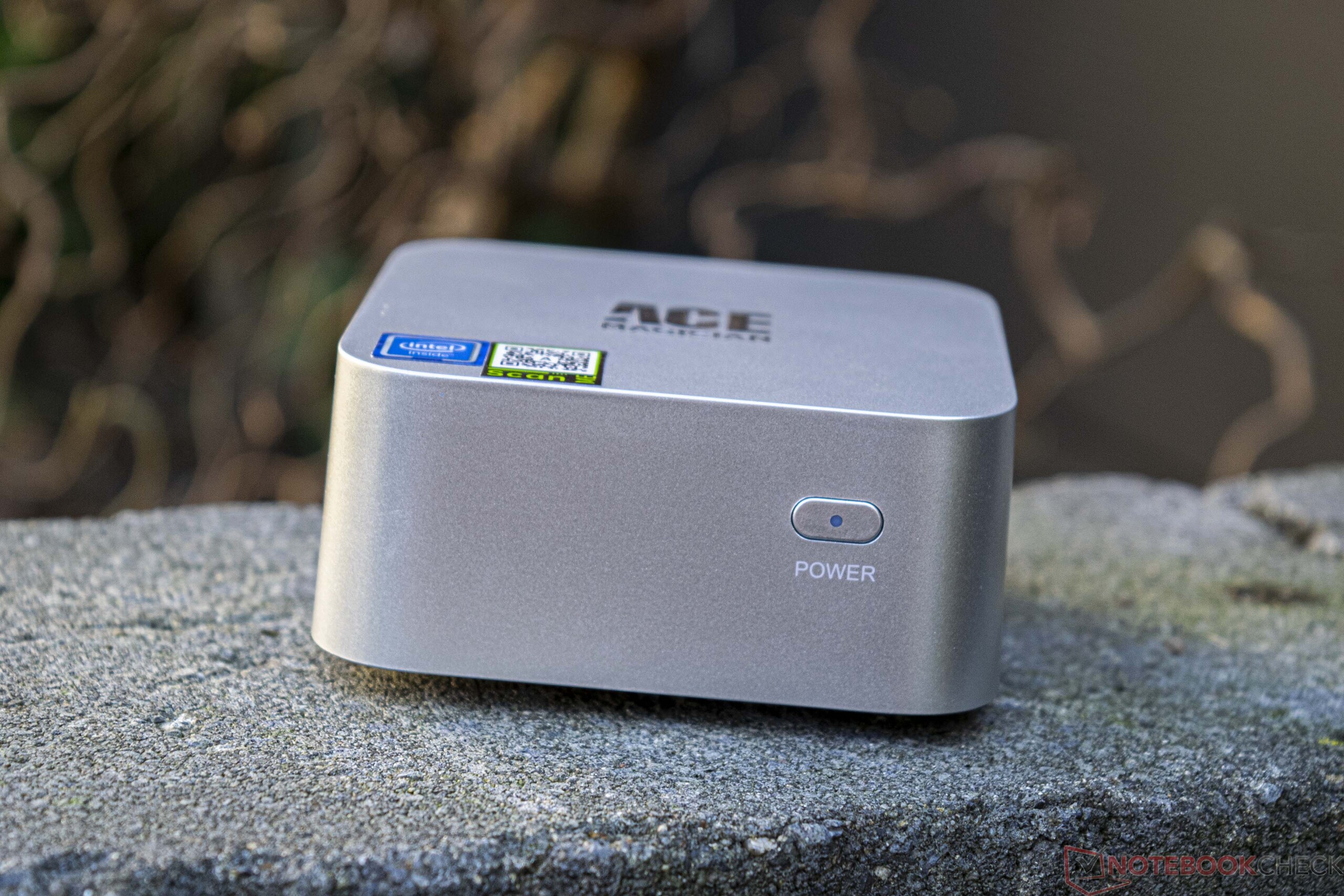

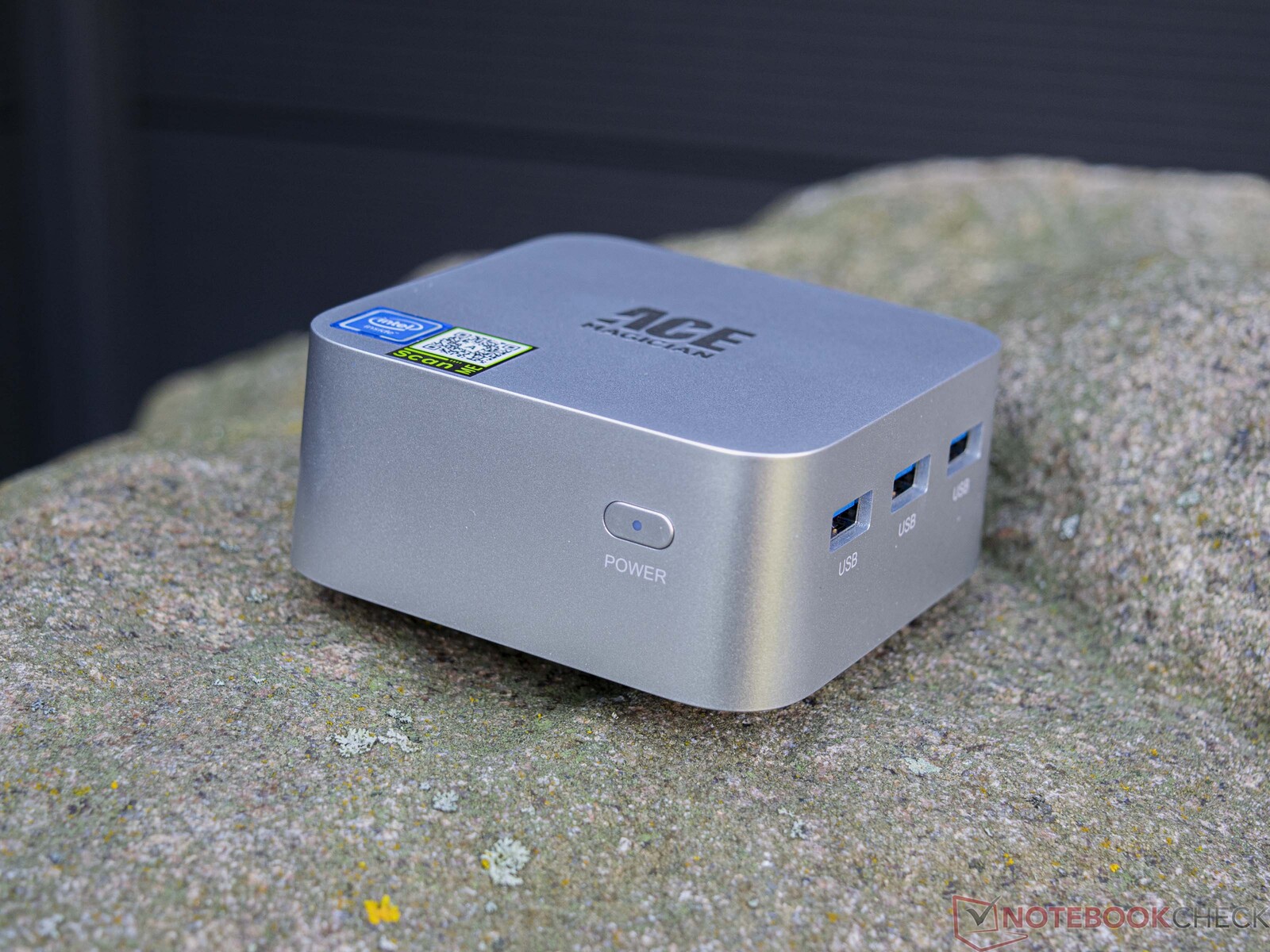

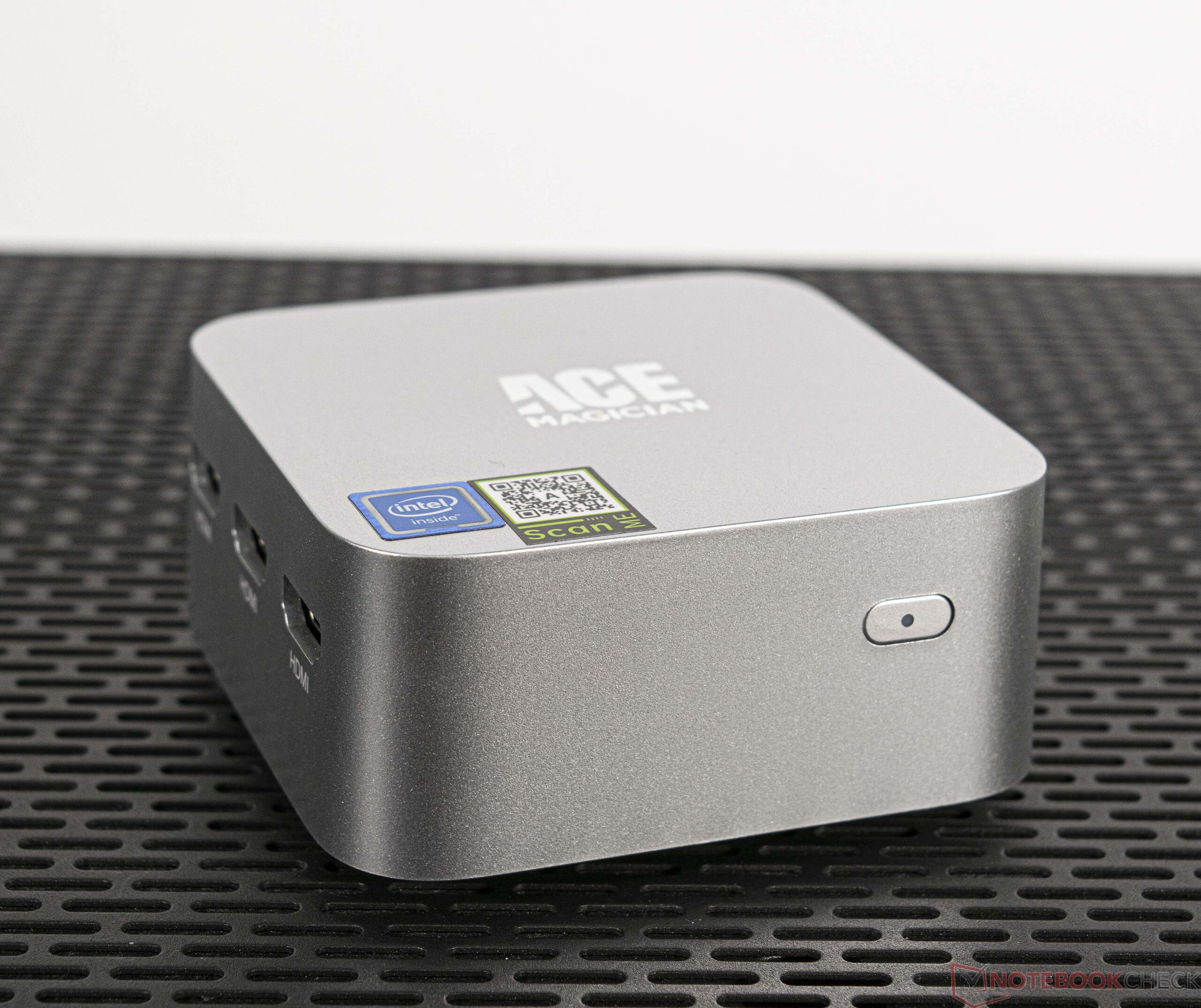

De Ace Magician T8Pro is een zeer kleine mini-pc die slechts een oppervlakte van ongeveer 8,7 x 8,7 cm (3,5 x 3,5") in beslag neemt. Het product is ook relatief dun met slechts 4,35 cm (1,69"). De fabrikant heeft gekozen voor een grotendeels plastic constructie. De oppervlakken van het toestel zijn vrij glad en voelen goed aan. Qua kleur is de Ace Magician T8Pro relatief neutraal gehouden met zilver en grijs, waardoor hij naadloos past op een modern bureau. Er zijn geen stabiliteitsproblemen dankzij het compacte ontwerp. En de kleine computer is met slechts 209 g zeer licht.

Vergelijking grootte

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Morefine S500+ Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A4 ❌

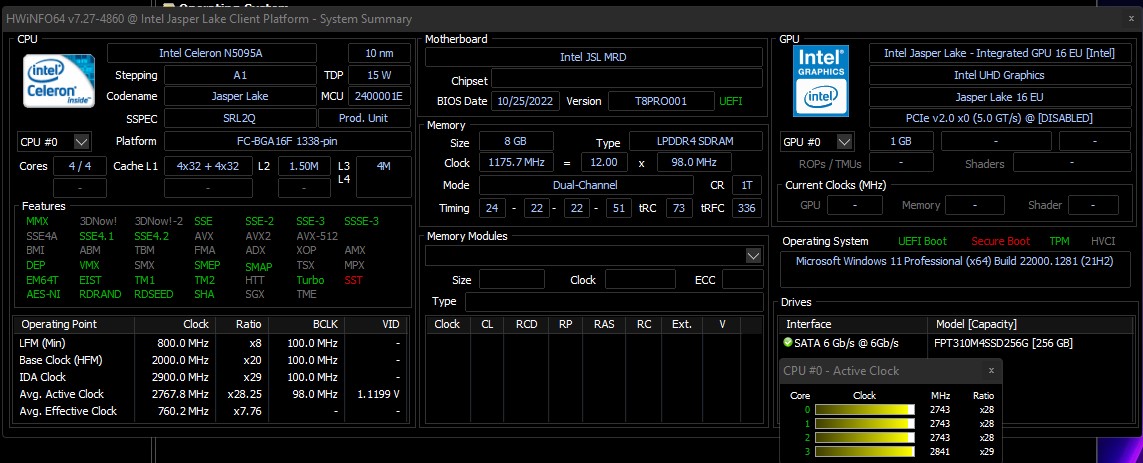

Specificaties

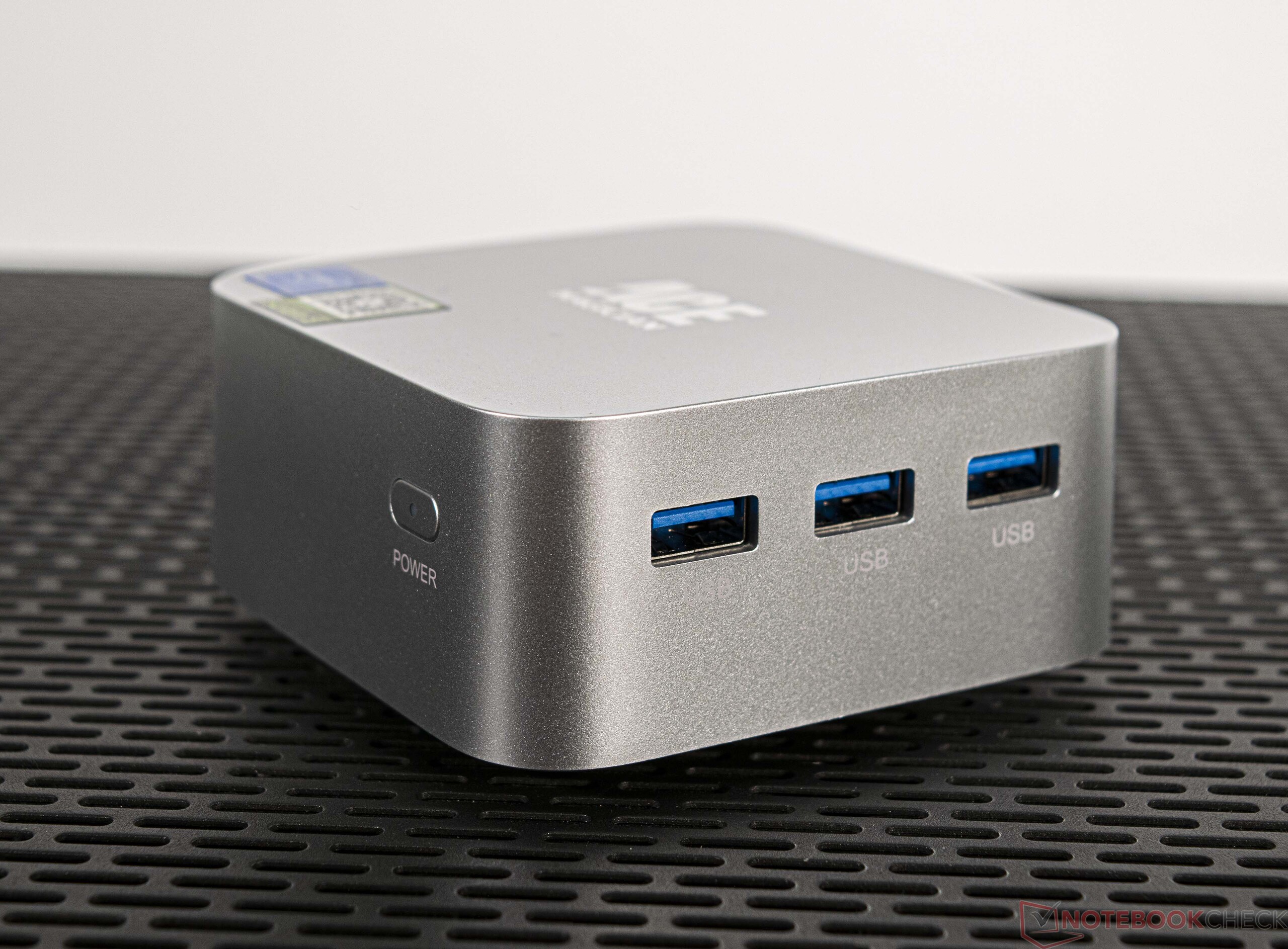

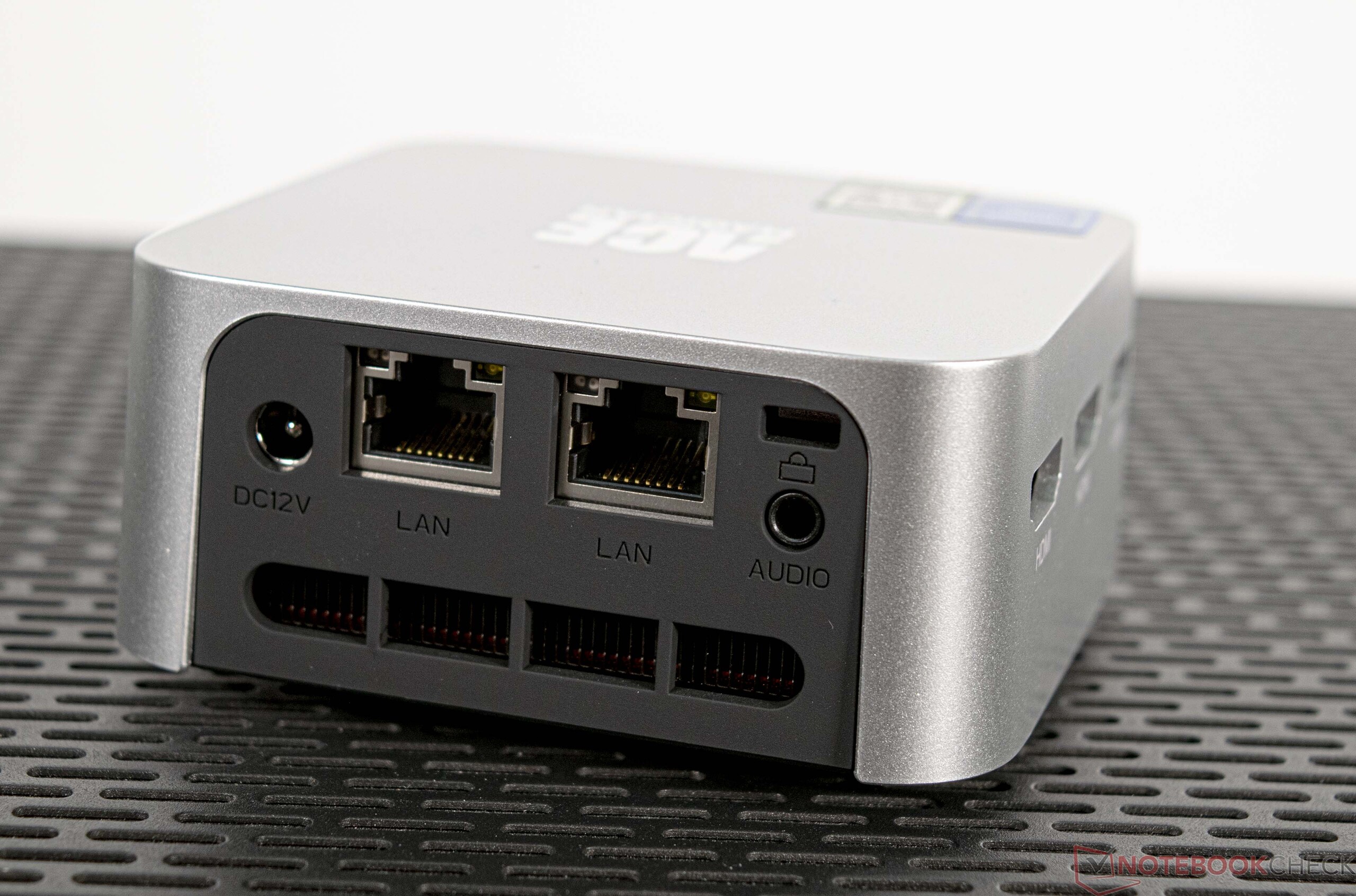

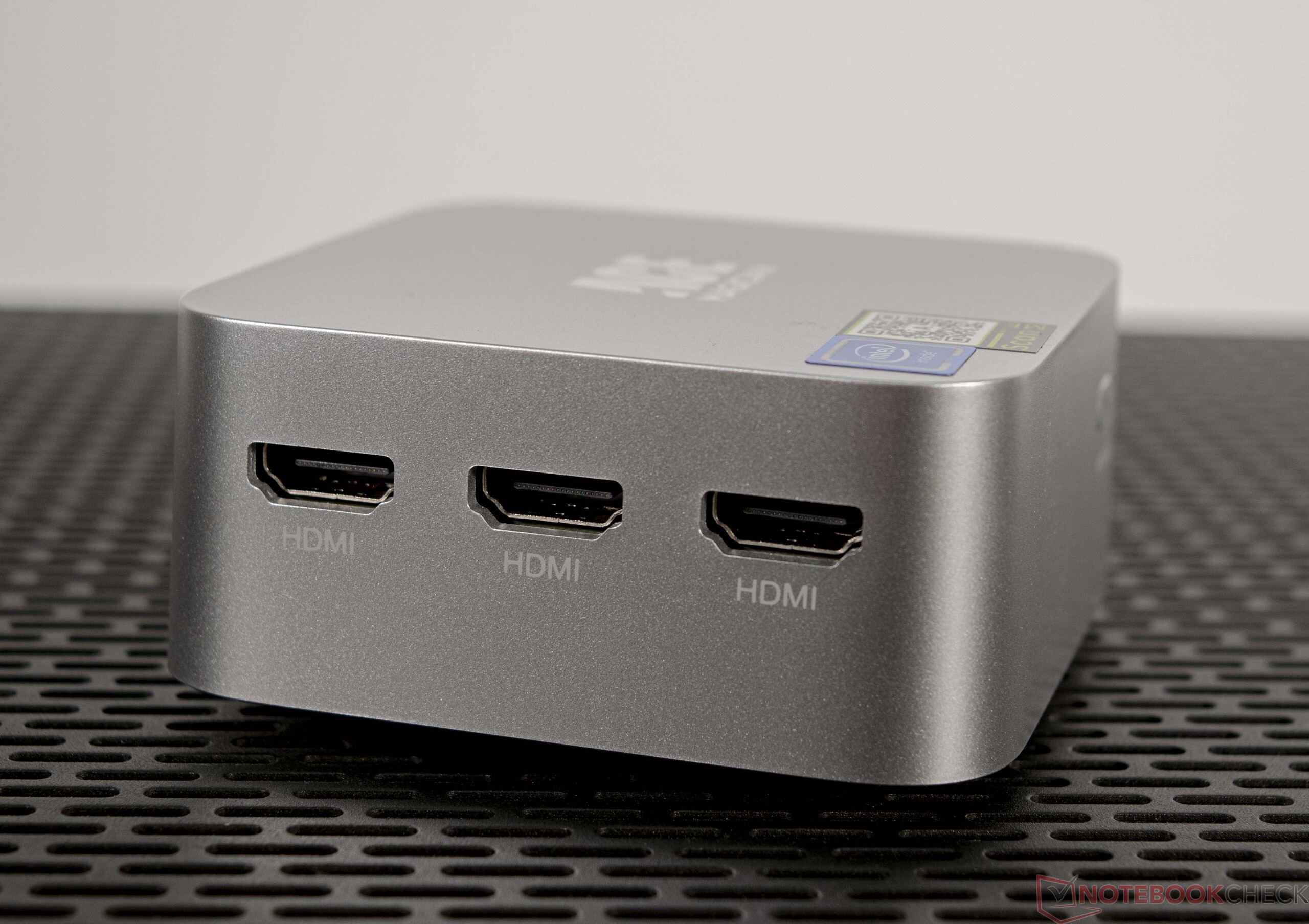

Ondanks het compacte ontwerp is Minipc Union erin geslaagd om drie USB-A-poorten en drie HDMI-uitgangen in de Ace Magician T8Pro te stoppen. De twee soorten poorten bevinden zich elk aan één kant van het apparaat, en er zijn twee LAN-poorten aan de achterkant. Dit betekent dat de Ace Magician T8Pro zeer goed is uitgerust en zich kan meten met "grotere" apparaten in onze vergelijking. De T8Pro gebruikt een Realtek 8821CE chip voor draadloze communicatie, die slechtere prestaties biedt dan de draadloze oplossingen in de andere toestellen.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s ∼100% +166%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼94% +149%
Gemiddelde van klas Mini PC (192.9 - 1688, n=30, laatste 2 jaar)	844 MBit/s ∼88% +133%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s ∼80% +114%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼45% +18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s ∼38%
Gemiddeld Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 363, n=3)	358 MBit/s ∼37% -1%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s ∼30% -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼100% +425%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s ∼90% +370%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s ∼89% +366%
Gemiddelde van klas Mini PC (184.1 - 1491, n=30, laatste 2 jaar)	771 MBit/s ∼80% +319%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼59% +211%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s ∼23% +22%
Gemiddeld Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 269, n=3)	220 MBit/s ∼23% +20%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s ∼19%

Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)

Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

Onderhoud

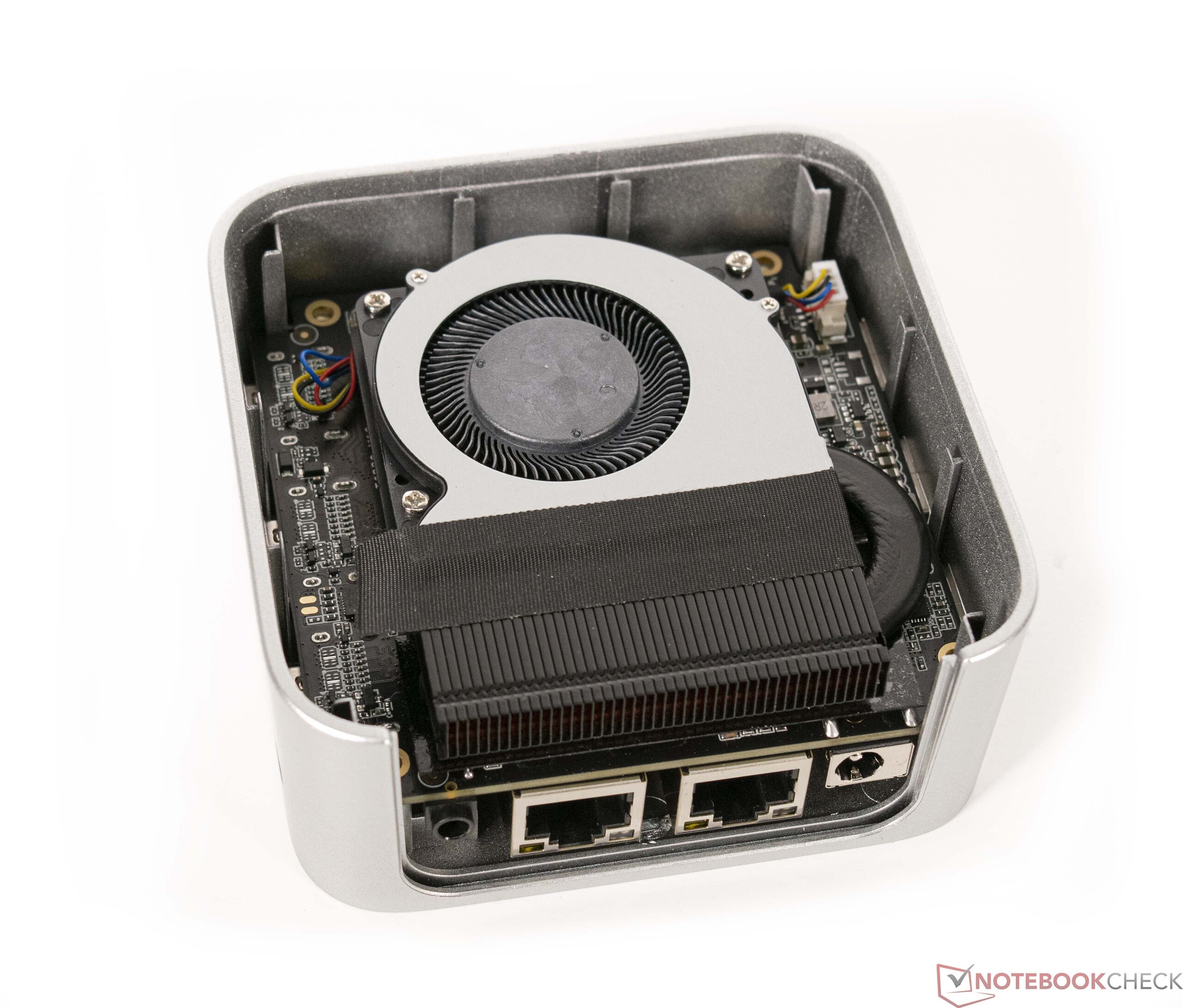

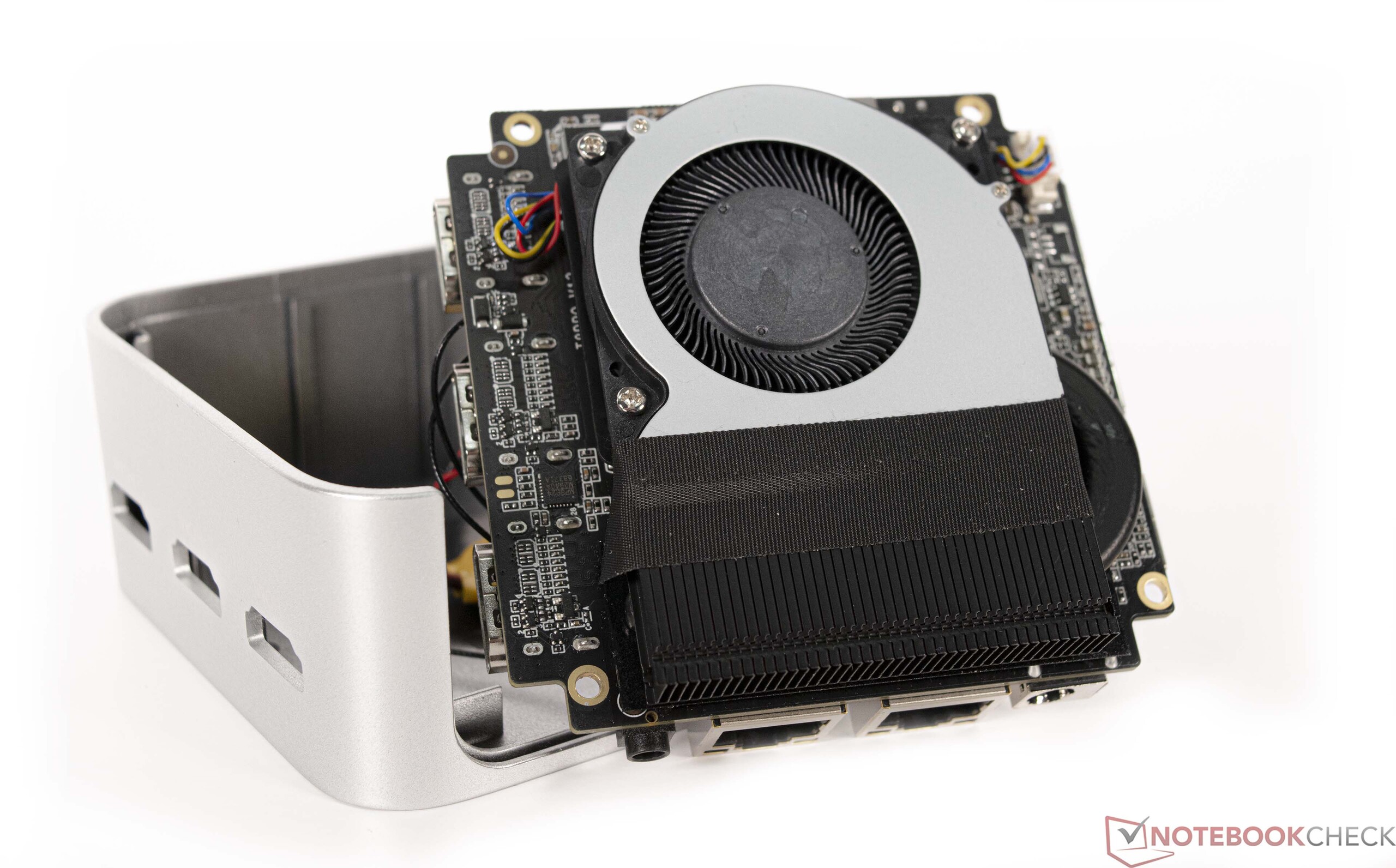

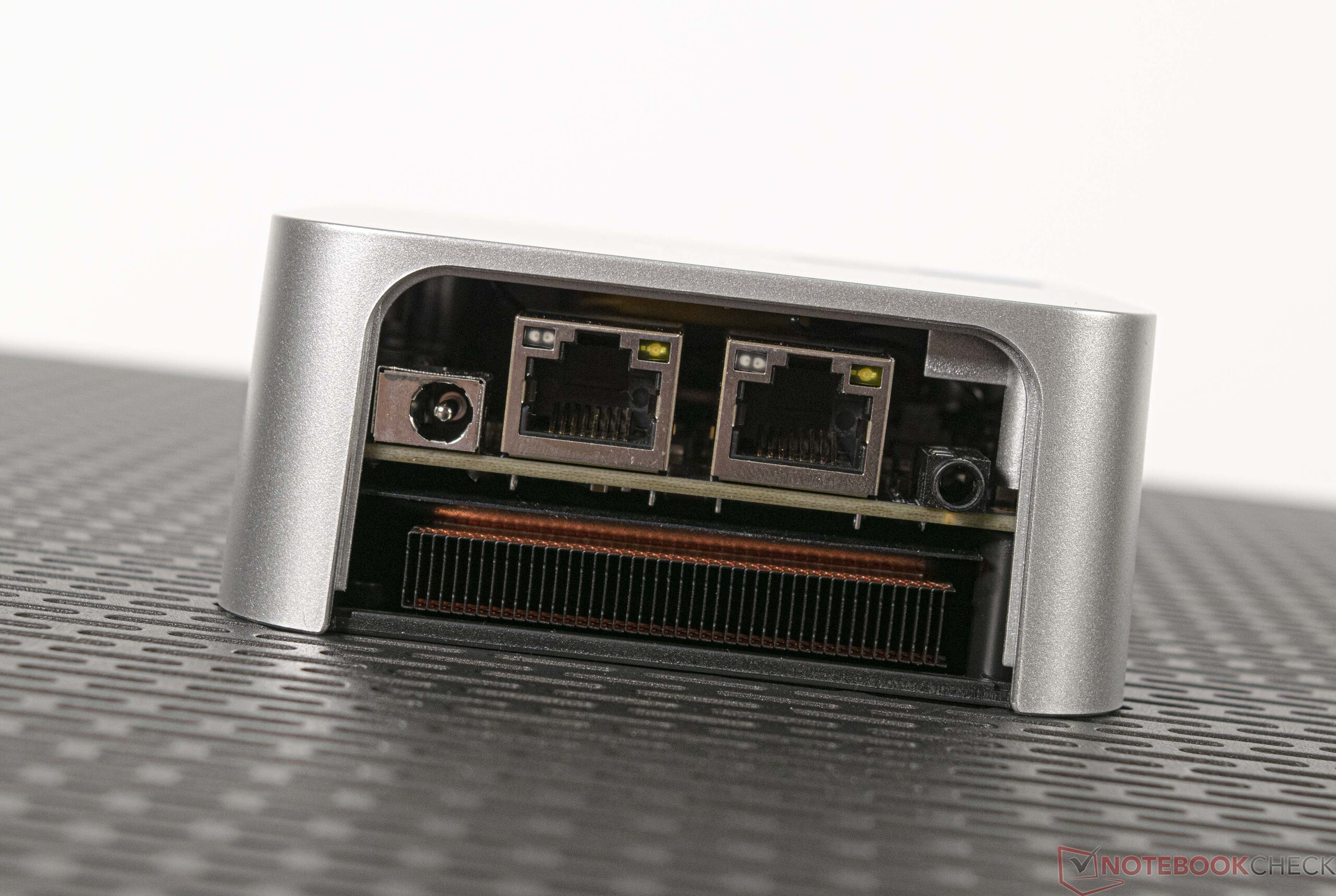

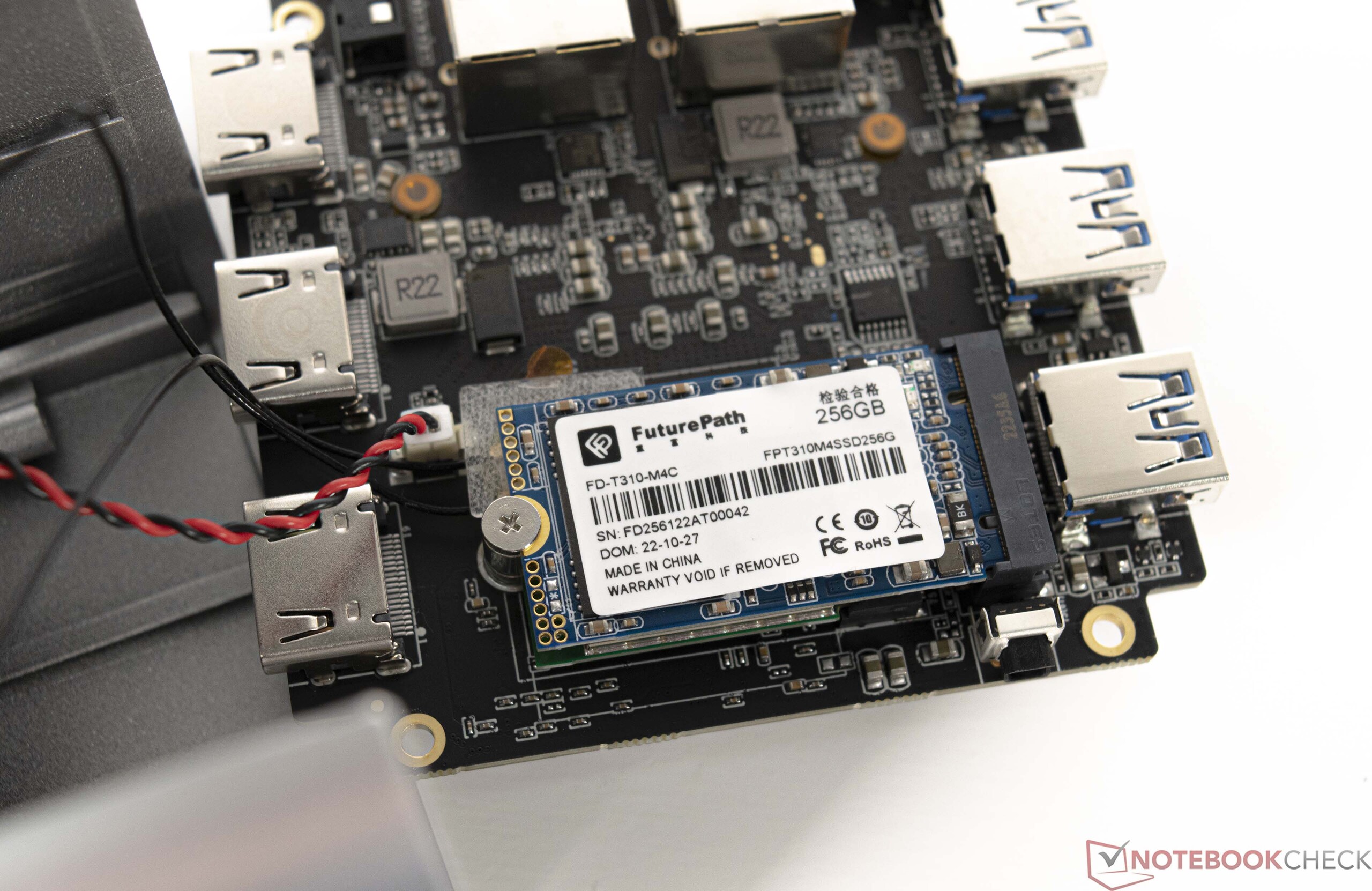

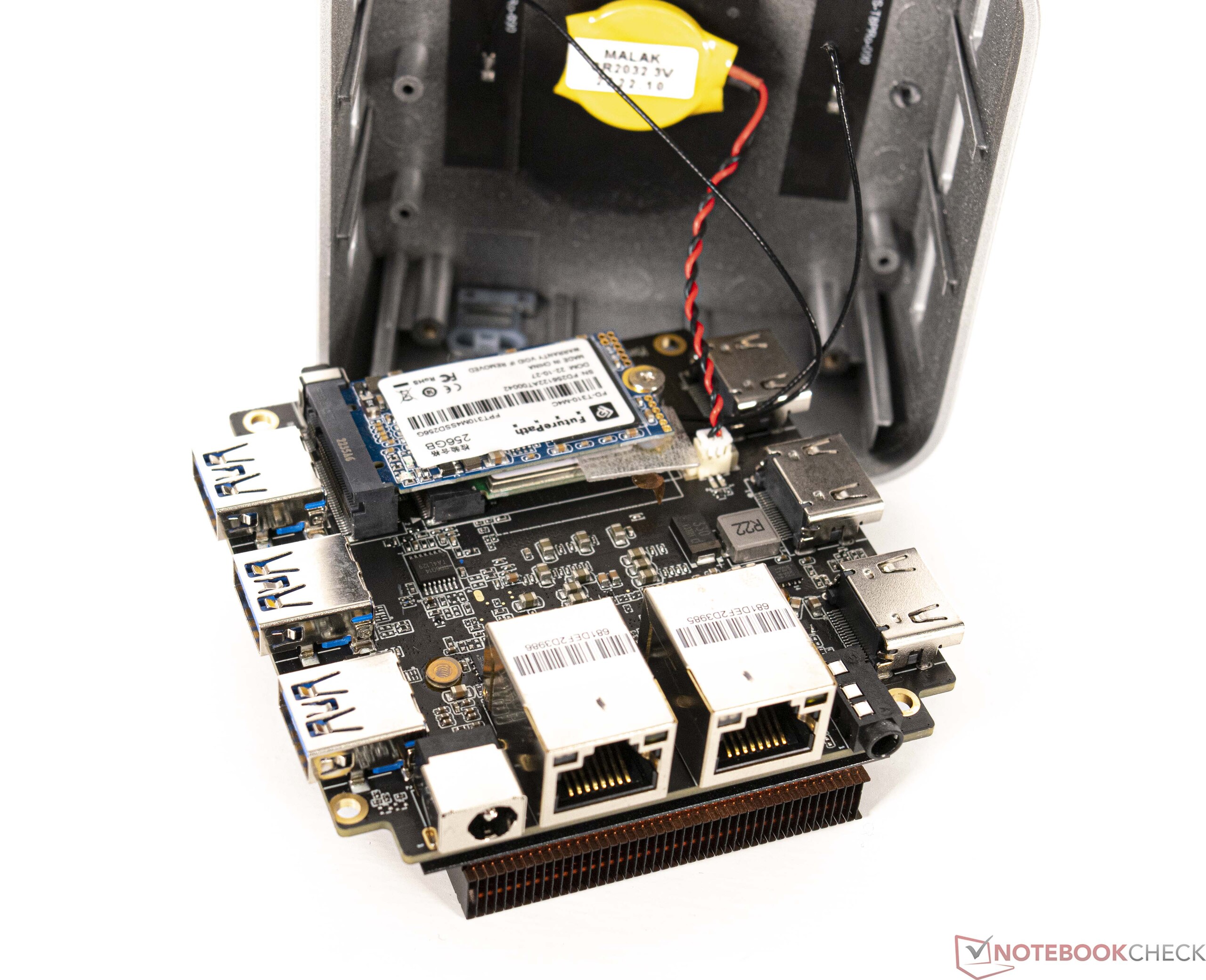

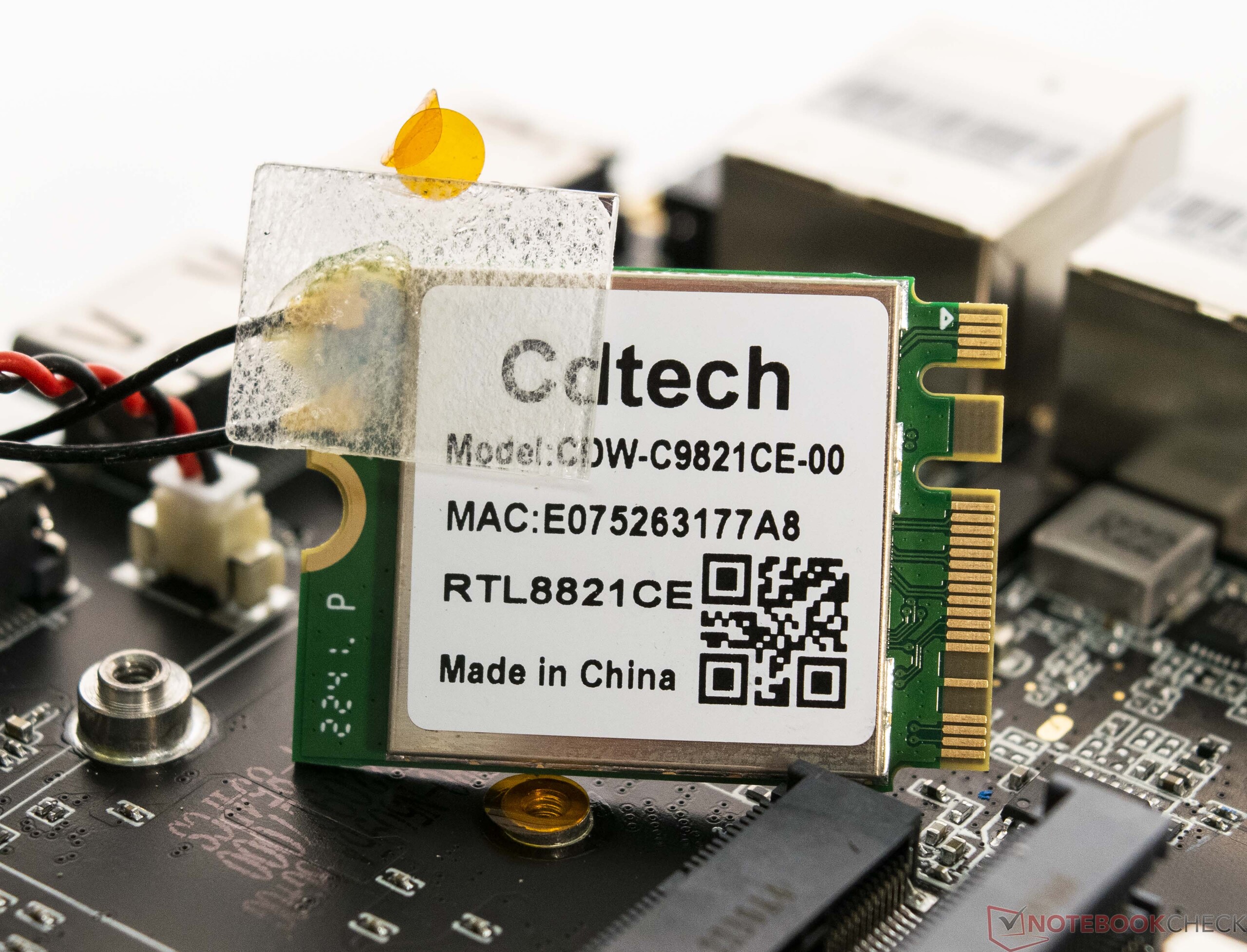

De SSD en Wi-Fi-module zijn gemakkelijk toegankelijk voor wie de Ace Magician T8Pro wil upgraden. Om het apparaat te openen, hoef je alleen maar de vier schroeven aan de onderkant te verwijderen. Je moet echter wel rekening houden met de vormfactor van de SSD, want het apparaat is alleen geschikt voor een M.2 SSD met een lengte van 42 mm. In tegenstelling tot de SSD en Wi-Fi module is het geheugen niet te upgraden.

Prestaties

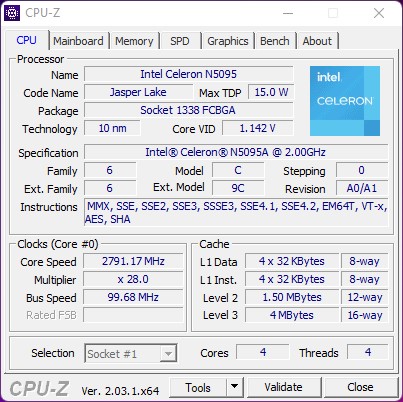

De Intel Celeron N5095 is de enige beschikbare processoroptie voor de Ace Magician T8Pro. De vier native cores hebben 8 GB DDR4 RAM tot hun beschikking en bieden solide prestaties voor elementaire kantoortaken.

Testvoorwaarden

We hebben alle prestatietests uitgevoerd met het stroomplan "High Performance" om de best mogelijke resultaten te krijgen. De enige keer dat we een ander energieplan gebruikten, was bij het meten van het energieverbruik en de geluidsniveaus. Klik hier op https://www.notebookcheck.net/Our-Test-Criteria.15394.0.html voor meer informatie over onze testcriteria.

Processor

De Ace Magician T8Pro kan de kracht van de Intel Celeron N5095 vrij goed. Toch zijn er concurrerende producten die beter presteren met dezelfde SoC, zoals de Geekom MiniAir 11 Special Edition. Het prestatieverschil ligt echter in het lage eencijferige percentagebereik en is daarom verwaarloosbaar. De vermogenslimiet op korte termijn (PL2) van de SoC is ongeveer 20 watt, terwijl de vermogenslimiet op lange termijn (PL1) beperkt is tot 15 watt.

U kunt hier klikken op https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.htmlvoor meer processorbenchmarks.

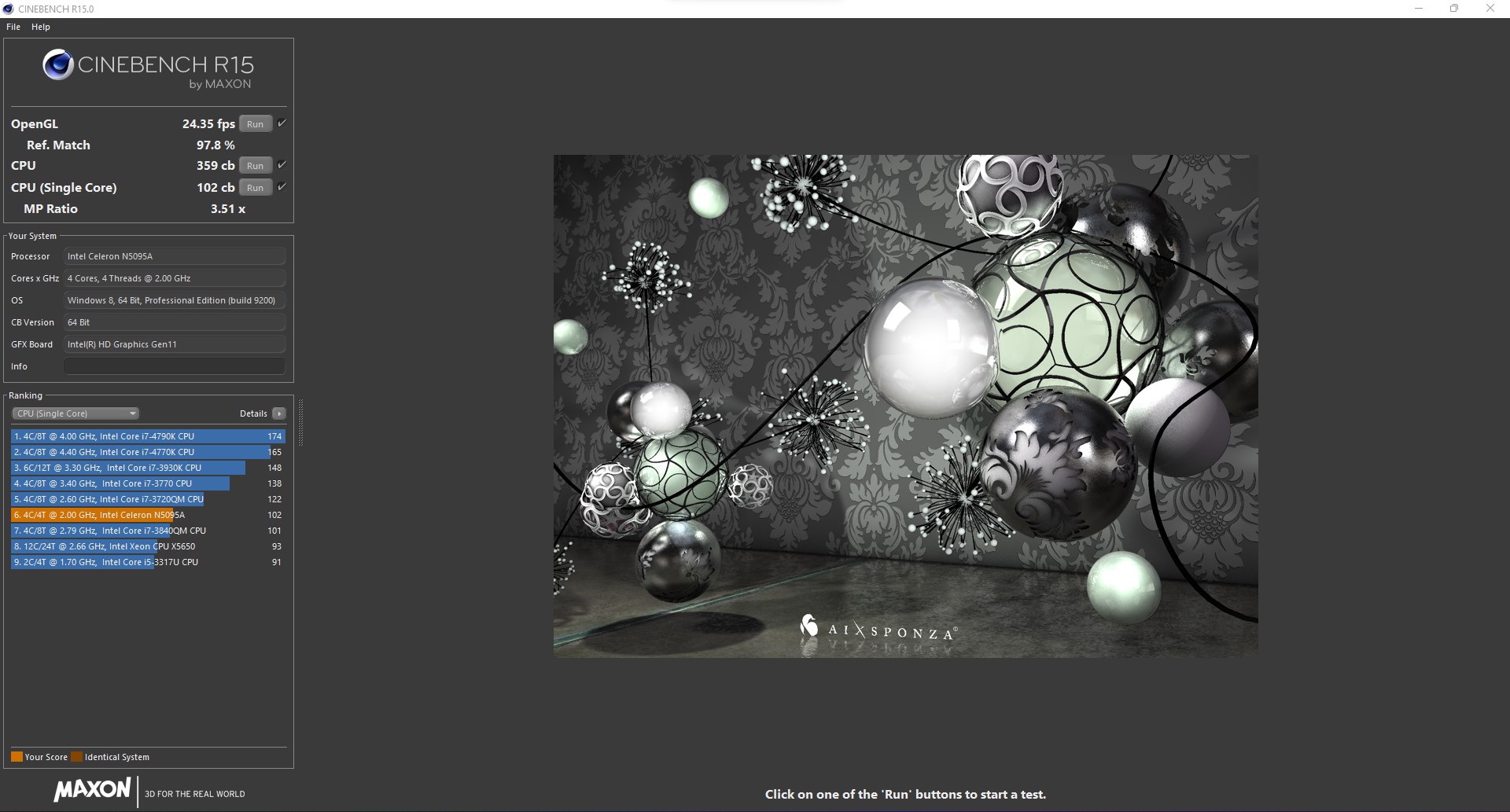

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points ∼38% +21%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.3 Points ∼33% +5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points ∼32% +4%
Gemiddeld Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points ∼32% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points ∼31%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	95.4 Points ∼29% -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points ∼23% -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points ∼23% -25%
CPU Multi 64Bit
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	372 Points ∼4% +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points ∼4% +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points ∼4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	358 (350.25^min - 357.53^max) Points ∼4% 0%
Gemiddeld Intel Celeron N5095 (221 - 379, n=6)	343 Points ∼4% -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points ∼3% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points ∼3% -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points ∼1% -64%

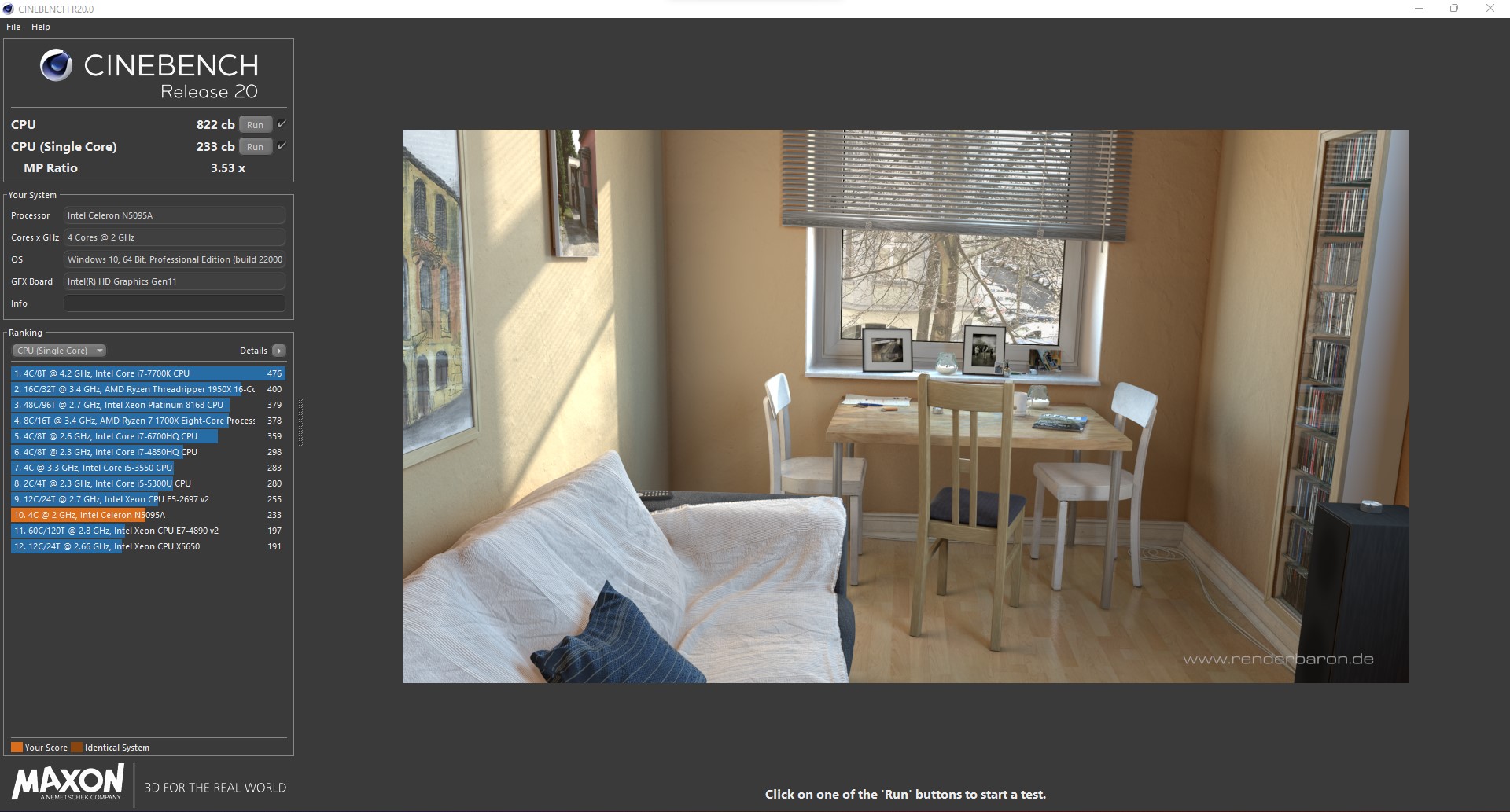

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points ∼31% +14%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	236 Points ∼27% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points ∼27% 0%
Gemiddeld Intel Celeron N5095 (228 - 239, n=5)	234 Points ∼27% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points ∼27%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	228 Points ∼26% -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points ∼20% -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points ∼20% -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points ∼4% +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	827 Points ∼4% +1%
Gemiddeld Intel Celeron N5095 (804 - 844, n=5)	825 Points ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points ∼3%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	804 Points ∼3% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points ∼3% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points ∼2% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points ∼1% -65%

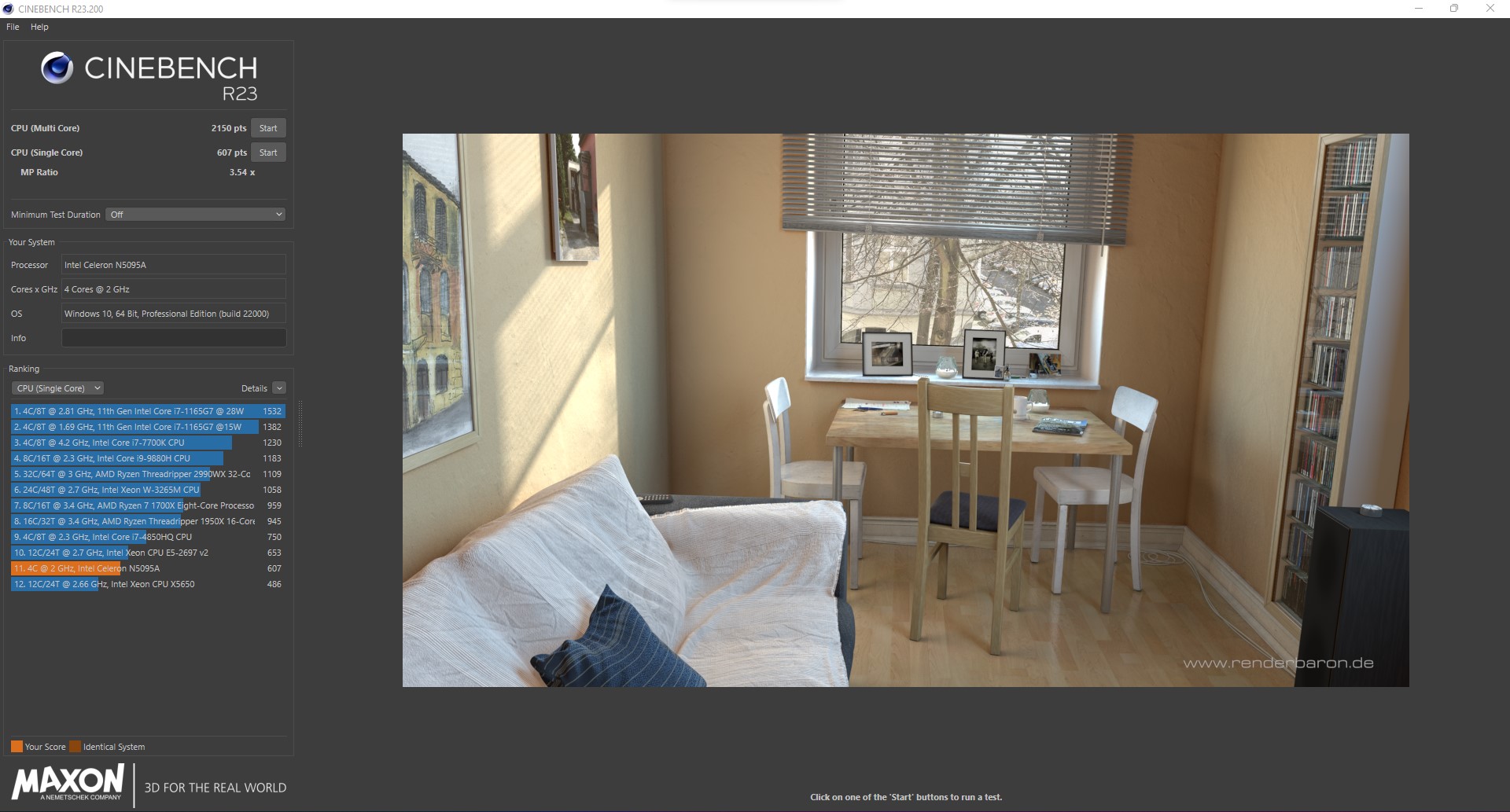

Cinebench R23
Single Core
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points ∼31% +15%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	615 Points ∼27% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points ∼27% +1%
Gemiddeld Intel Celeron N5095 (587 - 621, n=5)	608 Points ∼27% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points ∼27%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	587 Points ∼26% -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points ∼19% -28%
Multi Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2176 (2164.67^min - 2176.1^max) Points ∼4% +1%
Gemiddeld Intel Celeron N5095 (2150 - 2219, n=5)	2174 Points ∼4% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points ∼4% +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2159 (2113.79^min - 2158.74^max) Points ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points ∼4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points ∼3% -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points ∼1% -66%

Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points ∼5% +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points ∼4% +3%
Gemiddeld Intel Celeron N5095 (1.25 - 1.29, n=2)	1.27 Points ∼4% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points ∼4%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points ∼3% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points ∼3% -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points ∼7% +2%
Gemiddeld Intel Celeron N5095 (4.65 - 4.76, n=2)	4.71 Points ∼7% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points ∼7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points ∼6% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points ∼4% -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points ∼2% -65%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points ∼34% +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points ∼30% +4%
Gemiddeld Intel Celeron N5095 (5224 - 5451, n=2)	5338 Points ∼29% +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points ∼28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points ∼22% -21%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points ∼20% -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points ∼12%
Gemiddeld Intel Celeron N5095 (16442 - 17278, n=2)	16860 Points ∼12% -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points ∼12% -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points ∼11% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points ∼8% -38%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points ∼5% -61%

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3767 Seconds * ∼27% -144%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * ∼17% -54%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * ∼13% -17%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1624 Seconds * ∼11% -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * ∼11% -0%
Gemiddeld Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * ∼11% -0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * ∼11%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1502 Seconds * ∼11% +3%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * ∼10% -159%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * ∼4% -3%
Gemiddeld Intel Celeron N5095 (19.2 - 19.8, n=2)	19.5 s * ∼4% -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * ∼4%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * ∼3% +10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * ∼3% +11%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * ∼18% -158%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * ∼7% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * ∼7% -2%
Gemiddeld Intel Celeron N5095 (605 - 617, n=2)	611 s * ∼7% -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * ∼7%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * ∼7% +7%

X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps ∼28% +7%
Gemiddeld Intel Celeron N5095 (112.8 - 120.3, n=2)	116.5 fps ∼27% +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps ∼26%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps ∼24% -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps ∼19% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps ∼11% -60%
Pass 2
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps ∼9% +2%
Gemiddeld Intel Celeron N5095 (24.8 - 25.3, n=2)	25 fps ∼9% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps ∼8% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps ∼6% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps ∼4% -60%

WinRAR - Result
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s ∼10% +9%
Gemiddeld Intel Celeron N5095 (1630 - 1781, n=2)	1706 KB/s ∼10% +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s ∼9% -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s ∼7% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s ∼4% -55%

TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s ∼8% +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8%
Gemiddeld Intel Celeron N5095 (2.5 - 2.5, n=2)	2.5 GB/s ∼8% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s ∼6% -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s ∼3% -61%
Twofish Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼0% +9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0%
Gemiddeld Intel Celeron N5095 (0.37 - 0.37, n=2)	0.37 GB/s ∼0% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s ∼0% -28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s ∼0% -62%
Serpent Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s ∼0% +16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0%
Gemiddeld Intel Celeron N5095 (0.198 - 0.198, n=2)	0.198 GB/s ∼0% 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s ∼0% -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s ∼0% -63%

Geekbench 5.4
Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points ∼7%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2036 Points ∼7% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points ∼7% -2%
Gemiddeld Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points ∼7% -2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1933 Points ∼7% -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points ∼6% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points ∼5% -27%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points ∼3% -59%
Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	659 Points ∼29% +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points ∼28% +3%
Gemiddeld Intel Celeron N5095 (637 - 659, n=4)	649 Points ∼28% +2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	644 Points ∼28% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points ∼28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points ∼26% -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points ∼24% -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points ∼20% -29%

Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points ∼6%
Gemiddeld Intel Celeron N5095 (1985 - 2070, n=4)	2029 Points ∼6% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2020 Points ∼6% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points ∼6% -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points ∼5% -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points ∼4% -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points ∼3% -58%
5.0 Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	655 Points ∼3% +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points ∼3% +3%
Gemiddeld Intel Celeron N5095 (628 - 655, n=4)	644 Points ∼3% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points ∼3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points ∼3% -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points ∼2% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points ∼2% -29%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points ∼30% +2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2900 Points ∼30% +1%
Gemiddeld Intel Celeron N5095 (2858 - 2929, n=3)	2896 Points ∼30% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points ∼30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points ∼27% -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points ∼26% -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points ∼20% -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points ∼9%
Gemiddeld Intel Celeron N5095 (7759 - 7968, n=3)	7856 Points ∼9% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points ∼9% -2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	7759 Points ∼9% -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points ∼6% -31%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points ∼6% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points ∼4% -55%

3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	4322 Points ∼12% +1%
Gemiddeld Intel Celeron N5095 (4224 - 4439, n=5)	4309 Points ∼12% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points ∼12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points ∼12% 0%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	4224 Points ∼11% -1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points ∼10% -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points ∼8% -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points ∼4% -63%

7-Zip 18.03
7z b 4
Gemiddeld Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS ∼7% +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	11023 MIPS ∼7% +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	11013 MIPS ∼7% +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS ∼7% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS ∼7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS ∼6% -9%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS ∼5% -29%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS ∼2% -64%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS ∼42% +20%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	3124 MIPS ∼37% +6%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	3100 MIPS ∼37% +6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS ∼37% +6%
Gemiddeld Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS ∼37% +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS ∼35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS ∼31% -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS ∼28% -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps ∼4% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps ∼4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2 fps ∼4% 0%
Gemiddeld Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps ∼4% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.9 fps ∼4% -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps ∼4% -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps ∼3% -26%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps ∼2% -56%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * ∼34% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * ∼30% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * ∼26%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1.178 sec * ∼25% +2%
Gemiddeld Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * ∼25% +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * ∼25% +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.16 sec * ∼25% +3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * ∼25% +5%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * ∼37% -40%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * ∼36% -38%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.9 s * ∼27% -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	106.5 s * ∼27% -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * ∼26%
Gemiddeld Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * ∼26% -0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * ∼26% -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * ∼23% +10%

WebXPRT 3 - ---
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points ∼34% +15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points ∼29%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points ∼29% -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points ∼29% -1%
Gemiddeld Intel Celeron N5095 (114.3 - 127.2, n=6)	123.4 Points ∼29% -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points ∼28% -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	114.3 Points ∼26% -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points ∼21% -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points ∼20% -32%

Mozilla Kraken 1.1 - Total Score
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * ∼3% -41%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * ∼2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1591 ms * ∼2% +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * ∼2% +2%
Gemiddeld Intel Celeron N5095 (1557 - 1619, n=6)	1578 ms * ∼2% +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * ∼2% +4%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * ∼2% +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * ∼2% +14%

3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points ∼10%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	5499 Points ∼10% -1%
Gemiddeld Intel Celeron N5095 (5400 - 5572, n=5)	5496 Points ∼10% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points ∼10% -1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	5400 Points ∼10% -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points ∼8% -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points ∼7% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points ∼4% -60%

* ... kleiner is beter

Performance Rating
Gemiddelde van klas Mini PC	100 pt ∼100%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	25 pt ∼25%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	23.9 pt ∼24%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	23.7 pt ∼24%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	19.3 pt ∼19%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	10.4 pt ∼10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8 pt ∼8%

AIDA64 / FP32 Ray-Trace
Gemiddelde van klas Mini PC (561 - 15814, n=38, laatste 2 jaar)	8103 KRay/s ∼100% +552%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s ∼15% 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s ∼15% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s ∼15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s ∼12% -20%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s ∼6% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s ∼5% -67%

AIDA64 / FPU Julia
Gemiddelde van klas Mini PC (3604 - 99936, n=38, laatste 2 jaar)	45329 Points ∼100% +508%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7459 Points ∼16% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points ∼16%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points ∼16% -3%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points ∼14% -17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points ∼6% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points ∼5% -68%

AIDA64 / CPU SHA3
Gemiddelde van klas Mini PC (225 - 3570, n=38, laatste 2 jaar)	1950 MB/s ∼100% +279%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼26% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼26%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s ∼26% -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s ∼20% -23%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s ∼10% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s ∼9% -68%

AIDA64 / CPU Queen
Gemiddelde van klas Mini PC (8178 - 104437, n=38, laatste 2 jaar)	63863 Points ∼100% +186%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points ∼35%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points ∼34% -2%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21458 Points ∼34% -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points ∼31% -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points ∼14% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points ∼12% -65%

AIDA64 / FPU SinJulia
Gemiddelde van klas Mini PC (408 - 13164, n=38, laatste 2 jaar)	6439 Points ∼100% +543%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points ∼19% +20%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points ∼16% 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼16% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points ∼6% -60%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points ∼6% -60%

AIDA64 / FPU Mandel
Gemiddelde van klas Mini PC (1958 - 55002, n=38, laatste 2 jaar)	23935 Points ∼100% +504%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3962 Points ∼17% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points ∼17%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points ∼16% -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points ∼14% -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points ∼7% -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points ∼5% -68%

AIDA64 / CPU AES
Gemiddelde van klas Mini PC (3778 - 136723, n=38, laatste 2 jaar)	63564 MB/s ∼100% +228%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s ∼30%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19086 MB/s ∼30% -1%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s ∼30% -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s ∼16% -48%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s ∼12% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s ∼10% -67%

AIDA64 / CPU ZLib
Gemiddelde van klas Mini PC (74.8 - 982, n=38, laatste 2 jaar)	512 MB/s ∼100% +172%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	189.9 MB/s ∼37% +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s ∼37%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s ∼37% 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s ∼26% -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s ∼15% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s ∼12% -68%

AIDA64 / FP64 Ray-Trace
Gemiddelde van klas Mini PC (308 - 8447, n=38, laatste 2 jaar)	4324 KRay/s ∼100% +540%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s ∼16% 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s ∼13% -18%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s ∼6% -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s ∼5% -68%

AIDA64 / CPU PhotoWorxx
Gemiddelde van klas Mini PC (4408 - 44347, n=38, laatste 2 jaar)	23573 MPixel/s ∼100% +138%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s ∼42%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7707 MPixel/s ∼33% -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s ∼31% -25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s ∼29% -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s ∼22% -48%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s ∼11% -75%

De prestaties van de Intel Celeron N5059worden zeer goed beheerd onder belasting, zoals blijkt uit de Cinebench R15 loop test. De resultaten bleven consistent gedurende alle 50 runs van de test. De passief gekoelde Newsmay AC8 kon hem niet bijhouden, ondanks zijn snellere SoC. Over het geheel genomen wist onze review unit de tweede plaats binnen de vergelijkingsgroep te bemachtigen.

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Systeemprestaties

De Intel Celeron N5059 beperkt de mogelijkheden van de Ace Magician T8Pro. Toch doet het toestel het goed in het dagelijks gebruik, op voorwaarde dat je zijn SoC niet overweldigt. De Ace Magician was zelfs in staat om iets beter te presteren dan de Geekom MiniAir 11 Special Editionen de prestatiekloof tussen de T8Pro en de Newsmay AC8 (met een Intel Pentium Silver N6005) is minuscuul.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	97.6 pt ∼98%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	96.7 pt ∼97%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	95.1 pt ∼95%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93.7 pt ∼94%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	91.5 pt ∼92%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	75.6 pt ∼76%

PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points ∼100% +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points ∼95%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points ∼94% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points ∼92% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2317 Points ∼91% -4%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points ∼71% -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points ∼98% -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points ∼97% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5516 Points ∼94% -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points ∼93% -7%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points ∼80% -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points ∼100% +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points ∼95%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points ∼93% -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points ∼92% -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3454 Points ∼90% -6%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points ∼76% -20%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	99.8 pt ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	98 pt ∼98%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93 pt ∼93%

CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points ∼94% -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points ∼81% -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points ∼100% 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points ∼99% -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points ∼100% +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points ∼99%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points ∼95% -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points ∼100%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points ∼99% -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points ∼96% -4%

DPC latentie

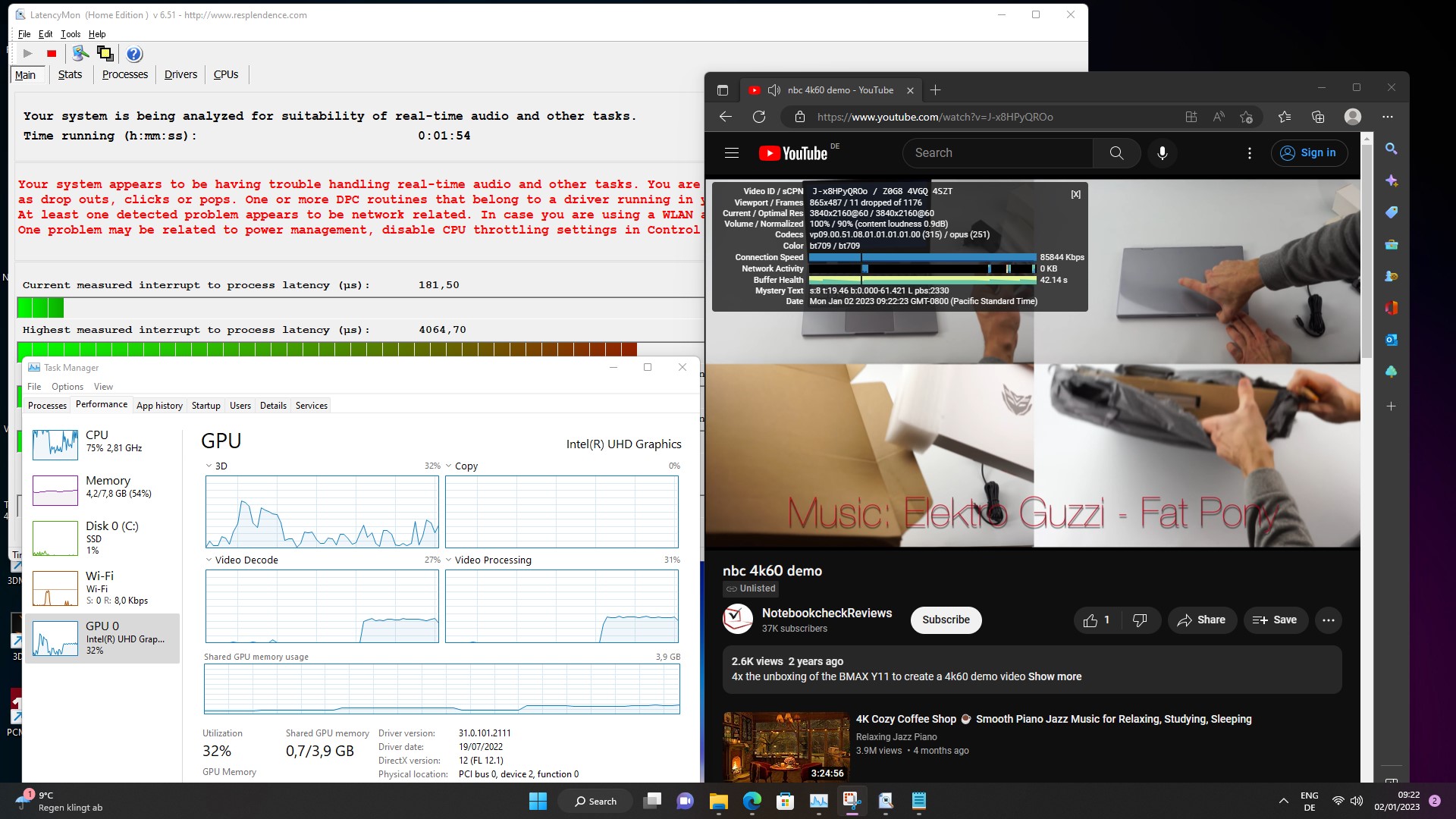

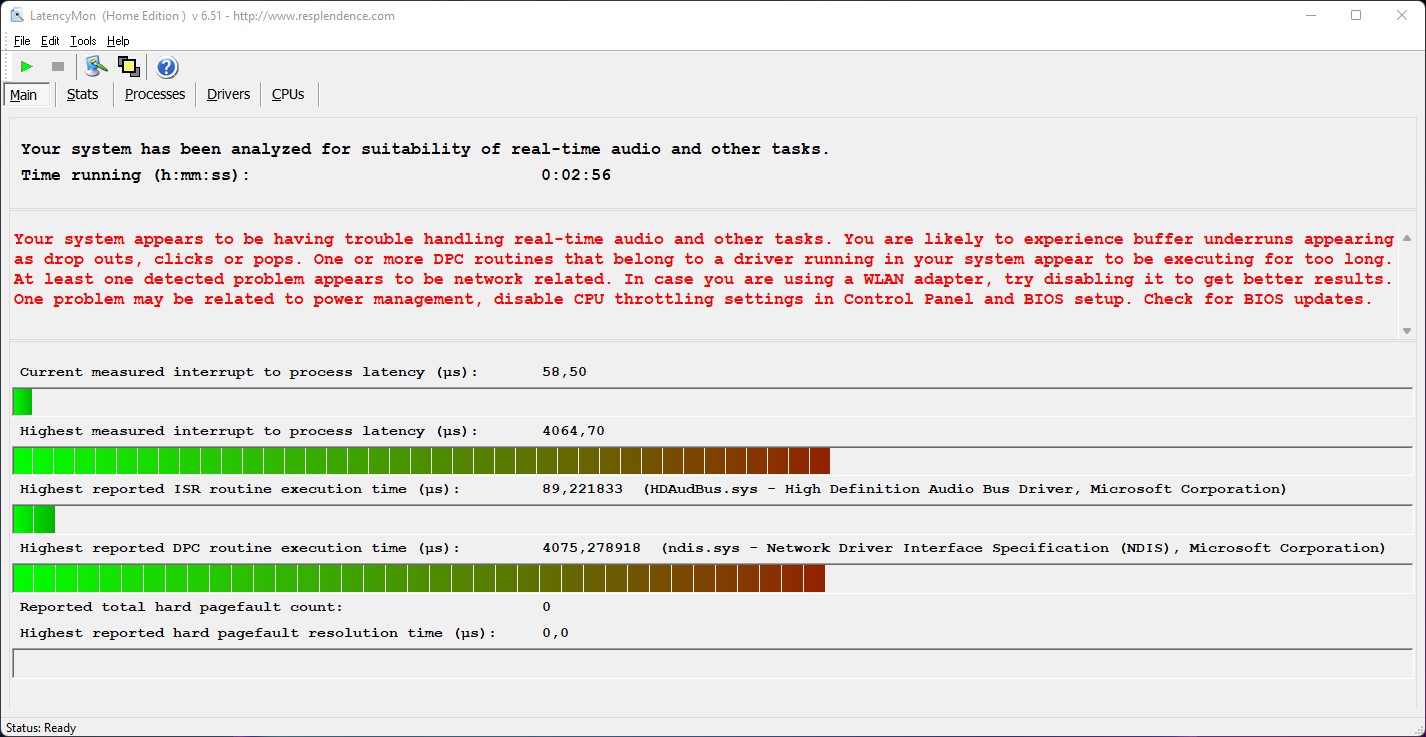

De Ace Magician T8Pro kreeg te maken met latentieproblemen zodra er meerdere tabbladen geopend waren in de Edge-browser. Het afspelen van onze 4K testvideo verhoogde de latentie nog verder. Tijdens het afspelen van de video lag het iGPU-gebruik iets boven de 30 procent.

Maximale latentie met meerdere browsertabbladen open en met 4K-video die wordt afgespeeld

Maximale latentie na het draaien van Prime95 gedurende 10 seconden

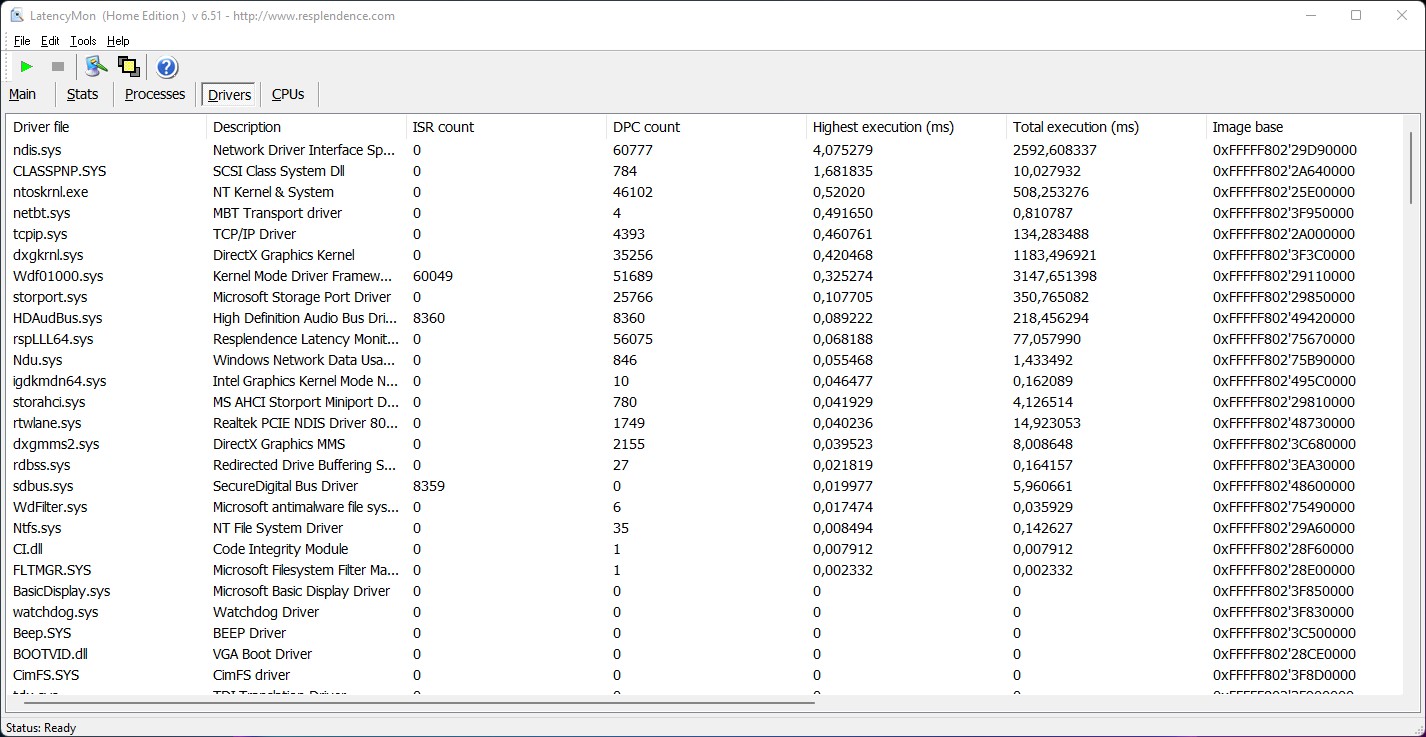

Bestuurders gesorteerd op uitvoeringstijd (van hoog naar laag)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * ∼100%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	3767 μs * ∼92% +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * ∼65% +35%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2582.6 μs * ∼63% +37%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * ∼43% +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * ∼36% +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * ∼17% +83%

* ... kleiner is beter

Massa-opslag

De Ace Magician T8Pro is uitgerust met een SSD van 256 GB. De schijf ondersteunt alleen SATA-snelheden en is dus langzamer dan NVMe SSD's. Desalniettemin is het nog steeds voldoende voor de beoogde doeleinden van de T8Pro. We merkten ook geen prestatiedips onder langdurige belasting. Als de 256 GB opslagruimte in de standaardconfiguratie niet genoeg is voor uw behoeften, kunt u de meegeleverde SSD vervangen door een grotere. U moet er wel voor zorgen dat de nieuwe SSD niet langer is dan 42 mm (M.2 2242).

U kunt onze opslagschijf tabel raadplegen voor meer vergelijkingen en benchmark resultaten.

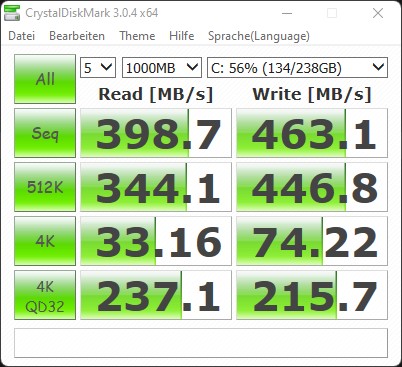

CrystalDiskMark 3.0

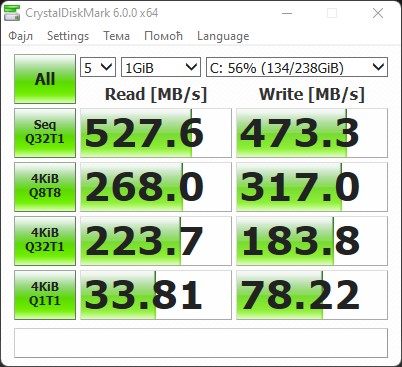

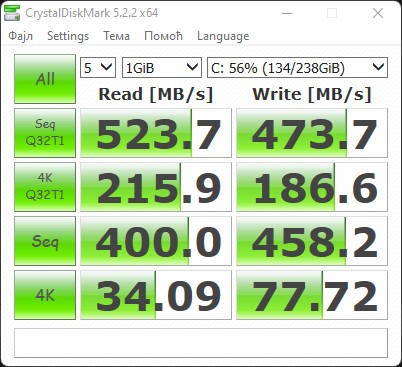

CrystalDiskMark 5.2 / 6

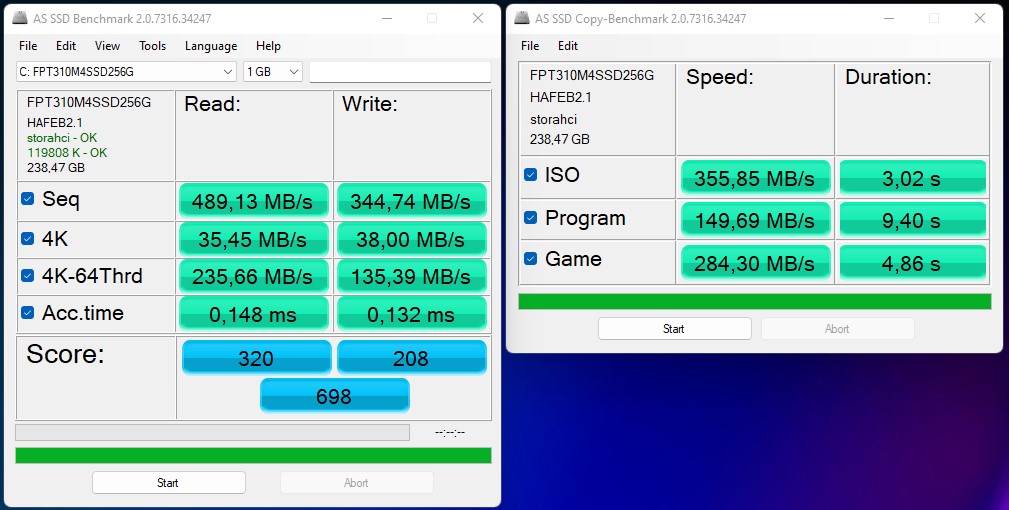

AS SSD

DiskSpd

FPT310M4SSD256G

Sequential Read: 398.7 MB/s

Sequential Write: 463.1 MB/s

512K Read: 344.1 MB/s

512K Write: 446.8 MB/s

4K Read: 33.16 MB/s

4K Write: 74.22 MB/s

4K QD32 Read: 237.1 MB/s

4K QD32 Write: 215.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Gemiddelde van klas Mini PC	97.5 pt ∼98%
AC6-M Mini-PC	34.3 pt ∼34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	32.6 pt ∼33%
Gemiddeld FPT310M4SSD256G	32.6 pt ∼33%
Newsmay AC8 N6005 Lexar 128GB SSD	32.1 pt ∼32%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	25.4 pt ∼25%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22.7 pt ∼23%
Geekom MiniAir 11 NF830 256GB M.2 2280	19.2 pt ∼19%
Zotac ZBOX PI336 pico SanDisk DF4128	7.3 pt ∼7%

DiskSpd
seq read
Gemiddelde van klas Mini PC (233 - 4168, n=37, laatste 2 jaar)	1836 MB/s ∼100% +289%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s ∼28% +8%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s ∼26% +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s ∼26%
Gemiddeld FPT310M4SSD256G	472 MB/s ∼26% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s ∼25% -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s ∼24% -8%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s ∼14% -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	229 (187.74^min - 229.26^max) MB/s ∼12% -51%
seq write
Gemiddelde van klas Mini PC (222 - 3938, n=37, laatste 2 jaar)	1826 MB/s ∼100% +294%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s ∼27% +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s ∼25%
Gemiddeld FPT310M4SSD256G	463 MB/s ∼25% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s ∼24% -6%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s ∼23% -8%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s ∼22% -12%
Geekom MiniAir 11 NF830 256GB M.2 2280	256 (237.45^min - 255.73^max) MB/s ∼14% -45%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s ∼6% -77%
seq q8 t1 read
Gemiddelde van klas Mini PC (236 - 7061, n=37, laatste 2 jaar)	2748 MB/s ∼100% +400%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s ∼20% +2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s ∼20%
Gemiddeld FPT310M4SSD256G	550 MB/s ∼20% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s ∼20% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s ∼18% -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s ∼16% -19%
Geekom MiniAir 11 NF830 256GB M.2 2280	260 (234.3^min - 260.36^max) MB/s ∼9% -53%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s ∼9% -54%
seq q8 t1 write
Gemiddelde van klas Mini PC (228 - 3938, n=37, laatste 2 jaar)	1919 MB/s ∼100% +312%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s ∼27% +11%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s ∼26% +7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s ∼25% +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s ∼24%
Gemiddeld FPT310M4SSD256G	466 MB/s ∼24% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s ∼18% -26%
Geekom MiniAir 11 NF830 256GB M.2 2280	268 (261.2^min - 268.44^max) MB/s ∼14% -42%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s ∼5% -78%
4k q1 t1 read
Gemiddelde van klas Mini PC (5.67 - 86.6, n=37, laatste 2 jaar)	49.1 MB/s ∼100% +45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s ∼69%
Gemiddeld FPT310M4SSD256G	33.9 MB/s ∼69% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s ∼54% -22%
Geekom MiniAir 11 NF830 256GB M.2 2280	16.1 (12.09^min - 16.13^max) MB/s ∼33% -53%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s ∼33% -53%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s ∼28% -59%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s ∼28% -60%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s ∼26% -62%
4k q1 t1 write
Gemiddelde van klas Mini PC (22 - 425, n=37, laatste 2 jaar)	190.4 MB/s ∼100% +157%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s ∼52% +35%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s ∼39%
Gemiddeld FPT310M4SSD256G	74.1 MB/s ∼39% 0%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s ∼33% -16%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s ∼25% -37%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s ∼12% -70%
Geekom MiniAir 11 NF830 256GB M.2 2280	20.9 (15.11^min - 20.94^max) MB/s ∼11% -72%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s ∼7% -81%
4k q32 t16 read
Gemiddelde van klas Mini PC (26.1 - 1948, n=37, laatste 2 jaar)	925 MB/s ∼100% +248%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s ∼33% +14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s ∼29%
Gemiddeld FPT310M4SSD256G	266 MB/s ∼29% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s ∼20% -30%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s ∼18% -36%
Geekom MiniAir 11 NF830 256GB M.2 2280	165.1 (75.31^min - 165.14^max) MB/s ∼18% -38%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s ∼18% -39%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s ∼3% -90%
4k q32 t16 write
Gemiddelde van klas Mini PC (30.2 - 3830, n=37, laatste 2 jaar)	1164 MB/s ∼100% +265%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s ∼30% +10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s ∼27%
Gemiddeld FPT310M4SSD256G	319 MB/s ∼27% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s ∼25% -10%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s ∼18% -34%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s ∼14% -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	113 (45.88^min - 112.97^max) MB/s ∼10% -65%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s ∼1% -96%

AS SSD
Score Total
Gemiddelde van klas Mini PC (151.3 - 9030, n=38, laatste 2 jaar)	3430 Points ∼100% +391%
AC6-M Mini-PC	1091 Points ∼32% +56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points ∼20%
Gemiddeld FPT310M4SSD256G	698 Points ∼20% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points ∼18% -13%
Geekom MiniAir 11 NF830 256GB M.2 2280	582 Points ∼17% -17%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points ∼17% -17%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points ∼4% -78%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points ∼4% -81%
Score Read
Gemiddelde van klas Mini PC (61 - 3635, n=38, laatste 2 jaar)	1266 Points ∼100% +296%
AC6-M Mini-PC	473 Points ∼37% +48%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points ∼25%
Gemiddeld FPT310M4SSD256G	320 Points ∼25% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points ∼17% -32%
Geekom MiniAir 11 NF830 256GB M.2 2280	201 Points ∼16% -37%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points ∼13% -48%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points ∼11% -58%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points ∼5% -80%
Score Write
Gemiddelde van klas Mini PC (88 - 4185, n=38, laatste 2 jaar)	1601 Points ∼100% +670%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points ∼25% +90%
AC6-M Mini-PC	374 Points ∼23% +80%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points ∼20% +56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points ∼19% +50%
Geekom MiniAir 11 NF830 256GB M.2 2280	278 Points ∼17% +34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points ∼13%
Gemiddeld FPT310M4SSD256G	208 Points ∼13% 0%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points ∼2% -81%
Seq Read
Gemiddelde van klas Mini PC (291 - 5799, n=38, laatste 2 jaar)	2610 MB/s ∼100% +434%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s ∼20% +5%
AC6-M Mini-PC	492 MB/s ∼19% +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s ∼19%
Gemiddeld FPT310M4SSD256G	489 MB/s ∼19% 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s ∼17% -7%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s ∼17% -11%
Geekom MiniAir 11 NF830 256GB M.2 2280	421.78 MB/s ∼16% -14%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s ∼10% -46%
Seq Write
Gemiddelde van klas Mini PC (240 - 3927, n=38, laatste 2 jaar)	1712 MB/s ∼100% +398%
AC6-M Mini-PC	450 MB/s ∼26% +31%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s ∼26% +27%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s ∼24% +20%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s ∼22% +12%
Geekom MiniAir 11 NF830 256GB M.2 2280	365.24 MB/s ∼21% +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s ∼20%
Gemiddeld FPT310M4SSD256G	344 MB/s ∼20% 0%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s ∼7% -66%
4K Read
Gemiddelde van klas Mini PC (6.08 - 103.7, n=38, laatste 2 jaar)	53.2 MB/s ∼100% +50%
Gemiddeld FPT310M4SSD256G	35.5 MB/s ∼67% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s ∼67%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s ∼44% -34%
AC6-M Mini-PC	19.43 MB/s ∼37% -45%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s ∼30% -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s ∼26% -61%
Geekom MiniAir 11 NF830 256GB M.2 2280	13.57 MB/s ∼26% -62%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s ∼25% -63%
4K Write
Gemiddelde van klas Mini PC (30.9 - 366, n=38, laatste 2 jaar)	170.2 MB/s ∼100% +348%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s ∼49% +118%
AC6-M Mini-PC	51.4 MB/s ∼30% +35%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s ∼29% +31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s ∼22%
Gemiddeld FPT310M4SSD256G	38 MB/s ∼22% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s ∼22% -4%
Geekom MiniAir 11 NF830 256GB M.2 2280	21.25 MB/s ∼12% -44%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s ∼8% -65%
4K-64 Read
Gemiddelde van klas Mini PC (23.4 - 3035, n=38, laatste 2 jaar)	952 MB/s ∼100% +304%
AC6-M Mini-PC	404.1 MB/s ∼42% +71%
Gemiddeld FPT310M4SSD256G	236 MB/s ∼25% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s ∼25%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s ∼17% -33%
Geekom MiniAir 11 NF830 256GB M.2 2280	144.84 MB/s ∼15% -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s ∼11% -55%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s ∼6% -75%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s ∼3% -89%
4K-64 Write
Gemiddelde van klas Mini PC (32.8 - 3598, n=38, laatste 2 jaar)	1259 MB/s ∼100% +830%
AC6-M Mini-PC	277.8 MB/s ∼22% +105%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s ∼22% +101%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s ∼19% +75%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s ∼18% +70%
Geekom MiniAir 11 NF830 256GB M.2 2280	219.83 MB/s ∼17% +62%
Gemiddeld FPT310M4SSD256G	135.4 MB/s ∼11% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s ∼11%
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s ∼1% -90%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * ∼100% -110%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.284 ms * ∼91% -92%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * ∼66% -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * ∼62% -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * ∼48%
Gemiddeld FPT310M4SSD256G	0.148 ms * ∼48% -0%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * ∼45% +6%
Gemiddelde van klas Mini PC (0.022 - 0.489, n=38, laatste 2 jaar)	0.1058 ms * ∼34% +29%
AC6-M Mini-PC	0.088 ms * ∼28% +41%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * ∼100% -614%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.218 ms * ∼23% -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * ∼22% -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * ∼19% -36%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * ∼15% -10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * ∼14%
Gemiddeld FPT310M4SSD256G	0.132 ms * ∼14% -0%
Gemiddelde van klas Mini PC (0.017 - 0.765, n=38, laatste 2 jaar)	0.1298 ms * ∼14% +2%
AC6-M Mini-PC	0.071 ms * ∼8% +46%

* ... kleiner is beter

Ace Magician T8Pro review: Budget mini PC voor kantoorgebruik

Gedetailleerde informatie over de Ace Magician T8Pro

Zaak

Vergelijking grootte

Specificaties

Onderhoud

Prestaties

Testvoorwaarden

Processor

Systeemprestaties

DPC latentie

Massa-opslag

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8
