Review van Newsmay Neosmay S2-B560TPM mini PC: kleine kantoor PC met efficiënte Intel Core i5-11400T

Verspilde prestatie. Newsmay verkoopt momenteel een mini-pc met de naam S2-B560TPM. De zeer efficiënte Rocket Lake-processor vormt een solide basis voor een werk-pc die geschikt is voor zowel thuis- als kantoorgebruik. Hoewel de compacte computer moeiteloos alledaagse taken aankan, had er meer mee gedaan kunnen worden. Lees verder om meer te weten te komen.

Newsmay Technology is gespecialiseerd in het bouwen van compacte mini PC's. We hebben al de gelegenheid gehad om twee van hun kleine PC's te bekijken: de AC8 en AC6. Met de onlangs uitgebrachte Neosmay S2-B560TPM slaat het bedrijf een iets andere weg in en richt het zijn pijlen meer op industriële toepassingen. Hoewel de andere modellen ook meer in de B2B verkoop opduiken, betekent dit niet dat de consumentenmarkt is uitgesloten. Visueel doet de Neosmay S2-B560TPM eerder denken aan een typische industriële PC. Bekende fabrikanten bieden ook zeer vergelijkbare producten aan, zoals het Lenovo ThinkCentre en de Dell OptiPlex. Met zijn geweldige specificaties heeft de Neosmay S2-B560TPM zeker wat nodig is om een graantje mee te pikken in dit segment.

Onze review unit wordt geleverd met een Intel Core i5-11400T, een stick van 16 GB RAM en een M.2 schijf met een capaciteit van 500 GB. Met een bijna vierkante voetafdruk en zijden van elk ongeveer 18 cm (7,1"), is het systeem ook vrij compact en biedt het alle externe poorten die je nodig hebt in het dagelijks gebruik.

De barebone versie van de Neosmay S2-B560TPM is verkrijgbaar voor ongeveer US$135, terwijl onze review unit US$569 kost. Wij gebruikten het voorgeïnstalleerde Windows 11 Professional als besturingssysteem tijdens onze review.

Neosmay S2-B560TPM
Processor
Intel Core i5-11400T 6 x 1.3 - 3.7 GHz, 84 W PL2 / Short Burst, 35 W PL1 / Sustained, Rocket Lake
Grafische kaart
Intel UHD Graphics 730 (Rocket Lake), Core: 1200 MHz, Geheugen: 2666 MHz, 30.0.101.1404 DCH
Geheugen
16 GB
, DDR4-2666, 1 of 2 slots used, max 64 GB
Moederbord
Intel B560
Opslag
Lexar NM610 500GB, 500 GB
, 450 GB beschikbaar
Geluidskaart
Realtek High Definition Audio
Verbindingen
2 USB 2.0, 2 USB 3.1 Gen2, 3 USB 3.2 Gen 2x2 20Gbps, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm audio jack
Netwerkmogelijkheden
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Afmetingen
hoogte x breedte x diepte (in mm): 40 x 185 x 179
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten
Power adapter
Gewicht
1.327 kg, Voeding: 362 g
Prijs
569 US-Dollar
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

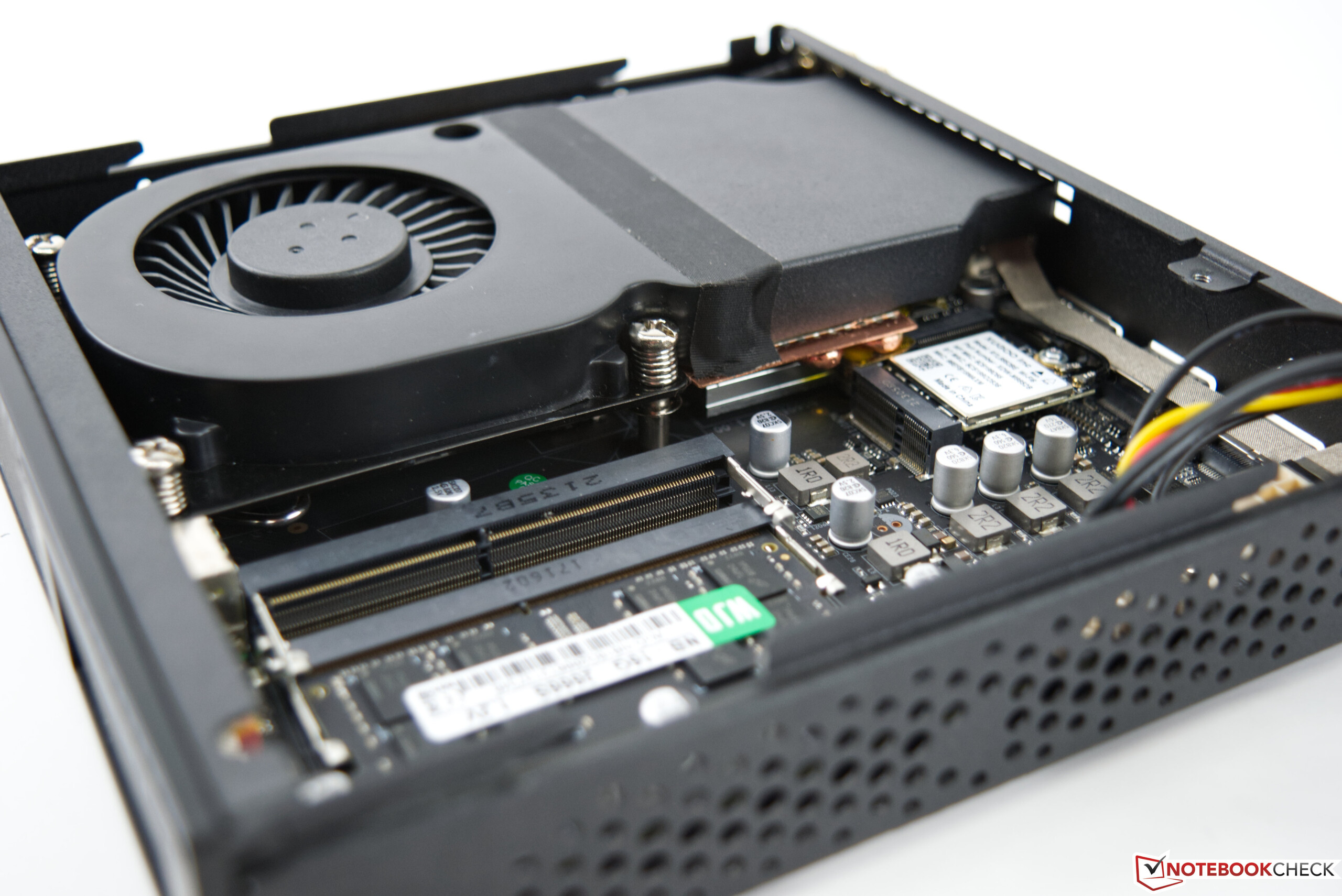

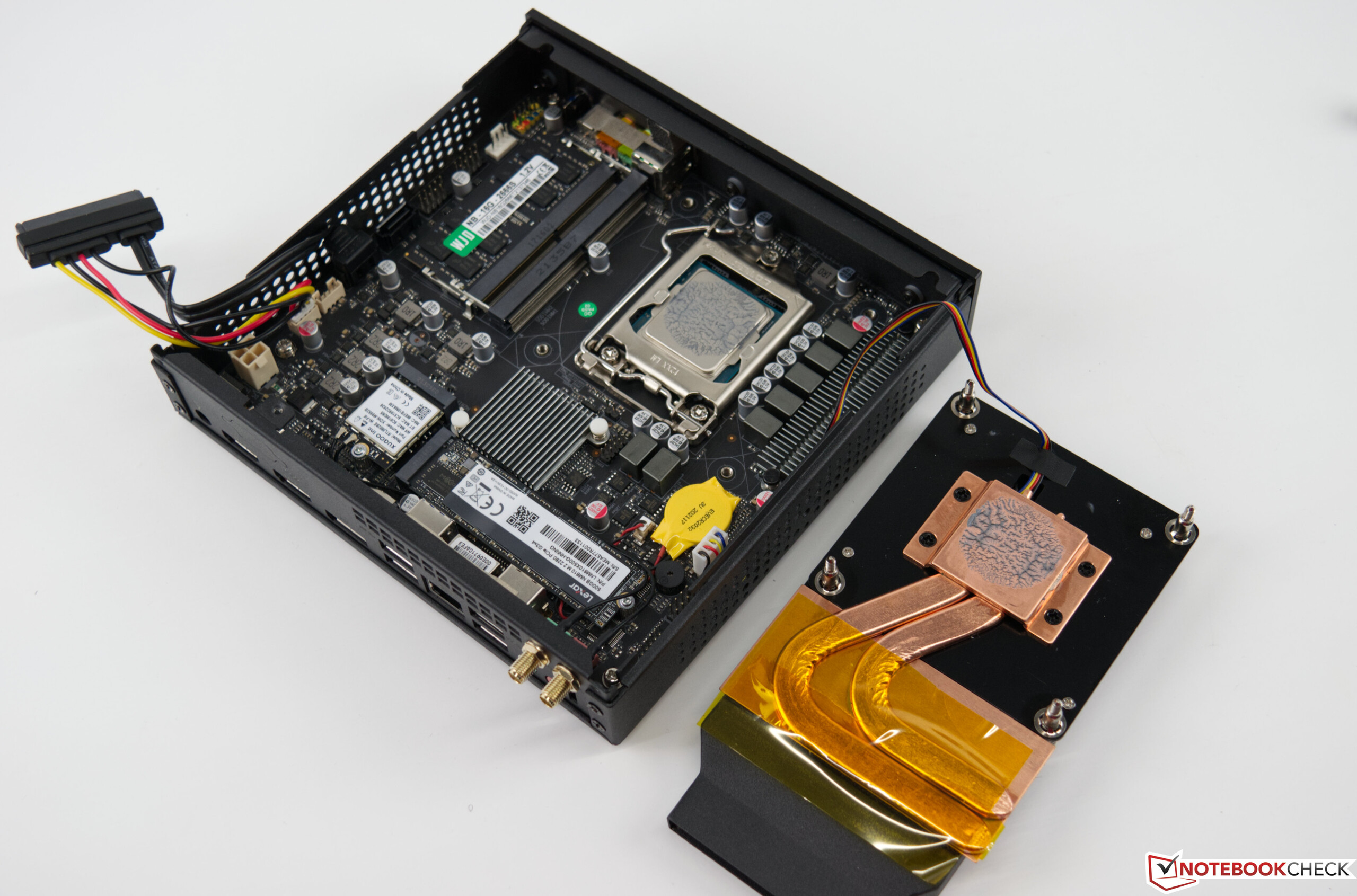

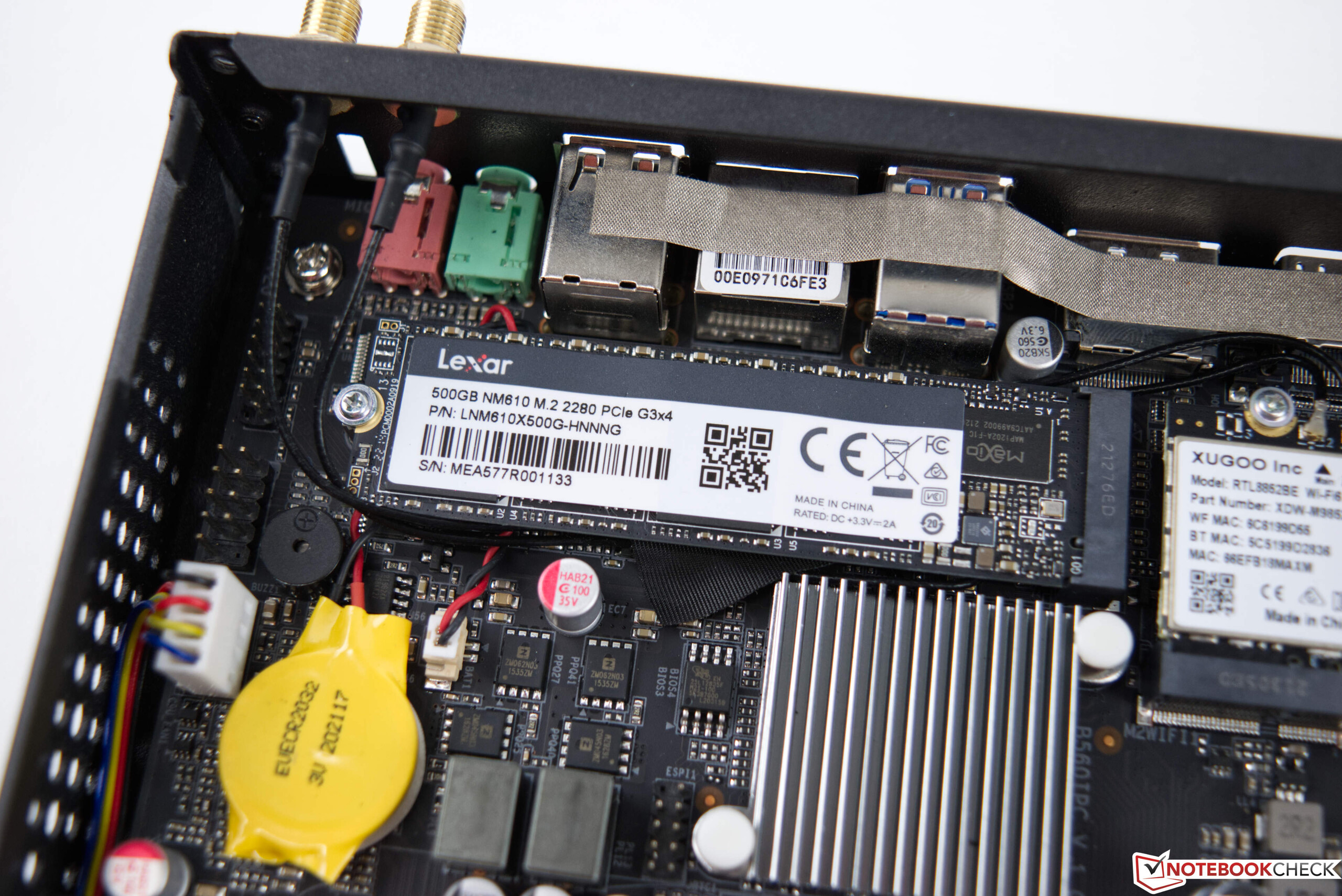

Gedetailleerde blik op de Newsmay Neosmay S2-B560TPM

Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM
Newsmay Neosmay S2-B560TPM

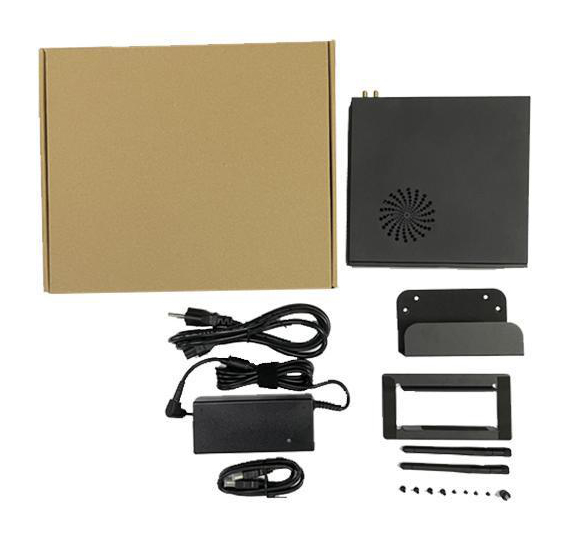

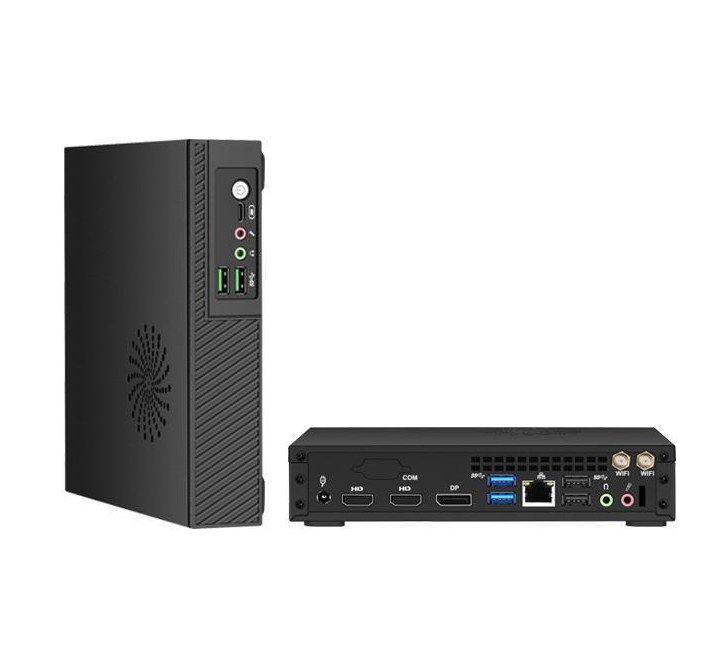

Newsmay Neosmay S2-B560TPM (bron: Newsmay)
Newsmay Neosmay S2-B560TPM (bron: Newsmay)
Newsmay Neosmay S2-B560TPM (bron: Newsmay)

Zaak

Er is niet echt iets bijzonders aan het uiterlijk van de Newsmay Neosmay S2-B560TPM, wat te verwachten is gezien de beoogde toepassingen. De behuizing is stevig en robuust, en onze review unit is goed gebouwd. Het deksel kan zonder problemen worden geopend, waardoor het gemakkelijk is om het systeem te upgraden of uit te breiden. De SSD is geplaatst op een ietwat onhandige locatie onder de CPU koeler. In de doos vind je een verticale standaard, evenals een VESA mount om het systeem aan een monitor te bevestigen

De Newsmay Neosmay S2-B560TPM weegt ongeveer 1.300 g (2,9 lb), en de externe voedingsadapter ongeveer 360 g (0,8 lb). We moeten echter wel vermelden dat onze review unit met de verkeerde voedingsadapter werd geleverd. De juiste kan iets zwaarder zijn omdat de adapter die wij ontvingen slechts 4,74 A bij 19 V kan leveren, terwijl het systeem een adapter nodig heeft die 6,15 A bij 19 V kan leveren om goed te kunnen werken.

Kenmerken

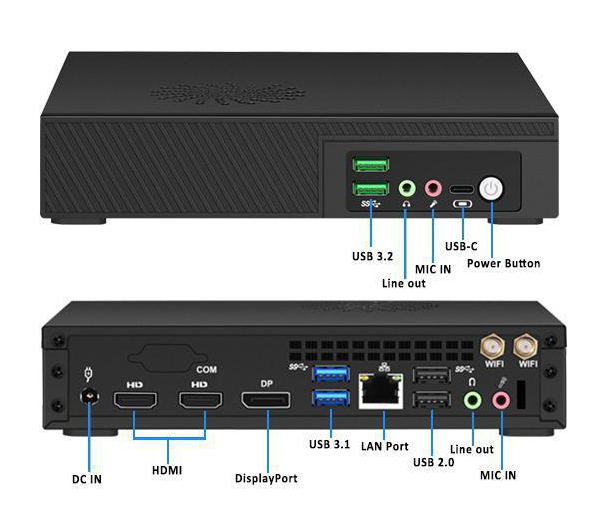

Newsmay Neosmay S2-B560TPM - poorten (bron: Newsmay)
Newsmay Neosmay S2-B560TPM - poorten (bron: Newsmay)

De Newsmay Neosmay S2-B560TPM biedt een heleboel poorten aan de achterkant. Het totaal van zeven USB poorten zou genoeg moeten zijn om de meeste mensen tevreden te stellen. Het systeem ondersteunt echter geen Thunderbolt, wat het zeker nog meer potentieel zou hebben gegeven. Naast een Wi-Fi-module en een Ethernet-poort, heeft het apparaat ook twee HDMI-uitgangen en een DisplayPort, die kunnen worden gebruikt om maximaal drie monitoren tegelijk aan te sturen. Er is helaas geen ingebouwde kaartlezer.

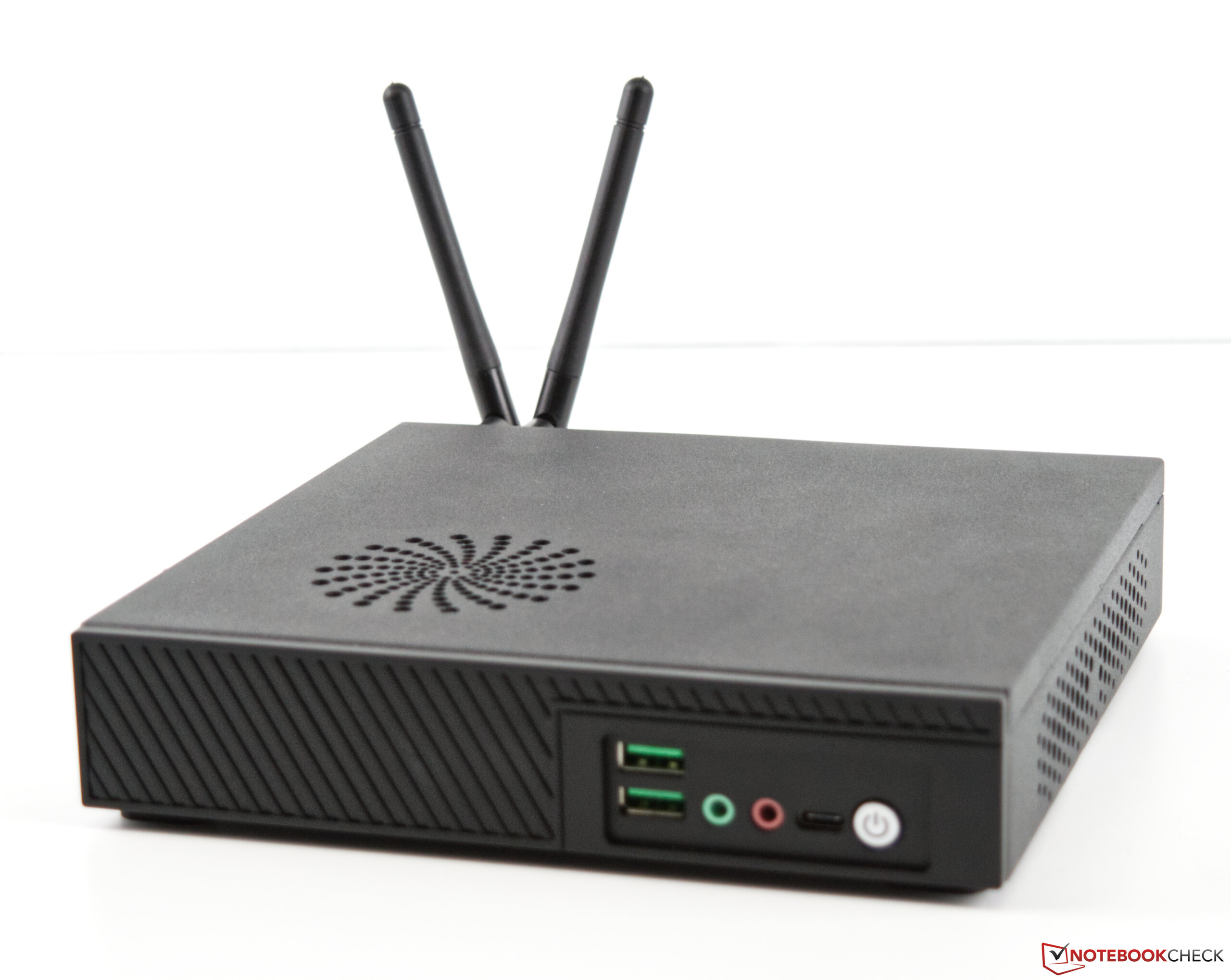

Newsmay Neosmay S2-B560TPM (vooraan)
Newsmay Neosmay S2-B560TPM (vooraan)

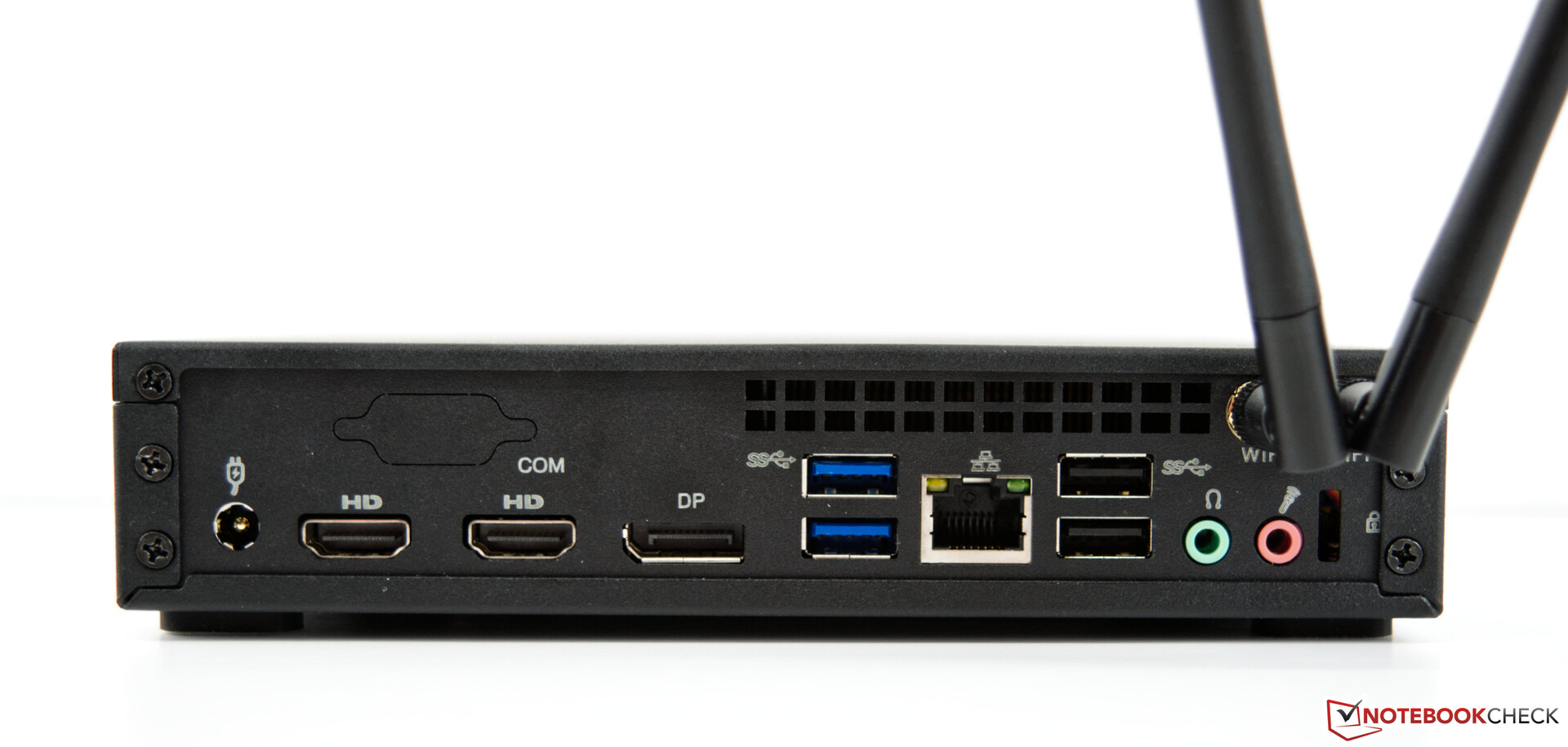

Newsmay Neosmay S2-B560TPM (achterkant)
Newsmay Neosmay S2-B560TPM (achterkant)

Connectiviteit

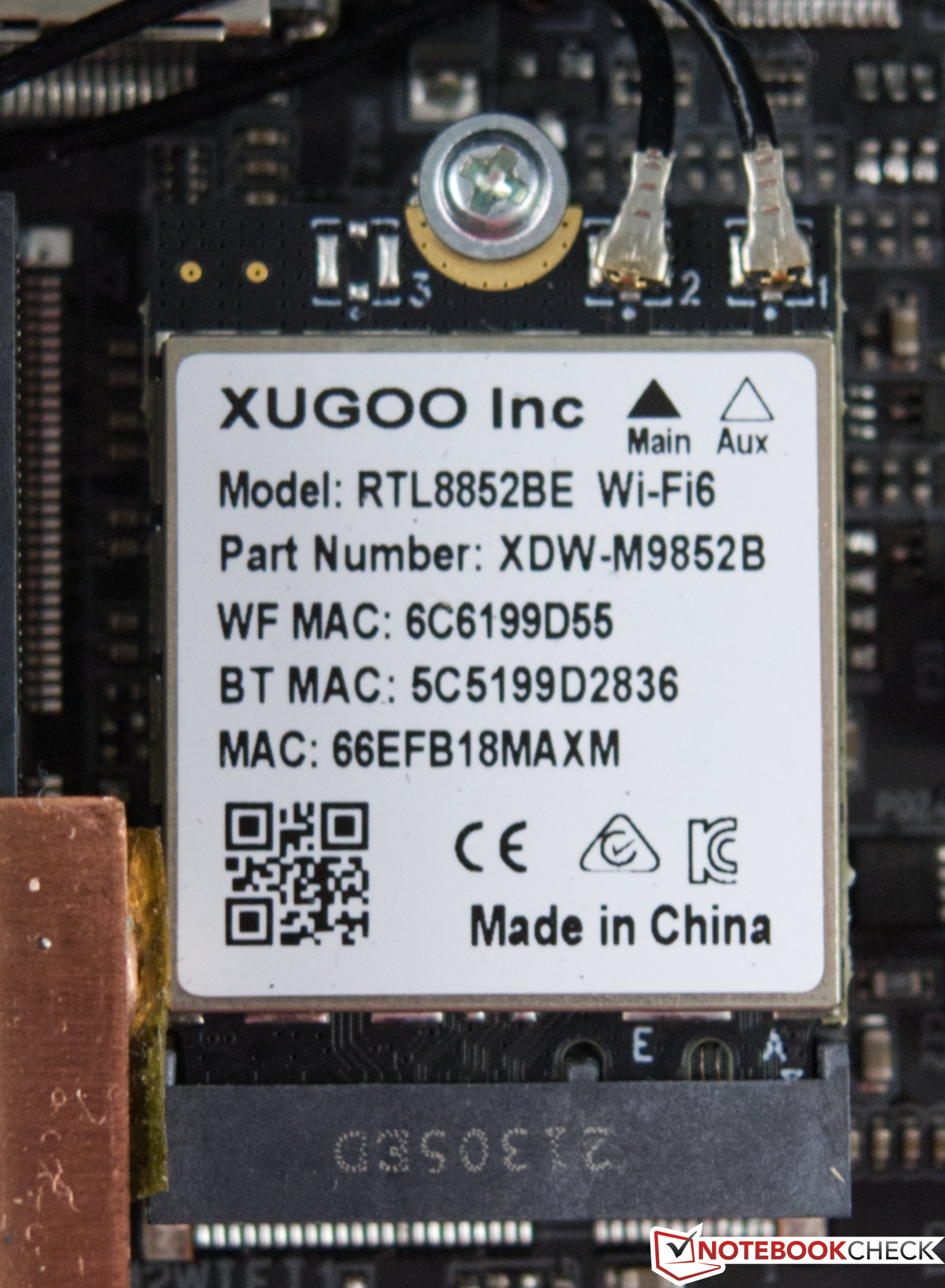

De Wi-Fi module in de Newsmay Neosmay S2-B560TPM is gemaakt door Realtek en ondersteunt de 5 GHz band. De overdrachts- en ontvangstsnelheden liggen iets onder de 1 Gbit/s en waren tijdens onze test altijd stabiel. Degenen die de voorkeur geven aan een bedrade verbinding kunnen ook gebruik maken van de RJ45 poort op het apparaat, die in staat is tot data-overdrachtsnelheden van maximaal 1 Gbit/s.

Networking
iperf3 receive AXE11000 6GHz
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1827 (1760min - 1865max) MBit/s
Prime Computer Primestation Pulsar
Intel Wi-Fi 6 AX200
1455 (748min - 1523max) MBit/s
Gemiddelde van klas Desktop
  (430 - 1827, n=9, laatste 2 jaar)
1265 MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s
iperf3 transmit AXE11000 6GHz
Prime Computer Primestation Pulsar
Intel Wi-Fi 6 AX200
1696 (1619min - 1764max) MBit/s
Gemiddelde van klas Desktop
  (572 - 1745, n=10, laatste 2 jaar)
1409 MBit/s
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1385 (1351min - 1401max) MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
964 (933min - 986max) MBit/s
Gemiddeld Realtek RTL8852BE
  (503 - 984, n=35)
843 MBit/s -13%
Gemiddelde van klas Desktop
  (322 - 1478, n=10, laatste 2 jaar)
803 MBit/s -17%
Minisforum EliteMini TH50
MediaTek MT7921
776 MBit/s -20%
iperf3 transmit AXE11000
Minisforum EliteMini TH50
MediaTek MT7921
866 MBit/s +1%
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
858 (810min - 882max) MBit/s
Gemiddeld Realtek RTL8852BE
  (536 - 925, n=34)
790 MBit/s -8%
Gemiddelde van klas Desktop
  (188.4 - 1618, n=9, laatste 2 jaar)
734 MBit/s -14%
050100150200250300350400450500550600650700750800850900950Tooltip
Newsmay Neosmay S2-B560TPM; iperf3 receive AXE11000; iperf 3.1.3: Ø964 (933-986)
Newsmay Neosmay S2-B560TPM; iperf3 transmit AXE11000; iperf 3.1.3: Ø857 (810-882)

Prestaties

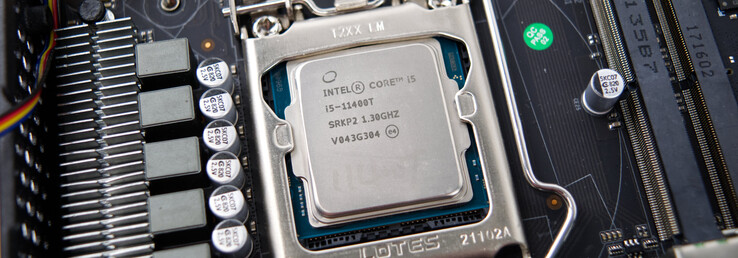

Onze review unit is uitgerust met een Intel Core i5-11400T- een solide processor met zes kernen en twaalf threads. Dit betekent dat het apparaat genoeg kracht heeft om het dagelijkse kantoorwerk aan te kunnen. Als u iemand bent die veel browsertabbladen tegelijk open houdt, dan kunt u het beste gaan voor het model met 16 GB RAM om er zeker van te zijn dat de computer voldoende bronnen heeft.

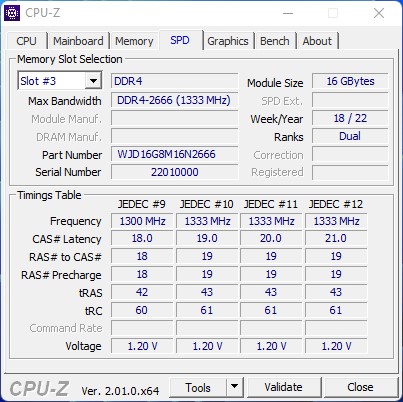

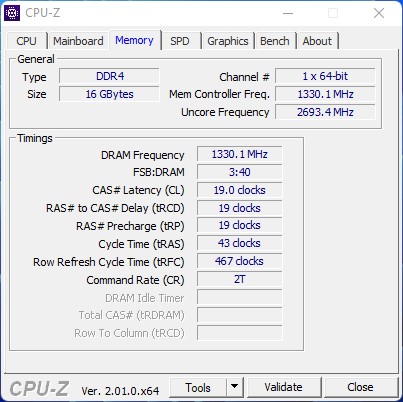

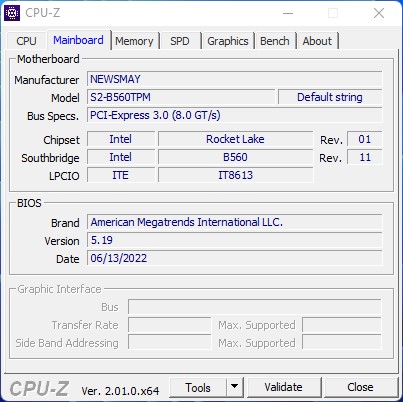

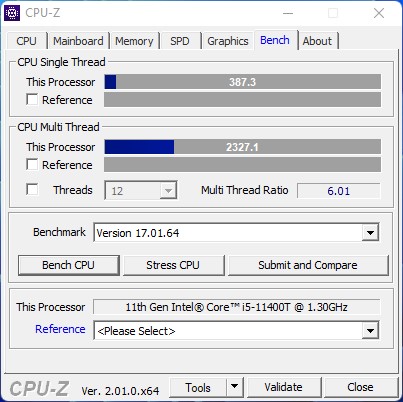

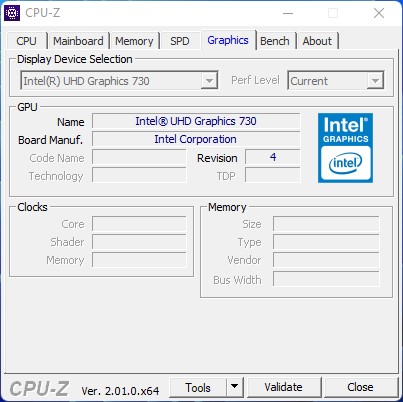

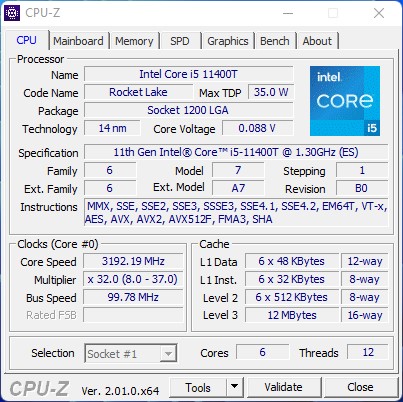

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

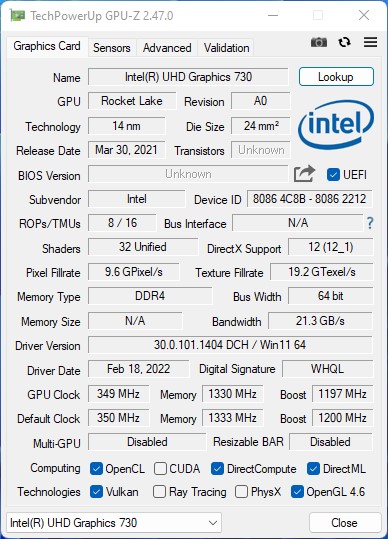

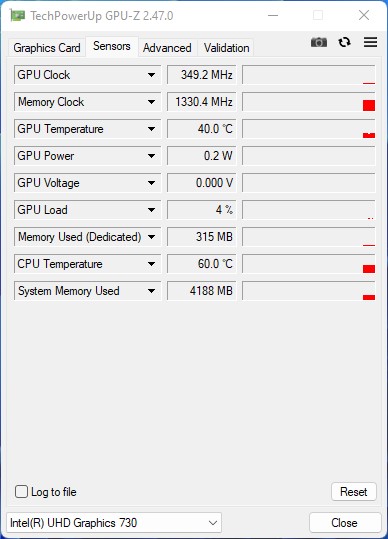

GPU-Z
GPU-Z

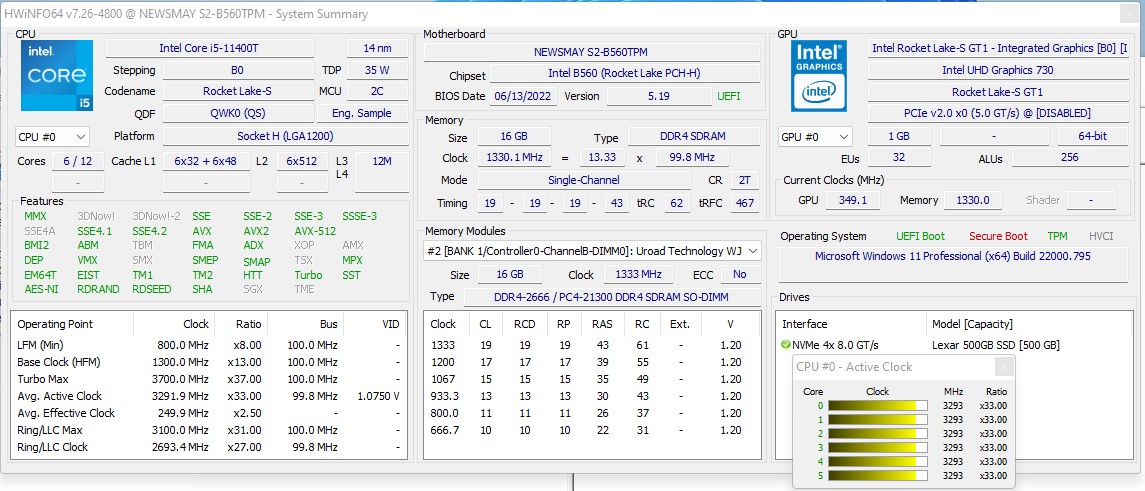

HWiNFO

Processor

De Core i5-11400Tmaakt deel uit van Intels Rocket Lake-S serie. In de Newsmay Neosmay S2-B560TP, zit hij in een conventionele LGA 1200 socket. Een "T" processor in deze serie werkt op een TDP van 35 watt (gelijk aan zijn PL1). Als de CPU niet wordt afgekoeld, kan hij tot 84 watt vermogen trekken, wat overeenkomt met zijn PL2. Bij desktopcomputers hebben we gezien dat de PL2 vaak gelijk is aan de PL1. Newsmay dwingt de CPU echter via het BIOS om de TDP-limieten in acht te nemen, vermoedelijk om oververhitting te voorkomen. Desondanks denken we dat het systeem het zich kan veroorloven om de PL1 iets te verhogen, zelfs onder belasting. Deze waarden kunnen worden veranderd met XTU om aanzienlijk betere resultaten te verkrijgen.

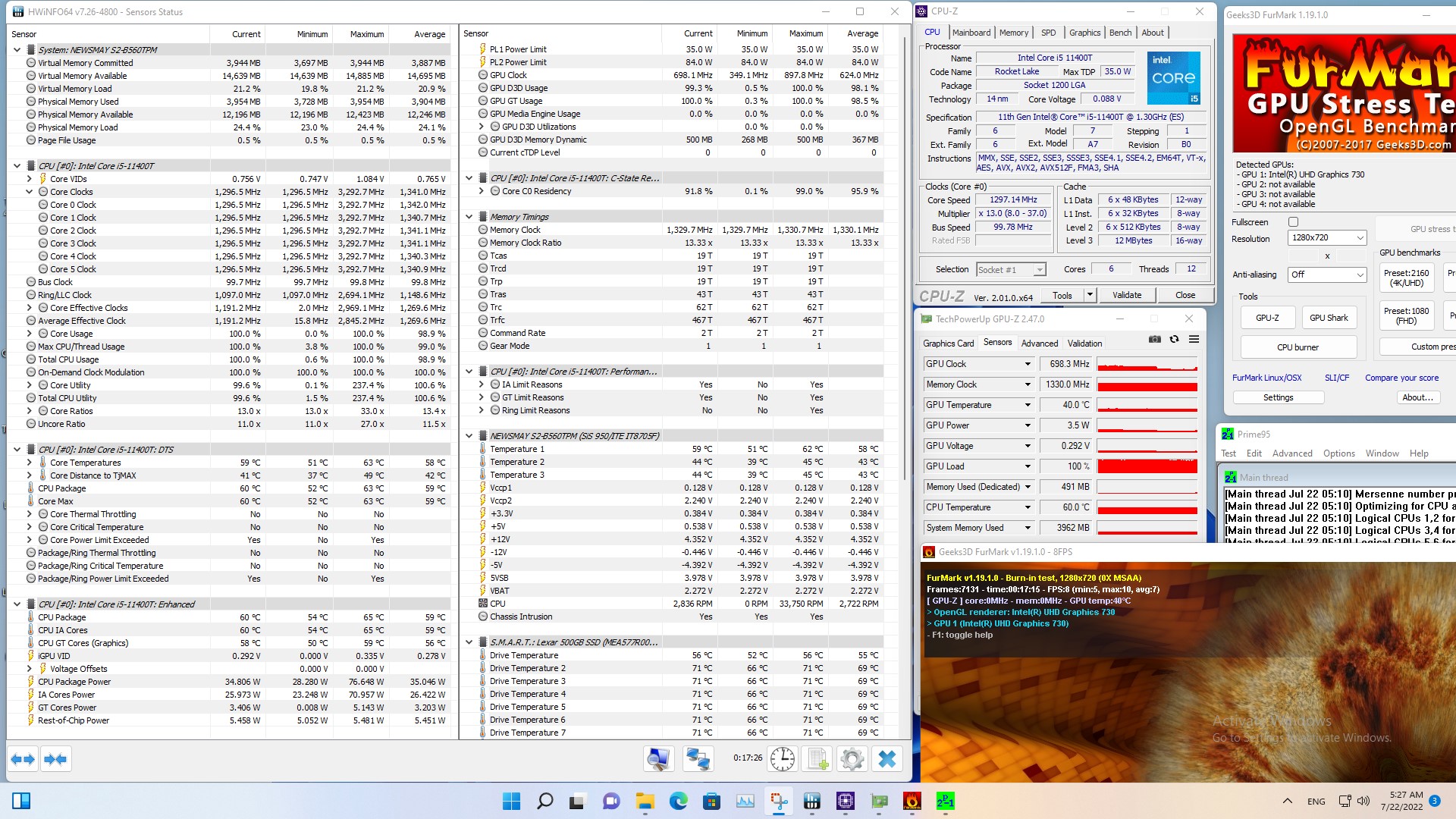

De hier getoonde waarden werden bepaald met standaard instellingen. We waren dus niet verbaasd dat de Intel Core i5-11400T slechts ergens in het midden scoort en in sommige opzichten duidelijk wordt verslagen door de Intel Core i5-11320. De Cinebench R15 nT benchmark illustreert hoeveel onbenut potentieel er nog in de Intel Core i5-11400T schuilt, zoals u kunt zien in de schermafbeelding die we hebben bijgevoegd. De Intel Core i5-11400T heeft een basisfrequentie van 1,3 GHz en kan in Turbo Boost oplopen tot 3,7 GHz.

Voor meer vergelijkingen en benchmarks, kun je terecht in onze CPU vergelijkingstabel.

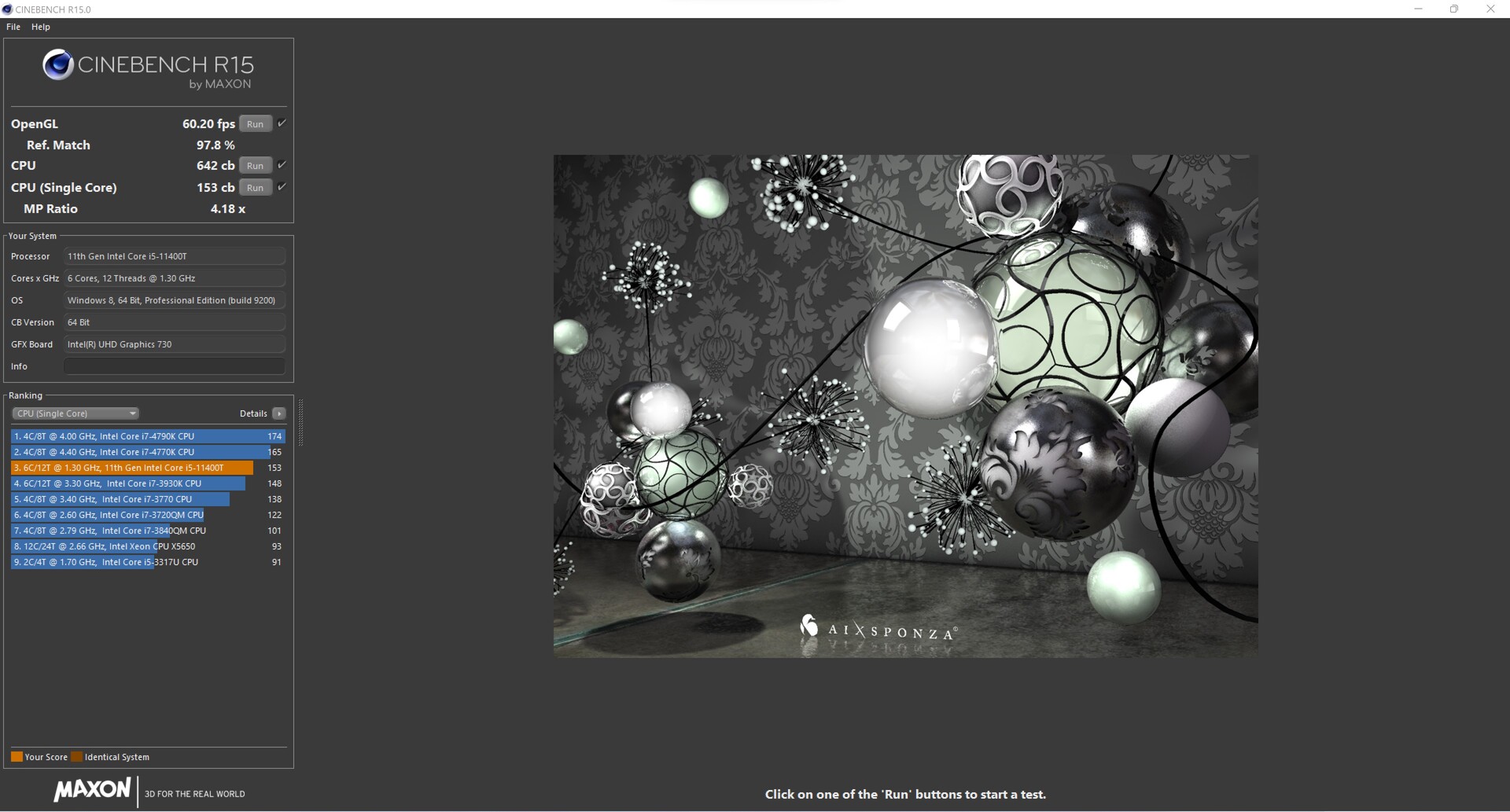

Newsmay Neosmay S2-B560TPM vs. Cinebench R15 nT (PL1: 35W, PL2: 84W)
Newsmay Neosmay S2-B560TPM vs. Cinebench R15 nT (PL1: 35W, PL2: 84W)

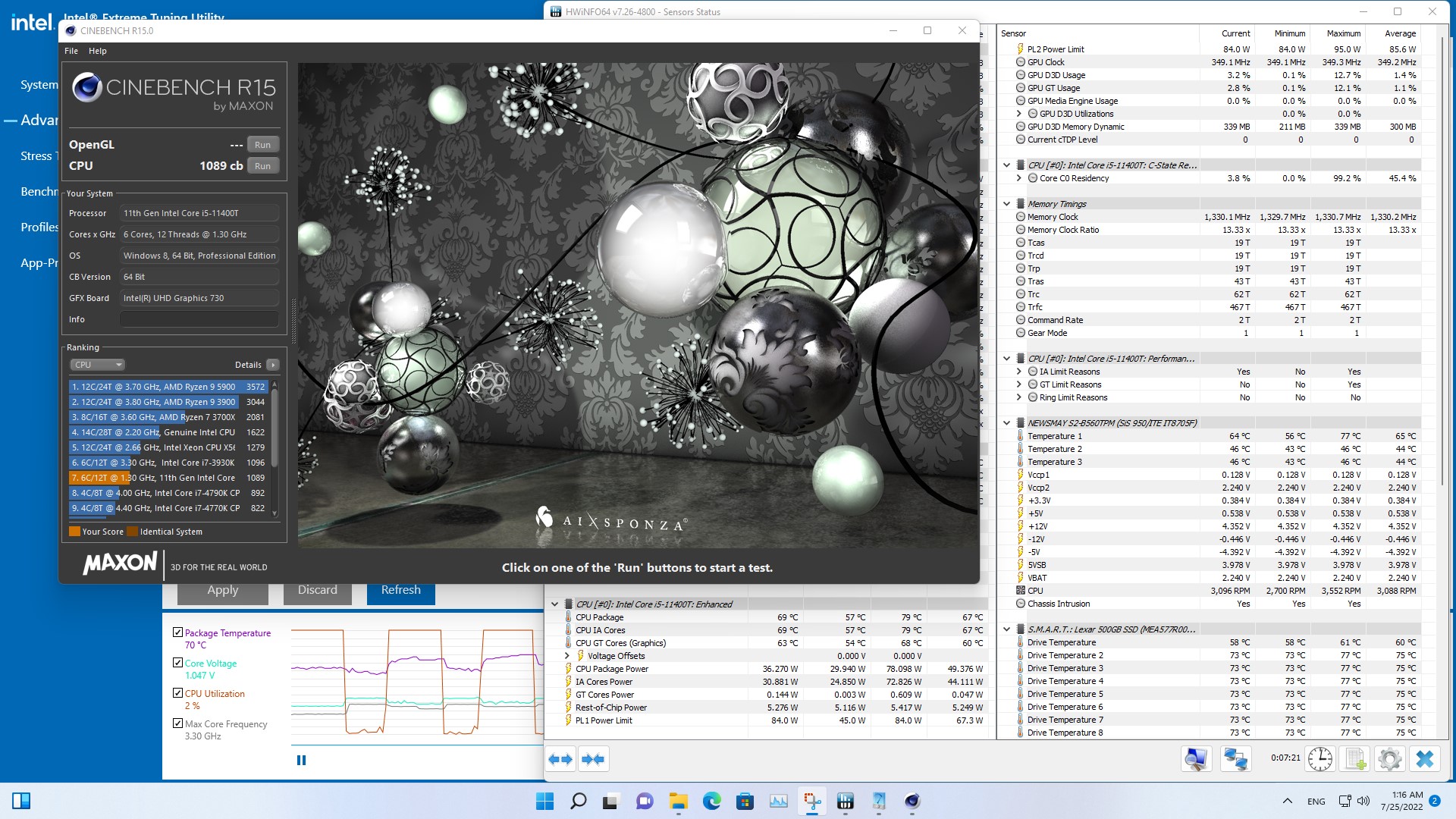

Newsmay Neosmay S2-B560TPM vs. Cinebench R15 nT (PL1: 84W, PL2: 84W)
Newsmay Neosmay S2-B560TPM vs. Cinebench R15 nT (PL1: 84W, PL2: 84W)
Performance Rating - Percent
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
40.5 pt
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
40.1 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
40 pt
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
33.4 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
26.8 pt
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
24.1 pt
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
242 Points +58%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
240 Points +57%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
233 Points +52%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
212 Points +39%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
162 Points +6%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
153 Points
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2224 Points +246%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1919 (1862.02min - 1893.4max) Points +199%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1767 Points +175%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
950 Points +48%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
642 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
316 Points -51%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
582 Points +54%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
579 Points +53%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
567 Points +50%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
560 Points +48%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
401 Points +6%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
378 Points
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5185 Points +246%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4495 Points +200%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
3986 Points +166%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2319 Points +55%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1500 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
743 Points -50%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.86 Points +60%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2.8 Points +56%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
2.77 Points +55%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
2.51 Points +40%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.87 Points +4%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1.79 Points
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
25.6 Points +251%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
22 Points +201%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
19.84 Points +172%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
10.78 Points +48%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7.3 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3.59 Points -51%
Cinebench R10
Rendering Single CPUs 64Bit
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12748 Points +54%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
12152 Points +47%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
11811 Points +42%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11457 Points +38%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
8290 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
8184 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
73115 Points +183%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
68932 Points +167%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
64320 Points +149%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
42350 Points +64%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
25835 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
14261 Points -45%
wPrime 2.10
32m
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
17.62 s * -126%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7.804 s *
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5.895 s * +24%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4.4 s * +44%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
4.193 s * +46%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
3.308 s * +58%
1024m
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
543 s * -108%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
261.299 s *
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
191.4 s * +27%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
115.519 s * +56%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
106.7 s * +59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
91.6 s * +65%
WinRAR - Result
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7722 KB/s +75%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
5962 KB/s +35%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5481 KB/s +24%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4409 KB/s
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
4297 KB/s -3%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1695 KB/s -62%
TrueCrypt
AES Mean 100MB
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12 GB/s +186%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
10.8 GB/s +157%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7.4 GB/s +76%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6.1 GB/s +45%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4.2 GB/s
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
1.9 GB/s -55%
Twofish Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
2 GB/s +209%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1.8 GB/s +178%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.6 GB/s +147%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.919 GB/s +42%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.648 GB/s
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.346 GB/s -47%
Serpent Mean 100MB
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.2 GB/s +190%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1.1 GB/s +166%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1.1 GB/s +166%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.525 GB/s +27%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.414 GB/s
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
0.21 GB/s -49%
3DMark 11 - 1280x720 Performance Physics
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
18083 Points +147%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
16783 Points +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
13940 Points +90%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
11662 Points +59%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
7319 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
3863 Points -47%
3DMark - 1920x1080 Fire Strike Physics
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
25831 Points +157%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
24096 Points +139%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
23903 Points +138%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
13763 Points +37%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
10064 Points
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
5122 Points -49%

* ... kleiner is beter

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3767 Seconds * -435%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2391 Seconds * -240%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 Seconds * -238%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1805 Seconds * -156%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
704 Seconds *
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
516 Seconds * +27%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
295 Seconds * +58%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
265 Seconds * +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
229.3 Seconds * +67%
X264 HD Benchmark 4.0
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
276.5 (274min - 278max) fps +79%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
271.5 (259min - 276max) fps +76%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
267.2 fps +73%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
154.5 (154.4min - 155.1max) fps
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
106.5 (106min - 109max) fps -31%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
102 (100min - 118max) fps -34%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps -49%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
52.6 fps -66%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -71%
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
128 (122min - 128max) fps +220%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
112 (112min - 112max) fps +180%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
93.1 fps +133%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
40 (40min - 40.1max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps -46%
MSI Cubi 5 10M, Intel Core i3-10110U, Intel UHD Graphics 620
i3-10110U, 2100 MHz
20.55 (20.4min - 20.7max) fps -49%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps -58%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
11.31 fps -72%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -75%
Geekbench 5.5
Multi-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
9760 Points +178%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7875 Points +124%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7855 Points +124%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5657 Points +61%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
3510 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1673 Points -52%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1501 Points -57%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1394 Points -60%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
844 Points -76%
Single-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1681 Points +47%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1552 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1542 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points +27%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1146 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
606 Points -47%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
556 Points -51%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
455 Points -60%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
435 Points -62%
Geekbench 5.0
5.0 Multi-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
9706 Points +178%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7859 Points +125%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
7847 Points +125%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
5606 Points +60%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
3495 Points
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1482 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1313 Points -62%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
857 Points -75%
5.0 Single-Core
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
1677 Points +48%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1504 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
1498 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
1453 Points +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
1130 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
603 Points -47%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
559 Points -51%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points -60%
Geekbench 4.4
64 Bit Single-Core Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
7173 Points +48%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6434 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
6365 Points +31%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
6238 Points +28%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4855 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2585 Points -47%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2555 Points -47%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1922 Points -60%
64 Bit Multi-Core Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
37795 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
32434 Points +90%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
31724 Points +86%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
22045 Points +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
17082 Points
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
5468 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
5399 Points -68%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3606 Points -79%
7-Zip 18.03
7z b 4
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
57435 MIPS +192%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
54998 MIPS +179%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
44752 MIPS +127%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
26858 MIPS +36%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
19699 MIPS
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
9964 MIPS -49%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7790 MIPS -60%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7494 MIPS -62%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3974 MIPS -80%
7z b 4 -mmt1
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5905 MIPS +42%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
5810 MIPS +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
5739 MIPS +38%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
4945 MIPS +19%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
4157 MIPS
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3515 MIPS -15%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2593 MIPS -38%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 MIPS -43%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2361 MIPS -43%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
15.9 fps +203%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
14.5 fps +177%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
12.6 fps +140%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
7.86 fps +50%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
5.24 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.65 fps -69%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.48 fps -72%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.46 fps -72%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.88 fps -83%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.579 sec * -99%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.577 sec * -99%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.371 sec * -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.137 sec * -44%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
0.792 sec *
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
0.622 sec * +21%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
0.524 sec * +34%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.4965 sec * +37%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
0.493 sec * +38%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
144.7 s * -132%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
143 s * -129%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
124 s * -99%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
92.9 s * -49%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
62.4 s *
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
50.4 s * +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
49.3 s * +21%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
48.7 s * +22%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
42.6 s * +32%
WebXPRT 3 - Overall
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
278 Points +34%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
274 Points +32%
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
257 Points +24%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
256 Points +23%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
208 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
146 Points -30%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
89.2 Points -57%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
87.2 Points -58%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
86.2 Points -59%
Mozilla Kraken 1.1 - Total
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2288 ms * -158%
GMK NucBox K1, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2276 ms * -157%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1396 ms * -57%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)
i5-11400T, 1300 MHz
887 ms *
Minisforum EliteMini TH50, Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
i5-11320H, 3200 MHz
670 ms * +24%
Morefine S500+, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
602 ms * +32%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
R9 5900HX, 3300 MHz
601 ms * +32%
Asus ExpertCenter D9 SFF, Intel Core i7-11700, NVIDIA T600
i7-11700, 2500 MHz
601 ms * +32%

* ... kleiner is beter

Newsmay Neosmay S2-B560TPM in Cinebench R15 multi-loop test

Onze uithoudingstest, die werd uitgevoerd door Cinebench R15 door te lopen, toonde aan dat Newsmay in staat is om de Intel Core i5-11400T goed bij standaard kloksnelheid. Door de kleine koeloplossing is de lage vermogenslimiet van de processor meestal de bottleneck in het systeem. Met een gemiddelde score van 664 punten is het resultaat desondanks zeer stabiel over alle 50 runs.

0851702553404255105956807658509351020110511901275136014451530Tooltip
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)
GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)
Asus ExpertCenter D9 SFF Intel Core i7-11700, Intel Core i7-11700: Ø1537 (1521.95-1608.36)

App prestaties en opslag schijf

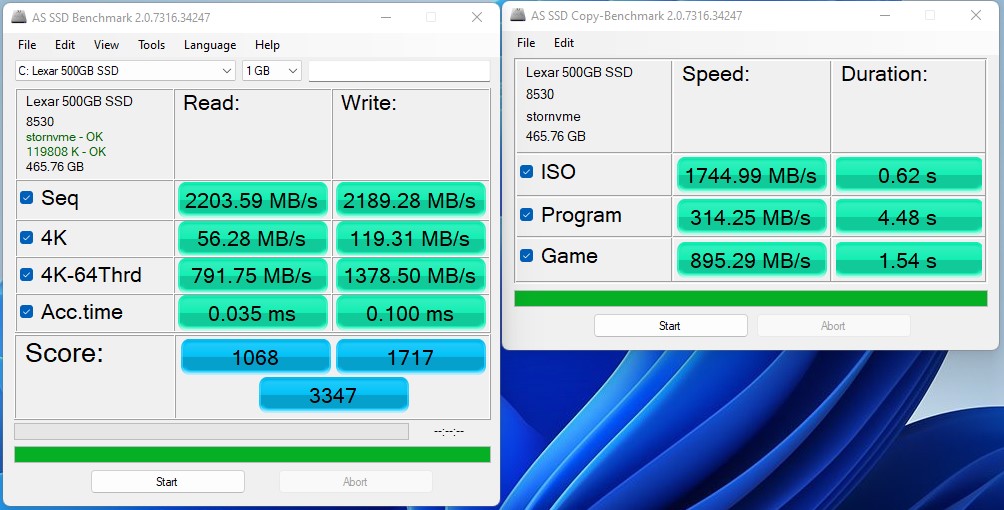

AS SSD
AS SSD

De prestaties van het systeem zijn goed genoeg voor dagelijks gebruik. De prestaties van de Core i5-11400T zijn echter minder dan verwacht, om redenen die reeds werden vermeld. Dat gezegd hebbende, is onze subjectieve indruk nog steeds positief omdat de meegeleverde Lexar SSD snel genoeg is in termen van zowel lees- als schrijfsnelheden. De hoge 4K leessnelheid is bijzonder indrukwekkend en stelt het systeem in staat om veel kleine bestanden snel te laden. De Newsmay Neosmay S2-B560TPM bleef een gemiddelde presteerder in PCMark 10, met een achterstand op snellere systemen van ongeveer 30 tot 60 procentpunten.

Maximale wachttijd na 10 seconden Prime95
Maximale wachttijd na 10 seconden Prime95
Maximale wachttijd na 10 seconden Prime95
Maximale wachttijd na 10 seconden Prime95

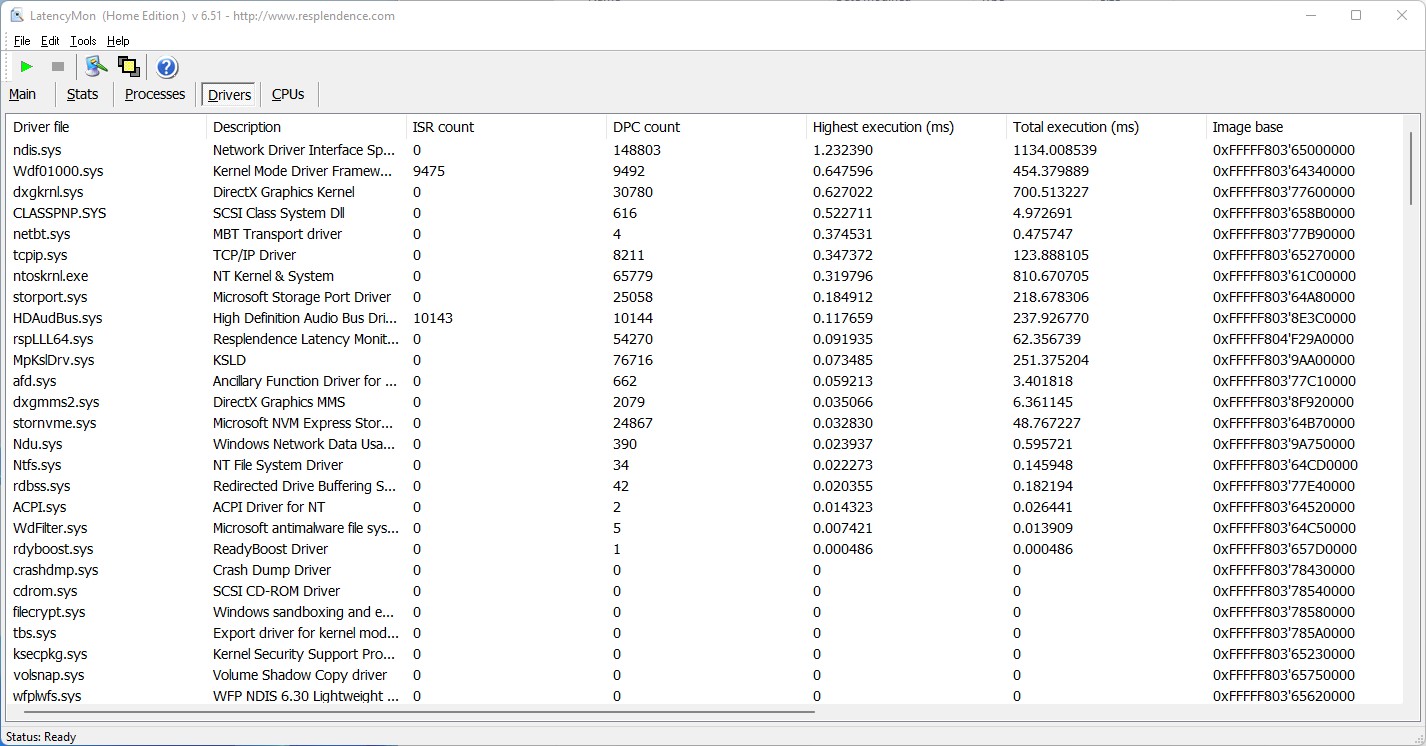

Bestuurders gesorteerd op de hoogste uitvoeringstijd
Bestuurders gesorteerd op de hoogste uitvoeringstijd

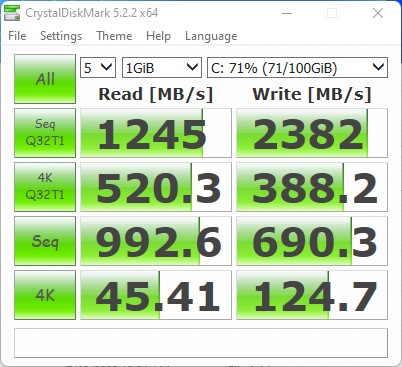

CDM 5
CDM 5

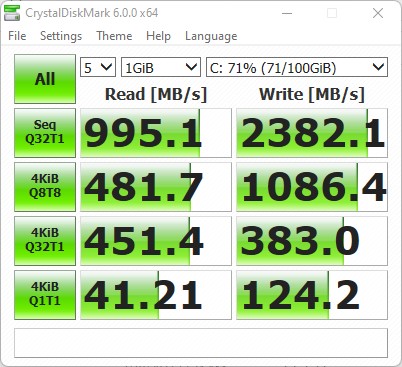

CDM 6
CDM 6

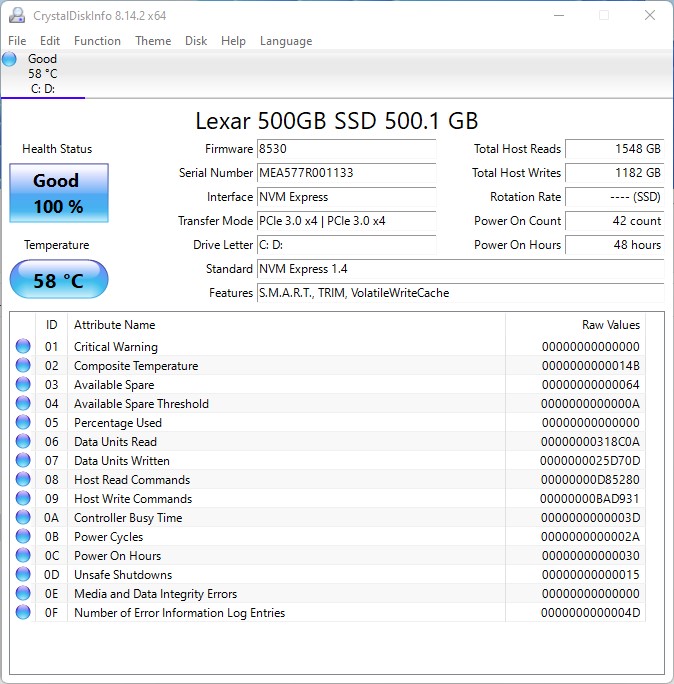

CDI
CDI
PCMark 10 - Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +64%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6480 Points +63%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +58%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
5130 Points +29%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
3975 Points
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
2958 Points -26%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points -36%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1831 Points -54%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
1806 Points -55%

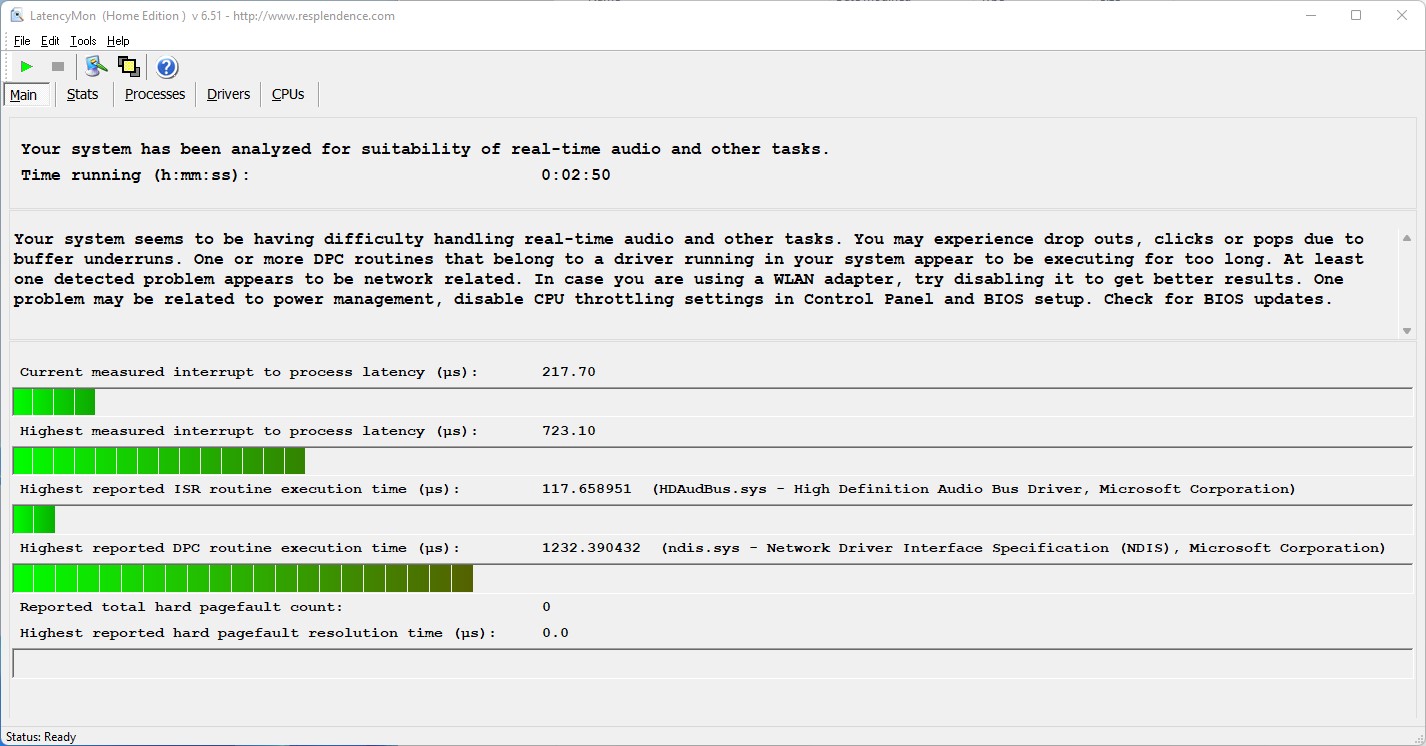

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
3767 μs * -206%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -114%
GMK NucBox K1, Intel Celeron J4125
Intel UHD Graphics 600
1717 μs * -39%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -32%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
1581 μs * -28%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
1476.3 μs * -20%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
1232.3 μs *
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * +10%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
767 μs * +38%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
349.5 μs * +72%
ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points +354%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4019 Points +340%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +283%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
3414 Points +274%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
959 Points +5%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
914 Points
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
631 Points -31%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
476 Points -48%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
337 Points -63%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
306 Points +137%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
292 Points +126%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points +114%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points +82%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
129 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
86 Points -33%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
86 Points -33%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
54 Points -58%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
44 Points -66%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
292 Points +156%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
280 Points +146%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points +139%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points +103%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
114 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
82 Points -28%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
63 Points -45%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
60 Points -47%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
42 Points -63%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points +666%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1234 Points +639%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +538%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
763 Points +357%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
186 Points +11%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
167 Points
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
147 Points -12%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
97 Points -42%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
79 Points -53%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points +481%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1065 Points +455%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +402%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
853 Points +344%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
226 Points +18%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
192 Points
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
137 Points -29%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
75 Points -61%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
54 Points -72%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points +287%
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
1200 Points +286%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1148 Points +269%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points +222%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
379 Points +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
311 Points
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
230 Points -26%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
159 Points -49%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
118 Points -62%
LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
2320 Samples/s +201%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Samples/s +68%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s +67%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
771 Samples/s
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s -49%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
266 Samples/s -65%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
147 Samples/s -81%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
129 Samples/s -83%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
Intel Iris Xe Graphics G7 96EUs
693 Samples/s +135%
Prime Computer Primestation Pulsar, AMD Ryzen 7 PRO 5750G
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
689 Samples/s +134%
Morefine S500+, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s +53%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake)
295 Samples/s
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s -45%
MSI Cubi 5 10M, Intel Core i3-10110U
Intel UHD Graphics 620
109 Samples/s -63%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU)
81 Samples/s -73%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600
76 Samples/s -74%

* ... kleiner is beter

AIDA64 / Memory Copy
Gemiddelde van klas Desktop
  (15737 - 85092, n=27, laatste 2 jaar)
45069 MB/s +135%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19544 MB/s +2%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
19209 MB/s
Gemiddeld Intel Core i5-11400T

19209 MB/s 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s -18%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
13833 MB/s -28%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
12604 MB/s -34%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s -67%
AIDA64 / Memory Read
Gemiddelde van klas Desktop
  (10311 - 94830, n=27, laatste 2 jaar)
47458 MB/s +133%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
20405 MB/s
Gemiddeld Intel Core i5-11400T

20405 MB/s 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
19769 MB/s -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s -49%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10204 MB/s -50%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10095 MB/s -51%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s -68%
AIDA64 / Memory Write
Gemiddelde van klas Desktop
  (17031 - 82856, n=27, laatste 2 jaar)
48328 MB/s +159%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
22485 MB/s +21%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
18659 MB/s
Gemiddeld Intel Core i5-11400T

18659 MB/s 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s -9%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10449 MB/s -44%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10347 MB/s -45%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s -63%
AIDA64 / Memory Latency
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * -107%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
89.5 ns * -28%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * -9%
Gemiddelde van klas Desktop
  (56 - 97.7, n=27, laatste 2 jaar)
74.9 ns * -7%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
74 ns * -6%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
73.2 ns * -5%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
69.7 ns *
Gemiddeld Intel Core i5-11400T

69.7 ns * -0%

* ... kleiner is beter

Grafische kaart en 3D-prestaties

De Newsmay Neosmay S2-B560TPM is uitgerust met een Intel UHD Graphics 730. Met 24 Execution Units en een maximale frequentie van 1.200 MHz kan deze geïntegreerde GPU bij lange na niet tippen aan de AMD Radeon RX Vega 8 op de huidige AMD Ryzen APUs. Het is waarschijnlijk geen goed idee om iets meer dan kantoortoepassingen op de Intel UHD Graphics 730 te draaien, zoals je kunt zien in het overzicht van zijn prestaties in de geteste games.

Performance Rating - Percent
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
98.5 pt
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.1 pt
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
64.8 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
27 pt
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
14.5 pt
3DMark
1280x720 Ice Storm Standard Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
182459 Points +234%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +214%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +140%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points +10%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
54564 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points -25%
1920x1080 Ice Storm Extreme Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
152912 Points +306%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +223%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +172%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points +34%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
37635 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points -30%
1920x1080 Fire Strike Graphics
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
6552 Points +271%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points +168%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points +147%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points +114%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
1768 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points -56%
3DMark 11
1280x720 Performance GPU
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
8694 Points +241%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +179%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points +156%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points +147%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
2551 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points -48%
1280x720 Performance
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
9497 Points +272%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7449 Points +192%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6905 Points +171%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6462 Points +153%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
2550 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1395 Points -45%
ComputeMark v2.1 - 1024x600 Normal, Score
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
4825 Points +428%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points +354%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +283%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3414 Points +274%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
914 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points -31%
LuxMark v2.0 64Bit
Room GPUs-only
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
1121 Samples/s +280%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
693 Samples/s +135%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s +53%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
295 Samples/s
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s -63%
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2320 Samples/s +201%
Asus ExpertCenter D9 SFF, Intel Core i7-11700
2500 MHz, NVIDIA T600
2049 Samples/s +166%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s +67%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s +22%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
1300 MHz, Intel UHD Graphics 730 (Rocket Lake)
771 Samples/s
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s -65%
lage gem. hoge ultra
GTA V (2015) 51.9 7.67 3.38
Dota 2 Reborn (2015) 90.8 59 26.8 24.5
Final Fantasy XV Benchmark (2018) 16.6 8.13 8.13
X-Plane 11.11 (2018) 30.7 19.5 18
Far Cry 5 (2018) 19 9 8 8
Strange Brigade (2018) 33.1 13.5 11.7
Far Cry New Dawn (2019) 19 10 9 8
Metro Exodus (2019) 17.7 8.11 6.3 5.22
Borderlands 3 (2019) 19.7 8.36 4.99
F1 2020 (2020) 35.2 16.3 12.3
F1 2021 (2021) 37.4 17.7 14.5
3DMark 05 Standard
20918 punten
3DMark 06 Standard Score
13964 punten
3DMark Vantage P Result
9013 punten
3DMark 11 Performance
2550 punten
3DMark Ice Storm Standard Score
53536 punten
3DMark Cloud Gate Standard Score
9889 punten
3DMark Fire Strike Score
1613 punten
Help

Emissies

Geluidsniveaus

De Newsmay Neosmay S2-B560TPM produceert altijd een merkbare hoeveelheid ruis tijdens het gebruik, ondanks onze metingen die suggereren dat de geluidsniveaus eerder gematigd zijn. Bij gemiddelde belasting is het geluidsniveau van 35,8 dB(A) nog steeds acceptabel. Het systeem was nooit helemaal stil tijdens het gebruik. Zelfs bij stationair toerental gaf het op basis van onze metingen niet minder dan 31,8 dB(A) aan geluid af. De ventilatorcurve is goed geconfigureerd en reageert snel op veranderingen in de belasting zonder de ventilatorsnelheid voortdurend aan te passen.

Geluidsniveau

Onbelast
31.8 / 32.7 / 33.1 dB (A)
Belasting
35.8 / 37.1 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   omgevingslawaai: 30.2 dB(A)

Temperatuur

Stresstest: FurMark+Prime95
Stresstest: FurMark+Prime95

Voor onze stresstest hebben we Prime95 en FurMark tegelijkertijd gedraaid om het systeem enorm te belasten. De Intel Core i5-11400T bereikte een maximum temperatuur van 65°C (149°F), wat een zeer goed resultaat is. Toch moet je in gedachten houden dat het lage stroomverbruik van 35 watt betekende dat de processor alleen op zijn basisfrequentie van 1,3 GHz draaide. De temperatuur van de processor steeg tot ongeveer 80°C zodra het energiedoel handmatig werd verhoogd. We zien dit niet als een reden om het product te bekritiseren, omdat het werd gebruikt op een manier die niet in overeenstemming is met de specificaties van de fabrikant. We merkten echter wel dat het VRM op het moederbord vrij heet werd en ervoor zorgde dat de processor af en toe begon te haperen. Het door ons geteste model had deze problemen niet terwijl het op een vast vermogensdoel van 65 watt draaide. Dit is cruciaal omdat de Newsmay Neosmay S2-B560TPM kan worden gekoppeld aan de krachtigere Intel Core i7-11700 als je voor de configuratie in het hoogste segment gaat

Tijdens onze stresstest werd de case behoorlijk heet aan de achterkant rond de uitlaatopeningen. Nadat we met de fabrikant hadden gesproken, kwamen we erachter dat er nog kleine wijzigingen aan de koeloplossing in de maak zijn. Zo is het bedrijf van plan om de ventilatorinlaten aan de bovenkant iets groter te maken en de VRM koeler op het moederbord iets te herwerken.

Warmteontwikkeling tijdens de stresstest
Warmteontwikkeling tijdens de stresstest
Warmteontwikkeling tijdens de stresstest
Warmteontwikkeling tijdens de stresstest
Warmteontwikkeling tijdens de stresstest
Warmteontwikkeling tijdens de stresstest

Stroomverbruik

Dankzij het lage TDP van de Intel Core i5-11400Tgebruikt de Newsmay Neosmay S2-B560TPM relatief weinig stroom bij gemiddelde belasting, en trekt ongeveer 56 watt uit de voedingsadapter. Het stroomverbruik kan soms oplopen tot 107 watt gedurende een korte periode wanneer de processor in de PL2-status werkt.

Stroomgebruik
Uit / Standbydarklight 1.6 / 2.4 Watt
Inactiefdarkmidlight 23.7 / 23.7 / 40.8 Watt
Belasting midlight 55.8 / 74.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Energy consumption with external monitor

0102030405060708090100Tooltip
Newsmay Neosmay S2-B560TPM; Prime95 V2810 Stress (external Monitor): Ø59.3 (45-106.8)
Newsmay Neosmay S2-B560TPM; Cinebench R15 Multi (external Monitor): Ø57.8 (53.2-103.7)
Newsmay Neosmay S2-B560TPM; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø57 (55.3-68.8)
Newsmay Neosmay S2-B560TPM; Idle 1min (external Monitor): Ø40.9 (40.4-41.8)

Pro

+ compact systeem
+ stevige behuizing
+ lage behuizing hoogte
+ veel I/O-poorten
+ vervangbare CPU / modulair ontwerp
+ lage emissies
+ snelle SSD
+ drievoudige display ondersteuning
+ goede prijs-kwaliteitverhouding

Contra

- sterk onderdrukte Intel Core i5-11400T
- slechte 3D prestaties
- geen SD-kaartlezer
- geen Thunderbolt 4 ondersteuning

Verdict - veelzijdige kantoor PC met kleine tekortkomingen

Review van de Newsmay Neosmay S2-B560TPM, geleverd door Newsmay Technology
Review van de Newsmay Neosmay S2-B560TPM, geleverd door Newsmay Technology

De Newsmay Neosmay S2-B560TPM is een goede compacte computer voor dagelijks kantoorgebruik en heeft alle essentiële poorten. De Wi-Fi-module ondersteunt de nieuwste standaard, en veel van de onderdelen kunnen worden vervangen of uitgebreid. Het apparaat wordt echter niet geleverd met de nieuwste Thunderbolt 4. Over het algemeen doet de Intel Core i5-11400T zijn werk, maar de processor wordt enigszins afgeremd van zijn volledige potentieel om de compacte koeleenheid niet te overbelasten. Tijdens onze review heeft de Newsmay Neosmay S2-B560TPM geen serieuze problemen opgeleverd. Als het op pure prestaties aankomt, kan de S2-B560TPM niet volledig gelijke tred houden met vergelijkbare apparaten van MinisForum of Morefine. Aan de andere kant is het meer modulair en beschikt het over een vervangbare CPU. De LGA 1200 socket beperkt echter de mogelijkheid tot upgraden, omdat deze niet langer compatibel is met nieuwere desktop processoren.

Met de Newsmay Neosmay S2-B560TPM neemt de Chinese fabrikant het op tegen industriereuzen als Dell en Lenovo. De mini PC liet een gemengde indruk achter tijdens onze review.

Met 16 GB RAM en 500 GB SSD opslag heeft het systeem genoeg reserves om toepassingen met veel bronnen aan te kunnen. Er is plaats voor maximaal 64 GB RAM en twee opslagschijven. Gebruikers worden verwend met keuze in termen van CPU's. Hoewel de Intel Core i5-11400T zeker een goede middenweg is tussen prestaties en efficiëntie, kun je ook kiezen voor de Core i7-11700 als je een echte octa-core processor in de mini PC wilt stoppen.

Newsmay's eigenlijke core business ligt in het B2B-segment. Voor een prijs van rond de 600 euro (US$615) is de Newsmay Neosmay S2-B560TPM een prima PC voor zakelijke gebruikers. Bovendien kan het voor consumenten een lonende investering zijn, omdat vergelijkbare apparaten op veel markten niet goedkoper zijn. Voorbeelden van concurrerende producten zijn de Dell OptiPlex en Lenovo ThinkCentre.

U kunt zelfs een barebone versie kopen voor net rond US$135 en vervolgens configureren naar uw behoeften.

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Review van Newsmay Neosmay S2-B560TPM mini PC: kleine kantoor PC met efficiënte Intel Core i5-11400T
Zhiwei (Peter) Zhuang, 2022-08- 3 (Update: 2022-08- 3)
