Name: GMK NucBox K6
Brand: GMK

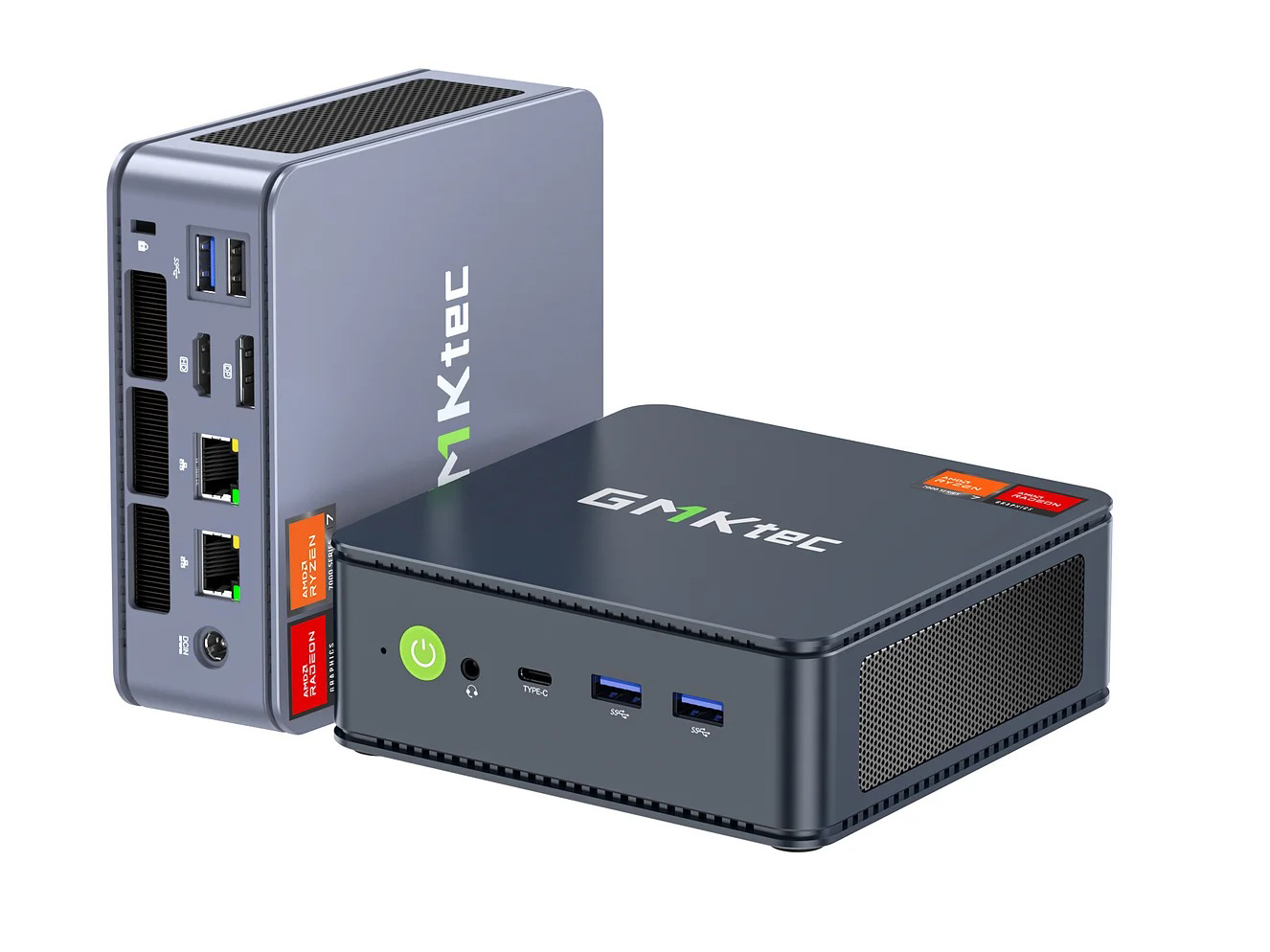

De GMK NucBox K6 is een van de nieuwste mini PC's van het bedrijf, ontworpen voor multimedia- en streamingdoeleinden thuis. Hij concurreert rechtstreeks met Intel NUC en Beelink mini PC's in de prijsklasse van $500.

Alle huidige configuraties worden geleverd met de AMD Ryzen 7 7840HS Zen 4 CPU met geïntegreerde Radeon 780M graphics. Barebone SKU's zijn verkrijgbaar vanaf $400 tot $730 indien geconfigureerd met 32 GB RAM, 1 TB opslag en Windows 11 Pro voorgeïnstalleerd. Alternatieven voor de NucBox K6 zijn onder andere de Intel NUC 13 Pro, Beelink SER5of de Geekom A7.

Meer GMKtec beoordelingen:

Zaak

Het chassis bestaat uit plastic voor de boven- en onderkant en uit metaal voor de zijkanten of vlakken, net als bij de vorige generatie modellen. Nieuw dit jaar zijn echter de ventilatiesleuven langs de zijkanten, zoals de afbeelding hieronder laat zien. Dankzij deze aanpak heeft de bovenkant geen gaten en ziet hij er beter uit zonder de luchtstroom of koeling te verminderen.

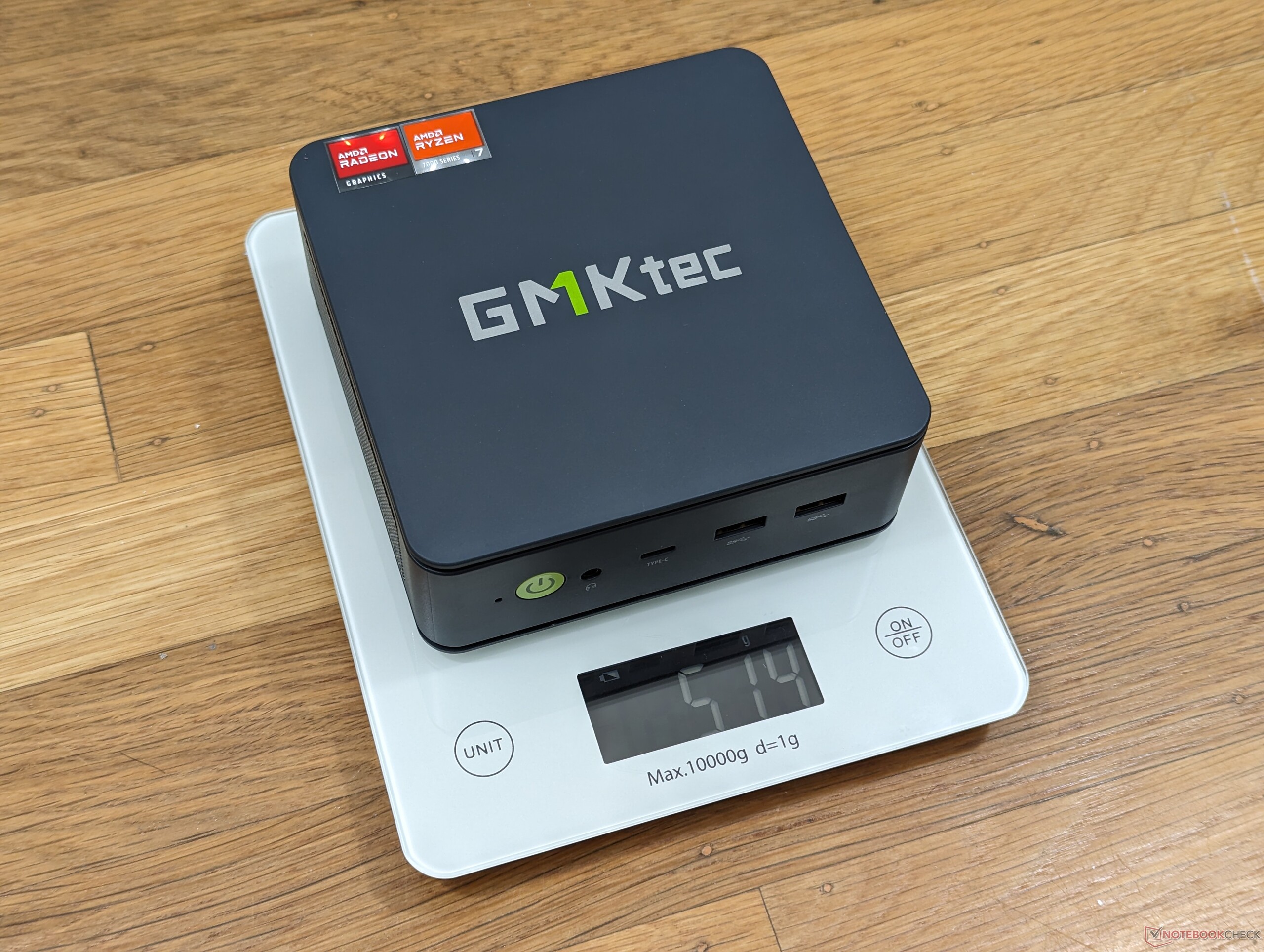

De totale afmetingen en het gewicht zijn respectievelijk iets groter en lichter dan die van de Intel NUC 13 Pro. Het dunnere chassis gebruikt minder metaal dan een Intel NUC, waardoor de NucBox K6 iets gevoeliger is voor schade. Dit is echter niet echt een probleem, want we zien niet veel kopers de mini PC verkeerd gebruiken alsof het een reislaptop is.

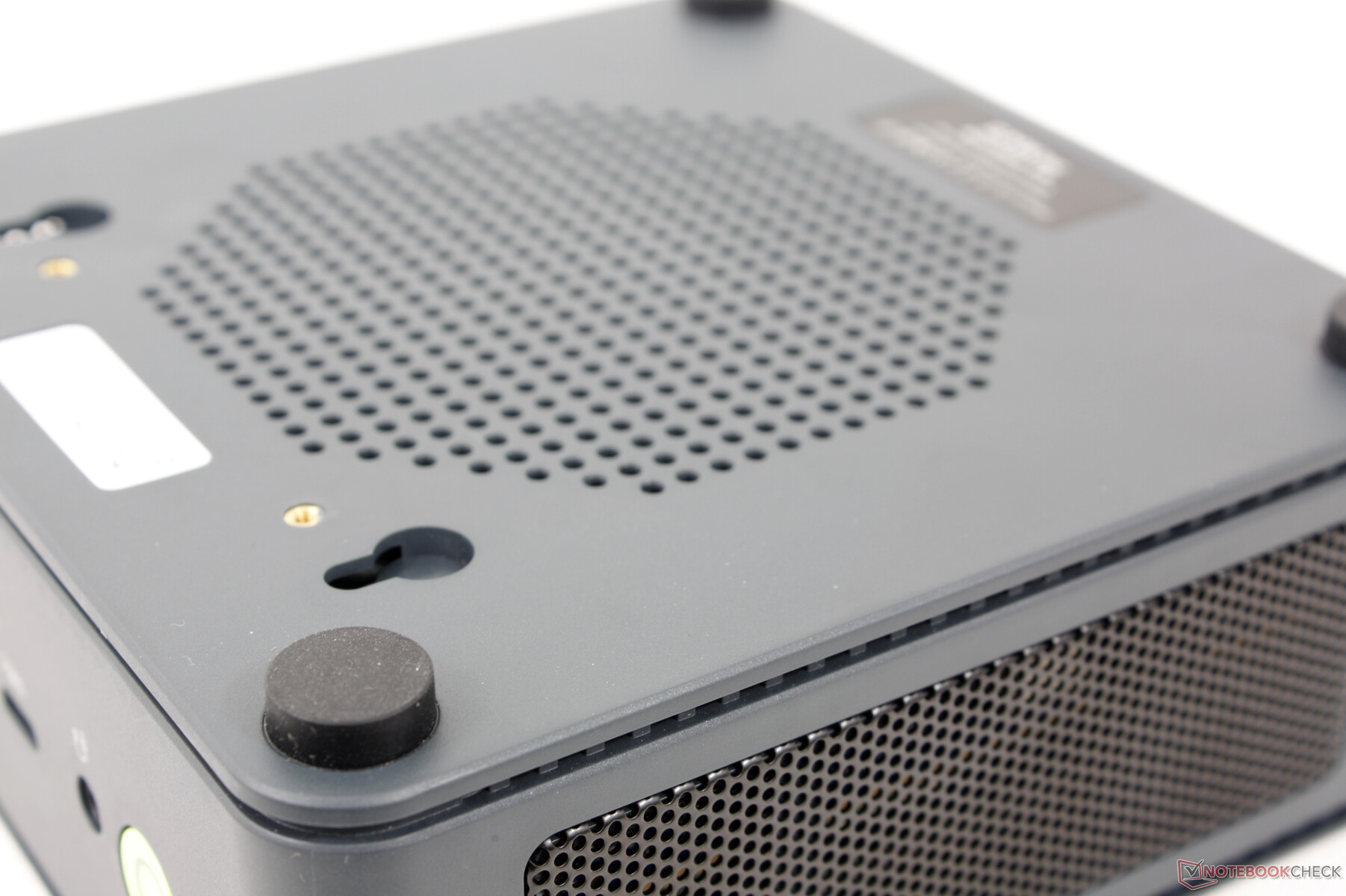

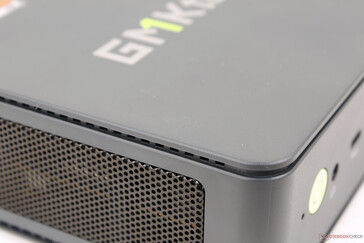

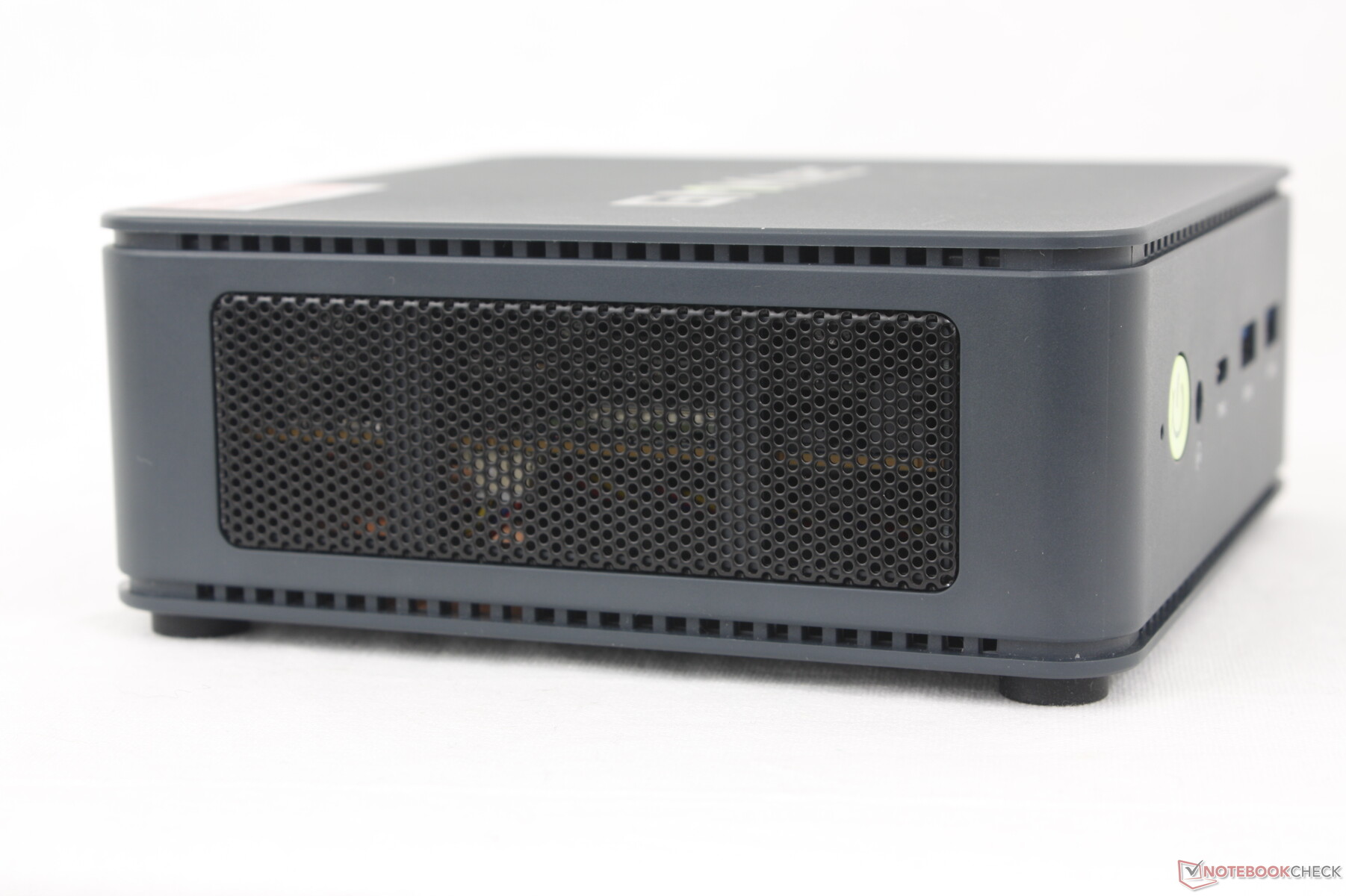

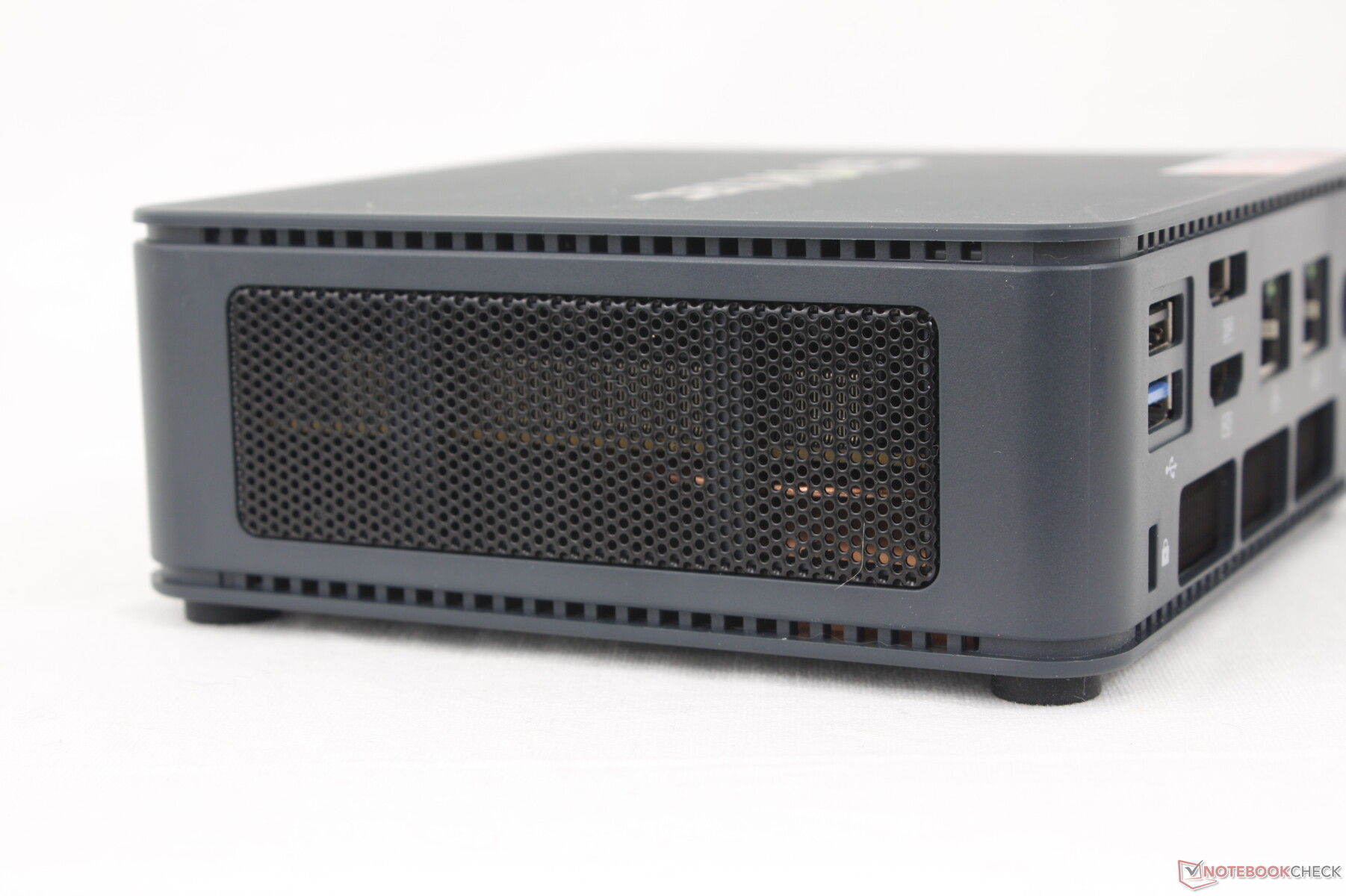

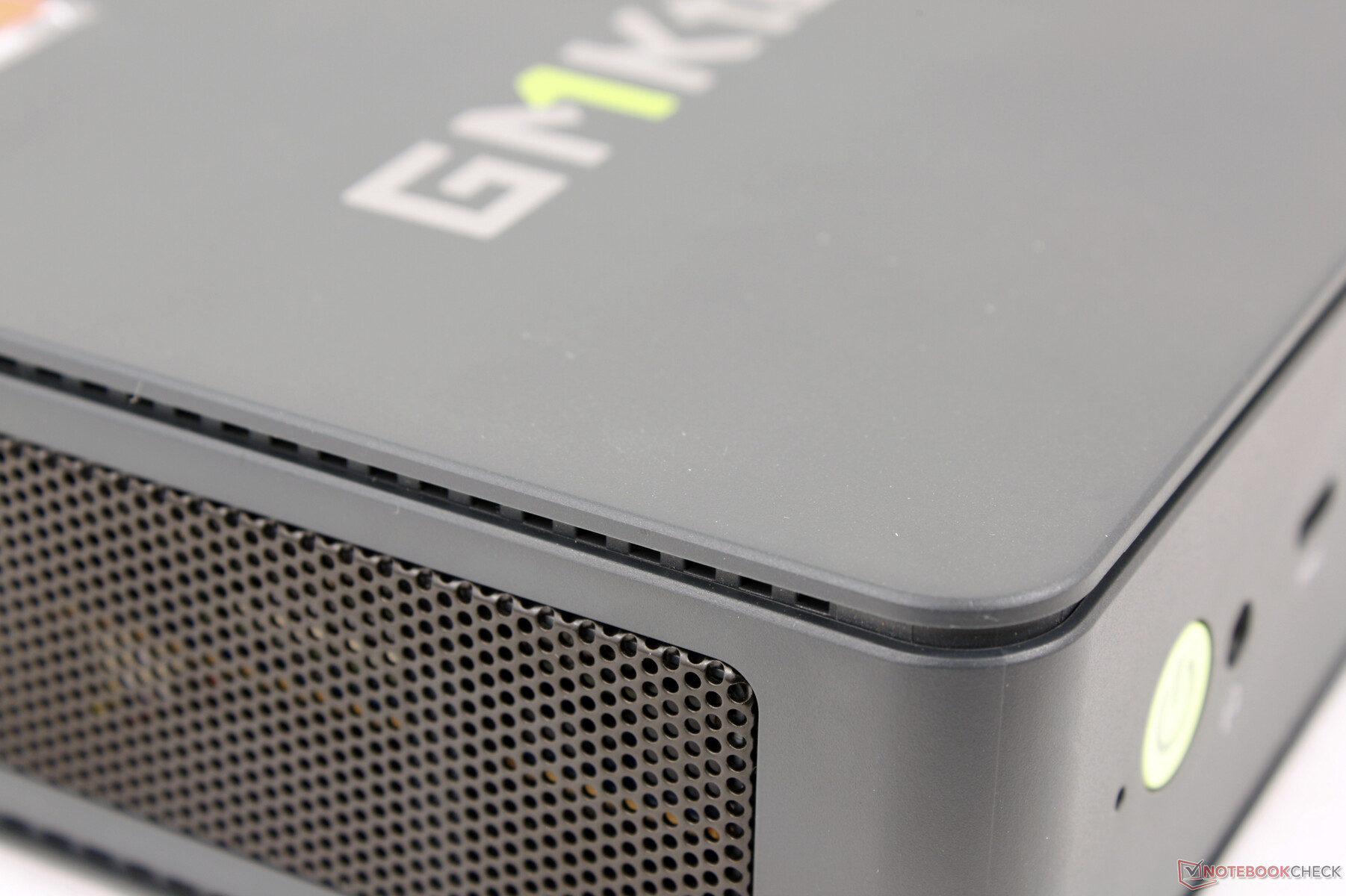

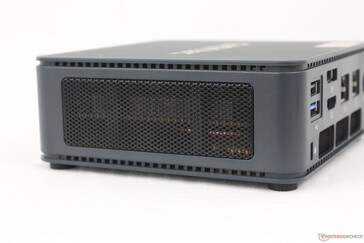

Ventilatiespleten langs de omtrek van de boven- en onderkant

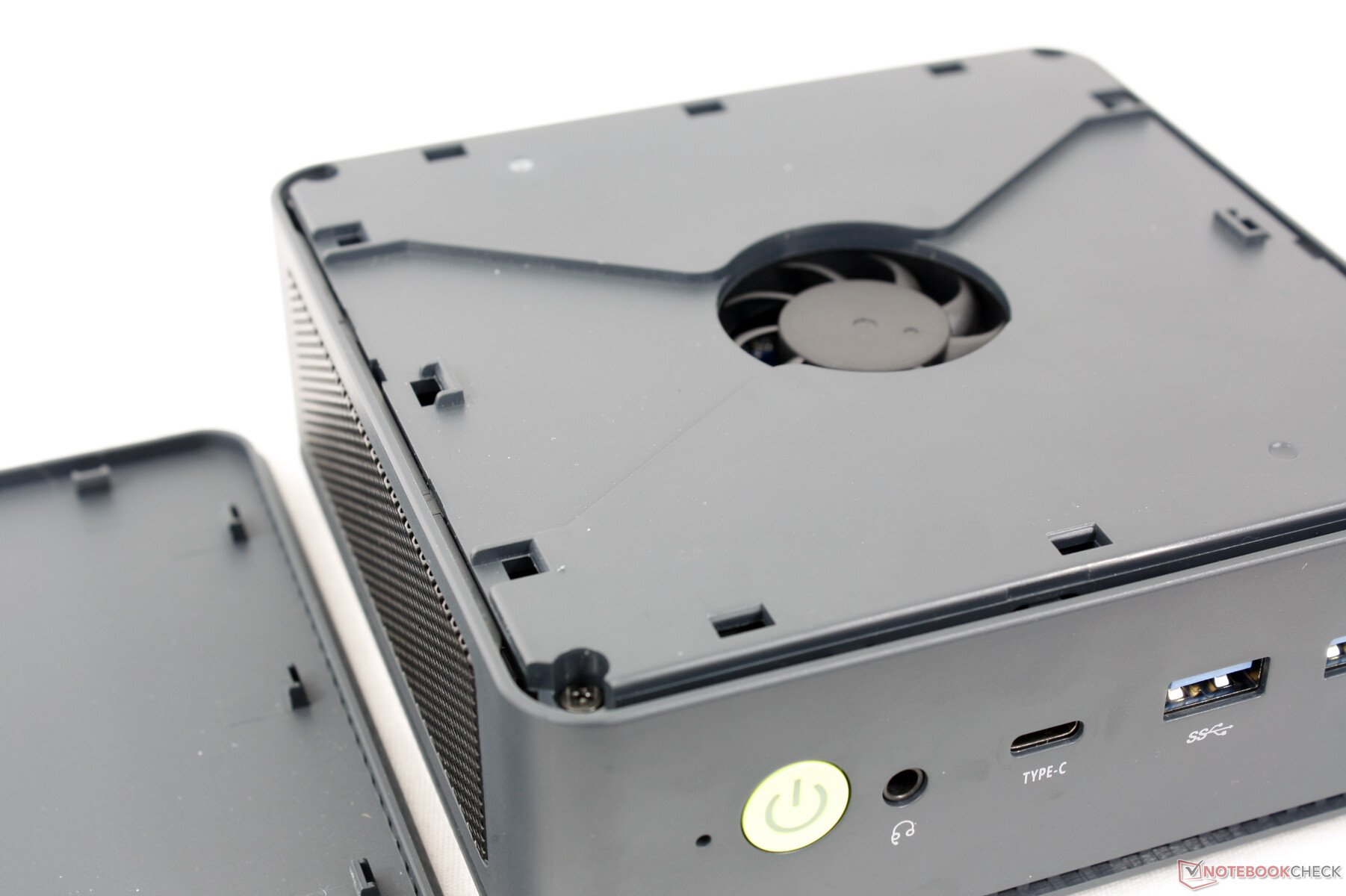

De bovenplaat springt er gemakkelijk af om de bovenste ventilator bloot te leggen

Vergelijking grootte

Connectiviteit

Poortopties zijn hit or miss, afhankelijk van voorkeuren. In vergelijking met de Intel NUC 13 Pro heeft de GMK bijvoorbeeld meer RJ-45 poorten en een DisplayPort van volledig formaat. Aan de andere kant heeft het slechts één USB-C poort, terwijl het Intel-model er twee heeft.

Thunderbolt-apparaten worden ondersteund via de USB-C 4-poort. Het is ook mogelijk om de mini PC te voeden met USB-C AC-adapters van derden in plaats van te vertrouwen op de eigen vatadapter; onze 135 W USB-C AC-adapter van Lenovo zou zonder problemen werken.

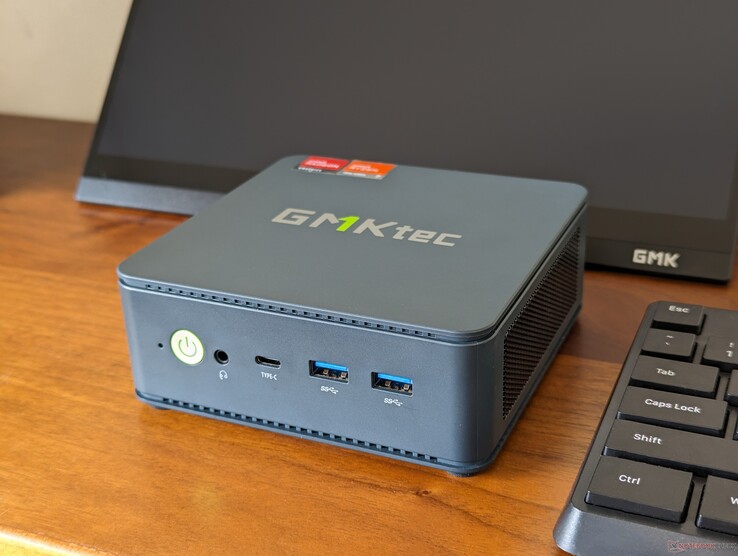

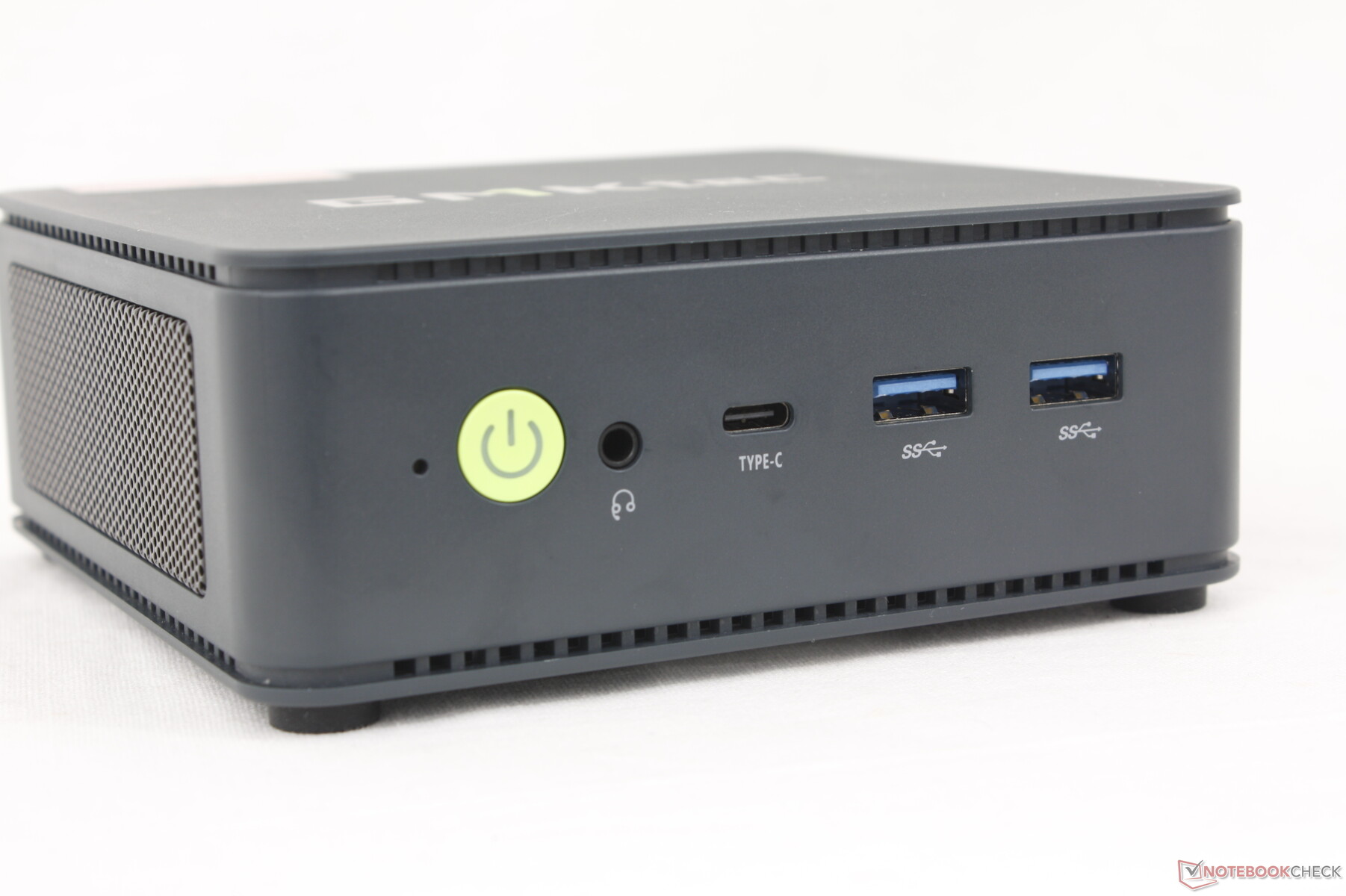

Voorkant: Aan/uit-knop, 3,5 mm headset, USB-C 4.0 w/ Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

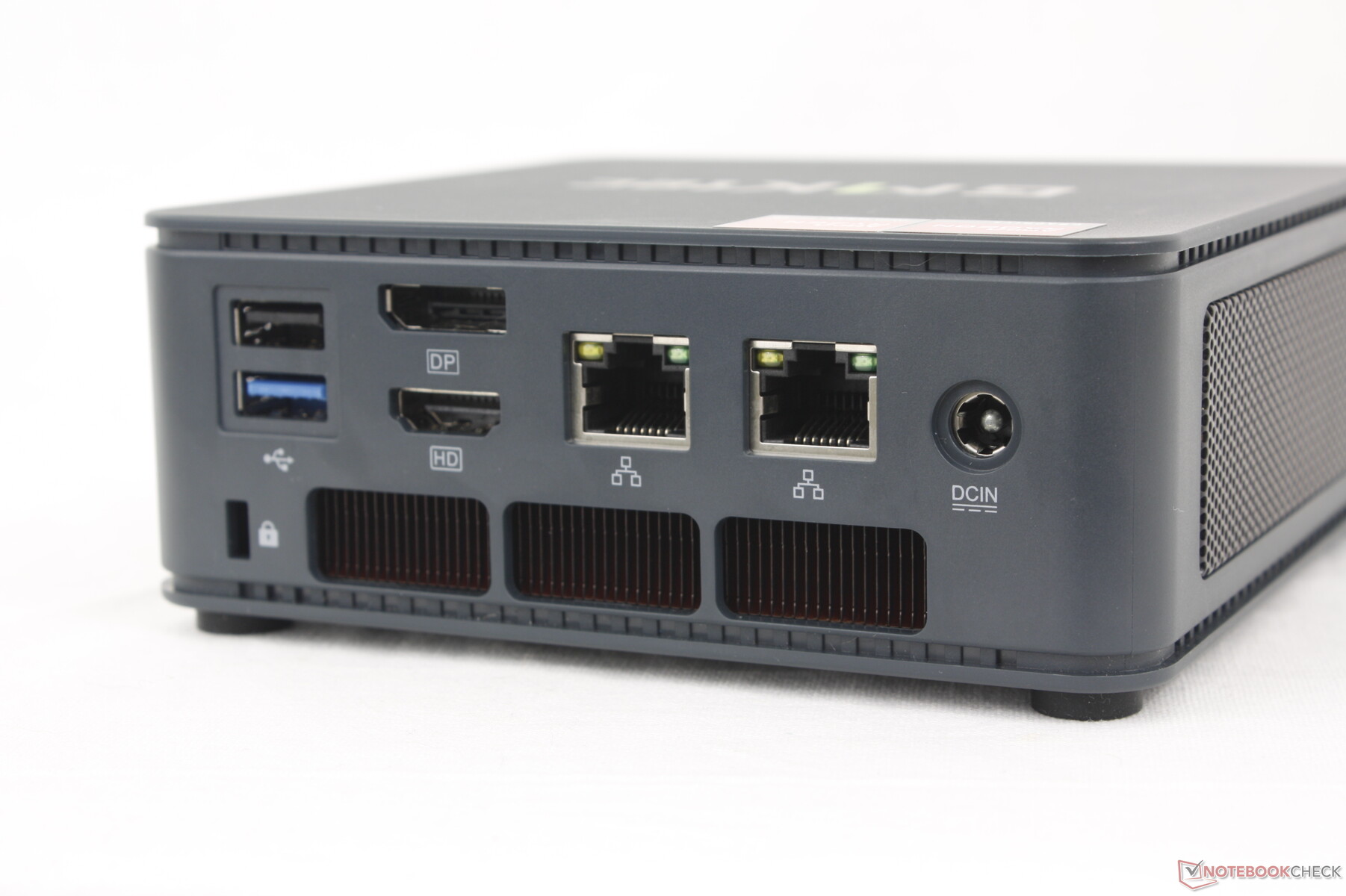

Achterkant: USB-A 2.0, USB-A 3.2 Gen. 1, DisplayPort (4K60), HDMI 2.0 (4K60), 2x RJ-45 (2,5 Gbps), Ac-adapter, Kensington-slot

Communicatie

De AMD-only machine wordt geleverd met de MediaTek RZ616 in plaats van de gebruikelijke Intel AX oplossing voor Wi-Fi 6E en Bluetooth 5.3 connectiviteit. De prestaties zijn stabiel en betrouwbaar, zij het met lagere verzendsnelheden.

Networking
iperf3 transmit AXE11000
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +105%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +102%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +85%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	892 (728^min - 980^max) MBit/s +41%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s +31%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +15%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +6%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -9%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	963 (950^min - 971^max) MBit/s -21%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -30%
iperf3 transmit AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1646 (1280^min - 1762^max) MBit/s +281%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +250%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s +216%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
iperf3 receive AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1634 (750^min - 1729^max) MBit/s +66%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +47%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s +40%
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s

GMK NucBox K6; iperf3 transmit AXE11000; iperf 3.1.3: Ø633 (574-685)

GMK NucBox K6; iperf3 receive AXE11000; iperf 3.1.3: Ø1221 (1074-1368)

Onderhoud

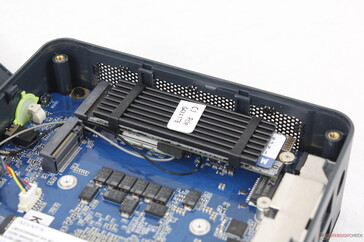

Upgradebare onderdelen zijn toegankelijk vanaf de bovenkant, maar niet vanaf de onderkant, in tegenstelling tot de meeste andere mini-pc's. Terwijl de buitenste deksel zonder gereedschap kan worden verwijderd, is voor de ventilatorkap eronder nog steeds een schroevendraaier nodig.

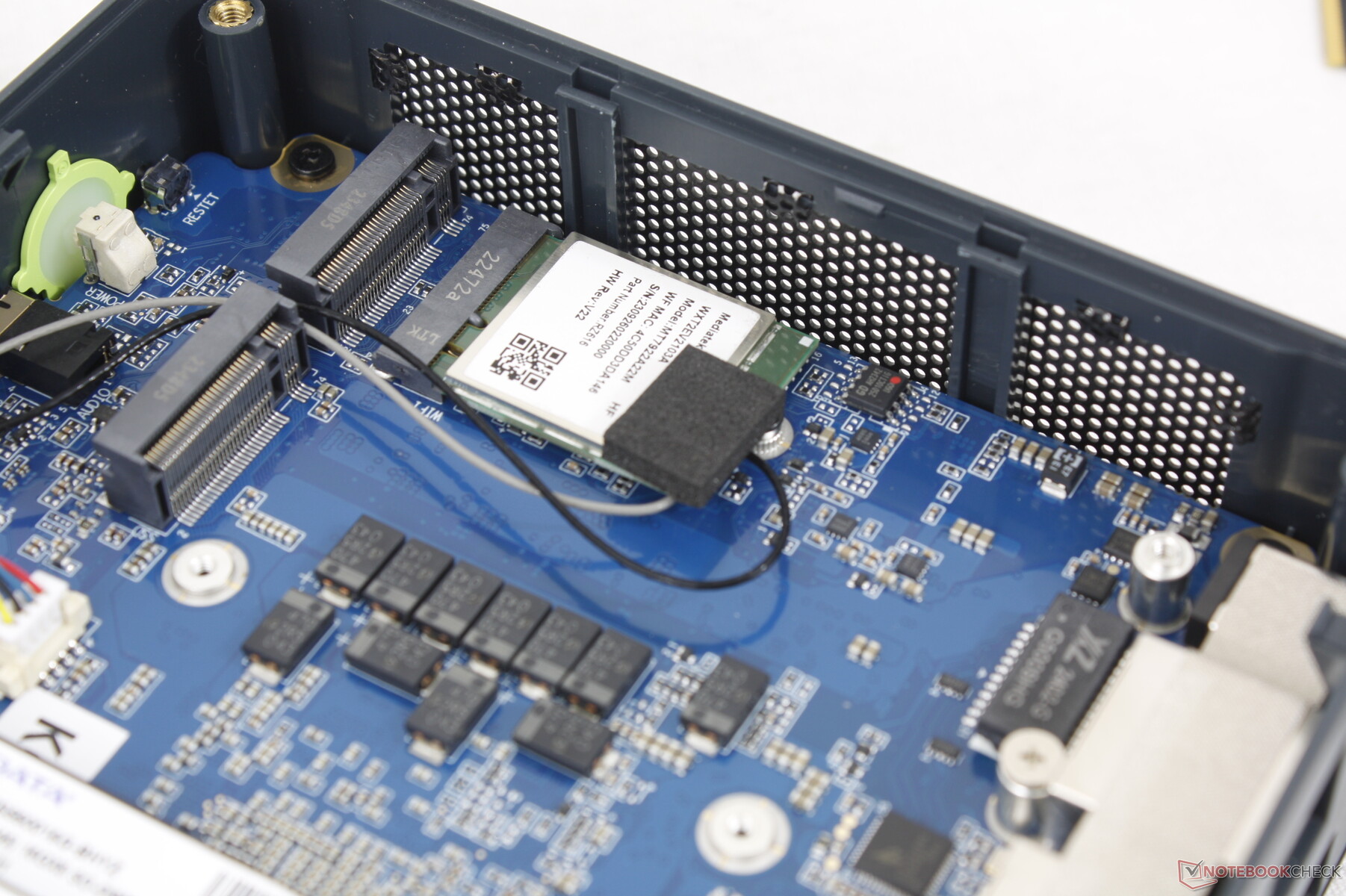

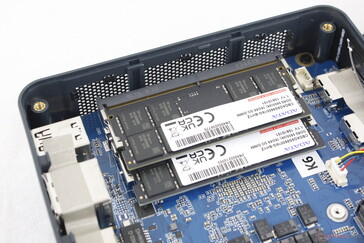

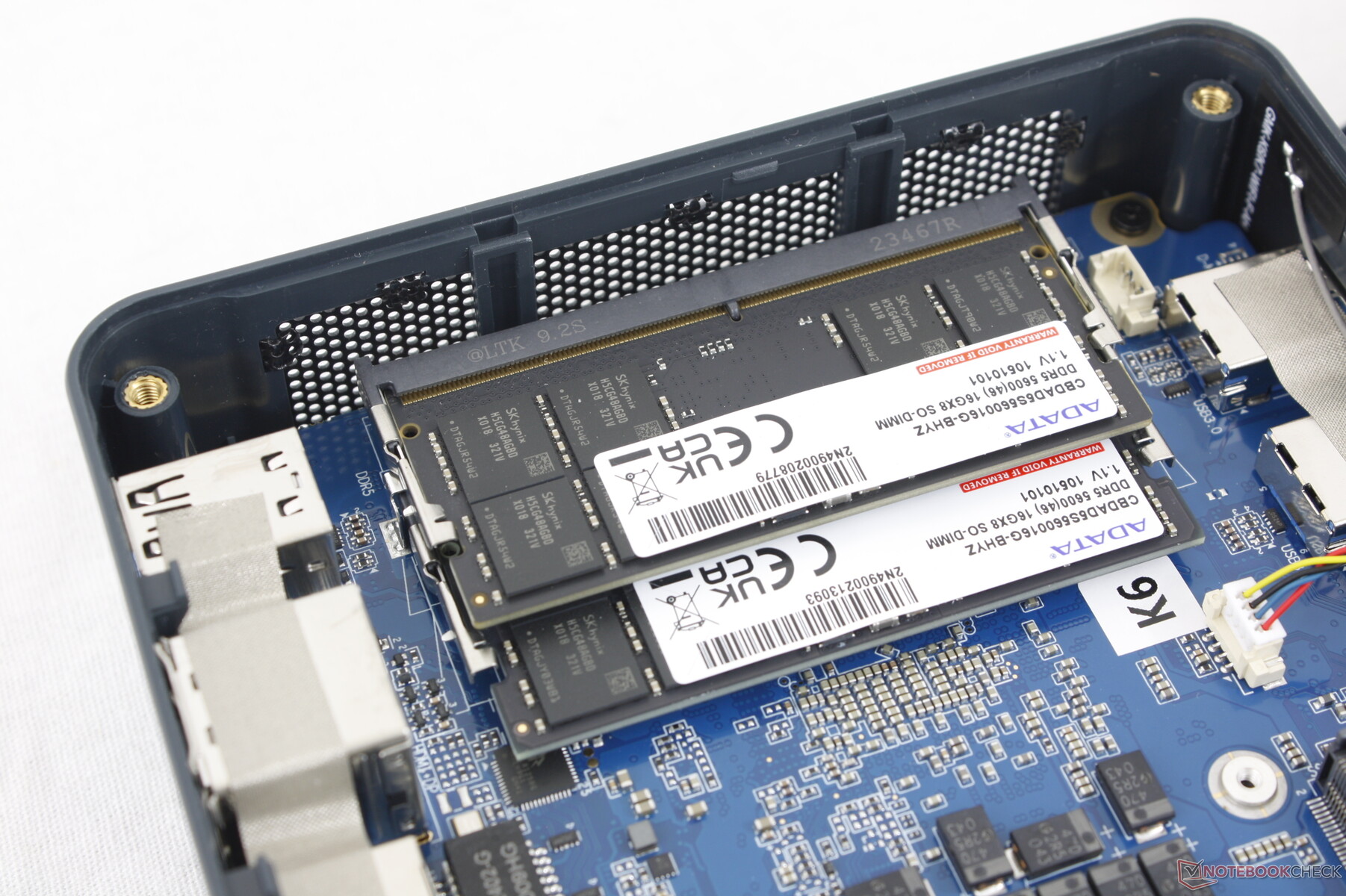

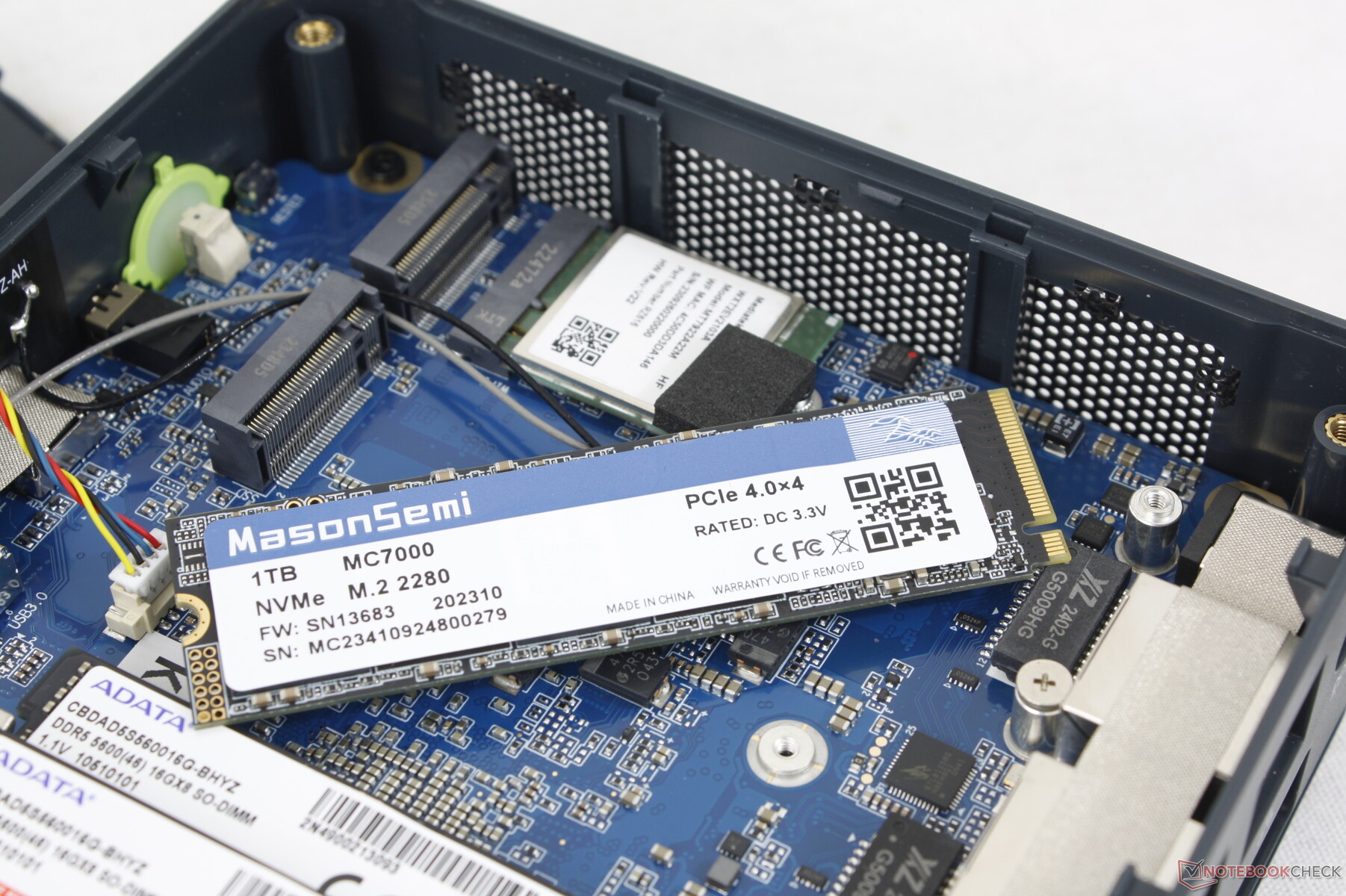

Gebruikers hebben rechtstreeks toegang tot twee SODIMM RAM-sleuven, WLAN-module en twee M.2 PCIe4 x4 2280 SSD-sleuven, zoals de afbeelding hieronder laat zien. Er is geen 2,5 inch SATA III ondersteuning. Om toegang te krijgen tot de koeloplossing, de processor en de secundaire ventilator moet het moederbord worden omgedraaid.

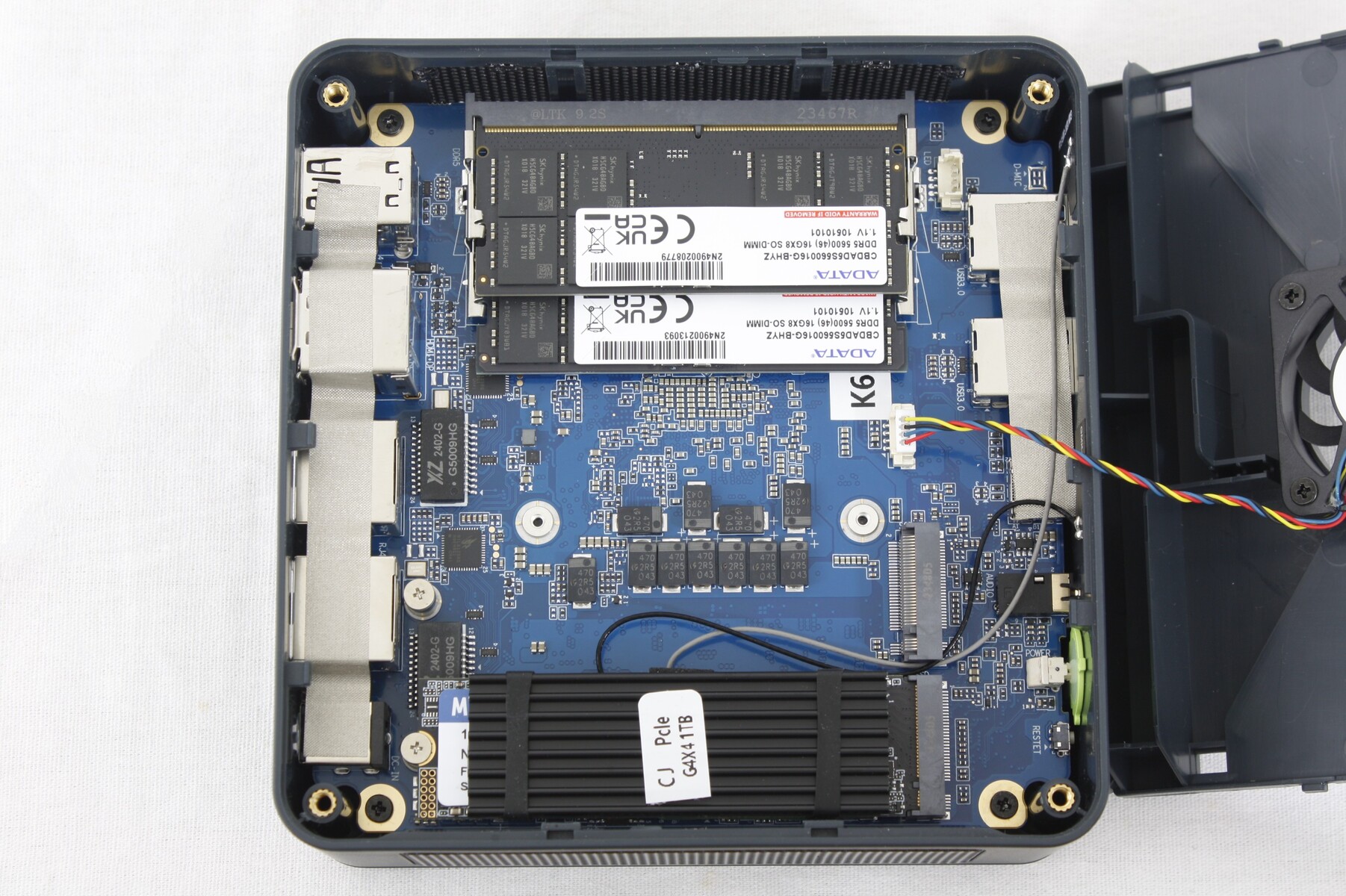

Moederbord met verwijderde buitenplaat en ventilatorkap

Accessoires en garantie

De verpakking bevat een HDMI-kabel en een verwijderbare VESA-bevestiging met schroeven. De standaard beperkte fabrieksgarantie van één jaar is van toepassing bij aankoop in de VS.

Prestaties - AMD Zen 4 is nog steeds erg krachtig

Testomstandigheden

We hebben Windows in de modus Prestaties gezet voordat we de onderstaande benchmarks uitvoerden. Er zijn geen vooraf geïnstalleerde toepassingen voor een schone Windows-gebruikerservaring.

Processor

De Ryzen 7 7840HS draait goed zonder grote throttling-problemen, zelfs bij stresstests. Het blijft een van de snelste CPU's voor mini PC's van NUC-formaat. De algehele prestaties zijn vergelijkbaar met de duurdere Ryzen 9 7940HS en de concurrerende Core i7-13700H in de Lenovo IdeaCentre Mini.

Cinebench R15 Multi Loop

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

AcePC Wizbox AI Intel Core Ultra 7 155H: Ø2303 (2192.5-2638.35)

Geekom A7 AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Multi Core
Gemiddeld AMD Ryzen 7 7840HS (15515 - 17214, n=15)	16411 Points +3%
AcePC Wizbox AI Intel Core Ultra 7 155H	16352 Points +3%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points
Geekom A7 AMD Ryzen 9 7940HS	15556 Points -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points -9%
Geekom Mini IT13 Intel Core i9-13900H	13846 (12336.6^min - 13845.9^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13817 (12209.7^min - 13817.2^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13811 Points -13%
Aoostar GOD77 AMD Ryzen 7 7735HS	13034 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -24%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -28%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points -33%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points -52%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points -52%
Acemagic Tank03 Intel Core i9-12900H	7359 Points -54%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +6%
AcePC Wizbox AI Intel Core Ultra 7 155H	1801 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +1%
Gemiddeld AMD Ryzen 7 7840HS (1737 - 1812, n=15)	1773 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points
Geekom A7 AMD Ryzen 9 7940HS	1747 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1737 Points -2%
GMK NucBox M3 Intel Core i5-12450H	1688 Points -5%
Acemagic Tank03 Intel Core i9-12900H	1634 Points -8%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points -9%
GMK NucBox M4 Intel Core i9-11900H	1605 Points -9%
Aoostar GOD77 AMD Ryzen 7 7735HS	1557 Points -12%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -29%

Cinebench R20 / CPU (Multi Core)
Gemiddeld AMD Ryzen 7 7840HS (6061 - 6744, n=15)	6398 Points +2%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points
AcePC Wizbox AI Intel Core Ultra 7 155H	6033 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points -7%
Geekom Mini IT13 Intel Core i9-13900H	5308 Points -15%
Aoostar GOD77 AMD Ryzen 7 7735HS	5078 Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -25%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -29%
GMK NucBox M4 Intel Core i9-11900H	4324 Points -31%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -35%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points -52%
GMK NucBox M3 Intel Core i5-12450H	2952 Points -53%
Acemagic Tank03 Intel Core i9-12900H	2681 Points -57%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +5%
Geekom A7 AMD Ryzen 9 7940HS	692 Points +1%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points
Gemiddeld AMD Ryzen 7 7840HS (668 - 705, n=15)	688 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H	681 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	664 Points -3%
GMK NucBox M3 Intel Core i5-12450H	646 Points -6%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points -8%
Acemagic Tank03 Intel Core i9-12900H	624 Points -9%
GMK NucBox M4 Intel Core i9-11900H	615 Points -11%
Aoostar GOD77 AMD Ryzen 7 7735HS	599 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -28%

Cinebench R15 / CPU Multi 64Bit
AcePC Wizbox AI Intel Core Ultra 7 155H	2638 (2192.5^min - 2638.35^max) Points +4%
Gemiddeld AMD Ryzen 7 7840HS (2473 - 2729, n=15)	2592 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points
Geekom Mini IT13 Intel Core i9-13900H	2531 Points 0%
Geekom Mini IT13 Intel Core i9-13900H	2061 (1694.13^min - 2060.69^max) Points -19%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -22%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points -22%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -24%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -33%
Acemagic Tank03 Intel Core i9-12900H	1395 Points -45%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points -50%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points -55%

Cinebench R15 / CPU Single 64Bit
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points
Geekom A7 AMD Ryzen 9 7940HS	278 Points -1%
Gemiddeld AMD Ryzen 7 7840HS (270 - 286, n=15)	278 Points -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points -5%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points -7%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	251 Points -10%
Geekom Mini IT13 Intel Core i9-13900H	248 Points -11%
Geekom Mini IT13 Intel Core i9-13900H	247 Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	248 Points -11%
GMK NucBox M4 Intel Core i9-11900H	243 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -14%
GMK NucBox M3 Intel Core i5-12450H	238 Points -15%
Acemagic Tank03 Intel Core i9-12900H	235 Points -16%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -28%

Blender / v2.79 BMW27 CPU
Acemagic Tank03 Intel Core i9-12900H	451 Seconds * -127%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds * -116%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * -97%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -66%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * -36%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -35%
Geekom Mini IT13 Intel Core i9-13900H	268 Seconds * -35%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * -29%
Aoostar GOD77 AMD Ryzen 7 7735HS	246 Seconds * -24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	205 Seconds * -3%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * -2%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds *
Gemiddeld AMD Ryzen 7 7840HS (185 - 229, n=17)	198.7 Seconds * -0%

7-Zip 18.03 / 7z b 4
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS 0%
Gemiddeld AMD Ryzen 7 7840HS (59538 - 73035, n=17)	69052 MIPS -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	62334 MIPS -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	58770 MIPS -17%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -19%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -27%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS -30%
Geekom Mini IT13 Intel Core i9-13900H	45045 MIPS -36%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -39%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS -46%
Acemagic Tank03 Intel Core i9-12900H	34684 MIPS -51%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS -56%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS
Gemiddeld AMD Ryzen 7 7840HS (6049 - 6754, n=17)	6559 MIPS -2%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS -10%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS -10%
Aoostar GOD77 AMD Ryzen 7 7735HS	5849 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -13%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS -14%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -14%
Acemagic Tank03 Intel Core i9-12900H	5567 MIPS -17%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS -20%
Geekom Mini IT13 Intel Core i9-13900H	5355 MIPS -20%
AcePC Wizbox AI Intel Core Ultra 7 155H	5344 MIPS -20%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -29%

Geekbench 6.2 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points
Gemiddeld AMD Ryzen 7 7840HS (12111 - 13498, n=16)	12974 Points -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	12539 Points -5%
GMK NucBox K3 Pro Intel Core i7-12650H	11014 Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10362 Points -21%
Aoostar GOD77 AMD Ryzen 7 7735HS	9970 Points -24%
GMK NucBox M4 Intel Core i9-11900H	9401 Points -29%
Acemagic Tank03 Intel Core i9-12900H	9278 Points -30%
GMK NucBox M3 Intel Core i5-12450H	8123 Points -38%
Beelink SER5 AMD Ryzen 5 5560U	6723 Points -49%

Geekbench 6.2 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points
Gemiddeld AMD Ryzen 7 7840HS (2585 - 2721, n=16)	2662 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2600 Points -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points -4%
GMK NucBox K3 Pro Intel Core i7-12650H	2466 Points -8%
AcePC Wizbox AI Intel Core Ultra 7 155H	2415 Points -10%
GMK NucBox M4 Intel Core i9-11900H	2355 Points -12%
GMK NucBox M3 Intel Core i5-12450H	2293 Points -15%
Acemagic Tank03 Intel Core i9-12900H	2263 Points -16%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -23%
Beelink SER5 AMD Ryzen 5 5560U	1765 Points -34%

Geekbench 5.5 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	12261 Points +4%
AcePC Wizbox AI Intel Core Ultra 7 155H	12248 Points +4%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points
Gemiddeld AMD Ryzen 7 7840HS (8446 - 12339, n=19)	11651 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -13%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	9363 Points -20%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -21%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -22%
Geekom Mini IT13 Intel Core i9-13900H	9094 Points -23%
GMK NucBox M4 Intel Core i9-11900H	8829 Points -25%
Acemagic Tank03 Intel Core i9-12900H	8529 Points -28%
GMK NucBox M3 Intel Core i5-12450H	6990 Points -41%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -49%

Geekbench 5.5 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points
Gemiddeld AMD Ryzen 7 7840HS (1837 - 2017, n=19)	1968 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1846 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -8%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points -10%
AcePC Wizbox AI Intel Core Ultra 7 155H	1720 Points -13%
GMK NucBox M4 Intel Core i9-11900H	1692 Points -15%
Acemagic Tank03 Intel Core i9-12900H	1664 Points -16%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points -17%
GMK NucBox M3 Intel Core i5-12450H	1639 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	1589 Points -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -22%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -34%

HWBOT x265 Benchmark v2.2 / 4k Preset
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps
Gemiddeld AMD Ryzen 7 7840HS (11.7 - 21.8, n=17)	19.8 fps -3%
AcePC Wizbox AI Intel Core Ultra 7 155H	18.3 fps -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS	15.7 fps -23%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps -25%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -27%
Geekom Mini IT13 Intel Core i9-13900H	14.9 fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -32%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -40%
Beelink SER5 AMD Ryzen 5 5560U	10 fps -51%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps -57%
Acemagic Tank03 Intel Core i9-12900H	8.05 fps -61%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -29%
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * -24%
AcePC Wizbox AI Intel Core Ultra 7 155H	53 s * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	51.2 s * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -11%
Gemiddeld AMD Ryzen 7 7840HS (38.3 - 68.3, n=17)	48.6 s * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -6%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -4%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s *
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +4%
GMK NucBox M3 Intel Core i5-12450H	41.1 s * +7%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +9%
Acemagic Tank03 Intel Core i9-12900H	39 s * +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +15%
Geekom Mini IT13 Intel Core i9-13900H	36.8 s * +17%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -34%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	0.503 sec * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -15%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec * -14%
Acemagic Tank03 Intel Core i9-12900H	0.4934 sec * -14%
AcePC Wizbox AI Intel Core Ultra 7 155H	0.4801 sec * -11%
Geekom Mini IT13 Intel Core i9-13900H	0.4792 sec * -10%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * -8%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -4%
Gemiddeld AMD Ryzen 7 7840HS (0.4184 - 0.4739, n=17)	0.4393 sec * -1%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * -0%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec *

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... kleiner is beter

Performance Rating
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	96.1 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.8 pt
Gemiddeld AMD Ryzen 7 7840HS	95.5 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	52.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	51.2 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	45.6 pt

AIDA64 / FP32 Ray-Trace
Gemiddeld AMD Ryzen 7 7840HS (24712 - 28921, n=17)	26530 KRay/s +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	15761 KRay/s -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s -63%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s -65%

AIDA64 / FPU Julia
Gemiddeld AMD Ryzen 7 7840HS (103755 - 123167, n=17)	113554 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	84610 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points -55%

AIDA64 / CPU SHA3
Gemiddeld AMD Ryzen 7 7840HS (4293 - 5096, n=17)	4773 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	4171 MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -44%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s -56%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s -59%

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +6%
Gemiddeld AMD Ryzen 7 7840HS (105028 - 122681, n=17)	115459 Points +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	87712 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points -40%

AIDA64 / FPU SinJulia
Gemiddeld AMD Ryzen 7 7840HS (14385 - 15525, n=17)	15006 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	10134 Points -31%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points -55%

AIDA64 / FPU Mandel
Gemiddeld AMD Ryzen 7 7840HS (55540 - 65812, n=17)	60530 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	40440 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points -59%

AIDA64 / CPU AES
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	138938 MB/s -15%
Gemiddeld AMD Ryzen 7 7840HS (67389 - 177158, n=17)	127587 MB/s -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s -50%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -67%

AIDA64 / CPU ZLib
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	1117 MB/s +8%
Gemiddeld AMD Ryzen 7 7840HS (949 - 1123, n=17)	1062 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s -42%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s -51%

AIDA64 / FP64 Ray-Trace
Gemiddeld AMD Ryzen 7 7840HS (13100 - 15599, n=17)	14237 KRay/s +4%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	8240 KRay/s -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s -62%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s -67%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s 0%
Gemiddeld AMD Ryzen 7 7840HS (17615 - 41157, n=17)	37292 MPixel/s -9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	32719 MPixel/s -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -28%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -56%

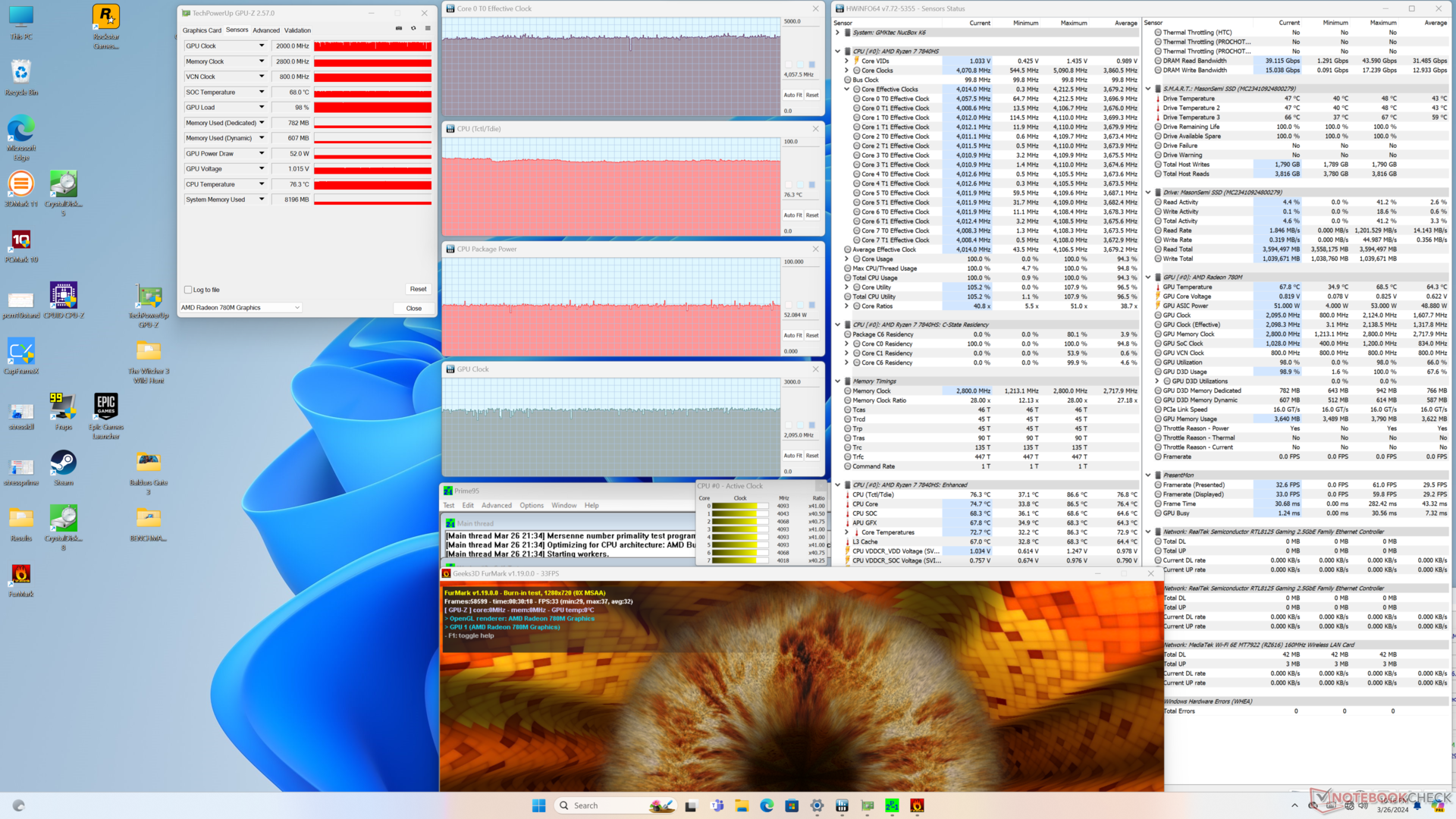

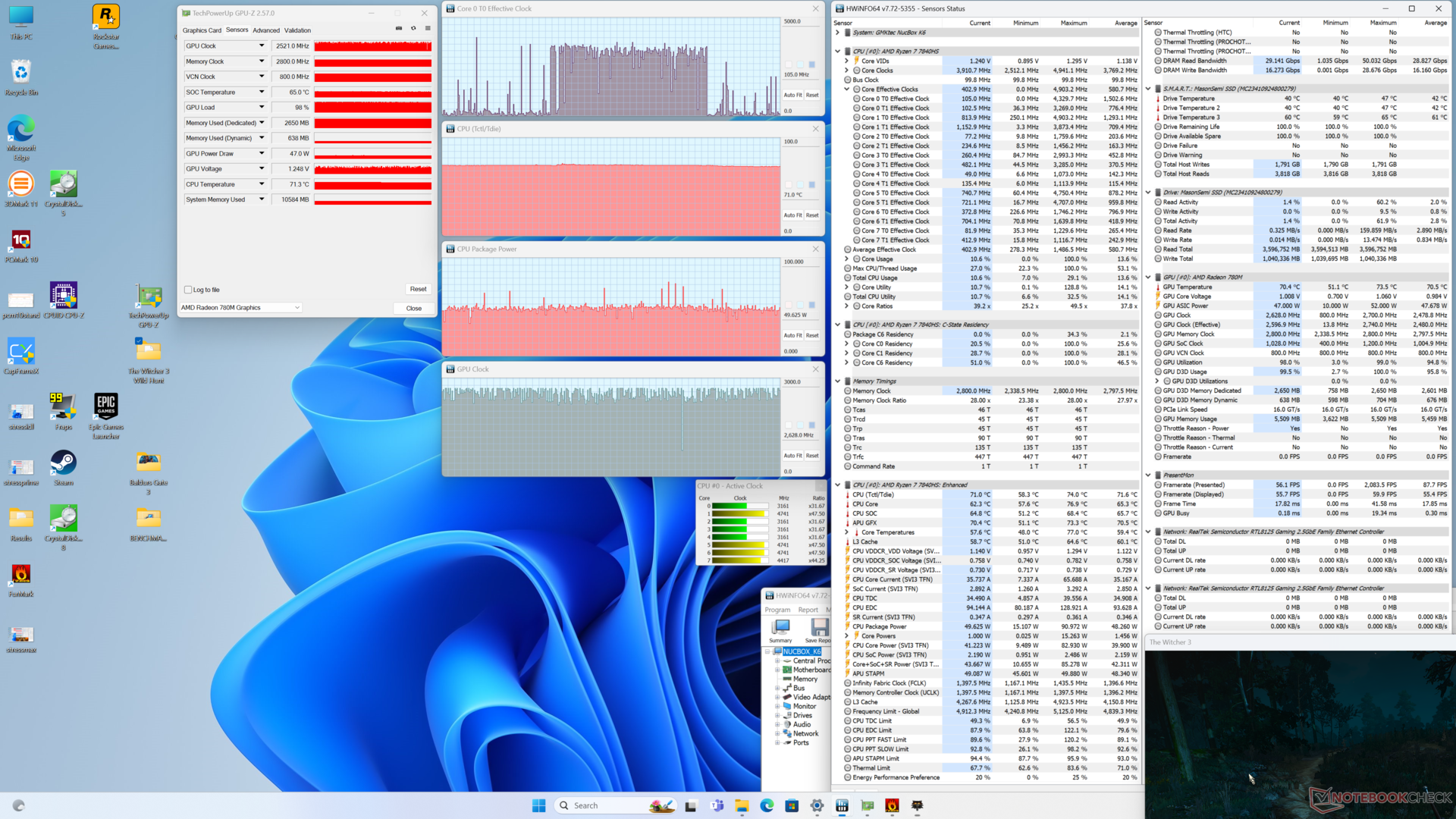

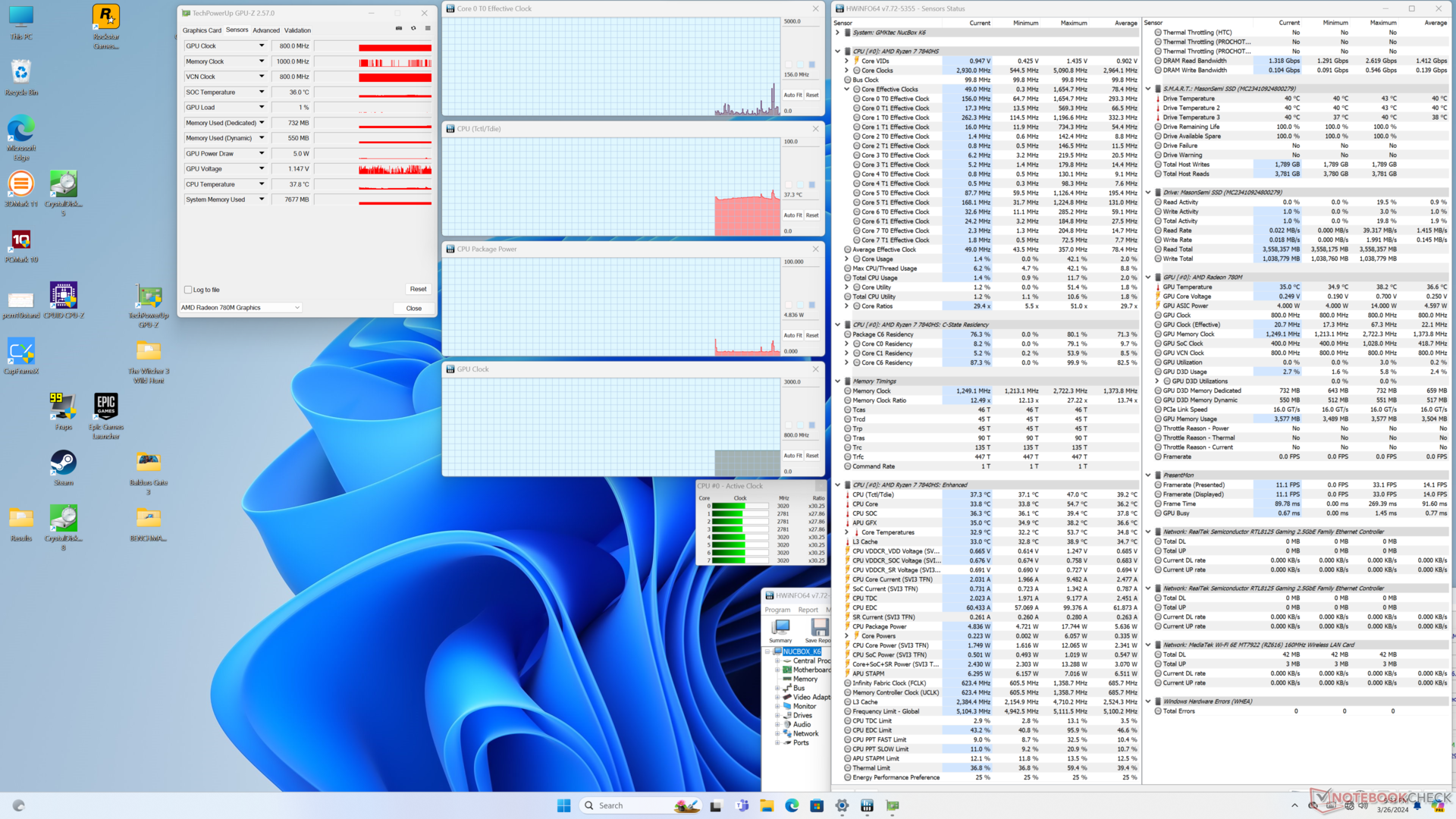

Stresstest

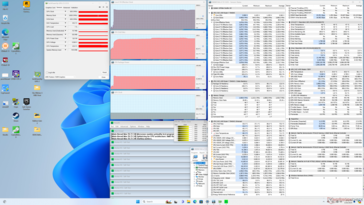

Bij het uitvoeren van Prime95 stress, steeg de CPU naar 4 GHz en 54 W voor slechts een paar seconden voordat hij licht daalde naar 3,8 GHz en 52 W. Kerntemperatuur bij veeleisende belastingen zoals games bleef stabiel in het midden van 70 C, vergeleken met 65 C op de oudere maar zwakkere Beelink SER55 Beelink SER5.

Systeemprestaties

De resultaten van PCMark zijn vergelijkbaar met die van de Geekom A7 ook al is de Geekom uitgerust met de duurdere Ryzen 9 7940HS. Wat Intel betreft, zijn mini PC's uitgerust met Meteor Lake-H CPU's zoals de AcePC de dichtstbijzijnde equivalenten van onze GMK.

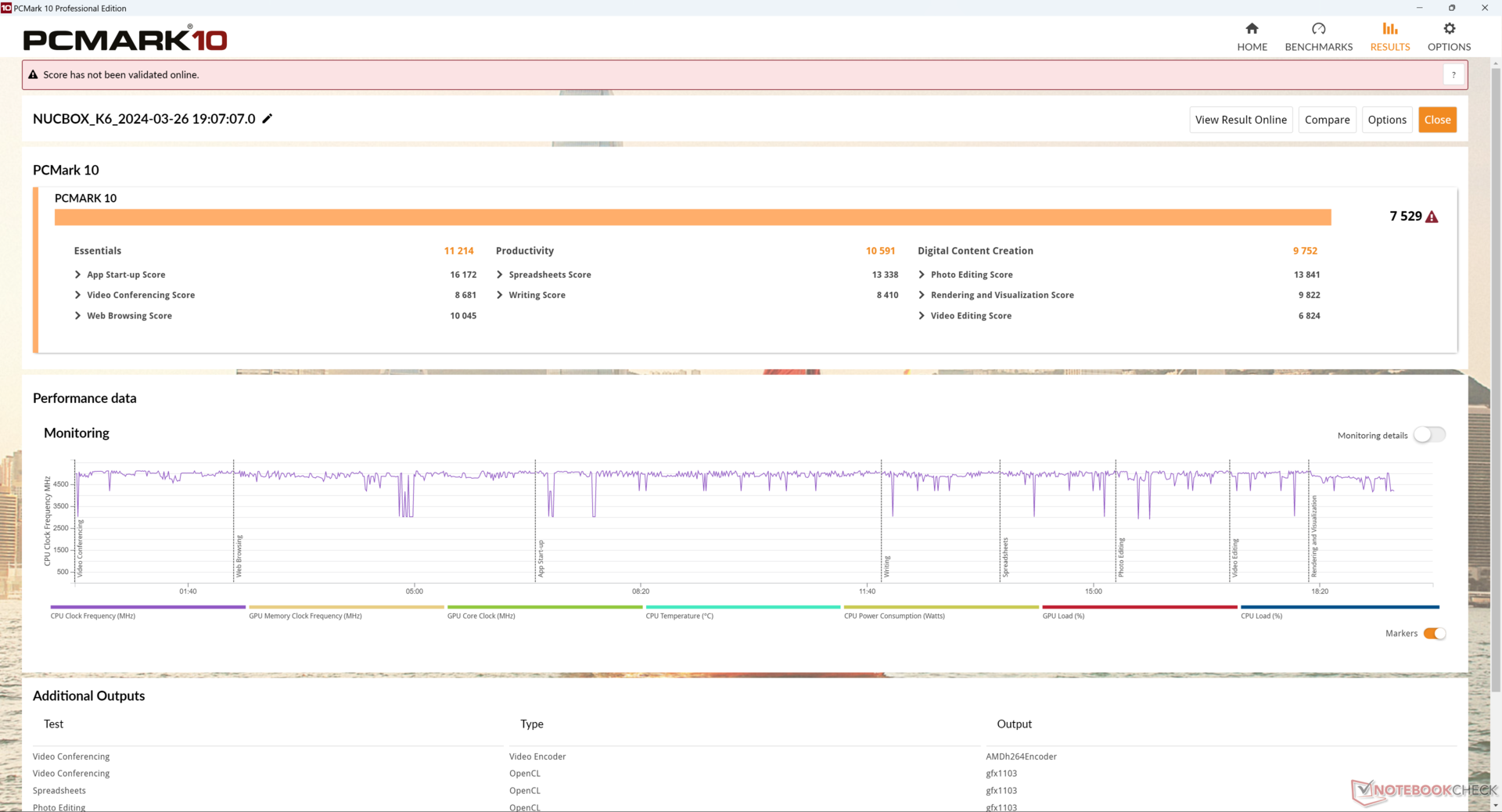

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	7455 Points -1%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (7039 - 7651, n=7)	7407 Points -2%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7297 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points -28%

PCMark 10 / Essentials
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	11114 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -2%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (10519 - 11214, n=7)	10998 Points -2%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10858 Points -3%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points -4%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -16%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (9717 - 10970, n=7)	10506 Points -1%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	10291 Points -3%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9836 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points -16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points -26%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -38%

PCMark 10 / Digital Content Creation
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9875 Points +1%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9831 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (9052 - 9987, n=7)	9550 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points -34%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points -46%

CrossMark / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1861 Points -1%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (1566 - 1873, n=7)	1736 Points -7%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1678 Points -10%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points -16%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -36%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1781 Points -2%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (1535 - 1816, n=7)	1671 Points -8%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -17%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -31%

CrossMark / Creativity
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2072 Points +4%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (1556 - 2040, n=7)	1901 Points -5%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1869 Points -6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -11%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points -12%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -42%

CrossMark / Responsiveness
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1540 Points -10%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (1293 - 1706, n=7)	1496 Points -12%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1400 Points -18%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -23%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -24%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -33%

WebXPRT 3 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	333 Points +2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (297 - 339, n=7)	323 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points -8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	301 Points -8%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	269 Points -18%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	250 Points -24%

WebXPRT 4 / Overall
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (248 - 319, n=6)	270 Points +2%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	268 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	192.4 Points -28%

Mozilla Kraken 1.1 / Total
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	702 ms * -31%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	544 ms * -2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	522 ms * +2%
Gemiddeld AMD Ryzen 7 7840HS, AMD Radeon 780M (485 - 544, n=7)	518 ms * +3%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	503 ms * +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +7%

* ... kleiner is beter

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s -3%
Gemiddeld AMD Ryzen 7 7840HS (30937 - 72158, n=17)	65945 MB/s -5%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	63807 MB/s -8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -36%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -44%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +9%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	60544 MB/s -2%
Gemiddeld AMD Ryzen 7 7840HS (30497 - 61911, n=17)	57613 MB/s -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -36%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s
Gemiddeld AMD Ryzen 7 7840HS (34590 - 93323, n=17)	83733 MB/s -3%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	64852 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -52%

AIDA64 / Memory Latency
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Cores	154.6 ns * -75%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -9%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -6%
Gemiddeld AMD Ryzen 7 7840HS (85.1 - 112, n=17)	92.4 ns * -5%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns *

* ... kleiner is beter

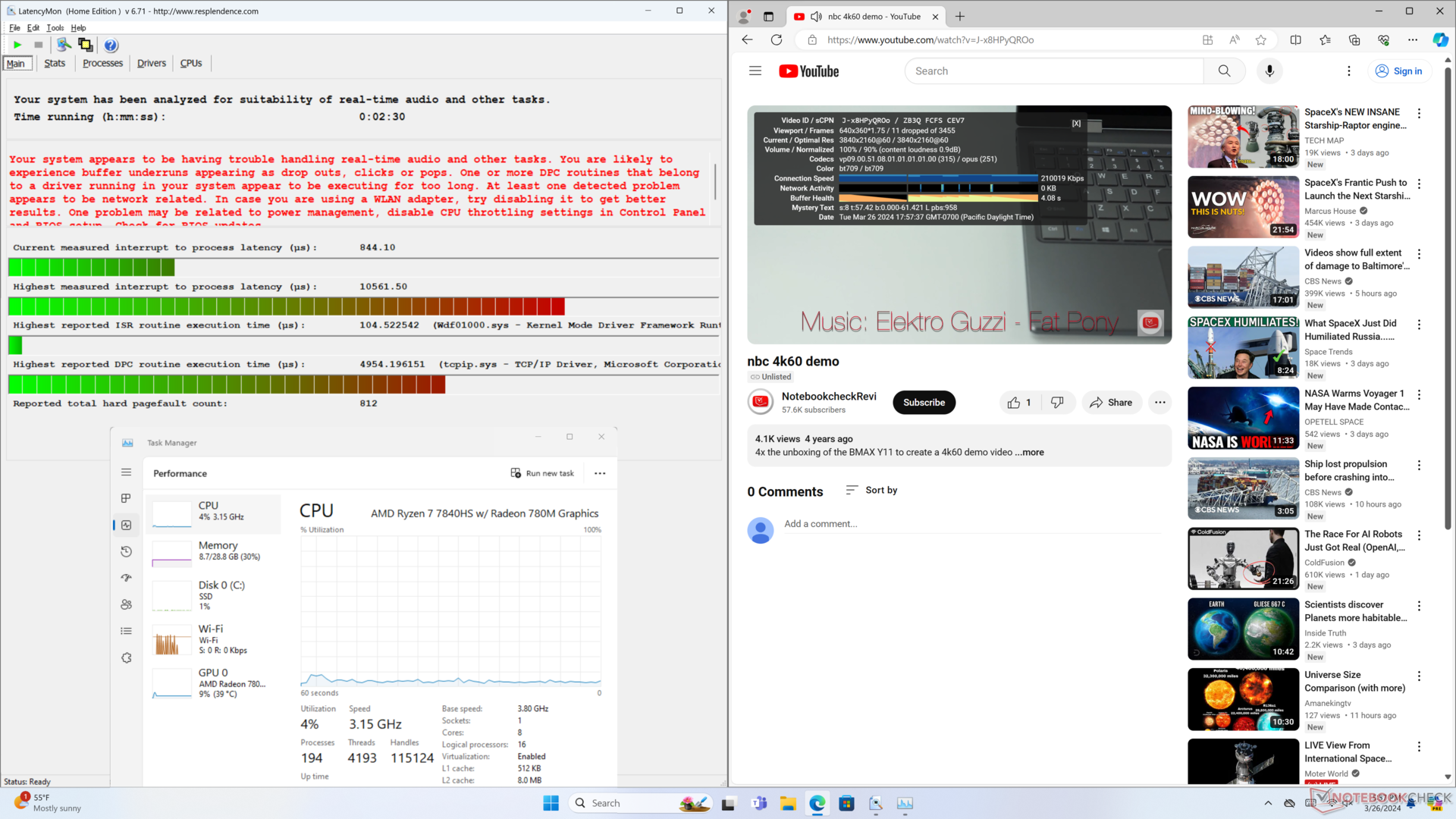

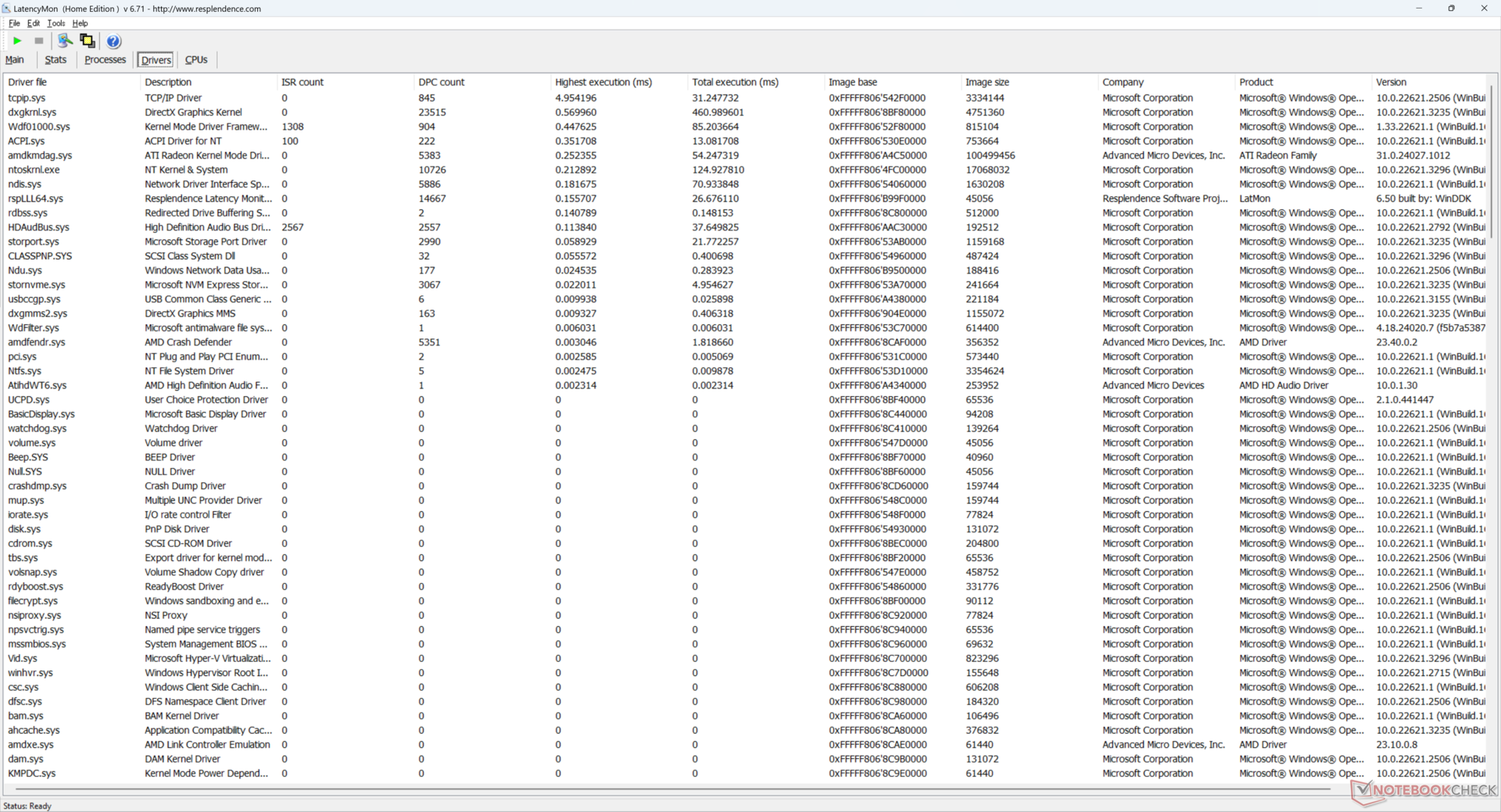

DPC latentie

Helaas heeft het systeem last van DPC-latentieproblemen die het afspelen van video's beïnvloeden. Onze minuut-lange 4K60 video gaf 11 dropped frames terug, terwijl dit nul zou moeten zijn. Als gevolg hiervan kunt u wat stotteren verwachten bij het streamen van video.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +85%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +87%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +90%
AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	983.89 μs * +91%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +97%

* ... kleiner is beter

Opslagapparaten

GMK mini PC's worden meestal geleverd met minder bekende SSD-merken om de kosten laag te houden. De MasonSemi MC7000 is misschien geen bekende naam, maar de prestaties zijn desondanks uitstekend met resultaten die vergelijkbaar zijn met de populaire Samsung PM9A1-serie. Leessnelheden zijn duurzaam bij ~7000 MB/s, wat dicht bij de bovengrens ligt voor PCIe4 x4 schijven.

Merk op dat er slechts één hittespreider wordt meegeleverd, hoewel het systeem tot twee schijven kan ondersteunen.

Verrassend genoeg bevat het systeem een warmtespreider, ondanks de relatief lage prijs

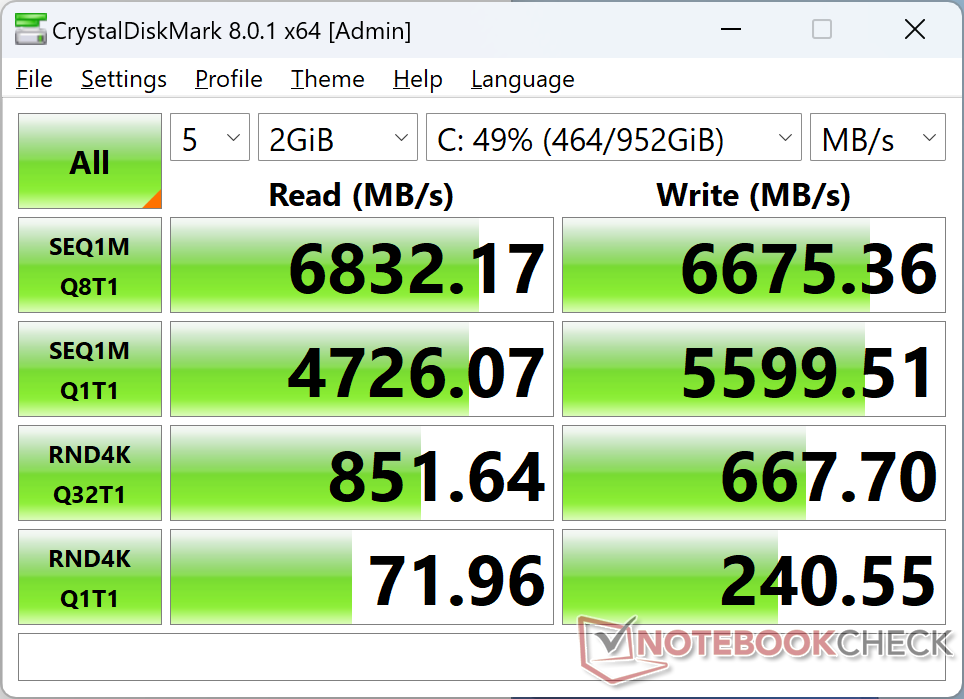

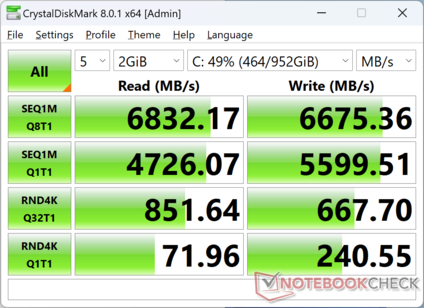

CrystalDiskMark 5.2 / 6

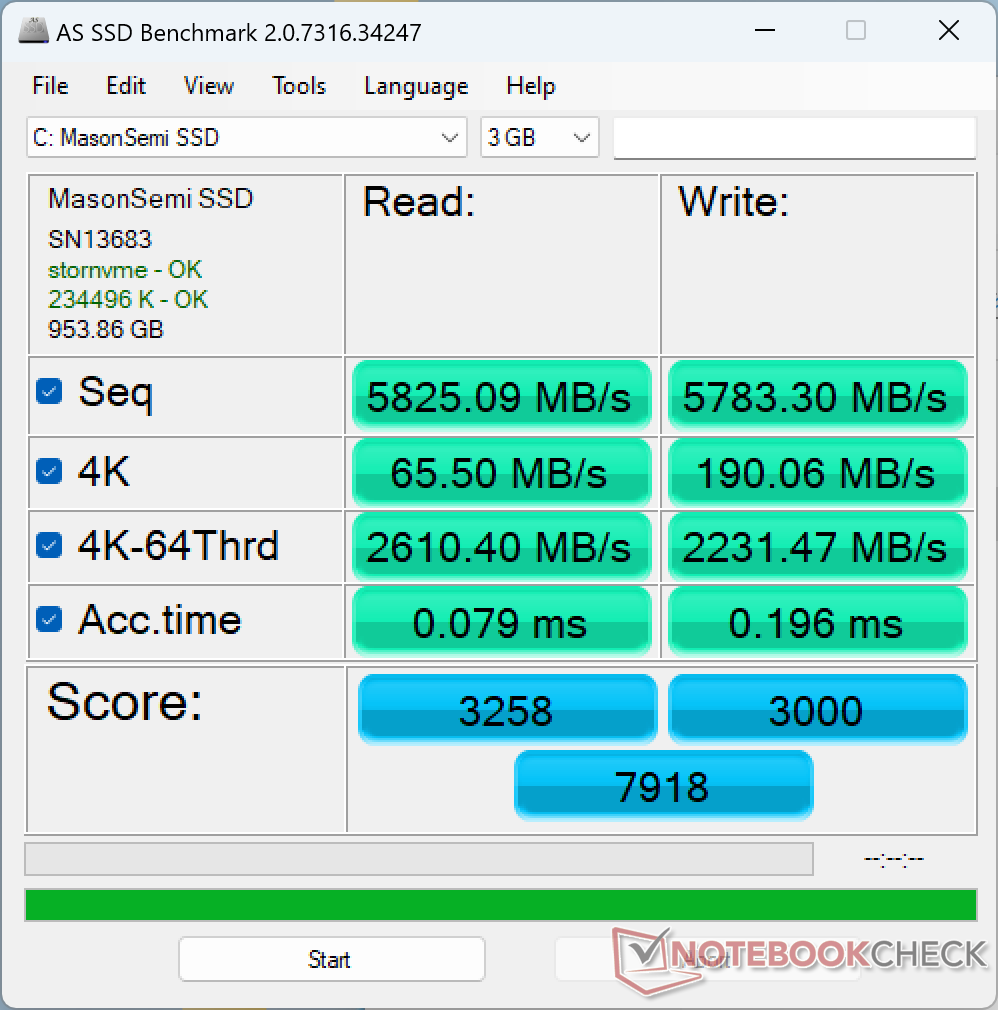

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7049 MB/s

CDM 5/6 Write Seq Q32T1: 6666 MB/s

CDM 5/6 Read 4K Q32T1: 854.6 MB/s

CDM 5/6 Write 4K Q32T1: 669.6 MB/s

CDM 5 Read Seq: 4765 MB/s

CDM 5 Write Seq: 5615 MB/s

CDM 5/6 Read 4K: 74.23 MB/s

CDM 5/6 Write 4K: 236.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	90.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	68.6 pt
Geekom A7 Acer N5000	62.4 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	61.4 pt
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	49.4 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	45 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s -10%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2185 (2022.91^min - 2184.81^max) MB/s -41%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s -46%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s -38%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s -40%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s -49%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2029 (1562.36^min - 2029.13^max) MB/s -64%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -66%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s -23%
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s -31%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4835 (4317.37^min - 4834.75^max) MB/s -32%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s -51%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s -26%
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s -30%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s -52%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2548 (1848.43^min - 2547.98^max) MB/s -62%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -64%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +19%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	54.8 (54.1^min - 54.82^max) MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -26%
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -26%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -29%
4k q1 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -27%
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -31%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -32%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	162.6 (156.04^min - 162.59^max) MB/s -32%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -39%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +13%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s -37%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -54%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	904 (899.18^min - 903.79^max) MB/s -63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -67%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s -44%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1697 (1681.85^min - 1696.69^max) MB/s -57%
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -85%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -87%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -89%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points -34%
Geekom A7 Acer N5000	5177 Points -35%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points -41%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3505 Points -56%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -58%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -48%
Geekom A7 Acer N5000	1685 Points -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -58%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -59%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1251 Points -62%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +11%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points
Geekom A7 Acer N5000	2676 Points -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1666 Points -44%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -57%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3756 MB/s -36%
Geekom A7 Acer N5000	3650 MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s -46%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -49%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s -51%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -53%
Geekom A7 Acer N5000	2611 MB/s -55%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2494 MB/s -57%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -71%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +10%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50.6 MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -24%
Geekom A7 Acer N5000	49.7 MB/s -24%
4K Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +8%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -12%
Geekom A7 Acer N5000	160 MB/s -16%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -24%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	136.6 MB/s -28%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -49%
Geekom A7 Acer N5000	1270 MB/s -51%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -61%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	825 MB/s -68%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -70%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +29%
Geekom A7 Acer N5000	2255 MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s -23%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1280 MB/s -43%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -59%
Access Time Read
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.179 ms * -127%
Geekom A7 Acer N5000	0.138 ms * -75%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -19%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -0%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +24%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -87%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms *
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.084 ms * +57%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +61%
Geekom A7 Acer N5000	0.072 ms * +63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +88%

* ... kleiner is beter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K6; diskspd 2.0.17 f: Ø7035 (6458.68-7055.24)

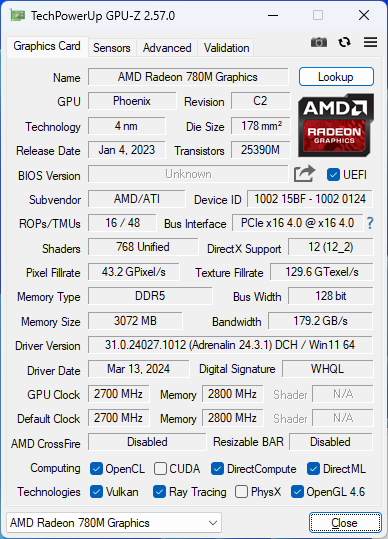

GPU-prestaties - Krachtig genoeg voor de meeste games

De Radeon 780M heeft zichzelf bewezen als een krachtige geïntegreerde GPU en kan zelfs sneller werken op mini PC's dan op laptops, omdat de dikkere vormfactor over het algemeen een hoger energieverbruik toelaat. In dit geval draait de iGPU in onze NucBox K6 ongeveer 10 procent sneller dan de gemiddelde laptop in onze database die is uitgerust met dezelfde grafische optie. Het prestatievoordeel kan zelfs nog groter zijn in games zoals Tiny Tina's Wonderlands of F1 22 , waar we een delta tot 20 procent kunnen waarnemen. Gebruikers die upgraden van UHD Graphics of Iris Xe zouden een aanzienlijke verbetering moeten zien.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	100 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	97.9 pt
Gemiddeld AMD Radeon 780M	89.4 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	81.7 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	80.8 pt
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	77.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	58.3 pt
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	58.1 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	52.4 pt
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	45.6 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	34 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	31.2 pt

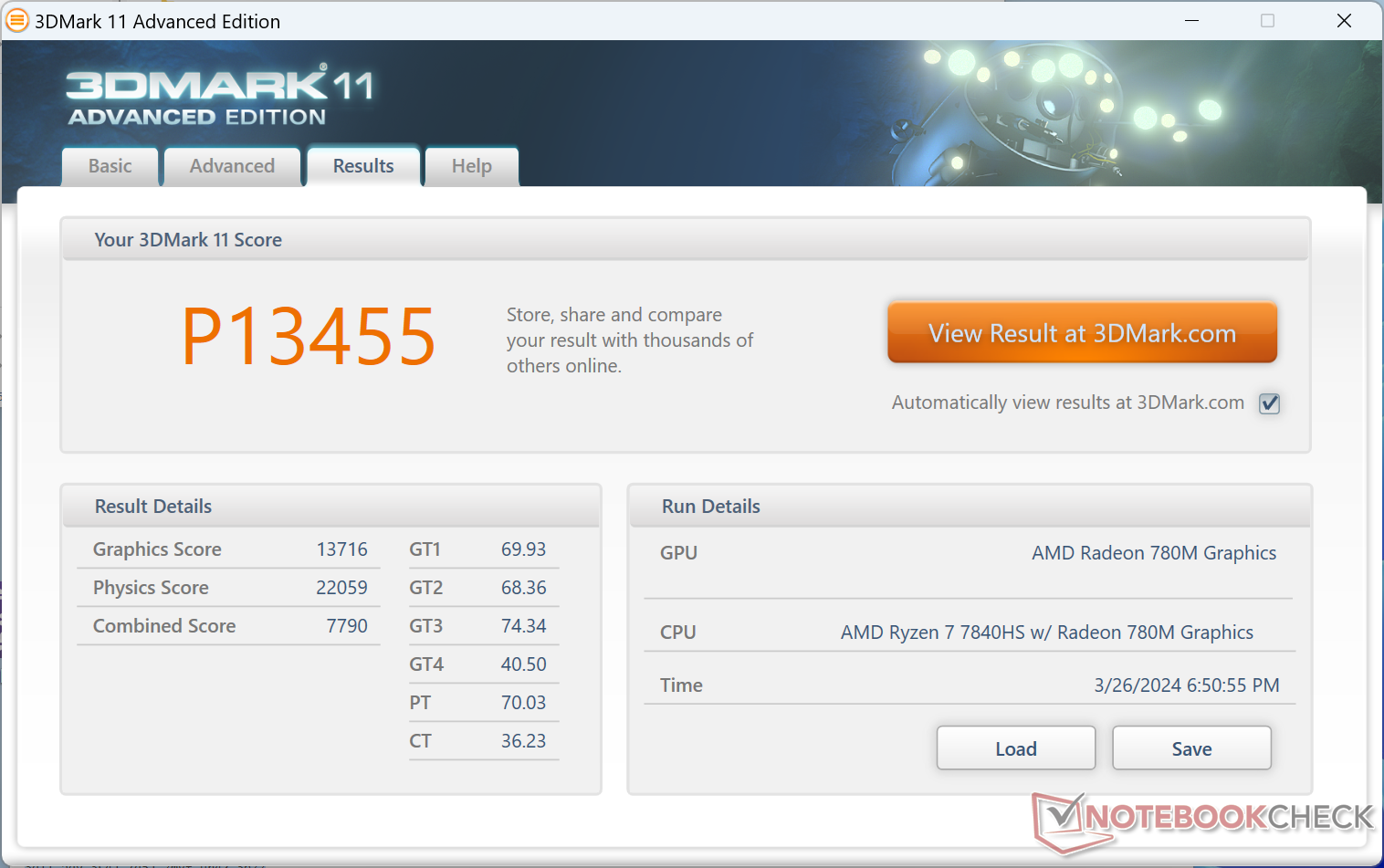

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points
Gemiddeld AMD Radeon 780M (7868 - 13932, n=35)	12196 Points -11%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points -21%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points -23%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	10092 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -47%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7147 Points -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -50%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points -59%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points -68%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points -72%

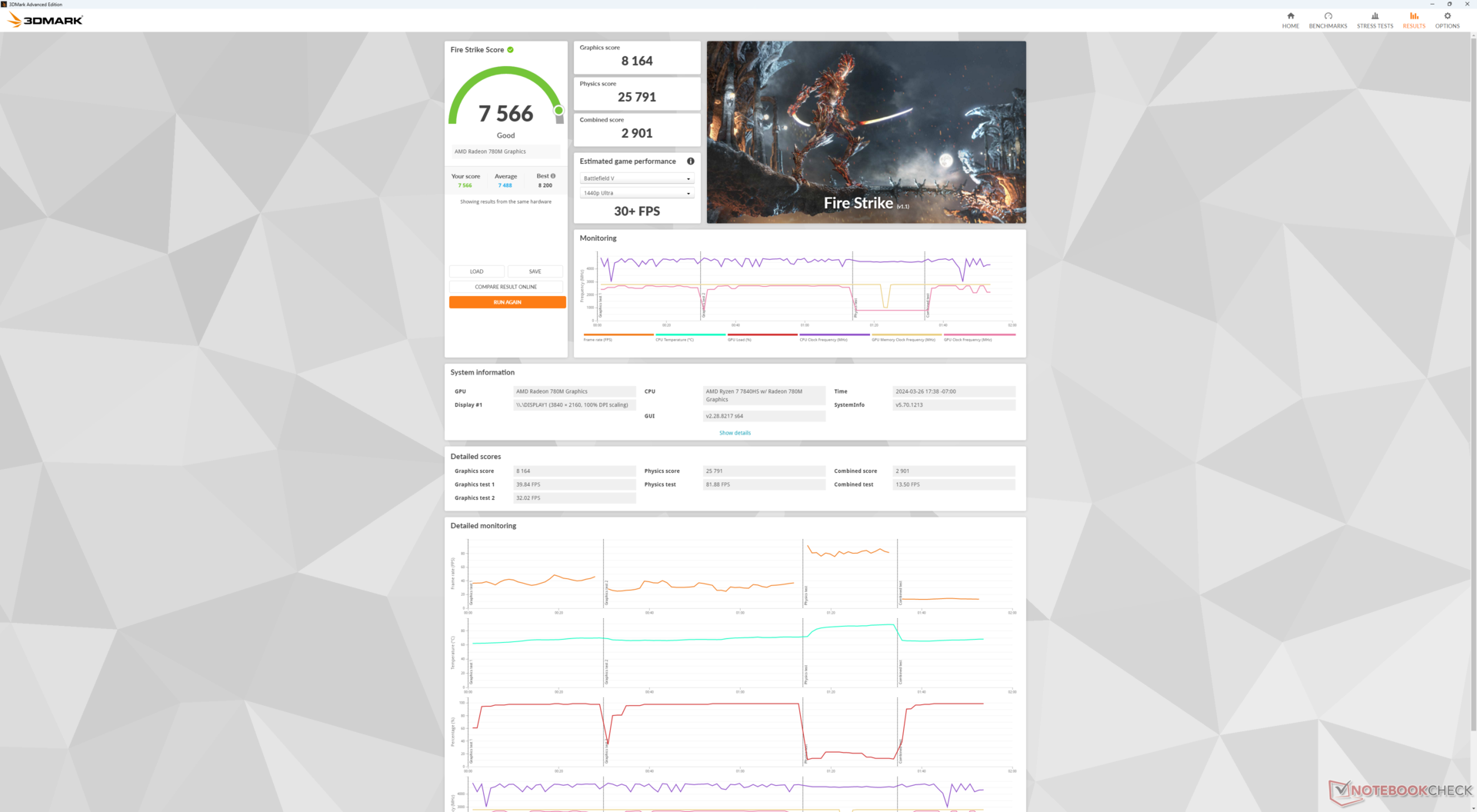

3DMark
1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +3%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points
Gemiddeld AMD Radeon 780M (4550 - 8538, n=34)	7595 Points -7%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	7064 Points -13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -14%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -15%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5637 Points -31%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points -41%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points -44%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points -62%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -63%
2560x1440 Time Spy Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points
Gemiddeld AMD Radeon 780M (1496 - 3027, n=34)	2667 Points -8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2290 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1681 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -48%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points -56%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points -66%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points -70%

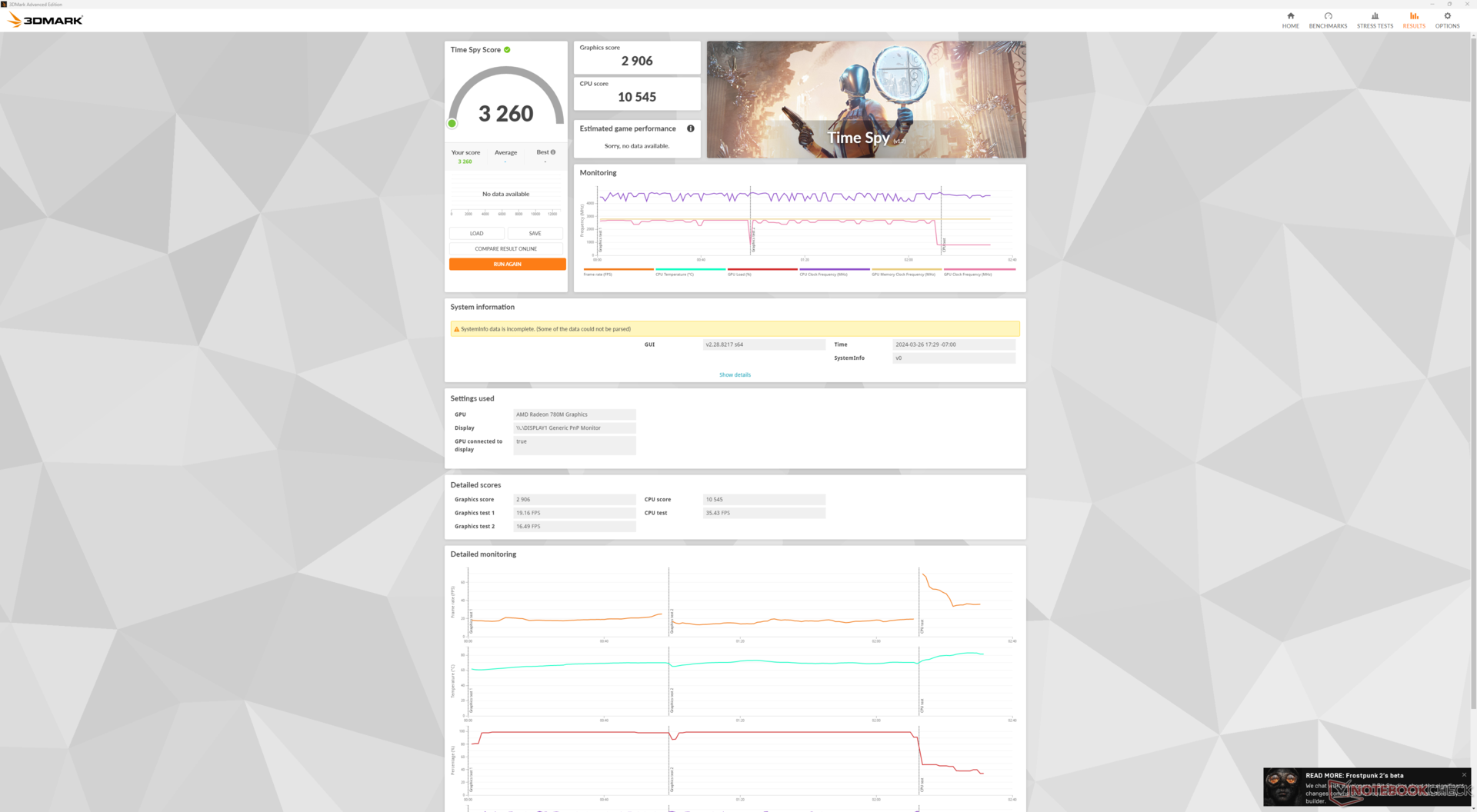

2560x1440 Time Spy Score
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3324 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	3260 Points
Gemiddeld AMD Radeon 780M (1707 - 3380, n=33)	2977 Points -9%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2578 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1910 Points -41%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points -47%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points -55%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	1135 Points -65%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	1001 Points -69%

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds *
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	321 Seconds *
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
v3.3 Classroom CPU
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds * -127%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * -107%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * -74%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * -46%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -46%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -35%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -33%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	416 Seconds * -27%
Gemiddeld AMD Radeon 780M (305 - 503, n=33)	376 Seconds * -15%
AcePC Wizbox AI Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H	364 Seconds * -11%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	331 Seconds * -1%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds *
v3.3 Classroom oneAPI/Intel
AcePC Wizbox AI Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H	255 Seconds *

* ... kleiner is beter

Performance Rating - Percent
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	100 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60 pt
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	21.8 fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	41 (6.8^min, 14.4^P1) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	68.3 (45.5^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps
Gemiddeld AMD Radeon 780M (62.6 - 151.2, n=14)	118.5 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	100.6 fps -28%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.6 fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	30.6 fps -78%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps
Gemiddeld AMD Radeon 780M (34.3 - 74.9, n=14)	61.7 fps -17%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 fps -27%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.8 fps -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -66%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.1 fps -77%
1920x1080 Medium Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps
Gemiddeld AMD Radeon 780M (28.4 - 54.7, n=14)	45 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	40.5 fps -22%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.2 fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.3 fps -75%
1920x1080 High Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps
Gemiddeld AMD Radeon 780M (18.6 - 38.8, n=14)	31.5 fps -14%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.9 fps -18%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	28.2 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -67%
1920x1080 Badass Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	26.5 fps -10%
Gemiddeld AMD Radeon 780M (16.5 - 31.3, n=14)	25.8 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.6 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -54%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -70%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	171.9 (142^min, 114^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps
Gemiddeld AMD Radeon 780M (85.4 - 172.5, n=18)	143.6 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	128.6 (111^min, 94^P1) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps -58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -64%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	51.7 (41^min, 40^P1) fps -70%
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	96.9 (70^min, 53^P1) fps -3%
Gemiddeld AMD Radeon 780M (47 - 99.8, n=23)	84.1 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	77.1 (64^min, 61^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	27.9 (23^min, 19^P1) fps -72%
1920x1080 Medium Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.4 (62^min, 63^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps
Gemiddeld AMD Radeon 780M (41.5 - 89.8, n=23)	74.5 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.9 (56^min, 51^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps -57%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -67%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	24.8 (21^min, 17^P1) fps -71%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (56^min, 51^P1) fps -2%
Gemiddeld AMD Radeon 780M (31.7 - 66.7, n=23)	55.6 fps -17%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	50.1 (40^min, 39^P1) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.5 (14^min, 12^P1) fps -74%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +13%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	18.5 (13^min, 12^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps
Gemiddeld AMD Radeon 780M (9.92 - 18.5, n=16)	15.6 fps -15%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps -17%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.5 (11^min, 11^P1) fps -27%

The Witcher 3
1024x768 Low Graphics & Postprocessing
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps -11%
Gemiddeld AMD Radeon 780M (74 - 160, n=27)	134 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	119.3 (5.54^min, 30^P0.1, 77.7^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps -45%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.1 (39^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps -68%
1366x768 Medium Graphics & Postprocessing
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	99.3 (25.6^min, 43.8^P0.1, 72.1^P1) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps
Gemiddeld AMD Radeon 780M (47.7 - 101.5, n=16)	88.6 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	76.6 (20.1^min, 52.2^P0.1, 62.8^P1) fps -23%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	38.6 (36^min) fps -61%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps -70%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps -10%
Gemiddeld AMD Radeon 780M (21.3 - 50.9, n=31)	43.9 fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	36.3 (14.7^min, 17.9^P0.1, 30.9^P1) fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps -47%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20.1 (17^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -63%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps -67%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
Gemiddeld AMD Radeon 780M (14.3 - 33.9, n=33)	27.7 fps -10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps -12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (14.2^min, 14.3^P0.1, 14.6^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps -55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	9.5 (8^min) fps -69%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -73%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	86 (76^min) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps
Gemiddeld AMD Radeon 780M (42 - 87, n=27)	70.6 fps -18%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	67 (57^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -47%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34 (20^min) fps -60%
1920x1080 Medium Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (41^min) fps -4%
Gemiddeld AMD Radeon 780M (22 - 51, n=29)	41.9 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39 (35^min) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps -55%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -57%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17 (15^min) fps -65%
1920x1080 High Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	43 (38^min) fps -4%
Gemiddeld AMD Radeon 780M (21 - 47, n=29)	38.9 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	35 (31^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	16 (14^min) fps -64%
1920x1080 Ultra Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps -5%
Gemiddeld AMD Radeon 780M (21 - 45, n=29)	36.9 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	34 (30^min) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (13^min) fps -65%

GTA V
1024x768 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	167.5 (5.17^min, 125^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps -7%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (5.71^min, 100^P1) fps -10%
Gemiddeld AMD Radeon 780M (91.6 - 167.5, n=32)	141.6 fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps -32%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	106.7 (12.9^min, 71.4^P1) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -36%
1920x1080 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.1 (21.2^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps -10%
Gemiddeld AMD Radeon 780M (60.9 - 129.1, n=22)	111.8 fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	109.8 (9.31^min, 71.4^P1) fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps -48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps -49%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.2 (24.1^min, 45.5^P1) fps -51%
1366x768 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	157.4 (5.24^min, 100^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -10%
Gemiddeld AMD Radeon 780M (91.2 - 158.4, n=25)	136.3 fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	134.5 (8.19^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps -37%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	90.7 (31.1^min, 55.6^P1) fps -41%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	90.4 (9.41^min, 62.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -45%
1920x1080 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	131.5 (6.41^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps
Gemiddeld AMD Radeon 780M (64.9 - 132.3, n=20)	111.9 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	111.3 (22.1^min, 71.4^P1) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	90.4 (9.41^min, 62.5^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -42%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps -50%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.7 (28^min, 45.5^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.6 (4.46^min, 37^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps
Gemiddeld AMD Radeon 780M (32.5 - 68.6, n=32)	59.5 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps -21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps -21%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	48.7 (9.22^min, 34.5^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	32.2 (6.83^min, 23.3^P1) fps -51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps -63%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -68%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -76%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (10^min, 11.4^P1) fps -77%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (4.34^min, 14.1^P1) fps -1%
Gemiddeld AMD Radeon 780M (12.2 - 27.6, n=32)	24.4 fps -6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -9%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	20.4 (4.1^min, 14.7^P1) fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -74%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	6.32 (3.91^min, 4.98^P1) fps -76%

X-Plane 11.11
1280x720 low (fps_test=1)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 fps +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -2%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.7 fps -5%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	61.5 fps -7%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	53.4 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -17%
Gemiddeld AMD Radeon 780M (39 - 69.6, n=36)	51.6 fps -22%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	50.5 fps -23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps -37%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -42%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.3 fps -45%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	49.8 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.2 fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	46.9 fps -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	41.3 fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -13%
Gemiddeld AMD Radeon 780M (26.2 - 48.2, n=36)	37.7 fps -20%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	36.1 fps -24%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -42%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	23.8 fps -50%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps +5%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	41.6 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Gemiddeld AMD Radeon 780M (24.5 - 40.7, n=35)	31.7 fps -20%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	31.4 fps -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -28%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -41%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	22 fps -45%

Baldur's Gate 3
1920x1080 Low Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps
Gemiddeld AMD Radeon 780M (39.1 - 40.5, n=2)	39.8 fps -2%
1920x1080 Medium Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps
Gemiddeld AMD Radeon 780M (30.9 - 33.7, n=3)	32.1 fps -5%
1920x1080 High Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps
Gemiddeld AMD Radeon 780M (22.9 - 28.1, n=3)	25.7 fps -9%
1920x1080 Ultra Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps
Gemiddeld AMD Radeon 780M (21.9 - 27, n=3)	24.9 fps -8%

Cyberpunk 2077 2.0 Phantom Liberty
1280x720 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps
Gemiddeld AMD Radeon 780M (53.9 - 77.4, n=7)	66.5 fps -14%
1920x1080 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps
Gemiddeld AMD Radeon 780M (36.1 - 52.1, n=11)	42.5 fps -8%
1920x1080 Medium Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps
Gemiddeld AMD Radeon 780M (28.5 - 35.6, n=11)	32.2 fps -9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	23.8 (18.8^min) fps -32%
1920x1080 High Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps
Gemiddeld AMD Radeon 780M (22.1 - 29, n=11)	25.6 fps -8%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	17.8 (11.8^min) fps -36%
1920x1080 Ultra Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Gemiddeld AMD Radeon 780M (20.3 - 26.3, n=7)	22.4 fps -9%

Final Fantasy XV Benchmark
1280x720 Lite Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.3 fps -13%
Gemiddeld AMD Radeon 780M (41.1 - 81.9, n=31)	69.7 fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.1 fps -23%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	52.8 fps -35%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	46.1 fps -43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -44%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -54%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -60%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	28.5 fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -72%
1920x1080 Standard Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps -11%
Gemiddeld AMD Radeon 780M (21 - 39.3, n=32)	34.9 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps -12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	33.5 fps -15%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33.4 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	32.8 fps -17%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	24.7 fps -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -38%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps -44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -59%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	14.8 fps -62%
1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
Gemiddeld AMD Radeon 780M (15.9 - 29.4, n=33)	26.1 fps -11%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	23 fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	21.8 fps -26%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	17.7 fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10.6 fps -64%

Strange Brigade
1280x720 lowest AF:1
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps
Gemiddeld AMD Radeon 780M (77.8 - 170.5, n=31)	148.8 fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	137.5 (81.3^min, 118.1^P1) fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	131.8 (15.2^min, 64.5^P1) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -53%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	64.4 (13.2^min, 19^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -66%
1920x1080 medium AA:medium AF:4
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps
Gemiddeld AMD Radeon 780M (31.7 - 68.2, n=31)	61.3 fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps -15%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	57 (8.9^min, 48.8^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.2 (43.3^min, 47.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -55%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	25.6 (7.1^min, 12.5^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -67%
1920x1080 high AA:high AF:8
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps
Gemiddeld AMD Radeon 780M (27.3 - 58.1, n=31)	51.9 fps -10%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	50.4 (24.4^min, 40.8^P1) fps -13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	45 (34.5^min, 35.8^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20 (5^min, 6.58^P1) fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -70%
1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
Gemiddeld AMD Radeon 780M (23.5 - 49.6, n=32)	44.3 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	41 (6.8^min, 14.4^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39.1 (19^min, 24.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.7 (5^min, 5^P1) fps -64%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -66%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (135.9^min) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	140.9 (120.9^min) fps -13%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	133.8 (103.8^min) fps -17%
Gemiddeld AMD Radeon 780M (103.7 - 163.1, n=34)	132.4 fps -18%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -29%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -31%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	102.5 (56.5^min) fps -36%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	37 (34.9^min) fps -77%
1366x768 med (1/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	120.6 (96.2^min) fps -3%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	115.1 (100.7^min) fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -10%
Gemiddeld AMD Radeon 780M (87.5 - 130.1, n=34)	106.6 fps -15%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps -25%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	92.6 (61.2^min) fps -26%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -27%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	87.3 (72.8^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -34%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.2 (33.9^min) fps -71%
1920x1080 high (2/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (81.8^min) fps -8%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	87.6 (75^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -13%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -16%
Gemiddeld AMD Radeon 780M (54.9 - 97.5, n=34)	78.8 fps -19%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	72.3 (46.1^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -30%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	67.6 (60.7^min) fps -30%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -50%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	35.4 (33.8^min) fps -63%
1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.9 (77.4^min) fps -3%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -18%
Gemiddeld AMD Radeon 780M (51.3 - 91.2, n=34)	71.1 fps -19%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU	68.3 (45.5^min) fps -22%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	61.2 (55.2^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34.7 (32.5^min) fps -60%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -62%

Witcher 3 FPS Chart

GMK NucBox K6 R7 7840HS, Radeon 780M: Ø30.8 (28-34)

	lage	gem.	hoge	ultra
GTA V (2015)	163.4	153.8	65.7	26
The Witcher 3 (2015)	155.1	99	50.9	30.8
Dota 2 Reborn (2015)	161.2	124.8	96.8	87.4
Final Fantasy XV Benchmark (2018)	80.8	39.3	29.3
X-Plane 11.11 (2018)	65.9	47.3	39.7
Far Cry 5 (2018)	86	49	45	43
Strange Brigade (2018)	167.7	67.9	57.9	48.8
Tiny Tina's Wonderlands (2022)	74.6	52.2	36.6	29.5
F1 22 (2022)	99.8	85.9	66.7	18.4
Baldur's Gate 3 (2023)	40.5	33.7	28.1	27
Cyberpunk 2077 2.0 Phantom Liberty (2023)	46.3	35.2	27.7	24.5

Uitstoot - Niet bang om luidruchtig te zijn

Systeemgeluid

Het ventilatorgeluid is altijd aanwezig met een basis van 31,3 dB(A) tegen een stille achtergrond van 23,2 dB(A), waardoor de NucBox K6 automatisch luider is dan de meeste laptops met CPU's uit de U-serie. Houd er echter rekening mee dat gebruikers normaal gesproken verder weg zitten van mini PC's in vergelijking met laptops en dat geluidsniveaus dus minder merkbaar kunnen zijn. Het systeem wordt met 33,4 dB(A) iets luider tijdens het streamen van video's of surfen op het web, maar de veranderingen in RPM zijn gelukkig gelijkmatig en zonder plotselinge pieken.

Als u zwaardere belastingen zoals games uitvoert, zal het ventilatorgeluid tussen 44 en 48 dB(A) meer opvallen en bijna net zo luid zijn als bij sommige gaming laptops zoals de MSI Stealth GS66. Interessant is dat het bereik en gedrag van het ventilatorgeluid bijna overeenkomen met wat we hebben waargenomen op de Geekom A7.

Geluidsprofiel ventilator (Wit: Achtergrond, Rood: Systeem inactief, Blauw: 3DMark 06, Oranje: Witcher 3 groen: Prime95+FurMark stress)

Geluidsniveau

Onbelast		31.3 / 31.3 / 33.4 dB (A)
Belasting		47.5 / 47.7 dB (A)

	30 dB stil 40 dB(A) hoorbaar 50 dB(A) luid
min: , med: , max: Earthworks M23R, Arta (15 cm afstand) omgevingslawaai: 23.2 dB(A)

Temperatuur

Verse lucht komt binnen via de onderkant en langs de omtrek van de bovenrand, terwijl uitlaatlucht via de achterkant ontsnapt. Door dit ontwerp kan de unit zowel horizontaal als verticaal worden geplaatst zonder de luchtstroom te belemmeren.

De AC-adapter kan een temperatuur van meer dan 42 C bereiken wanneer gedurende lange perioden veeleisende belastingen worden uitgevoerd.

Energiebeheer

Stroomverbruik

Het systeem verbruikt ongeveer 73 W tijdens het gamen, wat relatief veel is voor een mini PC met alleen geïntegreerde graphics. De langzamere NUC 13 Pro zou bijvoorbeeld slechts 45 W verbruiken onder vergelijkbare omstandigheden. Het hoge verbruik komt overeen met onze bevindingen hierboven met betrekking tot de hogere energie-enveloppe van de NucBox K6.

We kunnen een maximaal stroomverbruik van ongeveer 88 W uit de middelgrote (~14,9 x 6,3 x 3 cm) netadapter van 130 W registreren wanneer de CPU voor 100% wordt gebruikt. De stroomoverloop kan worden gebruikt voor externe USB-C apparaten zoals SSD's.

(Noot van de redactie: Dit gedeelte zal worden bijgewerkt wanneer de reparaties aan onze Metrahit Energy multimeter zijn voltooid. Onze excuses voor het ongemak)

Stroomgebruik



Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	AcePC Wizbox AI Ultra 7 155H, Arc 8-Cores, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe, , x,	Geekom A7 R9 7940HS, Radeon 780M, Acer N5000, , x,
Power Consumption
Idle Minimum *	7.1	7	4.4	7.23	3.8
Idle Average *	10.1	9.2	5	10	4.8
Idle Maximum *	18.6	11.8	5.3	49	6.5
Load Average *	45.3	45	29.8	53	71.9
Witcher 3 ultra *	55.2		28.8
Load Maximum *	52.9	97.2	40.4	91	94.7

* ... kleiner is beter

Power Consumption Witcher 3 / Stresstest

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Power Consumption external Monitor

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

Conclusie - Krachtig en relatief goedkoop

De NucBox K6 is een van de meest overtuigende mini-pc's die we tot nu toe van GMK hebben getest. Hij voldoet aan een aantal belangrijke voorwaarden, waaronder een betaalbare prijsklasse van $500, sterke CPU- en iGPU-prestaties, upgradebaar RAM en opslag, en een kleine NUC-formaat vormfactor. Vooral de prestaties zijn indrukwekkend voor deze categorie, aangezien alternatieven zoals de Intel NUC 13 Pro of Geekom A7 langzamer, duurder of zelfs beide zijn.

De sterke prestaties en aantrekkelijke prijs overschaduwen de korte lijst met nadelen, waardoor de GMK NucBox K6 een gemakkelijke aanbeveling is voor HTPC en casual 1080p gaming doeleinden.

Er zijn slechts een paar kleine nadelen. De enkele USB-C poort kan bijvoorbeeld beperkend aanvoelen als u veel accessoires of monitoren wilt aansluiten. We zouden ook graag gereedschaploos onderhoud zien, vergelijkbaar met de Lenovo IdeaCentre Mini of bepaalde Intel NUC's. De DPC-latentieproblemen moeten ook worden aangepakt voor een soepelere videoweergave-ervaring. En tot slot zou een overstap naar USB-C AC-adapters de mini PC reisvriendelijker maken en de compatibiliteit met bestaande USB-C adapters vergroten.

Prijs en beschikbaarheid

GMKtec levert nu de NucBox K6 vanaf $400 voor een barebone-kit of $500 met 16 GB RAM, 1 TB SSD en Windows 11 Pro. Couponcodes 'K6-0-NBC' en 'K6-2T-NBC' kunnen van toepassing zijn bij het afrekenen voor respectievelijk de barebone en 32 GB SKU's.

Als alternatief verzendt Amazon ook de NucBox K6.

GMK NucBox K6 - 2024-04-03 03-04-2024 v7
Allen Ngo

Behuizing

84 / 98 → 85%

Aansluitmogelijkheden

62 / 81 → 77%

Gewicht

83%

Gaming-performance

81%

Applicatie-performance

98%

Luidheid

71%

Gemiddelde

80%

84%

Mini PC - Gewogen Gemiddelde

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Evaluatie	Datum	Model	Gewicht	Hoogte	Resolutie
83.6 %	04-2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
82.8 %		GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83.1 %	08-2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
82.1 %	11-2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
85.2 %	04-2024	AcePC Wizbox AI Ultra 7 155H, Arc 8-Cores	840 g	55.55 mm	x
82.6 %	03-2024	Geekom A7 R9 7940HS, Radeon 780M	417 g	38 mm	x

Cinebench R15 CPU Multi 64 Bit in vergelijking
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
HP Spectre x360 16-aa0074ng Ultra 7 155H, Arc 8-Cores	2531
SCHENKER XMG Ultra 17 Comet Lake i9-10900K, GeForce RTX 2080 Super Mobile	2533
Alienware x14 i7 RTX 3060 i7-12700H, GeForce RTX 3060 Laptop GPU	2535
GMK NucBox K6 R7 7840HS, Radeon 780M	2537
Lenovo Yoga Pro 7 14IMH9 Ultra 7 155H, Arc 8-Cores	2541
Razer Blade 15 OLED (Early 2022) i9-12900H, GeForce RTX 3070 Ti Laptop GPU	2543
Huawei MateBook 16s i7 i7-12700H, Iris Xe G7 96EUs	2545
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

	CPU-klok (GHz)	GPU-klok (MHz)	Gemiddelde CPU-temperatuur (°C)
Inactief systeem	--	--	37
Prime95 Stress	3.9	800	84
Prime95 + FurMark-stress	4.1	2000	76
Witcher 3 Stress	~0.4	2200 - 2700	71

GMK NucBox K6 mini PC beoordeling: Net zo krachtig als de nieuwste Intel Core Ultra laptops

Potentiële concurrenten in vergelijkings

Zaak

Vergelijking grootte

Connectiviteit

Communicatie

Onderhoud

Accessoires en garantie

Prestaties - AMD Zen 4 is nog steeds erg krachtig

Testomstandigheden

Processor

Cinebench R15 Multi Loop

Stresstest

Systeemprestaties

DPC latentie

Opslagapparaten

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestaties - Krachtig genoeg voor de meeste games

Witcher 3 FPS Chart

Uitstoot - Niet bang om luidruchtig te zijn

Systeemgeluid

Temperatuur

Energiebeheer

Stroomverbruik

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Conclusie - Krachtig en relatief goedkoop

Prijs en beschikbaarheid

Gelinkte Artikelen

Transparency

Pricecompare

3DMark 11 Performance		13455 punten
3DMark Fire Strike Score		7566 punten
3DMark Time Spy Score		3260 punten
Help

3DMark 11 in vergelijking
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
MSI Alpha 15 A3DDK R7 3750H, Radeon RX 5500M	13344
Acemagic AM18 R7 7840HS, Radeon 780M	13425
Asus TUF FX705GM i7-8750H, GeForce GTX 1060 Mobile	13450
GMK NucBox K6 R7 7840HS, Radeon 780M	13455
Lenovo Yoga 9 2-in-1 14IMH9 Ultra 7 155H, Arc 8-Cores	13455
MSI WS63VR 7RL-023US i7-7700HQ, Quadro P4000 Max-Q	13482
SCHENKER XMG Neo 15 i7-8750H, GeForce GTX 1060 Mobile	13509
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163

	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	AcePC Wizbox AI Arc 8-Cores, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	Geekom A7 Radeon 780M, R9 7940HS, Acer N5000
Noise		15%	8%	26%	19%	-1%
uit / omgeving *	23.2	23.1 -0%	25.2 -9%	23.7 -2%	23.54 -1%	25.4 -9%
Idle Minimum *	31.3	25 20%	28.1 10%	23.9 24%	23.54 25%	33.3 -6%
Idle Average *	31.3	25.5 19%	28.2 10%	23.9 24%	24.9 20%	33.6 -7%
Idle Maximum *	33.4	25.5 24%	28.3 15%	23.9 28%	24.9 25%	33.7 -1%
Load Average *	47.5	39.9 16%	42 12%	28 41%	35.78 25%	43.3 9%
Witcher 3 ultra *	43.6	39.9 8%		27.6 37%		43.2 1%
Load Maximum *	47.7	39.9 16%	42.1 12%	32.8 31%	37.57 21%	43.3 9%
