Schenker XMG Ultra 17 (Clevo X170KM-G) in review: Massieve krachtpatser met weelderige uitrusting

Meer kracht. Schenker's DTR notebook scoort met brute rekenkracht en uitgebreide onderhouds-, verbindings- en uitbreidingsmogelijkheden. Zo kunnen de processor en de grafische kern worden vervangen, naast het werkgeheugen en de opslagmedia.
Sascha Mölck, 👁 Florian Glaser (vertaald door DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...

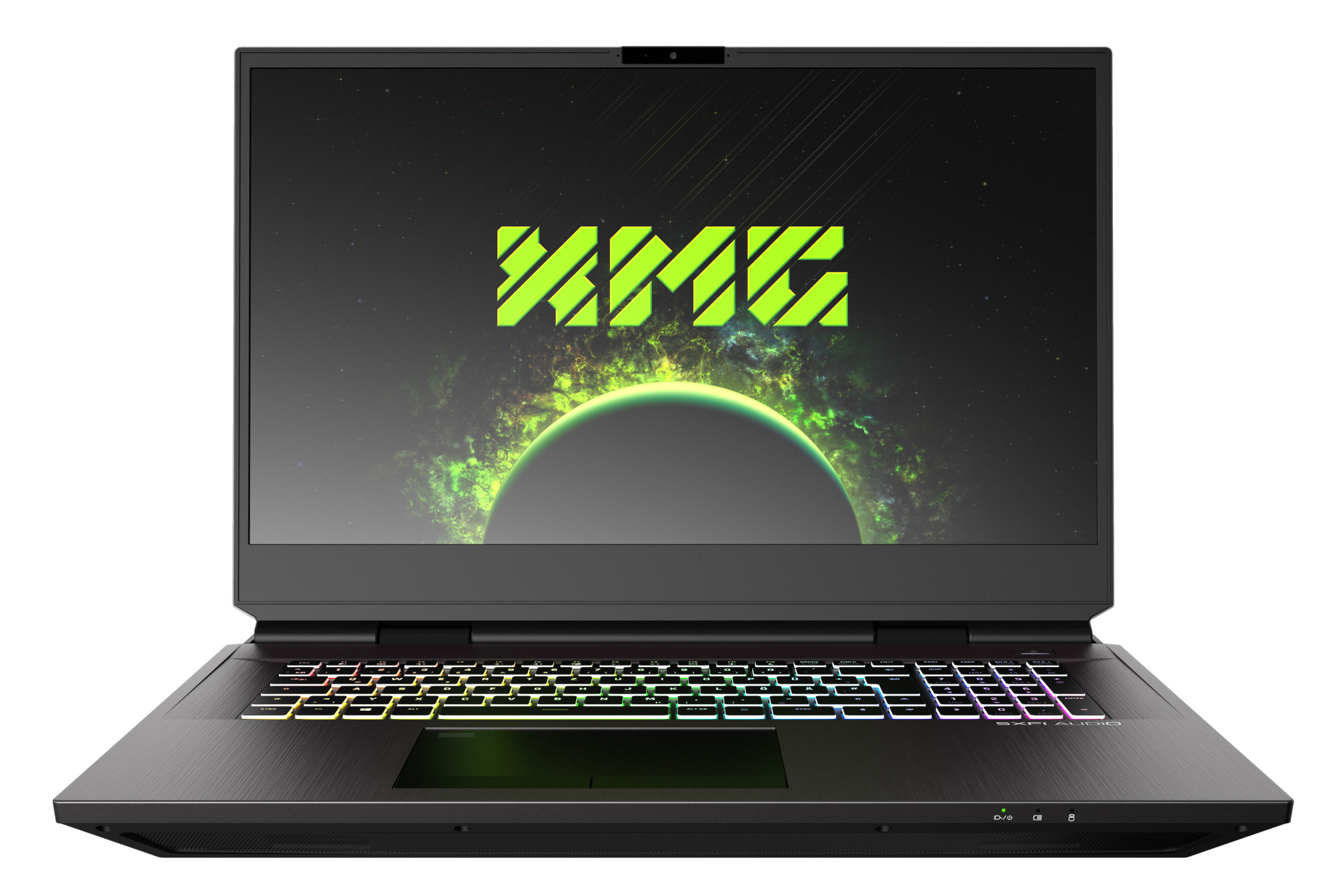

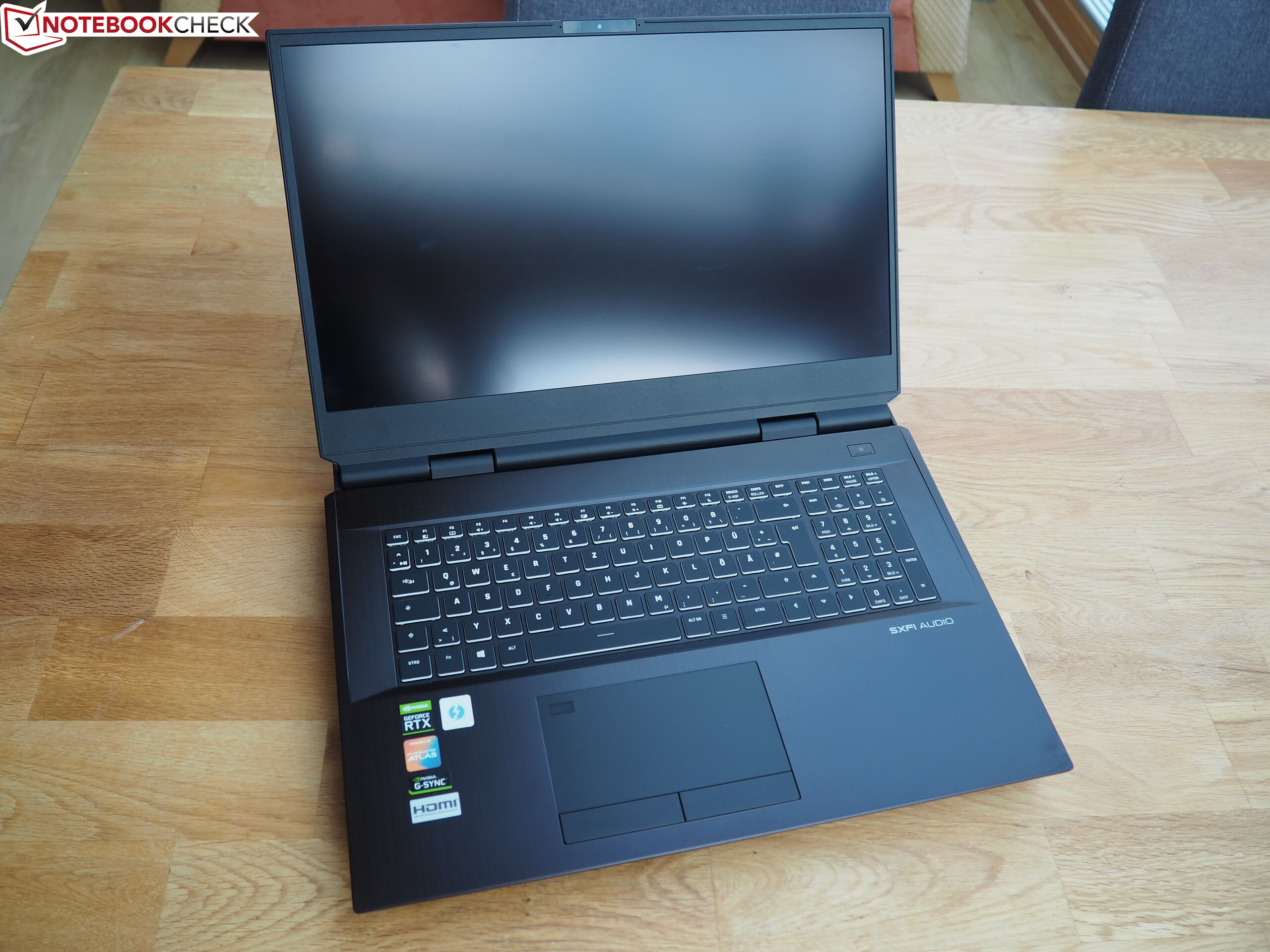

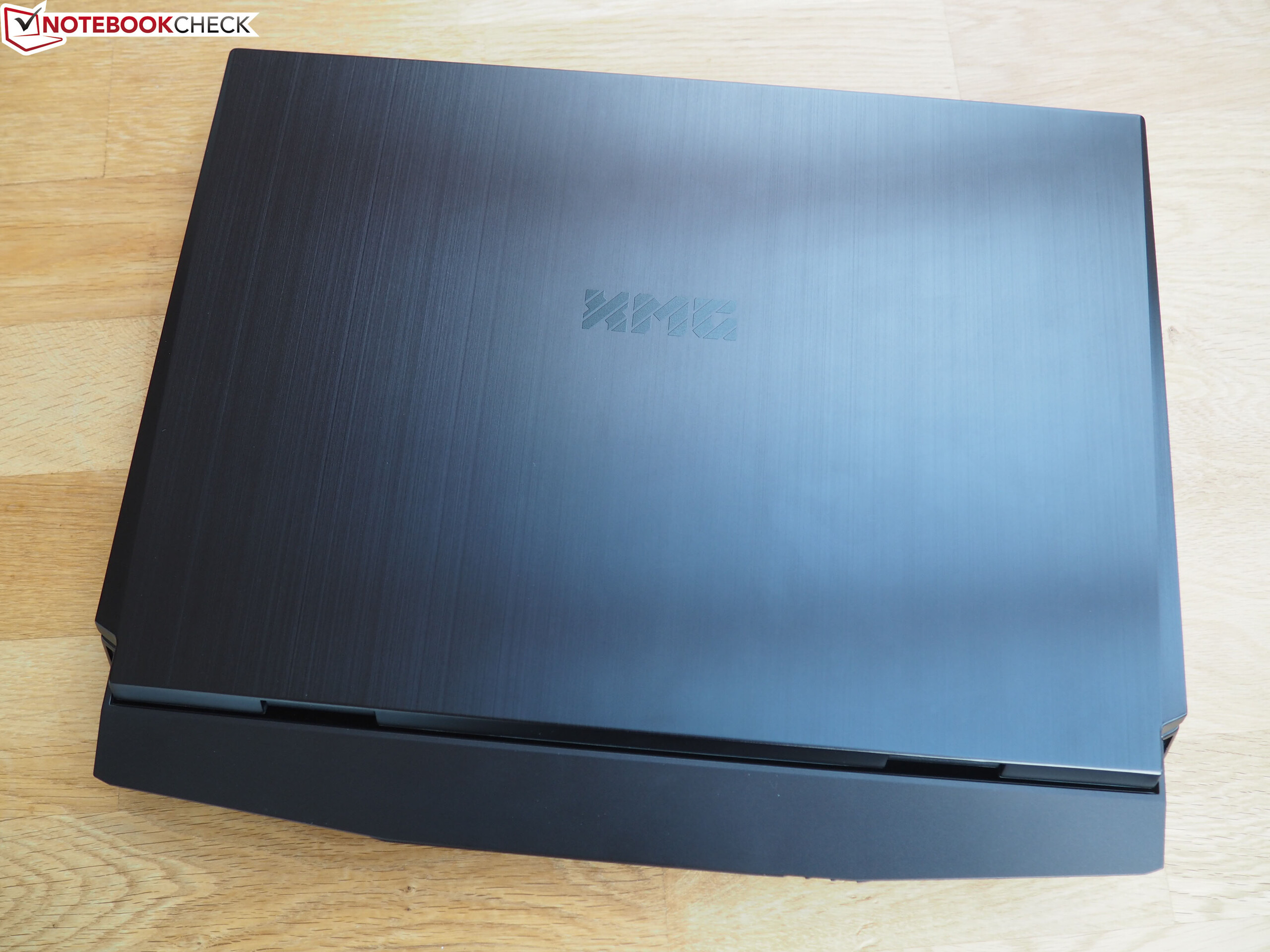

Visueel is het 2021 model van de XMG Ultra 17 niet veranderd ten opzichte van zijnVoorganger. Vernieuwingen zijn te vinden aan de technische kant. Rocket Lake processoren (Comet Lake CPU's zijn nog steeds beschikbaar) en Ampere GPU's worden nu gebruikt. In plaats van één Thunderbolt 3-sleuf worden twee Thunderbolt 4/USB 4-sleuven gebruikt. Concurrenten zijn apparaten zoals de MSI GT76 Titanium DT 10SGS, de Alienware m17 R4 en de Asus Strix Scar 17 G732LXS.

Aangezien de XMG Ultra 17 qua constructie identiek is aan het 2020 model, zullen we niet verder ingaan op de behuizing, de apparatuur, de invoerapparaten en de luidsprekers. De overeenkomstige informatie kan gevonden worden in de Bespreking van de Schenker XMG Ultra 17 (2020).

, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Schenker XMG Ultra 17 Rocket Lake
Processor
Intel Core i9-11900K 8 x 3.5 - 5.3 GHz, 251 W PL2 / Short Burst, 130 W PL1 / Sustained, Rocket Lake, socketed CPU, free multiplicator
Grafische kaart
NVIDIA GeForce RTX 3080 Laptop GPU - 16384 MB, Core: 1710 MHz, Geheugen: 1750 MHz, 165 W TDP, GDDR6, 27.21.14.6589, no Optimus
Geheugen
65536 MB
, DDR4-3200, Dual-Channel-Mode, four memory slots (two slots in use), max 128 GB
Beeldscherm
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN05.1, IPS, G-Sync, glimmend: nee, 300 Hz
Moederbord
Z590
Opslag

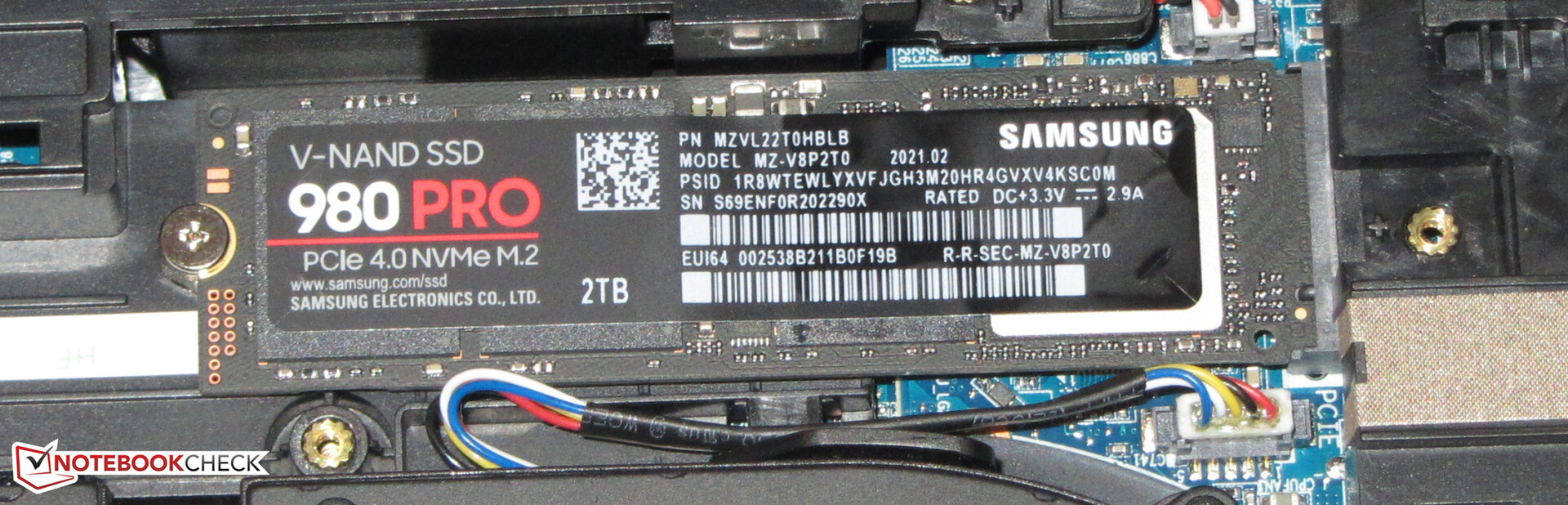

Samsung SSD 980 Pro 2TB MZ-V8P2T0, 2048 GB

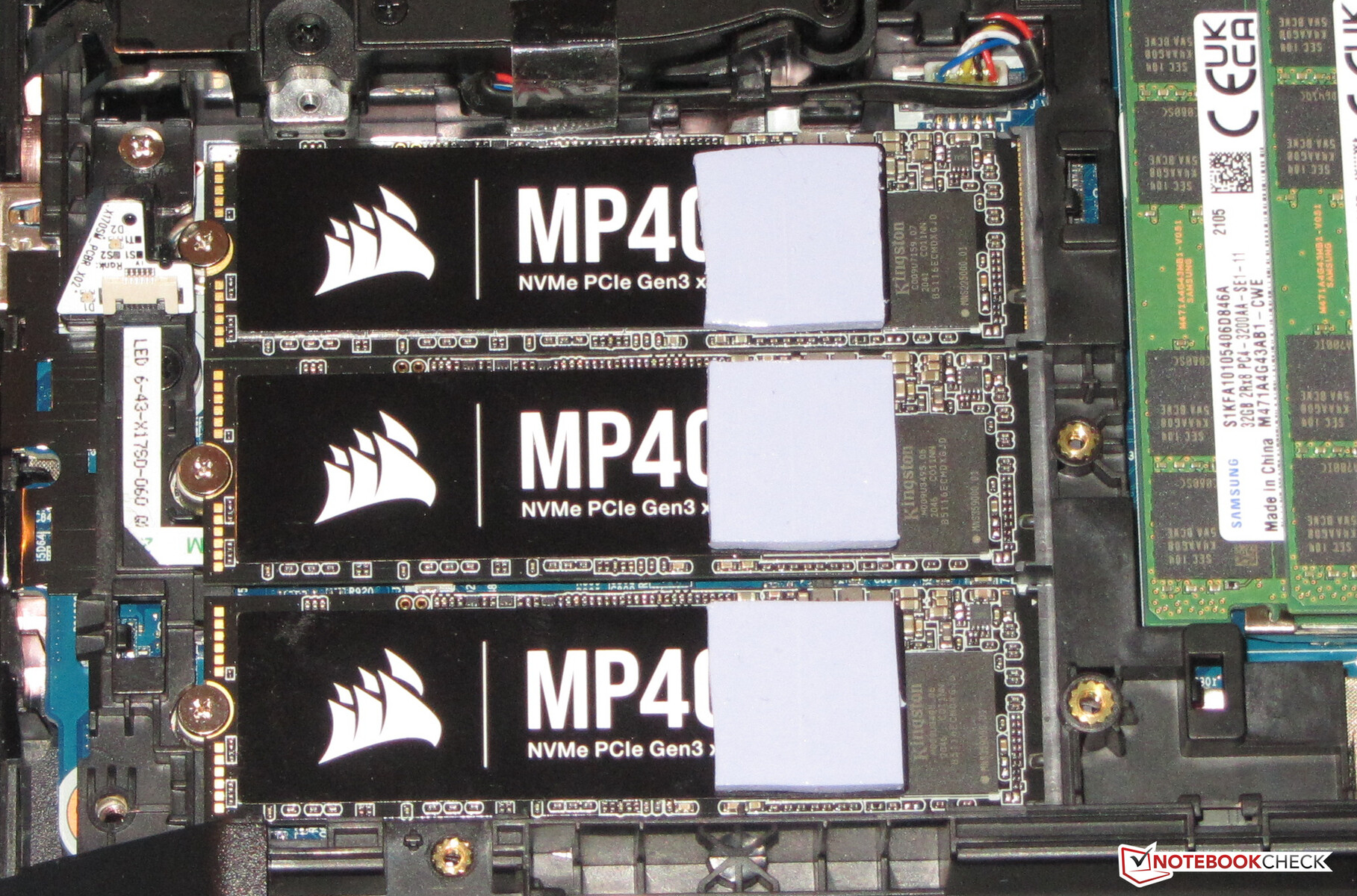

, + drei 8-TB-SSDs. Slots: 4x M.2 2280 (2x NVMe, 2x NVMe/SATA)
Geluidskaart
Realtek ALC1220 @ Intel Tiger Lake PCH - cAVS
Verbindingen
4 USB 3.1 Gen2, 0 USB 3.2 Gen 2x2 20Gbps, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 4 DisplayPort, 1 Kensington Lock, Audio Verbindingen: Headset out, 2-in-1-Audio (Mic-in, S/PDIF optical), Card Reader: SD/SDHC/SDXC, 1 Vingerafdruklezer, TPM 2.0
Netwerkmogelijkheden
Killer E3100G 2.5 Gigabit Ethernet Controller (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 43.5 x 399 x 319

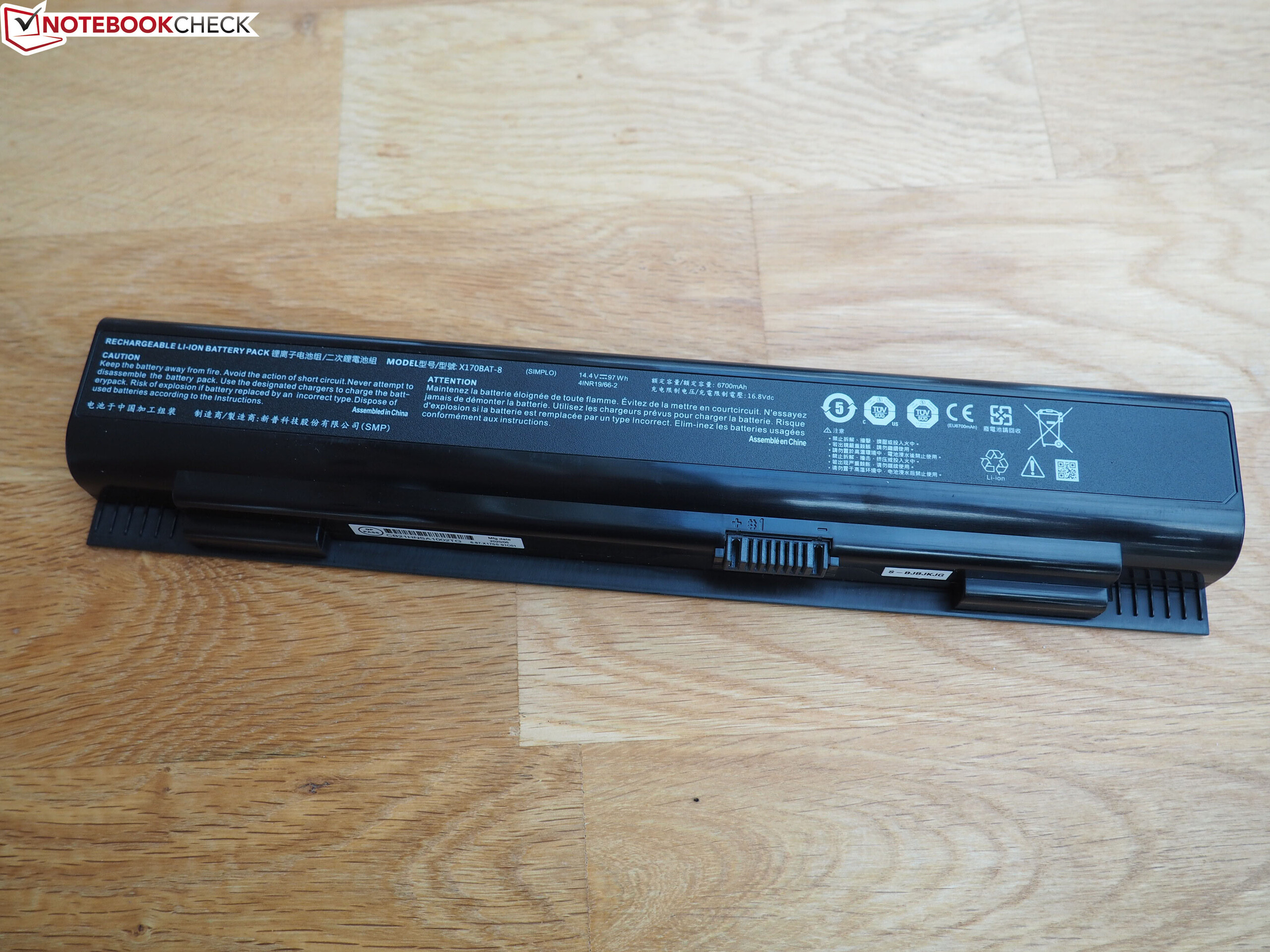

Batterij
97 Wh, 6700 mAh Lithium-Ion, removeable
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten
Luidsprekers: 2.1, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, thermal pads, thermal paste, screws, driver dvd, manual, 24 Maanden Garantie
Gewicht
4.684 kg, Voeding: 1.736 kg
Prijs
9000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
85 %
04-2021
Schenker XMG Ultra 17 Rocket Lake
i9-11900K, GeForce RTX 3080 Laptop GPU
4.7 kg43.5 mm17.30"1920x1080
87 %
10-2020
MSI GT76 Titan DT 10SGS
i9-10900K, GeForce RTX 2080 Super Mobile
4.2 kg42 mm17.30"3840x2160
83 %
07-2020
Asus Strix Scar 17 G732LXS
i9-10980HK, GeForce RTX 2080 Super Mobile
2.9 kg26.5 mm17.30"1920x1080
85 %
04-2021
Alienware m17 R4
i9-10980HK, GeForce RTX 3080 Laptop GPU
3 kg22 mm17.30"1920x1080

Size comparison

399 mm 319 mm 43.5 mm 4.7 kg397 mm 330 mm 42 mm 4.2 kg399 mm 293 mm 26.5 mm 2.9 kg399.8 mm 294.3 mm 22 mm 3 kg

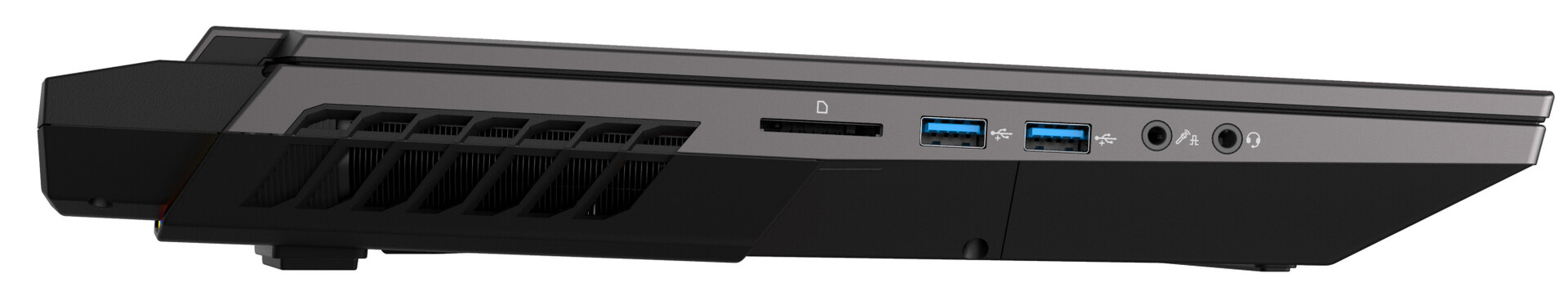

Linkerzijde: geheugenkaartlezer (SD), 2x USB 3.2 Gen 2 (type A), 2-in-1 audio (microfooningang + S/PDIF optisch), hoofdtelefoonuitgang
Linkerzijde: geheugenkaartlezer (SD), 2x USB 3.2 Gen 2 (type A), 2-in-1 audio (microfooningang + S/PDIF optisch), hoofdtelefoonuitgang

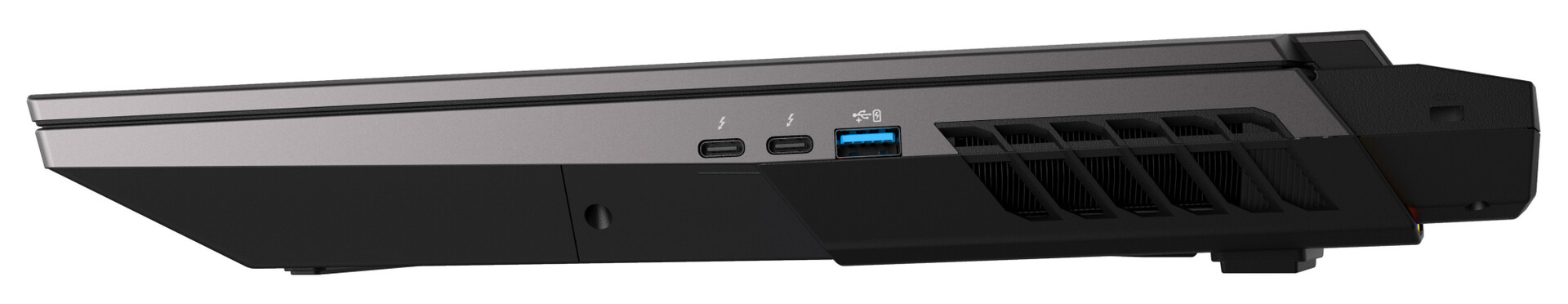

Rechterzijde: 2x Thunderbolt 4/USB 4 (Type C; Displayport), USB 3.2 Gen 2 (Type A)
Rechterzijde: 2x Thunderbolt 4/USB 4 (Type C; Displayport), USB 3.2 Gen 2 (Type A)

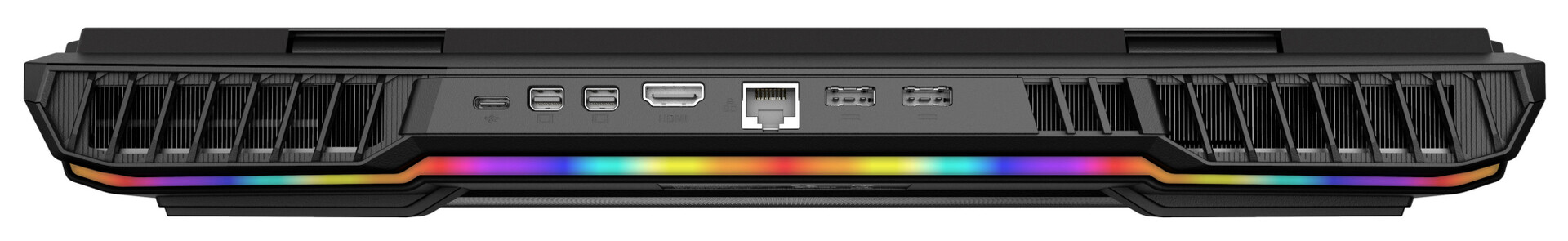

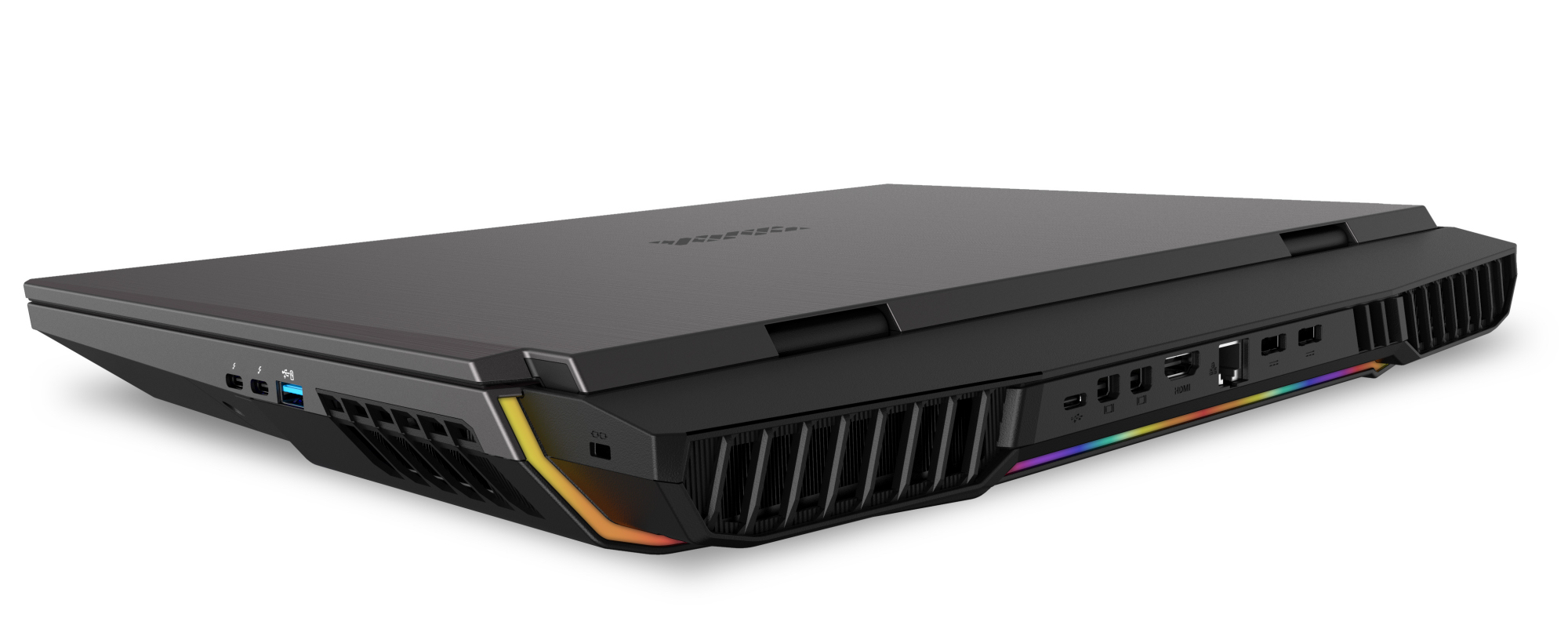

Achteraan: USB 3.2 Gen 2 (Type C), 2x Mini Displayport (versie 1.4, G-Sync), HDMI (versie 2.1, HDCP 2.3), 2,5 Gigabit Ethernet, 2x voedingsaansluiting
Achteraan: USB 3.2 Gen 2 (Type C), 2x Mini Displayport (versie 1.4, G-Sync), HDMI (versie 2.1, HDCP 2.3), 2,5 Gigabit Ethernet, 2x voedingsaansluiting
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Schenker XMG Ultra 17 Rocket Lake

222 MB/s ∼100%
Schenker XMG Ultra 17 Comet Lake
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
218 MB/s ∼98% -2%
Alienware m17 R4
  (AV PRO microSD 128 GB V60)
190 MB/s ∼86% -14%
MSI GT76 Titan DT 10SGS
  (Toshiba Exceria Pro M501 UHS-II)
186.9 MB/s ∼84% -16%
Average of class Gaming
  (18 - 222, n=99, last 2 years)
108 MB/s ∼49% -51%
maximum AS SSD Seq Read Test (1GB)
Alienware m17 R4
  (AV PRO microSD 128 GB V60)
239 MB/s ∼100% +15%
Schenker XMG Ultra 17 Comet Lake
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
220 MB/s ∼92% +6%
Schenker XMG Ultra 17 Rocket Lake
  (AV PRO microSD 128 GB V60)
207 MB/s ∼87%
MSI GT76 Titan DT 10SGS
  (Toshiba Exceria Pro M501 UHS-II)
197.8 MB/s ∼83% -4%
Average of class Gaming
  (20.5 - 248, n=99, last 2 years)
120 MB/s ∼50% -42%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Alienware m17 R4
Intel Killer Wi-Fi 6 AX1650w
1600 MBit/s ∼100% +4%
Schenker XMG Ultra 17 Comet Lake
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1560 MBit/s ∼98% +1%
Schenker XMG Ultra 17 Rocket Lake
Intel Wi-Fi 6 AX201
1540 MBit/s ∼96%
MSI GT76 Titan DT 10SGS
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1337 (684min - 1391max) MBit/s ∼84% -13%
Asus Strix Scar 17 G732LXS
Intel Wi-Fi 6 AX201
1270 MBit/s ∼79% -18%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=215)
1237 MBit/s ∼77% -20%
Average of class Gaming
  (215 - 1720, n=175, last 2 years)
1035 MBit/s ∼65% -33%
iperf3 Client (transmit) TCP 1 m 4M x10
Alienware m17 R4
Intel Killer Wi-Fi 6 AX1650w
1550 MBit/s ∼100% +3%
Schenker XMG Ultra 17 Rocket Lake
Intel Wi-Fi 6 AX201
1510 MBit/s ∼97%
Schenker XMG Ultra 17 Comet Lake
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1350 MBit/s ∼87% -11%
MSI GT76 Titan DT 10SGS
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1279 (982min - 1390max) MBit/s ∼83% -15%
Asus Strix Scar 17 G732LXS
Intel Wi-Fi 6 AX201
1150 MBit/s ∼74% -24%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=215)
1139 MBit/s ∼73% -25%
Average of class Gaming
  (201 - 1645, n=175, last 2 years)
963 MBit/s ∼62% -36%

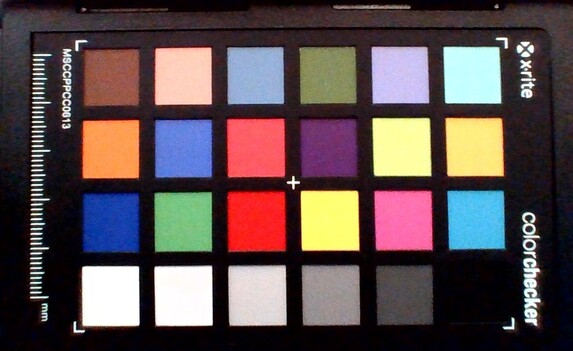

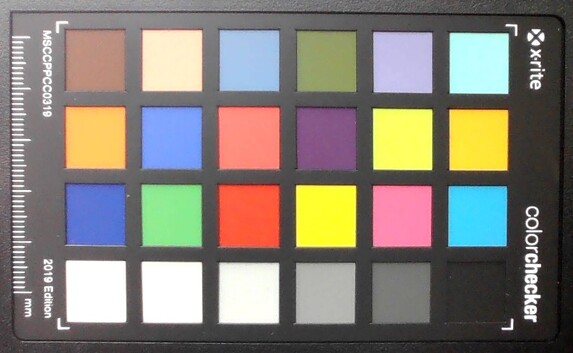

ColorChecker
26.9 ∆E
28.3 ∆E
36.8 ∆E
30.4 ∆E
38.1 ∆E
18.8 ∆E
31.6 ∆E
38.7 ∆E
21.6 ∆E
18.2 ∆E
17.7 ∆E
26 ∆E
20.8 ∆E
27.6 ∆E
19 ∆E
13.3 ∆E
22.7 ∆E
33.8 ∆E
2.3 ∆E
11.8 ∆E
24.8 ∆E
30 ∆E
20.1 ∆E
12.3 ∆E
ColorChecker Schenker XMG Ultra 17 Rocket Lake: 23.82 ∆E min: 2.33 - max: 38.72 ∆E

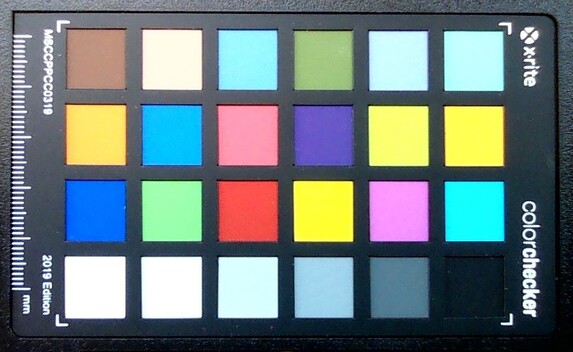

ColorChecker
14.6 ∆E
25.7 ∆E
30 ∆E
19.8 ∆E
31.4 ∆E
17.3 ∆E
15.9 ∆E
32.3 ∆E
15.4 ∆E
11.3 ∆E
17.1 ∆E
22.8 ∆E
20.1 ∆E
24.7 ∆E
16.9 ∆E
13.7 ∆E
21 ∆E
31.9 ∆E
2.3 ∆E
12 ∆E
24.5 ∆E
24.7 ∆E
15.7 ∆E
12.9 ∆E
ColorChecker Alienware m17 R4: 19.75 ∆E min: 2.33 - max: 32.34 ∆E
ColorChecker
26 ∆E
25.4 ∆E
23.1 ∆E
21 ∆E
18.5 ∆E
18.6 ∆E
22.9 ∆E
26.8 ∆E
18.8 ∆E
10.6 ∆E
18.3 ∆E
19.6 ∆E
20.5 ∆E
24 ∆E
22.3 ∆E
13.2 ∆E
18.8 ∆E
24 ∆E
2.3 ∆E
11.8 ∆E
22.7 ∆E
19.6 ∆E
14.1 ∆E
3.3 ∆E
ColorChecker Schenker XMG Ultra 17 Comet Lake: 18.59 ∆E min: 2.33 - max: 26.81 ∆E
ColorChecker
9.5 ∆E
15.1 ∆E
18.1 ∆E
16 ∆E
19.8 ∆E
19 ∆E
9.8 ∆E
15.7 ∆E
12.6 ∆E
5.9 ∆E
18.6 ∆E
20.2 ∆E
4 ∆E
15.1 ∆E
17 ∆E
14.1 ∆E
14.6 ∆E
20.2 ∆E
2.3 ∆E
11.4 ∆E
16.7 ∆E
11 ∆E
4.4 ∆E
13.5 ∆E
ColorChecker MSI GT76 Titan DT 10SGS: 13.52 ∆E min: 2.33 - max: 20.22 ∆E

Beeldscherm - 300 Hz IPS

Hoewel het matte 17,3-inch scherm (1.920 x 1.080 pixels) een goed contrast levert (1.391:1), voldoet de helderheid (299,3 cd/m²) nauwelijks aan de doelstelling (> 300 cd/m²). Het 300 Hz paneel biedt korte responstijden en vertoont geen PWM-flikkering

Het beeldscherm ondersteunt Nvidia's G-Sync technologie. Hiermee worden de verversingsfrequenties van het beeldscherm en de GPU dynamisch op elkaar afgestemd. Dit moet zorgen voor een zo vloeiend mogelijk beeld - vooral bij computerspellen.

306
cd/m²
308
cd/m²
303
cd/m²
297
cd/m²
306
cd/m²
297
cd/m²
286
cd/m²
304
cd/m²
287
cd/m²
Helderheidsverdeling
AU Optronics B173HAN05.1
X-Rite i1Pro 2
Maximum: 308 cd/m² Gemiddelde: 299.3 cd/m² Minimum: 35 cd/m²
Helderheidsverdeling: 93 %
Helderheid in Batterij-modus: 306 cd/m²
Contrast: 1391:1 (Zwart: 0.22 cd/m²)
ΔE Color 1.92 | 0.59-29.43 Ø5.6, calibrated: 1.34
ΔE Greyscale 2 | 0.64-98 Ø5.8
93% sRGB (Argyll 3D) 72% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.153
Schenker XMG Ultra 17 Rocket Lake
AU Optronics B173HAN05.1, IPS, 1920x1080, 17.30
MSI GT76 Titan DT 10SGS
AU Optronics B173ZAN03.3, IPS, 3840x2160, 17.30
Asus Strix Scar 17 G732LXS
LQ173M1JW03 (SHP14DC), IPS, 1920x1080, 17.30
Schenker XMG Ultra 17 Comet Lake
AUO B173ZAN03.0 (AUO309B), IPS, 3840x2160, 17.30
Alienware m17 R4
AU Optronics AUOEC91, IPS, 1920x1080, 17.30
Response Times
-170%
3%
-468%
-68%
Response Time Grey 50% / Grey 80% *
5.6 (2.8, 2.8)
23.2 (12.4, 10.8)
-314%
5.8 (2.4, 3.4)
-4%
50.4 (23.6, 26.8)
-800%
13.2 (6.4, 6.8)
-136%
Response Time Black / White *
9.2 (4.8, 4.4)
11.6 (6.4, 5.2)
-26%
8.4 (4.4, 4)
9%
21.6 (7.6, 14)
-135%
9.2 (4.8, 4.4)
-0%
PWM Frequency
Screen
-26%
-31%
-38%
12%
Brightness middle
306
419.5
37%
310
1%
442
44%
305
0%
Brightness
299
413
38%
311
4%
423
41%
301
1%
Brightness Distribution
93
93
0%
82
-12%
92
-1%
93
0%
Black Level *
0.22
0.4
-82%
0.41
-86%
0.36
-64%
0.19
14%
Contrast
1391
1049
-25%
756
-46%
1228
-12%
1605
15%
Colorchecker DeltaE2000 *
1.92
3.4
-77%
2.41
-26%
4.38
-128%
1.31
32%
Colorchecker DeltaE2000 max. *
4.78
7.4
-55%
8.59
-80%
10.85
-127%
2.32
51%
Colorchecker DeltaE2000 calibrated *
1.34
3.28
-145%
1.13
16%
0.66
51%
0.91
32%
Greyscale DeltaE2000 *
2
2
-0%
4.3
-115%
7.3
-265%
2.3
-15%
Gamma
2.153 102%
2.14 103%
2.149 102%
2.17 101%
2.281 96%
CCT
6738 96%
6858 95%
7059 92%
6906 94%
6449 101%
Color Space (Percent of AdobeRGB 1998)
72
84.6
18%
72
0%
98
36%
72
0%
Color Space (Percent of sRGB)
93
97.9
5%
94
1%
98
5%
94
1%
Totaal Gemiddelde (Programma / Instellingen)
-98% / -48%
-14% / -26%
-253% / -104%
-28% / -0%

* ... kleiner is beter

Het scherm vertoont reeds bij aflevering een goede kleurweergave en voldoet aan de doelstelling met een afwijking van iets minder dan 2 (Delta E minder dan 3). Het heeft geen last van een blauwzweem. Een kalibratie zorgt voor verbeteringen: De kleurafwijking daalt tot 1,34 en de grijstinten worden evenwichtiger weergegeven. Het beeldscherm kan de AdobeRGB (72%) en sRGB (93%) kleurruimten niet volledig reproduceren

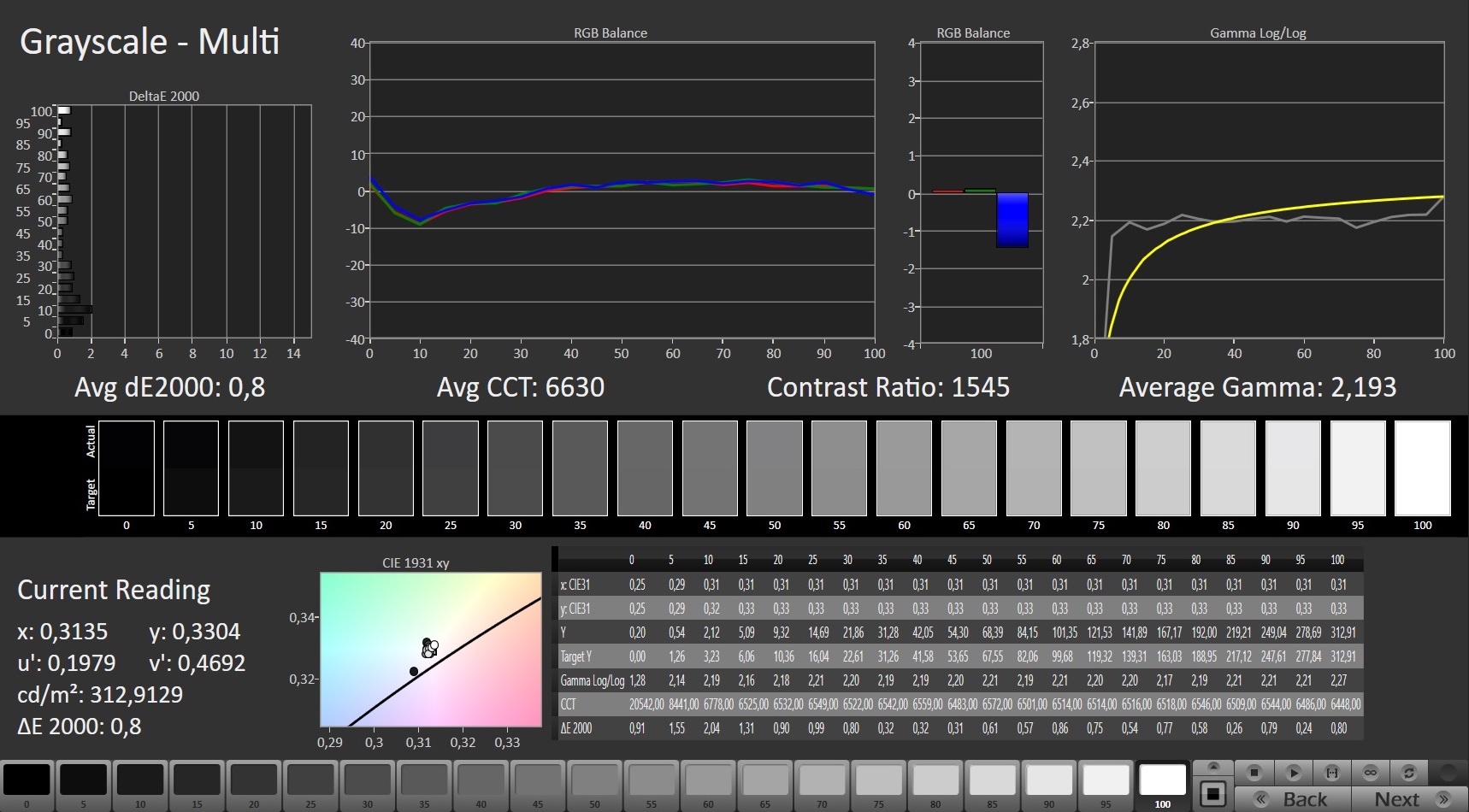

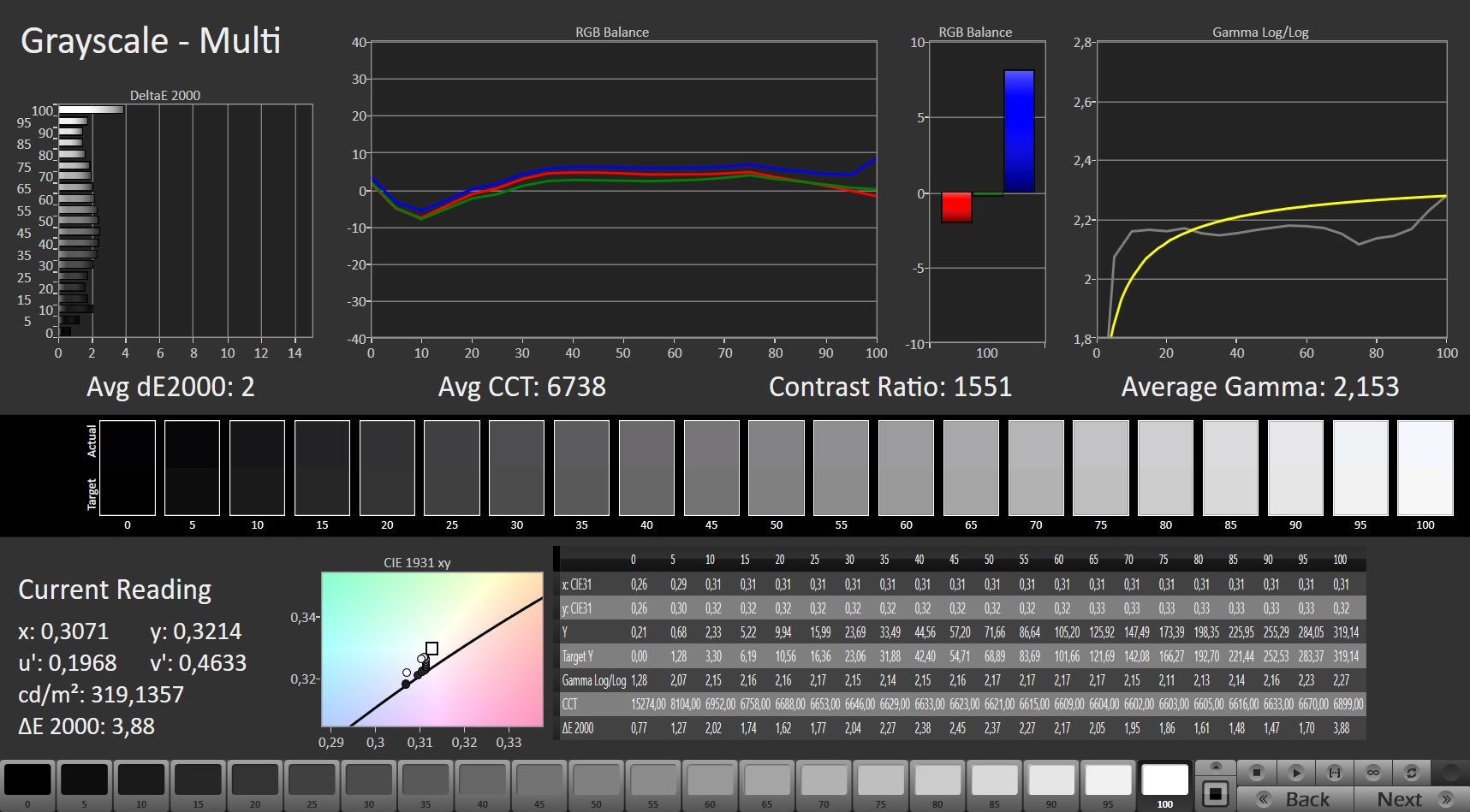

CalMAN: Grijstinten
CalMAN: Grijstinten
CalMAN: Kleurverzadiging
CalMAN: Kleurverzadiging

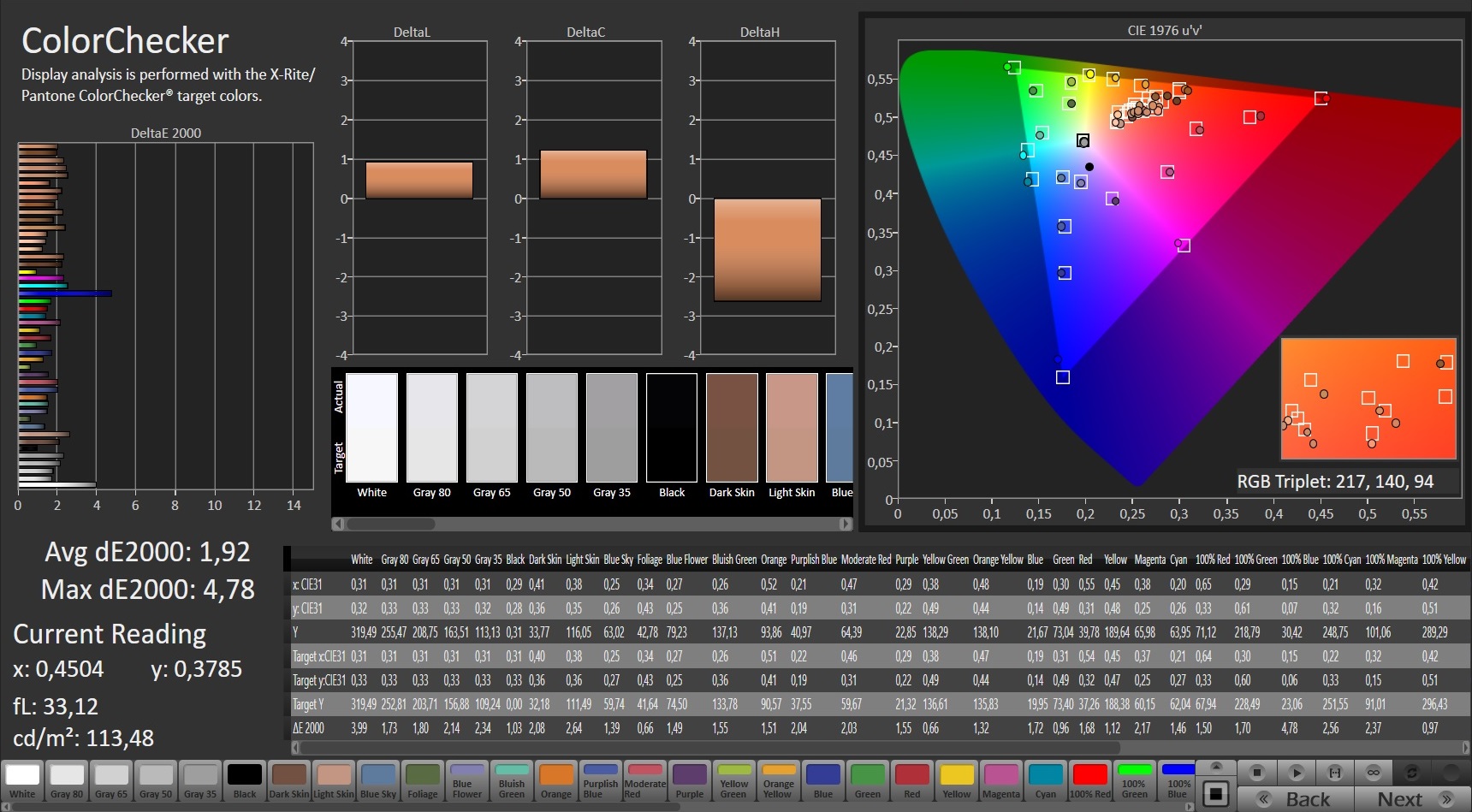

CalMAN: Kleurenchecker
CalMAN: Kleurenchecker
CalMAN: Grijsschaal (gekalibreerd)
CalMAN: Grijsschaal (gekalibreerd)

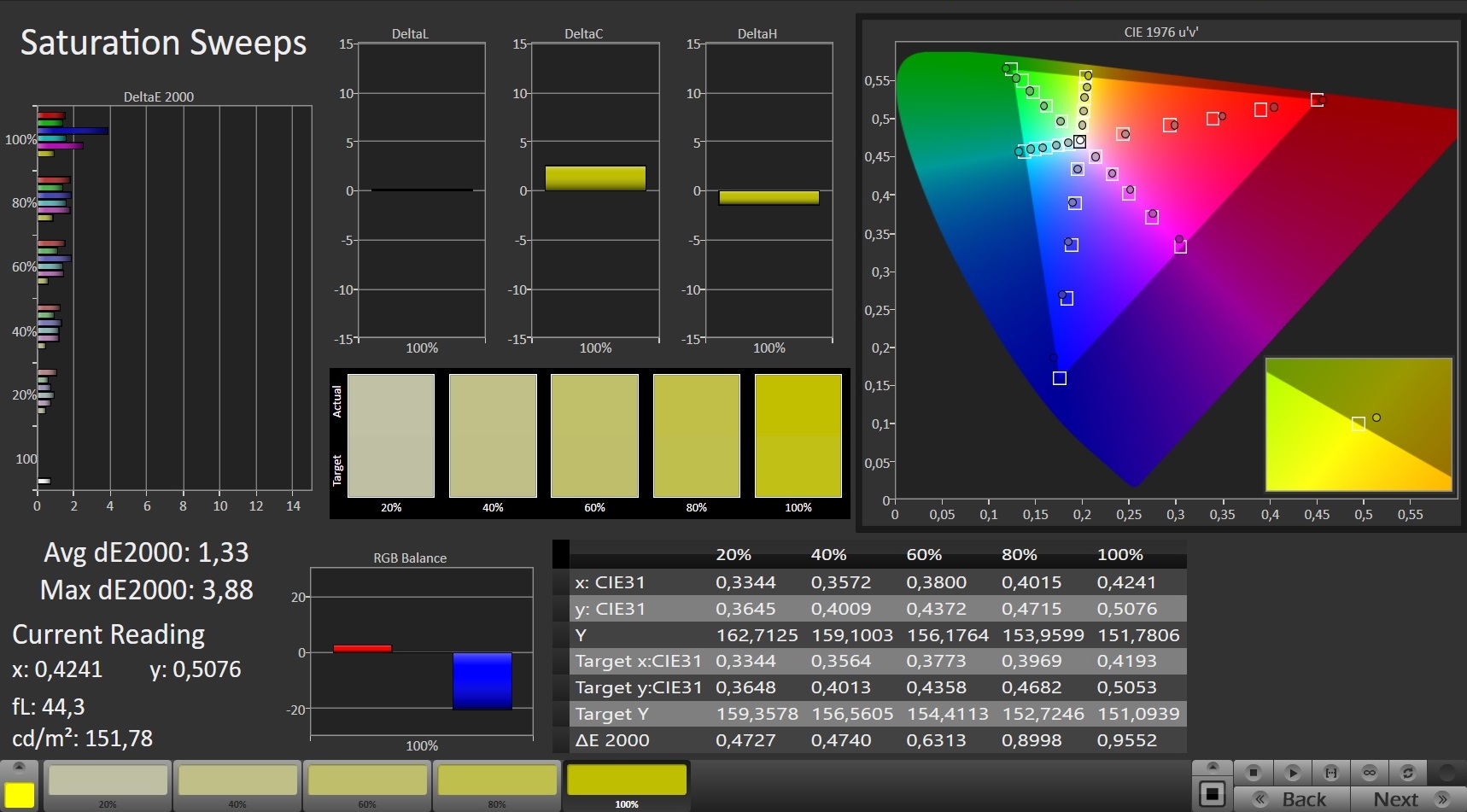

CalMAN: Kleurverzadiging (gekalibreerd)
CalMAN: Kleurverzadiging (gekalibreerd)

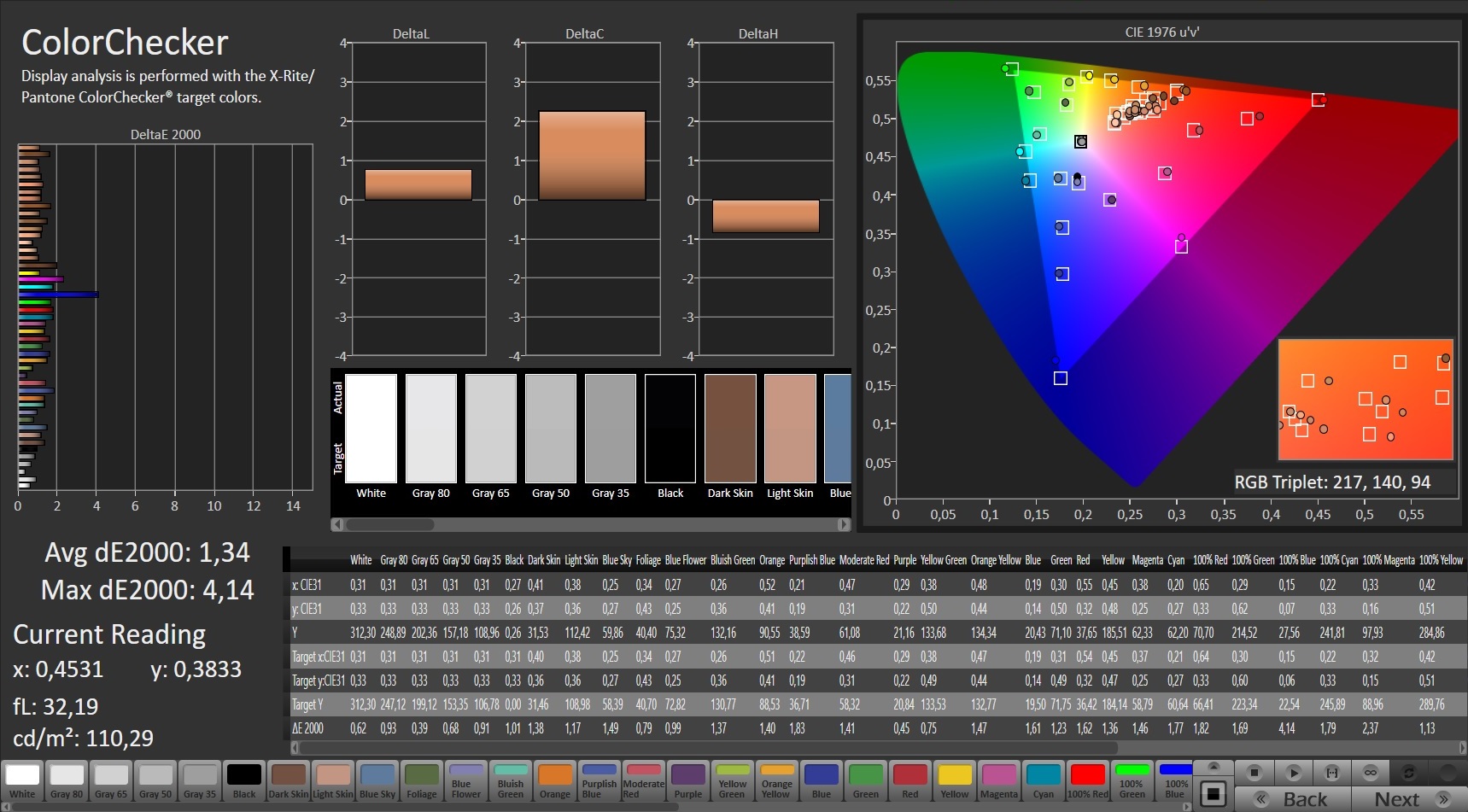

CalMAN: ColorChecker (gekalibreerd)
CalMAN: ColorChecker (gekalibreerd)

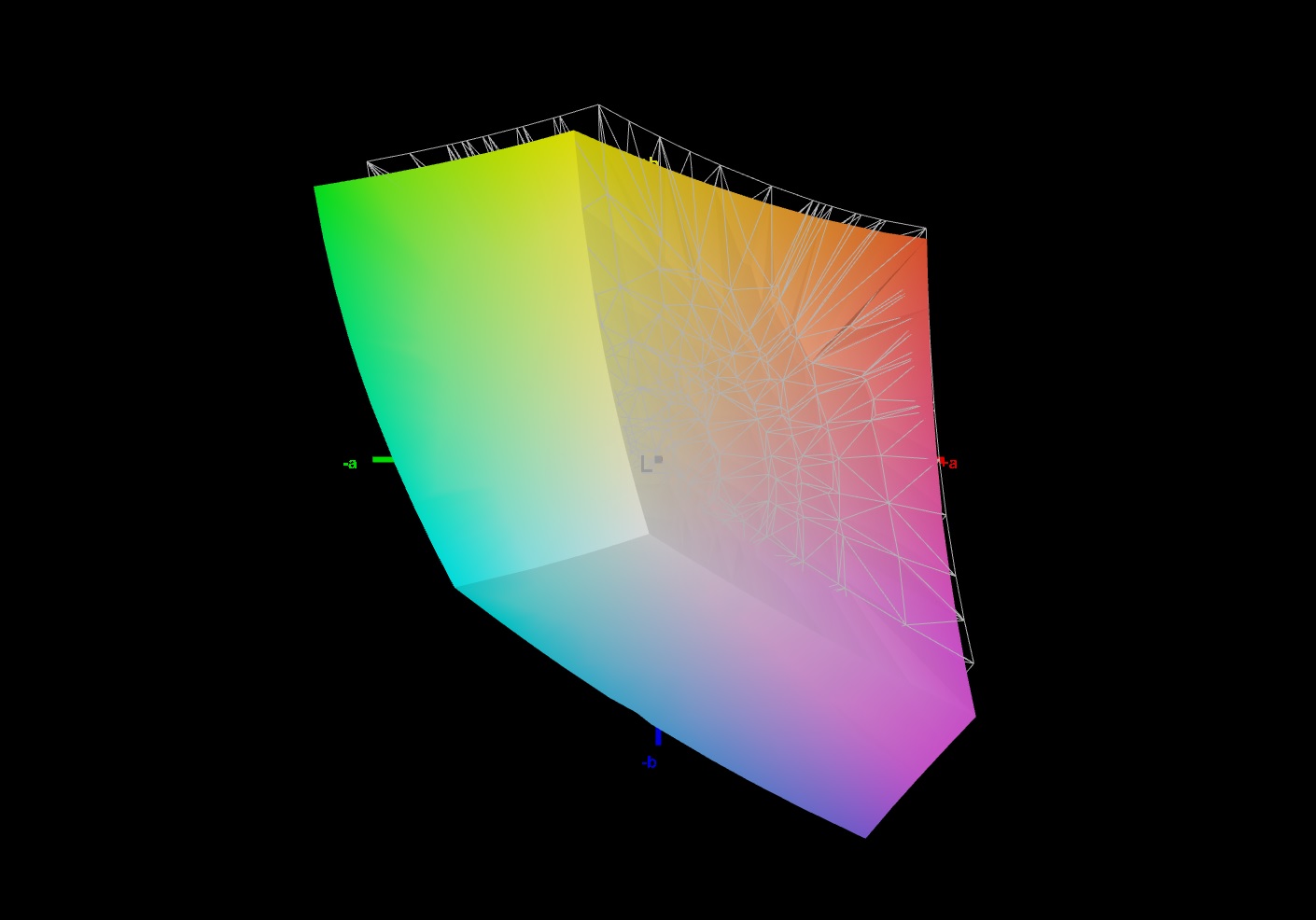

Schenker XMG Ultra 17 vs sRGB (93%)
Schenker XMG Ultra 17 vs sRGB (93%)

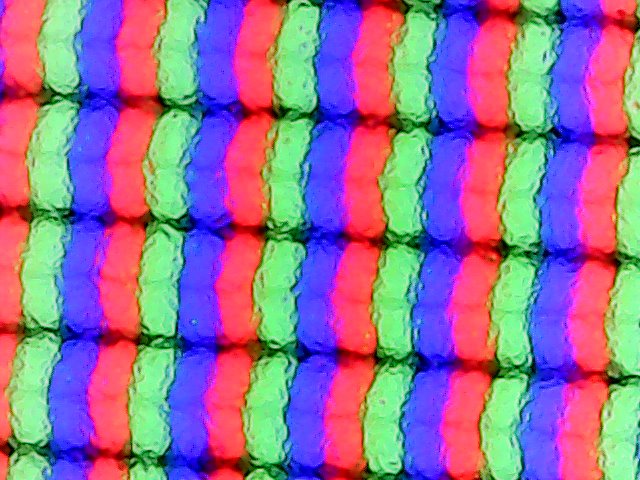

Subpixel
Subpixel

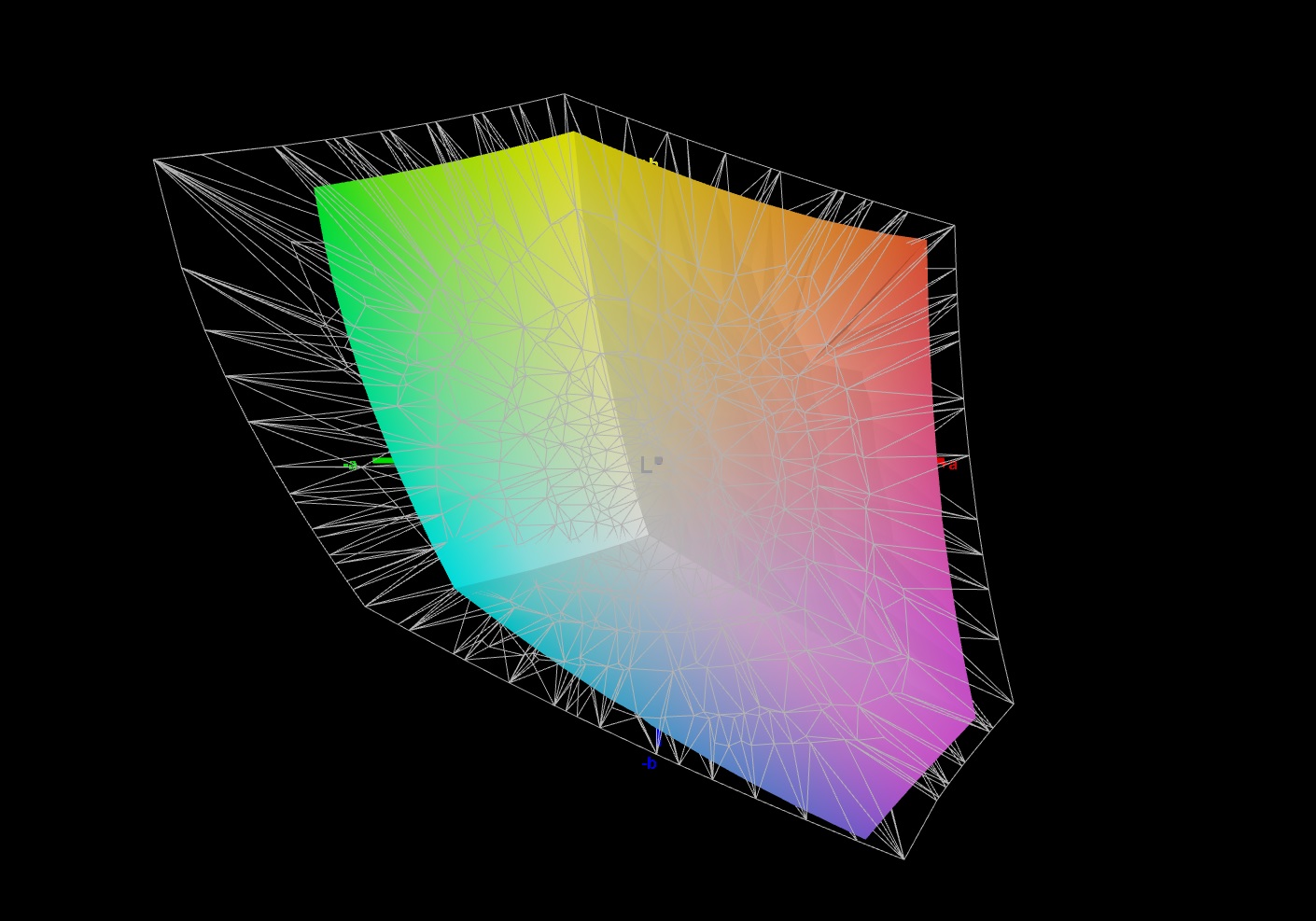

Schenker XMG Ultra 17 vs AdobeRGB (72%)
Schenker XMG Ultra 17 vs AdobeRGB (72%)

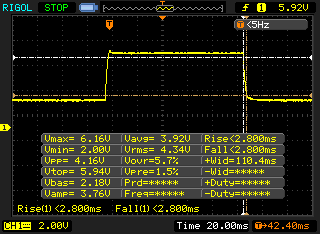

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

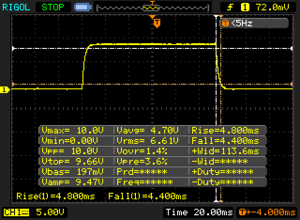

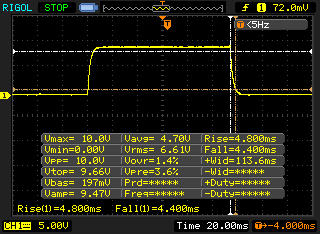

       Responstijd Zwart naar Wit
9.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 4.8 ms stijging
↘ 4.4 ms daling
Het scherm vertoonde snelle responstijden in onze tests en zou geschikt moeten zijn voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 11 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (24.2 ms) van alle geteste toestellen.
       Responstijd 50% Grijs naar 80% Grijs
5.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 2.8 ms stijging
↘ 2.8 ms daling
Het scherm vertoonde erg snelle responstijden in onze tests en zou zeer geschikt moeten zijn voor snelle games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 5 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (38.4 ms) van alle geteste toestellen.

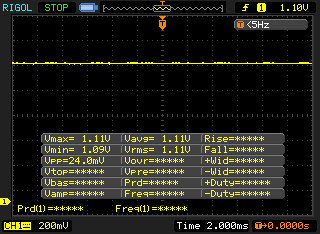

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9672 (minimum: 5 - maximum: 151500) Hz waargenomen.

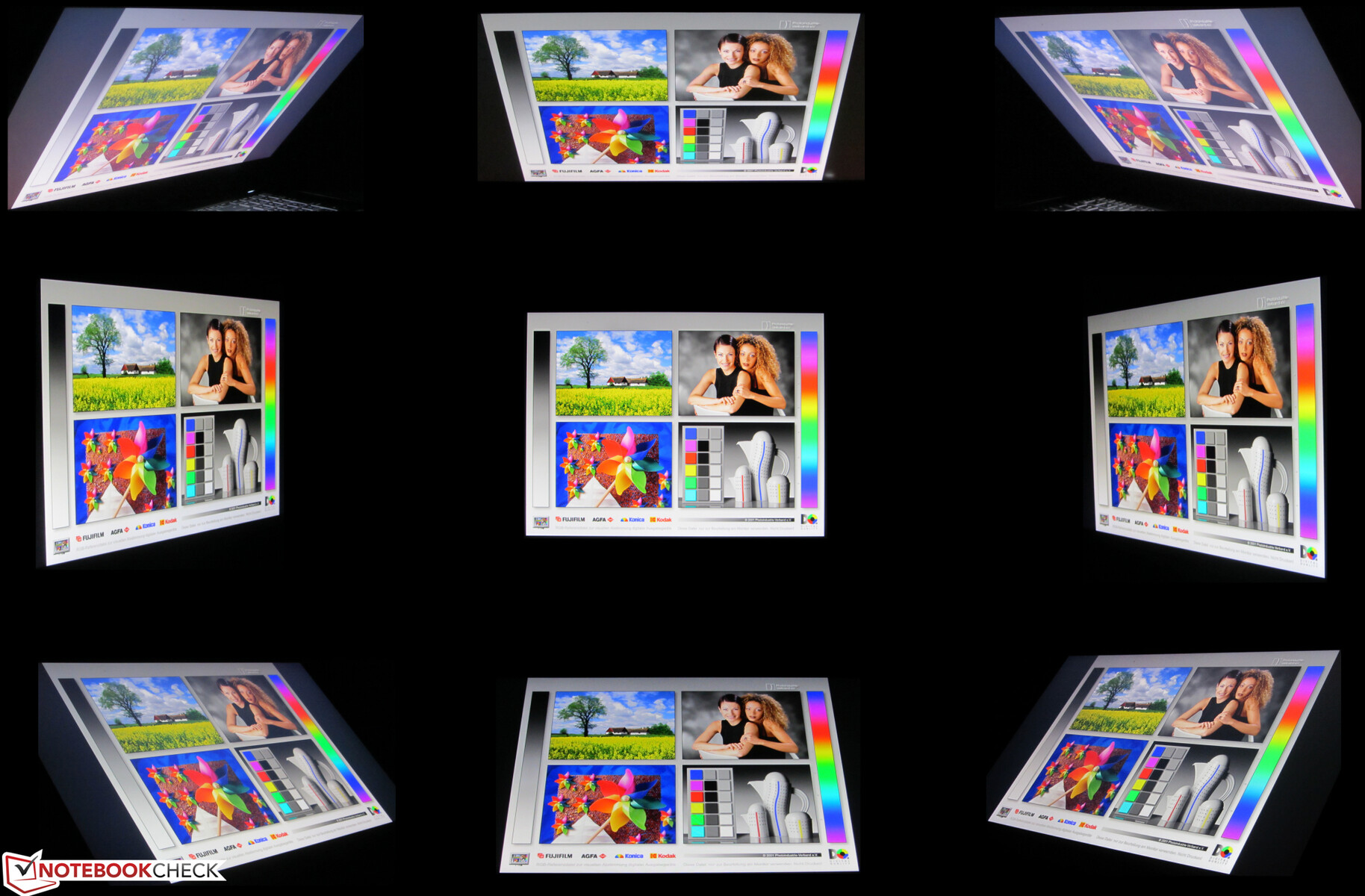

Het kijkhoekstabiele IPS-paneel kan vanuit elke positie worden afgelezen. Het is heel goed mogelijk om het display buiten af te lezen als de zon niet te fel schijnt

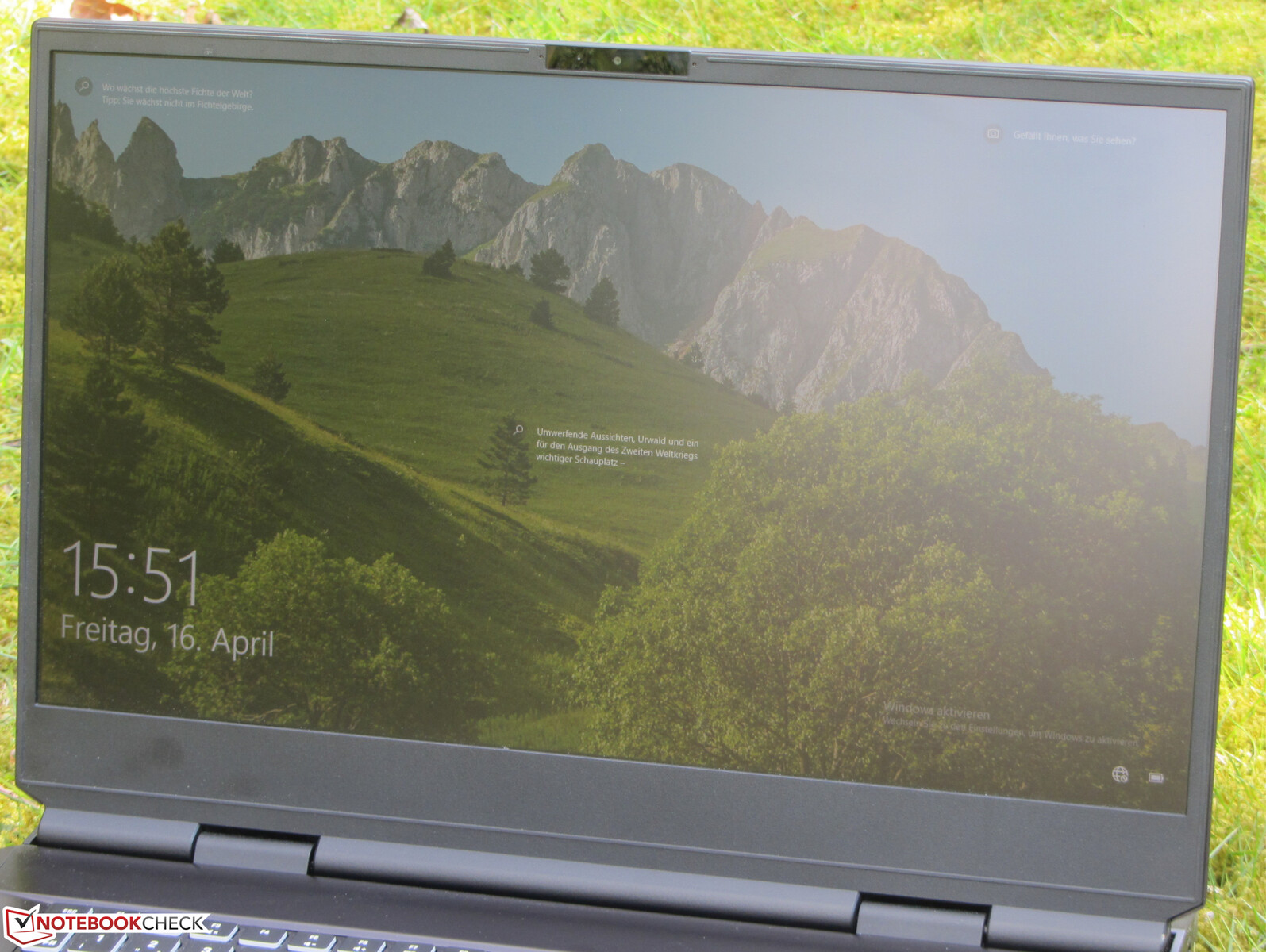

De XMG Ultra 17 buiten.
De XMG Ultra 17 buiten.
Gezichtspunt
Gezichtspunt

Prestaties - XMG Ultra 17 staat CPU en GPU swap toe

Schenker's desktopvervangende notebook biedt veel rekenkracht en presteert dienovereenkomstig in alle gangbare toepassingsgebieden. Het apparaat kan zeer individueel worden geconfigureerd

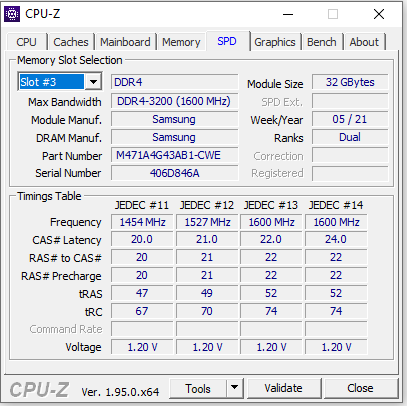

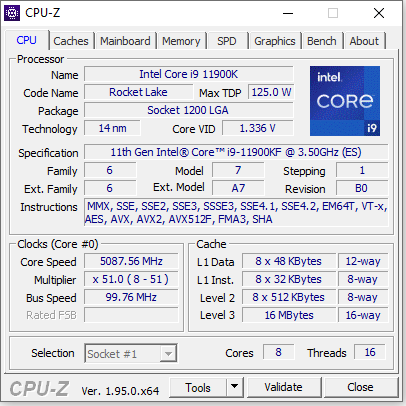

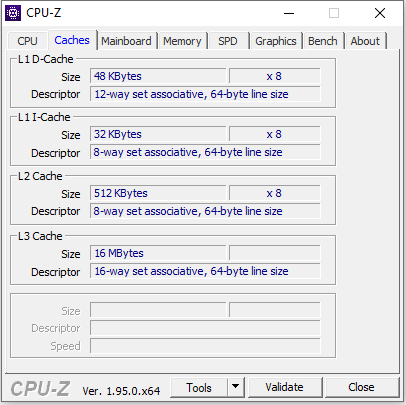

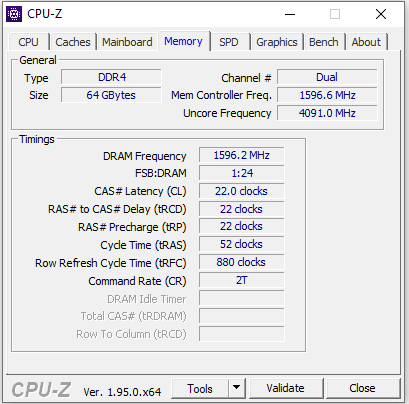

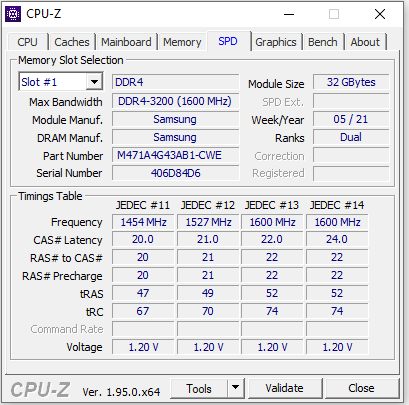

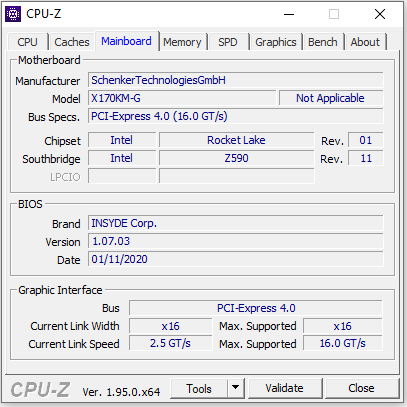

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

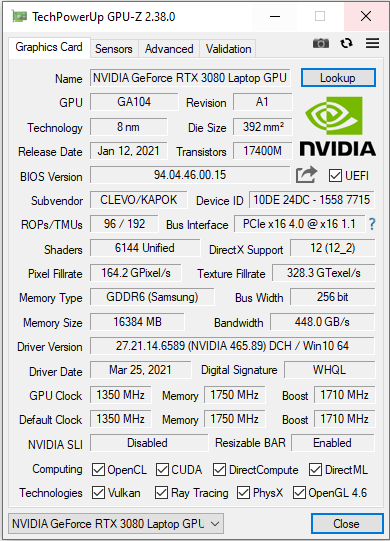

GPU-Z

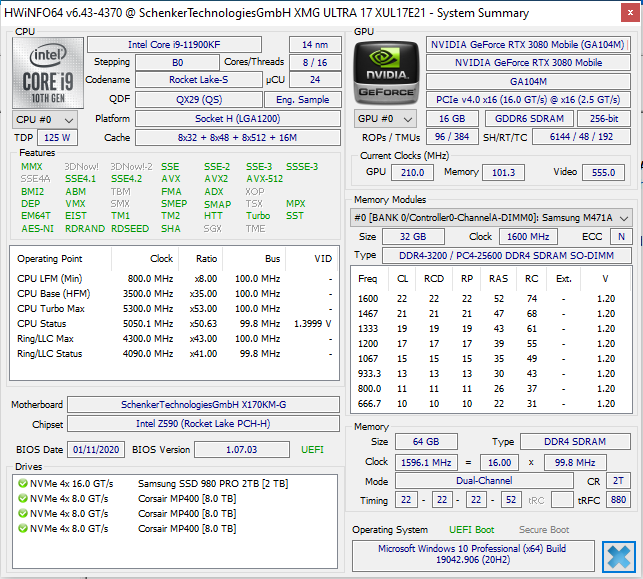

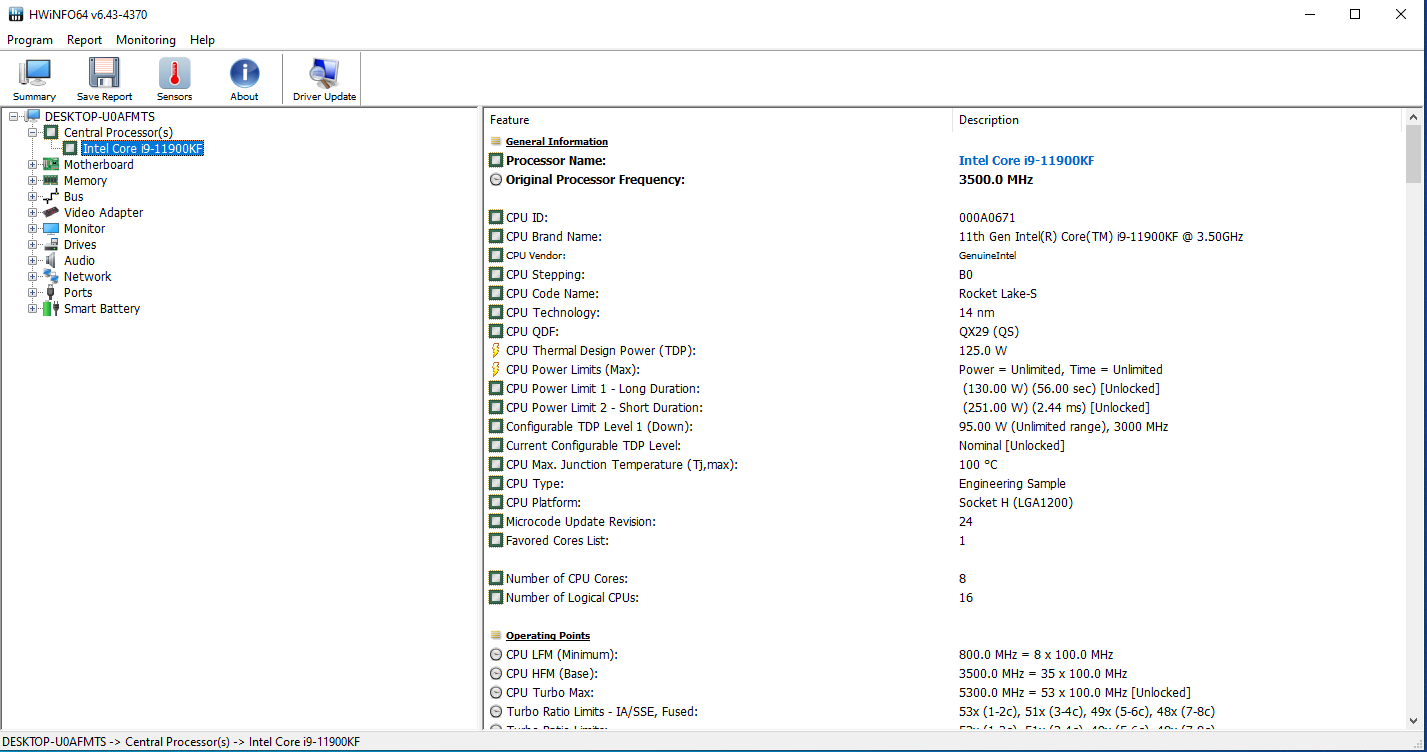

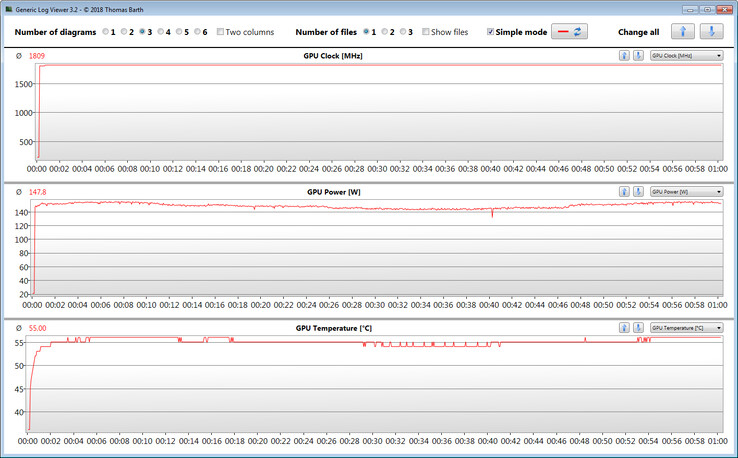

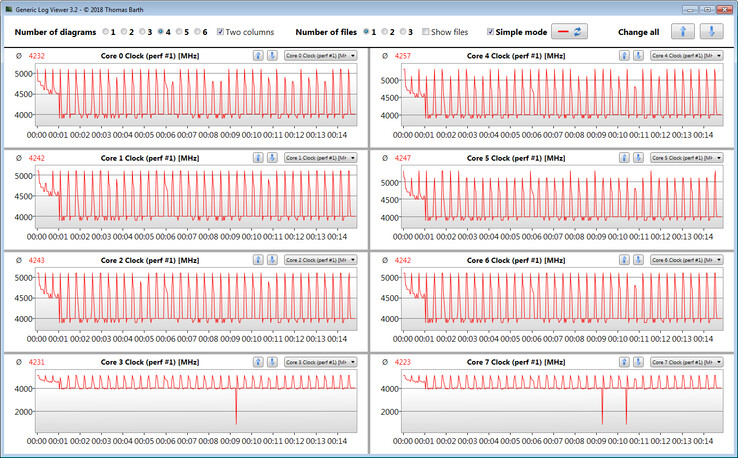

HWInfo
HWInfo


Testomstandigheden

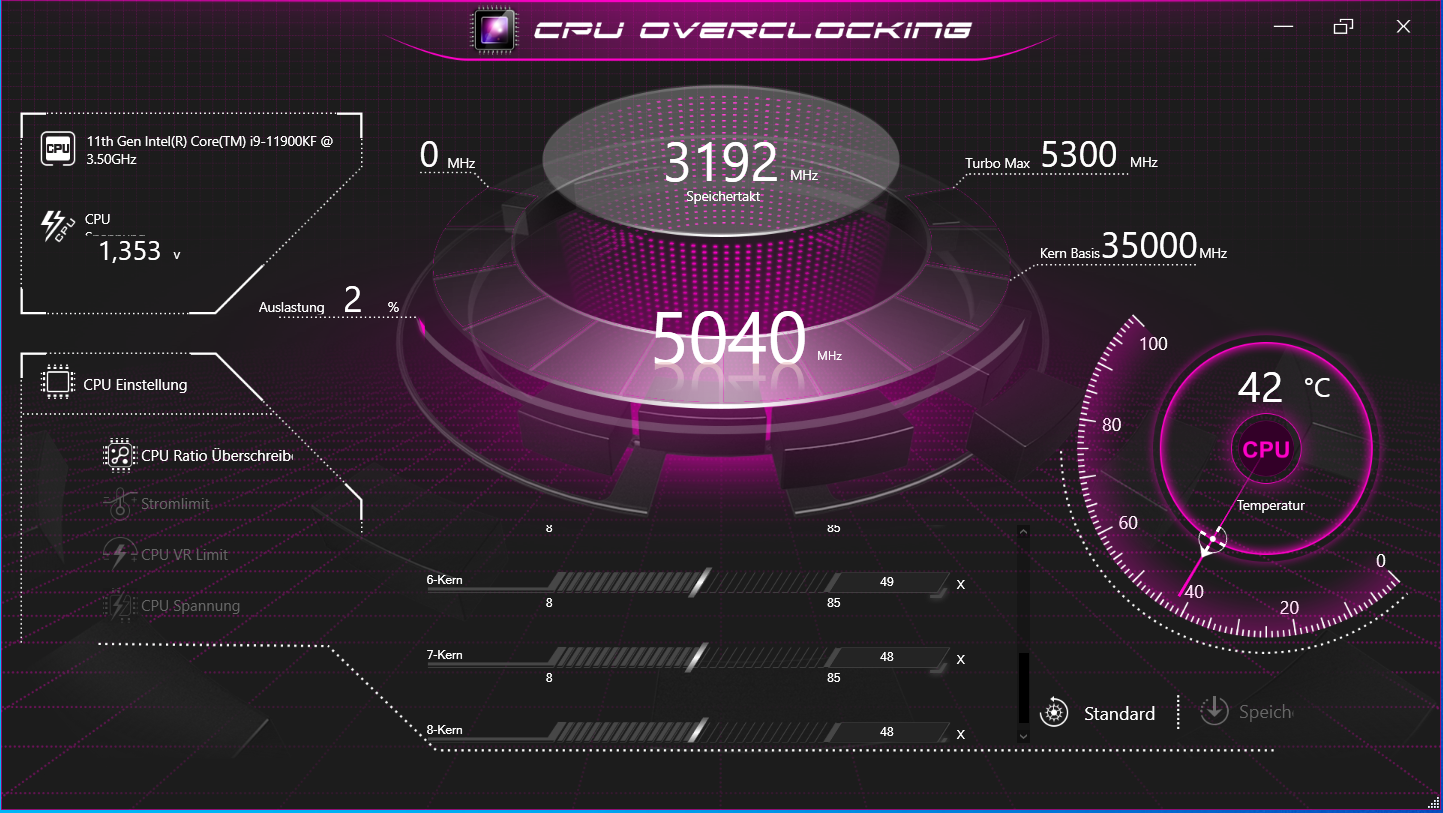

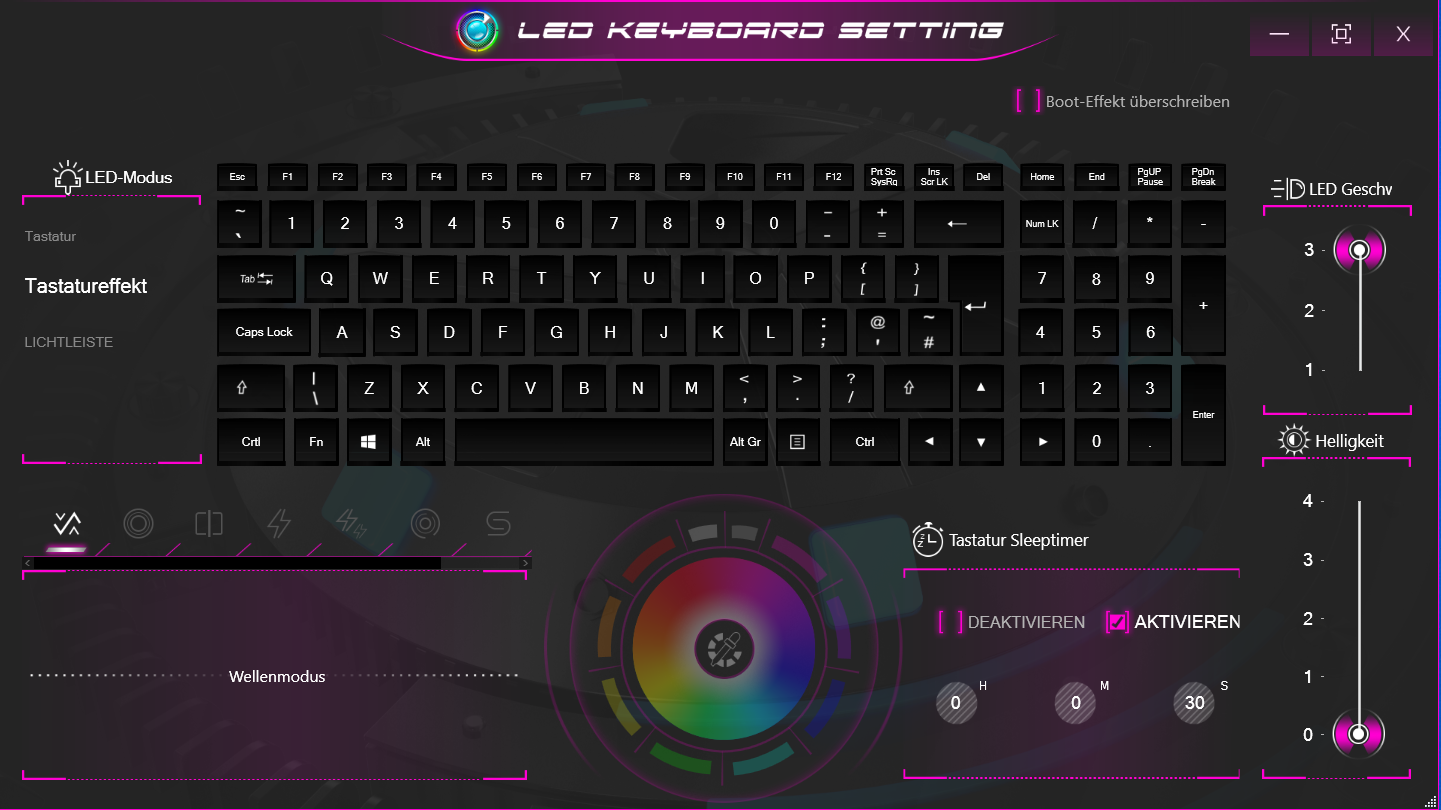

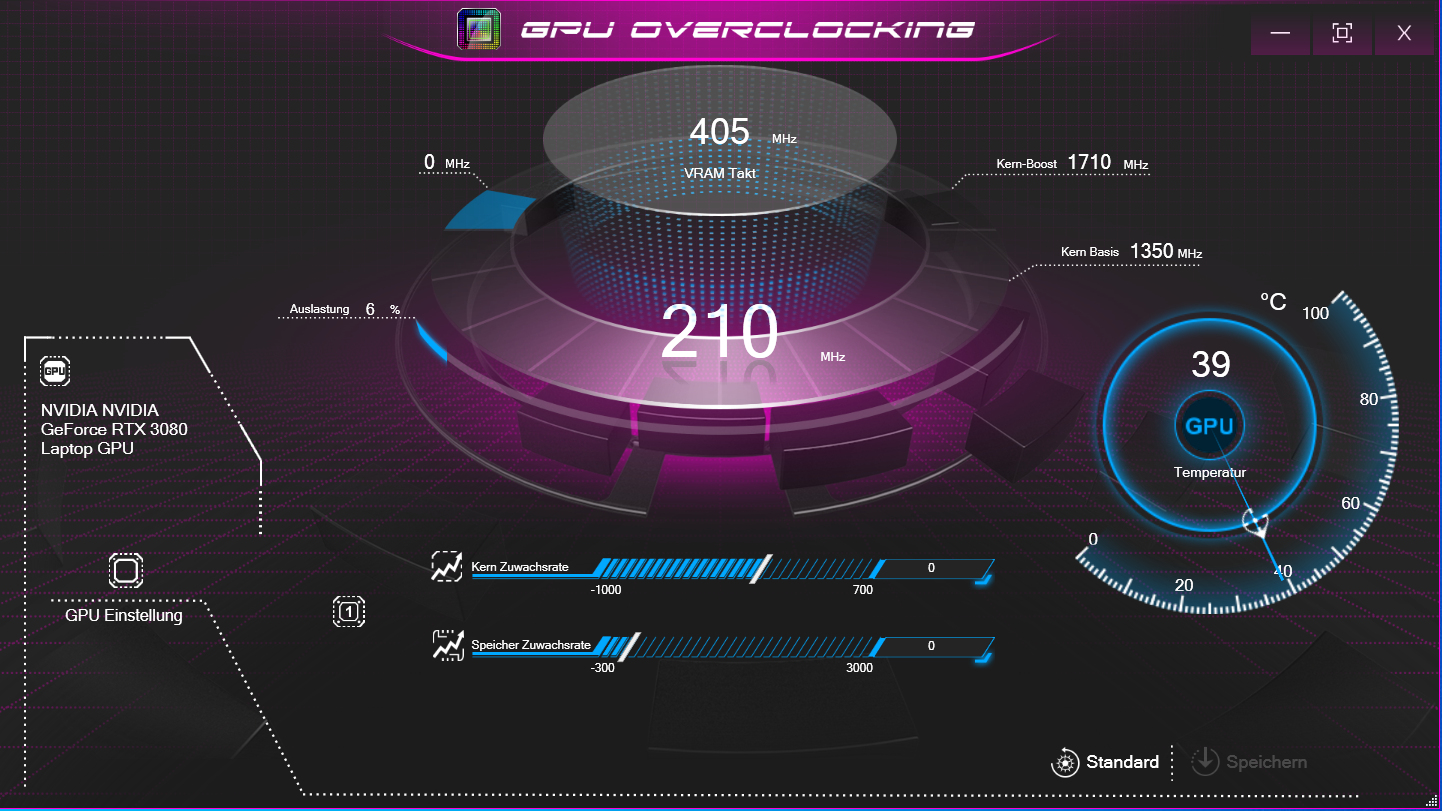

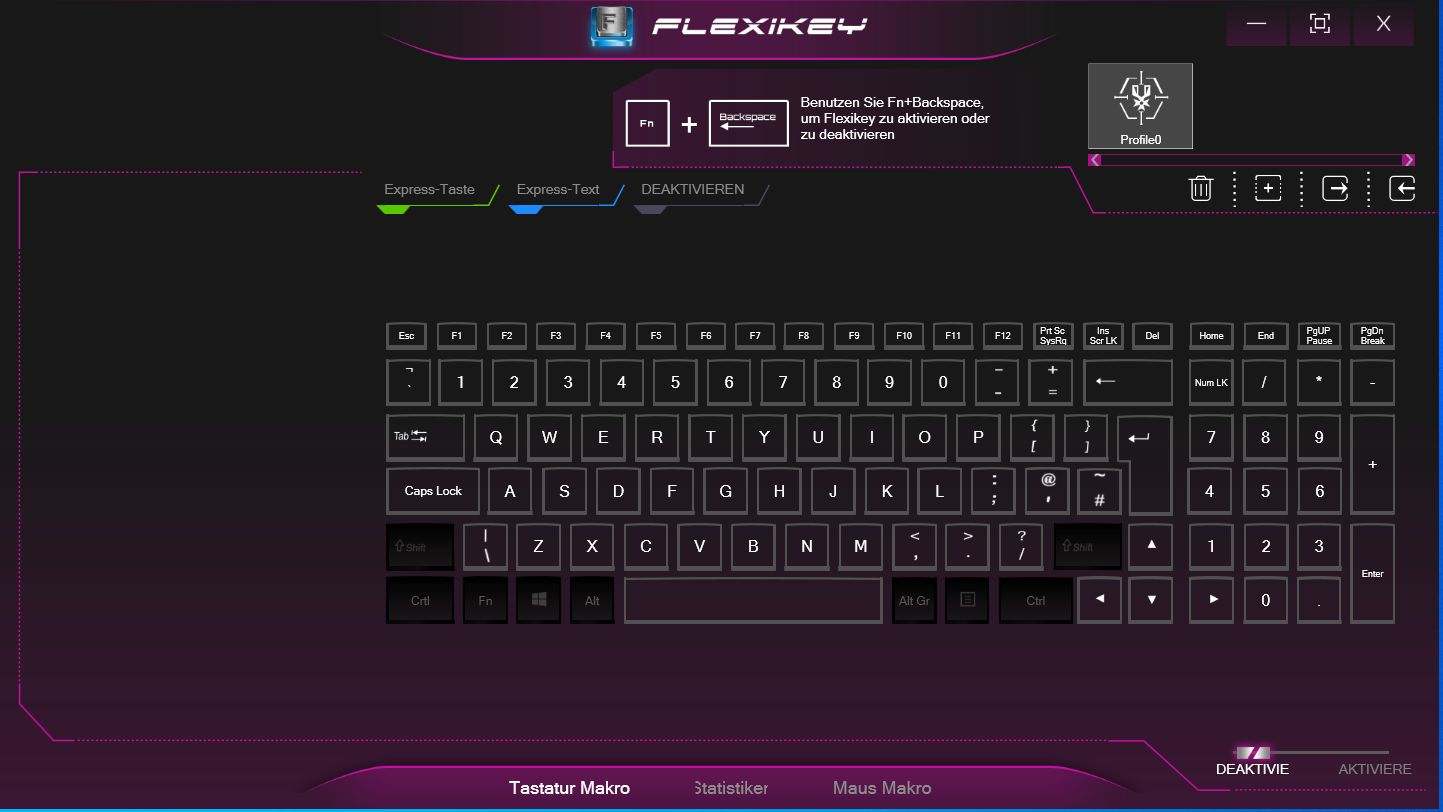

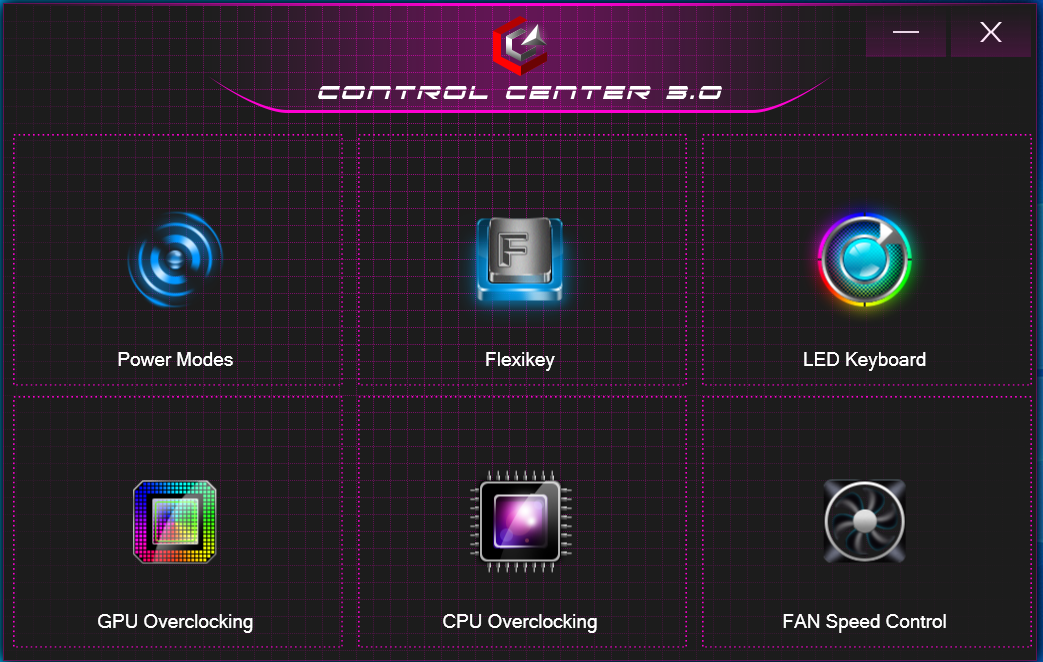

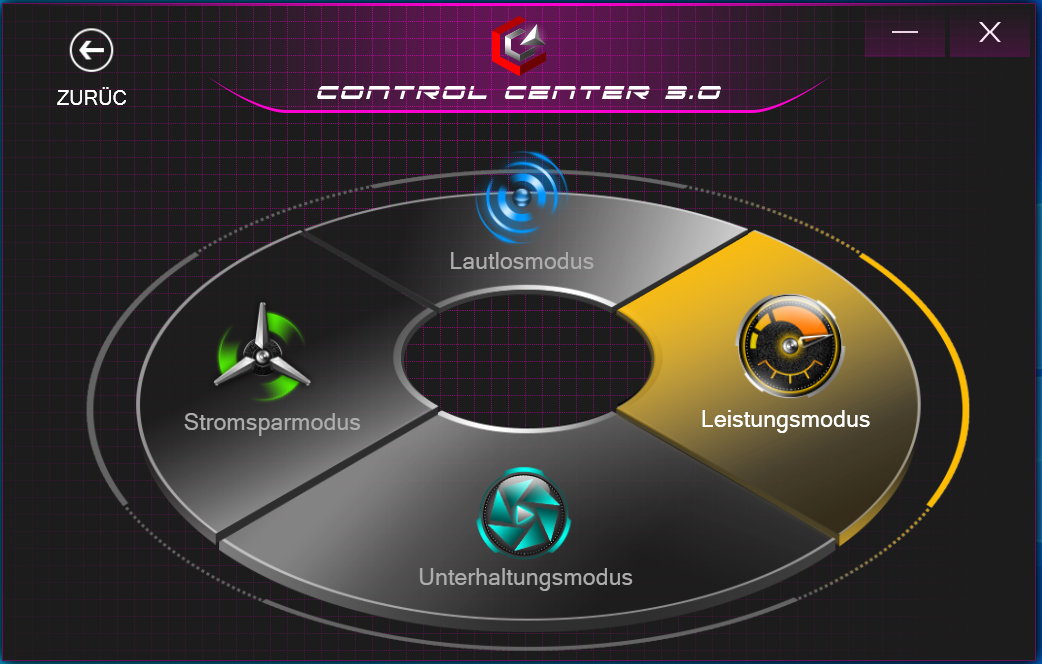

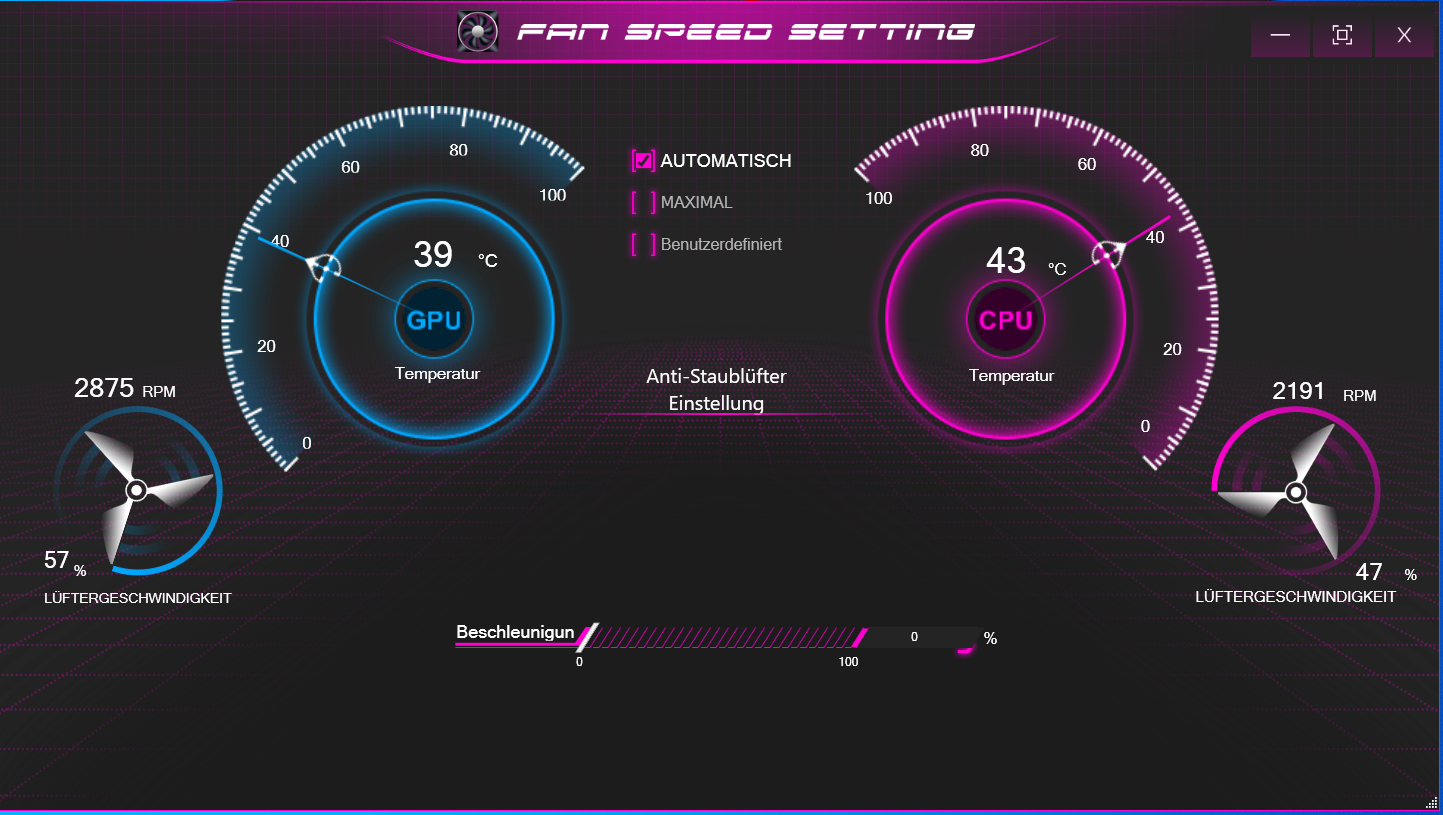

Het voorgeïnstalleerde Control Center maakt het onder andere mogelijk om een prestatieprofiel te selecteren. We voerden onze 3D tests uit met een actief "Prestatiemodus" profiel en automatische ventilatorregeling. We gebruikten het "Entertainment Mode" profiel voor de inactieve en batterij testen.



Processor

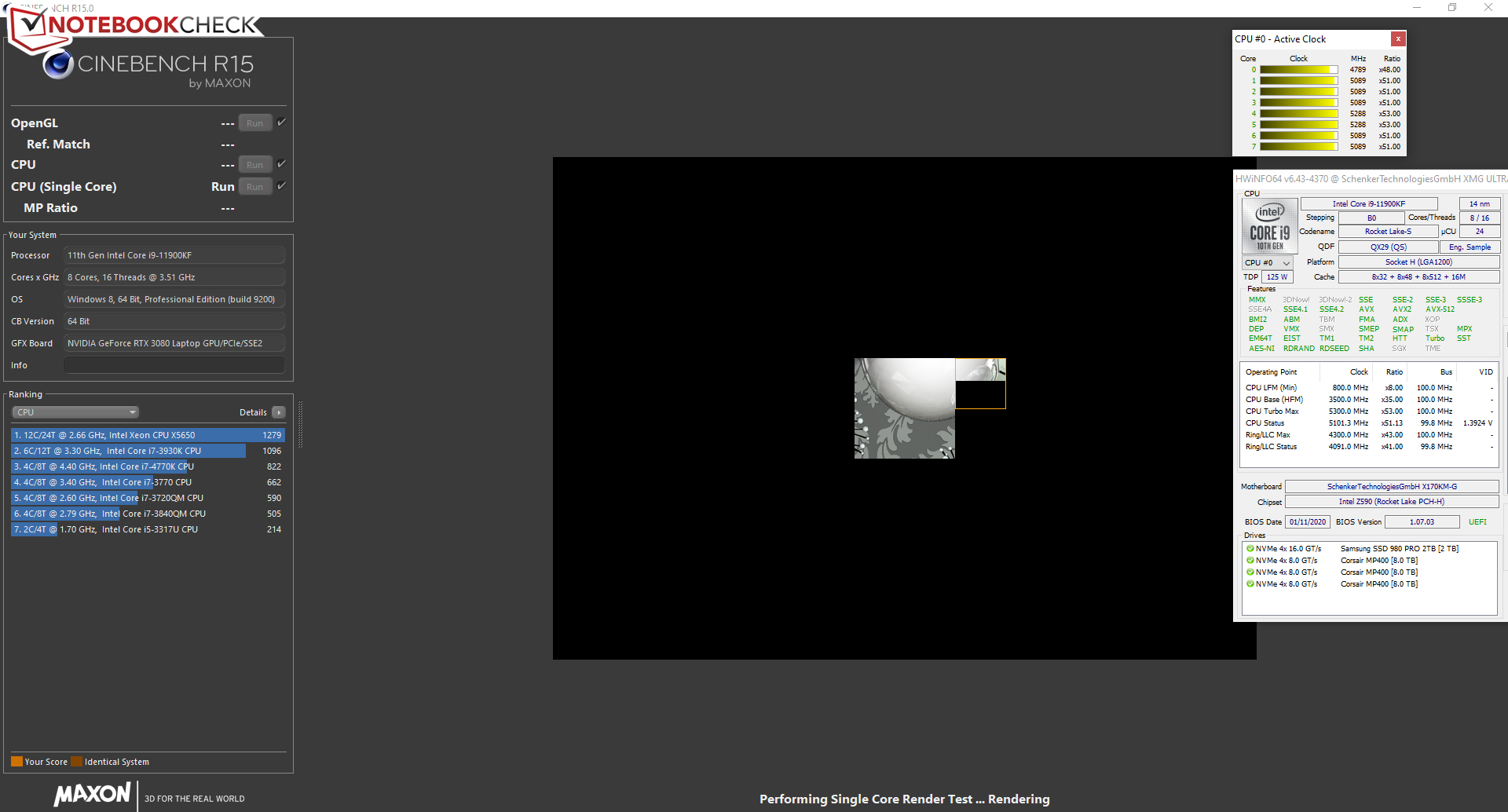

De Core-i9-11900Kachtkernige processor (Rocket Lake) werkt met een basisklok van 3,5 GHz. De klok kan via Turbo worden verhoogd tot 4,8 GHz (acht kernen) tot 5,3 GHz (single core). Hyperthreading (twee threads per core) wordt ondersteund. Dankzij de vrije multiplier kan de processor vrij gemakkelijk worden overklokt. De CPU zit in een socket en kan dus worden verwisseld.

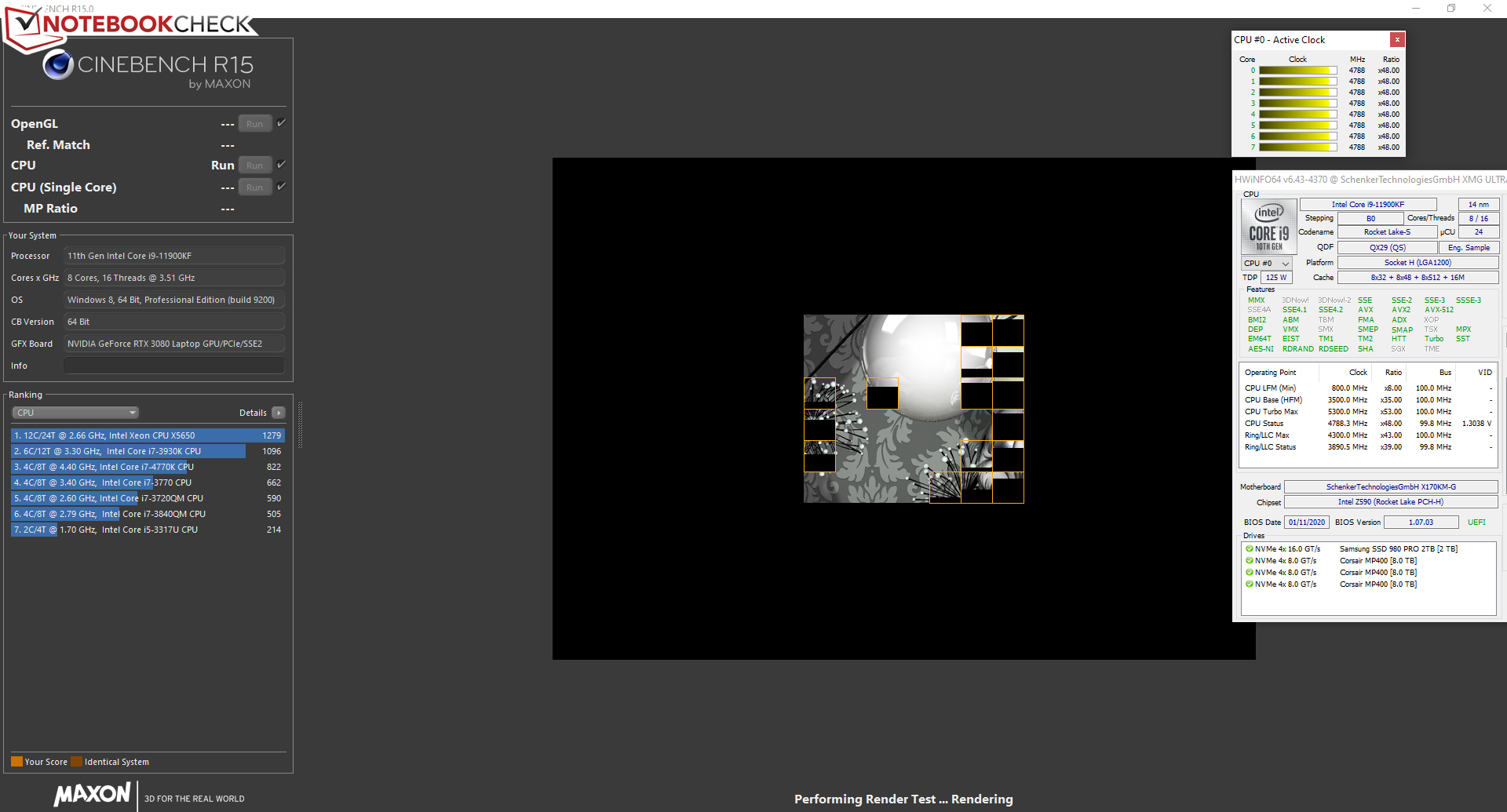

De CPU-tests van de Cinebench R15-benchmark worden uitgevoerd op 4,6 tot 4,8 GHz (multi-thread) en 4,8 tot 5,3 GHz (single-thread). Op batterijvoeding draait de CPU op 800 MHz tot 4,8 GHz (multi-thread) of 3,6 tot 5,1 GHz (single-thread)

Multi-thread (netwerkoperatie)
Multi-thread (netwerkoperatie)
Enkele draad (netwerkoperatie)
Enkele draad (netwerkoperatie)

Wij controleren of de CPU Turbo ook permanent wordt gebruikt bij netvoeding door de multi-thread test van de Cinebench R15 benchmark in een lus uit te voeren. Hoge snelheden worden bereikt binnen de eerste minuut van de test. Daarna daalt de klok tot waarden rond 4 GHz.

Rocket Lake laat een goede indruk achter. Intel was in staat om de prestaties per MHz aanzienlijk te verhogen. Hierdoor kan het gemis van twee CPU cores ten opzichte van de Comet Lake voorganger (Core i9-10900K)tot opzekere hoogte worden gecompenseerdin multi-thread toepassingen.De 11900Kkanzich laten zien op het gebiedvansingle-threadprestaties. Hij ligthiervoorop zijn voorganger.

01302603905206507809101040117013001430156016901820195020802210234024702361.092271.442229.162038.012024.392043.322036.042039.572014.32055.922031.282051.912041.862036.562023.982044.782028.192026.342036.972041.132047.922024.392032.622033.552024.72022.552033.862058.042048.242049.812050.762021.022041.342056.032041.752017.352041.232063.342053.492051.72512.722495.792490.042469.142491.442482.312462.32468.532471.272468.682443.342424.12461.842468.982468.682463.962463.512463.362462.142465.792450.682463.362471.422462.142458.812460.182454.442455.192459.122466.72464.422463.512460.022459.422465.792462.324572457.612459.722464.122455.82456.852460.022454.592459.722455.192457.612459.572462.32453.241813.41832.841826.651833.261770.851818.511833.61833.771829.321825.821831.251832.511818.431829.661826.321827.571829.661829.241822.491829.991832.841828.741824.91823.241826.231829.661832.841826.731829.161827.151824.481824.321829.071816.371824.651829.4918211819.671825.481818.181834.361833.181821.581833.181831.51820.081836.461820.081826.321823.321737.471706.921629.461567.951580.471583.281584.721561.41597.951612.581559.821558.121594.961588.751552.731559.511569.241569.741601.151557.691556.121565.741567.831555.511559.212532.772512.882503.132493.32464.422488.492481.242381.942311.072300.572308.942300.572290.432294.52302.692311.072298.592296.472304.812296.472302.692292.392294.372302.692298.591853.311833.771842.721836.461838.661846.2118201845.871848.771832.511831.331834.951841.21843.41836.721829.991827.651827.571822.161819.261833.11815.051829.991809.951818.02Tooltip
Schenker XMG Ultra 17 Rocket Lake Intel Core i9-11900K: Ø2057 (2014.3-2361.09)
MSI GT76 Titan DT 10SGS Intel Core i9-10900K: Ø2464 (2424.1-2512.72)
Alienware m17 R3 P45E Intel Core i9-10980HK: Ø1826 (1770.85-1836.46)
Asus Strix Scar 17 G732LXS Intel Core i9-10980HK: Ø1587 (1552.73-1737.47)
Schenker XMG Ultra 17 Comet Lake Intel Core i9-10900K: Ø2359 (2290.43-2532.77)
Alienware m17 R4 Intel Core i9-10980HK: Ø1833 (1809.95-1853.31)
CPU kloksnelheden tijdens de uitvoering van de CB15 lus
CPU kloksnelheden tijdens de uitvoering van de CB15 lus
Cinebench R15 CPU Single 64Bit
254 Points
Cinebench R15 CPU Multi 64Bit
2361 Points
Cinebench R15 OpenGL 64Bit
206.63 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
Cinebench R15
CPU Single 64Bit
Average Intel Core i9-11900K
  (254 - 262, n=3)
257 Points ∼100% +1%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
254 Points ∼99%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
217 Points ∼84% -15%
Alienware m17 R4
Intel Core i9-10980HK
209 Points ∼81% -18%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
206 Points ∼80% -19%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
203 Points ∼79% -20%
Average of class Gaming
  (108 - 254, n=208, last 2 years)
189 Points ∼74% -26%
CPU Multi 64Bit
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
2533 (2290.43min - 2532.77max) Points ∼100% +7%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
2513 (2424.1min - 2512.72max) Points ∼99% +6%
Average Intel Core i9-11900K
  (2361 - 2436, n=3)
2398 Points ∼95% +2%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
2361 Points ∼93%
Alienware m17 R4
Intel Core i9-10980HK
1853 (1809.95min - 1853.31max) Points ∼73% -22%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
1737 (1552.73min - 1737.47max) Points ∼69% -26%
Average of class Gaming
  (536 - 2804, n=215, last 2 years)
1382 Points ∼55% -41%
Blender 2.79 - BMW27 CPU
Average of class Gaming
  (179 - 643, n=126, last 2 years)
350 Seconds * ∼100% -54%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
286 Seconds * ∼82% -26%
Alienware m17 R4
Intel Core i9-10980HK
247 Seconds * ∼71% -9%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
227 Seconds * ∼65%
Average Intel Core i9-11900K
  (190 - 227, n=3)
205 Seconds * ∼59% +10%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
190 Seconds * ∼54% +16%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
179 Seconds * ∼51% +21%
7-Zip 18.03
7z b 4
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
69987 MIPS ∼100% +22%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
67252 MIPS ∼96% +17%
Average Intel Core i9-11900K
  (57579 - 62746, n=3)
60688 MIPS ∼87% +5%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
57579 MIPS ∼82%
Alienware m17 R4
Intel Core i9-10980HK
49275 MIPS ∼70% -14%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
45938 MIPS ∼66% -20%
Average of class Gaming
  (15146 - 75612, n=127, last 2 years)
40753 MIPS ∼58% -29%
7z b 4 -mmt1
Average Intel Core i9-11900K
  (6174 - 6652, n=3)
6385 MIPS ∼100% +3%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
6174 MIPS ∼97%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
5811 MIPS ∼91% -6%
Alienware m17 R4
Intel Core i9-10980HK
5463 MIPS ∼86% -12%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
5349 MIPS ∼84% -13%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
5336 MIPS ∼84% -14%
Average of class Gaming
  (2945 - 6174, n=127, last 2 years)
5081 MIPS ∼80% -18%
Cinebench R20
CPU (Single Core)
Average Intel Core i9-11900K
  (632 - 647, n=3)
638 Points ∼100% +1%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
634 Points ∼99%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
524 Points ∼82% -17%
Alienware m17 R4
Intel Core i9-10980HK
506 Points ∼79% -20%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
493 Points ∼77% -22%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
489 Points ∼77% -23%
Average of class Gaming
  (312 - 634, n=175, last 2 years)
466 Points ∼73% -26%
CPU (Multi Core)
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
6181 Points ∼100% +22%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
5825 Points ∼94% +15%
Average Intel Core i9-11900K
  (5055 - 5997, n=3)
5633 Points ∼91% +11%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
5055 Points ∼82%
Alienware m17 R4
Intel Core i9-10980HK
4456 Points ∼72% -12%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
3883 Points ∼63% -23%
Average of class Gaming
  (1397 - 6321, n=176, last 2 years)
3223 Points ∼52% -36%
Geekbench 5.3
64 Bit Multi-Core Score
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
11393 Points ∼100% +9%
Average Intel Core i9-11900K
  (10482 - 11035, n=3)
10742 Points ∼94% +2%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
10725 Points ∼94% +2%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
10482 Points ∼92%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
8666 Points ∼76% -17%
Alienware m17 R4
Intel Core i9-10980HK
8135 Points ∼71% -22%
Average of class Gaming
  (2783 - 11393, n=122, last 2 years)
6958 Points ∼61% -34%
64 Bit Single-Core Score
Average Intel Core i9-11900K
  (1777 - 1885, n=3)
1815 Points ∼100% +2%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
1777 Points ∼98%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
1428 Points ∼79% -20%
Alienware m17 R4
Intel Core i9-10980HK
1351 Points ∼74% -24%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
1336 Points ∼74% -25%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
1302 Points ∼72% -27%
Average of class Gaming
  (703 - 1777, n=122, last 2 years)
1261 Points ∼69% -29%
HWBOT x265 Benchmark v2.2 - 4k Preset
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
19.8 fps ∼100% +16%
Average Intel Core i9-11900K
  (17.1 - 19.8, n=3)
18.7 fps ∼94% +9%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
18.2 fps ∼92% +6%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
17.1 fps ∼86%
Alienware m17 R4
Intel Core i9-10980HK
14.3 fps ∼72% -16%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
12.5 fps ∼63% -27%
Average of class Gaming
  (4.35 - 19.8, n=126, last 2 years)
11.2 fps ∼57% -35%
LibreOffice - 20 Documents To PDF
Average of class Gaming
  (23.9 - 98.2, n=109, last 2 years)
55 s * ∼100% -36%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
51.9 s * ∼94% -28%
Average Intel Core i9-11900K
  (40.5 - 72.5, n=3)
51.6 s * ∼94% -27%
Alienware m17 R4
Intel Core i9-10980HK
51.5 s * ∼94% -27%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
48.1 s * ∼87% -19%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
46.2 s * ∼84% -14%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
40.5 s * ∼74%
R Benchmark 2.5 - Overall mean
Average of class Gaming
  (0.4981 - 1.088, n=113, last 2 years)
0.597 sec * ∼100% -20%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK
0.581 sec * ∼97% -17%
Alienware m17 R4
Intel Core i9-10980HK
0.574 sec * ∼96% -15%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K
0.567 sec * ∼95% -14%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K
0.531 sec * ∼89% -7%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K
0.4981 sec * ∼83%
Average Intel Core i9-11900K
  (0.4733 - 0.4981, n=3)
0.4868 sec * ∼82% +2%

* ... kleiner is beter

Prestaties van het systeem

Dat er aan rekenkracht geen gebrek is, hoeft gezien de hardware-uitrusting niet te verbazen. De laptop is indrukwekkend in alle gangbare toepassingsgebieden. De zeer goede PCMark resultaten bevestigen dit

PCMark 8 Home Score Accelerated v2
5529 punten
PCMark 8 Creative Score Accelerated v2
7020 punten
PCMark 8 Work Score Accelerated v2
6151 punten
PCMark 10 Score
7884 punten
Help
PCMark 10
Digital Content Creation
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
12250 Points ∼100%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

12250 Points ∼100% 0%
Schenker XMG Ultra 17 Comet Lake
GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB
11829 Points ∼97% -3%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
11705 Points ∼96% -4%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
9666 Points ∼79% -21%
Average of class Gaming
  (3670 - 12250, n=187, last 2 years)
7082 Points ∼58% -42%
Asus Strix Scar 17 G732LXS
GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
5504 Points ∼45% -55%
Productivity
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
9827 Points ∼100%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

9827 Points ∼100% 0%
Schenker XMG Ultra 17 Comet Lake
GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB
8985 Points ∼91% -9%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
8798 Points ∼90% -10%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
8778 Points ∼89% -11%
Asus Strix Scar 17 G732LXS
GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
8307 Points ∼85% -15%
Average of class Gaming
  (5633 - 9827, n=187, last 2 years)
7769 Points ∼79% -21%
Essentials
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
11050 Points ∼100%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

11050 Points ∼100% 0%
Schenker XMG Ultra 17 Comet Lake
GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB
10608 Points ∼96% -4%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
10524 Points ∼95% -5%
Asus Strix Scar 17 G732LXS
GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
10183 Points ∼92% -8%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
9529 Points ∼86% -14%
Average of class Gaming
  (7148 - 11266, n=187, last 2 years)
9385 Points ∼85% -15%
Score
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
7884 Points ∼100%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

7884 Points ∼100% 0%
Schenker XMG Ultra 17 Comet Lake
GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB
7461 Points ∼95% -5%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
7358 Points ∼93% -7%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
6684 Points ∼85% -15%
Average of class Gaming
  (3952 - 7884, n=189, last 2 years)
5721 Points ∼73% -27%
Asus Strix Scar 17 G732LXS
GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
5556 Points ∼70% -30%
PCMark 8
Work Score Accelerated v2
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
6151 Points ∼100%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

6151 Points ∼100% 0%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
5555 Points ∼90% -10%
Average of class Gaming
  (4265 - 6825, n=131, last 2 years)
5551 Points ∼90% -10%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
4889 Points ∼79% -21%
Home Score Accelerated v2
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
6224 Points ∼100% +13%
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
5529 Points ∼89%
Average Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU

5529 Points ∼89% 0%
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
4678 Points ∼75% -15%
Average of class Gaming
  (2832 - 6277, n=130, last 2 years)
4450 Points ∼71% -20%

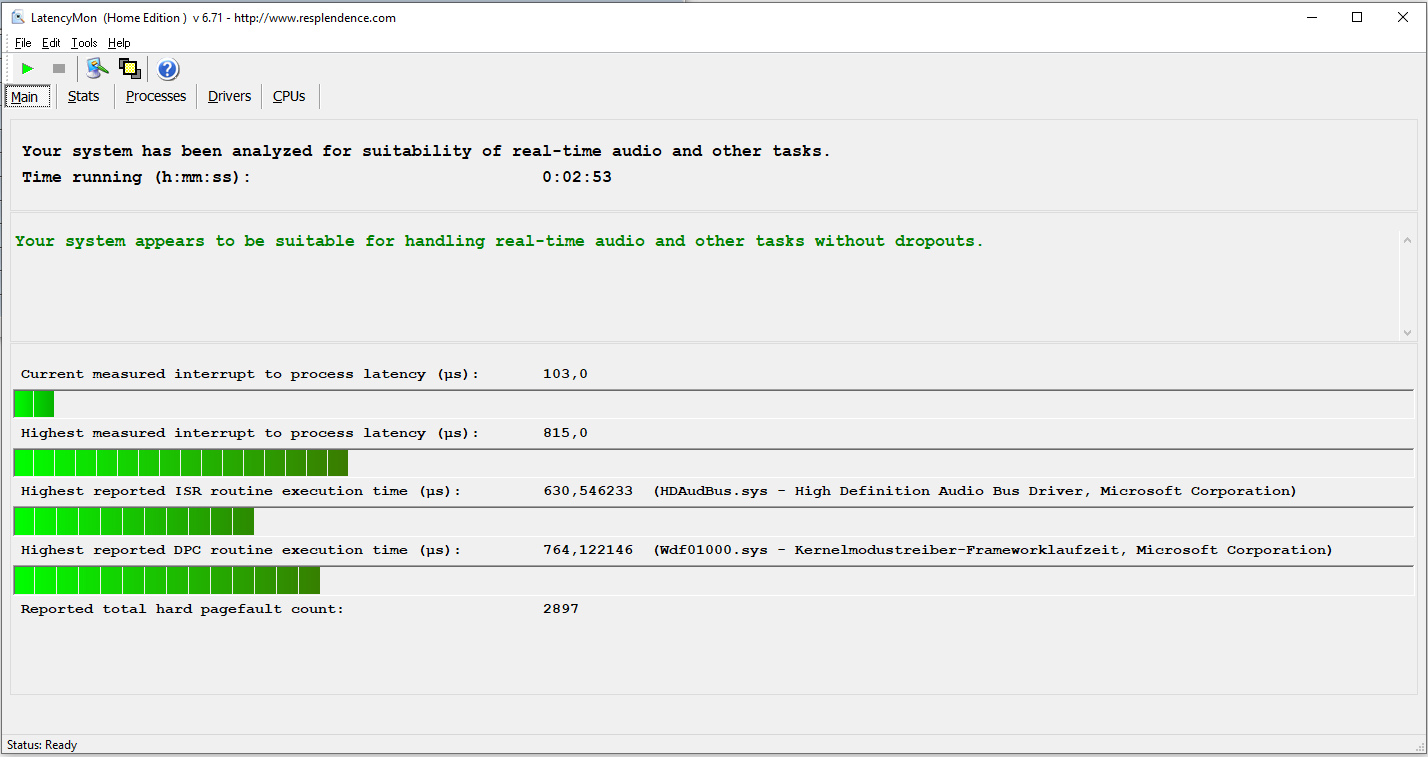

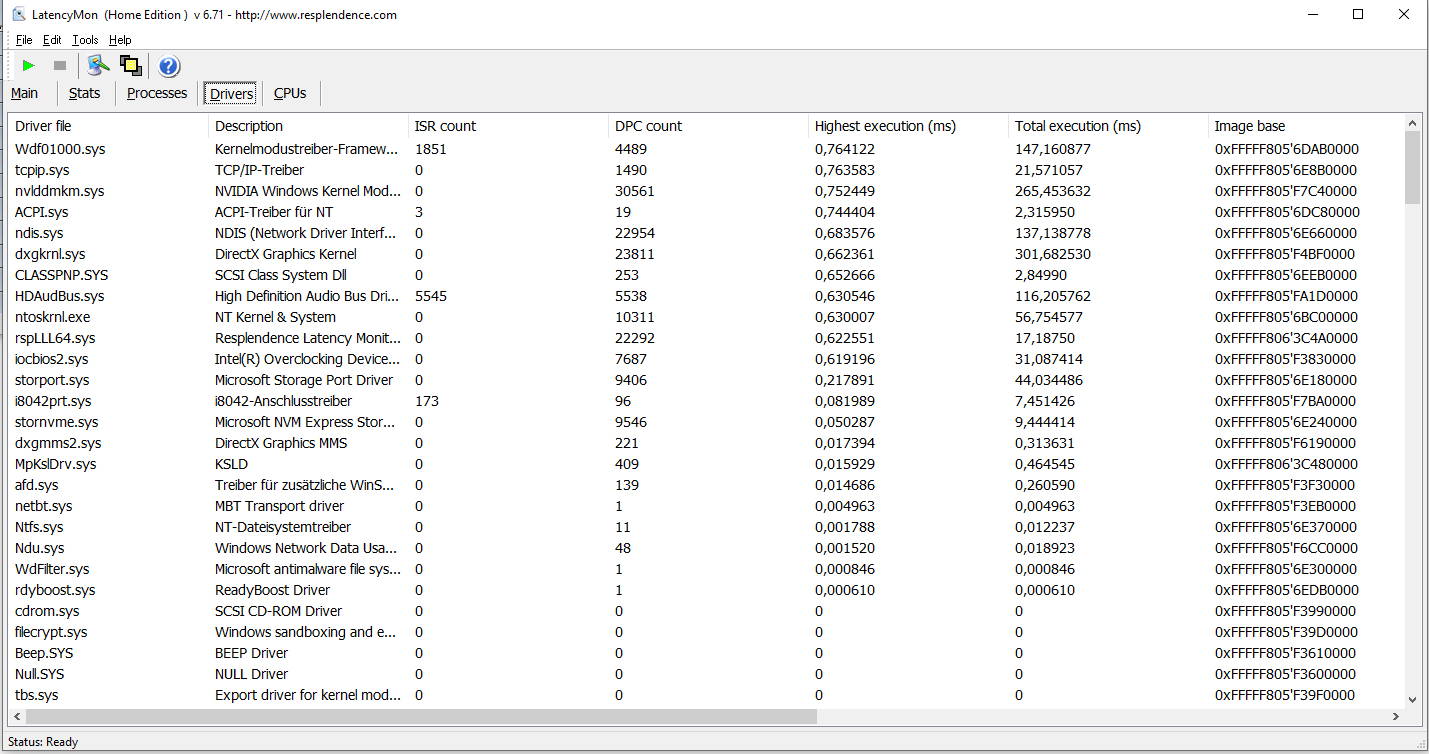

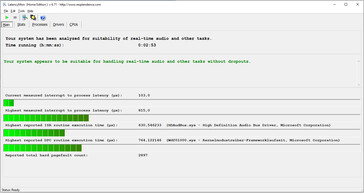

DPC latenties

In onze gestandaardiseerde latency monitor test (surfen op het web, 4K video afspelen, Prime95 hoge belasting), hebben we geen afwijkingen in de DPC latency's waargenomen. Het systeem lijkt geschikt te zijn voor real-time video- en audiobewerking

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI GT76 Titan DT 10SGS
GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
10615.5 μs * ∼100% -1203%
Asus Strix Scar 17 G732LXS
GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
5066.3 μs * ∼48% -522%
Schenker XMG Ultra 17 Rocket Lake
GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0
815 μs * ∼8%
Alienware m17 R4
GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0)
584.8 μs * ∼6% +28%
Schenker XMG Ultra 17 Comet Lake
GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB
141.6 μs * ∼1% +83%

* ... kleiner is beter

Massa-opslag

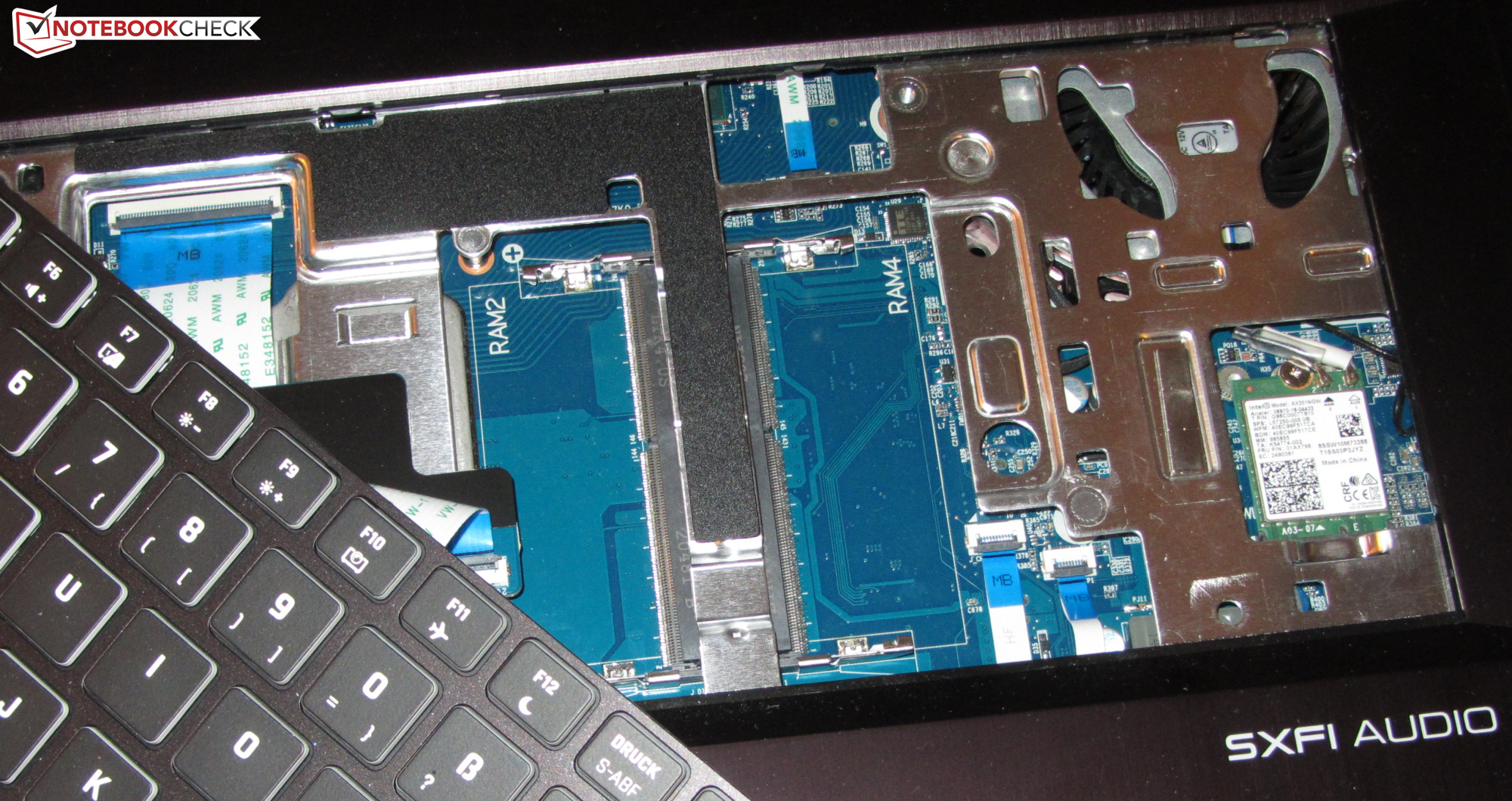

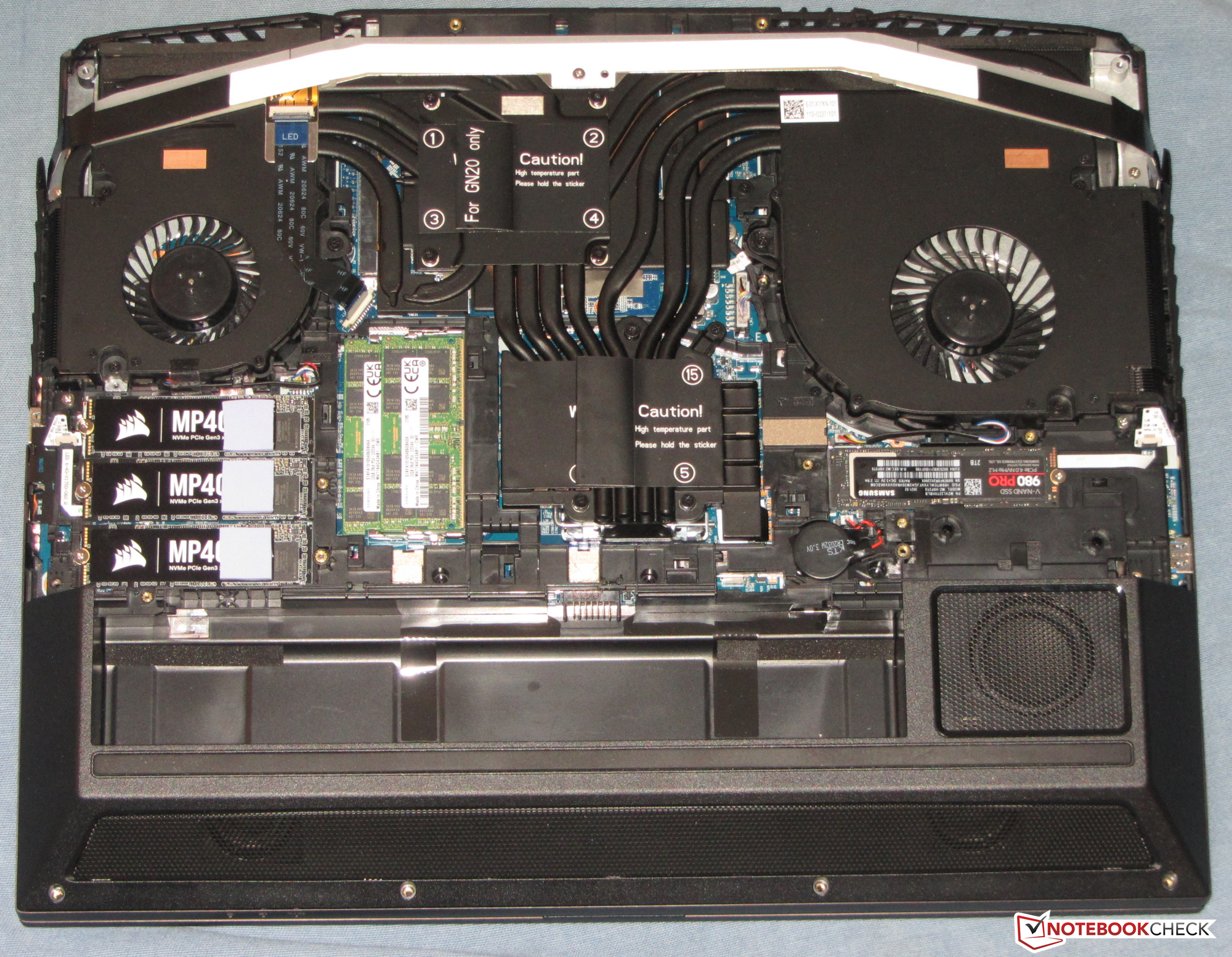

Een NVMe SSD (M.2-2280) van Samsung dient als systeemschijf. Deze biedt 2 TB aan opslagruimte en levert uitstekende overdrachtssnelheden dankzij de PCI Express 4-aansluiting. De notebook heeft drie extra M.2-2280 slots die kunnen worden uitgerust met NVMe-SSD's (verbinding via PCI Express 3.0). Twee van de drie sleuven kunnen als alternatief SATA SSD's bevatten. RAID 0/1/5 wordt ondersteund

Een NVMe SSD dient als systeemschijf.
Een NVMe SSD dient als systeemschijf.

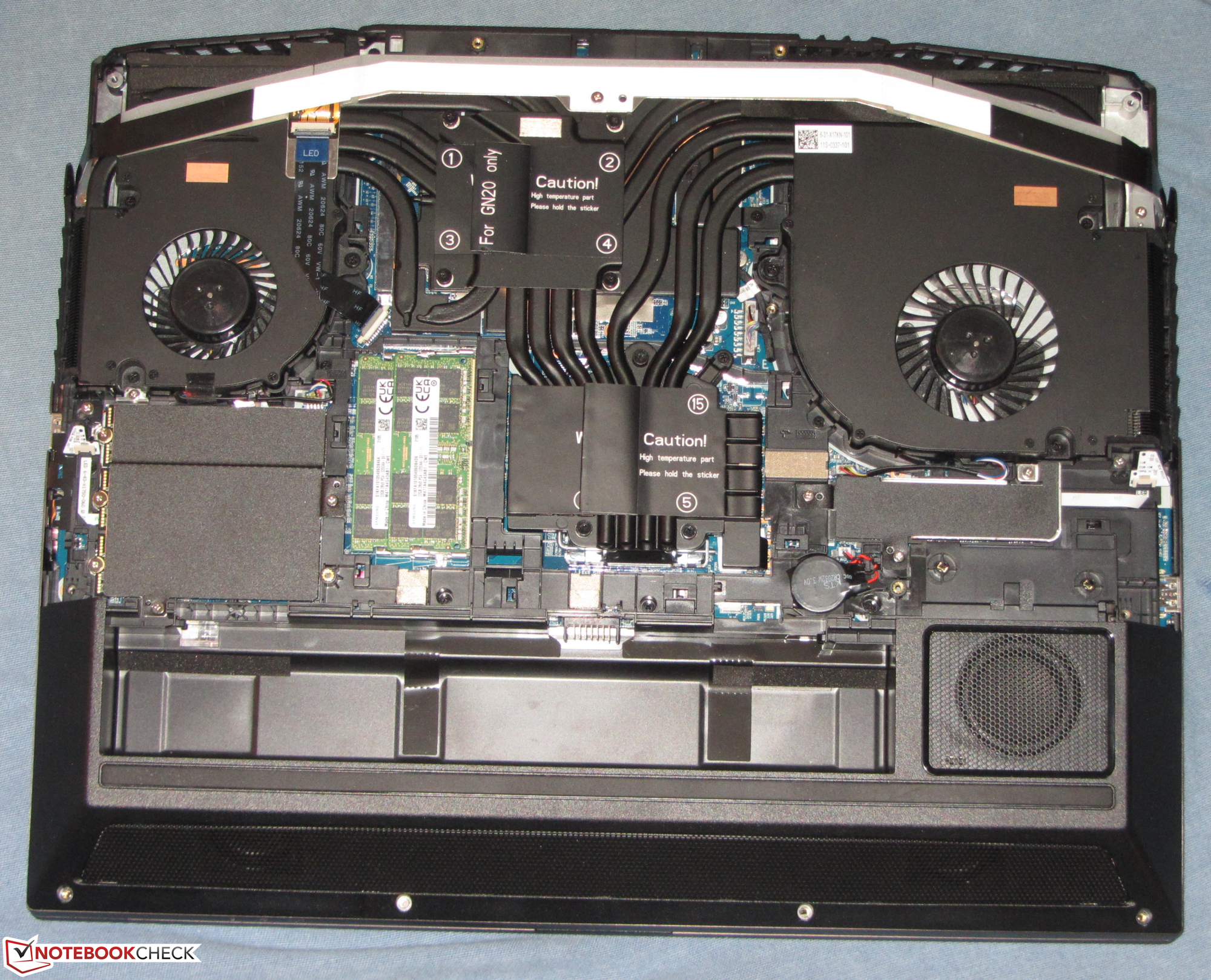

Er kunnen tot drie extra SSD's worden geïnstalleerd.
Er kunnen tot drie extra SSD's worden geïnstalleerd.
Samsung SSD 980 Pro 2TB MZ-V8P2T0
CDM 5/6 Read Seq Q32T1: 7099 MB/s
CDM 5/6 Write Seq Q32T1: 5195 MB/s
CDM 5/6 Read 4K Q32T1: 777.7 MB/s
CDM 5/6 Write 4K Q32T1: 695.8 MB/s
CDM 5 Read Seq: 4228 MB/s
CDM 5 Write Seq: 4281 MB/s
CDM 5/6 Read 4K: 87.85 MB/s
CDM 5/6 Write 4K: 240 MB/s
Schenker XMG Ultra 17 Rocket Lake
Samsung SSD 980 Pro 2TB MZ-V8P2T0
MSI GT76 Titan DT 10SGS
2x WDC PC SN730 SDBPNTY-1T00 (RAID 0)
Asus Strix Scar 17 G732LXS
2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0)
Schenker XMG Ultra 17 Comet Lake
Samsung SSD 970 EVO Plus 2TB
Alienware m17 R4
2x Micron 2300 512 GB (RAID 0)
CrystalDiskMark 5.2 / 6
-42%
-48%
-35%
-42%
Write 4K
240
116.4
-51%
125.8
-48%
172
-28%
93.14
-61%
Read 4K
87.85
43.85
-50%
52.86
-40%
47.3
-46%
46.79
-47%
Write Seq
4281
2927
-32%
1795
-58%
2980
-30%
2852.69
-33%
Read Seq
4228
1997
-53%
2315
-45%
2790
-34%
2556.2
-40%
Write 4K Q32T1
695.8
467.6
-33%
407.1
-41%
481.8
-31%
474.99
-32%
Read 4K Q32T1
777.7
537.8
-31%
411.9
-47%
564.5
-27%
528.87
-32%
Write Seq Q32T1
5195
3362
-35%
2844
-45%
3295
-37%
3330.8
-36%
Read Seq Q32T1
7099
3558
-50%
3130
-56%
3550
-50%
3318.8
-53%
AS SSD
-52%
-54%
-16%
-53%
Copy Game MB/s
2365.08
1709.27
-28%
1990.67
-16%
Copy Program MB/s
1091.1
651.21
-40%
1029.76
-6%
Copy ISO MB/s
3423.99
2605.22
-24%
2413.53
-30%
Score Total
9134
4573
-50%
3456
-62%
6232
-32%
4184
-54%
Score Write
4414
1819
-59%
1492
-66%
2768
-37%
1598
-64%
Score Read
3164
1807
-43%
1327
-58%
2304
-27%
1706
-46%
Access Time Write *
0.026
0.102
-292%
0.036
-38%
0.023
12%
0.095
-265%
Access Time Read *
0.072
0.041
43%
0.145
-101%
0.039
46%
0.079
-10%
4K-64 Write
3859.28
1423.72
-63%
1228.66
-68%
2346.77
-39%
1227.07
-68%
4K-64 Read
2611
1524.69
-42%
1032.13
-60%
1953.75
-25%
1387.92
-47%
4K Write
156.83
108.84
-31%
119.36
-24%
163.15
4%
88.36
-44%
4K Read
51.87
41.51
-20%
49.48
-5%
52.7
2%
45.04
-13%
Seq Write
3974.46
2867.3
-28%
1436.04
-64%
2585.41
-35%
2822
-29%
Seq Read
5010
2405.87
-52%
2450.27
-51%
2980.46
-41%
2733
-45%
Totaal Gemiddelde (Programma / Instellingen)
-47% / -48%
-51% / -51%
-26% / -24%
-48% / -49%

* ... kleiner is beter

Continuous reading: DiskSpd Read Loop, Queue Depth 8

031563094512601575189022052520283531503465378040954410472550405355567059855139.915170.175185.095197.795213.045365.985382.835411.365416.455464.155482.225540.855565.25596.755597.175616.085652.015654.755736.825739.545745.615746.625761.525776.835783.075785.415801.075811.425814.565819.395820.965829.665839.665843.665847.75874.335914.935928.446018.626065.386085.526109.846147.386165.466167.726173.396184.36195.836203.86207.153248.73542.353545.283545.693545.93545.93546.113546.113546.113546.113546.113546.323546.323546.323546.323546.323546.533546.533546.533546.533546.533546.743546.743546.743546.743546.743546.743546.953546.953546.953546.953546.953546.953546.953546.953546.953546.953547.163547.163547.163547.163547.373547.583547.583547.793548354835483548.213552.162508.822740.982747.482751.252753.772757.132767.822768.452778.12778.312782.712784.392785.442786.72787.952794.042794.252794.662795.922796.972797.628022803.262808.32809.762812.492817.732818.362818.362819.22821.722822.352822.562822.562822.772822.982823.192825.072825.072825.912826.122826.752826.962827.172827.592828.012828.432828.642828.642829.6933233511.053511.263511.473511.893513.153514.623514.623515.883517.133517.343517.343517.973517.973518.393518.63519.653519.863519.863520.073520.493520.913520.913520.913520.913521.333521.543523.013523.013523.013523.013523.223524.473524.683525.13525.313525.523525.943526.363526.993527.413528.253528.253528.673529.933529.933530.143530.973532.233533.072843.952867.652880.862885.782900.362915.882920.72937.482937.92941.262943.352945.032945.662946.062946.52946.922947.132949.432950.482951.112951.712952.372953.212953.592953.632953.842954.052954.052954.262955.12955.272955.312955.522955.732956.772956.942956.982957.612957.782957.822958.242958.872959.52960.52960.552961.552962.442963.642964.062964.27Tooltip
Schenker XMG Ultra 17 Rocket Lake GeForce RTX 3080 Laptop GPU, i9-11900K, Samsung SSD 980 Pro 2TB MZ-V8P2T0: Ø5752 (5139.91-6207.15)
MSI GT76 Titan DT 10SGS GeForce RTX 2080 Super Mobile, i9-10900K, 2x WDC PC SN730 SDBPNTY-1T00 (RAID 0): Ø3541 (3248.7-3552.16)
Asus Strix Scar 17 G732LXS GeForce RTX 2080 Super Mobile, i9-10980HK, 2x Intel SSD 660p 1TB SSDPEKNW010T8 (RAID 0): Ø2797 (2508.82-2829.69)
Schenker XMG Ultra 17 Comet Lake GeForce RTX 2080 Super Mobile, i9-10900K, Samsung SSD 970 EVO Plus 2TB: Ø3518 (3323-3533.07)
Alienware m17 R4 GeForce RTX 3080 Laptop GPU, i9-10980HK, 2x Micron 2300 512 GB (RAID 0): Ø2944 (2843.95-2964.27)

Grafische kaart

De GeForce RTX-3080 laptopgrafische kern vertegenwoordigt Nvidia's momenteel krachtigste GPU voor laptops. Hij kan putten uit het snelle GDDR6 grafisch geheugen (16.384 MB). GPU en geheugen zijn niet permanent op het moederbord gesoldeerd, maar zitten op een MXM insteekkaart. Het verwisselen van de kaart zou mogelijk zijn. De processor-geïntegreerde UHD Graphics Xe-750-32EUs GPU is af-fabriek uitgeschakeld en de notebook werkt niet met Nvidia's omschakelbare grafische oplossing Optimus.

Notebookfabrikanten kunnen de TGP en daarmee de maximaal beschikbare rekenkracht van een RTX-3000 grafische kern vrij kiezen binnen de door Nvidia gedefinieerde grenzen (Overzicht van alle RTX-3080 laptops inclusief de TGP's)kiest Schenkervoor het maximum van 165 watt (150 watt + 15 watt Dynamic Boost). Het resultaat is dat de Ultra17 zeer goed presteert in de GPU en gaming tests.

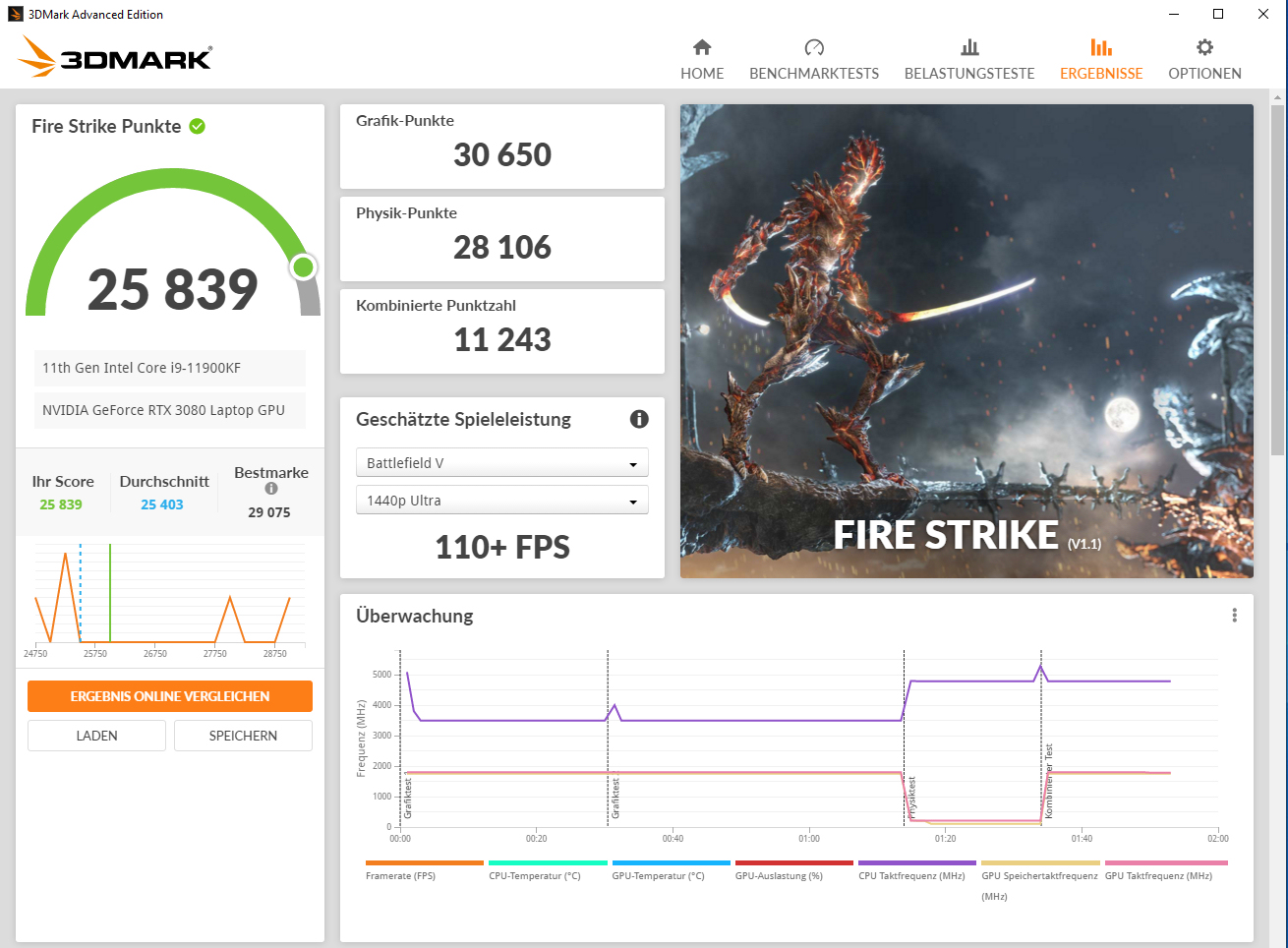

Fire Strike (netvoeding)
Fire Strike (netvoeding)

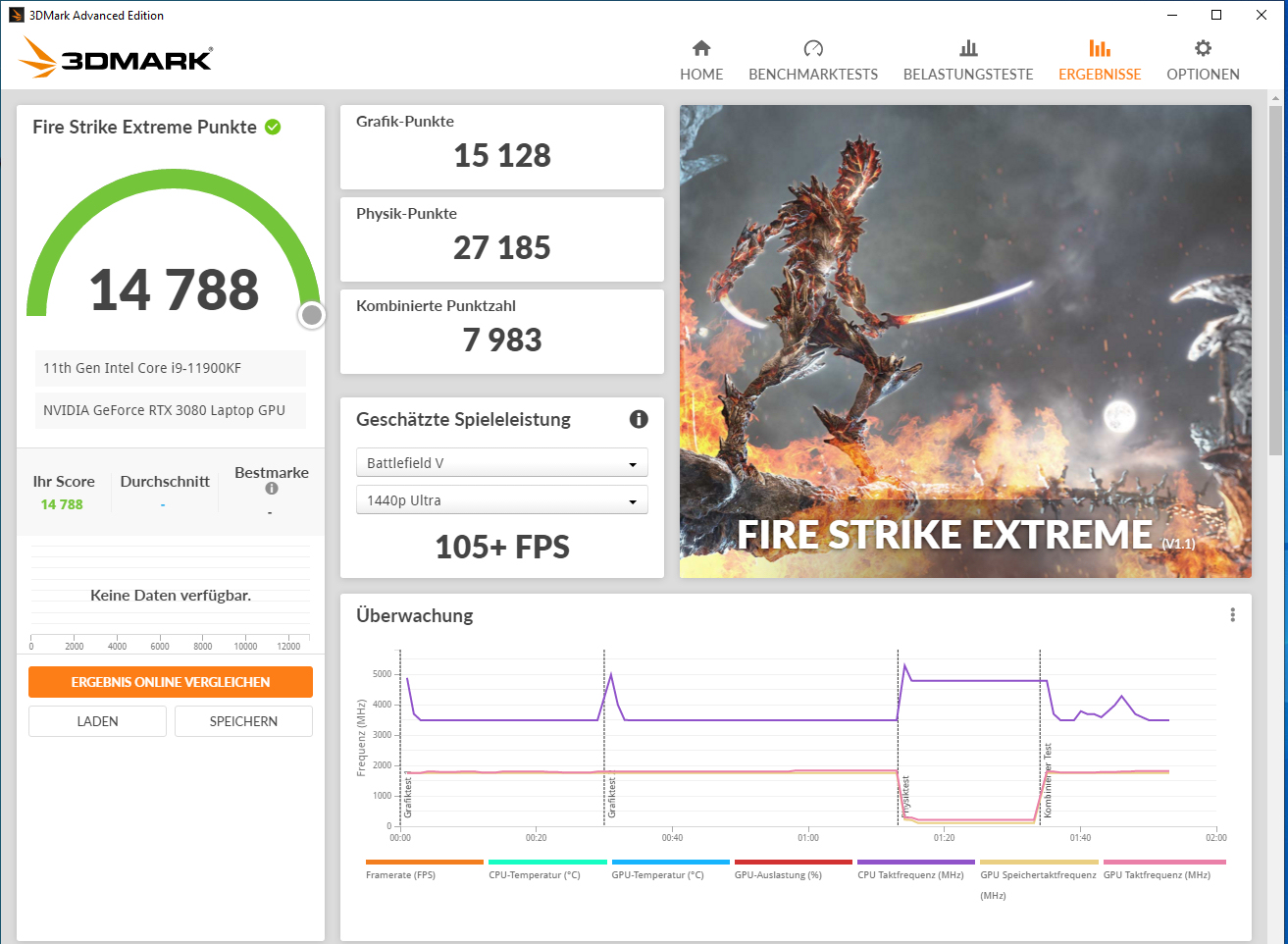

Fire Strike Extreme (netvoeding)
Fire Strike Extreme (netvoeding)

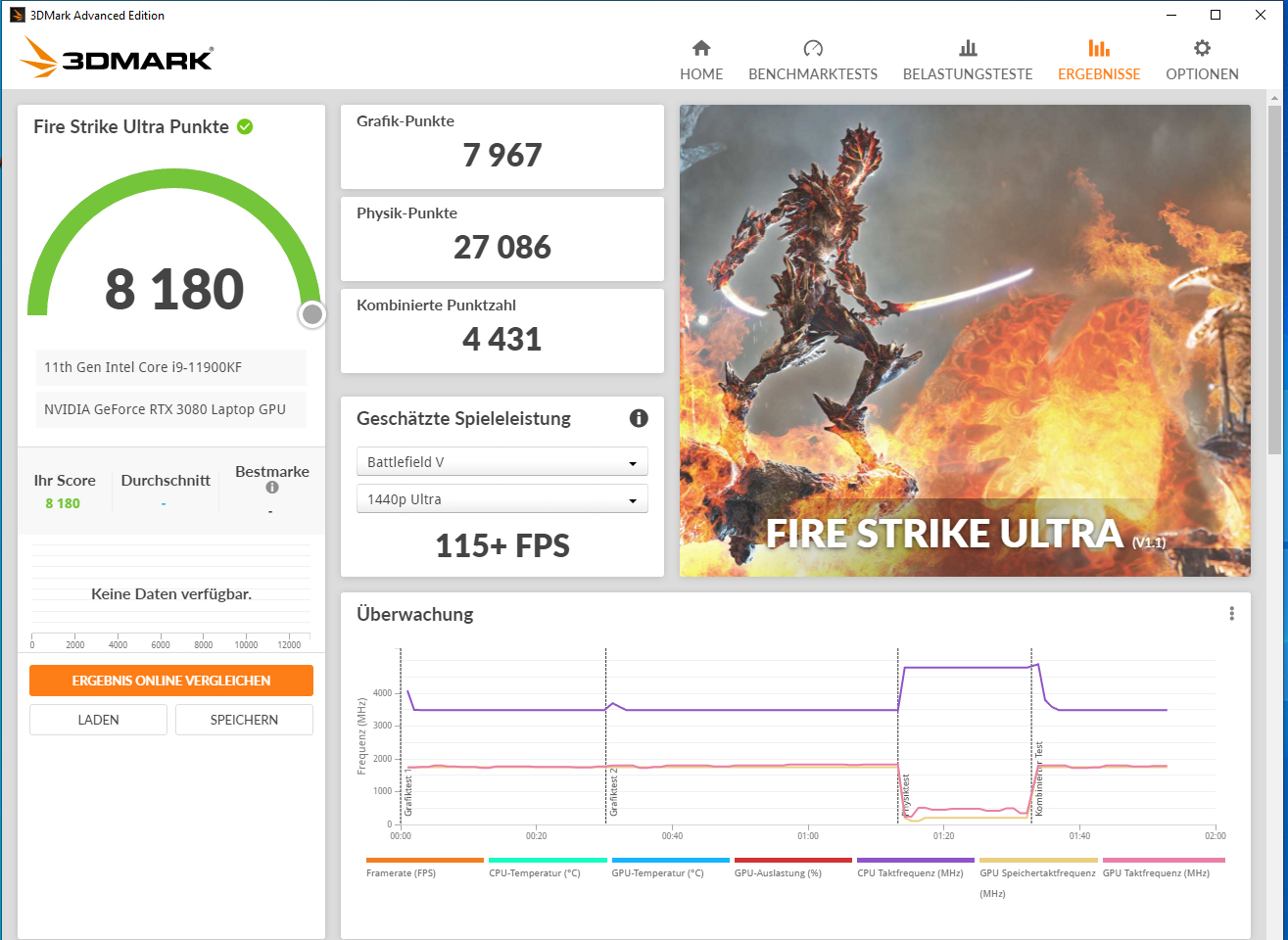

Fire Strike Ultra (netvoeding)
Fire Strike Ultra (netvoeding)

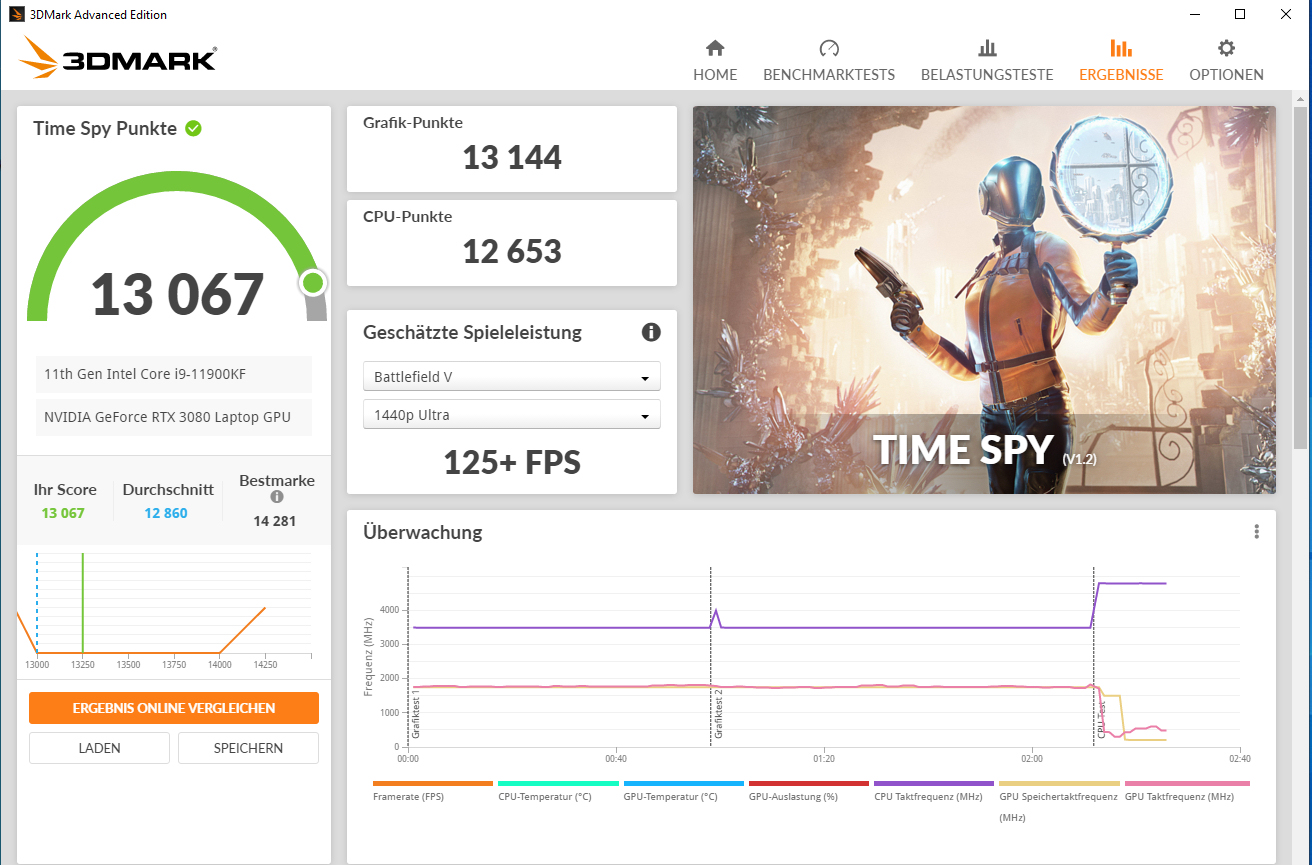

Time Spy (netvoeding)
Time Spy (netvoeding)
Port Royal (netvoeding)
Port Royal (netvoeding)
Fire Strike (werking op batterijen)
Fire Strike (werking op batterijen)
3DMark 11 Performance
32922 punten
3DMark Cloud Gate Standard Score
65479 punten
3DMark Fire Strike Score
25839 punten
3DMark Fire Strike Extreme Score
14788 punten
3DMark Time Spy Score
13067 punten
Help
3DMark 11 - 1280x720 Performance GPU
Alienware m17 R4
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-10980HK
43077 Points ∼100% +3%
Schenker XMG Ultra 17 Rocket Lake
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11900K
41696 Points ∼97%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (32521 - 43744, n=10)
39823 Points ∼92% -4%
Razer Blade Pro 17 2021 Touch 4K, i7-10875H RTX 3080
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i7-10875H
37171 Points ∼86% -11%
Schenker XMG Ultra 17 Comet Lake
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
36838 Points ∼86% -12%
Alienware m17 R3 P45E
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
35128 Points ∼82% -16%
MSI GT76 Titan DT 10SGS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
34623 Points ∼80% -17%
Asus Strix Scar 17 G732LXS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
34021 Points ∼79% -18%
Average of class Gaming
  (4545 - 43077, n=195, last 2 years)
23693 Points ∼55% -43%
3DMark
2560x1440 Time Spy Graphics
Schenker XMG Ultra 17 Rocket Lake
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11900K
13144 Points ∼100%
Alienware m17 R4
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-10980HK
12718 Points ∼97% -3%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (9023 - 13144, n=13)
11118 Points ∼85% -15%
Schenker XMG Ultra 17 Comet Lake
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
10938 Points ∼83% -17%
Razer Blade Pro 17 2021 Touch 4K, i7-10875H RTX 3080
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i7-10875H
10898 Points ∼83% -17%
MSI GT76 Titan DT 10SGS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
10718 Points ∼82% -18%
Alienware m17 R3 P45E
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
9908 Points ∼75% -25%
Asus Strix Scar 17 G732LXS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
9638 Points ∼73% -27%
Average of class Gaming
  (852 - 13144, n=199, last 2 years)
6902 Points ∼53% -47%
1920x1080 Fire Strike Graphics
Alienware m17 R4
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-10980HK
32366 Points ∼100% +6%
Schenker XMG Ultra 17 Rocket Lake
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11900K
30650 Points ∼95%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (20538 - 32366, n=13)
27336 Points ∼84% -11%
Razer Blade Pro 17 2021 Touch 4K, i7-10875H RTX 3080
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i7-10875H
26486 Points ∼82% -14%
Alienware m17 R3 P45E
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
25597 Points ∼79% -16%
Schenker XMG Ultra 17 Comet Lake
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
25504 Points ∼79% -17%
Asus Strix Scar 17 G732LXS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
24416 Points ∼75% -20%
MSI GT76 Titan DT 10SGS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
24211 Points ∼75% -21%
Average of class Gaming
  (2932 - 32366, n=203, last 2 years)
17928 Points ∼55% -42%
1280x720 Cloud Gate Standard Graphics
Alienware m17 R4
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-10980HK
192950 Points ∼100% +5%
Schenker XMG Ultra 17 Rocket Lake
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-11900K
184618 Points ∼96%
Alienware m17 R3 P45E
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
160125 Points ∼83% -13%
Razer Blade Pro 17 2021 Touch 4K, i7-10875H RTX 3080
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i7-10875H
149262 Points ∼77% -19%
Asus Strix Scar 17 G732LXS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10980HK
141486 Points ∼73% -23%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (38816 - 192950, n=11)
131577 Points ∼68% -29%
MSI GT76 Titan DT 10SGS
NVIDIA GeForce RTX 2080 Super Mobile, Intel Core i9-10900K
120212 Points ∼62% -35%
Average of class Gaming
  (23059 - 192950, n=178, last 2 years)
102254 Points ∼53% -45%

Gaming prestaties

De computer brengt alle huidige spellen vloeiend op het scherm. Gewoonlijk kunnen de FHD-resolutie en de maximale kwaliteitsinstellingen worden geselecteerd. Hogere resoluties (hiervoor moet een overeenkomstige monitor worden aangesloten) worden ook door de GPU afgehandeld

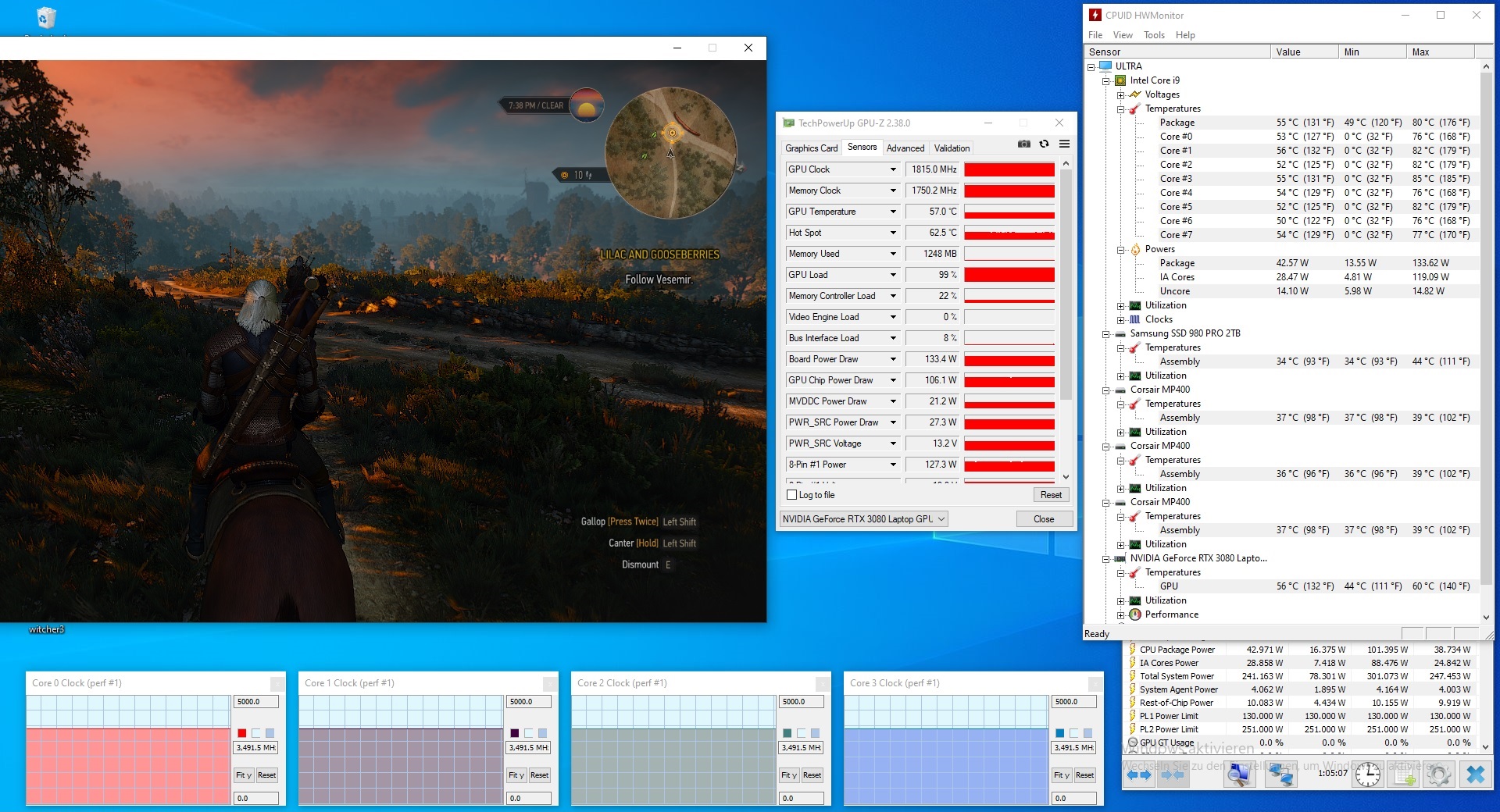

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
123 (64.1min, 75.8P0.1, 90.7P1 - 241max) fps ∼100%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
115 (84min) fps ∼93% -7%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
113.2 (106min - 129max) fps ∼92% -8%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
109 (7.68min) fps ∼89% -11%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (90.2 - 123, n=13)
106 fps ∼86% -14%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK, NVIDIA GeForce RTX 2080 Super Mobile
93.4 (78min) fps ∼76% -24%
Average of class Gaming
  (24.3 - 123, n=199, last 2 years)
69.2 fps ∼56% -44%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
156 (135.2min) fps ∼100% 0%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
156 (137.1min) fps ∼100%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
148 (127.7min) fps ∼95% -5%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK, NVIDIA GeForce RTX 2080 Super Mobile
134 (115min) fps ∼86% -14%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
132 (114.9min) fps ∼85% -15%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (103 - 156, n=12)
122 fps ∼78% -22%
Average of class Gaming
  (58.5 - 156, n=112, last 2 years)
113 fps ∼72% -28%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
113 fps ∼100%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
103 fps ∼91% -9%
MSI GT76 Titan DT 10SGS
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
98 fps ∼87% -13%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK, NVIDIA GeForce RTX 2080 Super Mobile
88.4 fps ∼78% -22%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
88 fps ∼78% -22%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (65.6 - 113, n=12)
81.9 fps ∼72% -28%
Average of class Gaming
  (33.3 - 113, n=109, last 2 years)
74.4 fps ∼66% -34%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
146 (112min - 188max) fps ∼100%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
121 (93min - 158max) fps ∼83% -17%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (75 - 146, n=8)
110 fps ∼75% -25%
Average of class Gaming
  (20 - 146, n=47, last 2 years)
87.3 fps ∼60% -40%
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
151 fps ∼100%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
126 (14.7min, 100P1 - 268max) fps ∼83% -17%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK, NVIDIA GeForce RTX 2080 Super Mobile
121 (97min) fps ∼80% -20%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (76.6 - 151, n=7)
111 fps ∼74% -26%
Average of class Gaming
  (29 - 151, n=106, last 2 years)
79.9 fps ∼53% -47%
Doom Eternal - 1920x1080 Ultra Preset
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
219 (93.7min, 121P1 - 308max) fps ∼100% +15%
Asus Strix Scar 17 G732LXS
Intel Core i9-10980HK, NVIDIA GeForce RTX 2080 Super Mobile
191 (125min) fps ∼87% +1%
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
190 (85.8min, 91.3P0.1, 97P1 - 261max) fps ∼87%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (163 - 190, n=4)
178 fps ∼81% -6%
Average of class Gaming
  (25.9 - 219, n=47, last 2 years)
145 fps ∼66% -24%
Serious Sam 4 - 1920x1080 Ultra (DX12) AA:2xMS
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
107 (17min, 45.5P0.1, 70.2P1 - 185max) fps ∼100%
Schenker XMG Ultra 17 Comet Lake
Intel Core i9-10900K, NVIDIA GeForce RTX 2080 Super Mobile
95 (15.3min, 54.5P1 - 174max) fps ∼89% -11%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (72.6 - 107, n=3)
86.6 fps ∼81% -19%
Average of class Gaming
  (10.8 - 107, n=25, last 2 years)
63.9 fps ∼60% -40%
Cyberpunk 2077
1920x1080 Ray Tracing Ultra Preset (DLSS off)
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
43.2 (19.4min, 31.4P0.1, 37P1 - 71.3max) fps ∼100%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
39.8 (14.1min, 26P0.1, 33P1 - 68.1max) fps ∼92% -8%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (30.6 - 43.2, n=4)
36.7 fps ∼85% -15%
Average of class Gaming
  (18.5 - 56.4, n=12, last 2 years)
31.7 fps ∼73% -27%
1920x1080 Ultra Preset
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
84.3 (20.2min, 67.5P0.1, 72.1P1 - 115max) fps ∼100%
Alienware m17 R4
Intel Core i9-10980HK, NVIDIA GeForce RTX 3080 Laptop GPU
80.6 (14.3min, 43.6P0.1, 64P1 - 132max) fps ∼96% -4%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (60.2 - 84.3, n=4)
71.4 fps ∼85% -15%
Average of class Gaming
  (22.4 - 84.3, n=15, last 2 years)
55.5 fps ∼66% -34%
Watch Dogs Legion
1920x1080 Ultra Preset + Ultra Ray Tracing (DX12)
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
59.5 (27.77min, 48.86P1 - 78.61max) fps ∼100%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (41 - 59.5, n=4)
46.5 fps ∼78% -22%
Average of class Gaming
  (27 - 59.5, n=13, last 2 years)
38.2 fps ∼64% -36%
1920x1080 Ultra Preset (DX12)
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
91.1 (39.06min, 72.64P1 - 127.36max) fps ∼100%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (65 - 91.1, n=4)
74.1 fps ∼81% -19%
Average of class Gaming
  (22 - 91.1, n=18, last 2 years)
56.6 fps ∼62% -38%
Hitman 3 - 1920x1080 Maximum Settings AF:16x
Schenker XMG Ultra 17 Rocket Lake
Intel Core i9-11900K, NVIDIA GeForce RTX 3080 Laptop GPU
200.5 fps ∼100%
Average NVIDIA GeForce RTX 3080 Laptop GPU
  (129 - 201, n=2)
165 fps ∼82% -18%
Average of class Gaming
  (95.5 - 201, n=6, last 2 years)
134 fps ∼67% -33%

Om te controleren of de framerates over een langere periode grotendeels constant blijven, laten we het spel"The Witcher 3" ongeveer 60 minuten draaien met Full HD resolutie en maximale kwaliteitsinstellingen. Het spelpersonage wordt niet bewogen. Een daling van de framerates wordt niet opgemerkt

798999109119129139
