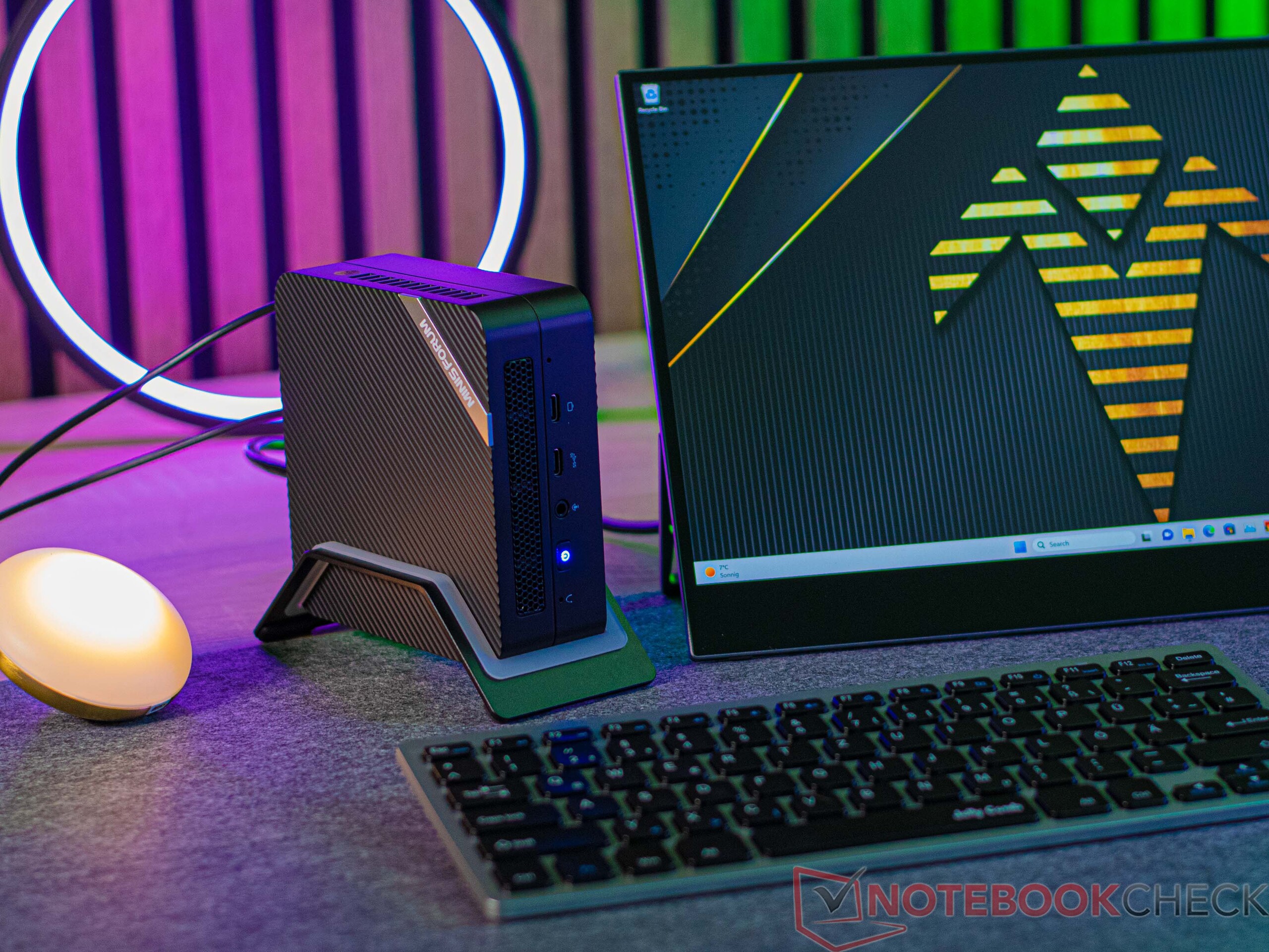

Minisforum Venus Series UM560 XT Desktop PC beoordeeld: Een mini PC met een AMD Cezanne SoC voor een betaalbare prijs!

Verspilde voorstelling! De Venus-serie van Minisforum biedt veel vermogen in het kleinste formaat. We hebben het topmodel, alias de UM690, al aan de tand gevoeld. Nu komen we bij de UM560 XT die is uitgerust met de Ryzen 5 5600H. Onze review onthult hoe goed het systeem het doet. Eén ding is echter al duidelijk: qua prijs en prestaties is de Minisforum Venus Series UM560 XT koploper.

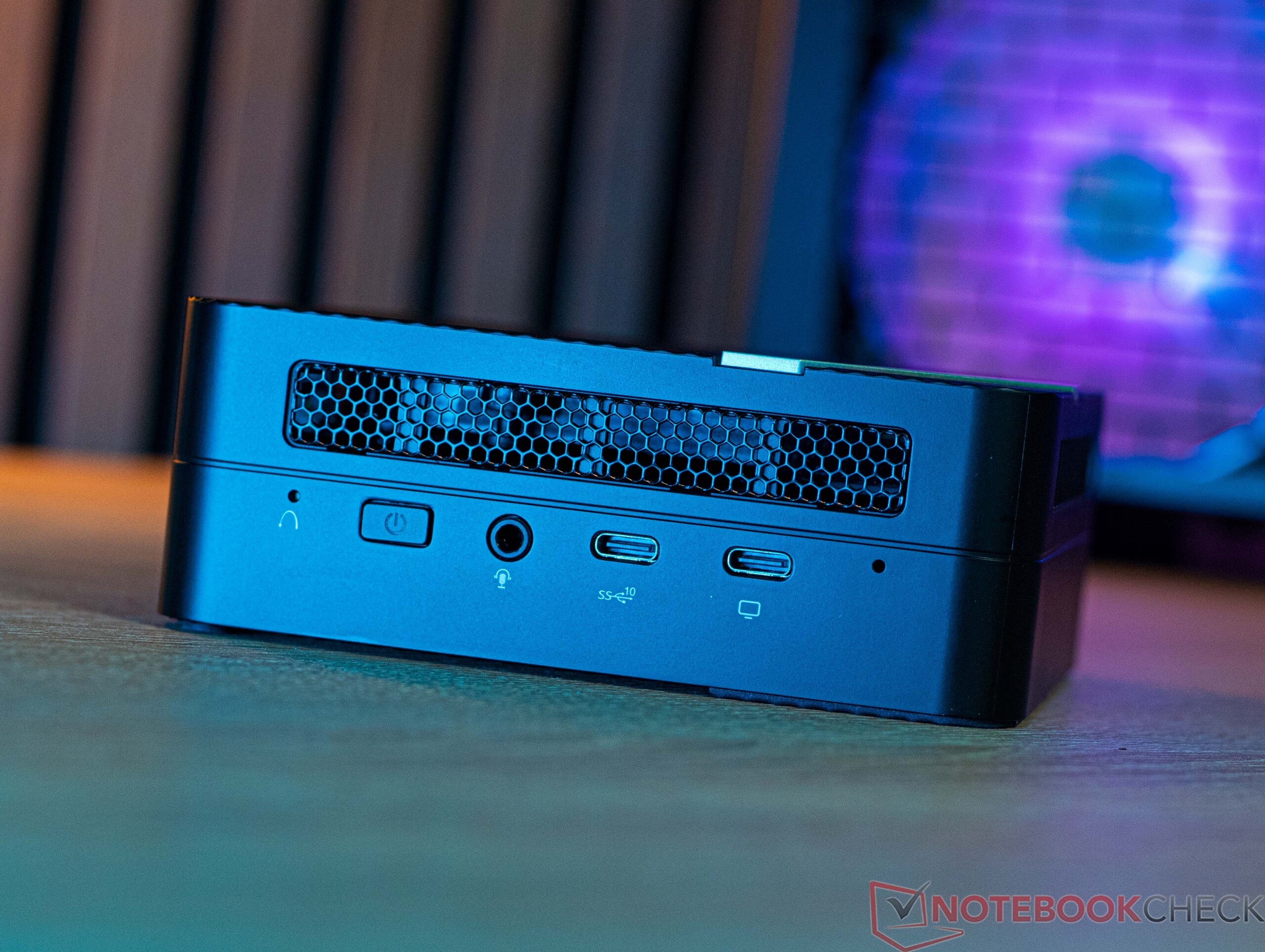

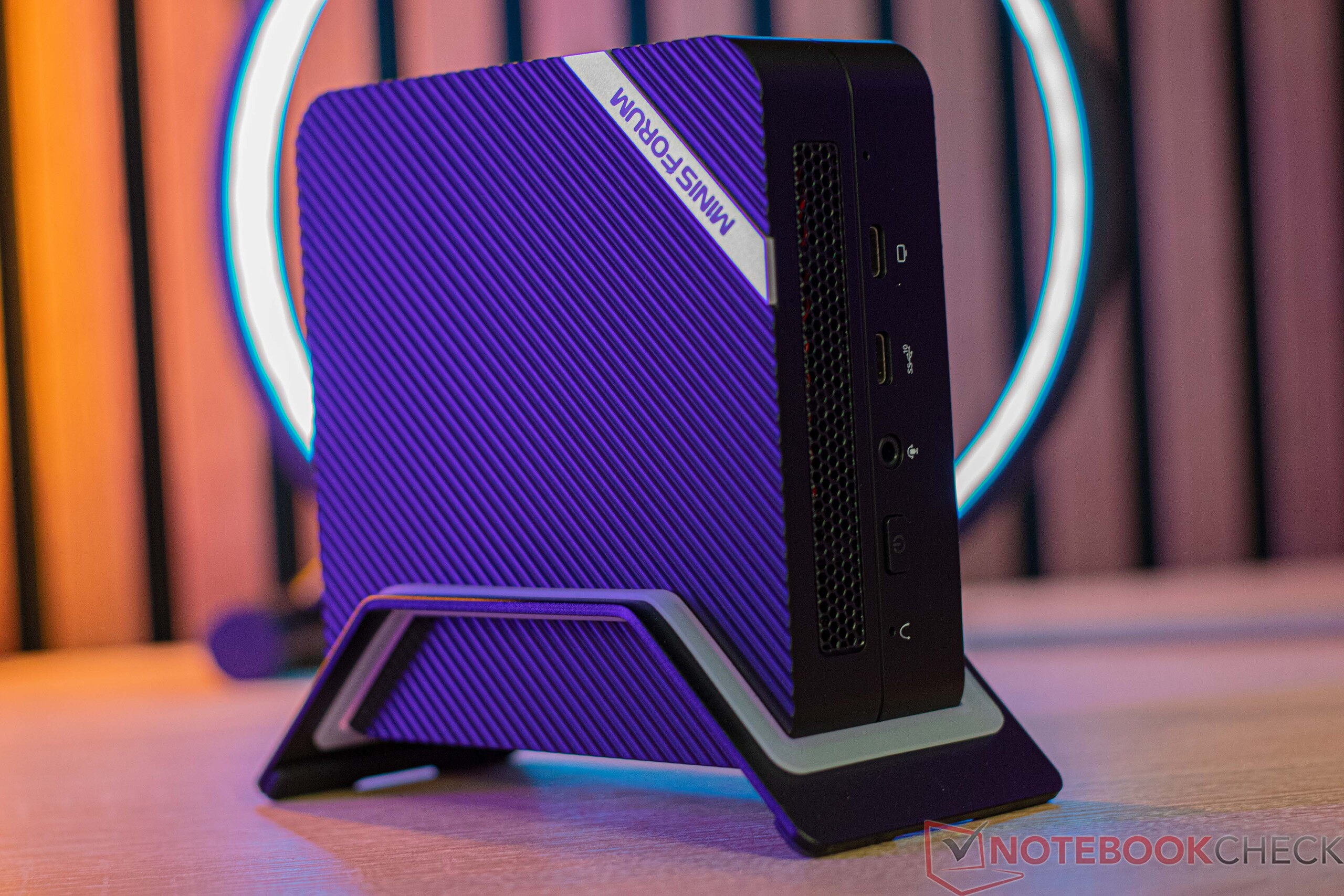

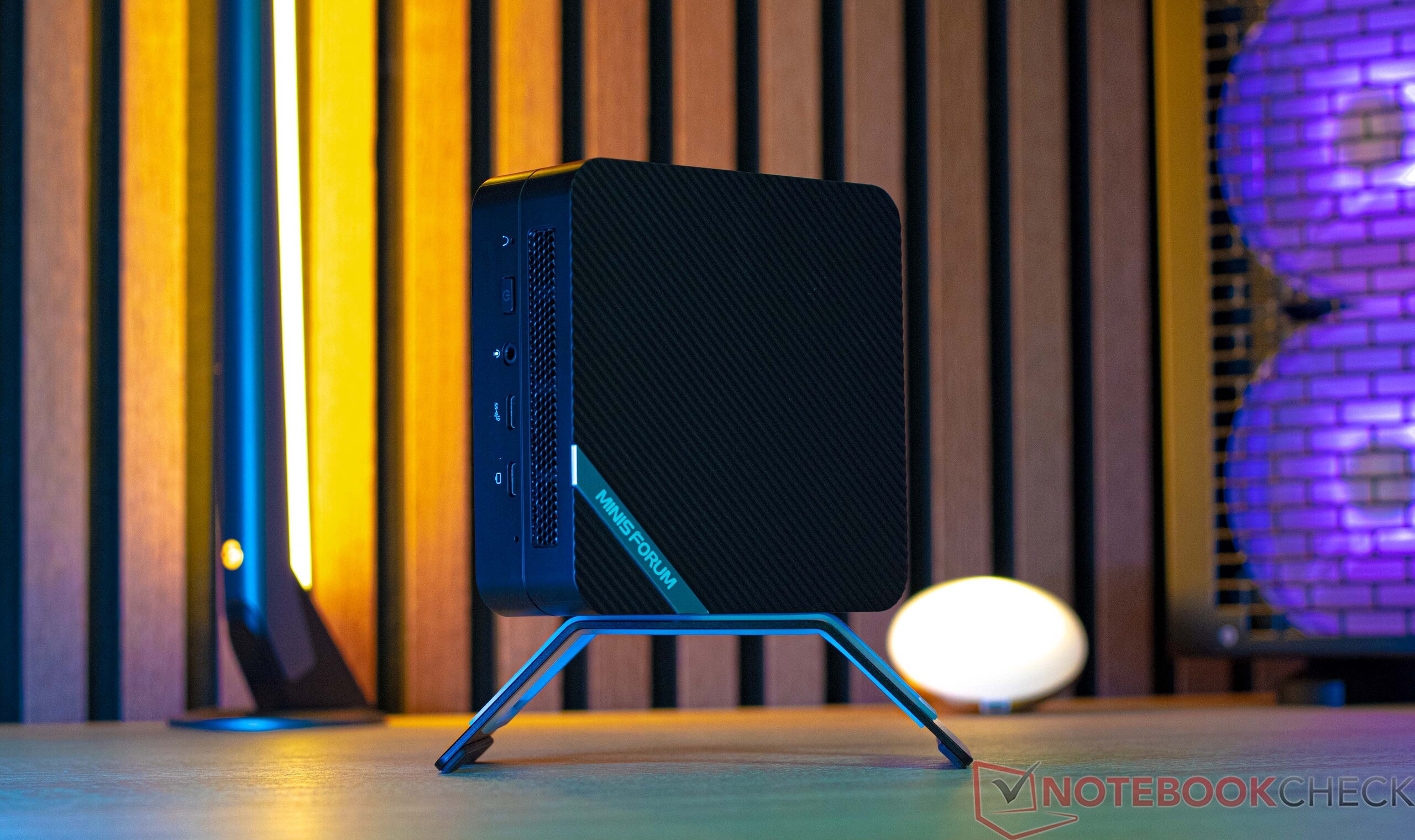

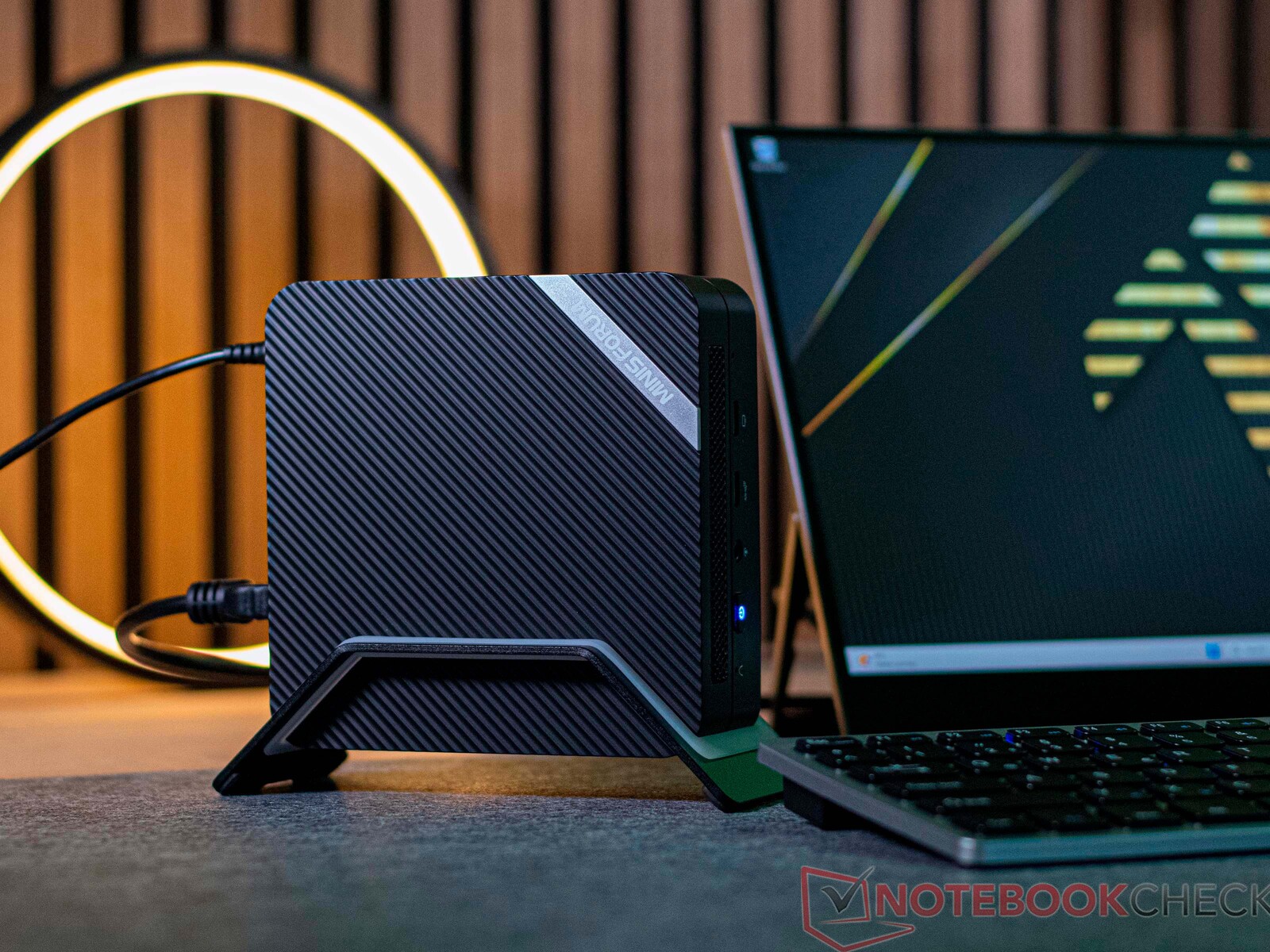

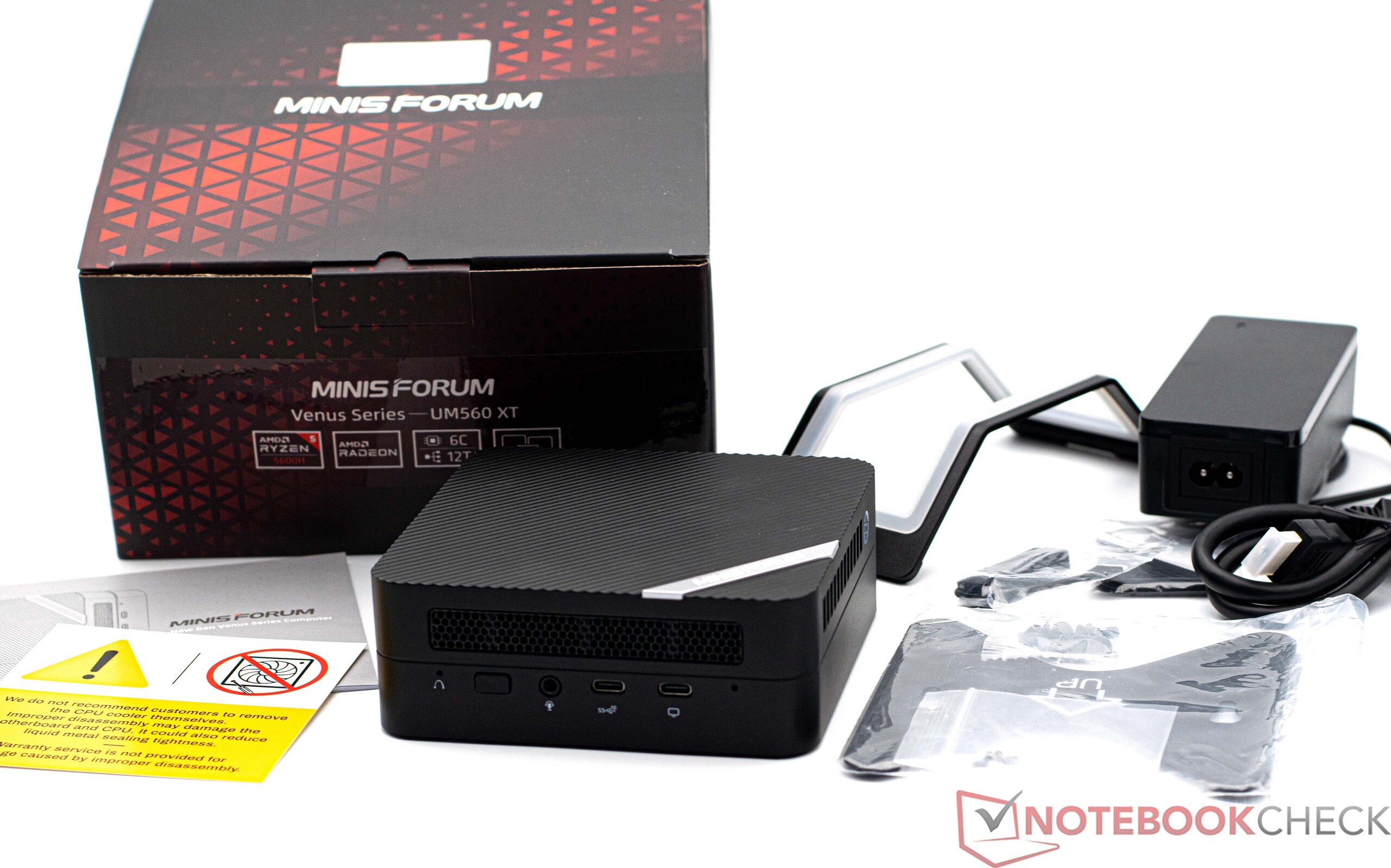

Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT

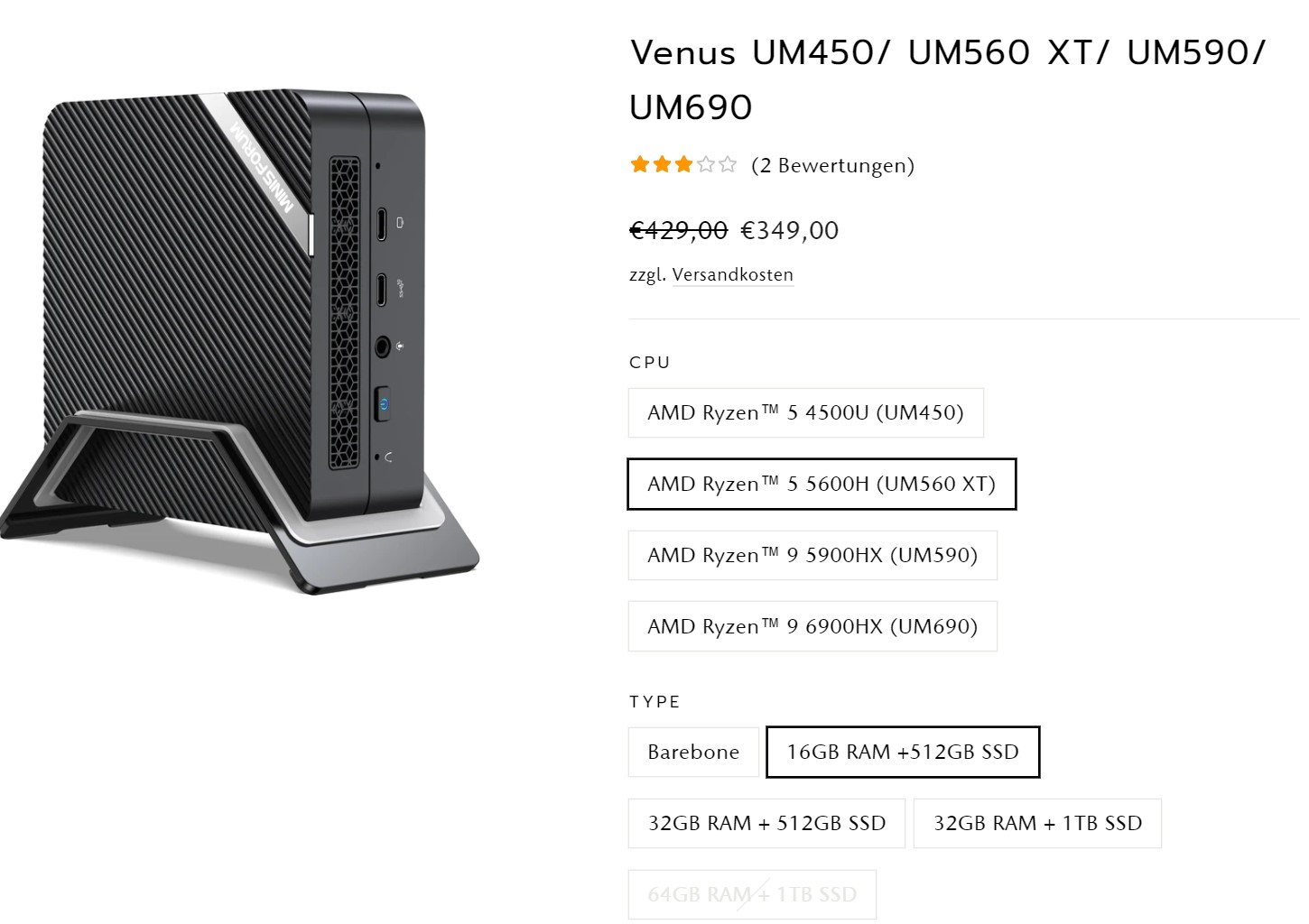

Minisforum Venus Series UM560 XT configuraties (bron: Minisforum)
Minisforum Venus Series UM560 XT configuraties (bron: Minisforum)

Eerder dit jaar namen we een kijkje bij de Minisforum Venus Series UM690. Naast het topmodel, dat gebaseerd is op de AMD Ryzen 9 6900HX, biedt de Chinese minipc-fabrikant extra configuraties aan. Gebaseerd op de AMD Ryzen 5 5600H is de UM560 XT beschikbaar in dezelfde behuizing en voor een aanzienlijk lagere prijs. Natuurlijk is het niet eerlijk om de prestaties van de native zes-core machine te vergelijken met het topmodel, maar voor 419 dollar met 16 GB RAM en een 512 GB SSD is het een interessante propositie. In de barebones versie is het mogelijk om nog eens 90 dollar te besparen. Het is echter aan de gebruiker om te zorgen voor het RAM en de SSD.

De Minisforum Venus Series UM560 XT is goed uitgerust. Alle noodzakelijke items zijn inbegrepen om het apparaat aan de praat te krijgen. Het apparaat wordt ook geleverd met een plaat waarmee het apparaat aan een monitor kan worden bevestigd (Vesa mount). In deze review bekijken we hoe het reviewmodel zich qua prestaties verhoudt tot het topmodel, een apparaat dat bijna 400 dollar meer kost. Is dit prijsverschil gerechtvaardigd of volstaat het instapmodel? En wat zijn de veranderingen in detail? Bovendien moet de Minisforum Venus Series UM560 XT het niet alleen opnemen tegen zijn eigen interne uitdagers, maar ook tegen sterke concurrentie van Geekom, Morefine en Intel in deze prijscategorie. Een lijst daarvan is te vinden in de volgende tabel.

Minisforum Venus Series UM560 XT (5600H)
Processor
AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 40 W PL1 / Sustained, Cezanne-H (Zen 3)
Grafische kaart
AMD Radeon RX Vega 7, Adrenalin 22.20.27.09
Geheugen
16 GB
, DDR4-3200, 2 of 2 occupied, max. 32 GB
Moederbord
AMD Promontory/Bixby FCH
Opslag

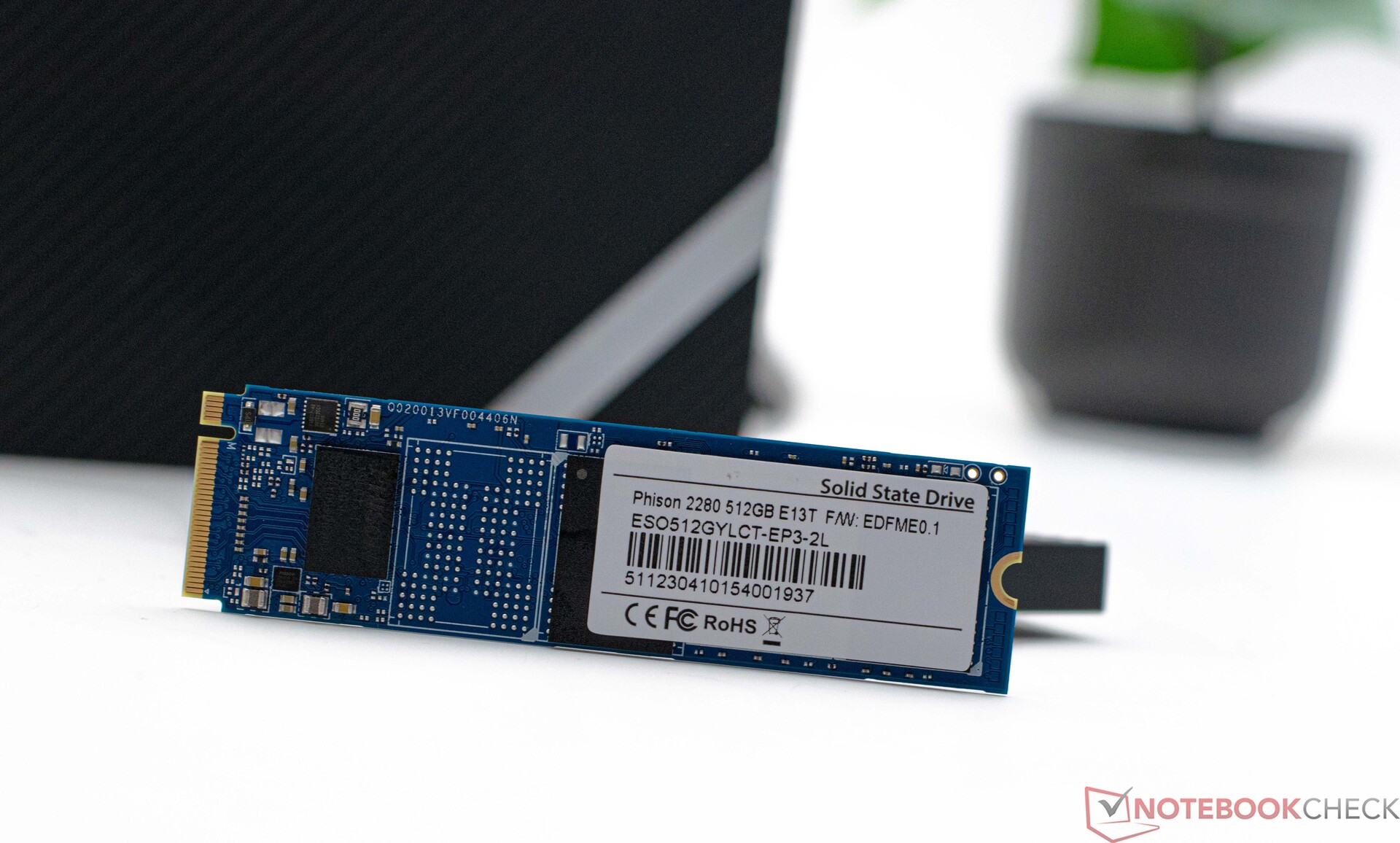

ESO512GYLCT, 512 GB
, M.2 2280, NVMe, 450 GB beschikbaar
Geluidskaart
AMD Zen - Audio Processor - HD Audio Controller
Verbindingen
2 USB 2.0, 4 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock
Netwerkmogelijkheden
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Afmetingen
hoogte x breedte x diepte (in mm): 48 x 129 x 126
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten

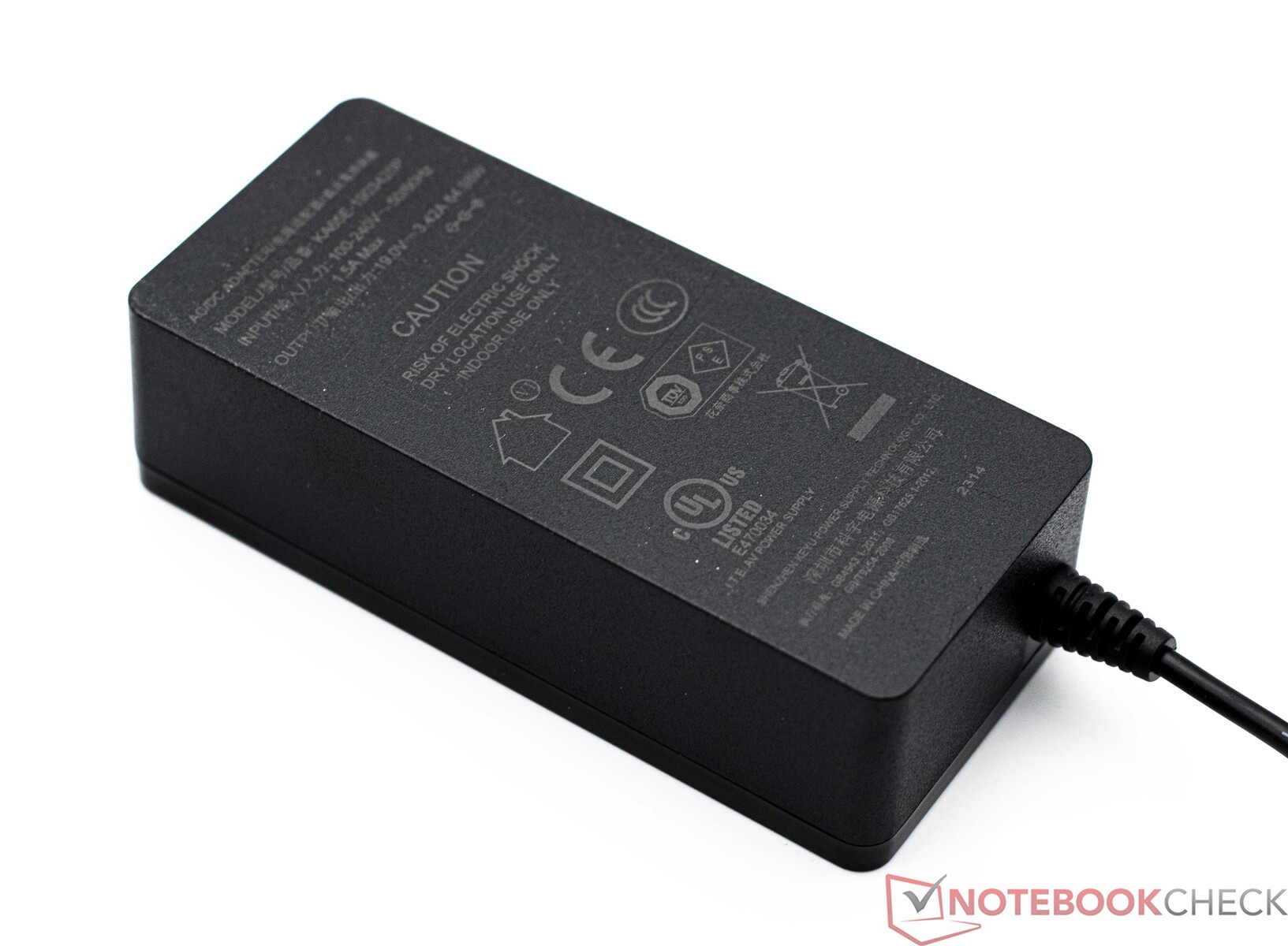

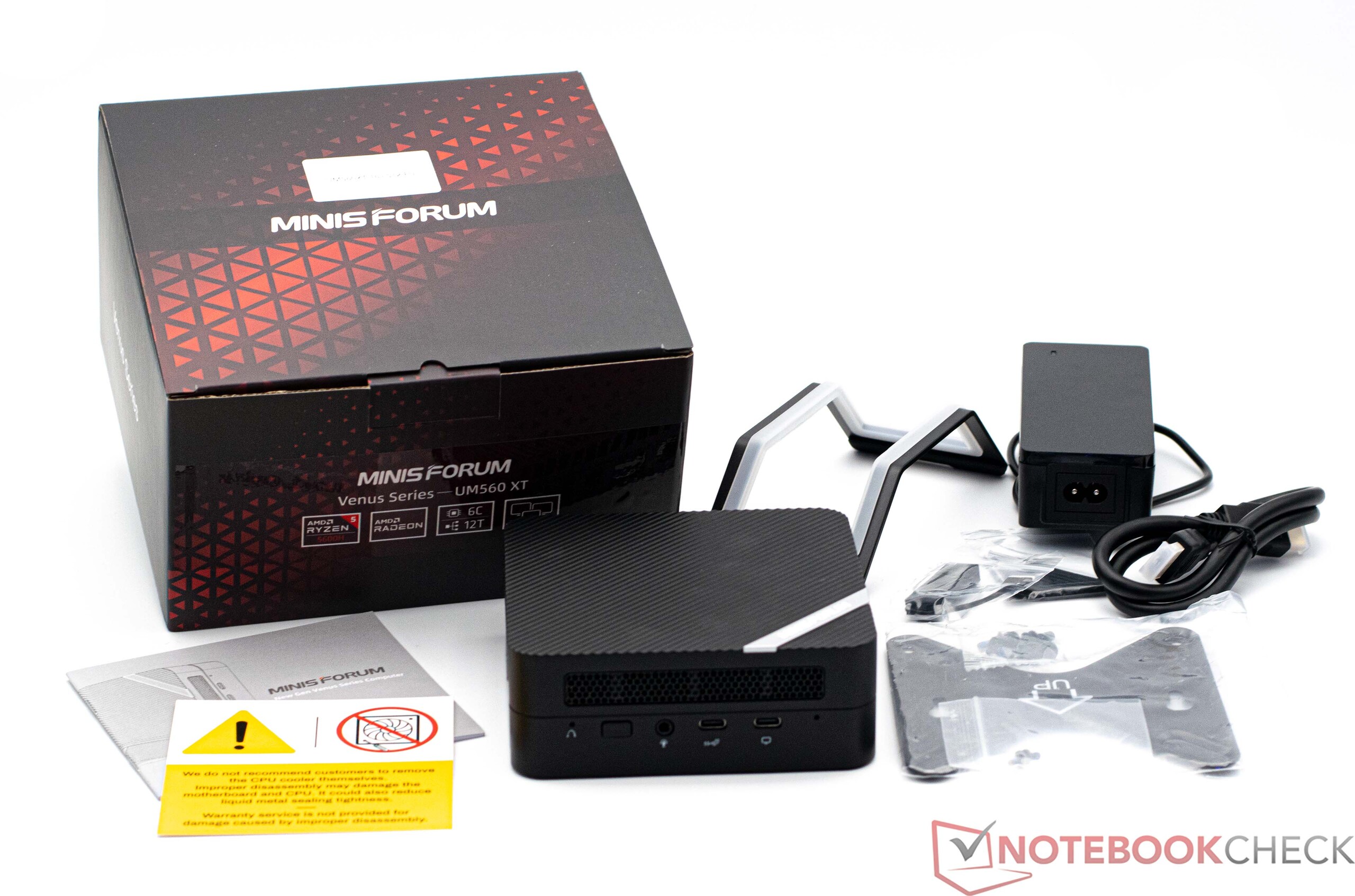

PSU with cable, HDMI cable, computer stand, Vesa mount assembly kit, user manual, 24 Maanden Garantie
Gewicht
652 g, Voeding: 228 g
Prijs
429 EUR
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Potentiële concurrenten in vergelijking

Evaluatie
Datum
Model
Gewicht
Hoogte
Beste prijs
81.7 %
05-2023
Minisforum Venus Series UM560 XT (5600H)
R5 5600H, Vega 7
652 g48 mm
09-2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm
79.5 %
02-2023
Minisforum Mars Series MC560
R5 5600U, Vega 7
562 g66 mm
81.9 %
05-2023
Minisforum Venus Series NAB6, i7-12650H
i7-12650H, UHD Graphics 64EUs
616 g55 mm
85.5 %
03-2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g40.6 mm
86.1 %
02-2023
Minisforum Venus Series UM690 (6900HX)
R9 6900HX, Radeon 680M
621 g48 mm
82.3 %
05-2023
Geekom Mini IT12, i7-1260P
i7-1260P, Iris Xe G7 96EUs
572 g45.6 mm
86.6 %
01-2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
83.7 %
05-2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 g40.6 mm

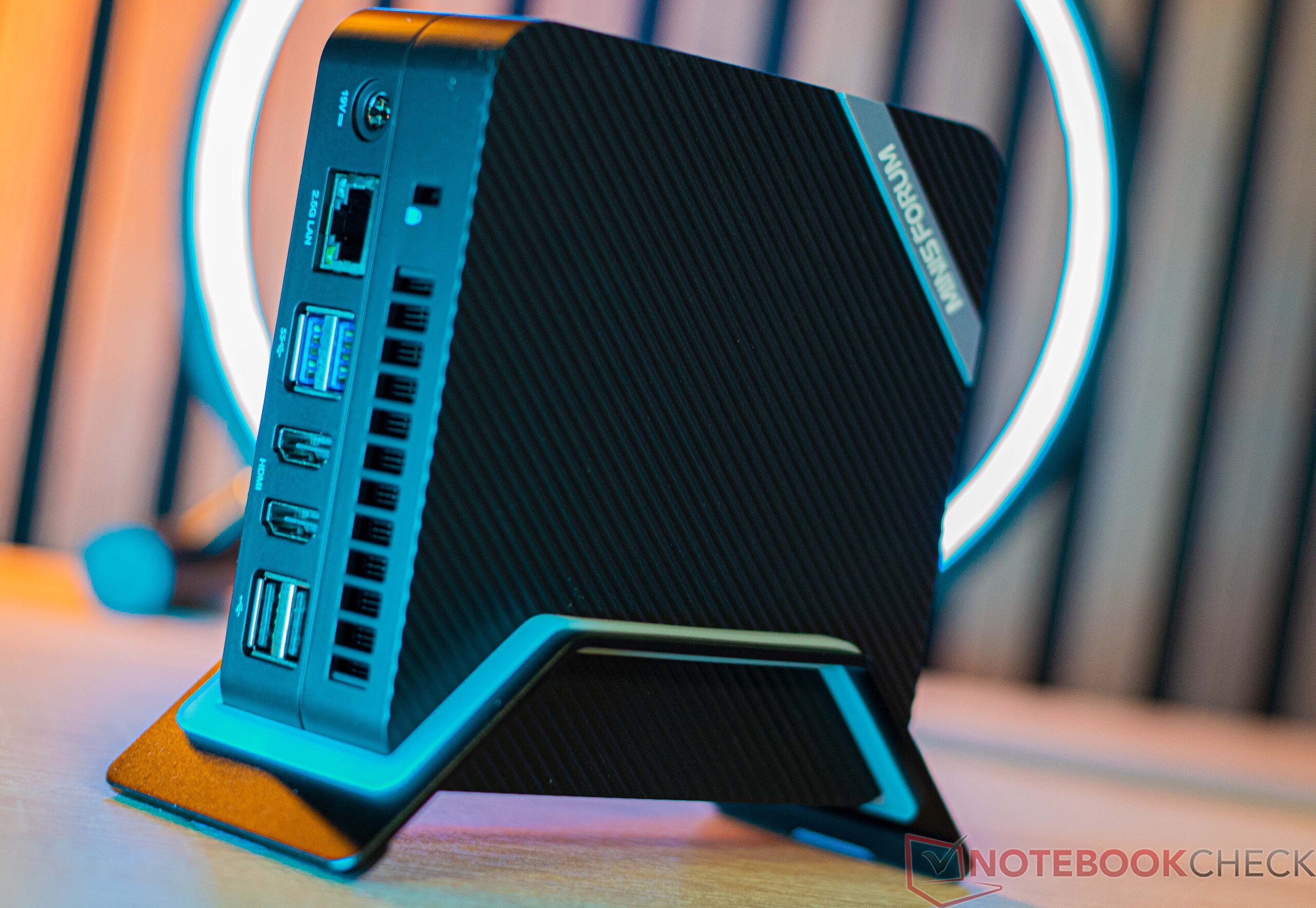

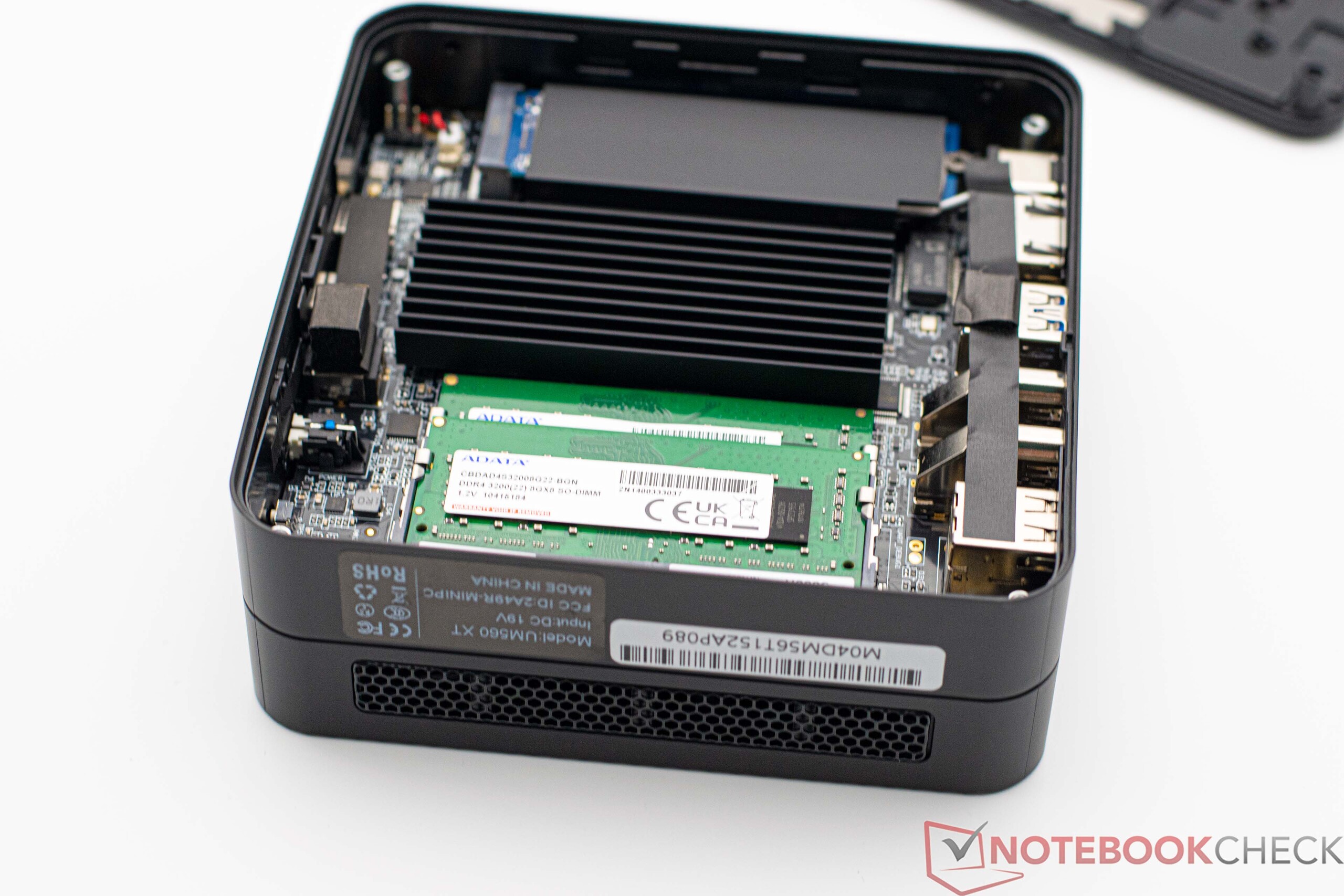

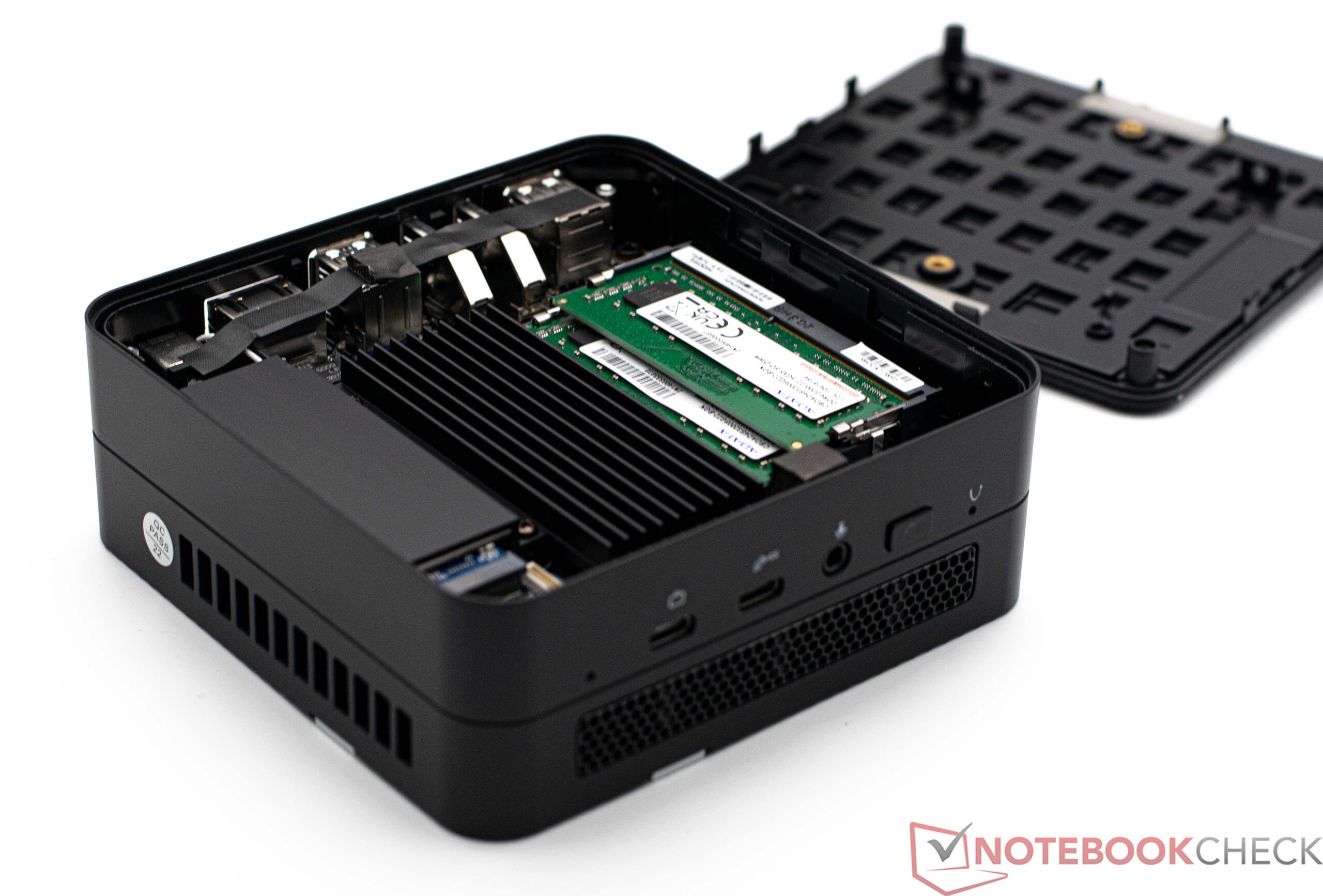

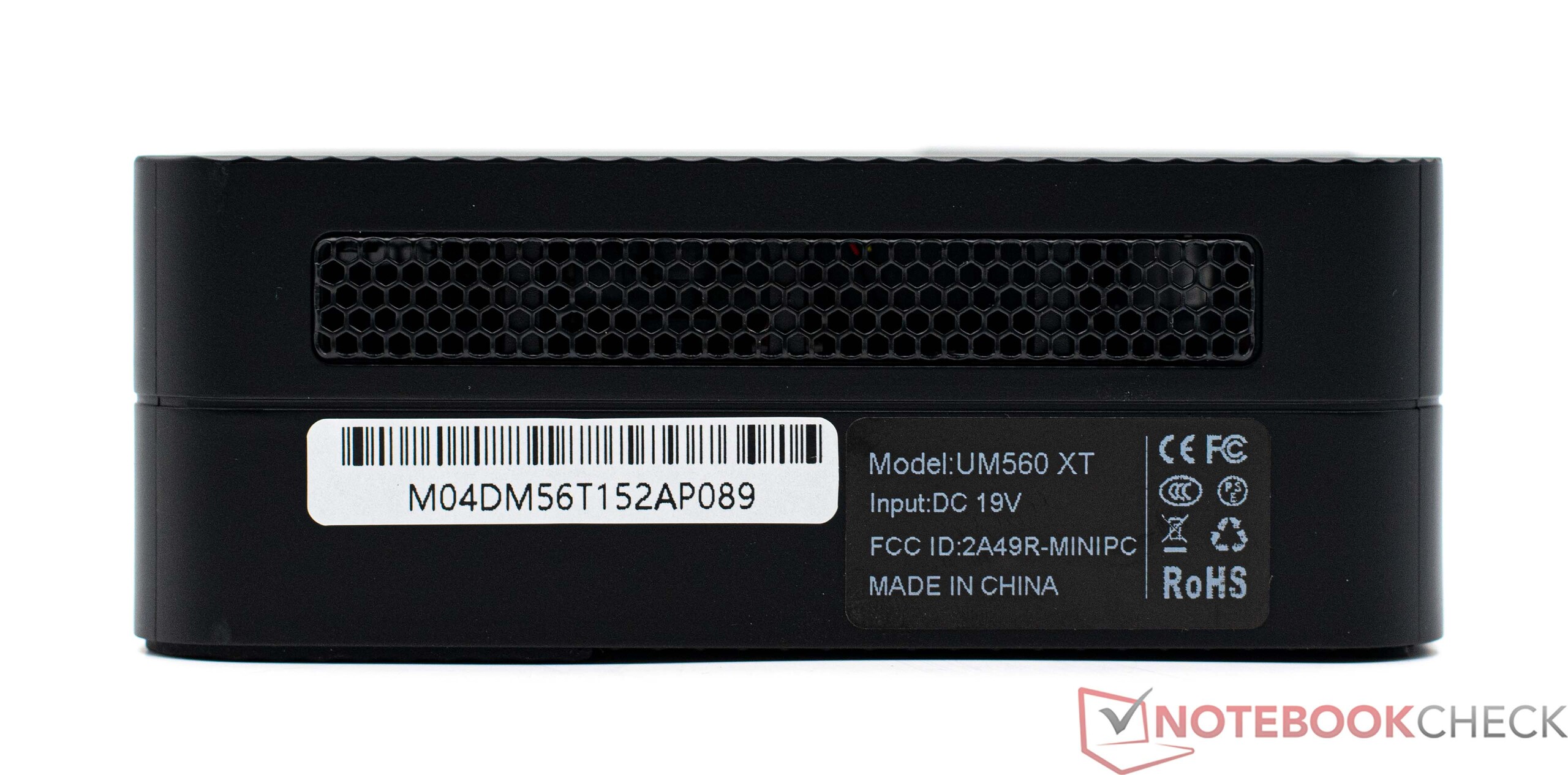

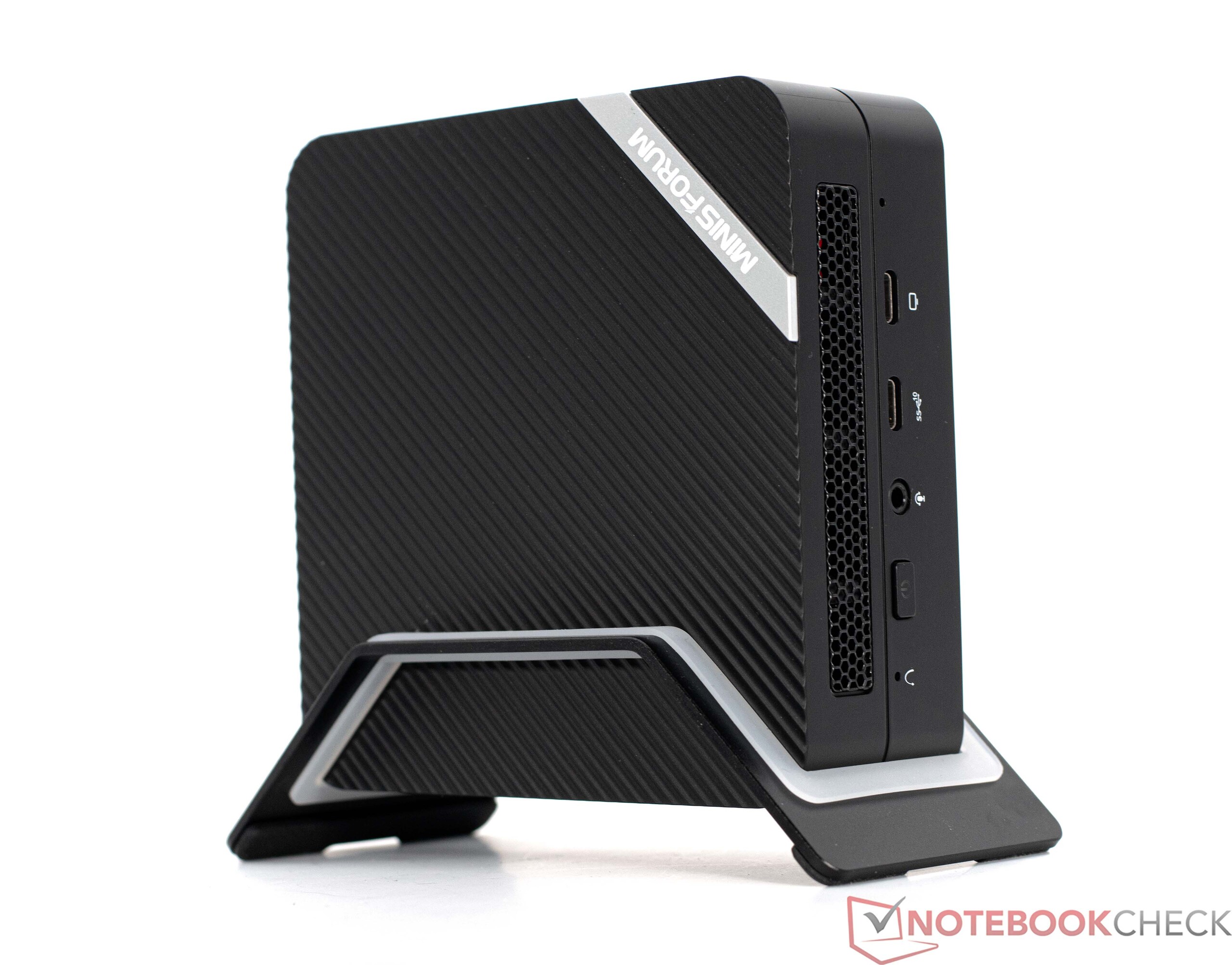

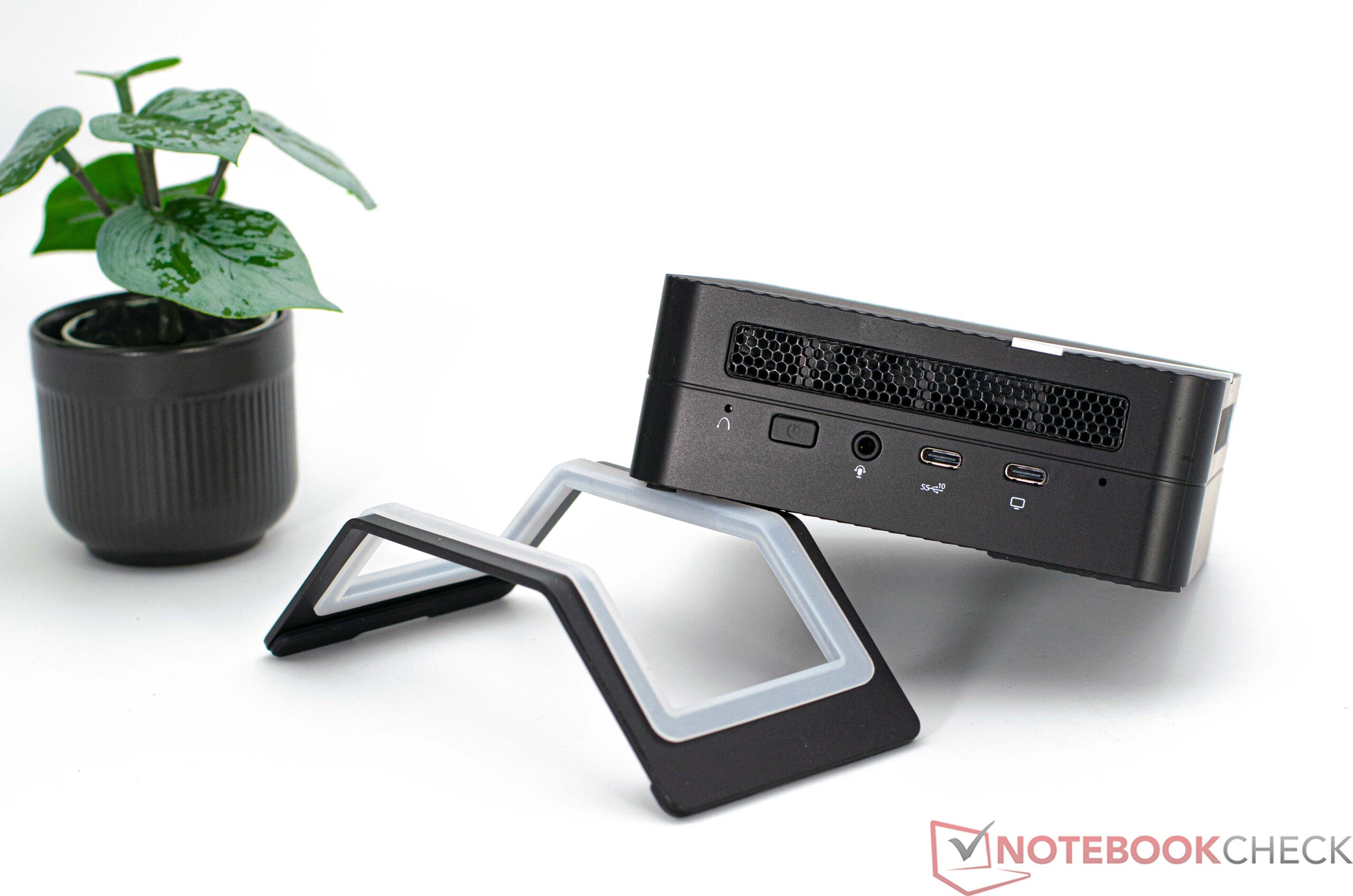

Minisforum Venus-serie UM560 XT in detail

Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT
Minisforum Venus-serie UM560 XT

Zaak

De Minisforum UM560 XT is vergelijkbaar met de Minisforum UM690 met een AMD Ryzen 9 6900HX. Verdere details over de behuizing zijn hier te vinden in onze review van het topmodel.

Vergelijking grootte

208 mm 180 mm 66 mm 1.2 kg155 mm 130 mm 72 mm 628 g147.3 mm 144.7 mm 40.6 mm 779 g147.3 mm 144.7 mm 40.6 mm 768 g127 mm 127 mm 55 mm 616 g129 mm 126 mm 48 mm 652 g129 mm 126 mm 48 mm 621 g104 mm 153 mm 66 mm 562 g117 mm 112 mm 45.6 mm 572 g297 mm 210 mm 1 mm 5.7 g

Kenmerken

Op het eerste gezicht biedt de Minisforum Venus Series UM560 XT dezelfde mogelijkheden als de UM690 model. USB4 ondersteuning is echter niet aan boord. Dit betekent dat het soort uitbreidingen die via Thunderbolt mogelijk zouden zijn, hier niet mogelijk zijn. Toch zijn er gelukkig zes USB-poorten aanwezig. Bovendien kunnen drie monitoren tegelijkertijd worden gebruikt als de USB-C poort aan de voorkant van het apparaat ook wordt gebruikt.

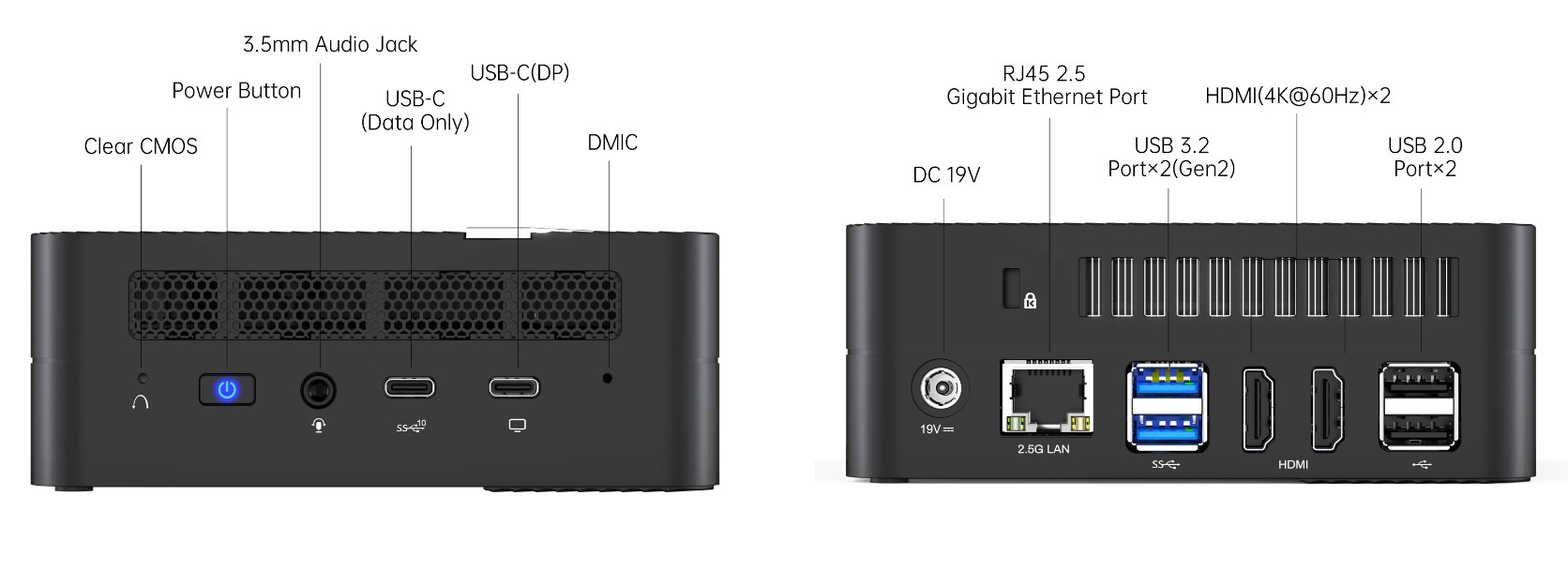

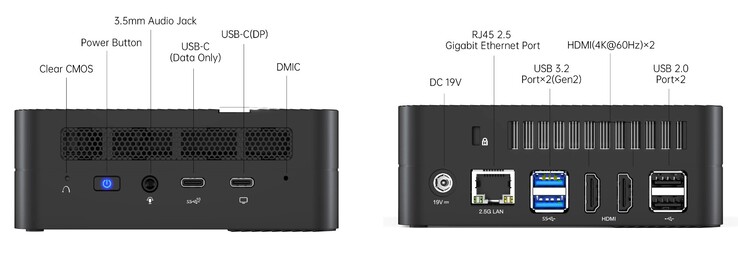

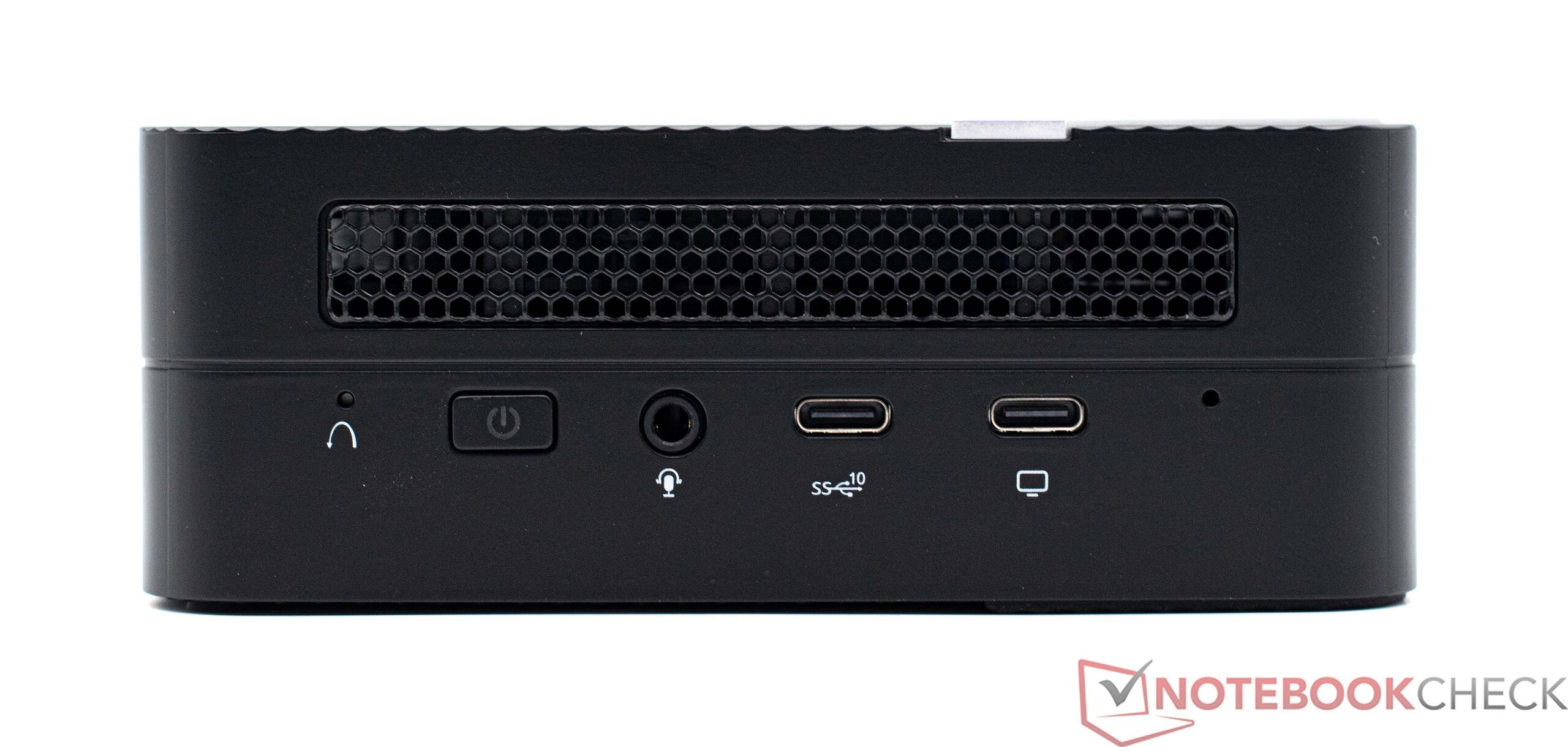

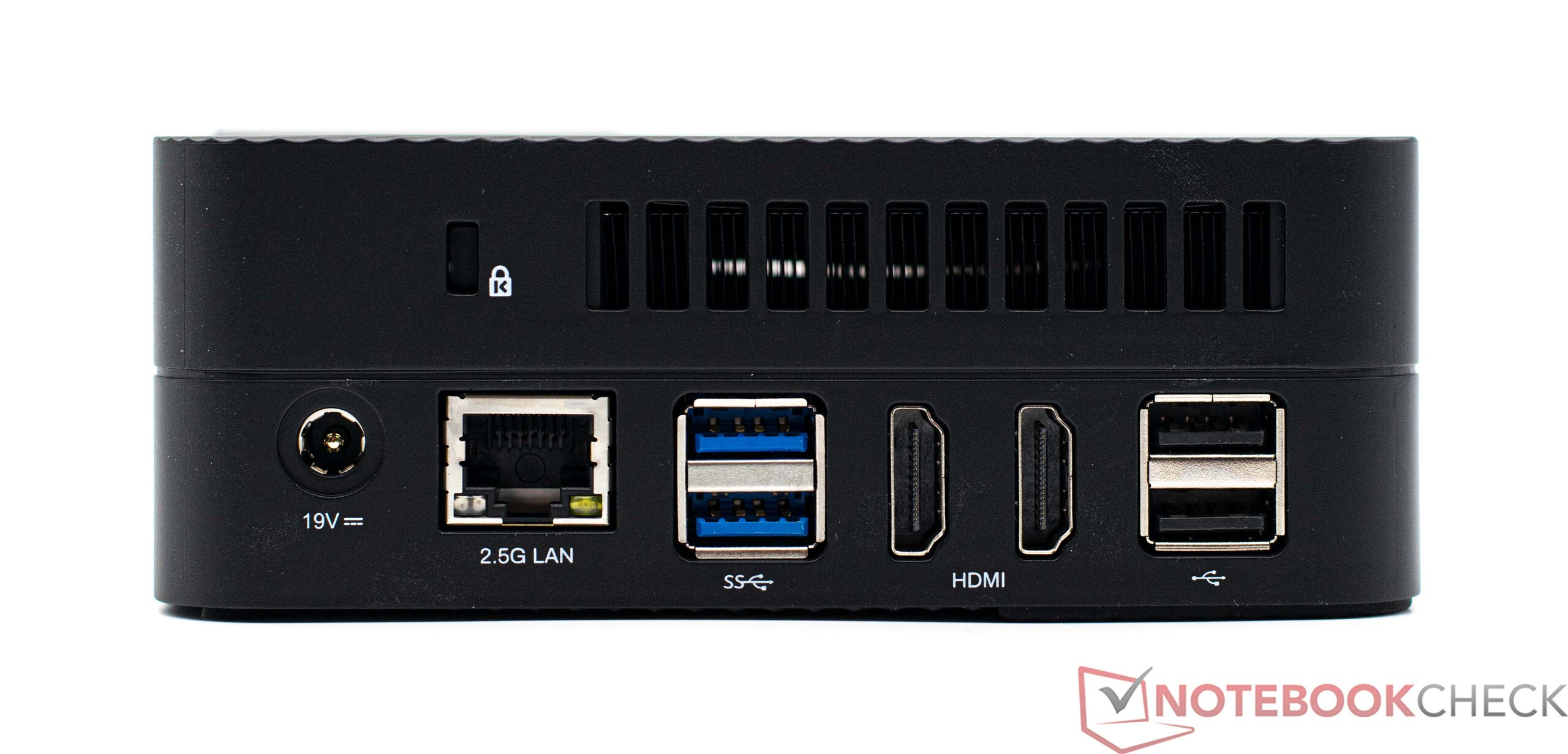

Externe poorten op de Minisforum Venus Series UM560 XT (bron: Minisforum)
Externe poorten op de Minisforum Venus Series UM560 XT (bron: Minisforum)

Communicatie

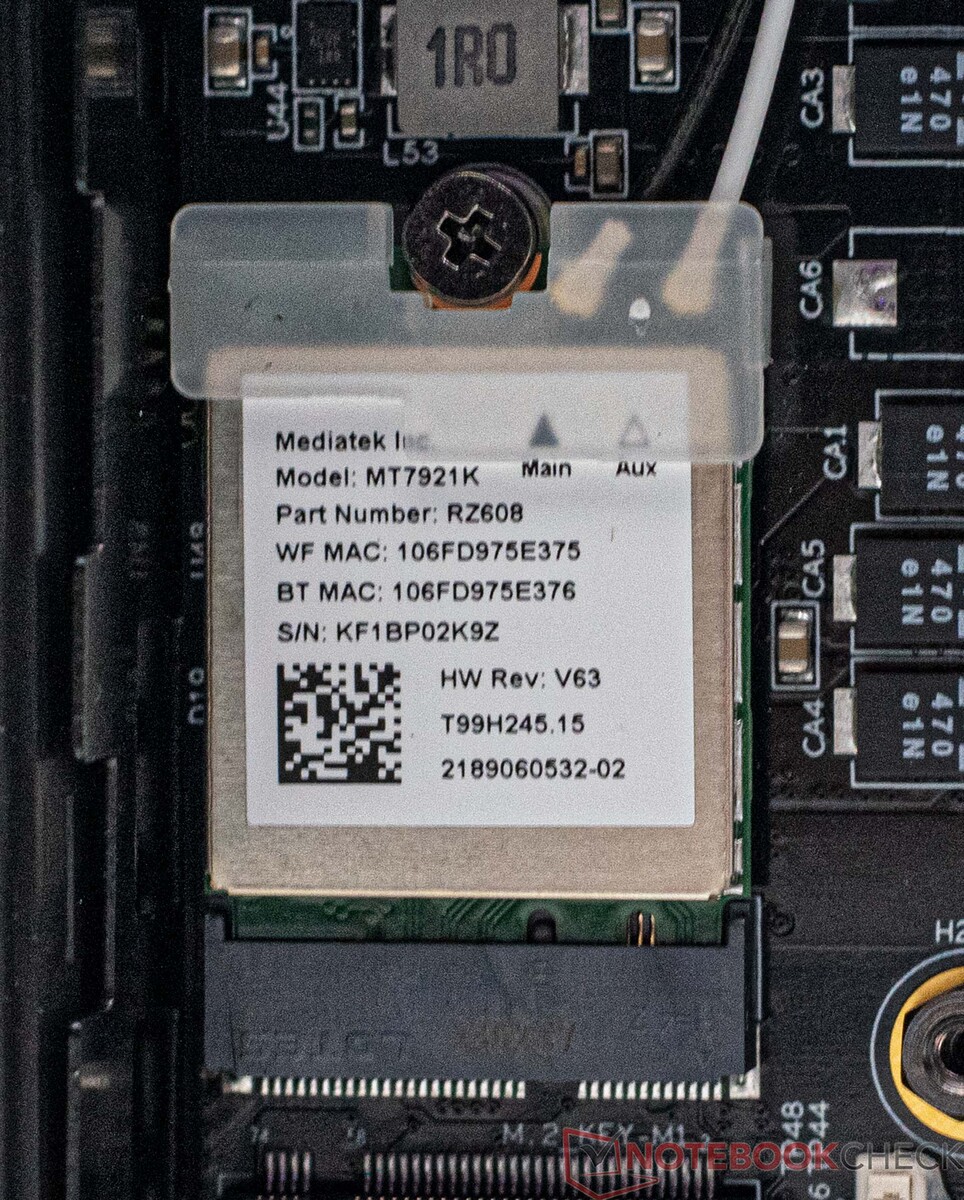

Minisforum Venus Series UM560 XT Wi-Fi module
Minisforum Venus Series UM560 XT Wi-Fi module

Minisforum heeft de UM560 XT uitgerust met dezelfde Wi-Fi 6E module als die in de UM690. In praktische tests presteerde de Mediatek module goed. Voor testdoeleinden hebben we de Asus ROG Rapture GT-AXE11000 gebruikt. Als alternatief voor snellere dataverbindingen kan de LAN-poort worden gebruikt, waarmee gegevensoverdrachten tot maximaal 2,5 GBit/s mogelijk zijn.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s ∼100% +48%
Minisforum Venus Series UM690 (6900HX)
MediaTek RZ608
956 (944min - 963max) MBit/s ∼73% +7%
Minisforum Mars Series MC560
MediaTek RZ608
949 (924min - 954max) MBit/s ∼72% +7%
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s ∼72% +7%
Geekom Mini IT12, i7-1260P
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s ∼72% +6%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s ∼70% +4%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s ∼69% +1%
Minisforum Venus Series UM560 XT (5600H)
MediaTek RZ608
890 (851min - 908max) MBit/s ∼68%
Gemiddeld MediaTek RZ608
  (430 - 975, n=13)
885 MBit/s ∼67% -1%
Gemiddelde van klas Mini PC
  (192.9 - 1688, n=33, laatste 2 jaar)
849 MBit/s ∼64% -5%
Minisforum Venus Series NAB6, i7-12650H
MediaTek RZ608
787 (752min - 801max) MBit/s ∼60% -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s ∼100% +59%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s ∼73% +17%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s ∼73% +16%
Minisforum Venus Series UM690 (6900HX)
MediaTek RZ608
943 (477min - 981max) MBit/s ∼71% +14%
Minisforum Mars Series MC560
MediaTek RZ608
936 (873min - 988max) MBit/s ∼71% +13%
Geekom Mini IT12, i7-1260P
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s ∼70% +11%
Gemiddeld MediaTek RZ608
  (572 - 979, n=13)
862 MBit/s ∼65% +4%
Minisforum Venus Series UM560 XT (5600H)
MediaTek RZ608
829 (775min - 889max) MBit/s ∼63%
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s ∼59% -5%
Gemiddelde van klas Mini PC
  (184.1 - 1491, n=33, laatste 2 jaar)
773 MBit/s ∼59% -7%
Minisforum Venus Series NAB6, i7-12650H
MediaTek RZ608
626 (301min - 689max) MBit/s ∼47% -24%
050100150200250300350400450500550600650700750800850900Tooltip
Minisforum Venus Series UM560 XT (5600H); iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)
Minisforum Venus Series UM560 XT (5600H); iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Prestaties - AMD gebaseerd op de Cezanne-generatie

In het Minisforum Venus Series UM560 XT, een AMD Ryzen 5 5600H met zes cores en twaalf threads zijn werk om het apparaat goed uit te rusten voor dagelijkse, op werk gebaseerde taken. Kantoor, multimedia en streaming zijn de belangrijkste focus van deze mini PC. Met de AMD Radeon RX Vega 7 hebben we een goede iGPU die de SoC bekwaam ondersteunt.

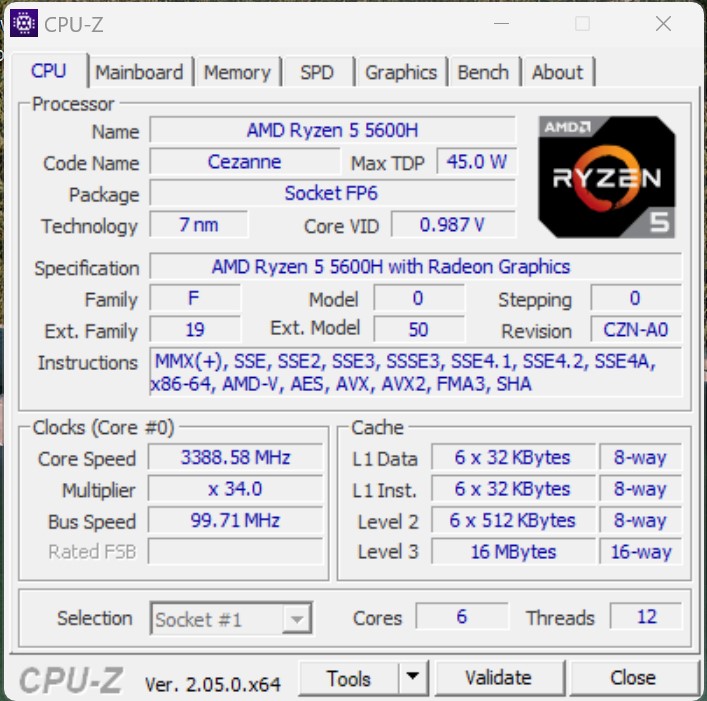

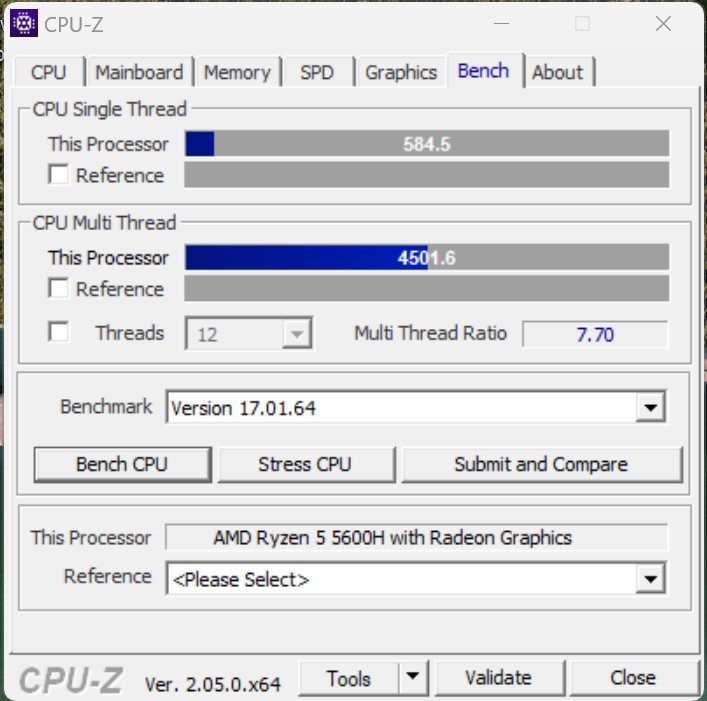

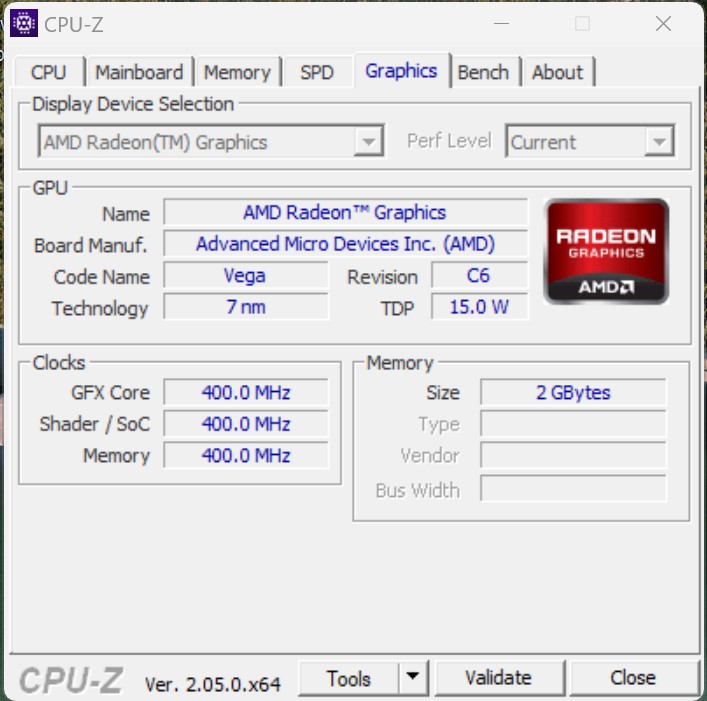

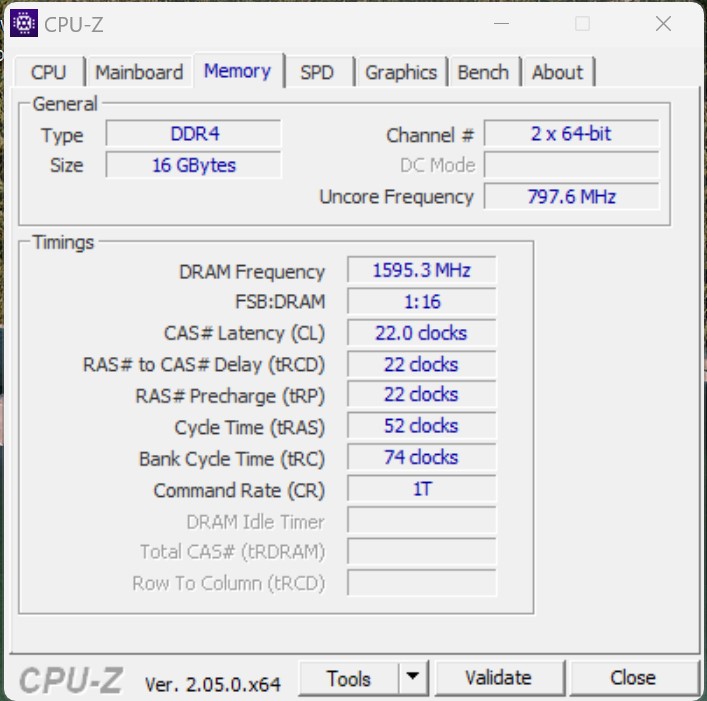

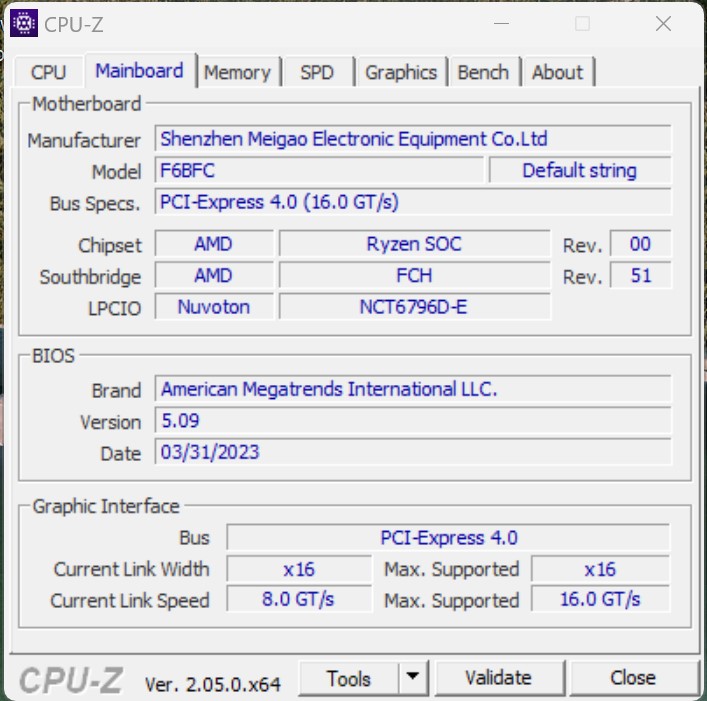

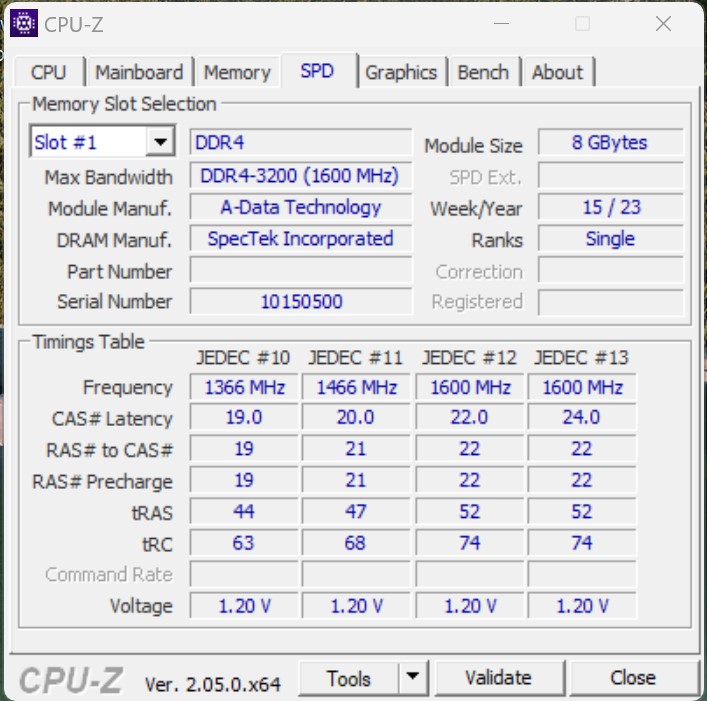

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

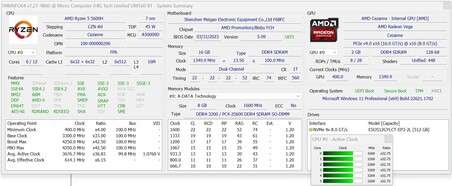

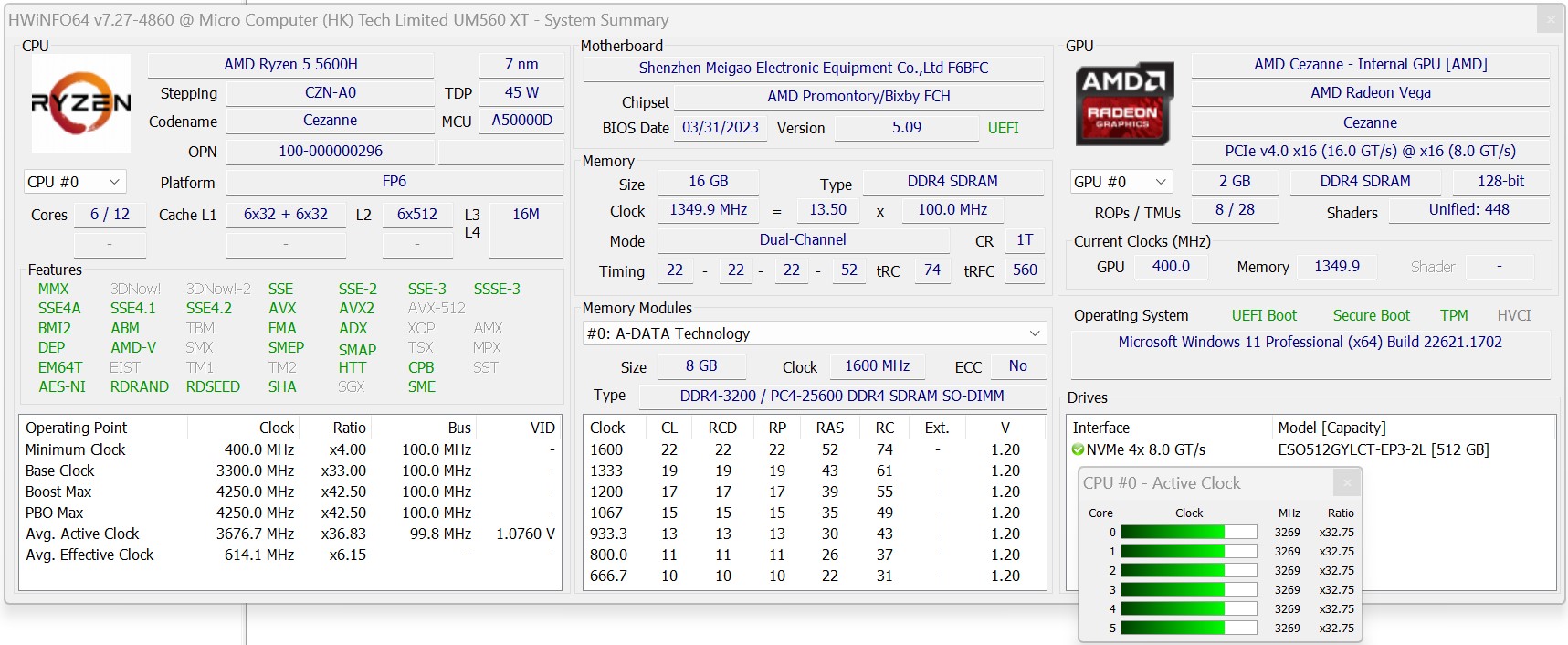

HWiNFO

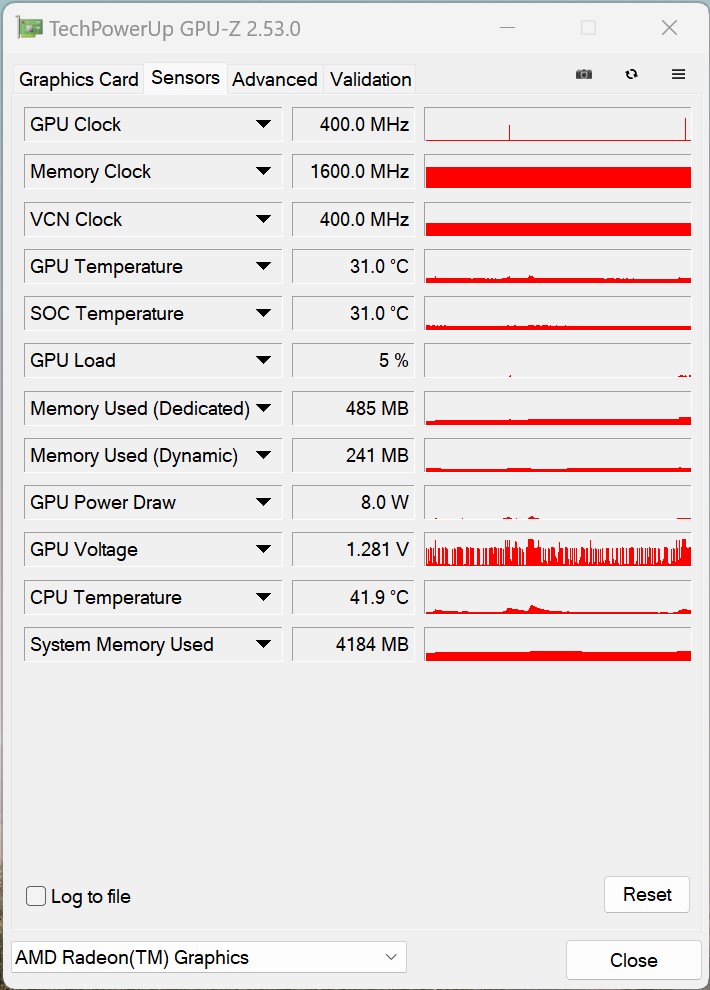

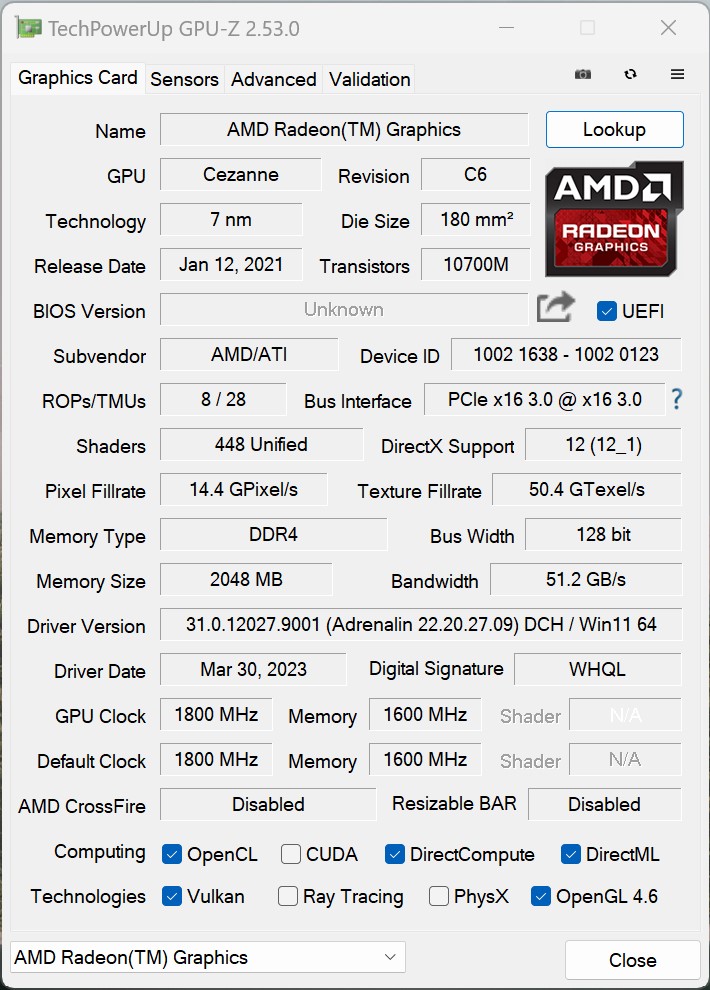

GPU-Z
GPU-Z

Testvoorwaarden

Bij het uitvoeren van alle prestatietests hebben wij gekozen voor het High Performance energieprofiel. Hiervan werd alleen afgeweken bij energie- en volumemetingen, in overeenstemming met onze testcriteria. De prestaties van de CPU werden niet gewijzigd in het BIOS en we hebben ook geen wijzigingen aangebracht in de ventilatorcurve met betrekking tot de koeling.

Processor

AMD Ryzen 5 5600H
AMD Ryzen 5 5600H

De AMD Ryzen 5 5600H behoort tot de Cezanne-serie van AMD en biedt zes kernen met in totaal twaalf threads. Vergeleken met het topmodel met een AMD Ryzen 9 6900HX verliest de Minisforum Venus Series UM560 XT 13 procent in onze prestatiebeoordeling, waarbij dit rond de middenwaarde ligt van alle CPU benchmarks in deze vergelijking. Echter, in vergelijking met de concurrentie houdt ons recensie-exemplaar uitstekend stand. In principe biedt de Minisforum Venus Series UM560 XT vergelijkbare prestaties als de Geekom Mini IT12 met een Intel Core i7-1260P. Bovendien wordt de Morefine M600 6600U in toom gehouden. Toch leverde ons reviewtoestel slechts marginaal betere prestaties, die hier alleen onder testomstandigheden echt kunnen worden vastgesteld.

Aanvullende processorbenchmarks zijn te vindenhier.

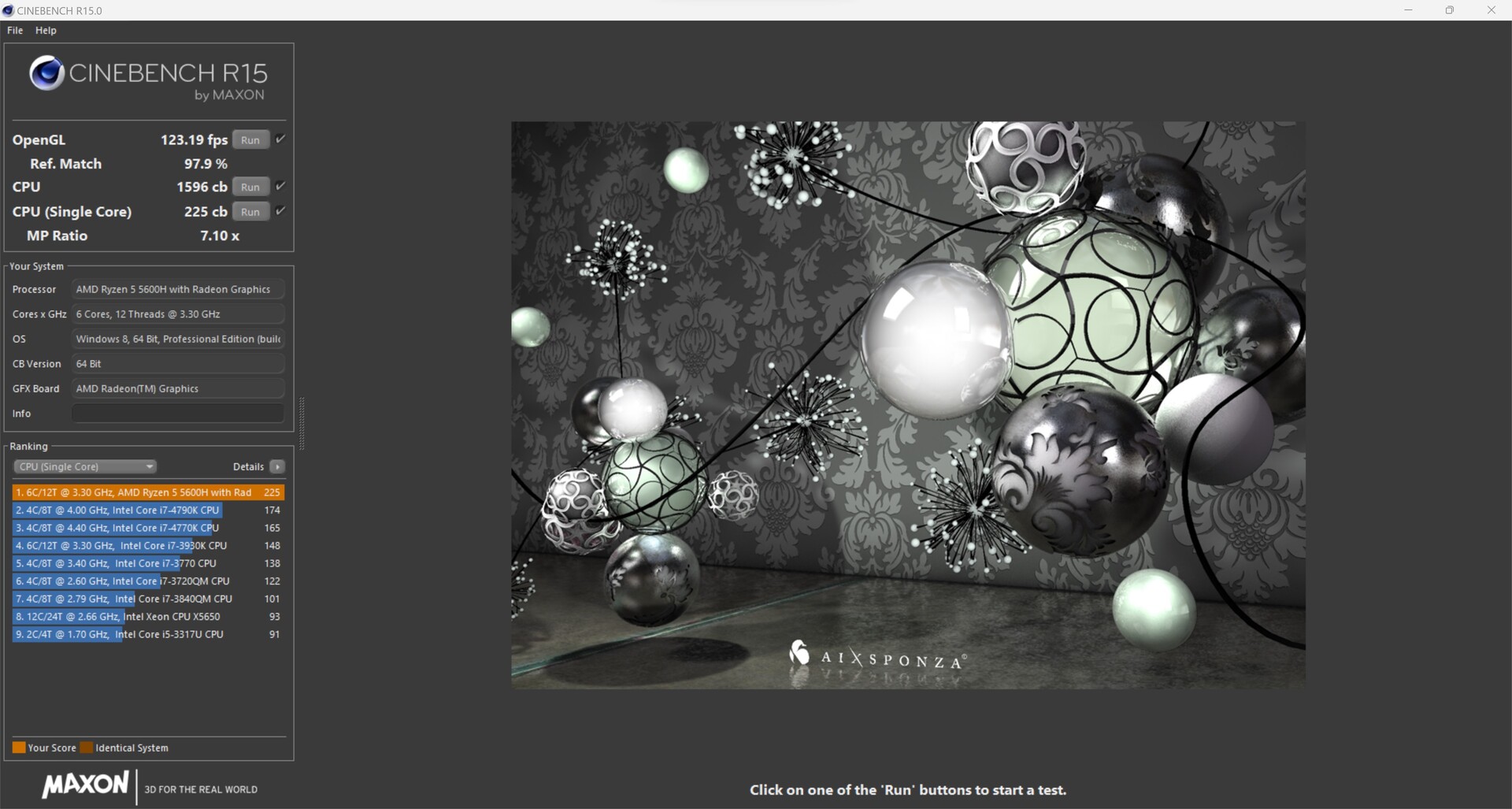

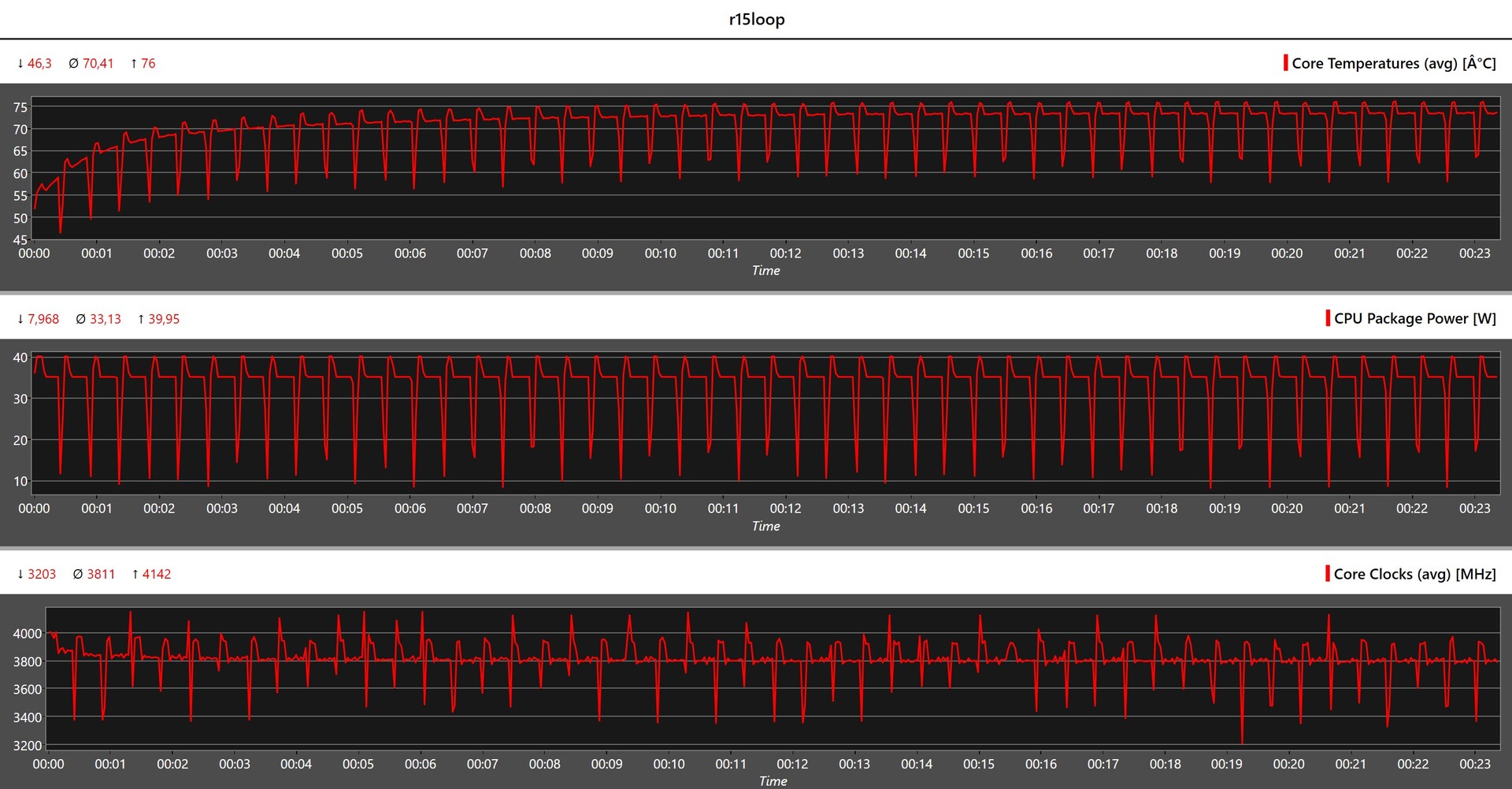

Cinebench R15
Cinebench R15

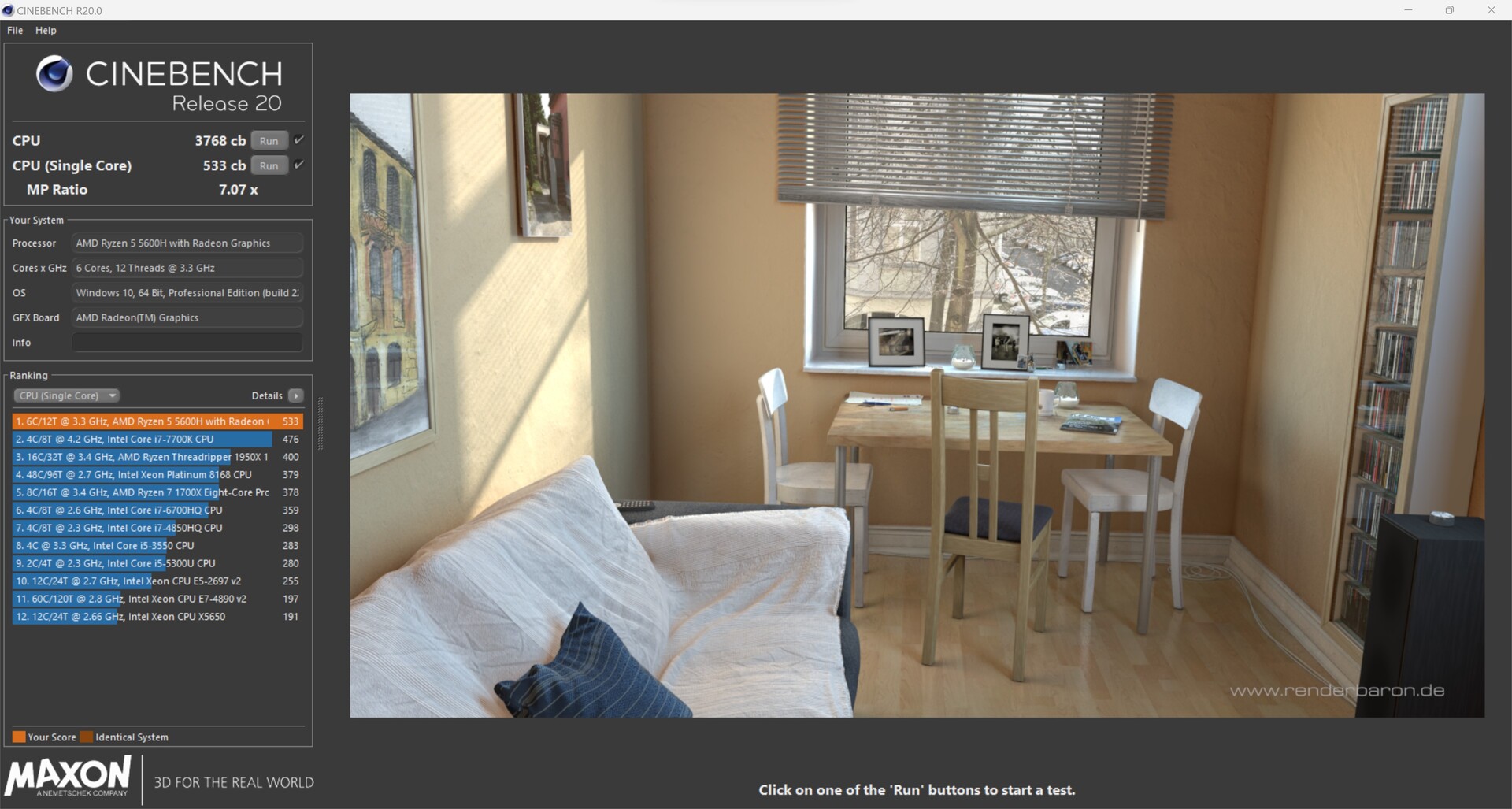

Cinebench R20
Cinebench R20

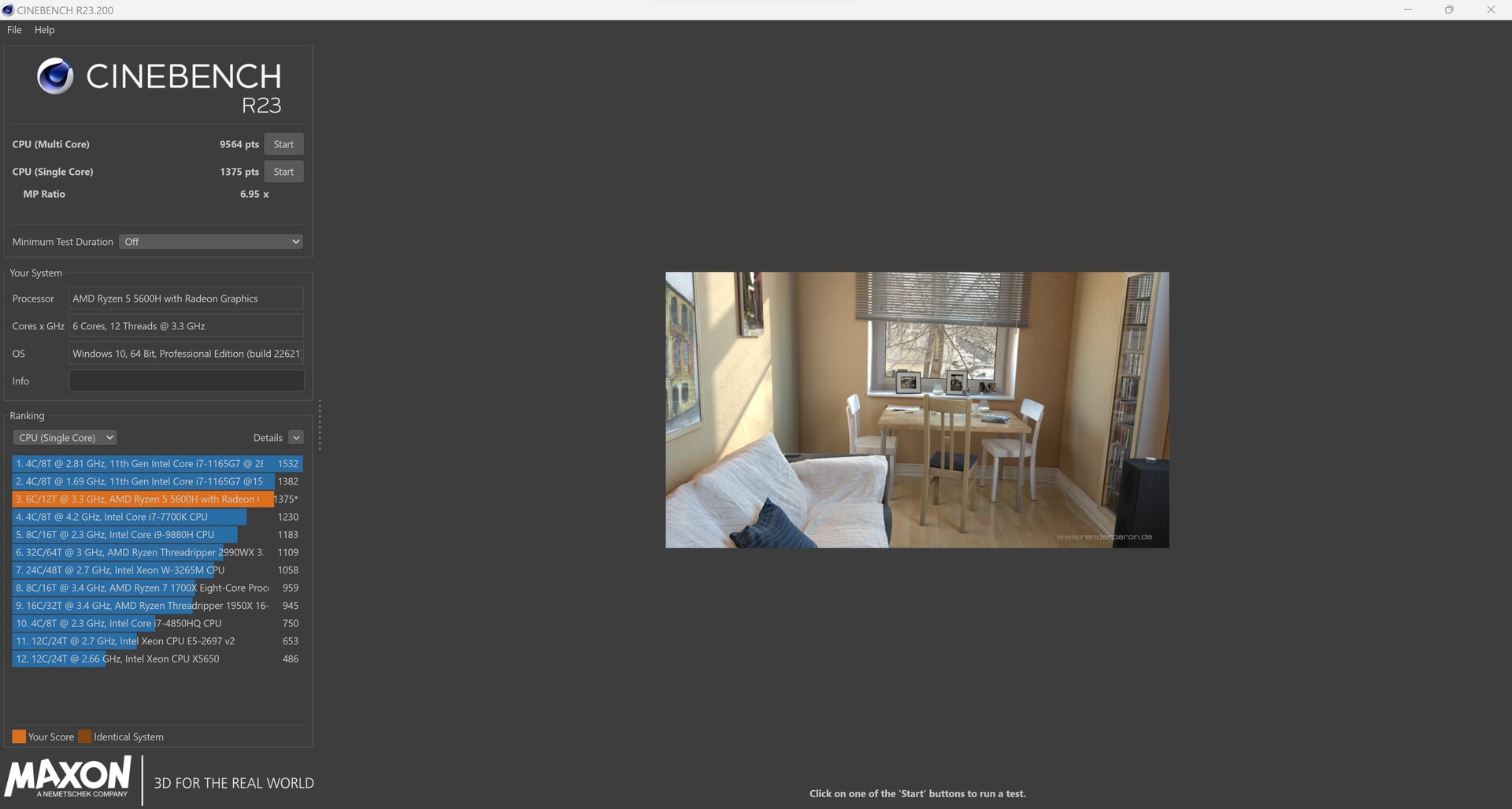

Cinebench R23
Cinebench R23
Performance Rating - Percent
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
52.7 pt ∼53%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
52.4 pt ∼52%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
52.4 pt ∼52%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
50.5 pt ∼51%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
47.6 pt ∼48%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
46.5 pt ∼47%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
45.8 pt ∼46%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
44 pt ∼44%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
43.6 pt ∼44%
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
261 Points ∼80% +16%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
260 Points ∼79% +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points ∼75% +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points ∼74% +8%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
241 Points ∼73% +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
227 Points ∼69% +1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
225 Points ∼69%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points ∼68% -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
223 Points ∼68% -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points ∼23% +40%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points ∼21% +30%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points ∼20% +20%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
1893 Points ∼20% +19%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
1596 Points ∼16%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
1565 Points ∼16% -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1361 Points ∼14% -15%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1356 Points ∼14% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points ∼13% -21%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
696 Points ∼80% +31%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points ∼78% +28%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
652 Points ∼75% +22%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
629 Points ∼72% +18%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points ∼69% +13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
558 Points ∼64% +5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
535 Points ∼61% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points ∼61% 0%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
533 Points ∼61%
CPU (Multi Core)
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points ∼23% +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points ∼21% +31%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points ∼20% +27%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
4781 Points ∼20% +27%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
3768 Points ∼16%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
3427 Points ∼15% -9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
3419 Points ∼15% -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
3189 Points ∼14% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points ∼13% -21%
Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
3.14 Points ∼10% +19%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points ∼10% +17%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
2.93 Points ∼9% +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points ∼9% +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points ∼9% +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
2.73 Points ∼9% +4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points ∼8% 0%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
2.63 Points ∼8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
2.61 Points ∼8% -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points ∼37% +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points ∼37% +39%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points ∼33% +27%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
22.08 Points ∼31% +18%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
20.06 Points ∼28% +7%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
18.68 Points ∼26%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
17.15 Points ∼24% -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
15.96 Points ∼23% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points ∼21% -21%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
14533 Points ∼79% +30%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
13568 Points ∼74% +21%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points ∼71% +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points ∼70% +15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points ∼66% +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11685 Points ∼64% +4%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
11201 Points ∼61%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
11132 Points ∼61% -1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points ∼60% -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points ∼56% +30%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points ∼55% +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points ∼50% +17%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
68516 Points ∼49% +15%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
59479 Points ∼43%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
54792 Points ∼39% -8%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
53950 Points ∼39% -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
50831 Points ∼37% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points ∼33% -24%
Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
426 Seconds * ∼3% -34%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
415 Seconds * ∼3% -30%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * ∼3% -25%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
319 Seconds * ∼2%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
285 Seconds * ∼2% +11%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
279 Seconds * ∼2% +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * ∼2% +14%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds * ∼2% +27%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * ∼2% +28%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * ∼1% -18%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
4.848 s * ∼1% -7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
4.688 s * ∼1% -3%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
4.552 s * ∼1%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
4.485 s * ∼1% +1%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
3.705 s * ∼1% +19%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * ∼1% +20%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s * ∼1% +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * ∼1% +25%
1024m
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
410.289 s * ∼5% -218%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
237.123 s * ∼3% -84%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * ∼2% -46%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * ∼2% -21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
147.807 s * ∼2% -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
146.553 s * ∼2% -13%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
129.204 s * ∼2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * ∼1% +20%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s * ∼1% +28%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
311.5 (311min - 312max) fps ∼73% +24%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps ∼62% +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps ∼61% +3%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
251.21 fps ∼59%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps ∼58% -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
236 (235min - 246max) fps ∼55% -6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps ∼55% -7%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps ∼53% -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
212 (206min - 224max) fps ∼50% -16%
Pass 2
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps ∼47% +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps ∼46% +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps ∼42% +20%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
111.1 (96.7min - 111.7max) fps ∼41% +17%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
95.18 fps ∼35%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
80.95 (76.3min - 82.4max) fps ∼30% -15%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps ∼28% -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps ∼28% -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
71.45 (70.2min - 76.6max) fps ∼26% -25%
WinRAR - Result
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
9090 KB/s ∼53% +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s ∼46% +6%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
7497 KB/s ∼43%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6937 KB/s ∼40% -7%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s ∼40% -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s ∼40% -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6858 KB/s ∼40% -9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s ∼39% -9%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
6559 KB/s ∼38% -13%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s ∼41% +43%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s ∼37% +29%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
10.4 GB/s ∼32% +11%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
10.1 GB/s ∼31% +7%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
9.4 GB/s ∼29%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
9.3 GB/s ∼29% -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s ∼26% -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
8.3 GB/s ∼26% -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s ∼24% -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s ∼0% +54%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s ∼0% +38%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
1.8 GB/s ∼0% +38%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
1.8 GB/s ∼0% +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s ∼0% +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1.3 GB/s ∼0% 0%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
1.3 GB/s ∼0%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1.2 GB/s ∼0% -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s ∼0% -15%
Serpent Mean 100MB
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s ∼0% +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s ∼0% +28%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
1.1 GB/s ∼0% +28%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
1 GB/s ∼0% +17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s ∼0% +14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.857 GB/s ∼0% 0%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
0.857 GB/s ∼0%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.796 GB/s ∼0% -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s ∼0% -18%
Geekbench 5.4
Multi-Core
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points ∼34% +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points ∼34% +34%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
9363 Points ∼33% +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points ∼32% +26%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
8918 Points ∼31% +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
7658 Points ∼27% +6%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
7253 Points ∼25%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6523 Points ∼23% -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points ∼21% -15%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points ∼81% +29%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
1782 Points ∼77% +23%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
1767 Points ∼76% +22%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points ∼71% +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points ∼67% +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1504 Points ∼65% +4%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
1443 Points ∼62%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points ∼62% -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1427 Points ∼62% -1%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points ∼32% +44%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
10249 Points ∼32% +44%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
10249 Points ∼32% +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points ∼30% +36%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points ∼30% +35%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
9099 Points ∼29% +28%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
7128 Points ∼22%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6479 Points ∼20% -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points ∼19% -14%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points ∼8% +32%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
1736 Points ∼8% +25%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points ∼7% +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points ∼7% +12%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
1557 Points ∼7% +12%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1557 Points ∼7% +12%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
1393 Points ∼6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points ∼6% -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1371 Points ∼6% -2%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points ∼83% +31%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
7705 Points ∼80% +26%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points ∼70% +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points ∼69% +9%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
6698 Points ∼69% +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6698 Points ∼69% +9%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
6117 Points ∼63%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5918 Points ∼61% -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points ∼60% -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points ∼44% +37%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
39852 Points ∼44% +37%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
39852 Points ∼44% +37%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points ∼43% +33%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points ∼41% +27%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
34909 Points ∼39% +20%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
28997 Points ∼32%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
25738 Points ∼29% -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points ∼27% -16%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points ∼50% +27%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
18363 Points ∼50% +27%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points ∼49% +26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points ∼43% +9%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
14496 Points ∼39%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
13130 Points ∼35% -9%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
13067 Points ∼35% -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points ∼34% -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11630 Points ∼31% -20%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS ∼38% +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS ∼35% +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS ∼32% +10%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
47893 MIPS ∼30% +3%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
46562 MIPS ∼29%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
44320 MIPS ∼27% -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
40318 MIPS ∼25% -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS ∼24% -16%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
37570 MIPS ∼23% -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
6116 MIPS ∼73% +14%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS ∼73% +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS ∼72% +12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS ∼67% +4%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
5577 MIPS ∼67% +4%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5486 MIPS ∼66% +2%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
5369 MIPS ∼64%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS ∼63% -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5161 MIPS ∼62% -4%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps ∼37% +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps ∼33% +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps ∼30% +14%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
13.6 fps ∼29% +10%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
12.4 fps ∼27%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11.7 fps ∼25% -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
10.2 fps ∼22% -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps ∼22% -19%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
10.1 fps ∼22% -19%
R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.548 sec * ∼12% -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * ∼12% -2%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
0.526 sec * ∼11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.511 sec * ∼11% +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * ∼11% +7%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec * ∼10% +10%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
0.4718 sec * ∼10% +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * ∼10% +12%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
0.462 sec * ∼10% +12%
LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
57.5 s * ∼15% -1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
56.7 s * ∼14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * ∼13% +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
53 s * ∼13% +7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * ∼13% +10%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s * ∼12% +14%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
48.1 s * ∼12% +15%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
39.6 s * ∼10% +30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * ∼10% +33%
WebXPRT 3 - ---
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points ∼72% +15%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
309 Points ∼72% +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points ∼68% +8%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
287 Points ∼66% +6%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
287 Points ∼66% +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
274 Points ∼63% +1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
270 Points ∼63%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
263 Points ∼61% -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points ∼59% -6%
Mozilla Kraken 1.1 - Total Score
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
659 ms * ∼1% -1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
651 ms * ∼1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * ∼1% +1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
619 ms * ∼1% +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * ∼1% +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * ∼1% +11%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
571 ms * ∼1% +12%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
539 ms * ∼1% +17%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
519 ms * ∼1% +20%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points ∼47% +21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points ∼41% +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points ∼40% +1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
21110 Points ∼39%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
21001 Points ∼39% -1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
18599 Points ∼34% -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points ∼32% -17%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
16412 Points ∼30% -22%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
15903 Points ∼29% -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points ∼48% +23%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points ∼41% +7%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
22346 Points ∼41% +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points ∼41% +6%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
21025 Points ∼39%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points ∼33% -14%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
17499 Points ∼32% -17%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
16568 Points ∼31% -21%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
15934 Points ∼29% -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points ∼52% +56%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points ∼46% +38%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, 1700 MHz
9168 Points ∼45% +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points ∼43% +27%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, 3300 MHz
6767 Points ∼33%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, 1500 MHz
6487 Points ∼32% -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points ∼27% -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5114 Points ∼25% -24%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5077 Points ∼25% -25%

* ... kleiner is beter

Performance Rating
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
99.3 pt ∼99%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.9 pt ∼86%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
71.2 pt ∼71%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt ∼71%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
69.4 pt ∼69%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
62.8 pt ∼63%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
62.3 pt ∼62%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
60.2 pt ∼60%
Gemiddelde van klas Mini PC

58.4 pt ∼58%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
57 pt ∼57%
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s ∼100% +33%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s ∼91% +21%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
11347 KRay/s ∼75%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s ∼73% -3%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
10839 KRay/s ∼72% -4%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s ∼63% -16%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
9406 KRay/s ∼62% -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s ∼60% -20%
Gemiddelde van klas Mini PC
  (561 - 15814, n=43, laatste 2 jaar)
8639 KRay/s ∼57% -24%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s ∼53% -30%
AIDA64 / FPU Julia
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points ∼100% +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points ∼89% +24%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
70782 Points ∼72%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
60111 Points ∼61% -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points ∼60% -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points ∼58% -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points ∼56% -22%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
54435 Points ∼55% -23%
Gemiddelde van klas Mini PC
  (3604 - 99936, n=43, laatste 2 jaar)
49461 Points ∼50% -30%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points ∼41% -43%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s ∼100% +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s ∼85% +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s ∼74% +8%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
2360 MB/s ∼68%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
2357 MB/s ∼68% 0%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
2065 MB/s ∼60% -12%
Gemiddelde van klas Mini PC
  (225 - 3570, n=43, laatste 2 jaar)
2045 MB/s ∼59% -13%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s ∼58% -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s ∼58% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s ∼57% -16%
AIDA64 / CPU Queen
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points ∼100% +37%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points ∼97% +32%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points ∼82% +13%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
82454 Points ∼80% +9%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
75724 Points ∼73%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points ∼73% -1%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points ∼71% -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
70563 Points ∼68% -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points ∼65% -11%
Gemiddelde van klas Mini PC
  (8178 - 104437, n=43, laatste 2 jaar)
66942 Points ∼65% -12%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points ∼100% +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points ∼95% +38%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
8952 Points ∼68%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points ∼67% -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
8507 Points ∼65% -5%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points ∼63% -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points ∼58% -16%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
7444 Points ∼57% -17%
Gemiddelde van klas Mini PC
  (408 - 13164, n=43, laatste 2 jaar)
7007 Points ∼53% -22%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points ∼42% -38%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points ∼100% +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points ∼85% +14%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
38989 Points ∼74%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
33084 Points ∼63% -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points ∼62% -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points ∼60% -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points ∼53% -28%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
26735 Points ∼51% -31%
Gemiddelde van klas Mini PC
  (1958 - 55002, n=43, laatste 2 jaar)
26312 Points ∼50% -33%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points ∼38% -49%
AIDA64 / CPU AES
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s ∼100% +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s ∼73% +5%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
95057 MB/s ∼70%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
92530 MB/s ∼68% -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
82315 MB/s ∼60% -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s ∼57% -18%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s ∼55% -21%
Gemiddelde van klas Mini PC
  (3778 - 136723, n=43, laatste 2 jaar)
69190 MB/s ∼51% -27%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s ∼41% -41%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s ∼29% -58%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s ∼100% +41%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s ∼86% +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s ∼85% +19%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
674 MB/s ∼78% +10%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
614 MB/s ∼71%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s ∼67% -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
531 MB/s ∼62% -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s ∼61% -14%
Gemiddelde van klas Mini PC
  (74.8 - 982, n=43, laatste 2 jaar)
529 MB/s ∼61% -14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s ∼59% -18%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s ∼100% +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s ∼91% +26%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s ∼72% 0%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
5777 KRay/s ∼72%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
5771 KRay/s ∼72% 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s ∼63% -12%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
5024 KRay/s ∼63% -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s ∼58% -20%
Gemiddelde van klas Mini PC
  (308 - 8447, n=43, laatste 2 jaar)
4601 KRay/s ∼58% -20%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s ∼52% -28%
AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s ∼100% +46%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s ∼94% +38%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
28010 MPixel/s ∼94% +37%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s ∼93% +36%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s ∼92% +35%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s ∼82% +19%
Gemiddelde van klas Mini PC
  (4408 - 44347, n=43, laatste 2 jaar)
23846 MPixel/s ∼80% +17%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
20410 MPixel/s ∼69%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s ∼65% -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
17803 MPixel/s ∼60% -13%

Minisforum Venus Series UM560 XT in de Cinebench R15 multi-loop test

In de Cinebench R15 continue loop is het mogelijk om een goede indruk te krijgen van hoe goed het systeem werkt onder belasting. De Minisforum Venus Series UM560 XT beheerste de test uitstekend. De resultaten van de AMD Ryzen 5 5600H in elk van de 50 runs waren zeer stabiel en er was bijna geen significante daling in prestaties. Op dit vergelijkingsgebied komt geen enkel ander systeem in de buurt.

CPU statistieken tijdens de Cinebench R15 loop
CPU statistieken tijdens de Cinebench R15 loop
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Systeemprestaties

Op het gebied van systeembenchmarks deed de Minisforum Venus Series UM560 XT het erg goed, met een derde plaats in de PCMark 10 vergelijking. Het ziet er echter iets anders uit in de Crossmark vergelijking. Het is echter op dit gebied waar alle met AMD uitgeruste apparaten het moeten afleggen tegen die van Intel. Het bezit van DDR4 RAM betekent dat de Minisforum Venus Series UM560 XT alleen kan concurreren met nogal botte wapens. De eerste drie plaatsen gaan hier naar apparaten met sneller DDR5 RAM. Niettemin zijn de prestaties van ons recensie-exemplaar behoorlijk en vergelijkbaar met die van een UM560 XT. Dit wordt subjectief weergegeven in termen van prestaties.

PCMark 10 / Score
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points ∼100% +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points ∼94% +8%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
6189 Points ∼88%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points ∼88% 0%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
6057 Points ∼86% -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points ∼83% -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
5862 Points ∼83% -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points ∼82% -7%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points ∼80% -9%
PCMark 10 / Essentials
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
11395 Points ∼100% +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points ∼98% +7%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points ∼95% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
10503 Points ∼92%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
10484 Points ∼92% 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points ∼91% -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points ∼91% -1%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points ∼89% -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points ∼86% -7%
PCMark 10 / Productivity
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points ∼100% +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points ∼98% +2%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
9642 Points ∼96%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
9545 Points ∼95% -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points ∼95% -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points ∼90% -6%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
8164 Points ∼81% -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points ∼76% -20%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points ∼74% -23%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points ∼100% +41%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1875 Points ∼99% +39%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points ∼92% +29%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points ∼91% +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points ∼80% +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points ∼80% +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points ∼72% +2%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1346 Points ∼71%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1300 Points ∼69% -3%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points ∼100% +40%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1876 Points ∼98% +37%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points ∼90% +27%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points ∼90% +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points ∼78% +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points ∼78% +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points ∼73% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1368 Points ∼71%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1335 Points ∼69% -2%
CrossMark / Creativity
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1811 Points ∼100% +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points ∼99% +31%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points ∼97% +27%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points ∼96% +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points ∼91% +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points ∼91% +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points ∼76% 0%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1377 Points ∼76%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1325 Points ∼73% -4%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points ∼100% +77%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
2077 Points ∼98% +74%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points ∼82% +45%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points ∼79% +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points ∼60% +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points ∼59% +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points ∼59% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1197 Points ∼57%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1133 Points ∼54% -5%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s ∼100% +20%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s ∼95% +15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s ∼95% +14%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
46936 MB/s ∼93% +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s ∼91% +10%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s ∼89% +7%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
41732 MB/s ∼83%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
38102 MB/s ∼76% -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s ∼70% -16%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s ∼100% +9%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
50120 MB/s ∼98% +7%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s ∼98% +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s ∼97% +6%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s ∼93% +1%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
46963 MB/s ∼92%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s ∼90% -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40126 MB/s ∼79% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s ∼75% -18%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s ∼100% +23%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s ∼99% +22%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s ∼89% +10%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
47383 MB/s ∼86% +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s ∼85% +4%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s ∼85% +4%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
44872 MB/s ∼81%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40633 MB/s ∼74% -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s ∼68% -16%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * ∼100% -32%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
96.2 ns * ∼96% -27%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * ∼94% -25%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * ∼92% -22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * ∼91% -21%
Minisforum Venus Series UM690 (6900HX)
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * ∼83% -10%
Geekom Mini IT12, i7-1260P
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * ∼80% -6%
Minisforum Venus Series UM560 XT (5600H)
AMD Ryzen 5 5600H, Vega 7
75.5 ns * ∼76%
Minisforum Venus Series NAB6, i7-12650H
Intel Core i7-12650H, UHD Graphics 64EUs
71.6 ns * ∼72% +5%

* ... kleiner is beter

DPC latenties

Met de Minisforum Venus Series UM560 XT zijn we geen problematische latenties tegengekomen. Ons testapparaat kon zowel het openen van meerdere tabbladen in Edge als het afspelen van een 4K testvideo perfect aan. Met behulp van Prime95 konden we geen verhoogde latentie ontdekken.

Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-videomateriaal
Maximale latentie bij het openen van meerdere browsertabbladen en het afspelen van 4K-videomateriaal
Maximale latentie na tien seconden Prime95
Maximale latentie na tien seconden Prime95
Bestuurders gerangschikt volgens de langste prestatieduur
Bestuurders gerangschikt volgens de langste prestatieduur
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs * ∼100% -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1359.1 μs * ∼91% -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1317 μs * ∼89% -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * ∼75% -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * ∼68% -8%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
985.8 μs * ∼66% -5%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
940.27 μs * ∼63%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
795 μs * ∼53% +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
765 μs * ∼51% +19%

* ... kleiner is beter

Massa-opslag

512 GB NVMe SSD
512 GB NVMe SSD

Minisforum heeft ons Venus Series UM560 XT review model uitgerust met een 512 GB SSD, zonder de details te specificeren. De overdrachtssnelheden van het geïnstalleerde model weerspiegelen de PCIe 3.0 interface. De concurrentie, met snellere PCIe 4.0 SSD's, geniet een onbereikbare voorsprong. Onder continue belasting had de Minisforum Venus Series UM560 XT geen problemen om zijn SSD prestaties te handhaven. Het is op dit gebied dat het loont om de SSD uit te rusten met een relatief groot koellichaam. Het apparaat kan in totaal twee massaopslagapparaten herbergen. Naast de M.2 interface is er ook een SATA aansluiting voor een 2,5 inch opslagmedium. Het apparaat wordt geleverd met de bijbehorende aansluitkabels.

Aanvullende vergelijkingen en benchmarks zijn te vinden in onze vergelijkingstabel.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1626 MB/s
Sequential Write: 1855 MB/s
512K Read: 1274 MB/s
512K Write: 1763 MB/s
4K Read: 43 MB/s
4K Write: 164.9 MB/s
4K QD32 Read: 528.2 MB/s
4K QD32 Write: 431.9 MB/s
