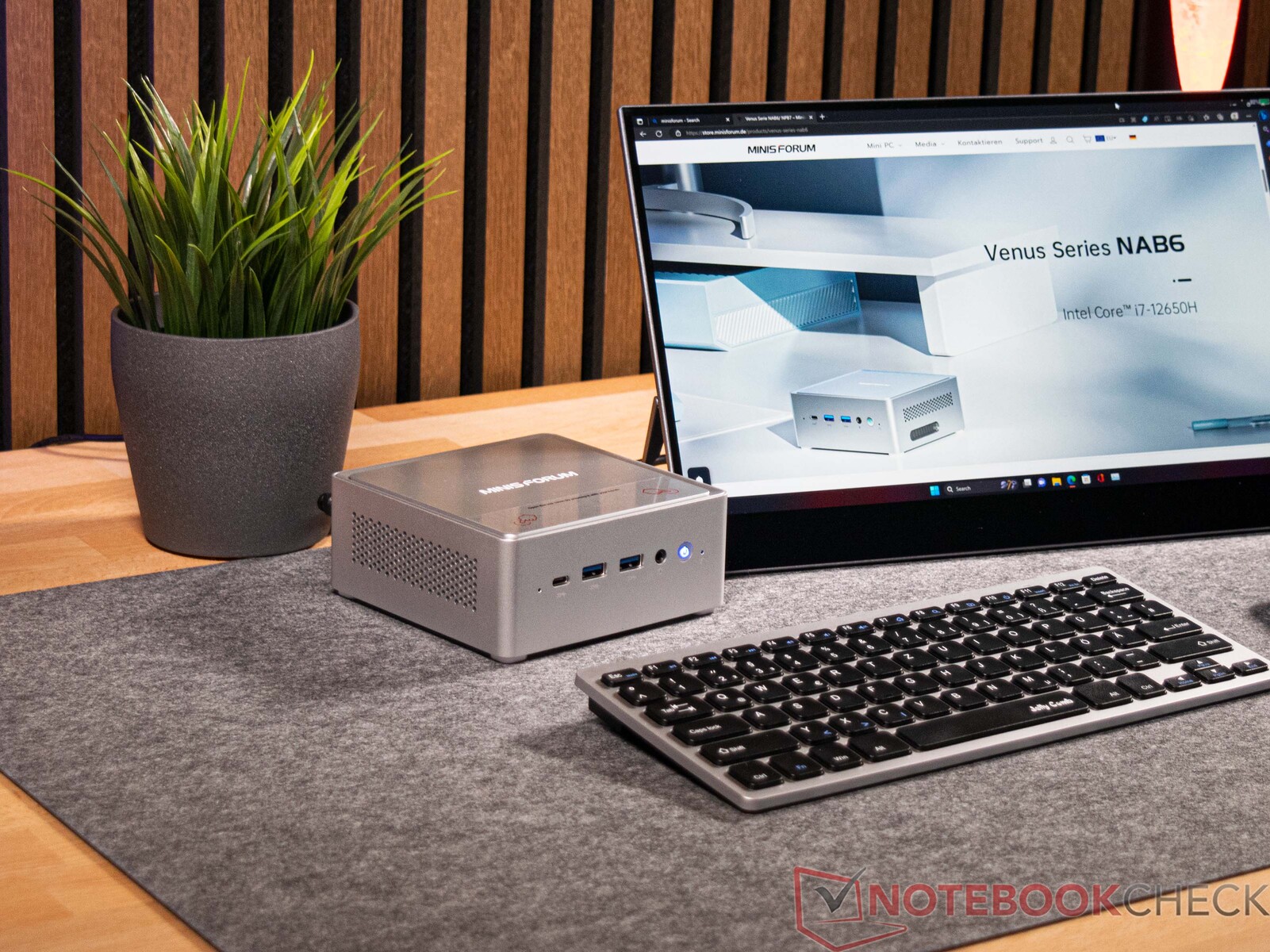

Minisforum Venus Series NAB6 review: De strakke mini PC met een snelle Intel Core i7-12650H en actieve SSD koeling!

Goed gekoeld is de helft gedaan! Minisforum heeft hun Venus-serie portfolio uitgebreid met de release van de slanke mini PC NAB6. Gebaseerd op een Intel Core i7-12650H, is de NAB6 goed voorbereid op veel verschillende toepassingen. Zijn prijs is oké, maar er zullen waarschijnlijk een paar compromissen moeten worden gesloten. Welke compromissen dat precies zijn, bespreken we in onze gedetailleerde review.
Minisforum Venus-serie NAB6, configuraties (bron: Minisforum)
Minisforum Venus-serie NAB6, configuraties (bron: Minisforum)

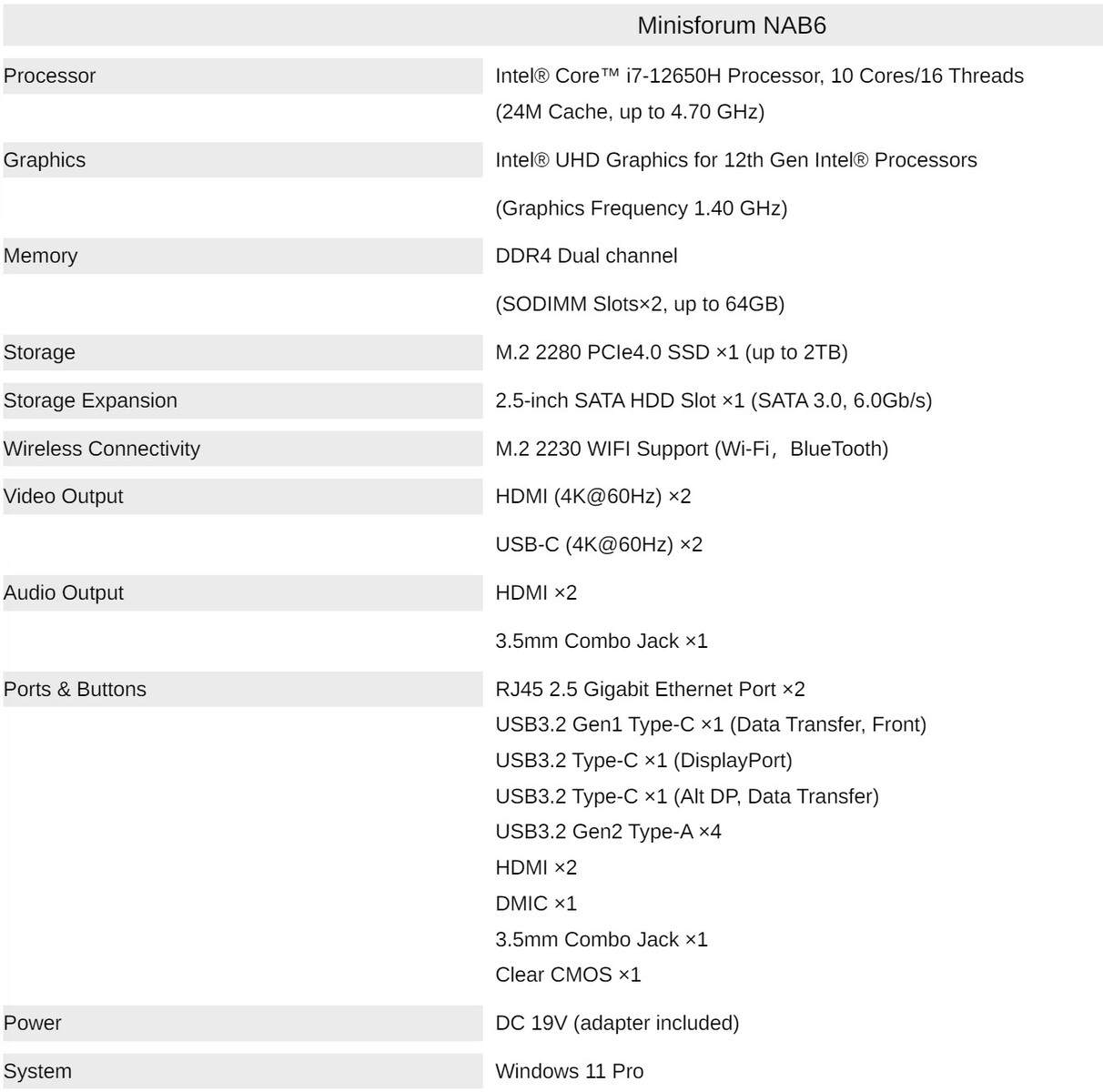

Minisforum Venus-serie NAB6, specificaties (bron: Minisforum)
Minisforum Venus-serie NAB6, specificaties (bron: Minisforum)

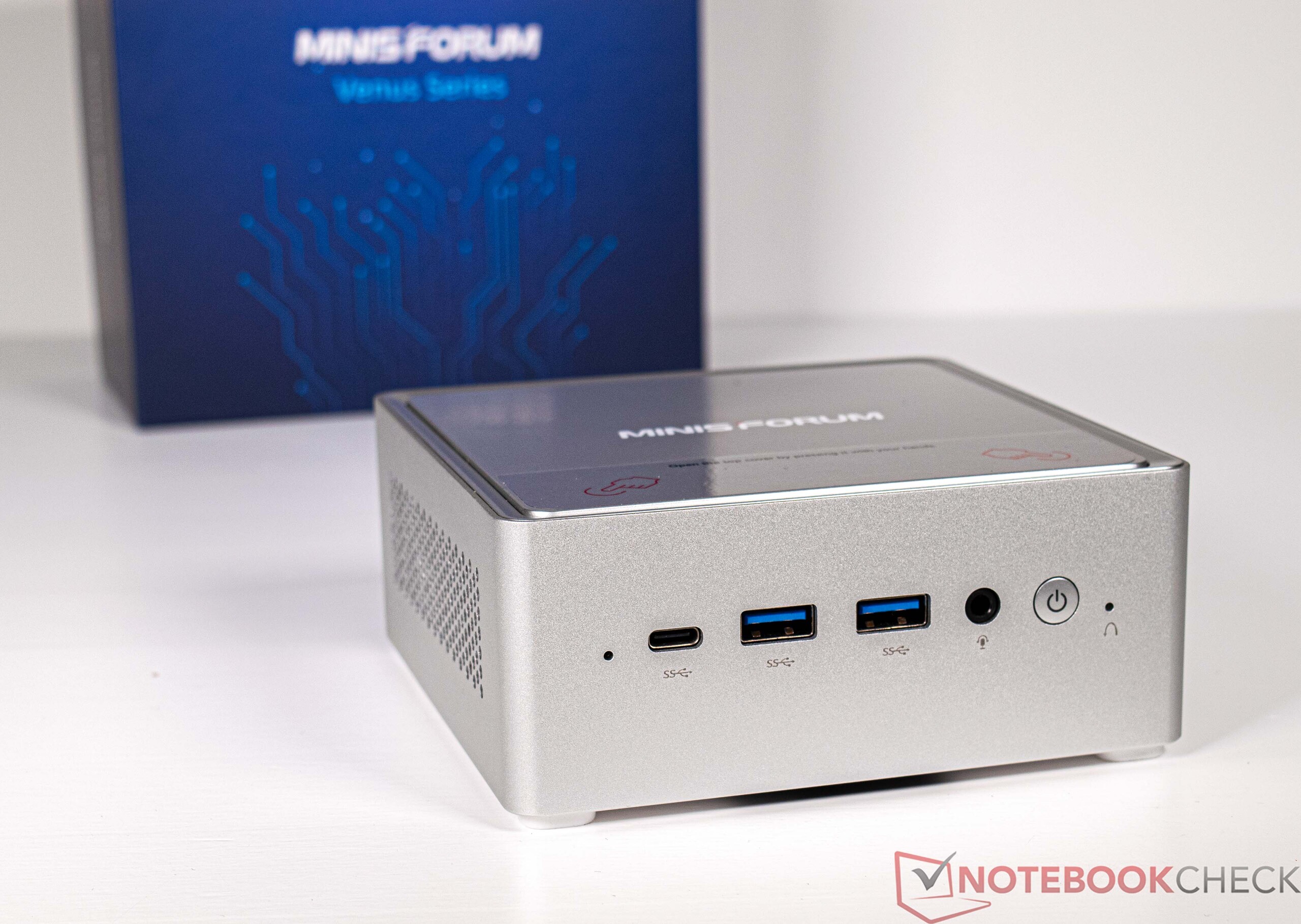

De Minisforum Venus Series NAB6 is een andere compacte en krachtige mini PC gemaakt door de Chinese systeemfabrikant. In deze test bekijken we het systeem op basis van eenIntel Core i7-12650Hmet 16 GB RAM en een 512 GB SSD. We gebruiken Windows 11 Professional als besturingssysteem en deze configuratie is momenteel te koop voor 449 dollar. De barebone versie zonder RAM en een SSD is momenteel te vinden voor 359 dollar. Deze prijzen zijn vrij typisch voor dit soort mini PC's, aangezien zijn concurrenten over het algemeen voor een vergelijkbare prijs kunnen worden gekocht.

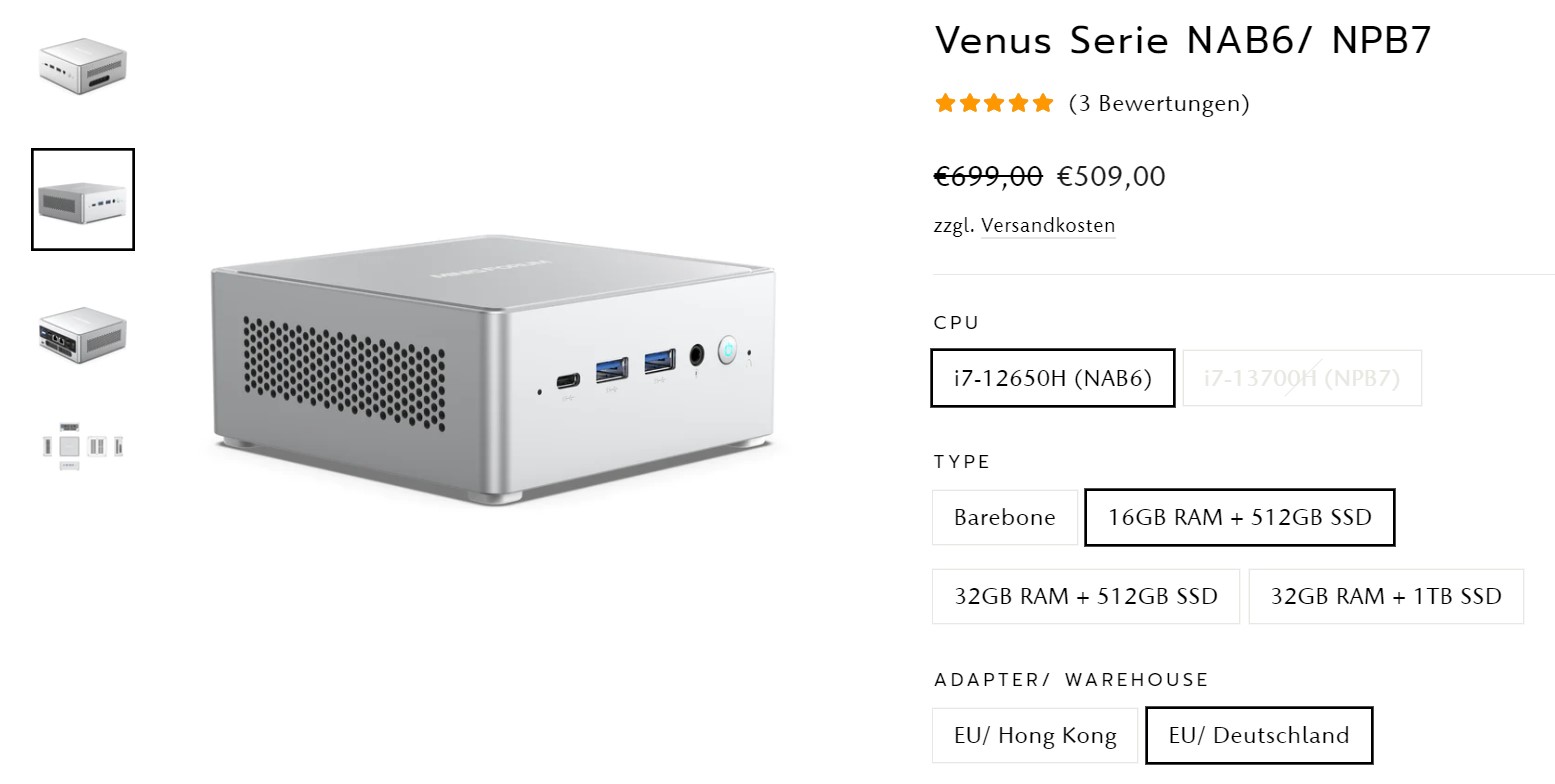

Minisforum biedt momenteel alleen de Venus Series NAB6 aan op basis van een Intel Core i7-12650H. Onder het label Venus Series NPB7 biedt de fabrikant een model dat hetzelfde is gebouwd, maar in plaats daarvan is gebaseerd op eenIntel Core i7-13700H. Dit model zou vanaf medio mei beschikbaar zijn. Momenteel zijn er geen prijzen voor dit model te vinden op de website van de fabrikant.

We hebben voor deze review een reeks vergelijkbaar compacte desktop pc's gekozen als vergelijkingsapparatuur. Een overzicht van deze apparaten ziet u in de volgende tabel.

Minisforum Venus Series NAB6
Processor
Intel Core i7-12650H 10 x 1.7 - 4.7 GHz, 64 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H
Grafische kaart
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Core: 1400 MHz, Geheugen: 2660 MHz, 31.0.101.4146 DCH
Geheugen
16 GB
, DDR4-2666, 2 of 2 installed, max. 64 GB
Moederbord
Intel Alder Lake-P PCH
Opslag
Kingston OM8PGP4512Q-A0, 512 GB
, M.2-2280, NVMe, 450 GB beschikbaar
Geluidskaart
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Verbindingen
7 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5mm Kombibuchse, Intel Ethernet Controller I225-V
Netwerkmogelijkheden
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Afmetingen
hoogte x breedte x diepte (in mm): 55 x 127 x 127
Besturingssysteem
Microsoft Windows 11 Pro
Bijkomende functionaliteiten
Power adapter with cable, HDMI cable, Vesa mount montage kit, handbook, 24 Maanden Garantie
Gewicht
616 g, Voeding: 456 g
Prijs
699 EUR
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Potentiële concurrenten in vergelijking

Evaluatie
Datum
Model
Gewicht
Hoogte
Beste prijs
81.9 %
05-2023
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
616 g55 mm
85.5 %
03-2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g40.6 mm
86.1 %
02-2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 g48 mm
80.8 %
04-2023
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
538 g37 mm
82.3 %
05-2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 g45.6 mm
85.1 %
01-2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
09-2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm

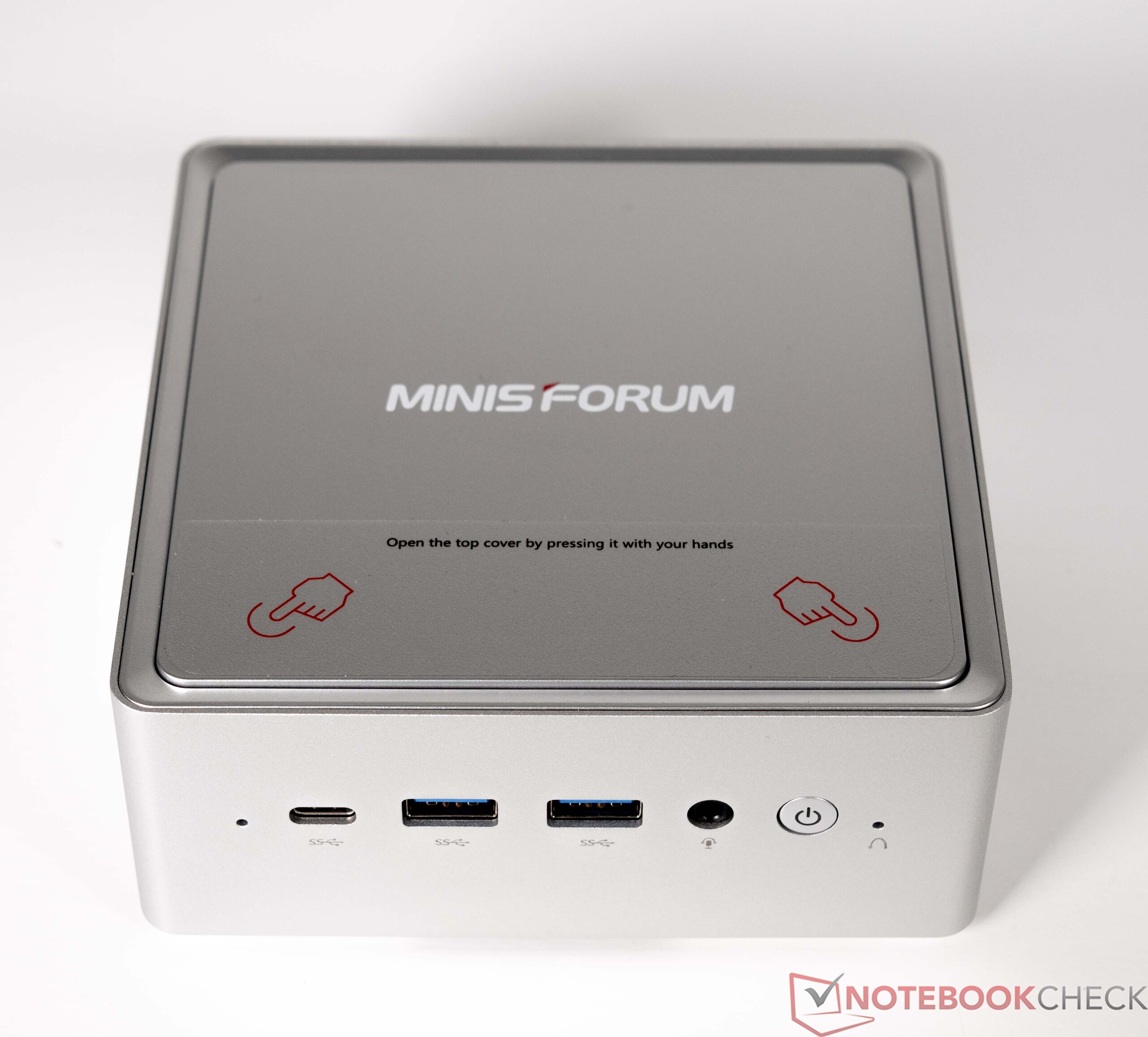

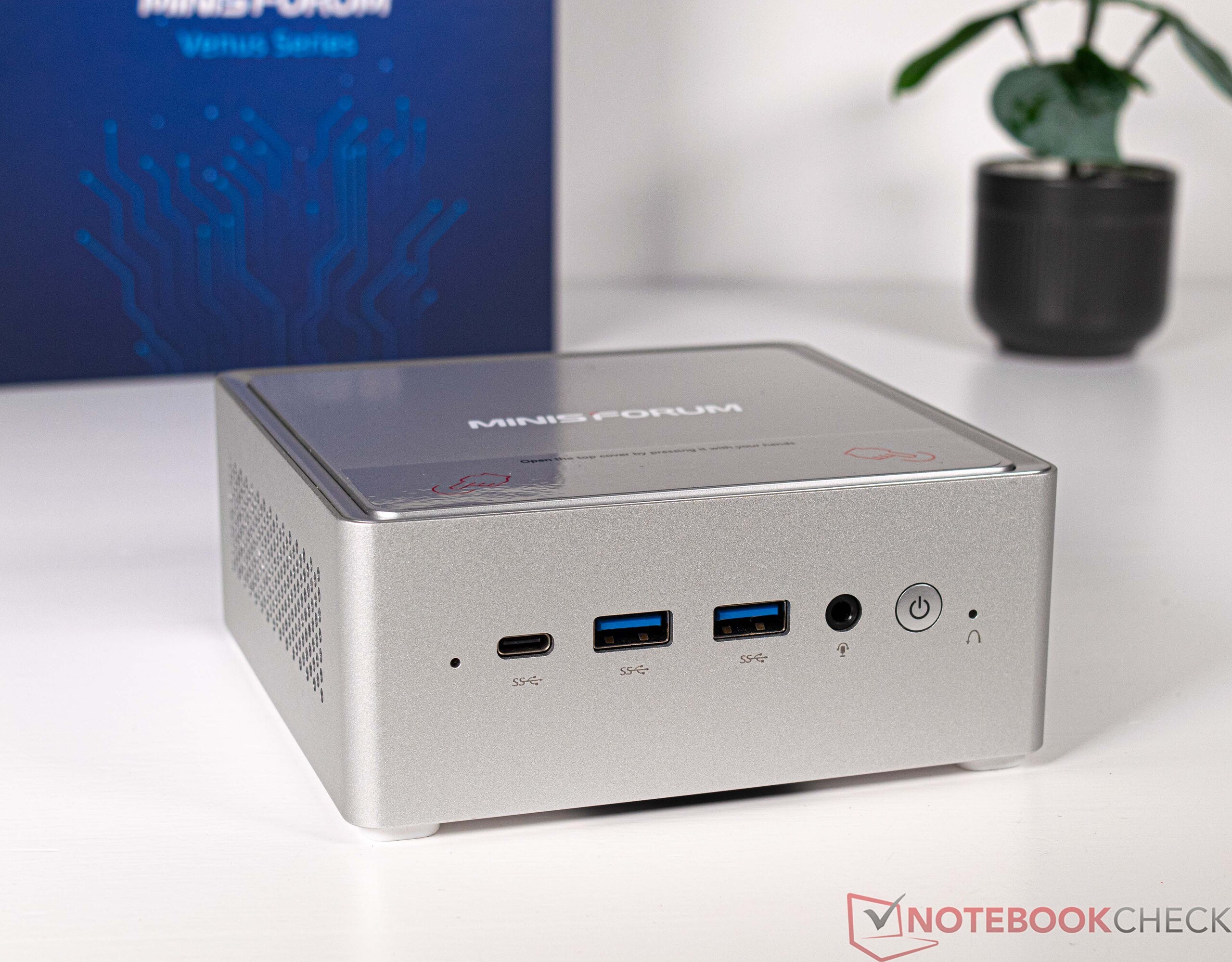

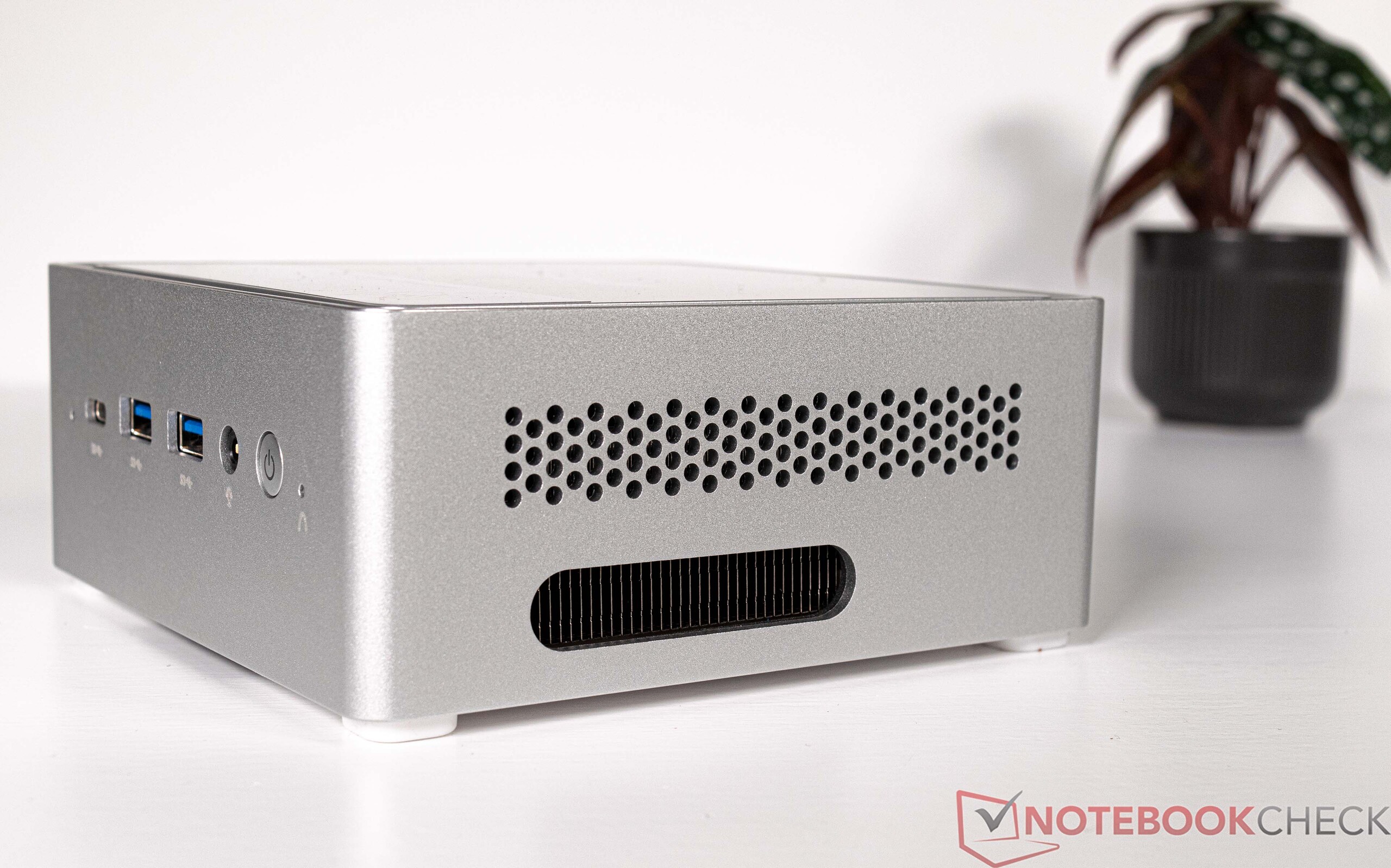

Minisforum Venus-serie NAB6 in detail

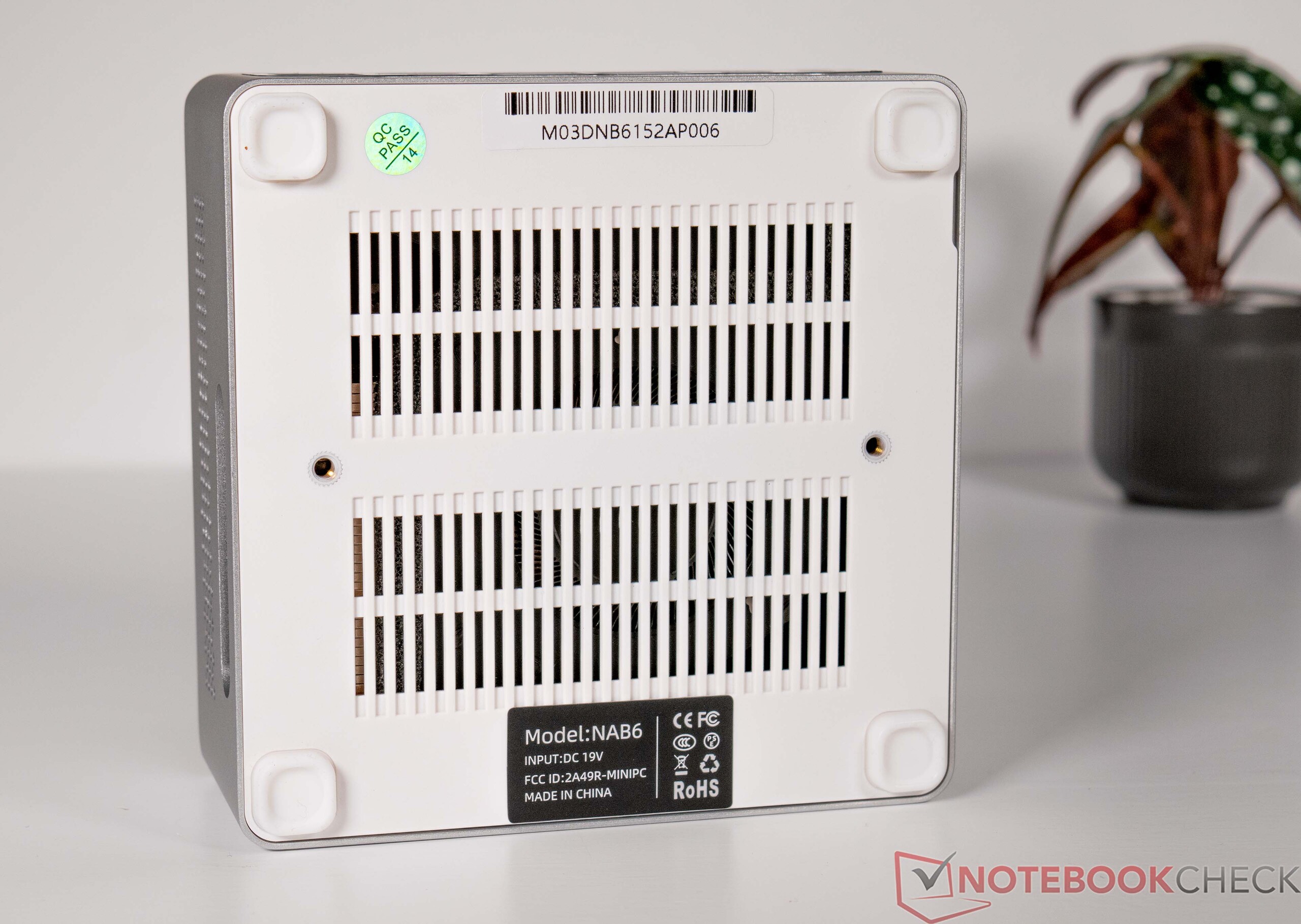

Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6
Minisforum Venus-serie NAB6

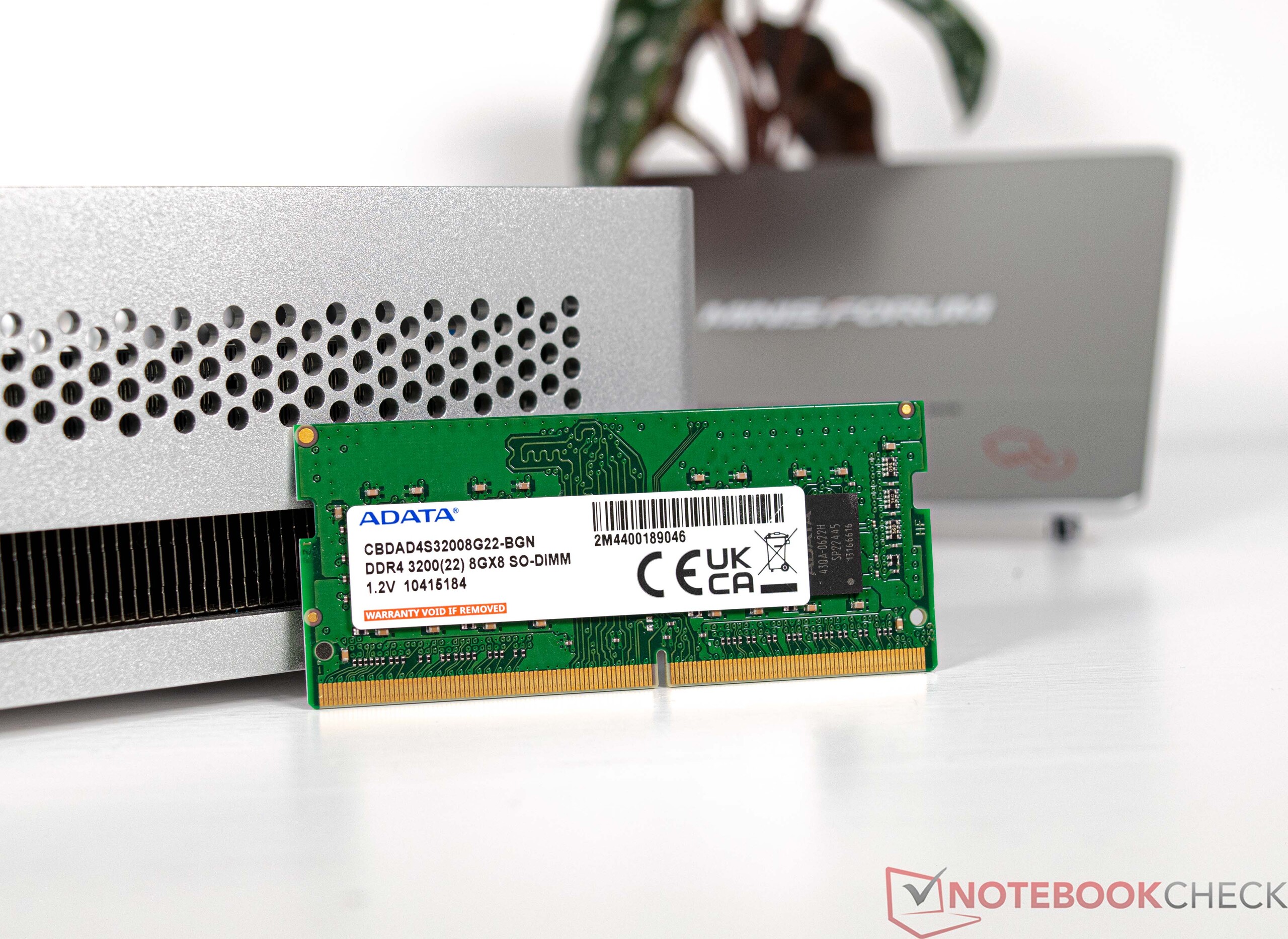

Minisforum Venus-serie NAB6 - RAM

Zaak

Hoewel de NAB6 tot de Venus-serie behoort, zijn er qua bouw geen echte overeenkomsten met de UM690. Hier heeft de fabrikant de materiaalkeuze van het toestel volledig anders aangepakt. De NAB6 bestaat voornamelijk uit aluminium en plastic, wat het toestel een enorme stabiliteit geeft. Het deksel, de binnenkant en de onderkant van het toestel zijn van plastic. Het deksel past mooi bij de kleur van de rest van de behuizing. Het is niet altijd gemakkelijk om een uniforme kleur te bereiken wanneer je te maken hebt met meerdere verschillende materialen (aluminium en plastic). Ons testexemplaar doet dit perfect. De onderkant van het toestel ziet er een beetje goedkoop uit door de witte kleur.

Het compacte formaat betekent dat de Minisforum Venus Series NAB6 niet te veel ruimte inneemt op je bureau. Het apparaat meet 12,7 x 12,7 centimeter en u kunt het aan de achterkant van een monitor bevestigen met behulp van de meegeleverde montageplaat (VESA-montage). Het apparaat is ook vrij licht, met een gewicht van slechts 616 gram. De voedingsadapter weegt 456 gram, wat ongeveer hetzelfde is als bij de concurrentie.

Vergelijking grootte

208 mm 180 mm 66 mm 1.2 kg155 mm 130 mm 72 mm 628 g147.3 mm 144.7 mm 40.6 mm 779 g127 mm 127 mm 55 mm 616 g104 mm 153 mm 66 mm 562 g117 mm 112 mm 37 mm 538 g117 mm 112 mm 37 mm 511 g297 mm 210 mm 1 mm 5.7 g

Connectiviteit

Compactheid betekent niet noodzakelijkerwijs minder aansluitmogelijkheden - dit weten we al van heel wat mini-pc's. Dit is niet anders bij de Minisforum Venus Series NAB6, die in totaal zeven USB-poorten heeft. Dit is meer dan zijn concurrenten, hoewel gebruikers zich wellicht tot andere modellen zullen wenden vanwege de ontbrekende Thunderbolt-optie. Al met al heeft de Minisforum Venus Series NAB6 nog steeds meer dan genoeg aansluitmogelijkheden - je kunt zelfs tot vier schermen tegelijk aansluiten. Dat de poorten zich beperken tot de voor- en achterkant van het apparaat is in onze ogen een goede ontwerpkeuze.

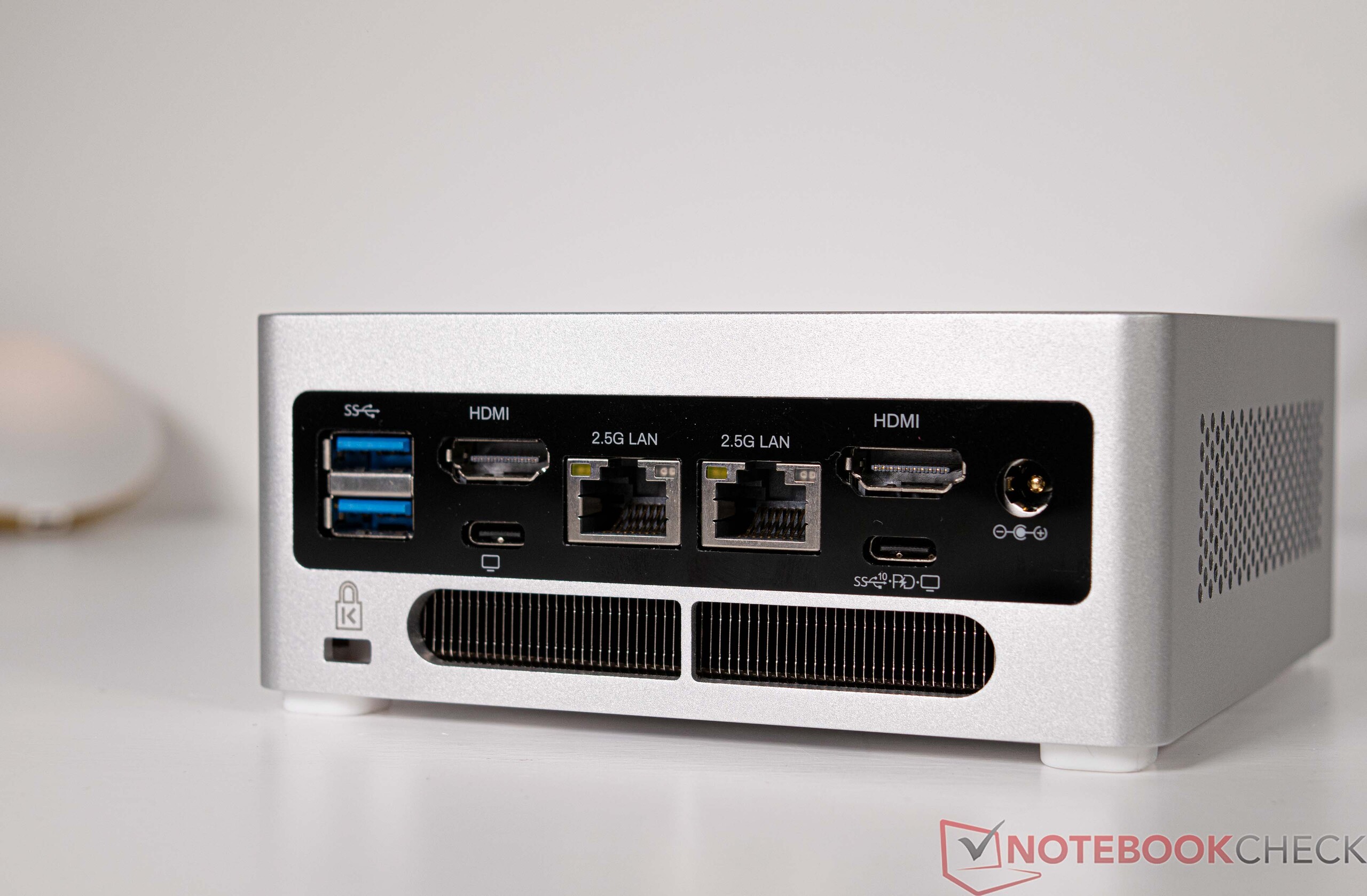

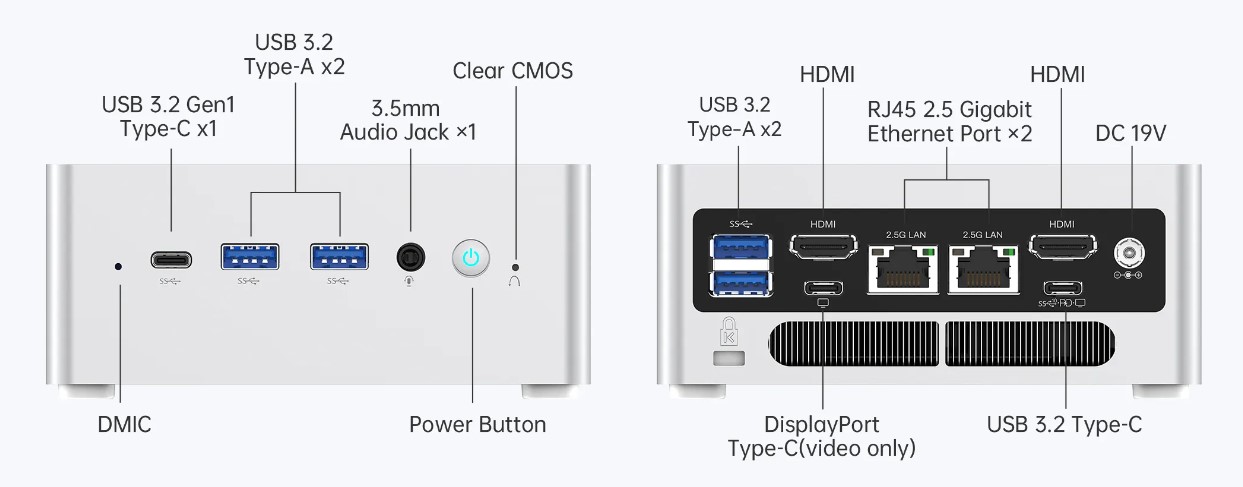

De externe poorten van de Venus-serie NAB6 van Minisforum (bron: Minisforum)
De externe poorten van de Venus-serie NAB6 van Minisforum (bron: Minisforum)

Communicatie

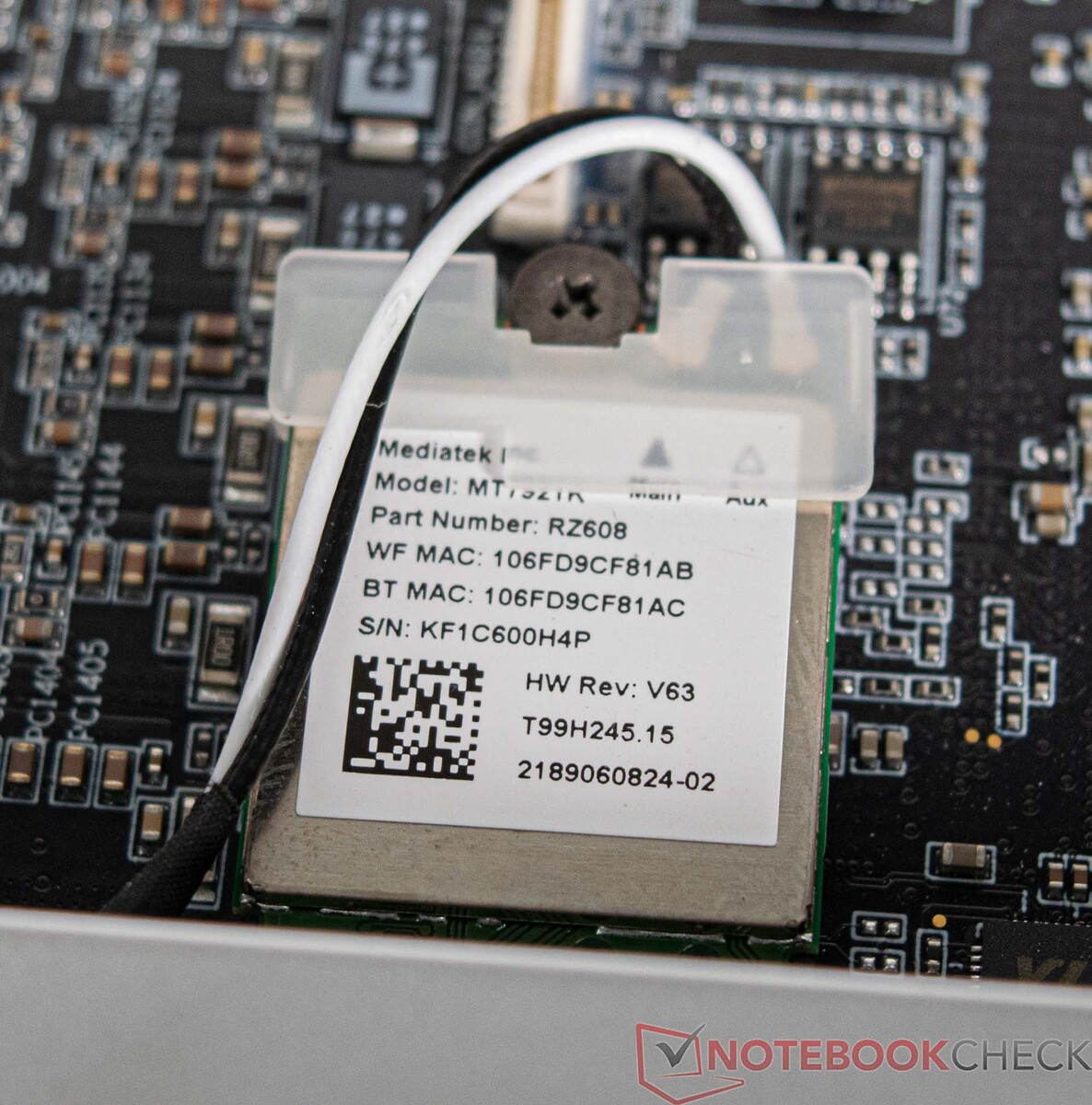

WLAN module in de Minisforum Venus Serie NAB6
WLAN module in de Minisforum Venus Serie NAB6

De Minisforum NAB6 is voorzien van een Wi-Fi 6E module van Mediatek. Dezelfde module is te zien in deMiniforum Venus Series UM690, die betere prestaties leverde dan die in ons testexemplaar. We gebruikten een Asus ROG Rapture GT-AXE11000 als testrouter voor onze tests. Overdrachtssnelheden waren niet verschrikkelijk, maar in vergelijking doet ons monster het op dit punt niet zo goed. Als alternatief heeft de Minisforum Venus Series NAB6 ook een snelle bekabelde verbinding, die snelheden tot 2,5 GBit/s mogelijk maakt. Het heeft zelfs twee van deze aansluitingen, wat niet altijd de norm is voor deze apparaatklasse.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1668 (1467min - 1725max) MBit/s +111%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1519 (1392min - 1699max) MBit/s +92%
Gemiddelde van klas Mini PC
  (390 - 1771, n=34, laatste 2 jaar)
1169 MBit/s +48%
Minisforum Venus Series UM690
MediaTek RZ608
961 (954min - 967max) MBit/s +21%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 (450min - 913max) MBit/s +14%
Gemiddeld MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s +4%
Minisforum Venus Series NAB6
MediaTek RZ608
791 (776min - 799max) MBit/s
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1622 (1561min - 1670max) MBit/s +76%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1445 (736min - 1476max) MBit/s +57%
Gemiddelde van klas Mini PC
  (722 - 1764, n=35, laatste 2 jaar)
1144 MBit/s +24%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 (486min - 993max) MBit/s +5%
Minisforum Venus Series NAB6
MediaTek RZ608
919 (853min - 980max) MBit/s
Gemiddeld MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s -10%
Minisforum Venus Series UM690
MediaTek RZ608
787 (638min - 865max) MBit/s -14%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +67%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s +21%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s +20%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
939 (921min - 952max) MBit/s +19%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s +18%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +15%
Gemiddelde van klas Mini PC
  (192.9 - 1796, n=81, laatste 2 jaar)
894 MBit/s +14%
Gemiddeld MediaTek RZ608
  (430 - 975, n=19)
883 MBit/s +12%
Minisforum Venus Series NAB6
MediaTek RZ608
787 (752min - 801max) MBit/s
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +111%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +54%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s +54%
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s +51%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s +47%
Gemiddeld MediaTek RZ608
  (572 - 979, n=19)
855 MBit/s +37%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
833 (805min - 866max) MBit/s +33%
Gemiddelde van klas Mini PC
  (184.1 - 1776, n=81, laatste 2 jaar)
828 MBit/s +32%
Minisforum Venus Series NAB6
MediaTek RZ608
626 (301min - 689max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
Minisforum Venus Series NAB6; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø919 (853-980)
Minisforum Venus Series NAB6; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø791 (776-799)
Minisforum Venus Series NAB6; iperf3 receive AXE11000; iperf 3.1.3: Ø786 (752-801)
Minisforum Venus Series NAB6; iperf3 transmit AXE11000; iperf 3.1.3: Ø616 (301-689)

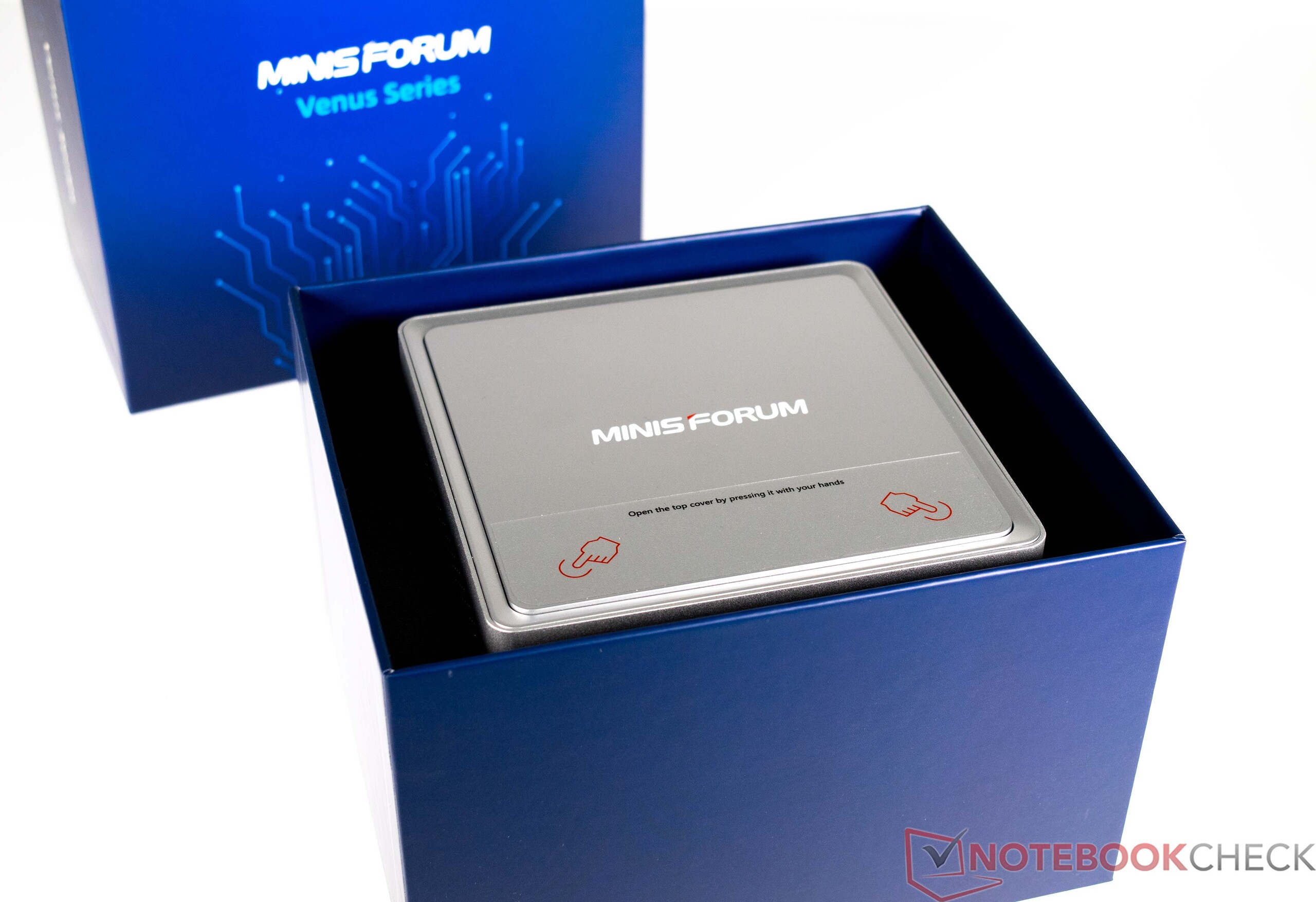

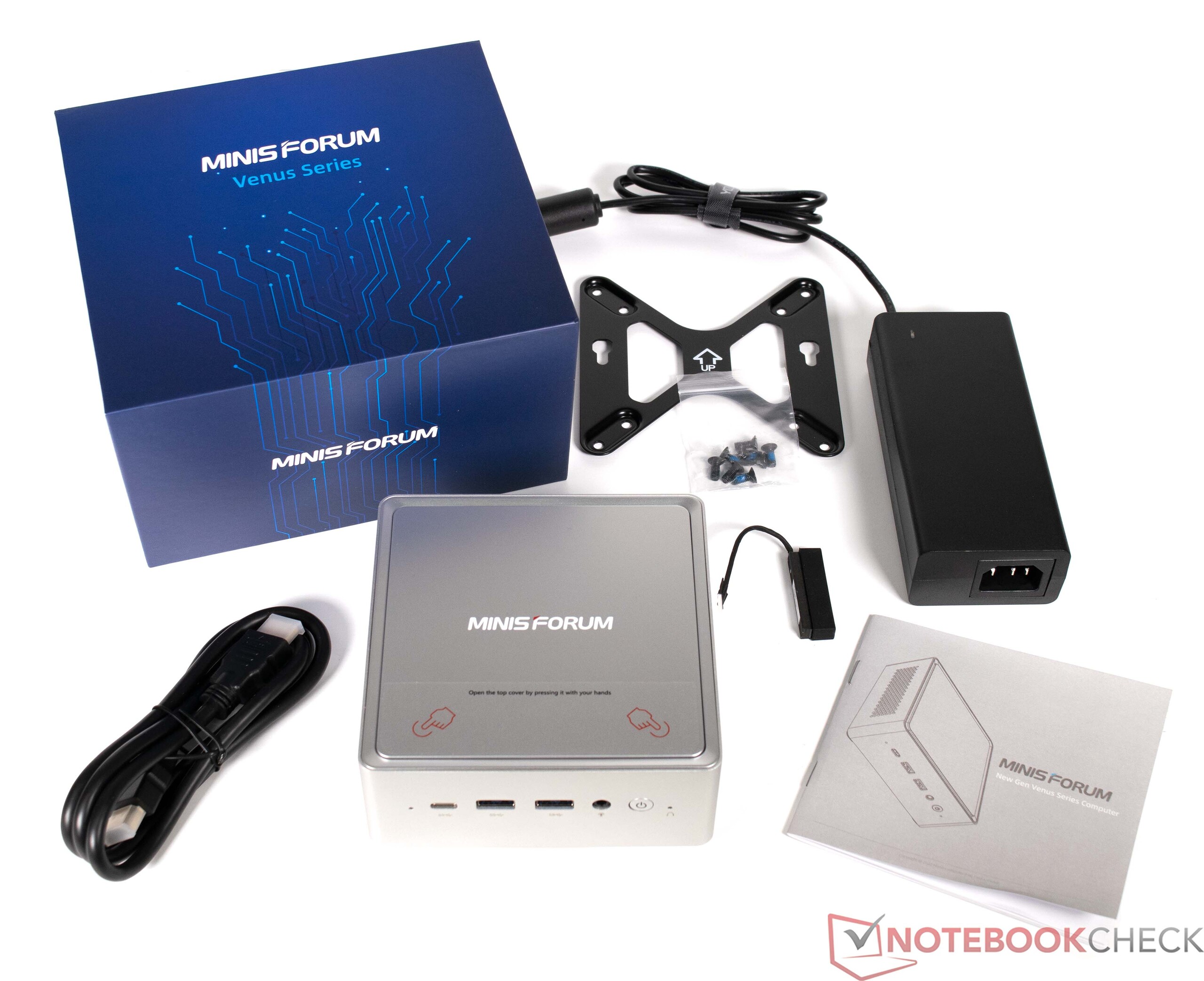

Accessoires

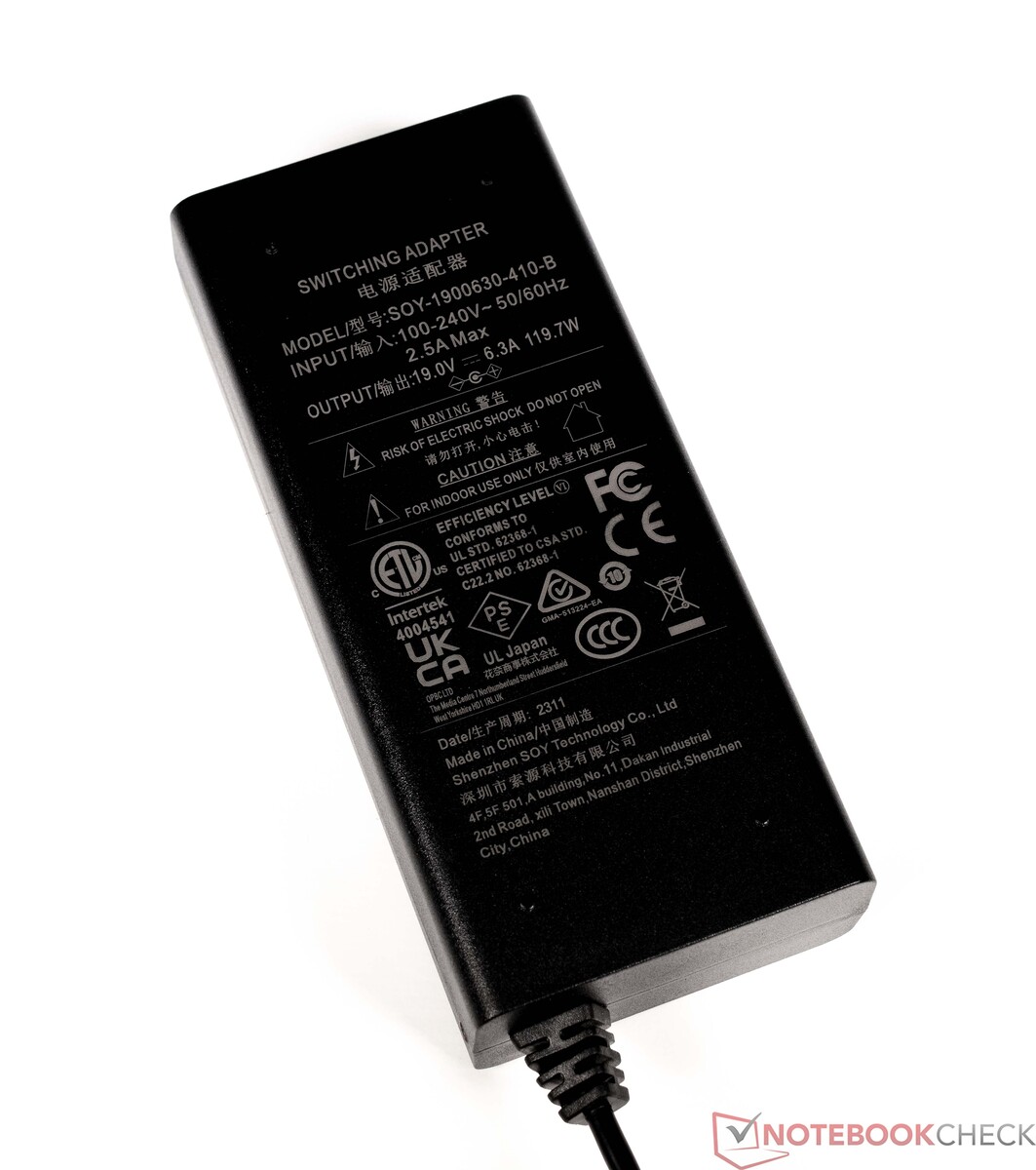

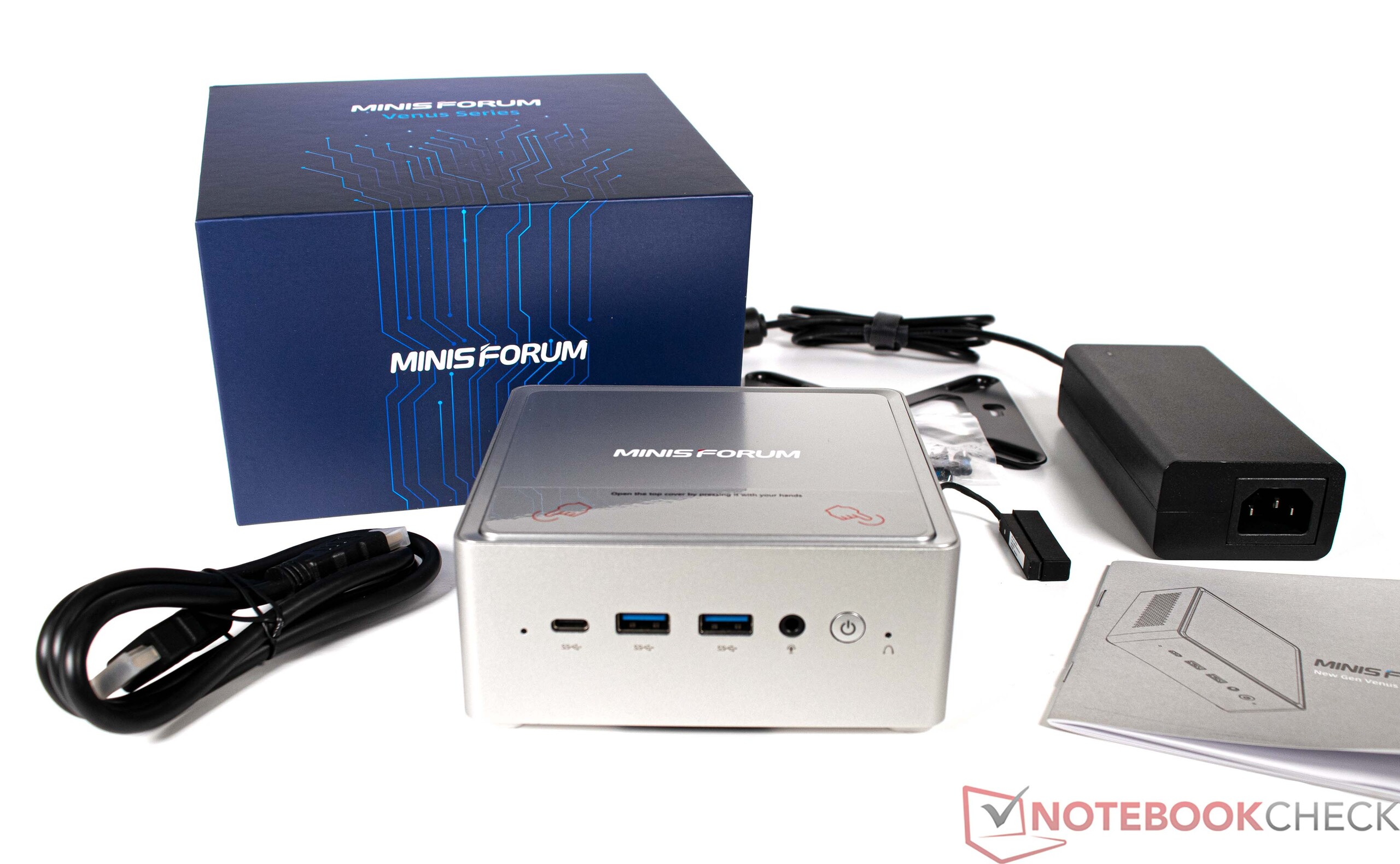

De mini-pc wordt geleverd met een 120-watt voedingsadapter en VESA-bevestiging om het apparaat op een monitor aan te sluiten. Een HDMI-kabel en een korte handleiding zijn ook inbegrepen.

Onderhoud

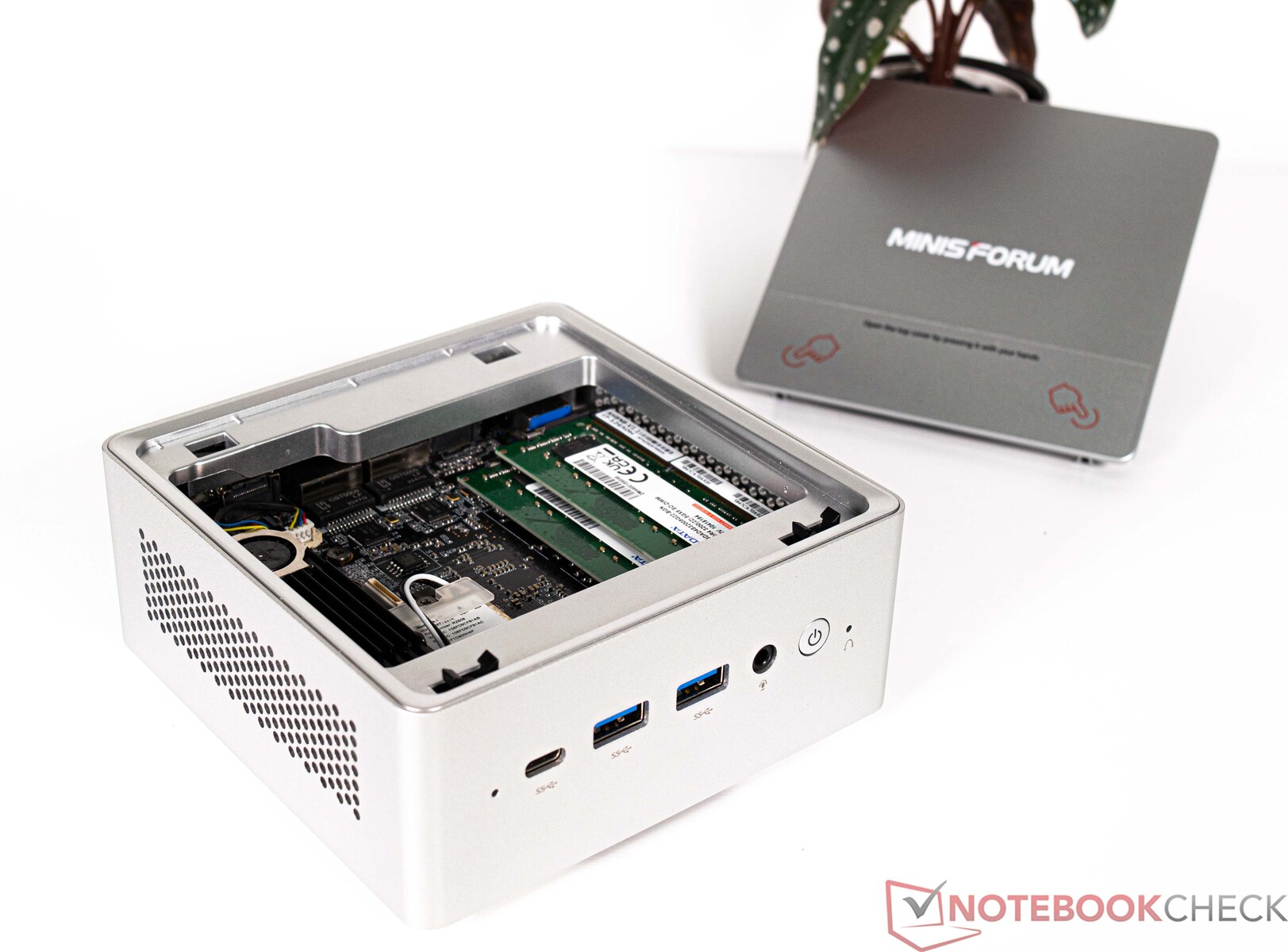

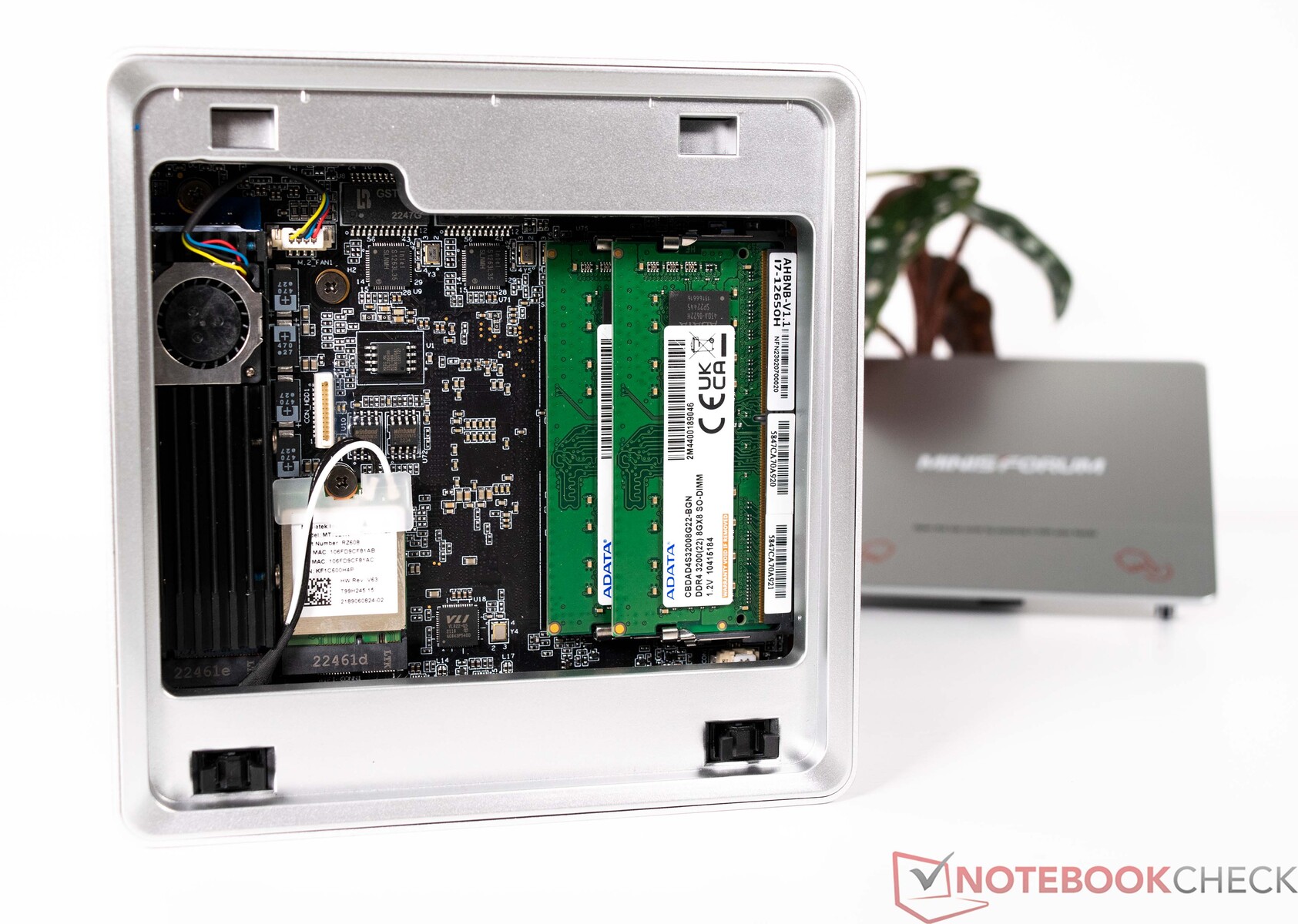

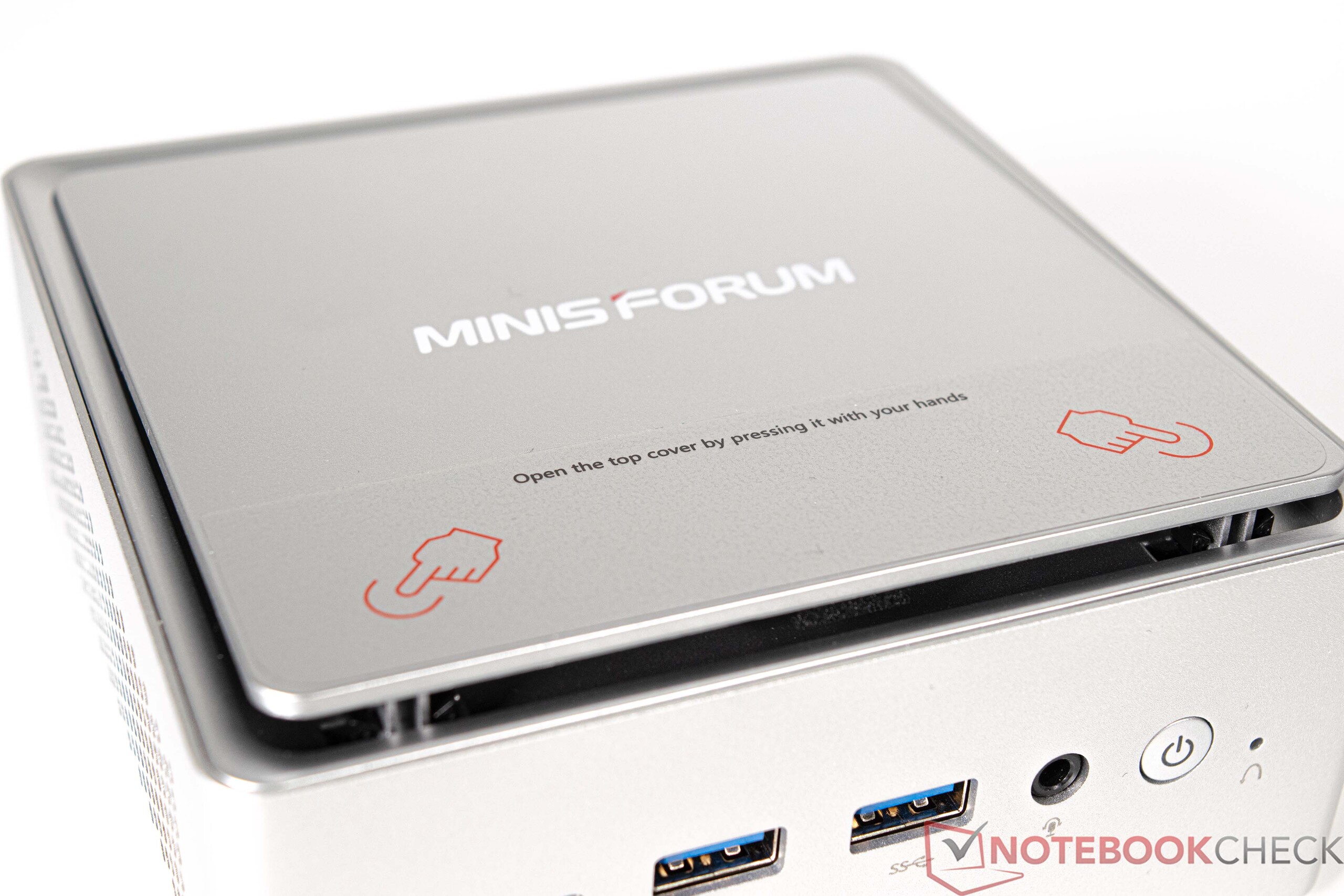

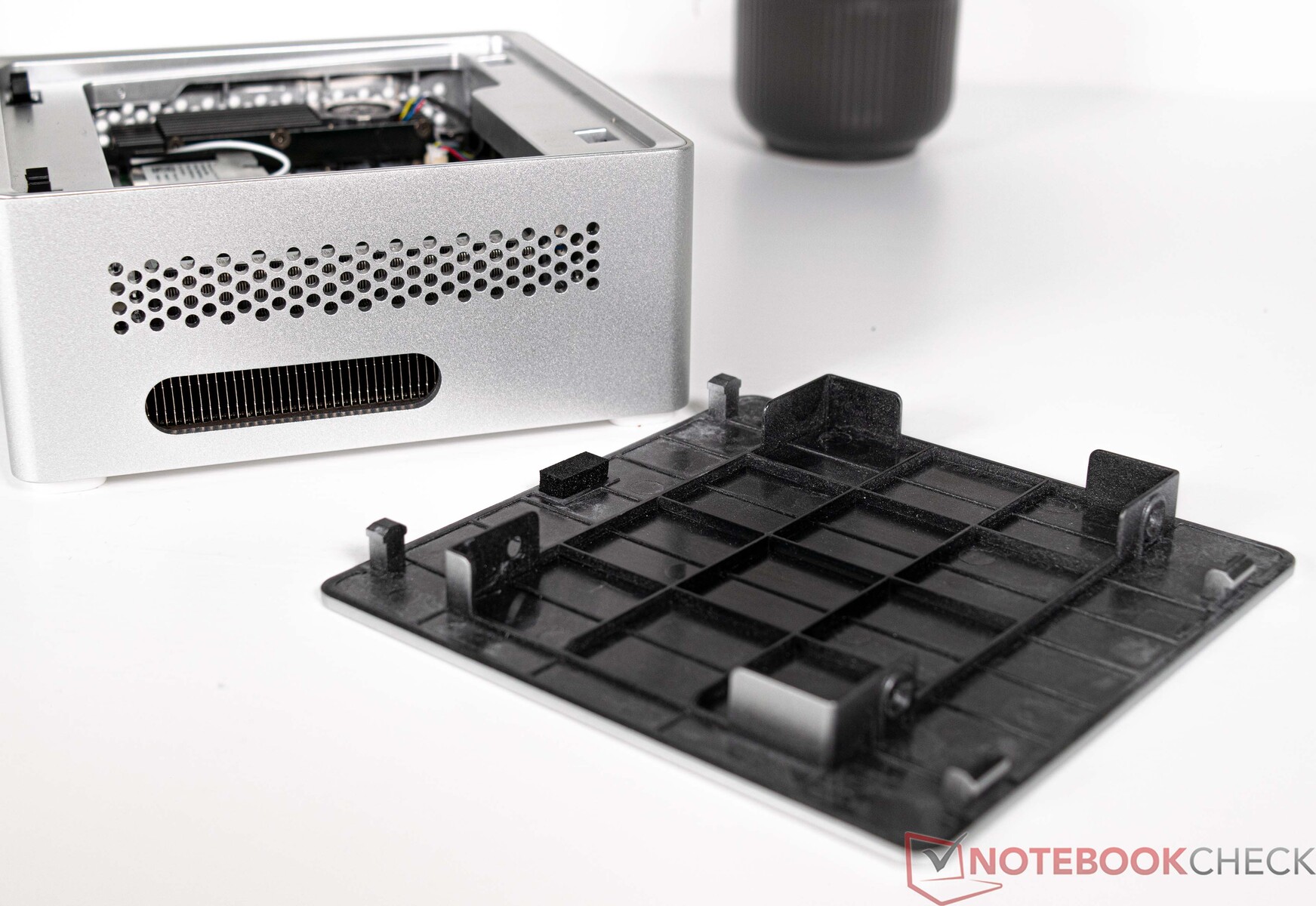

De Minisforum Venus-serie NAB6 met los deksel
De Minisforum Venus-serie NAB6 met los deksel
De Minisforum Venus-serie NAB6 met los deksel
De Minisforum Venus-serie NAB6 met los deksel

Prestaties - een Intel Alder Lake-P met tien kernen

De Minisforum Venus-serie NAB6's Intel Core i7-12650His een bruikbare SoC die het goed zal doen bij dagelijks gebruik. Direct uit de doos wordt u goed uitgerust met 16 GB RAM en een 512 GB SSD. Het RAM en de SSD kunnen beide later worden uitgewisseld en geüpgraded, wat niet het geval is voor de SoC. Als je niet tevreden bent met de prestaties van de Intel Core i7-12650H, kun je misschien beter kijken naar de Minisforum Venus Series NPB7. Het heeft eenIntel Core i7-13700Hen zal in de nabije toekomst verkrijgbaar zijn.

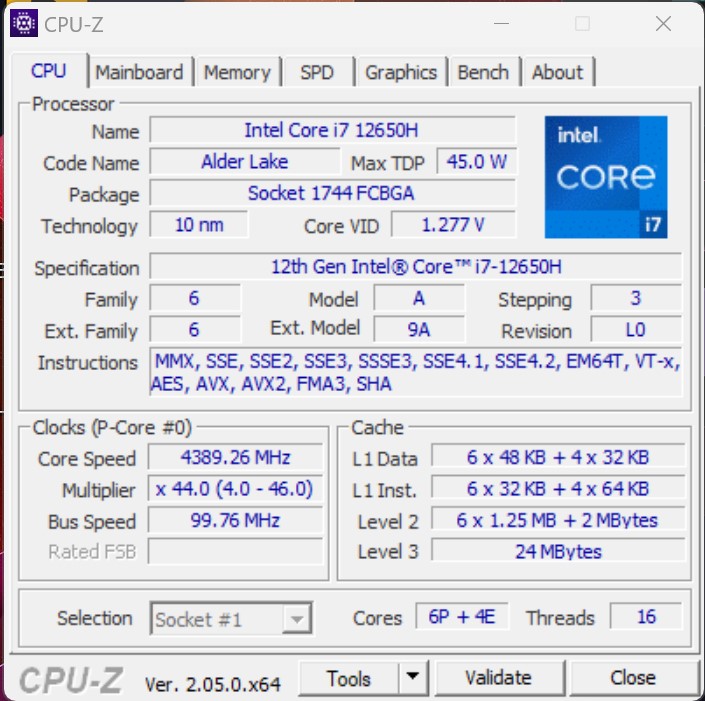

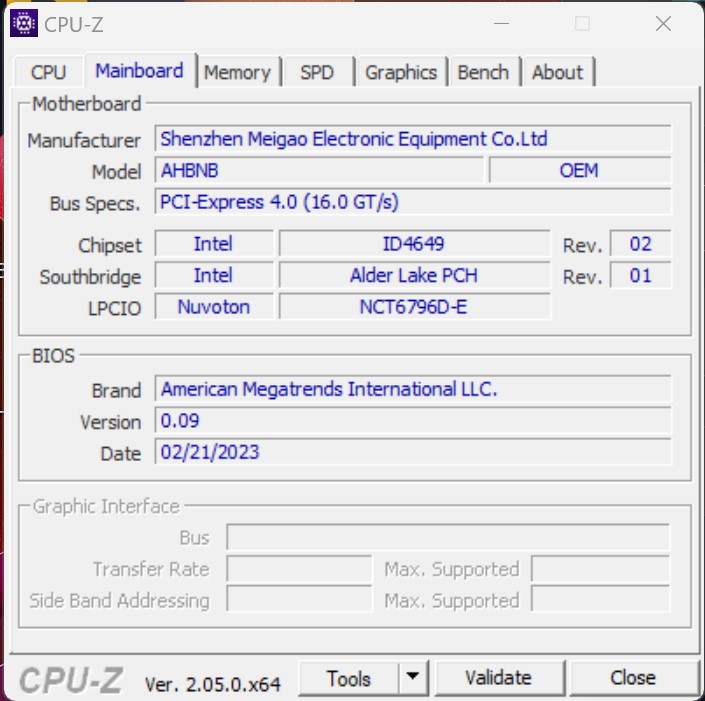

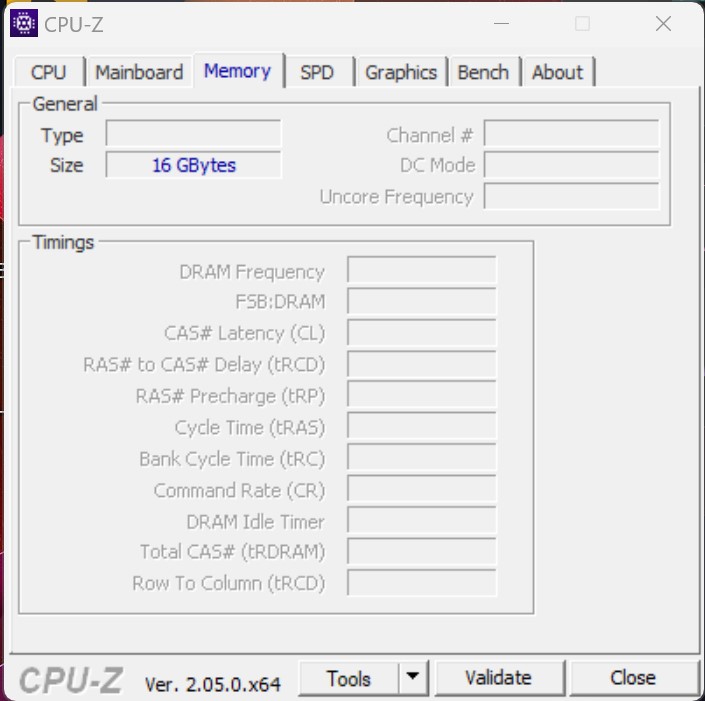

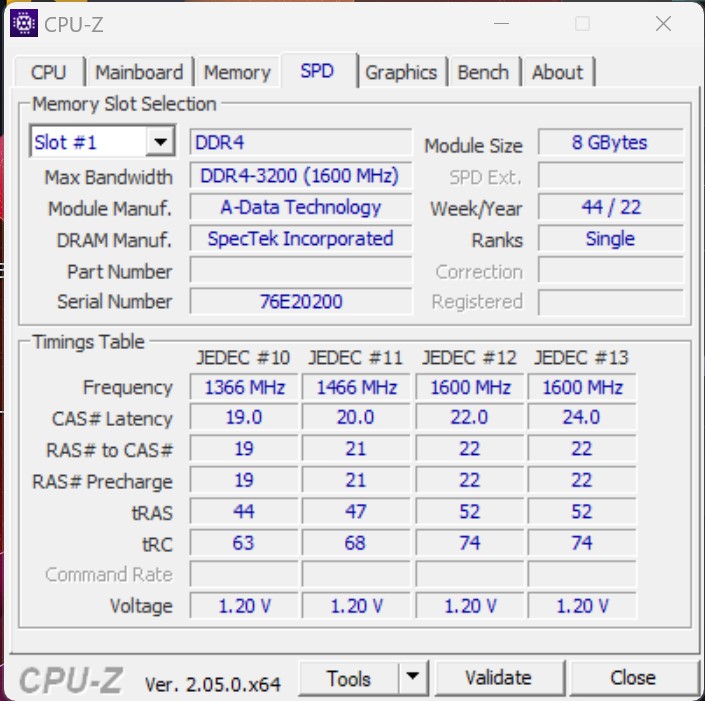

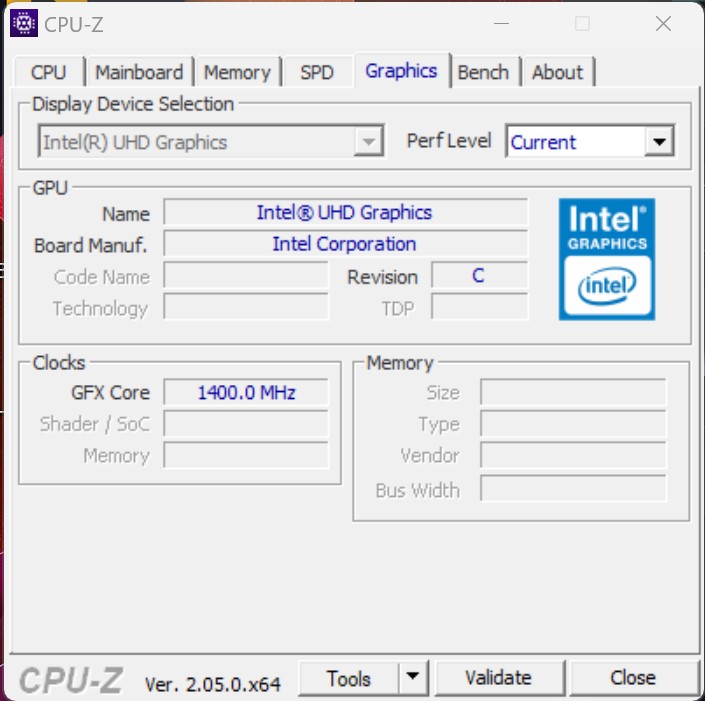

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

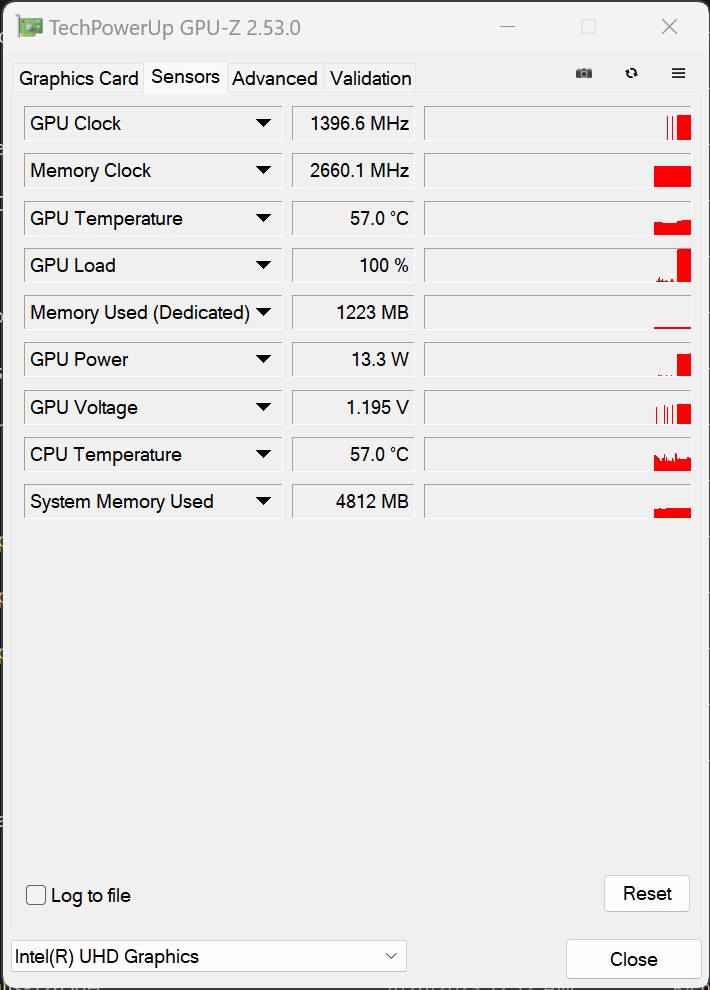

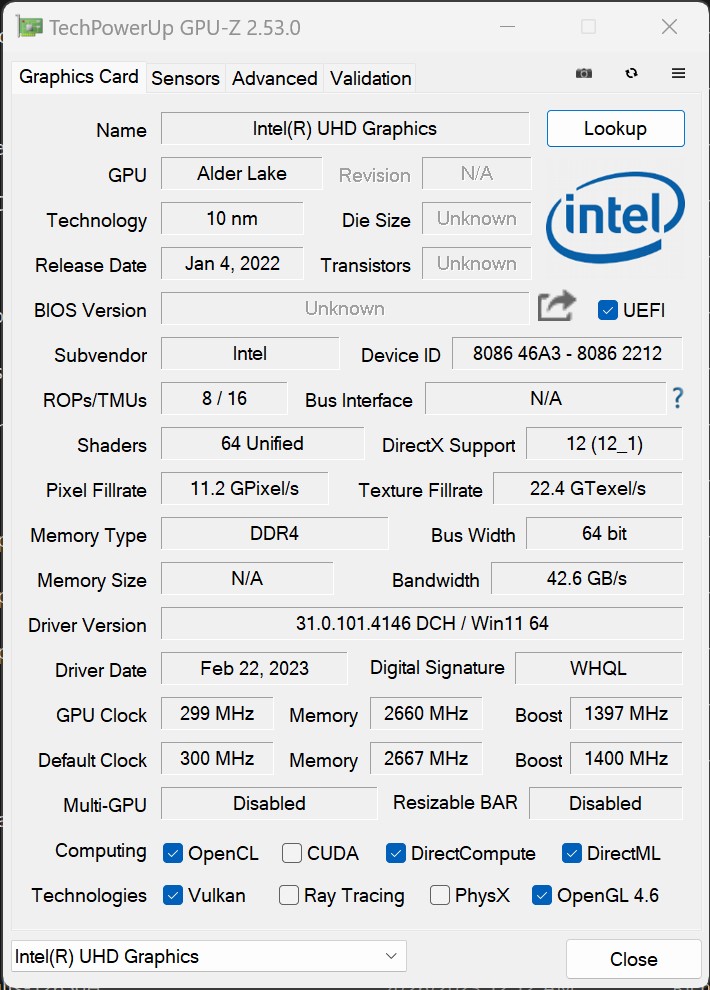

GPU-Z
GPU-Z

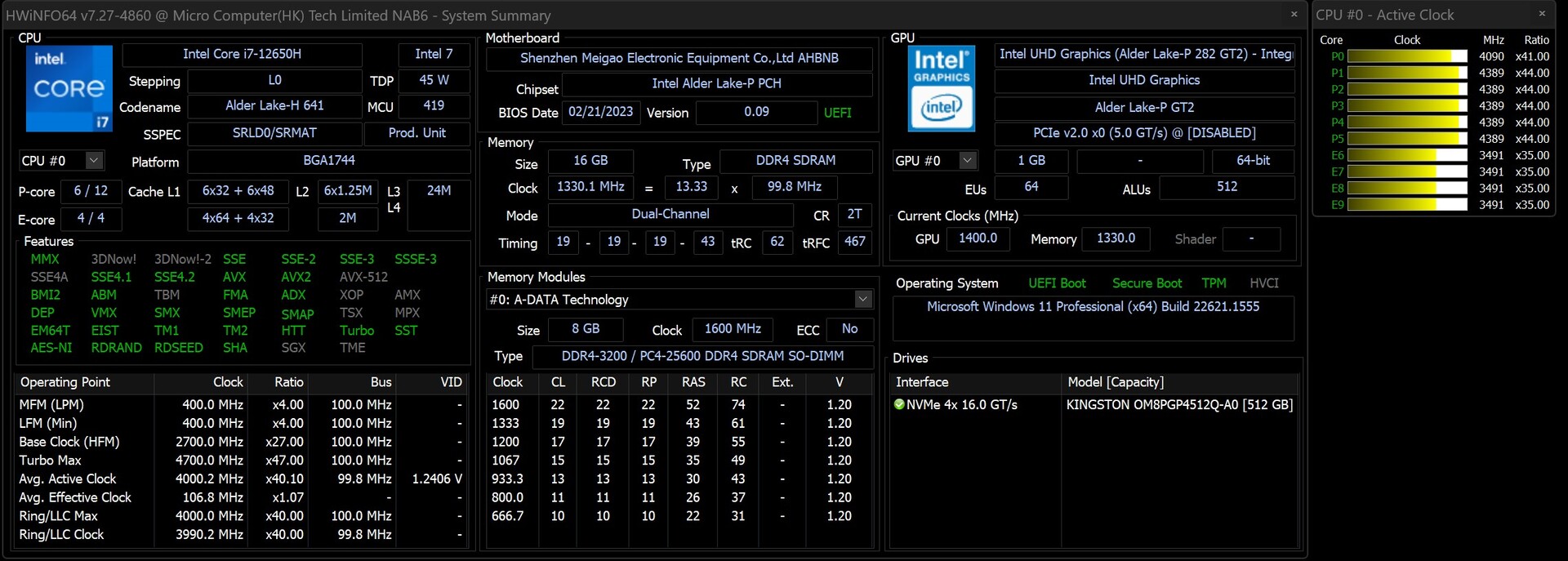

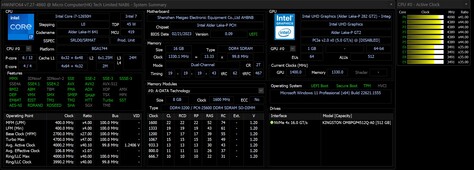

HWiNFO

Testomstandigheden

We hebben al onze tests uitgevoerd met het energieprofiel "gebalanceerd". De prestaties van de SoC werden niet gewijzigd in het BIOS en werden gelaten in de staat waarin we hem ontvingen, in overeenstemming met de instellingen van de fabrikant.

Processor

Intel Core i7-12650H (bron: Minisforum)
Intel Core i7-12650H (bron: Minisforum)

De Minisforum Venus-serie NAB6'sIntel Core i7-12650His een solide SoC die tien native cores heeft en in totaal 16 threads tegelijk kan verwerken. In onze test zat het apparaat ergens in het midden en lag het verrassend genoeg slechts twee procent achter op de Intel NUC 13 (alle CPU benchmarks vergeleken). De Intel Core i7-12650H heeft een vermogenslimiet van 64 watt en bij continue belasting heeft hij toegang tot 45 watt. Deze getallen werden gehaald - dit kunnen we al plagen. Dit betekent dat er geen prestatielimiet is door onvoldoende koeling.

Kijk voor verdere vergelijkingen en benchmarks naar onze CPU vergelijkingstabel.

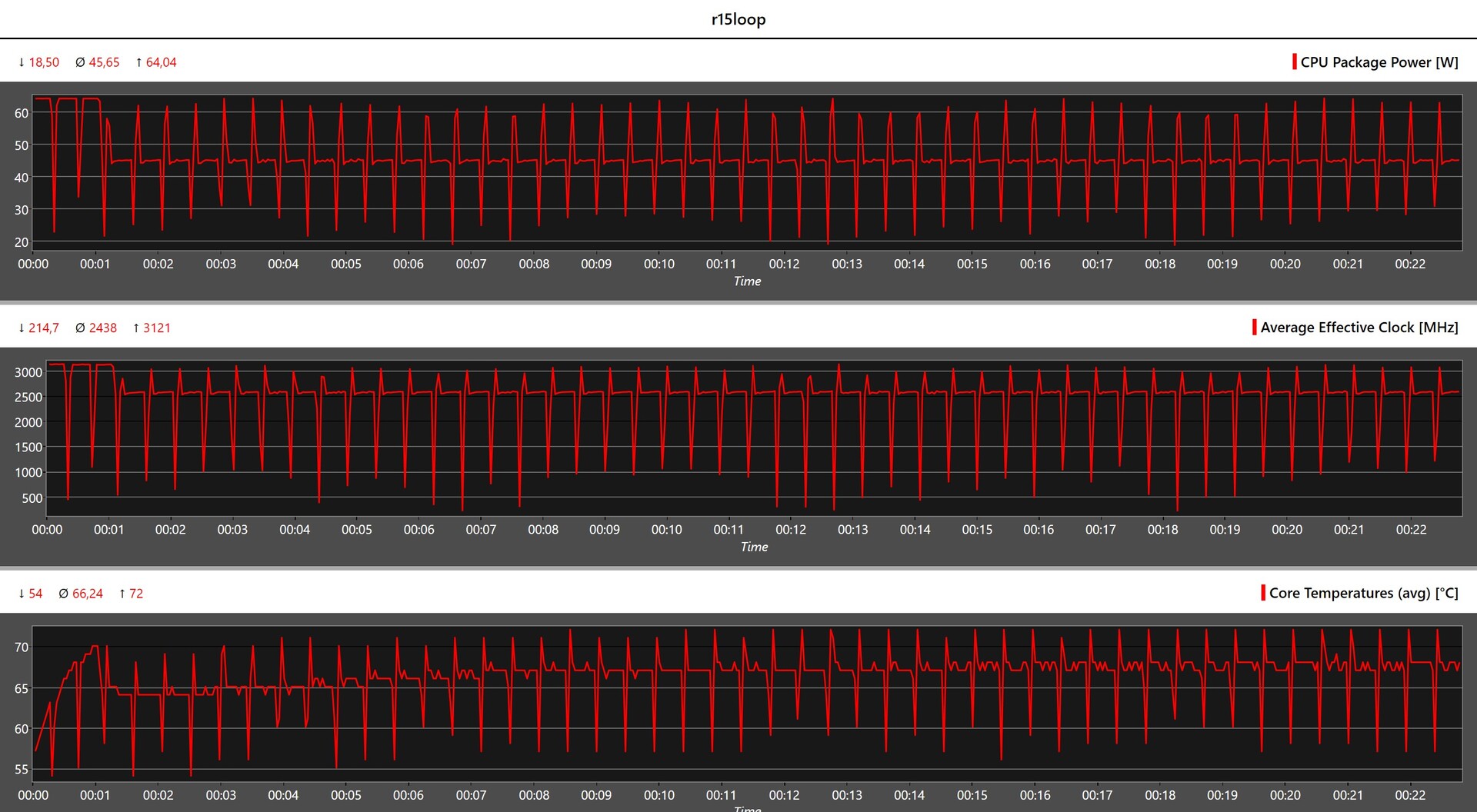

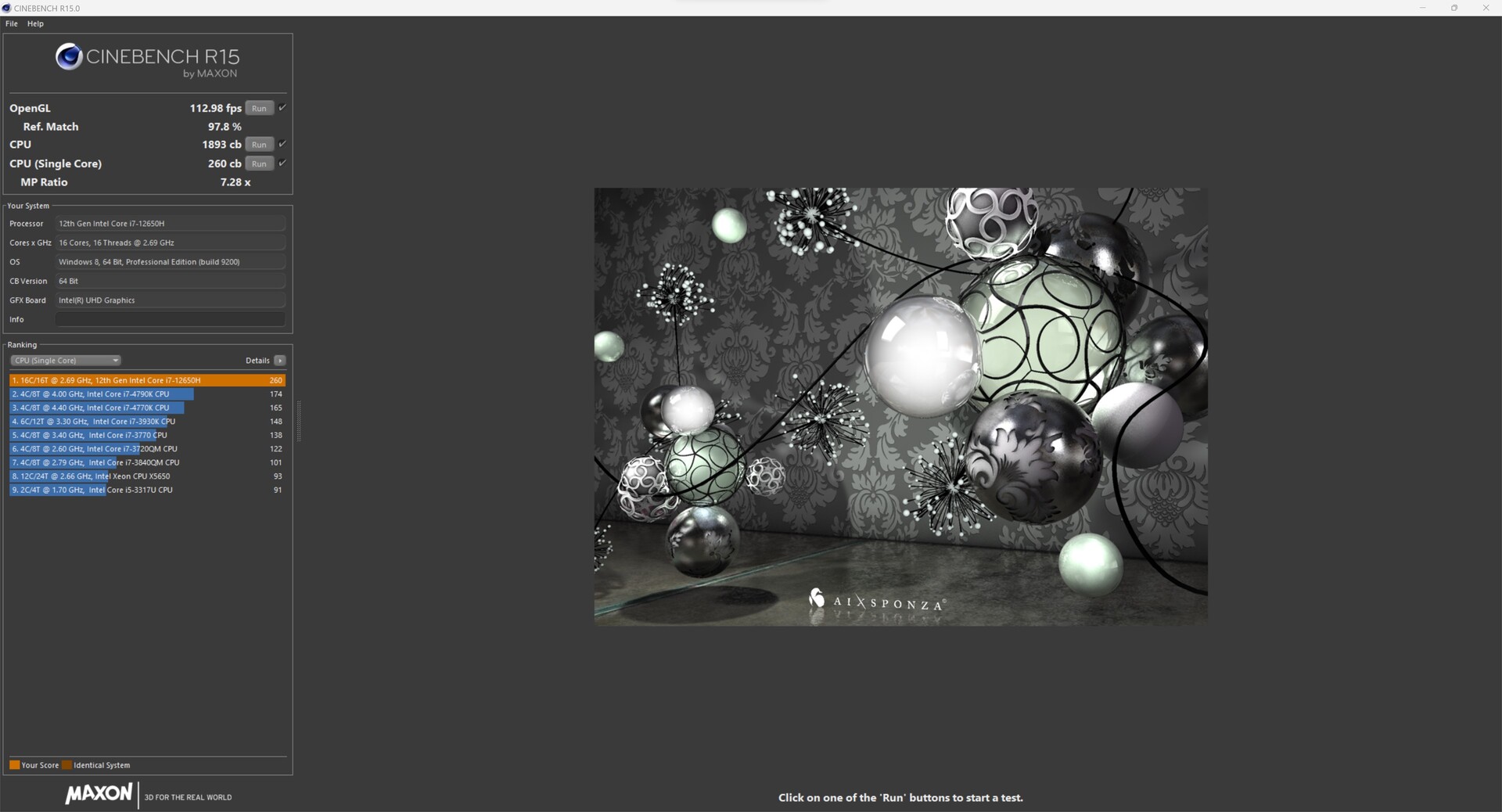

Cinebench R15
Cinebench R15

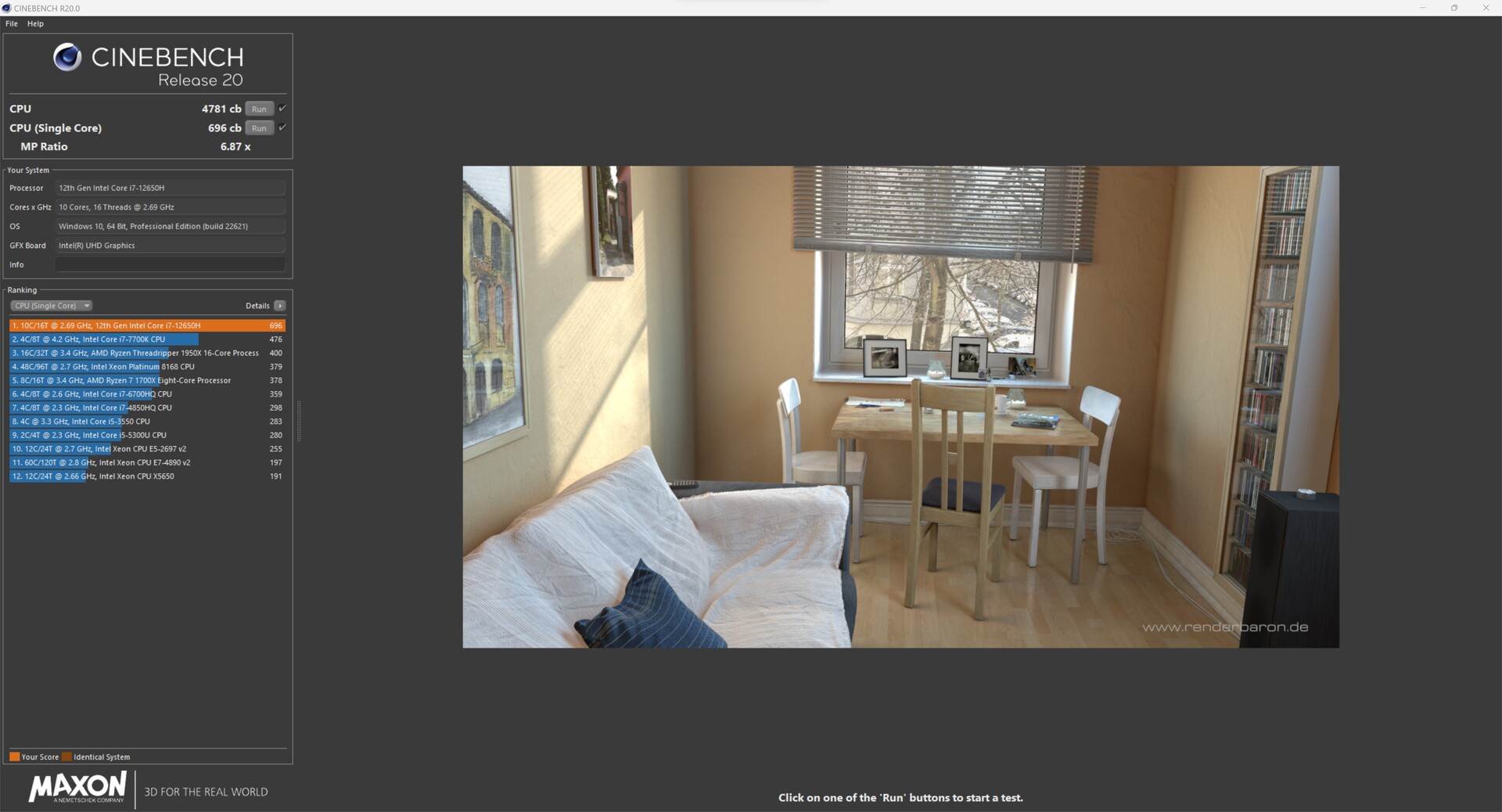

Cinebench R20
Cinebench R20

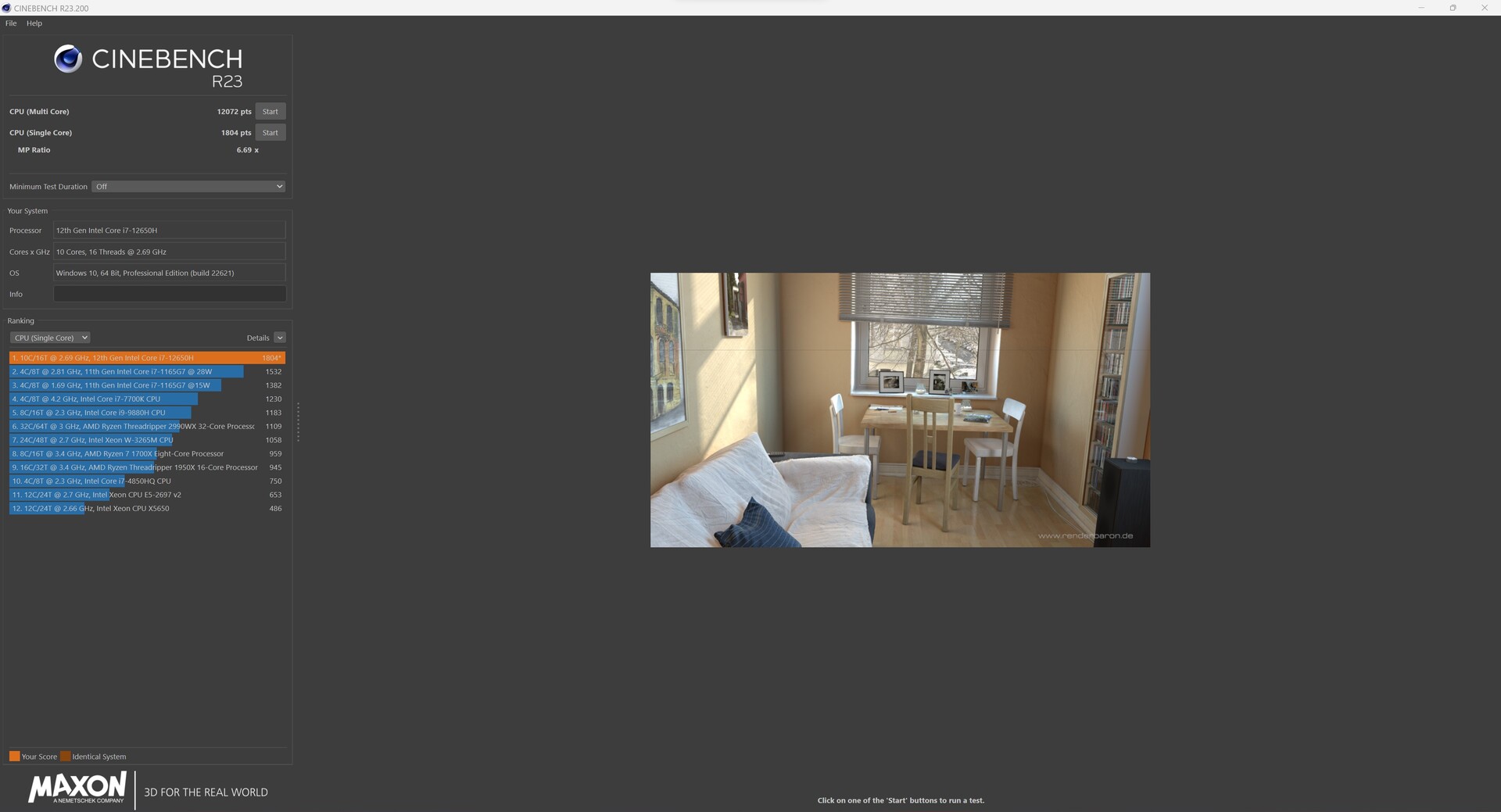

Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
49.9 pt
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
49.3 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
49 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
48.9 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.2 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
44.8 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
41 pt
Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
271 Points +4%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
261 Points 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
260 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points -5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points -14%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points +18%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +9%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2030 Points +7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1893 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points -33%
Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
736 Points +6%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
696 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points -2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
629 Points -10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points -14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points -23%
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
4887 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
4781 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points -28%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points -38%
Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1909 Points +6%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1804 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1743 Points -3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1693 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1616 Points -10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1533 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1376 Points -24%
Multi Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
13320 Points +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13222 Points +10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
12637 Points +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12375 Points +3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
12072 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8846 Points -27%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7615 Points -37%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.3 Points +5%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.14 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points -2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points -7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points -8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points -16%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points +19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +18%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
25.12 Points +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points +7%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22.08 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points -33%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
15471 Points +6%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
14533 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points -12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points -24%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
76744 Points +12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
68516 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points -21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points -34%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * -40%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
285 Seconds *
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds * +2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
275 Seconds * +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * +4%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds * +18%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * +19%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * -45%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s * -21%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.735 s * -1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.705 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s * +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +8%
1024m
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
410.289 s *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
277.01 s * +32%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s * +42%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * +54%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * +62%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * +75%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s * +77%
X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
312 (305min - 331max) fps 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
311.5 (311min - 312max) fps
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps -16%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps -17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps -25%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps -28%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps +15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
116.4 (108.5min - 128.8max) fps +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps +3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
111.1 (96.7min - 111.7max) fps
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps -30%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps -32%
WinRAR - Result
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9090 KB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s -13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s -24%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s -24%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s -25%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s -28%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5759 KB/s -37%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s +33%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
12.5 GB/s +24%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s +20%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s +3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
10.1 GB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s -24%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2.2 GB/s +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.8 GB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s -39%
Serpent Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s +9%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1.2 GB/s +9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.1 GB/s
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s -36%
Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10574 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9363 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points -2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points -5%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1850 Points +5%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1767 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points -8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points -19%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points +13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10249 Points +13%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points +6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points +6%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9099 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points -33%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +6%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1736 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points -8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points -10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1557 Points -10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points -20%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
7705 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points -12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points -13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
6698 Points -13%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points -24%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points +14%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
39852 Points +14%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points +5%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
34909 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points -30%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
18363 Points
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
17973 Points -2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points -14%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points -29%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points -31%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS +28%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS +19%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
52959 MIPS +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS +7%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
47893 MIPS
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS -18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS -22%
7z b 4 -mmt1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
6116 MIPS
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5961 MIPS -3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS -14%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps +26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps +13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
14.2 fps +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
13.6 fps
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps -26%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps -26%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * -16%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec * -3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec * -2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * -0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
0.462 sec *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
0.445 sec * +4%
LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * -35%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * -29%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s * -23%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s * -21%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
43.7 s * -10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
39.6 s *
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +4%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
309 Points
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
305 Points -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
287 Points -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points -17%
Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * -24%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * -17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * -11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
571 ms * -10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms * -4%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
519 ms *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
494 ms * +5%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points +21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
21001 Points
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
20158 Points -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points -24%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points +16%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22346 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
21523 Points -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points -19%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points -26%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +15%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points +2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
9334 Points +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9168 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points -29%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points -41%

* ... kleiner is beter

Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.3 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.9 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
73.8 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
69.4 pt
Gemiddelde van klas Mini PC

62.2 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
60.2 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
57 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +39%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s +27%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
11040 KRay/s +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
10839 KRay/s
Gemiddelde van klas Mini PC
  (561 - 27538, n=94, laatste 2 jaar)
9758 KRay/s -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s -16%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s -27%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +82%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points +61%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
55557 Points +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
54435 Points
Gemiddelde van klas Mini PC
  (3604 - 116903, n=94, laatste 2 jaar)
51601 Points -5%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points -26%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s +24%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
2728 MB/s +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s +9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
2357 MB/s
Gemiddelde van klas Mini PC
  (225 - 5096, n=94, laatste 2 jaar)
2255 MB/s -4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s -16%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +22%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
86691 Points +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points +3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
82454 Points
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points -11%
Gemiddelde van klas Mini PC
  (8172 - 119569, n=94, laatste 2 jaar)
68432 Points -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points -18%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +76%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points +67%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
7444 Points
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
7269 Points -2%
Gemiddelde van klas Mini PC
  (408 - 15525, n=94, laatste 2 jaar)
7192 Points -3%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points -25%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +97%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points +67%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points +17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
27772 Points +4%
Gemiddelde van klas Mini PC
  (1958 - 62378, n=94, laatste 2 jaar)
27375 Points +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
26735 Points
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points -26%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +48%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
99244 MB/s +7%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
92530 MB/s
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s -15%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s -19%
Gemiddelde van klas Mini PC
  (3691 - 177158, n=94, laatste 2 jaar)
73659 MB/s -20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s -39%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +28%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
807 MB/s +20%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
674 MB/s
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s -15%
Gemiddelde van klas Mini PC
  (74.8 - 1117, n=94, laatste 2 jaar)
570 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s -25%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s +26%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
5920 KRay/s +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
5771 KRay/s
Gemiddelde van klas Mini PC
  (308 - 14722, n=94, laatste 2 jaar)
5212 KRay/s -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s -20%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s -28%
AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s +6%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
29108 MPixel/s +4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s 0%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
28010 MPixel/s
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s -1%
Gemiddelde van klas Mini PC
  (4408 - 44347, n=94, laatste 2 jaar)
24394 MPixel/s -13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -31%

Minisforum Venus Series NAB6 vs. Cinebench R15 Multi Loop

De Cinebench R15 continue loop geeft ons inzicht in hoe de SoC zich over een langere periode gedraagt. De Minisforum Venus Series NAB6 presteerde goed over de 50 runs, hoewel er een lichte prestatiedip te zien was na de derde run. De Intel Core i7-12650Hbereikte zijn maximale vermogen van 64 watt slechts korte tijd na de vierde run. De gemiddelde temperatuur van de SoC was met 66 °C niet erg hoog.

CPU statistieken tijdens de Cinebench R15 loop
CPU statistieken tijdens de Cinebench R15 loop
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Systeemprestaties

Opnieuw komt de Minisforum Venus Series NAB6 ergens in het midden met betrekking tot zijn systeemprestaties tijdens de synthetische benchmarks. Zijn concurrenten met een AMD Ryzen 9 6900HX presteerden beter en lagen gemiddeld 10-16 procent voor. Tijdens de Crossmark test presteerden de Intel mini PC's het beste. Hier behaalde ons testexemplaar de tweede plaats en de derde plaats tijdens de AIDA64 geheugentest. De Morefine M600en deMinisforum Venus Series UM690presteerden beter dankzij hun DDR5 RAM. Subjectief gezien zijn de systeemprestaties van de Minisforum Venus Series NAB6 goed. We hebben geen merkbare latenties gemeten bij dagelijks gebruik.

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points +16%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points +10%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
6281 Points +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
6057 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points -5%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -7%
PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
11596 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
11395 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points -2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points -9%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points -11%
PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points +23%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points +17%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
8164 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
7893 Points -3%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -6%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points -9%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +1%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1875 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1810 Points -3%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points -19%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points -27%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
2077 Points
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points -17%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points -20%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1578 Points -24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points -39%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points -40%
CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1970 Points +9%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1811 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points -1%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points -3%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points -24%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1876 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1740 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points -7%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points -21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points -25%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
46936 MB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
44892 MB/s -4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s -5%
Gemiddelde van klas Mini PC
  (6481 - 70620, n=94, laatste 2 jaar)
42447 MB/s -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s -25%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s +2%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
50120 MB/s
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s 0%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s -5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
45196 MB/s -10%
Gemiddelde van klas Mini PC
  (6914 - 71285, n=94, laatste 2 jaar)
43068 MB/s -14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s -23%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s +16%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s +16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
47383 MB/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
46179 MB/s -3%
Gemiddelde van klas Mini PC
  (6862 - 89318, n=94, laatste 2 jaar)
46008 MB/s -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s -21%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -40%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
96.1 ns * -34%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * -29%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * -28%
Gemiddelde van klas Mini PC
  (44.9 - 154.6, n=94, laatste 2 jaar)
87.2 ns * -22%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * -16%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * -12%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
71.6 ns *

* ... kleiner is beter

DPC latentie

De tool LatencyMon mat licht verhoogde latenties bij het openen van meerdere tabbladen met Edge, die hoger werden na het starten van onze 4K-testvideo. Prime95 leidde niet tot nog hogere waarden. Ter vergelijking, de Minisforum Venus Series NAB6 deed het nog steeds vrij goed en behaalde de tweede plaats achter deAce Magician AMR5.

Maximale vertraging bij het openen van meerdere browsertabbladen en het afspelen van 4K-video
Maximale vertraging bij het openen van meerdere browsertabbladen en het afspelen van 4K-video
Maximale latenties na tien seconden Prime95
Maximale latenties na tien seconden Prime95
Bestuurders gerangschikt naar maximale uitvoeringsduur
Bestuurders gerangschikt naar maximale uitvoeringsduur
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1488 μs * -87%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1317 μs * -66%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1113.9 μs * -40%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1087 μs * -37%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
985.8 μs * -24%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
795 μs *
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
765 μs * +4%

* ... kleiner is beter

Opslagapparaten

Minisforum heeft de Venus Series NAB6 uitgerust met een 512 GB NVMe SSD van Kingston. Vergelijkbare apparaten zijn te vinden in deMinisforum Neptune Series NAD9evenals in deMinisforum Venus Series UM690. De Kingston SSD in ons testapparaat kan eenvoudigweg niet meekomen in vergelijking met zijn concurrenten van dezelfde fabrikant. Ons testapparaat hoeft zich echter niet te verstoppen; de leessnelheden waren goed - vooral de 4K-leessnelheden van meer dan 100 MB/s.

Als het gaat om koeling, kiest de NAB6 een iets andere aanpak met zijn geïnstalleerde koelsysteem met een kleine ventilator. De SSD slaagde in de continue test - en zonder enige prestatiedaling. We hebben dezelfde test echter herhaald met de ventilator uitgeschakeld en de resultaten waren in principe hetzelfde. Dit roept de vraag op waarom de fabrikant ervoor koos om actieve SSD koeling te installeren. Hoewel, het werkt tenminste stil genoeg dat het je niet zou moeten storen bij dagelijks gebruik.

In totaal kunnen er drie SSD's worden geïnstalleerd in de Minisforum Venus Series NAB6. Naast de NVMe SSD kun je ook een M.2 2242 formaat SSD installeren - maar alleen met SATA snelheden. Daarnaast kan ook een 2,5-inch opslagapparaat in het apparaat worden geïnstalleerd. Je moet er alleen voor zorgen dat het niet groter is dan 7 millimeter.

Kijk voor meer vergelijkingen en benchmarks naar onze vergelijkingstabel.

512 GB SSD (Kingston)
512 GB SSD (Kingston)
512 GB SSD (Kingston)
512 GB SSD (Kingston)
In het deksel kan een 2,5-inch opslagapparaat worden geïnstalleerd
In het deksel kan een 2,5-inch opslagapparaat worden geïnstalleerd
AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Kingston OM8PGP4512Q-A0
Sequential Read: 2429 MB/s
Sequential Write: 3512 MB/s
512K Read: 2087 MB/s
512K Write: 850.2 MB/s
4K Read: 70.14 MB/s
4K Write: 364.3 MB/s
4K QD32 Read: 795.7 MB/s
4K QD32 Write: 447.7 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
83.5 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
79.4 pt
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
70.5 pt
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
68.3 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
65.3 pt
Gemiddelde van klas Mini PC

43.2 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
39.6 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
35.9 pt
DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3375 (3310.44min - 3375.33max) MB/s +26%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +19%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +5%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2689 (2681.42min - 2688.76max) MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s -23%
Gemiddelde van klas Mini PC
  (233 - 4168, n=93, laatste 2 jaar)
2024 MB/s -25%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s -46%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s -56%
seq write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3544 (3538.94min - 3544.19max) MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s 0%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3360 (1416.73min - 3360.47max) MB/s -5%
Gemiddelde van klas Mini PC
  (222 - 5595, n=93, laatste 2 jaar)
2042 MB/s -42%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s -49%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s -57%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s -66%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
6729 (6134.8min - 6728.5max) MB/s +40%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s 0%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s 0%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4797 (4271.21min - 4796.87max) MB/s
Gemiddelde van klas Mini PC
  (236 - 8430, n=93, laatste 2 jaar)
3134 MB/s -35%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2444 (2328.09min - 2444.09max) MB/s -49%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1987 (1409.4min - 1987.27max) MB/s -59%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1694 (1415.05min - 1693.87max) MB/s -65%
seq q8 t1 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3541 (3519.65min - 3541.04max) MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s 0%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
2830 (1138.15min - 2830.32max) MB/s -20%
Gemiddelde van klas Mini PC
  (228 - 6669, n=93, laatste 2 jaar)
2209 MB/s -38%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1769 (1687.39min - 1768.92max) MB/s -50%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1213 (1155.74min - 1212.78max) MB/s -66%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1084 (553.02min - 1084.16max) MB/s -69%
4k q1 t1 read
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
82.8 (82.48min - 82.75max) MB/s
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s -1%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s -14%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
55.6 (54.87min - 55.6max) MB/s -33%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
51.8 (51.62min - 51.84max) MB/s -37%
Gemiddelde van klas Mini PC
  (5.67 - 86.6, n=93, laatste 2 jaar)
51.2 MB/s -38%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
48.5 (48.27min - 48.47max) MB/s -41%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
48.2 (48.04min - 48.16max) MB/s -42%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +1%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
420 (417.55min - 420.16max) MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s -31%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
276 (193.9min - 275.81max) MB/s -34%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
220 (212.2min - 220.15max) MB/s -48%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
210 (122.22min - 209.88max) MB/s -50%
Gemiddelde van klas Mini PC
  (22 - 425, n=93, laatste 2 jaar)
185.1 MB/s -56%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
177.7 (176.17min - 177.7max) MB/s -58%
4k q32 t16 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s 0%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1939 (1934.48min - 1939.25max) MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1225 (1194.7min - 1224.8max) MB/s -37%
Gemiddelde van klas Mini PC
  (26.1 - 2810, n=93, laatste 2 jaar)
1069 MB/s -45%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
991 (989.79min - 991.47max) MB/s -49%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
420 (418.45min - 419.54max) MB/s -78%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
354 (11.43min - 353.56max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3388 (3373.11min - 3387.88max) MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s -2%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s -29%
Gemiddelde van klas Mini PC
  (30.2 - 3983, n=93, laatste 2 jaar)
1071 MB/s -68%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
942 (402.72min - 941.71max) MB/s -72%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
893 (601.78min - 892.97max) MB/s -74%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
659 (650.84min - 659.33max) MB/s -81%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
626 (605.6min - 625.63max) MB/s -82%
AS SSD
Score Total
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
9030 Points +90%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points +50%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points +40%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
6005 Points +27%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4744 Points
Gemiddelde van klas Mini PC
  (151.3 - 9030, n=91, laatste 2 jaar)
3523 Points -26%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2797 Points -41%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2491 Points -47%
Score Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3635 Points +54%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points +1%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2356 Points
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1673 Points -29%
Gemiddelde van klas Mini PC
  (61 - 3635, n=91, laatste 2 jaar)
1343 Points -43%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1162 Points -51%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
725 Points -69%
Score Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3615 Points +176%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3574 Points +173%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points +170%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points +140%
Gemiddelde van klas Mini PC
  (88 - 4185, n=91, laatste 2 jaar)
1544 Points +18%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1457 Points +11%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1308 Points
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1059 Points -19%
Seq Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
5338 MB/s +38%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
4767 MB/s +23%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s +7%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s +5%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3874.21 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2789 MB/s -28%
Gemiddelde van klas Mini PC
  (291 - 6620, n=91, laatste 2 jaar)
2788 MB/s -28%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2260 MB/s -42%
Seq Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3927 MB/s +345%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s +273%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s +243%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
2442 MB/s +177%
Gemiddelde van klas Mini PC
  (240 - 5783, n=91, laatste 2 jaar)
1929 MB/s +118%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1644 MB/s +86%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1232 MB/s +40%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
882.93 MB/s
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +1%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
102.97 MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s -16%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
78.3 MB/s -24%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.6 MB/s -35%
Gemiddelde van klas Mini PC
  (6.08 - 104.2, n=91, laatste 2 jaar)
55.5 MB/s -46%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
52.54 MB/s -49%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
48.9 MB/s -53%
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +3%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
354.53 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
273 MB/s -23%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s -32%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
209 MB/s -41%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
209 MB/s -41%
Gemiddelde van klas Mini PC
  (30.9 - 366, n=91, laatste 2 jaar)
167.1 MB/s -53%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
144.1 MB/s -59%
4K-64 Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3035 MB/s +63%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s 0%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
1865.81 MB/s
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1118 MB/s -40%
Gemiddelde van klas Mini PC
  (23.4 - 3035, n=91, laatste 2 jaar)
1009 MB/s -46%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
883.24 MB/s -53%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
397 MB/s -79%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3120 MB/s +261%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3013 MB/s +248%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s +229%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s +201%
Gemiddelde van klas Mini PC
  (32.8 - 3598, n=91, laatste 2 jaar)
1184 MB/s +37%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1060 MB/s +23%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
865.27 MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
750.4 MB/s -13%
Access Time Read
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.117 ms *
Gemiddelde van klas Mini PC
  (0.022 - 0.489, n=91, laatste 2 jaar)
0.1032 ms * +12%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.098 ms * +16%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.075 ms * +36%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * +37%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.066 ms * +44%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms * +44%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
0.045 ms * +62%
Access Time Write
Gemiddelde van klas Mini PC
  (0.016 - 0.765, n=91, laatste 2 jaar)
0.128 ms * -16%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.118 ms * -7%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
0.11 ms *
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.102 ms * +7%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * +72%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms * +72%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
0.02 ms * +82%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.018 ms * +84%

* ... kleiner is beter

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
Minisforum Venus Series NAB6: Ø4789 (4164.37-4807.96)

Grafische kaart

Het apparaat heeft een geïntegreerdeIntel UHD Graphicsgrafische kaart met 64 EU's. Alleen al kijkend naar de prestaties kan dit model eigenlijk alleen gebruikt worden voor 2D-weergave. De iGPU is gewoon te zwak voor complexe 3D-weergave. De nieuwereIntel Iris Xe Graphics G7modellen zijn iets krachtiger, maar vergeleken met de AMD's in de huidige iGPU's zoals de AMD Radeon 680Mblijven ze nog steeds achter.

Kijk voor meer vergelijkingen en benchmarks naar onzeGPU vergelijkingstabel.

3DMark Performance Rating - Percent
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
99.1 pt
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
98 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
72.5 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
69.8 pt
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
63 pt
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
53.8 pt
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
51.4 pt
3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
11055 Points +102%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
10845 Points +99%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7143 Points +31%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
7057 Points +29%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6599 Points +21%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
5610 Points +3%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
5462 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
43275 Points +102%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
41124 Points +92%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
30434 Points +42%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
27511 Points +29%
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
26247 Points +23%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
22570 Points +6%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
21383 Points
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
6679 Points +63%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
6644 Points +62%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
5526 Points +35%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5229 Points +28%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4860 Points +19%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
4098 Points
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
3586 Points -12%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
2408 Points +98%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
2351 Points +93%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1673 Points +37%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
1658 Points +36%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1528 Points +26%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1217 Points
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1102 Points -9%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
3206 Points +72%
Morefine M600, 6900HX
AMD Radeon 680M, AMD Ryzen 9 6900HX
3066 Points +64%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H
2455 Points +32%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
2340 Points +25%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2150 Points +15%
Minisforum Venus Series NAB6
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H
1866 Points
Minipc Union Ace Magician AMR5
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1472 Points -21%
Performance Rating - Percent
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
98.3 pt
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
90 pt
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
62.5 pt
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57.9 pt
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
55.8 pt
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
49.4 pt
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
48.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
34.6 fps +76%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
33.6 fps +71%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
23.6 fps +20%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
23.3 fps +18%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21 fps +7%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
19.7 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
17.7 fps -10%
Extreme Preset DX11
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
33.4 fps +64%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
32.2 fps +58%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
24.5 fps +20%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
24 fps +18%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
21.7 fps +6%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
20.4 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
17.1 fps -16%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
21 fps +64%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
18.8 fps +47%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
15.1 fps +18%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
14.3 fps +12%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
13.2 fps +3%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
12.8 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
11.3 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
22.8 fps +51%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
21.3 fps +41%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
17.7 fps +17%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
16.1 fps +7%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
15.2 fps +1%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
15.1 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
11.5 fps -24%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
7111 Points +183%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
5813 Points +131%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
3603 Points +43%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
3390 Points +35%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
3308 Points +32%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
3225 Points +28%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
2512 Points
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
400 Points +85%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
371 Points +72%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
284 Points +31%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points +10%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
234 Points +8%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
224 Points +4%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
216 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
404 Points +84%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
367 Points +67%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
277 Points +26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
249 Points +13%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
237 Points +8%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
220 Points
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
212 Points -4%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2030 Points +320%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1677 Points +247%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
982 Points +103%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
911 Points +89%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
851 Points +76%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
827 Points +71%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
483 Points
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1945 Points +153%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1473 Points +91%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
906 Points +18%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
865 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
862 Points +12%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
834 Points +8%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
770 Points
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
2332 Points +183%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1924 Points +134%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1268 Points +54%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1191 Points +45%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
1174 Points +43%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
900 Points +9%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
823 Points
3DMark 05 Standard
40841 punten
3DMark 06 Standard Score
31196 punten
3DMark Vantage P Result
21147 punten
3DMark 11 Performance
6122 punten
3DMark Ice Storm Standard Score
63449 punten
3DMark Cloud Gate Standard Score
19838 punten
3DMark Fire Strike Score
3858 punten
3DMark Fire Strike Extreme Score
1851 punten
3DMark Time Spy Score
1398 punten
Help

Spelprestaties

De Minisforum Venus Series NAB6 is niet het meest geschikt voor gaming vanwege de beperkte 3D-prestaties van de iGPU. We zagen alleen speelbare framerates bij het spelen van oudere games. DeIntel UHD Graphicsbeheerst huidige games alleen bij 720p en met weinig detail. Als je meer belang hecht aan 3D prestaties, kun je beter kijken naar deMiniforum Venus Series UM690. Zijn iGPU presteert veel beter. Als alternatief kunt u kijken naar deHX99Gen deNUCXi7- ook van Minisforum. Deze twee bieden goede gaming prestaties dankzij hun dedicated grafische kaarten.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
131.8 fps +63%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
113.9 fps +41%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
101.7 fps +26%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
97.2 fps +20%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
86.9 fps +8%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
80.8 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
61.8 (16.1min, 20.6P0.1, 34.6P1) fps -24%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
41.3 fps +58%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
39.4 fps +50%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
32 fps +22%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
31.1 fps +19%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
28.9 fps +10%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
26.2 fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
19.6 (10.2min, 13P0.1, 16.4P1) fps -25%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
90.7 fps +97%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
82.1 fps +78%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
59.1 fps +28%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
55.5 fps +21%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
53.4 fps +16%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
51.8 fps +13%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
46 fps
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
26.5 fps +119%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
24.1 fps +99%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
16.2 fps +34%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
16.2 fps +34%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
14.8 fps +22%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
13.3 fps +10%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
12.1 fps
GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
152.1 (2.73min, 100P1) fps +17%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
149.3 (5.43min, 100P1) fps +15%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
135.3 (26.7min, 90.9P1) fps +4%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
129.9 (16.1min, 83.3P1) fps
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
126.2 (50.6min, 76.9P1) fps -3%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
119.3 (25.1min, 76.9P1) fps -8%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
114.3 (8.54min, 76.9P1) fps -12%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
53.5 (3.46min, 38.5P1) fps +189%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
49.3 (7.78min, 34.5P1) fps +166%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
27.2 (6.42min, 20P1) fps +47%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
21 (8.15min, 16.1P1) fps +14%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
20.7 (9.05min, 15.9P1) fps +12%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
18.6 (8min, 14.3P1) fps +1%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
18.5 (6.9min, 14.3P1) fps
Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
75 (60min) fps +50%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
71 (39min) fps +42%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
57 (49min) fps +14%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
50 (41min) fps 0%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
50 (44min) fps
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
46 (37min) fps -8%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
44 (38min) fps -12%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
39 (34min) fps +77%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
34 (30min) fps +55%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
27 (24min) fps +23%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
25 (22min) fps +14%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (22min) fps +14%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
22 (19min) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
20 (17min) fps -9%
Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
66 (50min) fps +38%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
65 (50min) fps +35%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
52 (31min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
52 (34min) fps +8%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
48 (32min) fps
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
46 (28min) fps -4%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
40 (31min) fps -17%
1920x1080 High Preset
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
37 (17min) fps +61%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
37 (29min) fps +61%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
28 (21min) fps +22%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
28 (22min) fps +22%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
25 (19min) fps +9%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
23 (17min) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
19 (16min) fps -17%
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
143 (124.5min) fps +6%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
136.9 (106.8min) fps +2%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
134.7 (102.1min) fps
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
133.4 (119min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
123.8 (98min) fps -8%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
111 (97.1min) fps -18%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
108.1 (86.6min) fps -20%
1920x1080 high (2/3)
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
84.3 (74.6min) fps +46%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
82.2 (71.4min) fps +42%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
68 (62.7min) fps +18%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
67.6 (59.9min) fps +17%
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
60.9 (55.7min) fps +5%
Minisforum Venus Series NAB6
UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0
57.8 (54.5min) fps
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
50.5 (43.6min) fps -13%
lage gem. hoge ultra
GTA V (2015) 129.9 113.4 18.5 8.01
The Witcher 3 (2015) 80.8 26.2 11.9
Dota 2 Reborn (2015) 134.7 99.6 57.8 53.3
Final Fantasy XV Benchmark (2018) 38.2 20.1 14.5
X-Plane 11.11 (2018) 52.6 39.7 35.4
Far Cry 5 (2018) 50 24 22 21
Strange Brigade (2018) 84.5 34.5 27.2 22.1
Shadow of the Tomb Raider (2018) 41.2 19.9 18.8 15.7
Far Cry New Dawn (2019) 48 24 23 21
Metro Exodus (2019) 37.6 17 12.5 10.2
Borderlands 3 (2019) 46 20.1 12.1 9.01
F1 2020 (2020) 78.4 38.2 29 18.3
F1 2021 (2021) 92.1 42.6 33.2 22.5
Tiny Tina's Wonderlands (2022) 25.1 19.6 12.1 9.33
F1 22 (2022) 37.6 34 24.7 18.8

Emissies - goed gemiddelde

Geluidsemissies

Het apparaat leverde gemiddelde resultaten in onze geluidsemissiemetingen. De Minisforum Venus Series NAB6 is stil in ruststand en bij lage belasting. Bij gemiddelde belasting maten we 34,6 dB(A) en bij maximale belasting maten we korte tijd 36 dB(A) - waarmee het apparaat luider is dan zijn concurrenten. Al met al bevindt ons testexemplaar zich nog steeds in het goede midden. Hoewel we gewend zijn dat Minisforum aanzienlijk betere resultaten levert - vooral als we het rechtstreeks vergelijken met deMinisforum Neptune Series NAD9die tijdens al onze prestatietests bijna volledig stil was.

Geluidsniveau

Onbelast
29.4 / 29.5 / 29.7 dB (A)
Belasting
34.6 / 36.1 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   omgevingslawaai: 29.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.43230.627.729.932.829.42530.131.232.228.331.432.630.13129.928.528.728.728.232.629.94027.125.425.726.827.227.127.15026.324.524.82725.227.126.36325.623.424.424.725.124.125.68024.324.225.323.523.325.124.310026.126.126.72825.925.826.112521.722.822.122.821.822.221.716021.821.321.621.120.121.121.820022.520.820.420.720.920.222.525021.820.519.719.419.62021.831521.620.919.319.118.719.121.64002221.718.919.118.218.22250023.321.818.418.618.118.223.363023.822.618.417.91717.923.880024.523.417.417.517.117.124.5100024.323.718.616.916.417.324.3125024.623.21716.216.616.324.6160025.924.416.51616.116.125.9200025.623.616.216.116.11625.6250024.92316.516.316.31624.9315025.523.616.616.316.416.325.5400024.522.4171716.816.724.5500023.721.617.417.317.317.223.7630020.319.117.817.91817.720.3800019.418.718.418.418.518.519.41000019.719.119.119.11918.919.71250019.919.919.819.92019.619.91600020.820.921.12121.120.820.8SPL36.134.629.829.529.429.436.1N2.42.11.31.21.21.22.4median 23.3median 21.8median 18.4median 18.4median 18.1median 18.2median 23.3Delta1.61.41.721.61.71.6hearing rangehide median Fan NoiseMinisforum Venus Series NAB6
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Noise
-4%
-3%
-7%
2%
3%
-20%
uit / omgeving *
29.4
30.4
-3%
30.5
-4%
29.8
-1%
29.8
-1%
30.2
-3%
30.5
-4%
Idle Minimum *
29.4
30.9
-5%
31.6
-7%
30.2
-3%
29.9
-2%
30.5
-4%
31.5
-7%
Idle Average *
29.5
31.5
-7%
31.6
-7%
31.1
-5%
30.1
-2%
30.5
-3%
32.6
-11%
Idle Maximum *
29.7
31.5
-6%
31.6
-6%
31.9
-7%
30.2
-2%
30.5
-3%
33.8
-14%
Load Average *
34.6
37.5
-8%
33.9
2%
40
-16%
32.1
7%
30.5
12%
49.3
-42%
Load Maximum *
36.1
34.1
6%
34.4
5%
40.5
-12%
32.5
10%
30.5
16%
50.9
-41%

* ... kleiner is beter

Temperatuur

De behuizing van de Minisforum Venus Series NAB6 warmde slechts een beetje op in ruststand. Bij belasting steeg de temperatuur van de behuizing - maar de temperatuur van de metalen oppervlakken bleef binnen de perken. Thermische hotspots waren alleen te zien rond de ventilatoropeningen aan de zij- en achterkant van de mini PC.

De Intel Core i7-12650H bereikte met de stresstest Prime95 een maximum van 76 °C, wat nog steeds laag is in vergelijking met de andere tests. Hij heeft een gemiddeld pakketvermogen van 45 watt - wat betekent dat de SoC bij maximale belasting nog steeds binnen de grenzen werkt. De 45 watt komt precies overeen met de PL1-waarde. De PL2-waarde van 64 watt werd kort na de start van het testprogramma bereikt. Hier bereikte de SoC zijn maximale temperatuur - daarna had hij een gemiddelde temperatuur van 69 °C. Met FurMark noteerden we tot 82 °C - vrij hoog, maar volgens de specs van de PC zou dit nog steeds geen problemen moeten opleveren.

Stresstest Prime95 solo
Stresstest Prime95 solo
Stresstest FurMark solo
Stresstest FurMark solo
Stresstest Prime95 + FurMark
Stresstest Prime95 + FurMark
Minisforum Venus Series NAB6 vs. stresstest (voorzijde)
Minisforum Venus Series NAB6 vs. stresstest (voorzijde)
Minisforum Venus Series NAB6 vs. stresstest (terug)
Minisforum Venus Series NAB6 vs. stresstest (terug)
Minisforum Venus Series NAB6 vs. stresstest (zonder deksel)
Minisforum Venus Series NAB6 vs. stresstest (zonder deksel)

Energieverbruik

120-watt stroomadapter
120-watt stroomadapter

De Minisforum Venus Series NAB6 is niet het zuinigste apparaat. Toch doen de meeste mini-pc's het, vergeleken met conventionele desktop-pc's, vrij goed als het op uitstoot aankomt. We hebben 10,4-12,4 watt gemeten - vaak leverden de concurrenten betere resultaten. Bij gemiddelde belasting deed ons testapparaat het ongeveer even goed als zijn concurrenten. Bij iets meer dan 101 watt bereikte de Minisforum Venus Series NAB6 zijn piekwaarde tijdens de stresstest (Prime95 + FurMark). De voedingsadapter kan maximaal 120 watt leveren en werd op geen enkel moment overbelast tijdens onze test. Dit laat wat extra ruimte over voor twee extra opslagapparaten.

Stroomgebruik
Uit / Standbydarklight 1.8 / 1.9 Watt
Inactiefdarkmidlight 10.4 / 12.3 / 12.4 Watt
Belasting midlight 72.9 / 101.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Gemiddeld Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

Gemiddelde van klas Mini PC

Power Consumption
4%
14%
24%
32%
-16%
32%
10%
8%
Idle Minimum *
10.4
9.9
5%
8.7
16%
5.1
51%
5
52%
12.1
-16%
8.4
19%
9.1 ?(3.6 - 14.3, n=10)
12%
9.83 ?(1.9 - 46.5, n=88, laatste 2 jaar)
5%
Idle Average *
12.3
11
11%
9.6
22%
5.8
53%
7
43%
13
-6%
8.7
29%
11.1 ?(5.3 - 16.8, n=10)
10%
11.7 ?(1.9 - 63, n=88, laatste 2 jaar)
5%
Idle Maximum *
12.4
11.2
10%
10.5
15%
10.2
18%
10.7
14%
18.2
-47%
9.3
25%
15.9 ?(7 - 28.7, n=10)
-28%
14.3 ?(2.6 - 68.9, n=88, laatste 2 jaar)
-15%
Load Average *
72.9
74.2
-2%
65.8
10%
68.1
7%
50.3
31%
70.6
3%
46.4
36%
52.6 ?(34.7 - 76.9, n=10)
28%
51.6 ?(11.3 - 158.7, n=89, laatste 2 jaar)
29%
Load Maximum *
101.2
103.2
-2%
94.5
7%
108.3
-7%
82
19%
113
-12%
52
49%
72.7 ?(44.6 - 101.2, n=10)
28%
85.5 ?(18.1 - 271, n=89, laatste 2 jaar)
16%

* ... kleiner is beter

Energy consumption with external monitor

05101520253035404550556065707580859095Tooltip
Minisforum Venus Series NAB6; Prime95 V2810 Stress (external Monitor): Ø75.3 (64.6-96.2)
Minisforum Venus Series NAB6; Cinebench R15 Multi (external Monitor): Ø91.5 (85.9-92.1)
Minisforum Venus Series NAB6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.1 (57.7-94.5)
Minisforum Venus Series NAB6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø66.5 (64.3-97)
Minisforum Venus Series NAB6; Idle 1min (external Monitor): Ø12.4 (11.2-16.8)

Pro

+ strak, gestroomlijnd ontwerp
+ zeer stabiele behuizing
+ volledige vermogensafgifte op de SoC
+ maximaal vier schermen kunnen tegelijkertijd worden gebruikt
+ veel USB-poorten
+ ruimte voor drie SSD's
+ Optie voor VESA-montage

Contra

- geen SD-kaartlezer
- hoorbare koeling bij belasting
- geen Thunderbolt
- twijfelachtig actief SSD koelsysteem

Verdict - solide apparaat voor dagelijks gebruik

Minisforum Venus Series NAB6 beoordeling - testapparaat geleverd door Minisforum
Minisforum Venus Series NAB6 beoordeling - testapparaat geleverd door Minisforum

De Minisforum Venus Series NAB6 is een relatief onspectaculaire mini PC voor dagelijks kantoorgebruik. Gebaseerd op een Intel Core i7-12650H, biedt het rekenbeest consistent solide prestatieniveaus. De volledige prestaties van de SoC zijn te allen tijde toegankelijk. Zelfs bij permanente belasting hoeft u de prestaties niet te beperken. Verder maakt de Minisforum Venus Series NAB6 zeker indruk met zijn goede behuizing, die zeer stabiel is dankzij een slimme materiaalkeuze. De afwerking is onberispelijk en de mogelijkheid om de bovenkant van de behuizing zonder gereedschap te openen is een extra bonus. De rest van de componenten van het apparaat, zoals RAM en SSD, zijn perfect gekozen in ons testapparaat en zouden het minimum moeten zijn om niet snel te hoeven upgraden.

De Minisforum Venus Series NAB6 is een goed werkend apparaat met meer dan voldoende reserves. Toch heeft de mini PC moeite om zich te onderscheiden van de massa.

We moeten iets kieskeuriger zijn als het gaat om zijn aansluitmogelijkheden, want zijn concurrenten hebben de neiging om de toekomstbestendige Thunderbolt-poort toe te voegen - die met de juiste accessoires de gebruiksmogelijkheden van het apparaat echt vergroten. De Minisforum Venus Series NAB6 krijgt deze kans niet. Als u niet zonder deze functie kunt of wilt, kunt u beter kijken naar de Miniforum Venus Series UM690. Toch heeft de NAB6 over het algemeen een goed aantal externe poorten. Je zou zelfs het ontbreken van een SD-kaartlezer kunnen vergeven en je tot een adapteroplossing kunnen wenden. Bovendien heeft het apparaat twee 2,5 Gbit LAN-aansluitingen, wat niet noodzakelijkerwijs de norm is voor mini PC's.

Wat de reden is dat de fabrikant heeft gekozen voor een actief koelsysteem voor de SSD - daar zijn we niet helemaal zeker van. Bij permanente belasting merkten we geen prestatiedip - zelfs zonder dat de ventilator geactiveerd was. Zijn snelheden voor WLAN-overdracht zijn ook een beetje teleurstellend. Op 5 en 6 GHz deden zijn concurrenten het over het algemeen beter.

Prijzen en beschikbaarheid

De Minisforum Venus Series NAB6kan rechtstreeks worden gekocht op hun website https://store.minisforum.com/products/minisforum-nab6?variant=43800152211701. Momenteel kun je het barebone model krijgen voor $489. U kunt het apparaat ook vinden op Amazon voor ongeveer 487,92 dollar.

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Minisforum Venus Series NAB6 - 03-05-2023 v7
Sebastian Bade

Behuizing
82 / 98 → 84%
Aansluitmogelijkheden
60 / 81 → 74%
Gewicht
81%
Gaming-performance
66%
Applicatie-performance
94%
Luidheid
90%
Gemiddelde
76%
82%
Mini PC - Gewogen Gemiddelde
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Minisforum Venus Series NAB6 review: De strakke mini PC met een snelle Intel Core i7-12650H en actieve SSD koeling!
Sebastian Bade, 2023-05- 7 (Update: 2023-05- 7)
