Kort testrapport MSI Creator 17 A10SGS Laptop: Winnen met een Mini LED

Een opkomend licht. In tegenstelling tot de vergelijkbaar uitgeruste GS75 is de Creator 17 gericht op creatieve professionals, zoals de naam al zegt. Het meest unieke kenmerk is echter niet de doelgroep, maar het gloednieuwe Mini LED-display met HDR-ondersteuning. Is het de hoge prijs waard, of is de technologie gewoon een gimmick?
Florian Glaser, 👁 Florian Glaser, Andrea Grüblinger,
MSI Creator 17 A10SGS
Processor
Intel Core i7-10875H 8 x 2.3 - 5.1 GHz, Comet Lake-H
Grafische kaart
NVIDIA GeForce RTX 2080 Super Max-Q - 8192 MB, Core: 735 MHz, Geheugen: 1375 MHz, GDDR6, ForceWare 446.14, Optimus
Geheugen
32768 MB
, 2x 16 GB SO-DIMM DDR4-2666, dual channel, all slots bezet, max. 64 GB
Beeldscherm
17.3 inch 16:9, 3840 x 2160 pixel 255 PPI, B173ZAN05.0 (AUO278E), Mini LED IPS level, 4K/UHD, glimmend: nee, HDR, 60 Hz
Moederbord
Intel HM470
Opslag
Samsung SSD PM981 MZVLB2T0HMLB, 2048 GB
, NVMe, slots: 2x M.2 Type 2280 (1 slot leeg)
Geluidskaart
Realtek ALC298 @ Intel Comet Point PCH - cAVS

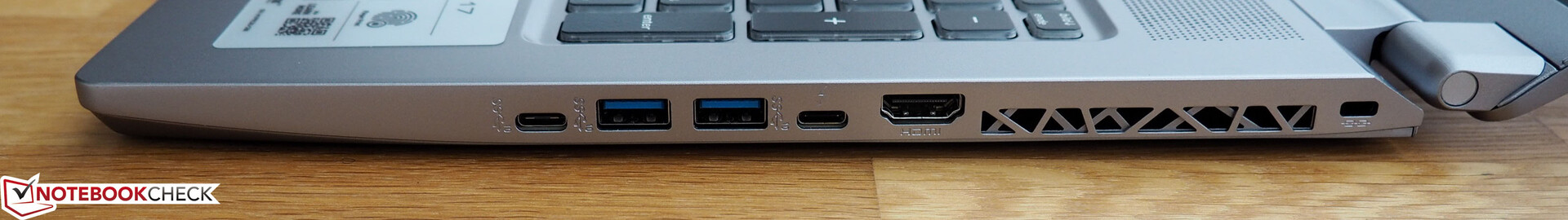

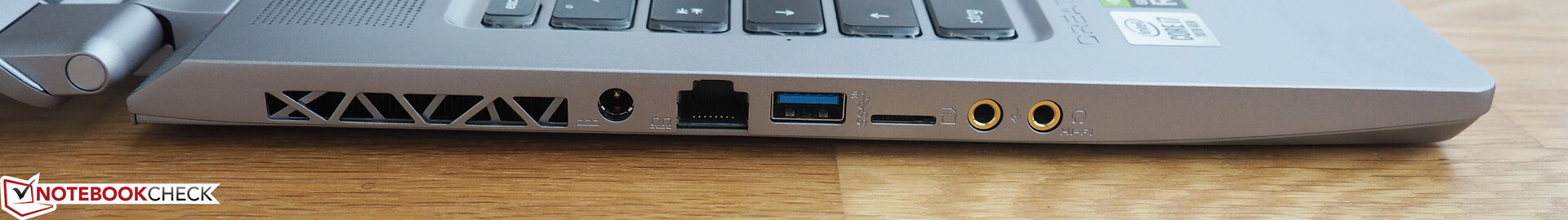

Verbindingen
3 USB 3.0, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 1x koptelefoon, 1x microfoon, Card Reader: microSD, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Ethernet Controller I225-V (10MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Afmetingen
hoogte x breedte x diepte (in mm): 20 x 396 x 259

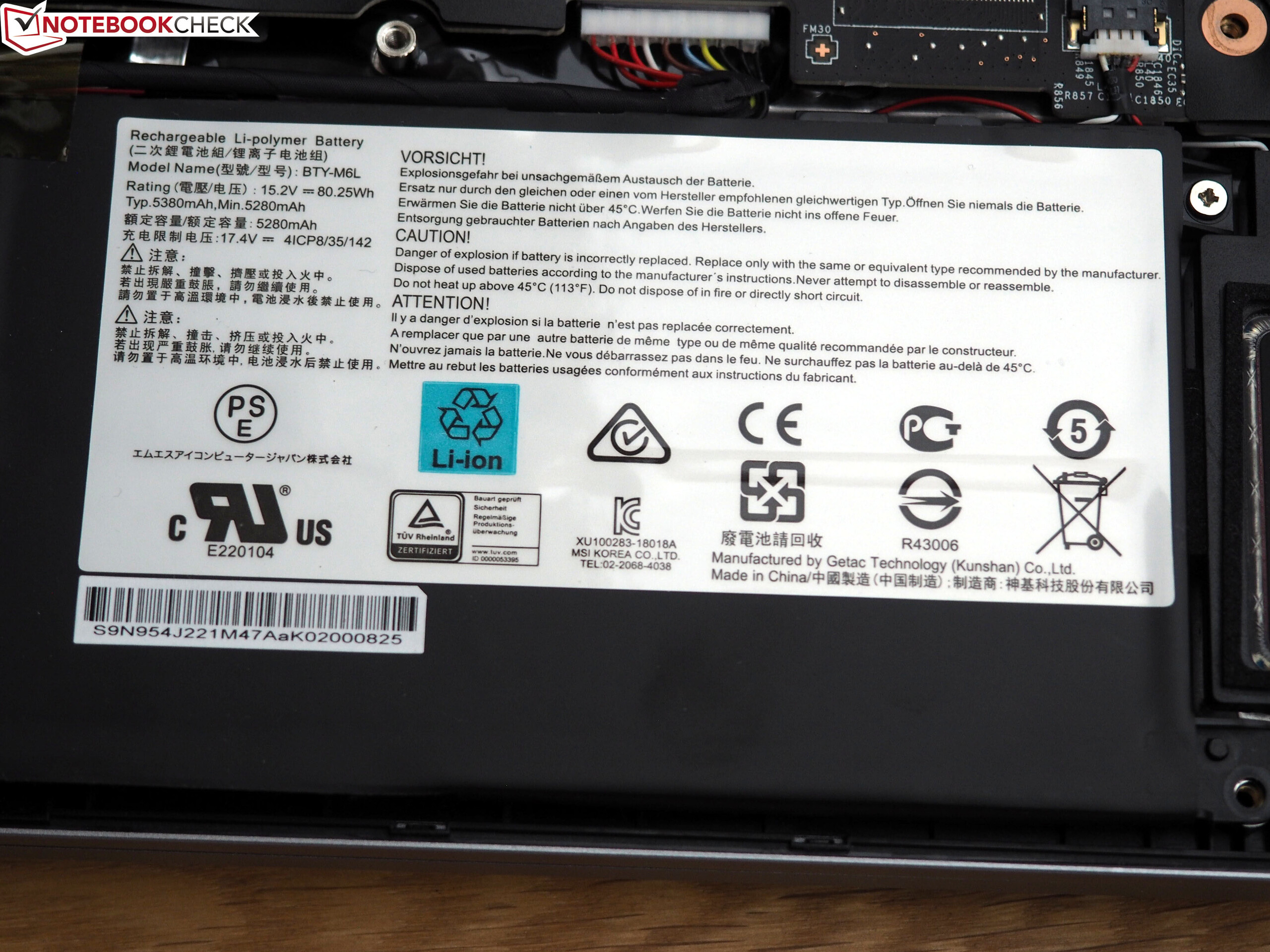

Batterij
82 Wh Lithium-Polymer, 4 cellen
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit

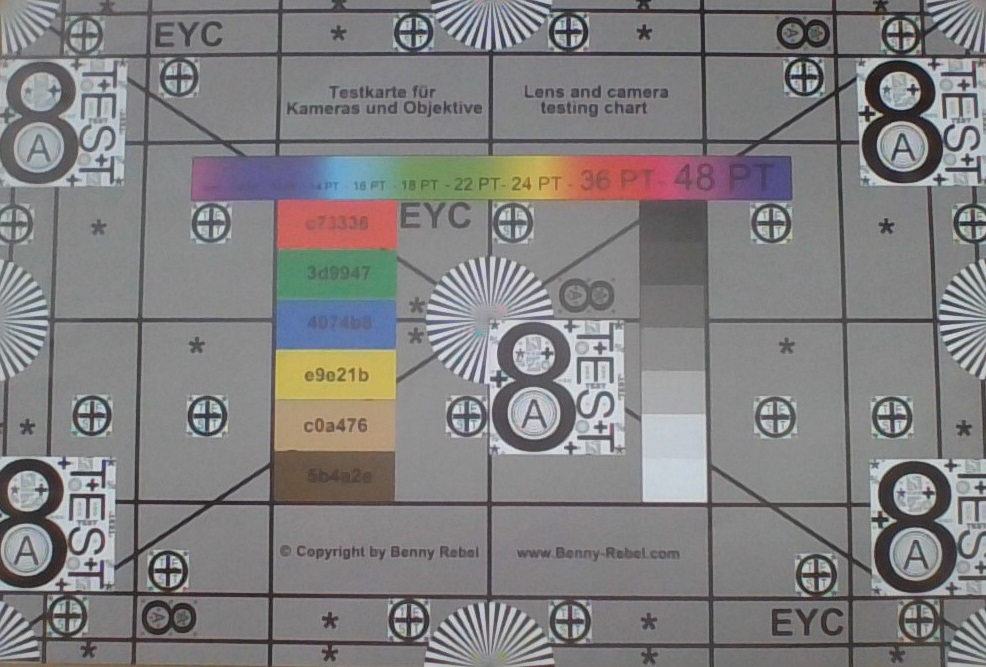

Camera
Webcam: HD (720p)
Bijkomende functionaliteiten

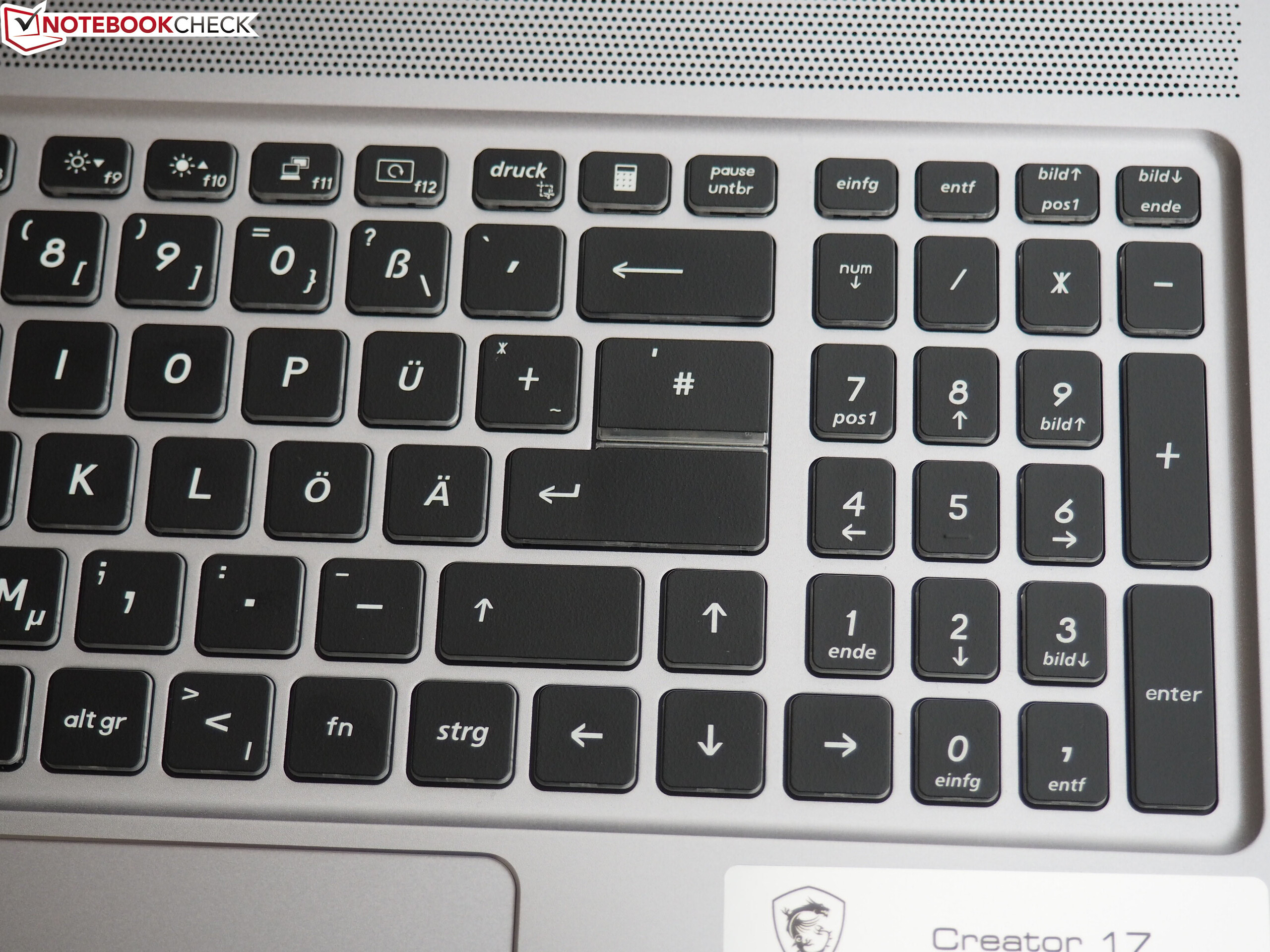

Luidsprekers: 2.0, Toetsenbord: chiclet, Toetsenbordverlichting: ja, 230 Watt stroomadapter, Creator Center, 24 Maanden Garantie
Gewicht

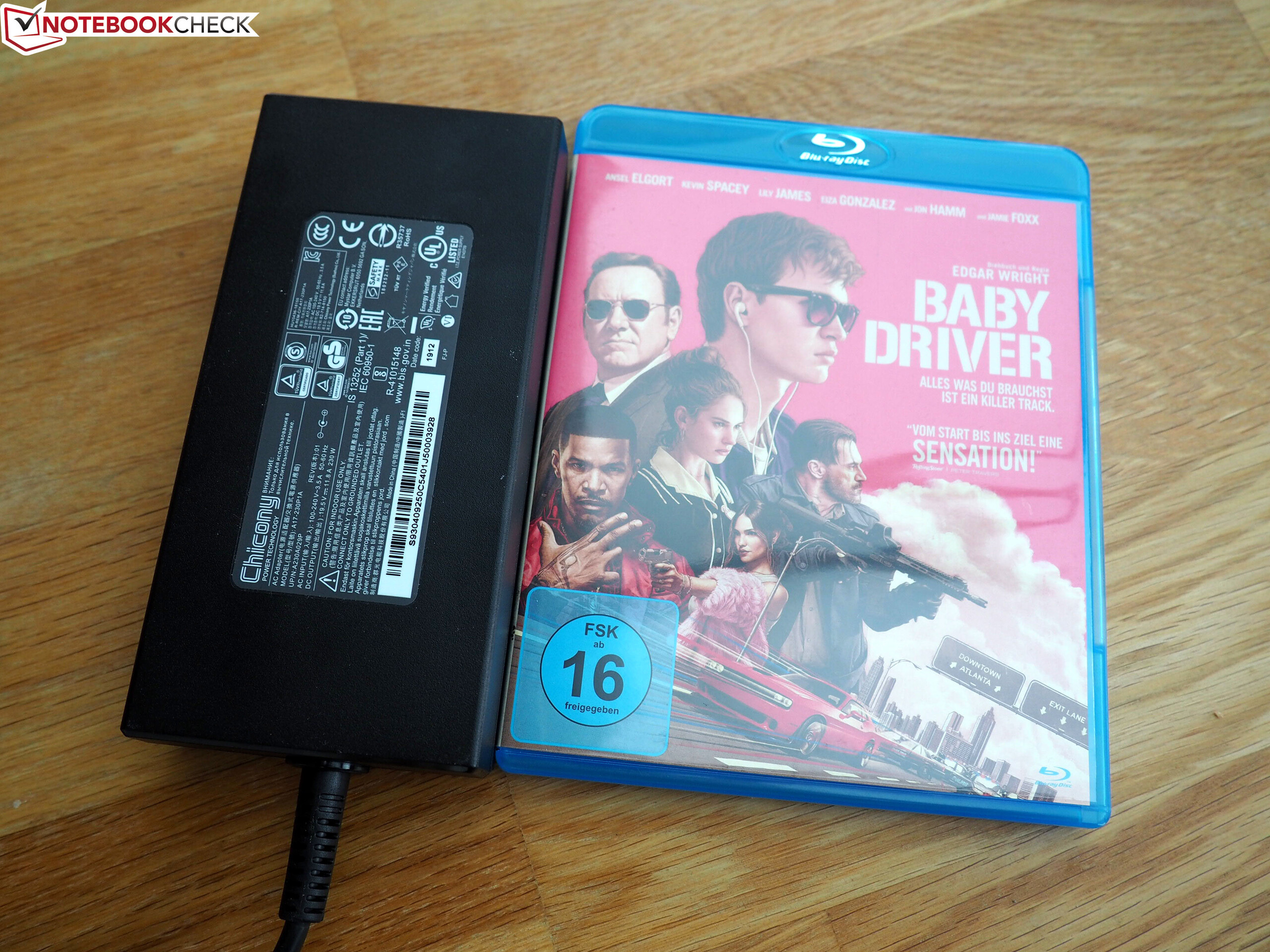

2.39 kg, Voeding: 725 g
Prijs
4200 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
83 %
07-2020
MSI Creator 17 A10SGS
i7-10875H, GeForce RTX 2080 Super Max-Q
2.4 kg20 mm17.3"3840x2160
83 %
06-2019
MSI GS75 Stealth 9SG
i7-9750H, GeForce RTX 2080 Max-Q
2.3 kg18.9 mm17.3"1920x1080
88 %
06-2019
Razer Blade Pro 17 RTX 2080 Max-Q
i7-9750H, GeForce RTX 2080 Max-Q
2.8 kg19.9 mm17.3"1920x1080
81 %
12-2019
Asus ROG Zephyrus S GX701GXR
i7-9750H, GeForce RTX 2080 Max-Q
2.7 kg18.7 mm17.3"1920x1080
84 %
02-2020
Alienware m17 R2 P41E
i9-9980HK, GeForce RTX 2080 Max-Q
2.6 kg20.5 mm17.3"1920x1080

Size Comparison

399.8 mm 295.5 mm 20.5 mm 2.6 kg399 mm 272 mm 18.7 mm 2.7 kg396 mm 259 mm 20 mm 2.4 kg396 mm 259 mm 18.9 mm 2.3 kg395 mm 260 mm 19.9 mm 2.8 kg
Networking
iperf3 Client (receive) TCP 1 m 4M x10
MSI Creator 17 A10SGS
Intel Wi-Fi 6 AX201
1340 MBit/s ∼100%
Asus ROG Zephyrus S GX701GXR
Intel Wireless-AC 9560
924 MBit/s ∼69% -31%
Razer Blade Pro 17 RTX 2080 Max-Q
Intel Wi-Fi 6 AX200
686 MBit/s ∼51% -49%
MSI GS75 Stealth 9SG
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
682 MBit/s ∼51% -49%
Alienware m17 R2 P41E
Intel Dual Band Wireless-AC 8265
638 (min: 625, max: 645) MBit/s ∼48% -52%
Average of class Multimedia
  (44 - 1446, n=172)
573 MBit/s ∼43% -57%
iperf3 Client (transmit) TCP 1 m 4M x10
MSI Creator 17 A10SGS
Intel Wi-Fi 6 AX201
1270 MBit/s ∼100%
Asus ROG Zephyrus S GX701GXR
Intel Wireless-AC 9560
1110 MBit/s ∼87% -13%
Razer Blade Pro 17 RTX 2080 Max-Q
Intel Wi-Fi 6 AX200
697 MBit/s ∼55% -45%
MSI GS75 Stealth 9SG
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
668 MBit/s ∼53% -47%
Average of class Multimedia
  (46.1 - 1563, n=171)
542 MBit/s ∼43% -57%
Alienware m17 R2 P41E
Intel Dual Band Wireless-AC 8265
496 (min: 459, max: 531) MBit/s ∼39% -61%
ColorChecker
7.5 ∆E
10 ∆E
11.2 ∆E
7.4 ∆E
10.7 ∆E
9 ∆E
10.3 ∆E
15.9 ∆E
14.6 ∆E
8.7 ∆E
8.1 ∆E
7.4 ∆E
11.4 ∆E
10.8 ∆E
20.3 ∆E
6.2 ∆E
16.8 ∆E
15.3 ∆E
1.8 ∆E
10.7 ∆E
13.5 ∆E
12.3 ∆E
7.3 ∆E
3.3 ∆E
ColorChecker MSI Creator 17 A10SGS: 10.44 ∆E min: 1.76 - max: 20.34 ∆E
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
958
cd/m²
974
cd/m²
927
cd/m²
929
cd/m²
996
cd/m²
943
cd/m²
935
cd/m²
965
cd/m²
942
cd/m²
Helderheidsverdeling
B173ZAN05.0 (AUO278E)
X-Rite i1Pro 2
Maximum: 996 cd/m² Gemiddelde: 952.1 cd/m² Minimum: 60 cd/m²
Helderheidsverdeling: 93 %
Helderheid in Batterij-modus: 996 cd/m²
Contrast: 1465:1 (Zwart: 0.68 cd/m²)
ΔE Color 4.21 | 0.6-29.43 Ø5.8, calibrated: 2.03
ΔE Greyscale 4.1 | 0.64-98 Ø6
97% sRGB (Argyll 3D) 84% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.207
MSI Creator 17 A10SGS
B173ZAN05.0 (AUO278E), Mini-LED IPS-Level, 3840x2160
MSI Creator 17 A10SGS HDR
3840x2160
MSI GS75 Stealth 9SG
Chi Mei N173HCE-G33 (CMN175C), IPS, 1920x1080
Razer Blade Pro 17 RTX 2080 Max-Q
AU Optronics B173HAN04.0, IPS, 1920x1080
Asus ROG Zephyrus S GX701GXR
AU Optronics B173HAN05.1, IPS, 1920x1080
Alienware m17 R2 P41E
Chi Mei 173HCE, CMN175F, IPS, 1920x1080
Response Times
0%
-9%
-9%
14%
-12%
Response Time Grey 50% / Grey 80% *
7.2 (3.8, 3.4)
6.8 (3.4, 3.4)
5.6 (2.4, 3.2)
17.2 (8.8, 8.4)
Response Time Black / White *
8.8 (1.2, 7.6)
8.8 (1.2, 7.6)
-0%
10 (5.2, 4.8)
-14%
9.6 (5.2, 4.4)
-9%
7.6 (3.4, 4.2)
14%
10.8 (6, 4.8)
-23%
PWM Frequency
26600 (83)
26600 (85)
0%
25510 (17)
-4%
26320 (25)
-1%
Screen
102%
11%
-10%
3%
11%
Brightness middle
996
770
-23%
366
-63%
299.3
-70%
288
-71%
384.2
-61%
Brightness
952
759
-20%
343
-64%
294
-69%
276
-71%
357
-62%
Brightness Distribution
93
94
1%
91
-2%
94
1%
93
0%
90
-3%
Black Level *
0.68
0.07
90%
0.29
57%
0.29
57%
0.24
65%
0.29
57%
Contrast
1465
11000
651%
1262
-14%
1032
-30%
1200
-18%
1325
-10%
Colorchecker DeltaE2000 *
4.21
1.51
64%
2.55
39%
1.92
54%
1.35
68%
Colorchecker DeltaE2000 max. *
6.79
3.22
53%
4.73
30%
4.57
33%
3.45
49%
Colorchecker DeltaE2000 calibrated *
2.03
0.71
65%
2.9
-43%
1.14
44%
1.42
30%
Greyscale DeltaE2000 *
4.1
1.93
53%
3.5
15%
3.08
25%
1.2
71%
Gamma
2.207 100%
2.38 92%
2.28 96%
2.42 91%
2.23 99%
CCT
7491 87%
6881 94%
7101 92%
7055 92%
6580 99%
Color Space (Percent of AdobeRGB 1998)
84
94
12%
60
-29%
57
-32%
65
-23%
65.5
-22%
Color Space (Percent of sRGB)
97
99
2%
94
-3%
88.7
-9%
96
-1%
98.5
2%
Totaal Gemiddelde (Programma / Instellingen)
51% / 79%
1% / 8%
-10% / -10%
9% / 4%
-1% / 7%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

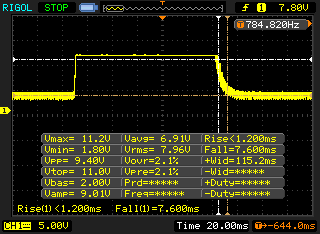

       Responstijd Zwart naar Wit
8.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 1.2 ms stijging
↘ 7.6 ms daling
Het scherm vertoonde snelle responstijden in onze tests en zou geschikt moeten zijn voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 9 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (24.5 ms) van alle geteste toestellen.

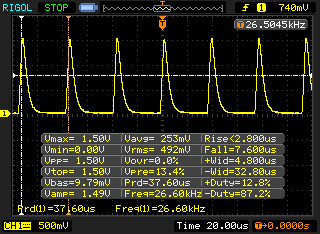

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 26600 Hz ≤ 83 % helderheid instelling

Het backlight van het scherm flikkert aan 26600 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 83 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 26600 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17886 (minimum: 5 - maximum: 2500000) Hz waargenomen.

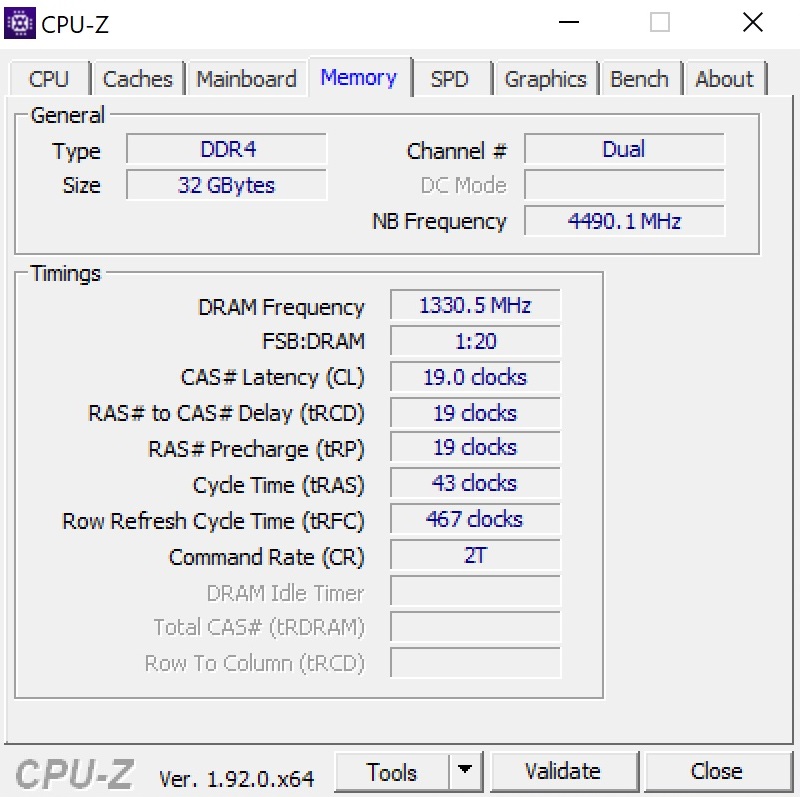

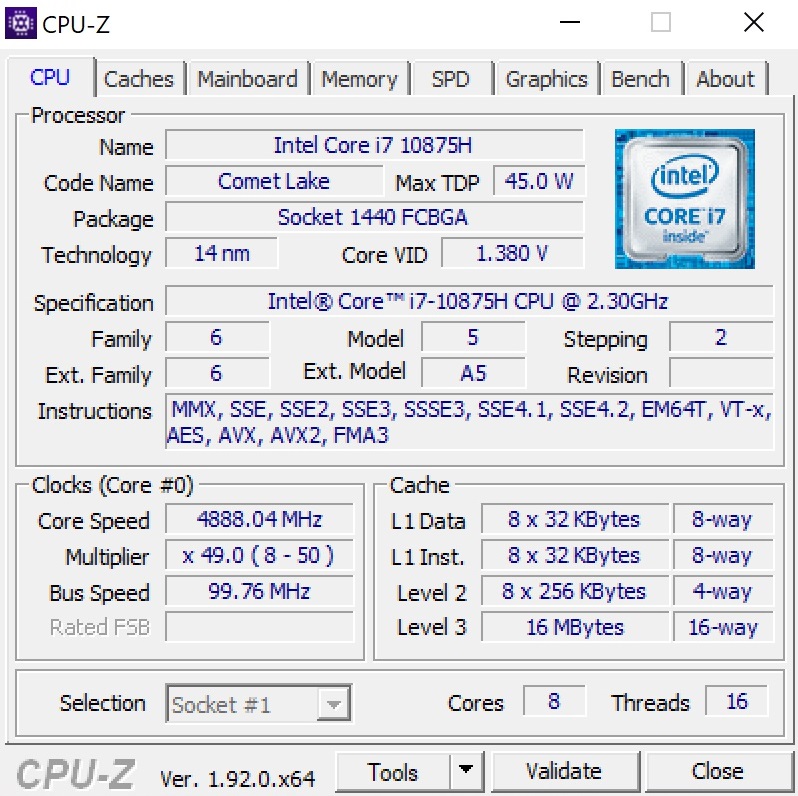

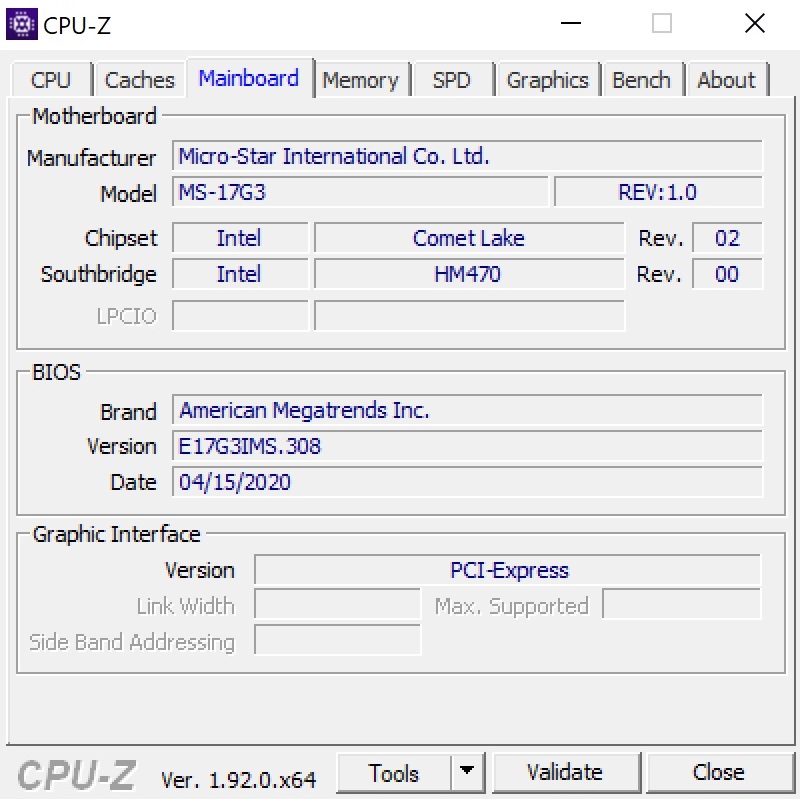

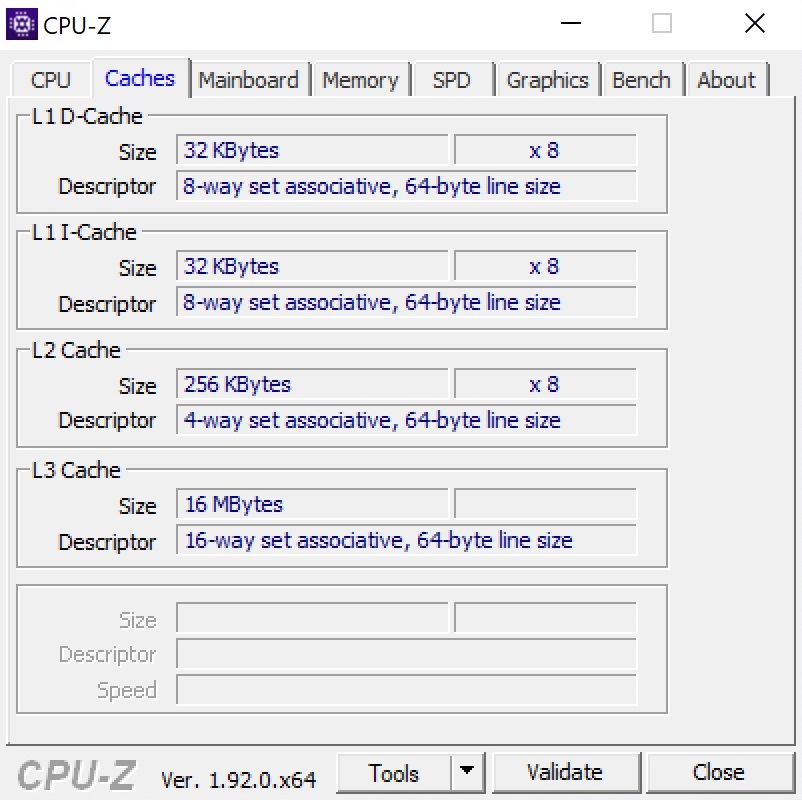

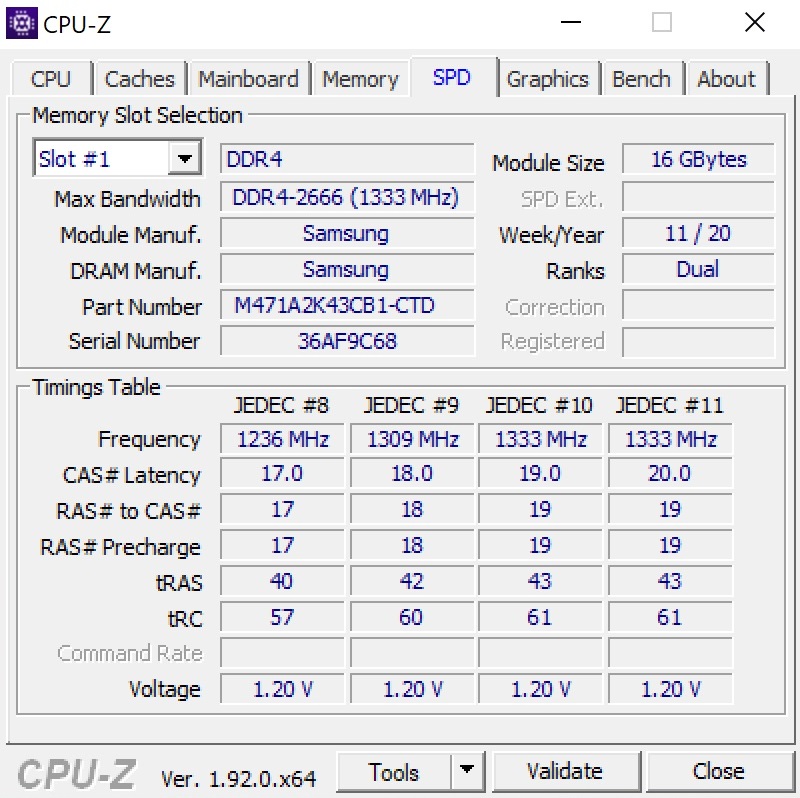

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

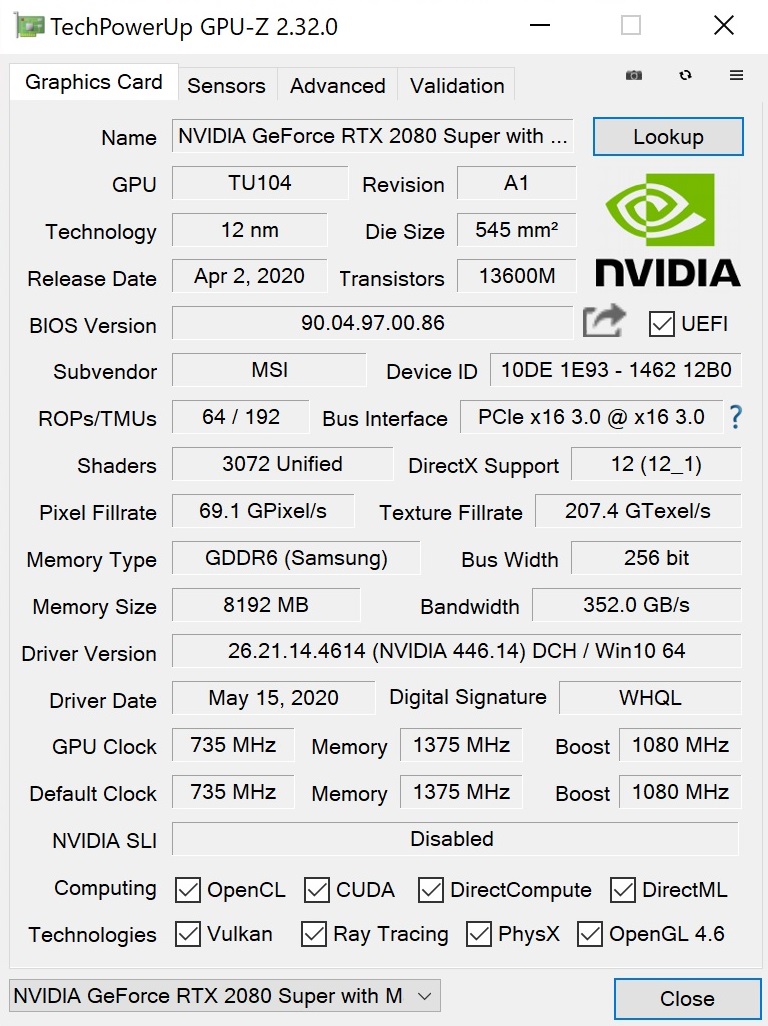

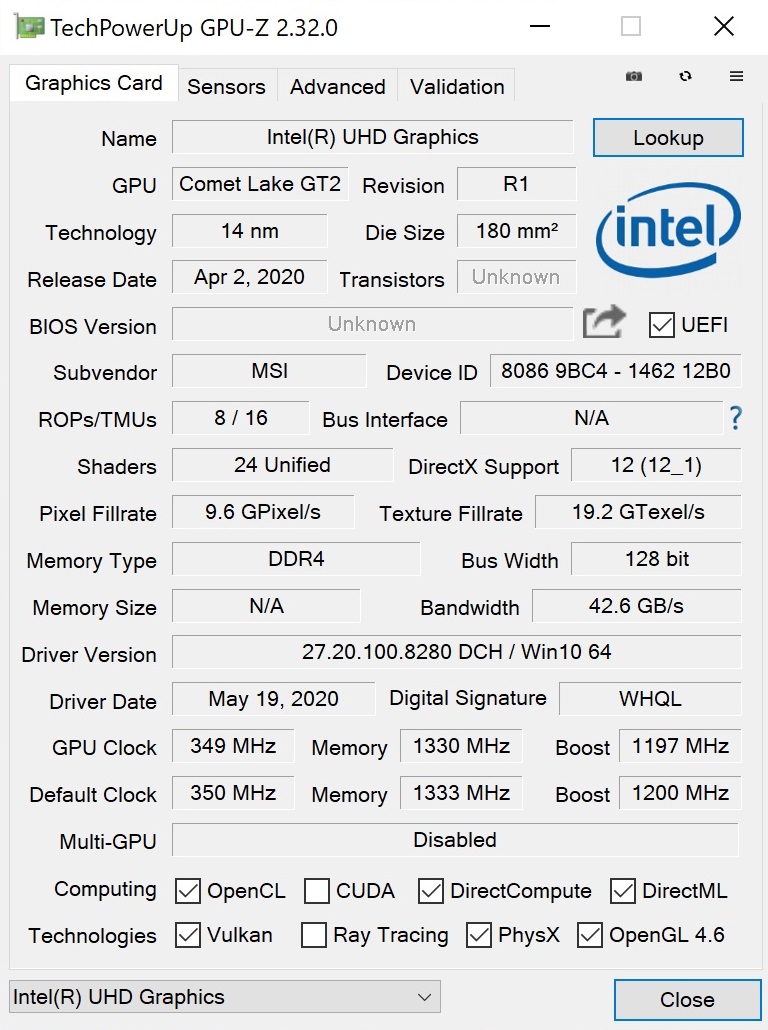

GPU-Z
GPU-Z

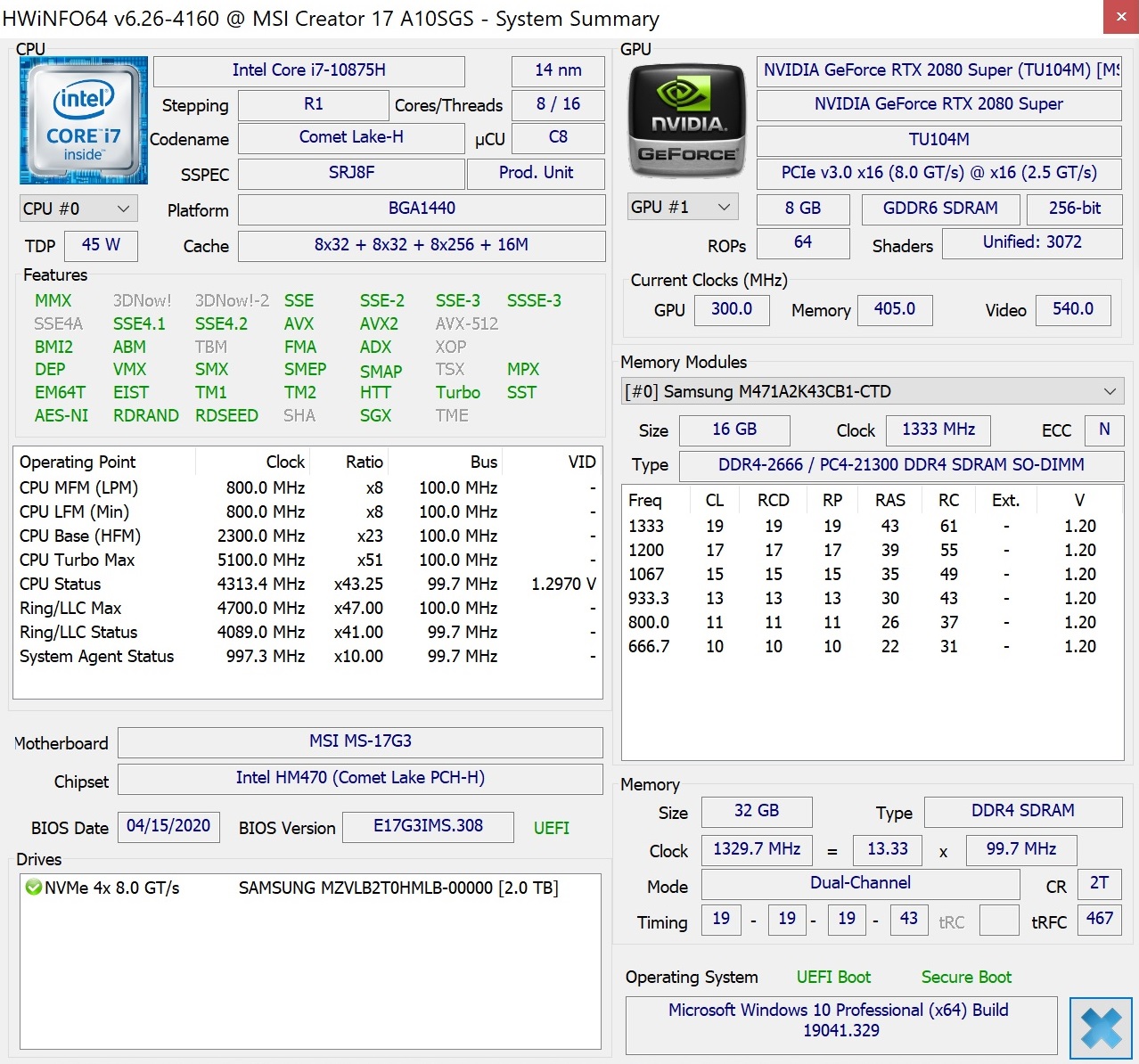

HWiNFO

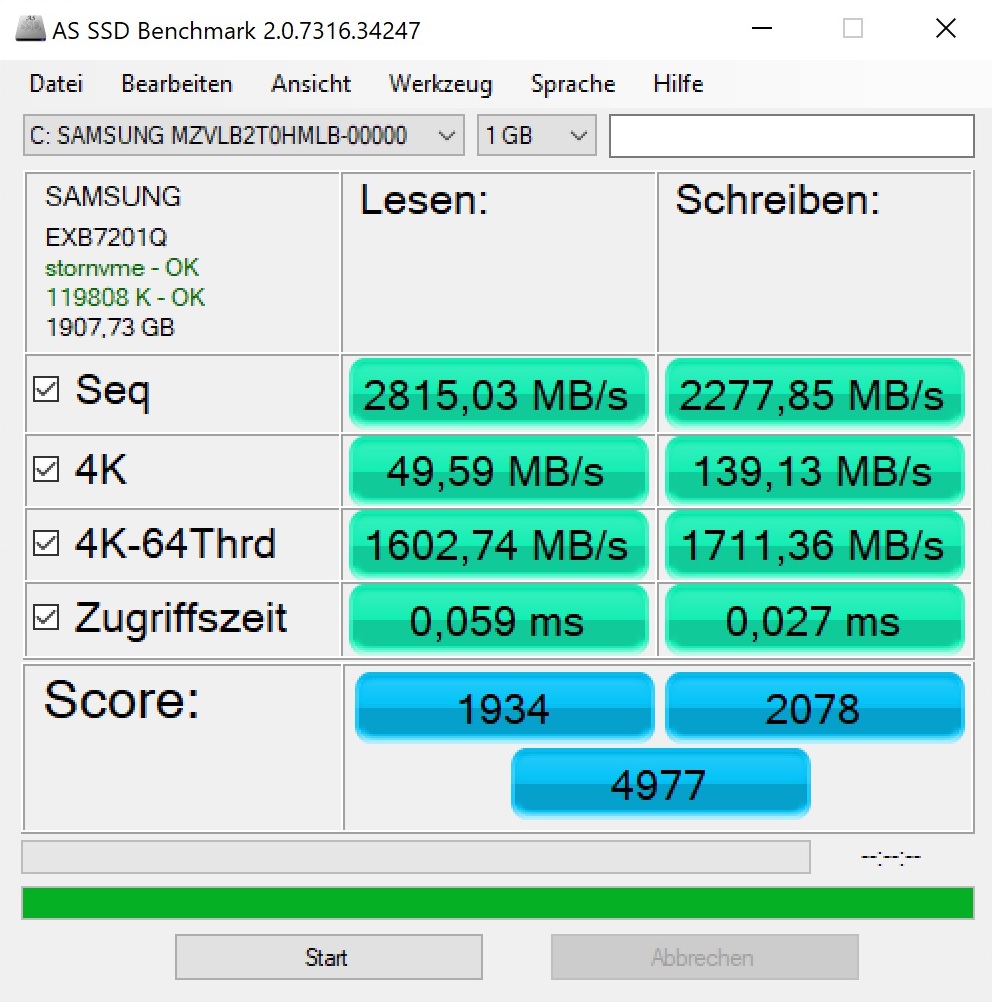

AS SSD Benchmark

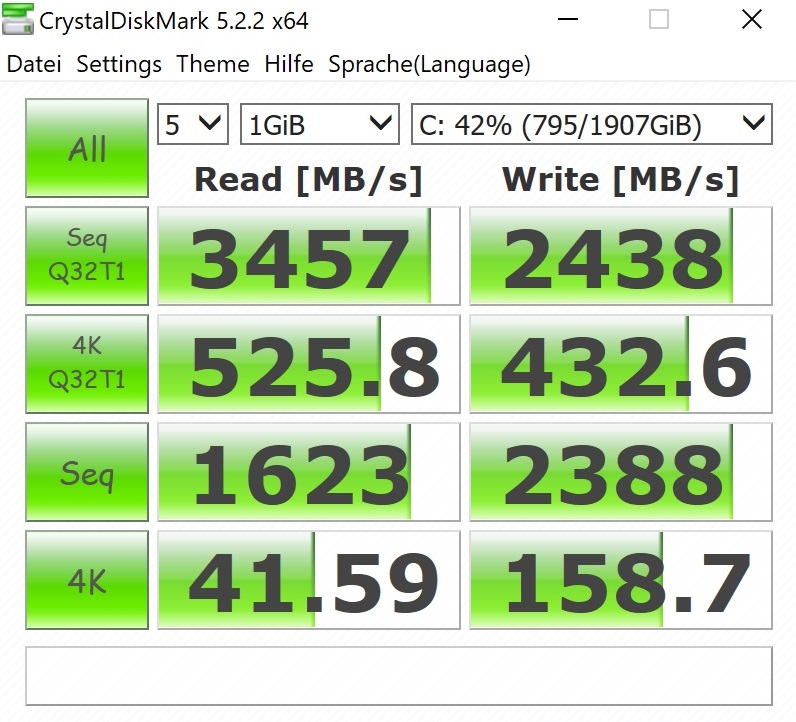

CrystalDiskMark
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370Tooltip
MSI Creator 17 A10SGS Intel Core i7-10875H, Intel Core i7-10875H: Ø1291 (1283.24-1369.77)
MSI GS75 Stealth 9SG Intel Core i7-9750H, Intel Core i7-9750H: Ø1133 (1114.27-1233.11)
Razer Blade Pro 17 RTX 2080 Max-Q Intel Core i7-9750H, Intel Core i7-9750H: Ø1076 (1067.18-1187.86)
Asus ROG Zephyrus S GX701GXR Intel Core i7-9750H, Intel Core i7-9750H: Ø912 (890.85-1097.33)
Cinebench R20
CPU (Single Core)
MSI Creator 17 A10SGS
Intel Core i7-10875H
479 Points ∼100%
Alienware m17 R2 P41E
Intel Core i9-9980HK
478 Points ∼100% 0%
MSI GS75 Stealth 9SG
Intel Core i7-9750H
434 Points ∼91% -9%
Asus ROG Zephyrus S GX701GXR
Intel Core i7-9750H
422 Points ∼88% -12%
Average of class Multimedia
  (62.6 - 493, n=49)
401 Points ∼84% -16%
CPU (Multi Core)
Alienware m17 R2 P41E
Intel Core i9-9980HK
4136 Points ∼100% +31%
MSI Creator 17 A10SGS
Intel Core i7-10875H
3155 Points ∼76%
MSI GS75 Stealth 9SG
Intel Core i7-9750H
2723 Points ∼66% -14%
Asus ROG Zephyrus S GX701GXR
Intel Core i7-9750H
2357 Points ∼57% -25%
Average of class Multimedia
  (148 - 3422, n=50)
1812 Points ∼44% -43%
Cinebench R15
CPU Single 64Bit
MSI Creator 17 A10SGS
Intel Core i7-10875H
197 Points ∼100%
Alienware m17 R2 P41E
Intel Core i9-9980HK
195 Points ∼99% -1%
MSI GS75 Stealth 9SG
Intel Core i7-9750H
180 Points ∼91% -9%
Razer Blade Pro 17 RTX 2080 Max-Q
Intel Core i7-9750H
180 Points ∼91% -9%
Asus ROG Zephyrus S GX701GXR
Intel Core i7-9750H
173 Points ∼88% -12%
Average of class Multimedia
  (36 - 204, n=407)
132 Points ∼67% -33%
CPU Multi 64Bit
Alienware m17 R2 P41E
Intel Core i9-9980HK
1754 Points ∼100% +28%
MSI Creator 17 A10SGS
Intel Core i7-10875H
1370 (min: 1283.24, max: 1369.77) Points ∼78%
MSI GS75 Stealth 9SG
Intel Core i7-9750H
1233 Points ∼70% -10%
Razer Blade Pro 17 RTX 2080 Max-Q
Intel Core i7-9750H
1180 Points ∼67% -14%
Asus ROG Zephyrus S GX701GXR
Intel Core i7-9750H
1097 Points ∼63% -20%
Average of class Multimedia
  (72.4 - 1600, n=427)
527 Points ∼30% -62%
Blender 2.79 - BMW27 CPU
Average of class Multimedia
  (330 - 8394, n=35)
1139 Seconds * ∼100% -220%
MSI Creator 17 A10SGS
Intel Core i7-10875H
356 Seconds * ∼31%
7-Zip 18.03
7z b 4
MSI Creator 17 A10SGS
Intel Core i7-10875H
40008 MIPS ∼100%
Average of class Multimedia
  (2537 - 41529, n=31)
21393 MIPS ∼53% -47%
7z b 4 -mmt1
MSI Creator 17 A10SGS
Intel Core i7-10875H
5277 MIPS ∼100%
Average of class Multimedia
  (1445 - 5335, n=31)
4283 MIPS ∼81% -19%
Geekbench 5.1 / 5.2
64 Bit Multi-Core Score
MSI Creator 17 A10SGS
Intel Core i7-10875H
6988 Points ∼100%
Average of class Multimedia
  (392 - 7825, n=22)
4297 Points ∼61% -39%
64 Bit Single-Core Score
MSI Creator 17 A10SGS
Intel Core i7-10875H
1287 Points ∼100%
Average of class Multimedia
  (207 - 1320, n=21)
1070 Points ∼83% -17%
HWBOT x265 Benchmark v2.2 - 4k Preset
MSI Creator 17 A10SGS
Intel Core i7-10875H
10.3 fps ∼100%
Average of class Multimedia
  (0.46 - 11.1, n=35)
5.68 fps ∼55% -45%
LibreOffice - 20 Documents To PDF
Average of class Multimedia
  (47.1 - 137, n=18)
66.8 s ∼100% +22%
MSI Creator 17 A10SGS
Intel Core i7-10875H
54.6 s ∼82%
R Benchmark 2.5 - Overall mean
Average of class Multimedia
  (0.58 - 2.86, n=22)
0.853 sec * ∼100% -47%
MSI Creator 17 A10SGS
Intel Core i7-10875H
0.58 sec * ∼68%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit
1370 Points
Cinebench R15 OpenGL 64Bit
142 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Single 64Bit
197 Points
Help
PCMark 10 - Score
Asus ROG Zephyrus S GX701GXR
GeForce RTX 2080 Max-Q, i7-9750H, Samsung SSD PM981 MZVLB1T0HALR
6049 Points ∼100% +5%
MSI GS75 Stealth 9SG
GeForce RTX 2080 Max-Q, i7-9750H, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
5804 Points ∼96% +1%
MSI Creator 17 A10SGS
GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB
5758 Points ∼95%
Razer Blade Pro 17 RTX 2080 Max-Q
GeForce RTX 2080 Max-Q, i7-9750H, Samsung SSD PM981 MZVLB512HAJQ
5734 Points ∼95% 0%
Alienware m17 R2 P41E
GeForce RTX 2080 Max-Q, i9-9980HK, 2x SK Hynix PC601 NVMe 512 GB (RAID 0)
5502 Points ∼91% -4%
Average of class Multimedia
  (1144 - 5758, n=136)
4088 Points ∼68% -29%
V-Ray Benchmark Next
GPU
MSI Creator 17 A10SGS
GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB
210 mpaths ∼100%
Average of class Multimedia
  (46 - 210, n=4)
144 mpaths ∼69% -31%
CPU
MSI Creator 17 A10SGS
GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB
9833 ksamples ∼100%
Average of class Multimedia
  (1602 - 10324, n=5)
7974 ksamples ∼81% -19%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Creator 17 A10SGS
GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB
972.6 μs * ∼100%

* ... kleiner is beter

MSI Creator 17 A10SGS
Samsung SSD PM981 MZVLB2T0HMLB
MSI GS75 Stealth 9SG
2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
Razer Blade Pro 17 RTX 2080 Max-Q
Samsung SSD PM981 MZVLB512HAJQ
Asus ROG Zephyrus S GX701GXR
Samsung SSD PM981 MZVLB1T0HALR
Alienware m17 R2 P41E
2x SK Hynix PC601 NVMe 512 GB (RAID 0)
CrystalDiskMark 5.2 / 6
8%
-23%
-22%
1%
Write 4K
158.7
95.46
-40%
100.7
-37%
96.09
-39%
110.6
-30%
Read 4K
41.59
42.59
2%
41.03
-1%
40.86
-2%
41.46
0%
Write Seq
2388
2851
19%
1146
-52%
1317
-45%
2378
0%
Read Seq
1623
2696
66%
1115
-31%
1030
-37%
2114
30%
Write 4K Q32T1
432.6
402.6
-7%
384.6
-11%
350.4
-19%
445.4
3%
Read 4K Q32T1
525.8
443.9
-16%
429.5
-18%
404.1
-23%
509.3
-3%
Write Seq Q32T1
2438
3420
40%
1859
-24%
2396
-2%
2735
12%
Read Seq Q32T1
3457
3514
2%
3179
-8%
3194
-8%
3206
-7%
Samsung SSD PM981 MZVLB2T0HMLB
CDM 5/6 Read Seq Q32T1: 3457 MB/s
CDM 5/6 Write Seq Q32T1: 2438 MB/s
CDM 5/6 Read 4K Q32T1: 525.8 MB/s
CDM 5/6 Write 4K Q32T1: 432.6 MB/s
CDM 5 Read Seq: 1623 MB/s
CDM 5 Write Seq: 2388 MB/s
CDM 5/6 Read 4K: 41.59 MB/s
CDM 5/6 Write 4K: 158.7 MB/s

Constant Reads Performance: DiskSpd Read Loop, Queue Depth 8

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370138013901400141014201430144014501460147014801490150015101520153015401550156015701580159016001610162016301640165016601670168016901700171017201730174017501760177017801790180018101820183018401850186018701880189019001910192019301940195019601970198019902000201020202030204020502060207020802090210021102120213021402150216021702180219022002210222022302240225022602270228022902300231023202330234023502360237023802390240024102420243024402450246024702480249025002510252025302540255025602570258025902600261026202630264026502660267026802690270027102720273027402750276027702780279028002810282028302840285028602870288028902900291029202930294029502960297029802990300030103020303030403050306030703080309031003110312031303140315031603170318031903200321032203230324032503260327032803290Tooltip
: Ø3244 (3021.37-3280.52)
3DMark
2560x1440 Port Royal Graphics
Razer Blade Pro 17 RTX 2080 Max-Q
NVIDIA GeForce RTX 2080 Max-Q
5148 Points ∼100% +14%
Alienware m17 R2 P41E
NVIDIA GeForce RTX 2080 Max-Q
5092 Points ∼99% +13%
Asus ROG Zephyrus S GX701GXR
NVIDIA GeForce RTX 2080 Max-Q
4713 Points ∼92% +5%
MSI GS75 Stealth 9SG
NVIDIA GeForce RTX 2080 Max-Q
4545 Points ∼88% +1%
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
4497 Points ∼87%
Average of class Multimedia
  (3032 - 4497, n=2)
3765 Points ∼73% -16%
2560x1440 Time Spy Graphics
Razer Blade Pro 17 RTX 2080 Max-Q
NVIDIA GeForce RTX 2080 Max-Q
8844 Points ∼100% +20%
Alienware m17 R2 P41E
NVIDIA GeForce RTX 2080 Max-Q
8479 Points ∼96% +15%
Asus ROG Zephyrus S GX701GXR
NVIDIA GeForce RTX 2080 Max-Q
8036 Points ∼91% +9%
MSI GS75 Stealth 9SG
NVIDIA GeForce RTX 2080 Max-Q
7923 Points ∼90% +7%
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
7372 Points ∼83%
Average of class Multimedia
  (142 - 7372, n=91)
1711 Points ∼19% -77%
1920x1080 Fire Strike Graphics
Razer Blade Pro 17 RTX 2080 Max-Q
NVIDIA GeForce RTX 2080 Max-Q
23032 Points ∼100% +17%
Alienware m17 R2 P41E
NVIDIA GeForce RTX 2080 Max-Q
22391 Points ∼97% +14%
Asus ROG Zephyrus S GX701GXR
NVIDIA GeForce RTX 2080 Max-Q
20917 Points ∼91% +6%
MSI GS75 Stealth 9SG
NVIDIA GeForce RTX 2080 Max-Q
20119 Points ∼87% +2%
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
19655 Points ∼85%
Average of class Multimedia
  (337 - 19655, n=447)
3128 Points ∼14% -84%
3DMark 11 - 1280x720 Performance GPU
Razer Blade Pro 17 RTX 2080 Max-Q
NVIDIA GeForce RTX 2080 Max-Q
30910 Points ∼100% +18%
Alienware m17 R2 P41E
NVIDIA GeForce RTX 2080 Max-Q
29220 Points ∼95% +11%
Asus ROG Zephyrus S GX701GXR
NVIDIA GeForce RTX 2080 Max-Q
29052 Points ∼94% +10%
MSI GS75 Stealth 9SG
NVIDIA GeForce RTX 2080 Max-Q
27204 Points ∼88% +3%
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
26292 Points ∼85%
Average of class Multimedia
  (352 - 26292, n=670)
3236 Points ∼10% -88%
SPECviewperf 13
Solidworks (sw-04)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
88.94 fps ∼100%
Average of class Multimedia
  (3.69 - 92.3, n=9)
59.8 fps ∼67% -33%
Siemens NX (snx-03)
Average of class Multimedia
  (5.87 - 157, n=9)
36 fps ∼100% +72%
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
20.88 fps ∼58%
Showcase (showcase-02)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
96.17 fps ∼100%
Average of class Multimedia
  (11.3 - 96.2, n=9)
41.3 fps ∼43% -57%
Medical (medical-02)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
53.12 fps ∼100%
Average of class Multimedia
  (7.96 - 53.1, n=9)
21.2 fps ∼40% -60%
Maya (maya-05)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
210.17 fps ∼100%
Average of class Multimedia
  (27 - 210, n=9)
100 fps ∼48% -52%
Energy (energy-02)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
17.49 fps ∼100%
Average of class Multimedia
  (0.48 - 17.5, n=7)
8.58 fps ∼49% -51%
Creo (creo-02)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
169.96 fps ∼100%
Average of class Multimedia
  (25.2 - 170, n=9)
70.3 fps ∼41% -59%
Catia (catia-05)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
132.28 fps ∼100%
Average of class Multimedia
  (25.8 - 132, n=9)
80.3 fps ∼61% -39%
3ds Max (3dsmax-06)
MSI Creator 17 A10SGS
NVIDIA GeForce RTX 2080 Super Max-Q
176.55 fps ∼100%
Average of class Multimedia
  (23.3 - 177, n=9)
68.9 fps ∼39% -61%
0510152025303540455055606570758085Tooltip
MSI Creator 17 A10SGS GeForce RTX 2080 Super Max-Q, i7-10875H, Samsung SSD PM981 MZVLB2T0HMLB: Ø72.2 (65-77)
3DMark 11 Performance
22567 punten
3DMark Fire Strike Score
17053 punten
3DMark Time Spy Score
7482 punten
Help
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Razer Blade Pro 17 RTX 2080 Max-Q
GeForce RTX 2080 Max-Q, i7-9750H
87.4 fps ∼100% +16%
Asus ROG Zephyrus S GX701GXR
GeForce RTX 2080 Max-Q, i7-9750H
80.7 fps ∼92% +7%
Alienware m17 R2 P41E
GeForce RTX 2080 Max-Q, i9-9980HK
78 fps ∼89% +4%
MSI GS75 Stealth 9SG
GeForce RTX 2080 Max-Q, i7-9750H
76.9 fps ∼88% +2%
MSI Creator 17 A10SGS
GeForce RTX 2080 Super Max-Q, i7-10875H
75.1 (min: 62) fps ∼86%
Average of class Multimedia
  (2.9 - 80.8, n=121)
21.5 fps ∼25% -71%
lage gem. hoge ultraQHD4K
GTA V (2015) 180 174 157 85.3 71.5 fps
The Witcher 3 (2015) 138 75.1 49.8 fps
Dota 2 Reborn (2015) 155 141 139 125 102 fps
X-Plane 11.11 (2018) 113 99.8 84.3 67 fps
Shadow of the Tomb Raider (2018) 105 92 63 32 fps
Battlefield V (2018) 127 118 95.4 52.6 fps
Far Cry New Dawn (2019) 98 92 78 43 fps
Rage 2 (2019) 102 101 63.8 30.9 fps
Control (2019) 71.1 46.1 22 fps
Borderlands 3 (2019) 79.8 71.6 51.7 26.9 fps
FIFA 20 (2019) 217 213 189 114 fps
Call of Duty Modern Warfare 2019 (2019) 114 91.8 67.3 36.8 fps
Star Wars Jedi Fallen Order (2019) 102 95.2 72.2 36.8 fps
Red Dead Redemption 2 (2019) 62.4 41 35 21.5 fps
Gears Tactics (2020) 114 78.4 54 28.1 fps
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.232.433.130.9362541.634.935.733.238.53134.831.331.529.931.74036.135.740.635.734.15039.334.735.131.735.36333.631.330.229.128.88030.226.427.425.729.810029.627.526.124.729.812529.225.724.424.630.316029.827.627.225.832.220027.925.424.322.829.925028.323.62422.128.531530.226.423.421.330.340033.23021.819.532.650034.728.121.81934.263032.82620.817.83280033.326.820.31832.9100034.427.726.717.934.8125035.331.921.918.935.6160040.230.720.617.939.5200037.929.820.417.738250037.929.819.917.637.9315037.328.919.81837.1400036.827.819.617.936.6500035.225.919.61835630032.625.918.817.932.1800030.823.318.31830.51000028.520.218.317.928.21250025.119.619.117.824.31600021.618.818.317.920.9SPL48.140.533.230.447.8N6.13.51.91.46.1median 32.8median 26.8median 20.6median 18median 32.2Delta3.22.12.32.12.8hearing rangehide median Fan NoiseMSI Creator 17 A10SGS

Geluidsniveau

Onbelast
32 / 33 / 40 dB (A)
Belasting
47 / 48 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30 dB(A)
MSI Creator 17 A10SGS
i7-10875H, GeForce RTX 2080 Super Max-Q
MSI GS75 Stealth 9SG
i7-9750H, GeForce RTX 2080 Max-Q
Razer Blade Pro 17 RTX 2080 Max-Q
i7-9750H, GeForce RTX 2080 Max-Q
Asus ROG Zephyrus S GX701GXR
i7-9750H, GeForce RTX 2080 Max-Q
Alienware m17 R2 P41E
i9-9980HK, GeForce RTX 2080 Max-Q
Average of class Multimedia

Noise
1%
7%
3%
3%
10%
off / environment *
30
30
-0%
28.2
6%
30
-0%
29.1
3%
31 (22 - 304, n=210)
-3%
Idle Minimum *
32
31
3%
28.2
12%
32
-0%
29.4
8%
31.1 (27.8 - 40.1, n=1011)
3%
Idle Average *
33
32
3%
28.2
15%
33
-0%
29.4
11%
31.9 (27.8 - 42.2, n=1013)
3%
Idle Maximum *
40
38
5%
30.8
23%
34
15%
31.5
21%
32.5 (27.8 - 47, n=1013)
19%
Load Average *
47
47
-0%
42
11%
40
15%
49.7
-6%
36.5 (28 - 51.8, n=1013)
22%
Witcher 3 ultra *
46
48
-4%
51
-11%
49
-7%
49.5
-8%
Load Maximum *
48
49
-2%
53
-10%
50
-4%
53.3
-11%
41.9 (32.5 - 62.7, n=1013)
13%

* ... kleiner is beter

Max. Belasting
 48 °C52 °C49 °C
 46 °C51 °C45 °C
 40 °C43 °C39 °C
Maximum: 52 °C
Gemiddelde: 45.9 °C
59 °C58 °C49 °C
51 °C52 °C47 °C
42 °C43 °C43 °C
Maximum: 59 °C
Gemiddelde: 49.3 °C
Stroomadapter (max.)  51 °C | Kamertemperatuur 24 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 45.9 °C / 115 F, compared to the average of 31 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 36.6 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 59 °C / 138 F, compared to the average of 38.9 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 31 °C / 88 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 47.4 °C / 117 F, compared to the device average of 31 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 43 °C / 109.4 F.
(-) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (-14 °C / -25.2 F).
MSI Creator 17 A10SGS
i7-10875H, GeForce RTX 2080 Super Max-Q
MSI GS75 Stealth 9SG
i7-9750H, GeForce RTX 2080 Max-Q
Razer Blade Pro 17 RTX 2080 Max-Q
i7-9750H, GeForce RTX 2080 Max-Q
Asus ROG Zephyrus S GX701GXR
i7-9750H, GeForce RTX 2080 Max-Q
Alienware m17 R2 P41E
i9-9980HK, GeForce RTX 2080 Max-Q
Average of class Multimedia

Heat
-0%
17%
6%
-9%
16%
Maximum Upper Side *
52
55
-6%
43
17%
50
4%
54.2
-4%
41.8 (27.2 - 71, n=969)
20%
Maximum Bottom *
59
65
-10%
47.2
20%
47
20%
61.4
-4%
45.1 (28.5 - 82, n=969)
24%
Idle Upper Side *
34
30
12%
27.2
20%
33
3%
37.8
-11%
29.6 (21.1 - 40.2, n=821)
13%
Idle Bottom *
33
32
3%
30
9%
34
-3%
38.6
-17%
30.9 (21.5 - 44.4, n=821)
6%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.933.12533.239.23129.933.54035.740.35031.737.26329.138.98025.733.410024.732.612524.635.916025.838.820022.846.225022.148.631521.352.540019.568.15001978.463017.880.78001880.8100017.981.5125018.982160017.979.6200017.780.3250017.677.231501877.9400017.975.750001876.4630017.971.980001873.31000017.973.61250017.875.11600017.969.6SPL30.490.5N1.485.3median 18median 75.1Delta2.111.636.938.839.843.633.732.434.735.12931.928.335.127.930.424.627.724.733.328.233.52437.721.745.720.247.520.253.219.155.41866.21774.717.473.319.169.817.46617.168.717.265.417.566.817.367.317.570.317.168.217.269.917.468.617.362.717.452.330.181.11.448.9median 17.5median 661.710.6hearing rangehide median Pink NoiseMSI Creator 17 A10SGSMSI GS75 Stealth 9SG
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
MSI Creator 17 A10SGS audio analysis

(+) | speakers can play relatively loud (91 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 32.6% lower than median
(+) | bass is linear (6.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 10% similar, 32% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 3%, average was 21%, worst was 65%

MSI GS75 Stealth 9SG audio analysis

(±) | speaker loudness is average but good (81 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.4% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.8% lower than median
(±) | linearity of mids is average (10% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.4% difference to median)
Compared to same class
» 80% of all tested devices in this class were better, 5% similar, 16% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 58% of all tested devices were better, 9% similar, 33% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 1.2 / 1.8 Watt
Inactiefdarkmidlight 15 / 20 / 42 Watt
Belasting midlight 150 / 210 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
MSI Creator 17 A10SGS
i7-10875H, GeForce RTX 2080 Super Max-Q
MSI GS75 Stealth 9SG
i7-9750H, GeForce RTX 2080 Max-Q
Razer Blade Pro 17 RTX 2080 Max-Q
i7-9750H, GeForce RTX 2080 Max-Q
Asus ROG Zephyrus S GX701GXR
i7-9750H, GeForce RTX 2080 Max-Q
Alienware m17 R2 P41E
i9-9980HK, GeForce RTX 2080 Max-Q
Average of class Multimedia

Power Consumption
16%
9%
-19%
-38%
44%
Idle Minimum *
15
13
13%
16.2
-8%
32
-113%
24.7
-65%
11.3 (2.1 - 101, n=968)
25%
Idle Average *
20
17
15%
20.4
-2%
34
-70%
35.9
-80%
15.9 (3 - 122, n=968)
20%
Idle Maximum *
42
25
40%
26.1
38%
36
14%
69.6
-66%
19.4 (4.6 - 181, n=968)
54%
Load Average *
150
96
36%
96.5
36%
95
37%
141.8
5%
60.1 (18.5 - 164, n=947)
60%
Witcher 3 ultra *
170
156
8%
182.9
-8%
155
9%
185.8
-9%
Load Maximum *
210
239
-14%
214.3
-2%
187
11%
235.4
-12%
78.4 (20.1 - 329, n=952)
63%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
7h 14min
NBC WiFi Websurfing Battery Test 1.3
4h 26min
Belast (maximale helderheid)
1h 07min
MSI Creator 17 A10SGS
i7-10875H, GeForce RTX 2080 Super Max-Q, 82 Wh
MSI GS75 Stealth 9SG
i7-9750H, GeForce RTX 2080 Max-Q, 80.25 Wh
Razer Blade Pro 17 RTX 2080 Max-Q
i7-9750H, GeForce RTX 2080 Max-Q, 70 Wh
Asus ROG Zephyrus S GX701GXR
i7-9750H, GeForce RTX 2080 Max-Q, 76 Wh
Alienware m17 R2 P41E
i9-9980HK, GeForce RTX 2080 Max-Q, 76 Wh
Average of class Multimedia

Batterijduur
17%
0%
-24%
-16%
22%
Reader / Idle
434
461
6%
295
-32%
246
-43%
426
-2%
423 (73 - 2085, n=912)
-3%
WiFi v1.3
266
357
34%
280
5%
182
-32%
290
9%
373 (96 - 942, n=286)
40%
Load
67
74
10%
86
28%
69
3%
31
-54%
86 (32 - 238, n=916)
28%
H.264
410
168
374 (114 - 1053, n=113)

Pro

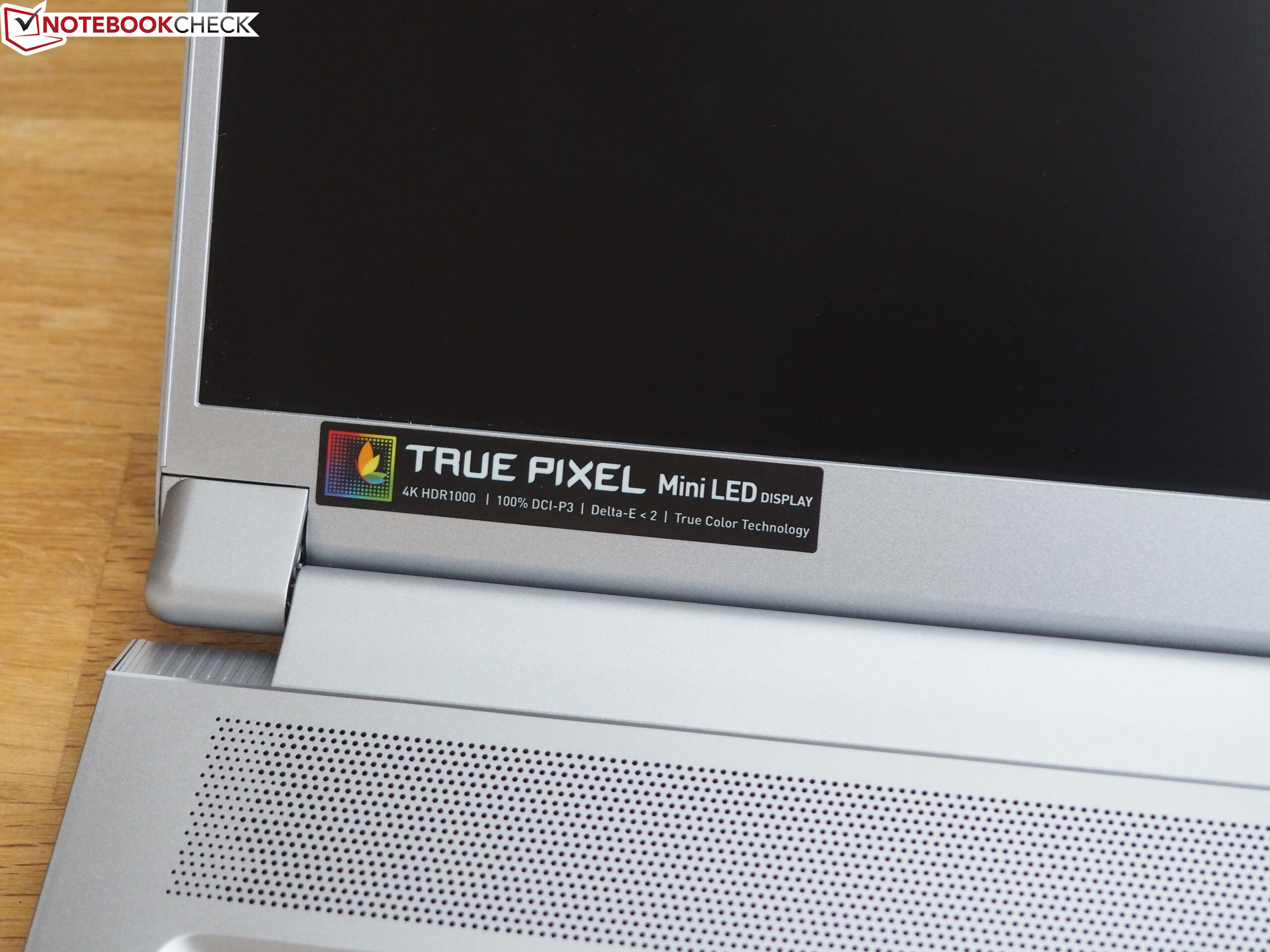

+ extreem helder Mini LED-paneel met HDR-ondersteuning
+ relatief compact en licht voor een 17-inch notebook
+ moderne aansluitingen incl. Thunderbolt 3
+ zeer goede systeemprestaties
+ strak ontwerp

Contra

- behuizing laat ruimte voor verbetering (met name stabiliteit)
- CPU en GPU Turbo kunnen beter zijn
- hoge temperaturen onder belasting

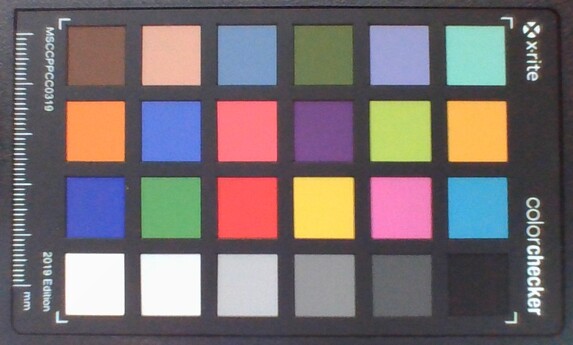

- geluid en webcam zijn slechts matig

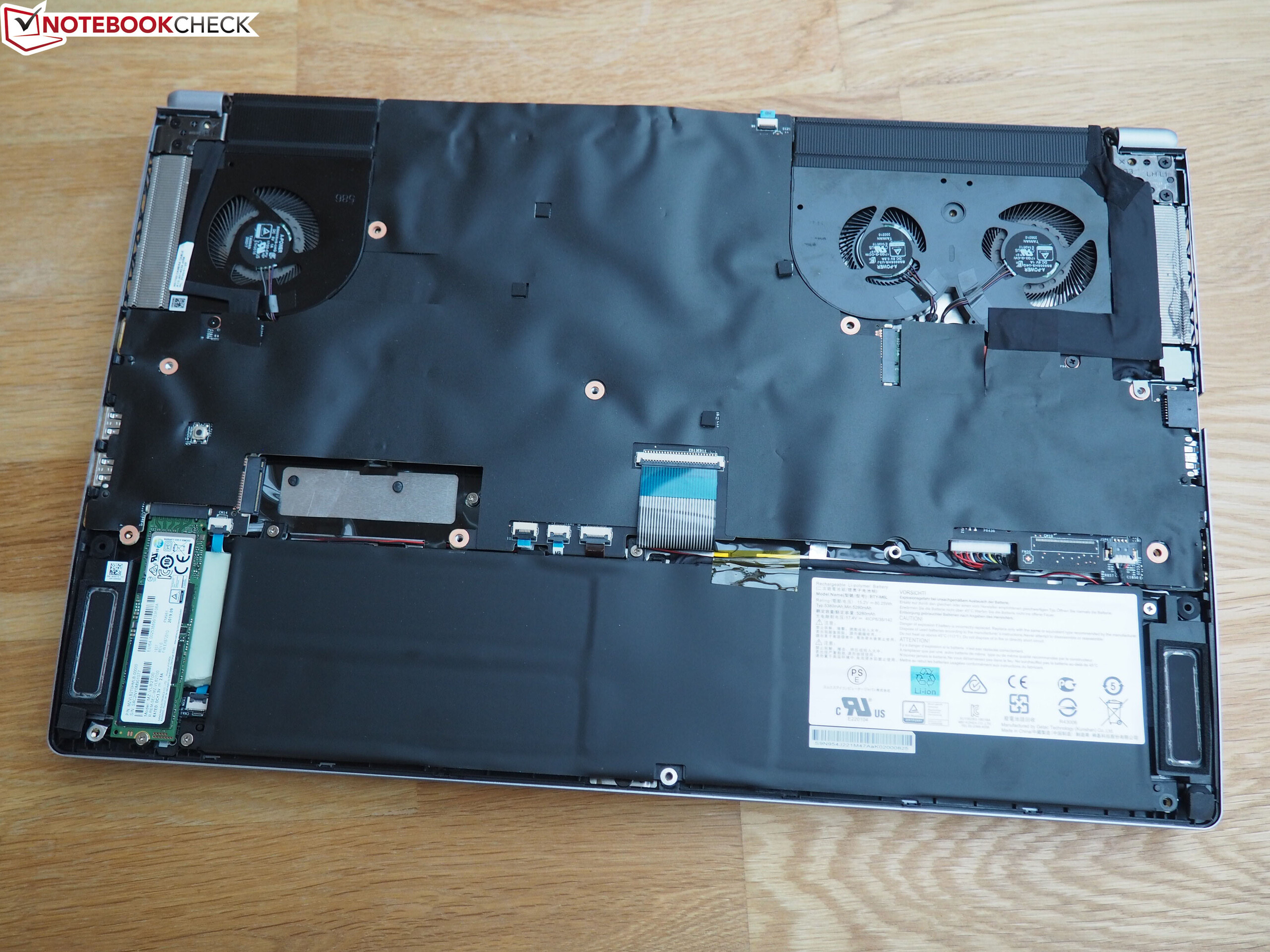

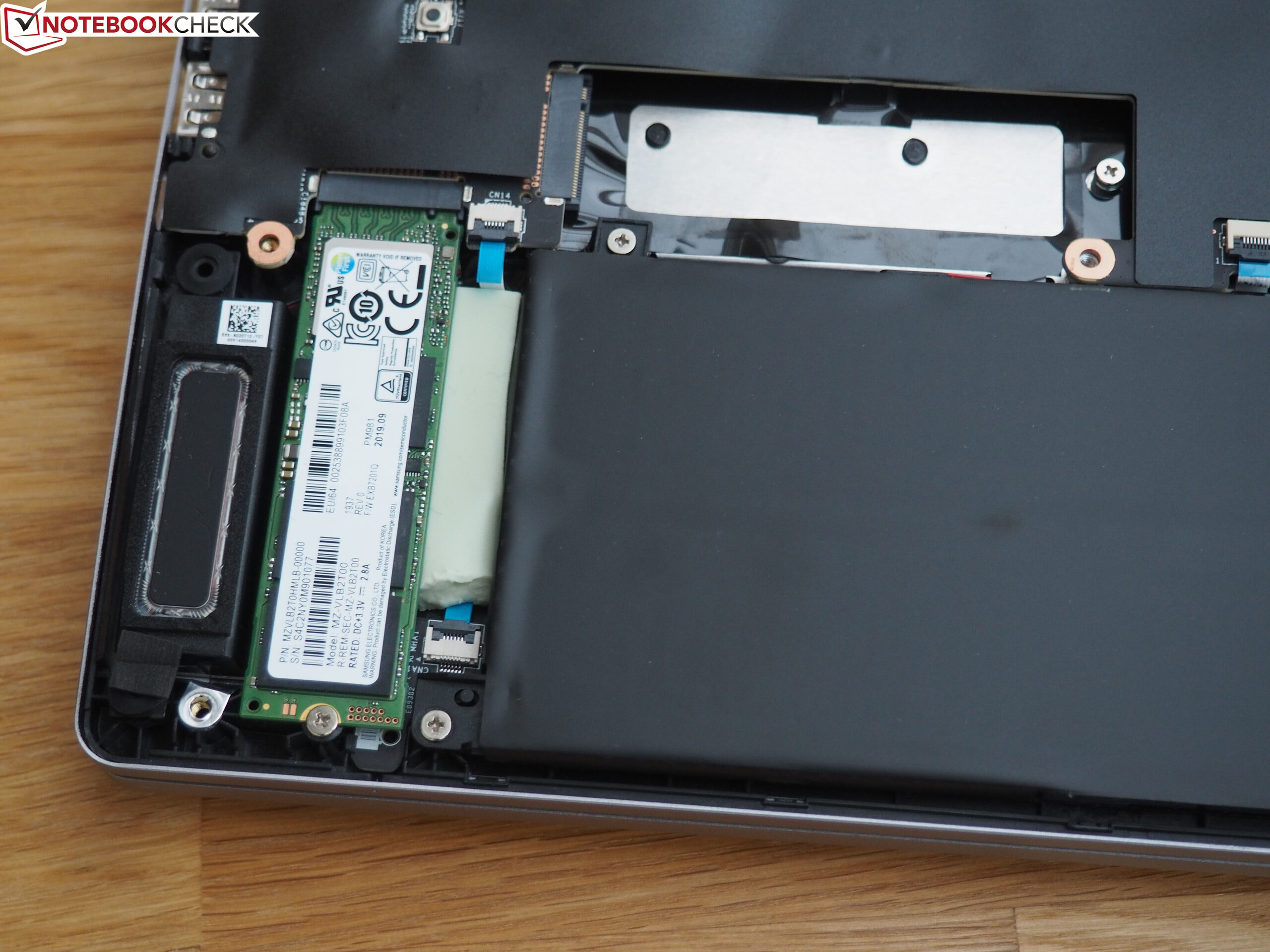

- beperkte onderhoudsmogelijkheden
MSI Creator 17 A10SGS. Testmodel geleverd door MSI Germany.
MSI Creator 17 A10SGS. Testmodel geleverd door MSI Germany.

Voor het volledige, Engelse testrapport, klik hier.

De duurste configuratie van de Creator 17 leverde in onze test gemengde prestaties op. Hoewel het Mini LED-display, als eerste aangeboden door MSI, in alle opzichten kan overtuigen en de show steelt van andere concurrenten (bijna 1000 cd/m² helderheid!), valt de behuizing tegen (stabiliteit, kwaliteitsindruk , enzovoort).

Gezien de prestaties van de RTX 2080 Super Max-Q niet in verhouding staan tot de prijs, raden we de betaalbaardere versie met de RTX 2070 (Super) Max-Q aan geïnteresseerde kopers aan. Het gebruik van de Core i7-10875H Turbo kan ook beter.



Het feit dat de Creator 17 ondanks deze zwakke punten in onze Top 10 voor Foto- en Videobewerkingstabel terechtkomt, is niet in de laatste plaats te danken aan de rijke verbindingsmogelijkheden, waaronder Thunderbolt 3. Voor de opvolger zouden we een robuustere en minder luidruchtige behuizing wensen met een koelsysteem dat niet zo dicht bij de limieten zit.

MSI Creator 17 A10SGS - 05-07-2020 v7
Florian Glaser

Behuizing
71 / 98 → 73%
Toetsenbord
79%
Aanwijsapparaat
78%
Aansluitmogelijkheden
68 / 80 → 85%
Gewicht
61 / 20-72 → 78%
Batterij
60 / 95 → 63%
Beeldscherm
93%
Gaming-performance
92 / 90 → 100%
Applicatie-performance
92 / 90 → 100%
Temperatuur
73%
Luidheid
69 / 95 → 73%
Audio
76%
Camera
43 / 85 → 50%
Gemiddelde
74%
83%
Multimedia - Gewogen Gemiddelde

Pricecompare

MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
MSI Creator 17
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport MSI Creator 17 A10SGS Laptop: Winnen met een Mini LED
Florian Glaser, 2020-07-21 (Update: 2020-07-21)
