Kort testrapport Huawei MateBook D 15 Laptop: Nog steeds een goede laptop met AMD

Mike Wobker, 👁 Andreas Osthoff, Felicitas Krohn, 11-03-2020

15-inch beeldscherm met een 16:10 beeldverhouding. We waren onder de indruk van de MateBook met een Intel CPU en nu lijkt de notebook net zo goed te zijn met een AMD-processor. Huawei heeft een aantal wijzigingen doorgevoerd om ervoor te zorgen dat de AMD CPU zijn volledige potentieel kan bereiken.

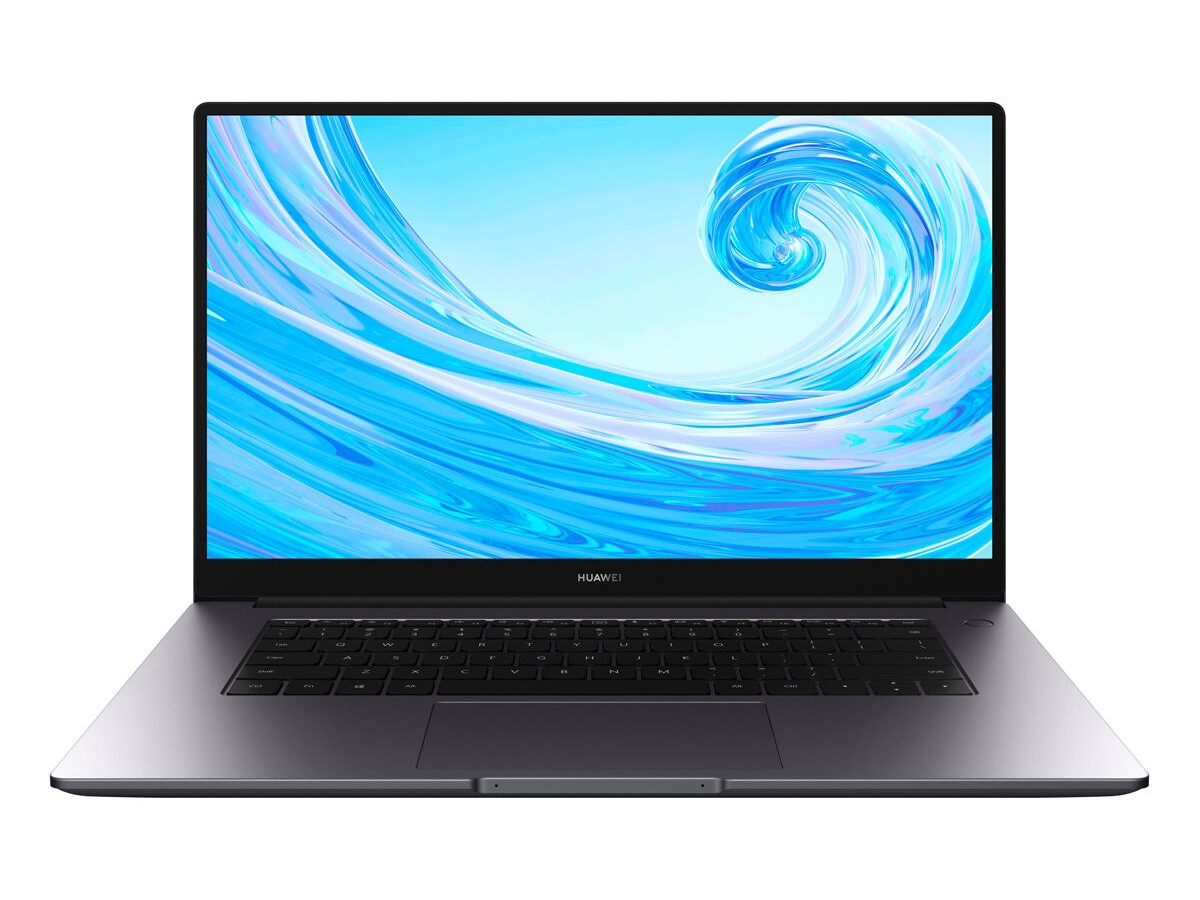

Huawei MateBook D 15-53010TUY (MateBook D Serie)
Grafische kaart
AMD Radeon RX Vega 8
Geheugen
8192 MB
, Dual-channel
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, AU Optronics AUO28ED, IPS, glimmend: nee
Moederbord
AMD Promontory/Bixby FCH
Opslag
Samsung SSD PM981 MZVLB256HAHQ, 256 GB
, 192 GB beschikbaar
Geluidskaart
AMD Raven - Audio Processor - HD Audio Controller
Verbindingen
2 USB 2.0, 2 USB 3.0, 1 HDMI, Audio Verbindingen: combined 3.5-mm headphone-microphone jack, 1 Vingerafdruklezer, Sensoren: bewegingssensor, Hall effect sensor
Netwerkmogelijkheden
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 16.9 x 357.8 x 229.9
Batterij
42 Wh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Bijkomende functionaliteiten
Luidsprekers: 2x 2W Stereo, Toetsenbord: chiclet-style, Toetsenbordverlichting: nee, Huawei PC Manager, 24 Maanden Garantie
Gewicht
1.523 kg, Voeding: 200 g
Prijs
650 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
85 %
03-2020
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8
1.5 kg16.9 mm15.6"1920x1080
78 %
11-2019
Acer Aspire 5 A515-43-R6WW
R5 3500U, Vega 8
1.8 kg18 mm15.6"1920x1080
82 %
02-2020
Lenovo ThinkBook 15
i5-10210U, UHD Graphics 620
1.9 kg18.9 mm15.6"1920x1080
79 %
02-2020
HP 15s-fq1556ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
1.7 kg18 mm15.6"1920x1080
87 %
03-2020
Huawei MateBook D 14-53010TVS
R5 3500U, Vega 8
1.4 kg16 mm14"1920x1080

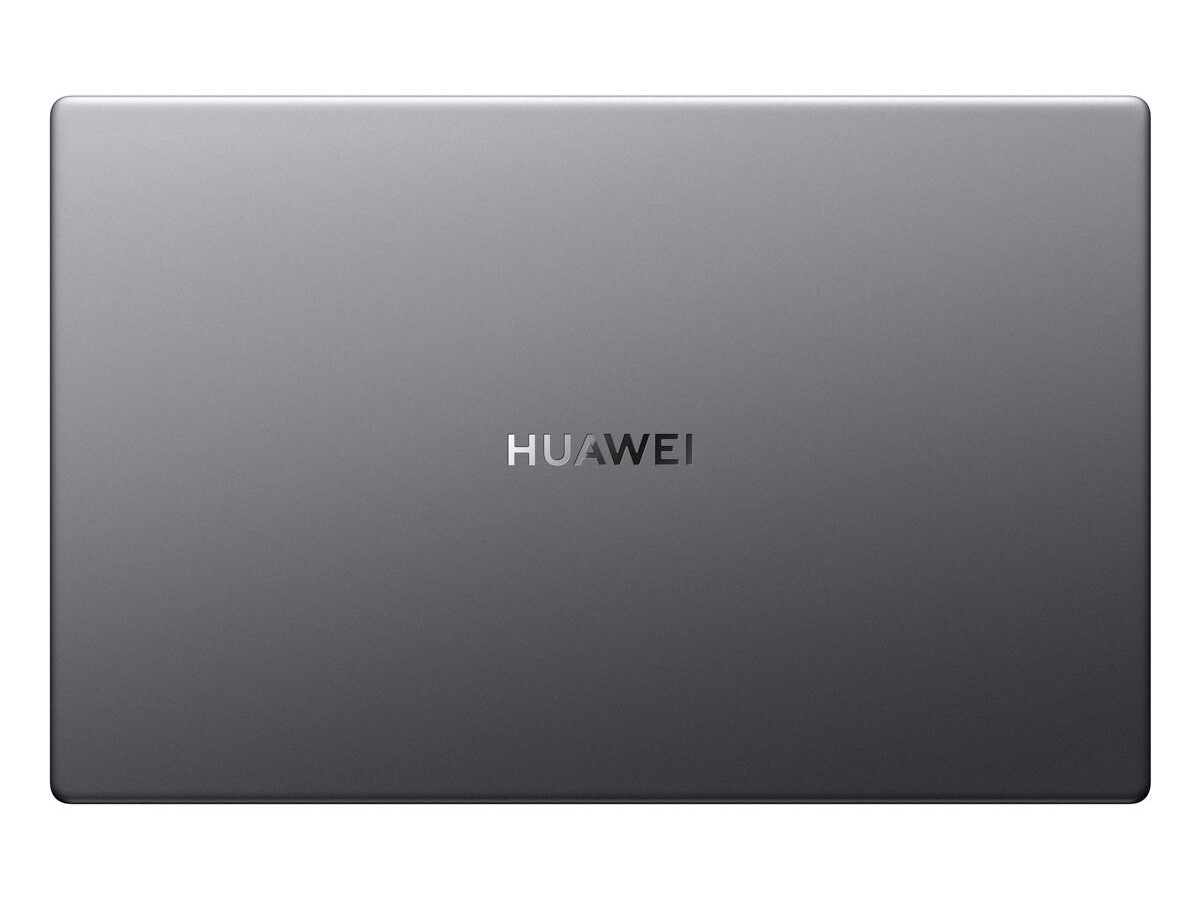

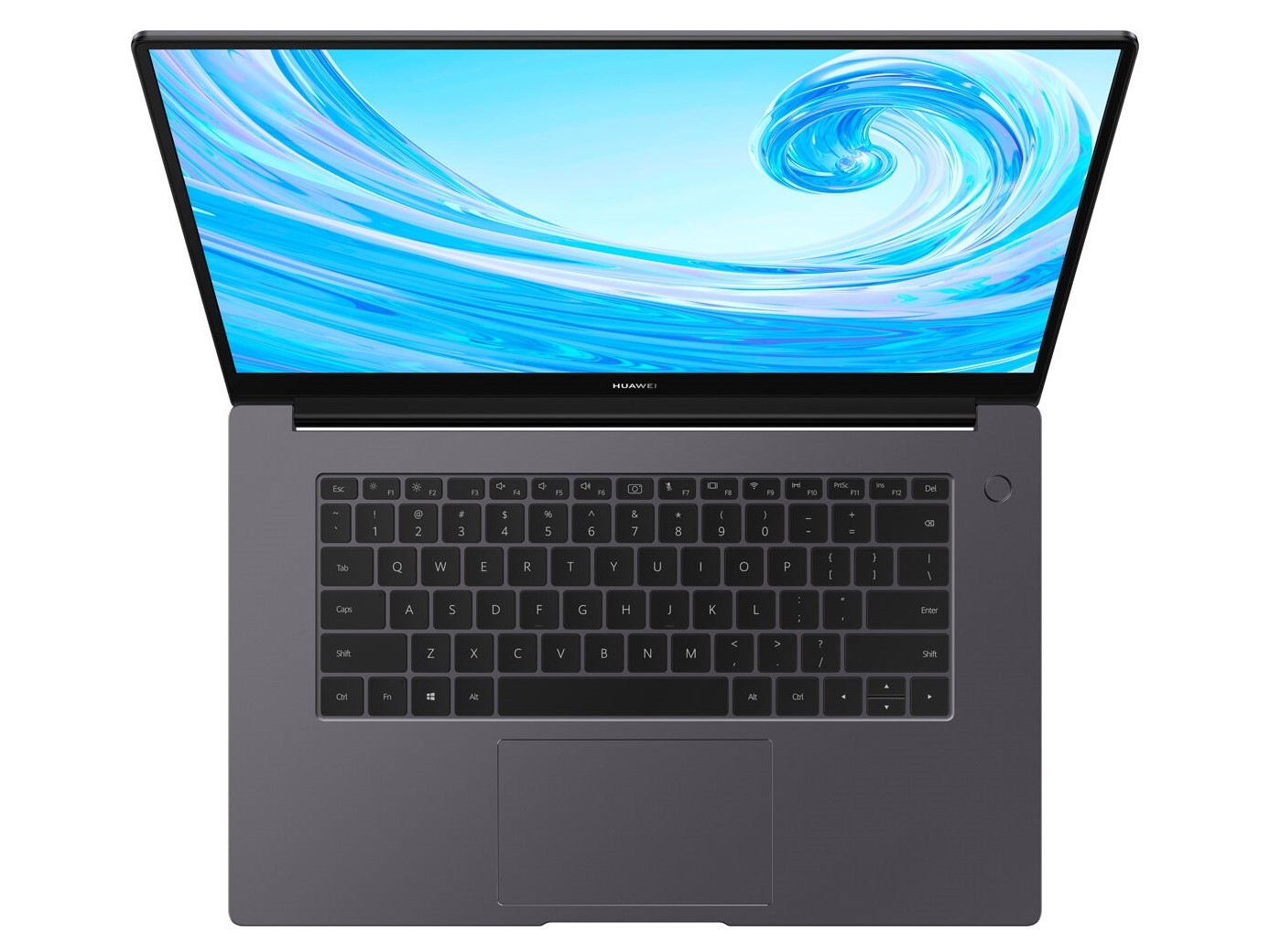

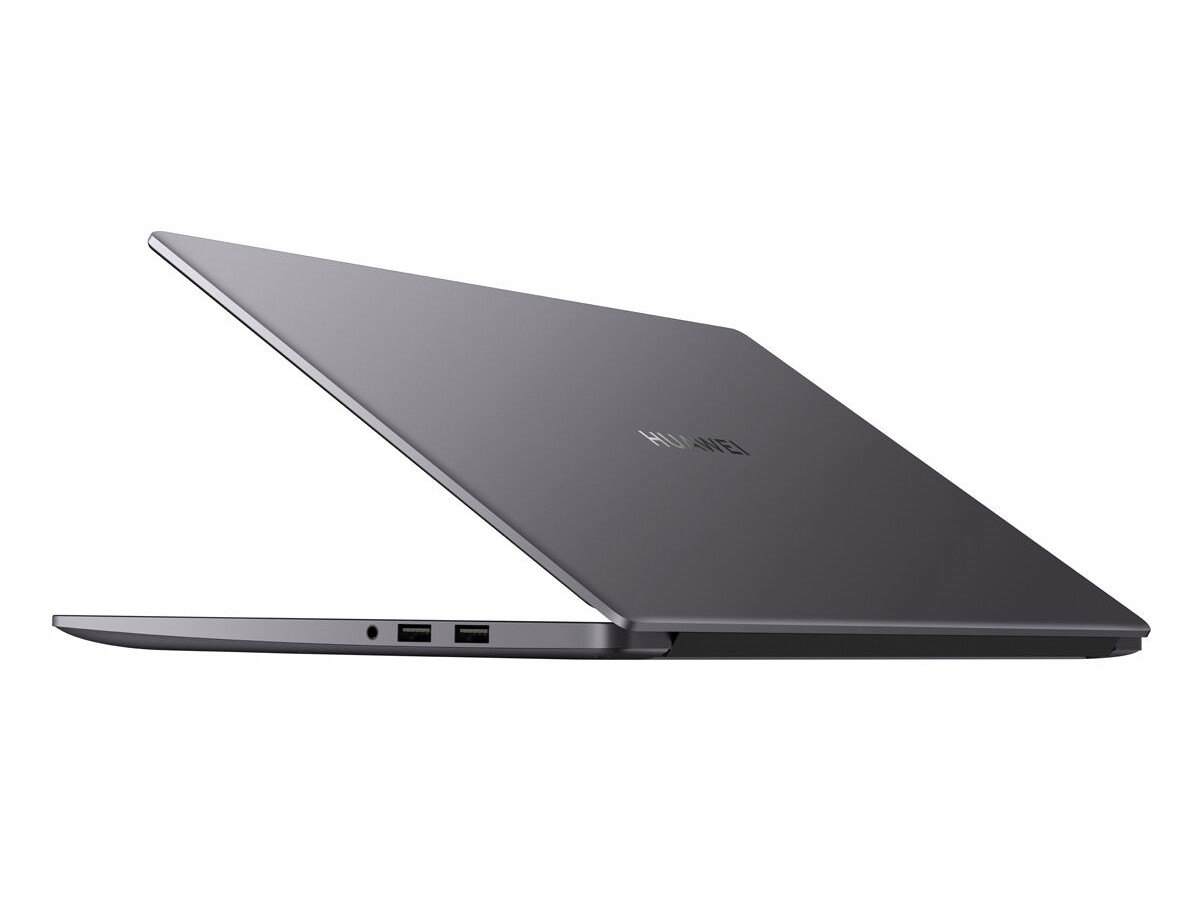

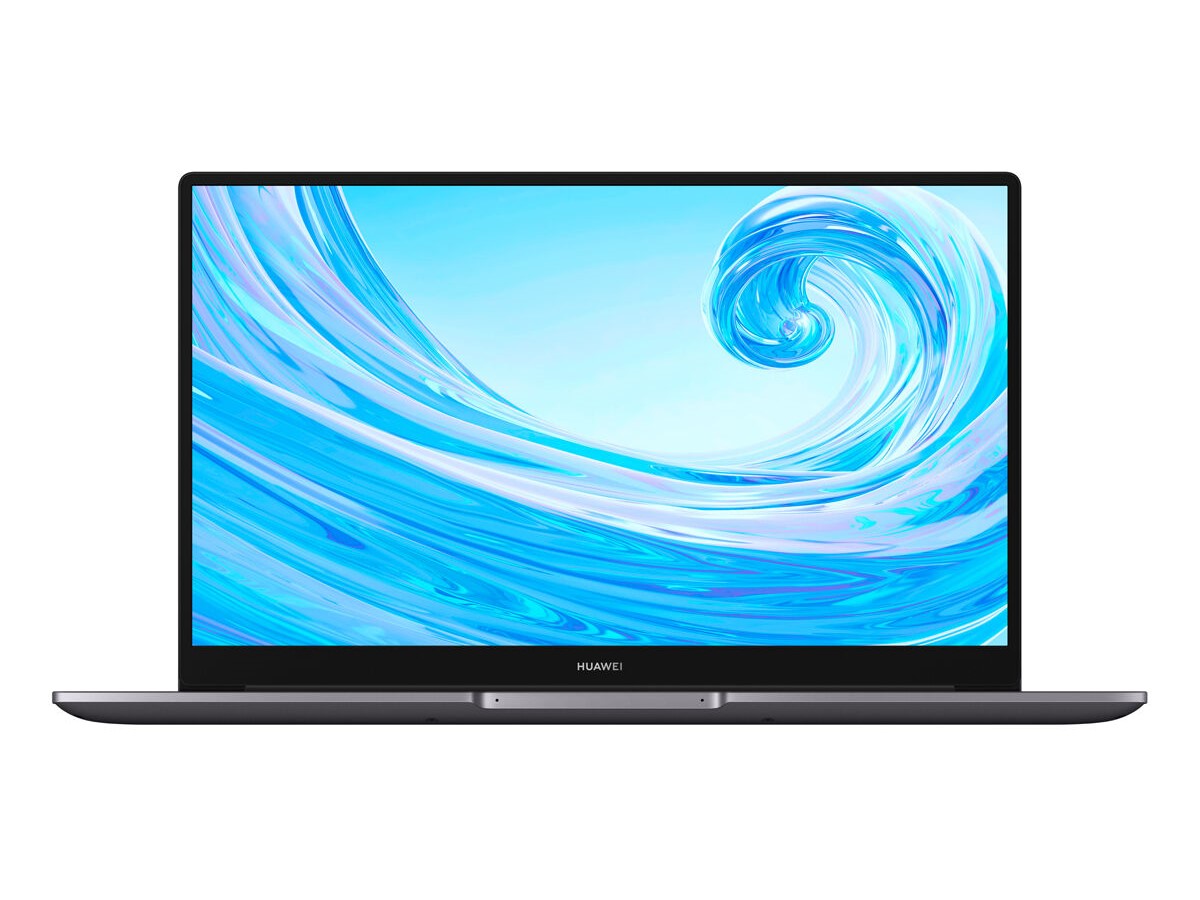

Huawei MateBook D 15 AMD
Huawei MateBook D 15 AMD
Huawei MateBook D 15 AMD
Huawei MateBook D 15 AMD
Huawei MateBook D 15 AMD

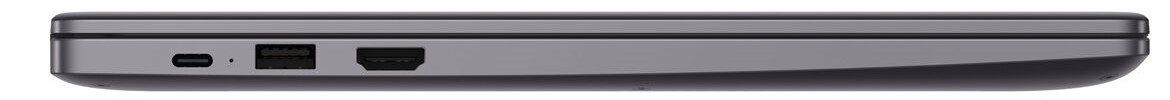

Linkerkant: een USB Type-C poort (laden, geen DP), een USB Type-A 3.0 poort, HDMI poort
Linkerkant: een USB Type-C poort (laden, geen DP), een USB Type-A 3.0 poort, HDMI poort

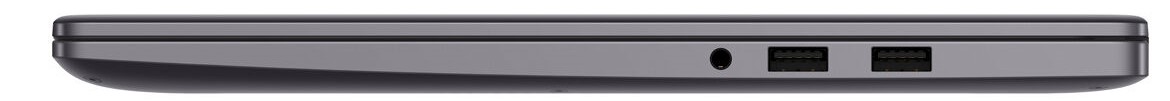

Rechterkant: gecombineerde audiopoort, een USB Type-A 2.0 poort
Rechterkant: gecombineerde audiopoort, een USB Type-A 2.0 poort
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkBook 15
Intel Wireless-AC 9560
672 (min: 334, max: 686) MBit/s ∼100% +3%
Huawei MateBook D 15-53010TUY
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
653 (min: 593, max: 667) MBit/s ∼97%
Huawei MateBook D 14-53010TVS
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
643 (min: 619, max: 656) MBit/s ∼96% -2%
Average of class Subnotebook
  (30.9 - 1460, n=141)
546 MBit/s ∼81% -16%
Huawei MateBook D 14 W50F
Intel Dual Band Wireless-AC 8265
502 (min: 323, max: 535) MBit/s ∼75% -23%
Acer Aspire 5 A515-43-R6WW
Atheros/Qualcomm QCA6174
309 (min: 278, max: 319) MBit/s ∼46% -53%
HP 15s-fq1556ng
RealTek Semiconductor, Device ID: C821
277 (min: 259, max: 289) MBit/s ∼41% -58%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkBook 15
Intel Wireless-AC 9560
697 (min: 663, max: 718) MBit/s ∼100% +1%
Huawei MateBook D 15-53010TUY
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
690 (min: 335, max: 729) MBit/s ∼99%
Huawei MateBook D 14-53010TVS
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
656 (min: 332, max: 675) MBit/s ∼94% -5%
Huawei MateBook D 14 W50F
Intel Dual Band Wireless-AC 8265
590 (min: 528, max: 688) MBit/s ∼85% -14%
Acer Aspire 5 A515-43-R6WW
Atheros/Qualcomm QCA6174
588 (min: 564, max: 603) MBit/s ∼84% -15%
Average of class Subnotebook
  (36 - 1416, n=141)
538 MBit/s ∼77% -22%
HP 15s-fq1556ng
RealTek Semiconductor, Device ID: C821
253 (min: 214, max: 288) MBit/s ∼36% -63%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730Tooltip
Huawei MateBook D 15-53010TUY Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø652 (593-667)
Acer Aspire 5 A515-43-R6WW Atheros/Qualcomm QCA6174; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø309 (278-319)
Lenovo ThinkBook 15 Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø661 (334-686)
HP 15s-fq1556ng RealTek Semiconductor, Device ID: C821; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø276 (259-289)
Huawei MateBook D 14-53010TVS Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø642 (619-656)
Huawei MateBook D 14 W50F Intel Dual Band Wireless-AC 8265; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø502 (323-535)
Huawei MateBook D 15-53010TUY Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø679 (335-729)
Acer Aspire 5 A515-43-R6WW Atheros/Qualcomm QCA6174; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø588 (564-603)
Lenovo ThinkBook 15 Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø697 (663-718)
HP 15s-fq1556ng RealTek Semiconductor, Device ID: C821; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø253 (214-288)
Huawei MateBook D 14-53010TVS Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø645 (332-675)
Huawei MateBook D 14 W50F Intel Dual Band Wireless-AC 8265; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø591 (528-688)
250
cd/m²
253
cd/m²
258
cd/m²
261
cd/m²
271
cd/m²
257
cd/m²
254
cd/m²
256
cd/m²
245
cd/m²
Helderheidsverdeling
AU Optronics AUO28ED
X-Rite i1Pro 2
Maximum: 271 cd/m² Gemiddelde: 256.1 cd/m² Minimum: 2.6 cd/m²
Helderheidsverdeling: 90 %
Helderheid in Batterij-modus: 271 cd/m²
Contrast: 1807:1 (Zwart: 0.15 cd/m²)
ΔE Color 4.7 | 0.6-29.43 Ø5.9, calibrated: 4.6
ΔE Greyscale 1.6 | 0.64-98 Ø6.1
60.6% sRGB (Argyll 3D) 38.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.17
Huawei MateBook D 15-53010TUY
AU Optronics AUO28ED, IPS, 1920x1080, 15.6
Acer Aspire 5 A515-43-R6WW
CEC PANDA LM156LF-CL07, IPS, 1920x1080, 15.6
Huawei MateBook D 14 W50F
BOE0764 / TV140FHM-NH0, IPS, 1920x1080, 14
Lenovo ThinkBook 15
LP156WFC-SPD1, IPS, 1920x1080, 15.6
HP 15s-fq1556ng
AU Optronics B156HW02, IPS, 1920x1080, 15.6
Response Times
19%
-7%
12%
-10%
Response Time Grey 50% / Grey 80% *
43.6 (20.4, 23.2)
36 (18, 18)
17%
41 (21, 20)
6%
37.6 (19.6, 18)
14%
51 (25, 26)
-17%
Response Time Black / White *
31.2 (18, 13.2)
25 (14, 11)
20%
37 (21, 16)
-19%
28 (16.4, 11.6)
10%
32 (18, 14)
-3%
PWM Frequency
178 (10)
200 (90)
Screen
-38%
-29%
-24%
-23%
Brightness middle
271
250
-8%
291
7%
245
-10%
254
-6%
Brightness
256
228
-11%
276
8%
239
-7%
234
-9%
Brightness Distribution
90
83
-8%
85
-6%
82
-9%
86
-4%
Black Level *
0.15
0.205
-37%
0.46
-207%
0.25
-67%
0.18
-20%
Contrast
1807
1220
-32%
633
-65%
980
-46%
1411
-22%
Colorchecker DeltaE2000 *
4.7
5.65
-20%
4.3
9%
5.6
-19%
5.58
-19%
Colorchecker DeltaE2000 max. *
20.4
13.7
33%
10.01
51%
15.6
24%
9.83
52%
Colorchecker DeltaE2000 calibrated *
4.6
3.18
31%
4.8
-4%
4.53
2%
Greyscale DeltaE2000 *
1.6
6.32
-295%
4.21
-163%
3.4
-113%
5.02
-214%
Gamma
2.17 101%
2.45 90%
2.46 89%
2.3 96%
2.83 78%
CCT
6649 98%
7287 89%
6867 95%
7156 91%
6570 99%
Color Space (Percent of AdobeRGB 1998)
38.5
38
-1%
41
6%
36.5
-5%
36
-6%
Color Space (Percent of sRGB)
60.6
59
-3%
64
6%
57.5
-5%
56
-8%
Totaal Gemiddelde (Programma / Instellingen)
-10% / -29%
-18% / -26%
-6% / -18%
-17% / -21%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

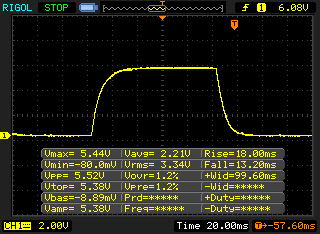

       Responstijd Zwart naar Wit
31.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18 ms stijging
↘ 13.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 79 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.9 ms) van alle geteste toestellen.

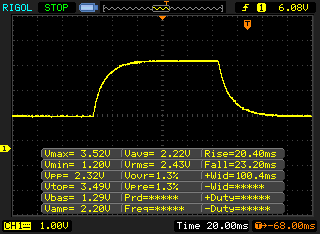

       Responstijd 50% Grijs naar 80% Grijs
43.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20.4 ms stijging
↘ 23.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 63 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (39.5 ms) van alle geteste toestellen.

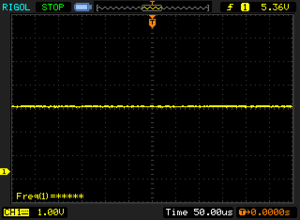

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 50 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17113 (minimum: 5 - maximum: 2500000) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690Tooltip
Huawei MateBook D 15-53010TUY AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø669 (662.73-672.62)
Acer Aspire 5 A515-43-R6WW AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø508 (460.33-641.41)
Acer Aspire 5 A515-43-R6WW AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø505 (498.72-514.09)
Lenovo ThinkBook 15 Intel Core i5-10210U, Intel Core i5-10210U: Ø537 (517.78-687.49)
HP 15s-fq1556ng Intel Core i5-1035G1, Intel Core i5-1035G1: Ø507 (150.07-663.92)
Huawei MateBook D 14-53010TVS AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø661 (656.73-674.67)
Huawei MateBook D 14 W50F Intel Core i5-8250U, Intel Core i5-8250U: Ø525 (518.44-565)
Cinebench R15
CPU Single 64Bit
HP 15s-fq1556ng
Intel Core i5-1035G1
169 Points ∼100% +17%
Lenovo ThinkBook 15
Intel Core i5-10210U
165 Points ∼98% +15%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U
144.02 Points ∼85%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U
144 Points ∼85% 0%
Huawei MateBook D 14 W50F
Intel Core i5-8250U
143 Points ∼85% -1%
Acer Aspire 5 A515-43-R6WW
AMD Ryzen 5 3500U
143 Points ∼85% -1%
Average AMD Ryzen 5 3500U
  (131 - 147, n=14)
142 Points ∼84% -1%
Average of class Subnotebook
  (20 - 185, n=295)
117 Points ∼69% -19%
CPU Multi 64Bit
Lenovo ThinkBook 15
Intel Core i5-10210U
687 Points ∼100% +1%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U
677.84 (min: 671.21, max: 677.84) Points ∼99%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U
674 (min: 644.06, max: 673.71) Points ∼98% -1%
Average AMD Ryzen 5 3500U
  (482 - 682, n=15)
636 Points ∼93% -6%
HP 15s-fq1556ng
Intel Core i5-1035G1
633 Points ∼92% -7%
Acer Aspire 5 A515-43-R6WW
AMD Ryzen 5 3500U
614 Points ∼89% -9%
Acer Aspire 5 A515-43-R6WW
AMD Ryzen 5 3500U
604 Points ∼88% -11%
Huawei MateBook D 14 W50F
Intel Core i5-8250U
565 Points ∼82% -17%
Average of class Subnotebook
  (32 - 1051, n=307)
354 Points ∼52% -48%
Cinebench R15 CPU Single 64Bit
144.02 Points
Cinebench R15 CPU Multi 64Bit
677.84 Points
Cinebench R15 OpenGL 64Bit
49.44 fps
Cinebench R15 Ref. Match 64Bit
98.02 %
Help
PCMark 10
Digital Content Creation
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3467 Points ∼100% +4%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3344 Points ∼96%
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
3325 Points ∼96% -1%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (2989 - 3467, n=12)
3284 Points ∼95% -2%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
3089 Points ∼89% -8%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
3039 Points ∼88% -9%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
2804 Points ∼81% -16%
Average of class Subnotebook
  (405 - 4338, n=110)
2527 Points ∼73% -24%
Productivity
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
6874 Points ∼100% +23%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
6679 Points ∼97% +19%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
5758 Points ∼84% +3%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (5456 - 6074, n=12)
5748 Points ∼84% +3%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
5734 Points ∼83% +2%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
5610 Points ∼82% 0%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
5603 Points ∼82%
Average of class Subnotebook
  (1014 - 7281, n=110)
5203 Points ∼76% -7%
Essentials
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
9103 Points ∼100% +20%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
8508 Points ∼93% +12%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
7600 Points ∼83%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
7596 Points ∼83% 0%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (6690 - 8300, n=12)
7495 Points ∼82% -1%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
7373 Points ∼81% -3%
Average of class Subnotebook
  (2062 - 9664, n=110)
6867 Points ∼75% -10%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
6690 Points ∼73% -12%
Score
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
4248 Points ∼100% +13%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
3992 Points ∼94% +7%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3818 Points ∼90% +2%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3743 Points ∼88%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (3485 - 3972, n=12)
3734 Points ∼88% 0%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
3526 Points ∼83% -6%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
3496 Points ∼82% -7%
Average of class Subnotebook
  (743 - 4609, n=113)
3182 Points ∼75% -15%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
5102 Points ∼100% +9%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
5035 Points ∼99% +7%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
4772 Points ∼94% +2%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (4559 - 4907, n=8)
4702 Points ∼92% 0%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
4699 Points ∼92%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
4570 Points ∼90% -3%
Average of class Subnotebook
  (1283 - 5363, n=229)
4080 Points ∼80% -13%
Home Score Accelerated v2
Lenovo ThinkBook 15
UHD Graphics 620, i5-10210U, Samsung SSD PM981 MZVLB512HAJQ
4227 Points ∼100% +16%
HP 15s-fq1556ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel SSD 660p SSDPEKNW512G8
3673 Points ∼87% +1%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3669 Points ∼87% +1%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3641 Points ∼86%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (3316 - 3669, n=9)
3499 Points ∼83% -4%
Acer Aspire 5 A515-43-R6WW
Vega 8, R5 3500U, Intel SSD 660p 1TB SSDPEKNW010T8
3317 Points ∼78% -9%
Average of class Subnotebook
  (1027 - 4211, n=257)
3058 Points ∼72% -16%
PCMark 8 Home Score Accelerated v2
3641 punten
PCMark 8 Work Score Accelerated v2
4699 punten
Help
Huawei MateBook D 15-53010TUY
Samsung SSD PM981 MZVLB256HAHQ
Acer Aspire 5 A515-43-R6WW
Intel SSD 660p 1TB SSDPEKNW010T8
Lenovo ThinkBook 15
Samsung SSD PM981 MZVLB512HAJQ
HP 15s-fq1556ng
Intel SSD 660p SSDPEKNW512G8
Average Samsung SSD PM981 MZVLB256HAHQ

CrystalDiskMark 5.2 / 6
-17%
30%
7%
43%
Write 4K
134.8
114.9
-15%
176.3
31%
203.1
51%
113 (50.2 - 177, n=24)
-16%
Read 4K
41.68
52.7
26%
48.98
18%
65.32
57%
195 (31.4 - 3738, n=24)
368%
Write Seq
1651
1361
-18%
1789
8%
973.4
-41%
1404 (991 - 1687, n=23)
-15%
Read Seq
2300
1385
-40%
1671
-27%
1651
-28%
1611 (755 - 2300, n=23)
-30%
Write 4K Q32T1
260
181.1
-30%
433.5
67%
525.9
102%
353 (205 - 568, n=24)
36%
Read 4K Q32T1
335.1
340.5
2%
525.6
57%
345.2
3%
389 (229 - 645, n=24)
16%
Write Seq Q32T1
1641
1519
-7%
2983.3
82%
979.8
-40%
1490 (1104 - 1712, n=24)
-9%
Read Seq Q32T1
3452
1515
-56%
3555.1
3%
1883
-45%
3309 (1529 - 3522, n=24)
-4%
Write 4K Q8T8
1687.9
1152 (828 - 1435, n=7)
Read 4K Q8T8
1035.8
736 (572 - 983, n=7)
AS SSD
-30%
34%
-19%
-12%
Score Total
3097
2115
-32%
4279
38%
1901
-39%
2641 (1644 - 3230, n=24)
-15%
Score Write
1542
945
-39%
2033
32%
1083
-30%
1223 (514 - 1752, n=24)
-21%
Score Read
1057
767
-27%
1488
41%
522
-51%
954 (724 - 1152, n=24)
-10%
Access Time Write *
0.042
0.057
-36%
0.025
40%
0.044
-5%
0.042 (0.026 - 0.104, n=24)
-0%
Access Time Read *
0.062
0.032
48%
0.056
10%
0.0713 (0.041 - 0.113, n=24)
-15%
4K-64 Write
1274.96
737.5
-42%
1664.66
31%
827.46
-35%
983 (274 - 1501, n=24)
-23%
4K-64 Read
748.18
586.4
-22%
1174.61
57%
323.13
-57%
704 (530 - 917, n=24)
-6%
4K Write
111.64
77.49
-31%
141.44
27%
165.36
48%
106 (77.4 - 144, n=24)
-5%
4K Read
47.15
44.88
-5%
57.05
21%
58.54
24%
45.7 (32.4 - 53.8, n=24)
-3%
Seq Write
1549.06
1300.38
-16%
2268
46%
904.44
-42%
1335 (827 - 1646, n=24)
-14%
Seq Read
2612.65
1358.29
-48%
2564
-2%
1704.79
-35%
2044 (864 - 2724, n=24)
-22%
Totaal Gemiddelde (Programma / Instellingen)
-24% / -24%
32% / 33%
-6% / -8%
16% / 11%

* ... kleiner is beter

Samsung SSD PM981 MZVLB256HAHQ
CDM 5/6 Read Seq Q32T1: 3452 MB/s
CDM 5/6 Write Seq Q32T1: 1641 MB/s
CDM 5/6 Read 4K Q32T1: 335.1 MB/s
CDM 5/6 Write 4K Q32T1: 260 MB/s
CDM 5 Read Seq: 2300 MB/s
CDM 5 Write Seq: 1651 MB/s
CDM 5/6 Read 4K: 41.68 MB/s
CDM 5/6 Write 4K: 134.8 MB/s
3DMark 11 - 1280x720 Performance GPU
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
3908 Points ∼100% +2%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
3837 Points ∼98%
Average AMD Radeon RX Vega 8
  (1668 - 4317, n=33)
3364 Points ∼86% -12%
Acer Aspire 5 A515-43-R6WW
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
2582 Points ∼66% -33%
HP 15s-fq1556ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2485 Points ∼64% -35%
Lenovo ThinkBook 15
Intel UHD Graphics 620, Intel Core i5-10210U
1914 Points ∼49% -50%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
1776 Points ∼45% -54%
Average of class Subnotebook
  (230 - 10699, n=381)
1381 Points ∼35% -64%
3DMark
1920x1080 Fire Strike Graphics
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
2598 Points ∼100% +2%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
2557 Points ∼98%
Average AMD Radeon RX Vega 8
  (1095 - 2901, n=30)
2153 Points ∼83% -16%
Acer Aspire 5 A515-43-R6WW
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
1673 Points ∼64% -35%
HP 15s-fq1556ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1574 Points ∼61% -38%
Lenovo ThinkBook 15
Intel UHD Graphics 620, Intel Core i5-10210U
1309 Points ∼50% -49%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
1245 Points ∼48% -51%
Average of class Subnotebook
  (222 - 3726, n=262)
1103 Points ∼42% -57%
1280x720 Cloud Gate Standard Graphics
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
18850 Points ∼100% +2%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
18491 Points ∼98%
Average AMD Radeon RX Vega 8
  (7309 - 19351, n=27)
14696 Points ∼78% -21%
Acer Aspire 5 A515-43-R6WW
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
11453 Points ∼61% -38%
Lenovo ThinkBook 15
Intel UHD Graphics 620, Intel Core i5-10210U
10265 Points ∼54% -44%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
9730 Points ∼52% -47%
Average of class Subnotebook
  (1484 - 22615, n=285)
7953 Points ∼42% -57%
HP 15s-fq1556ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
Points ∼0% -100%
3DMark 11 Performance
3950 punten
3DMark Cloud Gate Standard Score
13455 punten
3DMark Fire Strike Score
2339 punten
Help
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
21.05 fps ∼100% 0%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
21.01 fps ∼100%
Average AMD Radeon RX Vega 8
  (7.6 - 21.2, n=26)
16.8 fps ∼80% -20%
Acer Aspire 5 A515-43-R6WW
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
14.55 fps ∼69% -31%
Average of class Subnotebook
  (2.8 - 70.3, n=151)
11.9 fps ∼57% -43%
HP 15s-fq1556ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
11.58 fps ∼55% -45%
Lenovo ThinkBook 15
Intel Core i5-10210U, Intel UHD Graphics 620
10.8 fps ∼51% -49%
Huawei MateBook D 14 W50F
Intel Core i5-8250U, Intel UHD Graphics 620
9.9 fps ∼47% -53%
Dota 2 Reborn
1920x1080 high (2/3)
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
39 (min: 35.8) fps ∼100% +1%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
39 (min: 35.8) fps ∼100% +1%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
38.8 (min: 35.7) fps ∼99%
Average AMD Radeon RX Vega 8
  (26.9 - 47.8, n=17)
35.3 fps ∼91% -9%
Average of class Subnotebook
  (6.5 - 60.7, n=31)
28.5 fps ∼73% -27%
Lenovo ThinkBook 15
Intel Core i5-10210U, Intel UHD Graphics 620
21.9 (min: 20.4) fps ∼56% -44%
HP 15s-fq1556ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
21.8 (min: 16.5) fps ∼56% -44%
1366x768 med (1/3)
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
63.7 (min: 57.3) fps ∼100% +9%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
63.7 (min: 57.3) fps ∼100% +9%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
58.3 (min: 50.1) fps ∼92%
Average AMD Radeon RX Vega 8
  (46.8 - 76.3, n=17)
57.9 fps ∼91% -1%
Lenovo ThinkBook 15
Intel Core i5-10210U, Intel UHD Graphics 620
53.7 (min: 47.1) fps ∼84% -8%
Average of class Subnotebook
  (14.3 - 98.7, n=31)
49.2 fps ∼77% -16%
HP 15s-fq1556ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
40.9 (min: 31.9) fps ∼64% -30%
Final Fantasy XV Benchmark
1920x1080 Standard Quality
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
11.42 fps ∼100%
Average AMD Radeon RX Vega 8
  (6.6 - 13.7, n=4)
10.5 fps ∼92% -8%
Average of class Subnotebook
  (3.3 - 13.8, n=5)
8.18 fps ∼72% -28%
HP 15s-fq1556ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
6.85 fps ∼60% -40%
1280x720 Lite Quality
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
22.96 fps ∼100%
Average AMD Radeon RX Vega 8
  (13.5 - 27, n=4)
20.9 fps ∼91% -9%
Average of class Subnotebook
  (6.1 - 29.3, n=8)
17.1 fps ∼74% -26%
HP 15s-fq1556ng
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
12.99 fps ∼57% -43%
lage gem. hoge ultra
BioShock Infinite (2013) 118.85 21.01 fps
Dota 2 Reborn (2015) 70.5 58.3 38.8 36.2 fps
Final Fantasy XV Benchmark (2018) 22.96 11.42 fps
X-Plane 11.11 (2018) 26.3 19.4 16.3 fps

Geluidsniveau

Onbelast
29.6 / 29.6 / 29.6 dB (A)
Belasting
30.6 / 33.8 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.136.632.633.838.12533.732.629.627343133.133.229.532.237.44031.732.73029.837.15033.93432.334.2346325.228.424.625.528.58026.326.92523.526.710030.929.82827.628.212527.726.524.626.326.116027.428.325.927.527.520025.926.32424.725.825024.925.724.12425.7315242322.821.725.14002321.821.721.22350022.521.921.320.722.663022.321.620.219.722.280022.321.319.418.622.5100022.921.519.718.523.1125023.121.219.217.422.5160022.920.918.716.823.1200023.821.718.816.623.7250023.321.317.815.923.4315020.518.716.615.620.840002018.116.215.420500018.717.31615.618.763001716.315.915.617.1800016.21615.915.516.11000015.915.815.815.515.81250015.615.615.515.415.61600015.415.515.415.215.4SPL33.832.430.629.633.8N21.81.51.32median 22.9median 21.3median 19.2median 17.4median 22.6Delta22.93.83.43.1hearing rangehide median Fan NoiseHuawei MateBook D 15-53010TUY
Max. Belasting
 39.3 °C39.2 °C34.8 °C
 38.9 °C37 °C28.3 °C
 32.5 °C28.1 °C26 °C
Maximum: 39.3 °C
Gemiddelde: 33.8 °C
35.1 °C43.8 °C45.6 °C
26.9 °C39.7 °C40.4 °C
26.3 °C31.7 °C32.8 °C
Maximum: 45.6 °C
Gemiddelde: 35.8 °C
Stroomadapter (max.)  44.9 °C | Kamertemperatuur 20.2 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 33.8 °C / 93 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.3 °C / 103 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 39.8 °C / 104 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.5 °C / 90.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (-4 °C / -7.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.836.52527273132.230.14029.830.55034.233.66325.5258023.525.810027.62912526.328.516027.539.420024.7492502450.731521.755.640021.258.650020.758.663019.757.680018.661100018.561.6125017.461.9160016.859.6200016.656.7250015.958.8315015.657.9400015.455.5500015.655.4630015.654.4800015.549.81000015.541.71250015.441.71600015.242.2SPL29.670.2N1.326.5median 17.4median 55.5Delta3.46.629.429.928.231.736.736.433.629.628.127.225.423.924.42424.625.12524.825.12823.531.124.33322.837.220.342.619.844.518.850.218.758.217.660.817.157.716.557.215.961.315.757.915.45515.459.115.252.715.252.115.348.315.140.91533.714.731.329.268.91.221.7median 17.1median 48.33.712.2hearing rangehide median Pink NoiseHuawei MateBook D 15-53010TUYLenovo ThinkBook 15
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Huawei MateBook D 15-53010TUY audio analysis

(-) | not very loud speakers (70.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(+) | mids are linear (4.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 9% similar, 38% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 36% of all tested devices were better, 7% similar, 57% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkBook 15 audio analysis

(-) | not very loud speakers (68.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.4% lower than median
(±) | linearity of bass is average (7.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.1% higher than median
(±) | linearity of mids is average (12.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.1% higher than median
(±) | linearity of highs is average (13.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (34.8% difference to median)
Compared to same class
» 96% of all tested devices in this class were better, 1% similar, 3% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 96% of all tested devices were better, 2% similar, 3% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.37 / 0.62 Watt
Inactiefdarkmidlight 5.2 / 8.8 / 10.2 Watt
Belasting midlight 37.5 / 50.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8, Samsung SSD PM981 MZVLB256HAHQ, IPS, 1920x1080, 15.6
Acer Aspire 5 A515-43-R6WW
R5 3500U, Vega 8, Intel SSD 660p 1TB SSDPEKNW010T8, IPS, 1920x1080, 15.6
Lenovo ThinkBook 15
i5-10210U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 15.6
HP 15s-fq1556ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), Intel SSD 660p SSDPEKNW512G8, IPS, 1920x1080, 15.6
Huawei MateBook D 14 W50F
i5-8250U, UHD Graphics 620, SanDisk SD9SN8W256G1027, IPS, 1920x1080, 14
Average AMD Radeon RX Vega 8

Average of class Subnotebook

Power Consumption
22%
9%
26%
24%
5%
-5%
Idle Minimum *
5.2
3.7
29%
3.5
33%
3.3
37%
3.7
29%
5.25 (3.7 - 7.6, n=33)
-1%
6.54 (1 - 36, n=620)
-26%
Idle Average *
8.8
6.2
30%
7.1
19%
6.4
27%
6.9
22%
8.17 (5.86 - 12.9, n=33)
7%
9.74 (2.06 - 39, n=620)
-11%
Idle Maximum *
10.2
8.4
18%
7.8
24%
6.8
33%
8.4
18%
9.74 (6.36 - 13.7, n=33)
5%
12 (3.9 - 55, n=620)
-18%
Load Average *
37.5
31.1
17%
38.9
-4%
29
23%
32
15%
37.3 (24.1 - 50.6, n=33)
1%
33.4 (6.3 - 75, n=610)
11%
Load Maximum *
50.9
43.1
15%
65.4
-28%
46
10%
32.6
36%
45.4 (26.5 - 63.6, n=33)
11%
40.5 (7.6 - 111, n=613)
20%

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3 max Brightness
5h 27min
NBC WiFi Websurfing Battery Test 1.3
7h 50min
Belast (maximale helderheid)
1h 15min
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8, 42 Wh
Acer Aspire 5 A515-43-R6WW
R5 3500U, Vega 8, 48 Wh
Lenovo ThinkBook 15
i5-10210U, UHD Graphics 620, 45 Wh
HP 15s-fq1556ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 41 Wh
Huawei MateBook D 14 W50F
i5-8250U, UHD Graphics 620, 57 Wh
Average of class Subnotebook

Batterijduur
36%
1%
8%
50%
33%
WiFi v1.3
470
466
-1%
406
-14%
357
-24%
597
27%
483 (206 - 862, n=240)
3%
Load
75
130
73%
87
16%
104
39%
129
72%
122 (40 - 347, n=567)
63%

Pro

+ zeer goede CPU-prestaties
+ stevige behuizing
+ SATA-aansluiting
+ snelle Wi-Fi

Contra

- USB Type-C-poort is bezet tijdens het opladen
- home- en endtoets ontbreken
- geen toetsenbordverlichting
- RAM niet uit te breiden

Samenvatting - Een notebook CPU hoort zo te werken

Getest: Huawei MateBook D 15. Testmodel geleverd door: Huawei Germany
Getest: Huawei MateBook D 15. Testmodel geleverd door: Huawei Germany

Voor het volledige, Engelse testrapport, klik hier.

Met de MateBook D 15 is Huawei geslaagd waar veel andere fabrikanten om een ​​groot aantal redenen falen. De CPU van de D 15 kan optimaal presteren, zelfs op accustroom. In dat geval blijft de processor op volle snelheid draaien totdat de batterij leeg is. Hierdoor is het energieverbruik licht gestegen. Echter, waarom zou je een krachtige processor kopen als je nooit van plan was deze goed te gebruiken? Bovendien heeft Huawei een koeloplossing geïmplementeerd die specifiek is afgestemd op dit type hardware, en dit is de reden waarom het systeem zo weinig geluid produceert.

De Huawei MateBook D 15 bevat een CPU die optimaal presteert en weinig warmte produceert.

De rest van de hardware is vrij standaard en het enige dat we kunnen bekritiseren is het toetsenbord. Het is geschikt voor lange typ-sessies, maar degenen die vaak de toetsen ‘home’ en 'end' gebruiken, komen van een koude kermis thuis. Bovendien verwachtten we ook op zijn minst een eenvoudige toetsenbordverlichting met een dergelijk apparaat. Uiteindelijk zullen kopers die op zoek zijn naar een slanke en krachtige laptop niet teleurgesteld worden door de Huawei MateBook D 15.

Huawei MateBook D 15-53010TUY - 05-03-2020 v7
Mike Wobker

Behuizing
84 / 98 → 86%
Toetsenbord
82%
Aanwijsapparaat
91%
Aansluitmogelijkheden
48 / 75 → 64%
Gewicht
69 / 20-75 → 89%
Batterij
79%
Beeldscherm
83%
Gaming-performance
59 / 78 → 76%
Applicatie-performance
82 / 85 → 96%
Temperatuur
91%
Luidheid
98%
Audio
65 / 91 → 71%
Camera
42 / 85 → 49%
Gemiddelde
75%
85%
Subnotebook - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Huawei MateBook D 15 Laptop: Nog steeds een goede laptop met AMD
Mike Wobker, 2020-03-11 (Update: 2020-03-11)
